CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 1
CANopen Slave Device
CAN-2054C
Application User’s Manual
Warranty
Without contrived damage, all products manufactured by ICP DAS are
warranted in one year from the date of delivery to customers.
Warning
ICP DAS revises the manual at any time without notice. However, no
responsibility is taken by ICP DAS unless infringement act imperils to patents
of the third parties.
Copyright
Copyright © 2009 is reserved by ICP DAS.
Trademark
The brand name ICP DAS as a trademark is registered, and can be used
by other authorized companies.
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 2
Contents
1 Introduction .............................................................................................3
1.1 Overview.........................................................................................3
1.2 Hardware Specifications...............................................................4
1.3 Features..........................................................................................5
1.4 Application.....................................................................................5
2 Hardware .................................................................................................6
2.1 Structure.........................................................................................6
2.2 Node ID & Baud Rate Rotary Switch............................................7
2.3 I/O Pair-connection Mode..............................................................8
2.4 LED Description...........................................................................10
2.5 PIN Assignment ...........................................................................12
2.6 Wire Connection ..........................................................................13
3 Object Dictionary..................................................................................14
3.1 Object List....................................................................................14
3.2 Store and Restore Object............................................................17
3.3 Application Object.......................................................................18
3.4 Default PDO Mapping..................................................................22
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 3
1 Introduction
1.1 Overview
CANopen is one kind of the network protocols based on the CAN bus and
mainly used for embedded network of machine control, such as industrial
machine control , aircraft engines monitoring, factory automation, medical
equipments control, remote data acquisition, environmental monitoring, and
packaging machines control, etc.
CAN-2054C module follows the CiA DS-301 version 4.02 and DSP-401
version 2.1. It is easy to access the digital I/O status and set the configuration
by using standard CANopen protocol. CAN-2054C has passed the validation
of the CiA CANopen Conformance Test tool. Therefore, the provided EDS file
is standard for any other standard CANopen masters. CAN-2054C has
8-channel isolated sink/source input and 8-channel isolated sink output and it
can be used to various applications, such as PNP, NPN, TTL, relay contact
and so forth. By owing to the CANopen masters of ICP DAS, you can quickly
build a CANopen network to approach your requirements.

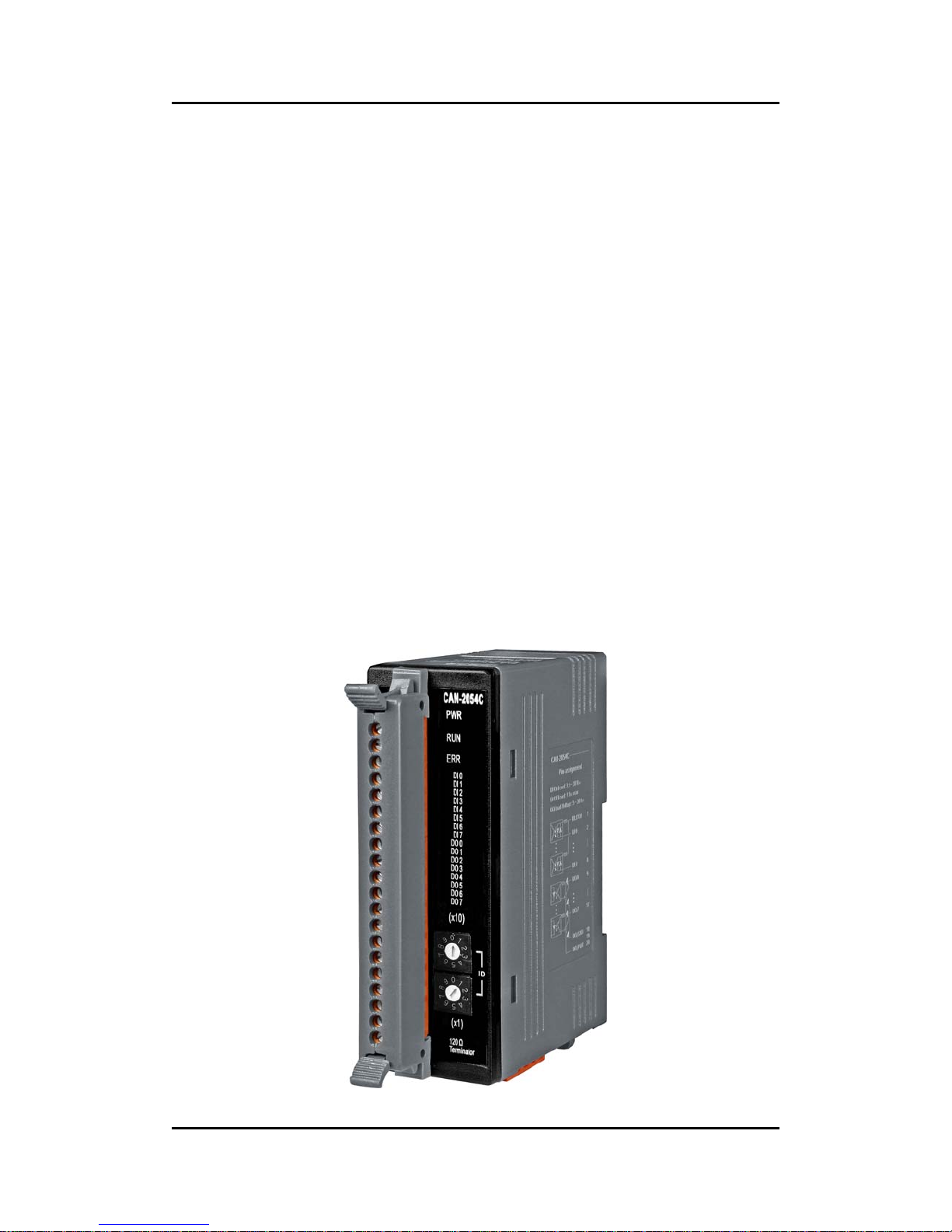

Figure 1-1
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 4
1.2 Hardware Specifications
Digital Output:
z Output Channels: 8 (Sink)
z DO Load Voltage: +5 ~ +30 VDC
z Output Max Load Current: 700 mA per channel.
z Output Type: Open-Collector.
z Intra-module Isolation: 3750 Vrms
z Reaction Time:
DO Message to rising edge: 55 us.
DO Message to falling edge: 170 us.
z ESD Protection: 4 kV Contact for each channel
Digital Input:
z Input Channels: 8 (Sink/Source).
z DI On Level: +3.5 ~ +30 VDC.
z DI Off Level: +1VDC Max.
z Input Impedance: 3 kΩ, 0.3 W.
z Intra-module Isolation: 3750 Vrms
z Response Time:
Rising edge to DI response: 75 us
Falling edge to DI response: 180 us
z ESD Protection: 4 kV Contact for each channel
Others:
z CANopen Status: 3 LEDs for PWR / RUN / ERR.
z Terminal Resister: 1 LED as terminator resister indicators
z DI LED: 8 LEDs as digital input indicators.
z DO LED: 8 LEDs as digital output indicators.
z Power Supply: Unregulated +10 ~ +30 VDC.
z Power Consumption: 1.5 W.
z Operating Temperature: -25 ~ 75 ℃.
z Storage Temperature: -35 ~ 80 ℃.
z Humidity: 10 to 90% RH, Non-condensing.
z Dimensions: 32.5 mm x 110 mm x 102 mm (W x L x H) Detail.
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 5
1.3 Features
z Standard CANopen general I/O slave devices.
z CANopen Version: DS-301, v4.02.
z Device Profile: DSP-401, v2.1
z Support I/O pair-connection mechanism.
z Provide normal/polarity 8 DI channels and 8 DO channels
z CANopen transfer rate: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250
kbps, 500 kbps, 800 kbps, 1000 kbps.
z Support maximum CANopen slave devices Node-ID up to 99.
z Set Node-ID 0 for firmware update (after version 1.50-20111227).
Firmware updates tools: I-7530 series, I-7540D series, I-7565
series, PISO-CM100 series, and PISO-CAN series.
z Support NMT, PDO, SDO, EMCY, SYNC, Guarding, and Heartbeat
protocol.
z Pass the validation of CANopen conformance test
z Provide EDS file for CANopen master interface
1.4 Application
Figure 1-2 Application Structure
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 6
2 Hardware

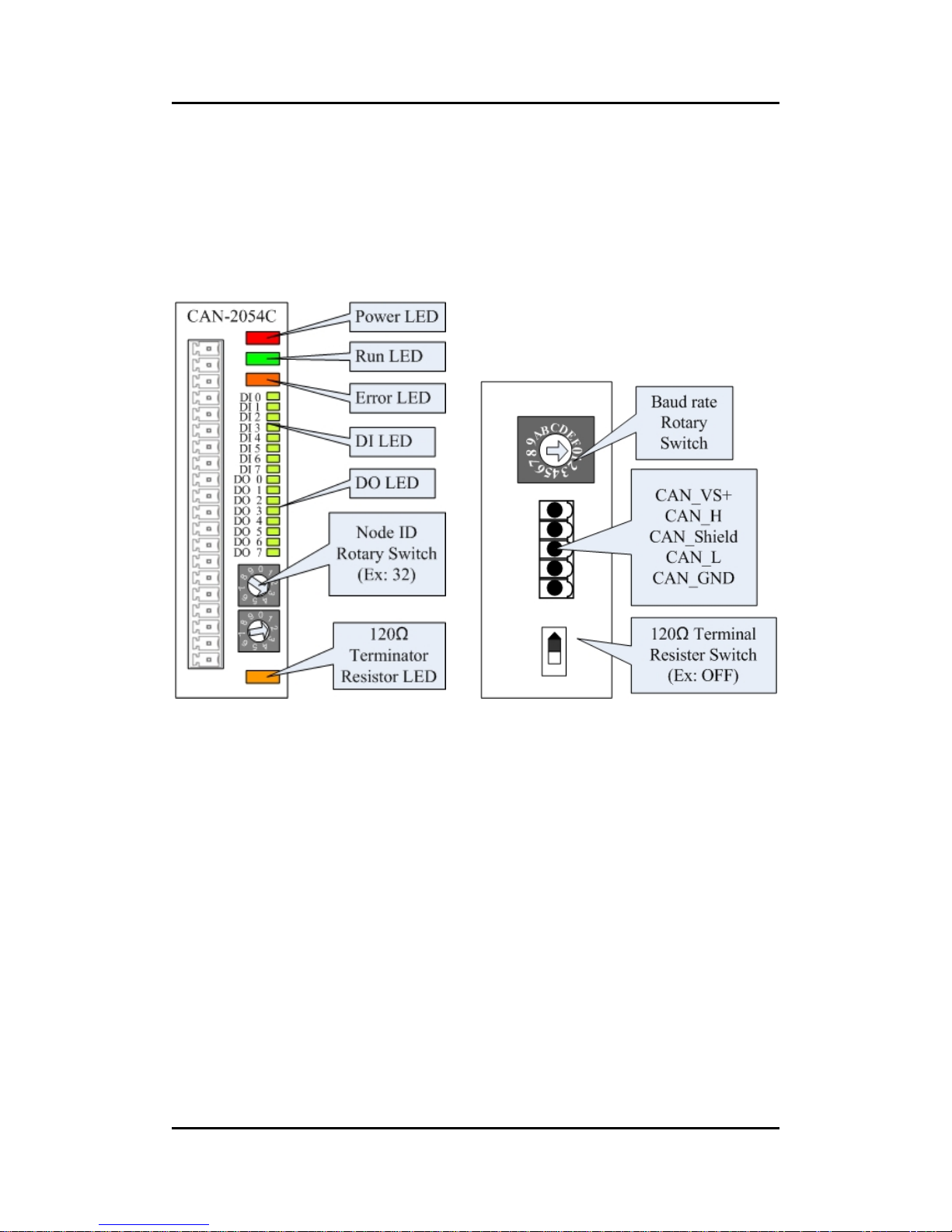

2.1 Structure
Figure 2-1 (Top View) Figure 2-2 (Bottom View)
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 7

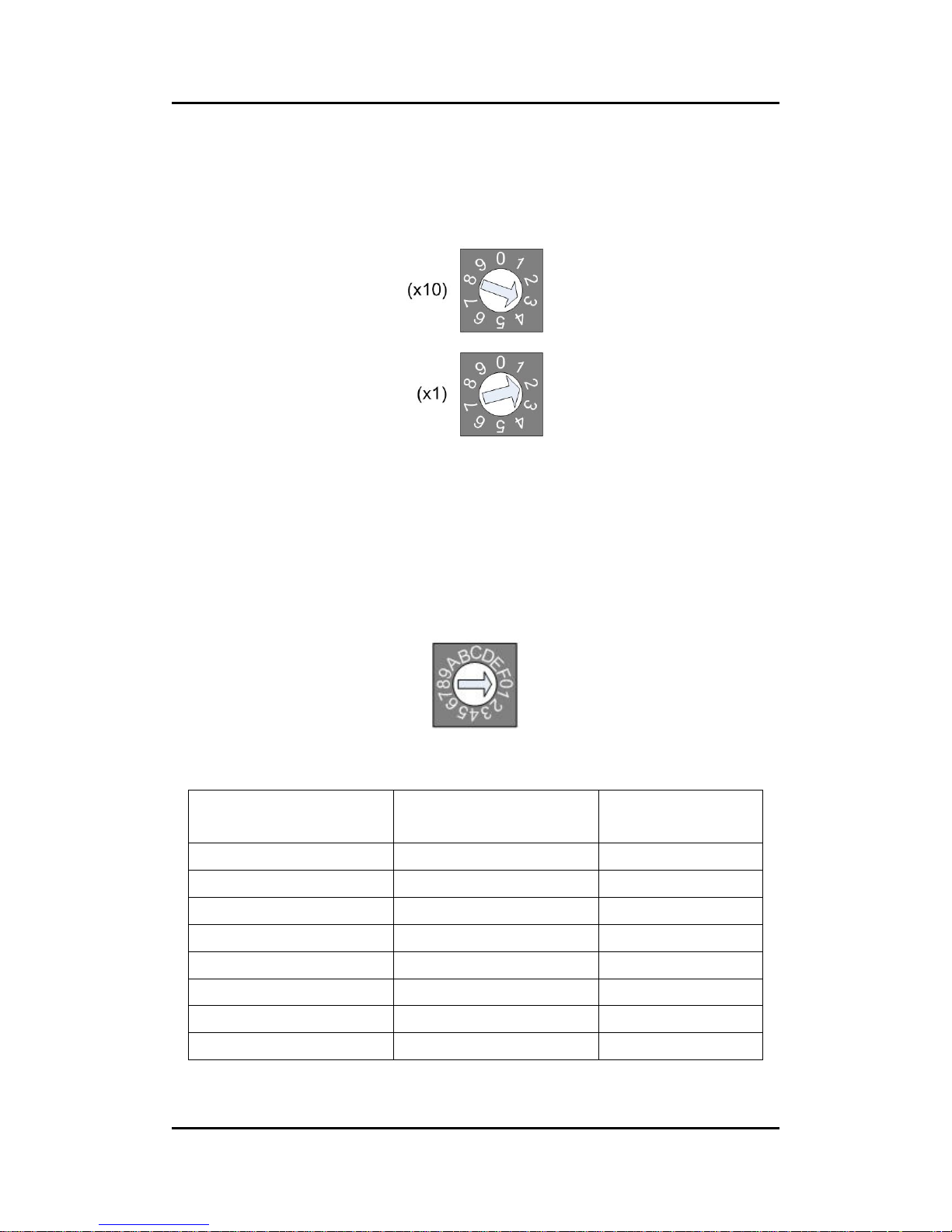

2.2 Node ID & Baud Rate Rotary Switch
The rotary switches of node ID configure the node ID of CAN-2054C
module. These two switches are for the tens digit and the units digit of the
node ID. The node ID value of this demo picture is 32.
Figure 2-3 Node ID rotary switch
The rotary switch of baud rate handles the CAN baud rate of CAN-2054C
module. The value of baud rate switch from 0 ~ 7 are normal CANopen mode,
and 8 ~ F are I/O pair-connection mode. About the I/O pair-connection mode
please refer to section 2.3. The relationship between the rotary switch value
and the practical baud rate is presented in the following table.
Figure 2-4 Baud rate rotary switch
Rotary Switch Value
Rotary Switch Value of
I/O Pair-connection
Baud Rate (k bps)
0 8 10
1 9 20
2 A 50
3 B 125
4 C 250
5 D 500
6 E 800
7 F 1000
Table 2-1
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 8
2.3 I/O Pair-connection Mode
The CAN-2054C module provides the I/O pair-connection function. Before
using this function, you need to prepare one CAN-2054C module and a 8-bit
DO and 8-bit DI CAN-2000 series module (such as CAN-2054C). When
applying this function, the DI channels of one CAN-2054C and the DO
channels of another CAN-2054C are mapping with each other. That is to say
that when the DI channels of one CAN-2054C get the ON signal, the
corresponding DO channels of another CAN-2054C will be turned on.
When you completed the connection of these two CAN-2054Cs by CAN
bus, you need to set the baud rate rotary switch of these two modules to 0x8 ~
0xF, and configure the node ID of them by the special rule. Set the node ID to
be odd for one module, and set the node ID of another module to be the value
which is equal to the node ID increased one of the former. Therefore, they are
the couple as the following figure.
Figure 2-5
For example, user uses two CAN-2054Cs to do I/O pair-connection. The
connection structure is as follows.
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 9
Figure 2-6
The node IDs of these two CAN-2054Cs are 1 and 2 respectively. Both of
these two module’s baud rate switch are selected to “D”, 500 kbps CANopen
baud rate with I/O pair-connection mode, and these two modules will into
Operational state automatically. When the DI channel of one CAN-2054C
receives a DI ON-signal, another CAN-2054C will output the ON-signal at the
corresponding DO channel.
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 10
2.4 LED Description
Power LED
CAN-2054C allows 10 VDC ~ 30 VDC for working voltage. The
power consumption is 1.5 W. Under the connection of a proper power
connection, as the unit is turned on, the LED will light up in red.
Run LED
The Run LED indicates the CANopen operation state. The
description of LED state is shown below. About the detail, please refer
to the section 2.3.1 of the CAN-2000C user manual.
LED Signal State Description
No Light Non-operation Power Supply is not ready
Single Flash Stopped The device is in Stopped state
Blinking Pre-operational Device is in Pre-operational state
Continuing Light Operational Device is in Operational state
Table 2-2
Error LED
The Error LED indicates the CANopen error state. The
description of LED state is shown below. About the detail please refer
to the section 2.3.2 of the CAN-2000C user manual.
LED Signal State Description
No Light No error Device is working well.
Single Flash Error Warning At least one CANopen error
happened.
Double Flash Guarding Fail Guarding fail event happened.
Continuing Light Bus Off The bus off state happened.
Table 2-3
Terminal Resistor LED
When enable the 120Ω terminator resistor, the LED will turn on.
DO LED
If the DO LED turns on, it means that the corresponding DO
channel is active no matter what the DO channel polarity is. (User can
configure the 0x6202 object to change the polarity of the DO channel.
Please refer to section 3.3 for detail.)
DI LED
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 11
If the DI LED turns on, it means that the corresponding DI
channel receives an ON voltage-level digital signal no matter what the
DI channel polarity is. (User can configure the 0x6002 object to
change the polarity of the DO channel. Please refer to section 3.3 for
detail.)
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 12
2.5 PIN Assignment
Figure 2-7
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 13
2.6 Wire Connection
Figure 2-8
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 14
3 Object Dictionary
3.1 Object List
General Communication Entries
Idx Sidx Description Type Attr Default
1000h
0h
device type UNSIGNED 32
RO
00300191h
1001h
0h
error register UNSIGNED 8
RO
0h
1003h
0h
largest sub-index supported fo
r
“predefine error field”
UNSIGNED 8
RO
0h
1h
actual error (the newest one) UNSIGNED 32
RO
---
...
... ...
...
---
5h
actual error (the oldest one) UNSIGNED 32
RO
---
1005h
0h
COB-ID of Sync message UNSIGNED 32
RW
80h
1008h
0h
manufacturer device name
VISIBLE_STRING
RO
CAN-2054C
1009h
0h
manufacturer hardware version
VISIBLE_STRING
RO
1.2
100Ah
0h
manufacturer software version
VISIBLE_STRING
RO
1.50-20111227
100Ch
0h
guard time UNSIGNED 16
RW
0h
100Dh
0h
life time factor UNSIGNED 8
RW
0h
1010h
0h
largest sub-index supported fo
r
“store parameters”
UNSIGNED 8
RO
1h
1010h
1h
save all hardware parameter UNSIGNED 32
RW
---
1011h
0h
largest sub-index supported fo
r
“restore default parameters”
UNSIGNED 8
RO
1h
1011h
1h
restore all default parameters UNSIGNED 32
RW
---
1014h
0h
COB-ID of EMCY UNSIGNED 32
RW
80h+x
1017h
0h
producer heartbeat time UNSIGNED 16
RW
0
1018h
0h
largest sub-index supported fo
r
“identity object”
UNSIGNED 8
RO
4
1h
vender ID UNSIGNED 32
RO
---
2h
product code UNSIGNED 32
RO
---
3h
revision number UNSIGNED 32
RO
---
4h
serial number UNSIGNED 32
RO
---
Table 3-1
Note: x is Node-ID of the module
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 15
SDO Communication Entries
Idx Sidx Description Type Attr Default
1200h 0h largest sub-index supported for
“server SDO parameter”
UNSIGNED 8
RO 2
1h COB-ID form client to server
(RxSDO)
UNSIGNED 32
RO 600h+x
2h COB-ID form server to client
(TxSDO)
UNSIGNED 32
RO 580h+x
Table 3-2
Note: x is Node-ID of the module
RxPDO Communication Entry
Idx Sidx Description Type
Attr
Default
1400h 0h Number of entries
UNSIGNED 8
RO
2
1h COB-ID used by RxPDO
UNSIGNED 32
RW
200h+x
2h Transmission type
UNSIGNED 8
RW
FFh
Table 3-3
Note: x is Node-ID of the module
RxPDO Mapping Communication Entry
Idx Sidx Description Type
Attr
Default
1600h 0h Number of entries
UNSIGNED 8
RW
8
1h Write Output channel 0
UNSIGNED 32
RW
6200 0108h
Table 3-4
TxPDO Communication Entry
Idx Sidx Description Type
Attr
Default
1800h 0h Number of entries
UNSIGNED 8
RO
5
1h COB-ID used by TxPDO
UNSIGNED 32
RW
180h+x
2h Transmission type
UNSIGNED 8
RW
FFh
3h Inhibit time
UNSIGNED 16
0
4h reversed ---
---
---
5h Event timer
UNSIGNED 16
0
Table 3-5
Note: x is Node-ID of the module
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 16
TxPDO Mapping Communication Entry
Idx Sidx Description Type
Attr
Default
1A00h 0h Number of entries
UNSIGNED 8
RO
1
1h DI channel 0 ~ 7
UNSIGNED 32
RW
6000 0108h
Table 3-6
Digital Input Function
Idx Sidx Description Type Attr Default
6000h 0h Number of Input 8-Bit
UNSIGNED 8
RO 1
1h DI value of ch0 ~ ch7
UNSIGNED 8
RO 0
6002h 0h Number of Input 8-Bit
UNSIGNED 8
RO 1
1h Change polarity DI ch0 ~ ch7
UNSIGNED 8
RW 0
2030h 0h Number of entries
UNSIGNED 8
RO 1
1h DI Scan Filter times
UNSIGNED 8
RW 2
Table 3-7
Note: Object 0x2030h is used for DI noise. If there is any DI noise in your
application, you can set the value larger to avoid the unexpected noise.
Digital Output Function
Idx Sidx Description Type Attr Default
6200h 0h Number of Output 8-Bit
UNSIGNED 8
RO 1
1h DO value of ch0 ~ ch7
UNSIGNED 8
RW 0
6202h 0h Number of Output 8-Bit
UNSIGNED 8
RO 1
1h Change polarity DO ch0 ~ ch7
UNSIGNED 8
RW 0
6206h 0h Number of Output 8-Bit
UNSIGNED 8
RO 2
1h Error mode DO ch0 ~ ch7
UNSIGNED 8
RW 0xFF
6207h 0h Number of Output 8-Bit
UNSIGNED 8
RO 2
1h Error value DO ch0 ~ ch7
UNSIGNED 8
RW 0
Table 3-8
Power On Value Function
Idx Sidx Description Type Attr Default
2010h 0h Number of Output 8-Bit
UNSIGNED 8
RO 1
1h Set DO power on value of ch0 ~
ch7
UNSIGNED 8
RW 0
Table 3-9
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 17
3.2 Store and Restore Object
User can write the value 0x65766173 to the object index 0x1010 to save
configuration setting, or write the value 0x64616F6C to object index 0x1011 to
load the factory default. The following table lists the relative objects which will
be stored or restored after writing these two objects. The factory default for
these objects is also shown.
Store and Restore functions:
Index Subindex Function
1010 h 1 Store application and communication setting.
1010 h 2 Store communication setting only.
1010 h 3 Store application setting only.
1011 h 1 Restore application and communication setting.
1011 h 2 Restore communication setting only.
1011 h 3 Restore application setting only.
Table 3-10
Communication Setting:
Please refer to above table 3-3, 3-4, 3-5, and 3-6.
Application Setting:
Index Sub
Index
Description Factory
Default
2010 h 1 Set digital output power on value for channel 8 ~ 15 0x00
6002 h 1 Change polarity digital input for channel 0 ~ 7 0x00
6202 h 1 Change polarity digital output for channel 0 ~ 7 0x00
6206 h 1 Error mode digital output for channel 0 ~ 7 0xFF
6207 h 1 Error value digital output for channel 0 ~ 7 0x00
Table 3-11
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 18
3.3 Application Object
Digital Input module (0x6000)
User can use the object index 0x6000 with subindex 1 to read a group of
8-bit information.
For example, if the node id of CAN-2054C is 1, the commands are as below:
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 1 0 0 0 0 0 0 0 0 1 0 8 40 00 60 01 00 00 00 00
SDO client
SDO server
(CAN-2054C)
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 0 1 1 0 0 0 0 0 0 1 0 4 4F 00 60 01 0F -- -- --
SDO client
SDO server
(CAN-2054C)
Read the object index 0x6000 with subindex 1, and the digital value 0x0F will be
responded by CAN-2054C module. The DI channels of DI3, DI2, DI1 and DI0 are
turn on and others are turn off.
Change Input Polarity (0x6002)
User can configure the object index 0x6002 with subindex 1 to set the
polarity of DI channels.
This object 0x6002 with subindex 1 defines the polarity of a group of 8 input
lines. Input polarity can be inverted individually.
1 = input inverted.
0 = input not inverted.
For example, if the node id of CAN-2054C is 1, the commands are as below:
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 1 0 0 0 0 0 0 0 0 1 0 8 2F 02 60 01 F0 00 00 00
SDO client
SDO server
(CAN-2054C)
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 19
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 0 1 1 0 0 0 0 0 0 1 0 4 60 02 60 01 -- -- -- --
SDO client
SDO server
(CAN-2054C)
Write object index 0x6002 with subindex 1 to 0xF0 means that set the Ch0 ~ Ch3
of DI channels to normal, and set the Ch4 ~ Ch7 to be inverted.
Digital Output module (0x6200)
User can set a group of 8 output lines as a byte of information and sent it
into the object index 0x6200 with subindex 1 of CAN-2054C. For example, if
the node id of CAN-2054C is 1, the commands are as below:
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 1 0 0 0 0 0 0 0 0 1 0 8 2F 00 62 01 0F 00 00 00
SDO client
SDO server
(CAN-2054C)
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 0 1 1 0 0 0 0 0 0 1 0 4 60 00 62 01 -- -- -- --
SDO client
SDO server
(CAN-2054C)
Write the 0x0F of digital output value into the object index 0x6200 with subindex
1, and its response success by CAN-2054C.
Change Output Polarity (0x6202)
This object 0x6202 with subindex 1 defines the polarity of a group of 8
output lines. Output polarity can be inverted individually.
1 = output inverted.
0 = output not inverted.
For example, if the node id of CAN-2054C is 1, the commands are as below:
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 20
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 1 0 0 0 0 0 0 0 0 1 0 8 2F 02 62 01 F0 00 00 00
SDO client
SDO server
(CAN-2054C)
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 0 1 1 0 0 0 0 0 0 1 0 4 60 02 62 01 -- -- -- --
SDO client
SDO server
(CAN-2054C)
Write object index 0x6202 with subindex 1 to 0xF0 means that set the Ch0 ~ Ch3
of DO channels to normal, and set the Ch4 ~ Ch7 to be inverted.
Error Mode and Error Value (0x6206, 0x6207)
The object 0x6206 and 0x6207 are used to control the safe value when
error happens. When some error event of this module happens such as node
guarding failure, the module will check the value of the object 0x6206. If some
bits of this value are set to 1, the corresponding DO channels will be into the
error mode output. The error mode output values are concerned to the object
0x6207. For example, if the subindex 01 in the object with 0x6206 and 0x6207
are 0x31 and 0xF8 respectively, when some error event occurs, only the DO5,
DO4, DO0 will be changed to error mode output because the bit 5, bit 4, and
bit 0 of the value 0x31 is 1. The others channels keeps the status as the error
event is not happened. The bit 5, bit 4, and bit 0 of the value 0xF8 are 1, 1 and
0, therefore the error mode output value of DO5, DO4 and DO0 are active,
active, and inactive respectively.
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 1 0 0 0 0 0 0 0 0 1 0 8 2F 06 62 01 31 00 00 00
SDO client
SDO server
(CAN-2054C)
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 21
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 0 1 1 0 0 0 0 0 0 1 0 8 60 06 62 01 -- -- -- --
SDO client
SDO server
(CAN-2054C)
Write object index 0x6206 and subindex 1 to 0x31 means set the error mode to
0x31 for enabling the error mode output of DO 0, DO 4 and DO5.
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 1 0 0 0 0 0 0 0 0 1 0 8 2F 07 62 01 F8 00 00 00
SDO client
SDO server
(CAN-2054C)
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 0 1 1 0 0 0 0 0 0 1 0 8 60 07 62 01 -- -- -- --
SDO client
SDO server
(CAN-2054C)
Write object index 0x6207 and subindex 1 to 0xF8 means set the error value to
0xF8 for activating the error mode output value of DO 3 ~ DO 7. If the error event
in this module, the module will output the safe value 0x30 (0x31 & 0xF8 = 0x30)
corresponding the object 0x6206 and 0x6207.
Set Power On Value (0x2010)
This object 0x2010 with subindex 1 defines the power on value of a group
of 8 output lines. Power on value can be set individually.
CAN-2054C user’s manual (Revision 1.30, Nov/05/2014) ------ 22
For example, if the node id of CAN-2054C is 1, the commands are as below:
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 1 0 0 0 0 0 0 0 0 1 0 8 2F 10 20 01 F0 00 00 00
SDO client
SDO server
(CAN-2054C)
11-bit COB-ID (bit)
Func Code Node ID
8-byte Data (byte)
10 9 8 7 6 5 4 3 2 1 0
RTR
Data
Length
0 1 2 3 4 5 6 7
1 0 1 1 0 0 0 0 0 0 1 0 4 60 10 20 01 -- -- -- --
SDO client
SDO server
(CAN-2054C)
Write object index 0x2010 with subindex 1 to 0xF0 means that set the Ch0 ~ Ch3
of DO channels to 0, and set the Ch4 ~ Ch7 to 1 when the CAN-2054C power on.
3.4 Default PDO Mapping
RxPDO mapping list:
ID Len D 0
200h + x 1 DO 0 ~ DO 7
Table 3-12 Default RxPDO list
Note: x is Node-ID of the module
TxPDO mapping list:
ID Len D 0
180h + x 1 DI 0 ~ DI 7
Table 3-13 Default TxPDO list
Note: x is Node-ID of the module
Loading...
