A-812PG
Hardware User’s Manual
Warranty
All products manufactured by ICP DAS are warranted against defective materials for a
period of one year from the date of delivery to the original purchaser.
Warning
ICP DAS assume no liability for damages consequent to the use of this product. ICP
DAS reserves the right to change this manual at any time without notice. The information
furnished by ICP DAS is believed to be accurate and reliable. However, no responsibility is
assumed by ICP DAS for its use, nor for any infringements of patents or other rights of third
parties resulting from its use.
Copyright
Copyright 1997 by ICP DAS. All rights are reserved.
Trademark
The names used for identification only may be registered trademarks of their respective
companies.
License
The user can use, modify and backup this software
on a single machine.
The user may not reproduce, transfer or distribute this software, or any copy, in whole or in
part.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 1
Tables of Contents
1. Introduction ___________________________________________________________4
1.1 General Description______________________________________________________ 4
1.2 Features _________________________________________________________________ 4
1.3 Specifications_____________________________________________________________ 5
1.3.1 Power Consumption : ___________________________________________________________ 5
1.3.2 Analog Inputs _________________________________________________________________ 5
1.3.3 A/D Converter_________________________________________________________________5
1.3.4 DA Converter _________________________________________________________________ 6
1.3.5 Digital I/O____________________________________________________________________6
1.3.6 Interrupt Channel ______________________________________________________________6
1.3.7 Programmable Timer/Counter_____________________________________________________7
1.3.8 Direct Memory Access Channel (DMA) ____________________________________________7
1.4 Applications______________________________________________________________ 8
1.5 Product Check List ________________________________________________________ 8
2 Hardware Configuration _________________________________________________9
2.1 Board Layout_____________________________________________________________ 9
2.2 I/O Base Address Setting __________________________________________________ 10
2.3 Jumper Setting __________________________________________________________ 11
2.3.1 JP3 : D/A Internal Reference Voltage Selection______________________________________11
2.3.2 JP1, JP2 : D/A Int/Ext Ref Voltage Selection ______________________________________12
2.3.3 JP8 : A/D Trigger Source Selection _______________________________________________12
2.3.4 JP5 : Interrupt Level Selection ___________________________________________________13
2.3.5 JP9 : User Timer/Counter Clock Input Selection _____________________________________14
2.3.6 JP6 : DMA DACK Selection, JP7 : DMA DRQ Selection _________________ 15
2.4 I/O Register Address______________________________________________________ 16
2.4.1 8254 Counter_________________________________________________________________17
2.4.2 A/D Input Buffer Register_______________________________________________________17
2.4.3 D/A Output Latch Register______________________________________________________ 18
2.4.4 D/I Input Buffer Register _______________________________________________________ 19
2.4.5 Clear Interrupt Request_________________________________________________________ 19
2.4.6 A/D Gain Control Register ______________________________________________________20
2.4.7 A/D Multiplex Control Register __________________________________________________ 21
2.4.8 A/D Mode Control Register _____________________________________________________21
2.4.8 A/D Software Trigger Control Register ____________________________________________23
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 2
2.4.9 D/O Output Latch Register______________________________________________________ 24
2.5 Digital I/O ______________________________________________________________ 25
2.6 8254 Timer/Counter ______________________________________________________ 26
2.7 A/D Conversion__________________________________________________________ 27
2.7.1 A/D conversion flow___________________________________________________________ 28
2.7.2 A/D Conversion Trigger Modes __________________________________________________29
2.7.3 A/D Transfer Modes ___________________________________________________________29
2.7.4 Using software trigger and polling transfer _________________________________________30
2.8 D/A Conversion__________________________________________________________ 31
2.9 Analog Input Signal Connection ____________________________________________ 32
2.10 Pin Assignment___________________________________________________________ 33
2.11 Daughter Board __________________________________________________________ 34
2.11.1 DN-20 for Analog input / output_________________________________________________34
2.11.2 DB-16P for Digital input_______________________________________________________34
2.11.3 DB-16R for Digital output _____________________________________________________34
3. Calibration___________________________________________________________35
3.1 Calibration VR Description ________________________________________________ 36
3.2 D/A Calibration Steps_____________________________________________________ 37
3.3 A/D Calibration Steps_____________________________________________________ 37
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 3
1. Introduction
1.1 General Description
The A-812PG is a high performance, multifunction analog, digital I/O board for the PC
AT compatible computer. The A-812PG provides low gain (1, 2, 4, 8, 16). The A-812PG
contains a 12-bit ADC with up to 16 single-ended analog inputs. The maximum sample rate
of A/D converter is about 62.5K sample/sec. There are two 12-bits DAC with voltage outputs,
16 channels of TTL-compatible digital input, 16 channels of TTL-compatible digital output
and one 16-bit counter/timer channel for timing input and output.
1.2 Features
The maximum sample rate of A/D converter is about 62.5 K sample/sec
Software selectable input ranges
PC AT compatible ISA bus
A/D trigger mode : software trigger , pacer trigger, external trigger
16 single-ended input signals
Programmable low gain : 1,2,4,8,16
2 channel 12-bit D/A voltage output
16 digital input /16 digital output (TTL compatible)
Interrupt handling
1 channel general purpose programmable 16 bits timer/counter
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 4
1.3 Specifications
1.3.1 Power Consumption :
+5V @960 mA maximum, A-812PG
Operating temperature : -20°C ~ 60°C
1.3.2 Analog Inputs
Channels : 16 single-ended
Input range : (software programmable)
A-812PG:bipolar : ±10V, ±5V, ±2.5V, ±1.25V, ±0.625V, ±0.3125V
(input range : ±10V or ±0.3125V by Jumper JP4 selected )
Input current : 250 nA max (125 nA typical ) at 25 deg.
On chip sample and hold
Over voltage : continuous single channel to
70Vp-p
Input impedance : 10 Ω // 6pF
10
1.3.3 A/D Converter
Type : successive approximation , Burr Brown ADS 774
or SIPEX-SP774B ( equivalent)
Conversion time : 8 microsec.
Accuracy : +/- 1 bit
Resolution : 12 bits
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 5
1.3.4 DA Converter
Channels : 2 independent
Type : 12 bit multiplying , Analog device AD-7541
Linearity : +/- 1/2 bit
Output range : 0~5V or 0~10V jumper selected , may be used with other AC or
DC reference input Maximum output limit +/- 10V
Output drive : +/- 5mA
Settling time : 0.6 microseconds to 0.01% for full scale step
1.3.5 Digital I/O
Output port : 16 bits, TTL compatible
Input port : 16 bits, TTL compatible
1.3.6 Interrupt Channel
Level : 3,4,5,6,7,9,10,11,12,14,15, jumper selectable
Enable : Via control register
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 6
1.3.7 Programmable Timer/Counter
Type : 82C54 -8 programmable timer/counter
Counters: The counter1 and counter2 are cascaded as a 32 bits pacer timer.
The counter0 is used as user timer/counter. The software driver use counter0
to implement a machine independent timer.
Clock input frequency : DC to 10 MHz
Pacer output : 0.00047Hz to 0.5MHz
Input, gate : TTL compatible
Internal Clock : 2M Hz
1.3.8 Direct Memory Access Channel (DMA)
Level : CH1 or CH3, jumper selectable
Enable : via DMA bit of control register
Termination : by interrupt on T/C
Transfer rate : 100K conversions/sec.(DOS Software manual, sec. 4.11)
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 7
1.4 Applications
Signal analysis
FFT & frequency analysis
Transient analysis
Production test
Process control
Vibration analysis
Energy management
Industrial and lab. measurement and control
1.5 Product Check List
In addition to this manual, the package includes the following items:
A-812PG multifunction card
A-812PG utility diskette
A-812PG DOS software manual
Attention !
If any of these items is missing or damaged, contact the dealer who
provides you this product. Save the shipping materials and carton in
case you want to ship or store the product in the future.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 8
2. Hardware Configuration
2.1 Board Layout
A-812PG
ISA BUS
ISA BUS
CN5
CN4
JP5
SW1
CN2
JP4
JP
8
JP7 JP6
JP1
JP3
CN3
CN1
BB ADS-774
JP2
JP
9
VR 1 2 3 4 5
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 9
2.2 I/O Base Address Setting
The A-812PG occupies 16 consecutive locations in I/O address space. The
base address is set by DIP switch SW1. The default address is 0x220.
ON
1 2 3 4 5 6
A9 A8 A7 A6 A5 A4`
SW1 : BASE ADDRESS
BASE
ADDR
A9 A8 A7 A6 A5 A4
200-20F OFF ON ON ON ON ON
210-21F OFF ON ON ON ON OFF
220-22F() OFF ON ON ON OFF ON
230-23F OFF ON ON ON OFF OFF
: : : : : : :
300-30F OFF OFF ON ON ON ON
: : : : : : :
3F0-3FF OFF OFF OFF OFF OFF
() : default base address is 0x220
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 10
The PC I/O port mapping is given below.
ADDRESS Device ADDRESS DEVICE
000-1FF PC reserved 320-32F XT Hard Disk
200-20F Game/control 378-37F Parallel Printer
210-21F XT Expansion Unit 380-38F SDLC
238-23F Bus Mouse/Alt. Bus Mouse 3A0-3AF SDLC
278-27F Parallel Printer 3B0-3BF MDA/Parallel Printer
2B0-2DF EGA 3C0-3CF EGA
2E0-2E7 AT GPIB 3D0-3DF CGA
2E8-2EF Serial Port 3E8-3EF Serial Port
2F8-2FF Serial Port 3F0-3F7 Floppy Disk
300-31F Prototype Card 3F8-3FF Serial Port
2.3 Jumper Setting

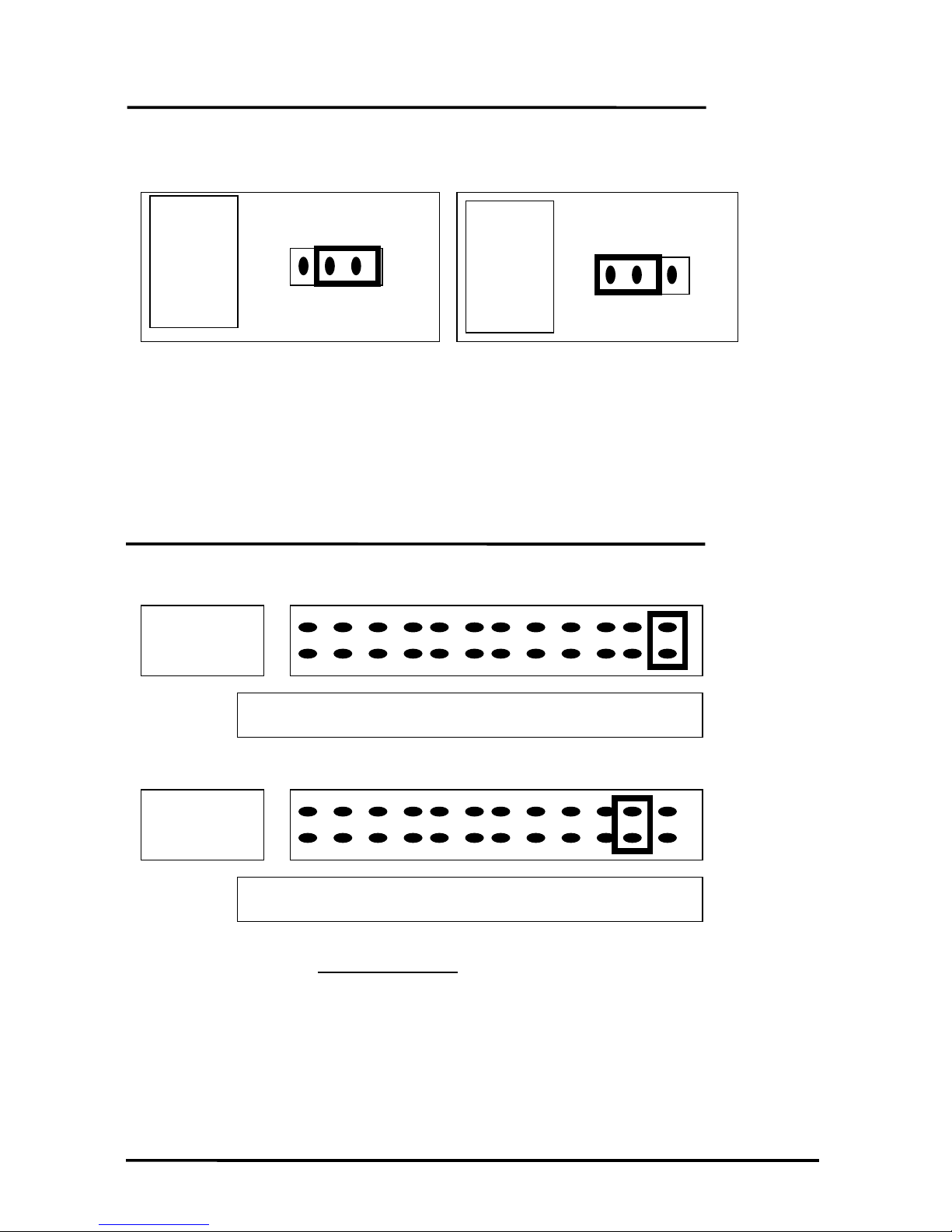

2.3.1 JP3 : D/A Internal Reference Voltage
Selection
JP3
(5V)
(
10V
)
Reference
Voltage
5V
(default)
JP3
(5V)
(
10V
)
Reference
Voltage
10V
Select ( 5V) : D/A voltage output = 0 to 5V (both channel)
Select ( 10V) : D/A voltage output = 0 to 10V (both channel)
JP3 is validate only if JP1/JP2 select D/A internal reference voltage
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 11
2.3.2 JP1, JP2 : D/A Int/Ext Ref Voltage Selection
If JP1/2 select internal reference, then JP3 select 5V/ 10V internal reference voltage.
If JP1/2 select external reference, then ExtRef1, CN2 pin 17, is the external reference
voltage for DA channel 1. and ExtRef2, CN2 pin 19, is the external reference voltage for
DA Channel 2. If user provides AC +/- 10V external reference voltage, the D/A output
voltage may be AC -/+ 10V
2.3.3 JP8 : A/D Trigger Source Selection
Ch 1 = INT
Ch 2 = INT
(default)
JP1/2(vref
)
Ch 1 =EXT
(ExtRef1)
Ch 2 =EXT
(ExtRef2)
Ch 1 = INT
Ch 2 =EXT
(ExtRef2)
JP1
/2(
vref
)
Ch 1 =EXT
(ExtRef1)
Ch 2 = INT
JP1
/2(
vref)
JP1/2(vref)
EXTTRG
INTTRG
Internal
Trigger
(default)
EXTTRG
INTTRG
External
Trigger
The A-812PG supports two trigger type, internal trigger and external
trigger. The external trigger comes from ExtTrg, CN3 pin 1. There are two
types of internal trigger, software trigger and pacer trigger.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 12
2.3.4 JP4 : A/D Input Range Selection
JP4
( 5V)
(
10V
)
A/D input
range
0 ~ 5V
(default)
JP4
( 5V)
(
10V
)
A/D input
range
0 ~ 10V
Select ( 5V) : A/D voltage input = 0 to 5V (total channel)
Select ( 10V) : A/D voltage input = 0 to 10V (total channel)
2.3.5 JP5 : Interrupt Level Selection
The interrupt channel can not be shared. The A-812PG software driver can support 8
different boards in one system but only 2 of these cards can use interrupt transfer function.
N
O Interrupt
IRQ 3 4 5 6 7 9 10 11 12 14 15 NC
Interrupt 15
(default)
IRQ 3 4 5 6 7 9 10 11 12 14 15 NC
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 13
2.3.6 JP9 : User Timer/Counter Clock Input
Selection
The A-812PG has 3 independent 16 bits timer/counter. The cascaded
counter1 and counter2 are used as pacer timer. The counter0 can be used as a
user programmable timer/counter. The user programmable timer/counter can
select 2M internal clock or external clock ExtCLK, CN3 pin 8. The block
diagram is given in section 2.6. The clock source must be very stable. It is
recommended to use internal 2M clock.
The A-812PG software driver uses the counter0 as a machine
independent timer. If user program call A-812PG_Delay() subroutine, the
counter0 will be programmed as a machine independent timer. The detail
information is given in section 2.6.
Internal 2M
Clock
(default)
INTCLK
EXTCLK
External
Clock
INTCL
K
EXTCLK
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 14
2.3.7 JP6 : DMA DACK Selection,
JP7 : DMA DRQ Selection
The DMA channel cannot be shared. The A-812PG software driver can support 8
different boards in one PC based system, but only two of these boards can use DMA
transfer function.
N
O DMA
1
5
2
6
DRQ
JP7
1
5
2
6
DAC
K
JP8
JP8
JP7
1
5
2
6
DRQ
1
5
2
6
DAC
K
DMA 1
(default)
1
5
2
6
DRQ
JP7
1
5
2
6
JP8
DAC
K
DMA 3
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 15
2.4 I/O Register Address
The A-812PG occupies 16 consecutive PC I/O addresses. The following table
lists the registers and their locations.
Address Read Write
Base+0 8254 Counter 0 8254 Counter 0
Base+1 8254 Counter 1 8254 Counter 1
Base+2 8254 Counter 2 8254 Counter 2
Base+3 Reserved 8254 Counter Control
Base+4 A/D Low Byte D/A Channel 0 Low Byte
Base+5 A/D High Byte D/A Channel 0 High Byte
Base+6 DI Low Byte D/A Channel 1 Low Byte
Base+7 DI High Byte D/A Channel 1 High Byte
Base+8 Reserved A/D Clear Interrupt Request
Base+9 Reserved A/D Gain Control
Base+A Reserved A/D Multiplexer Control
Base+B Reserved A/D Mode Control
Base+C Reserved A/D Software Trigger Control
Base+D Reserved DO Low Byte
Base+E Reserved DO High Byte
Base+F Reserved Reserved
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 16
2.4.1 8254 Counter
The 8254 Programmable timer/counter has 4 registers from Base+0 through
Base+3. For detailed programming information about 8254, please refer to
Intel‘s “Microsystem Components Handbook”.
Address Read Write
Base+0 8254 Counter 0 8254 Counter 0
Base+1 8254 Counter 1 8254 Counter 1
Base+2 8254 Counter 2 8254 Counter 2
Base+3 Reserved 8254 Counter Control
2.4.2 A/D Input Buffer Register
(READ) Base+4 : A/D Low Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
D7 D6 D5 D4 D3 D2 D1 D0
(READ) Base+5 : A/D High Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 0 0 READY D11 D10 D9 D8
A/D 12 bits data : D11…..D0, D11=MSB, D0=LSB
READY =1 : A/D 12 bits data is not ready
=0 : A/D 12 bits data is ready
The low 8 bits A/D data are stored in address BASE+4 and the high 4 bits data are stored in
address BASE+5. The READY bit is used as an indicator for A/D conversion. When a A/D
conversion is completed, the READY bit will be clear to zero.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 17
2.4.3 D/A Output Latch Register
(WRITE) Base+4 : Channel 1 D/A Low Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
D7 D6 D5 D4 D3 D2 D1 D0
(WRITE) Base+5 : Channel 1 D/A High Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X X X X D11 D10 D9 D8
(WRITE) Base+6 : Channel 2 D/A Low Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
D7 D6 D5 D4 D3 D2 D1 D0
(WRITE) Base+7 : Channel 2 D/A High Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X X X X D11 D10 D9 D8
D/A 12 bits output data : D11..D0, D11=MSB, D0=LSB, X=don‘t care
The D/A converter will convert the 12 bits digital data to analog output. The low 8 bits of
D/A channel 1 are stored in address BASE+4 and high 4 bits are stored in address BASE+5.
The address BASE+6 and BASE+7 store the 12 bits data for D/A channel 2. The D/A output
latch registers are designed as a “double buffered” structure, so the analog output latch
registers will be updated until the high 4 bits digital data are written. If the user sends the
high 4 bits data first, the DA 12 bits output latch registers will update at once. So the low 8
bits will be the previous data latched in register. This action will cause an error on DA
output voltage. So the user must send low 8 bits first and then send high 4 bits to
update the 12 bits AD output latch register.
NOTE : Send low 8 bits first, then send high 4 bits.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 18
2.4.4 D/I Input Buffer Register
(READ) Base+6 : D/I Input Buffer Low Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
D7 D6 D5 D4 D3 D2 D1 D0
(READ) Base+7 : D/I Input Buffer High Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
D15 D14 D13 D12 D11 D10 D9 D8
D/I 16 bits input data : D15..D0, D15=MSB, D0=LSB
The A-812PG provides 16 TTL compatible digital inputs. The low 8 bits are stored in
address BASE+6. The high 8 bits are stored in address BASE+7.
2.4.5 Clear Interrupt Request
(WRITE) Base+8 : Clear Interrupt Request Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X X X X X X X X
X=don‘t care, XXXXXXXX=any 8 bits data is validate
If A-812PG is working in the interrupt transfer mode, an on-board hardware status bit will be
set after each A/D conversion. This bit must be clear by software before the next hardware
interrupt. Writing any value to address BASE+8 will clear this hardware bit and the
hardware will generate another interrupt when next A/D conversion is completed.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 19
2.4.6 A/D Gain Control Register
(WRITE) Base+9 : A/D Gain Control Register Format
y Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X X X X X GAIN2 GAIN1 GAIN0
The A-812PG provides gain factor of 1/2/4/8/16. The gain control register controls the gain
of A/D input signal. JP4 A/D input selection will effect the gain factor.
NOTE : If gain control code changed, the hardware need to delay extra gain
settling time. The gain settling time is different for different gain control code. The
software driver does not take care the gain settling time, so the user need to delay the
gain settling time if gain changed. If the application program need to run in different
machines, the user need to implement a machine independent timer.
A-812PG GAIN CONTROL CODE TABLE
JP4 = 5V
Settling Time GAIN Input Range GAIN2 GAIN1 GAIN0
23 us 1 +/- 5V 0 0 0
23 us 2 +/- 2.5V 0 0 1
25 us 4 +/- 1.25V 0 1 0
28 us 8 +/- 0.625V 0 1 1
28 us 16 +/- 0.3125V 1 0 0
JP4 = 10V
Settling Time GAIN Input Range GAIN2 GAIN1 GAIN0
23 us 1 +/- 10V 0 0 0
23 us 2 +/- 5V 0 0 1
25 us 4 +/- 2.5V 0 1 0
28 us 8 +/- 1. 25V 0 1 1
28 us 16 +/- 0.625V 1 0 0
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 20
2.4.7 A/D Multiplex Control Register
(WRITE) Base+A : A/D Multiplexer Control Register Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X X X X D3 D2 D1 D0
A/D input channel selection data = 4 bits : D3..D0, D3=MSB, D0=LSB, X=don‘t care
The A-812PG provides 16 single-ended analog input signals. D3..D0 select the
active channel.
2.4.8 A/D Mode Control Register
(WRITE) Base+B : A/D Mode Control Register Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X X X X X D2 D1 D0
X=don‘t care
JP8 Select Internal Trigger
Mode Select Trigger Type Transfer Type
D2 D1 D0 Software Trig Pacer Trig Software Interrupt DMA
0 0 0 X X X X X
0 0 1 Select X Select X X
0 1 0 X Select X X Select
1 1 0 X Select Select Select X
X=disable
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 21
JP8 Select External Trigger
Mode Select Trigger Type Transfer Type
D2 D1 D0 External Trigger Software Interrupt DMA
0 0 0 X X X X
0 0 1 X X X X
0 1 0 Select X X Select
1 1 0 Select Select Select X
The A/D conversion operation can be divided into 2 stages, trigger stage and transfer
stage. The trigger stage will generate a trigger signal to A/D converter and the transfer stage
will transfer the result to the CPU.
The trigger method may be internal trigger or external trigger. The internal trigger can
be software trigger or pacer trigger. The software trigger is very simple but can not
control the sampling rate very precisely. In software trigger mode, the program issues a
software trigger command any time needed. Then the program will poll the A/D status bit
until the ready bit is 0.
The pacer trigger can control the sampling rate very precisely. So the converted
data can be used to reconstruct the waveform of analog input signal. In pacer trigger
mode, the pacer timer will generate trigger signals to A/D converter periodic. These
converted data can be transfer to the CPU by polling or interrupt or DMA transfer method.
The software driver provides three data transfer methods, polling, interrupt and DMA.
The polling subroutine, A-812PG_AD_PollingVar() or A-812PG_AD_PollingArray(), set
A/D mode control register to 0x01. This control word means software trigger and polling
transfer. The interrupt subroutine, A-812PG_AD_INT_START(…), set A/D mode control
mode register to ox06. This control word means pacer trigger and interrupt transfer. The
DMA subroutine, A-812PG_AD_DMA_START(…), set A/D mode control register to 0x02.
This control word means pacer trigger and DMA transfer.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 22
2.4.9 A/D Software Trigger Control Register
(WRITE) Base+C : A/D Software Trigger Control Register Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
X X X X X X X X
X=don‘t care, XXXXXXXX=any 8 bits data is validate
The A/D converter can be triggered by software trigger or pacer trigger. Writing any
value to address BASE+C will generate a trigger pulse to A/D converter and initiated an A/D
conversion operation. The address BASE+5 offers a ready bit to indicate an A/D conversion
complete.
The software driver uses this control word to detect the A-812PG hardware board. The
software initiates a software trigger and checks the ready bit. If the ready bit cannot be
cleared to zero in a fixed time, the software driver will return an error message. If the I/O
BASE address setting error, the ready bit will not be cleared to zero. The software driver,
A-812PG_CheckAddress(), use this method to detect the correctness of I/O BASE address
setting.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 23
2.4.10 D/O Output Latch Register
(WRITE) Base+D : D/O Output Latch Low Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
D7 D6 D5 D4 D3 D2 D1 D0
(WRITE) Base+E : D/O Output Latch High Byte Data Format
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
D15 D14 D13 D12 D11 D10 D9 D8
D/O 16 bits output data : D15..D0, D15=MSB, D0=LSB
The A-812PG provides 16 TTL compatible digital output. The low 8 bits are stored in
address BASE+D. The high 8 bits are stored in address BASE+E
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 24
2.5 Digital I/O
The A-812PG provides 16 digital input channels and 16 digital output
channels. All levels are TTL compatible. The connections diagram and block
diagram are given below:
A-812PG
Output Latch Register
Output Latch Register
Latch
Reset
Power on
reset
Reset
Latch
D0..D7
D8..D15
CN5
1..8
9..16
TTL
DI
DGND
17..18
DGND
D0..D7
Base+D
Base+E
External
Device
A-812PG
Read
Read
D0..D7
Input Buffer Register
Base+6
Base+7
D0..D7
D8..D15
CN4
1..8
9..16
Input Buffer Register
TTL
DO
DGND
17..18
DGND
External
Device
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 25

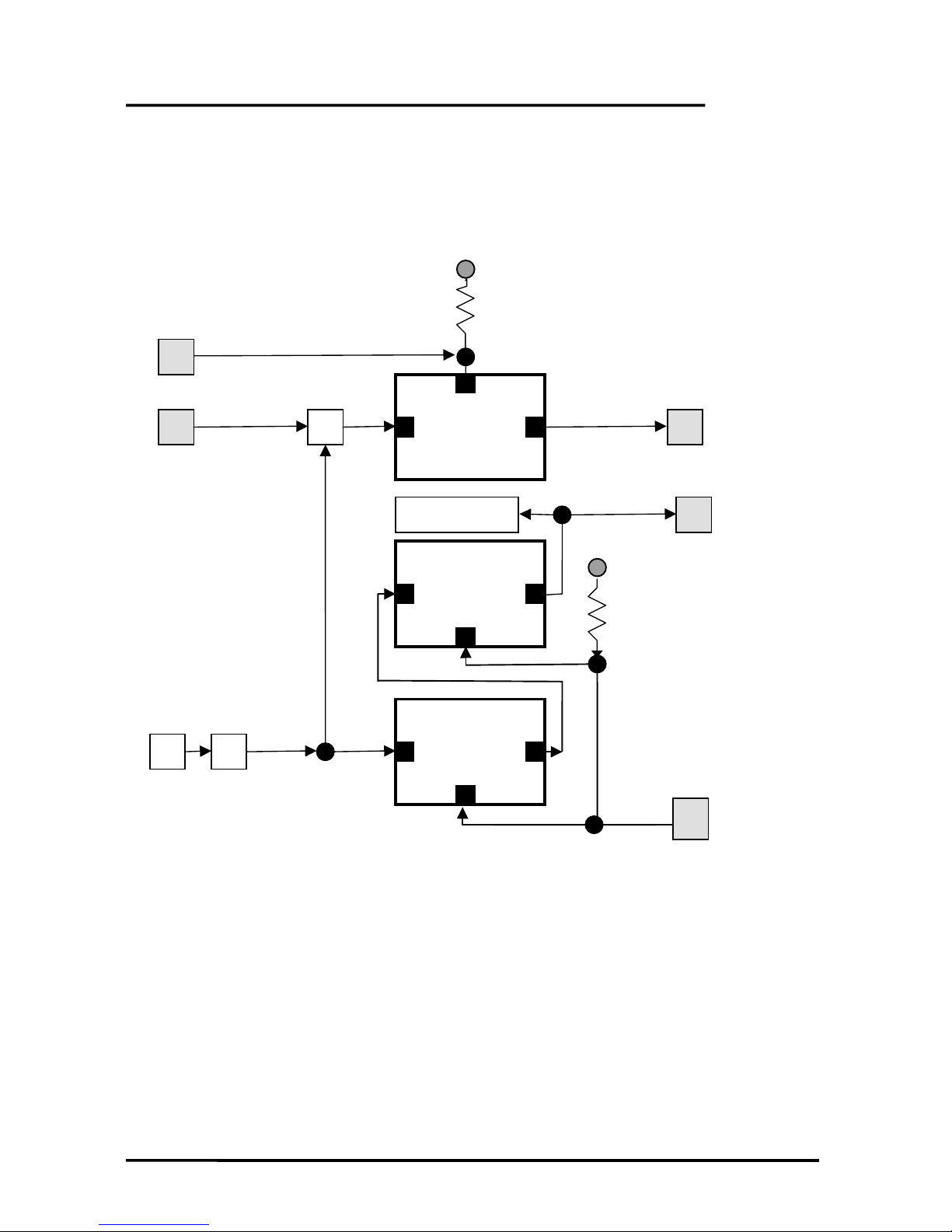

2.6 8254 Timer/Counter
The 8254 Programmable timer/counter has 4 registers from Base+0 through Base+3. For
detailed programming information about 8254, please refer to Intel‘s “Microsystem
Components Handbook”.The block diagram is as below.
Cin : clock input
Cout : clock output
INTCLK : internal clock
CN3 : connector CN3
Cin
Gate
Cout
Counter 0
Cin
Gate
Cout
Counter 1
Cin
Gate
Cout
Counter 2
4M 2M
INTCLK
VCC
10K
CN3. Pin 8
PACER CLK
JP9
2M
CN3.14
CN3.10
CN3.12
VCC
10K
CN3.6
The counter0, counter1 and counter2 are all 16 bits counter. The counter 1 and counter 2
cascade as a 32 bits timer.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 26
2.7 A/D Conversion
This section explains how to use A/D conversions. The A/D conversion can
be triggered in any of 3 ways, by software trigger, by pacer trigger or by
external trigger to the A/D converter. At the end of A/D conversion, it is
possible to transfer data by one of 3 way, those are polling, interrupt and
DMA. Before using the A/D conversion function, user should notice the
following issue:
A/D data register, BASE+4/BASE+5, store the A/D conversion data
A/D gain control register, BASE+9, select gain
A/D multiplex control register, BASE+A, select analog input
A/D mode control register, BASE+B, select trigger type and transfer
type A/D software trigger control register, BASE+C
JP8 select internal/external trigger
JP5 select IRQ level
JP9 select internal/external clock for counter0
JP6, JP7 select DMA channel
3 trigger logic : software, pacer, external trigger
3 transfer logic : polling, interrupt, DMA

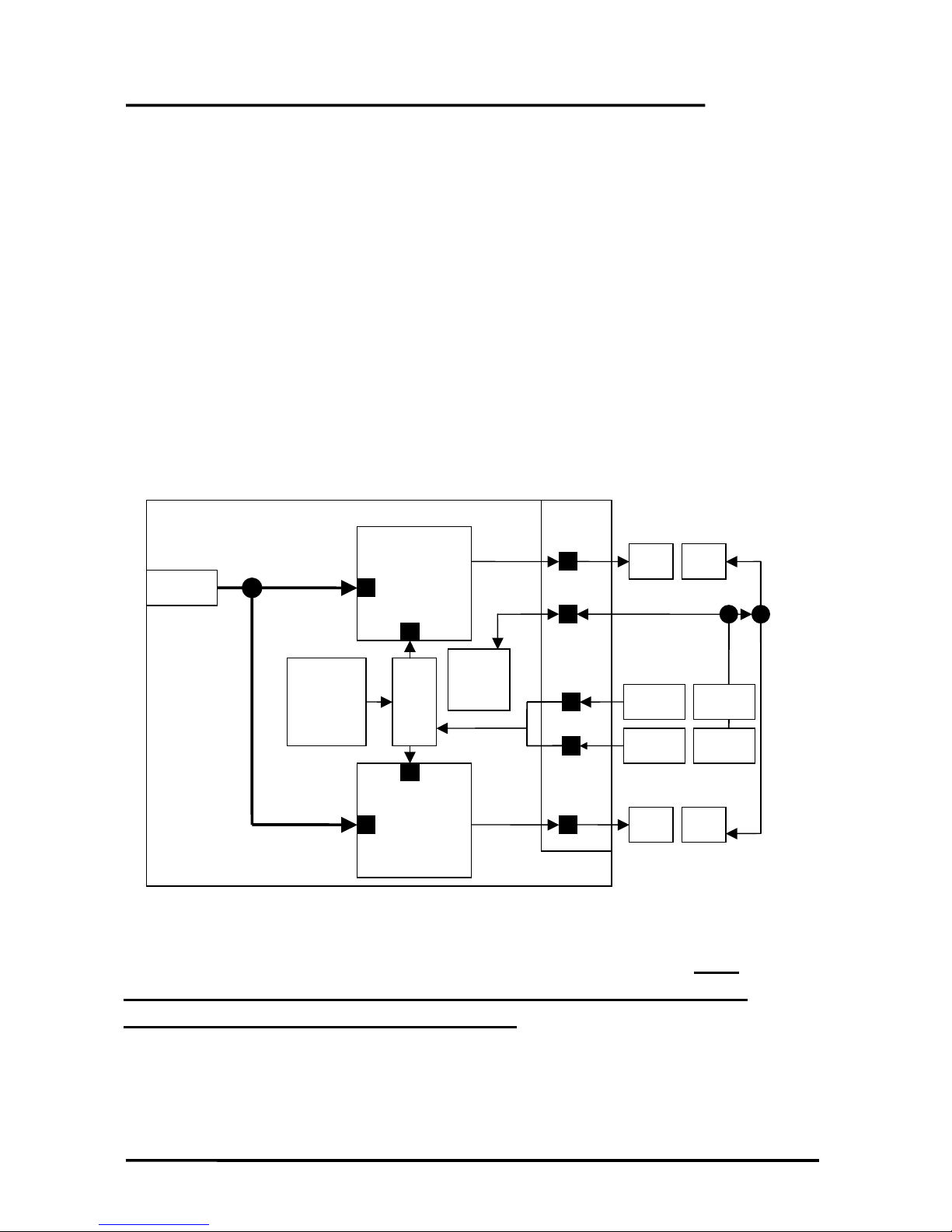

The block diagram is given below:
A-812PG
CN1
CN2
16 CH.
Multi-
p
lexer
Gain
Control
12 bits
A/D
Buffer
Memory
Transfer
Logic
CPU Trigger
Logic
Base+9 Base+A
JP5
JP6
JP7
JP8 Base+BBase+C
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 27
2.7.1 A/D conversion flow
Before using the A/D converter, the user should setup the following hardware items :
1. Selects internal trigger or external trigger (JP8)
2. Selects IRQ level if needed (JP5)
3. Selects DMA channel if needed (JP6, JP7)
4. Selects internal clock or external clock for counter0 if needed (JP9)
Then the user must decide which A/D conversion mode will be used. The software driver
supports three different modes: polling, interrupt and DMA. The user can control the A/D
conversion by polling mode very easy. It is recommended to use the software driver if using
interrupt or DMA mode.
The multiplexer can select one of the 16 single-ended channel and let external signal pass
into the gain control module. The settling time of multiplexer depends on the source
resistance. Because the software doesn’t take care the settling time, the user should
delay enough settling time if switching from one channel to next channel.
The gain control module also need settling time if gain control code changed. Because
the software doesn’t take care the settling time, the user should delay enough settling
time if gain control code is changed.
The software driver provides a machine independent timer, A-812PG_Delay(), for
settling time delay. This subroutine assumes that JP6 select internal 2M clock and use
counter0 to implement a machine independent timer. If the user call A-812PG_delay(), the
counter0 will be reserved and can’t be used as a user programmable timer/counter.
The output of gain control module feed into the A/D converter. The A/D converter
needs a trigger signal to start an A/D conversion cycle. The A-812PG supports three
trigger mode, software, pacer and external trigger
. The result of A/D conversion can be
transfer into CPU by three mode : polling, interrupt and DMA.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 28
2.7.2 A/D Conversion Trigger Modes
A-812PG supports three trigger modes.
1 : Software Trigger :
Writing any value to A/D software trigger control register, BASE+A, will initiate an
A/D conversion cycle. This mode is very simple but very difficult to control sampling
rate.
2 : Pacer Trigger Mode :
The pacer timer can give very precise sampling rate.
3 : External Trigger Mode :
When a rising edge of external trigger signal is applied, an A/D conversion will be
performed. The external trigger source comes from pin 1 of CN3.
2.7.3 A/D Transfer Modes
A-812PG supports three transfer modes.
1 : Polling transfer :
This mode can be used with all trigger modes. The software scans A/D high byte data
register, BASE+5, until READY_BIT=0.The low byte data is also ready in BASE+4.
2 : Interrupt transfer :
This mode can be used with pacer trigger or external trigger. The user can set the IRQ
level by adjusting JP5. A hardware interrupt signal is sent to the PC when an A/D
conversion is completed.
3 : DMA transfer :
This mode can be used with pacer trigger or external trigger. The user can set the DMA
channel by adjusting JP6 and JP7. The hardware DMA request will send signals
sequentially to the PC when an A/D conversion is completed. The single mode transfer
of 8237 is suggested.
If using interrupt or DMA transfer, it is recommended to use A-812PG software
driver.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 29
2.7.4 Using software trigger and polling transfer
If the user needs to direct control the A/D converter without the A-812PG software driver. It
is recommended to use software trigger and polling transfer. The program steps are listing as
below:
1. Sends 0x01 to A/D mode control register (software trigger + polling transfer)
2. Sends channel number to multiplexer control register
3. Sends the gain control code value to gain control register
4. Delays the settling time
5. Sends any value to software trigger control register to generate a software rigger signal
6. Scans the READY bit of the A/D high byte data until READY=0
7. Reads the 12 bits A/D data
8. Converts this 12 bits binary data to the floating point value
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 30
2.8 D/A Conversion
The A-812PG provides two 12 bits D/A converters. Before using the D/A
conversion function, user should notice the following issue:
D/A output register, BASE+4/BASE+5/BASE+6/BASE+7,
JP3 select internal reference voltage 5V/ 10V
JP1/JP2 select internal/external reference voltage
If JP1/JP2 select internal and JP3 select 5V, the D/A output range from 0 to 5V
If JP1/JP2 select internal and JP3 select 10V, the D/A output range from 0 to 10V
If JP1/JP2 select external, the external reference voltage can be AC/DC +/- 10V
The block diagram is given as below:
A-812PG
D/A channel 0
Base+4/+5
Ref
JP1
JP2
JP3
5/ 10 V
Internal
Reference
D/A channel 1
D0..D7
Base+6/+7
Ref
13
17
15
2,4…20
Analog
Gnd
V0+ V0-
Vref0+ Vref0-
V1+ V1-
Vref1+ 19Vref1-
CN2
NOTE : The DA output latch registers are designed as “double buffer” structure.
The
user must send the low byte data first, then send the high byte
data to store the DA 12 bits digital data. If the user only sends the high byte
data, then the low byte data will be still the previous value. Also if the user sends high byte
first then send low byte, the low byte data of DA are still hold in the previous one.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 31
2.9 Analog Input Signal Connection
FG1 : Connecting analog input configuration
A/D CH0
AGND
Es
A-812PG
A/D CHn
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 32
2.10 Pin Assignment
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 33
Daughter Board
The A-812PG can be connected with many different daughter boards. The functions of these
daughter boards are described as follows.
2.10.1 DN-20 for Analog input / output
The DN-20 is a general-purpose 20-pin connector. This board can be connected to a
20pin connector. It is suitable for easy signal connection and measurement.
2.10.2 DB-16P for Digital input
The DB-16P (or 782 series) is a 16-channel isolated digital input board. The A-812PG
provides 16-channel non-isolated TTL compatible digital inputs from CN4. If connecting to
DB-16P, the A-812PG can provide 16 channels isolated digital input signals. Isolation can
protect PC if abnormal input signal is occurred.
2.10.3 DB-16R for Digital output
The DB-16R (or 785 series) provides 16-channel SPDT relay output. The A-812PG
provides 16 channels TTL compatible digital output from CN5. If connecting to DB-16R, the
A-812PG can provide 16 channels relay output to control power device.
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 34
3. Calibration
The A-812PG is calibrated to its best state of operation. For environment with large
vibration, recalibration is recommended. Before calibrating the A-812PG, user should take
care the following issue:
One 6 digit multi-meter (DVM)
One stable voltage source (4.9988V)
Diagnostic program: (A812DIAG.EXE) this program included in the
delivered package will guide the user to proceed the calibration.
Fig. 3-1
CN3 CN 2
CN 1
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 35
3.1 Calibration VR Description
There are seven VRs on the A-812PG. Calibration need to adjust all seven VRs.
VR Num. Description
VR1 D/A channel 0‘s gain adjustment
VR2 D/A channel 1‘s gain adjustment
VR3 A/D‘s gain adjustment
VR4 A/D's Amplifier offset adjustment
VR5 A/D‘s offset adjustment
Fig. 3-2 Calibration wiring diagnostics
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 36
3.2 D/A Calibration Steps
1. Refer Fig. 3-2 Wiring diagnostics
2. Run A812DIAG.EXE
3. Press “Enter” key to start “CALIBRATION”
4. Connect CN2, pin 13 of CN2 (D/A Channel 0) and Pin 14 of CN2 (GND) to DVM (DC
Voltage Meter)
5. Adjust VR1 until DVM=4.9988V
6. Press “Enter" key
7. Connect D/A channel 1 Pin 15 of CN2 and Pin 14 of CN2 (GND) to DVM
8. Adjust VR2 until DVM=4.9988V
9. Press “Enter" key
3.3 A/D Calibration Steps
1. Refer Fig3-2 wiring diagnostics
2. Run A812DIAG.exe
3. Press <Enter> key until A/D calibration start
4. Adjust VR5 until shower 4094/4095
5. Press <Enter>
6. Adjuster VR3 until shower 2047/2048
7. Press <Enter>
8. Repeater step 4 to step 7 until A/D channel 0 equal 2047/2048 and A/D channel 1 equal
4094/4095
9. Measure A/D Calibration is O.K. Press <Enter> Key until A/D Amp calibration is start
10. Adjust VR4 until A/D channel 0 equal 2047/8
A-812PG Hardware Manual (Ver.1.2, Sep/2005, IPH-004-12) ----- 37
Loading...
