ICP WAFER-C400EV User Manual

WAFER-C400EV
User Manual
Version 1.0
Low Power Intel Mobile CPU
with SVGA, LAN, USB2.0, PC-104, SBC
©Copyright 2004 by ICP Electronics Inc. All Rights Reserved.
Copyright Notice
The information in this document is subjected to change without prior not ice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
Trademarks
WAFER-C400EV is a registered trademark of ICP Electronics Inc. IBM PC is a registered trademark of International Business Machines Corporation. Intel is a registered trademark of Intel Corporation. Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.
1
Table of Contents
CHAPTER 1 INTRODUCTION.............................................................4
1.1 S
1.2 P
PECIFICATIONS ...........................................................................5
ACKAGE CONTENTS.......................................................................6
CHAPTER 2 INSTALLATION ..............................................................7
2.1 B
2.2 U
2.3 S
2.4 W
2.5 C
2.6 LCD VCC V
2.7 S
LOCK DIAGRAM & BOARD LAYOUT .....................................................7
NPACKING PRECAUTIONS................................................................9
YSTEM MEMORY DRAM .................................................................9
ATCH-DOG TIMER SETTING ............................................................9
LEAR CMOS SETUP......................................................................9
OLTAGE SELECTOR ........................................................10
YSTEM PANEL CONNECTORS (CN9)..................................................10
CHAPTER 3 CONNECTION...............................................................11
3.1 F
3.2 PCI E-IDE D
3.3 C
3.4 P
LOPPY DISK DRIVE CONNECTOR (FDD1) ...........................................11
ISK DRIVE CONNECTOR (IDE1).......................................12
OMPACT FLASH CONNECTOR(CN12) ................................................ 13
ARALLEL PORT (CN10)................................................................14
3.5 S
3.6 K
3.7 USB P
3.8 I
3.9 VGA C
3.10 LAN RJ45 C
3.11 LCD I
3.12 E
3.13 ATX P
3.14 PC/104 C
3.15 4-BIT GPIO C
3.16 F
3.17 A
ERIAL POSTS (COM1,CN4)...........................................................15
EYBOARD & PS/2 MOUSE CONNECTOR (CN11)...................................16
ORT CONNECTOR (USB1) ...................................................... 16
RDA INFRARED INTERFACE PORT (CN5)............................................ 16
ONNECTOR (VGA1)............................................................. 17
ONNECTOR (P1,P2) ..................................................... 17
NTERFACE CONNECTOR (CN8) ................................................. 18
XTERNAL POWER CONNECTOR (CN7)................................................19
OWER CONNECTOR (CN6) ...................................................... 19
ONNECTION BUS (J5, J6) .................................................20
ONNECTOR (CN1)..................................................... 21
AN CONNECTOR (JFAN1) ............................................................. 21
UDIO CONNECTOR (CN2)............................................................. 22
CHAPTER 4 AMI BIOS SETUP..........................................................23
4.1 I
4.2 S
NTRODUCTION........................................................................... 23
TARTING SETUP.........................................................................23
2
4.3 U
4.4 G
4.5 M
4.6 S
4.7 A
4.8 A
4.9 P

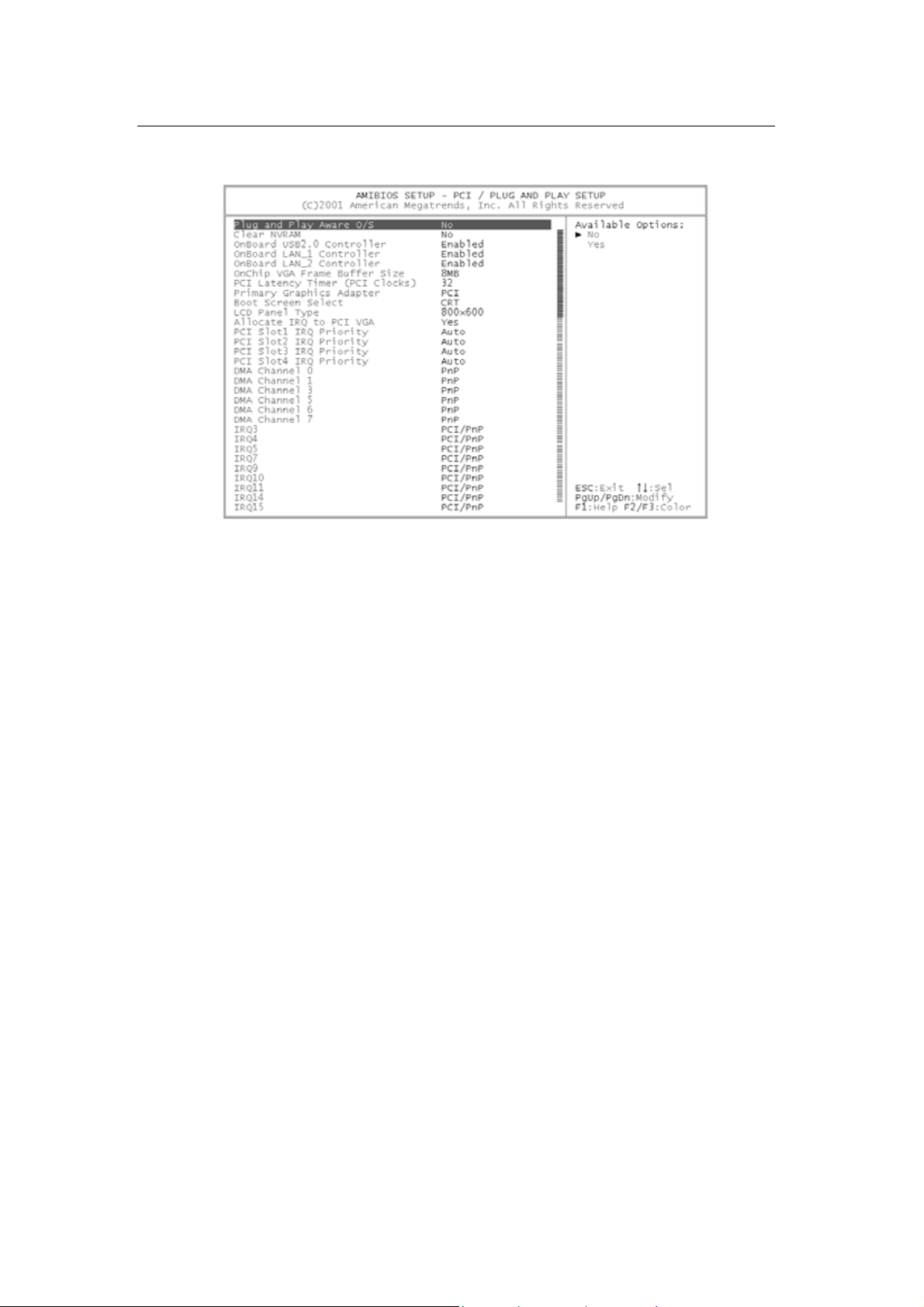

4.10 PCI / P
4.11 P
4.12 H
4.13 C
SING SETUP.............................................................................24
ETTING HELP ........................................................................... 24
AIN MENU...............................................................................25

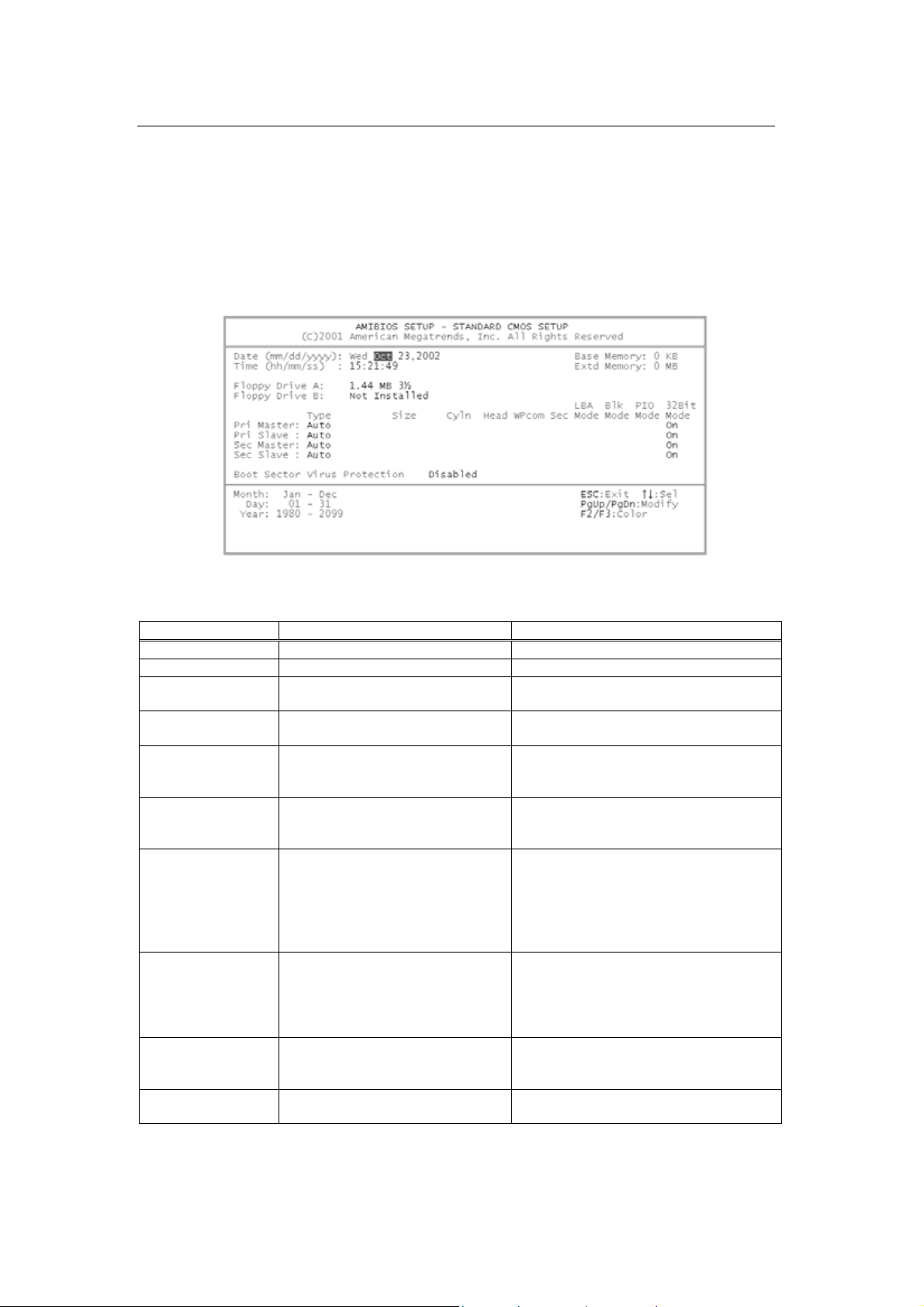

TANDARD CMOS SETUP ..............................................................27

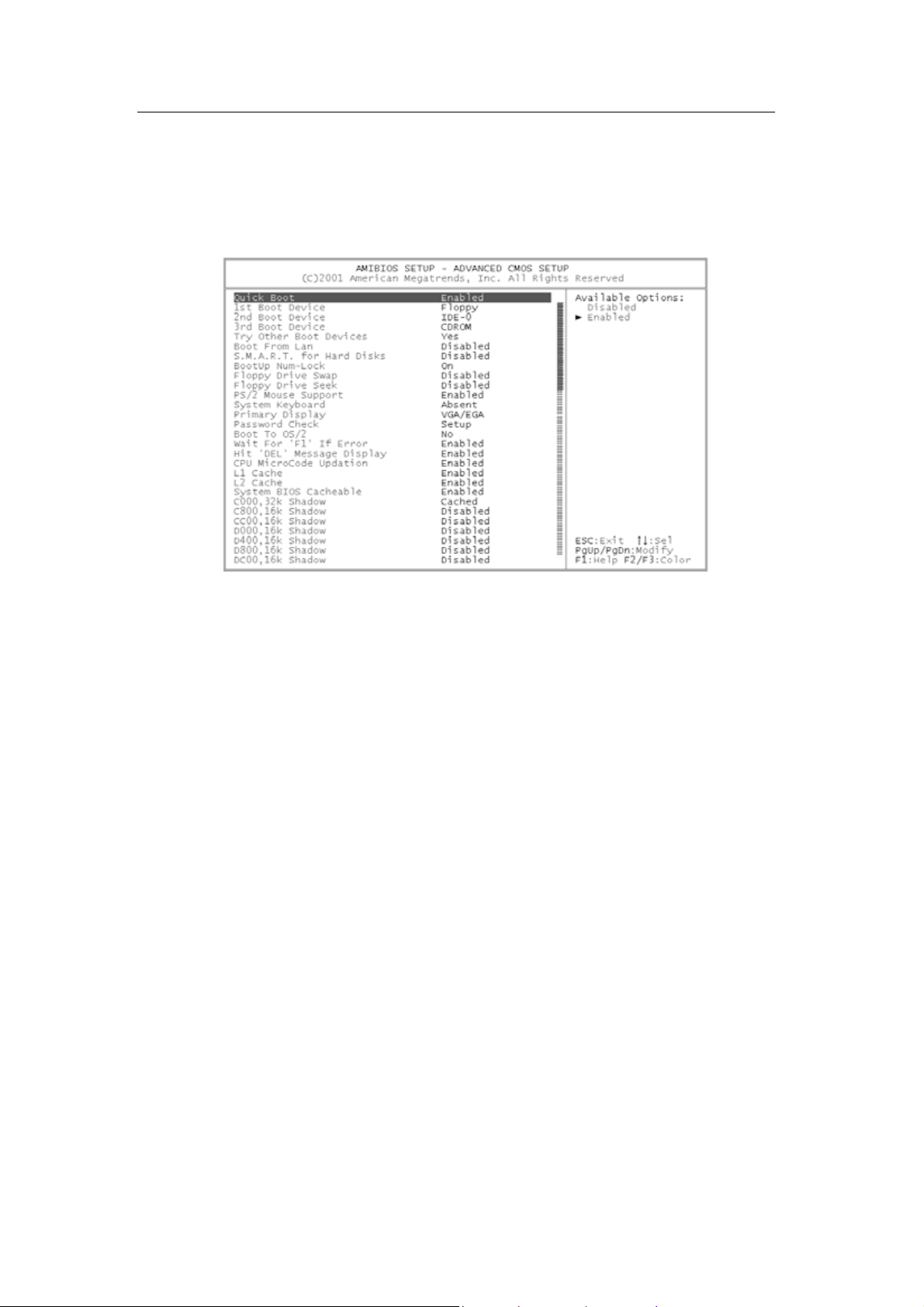

DVANCED CMOS SETUP .............................................................. 28

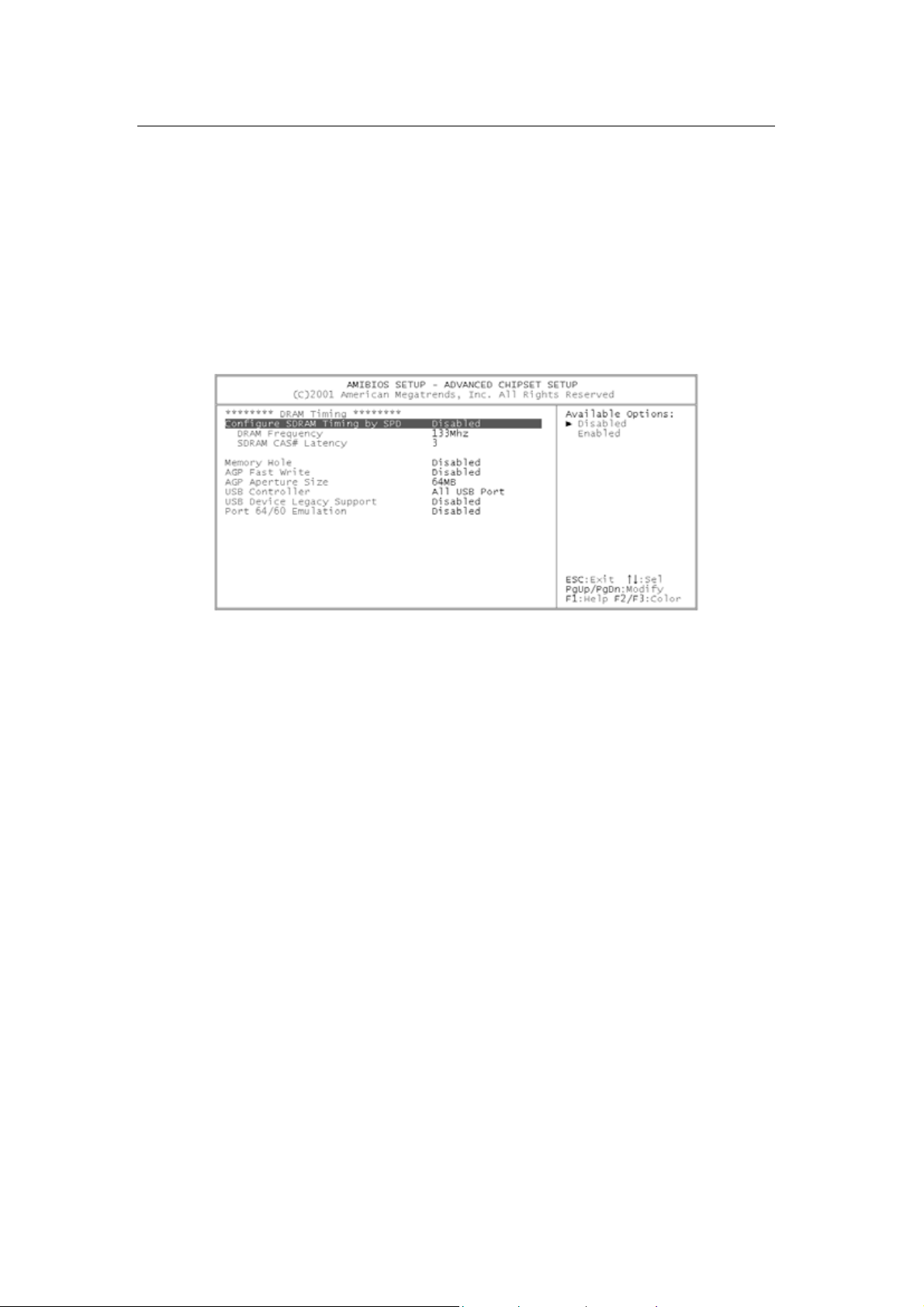

DVANCED CHIPSET SETUP.............................................................32
OWER MANAGEMENT SETUP...........................................................33
LUG AND PLAY SETUP .......................................................... 35
ERIPHERAL SETUP ......................................................................37

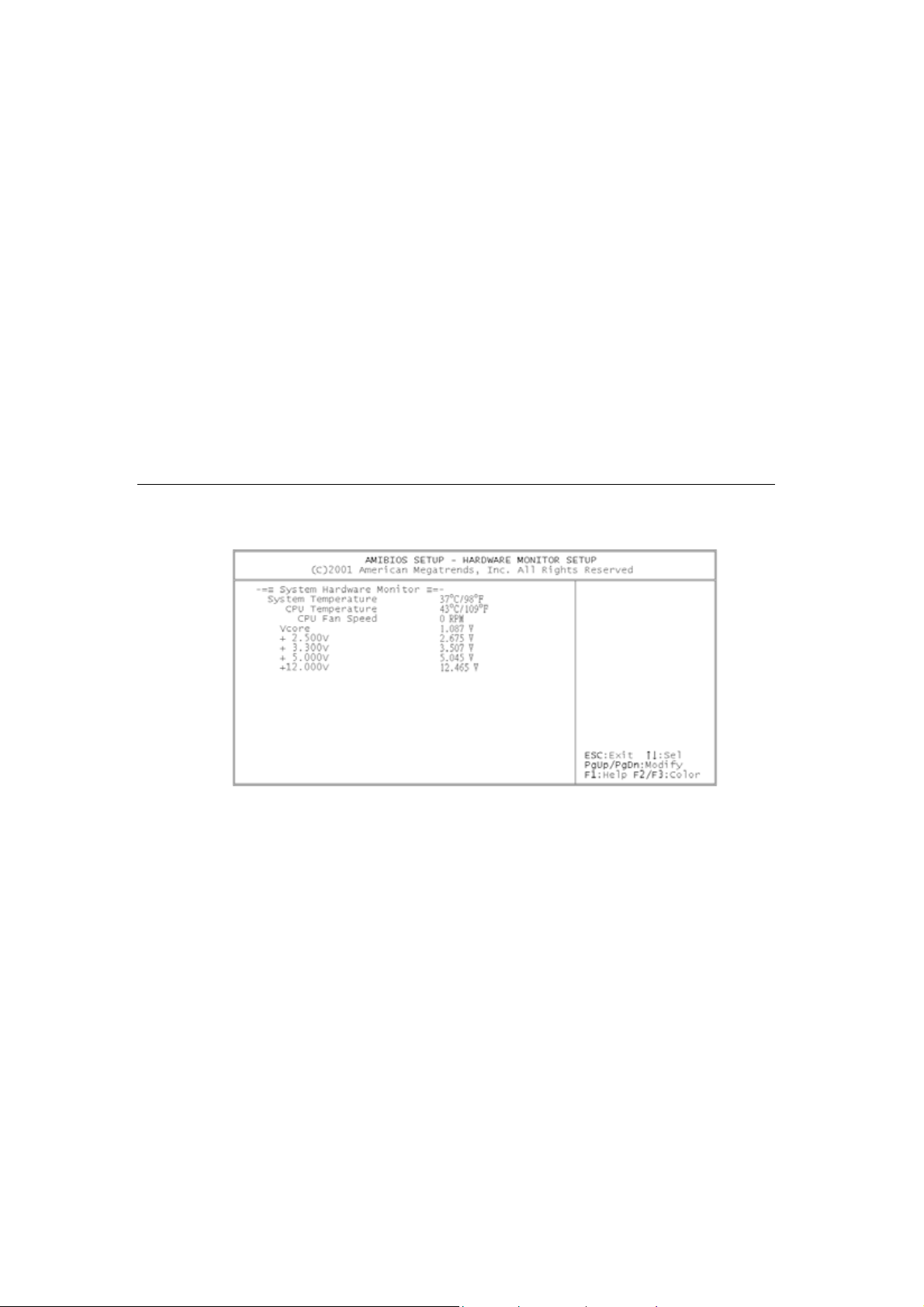

ARDWARE MONITOR SETUP ........................................................... 38
HANGE SUPERVISOR PASSWORD ..................................................... 39
APPENDIX A. WATCHDOG TIMER............................................................40
APPENDIX B. DIGITAL I/O.....................................................................42
APPENDIX C. I/O ADDRESS MAP............................................................43
3
Chapter 1 Introduction
WAFER-C400EV is designed for network applications. It supports the full functions of an AT/ATX-compatible industrial computer on a single board. The WAFER-C400EV is equipped with a low-power consumption and high performance Intel Mobile processor on board. It also contains an SDRAM SODIMM socket that support up to 512MB memory.
The WAFER-C400EV provides two Ethernet interfaces, one FDD interface, one EIDE interface, one audio interface, one Compact Flash Type II, one parallel port, one RS-232 serial port, one RS-232 / RS-422 / RS-485 header, one 2x25-pin LCD header, one PC-104, two USB 2.0 ports, one 5-pin IR header, and one 6-pin header of PS/2 keyboard/mouse interface. The built-in SVGA/LCD display controller supports both the CRT and LCD display simultaneously. It offers the resolutions of LCD screen up to 1024 x 768 @ 60HZ, and CRT resolutions up to 1600 x 1280 @ 64K colors. The Flash ROM contains both the system BIOS and the VGA BIOS. Reprogramming the Flash ROM could do the modification, in case of necessary.
4
1.1 Specifications
CPUEmbedded Intel System Memory: One 144-pin SODIMM socket support up to 512 MB SDRAM BIOS: AMI 256 KB Flash memory Display Controller: VIA 8601T
Support 24-bit TFT LCD panel resolution up to 1024x768 @ 60Hz Support non-interlaced CRT monitors resolutions up to 1600x1280 @ 16bit
®
Ultra Low Voltage Celeron 400MHz
colors
IDE Interface: Supports two ATA100 IDE hard drives Compact Flash Disk: Runs in true IDE mode that is compatible with an IDE disk
drive. It can be used with a passive adapter in a Type II socket.
FDD Interface: Supports up to two floppy disk drives, 5.25”360KB and 1.2MB
and/or 3.5”720KB, 1.44MB, and 2.88MB
Serial Ports: Two RS-232 ports which COM2 can support RS-422/485 Parallel Port: One parallel port supports SPP/EPP/ ECP mode Audio Connector: One 2x8-pin header supports Line-in, Line-out, Speaker-out,
Mic-in.
Digital IO: Supports four digital-in, and four digital-out IrDA: Supports Serial Infrared (SIR) or Amplitude Shift Keyed IR (ASKIR) interface PS/2 Mouse/Keyboard Connector: A 6-pin header connector supports PS/2
keyboard and PS/2 mouse.
USB Interface: Two USB ports, USB 2.0 compliant Watchdog Timer: Can be set by 1-255 seconds period. Reset or NMI will be
generated when CPU does not periodically trigger the timer
10/100Mbps Ethernet Controller: Tw o IEEE802.3 10/100M BASE-T standard Dual
auto-sensing interface to 10MBps or 100MBps networks. On board RJ-45 connectors are provided for easy connection.
PC-104 Interface: Supports ISA functions E2Key: A non-volatile 1Kbit EEPROM is provided to retain application critical
read/write data
Power Supply: +5V: 3A typical, +12V: 0.1A Operating Temperature: 0-60Dimension: 5.9”(L)x 4.2”(W)(145mmx102mm)
5
1.2 Package Contents
Before any installation, please check if the following materials are included in the package:
One WAFER-C400EV all-in-one single board computer One compact disk for utility and drivers One 2.5" IDE flat cable (44-pin 2.0mm pitch to 40-pin 2.54mm pitch) One floppy cable (for 3.5" FDD only) One serial port cable (RS-422/485/232) One standard D-25 connector for parallel cable One 6-pin header connector for keyboard and mouse One audio cable
If any of these items are missing or damaged, contact your distributor or sales representative immediately.
6
Chapter 2 Installation
This chapter gives instructions about how to set up the WAFER-C400EV hardware, including directions of setting jumpers and connecting peripherals, switches and indicators. Before installation, please pay attention to the unpacking precautions on the following page for safety.

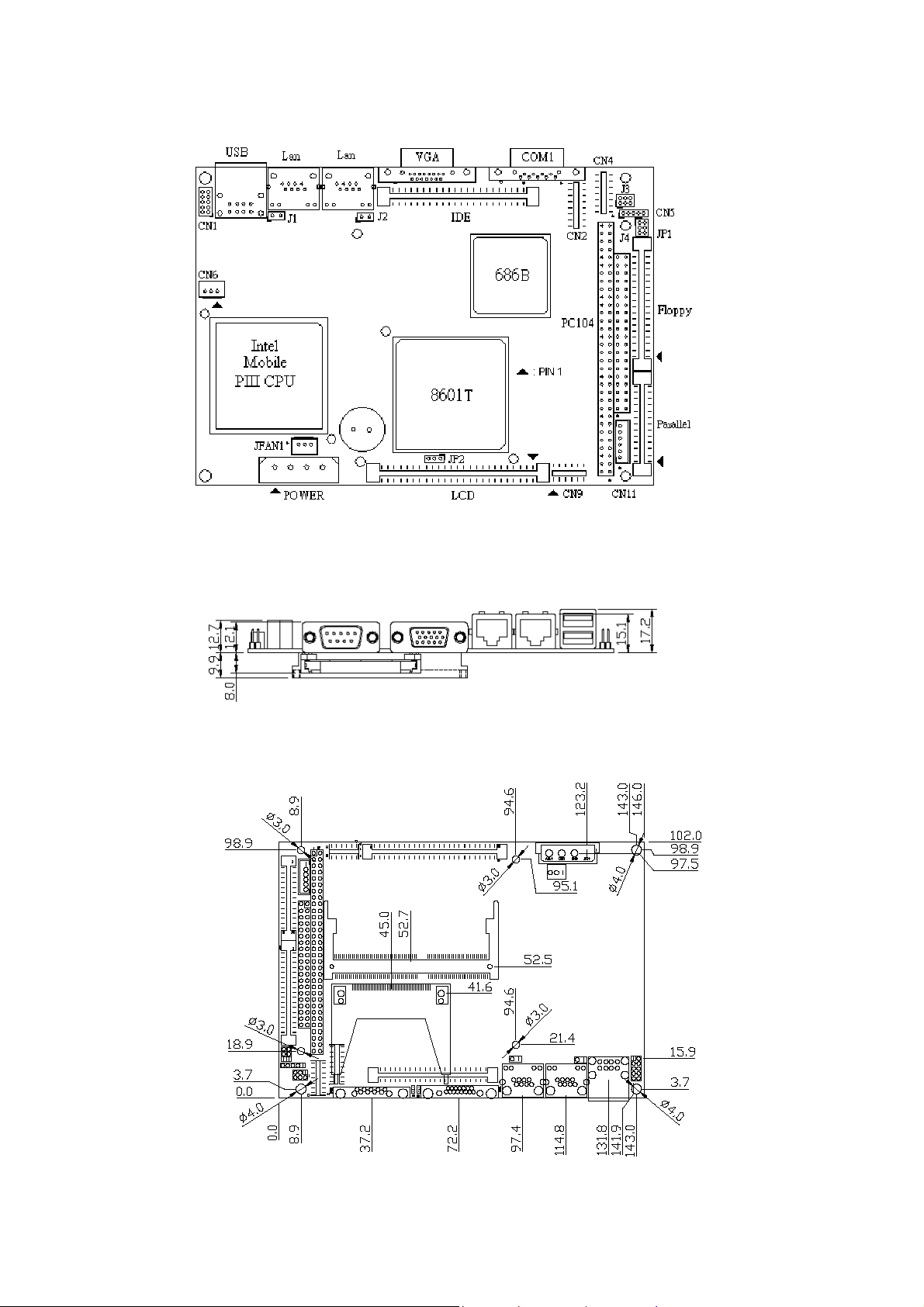

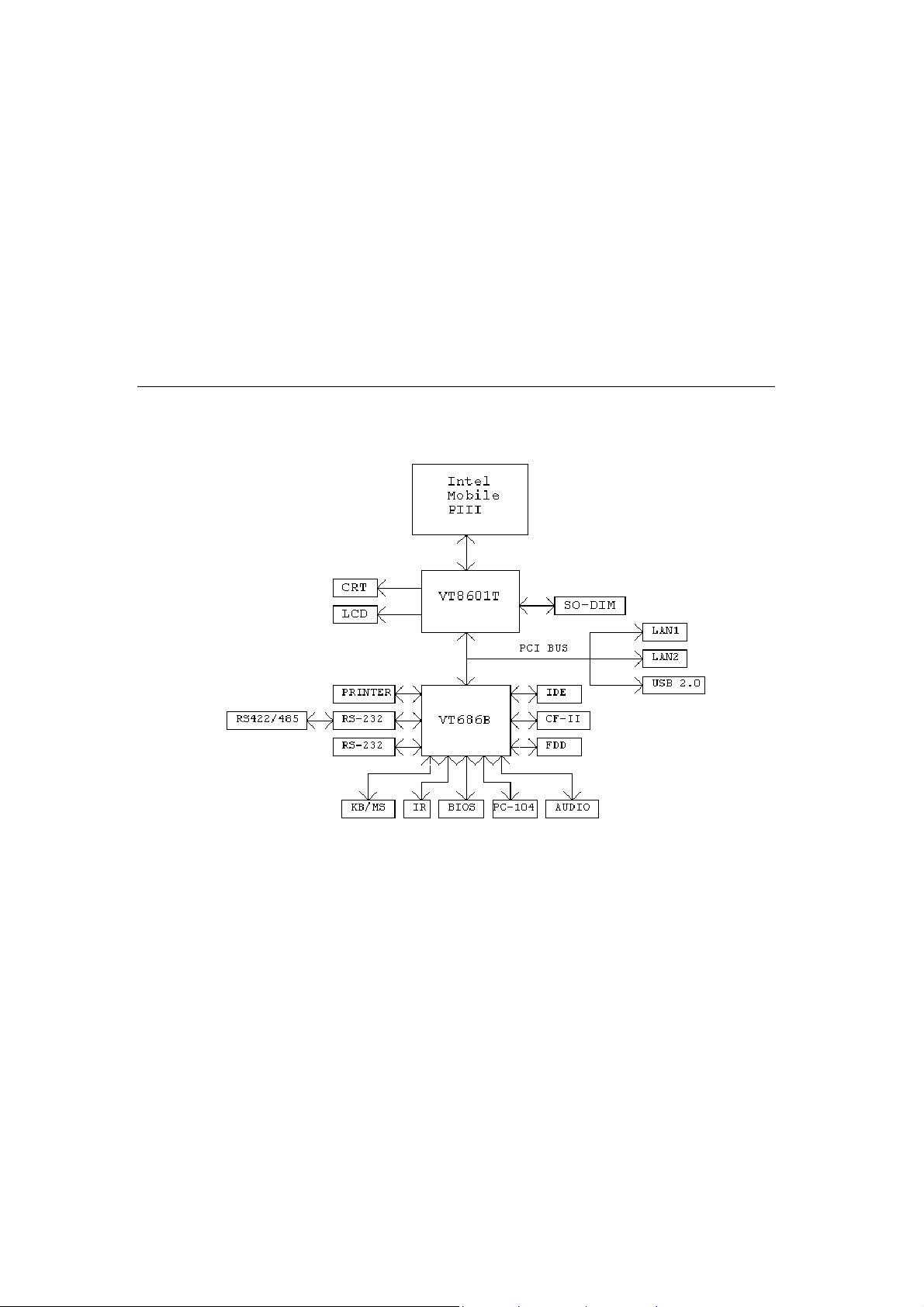

2.1 Block Diagram & Board Layout
7
BOARD LAYOUT
BOARD DIMENSION – SIDE VIEW
BOARD DIMENSION
8
2.2 Unpacking Precautions
Some components of WAFER-C400EV SBC are very sensitive to static electric charges and can be damaged by a sudden rush of power. To protect it from unintended damage, be sure to note these precautions:
1. Ground yourself to remove any static charge before touching the WAFER-C400EV SBC. You can do it by using a grounded wrist strap at all times or by frequently touching any conducting materials that is connected to the ground.
2. Handle WAFER-C400EV SBC by its edges. Don’t touch IC chips, leads or circuitry if not necessary.
3. Do not plug any connector or jumper while the power is on.
2.3 System Memory DRAM
There is one 144-pin SO-DIMM socket to accept 3.3V non-buffered SDRAM. The max Memory size is 512MB.
2.4 Watch-Dog Timer Setting
Reading port 443H enables the Watchdog Timer. It should be triggered before the time-out period ends, otherwise it will assume th e program operation is abnormal and will issue a reset signal to start again. Reading port 043/843H disables the Watchdog Timer. Please refer to Appendix A for detailed information.
2.5 Clear CMOS Setup
If the user needs to clear the CMOS setup (for example, the user forgot the password, then the setup should be cleared and the password should be re-set). The user should short the JP1 about 3 seconds, and then open it again. Opening JP1 can set the system back to normal operation mode.
JP1: Clear CMOS Setup (Reserve Function)
JP1 DESCRIPTION 1-2 Normal Operation
2-3 Clear CMOS Setup
9
2.6 LCD VCC Voltage Selector
The LCD interface connector JP2 can provide 5V or 3.3V power supply by selecting the JP2 to meet the different LCD requirement.
JP2: LCD VCC Voltage Selector
JP2 DESCRIPTION 1-2 5V
2-3 3.3V
2.7 System Panel Connectors (CN9)
Pin 1-3 System power LED connector Pin 5-7 ATX power on button Pin 9-11 IDE active LED connector Pin 2-8 External speaker connector Pin 10-12 System reset connector
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 2 SPEAK 3 GND 4 NC 5 GND 6 NC 7 PS_ON 8 VCC 9 VCC 10 RESET
11 HD-LED 12 GND
10
Chapter 3 Connection
This chapter describes how to connect peripherals, switches and indicators to the WAFER-C400EV board.
3.1 Floppy Disk Drive Connector (FDD1)
WAFER-C400EV board is equipped with a 34-pin daisy-chain driver connecting cable.
FDD1: FDC CONNECTOR
PIN DESCRIPTION PIN DESCRIPTION
1 GROUND 2 REDUCE WRITE 3 GROUND 4 N/C 5 GROUND 6 N/C 7 GROUND 8 INDEX#
9 GROUND 10 MOTOR ENABLE A# 11 GROUND 12 DRIVE SELECT B# 13 GROUND 14 DRIVE SELECT A# 15 GROUND 16 MOTOR ENABLE B# 17 GROUND 18 DIRECTION# 19 GROUND 20 STEP# 21 GROUND 22 WRITE DATA# 23 GROUND 24 WRITE GATE# 25 GROUND 26 TRACK 0# 27 GROUND 28 WRITE PROTECT# 29 GROUND 30 READ DATA# 31 GROUND 32 SIDE 1 SELECT# 33 GROUND 34 DISK CHANGE#
11
3.2 3.2 PCI E-IDE Disk Drive Connector (IDE1)
For IDE HDD connection, the WAFER-C400EV was designed with one 2.0mm connector (IDE1), which could be converted to two 2.54mm standard IDE connectors via proprietary cable. Using this cable the user can attach two IDE hard disk drives to the WAFER-C400EV.
IDE1: 44-pin Primary Mini-pitched IDE Interface Connector IDE1: Primary IDE Interface Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11 11 DATA 3 12 DATA 12 13 DATA 2 14 DATA 13 15 DATA 1 16 DATA 14 17 DATA 0 18 DATA 15 19 GROUND 20 N/C 21 IDE DRQ 22 GROUND 23 IOW# 24 GROUND 25 IOR# 26 GROUND 27 IDE CHRDY 28 GROUND 29 IDE DACK 30 GROUND–DEFAULT 31 INTERRUPT 32 N/C 33 SA1 34 N/C 35 SA0 36 SA2 37 HDC CS0# 38 HDC CS1# 39 HDD ACTIVE# 40 GROUND 41 VCC 42 VCC 43 GROUND 44 N/C
12
3.3 Compact Flash Connector(CN12)
You can attach one Compact Flash Disk to CN12 that occupies the secondary IDE channel. The CN12 supports both the TYPE II and TYPE I module.
CN12: Compact Flash Connector (Secondary IDE)
PIN DESCRIPTION PIN DESCRIPTION
1 GROUND 26 VCC-IN CHECK1 2 DATA 3 27 DATA 11 3 DATA 4 28 DATA 12 4 DATA 5 29 DATA 13 5 DATA 6 30 DATA 14 6 DATA 7 31 DATA 15 7 HDC_CS0# 32 HDC_CS1 8 N/C 33 N/C
9 GROUND 34 IOR# 10 N/C 35 IOW# 11 N/C 36 N/C 12 N/C 37 INTERRUPT 13 VCC_COM 38 VCC_COM 14 N/C 39 CSEL 15 N/C 40 N/C 16 N/C 41 HDD_RESET
17 N/C 42 IORDY 18 SA2 43 N/C 19 SA1 44 VCC_COM 20 SA0 45 HDD_ACTIVE# 21 DATA 0 46 N/C 22 DATA 1 47 DATA 8 23 DATA 2 48 DATA 9 24 N/C 49 DATA 10 25 VCC-IN CHECK2 50 GROUND
13
3.4 Parallel Port (CN10)
This port is usually connected to a printer. The WAFER-C400EV includes an on-board parallel port (CN10), accessed through a 26-pin flat-cable connector.
CN10: Parallel Port Connector
PIN DESCRIPTION PIN DESCRIPTION
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE 11 BUSY 12 PAPER EMPTY 13 PRINTER SELECT 14 AUTO FORM FEED # 15 ERROR# 16 INITIALIZE 17 PRINTER SELECT LN# 18 GROUND 19 GROUND 20 GROUND 21 GROUND 22 GROUND 23 GROUND 24 N/C 25 GROUND 26
14
3.5 Serial Posts (Com1,CN4)
The WAFER-C400EV offers two high speed NS-16C-550 compatible UARTS with Read/Receive 16 byte FIFO serial ports, and supports RS-422/485 mode from CN4 Pin11~14 by setting J4 connector. These ports let you connect to serial devices or a communication network. The J3 header also provides a 1A-fuesd +5V or +12V power out from CN4 pin 8. One 9-pin D-SUB connector and one 14-pin header are also provided. The detailed pin assignment of the connectors is specified as following tables:
COM1: Serial Port1 Connector (9-pin D-SUB)
PIN DESCRIPTION PIN DESCRIPTION
1 DCD 2 RX
3 TX 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI
CN4: Serial Port2 Connector (14-pin 2.0mm Header)
PIN DESCRIPTION PIN DESCRIPTION
1 DCD 2 DSR
3 RX 4 RTS
5 TX 6 CTS
7 DTR 8 RI
9 GND 10 N/C 11 TX+ 12 TX­13 RX+ 14 RX-
J3: Com1 Pin 9 selector (2X3-pin 2.0mm Header)
PIN DESCRIPTION PIN DESCRIPTION
1 VCC 2 RI (To I/O Buffer) 3 Connect to J3 Pin6 4 RI (To Com1) 5 +12V 6 Connect to J3 Pin9
Applications:
For normal operation, connect Pin2-4 For VCC supply from CN4 Pin8, connect Pin1-3 and Pin4-6 For +12V supply from CN4 Pin8, connect Pin3-5 and Pin4-6
J4: RS-232/RS-422/485 Selector (3-pi n 2.0mm Header)
Pin 1-2 RS-232 Pin 2-3 RS-422/RS-485
15
3.6 Keyboard & PS/2 Mouse Connector (CN11)
A 6-pin header connector (CN11) is located on the mounting bracket for easy connection to a keyboard and PS/2 mouse. The card comes with a Y split PS/2 cable for keyboard and mouse connection.
CN11: 2.0mm header Keyboard & Mouse Connector
PIN DESCRIPTION
1 +5V 2 MOUSE DATA 3 MOUSE CLOCK 4 KEYBOARD DATA 5 KEYBOARD CLOCK 6 GROUND
3.7 USB Port Connector (USB1)
The WAFER-C400EV provides two USB 2.0 interfaces, which give the completed plug and play, for up to 127 external devices.
USB1: Internal USB Connector
PIN DESCRIPTION PIN DESCRIPTION
1 USBVCC1 1 USBVCC2 2 D1F+ 2 D2F+ 3 D1F- 3 D2F­4 USBGND1 4 USBGND2
3.8 IrDA Infrared Interface Port (CN5)
The WAFER-C400EV has a built-in IrDA port which supports Serial Infrared (SIR) or Amplitude Shift Keyed IR (ASKIR) interface. To use the IrDA port, the system has to be set to SIR or ASKIR model in the BIOS’s Peripheral.
CN5: 1X5 2.0mm IrDA connector
PIN DESCRIPTION
1 VCC 2 NC 3 IRRX 4 GROUND 5 IR-TX
16
3.9 VGA Connector (VGA1)
The WAFER-C400EV has a built-in 15-pin VGA connector accepting the CRT monitor.
VGA1: 15-pin D-Sub Connector
PIN DESCRIPTION PIN DESCRIPTION
1 RED 9 NC 2 GREEN 10 GROUND 3 BLUE 11 NC 4 NC 12 DDCDAT 5 GROUND 13 HSYNC 6 GROUND 14 VSYNC 7 GROUND 15 DDCCLK 8 GROUND
3.10 LAN RJ45 Connector (P1,P2)
The WAFER-C400EV has two built-in RJ-45 LAN connectors for 10/100Mbps Ethernet connection.
P1,P2: LAN RJ-45 Connector
PIN DESCRIPTION PIN DESCRIPTION
1 TX+ 6 N/C 2 TX- 7 RX­3 RX+ 8 N/C 4 N/C 9 N/C
J1 : Lan1 link indicator (2-pin 2.54mm Header)
PIN DESCRIPTION
1 3VSB 2 Active
J2 : Lan2 link indicator (2-pin 2.54mm Header)
PIN DESCRIPTION
1 3VSB
2 Active
17
3.11 LCD Interface Connector (CN8)
The WAFER-C400EV provides a 2x25-pin connector for the LCD flat panel interface.
The TTL signal connecting interfaces locate on CN8.The display options need to be setup manually from BIOS. The BIOS “Integrated Peripheral” Setup will allow you to choose display resolution either 640x480 or 800x600 or 1024x768.
CN8: LCD Interface Connector – support up to 24 bit LCD. For better
display quality, the length of LCD cable should be shorter than 35 cm.
PIN DESCRIPTION PIN DESCRIPTION
1 NC 2 NC 3 NC 4 NC 5 NC 6 NC 7 NC 8 NC
9 NC 10 NC 11 NC 12 NC 13 NC 14 RED5 15 RED7 16 RED6 17 RED0 18 RED4 19 RED1 20 RED2 21 RED3 22 GREEN6 23 GREEN5 24 GREEN4 25 GREEN7 26 GREEN3 27 BLUE7 28 GREEN2 29 LCD POWER 30 LCD POWER 31 GREEN1 32 GREEN0 33 BLUE4 34 BLUE6 35 BLUE3 36 BLUE5 37 BLUE2 38 BLUE1 39 DE 40 BLUE0 41 SFCLK 42 ENPBLT 43 ENPVDD 44 FLM 45 ENPVEE 46 LP 47 GND 48 GND 49 +12V 50 +12V
18
3.12 External Power Connector (CN7)
The WAFER-C400EV has an on-board external power connector CN7. You can connect power directly to the CPU board.
CN7: External Power Connector
PIN DESCRIPTION
1 +5V
2 GROUND
3 GROUND
4 +12V
3.13 ATX Power connector (CN6)
CN6: ATX Power connector
PIN DESCRIPTION
1 5VSB
2 PSON
3 GND
19
3.14 PC/104 Connection Bus (J5, J6)
The WAFER-C400EV PC/104 expansion bus let you attach any kind of PC/104 modules. The PC/104 bus has already become the industrial embedded PC bus standard, so you can easily install over thousands of PC/104 modules from hundreds of vendors in the world. There are two PC/104 connectors on this board: PC/104-64 and PC/104-40.
J5: PC/104-64 Connector
PIN DESCRIPTION PIN DESCRIPTION
1 IOCHCK# 33 GND 2 SD7 34 IRSTDRV 3 SD6 35 VCC 4 SD5 36 IRQ9 5 SD4 37 -5V 6 SD3 38 DRQ2 7 SD2 39 -12V 8 SD1 40 ZWS
9 SD0 41 +12V 10 IOCHRDY 42 GND 11 AEN 43 SMEMW# 12 LA19 44 SMEMR# 13 LA18 45 IOW# 14 LA17 46 IOR# 15 SA16 47 DACK3# 16 SA15 48 DRQ3 17 SA14 49 DACK1# 18 SA13 50 DRQ1 19 SA12 51 REFRESH# 20 SA11 52 SYSCLK 21 SA10 53 IRQ7 22 SA9 54 N/C 23 SA8 55 IRQ5 24 SA7 56 IRQ4 25 SA6 57 IRQ3 26 SA5 58 DACK2 27 SA4 59 TC 28 SA3 60 BALE 29 SA2 61 VCC 30 SA1 62 OSC 31 SA0 63 GND 32 GND 64 GND
20
J6: PC/104-40 Connector
PIN DESCRIPTION PIN DESCRIPTION
1 GND 21 GND
2 MCS16# 22 SBHE#
3 IOCS16# 23 LA23
4 IRQ10 24 LA22
5 IRQ11 25 LA21
6 IRQ12 26 LA20
7 IRQ15 27 LA19
8 IRQ14 28 LA18
9 DACK0# 29 LA17 10 DRQ0 30 MEMR# 11 DACK5# 31 MEMW# 12 DRQ5 32 SD8 13 DACK6# 33 SD9 14 DRQ6 34 SD10 15 DACK7# 35 SD11 16 DRQ7 36 SD12 17 VCC 37 SD13 18 MASTER# 38 SD14 19 GND 39 SD15 20 GND 40 GND
3.15 4-BIT GPIO Connector (CN1)
CN1: 4 BIT GPIO Connector
PIN DESCRIPTION PIN DESCRIPTION
1 GND 2 VCC
3 GPI0 4 GPO0
5 GPI1 6 GPO1
7 GPI2 8 GPO2
9 GPI3 10 GPO3
3.16 Fan Connector (JFAN1)
PIN DESCRIPTION
1 Fan Speed Detect
2 +12V
3 GND
21
3.17 Audio Connector (CN2)
PIN DESCRIPTION PIN DESCRIPTION
1 Speaker out R 2 GND
3 Speaker out L 4 GND
5 Line out L 6 Line out R
7 GND 8 GND
9 Line in L 10 Line in R
11 GND 12 GND 13 GND 14 GND 15 MIC in 16 GND
22
Chapter 4 AMI BIOS Setup
4.1 Introduction
This chapter discusses AMI's setup program built into the ROM BIOS. The setup program allows users to modify the basic system configuration. This special information is then stored in battery-backed RAM so that it retains the setup information when the power is turned off.
4.2 Starting Setup
The AMI BIOS is immediately activated when you first boot up the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and then configur es it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and pass the control over to the operating system. While the BIOS is in charge, the Setup program can be activated in one of the following ways:
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del>key when the following message appears briefly at the bottom of the screen during the POST.
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to enter Setup, press the “RESET” button on the chassis or turn the power off then turn it back on to restart the system then you can try again. You may also restart by simultaneously pressing <Ctrl>, <Alt>, an d <Delete> keys. If you do not press the keys at the correct moment and the system does not boot, an error message will be displayed and you will again be asked to...
PRESS F1 TO ENTER SETUP OR PRESS F2 TO CONTINUE
23
4.3 Using Setup
In general, use the arrow keys to highlight options, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program.
Up arrow Move to previous option Down arrow Move to next option Left arrow Move to the option in the left column Right arrow Move to the option in the right column Esc key Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -- Exit current
page and return to Main Menu PgUp key Increase the numeric value or make changes PgDn key Decrease the numeric value or make changes + key Increase the numeric value or make changes
- key Decrease the numeric value or make changes F1 key General help, only for Status Page Setup Menu and Option Page Setup
Menu F2 /F3 key Change col or from total 16 colors. F2 to select color forward, (Shift)
F2 to select color backward F4 key Reserved F5 key Reserved F6 key Reserved F7 key Reserved F8 key Reserved F9 key Reserved F10 key Save all the CMOS changes, only for Main Menu
4.4 Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.
If, after making and saving system changes with Setup, you discover that your computer is no longer able to boot, the AMI BIOS supports an override to the CMOS settings which can reset your system to its defaults.
The best advice is to alter only the settings which you thoroughly understand. To this end, we strongly recommend not to make any changes to the chipset defaults. These defaults have been carefully chosen by both AMI and the system manufacturer to provide the optimum performance and reliability. Even a seemingly little change to the chipset setup may shut the system down and need the override program to reset it.
24

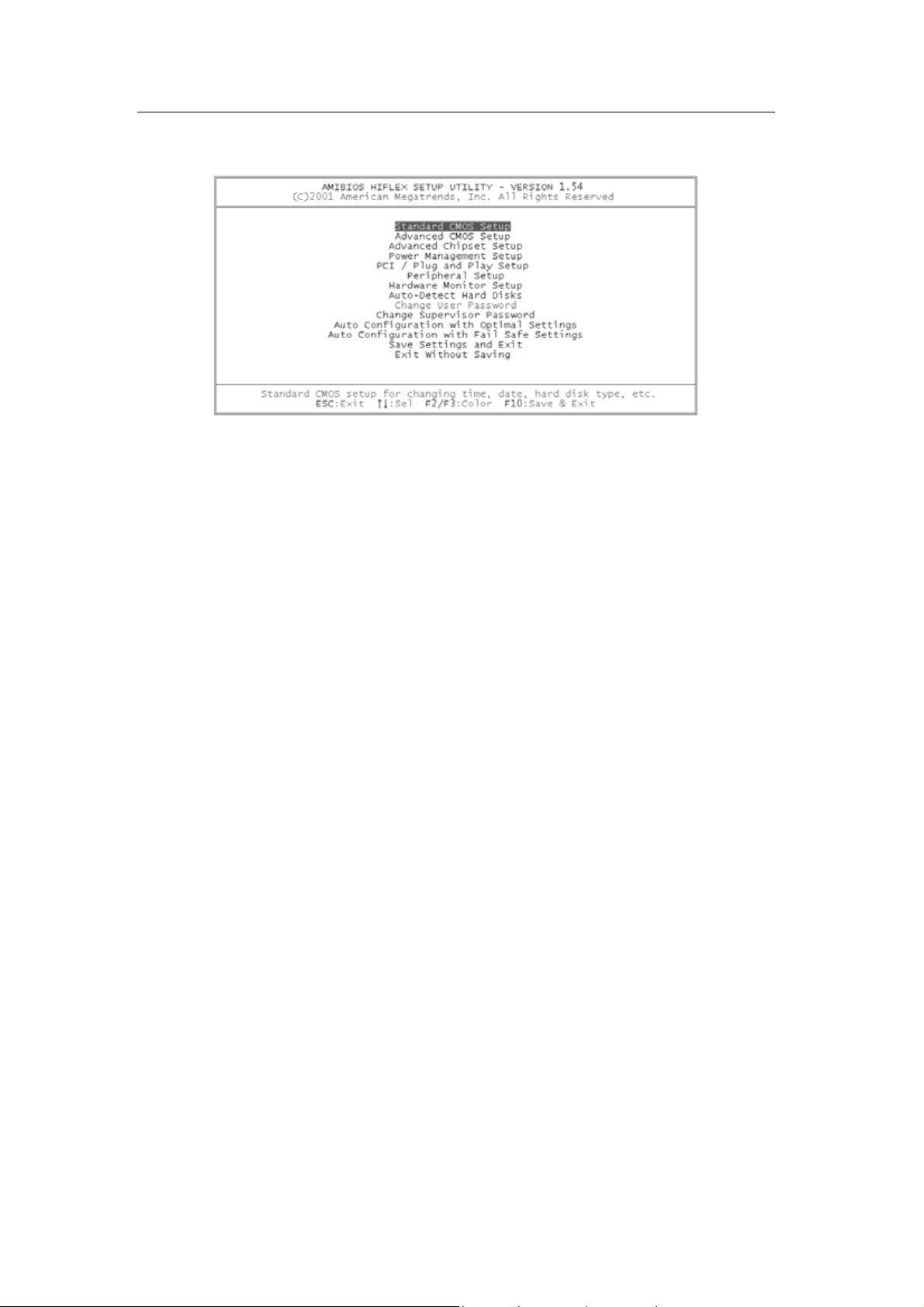

4.5 Main Menu
Once you enter the AMIBIOS™ CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the option and press <Enter> to accept and enter the sub-menu. Note that a brief description of each highlighted selection appears at the bottom of the screen. The main menu includes the following main setup categories. Recall that some systems may not include all entries.
Standard CMOS Setup
Use this menu for basic system configuration.
Advanced CMOS Setup
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Setup
Use this menu to change the values in the chipset registers and optimize the system's performance.
Power Management Setup
When Disabled, SMI will not be initialized, and complete power management functionality is removed unless this option is set to Enabled.
PCI / Plug and Play Setup
This entry appears if your system supports PnP / PCI.
Peripheral Setup
Use this menu to specify your settings for integrated peripherals.
Hardware Monitor Setup
Use this menu to monitor your hardware.
25
Auto-detect Hard Disks
Use this menu to specify your settings for hard disks control.
Change Supervisor Password
Use this menu to set User and Supervisor Passwords.
Auto Configuration with Optimal Settings
Use this menu to load the BIOS factory settings for optimal system performance. While AMI has been designed the custom BIOS to optimize performance, the factory has the right to change these defaults to meet its needs.
Auto Configuration with Fail-Safe Settings
Use this menu to load the BIOS default values for the safe and stable system performance.
Save Settings and Exit
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.
26
4.6 Standard CMOS Setup
The options in Standard CMOS Setup Menu are divided into 10 categories. Each category includes none, one or more than one setup options. Use the arrow keys to highlight the option and then use the <PgUp> or <PgDn> keys to select the value you want for each option.
Main Menu Selections
Item Options Description
Date MM DD YYYY Set the system date. Time HH : MM : SS Set the system time IDE Primary Master IDE Primary Slave IDE Secondary
IDE Secondary
Drive A Drive B
Halt On All Errors
Base Memory N/A Displays the amount of
Extended Memory
Options are in its sub menu (Described in Table 3) Options are in its sub menu (Described in Table 3) Options are in its sub menu (Described in Table 3)
Options are in its sub menu (Described in Table 3)
None 360K, 5.25 in
1.2M, 5.25 in 720K, 3.5 in
1.44M, 3.5 in
2.88M, 3.5 in
No Errors All, but Keyboard All, but Diskette All, but Disk/Key
N/A Displays the amount of extended
Press <Enter> to enter the sub menu for more options Press <Enter> to enter the sub menu for more options Press <Enter> to enter the sub menu for more options
Press <Enter> to enter the sub menu for more options
Select the type of floppy disk drive installed in the system
Select the status in which you want the BIOS to stop the POST processes and notify you
conventional memory detected during boot up
memory detected during boot up
27
4.7 Advanced CMOS Setup
This section allows you to configure your system for basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.
Quick Boot
When this option is set to enable, DRAM testing function will be disable.
1st /2nd /3rd Boot Device
This option sets the type of device for the first boot drives that the AMIBIOS attempts to boot from after AMIBIOS POST completes. The settings are Disabled, IDE-0, IDE-1, IDE-2, IDE-3, Floppy, ARMD-FDD, ARMD-HDD, CDROM, SCSI.
Try Other Boot Devices
The options are Yes or No. Set this setting to Yes to instruct AMIBIOS to attempt to boot from any other drive in the system if it cannot find a boot drive among the drives specified in the 1st Boot Device, 2nd Boot Device, 3rd Boot Device, 4th Boot Device options.
Boot From LAN
When setting Enable, bios will load LAN’s Boot Rom and try to boot the system from LAN.
S.M.A.R.T. for Hard Disks
S.M.A.R.T. stands for Self-Monitoring, Analysis and Reporting Technology. This setting can help BIOS to warn the user of the possible device failure and let the user back up the device before actual failure happens. The options are Disabled, Enabled.
28
Boot Up Num-Lock
If the user wants the Num-Lock function to be turned on during the boot-up period so that the user can use the key pad on the keyboard right after the system starts, please select ON to do so. Otherwise, select OFF.
Floppy Drive Swap
This setting decides whether drives A: and B: can be swapped or not. The options are Enabled or Disabled.
Floppy Drive Seek
This setting is whether to enable floppy drives A: to perform a Seek operation at system boot process. The options are Enabled or Disabled.
PS/2 Mouse Support
When this setting is enabled, BIOS support a PS/2- type mouse.
System Keyboard
This won’t be specified if a keyboard is attached to the computer. Otherwise, when there’s no keyboard detected and an error message is displayed, this setting can be marked as needed. This setting permits you to configure workstation with no keyboard. The options are Absent, Present.
Primary Display
This setting is to configure the type of monitor attached to the computer. The settings are Monochrome, Color 40x25,Color 80x25,VGA/PGA/EGA ,or Not Install.
Password Check
This option enables the password check option every time the system boots or the end user runs Setup. If always is chosen a user password prompt appears every time the computer is tuned on. If setup is chosen, the password prompt appears if BIOS is executed.
Boot To OS/2
Set this option to YES if running OS/2 operating system and using more than 64MB of system memory on the motherboard. The options are YES or NO.
Wait For 'F1' If Error
If this setting is enabled, AMIBIOS waits for the end user to press <F1> before continuing. If this option is disabled, AMIBIOS continues the boot process without waiting for <F1> to be pressed. The options are Disabled or Enabled.
Hit 'DEL' Message Display
Disabling this setting prevents "Hit <DEL> if you want to run Setup" from appearing when the system boots. The options are Disabled or Enabled.
29
CPU MicroCode Update
When setting Enable, Bios will load CPU Microcode.
L1 Cache
The setting enabled or disabled the L1 cache memory in the processor.
L2 Cache
The setting enables L2 cache memory. If Enabled is selected, L2 cache memory is enabled. If disabled is select, L2 cache memory is disabled.
System BIOS Cacheable
When this setting is set to enabled, the System ROM area from F0000-FFFFF is copied (shadowed) to RAM for faster execution.
C000, 32k Shadow
This setting is about the contents inside the Video ROM area form C000-C7FFF, which influences the speed of execution. Disabled: The contents of the video ROM are not copied to RAM.
Cached: The contents of the video ROM area from C0000h - C7FFFh
are copied from ROM to RAM and can be written to or read from cache memory.
Enabled: The contents of the video ROM area from C0000h - C7FFFh
are copied (shadowed) from ROM to RAM for faster execution.
C800, 16k Shadow
These settings enable shadowing of the contents of the ROM area named in the option title. The options are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.000, 32k Shadow.
CC00, 16k Shadow
These settings enable shadowing of the contents of the ROM area named in the setting title. The settings are Enable Disable, Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.800, 16k Shadow.
D000, 16k Shadow
These settings enable shadowing of the contents of the ROM area named in the setting title. The options are Enable, Disable, and Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.C00, 16k Shadow.
30
D400, 16k Shadow
These settings enable shadowing of the contents of the ROM area named in the setting title. The options are Enable, Disable, and Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.000, 16k Shadow.
D800,16k Shadow
These settings enable shadowing of the contents of the ROM area named in the setting title. The options are Enable, Disable, and Cached. The ROM area that is not used by ISA adapter cards will be allocated to PCI adapter cards.400, 16k Shadow.
DC00, 16k Shadow
These settings enable shadowing of the contents of the ROM area named in the setting title. The options are Enable, Disable, and Cached. ISA adapter cards will be allocated to PCI adapter cards.800, 16k Shadow.
31
4.8 Advanced Chipset Setup
This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It also coordinates communications between the conventional ISA bus and the PCI bus. It must be stated that these items should never need to be altered. The default settings have been chosen because they provide the best operating conditions for your system.
Configure SDRAM Timing by SPD
When setting Enable, bios will use the data from DI MM’s SPD to setup the DRAM timing. Disable the setting, bios will use default setting.
DRAM Frequency
This setting is setting Memory working frequency, 66/100/133 MHz.
SDRAM CAS# Latency
This setting is setting Memory CAS latency
AGP Aperture Size
This is about the size of AGP aperture. The aperture is a portion of the PCI Memory addresses space. Host cycles that hit the aperture range are forwarded to the AGP without any translation
USB Controller
Select enable if your system contains a USB controller and you have USB Peripherals. Otherwise, select disable.
USB Device Legacy Support
Enable or Disable the USB device legacy support.
Port 64/60 Emulation
Enable or Disable the USB KB/MS legacy support.
32

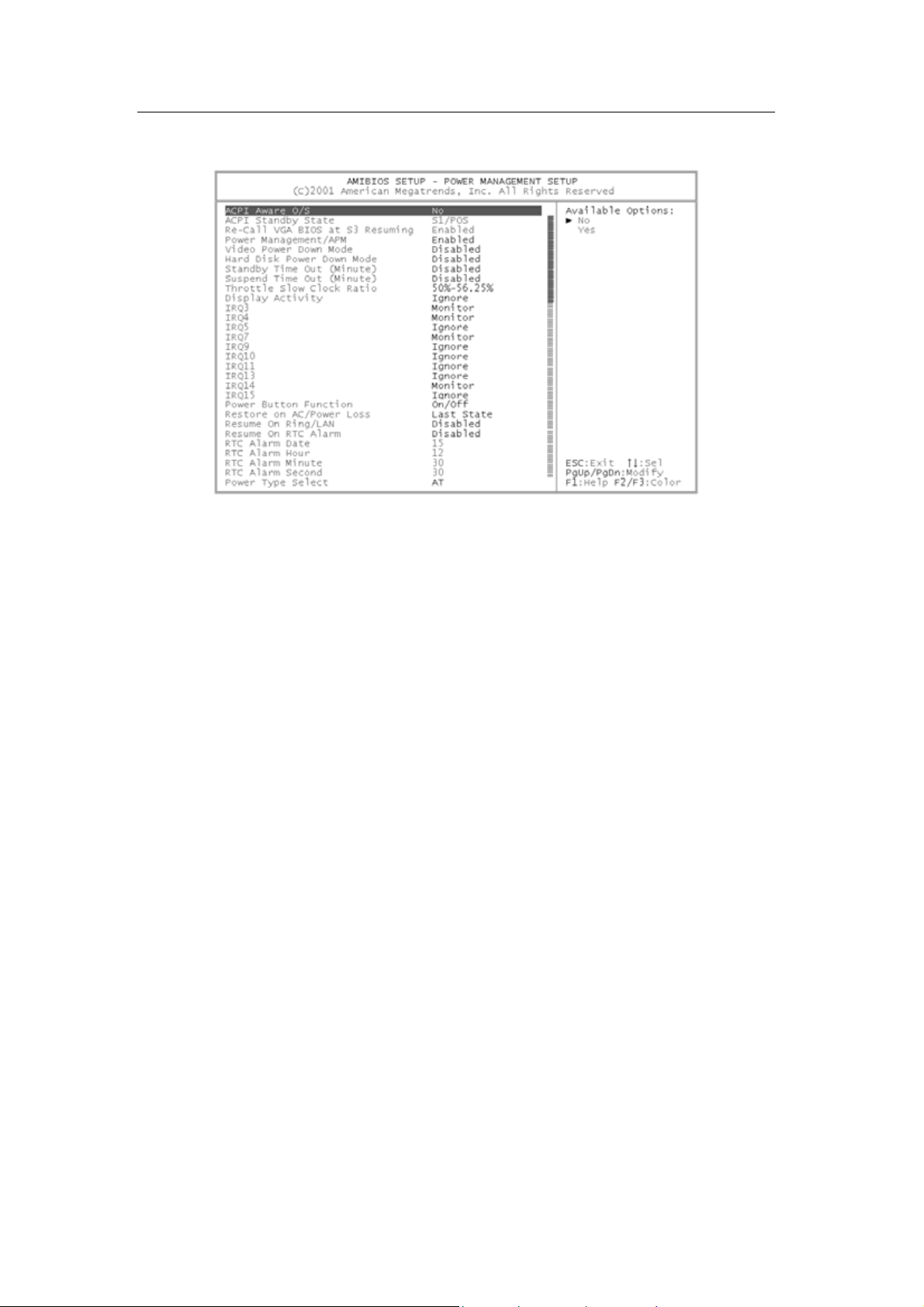

4.9 Power Management Setup
ACPI Aware O/S
This feature is the switch of ACPI function. Configuration options : [No] [Yes]
ACPI Standby State
This feature is the switch of STR (S3) or POS (S1) fu nction. Configuration options: [S3/STR] [S1/POS]
Re-Call VGA BIOS at S3 Resuming
Enable or Disable system load the VGA bios after S3 state.
Power Management/APM
When Disabled, SMI will not be initialized, and the complete power management functionality is removed unless this option is set to Enabled.
Video Power Down Mode
Hard Disk Power Down Mode Standby Time Out (Minute) Suspend Time Out (Minute)
If no activity occurs during this time period, the BIOS will place the system into the suspended low power state.
Throttle Slow Clock Ratio
Display Activity IRQ3 ,4 ,5 ,7 , 9, 10, 11, 13, 14, 15
The factory defaults assigned IRQ3, 4, 7, and 14 to the Monitor. When other external devices using the same IRQ numbers as of the Monitor start, the Monitor will be waked up from the power saving state by these devices.
The user can assign the other IRQ numbers available here to the Monitor. Just highlight the IRQ number and set the value to Monitor.
33
Resume on Ring/LAN
Allows the user to decide to resume the system from Soft Off state by either LAN or Modem Ring.
Resume On RTC Alarm
When this setting is enabled, the system will wakeup from soft off mode according to the time you set.
Power Type Select
This setting allows the user to choose the power type for AT or ATX.
34
4.10 PCI / Plug and Play Setup
Plug and Play Aware O/S
If enabled, BIOS will configure only PnP ISA boot devices(i.e. all PnP ISA cards which has boot flag set). And PnP aware OS will configure all ot her devices. If disabled, BIOS will configure all devices.
Clear NVRAM
When set to Yes, system can clear NVRAM automatically. The options are No, Yes.
Onboard USB2.0 controller
Select to enable or disable the controller.
Onboard Lan1 controller
Select to enable or disable the controller.
Onboard Lan2 controller
Select to enable or disable the controller.
On Chip VGA Frame Buffer Size
This is for selecting frame buffer size (2~32MB) for VGA.
PCI Latency Timer (PCI Clocks)
This setting specifies the latency timings (in PCI clocks) for PCI devices installed in the PCI expansion slots. The options are 32, 64, 96, 128, 160, 192, 224, or 248.
Primary Graphics Adapter
Boot Screen Select
This setting is to specify Boot Screen. .Select Both will Boot from CRT and LCD Both .
35
LCD Panel Type
This setting is to choose LCD Panel Type
Allocate IRQ to PCI VGA
Choose Yes to allocate an IRQ to the VGA device on the PCI bus. The other option is No.
PCI Slot1 / Slot2 / Slot3 / Slot4 IRQ Priority
The setting specifies the IRQ priority for PCI device installed in the PCI expansion slot. The options are Auto, (IRQ) 3, 4, 5, 7, 9, 10, and 11, in priority order.
36

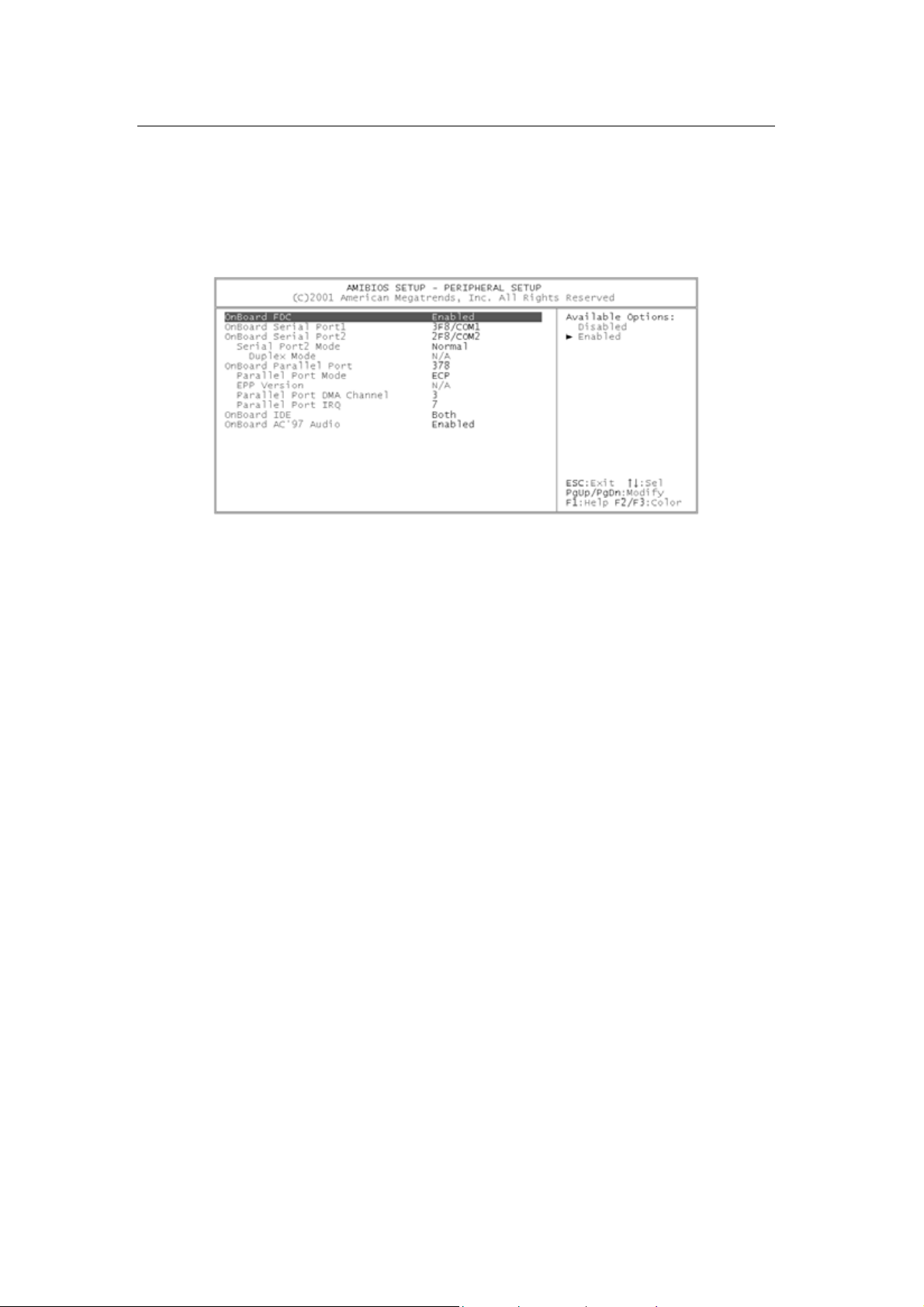

4.11 Peripheral Setup
The Peripheral Setup allows the user to configure the system to the most effectively power saving mode while operating in a consistent manner with your own style of computer use.
Onboard FDC
Onboard Serial Port 1/Port 2
This setting specifies the base I/O port address of serial port 1.The option are Auto (AMIBIOS automatically determines the correct base I/O port address) , Disabled, 3F8h, 2F8h, 2E8h, or 3E8h.
Onboard Parallel Port
This setting specifies the base I/O port address of parallel port on the motherboard. The options are Disabled, 378h, 278h, or 3BCh.
Parallel Port Mode
This setting specifies the parallel port mode. The options are Normal, Bi-Dir, EPP, ECP.
Normal: The normal parallel port mode is used. Bi-Dir : To support bidirectional transfers on the parallel port. EPP: The parallel port can be used with devices that adhere to the
Enhanced Parallel Port(EPP) specification. EPP uses the existing parallel port signals to provide asymmetric bidirectional data transfer driven by the host device.
ECP: The parallel port can be used with devices that adhere to the
Extended Capabilities Port (ECP) specification. ECP uses the DMA protocol to achieve data transfer rates up to 2.5 Megabits per second. ECP provides symmetric bi-directional communication.
37
EPP Version
EPP data or address read cycle 1.9 or 1.7
Parallel Port IRQ
This setting specifies the IRQ used by the parallel port. The options are Auto, (IRQ)5, (IRQ)7.
Parallel Port DMA Channel
This setting is available only if the setting for the Parallel Port Mode option is ECP. This setting makes the DMA channel used by the parallel port. The options are DMA Channel 0, 1, or 3.
On Board AC’97 Audio
Enable or Disable AC’97 Audio Function.
4.12 Hardware Monitor Setup
38
4.13 Change Supervisor Password
You can set passwords for either supervisor or user password, or for both of them. The differences between them are:
Supervisor Password:
It’s used to enter and change the settings of the setup menus.
User Password:
It’s used to only access the setup menus, but can’t change anything of it. When you select this option, the following message will appear at the center of the screen to assist you in creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously existing password within CMOS memory. You will be prompted to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not to enter a password. To disable a password, just press <Enter> when you are prompted to enter the password. A message which ask you to confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized user from changing any bit of your system configuration. Additionally, when a password is enabled, you can also require the BIOS to request a password every time the system is booting. This would prevent unauthorized uses of your computer. The user can determine whether the password is needed for entering BIOS Setup Program or other Security options (see Section 4.5). Once the Password has been set, The user will be prompted to enter the password at the beginning of booting and at the entry to Setup Menu.
39
Appendix A Watchdog Timer
The Watchdog Timer is a device to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash. This condition may have occurred by external EMI or a software bug. When the CPU stops working normally, hardware on the board will perform hardware reset (cold boot) to bring the system back to a known state.
Three I/O ports control the Watchdog Timer:
443 Write Set Watchdog Time period
443 (hex) Read Enable the refresh the Watchdog Timer
043/843 (hex) Read Disable the Watchdog Timer
Prior to enable the Watchdog Timer, user has to define Timer first. The output data is a value of time interval and the range of the value is from 01(hex) to FF (hex) and time interval 1 sec to 255 sec.
DATA TIME INTERVAL
01 1 sec 02 2 sec 03 3 sec 04 4 sec
- - - -
FF 255 sec
This will enable and activate the countdown timer which eventually t ime out and reset the CPU to ensure that this reset condition does not occur; the Watch-Dog Timer must be periodically refreshed by reading the same I/O port 043/843H and 443H. This must be done within the time out period that is selected by software, please refer to the example program.
A tolerance of at least 5% must be maintained to avoid unknown routines within the operating system (DOS), such as disk I/O that can be very time consuming. Therefore if the time-out period has been set to 10 seconds, the I/O port 443H must be read within 7 seconds.
Note: When exiting a program it is necessary to disable the Watchdog Timer,
otherwise the system will reset.
40
Example Assembly Program
:
TIMER_PORT = 443H TIMER_START = 443H TIMER_STOP = 843H
;;INITIAL TIME PERIOD COUNTER MOV DX, TIME_PORT MOV AL,8: ;;8 SECONDS OUT DX,AL
;;ADD YOUR APPLICATION HERE MOV DX, TIMER_START IN AL, DX. ;;START COUNTER
;ADD YOUR APPLICATION HERE W_LOOP: MOV DX, TIMER_STOP IN AL, DX MOV DX, TIMER_START IN AL, DX. ; RESTART COUNTER
; ADD YOUR APPLICATION HERE CMP EXIT_AP, 0 JNE W_LOOP MOV DX, TIMER_STOP IN AL, DX ;;EXIT AP
41
Appendix B Digital I/O
One characteristic of digital circuit is its fast response to high or low signal. This kind of response is highly needed for harsh and critical industrial operating environment. That’s why we design 4-bit digital inputs and 4-bit digital outputs on the WAFER-C400EV. Digital Input and Output, generally, are control signals. You can use these signals to control external devices that needs On/Off circuit or TTL devices. You can read or write data to the selected address to enable the function of digital IO.
A BIOS function call (INT 15H) is used to control the Watchdog Timer:
INT 15H:
AH – 6FH
Sub-function:
AL – 8 : Set the Digital port is INPUT AL : Digital I/O input value
Example Program:
MOV AX, 6F08H ;setting the Digital port is input INT 15H ;
AL low byte = value
AH – 6FH
Sub-function:
AL – 9 : Set the Digital port is OUTPUT BL : Digital I/O output value
Example program:
MOV AX, 6F09H ;setting the Digital port is output MOV BL, 09H ;Digital value is 09H INT 15H ;Digital Output is 1001b
42
Appendix C I/O Address Map
C.1 System I/O Address Map
I/O ADDRESS MAP DESCRIPTION
000-00F DMA controller #1 020-021 Interrupt controller # 1, master 022-023 Chipset address 040-043 System timer 060-060 Standard 101/102 keyboard controller 061-061 System speaker 064-064 Standard 101/102 keyboard controller 070-07F Real time clock, NMI controller 080-0BF DMA page register 0A0-0BF Interrupt Controller # 2 0C0-0DF DMA Controller # 2 0F0-0F0 Clear math coprocessor busy 0F1-0F1 Reset math coprocessor 0F8-OFF Math coprocessor 1F0-1F7 BUS master PCI IDE controller 278-27F Reserved 2F8-2FF Serial Port 2 378-37F Parallel Printer Port 1 3B0-3DF Graphic Adapter 3F0-3F7 Floppy Disk Controller 3F8-3FF Serial Port 1 443 Watch dog timer enable 043/843 Watch dog timer disable
C.2 DMA Channel Assignments
CHANNEL FUNCTION
0 Available 1 Available 2 Standard floppy disk controller 3 Parallel port* 4 Cascade for DMA controller 1 5 Available 6 Available 7 Available
* parallel port DMA default setting: DMA 3 parallel port DMA select: DMA 1 or 3
43
C.3 Interrupt Assignments
INTERRUPT # INTERRUPT SOURCE
NMI Parity error detected IRQ 0 System timer IRQ 1 Keyboard IRQ 2 Interrupt from controller 2 (cascade) IRQ 3 Serial communication port 2 IRQ 4 Serial communication port 1 IRQ 5 Available IRQ 6 Standard floppy disk controller IRQ 7 Parallel port (print port) IRQ 8 Real-time clock IRQ 9 Available IRQ 10 Available IRQ 11 Available IRQ 12 PS/2 mouse IRQ 13 Numeric data processor IRQ 14 Fixed primary IDE controller IRQ 15 Fixed secondary IDE controller
Ethernet IRQ is automatically set by the system.
C.4 1st MB Memory Map
ADDRESS DESCRIPTION
F000h-FFFFh System BIOS EF00h-EFFFh Expansion ROM* C800h-EEFFh Unused C000h-C7FFh VGA BIOS* B000h-BFFFh VGA DRAM A000h-AFFFh VGA DRAM 0000h-9FFFh Base memory
* Default setting
44
Loading...
