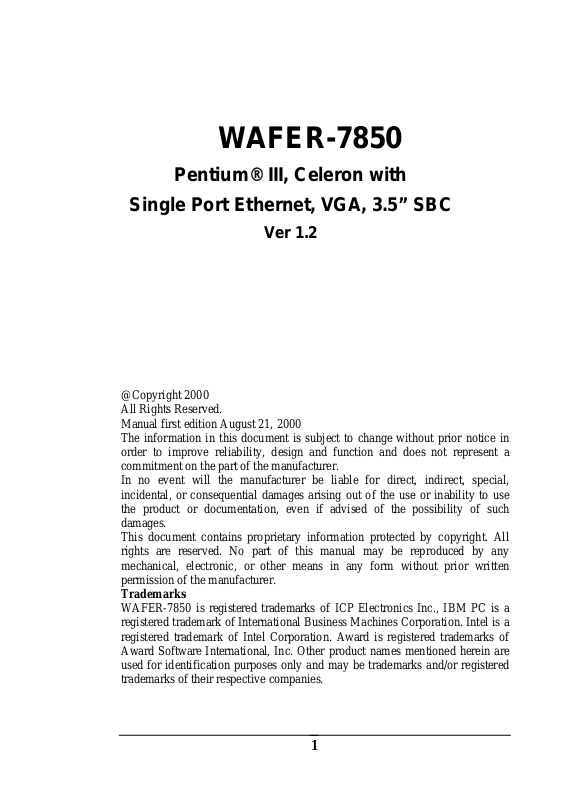

ICP WAFER-7850 User Manual

WAFER-7850

Pentium® III, Celeron with

Single Port Ethernet, VGA, 3.5” SBC

Ver 1.2

@Copyright 2000
All Rights Reserved.
Manual first edition August 21, 2000
The information in this document is subject to change without prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to use
the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.

Trademarks

WAFER-7850 is registered trademarks of ICP Electronics Inc., IBM PC is a
registered trademark of International Business Machines Corporation. Intel is a
registered trademark of Intel Corporation. Award is registered trademarks of
Award Software International, Inc. Other product names mentioned herein are
used for identification purposes only and may be trademarks and/or registered
trademarks of their respective companies.

1

Contents

Contents..........................................................................2

Introduction.....................................................................5

1.1 Specifications:................................................................................ 6

1.2 What You Have .................................................................................. 7

Installation.......................................................................8

2.1 WAFER-7850's Layout....................................................................... 9

2.2 WAFER-7850's................................................................................. 10

2.3 Clear CMOS Setup ........................................................................... 11

2.4 BIOS Protection Setting.................................................................... 12

2.5 COM2 RS232 or RS422/485 Selection ............................................ 12

2.6 CompactFlash Card Master/Slave Mode Setting.............................. 12

2.7 LED Indications................................................................................ 13

Connection....................................................................14

3.1 Floppy Disk Drive Connector........................................................... 14

3.2 Ultra ATA33/66/100 IDE Disk Drive Connector............................. 15

3.3 Parallel Port....................................................................................... 16

3.4 Serial Ports........................................................................................ 16

3.5 Keyboard Connector......................................................................... 17

3.6 USB Port Connector ......................................................................... 18

2

3.7 IrDA Infrared Interface Port ............................................................. 18

3.8 Fan Connector................................................................................... 18

3.9 LAN RJ45 Connector ....................................................................... 19

3.10 VGA Connector.............................................................................. 19

3.11 Audio Connectors ........................................................................... 20

3.12 CompactFlash Storage Card Socket........................................... 21

Award BIOS Setup......................................................22

4.1 Introduction....................................................................................... 22

4.2 Starting Setup.................................................................................... 22

4.3 Using Setup.......................................................................................23

4.4 Main Menu........................................................................................ 24

4.5 Standard CMOS Setup...................................................................... 27

4.6 Advanced BIOS Features.................................................................. 31

4.7 Advanced Chipset Features............................................................... 36

4.8 Integrated Peripherals ....................................................................... 40

4.9 Power Management Setup ................................................................ 43

4.10 PnP/PCI Configuration Setup ......................................................... 46

4.11 Frequency/Voltage Control............................................................. 48

4.12 Defaults Menu................................................................................. 49

4.13 Supervisor/User Password Setting.................................................. 50

4.14 Exit Selecting.................................................................................. 52

Appendix A. Watchdog Timer....................................53

3

Appendix B. Address Mapping..................................55

IO Address Map...................................................................................... 55

1st MB Memory Address Map................................................................ 56

IRQ Mapping Table................................................................................ 56

DMA Channel Assignments ................................................................... 56

8 Bit Programmable Digital I/O.............................................................. 57

Appendix C. Install CPU with Cooler........................58

Appendix D. Wafer-7851 Daughter Board ..............61

D.1 RS422/485 Port................................................................................ 62

D.2 4-IN AND 4-OUT DIGITAL I/O .................................................... 62

D.3 TV OUT........................................................................................... 63

4

1

Introduction

Welcome to the WAFER-7850 Pentium® III, Celeron Single
Board Computer. The WAFER-7850 board is a big 4 pin 3.5
inches form factor board, which comes equipped with high
performance Pentium® III, or economical Celeron Processor
with
the Intel advanced chipset 815E. This product is designed for the
system manufacturers, integrators, or VARs that want to provide
all the performance, reliability, and quality at a reasonable price.

In addition, the WAFER-7850 provides on chip VGA. The VGA
which provides up to 1600x1200 resolution. The VGA memory is
share main memory.

An advanced high performance super AT I/O chip – ITE IT8702
is used in the WAFER-7850 board. Both on-chip UARTs are
compatible with the NS16C550. The parallel port and IDE
interface are compatible with IBM PC/AT architecture's.

WAFER-7850 uses Intel 82801BA embedded LAN controller,
which is a fully integrated 10BASE-T/100BASE-TX LAN solution
with high performance networking functions and Alert-on-Lan
features.

WAFER-7850 uses the advanced INTEL Chipset,815E
which is provided up to 133MHz for FSB and 133MHz for
SDRAM memory.

5

1.1 Specifications:

CPU

•

Pentium® III(FC-PGA) Processor, 450MHz and above

•

•

•

•

•

•

•

•

•

•

: Celeron® Processor, 300MHz and above

DMA channels
Interrupt levels
Chipset
RAM memory

capability is up to 256MB/133MHz.

Ultra ATA/33/66/100 IDE Interface

channel. The south bridge ICH2 supports Ultra ATA/33/66/100 IDE
interface. To support Ultra ATA66/100 Hard disk, a specified cable
must be available.

Floppy disk drive interface

720KB, or 360KB floppy disk drive.

CompactFlash Card Storage Card interface

CompactFlash and IBM Micro Drive.

Two high speed Series ports
Bi-directional Parallel Port
IrDA port :

Keyed IR(ASKIR) interface.

: 7

: 15

: Intel 815E

: Single 144 pin SODIMM socket . The memory

: Single PCI Enhance IDE

: Single 2.88 MB, 1.44MB, 1.2MB,

: Supports Type II

: 16C550 compatible UARTs

IEEE1284 compatible

Supports Serial Infrared(SIR) and Amplitude Shift

USB port :

•

compatible.

AC97Codec :

•

Left/Right speaker out, MIC IN, CD IN.

Watchdog timer

•

255 unit. Reset was generated when CPU did not periodically trigger
the timer.

VGA Controller

•

up to 1600x1200 in 256 Colors at 85Hz Refresh.

Intel 82801BA embedded Lan Controller

•

Negotiation support for 10BASE-T/100BASE-TX standard. Fast back­to-back transmission support with minimum interframe spacing.
Connected to your LAN through RJ45 connector.

Support single USB port for future expansion. USB 1.0

Supports two channel Left/Right Line IN/OUT, and

: Time resolution 1 second or 1 minute, maximum

:

Embedded VGA controller, Screen Resolution

:

IEEE 802.3u Auto-

6

:

Keyboard Controller:

•

Daughter Board (Option)

•

daughter board Wafer-7851 is option. The Wafer-7851‘s full features
are TV out with resolution 1024X768, 8 bit programmable digital I/O
with 4 input and 4 output, auto-direction RS422/485

Power Consumption

•

running by PIII 550MHz and 256MB SODIMM

Operating Temperature

•

1.2 What You Have

In addition to this User's Manual, the WAFER-7850 package
includes the following items:

WAFER-7850 Celeron

•

with a heat sink on the GMCH chip

RS-232 cable

•

Printer cable

•

FDD cable

•

IDE cable.

•

USB cable

•

Audio cable with 6X2 2.0mm pitch female connector.

•

Cooler and Heat sink module

•

Y cable for PS/2 keyboard and mouse

•

8042 compatible for keyboard and PS/2 mouse

: A special 20X2 connector left for

: 25W; with 5V/4.8A and 12V/0.074A, as

: 0° ~ 55° C ( CPU needs Cooler)

Pentium

®,

Single Board Computer

® III

2

7

Installation

This chapter describes how to install the WAFER-7850. At first,
the layout of WAFER-7850 is shown, and the unpacking
information that you should be careful is described. The jumpers
and switches setting for the WAFER-7850's configuration, such
as CPU type selection, system clock setting, and watch dog
timer, are also included.

8

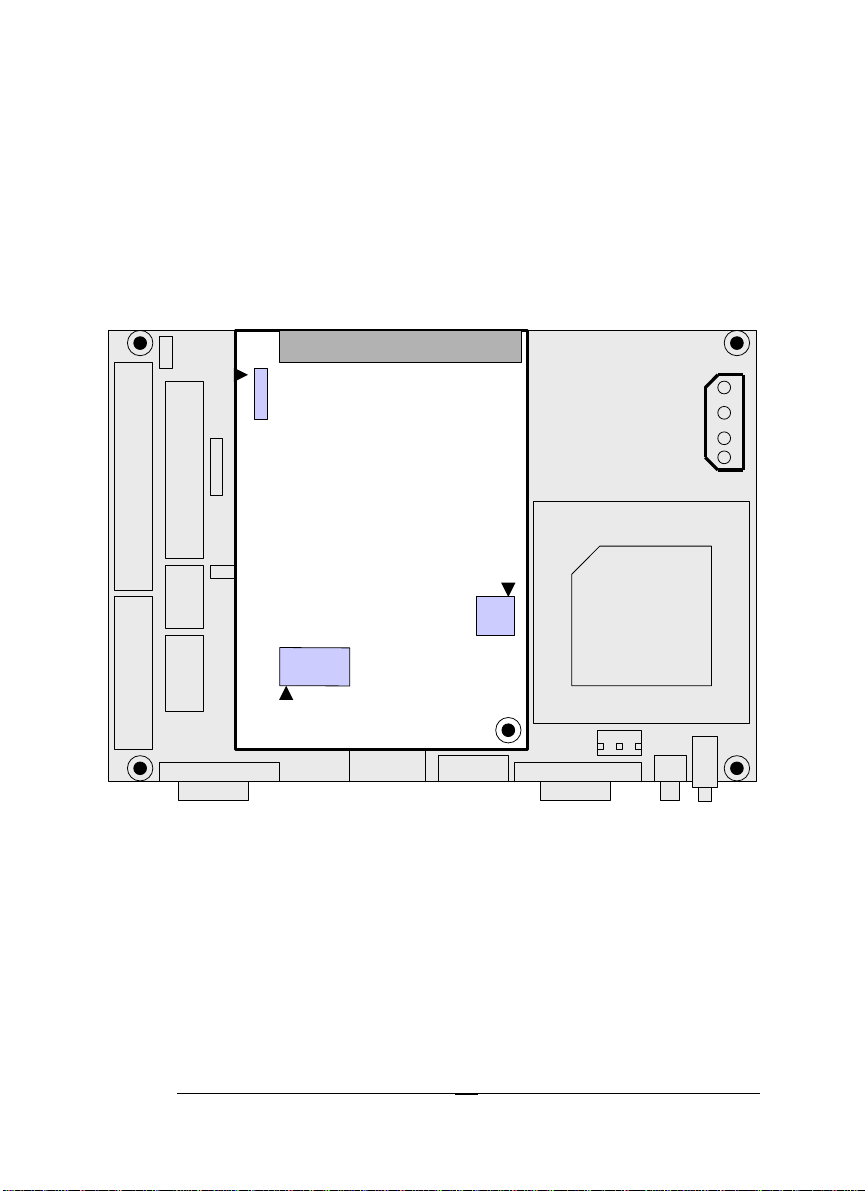

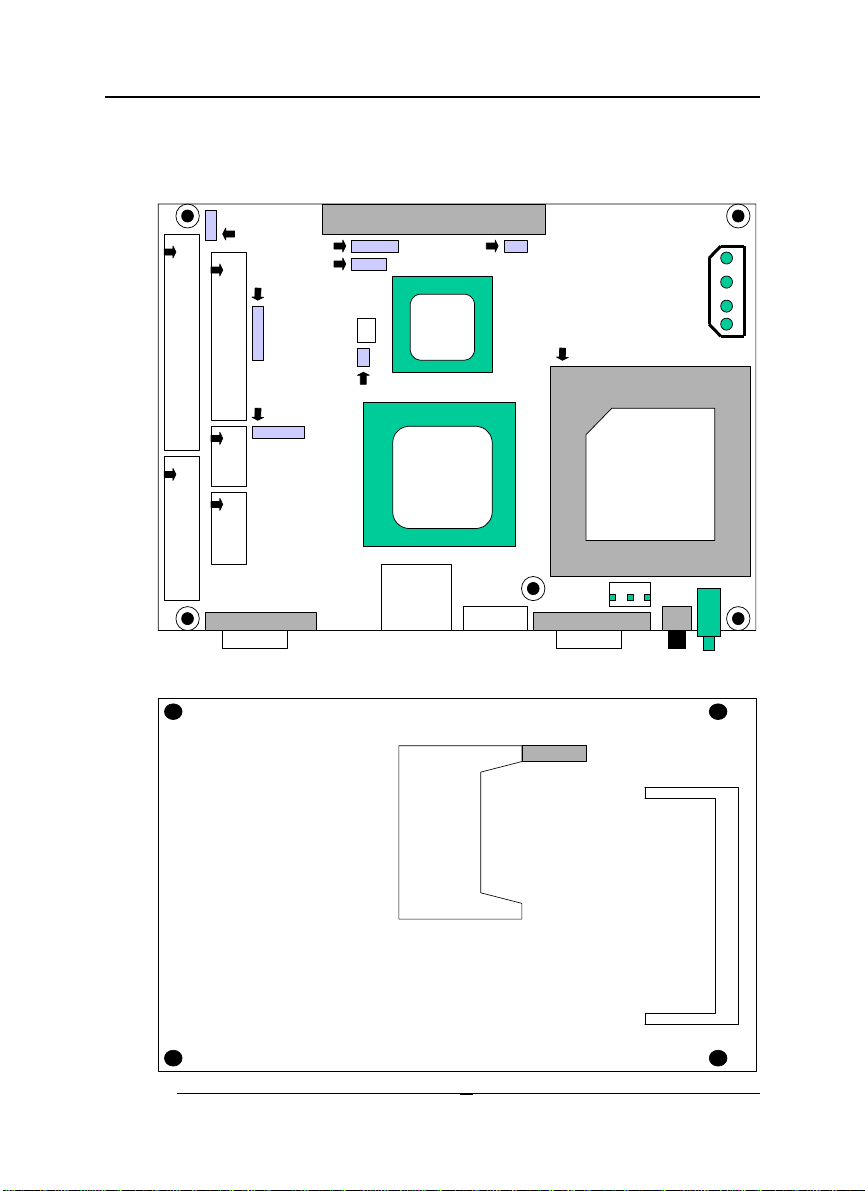

2.1 WAFER-7850's Layout

<This area is intentionally left blank>

JP1

IDE

FLOPY DISK

COM

2

PRINTER

AUDIO

IRDA

CD-IN

COM1

COMPONENT SIDE VIEW

DAUGHTER BOARD SLOT

BAT

JP4

SOLDER SIDE VIEW

JP2

RJ45

USB

PS2
KB/MS

JP3

FAN RESET

VGA

BIG 4PIN

COMPACT FLASH TYPE II

IBM MICRO DRIVE

COMPATIBLE

144PIN SODIMM

9

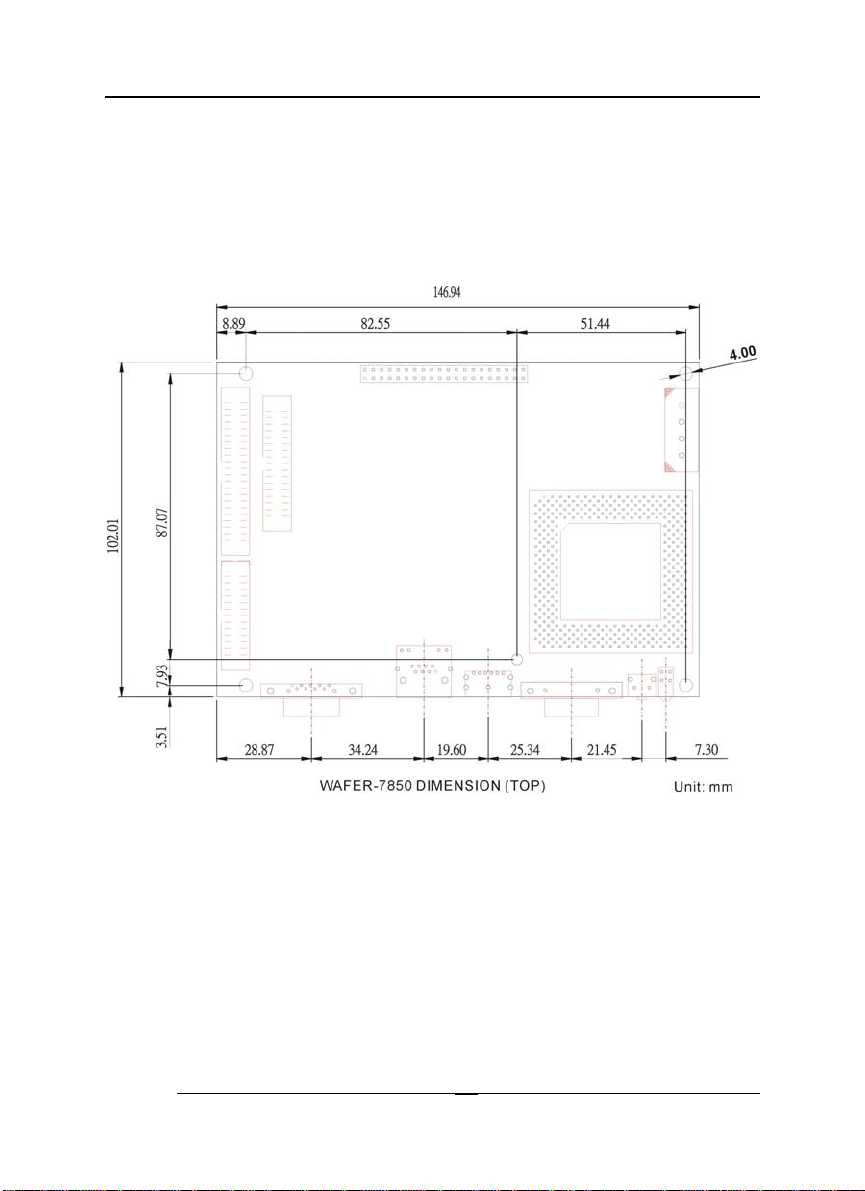

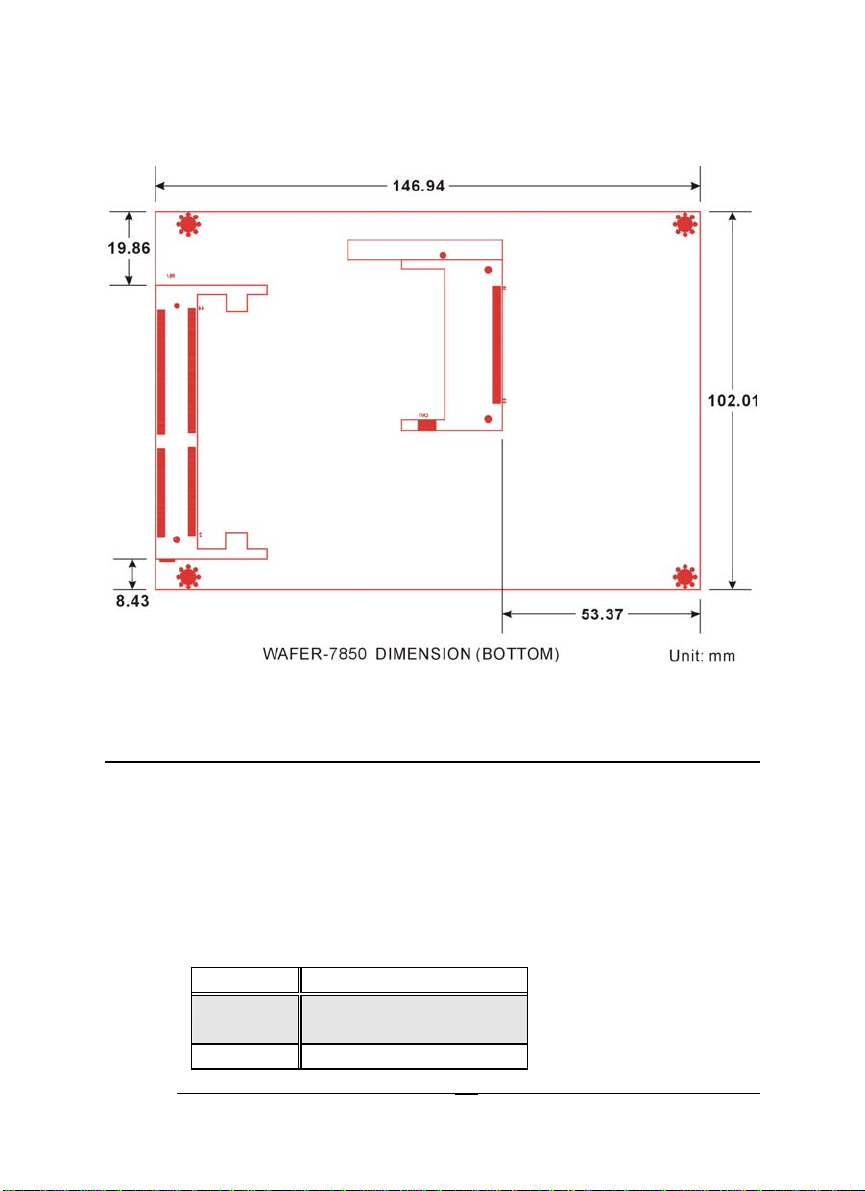

2.2 WAFER-7850's

Dimension

10

2.3 Clear CMOS Setup

If want to clear the CMOS Setup(for example forgot the
password you should clear the setup and then set the password
again.),you should close the JP2 about 3 seconds, then
open again. Set back to normal operation mode, open JP2.

JP2: Clear CMOS Setup

•

JP2 DESCRIPTION

1-2 Keep CMOS Setup

(Normal Operation)

2-3

Clear CMOS Setup

11

2.4 BIOS Protection Setting

To protect the bios from writing, place the cap on the location 2-3.

• JP1 : Flash Protection Setting

JP1 DESCRIPTION
2-3 Locked

1-2

Unlocked

2.5 COM2 RS232 or RS422/485 Selection

• JP4 : COM2 RS232 or RS422/485 Selection

JP4 DESCRIPTION
RS232 Short

RS422/485

Caution: While RS232 is selected, to be sure no daughter board

Wafer-7851 with RS422/485 function equipped.

in use, the COM2 on the main board would be disable.

Opened

If RS422/485 is

2.6 CompactFlash Card Master/Slave Mode Setting

• JP3 : Master/Slave Mode Setting

JP3 DESCRIPTION
OPEN SLAVE

SHORT

MASTER

12

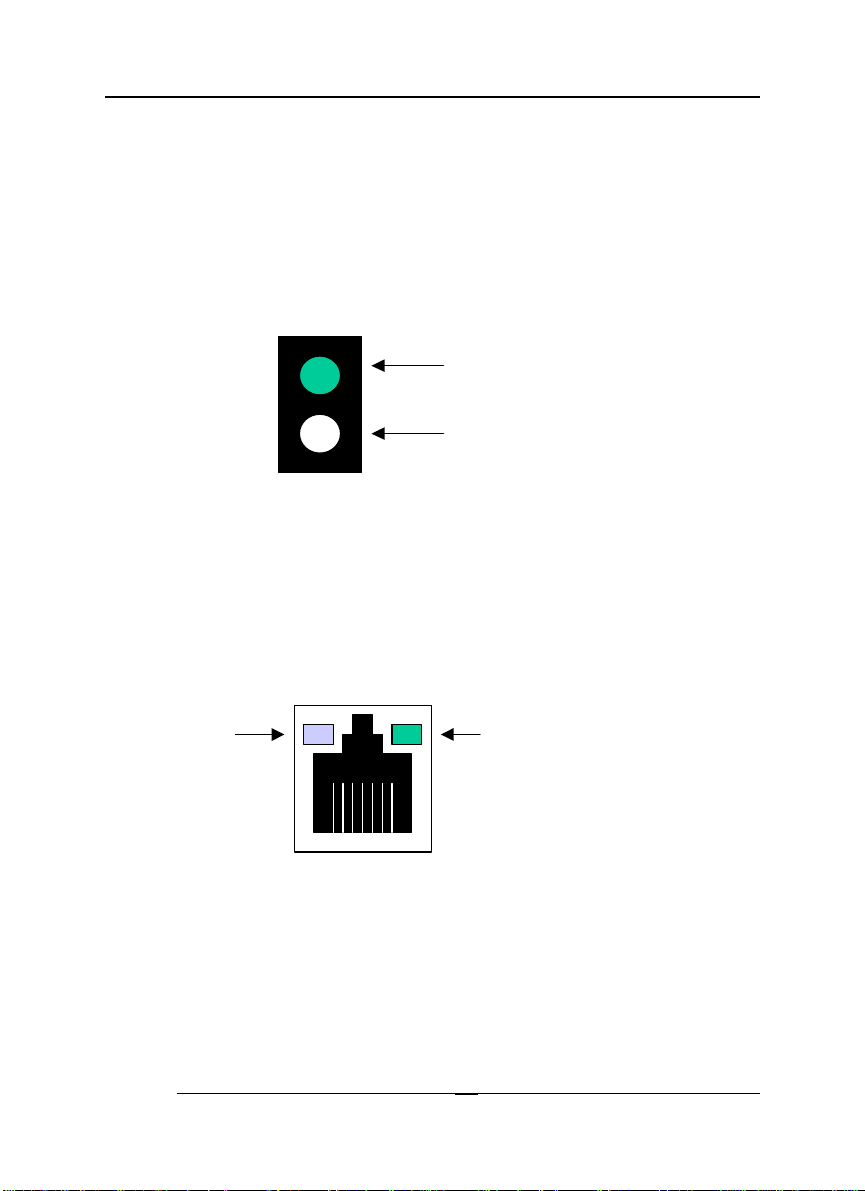

2.7 LED Indications

The WAFER-7850 is equipped 4 LEDs to indicate the system status.
There are two LEDs on the D6. The upper green one indicates the IDE
status.
While the IDE is transferring data, this LED is in flicker. The lower yellow
LED indicates the power on/off. After the power on, the yellow LED will
light on.

GREEN

YELLOW

D6

On the RJ45 connector, while the network is in linking, the yellow LED
turns on. During data transmitting or receiving, the green LED will flicker.
The flicker rate depends on the activity load.

YELLOW GREEN

RJ45

13

3

Connection

This chapter describes how to connect peripherals, switches and
indicators to the WAFER-7850 board.

3.1 Floppy Disk Drive Connector

WAFER-7850 board equipped with a 34-pin daisy-chain driver
connector cable.

CN5 : FDC CONNECTOR

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 N/C 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 N/C 34 DISK CHANGE#

12

33 34

14

3.2 Ultra ATA33/66/100 IDE Disk Drive Connector

3

You can attach two IDE( Integrated Device Electronics) hard disk
drives to the WAFER-7850 IDE controller.

CN4 (IDE 1) : Primary IDE Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 N/C 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 N/C 28 BALE - DEFAULT
29 N/C 30 GROUND - DEFAULT
31 INTERRUPT 32 IOCS16#-DEFAULT
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND
41 VCC 5V 42 VCC 5V
43 GROUND 44 N/C

12

4

44

15

3.3 Parallel Port

This port is usually connected to a printer, The WAFER-7850
includes an on-board parallel port, accessed through a 26-pin
flat-cable connector CN10.Three modes – SPP,EPP and ECP –
are supported.

CN10 : Parallel Port Connector

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT LN# 18 GROUND
19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND 26 NC

114

13 26

3.4 Serial Ports

The WAFER-7850 offers two high speed NS16C550 compatible
UARTs with Read/Receive 16 byte FIFO serial ports.

CN14 : COM1
CN8 : COM2

16

• CN14 : COM1 9-pin Connector

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

CN8 : COM2 10-pin Connector

•

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD)
2 DATA SET READY (DSR)
3 RECEIVE DATA (RXD)
4 REQUEST TO SEND (RTS)
5 TRANSMIT DATA (TXD)
6 CLEAR TO SEND (CTS)
7 DATA TERMINAL READY (DTR)
8 RING INDICATOR (RI)
9 GROUND

10 NC

3.5 Keyboard Connector

12

910

The WAFER-7850 provides 6-PIN MINI-DIN keyboard/mouse
connector.

CN5 : 6-pin Mini-DIN Keyboard/Mouse Connector

•

PIN NO. DESCRIPTION

1 KEYBOARD DATA
2 MOUSE DATA
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 MOUSE CLOCK

17

3.6 USB Port Connector

The WAFER-7850 built-in an USB port for the future new I/O bus
expansion.

CN2 :

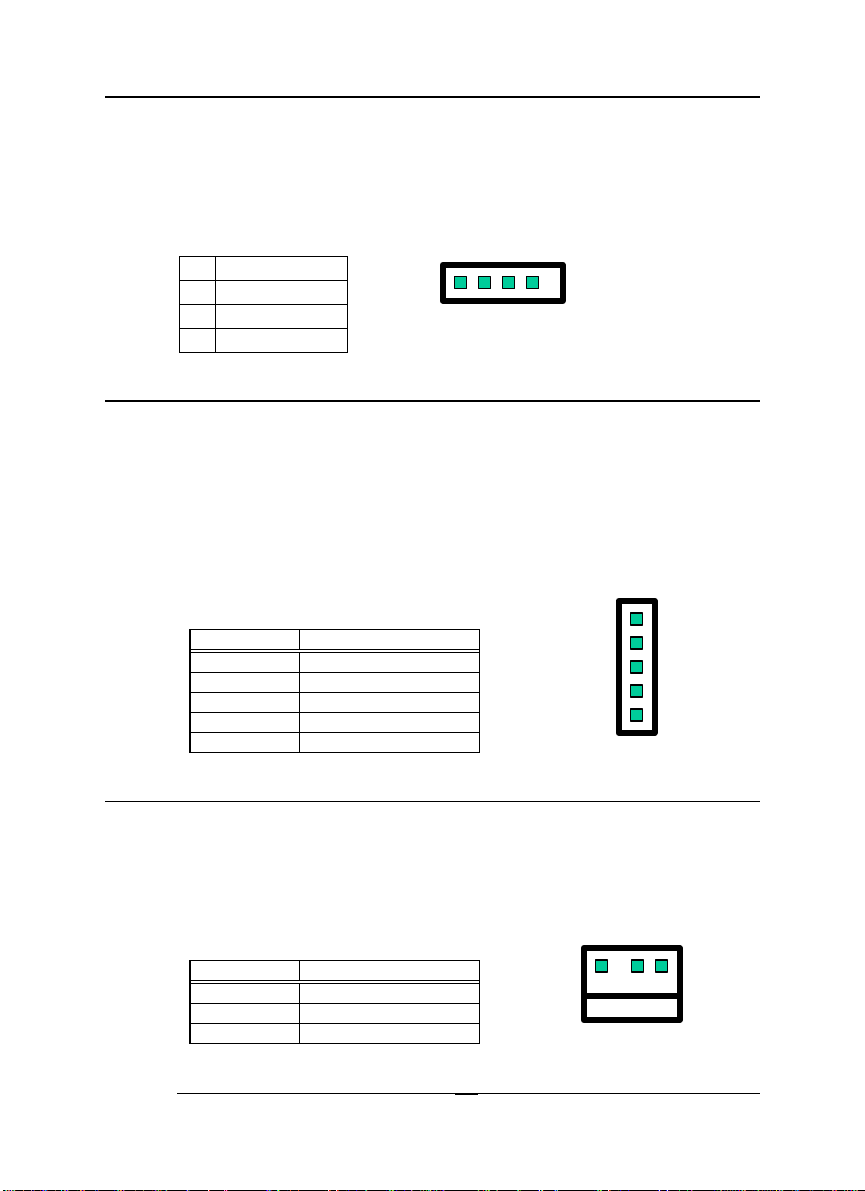

1. VCC

2. DATA-

3. DATA+

1 2 3 4

4. GROUND

3.7 IrDA Infrared Interface Port

The WAFER-7850 built-in a IrDA port which support Serial
Infrared(SIR) or Amplitude Shift Keyed IR(ASKIR) interface.
When use the IrDA port have to set SIR or ASKIR model in the
BIOS’s Peripheral Setup’s COM 2. Then the normal RS-232
COM 2 will be disabled.

• CN6 : IrDA connector

PIN NO. DESCRIPTION

1 VCC5V
2 N/C
3 IR-RX
4 Ground
5 IR-TX

1
2
3

4
5

3.8 Fan Connector

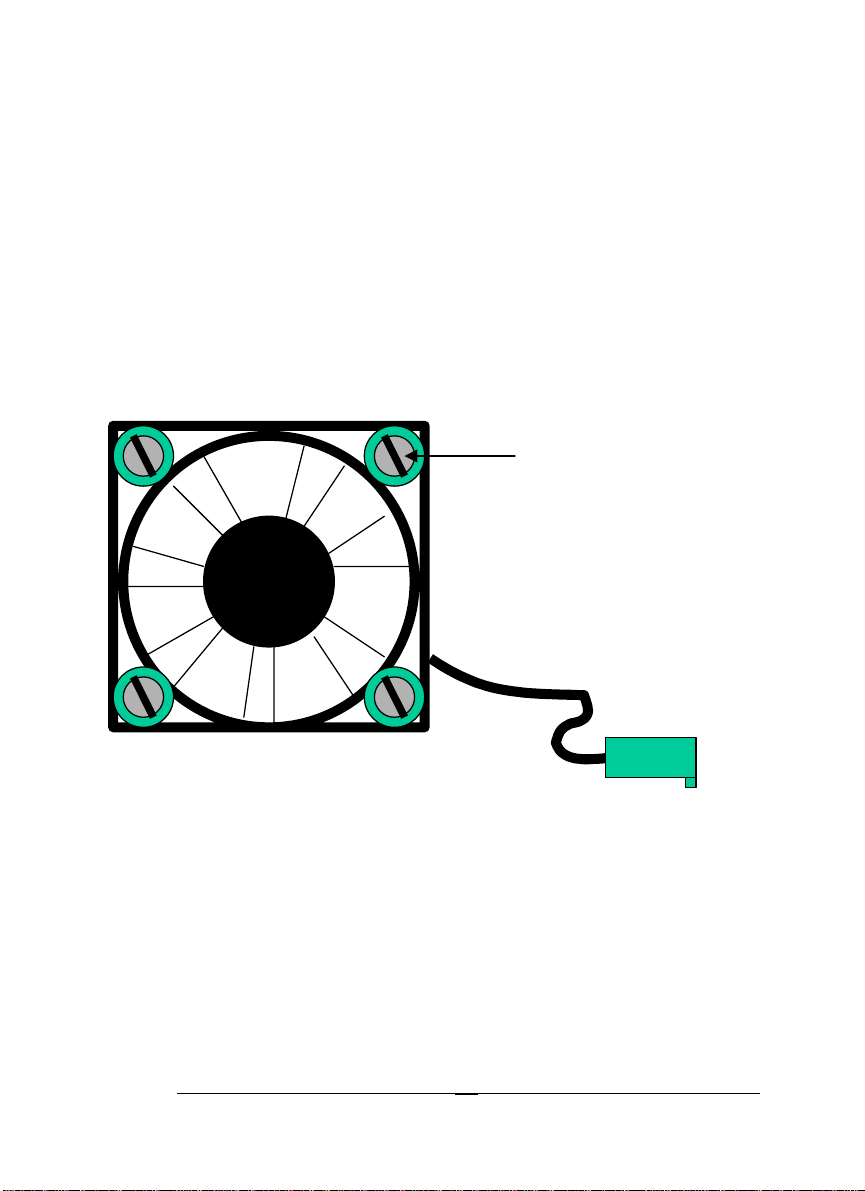

The WAFER-7850 provides CPU cooling fan connector and
chassis fan connector. These connectors can supply 12V/500mA
to the cooling fan. The Fan’s rotation is in full speed.

• FAN1/FAN2 : CPU Fan Connector

PIN NO. DESCRIPTION

3 NC
2 12V
1 Ground

18

3 2 1

3.9 LAN RJ45 Connector

WAFER-7850 is equipped with a built-in 10/100Mbps Ethernet
Controller. You can connect it to your LAN through RJ45 LAN
connector. The pin assignments are as following:

• CN14 : LAN RJ45 Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 TX+ 5. N/C
2 TX- 6. RX-

3. RX+ 7. N/C

4. N/C 8. N/C

3.10 VGA Connector

WAFER-7850 built-in 15-pin VGA connector directly to your CRT
monitor.

• CN17 : 15-pin Female Connector

1 RED 2 GREEN
3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND

9 NC 10 GROUND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK

19

3.11 Audio Connectors

The AC97 Codec support several audio functions. The connector
are described as below.

CN11 : AUDIO CONNECTOR

1. LEFT SPEAKER OUT SIGNAL (WITH OP AMPLIFIER)

2. RIGHT SPEAKER OUT SIGNAL (WITH OP AMPLIFIER)

3. GROUND(FOR SPK CONNECTOR)

4. GROUND(FOR LINE OUT CONNECTOR)

5. LEFT LINE OUT SIGNAL

6. RIGHT LINE OUT SIGNAL

7. LEFT LINE IN SIGNAL

8. RIGHT LINE IN SIGNAL

9. GROUND(FOR LINE IN CONNECTOR)

10. GROUND(NO USE)

11. MIC IN

12. GROUND(FOR MIC IN CONNECTOR)

CN9 : CD IN

1. CD LEFT SIGNAL

2. GROUND

3. GROUND

4. CD RIGHT SIGNAL

12

1 2 3 4

11 12

20

3.12 CompactFlash Storage Card Socket

The WAFER-7850 configures CompactFlash Storage Card in
IDE Mode. This type II Socket is compatible with IBM Micro Drive.

CN17 : CompactFlash Storage Card Socket pin assignment

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 26 CARD DETECT1
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CS1# 32 CS3#
8 N/C 33 N/C

9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 OBLIGATORY TO

12 N/C 37 IRQ15
13 VCC 38 VCC
14 N/C 39 MASTER/SLAVE
15 N/C 40 N/C
16 N/C 41 RESET#
17 N/C 42 IORDY
18 A2 43 N/C
19 A1 44 OBLIGATORY TO

20 A0 45 ACTIVE#
21 D0 46 PDIAG#
22 D1 47 D8
23 D2 48 D9
24 N/C 49 D10
25 CARD DETECT2 50 GROUND

PULL HIGH

PULL HIGH

21

4

Award BIOS Setup

4.1 Introduction

This chapter discusses the Setup program built into the BIOS. The
Setup program allows users to configure the system. This configuration
is then stored in battery-backed CMOS RAM so that it retains the Setup
information while the power is off.

4.2 Starting Setup

The BIOS is immediately active when you turn on the computer. While
the BIOS is in control, the Setup program can be activated in one of two
ways:

1. By pressing <Del> immediately after switching the system on, or

2. by pressing the <Del> key when the following message appears
briefly at the bottom of the screen during the POST (Power On Self­Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter
Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

22

4.3 Using Setup

In general, you can use the arrow keys to highlight items, press <Enter>
to select, use the PageUp and PageDown keys to change entries, press
<F1> for help and press <Esc> to quit. The following table provides
more details about how to navigate in the Setup program using the
keyboard.

Key Function
Up Arrow Move to the previous item
Down
Arrow
Left Arrow Move to the item on the left (menu bar)
Right Arrow Move to the item on the right (menu bar)
Esc Main Menu: Quit without saving changes

Move Enter Move to the item you desired
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes
Esc key Main Menu -- Quit and not save changes into CMOS

F1 key General help on Setup navigation keys
F5 key Load previous values from CMOS
F6 key Load the fail-safe defaults from BIOS default table
F7 key Load the optimized defaults
F10 key Save all the CMOS changes and exit

Move to the next item

Submenus: Exit Current page to the next higher level
menu

Status Page Setup Menu and Option Page Setup
Menu -- Exit current page and return to Main Menu

23

4.4 Main Menu

Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to
select among the items and press <Enter> to accept and enter the sub­menu.

CMOS Setup Utility - Copyright ( C ) 1984-2000 Award Software

Standard CMOS Features
Advanced BIOS Features
Advanced Chipset Features
Integrated Peripherals
Power Management Setup
PnP/PCI Configurations
Frequency/Voltage Control

Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving

Esc : Quit ↑ ↓ ← → : Select Item
F10 : Save & Exit Setup

Time, Date, Hard Disk Type….

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

4.4.1 Setup Items

The main menu includes the following main setup categories. Recall that
some systems may not include all entries.

24

Standard CMOS Features

Use this menu for basic system configuration. See Section 4.5 for the
details.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.
See Section 4.6 for the details.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize
your system's performance. See section 4.7 for the details.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals. See
section 4.8 for the details.

Power Management Setup

Use this menu to specify your settings for power management. See
section 4.9 for the details.

PnP / PCI Configuration

This entry appears if your system supports PnP / PCI. See section 4.10
for the details.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control. See
section 4.11 for the details.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable
performance for your system to operate. See section 4.12 for the details.

25

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings
for optimal performance system operations. While Award has designed
the custom BIOS to maximize performance, the factory has the right to
change these defaults to meet their needs. See section 4.12 for the
details.

Supervisor / User Password

Use this menu to set User and Supervisor Passwords. See section 4.13
for the details.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup. See section 4.14
for the details.

Exit Without Save

Abandon all CMOS value changes and exit setup. See section 4.14 for
the details.

26

4.5 Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 categories.
Each category includes no, one or more than one setup items. Use the
arrow keys to highlight the item and then use the <PgUp> or <PgDn>
keys to select the value you want in each item.

CMOS Setup Utility - Copyright ( C ) 1984-2000 Award Software

Standard CMOS Features

Date: Mon, Feb 8 2000
Time: 16:19:20

 IDE Primary Master HD Model Name
 IDE Primary Slave <Press Enter> None
 IDE Secondary Master <Press Enter> None
 IDE Secondary Slave <Press Enter> None

Drive A 1.44M, 3.5 in.
Drive B None

Video EGA/VGA
Halt On All,But Keyboard

Based Memory 640K
Extended Memory 129024K
Total Memory 130048K

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Item Help

Menu Level 
Change the day,

month,
year and century

Figure 1: The Main Menu

27

Main Menu Selections

Item Options Description

Date MM DD YYYY Set the system date.
Time HH : MM : SS Set the system time
IDE
Primary Master

IDE
Primary Slave

IDE
Secondary Master

IDE
Secondary Slave

Drive A
Drive B

Video EGA/VGA

Halt On All Errors

Base Memory N/A Displays the amount of

Extended Memory N/A Displays the amount of

Total Memory N/A Displays the total

Options are in its sub
menu
(described in Table 3)
Options are in its sub
menu
(described in Table 3)
Options are in its sub
menu
(described in Table 3)
Options are in its sub
menu
(described in Table 3)
None
360K, 5.25 in

1.2M, 5.25 in
720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in
CGA 40

CGA 80
MONO

No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key

Press <Enter> to enter
the sub menu of detailed
options
Press <Enter> to enter
the sub menu of detailed
options
Press <Enter> to enter
the sub menu of detailed
options
Press <Enter> to enter
the sub menu of detailed
options
Select the type of floppy
disk drive installed in
your system

Select the default video
device

Select the situation in
which you want the BIOS
to stop the POST
process and notify you

conventional memory
detected during boot up

extended memory
detected during boot up

memory available in the
system

Table 2 Main Menu Selections

28

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub menu
to configure each hard disk drive.

Figure 2 shows the IDE primary master sub menu.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

IDE Primary Master

IDE HDD Auto-Detection Press Enter

IDE Primary Master Auto
Access Mode Auto

Capacity 15362 MB
Cylinder 29765

Head 16
Precomp 0
Landing Zone 29764
Sector 63

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Item Help
Menu Level 

To auto-detect the HDD’s
size, head... on this
channel

Figure 2 IDE Primary Master sub menu

29

Use the legend keys to navigate through this menu and exit to
the main menu. Use Table 3 to configure the hard disk.

Item Options Description

IDE HDD Auto-detection Press Enter Press Enter to auto-detect

the HDD on this channel. If
detection is successful, it fills
the remaining fields on this
menu.

IDE Primary Master None

Auto
Manual

Selecting ‘manual’ lets you
set the remaining fields on
this screen. Selects the type
of fixed disk. "User Type"
will let you select the number
of cylinders, heads, etc.
Note: PRECOMP=65535
means NONE !

Capacity Auto Display

your disk drive
size

Disk drive capacity
(Approximated). Note that
this size is usually slightly
greater than the size of a
formatted disk given by a
disk checking program.

Access Mode CHS

LBA

Choose the access mode for

this hard disk
Large
Auto

Table 3 Hard disk selections

30

4.6 Advanced BIOS Features

This section allows you to configure your system for basic operation.
You have the opportunity to select the system’s default speed, boot-up
sequence, keyboard operation, shadowing and security.

CMOS Setup Utility – Copyright © 1984 – 2000 Award Software

Advanced BIOS Features
Virus Warning Disabled
CPU Internal Cache Enabled
External Cache Enabled
CPU L2 Cache ECC Checking Enabled
Process Number feature Enabled
Quick Power On Self Test Disabled
First Boot device Floppy
Second Boot device HDD-0
Third Boot device LS120
Boot other device Enabled
Swap Floppy Drive
Boot Up Floppy Seek Enabled
Boot Up NumLock Status
Gate A20 Option Fast
Typematic Rate Setting Disabled
Typematic Rate (Chars/Sec) 6
Typematic Delay (Msec) 250
Security Option Setup
OS Select For DRAM > 64MB
Report NO FDD For Win 95 No

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Disabled

On

Non-OS2

Item Help
______________________
_

Menu Level 
Allows you to choose the

VIRUS warning feature for
IDE Hard Disk boot sector
protection. If this function is
enabled and someone
attempt to write data into this
area, BIOS will show a
warning message on screen
and alarm beep

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempt to
write data into this area, BIOS will show a warning message on screen
and alarm beep.

31

Enabled Activates automatically when the system boots up

causing a warning message to appear when anything
attempts to access the boot sector or hard disk partition
table.

Disabled No warning message will appear when anything

attempts to access the boot sector or hard disk partition
table.

CPU Internal Cache/External Cache

These two categories speed up memory access. However, it depends
on CPU/chipset design.

Enabled Enable cache
Disabled Disable cache

CPU L2 Cache ECC Checking

This item allows you to enable/disable CPU L2 Cache ECC checking.
The choice: Enabled, Disabled.

Processor Number Feature

This item allows you to enable/disable support KLAMATH.
The choice: Enabled, Disabled.

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power up
the computer. If it is set to Enable, BIOS will shorten or skip some check
items during POST.

Enabled Enable quick POST
Disabled Normal POST

32

First/Second/Third/Other Boot Device

The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.

The Choice: Floppy, LS120, HDD0-3, SCSI, CDROM, ZIP 100 , LAN,
Disabled.

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive name
assignments.

The choice: Enabled/Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot up. Disabling speeds boot up.

The choice: Enabled/Disabled.

Boot Up NumLock Status

Select power on state for NumLock.
The choice: On/Off.

Gate A20 Option

Select if chipset or keyboard controller should control GateA20.

Normal A pin in the keyboard controller controls

GateA20

Fast Lets chipset control Gate A 20

33

Typematic Rate Setting

Key strokes repeat at a rate determined by the keyboard controller.
When enabled, the typematic rate and typematic delay can be selected.

The choice: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a key stroke when you hold
the key down.

The choice: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat
the keystroke.

The choice: 250, 500, 750, 1000.

Security Option

Select whether the password is required every time the system boots or
only when you enter setup.

System The system will not boot and access to Setup will be

denied if the correct password is not entered at the
prompt.

Setup The system will boot, but access to Setup will be denied if

the correct password is not entered at the prompt.

Note: To disable security, select PASSWORD SETTING at Main Menu

and then you will be asked to enter password. Do not type anything and

just press <Enter>, it will disable security. Once the security is disabled,

the system will boot and you can enter Setup freely.

34

OS Select For DRAM > 64MB

Select the operating system that is running with greater than
64MB of RAM on the system.

The choice: Non-OS2, OS2.

Report No FDD For Win 95

Whether report no FDD for Win 95 or not.
The choice: Yes, No.

35

4.7 Advanced Chipset Features

CMOS Setup Utility – Copyright © 1984 – 2000 Award Software

Advanced Chipset Features
SDRAM CAS Latency Time 3
SDRAM Cycle Time Tras/Trc 7/9
SDRAM RAS-to-CAS Delay 3
SDRAM RAS Precharge Time 3
System BIOS Cacheable Disabled
Video BIOS Cacheable Disabled
Memory Hole At 15M-16M Disabled
CPU Latency Timer Disabled
Delay Transaction Enabled
AGP Graphics Aperture Size 64MB

Use VGA BIOS In VBU Block Enabled

On-Chip Video Window Size 64MB
Output Device Priority CRT/FP/TV

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Item Help
______________________
_
Menu Level 

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
access to system memory resources, such as DRAM and the external
cache. It also coordinates communications between the conventional
ISA bus and the PCI bus. It must be stated that these items should
never need to be altered. The default settings have been chosen
because they provide the best operating conditions for your system.

36

DRAM Settings

The first chipset settings deal with CPU access to dynamic random
access memory (DRAM). The default timings have been carefully
chosen and should only be altered if data is being lost. Such a scenario
might well occur if your system had mixed speed DRAM chips installed
so that greater delays may be required to preserve the integrity of the
data held in the slower memory chips.

SDRAM CAS Latency Time

When synchronous DRAM is installed, the number of clock cycles of
CAS latency depends on the DRAM timing.

The Choice: 2, 3

SDRAM Cycle Time Tras/Trc

Select the number of SCLKs for an access cycle.
The Choice: 5/7, 6/8.

SDRAM RAS-to-CAS Delay

This field lets you insert a timing delay between the CAS and RAS strobe
signals, used when DRAM is written to, read from, or refreshed. Fast
gives faster performance; and Slow gives more stable performance.
This field applies only when synchronous DRAM is installed in the
system.

The Choice: 2, 3.

SDRAM RAS Precharge Time

If an insufficient number of cycles is allowed for the RAS to accumulate
its charge before DRAM refresh, the refresh may be incomplete and the
DRAM may fail to retain data. Fast gives faster performance; and Slow
gives more stable performance. This field applies only when
synchronous DRAM is installed in the system.

The Choice: 2, 3.

37

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h­FFFFFh, resulting in better system performance. However, if any
program writes to this memory area, a system error may result.

The choice: Enabled, Disabled.

Video BIOS Cacheable

Select Enabled allows caching of the video BIOS , resulting in better
system performance. However, if any program writes to this memory
area, a system error may result.

The Choice: Enabled, Disabled.

Memory Hole At 15M-16M

You can reserve this area of system memory for ISA adapter ROM.
When this area is reserved, it cannot be cached. The user information of
peripherals that need to use this area of system memory usually
discusses their memory requirements.

The Choice: Enabled, Disabled.

CPU Latency Timer

Enabled :CPU cycle will only be Deferred after in has been in a “Snoop
Stall” for 31 clocks and another ADS# has arrived.

Disabled: CPU cycle will only be Deferred immediately after the GMCH
receives another ADS#.

The Choice: Enabled, Disabled.

Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay
transactions cycles. Select Enabled to support compliance with PCI
specification version 2.1.

The Choice: Enabled, Disabled.

38

On-Chip Video Window Size

Select the on-chip video window size for VGA drive use.
The Choice: 32MB, 64MB, Disabled.

39

4.8 Integrated Peripherals

CMOS Setup Utility – Copyright © 1984 – 2000 Award Software

Integrated Peripherals
On-Chip Primary PCI IDE Enabled
On-Chip Secondary PCI IDE Enabled
IDE Primary Master PIO Auto
IDE Primary Slave PIO Auto
IDE Secondary Master PIO Auto
IDE Secondary Slave PIO Auto
IDE Primary Master UDMA Auto
IDE Primary Slave UDMA Auto
IDE Secondary Master UDMA Auto
IDE Secondary Slave UDMA Auto
USB Controller Disabled
USB Keyboard Support Disabled

AC97 Audio Auto
IDE HDD Block Mode Enabled
Onboard FDC Controller Enabled
Onboard Serial Port 1 3F8/IRQ4
Onboard Serial Port 2 2F8/IRQ3
UART Mode Select Normal
Onboard Parallel Port 378/IRQ7
Parallel Port Mode SPP
Watch Timer Unit Select Second

↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults

Item Help

________________
Menu Level 
If your IDE hard drive
supports block mode
select Enabled for
automatic detection
of the optimal
number of block
read/write per sector
the drive can support

There are some item in bottom of scroll.

On-Chip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.

The choice: Enabled, Disabled.

40

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE
interface supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the
best mode for each device.

The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA-33/66 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If your hard
drive and your system software both support Ultra DMA-33/66, select
Auto to enable BIOS support.

The Choice: Auto, Disabled.

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals.

The Choice: Enabled, Disabled.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.

The Choice: Enabled, Disabled.

AC97 Audio

This item allows you to decide to enable/disable the 810E chipset family
to support AC97 Audio.

The choice: Auto, Disabled.

41

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple
sector read/write. If your IDE hard drive supports block mode (most new
drives do), select Enabled for automatic detection of the optimal number
of block read/writes per sector the drive can support.

The choice: Enabled, Disabled

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed
on the system board and you wish to use it. If you install and-in FDC or
the system has no floppy drive, select Disabled in this field.

The choice: Enabled, Disabled

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and second
serial ports.

The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled,
Auto

UART Mode Select

Select a serial port 2 operation mode.
The choice: Normal, IrDA, ASKIR, SCR

Onboard Parallel Port

Select an address and corresponding interrupt for the parallel ports.
The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled,

Parallel Port Mode

Select a parallel operation mode.
The choice: SPP, EPP, ECP,ECP+EPP

Watchdog Timer Unit Select

Select the WatchDog Timer unit.
The choice: Second, Minute

42

4.9 Power Management Setup

The Power Management Setup allows you to configure you system to
most effectively save energy while operating in a manner consistent with
your own style of computer use.

CMOS Setup Utility – Copyright © 1984 – 2000 Award Software

Power Management Setup

Power Management User Define

Video Off Method
Video Off In Suspend Yes
Suspend Type Stop Grant
Suspend Mode Disabled
HDD Power Down Disabled

** Reload Global Timer Events **
Primary IDE 0 Disabled
Primary IDE 1 Disabled
Secondary IDE 0 Disabled
Secondary IDE 1 Disabled
FDD,COM,LPT Port Disabled
PCI, PIRQ[A-D]# Disabled

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

DPMS

Item Help
______________________
_
Menu Level 

43

Power Management

This category allows you to select the type (or degree) of power saving
and is directly related to the following modes:

1. HDD Power Down

2. Doze Mode

3. Suspend Mode
There are four selections for Power Management, three of which have

fixed mode settings.
Disable (default) No power management. Disables all four modes

Min. Power Saving Minimum power management. Doze Mode = 1 hr.

Standby Mode = 1 hr., Suspend Mode = 1 hr., and
HDD Power Down = 15 min.

Max. Power Saving

User Defined Allows you to set each mode individually. When not

Maximum power management -- ONLY AVAILABLE
FOR SL CPU’s. Doze Mode = 1 min., Standby Mode
= 1 min., Suspend Mode = 1 min., and HDD Power
Down = 1 min.

disabled, each of the ranges are from 1 min. to 1 hr.
except for HDD Power Down which ranges from 1
min. to 15 min. and disable.

Video Off Method

This determines the manner in which the monitor is blanked.
V/H SYNC+Blank This selection will cause the system to turn

off the vertical and horizontal synchronization
ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video

buffer.

DPMS Initial display power management signaling.

44

Video Off In Suspend

This determines the manner in which the monitor is blanked.
The choice: Yes, No.

Suspend Type

Select the Suspend Type.
The choice: PWRON Suspend, Stop Grant.

Suspend Mode

When enabled and after the set time of system inactivity, all devices
except the CPU will be shut off.

The choice: 1Min, 2Min, 4Min, 8Min, 12Min, 20Min, 30Min, 40Min, 1Hour,
Disabled.

HDD Power Down

When enabled and after the set time of system inactivity, the hard disk
drive will be powered down while all other devices remain active.

The choice: 1Min, 2Min, 3Min, 4Min, 5Min, 6Min, 7Min, 8Min, 9Min,
10Min, 11Min, 12Min, 13Min, 14Min, 15Min, Disabled.

PM EVENTS

PM events are I/O events whose occurrence can prevent the system
from entering a power saving mode or can awaken the system from such
a mode. In effect, the system remains alert for anything which occurs to
a device which is configured as Enabled , even when the system is in a
power down mode.

Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM, LPT Port
PCI PIRQ[A-D] #

45

4.10 PnP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal
Computer Interconnect, is a system which allows I/O devices to operate

at speeds nearing the speed the CPU itself uses when communicating
with its own special components. This section covers some very
technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.

CMOS Setup Utility – Copyright © 1984-2000 Award Software

PnP/PCI Configurations

Reset Configuration Data Disabled
Resources Controlled By Auto(ESCD)

x IRQ Resources Press Enter

PCI/VGA Palette Snoop Disabled

↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Item Help

------------------------­Menu Level 

Default is Disabled.
Select Enabled to reset
Extended System
Configuration
Data(ESCD) when you
exit Setup if you have
installed a new add-on
and the system
reconfiguration has
caused such a serious
conflict that the OS
cannot boot

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit Setup if you
have installed a new add-on and the system reconfiguration has caused
such a serious conflict that the operating system can not boot.

The choice: Enabled, Disabled .

46

Resource controlled by

The Award Plug and Play BIOS has the capacity to automatically
configure all of the boot and Plug and Play compatible devices. However,
this capability means absolutely nothing unless you are using a Plug and
Play operating system such as Windows®95. If you set this field to
“manual” choose specific resources by going into each of the sub menu
that follows this field (a sub menu is preceded by a “”).

The choice: Auto(ESCD), Manual.

IRQ Resources

When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.

IRQ3/4/5/7/9/10/11/12/14/15 assigned to

This item allows you to determine the IRQ assigned to the ISA bus and is
not available to any PCI slot. Legacy ISA for devices compliant with the
original PC AT bus specification, PCI/ISA PnP for devices compliant with
the Plug and Play standard whether designed for PCI or ISA bus
architecture.

The Choice: PCI Device, Reserved.

PCI/VGA Palette Snoop

Leave this field at Disabled.

Choices are Enabled, Disabled.

47

4.11 Frequency/Voltage Control

CMOS Setup Utility – Copyright © 1984-2000 Award Software

Frequency/Voltage Control
Auto Detect DIMM/PCI Clk Disabled
Spread Spectrum Disabled
CPU Skew Adjust Disabled
SDRAM Skew Adjust Disabled
AGP Skew Adjust Disabled
CPU Host/PCI Clock 100/133MHz
CPU Clock Ratio X 3

↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit
F1:General Help
F5:Previous Values F6:Fail-safe defaults F7:Optimized
Defaults

Item Help

------------------------­Menu Level 

Auto Detect DIMM/PCI Clk

This item allows you to enable/disable auto detect DIMM/PCI Clock.
The choice: Enabled, Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulate.
The choice: Enabled, Disabled.

CPU Clock Ratio

This item allows you to select CPU clock ratio.
The choice: 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8.

48

4.12 Defaults Menu

Selecting “Defaults” from the main menu shows you two options
which are described below

Load Fail-Safe Defaults
When you press <Enter> on this item you get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N
Pressing ‘Y’ loads the BIOS default values for the most stable,

minimal-performance system operations.

Load Optimized Defaults

When you press <Enter> on this item you get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N
Pressing ‘Y’ loads the default values that are factory settings for

optimal performance system operations.

49

4.13 Supervisor/User Password Setting

You can set either supervisor or user password, or both of then. The
differences between are:

supervisor password :
can enter and change the options of the setup menus.

user password :
just can only enter but do not have the right to change the options of the
setup menus. When you select this function, the following message will
appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>.

The password typed now will clear any previously entered password
from CMOS memory. You will be asked to confirm the password. Type
the password again and press <Enter>. You may also press <Esc> to
abort the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.

PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it

every time you try to enter Setup. This prevents an unauthorized person
from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS
to request a password every time your system is rebooted. This would
prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features
Setup Menu and its Security option (see Section 3). If the Security

50

option is set to password will be required both at boot and at entry to
Setup. If set to “Setup”, prompting only occurs when trying to enter
Setup.

51

4.14 Exit Selecting

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:
Save to CMOS and EXIT (Y/N)? Y
Pressing “Y” stores the selections made in the menus in

CMOS – a special section of memory that stays on after you turn
your system off. The next time you boot your computer, the
BIOS configures your system according to the Setup selections
stored in CMOS. After saving the values the system is restarted
again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:
Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any

change. The previous selections remain in effect. This exits the
Setup utility and restarts your computer.

52

Appendix A. Watchdog Timer

The Watchdog Timer is provided to ensure that standalone
systems can always recover from catastrophic conditions that
cause the CPU to crash. This condition may have occurred by
external EMI or a software bug. When the CPU stops working
correctly, hardware on the board will either perform a hardware
reset (cold boot) or a Non-Maskable Interrupt (NMI) to bring the
system back to a known state.

A BIOS function call (INT 15H) is used to control the Watchdog
Timer:

INT 15H:

AH – 6FH

Sub-function:

AL – 2 : Set the Watchdog Timer’s period
BL : Time-out value(Its unit--second or minute, is
dependent on the item “Watchdog Timer unit

select” in CMOS setup).

You have to call sub-function 2 to set the time-out period of
Watchdog Timer first. If the time-out value is not zero, the
Watchdog Timer will start counting down. While the timer value
reaches zero, the system will reset. To ensure that this reset
condition does not occur, the Watchdog Timer must be
periodically refreshed by calling sub-function 2. However the
Watchdog timer will be disabled if you set the time-out value to
be zero.

A tolerance of at least 10% must be maintained to avoid
unknown routines within the operating system (DOS), such
as disk I/O that can be very time-consuming.

Note: when exiting a program it is necessary to disable the

Watchdog Timer, otherwise the system will reset.

53

Example program:

; INITIAL TIMER PERIOD COUNTER
;

W_LOOP:

MOV AX, 6F02H

MOV BL, 30

INT 15H

;
; ADD YOUR APPLICATION PROGRAM HERE
;

CMP EXIT_AP, 1
JNE W_LOOP

MOV AX, 6F02H

MOV BL, 0

INT 15H

;
; EXIT
;

;setting the time-out value
;time-out value is 48 seconds

;is your application over?

;No, restart your application

;disable Watchdog Timer

;

54

Appendix B. Address Mapping

IO Address Map

I/O address Range Description

000-01F DMA Controller #1

020-021 Interrupt Controller #1, Master
040-05F 8254 timer
060-06F 8042 (Keyboard Controller)
070-07F Real time Clock, NMI Mask
080-09F DMA Page Register

0A0-0BF Interrupt Controller #2

0C0-0DF DMA Controller #2

0F0 Clear Math Coprocessor Busy
0F1 Reset Math Coprocessor

0F2 Core logic programming configuration
0F8-0FF Math Coprocessor
1F0-1F8 Fixed Disk

200-207 Game I/O

278-27F Parallel Printer Port 2 (LPT3)

2E8-2EF Serial Port 4

2F8-2FF Serial Port 2
300-31F Prototype Card
360-36F Reserved
378-37F Parallel Printer Port 1 (LPT2)

3B0-3BF Monochrome Display and Printer Adapter

(LPT1)
3C0-3CF Reserved
3D0-3DF Color/Graphics Monitor Adapter

3E8-3EF Serial Port 3

3F0-3F7 Diskette Controller
3F8-3FF Serial Port 1

55

1st MB Memory Address Map

Memory address Description

00000-9FFFF System memory
A0000-BFFFF VGA buffer
C0000-C7FFF VGA BIOS
F0000-FFFFF System BIOS
1000000- Extend BIOS

*Default setting

IRQ Mapping Table

IRQ0 System Timer IRQ8 RTC clock
IRQ1 Keyboard IRQ9 Available

IRQ2 Cascade to IRQ Controller IRQ10 Available
IRQ3 COM2 IRQ11 Available
IRQ4 COM1 IRQ12 PS2 mouse
IRQ5 Available IRQ13 FPU
IRQ6 FDC IRQ14 Primary IDE
IRQ7 Printer IRQ15 Secondary IDE

DMA Channel Assignments

Channel Function

0 Available
1 Available
2 Floppy disk ( 8-bit transfer )
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available

56

8 Bit Programmable Digital I/O

The WAFER7850 provides 8 bit programmable digital I/O ports which located
on the super I/O chip IT8702F. The system address is 801H. The detail mapping
table is as the following

GPIO[0..7] PIN# ADDRESS

0 27 Bit 0
1 26 Bit 1
2 25 Bit 2
3 24 Bit 3
4 23 Bit 4
5 22 Bit 5
6 21 Bit 6
7 20 Bit 7

57

Appendix C. Install CPU with Cooler

We provide a special designed cooler for the Wafer7850 CPU board.
There are two kind of installation directions which base on the CPU
package. If the CPU you would like to install is FCPGA package then
read the case one. If CPU is PPGA Celeron then start from case two.

Case one:
Step 1. Loose the four screws on the top of cooler about three rounds

screw

Step 2. To prevent form the CPU holders of the clip part interfere
with the other components those on the board. Make sure the two CPU
holder edges toward the left and right hand side.

Step 3. Make sure the pin-one marking on CPU toward the left hand
side. Push CPU lightly into the clip to make the CPU holder hold-

-ing the CPU base board then slowly tighten the screws.

Be careful, too tight would cause the CPU base board broken. Using
fingers to rotate the screws instead of screwdriver is recommended.

58

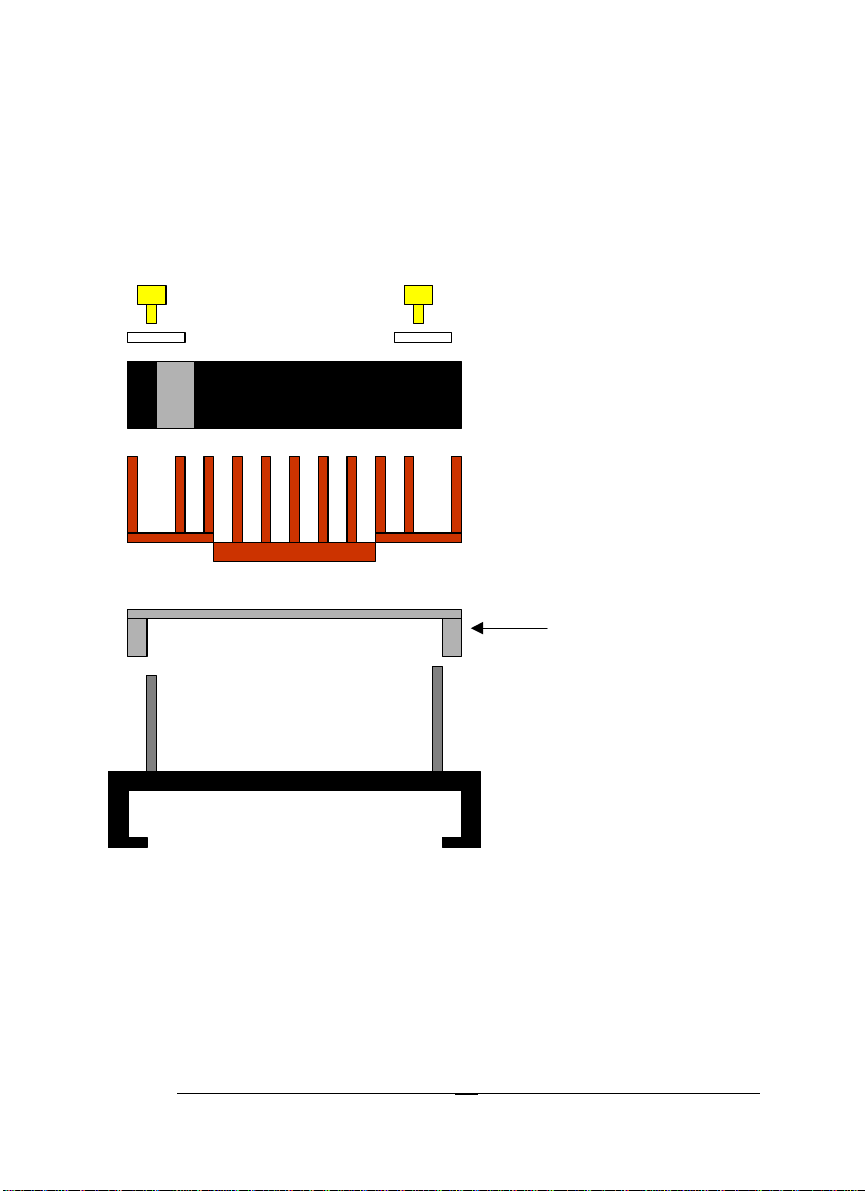

Cooler

Clip Stop (in
case one)

CPU Base board

Step 4. Place the CPU with cooler on the socket 370 lightly. Be sure of
each pin to hole is correct. Using palm to press the right edge of cooler
to insert CPU to the socket then the left. After that the CPU is fixing on
the socket and looked like the following figure.

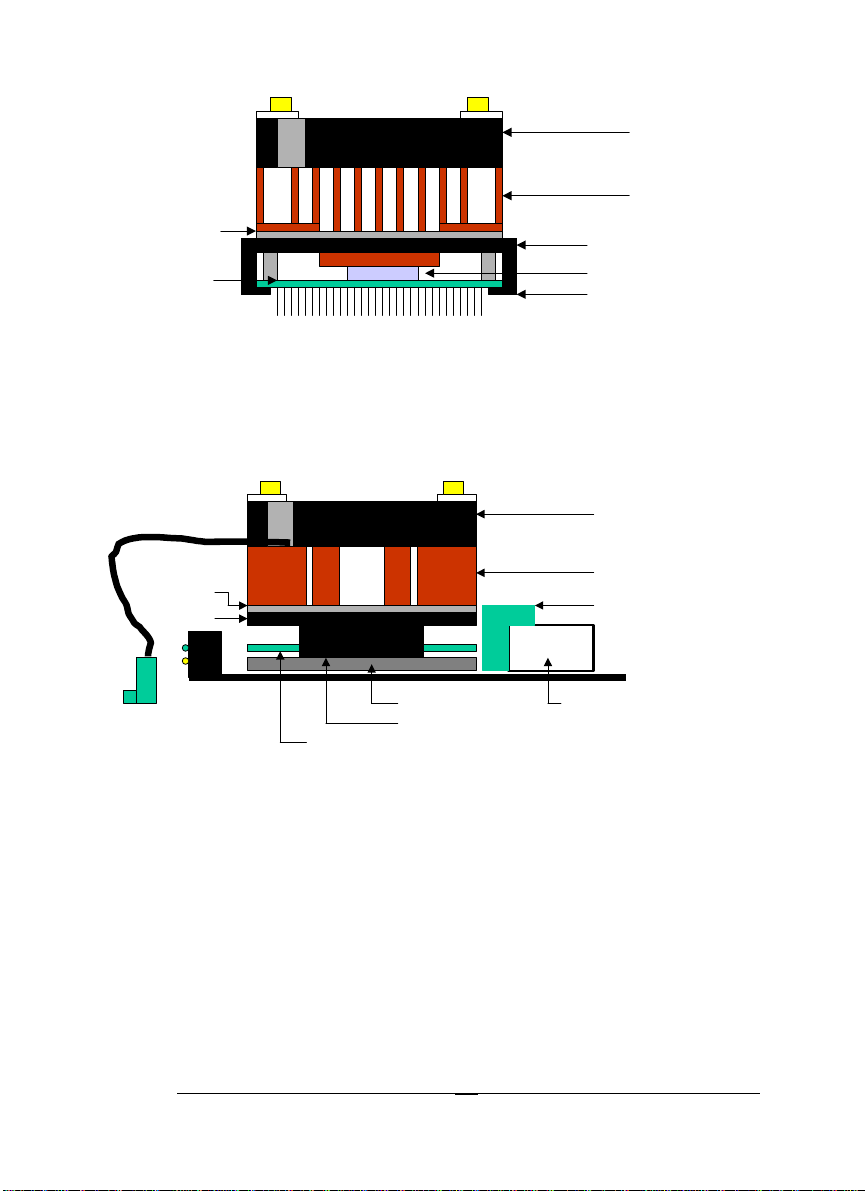

Clip Stop (in
case one)

Clip

CPU Base board

VIEW FROM RIGHT HAND SIDE OF WAFER7850

CPU Base Board Holder

Heat sink

Clip
CPU DIE

CPU HOLDER

Cooler

Heat sink

Capacitor

Big 4 pin connectorSocket 370

59

Case two:

Unscrew the four screws of cooler to de-assemble cooler module then
take off the clip stop. After that re-assemble them. Follow the case one
procedures.

Take off the clip stop

60

Appendix D. Wafer-7851 Daughter Board

The Wafer 7851 daughter board is implemented some functions to
compensate the spec. of Wafer 7850 main board, which due to the tiny
space. There are four functions including RS422/485, 4in and 4out 8
bit digital I/O, TV OUT with 1024x768 resolution, and Flat Panel.

COMPONENT SIDE VIEW OF WAFER7851

DAUGHTER BOARD SLOT

DAUGHTER BOARD SLOT

CN2

IDE

FLOPY DISK

COM

RS422/485

PRINTER

2

AUDIO

COM1

8BIT DI/O

CN3

RJ45

TV OUT

PS2
KB/MS

CN4

VGA

At the first, open the main board’s JP4 then attach the daughter board
on the main board.

61

D.1 RS422/485 Port

CN2 : RS422/485 CONNECTOR

•

RS485 on Wafer-7851 features the “auto-direction” function that

make it more easier to be used on Windows environment. The
installation please refer to Section 2.5

PIN NO. DESCRIPTION

1 TX2+
2 TX2­3 RX2+
4 RX2-

D.2 4-IN AND 4-OUT DIGITAL I/O

The mapping system address is 801H. Wafer 7851 provides one byte
for customized in/out control. The default input value is 1111 in binary
format.
The high level is in 5 volts, and the low level is in 0 vo lts.

• CN3

PIN NO. DESCRIPTION

1 DIN0 BIT0
3 DIN1 BIT1
5 DIN2 BIT2
7 DIN3 BIT3
2 DOUT0 BIT4
4 DOUT1 BIT5
6 DOUT2 BIT6
8 DOUT3 BIT7

62

D.3 TV OUT

The selection of NTSC or PAL TV system is on driver, no
hardware jumper.

• CN4 : TV OUTPUT
Wafer-7851 provides both composite and S-Video signal.

PIN NO. DESCRIPTION

1 COMPOSITE VIDEO
2 GND
3 CHROMA
4 GND
5 LUMA
6 GND

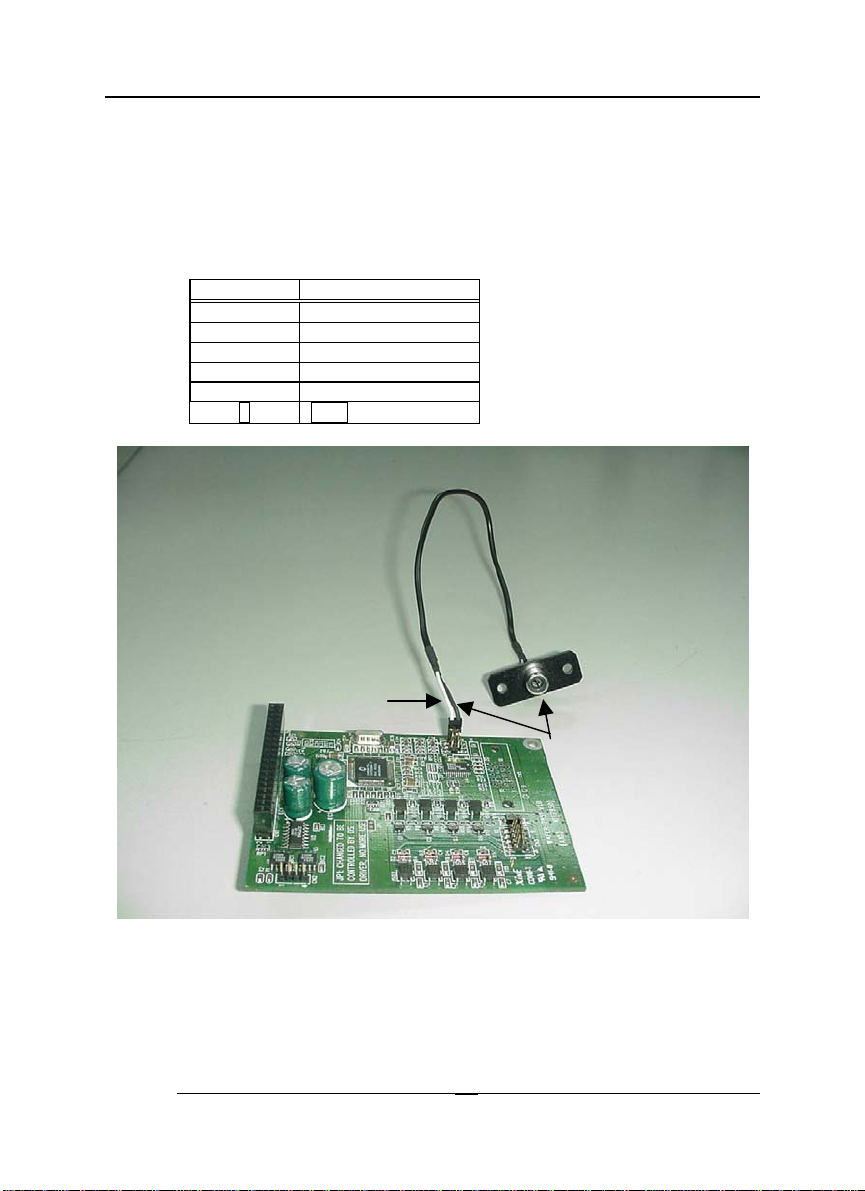

Caution!

Please plug the cable
as the picture shown

Composite

Video

GND

Two pin Composite type cable on the WAFER-7851’s CN4

63
