ICP N9MP1050B12A1, N9MP1075B12A1, N9MP1080F16A2, N9MP1100F14A1, N9MP1100J20A1 Installation Guide

...

Download

90+SingleStageN9MP1&N9MP2

*9MPD *Denotes Brands (C, H, T)

FAN ASSISTED,

CategoryIVFurnaceo,. czw.z FURNACE

See section 4 for Cateqory IV definition.

SAFETY REQUIREMENTS

This furnace ca nbe installed as a direct vent furnace using outside air for combustion or the furnace ca n use air from inside the structure for combustion. The INLET air pipe is optional. If combustion air comes from inside the structure, adequate make up air MUST be provided to compensate for oxygen burned. See the Indoor Combustion Airsection in the Combustion and Ventilation Aircha pter. If combustion air is drawn from outside the structure, it MUST be taken from the same atmospheric pressure zone as the vent pipe.

Recognize safety information. This is the safety- alert symbolZ_. When you see this symbol on the furnace and in instructions manuals be alert to the

3otential for personal injury. Jnderstand the signal words DANGER. WARNING. or CAUTION. These words are used with the safety-alert symbol. DANGERidentifies the most

serious hazards, those that will result in severe personal injury or death. WARNING signifies a hazard that could result in personal injury or death.

CAUTION is used to identify unsafe practices that could result in minor personal injury or product and property damage. Installing and servicing heating equipment can be hazardous due to gas and electrical components. Only trained and qualified personnel should install,

repair, or service heating equipment.

Untrained service personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other operations must be performed by trained service personnel When working on heating equipment, observe precautions in the literature, on tags, and on labels attached to or shipped

with the unit and other safety precautions that may apply.

Follow all safety codes. In the United States, follow all safety codes including the current edition National Fuel Gas Code (NFGC) ANSI Z223.1 - 2002/N FPA No. 54- 2002. In Canada, refer to the current edition of the National Standard of Canada Natural Gas and Propane Installation Code

(NSCNGPIC) CSA B149.1-00. Wear safetyglassesandworkgloves. Havefireextinguisher availableduringstart-upand adjustment procedures and

service calls.

These instructions cover minimum requirements and conform to existing national standards and safety codes. In some instances, these instructions

exceed certain local codes and ordinances, especially those that may not have kept up with changing residential construction practices. We require

these instructions as a minimum for a safe installation.

_,,-_._ _

.......la all

_,_'_":!,// .................

International Comfort Products, LLC Lewisburg, TN 37097 U.S.A.

Table of Contents

1.SafeInstallationRequirements................... 3

2.Installation .................................. 4

3.Combustion &Ventilation Air .................... 8

4.Vent &Combustion Air Piping ................... 12

5.Gas Supplyand Piping ........................ 30

6.Electrical Wiring ............................. 34

7.DuctworkandFilter ........................ 36

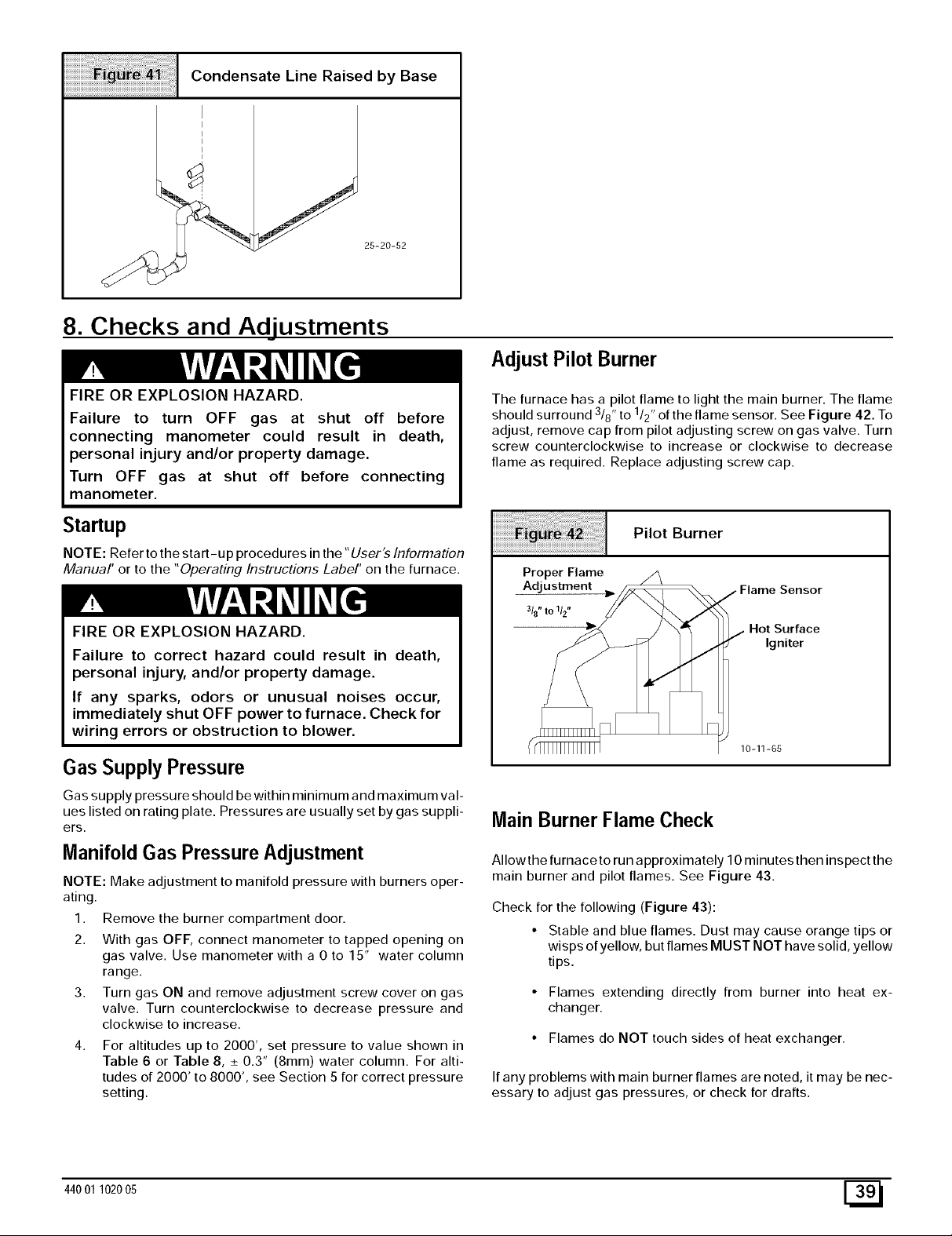

8. ChecksandAdjustments .................... 39

9.FurnaceMaintenance ....................... 41

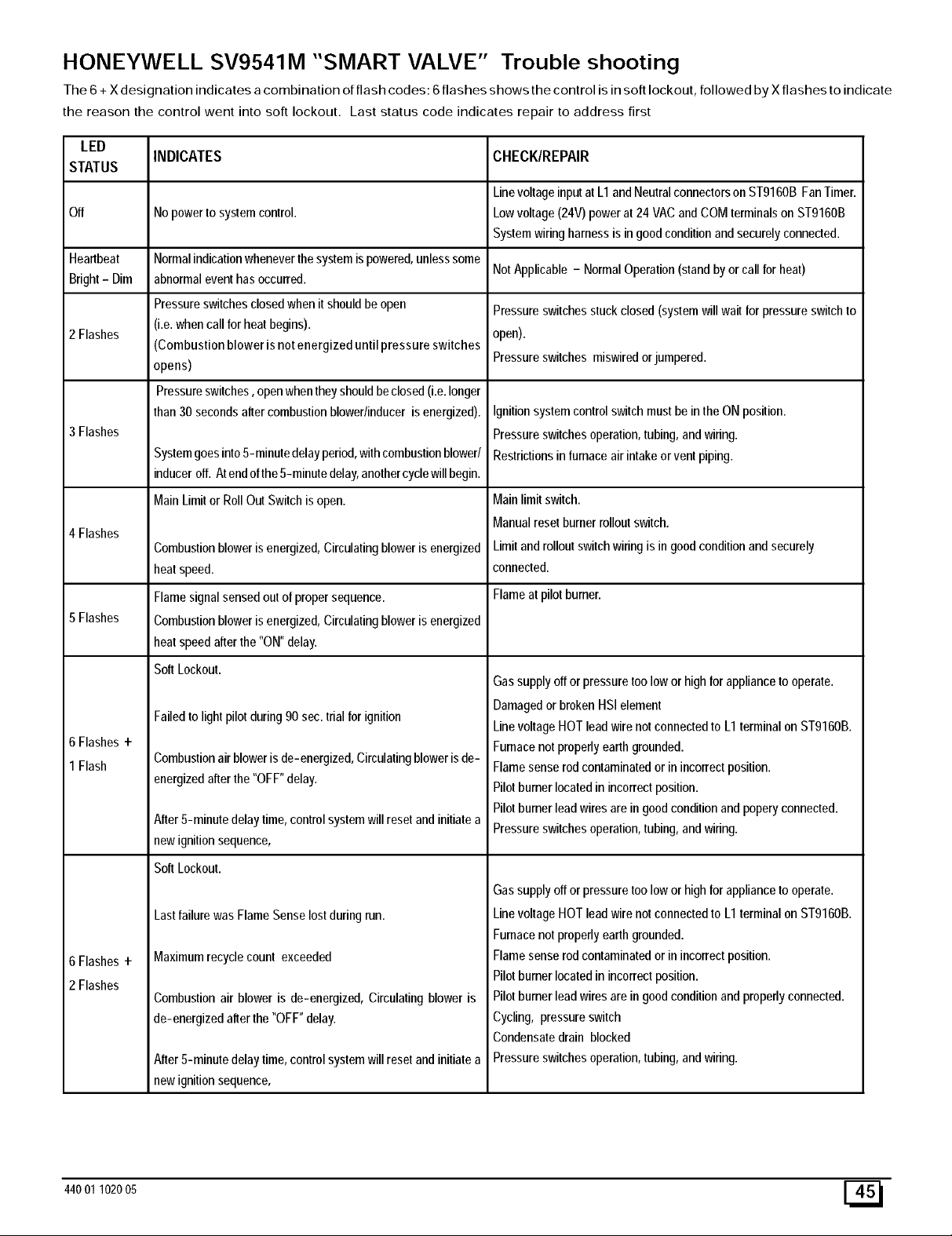

10.SequenceofOperation& Diagnostics.......... 42

11.ConcentricVentTermination................. 46

TechSupportand Parts........................ 51

CARBON MONOXIDE POISONING AND FIRE HAZARD.

Failure to follow safety warnings exactly could result in serious injury, death, and/or property damage.

This furnace is not designed for use in mobile homes, trailers or recreational vehicles.

INSTALLER: Affix these instructions on or adjacent to the furnace. CONSUMER: Retain these

instructions for future reference.

PrintedinU.S.A. 10/19/2004 440 01 1020 (05)

Dealer Name:

START-UP CHECK SHEET

For 90+ Furnace

(Keep this page for future reference)

Address:

City, State(Province), Zip or Postal Code:

Phone: Owner Name:

Address:

City, State(Province), Zip or Postal Code:

Model Number:

Serial Number:

Type of Gas: Natural: _ LP:

Which blower speed tap is used? (Heating) (Cooling).

Business Card Here

Manual Gas Shut-Off Upstream

YES

of Furnace/Drip- Leg?

Condensate Drain Connected?

Condensate Drain Trapped? YES Transition Pressure switch hose relocated for U/D/H Application? YES _ NO

Blower Speed Checked? YES _ NO

All Electrical Connections Tight? YES _ NO

Gas Valve OK? YES _ NO

Measured Line Pressure When Firing Unit:

NOE_

Temperature of Supply Air:

Temperature of Return Air:

Rise (Supply Temp.-Return Temp.): (°F) or(°C)__

Filter Type and Size:

Fan "Time ON" Setting:.

Fan "Time OFF" Setting:

Dealer Comments:

(°F)___or(°C)

(°F) or(°C)__

Calculated Firing Rate:(See Checks and Adjustments Sec- tion).

Temperature Rise (supply-return temperature):(°F)__

Measured Manifold Gas Pressure:

Static Pressure (Ducts): Supply Air Return

Date of Start-Up: CO?

CO2 ?

E_ 44001102005

1. Safe Installation Requirements

FIRE, EXPLOSION, AND ASPHIXlATION HAZARD Improper adjustment, alteration, service,

maintanence or installation could cause serious injury, death and/or property damage.

Installation or repairs made by unqualified persons could result in hazards to you and others.

Installation MUST conform with local codes or, in the absence of local codes, with codes of all

governmental authorities having,jurisdiction. The information contained in this manual is intended for use by a qualified service agency that

is experienced in such work, is familiar with all precautions and safety procedures required in

such work, and is equipped with the proper tools and test instruments.

• This furnace is NOT approved for installation in mo- bile homes, trailers or recreation vehicles.

• Seal around supply and return air ducts.

• Install correct filter type and size.

• Unit MUST be installed so electrical components are pro- tected from direct contact with water.

Safety Rules

Your unit is built to provide many years of safe and dependable service providing it is properly installed and maintained. However,

abuse and/or improper use can shorten the life of the unit and create hazards for you, the owner.

The U.S. Consumer Product Safety Commission encourages installation of carbon monoxide alarms. There can be various

sources of carbon monoxide in a building or dwelling. The sources could be gas-fired clothes dryers, gas cooking

stoves, water heaters, furnaces, gas-fired fireplaces, wood fireplaces, and several other items.

NOTE: This furnace is design-certified by the CSA International (formerly AGA and CGA) for installation in the United States and

Canada. Refer to the appropriate codes, along with this manual, for proper installation.

• Use only the Type of gas approved for this furnace (see Rating Plate on unit). Overfiring will result in failure of heat

exchanger and cause dangerous operation. (Furnaces can be converted to L.P. gas with approved kit.)

• Install this furnace only in a location and position as speci- fied in "2. Installation"of these instructions.

• Provide adequate combustion and ventilation air to the fur- nace as specified in "3. Combustion and Ventilation Air" of

these instructions. Combustion products must be discharged outdoors. Con-

nect this furnace to an approved vent system only, as spe- cified in "4. Vent and Combustion Air Piping" of these

instructions. Never test for gas leaks with an open flame. Use a com-

mercially available soap solution made specifically for the detection of leaks to check all connections, as specified in "6. Gas Supply and Piping, Final Check"of these instruc-

tions. Always install furnace to operate within the furnace's in-

tended temperature-rise range with a duct system which has an external static pressure within the allowable range, as specified in "Technical Support Manual" of these in-

structions.

• When a furnace is installed so that supply ducts carry air circulated by the furnace to areas outside the space con- taining the furnace, the return air shall also be handled by a duct(s) sealed to the furnace casing and terminating out- side the space containing the furnace.

• A gas-fired furnace for installation in a residential garage must be installed as specified in "2. Installation"of these

instructions.

• This furnace is not to be used for temporary heating of buildings or structures under construction.

Carbon monoxide can cause serious bodily injury and/or death. Carbon monoxide or "CO" is a colorless and odorless

gas produced when fuel is not burned completely or when the flame does not receive sufficient oxygen.

Therefore, to help alert people of potentially dangerous ca rbon monoxide levels, you should have a commercially available carbon monoxide alarm that is listed by a nationally recog- nized testing agency in accordance with Underwriters Labora-

tories Inc. Standard for Single and Multiple Station Carbon Monoxide Alarms, ANSI/UL 2034 or the CSA 6.19-01 Resi-

dential Carbon Alarming Devices installed and maintained in the building or dwelling concurrently with the gas- fired furnace

installation (see Note below). The alarm should be installed as recommended by the alarm manufacturer's installation in-

structions.

There can be numerous sources of fire or smoke in a building or dwelling. Fire or smoke can cause serious bodily injury, death, and/or property damage. Therefore, in order to alert people of potentially dangerous fire or smoke, you should have

fire extinguisher and smoke alarms listed by Underwriters Lab- oratories installed and maintained in the building or dwelling

(see Note below).

Note: The manufacturer of your furnace does not test any alarms

and makes no representations regarding any brand or type of alarms.

To ensure safe and efficient operation of your unit, you should do the following:

Thoroughly read this manual and labels on the unit. This

will help you understand howyour unit operates and the haz-

ards involved with gas and electricity. Do not use this unit if any part has been under water. Im-

mediately call a qualified service technician to inspect the unit and to replace any part of the control system and any gas con-

trol which has been under water.

3. Never obstruct the vent grilles, or any ducts that provide air to the unit. Air must be provided for proper combustion and ventilation of flue gases.

44001 102005 [_

FrozenWater PipeHazard

WATER DAMAGE TO PROPERTY HAZARD

Failure to protect against the risk of freezing could result in property damage and/or personal injury.

Do not leave your home unattended for long periods during freezing weather without turning off water

supply and draining water pipes or otherwise protecting against the risk of frozen pipes and resultant damage.

Your furnace is designed solely to provide a safe and comfortable living environment. The furnace is NOT designed to ensure that

water pipes will not freeze. It is equipped with several safety de- vices that are designed to turn the furnace off and prevent it from restarting in the event of various potentially unsafe conditions.

If your furnace remains off for an extended time, the pipes in your home could freeze and burst, resulting in serious water damage.

If the structure will be unattended during cold weather you should take these precautions.

1. Turn off the water supply to the structure and drain the water lines if possible and add an antifreeze for potable water to

drain traps and toilet tanks. Open faucets in appropriate areas.

-or-

Have someone check the structure frequently during cold weather to make sure it is warm enough to prevent pipes from freezing. Instruct them on a service agency to call to provide service, if required.

-or-

3. Install a reliable remote sensing device that will notify some- body of freezing conditions within the home.

Winter Shutdown

If you go away during the winter months and do not leave the heat on in your home, the plastic transition box and the condensate trap on the furnace must be protected from freeze damage.(See Figure 9 trough Figure 18)

1. Disconnect the 5/8" OD rubber hose from the vent drain fit- ting that is located downstream of the combustion blower. Insert a funnel into the hose and pour four(4) ounces of sani- tary type (RV) antifreeze into the condensate trap. Recon- nect the 5/8" OD rubber hose to the stub on the vent drain

fitting. Secure with the hose clamp.

2. Disconnect the 3/4" OD rubber hose from the condensate trap. Insert a funnel into the hose and and pour four(4)

ounces of sanitary type (RV) antifreeze into the plastic Tran- sition box. Squeeze the hose together near the end and quickly reconnect the 3/4" OD rubber hose to the stub on the condensate trap. Secure with the hose clamp.

When you return home, your furnace will be ready to start, as it is not necessary to drain the antifreeze from the furnace.

2. Installation

CARBON MONOXIDE POISONING HAZARD Failure to properly vent this furnace or other

appliances could result in death, personal injury and/or property damage.

This furnace can NOT be common vented or connected to any type B, BW or L vent or vent

connector, nor to any portion of a factory-built or masonry chimney. If this furnace is replacing a

3reviously common-vented furnace, it may be

necessary to resize the existing vent and chimney to

3revent oversizing problems for the other

remaining appliance(s). See Venting and Combus- tion Air Check in Gas Vent Installation section. This

furnace MUST be vented to the outside.

Location and Clearances

Refer to Figure 1 or Figure 2 for typical installation and ba- sic connecting parts required. Refer to Figure 4 for typical horizontal direct vent installation and basic connecting parts required. Supply and return air plenums and duct are also required.

If furnace is a replacement, it is usually best to install the fur- nace where the old one was. Choose the location or evalu-

ate the existing location based upon the minimum clearance and furnace dimensions (Figure 3).

FROZEN AND BURST WATER PIPE HAZARD

Failure to protect against the risk of freezing could result in property damage and/or personal injury.

Special precautions MUST be made if installing furnace in an area which may drop below freezing. This can cause improper operation or damage to

equipment. If furnace environment has the potential

of freezing, the drain trap and drainline must be

protected. The use of electric heat tape or RV

antifreeze is recommended for these installations.

(See "Condensate Trap Freeze Protection Section")

Do NOT operate furnace in a corrosive atmosphere containing chlorine, fluorine or any other damaging chemicals. Refer to Combustion & Ventilation Air section,

Contaminated Combustion Air.

E_ 44001 1020 05

Typical Upflow Installation

Aluminumor non-rusting shield recommended.(See VentTerminationShieldingfor dimensions).

*8" Min. _l[q _I_ exhaust pipe. Total

20' Max. Inlet Pipe (not in same _ _ usedon Single pipe & coupling out-

atmospheric <_ __4t_ Pipemodel) side structure = 8" zone

VentPipes MUSTbe supported

andVertically meatmospheric

* Increase minimum from 8" to 18" for cold climates (sustained temperatures below 0 ° F). 25-23-33

Coupling on ends of

/]in.

Typical Downflow Installation

See VentTermination Shieldingin VentSection.

_1 14' _8" Min.

InletPipe _ [_ 20' Max. (not usedon _ _ in same SinglePipe _ I,,,_ L, atmospheric zone

model) _

Vent Pip MUSTbq support( 4orizonta andVertically

Coupling on inside and outside of wall

to restrain vent pipe

Min. Max.

same osphericzone

Installation Requirements

1. Install furnace level.

2. This furnace is NOT to be used for temporary heat of buildings or structures under construction.

3. Install the vent pipes as short as practical. (See Gas Vent Installation section).

4. Do NOT install furnace directly on carpeting, tile or other com- bustible material other than wood flooring.

5. Maintain clearance for fire safety and servicing. A front clear- ance of 30" is minimum for access to the burner, controls and

filter. See clearance requirements in Figure 3 or.

6. Use a raised base if the floor is damp or wet at times.

7. Residential garage installations require:

• Burners and ignition sources installed at least 18" (457 mm) above the floor.

Furnace must be located or physically protected from pos- sible damage by a vehicle.

If the furnace is to be suspended from the floor joists in a base- ment or a crawl space or the rafters in an attic, it is necessary to use steel pipe straps or an angle iron frame to attach the furnace. These straps should be attached to the furnace with sheet metal screws and to the rafters or joists with bolts. The

preferred method is to use an angle iron frame bolted to the rafters or joists.

This furnace may be used for construction heat provided that all the following conditions are met:

The furnace is permanently installed with all electrical wir- ing, piping, venting and ducting installed according to these

installation instructions. A return air duct is provided, sealed

to the furnace casing, and terminated outside the space

containing the furnace. This prevents a negative pressure condition as created by the circulating air blower, causing a flame rollout and/or drawing combustion products into the

structure.

• The furnace is controlled by a thermostat. It may not be "hot

wired" to provide heat continuously to the structure without thermostatic control.

Clean outside air is provided for combustion. This is to mini- mize the corrosive effects of adhesives, sealers and other construction materials. It also prevents the entrainment of drywall dust into combustion air, which can cause fouling and plugging of furnace components.

maintained between 55 ° F and 80 ° F, with no evening set-

Increase minimum from 8" to 18" for cold climates (sustained temperatures

below O°F). 25-23-33a

CARBON MONOXIDE POISONING HAZARD. Failure to follow safety warnings exactly could

result in serious injury, death, or property damage. Do NOT operate furnace in a corrosive atmosphere

containing chlorine, fluorine or any other damaging chemicals, which could shorten furnace life.

Refer to 3. Combustion & Ventilation Air section,

I • The temperature of the return air to the furnace must be

back or shutdown. The use of the furnace while the struc-

ture is under construction is deemed to be intermittent

operation per our installation instructions. The air temperature rise is within the rated rise range on the

furnace rating plate, and the firing rate has been set to the rating plate value.

The filters used to clean the circulating air during the construction process must be either changed or thoroughly cleaned prior to occupancy.

The furnace, ductwork and filters are cleaned as necessary

to remove drywall dust and construction debris from all

HVAC system components after construction is completed.

Contaminated Combustion Air for combustion air evaluation and remedy.

44001 102005 [_

input rate, and temperature rise and venting, according to

• Verify the gurnace operating conditions including ignition,

the manufacturer's instructions.

Dimensions & Clearances

17/8

r-- ]

TOP

]

LEFT SIDE _-_ _

TRAP(COUNTERFLOW)_

GASt_

VENT )

AIR INTAKE _" )

(ALTERNATE)_

TRAP UPFLOWtHORIZONTAL_

THERMOSTA_=_ 7-

413/16_

215/8_ 47/

11/4

/ ELECTRICAL

11/16

_A_

FRONT

1/1

2(, f8

3/4

113/1

Drawing is representative, but some models may vary

COMBUSTIBLE MATERIALS FOR ALL UNITS

MINIMUM CLEARANCES TO

REAR 0 FRONT (combustion air openings in 3"

furnace and in structure)

Required For Service *24"

ALL SIDES Of SUPPLY PLENUM 1" SIDES O VENT O TOP OF FURNACE 1"

*30" clearancerecommendedfor casingremoval.

Horizontalposition:Linecontactis permissibleonlybetween

linesformed by intersectionsoftopand two sidesoffurnace jacket,andbuildingjoists,studsorframing.

NOTE: Evaporator "A" coil drain pan dimensions

may vary from furnace duct opening size, AIways consult evaporator specifications for duct size

requirements, Furnace is designed for bottom return or side

return.

Return air through back of furnace is NOT allowed.

BOTTOM

-- 231/8 _,_ 37/8

Unit

Capacity N9MP1050B12B NgMP1075B12B

NgMP1080F16B N9MP1100F14B

NgMP1100J20B NOMP1125J20B

NOMP2050B12B NOMP2075B12B

NgMP2080F16B NgMP2100F14B NOMP2100J20B

NOMP2125J20B *9MPD050F12B

*9MPD075F12B

*9MPD080J16B *9MPD100J14B

*9MPD100J20B

*9MPD125L20B

Cabinet Bottom

ALL DIMENSIONS IN INCHES

16_/ _ 181/2

23/8 --

1r/16_ /

GAS\

/ RIGHT SIDE

281/2

//TRAP (COUNTERFLOW)

_I_ELECTRICAL

/(ALTERNATE)

AIRINTAKE

413116_ _'_/VENT

I1111_ _ TRAPowIHORIZONTAL

L k(_

47/8 l_215/8

19114

17/8

25-23-36b

E_ 44001 1020 05

Installation Positions

This furnace can be installed in an upflow, horizontal (either left or right) or downflow airflow position. DO NOT install this furnace on its back. For the upflow position, the return air ductwork can be at-

tached to either the left or right side panel and/or the bottom. For horizontal and downflow positions, the return air ductwork must be attached to the bottom. The return air ductwork must never be at-

tached to the back of the furnace.

Furnace Installation Considerations

The installation of the furnace for a given application will dictate the position of the furnace, the airflow, ductwork connections, vent and combustion air piping. Consideration must be given to the follow- ing:

Condensate Trap and Drain Lines

The supplied condensate trap must be attached to the furnace side panel on either the left or right side. For horizontal installa- tions, the drain trap is vertically attached to the side panel below

the furnace. A minimum clearance of 6" below the furnace is re- quired for the condensate trap. Downward slope of the conden-

sate drain line from the condensate trap to the drain location must be provided. Adequate freeze protection of the drain trap and the drain line must be provided. See "Condensate Drain Trap"section

for further details.

Leveling

Proper leveling of the furnace must be provided to insure proper drainage of the condensate from the furnace. The furnace must be

level to within /4' from front to back and from side to side for upflow and downflow installations or top to bottom for horizontal installa- tions.

Vent and Combustion Air Connections

On the Dual Certified furnace, the vent and combustion air pipes attach to the furnace through the top panel for the upflow and hori-

zontal installations. For the downflow installation, the vent and combustion air pipes attach to the furnace through the alternate

locations on the furnace side panels. Note: On the Direct Vent furnace, the vent pipe attaches to the fur-

nace through the side panels. The combustion air pipe attaches to the top panel or to the alternate location on the side panel.

On the Single Pipe furnace, the vent pipe attaches to the furnace through the furnace side panels.

Note: Repositioning of the combustion blower is required for the vent pipe connection to the furnace through the "right side" panel. See "Vent and Combustion Air Piping"section for further details.

Horizontal Furnace Installation

This furnace can be installed horizontally in an attic, basement, crawl space, alcove, or suspended from a ceiling in a basement or

1 ,

utility room. See Figure 4. Do not install furnace on its back or in the reverse airflow positions as safety control operation will be ad- versely affected.

Typical Horizontal Installation

Inlet Pipe (not used on Single Pipe model)

Vent

Condensate Rap

25-23-34

NOTE: 6" bottom clearance requiredfor condensatetrap.

If the furnace is to be suspended from the floor joists in a crawl space or the rafters in an attic, it is necessary to use steel pipe straps or an angle iron frame to rigidly attach the furnace to prevent movement. These straps should be attached to the furnace with sheet metal screws and to the rafters or joists with bolts. The pre- ferred method is to use an angle iron frame bolted to the rafters or

joists. (Take caution to allowdoor panels to be removed for mainte-

nance) If the furnace is to be installed in a crawl space, consult local

codes. A suitable concrete pad or blocks are recommended for crawl space installation on the ground.

NOTE: 6" bottom clearance required for condensate trap. Thirty (30) inches between the front of the furnace and adjacent

construction or other appliances MUST be maintained for service clearance.

Keep all insulating materials clear from Iouvered door. Insulating materials may be combustible.

The horizontal furnaces may be installed directly on combustible wood flooring or supports as long as all required furnace clear-

ances are met. See Figure 4. This furnace MUST NOT be installed directly on carpeting or tile or

other combustible material other than wood flooring or supports. For horizontal installation over a finished living space. A field fabri-

cated auxiliary drain pan with drain pipe is required to prevent damage by overflow due to blocked condensate drain.

44001 102005

3. Combustion & Ventilation Air

For Single Pipe Installation

CARBON MONOXIDE POISONING HAZARD.

Failure to provide adequate combustion and ventilation air could result in death and/or personal injury.

Use methods described here to provide combustion and ventilation air.

Furnaces require ventilation openings to provide sufficient air for proper combustion and ventilation of flue gases. All duct or open-

ings for supplying combustion and ventilation air must comply with the gas codes, or in the absence of local codes, the applicable na-

tional codes.

Combustion and ventilation air must be supplied in accordance with one of the following:

1. Section 8.3, Air for Combustion and Ventilation, of the National Fuel Gas Code, (NFGC), ANSI Z223.1-2002/NFPA 54-2002

in the U.S.,

2. Sections 7.2, 7.3, 7.5, 7.6, 7.7, and 7.8 of National Standard of Canada, Natural Gas and Propane Installation Code

(NSCNGPIC), CSA B149.1-00 in Canada,

3. Applicable provisions of the local building code.

This furnace can NOT be common vented or connected to any type B, BW or Lvent or vent connector, nor to any portion of a facto- ry- built or masonry chimney. If this furnace is replacing a previous- ly common-vented furnace, it may be necessary to resize the existing vent and chimney to prevent oversizing problems for the a. other remaining appliance(s). See "Venting and Combustion Air

Check"in this section, This furnace MUST be vented to the out- side. b.

When the installation is complete, check that all appliances have adequate combustion air and are venting properly. See Venting

And Combustion Air Check in "4. Gas Vent Installation"Section in this manual.

Outdoor Combustion Air Method

A space having less than 50 cubic feet per 1,000 BTUH input rating for all gas appliances installed in the space requires outdoor air for

combustion and ventilation.

Air Openings andConnecting Ducts

1. Total input rating for all gas appliances in the space MUST be considered when determining free area of openings.

Connect ducts or openings directly to the outdoors.

When screens are used to cover openings, the openings MUST be no smaller than 1/4" mesh.

The minimum dimension of air ducts MUST NOT be less than

When sizing a grille, louver, or screen use the free area of opening. If free area is NOT stamped or marked on grill or lou-

ver, assume a 20% free area for wood and 60% for metal. Screens shall have a mesh size not smaller than 1/4".

Requirements

1. Provide the space with sufficient air for proper combustion and ventilation of flue gases using horizontal or vertical ducts or openings.

2. Figure 5 illustrates how to provide combustion and ventilation air when two permanent openings, one inlet and one outlet, are

used.

One opening MUST commence within 12" of the floor and the second opening MUST commence within 12" of the ceiling.

Size openings and ducts per Table 1.

Outside Air (This is ONLY a guide. Subject to codes of country having jurisdiction.)

ThisinstallationNOTapprovedinCanada

GasVent

, Gable V_/)

(1) TopAboveInsulation_

Gas Vent _Gable Vent

_-Ventilated Attic_

II " SoffitVent ._

SoffitVen, I _utlet Air(1) Ou,le="t_

II _ Air(1)

Furnace N_Oa_

_., _&. _ _ Inlet

;pace

MinimumOneInletandOneOutletAirSupplyisRequired

MaybeinandCombinationShown

InletAirOpeningMustbeWithin12"(300mm)offloor OutletAirOpeningMustbeWithin12"(300mm)ofceiling (1)1 SquareInch(6cm2)per4000BTUH (2)1 SquareInch(6cm2)per2000BTUH

c. Horizontal duct openings require 1 square inch of free

area per 2,000 BTUH (1,100 mm /kW) of combined input for all gas appliances in the space (see Table 1).

Air(2) Inlet

Vertical duct openings or openings directly communicat- ing with the outdoors require 1 square inch of free area

per 4,000 BTUH (550 mm /kW) for combined input of all gas appliances in the space (see Table 1).

-, i I I,n,e`

Air(1)

__= _ _ Atr(2)

E_ 44001102005

3. Whenonepermanentoutdooropeningisused,theopening requires:

a. 1sq.inoffreeareaper3,000BTUH(700mm2/kW)for

combinedinputofallgasappliancesinthespace(see Table1)and

b. notlessthanthesumoftheareasofallventconnectorsin

thespace.

Theopeningshallcommencewithin12"ofthetopoftheenclo- sure.Appliancesshallhaveclearancesofatleast1"fromthesides andbackand6"fromthefront.Theopeningshalldirectlycommu-

nicatewiththeoutdoorsorshallcommunicatethroughaverticalor horizontalducttotheoutdoorsorspaces(crawlorattic)thatfreely

communicatewiththeoutdoors.

4. Combination of Indoor and Outdoor Air shall have:

Area

Indoor openings that comply with the Indoor Combus-

tion Air Method below and

Outdoor openings located as required in the Outdoor Combustion Air Method above and

Outdoor openings sized as follows.

1) Calculate the Ratio of all Indoor Space volume divid- ed by required volume for Indoor Combustion Air Meth- od.

2) Outdoor opening size reduction Factor is I minus the Ratio in 1) above.

3) Minimum size of Outdoor openings shall be the size required in Outdoor Combustion Air Method above

multiplied by reduction Factor.

BTUH MinimumFreeArea Requiredfor EachOpening or DucttoOutdoors

Input TwoHorizontalDucts SingleOpening Openings (sq.in./4,000

Rating (sq. inJ2,000BTUH) (sq. in./3,000BTUH) (sq.in./4,000 BTUH) BTUH)

50,000 25 sq. in. 16.7sq. in. 12.5sq. in. 4" 75,000 37.5 sq. in. 25 sq. in. 18.75 sq. in. 5"

100,000 50 sq. in. 33.3sq. in. 25sq. in. 6" 125,000 62.50sq. in. 41.7sq. in. 31.25 sq. in. 7" 150,000 75sq. in. 50sq. in. 37.5sq. in. 7"

EXAMPLE: Determining Free Area

Furnace Water Heater Total Input 100,000 + 30,000 (130,000 + 4,000) 32.5 Sq. In. Vertical Furnace Water Heater Total Input 100,000 + 30,000 (130,000 + 2,000) 65 Sq. In. Horizontal

TwoVerticalDuctsor RoundDuct

Indoor Combustion Air The Standard Method may be used, if the space has no less vol-

Standard and Known-Air-Infiltration Rate Methods © NFPA&AGA

Indoor air is permitted for combustion and ventilation, if the Stan- dard or Known-Air-Infiltration Rate Method is used.

CARBON MONOXIDE POISONING HAZARD.

Failure to supply adequate combustion air could result in death and/or personal injury.

Most homes will require additional air from outdoors for combustion and ventilation. A

space with at least 50 cubic feet per 1,000 BTUH input rating or homes with tight construction may need outdoor air, supplied through ducts, to supplement air infiltration for proper

combustion and ventilation of flue gases.

ume than 50 cubic feet per 1,000 BTUH input rating for all gas ap- pliances installed in the space. The standard method permits

indoor air to be used for combustion and ventilation air. The Known Air Infiltration Rate Method shall be used if the in-

filtration rate is known to be less than 0.40 air changes per hour (ACH) and equal to or greater than 0.10 ACH. Infiltration rates greater than 0.60 ACH shall not be used. The minimum required

volume of the space varies with the number of ACH and shall be determined per Table 2 or Equations 1 and 2. Determine the minimum required volume for each appliance in the space, and

add the volumes together to get the total minimum required vol- ume for the space.

44001 102005 [_

iiiiiiiiiiiiiiiiiiiii_i;_;:_i:_i:_i:_i:_i:_i;!;!_;!_;;:_i!_i_;_!_!_i!;iiiiii_iiiiiiiiiiiiiiiiiiii_ii_i_!_!i!_i_i_i_i_i_i_i_i_i_i_i_!i!_!iii

ACH

0.60

0.50

0.40

0.30

0.20

0.10

0.00

NP = Not Permitted Table 2 Minimum Space Volumes were determined by using the •

following equations from the National Fuel Gas Code ANSI Z223.1/NFPA 54-2002, 8.3.3.2:

1. For other than fan-assisted appliances such as a draft

hood-equipped water heater,

Volume other - ACH 1000Btu / hr •

2. For fan-assisted appliances such as this furnace,

Volume fan = ACH 1000 Btu / hr

MINIMUMSPACEVOLUMEFOR100%COMBUSTIONANDVENTILATIONAIR FROMINDOORS(ft3)

Other ThanFan-AssistedTotal

(1,OOO'sBtuh)

30 40 50 50 125 150

1,050 1,400 1,750 1,250 3,125 3,750 1,260 1,680 2,100 1,500 3,750 4,500 1,575 2,100 2,625 1,875 4,688 5,625

2,100 2,800 3,500 2,500 6,250 7,500 3,150 4,200 5,250 3,750 9,375 11,250 6,300 8,400 10,500 7,500 18,750 22,500

NP NP NP NP NP NP

An attic or crawl space may be considered a space that freely communicates with the outdoors provided there are adequate ventilation openings directly to outdoors. Openings MUST re- main open and NOT have any means of being closed off. Ven- tilation openings to outdoors MUST be at least I square inch

of free area per 4,000 BTU H of total input rating for all gas ap- pliances in the space.

21 ft 3 ( I other )

15ft3 ( [fan )

In spaces that use the Indoor Combustion Air Method, in- filtration should be adequate to provide air for combustion, ventilation and dilution of flue gases. However, in buildings

with unusually tight construction, additional air MUST be pro-

vided using the methods described in section titled Outdoor

Combustion Air Method:

Unusually tight construction is defined as Construction with:

75 100 1,875 2,500 2,250 3,000 2,813 3,750

3,750 5,000 5,625 7,500

11,250 15,000

Fan-assistedTotal

(1,000'sBtuh)

NP NP

If:

[ other = combined input of all other than fan-assisted

appliances in Btu/hr

] fan = combined input of all fan-assisted appliances in Btu/hr

ACH = air changes per hour (ACH shall not exceed 0.60.)

The following requirements apply to the Standard Method and to the Known Air Infiltration Rate Method.

• Adjoining rooms can be considered part of a space, if there

are no closable doors between rooms. Combining spaces on the same floor level. Each opening

shall have a free area of at least 1" 2/1,000 BTUH (2,000 mm2/kW) of the total input rating of all gas appliances in the space, but not less than 100 in2 (0.06 m2). Once opening shall commence within 12" (300 ram) of the ceiling and the second opening shall commence within 12" (300 ram) of the

floor. The minimum dimension of air openings shall be at least 3" (80 ram).

Combining spaces on different floor levels. The volumes of spaces on different floor levels shall be considered communi- cating spaces if connected by one or more permanent open- ings in doors or floors having a free area of at least 2" 2/1,000 Btuh (4,400 mm2/kW) of total input rating of all gas ap- pliances.

1. Walls and ceilings exposed to the outdoors have a con- tinuous, sealed vapor barrier. Openings are gasketed or

sealed and

Doors and openable windows are weather stripped and

Other openings are caulked or sealed. These include

joints around window and door frames, between sole

plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical and gas lines, etc.

Ventilation Air

Some provincial codes and local municipalities require ventilation or make-up air be brought into the conditioned space as replace- ment air. Whichever method is used, the mixed return air tempera-

ture across the heat exchanger MUST not fall below 60 ° so that flue gases will not condense excessively in the heat exchanger. Excessive condensation will shorten the life of the heat exchanger

and possibly void your warranty.

Venting and Combustion Air Check

NOTE: When an existing Category I furnace is removed or re- placed, the original venting system may no longer be sized to prop-

erly vent the attached appliances, and to make sure there is adequate combustion air for all appliances, MAKE THE FOL-

LOWING CHECK.

[_ 44001 1020 05

CARBON MONOXIDE POISONING HAZARD

Failure to follow the steps outlined below for each

appliance connected to the venting system being placed into operation, could result in carbon monoxide poisoning or death:

The following steps shall be followed for each appliance connected to the venting system being

placed into operation, while all other appliances connected to the venting system are not in operation:

1. Seal any unused openings in the venting system.

2. Inspect the venting system for proper size and horizontal pitch, as required in the National Fuel Gas Code, ANSI

Z223,1/NFPA 54 or CSA B149, 1, Natural Gas and Propane Installation Code and these instructions. Deter-

mine that there is no blockage or restriction, leakage,

corrosion and other deficiencies which could cause an

unsafe condition.

3. As far as practical, close all building doors and windows and all doors between the space in which the appliance(s) connected to the venting system are located and other spaces of the building.

4. Close fireplace dampers.

5. Turn on clothes dryers and any appliance not connected to the venting system. Turn on any exhaust fans, such as

range hoods and bathroom exhausts, so they are

operating at maximum speed. Do not operate a summer exhaust fan.

6. Followthe lighting instructions. Place the appliance being

inspected into operation. Adjust the thermostat so

appliance is operating continuously.

7. Test for spillage from draft hood equipped appliances at the draft hood relief opening after 5 minutes of main burner operation. Use the flame of a match or candle. (Figure 6)

8. If improper venting is observed, during any of the above tests, the venting system must be corrected in

accordance with the National Fuel Gas Code, ANSI

Z223,1/NFPA 54 and/or CSA B149. 1, Natural Gas and Propane Installation Code.

9. After it has been determined that each appliance connected to the venting system properly vents when

tested as outlined above, return doors, windows, exhaust fans, fireplace dampers and any other gas-fired burning appliance to their previous conditions of use.

For Two Pipe Installation

Vent Check

Vent Pipe--.--_l [ / Draft Hood

Typical Gas // _'_

WaterHeateq,/ i i ._ Marc.

I I

If flame pulls towards draft hood, this indicates sufficient venting.

This furnace can NOT be common vented or connected to any type B, BW or Lvent or vent connector, nor to any portion of a facto- ry-built or masonry chimney. Ifthis furnace is replacing a previous- ly common-vented furnace, it may be necessary to resize the existing vent and chimney to prevent oversizing problems for the other remaining appliance(s). See "Venting and Combustion Air

Check"in this section, This furnace MUST be vented to the out-

side.

44001 102005 E_

4. Vent and Combustion Air Piping

CARBON MONOXIDE POISONING HAZARD.

Failure to properly vent this furnace could result in death and/or personal injury.

Use methods described here to provide combustion and ventilation air.

SinglePipe(N9MP1Models)

This furnace is certified as a category IV appliance. This furnace requires ventilation openings to provide air for proper combustion and ventilation of flue gases. All duct or openings for supplying combustion and ventilation air must comply with the gas codes or in absence of local codes, the applicable national codes.

When the installation is complete, see the" VentingandCombus- tion Air Checl(' in this manual.

Direct Vent (N9MP2 Models)

This furnace is certified as a category [V appliance. This furnace uses outside air for combustion ONLY, it MUST be taken from the

same atmospheric pressure zone as the vent pipe. See Confined Space Installation in the Combustion and Ventilation Air in this

manual.

Dual Certified (*9MPD Models)

This furnace is certified as a category [V appliance. This furnace can be installed as a direct vent furnace using outside air for com-

bustion or the furnace can use air from inside the structure for com- bustion. The INLET air pipe is optional. If combustion air comes

from inside the structure, adequate make u p air MUST be provided to compensate for oxygen burned. See Confined Space Installa- tion in the Combustion and Ventilation Air chapter. If combus-

tion air is drawn from outside the structure, it MUST be taken from the same atmospheric pressure zone as the vent pipe.

Contaminated Combustion Air

Installations in certain areas or types of structures could cause ex- cessive exposure to contaminated air having chemicals or halo-

gens that will result in safety and performance related problems and may harm the furnace. These instances must use only out-

door air for combustion. The following areas or types of structures may contain or have ex-

posure to the substances listed below. The installation must be evaluated carefully as it may be necessary to provide outdoor air

for combustion.

• Commercial buildings.

• Buildings with indoor pools.

• Furnaces installed in laundry rooms.

• Furnaces installed in hobby or craft rooms.

• Furnaces installed near chemical storage areas.

• Permanent wave solutions for hair.

• Chlorinated waxes and cleaners.

• Chlorine based swimming pool chemicals.

• Water softening chemicals.

• De-icing salts or chemicals.

• Carbon tetrachloride.

• Halogen type refrigerants.

• Cleaning solvents (such as perchloroethylene).

• Printing inks, paint removers, varnishes, etc.

• Hydrochloric acid.

• Sulfuric Acid.

• Solvent cements and glues.

• Antistatic fabric softeners for clothes dryers.

• Masonry acid washing materials.

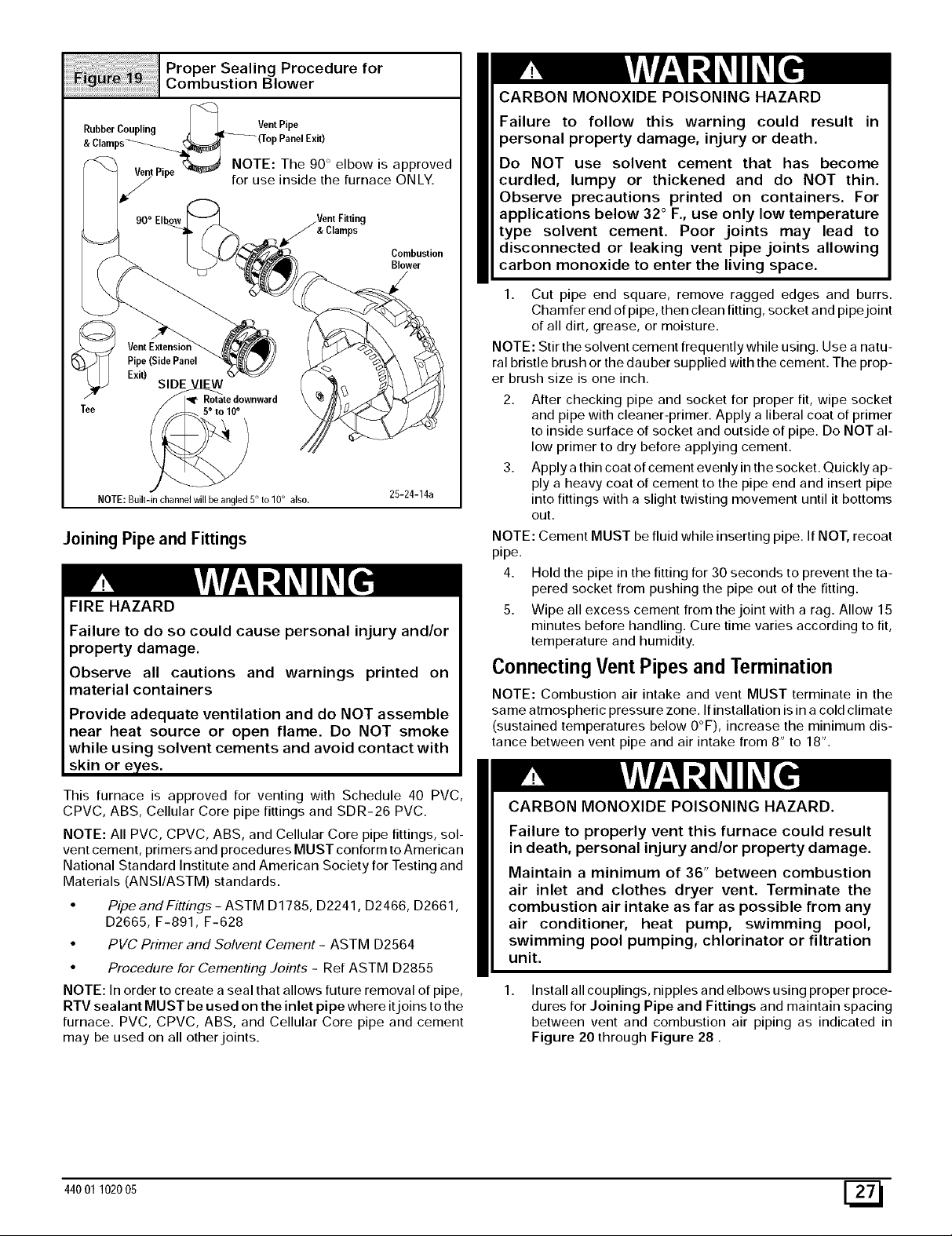

Vent and Combustion Air Piping Guidelines

This furnace is approved for venting with Schedule 40 PVC, CPVC, ABS, Cellular Core pipe fittings and SDR-26 PVC.

NOTE: All PVC, CPVC, ABS, and Cellular Core pipe fittings, sol- vent cement, primers and procedures MUST conform to American National Standard Institute and American Society for Testing and

Materials (ANSI/ASTM) standards.

• PipeandFittings-ASTMD1785, D2241,D2466, D2661, D2665, F-891, F-628

• PVC Primer and Solvent Cement - ASTM D2564

• Procedure for Cementing Joints - Ref ASTM D2855

NOTE: All vent piping MUST be installed in compliance with local codes or ordinances, these instructions, good trade practices, and codes of country having jurisdiction.

1. Determine the best routing and termination for the vent pipe and air inlet pipe by referring to all of the instructions and guidelines in this Section.

2. Determine the size required for the vent pipe and air inlet pipe.

3. Loosely assemble all venting parts without adhesive (pipe

joint cement) for correct fit before final assembly.

4. Use of vertical piping is preferred because there will be some moisture in the flue gases that may condense as it leaves the vent pipe (See Speciallnstruction ForHorizontal

Vents).

5. The vertical vent pipe MUST be supported so that no weight is allowed to rest on the combustion blower.

6. Exhaust vent piping or air inlet piping diameter MUST NOT be reduced.

7. All exhaust vent piping from the furnace to termination MUST slope upwards. A minimum of 1/4" per foot of run is

required to properly return condensate to the furnace drain system.

8. Use DWV type long radius elbows whenever possible, as they provide for the minimum slope on horizontal runs and they provide less resistance in the vent system. If DWV el- bows cannot be used, use two, 45 ° elbows when possible. On horizontal runs the elbows can be slightly misaligned to provide the correct slope.

9. All horizontal pipe runs MUST be supported at least every five feet with galvanized strap or other rust resistant materi- al. NO sags or dips are permitted.

10. All vertical pipe runs MUST be supported every six feet where accessible.

11. The minimum pipe run length is 2'.

12. The piping can be run in the same chase or adjacent to sup- ply or vent pipe for water supply or waste plumbing. It can

also be run in the same chase with a vent from another 90+ furnace.

NOTE: In NO case can the piping be run in a chase where temperatures can exceed 140 ° F. or where radiated heat from adjacent surfaces would exceed 140 ° F.

13. The vent outlet MUST be installed to terminate in the same atmospheric pressure zone as the combustion air inlet.

14. The vent system can be installed in an existing unused chimney provided that:

• Both the exhaust vent and air intake run the length of the chimney.

[_ 44001102005

• No other gas fired appliance or fireplace (solid fuel) is vented into the chimney

• The top of the chimney MUST be sealed flush or crowned up to seal against rain or melting snow so ONLY the piping protrudes.

• The termination clearances shown in Figure 7 & Figure 8 are maintained.

15. Furnace applications with vertical vents requiring vent di- ameter increaser fittings must have increaser fittings installed in vertical portion of the vent. Condensate will be trapped in the vent if the vent diameter is increased prior to

having an elbow turned upward. This could cause nuisance

tripping of the pressure switch.

Piping Insulation Guidelines

NOTE: Use closed cell, neoprene insulation or equivalent. If Fiber- glass or equivalent insulation is used it must have a vapor barrier. Use Rvalues of 7 upto 10', R-11 if exposure exceeds 10'. If Fiber- glass insulation is used, exterior to the structure, the pipe MUST be boxed in and sealed against moisture.

1. When the vent or combustion air pipe height above the roof exceeds 30", or if an exterior vertical riser is used on a hori-

zontal vent to get above snow levels, the exterior portion MUST be insulated.

2. When combustion air inlet piping is installed above a sus- pended ceiling, the pipe MUST be insulated with moisture resistant insulation such as Armaflex or other equivalent type of insulation.

3. Insulate combustion air inlet piping when run in warm, hu- mid spaces such as basements.

Sizing Combustion Air and Vent Pipe

Consult Table 3 or Table 4 to select the proper diameter exhaust and combustion air piping. Exhaust and combustion air piping is sized for each furnace Btuh size based on total lineal vent length (on inlet oroutlet side), and number of 90 ° elbows required. Two

45 ° elbows can be substituted for one 90 ° elbow. The elbow or el- bows used for venttermination outside the structure ARE counted,

including elbows needed to bring termination above expected snow levels. The elbow inside the furnace on the *9MPD IS NOT

included in the count.

Pipe Diameter Table

N9MP1 & *9MPD Models

50,000, 75,000 & 80,000 Btuh Furnaces

40' & (5) 90° elbows with 2" PVC pipe or

70' & (5) 90 ° elbows with 3" PVC pipe

100,000 Btuh Furnace

40' & (5) 90° elbows with 3" PVC pipe or

70' & (5) 90 ° elbows with 3" PVC pipe &

Long Vent Kit (See Tech. Manual)

125,000 Btuh Furnace

40' & (5) 90 ° elbows with 3" PVC pipe

Elbows are DWV Long Radius Type for 2" and 3" vents.

If more than five elbows are required, reduce the length of both the inlet and exhaust pipes 5' for each additional elbow

used.

NOTE: It is allowable to use larger diameter pipe and fitting than shown in the tables but not smaller diameters than shown.

i!ii!ii!i

50,000 & 80,000 Btuh Furnaces

40' & (5) 90° elbows with 2" PVC pipe or

70' & (5) 90 ° elbows with 3" PVC pipe

25' & (3) 90° elbows with 2" PVC pipe or 40' & (5) 90 ° elbows with 2" PVC pipe &

Long Vent Kit (See Tech. Manual) or

70' & (5) 90 ° elbows with 3" PVC pipe

40' & (5) 90° elbows with 3" PVC pipe or 70' & (5) 90 ° elbows with 3" PVC pipe &

Long Vent Kit (See Tech. Manual)

40' & (5) 90 ° elbows with 3" PVC pipe

Elbows are DWV Long Radius Type for 2" and 3" vents.

If more than five elbows are required, reduce the length of both the inlet and exhaust pipes 5' for each additional elbow

used.

Pipe Diameter Table

N9MP2 Models

75,000 Btuh Furnaces

100,000 Btuh Furnace

125,000 Btuh Furnace

For "Concentric Termination Kit" Venting table, see "Section 11" in this manual.

Vent Termination Clearances

CARBON MONOXIDE POISONING, FIRE AND

EXPLOSION HAZARD. Failure to properly vent this furnace could result in

death, personal injury and/or property damage. Inlet and outlet pipes may NOT be vented directly

above each other.

1. Determine termination locations based on clearances spe- cified in following steps and as shown in Figure 7, Figure 8, Figure 20, through Figure 28.

For "Concentric Termination Kit"clearances, see Figure 46, Figure 47, Figure 48, Figure 49 and Figure 50 in "Section 10"

in this manual.

2. For Single Pipe Installation, models N9MP1 or *9MPD, refer to Figure 8 for vent termination clearances.

3. For Direct Vent Installation, models N9MP2 or*9MPD, refer to Figure 7 for vent termination clearances.

44001 102005 E_

Item Clearance Description

A Clearance above grade, veranda, porch, deck, balcony, or

anticipated snow level

B Clearance to awindow or door that may he opened

C Clearance to apermanently closed window

D Vertical clearance to a ventilated soffit located above the

terminal within a horizontal distance of 2' (61cm) from the centedine of the terminal

E Clearance to an unventilated soffit

F Clearance to an outside corner

O Clearance to an inside corner

H Clearance to each side of the centedine extended above

electrical meter or gas service regulator assembly

I Clearance to service regulator vent outlet

J Clearance to non-mechanical air supply inlet to building or

the combustion air inlet to any other appliance

Canadian Installation (1)

12" (30cm)#

6" (15 cm) for appliances _< 10,000 BTUH (3kW), 12" (30 cm) for appliances > 10,000 Btuh (3 kW) and _<100,O00 Btub (30 kW), 36" (91 cm) for appliances > 100,000 Btab (30 kW)

3' (91 cm) within 15' (4.5 m) above the meter/regulator assembly

3' (91 cm)

6" (15cm)forappliances_<lO,OOOBTUH(3kW),9" (23cm) forappliances> 10,000Btah (3kW) and _<100,000Btah(30

kW) and _<50,000Btuh(15kW), 12" (30 cm) for appliances

12" (30cm)

6" (15 cm)forappliances_<10,000BTUH(3kW),9" (23 cm)

for appliances>10,000Btuh(3 kW)and_<50,000Btuh(15

kW),12" (30cm) for appliances>50,000Btub(15 kW)

3' (91 cm) within 15' (4.5 m) above the meter/regulator assembly

6" (15cm)forappliances_<lO,OOOBTUH(3kW),9" (23cm)

for appliances > 10,000 Btah (3 kW) and _<50,000 Btuh (15

kW), 12" (30 cm) for appliances > 50,000 Btuh (15 kW)

U.S. Installation (2)

> 50,000Btah(15kW)

K Clearance to a mechanical air supply inlet

L Clearance under a veranda, porch, deck, or balcony

M Clearance to each side of the centerline extended above or

below vent terminal of the furnace to a dryer or water heater vent, or other appliance's direct vent intake or exhaust.

N Clearance from a plumbing vent stack 3' (91 cm)

(1.) In accordance wifh the currem CSA B149.1, Natural Gas and Propane Installation Code (2.) In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code # 18" (46 cm) above roof surface

+ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

For clearances not specified in AN SI Z223.1/N FPA 54or C SA B149.1, clearances shall be in accordance with local installation codes and the requirements of the gas supplier and the manufactare's installatio

instructions.

Notes:

1. The vent for this appliance shall not terminate a. Over public walkways; or b. Near soffit vents or crawl space veins or other areas where condensate or vapor could create a nusiance or hazard or property damage; or c. Where condensate vapor could cause damage or could be detrimental to the operation of regulators, relief valves, or other equipment.

2. When locating vent terminations, consideration must be given to prevailing winds, location, and other conditions which may cause recirculation of the combustiob products of adjacent vents.

Recircula0on can cause poor combustion, inlet condensate problems, and accelerated corrosion of the heat exchangers.

6' (1.83m)

12" (30 cm) +

12" (30 cm)

3' (91 cm) above if within 10' (3m horizontally)

12" (30 cm)

3' (91 cm)

44001 1020 05

Item Clearance Descriptions

A Clearance above grade, veranda, porch, deck, balcony, or

anticipated snow level

B Clearance to a window or door that may be opened

C Clearance to apermanently closed window *

D Vertical clearance to a ventilated soffit located above the *

terminal within a horizontal distance of 2' (61cm) from the centedine of the terminal

E Clearance to an unventilated soffit *

F Clearance to an outside corner *

G Clearance to an inside comer *

H Clearance to each side of the centedine extended above

electrical meter or gas service regulator assembly

I Clearance to service regulator vent outlet

J Clearance to non-mechanical air supply inlet to building or

the combustion air inlet to any other appliance

K Clearance to a mechanical air supply inlet

L Clearance under a veranda, porch, deck, or balcony

M Clearance to each side of the centedine extended above or *

below vent terminal of the furnace to a dryer or water heater vent, or other appliance's direct vent intake or exhaust.

N Clearance from a plumbing vent stack

(1.) In accordance with the currenl CSA B149.1, Natural Gas and Propane Installation Code (2,) In accordance with the current ANSI Z223.1/NFPA fi4, Nafional Fuel Gas Cede

# 18" (46 cm) above roof surface + Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

For clearances not specified in ANSI Z223.1/NFPA 54 or CSA B149.1, clearances shall be in accordance with local installation codes and the requirements of the gas supplier and the manufacture's installation instructions.

Notes:

1, The vent for this appliance shall not terminate

a. Over public walkways; or b. Near soffit vents or crawl space vents or other areas where condensate or vapor could create a nusiance or hazard or property damage; or

c. Where condensate vapor could cause damage or could be detrimental to the operafion of regulators, relief valves, or other equipment.

2. When locating vent terminations, consideration must be given to prevailing winds, location, and other conditions which may cause recirculation of the combusfiob products of adjacent vents.

Recirculafion can cause poor combustion, inlet condensate problems, and accelerated corrosion of the heat exchangers.

12" (30cm)#

6" (15 cm) for appliances _< 10,000 BTUH (3kW), 12" (30 cm) for appliances > 10,000 Btuh (3 kW) and _<100,000 Btuh (30 kW), 36" (01 cm) for appliances > 100,000 Btub (30 kW)

3' (91 cm) within 15' (4.5 m) above the meter/regulator assembly

3' (01 cm)

6" (15cm)forappliances_<10,OOOBTUH(3kW),12" (30 cm)forappliances> 10,000Btub(3kW) and _<100,000Btuh

(30 kW),36" (91 cm) for appliances> 100,000Btuh (30 kW) 6' (1.83m)

12" (30 cm) +

3' (91 cm)

Canadian Installation (1)

U.S. Installation (2)

12" (30 cm)

4' (1,2 m) below or to the side of the opening. 1' (30 cm) above the opening.

3' (91 cm) within 15' (4.fi m) above the meter/regulator assembly

4' (1.2 m) below or to the side of opening: 1' (30 cm) above opening.

3' (01 cm) above if within 10' (3m horizontally)

3' (91 cm)

44001 102005 E_

CondensateDrainTrap

This furnace removes both sensible and latent heat from the prod- ucts of combustion. Removal of the latent heat results in con-

densation of the water vapor. The condensate is removed from the furnace through the drains in the plastic transition and the vent fit-

ting. The drains connect to the externally mounted condensate drain trap on the left or right side of the furnace.

The startup of a new furnace will involve a cycle or two of the fur- nace to properly prime the condensate trap with water. Until the

trap is fully primed, some condensate will be pulled into the com- bustion blower. The furnace may cycle on the pressure switch con-

nected to the plastic transition box due to condensate buildup. After the trap is primed, the condensate will start draining from the

furnace. The combustion blower will clear out any remaining con- densate in the blower housing through the vent fitting downstream

of the blower. Note that the condensate trap can also be primed by pouring water into the 1/2" drain hose. Remove the1/2 " ID drain hose from either the gutter or the white PVC Tee Trap. Using a fun- nel pour eight (8) ounces of water into 112" ID drain hose.Water will

flow through the drain hose and into the condensate drain trap. This will prime both the vent and the transition sides of the trap. Re-

connect the 1/2, ID drain hose to the original component, either the gutter or the PVC Tee Trap.

The condensate drain trap supplied with the furnace MUST be used. The drain connection on the condensate drain trap is sized for 3/4" PVC or CPVC pipe, however alternate 1/2" CPVC (nominal

5/8" O.D.) or vinyl tubing with a minimum inner diameter (I.D.) of 5/8" may also be used, as allowed by local codes. Alternate drain

pipes and hoses may be used as allowed by local codes.

The drain line must maintain a I/4" per foot downward slope toward the drain. 114"per foot is recommended. Installation of an overflow line is recommended when the 114" per foot slope to the conden-

sate drain cannot be maintained. See Figure 18 for proper routing and installation of the overflow.

DO NOT trap the drain line in any other location than at the con- densate drain trap supplied with the furnace.

FROZEN AND BURST WATER PIPE HAZARD Failure to do so could result in burst water pipes,

serious property damage and/or personal injury. If a condensate pump is installed, a plugged

condensate drain or a failed pump may cause the furnace to shut down. Do not leave the home

unattended during freezing weather without turning off water supply and draining water pipes or otherwise protecting against the risk of frozen pipes.

If possible DO NOT route the drain line where it may freeze. The drain line must terminate at an inside drain to prevent freezing of the condensate and possible property damage.

1. A condensate sump pump MUST be used if required by lo- cal codes, or if no indoor floor drain is available. The con-

densate pump must be approved for use with acidic condensate.

2. A plugged condensate drain line or a failed condensate pump will allow condensate to spill. If the furnace is installed where a condensate spill could cause damage, it is recom-

mended that an auxiliary safety switch be installed to pre- vent operation of the equipment in the event of pump failure or plugged drain line. If used, an auxiliary safety switch should be installed in the R circuit (low voltage) ONLY.

3. If the auxiliary switch in the condensate pump is used, the furnace may shut down dueto a blocked condensate line or failed pump. To prevent frozen water pipes see the "Frozen

Water Pipe Hazard" section on Page 4 of this manual.

Condensate Drain Trap Freeze Protection

Special precautions MUST be made if installing furnace in an area which may drop below freezing. This can cause improper opera- tion or damage to the equipment. If the the furnace environment has the potential of freezing, the drain trap and drain line must be protected. Use 3 to 6 watt per foot at 11 5 volt, 40 ° Fself-regulating shielded and waterproof heat tape. Wrap the drain trap and drain line with the heat tape and secure with the ties. Follow the heat tape manufacturer's recommendations.

[_1 44001 1020 05

Upflow Installations Top Vent

ONLY

Vent Drain

& Clamps

Pressure Switch Detail

Drain Connector Black PVC

3/4"PVC X l/z" CPVC (Looseparts bag)

Casing Grommet

Black Rubber

S/8"ID (Looseparts bag)

(Optional)

DrainTee

DrainTube Black Rubber

112"ID& Clamps

Corrugated s/8"ID & Clamps

DrainLineVentTee 314"PVC or

1/2"CPVC(Field supplied)

le Pressure Switch

DrainTubeBlackRubbers/8" ID &Clamps Cut length to fit (Loosepartsbag)

Black Rubber

3/16" ID

StreetEIbow

/'CPVC

(Looseparts bag)

25-24-42

Upflow Installations Top Vent (SeeFigure 9)

Remove plug from the side of the furnace casing where Drain Tu be will exit.

Install casing grommet (black rubber 5/8" ID grommet - in loose parts bag)

Install the 1/2" CPVC street elbow on discharge of Trap Install the black PVC tube connector (3/4" PVC x 1/2" CPVC from

loose parts bag) as shown in the illustration above. Cut the black Drain Tube (5/8" ID - in loose parts bag) to length to

fit between Trap and tube connector through grommet. Clamp both ends of the Drain Tube using clamps provided.

44001 102005 E_

Glue the CPVC street elbow to the Trap using appropriate cleaner and solvent cement.

Connect the Tee trap and the main drain line exiting the casing as shown Figure 18.

Note: It is recommended that all PVC piping and fitting connec- tions be fit up and inspected before final cementing. Trap must be

primed before operation. Verify all condensate drain connec- tions are securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent sys-

tem.

Upflow Installations Vent thru Left Side

Plastic Cap Yellow or black

Coupling & Clamps

VentDrain

Either:ThePVC

&Clamps Drain Teeor a field

supplied 2" PVC Te_

Dual Pressure Switch Detail

TeeTrap White PVC

(loosepartsbag)

DrainTube

Black Rubber

1iZ" ID &Clamps

Single Pressure Switch

ONLY

Relief Tube

3/16" ID

DrainTube

DrainConnector Black PVC 3/4"PVCX 1/2"CPVC

(Loosepartsbag)

Casing Grommet

Black Rubber

s/8" ID (Loose partsbag)

DrainLine VentTee /4 PVCor 1/2"CPVC(Field supplied)

3 t_

Upflow Installations Vent thru Left Side (See Figure 10)

Remove Drain Tee from inducer discharge and remove black Drain Tube (1/2" ID) from bottom of Drain Tee. (*9MPD models only)

Install Vent Pipe grommet in side of casing. Cut an appropriate length of 2" PVC pipe long enough to exit the

cabinet and connect the vent drain to either:

• A standard field supplied 2" PVC tee (N9MP1 and 2 models), or

• A 2" PVC coupling fastened onto the Drain Tee (*9MPD mod- els)

Install Tee trap into bottom of tee. Install the 112" CPVC street elbow on discharge of Trap Install the black PVC drain connector (3/4" PVC x 1/2" CPVC from

loose parts bag) as shown in the illustration above.

Cut the black Drain Tube (5/8" ID - in loose parts bag) to length to fit between Trap and tube connector through grommet.

Clamp both ends of the Drain Tube using clamps provided.

Glue the CPVC street elbow to the Trap using appropriate cleaner and solvent cement.

Connect the Tee trap and the main drain line exiting the casing as shown in Figure 18.

Note: It is recommended that all PVC piping and fitting connec- tions be fit up and inspected before final cementing. Both the in-

ternal Trap and the external Tee Trap must be primed before operation. Verify all condensate drain connections are securely clamped. A coupling and clamps (in loose part bag) may be

installed as shown for future servicing of the vent system.

SIDE VIEW

/_Rotate downward

NOTET Bw]t-in channel will be angled 5° to 10° also.

25-24-43

[_ 44001 1020 05

PlasticCap Yelloworblack

All Models Vent thru Right Side

On Some Models ONLY

VentDrain &Clamps

Relief Tube Black Rubber

3/16" ID

DrainTube Corrugated

Sls"

Barbed Coupling (loose parts bag)

SIDE VIEW

,,,_otat e downward

Dual Pressure Switch

Either: The PVC DrainTeeor afield

supplied 2" PVC Tee

Single Pressure Switch Detail

White PVC

(looseparts bag)

ElbowsTubes (2)

Rubber1/2"ID&Clamps

(looseparts bag)

DrainLine VentTee3/4"PVC

CPVC(Field supplied)

314"PVCX 1/2" CPVC (Loosepartsbag)

NOTE.TBuilt-inchannelwill heangled 5° to10° also.

All Models Vent thru Right Side (SeeFigure 11)

Disconnect the black Drain Tube between the drain vent and the Trap.

Rotate the inducer 180 ° for a right side vent after loosening the 4 inducer attachment screws. Reinstall and retighten the inducer

screws to 20" pounds torque. Using the 1/2" OD barbed coupling in the loose parts bag connect

together with the 2 short /2' ID elbowtubes and connect the lower discharge port of the vent drain to the Trap. Secure all connections

with clamps. Install the vent pipe grommet into the casing Cut an appropriate length of 2" PVC pipe long enough to exit the

cabinet and connect the vent drain to either:

• A standard field supplied 2" PVC tee (N9MP1 and 2 mod- els), or

• A 2" PVC coupling fastened onto the Drain Tee (*9MPD models)

Install Tee Trap into bottom section of Tee. Remove plug from the side of the furnace casing where Drain Tu be

will exit.

1 ,

Casing Grommet

"Black Rubber sis" CPVC

(Loose parts bag) 25-24-44

Install casing grommet (black rubber 5/8" ID grommet - in loose parts bag)

Install the 1/2" CPVC street elbow on discharge of Trap Install the black PVC tube connector (3/4" PVC x 1/2" CPVC from

loose parts bag) as shown in the illustration above Cut the black Drain Tube (5/8" ID - in loose parts bag) to length to

fit between Trap and tube connector through grommet. Clamp both ends of the Drain Tube using clamps provided. Glue the CPVC street elbow to the Trap using appropriate cleaner

and solvent cement.

Connect the Tee trap and the main drain line exiting the casing as shown in Figure 18.

Note: It is recommended that all PVC piping and fitting connec- tions be fit up and inspected before final cementing. Both the in-

ternal Trap and the external Tee Trap must be primed before operation. Verify all condensate drain connections are securely clamped. A coupling and clamps (in loose part bag) may be

installed as shown for future servicing of the vent system.

44001 102005 E_

Downflow Left Side Vent and Trap

PlasticCap Yelloworblack

Coupling&Clamps (Optional)_

VentDrain & Clamps

Single Pressure Switch Detail

Either: The PVC

Drain Tee or a field supplied 2" PVC Tee

TeeTrapWhite PVC

(loosepartsbag)

Elbow Tube Black Rubber

I/Z" ID& Clamps

MoveCapsto topof trap

Drain Tube Black Rubber

1/2"ID &Clamps

Dual Pressure Switch

SIDE VIEW

_Rotate downward

NOTE_. Bw]t-in channel will he angled 5° to 10° also.

Relief Tube Black Rubber

;"ID

On Some Models ONLY

INLET _) <_

Flexible Tubing Connector, 3/16" OD (loose parts bag)

ReliefTubeExtension

Rubber3/16" ID

Cut to fit (looseparts bag)

DrainTubeCorrugated sis"ID

Cut at straight section

Leaveroomfor clamp

Cut Here (loose

Downflow Left Side Vent and Trap (SeeFigure 12)

Remove the inducer mounting screws, rotate the inducer 180 ° and retighten the inducer screws to 20" pounds torque.

Disconnect the hoses from the Trap assembly, and remove Trap and Trap mounting bracket from the blower compartment. Using

cover plate and gasket provided in the loose parts bag, cover the hole from the burner compartment to the blower compartment and

secure with screws. Move the caps to the top of the Trap and mount the Trap externally

to the left side of the unit using the 2 screws provided. Cut the 5/8" ID corrugated hose as shown above and fasten the 90 °

bend end to the Trap and fasten the straight end to the transition drain. Secure both connections with clamps.

Reconnect the 1/2" ID drain hose from the vent drain to the Trap and secure with a clamp.. In some cases, additional length will be

required for this hose. Use the Black plastic 1/2" OD barbed cou- pling and a suitable section of 1/2" ID hose to make the connection.

Secure all connections with clamps Connect the 3/16" ID relief tube from the small port on the Trap to

the top port of the transition as shown in the picture. In some

Trap Connection "Clamp ears"

ointed OUT

piing, 1/2"OD

partsbag)

cases, additional hose length will be needed. Use the clear plastic 3/16" OD flexible tubing connector and a suitable length of extra 3/16" ID hose to make this connection.

Install the vent pipe grommet into the casing Cut an appropriate length of 2" PVC pipe long, enough to exit the

cabinet and connect the vent drain to either:

• A standard field supplied 2" PVC tee (N9MP1 and 2 mod- els), or

• A 2" PVC coupling fastened onto the Drain Tee (*9MPD models)

Install Tee Trap into bottom section of Tee. Connect the Tee trap and the main drain line exiting the casing as

shown in Figure 18. Note: It is recommended that all PVC piping and fitting connec-

tions be fit up and inspected before final cementing. Both the ex- ternal Trap and the external Tee Trap must be primed before

operation. Verify all condensate drain connections are securely clamped. A coupling and clamps (in loose part bag) may be

installed as shown for future servicing of the vent system.

Preassemble & insert into furnace

25-24-45

[_1 44001 1020 05

Plastic Cap

Downflow Right Side Vent and Trap

Trap Connection "Clamp ears"

Barbed Coupling, l/z" OD

(loose arts bag)

ointed OUT

VentDrain

&Clamps

SIDE VIEW

/,/_Rotate downward

NOTE'r. Built-in channel Nil be angled 5° to 10° also,

Drain Tube

Corrugated s/8" ID & Clamps

Single Pressure Switch Detail

Elbow Tube Black Rubber

1/2" ID & Clamps

(Loose Parts Bag)

Dual Pressur

DrainConnector Black PVC3/4t'PVCX 1/2"

Relief Tube

Black Rubber 3/16" ID

DrainTube Black Rubber

1/2"ID

OnSome ModelsONLY

2" PVC

WARNING MoveCaps

to top of trap

DrainTubeBlack Rubber

s/8" ID Cut to fit & Clamps (loose partsbag)

Preassemble & insert into furnace

Coupling & Clamps

Either: The PVC

Teeorafield

supplied 2" PVC Tee

TeeTrap White PVC

(loosepartsbag)

25-24-46

Downflow Right Side Vent and Trap (SeeFigure 13)

Remove the Drain Tee if installed. Disconnect the hoses from the Trap assembly, and remove Trap

and Trap mounting bracket from the blower compartment. Using cover plate and gasket provided in the loose parts bag, cover the

hole from the burner compartment to the blower compartment and secure with screws.

Move the caps to the top of the Trap and mount the Trap externally to the right side of the unit using the 2 screws provided.

Connect the corrugated Drain Tube from the transition box to the Trap as shown. If an extension is required, use the black PVC tube

connector and the black 518" ID Drain Tube in the loose parts bag. Cut tube to length. Secure all connections with clamps.

Connect the drain hose from the Vent Drain to the Trap. If an ex- tension is required, use the black 112" OD barbed coupling, con- nect a black 112" ID elbow tube and a suitable section of a 1/2" ID

drain tube to make connection from the vent drain to the trap. Se- cure all connections with clamps.

44001 102005 [_

Install the vent pipe grommet into the casing Cut an appropriate length of 2" PVC pipe long, enough to exit the

cabinet and connect the vent drain to either:

• A standard field supplied 2" PVC tee (N9MP1 and 2 mod- els), or

• A 2" PVC coupling fastened onto the Drain Tee (*9MPD models)

Install Tee Trap into bottom section of Tee. Connect the Tee trap and the main drain line exiting the casing as

shown in Figure 18. Note: It is recommended that all PVC piping and fitting connec-

tions be fit up and inspected before final cementing. Both the ex- ternal Trap and the external Tee Trap must be primed before

operation. Verify all condensate drain connections are securely clamped. A coupling and clamps (in loose part bag) may be

installed as shown for future servicing of the vent system.

Horizontal Left Thru Top

VentDrain & Clamps

Caps

Yellowor black

Alternate Orienation

]

Single Pressure Switch Detail

Dual Pressure Switch

Trap Connection

_ %lamp ears"

Pointed OUT

Preassemble &

insert into furnace

ReliefTube Black Rubber

" ID

'_ _ 3/16" OD (LooseParts Bag)

ReliefTubeExtension

, FBlack Rubber3/lS" ID

_Cut to Fit (Loose Parts Bag)

i FlexibleTubing Connector

Field DrainTube SuppliedTee Coupling & Clamps Black Rubber

(Optional) 1/2"ID

& Clamps

TeeTrapWhite PVC (loosepartsbag)

CapandClamp Open End

Horizontal Left-Thru Top (SeeFigure14)

Disconnect the hoses from the Trap assembly, and remove Trap and Trap mounting bracket from the blower compartment. Using

cover plate and gasket provided in the loose parts bag, cover the hole from the burner compartment to the blower compartment and

secure with screws.

Mount the Trap externally to the bottom side of the unit using the 2 screws provided in the location shown.

Cut the corrugated tube as shown in the illustration above. Con- nect the corrugated hose from the transition to the Trap. Secure connections with clamps.

Remove the black I/2" ID Drain Tube from the Drain Tee. Install a yellow cap and clamp over the open drain port of the Drain Tee.

Connect the black I/2" ID Drain Tube from the Vent Drain to the Trap. Secure connections with clamps.

Connect the 3/16" ID relief tube to the middle port on the Trap. If an extension is required, use the 3116" OD flexible tubing connector

DrainTubeCorrugated /8 ID &Clamps

Cut at straight section

5 t_

Leaveroomfor clamp CutHere

25-24-47

and the black 3/16" ID relief tube in the loose parts bag. Cut tube to length. Secure all connections with clamps.

Cut an appropriate length of 2" PVC pipe, long enough to exit the cabinet and connect the vent drain to either:

• A standard field supplied 2" PVC tee (N9MP1 and 2 mod- els), or

• A 2" PVC coupling fastened onto the Drain Tee ('9MPD models)

Install Tee Trap into bottom section of Tee. Connect the Tee trap and the main drain line exiting the casing as

shown in Figure 18. Note: It is recommended that all PVC piping and fitting connec-

tions be fit up and inspected before final cementing. Both the ex- ternal Trap and the external Tee Trap must be primed before

operation. Verify all condensate drain connections are securely clamped. A coupling and clamps (in loose part bag) may be

installed as shown for future servicing of the vent system.

[_1 44001 1020 05

Alternate Orienation

Field

Supplied Tee

Horizontal Left-Side Vent

Single Pressure Switch Detail

Level or Sloped towards Tee / VentDrain

Dual Pressure Switch _ &Clamps

RAliM Tub_- Rlack Rubber

'/10",D/

Yellow or black

ElbowTube Black Rubber

TeeTrapWhitePVC (loosepartsbag)

Flexible Tubing Connector _ 3/!6"OD (Loose Parts Bag)

Relief Tube Extensio! Black Rubber 3/16"ID

Cut to Fit (LoosePartsBag)

Horizontal Left-Side Vent (SeeFigure 15)

Remove the Drain Tee from the Vent Drain if installed (_9MPD models only)

Rotate the inducer 180 ° for a side vent after loosening the 4 induc- er attachment screws. Reinstall and retighten the inducer screws

to 20" pounds torque. Disconnect the hoses from the Trap assembly, and remove Trap

and Trap mounting bracket from the blower compartment. Using cover plate and gasket provided in the loose parts bag, cover the

hole from the burner compartment to the blower compartment and secure with screws.

Mount the Trap externally to the bottom side of the unit using the 2 screws provided in the location shown.

Cut the corrugated tube as shown in the illustration above. Con- nect the corrugated hose from the transition to the Trap. Secure connections with clamps.

Connect the black 1/2" ID Drain Tube from the Vent Drain to the Trap. Ifan extension is required, use the black 1/2" OD flexibletub-

ing connector and the black 1/2" ID Drain Tube in the loose parts bag. Cut tube to length. Secure connections with clamps.

Connect the 3/16" ID relief tube to the middle port on the Trap. If an extension is required, use the 3116"0D flexible tubing connector

2" ID &Clamps (Loose PartsBag)

BarbedCoupling, 1/2"OD

(loose partsbag)

_ DrainTubeCorrugated s/8" ID& Clamps

_Cut at straight section

WARNING __

and the black 3/16" ID relief tube in the loose parts bag. Cut tube to length.

Cut an appropriate length of 2" PVC pipe, fittings and extension pipe long enough to exit the cabinet and connect the vent drain to

either:

• A standard field supplied 2" PVC tee (N9MP1 and 2 mod- els), or

• A 2" PVC coupling fastened onto the Drain Tee (*9MPD models)

Install Tee Trap into bottom section of Tee. Important: The pipe to the Tee Trap must be level or sloping to-

wards the Tee Trap Connect the Tee trap and the main drain line exiting the casing as

shown in Figure 18. Note: It is recommended that all PVC piping and fitting connec-

tions be fit up and inspected before final cementing. Both the ex- ternal Trap and the external Tee Trap must be primed before

operation. Verify all condensate drain connections are securely clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

A coupling and clamps (in loose part bag) may be installed as

shown for future servicing of the vent system.

MoveCaps to _

topof trap I ......... f_.'_ CutHere

Leaveroom for clamp

25-24-48

44001 102005

Horizontal Right thru Top

Trap Connection "Clamp ears"

Preassemble& insertintofurnace

FlexibleTubingConnector 3/16"OD(Loose PartsBag)_"_

Single Pressure Switch Detail

Relief Tube

BlackRubber3/16"ID_

Relief Tube Extensio_

Black Rubber 3/16" ID Cut to Fit (Loose Parts Bag)

ElbowTube Black Rubber

I_"ID & Clamps

(LooseParts Bag)

WARNING

Add Cap:_Clamp

Plastic Cap

Yelloworblack

VentDrain

& Clamps

Coupling &Clamps

(Optional)

Alternate Orienation

Field

_ _upplied Tee

/ _TeeTrap

"White PVC

(loosepartsbag)

OnSome Models

ONLY

Dual Pressure Switch

Drain TubeCorrugated /8 ID&Clarr Cutat straight section

Leaveroom for clamp _CutHere

Horizontal Right Thru Top (SeeFigure16)

Disconnect the hoses from the Trap assembly, and remove Trap and Trap mounting bracket from the blower compartment. Using

cover plate and gasket provided in the loose parts bag, cover the hole from the burner compartment to the blower compartment and

secure with screws. Mount the Trap externally to the bottom side of the unit using the

2 screws provided in the location shown. Cut the corrugated tube as shown in the illustration above. Con-

nect the corrugated hose from the transition to the Trap. Secure connections with clamps.

Connect the black 1/2" ID Drain Tube from the Vent Drain to the Trap. If an extension is required, use the black 1/2" og barbed

coupling and the black 1/2" ID Drain Tube in the loose parts bag. Cut tube to length. Secure connections with clamps.

Connect the 3/16" ID relief tube to the middle port on the Trap. If an extension is required, use the clear 3/16" OD flexible tubing con-

_(Barbed Coupling, 112"OD

loose parts bag)

Drain Tube

Black Rubber 1/2" ID & Clamps

25-24-49

nector and the black 3/16" ID relief tube in the loose parts bag. Cut tube to length.

Cut an appropriate length of 2" PVC pipe, fittings and extension pipe long enough to exit the cabinet and connect the vent drain to

a standard field supplied 2" PVC tee

Install Tee Trap into bottom section of Tee.

Connect the Tee trap and the main drain line exiting the casing as shown in Figure 18.

Note: It is recommended that all PVC piping and fitting connec- tions be fit up and inspected before final cementing. Both the ex-

ternal Trap and the external Tee Trap must be primed before operation. Verify all condensate drain connections are securely

clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

[_ 44001 1020 05

HorizontalRight-SideVent

Single Pressure Switch Detail

ReliefTube Black Rubber3/16" ID._

FlexibleTubingConnector_

3/16"OD (LooseParts Bag)

Relief Tube Extension Black Rubber 3/16" ID

Cut to Fit (Loose Parts Bag)

Elbow Tube Black Rubber llz" ID & Clamps

(LoosePartsBag)

Plastic Cap Yellow or black

Coupling &Clamps

Dual Pressure Switch ,_

DrainTubeBlackCorrugated /8 ID &Clam Cut at straight section !

Leaveroomfo_ Cut Hire

s ,, p//(

Horizontal Right Side Vent (SeeFigure17)

Disconnect Drain Tee if installed (*9MPD models only) Disconnect the hoses from the Trap assembly, and remove Trap

and Trap mounting bracket from the blower compartment. Using cover plate and gasket provided in the loose parts bag, cover the

hole from the burner compartment to the blower compartment and secure with screws.

Mount the Trap externally to the bottom side of the unit using the 2 screws provided in the location shown.

Cut the corrugated tube as shown in the illustration above. Con- nect the corrugated hose from the transition to the Trap. Secure

connections with clamps. Connect the black 1/2" ID Drain Tube from the Vent Drain to the

Trap. If an extension is required, use the 1/2" OD barbed coupling and the black 1/2" ID Drain Tube in the loose parts bag. Cut tube

to length. Secure connections with clamps. Connect the 3/16" ID relief tube to the middle port on the Trap. If

an extension is required, use the clear 3/16"OD splice connector and the black 3/16" ID relief tube in the loose parts bag. Cut tube

to length.

25-24-50

Cut an appropriate length of 2" PVC pipe, fittings and extension pipe long enough to exit the cabinet and connect the vent drain to

either:

• A standard field supplied 2" PVC tee (N9MP1 and 2 mod- els), or

• A 2" PVC coupling fastened onto the Drain Tee (*9MPD models)

Install Tee Trap into bottom section of Tee. Important: The pipe to the Tee Trap must be level or sloping to-

wards the Tee Trap Connect the Tee trap and the main drain line exiting the casing as

shown in Figure 18. Note: It is recommended that all PVC piping and fitting connec-

tions be fit up and inspected before final cementing. Both the ex- ternal Trap and the external Tee Trap must be primed before operation. Verify all condensate drain connections are securely

clamped. A coupling and clamps (in loose part bag) may be installed as shown for future servicing of the vent system.

44001 102005 [_

Connecting Tee Trap to Condensate

Trap and Main Drain Line

Connecting Vent and Combustion Air Piping

CARBON MONOXIDE POISONING HAZARD

Failure to properly seal vent piping could result in death, personal injury and/or property damage.

Cement or mechanically seal alljoints, fittings, etc. to prevent leakage of flue gases.

Open Tee

Evaporator Tee lrap

Coil

Drain Line

(Opt L

Main Drain Line

The Tee Trap must be connected to the main condensate drain line as conceptually shown above. Different installations may require slightly different orientations. The following steps apply

to all installations.

2. The Tee Trap should be installed as close to the side or top of the furnace as practical. Minimize the distance between the inducer and the Tee Trap as much as possible.

3. An open tee is to be used at the Tee Trap discharge. The top end of the tee should be open to the atmosphere to elimi- nate potential air lock problems.

4. The drain line from the Tee Trap is to be connected to the furnace condensate trap drain line as shown above.

5. Condensate drain lines from a cooling coil may be con- nected downstream of the connection point of the Tee Trap

and Furnace Condensate Trap.

Important: Prime both traps with water before operation. Failure to prime the traps may result in discharge of flue gases from the condensate drain line and open tee for a period of

time, and may result in temporary lockout of the furnace upon start up. Main drain line construction is left to the discretion of the installer. It may be made of either ridged pipe or flexible

tube. Tube ID should NOT be less than 1/2,.

25-24-41N

Condensate Trap

Refer to Figure 9 through Figure 17 that corresponds to the installation position of the furnace for the application.

Preassemble the vent and combustion air piping from the furnace to the vent termination. Do not cement the pipe joints until the pipe preassembly process is complete.

Combustion Air Pipe Connection (Dual Certified or

Direct Vent)

Install the air intake coupling and gasket to the furnace with the four(4) screws.

Note: The air intake cou piing and gasket ca n be installed to the top panel to the alternate air intake locations on either the left or right side panels of the furnace.

For downflow installation, the air intake coupling and gasket must

be installed to the alternate air intake location on either the left or right side panels. Remove the 3" hole plug from the side panel and

relocate to the air intake hole in the top panel. Use four screws to seal the four(4) mounting holes in the top panel next to the hole plug. Drill four(4) 7/64" diameter holes in the casing using the air intake coupling as the template.

The air intake coupling is sized for 2" PVC pipe.

Install the combustion air pipe to the air intake coupling using RTV sealant to provide for future serviceability.

Vent Pipe Connection

Install the vent pipe grommet to the furnace panel. Locate the grommet in the furnace panel at a location directly away from the vent fitting on the combustion blower. The grommet snaps into the 3" hole plug from the furnace panel. NOTE: Depending on the installation position, the vent pipe grommet will be installed to the top panel or to the alternate location on the side panels. If needed, remove the 3" hole plug from the furnace panel and relocate to the open hole in the furnace panel. (See Figure 9 or Figure 18)

Install the vent pipe to the rubber coupling, the vent fitting or the PVC vent extension pipe. Securely attach using the clamp or PVC cement as required.

Note: The vent fitting MUST be installed with the air flow marking arrow pointed toward the vent pipe. (See Figure 19) Some installations require the vent fitting to be installed with a 5 ° to 10 ° downward slope. (See Figure 9 thru Figure 18)

[_ 44001 1020 05

Proper Sealing Procedure for Combustion Blower

RubberCoupling _Vent Pipe

& Clamps_ _([op Panel Exit)

VentPiDe_ N°TE: The 90° elbow is approved

r for use inside the furnace ONLY.

90 ° Elbow

Pipe(Side Panel Exit)

SIDE VIEW

Tee

wnward

NOTE:Built-in channel will beangled5°to 10° also.

& Clamps

Combustion Blower

25-24-14a

Joining Pipe and Fittings

FIRE HAZARD Failure to do so could cause personal injury and/or

property damage. Observe all cautions and warnings printed on

material containers

Provide adequate ventilation and do NOT assemble near heat source or open flame. Do NOT smoke

while using solvent cements and avoid contact with

skin or e_es.

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in personal property damage, injury or death.

Do NOT use solvent cement that has become

curdled, lumpy or thickened and do NOT thin.

Observe precautions printed on containers. For applications below 32° F., use only low temperature

type solvent cement. Poor joints may lead to

disconnected or leaking vent pipe joints allowing

carbon monoxide to enter the living space.

1. Cut pipe end square, remove ragged edges and burrs. Chamfer end of pipe, then clean fitting, socket and pipe joint of all dirt, grease, or moisture.

NOTE: Stir the solvent cement frequently while using. Use a natu- ral bristle brush or the dauber supplied with the cement. The prop-

er brush size is one inch.

2. After checking pipe and socket for proper fit, wipe socket and pipe with cleaner-primer. Apply a liberal coat of primer to inside surface of socket and outside of pipe. Do NOT al- low primer to dry before applying cement.

3. Apply a thin coat of cement evenly in the socket. Quickly ap- ply a heavy coat of cement to the pipe end and insert pipe

into fittings with a slight twisting movement until it bottoms out.

NOTE: Cement MUST be fluid while inserting pipe. If NOT, recoat pipe.

4. Hold the pipe in the fitting for 30 seconds to prevent the ta- pered socket from pushing the pipe out of the fitting.

5. Wipe all excess cement from the joint with a rag. Allow 15 minutes before handling. Cure time varies according to fit, temperature and humidity.

Connecting Vent Pipes and lermination

NOTE: Combustion air intake and vent MUST terminate in the same atmospheric pressure zone. If installation isin a cold climate

(sustained temperatures below 0°F), increase the minimum dis- tance between vent pipe and air intake from 8" to 18".

This furnace is approved for venting with Schedule 40 PVC, CPVC, ABS, Cellular Core pipe fittings and SDR-26 PVC.

NOTE: All PVC, CPVC, ABS, and Cellular Core pipe fittings, sol- vent cement, primers and procedures MUST conform to American National Standard Institute and American Society for Testing and Materials (ANSI/ASTM) standards.

Pipe and Fittings - ASTM D1785, D2241, D2466, D2661,

D2665, F-891, F-628

• PVC Primer and Solvent Cement - ASTM D2564

CARBON MONOXIDE POISONING HAZARD. Failure to properly vent this furnace could result

in death, personal injury and/or property damage. Maintain a minimum of 36" between combustion

air inlet and clothes dryer vent. Terminate the combustion air intake as far as possible from any air conditioner, heat pump, swimming pool,

swimming pool pumping, chlorinator or filtration unit.

• Procedure for Cementing Joints - Ref ASTM D2855

NOTE: In order to create a seal that allows future removal of pipe, RTV sealant MUST be used on the inlet pipe where itjoins to the furnace. PVC, CPVC, ABS, and Cellular Core pipe and cement may be used on all other joints.

44001 102005 [_

Install all couplings, nipples and elbows using proper proce- dures for Joining Pipe and Fittings and maintain spacing between vent and combustion air piping as indicated in Figure 20 through Figure 28.

.............................................................................AboveSnowLevelorGradeLevel

SidewallTermination12"orMore

MIN. _ "18" Minimum for cold climates

EL 25-00-05F

SNOW LEVEL

Horizontal Termination

Cut two holes. 21/2" for 2" pipe, 3" for 21/2 " pipe, or 31/2" for 3" pipe. Do NOT make the holes oversized, or it will be nec- essary to add a sheet metal or plywood plate on the outside

with the correct size hole in it.

2. Check hole sizes by making sure it is smaller than the cou- plings or elbows that will be installed on the outside. The couplings or elbows MUST prevent the pipe from being pushed back through the wall.

3. Extend vent pipe and combustion air pipe through the wall 3/4" to 1" and seal area between pipe and wall.

4. Install the couplings, nipple and termination elbows as shown and maintain spacing between vent and combustion

air piping as indicated in Figure 20 and Figure 21.

A metal shield is recommended 18" x 18" min. or 18" min. diameter around the vent termination at the exterior wall to protect the house

exterior materials from flue product or condensation (freezing) damage.

Using ExteriorRisers

1. Install elbows and pipe to form riser as shown in Figure 21.

2. Secure vent pipe to wall with galvanized strap or other rust resistant material to restrain pipe from moving.

3. Insulate pipe with Armaflex or equivalent moisture resistant closed cell foam insulation or Fiberglass insulation if boxed in and sealed against moisture.

Sidewall Termination with Exterior Risers to Get Above Snow Level or Grade Level

8" *

MIN. "18"Minimumforcoldclimates

20' (substained below0° F)

Vertical Termination

1. Figure 22 shows the proper installation and clearances for vertical vent termination. The vertical roof termination

should be sealed with a plumbing roof boot or equivalent flashing. The inlet of the intake pipe and end of the exhaust

vent must be terminated no less than 12" above the roof or snow accumulation level, and 12" away from a vertical wall

or other protrusion.

2. If the vent system is installed in an existing chimney make sure clearances shown in Figure 22 are maintained. Hori-

zontal section before the termination elbow can be ex- tended on the inlet air to provide necessary clearance.

Rooftop Termination

A=12"Aboverooforsnowaccumulationlevel

B=8" Min.,20'Maximum,exceptinareaswithextremecoldtemperatures

(sustainedbelow0°% the18"Min.

Vent Termination Shielding

Under certain wind conditions some building materials may be af- fected by flue products expelled in close proximity to unprotected surfaces. Sealing or shielding of the exposed surfaces with a cor- rosion resistant material (such as aluminum sheeting) may be re- quired to prevent staining or deterioration. The protective material should be attached and sealed (if necessary) to the building before attaching the vent terminal.

Multi Vent Termination Clearances

When two (2) or more furnaces are vented near each other, each furnace must be individually vented.

Two (2) vent terminations may be installed as shown in Figure 23, Figure 24, Figure 25, Figure 26, Figure 27 and Figure 28, but

the next vent termination must be at least 36" away from first 2 ter- minations. It is important that vent terminations be made as shown to avoid recirculation of flue gases.

iiiil

Concentric Vent and Combustion- Air Roof Termination

12" Min. Grade or" Snow Level

25-00-04F

[_ 44001 1020 05

Combustion Air

Dimension "A" is touching or 2" maximum separation.

Concentric Vent and Combustion- Air Sidewall Termination

Rooftop Inlet Vent and Exhaust- Air Termination

18" Min. for ColdClimates F \ _

(SustainedBelow 0° F)

8"Min. 20'Max.

Exhaust

Dimension "A" is touching or 2" maximum separation.

25-22-02d

1''°e"a'''°'e' entan°'x"au''-A,r,er ,nat,on

8" Min.

18" Min. for

Cold Climates

12"Min. Grade or SnowLevel

__Dimension "A" is touchin_ or 2" maximum separation.

(Sustained

Sidewall InletVent and Exhaust-Air

Termination with Exterior Risers

/// 18" Min. for ColdClimates

(Sustained Below0° F)

Below 0o

8"Min.

12" Min.

Level

iii_i_:¸!!!!_!:!;ii¸ii¸ii¸fill¸ii#;#;!;i!i!i!i!i!#i!i!##%ii!iii_ii#i;_ii#iiiiiiiiiiiiiiiiiiiiiiiii!

Recommended Alternate

Installation for Sustained

Exhaust

.............................................................................Cold Weather (-O° F & below)

_ OVERHANG

EXHAU_I_ 12_ MIN.

INLET

_ t OR Snow Level

FRONT VIEW

12" MIN. Ground Level

SIDE VIEW

25-22-43

Gradeor

SnowLevel

Same Joist

Space

Dimension "A" is touchinq or 2" maximum separation.

44001 102005 [_1

12"

25-23-73

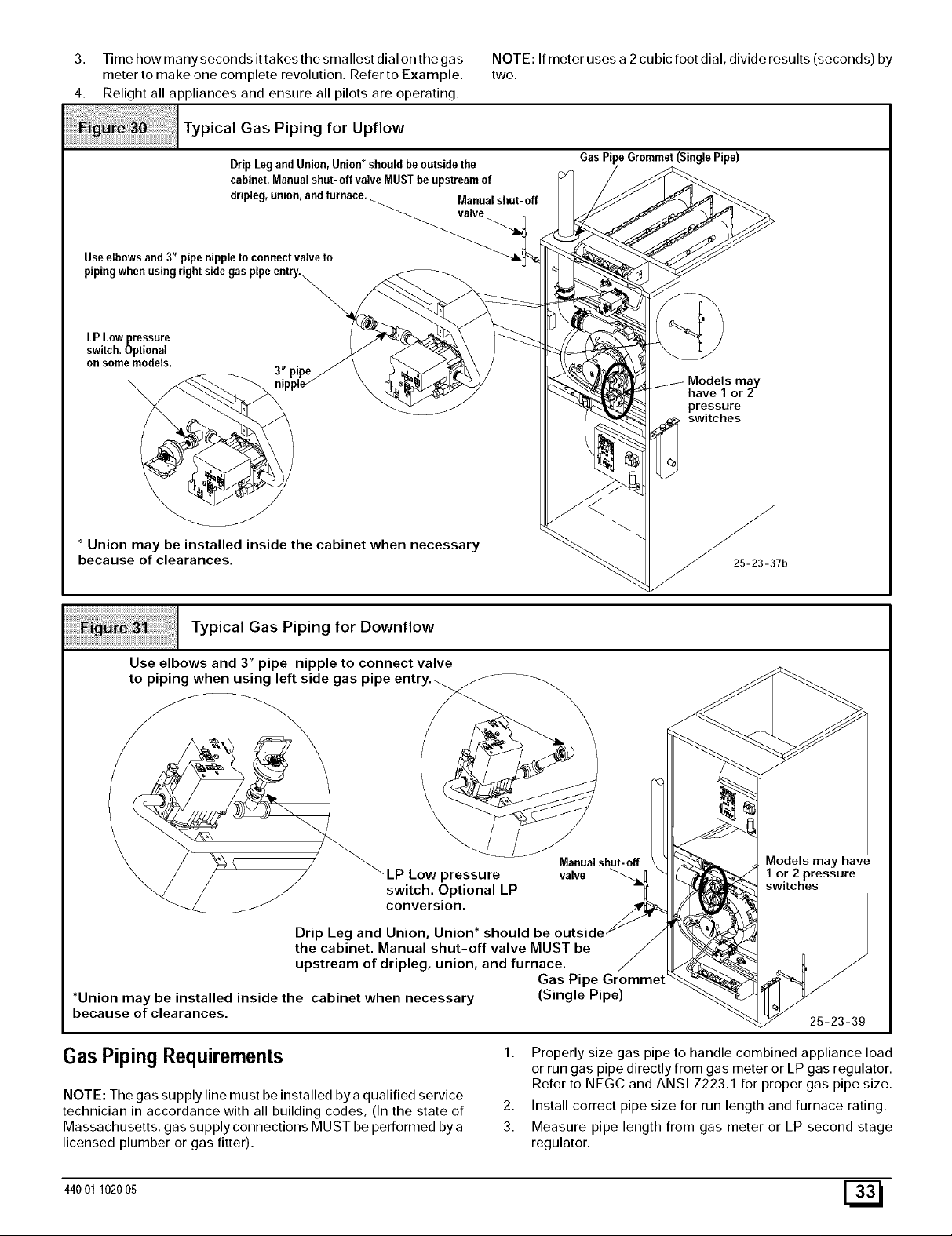

5. Gas Supply and Piping

CARBON MONOXIDE POISONING, FIRE AND EXPLOSION HAZARD.

Failure to follow these instructions could result in death, personal injury and/or property damage.

Models designated for Natural Gas are to be used

with Natural Gas ONLY, unless properly converted to

use with LP gas.

2. Gas input to burners MUST NOT exceed the rated input shown on rating plate.

3. Do NOT allow minimum gas supply pressure to vary down- ward. Doing so will decrease input to furnace. Refer to Table 6 for normal gas supply and manifold pressures.

GasSupply Pressure

Gas supply pressure should be within minimum and maximum val- ues listed on rating plate. Pressures are usually set by gas suppli-

ers.

NOTE: The rating plate is stamped with the model number, gas type and gas input rating. In addition, models manufactured for sale in Canada have orifice size information stamped on the rating plate.

Alternate BTUH Input Ratings (USA Only)

The input rating of these furnaces can be changed from the stan- dard input rating to the alternate input rating shown in Table 5, by changing the main burner orifices. NOTE: The input rating ot 80,000 BTUH models cannot be changed from the standard input. Changing of burner orifices MUST be done by a qualified service technician. See section on changing orifices or following page.

IAIternate Input Ratings, USA ONLY.

BTUH BTUH Natural LP

Standard Alternate Gas Gas

Rating Rating Orifice Orifice 50,000 40,000 #44 #55

75,000 60,000 #44 #55

100,000 80,000 #44 #55 125,000 100,000 #44 #55

SupplyPressure

FIRE HAZARD Failure to properly set input pressure could result in

death, personal injury and/or property damage. Do NOT set input rating above that shown on rating

plate.

1. Supplypressurecanbecheckedusingthel/8 " NPTporton the supply side of the gas valve.

Manifold Gas Pressure Adjustment

NOTE: Make adjustment to manifold pressure with burners oper- ating.

ELECTRICAL SHOCK HAZARD. Failure to do so could result in death, personal

injury and/or property damage.

Turn OFF power to furnace before changing speed taps.

1. Remove the burner compartment door.

2. With gas OFF, connect manometer to tapped opening on gas valve. Use manometer with a 0 to 15" water column

range.

3. Turn gas ON. Operate the furnace by using ajumper wire on the R to W thermostat connections on the fan board.

4. Remove manifold pressure adjustment screw cover on fur- nace gas control valve. Turn adjusting screw counterclock- wise to decrease manifold pressure and clockwise to increase pressure.

NOTE: Adjustment screw cover MUST be replaced on gas control valve before reading manifold pressure and operating furnace.

5. Set manifold pressure to value shown in Table 6, Table 7, Table 8 or Table 9.

6. When the manifold pressure is properly set, replace the ad-

justment screw cover on the gas control valve.

7. Remove jumper wire from thermostat connection on fan board. Remove manometer connection from manifold

pressure tap, and replace plug in manifold.

8. Check for leaks at plug.

9. Replace the burner compartment door.

[_ 44001 1020 05

MANIFOLDPRESSUREAND ORIFICESIZEFORHIGHALTITUDEAPPLICATIONS

NATURAL GAS MANIFOLD PRESSURE ("w.c.)

FOR THE 50,000, 75,000, 100,000 and 125,000 BTUH MODELS

HEATING

VALUE

at ALTITUDE

BTU/CU. FT, Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold

700 41 3.7 725 41 3.7 41 3.4 750 41 3.5 42 3.6 775 41 3.6 42 3.6 42 3.3 800 41 3.6 42 3,7 42 3.4 42 3,1 825 41 3.7 41 3.4 42 3.5 42 3.2 42 2.9 850 41 3.5 42 3.6 42 3,3 42 3.0 42 2,8 875 41 3.6 42 3.6 42 3.4 42 3.1 42 2.8 42 2.6 900 . 42 33 42 3,4 42 3.2 42 2.9 42 2.7 42 2,5 925 41 3.7 42 3,5 42 3,3 42 3.0 42 2,8 42 2.5 42 2,3 950 41 3.5 42 3.3 42 3.1 42 2.9 42 2,6 42 2.4 43 2.7

975 42 33 42 3,2 42 2,9 42 2.7 42 2,5 42 2.3 43 2.6 1000 42 3.5 42 3.0 42 2.8 42 2.6 42 2.4 43 2.7 43 2.4 1050 42 3,2 42 23 42 2.5 42 2.3 43 2.6 1100 42 2.9 42 2.5 42 2.3 43 2.6

NOTE: Natural gas data is based on 0.60 specific gravity. For fuels with different specific gravity consult the National Fuel Gas Z223.1-2002/NFPA 54-2002 or National Standard of Canada, Natural Gas And Propane Installation Code CSA B149.1-00.

0 to 2001 to 3001 to 4001 to 5001 to 6001 to 7001 to

2000 3000 4000 5000 6000 7000 8000

No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure

MEAN ELEVATION FEET ABOVE SEA LEVEL

Code ANSI

Ta_i LPG or PROPANE GAS MANIFOLD PRESSURE (" w.c.)

................................................................................................................FOR THE 50,000, 75,000, 100,000 and 125,000 BTUH MODELS

HEATING VALUE MEAN ELEVATION FEET ABOVE SEA LEVEL

at ALTITUDE 0 to 2001 to 3001 to 4001 to 5001 to 6001 to 7001 to

BTU/CU, FT. 2000 3000 4000 5000 6000 7000 8000

2500 10.0 10.0 9.0 10.0 9.4 8.5 10.0

Orifice Size #54 #54 #54 #55 #55 #55

NOTE: Propane data isbased on 1.53 specific gravity. For fuels with different specific gravity consult the National Fuel Gas Code ANSI Z223.1-2002/N FPA 54-2002 or National Standard Of Canada, Natural Gas And Propane Installation Code CSA B149.1-00.

NATURAL GAS MANIFOLD PRESSURE (" w.c.)

::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::FOR THE 80,000 BTUH MODELS

HEATING

VALUE

at ALTITUDE

BTU/CU. FT. Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold Orifice Manifold

700 44 3,7

725 44 3.7 44 3.4

750 44 3.5 44 3,2

775 44 3.5 44 3.2 44 3.0

800 44 3.6 44 3.3 44 3.0 44 2.8

825 44 33 44 3.4 44 3,1 44 2.9 44 2,6

850 44 3.5 44 3.2 44 2,9 44 2.7 44 2.5

875 44 3,5 44 3,3 44 3.0 44 2.8 44 2.5 44 2,3

900 44 3.3 44 3.1 44 2.8 44 2.6 44 2.4 45 2.7

925 44 33 44 3,2 44 2.9 44 2.7 44 2.5 44 2.3 45 2.5

950 44 3,5 44 3,0 44 2,8 44 2.6 44 2,4 45 2.6 45 2.4

975 44 3.3 44 2.8 44 2,6 44 2.4 45 2.7 45 2.5 45 2.3 1000 44 3,2 44 23 44 2,5 44 2.3 45 2.6 45 2.4 46 2.3 1050 44 2.9 44 2.5 44 2.3 45 2.5 45 2.3 1100 44 2,6 45 2.7 45 2.5 45 2.3

NOTE: Natural gas data is based on 0.60 specific gravity. For fuels with different specific gravity consult the National Fuel Gas Code ANSI Z223.1-2002/NFPA 54-2002 or National Standard of Canada, Natural Gas And Propane Installation Code CSA B149.1-00.

44001 102005

0 to 2001 to 3001 to 4001 to 5001 to 6001 to 7001 to

2000 3000 4000 5000 6000 7000 8000

No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure No. Pressure

MEAN ELEVATION FEET ABOVE SEA LEVEL

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_;!!_;_;:_;_;_!!!i!i!i!i!i!i!i!i_i_¸_;_!_i!_!i_iiiiiiiiiiiiiiii_iiiiiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i;

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ii ili ii i!

LPG or PROPANE GAS MANIFOLD PRESSURE (" w.c.)

FOR THE 80,000 BTUH MODELS

HEATING VALUE

at ALTITUDE

BTU/CU, FT.

2500

Orifice Size

NOTE: The derating of these furnaces at 2% (Natural Gas) and Changing Orifices for High Altitude

4% (Propane Gas) has been tested and design-certified by CSA.

0 to 2001 to 3001 to 4001 to 5001 to

2000 3000 4000 5000 6000

10.0 8.9 8.4 10.0 10.0

#55 #55 #55

MEAN ELEVATION FEET ABOVE SEA LEVEL

6001 to 7001 to

7000 8000

10.0 10.0

General Derating Rules

These furnaces may be used at full input rating when installed at altitudes up to 2,000'. When installed above

2,000', the input must be decreased 2% (natural) or 4% (LP) for each 1000' above sea level. See Table 10 for required high altitude input rate.

High Altitude Input Rate =

Nameplate Sea Level Input Rate x (Multiplier)

Elevation

2001'-3000' 3001'-4000' 4001'-5000'

5001'-6000' 6001'-7000'

7001'-8000'

Based on mid-range of elevation.

For operation with natural gas at altitudes above 2,000', ori- fice change and/or manifold pressure adjustments may be required for the gas supplied. First consult your local gas

supplier, then refer to Table 6 (50,000, 75,000, 100,000 and 125,000 BTU H models) or Table 8 (80,000 BTUH mod-

els) for required pressure change and/or orifice change for high altitudes.

High Altitude Multiplier

Natural Gas

0.95

0.93

0.91

0.89

0.87

0.85

LP Gas

0.90

0.86

0.82

0.78

0.74

0.70

ELECTRICAL SHOCK, FIRE OR EXPLOSION HAZARD

Failure to properly install orifices could result in death, personal injury and/or property damage.

Turn OFF electric power (at disconnect) and gas

supply (at manual valve in gas line) when installing orifices. Installation of orifices requires a qualified service technician.

NOTE: Main burner orifices can be changed for high altitudes.

1. Disconnect gas line from gas valve.

2. Remove manifold from furnace.

3. Remove the orifices from the manifold and replace them with properly sized orifices.

4. Tighten orifices so it is seated and gas tight. (See Figure 29)

5. Reinstallmanifold. EnsureburnersdoNOTbindonnewori- rices.

Changing Orifices

Measure from face of orifice

to the back side of the

manifold,

11/8" to 13/16"

For operation with LP gas, gas orifices MUST be changed and manifold pressure MUST be maintained as per Table 7

(50,000, 75,000,100,000 and 125,000 BTUH models) or Table 9 (80,000 BTUH models). Orifices can be ordered

through our distributor. (See Figure 29)

4. In cases where Table 6, Table 7, Table 8 or Table 9 is not applicable, eg. alternate input rate application, refer to Table 10 for required high altitude input rate.

High Altitude Air Pressure Switch

Altitudes over 4,000' may require a different air pressure switch than the one installed at the factory. Check parts list for pressure

switch and consult your distributor for part number and availability. In Canada, provincial codes may govern installation of switch. Check with governing authorities.

[_ 44001 1020 05

Natural Gas Input Rating Check

NOTE: The gas meter can be used to measure input to furnace. Rating is based on a natural gas BTU content of 1,000 BTU's per cubic meter. Check with gas supplier for actual BTU content.

1. Make sure burner compartment door is in place before per- forming the following steps.

2. Turn OFF gas supply to all appliances and start furnace.

Example

BTU Content PerHour Footin Seconds Hour

1,000 3,600 48 75,000

1,000 x 3,600 ÷ 48 = 75,000 BTUH

3. Timehowmanysecondsittakesthesmallestdialonthegas NOTE:Ifmeterusesa2cubicfootdial,divideresults(seconds)by metertomakeonecompleterevolution.RefertoExample. two.

4. Relightallappliancesandensureallpilotsareoperating.

!i!i!i!!ii !i!i ilii!iiii!!

Typ,c°,GosPip,og.orU .ow

Drip Legand Union,Union* shouldbeoutside the GasPipeGrommet(SinglePipe)

dripleg,union,andfurnace. Manualshut-off

Useelbows and3" pipenippleto connectvalveto _

on some models. . / \ /_ _ \ /

I Typical Gas Piping for Downflow

Use elbows and 3" pipe nipple to connect valve to piping when using left side gas pipe

cabinet.Manual shut-off valveMUSTbe upstreamof "_ _Y / _//_

have 1 or 2

Manualshut-off LP Low pressure switch. Optional LP

conversion.

Drip Leg and Union, Union* should be

the cabinet. Manual shut-off valve MUST be

upstream of dripleg, union, and furnace.

*Union may be installed inside the cabinet when necessary (Single Pipe) because of clearances.

Gas Piping Requirements

NOTE: The gas supply line must be installed bya qualified service technician in accordance with all building codes, (In the state of Massachusetts, gas supply connections MUST be performed by a licensed plumber or gas fitter).

440O1102005 E_

1. Properly size gas pipe to handle combined appliance load

2. Install correct pipe size for run length and furnace rating.

3. Measure pipe length from gas meter or LP second stage

valve

Gas Pipe Grommet

or run gas pipe directly from gas meter or LP gas regulator.

Refer to NFGC and ANSI Z223.1 for proper gas pipe size.

regulator.

4odels may have

1 or 2 pressure switches

25-23-39

NOTE:RefertoFigure30orFigure31forthegenerallayoutat thefurnace.TheruleslistedapplytonaturalandLPgaspipe

installations. NOTE:OntheDualCertifiedorDirectVentmodels,installthegas

pipegrommettothefurnacesidepanelwiththegaspipeentry.If needed,removethe2"holeplugandrelocatetotheopenholein thefurnacesidepanel.

Additional LP Connection Requirements

1. Have a licensed LP gas dealer make all connections at stor- age tank and check all connections from tank to furnace.

2. If copper tubing is used, it MUST comply with limitation set in National Fuel Gas Code or CGA codes.

3. Two-stage regulation of LP gas is recommended.

FIRE OR EXPLOSION HAZARD Failure to properly install metal gas connector

could result in death, bodily injury and/or property

damage.

A flexible corrugated metal gas connector must be properly installed, shall not extend through the side

of the furnace,and shall not be used inside the furnace.

Black iron pipe shall be installed at the furnace gas control valve and extend a minimum of 2" outside

furnace casing.

4. Use black iron or steel pipe and fittings or other pipe ap- proved by local code.

ways use a new listed connector. Do not use a connector which NOTE: If local codes allow the use of a flexible gas connector, al- has previously serviced another gas appliance.

NOTE: The use of copper tubing for gas piping is NOT approved by the state of Massachusetts.

5. Use ground joint unions and install a drip leg no less than 3" long to trap dirt and moisture before it can enter gas valve.

6. Use two pipe wrenches when making connections to pre- vent gas valve from turning.

7. Install a manual shut-off valve external to furnace casing and tighten all joints securely.

FIRE OR EXPLOSION HAZARD A natural gas or LP gas leak ignited by an open flame

or spark could result in death, personal injury and/or property damage.

Natural gas is lighter than air and will rise. Liquified petroleum (LP) is heavier than air and will settle and

remain in low areas and open depressions. Thoroughly ventilate area and dissipate gas. Do

NOT use a match or open flame to test for leaks, or attempt to start up furnace before thoroughly ventilating area.

FinalCheck

1. The furnace and the gas valve must be disconnected from the gas supply piping system during any pressure testing of that

system at test pressures in excess of 1/2" PSIG. Close the manual shut-off valve before testing at such pressures.

2. When installation is complete, test all pipe connections for leaks with the gas pressure less than /2' PSIG to the gas

valve.

Apply a commercial soap solution to all joints to test for leaks. Correct any leaks indicated by bubbles.

Correct even the smallest leak at once.

Check for leaks at gas valve and orifice connections to the burner manifold along with the pilot tube connections to the

valve and pilot assembly while the furnace is operating.

1 ,

6. Electrical Wiring

conform to temperature limitation of 63 ° F (35° C) rise and be sized

ELECTRICALSHOCK HAZARD. Failure to turn off power could result in death,

personal injury and/or property damage. Turn OFF electrical power at fuse box or service

panel before making any electrical connections and ensure a proper ground connection is made before connecting line voltage.

Power SupplyWiring

The furnace MUST be electrically wired and grounded in accor- dance with local codes, or in the absence of local codes with the

latest edition of The National Electric Code, ANSI NFPA 70 and/or The Canadian Electric Code CSA C22.1.

The power supply to the furnace connections must be between 104 VAC and 127 VAC during furnace operation for acceptable performance.

Field wiring connections must be made inside the furnace connec- Thermostat location has an important effect on the operation ofthe tion box. A suitable strain relief should be used at the point the unit. Follow instructions included with thermostat for correct

wires exit the furnace casin . mountin and wirin_

[_ 44001 1020 05

for the unit maximum amps stated on the rating plate. Add the full load amps for potential field-installed accessories such as elec-

tronic air cleaners and humidifiers that would receive power from the furnace control. The furnace control is rated for a maximum of

I Copper conductors shall be used. Line voltage wires should

0.8 amps combined for EAC and Hum. Consult NEC or local codes for proper wire and circuit sizing.

J- Box Relocation

The j-box is installed on left side of casing. An alternate j-box location on right side can be used.

1. Remove bag containing two hole plugs and two self tapping screws from loose parts bag in blower compartment.

2. Remove two screws holding j-box to casing.

3. Move large hole plug from right to left j-box location.

4. Move j-box to alternate location and attach using two self tapping screws from bag.

5. Apply two hole plugs from bag at left j-box location.

Thermostat

Lowvoltageconnectionstofurnacemustbemadeonterminal

board to fan control.

Set thermostat heat anticipator in accordance with the Technical

Support Manual.

Optional Equipment

All wiring from furnace to optional equipment MUST conform to lo- cal codes or, in the absence of local codes with the latest edition of

The National Electric Code, ANSI NFPA 70 and/or The Canadian Electric Code CSA C22.1. Install wiring in accordance with

manufacturer's instructions. The wiring MUST have a minimum temperature rating of 105 ° C.

Electrical Connections

NOTE: Junction Box can be

mountedtoeithertheleftorright Y /

Humidifier/ElectronicAir Cleaner

The furnace is wired for humidifier and/or electronic air cleaner connection.

REDUCED FURNACELIFE HAZARD

Failure to follow caution instructions may result in reduced furnace life.

Do NOT exceed 115V/0.8 amp. maximum current load for both the EAC terminal and the HUM terminal combined.

NOTE: The humidifier will be powered when the furnace is fired and the circulating air blower comes on. The electronic air cleaner will be powered anytime the air circulating blower is energized. However, the electronic air cleaner is NOT energized during con- tinuous fan operation controlled by the electronic fan control.

Fan Control

The fan control is preset at the factory with a fixed blower ON delay of 30 seconds in the heating mode. The blower OFF timing is pre- set at 140 seconds. If desired, the fan OFF delay can be reset to obtain the longest delay times while still maintaining comfort lev- els. See "Furnace Wiring Diagram".

I ,,,,,,_, / Models ll

_.,_. _ have 1 ol

_ ,,. (_ _ _ _ switches

I _e°r_iVnC_tlaBgeard_ _ _ ,_

3perating voltage range*: 127 max, 104 rain.

: Permissible limits of voltage at which unit will operate satisfactorily

"_ _ _ pressure

lay

25-23-42

Control Center Fuse

The 24V circuit contains a 5-amp, automotive-type fuse located on fan timer board. (See Figure 33) Any electrical shorts of 24V wiring during installation, service, or maintenance may cause fuse to blow. If fuse replacement is required, use only a fuse of identical size (5 amp.)

Fan Timer Connections

Fan Delay DIP Switch Settings

COOL ON DELAY: 5 SEC. COOL OFF DELAY: 90 SEC. HEAT ON DELAY: 30 SEC.

HEAT OFF DELAY

OFF

60SEC 1008E0 14OSE0 18OSE0 25-23-47

44001 102005 E_

FUSE_

25-23-41

7. Ductwork and Filter

CARBON MONOXIDE POISONING HAZARD. Failure to properly seal duct could result in death

and/or personal injury. Do NOT draw return air from inside acloset or utility

room where furnace is located. Return air duct MUST be sealed to furnace casing.

Side Return Air Cutout

A = 14112"Height of Cutout for 16" x 25" Filter

B 221/2" Width of Cutout for 16" x 25" Filter rl,

Installation

NOTE: Design and install air distribution system to comply with Air Conditioning Contractors of Arnerica manuals andlor NFPA pam- phlets 90A and 90B or other approved methods that conform to lo- cal codes and good trade practices.

I. When furnace supply ducts carry air outside furnace area,

seal return air duct to furnace casing and terminate duct out- side furnace space.

2. Install air conditioning cooling coil (evaporator) on outlet side of furnace.

3. For furnaces installed without a cooling coil it is recom- mended that the outlet duct be provided with a removable

access panel. This panel should be accessible when the furnace is installed so the exterior of the heat exchanger can be viewed for inspections. The access panel MUST be sealed to prevent leaks.

4. If separate evaporator and blower units are used, install good sealing dampers for air flow control. Chilled air going through the furnace could cause condensation and shorten

the furnace life.

NOTE: Dampers (field supplied) can be either automatic or manu- al. Manually operated dampers MUST be equipped with a means to prevent furnace or air conditioning operation unless da roper is in the full heat or cool position.

CARBON MONOXIDE POISONING HAZARD.

Failure to follow this warning could result in death, personal injury and/or property damage.

Cool air passing over heat exchanger can cause condensate to form resulting in heat exchanger

failure.

Connections

NOTE: On upflow installations, return air can enter through either side, both sides, or the bottom. On horizontal or downflow installa-

tions the return air must enter through the knockout opening in the lower panel of the furnace. Return air can not enter through rear of the furnace. When the furnace is located in an area near or adja- cent to the living area, the system should be carefully designed with returns to minimize noise transmission through the return grille. Any blower moving a high volume of air will produce audible noise which could be obJectionable to when the unit is located very close to living areas. It is advisable to route the return air ducts un-

der the floor or through the attic.

I. For side connections using a 16" x 25" filter, cut out the em-

bossed area shown in Figure 34. This will provide a 14112,, x 22112 ,, approximate opening.

Embossed Area on Side of Furnace j_-

_'_ Furnace

" Bottom

NOTE: Furnaces with 5 TONS cooling rating require two(2) side returns or one side return with bottom return.

2. Bottom returns can be made by removing the knockout pan- el in the furnace base. Do NOT remove knock-out except for

a bottom return.

3. Installation of locking-type dampers are recommended in all branches, or in individual ducts to balance system's air flow.

4. Non-combustible, flexible duct connectors are recom- mended for return and supply connections to furnace.

5. If air return grille is located close to the fan inlet, install at least one, 90 ° air turn between fan and inlet grille to reduce

noise.

NOTE: To further reduce noise, install acoustical air turning vanes and/or line the inside of duct with acoustical material.

Sizing

Existing or new ductwork MUST be sized to handle the correct amount of airflow for either heating only or heating and air condi-

tioning.

Insulation

1. Insulate ductwork installed in attics or other areas exposed to outside temperatures with a minimum of 2" insulation and

vapor barrier.

2. Insulate ductwork in indoor unconditioned areas with a mini-

mum of 1" insulation with indoor type vapor barrier.

Filters

A Filter must be used:

Filters are not supplied with these furnaces, but can be purchased from dealer.

Use either filter type:

• Washable, high velocity filters are based on a maximum

air flow rating of 600 FPM.

• Disposable, Iowvelocity filters are based on a maximum

air flow of 300 FPM when used with filter grille.

NOTE: Disposable, low velocity filters may be replaced with wash- able, high velocity filter providing they meet the minimum size areas. Washable, high velocity filters can be replaced ONLY with same type and size.

[_ 44001 1020 05

Mounted Filter Rack

25-20-90

Filter Installation using Optional Filter Rack

When installing or removing a bottom mounted filter, slide the two side filter clips to the back of the furnace BEFORE installing or re- moving. This will allow the filter to clear the front raised edge of the furnace. Insert filter into side clips first and push filter back until it is fully engaged into back clip. When filter is in place, slide clips back into place midway on filter as shown in Figure 36.

Bottom Mounted Filter Rack

CAUTION

If filters are only suitable for heating application, advise homeowner that filter size may need to be increased if air conditioning is added.

Addition Of Air Conditioning

When a refrigeration coil is used in conjunction with this unit, it must be installed on the discharge side of the unit to avoid con- densation on the heat exchanger. The coil installation instructions must be consulted for proper coil location and installation proce- dures. With a parallel flow arrangement, dampers must be installed to prevent chilled air from entering the furnace. If ma nual- ly operated dampers are used, they must be equipped with a means to prevent operation of either unit unless the damper is in full heat or full cool position.

A 3" clearance is required on the right side ofthe furnace in order to run the condensate drain line. Copper, iron or plastic tubing may be

used for the condensate drain line.

Downflow Furnace Installation Non- Combustible Floor Installation

Fabricate a plenum to the dimensions given in Table 11, for the fur- nace outlet. Plenum should be flanged, approximately 3/4" for sup- port.

Note: The three(3) screws in the top panel of the furnace next to the duct flange MUST be removed to provide serviceability of the primary heat exchangers in the downflow installation

1. Position plenum through the floor and set the furnace over the opening in the floor. If necessary, grout around the base

to seal air leaks between the base and the floor.

Combustible Floor Installation

25-24-18

Slide filter clips towards back before removing

Refer to Figure 37 and for guidelines to install filters. Furnaces which require larger filter media and have limited clearances on one side of furnace, require a standoff filter rack, see Figure 37, available from your distributor.

Standoff Filter Rack

UsingOptional Standoff Filter

Rack

25-21-45a

44001 102005

FIRE HAZARD

Failure to install unit on noncombustible subbase

could result in death, personal injury and/or

property damage.

Place furnace on noncombustible subbase on downflow applications, unless installing on non-

combustible floorinq.

;ubbase for Combustible Floor

NOTE: The three(3) screws in the top panel of the furnace next to the duct flange MUST be removed to provide serviceability of the primary heat exchangers in the downflow installation

Note: When using the subbase for combustible floors, the dis- charge air duct flanges on the furnace MUST be broken down to provide proper fit up to the subbase. Use duct pliers to bend the duct flanges flat onto the furnace casing. DO NOT bend the duct flanges inward (toward the heat exchangers) as air flow restric- tions may occur.

The Subbase for Combustible Floors MUST be used when a downflow furnace is set on a combustible floor, even when the fur-

nace is installed on a coil box.

1. Cut the opening in the floor according to Table 11. The hole in the floor must be cut to the dimensions listed in Table 11

since the base is equipped with locating tabs that center the base over the opening.

The opening in the base is 11/4 ', shorter and 11/8', narrower than the recommended size of the opening in the floor. This is done to maintain clearance between the floor and the plenum.

2. Fabricate the plenum to the dimensions given in Table 11. Note that the dimensions given are outside dimensions.

SubbasesforCombustibleFloorsDimensions

SubbaseforCombustible

FloorsPartNumber

SubbaseforCombustible

FloorDimensions

H* J* K**

FurnaceSubbase

NAHH001SB NAHH002SB

NAHH003SB NAHH010SB

1511/16 283/4 149/16 16

195/16 283/4 183/16 16 22_/16 283/4 211"_/16 16

243/4 283/4 239/16 161/4

SubbaseforCoilCabinets

NAHH004SB NAHH005SB

NAHH006SB NAHH009SB

1511/16 209/16 149/16 161/4

195/16 209/16 183/16 161/4

23 209/16 2113/16 161/4

2411/16 209/16 239/16 16

OutsideDimension

_*BaseSpacerSideToSide

Set the base over the opening in the floor, centering it over the opening. Fasten the base to the floor with screws or nails. See Figure 38, Figure 39 and Figure 40.

Drop the plenum through the opening in the base. The flange of the plenum should rest on top of the subbase.

5. Position furnace or coil cabinet and furnace on subbase so it aligns between the locating tabs.

Furnace Subbase

Opening In Floor

M N

161/4 146/8 161/4 181/4 161/4 21//8

161/4 235/8

161/4 145/8 161/4 181/4

161/4 21//8 161/4 235/8

iiii!iiiiii;iiiiiiiill¸iiiiiiiiiiii;i¸_illllllill_ll!ii!!!!!!!!lllll!ll_iilllll_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_l_ll__

i!i!i!i i ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii;

Opening In Base

For Plenum

P R

15 13112 15 17118 15 193/4

15 221/2

15 131/2 15 171/8

15 193/4 15 221/2

Coil Cabient Subbase

Combustible

FloorBase

Typical Plenum

Dimensions

S T

15 13112 15 17118 15 193/4

15 221/2

15 131/2 15 171/8

15 193/4 15 221/2

T S

H j

Combustible FloorBase

25-20-46

25-20-46b

A - 4 1/4" Minimum clearance from back of hole to wall or other obstruction.

iiiiiiiiiiiiiiiiiiiiiiiiiil!!!!!iiiii!i¸¸i;i;i;ill¸iiiii!i;i;i;i;i;i;i;i;i;i;i;iiii:!iiiiiiiii¸ii_iiiiili

Setting the Subbase

Furooc / '

igsta iblat_ib o f r ,_

FloorBase

Wood Scre_ _'_ _ Plenum 25-20-46a

This subbase for combustible floors has been designed so that the height of the subbase raises the downflow coil off the floor to allow

easy installation of the condensate drain. See Figure 41.

[_ 44001 1020 05

Condensate Line Raised by Base

8. Checks and Adjustments

25-20-52

Adjust Pilot Burner

FIRE OR EXPLOSION HAZARD. Failure to turn OFF gas at shut off before

connecting manometer could result in death, personal injury and/or property damage.

Turn OFF gas at shut off before connecting manometer.

Startup

NOTE: Refer to the start-up procedures in the "User's Information Manual' or to the "Operating Instructions Label' on the furnace.

FIRE OR EXPLOSION HAZARD. Failure to correct hazard could result in death,

personal injury, and/or property damage. If any sparks, odors or unusual noises occur,

immediately shut OFF power to furnace. Check for

wiring errors or obstruction to blower.

GasSupplyPressure

Gas supply pressure should be within minimum and maximum val- ues listed on rating plate. Pressures are usually set by gas suppli-

ers.

The furnace has a pilot flame to light the main burner. The flame should surround /8' to /2' of the flame sensor. See Figure 42. To

adjust, remove cap from pilot adjusting screw on gas valve. Turn screw counterclockwise to increase or clockwise to decrease

flame as required. Replace adjusting screw cap.

3 1

Pilot Burner

Proper Flame

Adjustment

3/8" to 1/2"

Hot Surface

Igniter

10-11-65

Main Burner Flame Check

Manifold Gas Pressure Adjustment

NOTE: Make adjustment to manifold pressure with burners oper- ating.

Remove the burner compartment door.

With gas OFF, connect manometer to tapped opening on gas valve. Use manometer with a 0 to 15" water column

range.

Turn gas ON and remove adjustment screw cover on gas valve. Turn counterclockwise to decrease pressure and

clockwise to increase.

For altitudes up to 2000', set pressure to value shown in Table 6 or Table 8, _+0.3" (8ram) water column. For alti-

tudes of 2000' to 8000', see Section 5 for correct pressure setting.

44001 102005 E_

Allow the furnaceto run approximately 10 minutes then inspect the main burner and pilot flames. See Figure 43.

Check for the following (Figure 43):

• Stable and blue flames. Dust may cause orange tips or wisps ofyellow, but flames MUST NOT have solid, yellow

tips.

• Flames extending directly from burner into heat ex- changer.

• Flames do NOT touch sides of heat exchanger.

If any problems with main burner flames are noted, it may be nec- essary to adjust gas pressures, or check for drafts.

Main Burner

Face

Ifitisnecessarytochange speeds, refer to steps below.

Refer to Furnace WMng Diagramfor location of the heating and cooling speed taps located on the electronic fan control as well as location of unused blower motor speed leads.

Use the chart (Table 12) to determine the blower motor speed settings.

Blower Speed Chart

10-10-78

Temperature Rise Check

The blower speed MUST be set to give the correct air temperature rise through the furnace as marked on the rating plate. Tempera- ture rise is the difference between supply and return air tempera-

tures.

To check temperature rise,use the following procedure:

1. Place thermometers in supply and return air registers as close to furnace as possible, avoiding direct radiant heat from heat exchangers.

2. Operate furnace continuously for 15 minutes with all regis- ters and duct dampers open.

3. Take reading and compare with range specified on rating plate.

4. If the correct amount of temperature rise is NOT obtained, it may be necessary to change blower speed. A higher blower

speed will lower the temperature rise. A lower blower speed will increase the temperature rise.

Changing Blower Speed

Wire Color

Black

Orange*

Blue

Red

Motor Speed

High

Med-High

Medium

Low

* Med-High speed may not be provided on all models.

Change the heat or cool blower motor speed by removing the motor lead from the "Heat" or "coor' terminal and re-

place it with the desired motor speed lead from the "Un- used Motor Lead" location. Connect the wire previously

removed from the "Heat" or "coor' terminal to the vacated "Unused Motor Lead" terminal.

If the same speed must be used for both heating and cool- ing, remove the undesired motor speed lead from the "Heat" or "Cool" terminal and connect that lead to the open terminal at "Unused Motor Lead" location. Attach a jumper between the "Heat" and "Cool" terminals and the remaining motor speed lead.

Note: For motors with (4) speed leads, it will be necessa ryto tape off the terminal of the motor speed lead removed from the "Heat" or "Cool" terminal with electrical tape since an open terminal will not be available at the "Unused Motor

Lead" location.

ELECTRICAL SHOCK HAZARD Failure to do so could result in death and/or

personal injury. Turn OFF power to furnace before changing

speed taps.

NOTE: The speed taps that the manufacturer sets from the factory for this product are based on a nominal 400 CFM per ton cooling and the basic mid range on the temperature rise for heating.

Since the manufacturer cannot establish the static pressure that will be applied to the unit, it is the responsibility of the in-

staller dealer/contractor to select the proper speed taps for the application when the unit is installed.

REDUCED FURNACE LIFE HAZARD

Failure to properly set the air temperature rise may result in reduced furnace life.

Use ONLY the following blower motor speed taps for setting air temperature rise.

Blower Motor Speed Taps Model Sizes Hi (BLK) All

Med-Hi (O) All except 050F/J14 Med Lo (BL All except 075B/F12

and 100F/J14

Lo (RED) 050B/F12,100J20,

and 125J/L20

Continuous Fan Operation

A terminal is provided on the electronic fan control located in the circulating blower compartment for operation of the continuous fan option. This connection is intended for the low speed motor tap, and has a lower contact rating (8 amps) than the heat and cool taps. When the low speed blower lead is connected to this termi- nal, this will provide low speed blower operation whenever the oth- er two speeds (Heat or Cool) are not energized.

Thoroughly check the system after modification to ensure the proper operation of the circulating air blower in all modes of opera-

tion.

Separate speed selections for Heat, Cool, and Continuous Fan

Connect low speed lead from circulating motor to the "Cont." ter- minal at the electronic fan control. The appropriate motor leads should already be connected to the "Heat" and "coor' terminals.

HeatingandContinuous BlowerSpeed the Same

If it is necessary to operate the heating speed and continuous blower speed using the same blower speed, connect ajumper be-

tween the "Heat" and "Cont." terminals on the electronic fan con- trol.

Note: There should be only ONE motor lead going to the "Heat" and "Cont." terminals.

[_ 44001 1020 05

9. Furnace Maintenance

FIRE, EXPLOSION, OR CARBON MONOXIDE HAZARDS

Failure to have the furnace inspected and maintained could result in fire, explosion, or carbon monoxide poisoning.

It is recommended that the furnace be inspected and serviced on an annual basis (before the heating

season) by a qualified service technician.

ELECTRICAL SHOCK, FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in dangerous operation, serious injury, death or property damage.

Improper servicing could result in dangerous operation, serious injury, death or property damage.

• Before servicing, disconnect all electrical power to furnace.

• When servicing controls, label all wires prior to disconnecting. Reconnect wires correctly.

• Verify proper operation after servicing.

See "User's Information Manual" and the "Service Manual".

44001 102005 [_

10. Sequence of Operation & Diagnostics

The following is the normal operating sequence for the control system.

Cooling (¥) Request:

24 VAC signals applied to Y & G terminals of EFT (electronic fan timer) control.

• Cool motor speed energized after 5 second Cool Fan On Delay time. Y & G signals removed from EFT.

• Cool motor speed de-energized after 90 second Cool Fan Off Delay time.

Circulating Fan (G) Request:

24 VAC signals applied to G terminals of EFT control.

• Heat motor speed energized without delay. G signal removed from EFT.

• Heat motor speed de-energized without delay.

Heating (W) Request:

24 VAC signals applied to W terminal of EFT control.

• Inducer motor turns on.

• The gas valve solenoid energizes.

• Following a 3 second prepurge delay, the pilot valve opens and the ignitor begins to warm up.

• After the pilot lights, the main burners energize and light.

• Timed from the opening of the main gas valve, the control will delay 30 seconds before switching the fan to Heat speed.

W signal removed from EFT.

• The gas valve de-energizes and the main burners go out.

• The inducer runs at its present speed for a 30 second postpurge period.

• Timed from the gas valve de-energizing, the Heat fan speed de-energizes after the selected Heat Fan Delay time expires.

Heating Request with Gas Supply Line Shut Off:

24 VAC signals applied to W terminal of EFT control.

• Inducer motor turns on.

• The gas valve solenoid energizes.

• Following a 3 second prepurge delay, the pilot valve opens and the ignitor begins to warm up.

• The ignitor glows red-hot for 30 seconds, then turns off.

• The igniter stays off for 25 seconds, then begins to warm-up again.

• The igniter glows red-hot for 30 seconds, then turns off.

• The pilot valve closes 3 seconds after the igniter de-energizes.

• The inducer de-energizes 5 seconds after the pilot valve closes.

• The SmartValve proceeds to soft lockout and flashes error code 6.

• The control exits soft lockout after 5 minutes and begins another ignition sequence.

[_ 44001 1020 05

Gas Valve Diagnostic Codes (See Figure 44)

OFF = Control not powered Heartbeat = Normal Operation (Standby or call for heat)

1 Flash = Not used 2 Flashes = Pressure switch closed when should be open

3 Flashes = Pressure switch circuit was still sensed as open 30 seconds after the inducer was energized. System is in 5 minute delay mode, with inducer off. After 5-minute delay, a new ignition sequence will be initiated.

(Note: SV9541M On/Off switch in off position during a call for heat will generate this diagnostic code)

4 Flashes = Limit switch string open 5 Flashes = Flame sensed out of sequence - Flame signal still present.

6 Flashes + 1 Note 1 = Soft Lockout -Maximum retry count exceeded (failed to light within 4 trials for ignition) 6 Flashes + 2 Notes 1,2 = Soft Lockout -Maximum recycle count exceeded - Last failure was Flame Sense Lost During Run

6 Flashes + 3 Notes 1,2 = Soft Lockout -Maximum recycle count exceeded - Last failure was Airflow Proving Circuit Opened

During Run

6 Flashes + 4 Notes 1,2 = Soft Lockout -Maximum recycle count exceeded - Last failure was Limit Circuit Opened During Run 7 Flashes = Soft Lockout Due to Limit Trips Taking Longer than 2 minutes to Reset; Auto Reset After 1 Hour if

Call for Heat Still Present. Reset by Cycling Call for Heat at Any Time.

NOTE 1 :The 6 + X designation indicates a combination of flash codes: 6 flashes shows the control is in soft lockout, followed by X flashes to indicate the reason the control went into soft lockout. When the 6+ X code is flashing, the SV9541 will attempt a new ignition sequence

after a five minute delay period, if the call for heat is still present. Reset of the thermostat will initiate a new ignition sequence immediately.

NOTE 2: Any combination of 5 'abnormal' events during a single call for heat will result in soft lockout. An 'abnormal' event is a Flame Sense Failure During Run, Airflow Proving Circuit Open During Run, or Limit Circuit Open During Run. The flash code will indicate which

was the last 'abnormal' event that put the system into the soft lockout state based on the table above.

PilotPressure

A_ustment(Hidden)

On\Off

Diagnostic Light

Typical Gas Valve Honeywell

OUTLET

INLET

Manifold Pressure

Adjustment

dwg 25-23-31a

44001 102005 E_

HONEYWELL SV9541M "SMART VALVE" Sequence of Operation

I POWERAPPLIEDTO APPUANCE l

ITHERMOSTAT CALLS FOR HEAT

I PRESSURESWITCHESPROVEDOPEN?

I COMBUSTIONBLOWER ENERGIZED

PRESSURESWITCHESCLOSEDWITHIN30 SEC- ONDS?

3SECONDPRE-PURGE

PILOTVALVE OPENS: IGNITORPOWERED(1)

PILOT LIGHTSAND FLAMEIS SENSED I_uI DURING90 SECONDTRAILFOR

IGNITION?

_I YES

MAIN VALVE OPENS, HEATING FAN "ON" DELAY BEGINS

WAITFOR PRESSURESWITCHESTO OPEN

_1_ COMBUSTIONBLOWERDE- ENERGIZED

L THREE SECOND FLAMEFAILURERECYCLE DELAY

PILOTVALVE CLOSES; PILOTIGNITOROFF

_[ FIVEMINUTEWAITPERIOD

AFTERDELAY:CIRCULATINGBLOWERSTARTS I

FLAME SENSE LOST?

THERMOSTAT CALL FOR HEAT ENDS

_ NO

IP,LOTANDMAINVALVECLOSE I

COMBUSTIONBLOWER DE- ENERGIZEDAFTER30 SECONDPOSTPURGE

ICIRCHLAT_NGBLOWEROFFAFTERDELAY I

/WA.FORNEXTCALLFORHEAT I

L l

YES

.[ PILOTANDMAINVALVECLOSE

FLAME SENSE LOST MORE THAN FIVE I TIMESINTHISCALL FOR HEAT?

YES

(1) Ignitor "ON" for first 30seconds of trial for ignition,then "OFF" for next 30 seconds. If the pilot has

notlit,it turns back"ON" for thefinal 30seconds. The pilot valve remains energizedduringtheentire

90 second trial for ignition.

NOTE: If main limit string opensandtakes longerthan 2 minutesto close, system goes intoI hourwait period.

I CIRCULATINGBLOWEROFF AFTER DELAY I

COMBUSTIONAIR BLOWEROFFAFTERPOST

J--

PURGE

[_ 44001 1020 05

HONEYWELL SV9541M "SMART VALVE" Trouble shooting

The 6 + X designation indicates a combi nation of flash codes: 6 flashes shows the control is in soft lockout, followed by X flashes to indicate the reason the control went into soft lockout. Last status code indicates repair to address first

LED

STATUS

Off No power to system control. Low voltage (24V) power at 24 VAC and COM terminals on ST9160B

Heartbeat Normal indication whenever the system is powered, unless some Bright - Dim abnormal event has occurred.

2 Flashes (i.e. when call for heat begins), open).

3 Flashes

4Flashes

5Flashes

6Flashes+ I Flash

6Flashes+ 2Flashes

INDICATES CHECK/REPAIR

Line voltage input at L1 and Neutral connectors on ST9160B Fan Timer.

System wiring harness is in good condition and securely connected.

Not Applicable - Normal Operation (stand by or call for heat)

Pressure switches closed when it should be open Pressure switches stuck closed (system will wait for pressure switch to

(Combustion blower is not energized until pressure switches

opens) Pressure switches miswired orjumpered.

Pressure switches, open when they should be closed (i.e.longer

than 30 seconds alter combustion blower/inducer is energized).

System goes into 5-minute delay period,with combustion blower/ inducer off. At end ofthe 5-minute delay, another cycle will begin.

Main Limit or Roll Out Switch is open.

Combustion blower isenergized, Circulating blower is energized heat speed.

Flame signal sensed out of proper sequence. Combustion blower isenergized, Circulating blower is energized

heat speed after the "ON" delay. Soft Lockout.

Failed to light pilot during 90 sec. trial for ignition

Combustion air blower is de-energized, Circulating blower is de- energized after the "OFF" delay.

After 5-minute delay time, control system will reset and initiate a

new ignition sequence, Soft Lockout.

Last failure was Flame Sense lost during run.

Maximum recycle count exceeded

Combustion air blower is de-energized, Circulating blower is

de-energized alter the "OFF" delay.

After 5-minute delay time, control system will reset and initiate a

new ignition sequence,

Ignition system control switch must be in the ON position. Pressure switches operation, tubing, and wiring.

Restrictions in furnace air intake or vent piping.

Main limit switch. Manual reset burner rollout switch.

Limit and rollout switch wiring is in good condition and securely

connected.

Flame at pilot burner.

Gas supply off or pressure too low or high for appliance to operate. Damaged or broken HSI element

Line voltage HOT lead wire not connected to L1 terminal on ST9160B. Furnace not properly earth grounded.

Flame sense rod contaminated or in incorrect position. Pilot burner located in incorrect position.

Pilot burner lead wires are in good condition and popery connected. Pressure switches operation, tubing, and wiring.

Gas supply off or pressure too low or high for appliance to operate. Line voltage HOT lead wire not connected to L1 terminal on ST9160B.

Furnace not properly earth grounded. Flame sense rod contaminated or in incorrect position.

Pilot burner located in incorrect position. Pilot burner lead wires are in good condition and properly connected.

Cycling, pressure switch Condensate drain blocked

Pressure switches operation, tubing, and wiring.

440O1102005 [_

HONEYWELL SV9541M "SMART VALVE" Trouble shooting continued

LED

STATUS

6Flashes+ 3Flashes

INDICATES CHECK/REPAIR

SoftLockout.

Last failure was pressure switch

Ignition system control switch must be in the ON position.

Maximum recycle count exceeded

Combustion air blower is de-energized, Circulating blower is de- energized after the "OFF" delay.

After 5-minute delay time, control system will reset and initiate a

new ignition sequence, Soft Lockout.

Pressure switches operation, tubing, and wiring. Restrictions in furnace air intake or vent piping.

High winds blowing against vent.

Main limit switch. Limit and rollout switch wiring is in good condition and securely

connected.

Restriction in duct work. Dirty filter

6Flashes+ 4Flashes

Last failure was limit circuit opened during run.

Combustion air blower is de-energized, Circulating blower is

de-energized after the "OFF" delay.

After 5-minute delay time,control system will reset and initiate a

new ignition sequence,

SoftLockout.

7Flashes

Blowerfailure(typical) Limittriptooklongerthan2minutestoreset.

System will start a new ignition sequence after 1 hour, if call for heat still present.

Deadblower. Blockedductwork.

11. Concentric Termination

Vent Termination Clearances 4.

CARBON MONOXIDE POISONING, FIRE AND

EXPLOSION HAZARD Failure to properly vent this furnace could result in

death, personal injury and/or property damage. Inlet and outlet pipes may NOT be vented directly

above each other (standard vent terminals).

Determine termination locations based on clearances spe- cified in following steps and as shown in Figure 7, Figure 45 through Figure 50.

The vent termination must be located at least 12" above ground or normally expected snow accumulation levels.

Do NOT terminate over public walkways. Avoid areas where condensate may cause problems such as above planters, patios, or adjacent to windows where steam may

cause fogging.

6. In Canada, the Canadian Fuel Gas Codetakes precedence

Concentric Vent Termination - Kit #

NAHA001CV& NAHA002CV

These kits are for vertical or horizontal termination of the combus- tion air inlet and the exhaust vent pipes on Category IV gas-fired

condensing furnaces. The NAHAO01CV kit can be used for 3" di- ameter pipe systems. The NAHAOO2CV kit can be used for 2" di- ameter pipe system. Refer to Table 13 for the correct pipe size for

the furnace. Both the combustion air inlet and the exhaust vent pipes must attach to the termination kit. The termination kit must

terminate outside the structure and must be installed per the in- structions outlined below for vertical or horizontal termination. Ver-

The vent termination shall be located at least 4' horizontally from any electric meter, gas meter, gas regulator, and any relief equipment. These distances apply ONLY to U.S.

installations.

The vent termination is to be located at least 3' above any forced air inlet located within 10' ; and at least 10' from a

combustion air intake of another appliance, except another direct vent furnace intake.

over the preceding termination instructions.

[_ 44001 1020 05

ticalterminationispreferred•Fieldsuppliedpipeandfittingsare requiredtocompletetheinstallation•

Kit Components

KitContents: 3" RainCapor 2"RainCap

311DiameterSDR-26 Pipe, 191121''Long or 4 DiameterSDR-26 Pipe, 371/8,Long,

2 DiameterSDR-26 Pipe, 315/8 Long or 21/2"DiameterSDR-26 Pipe,24" Long, 3" Y Concentric Fittingor 2" YConcentric Fitting

Nominal3" or 4" Dia.

SDR- 26Pipe

13/16"

Concentric Vent Dimensional

Drawing

11/2"

¥ Concentric Fitting SDR-26Pipe

• 2or 21t2" Dia. Rain Cap

25-22-03

Vertical & Horizontal Termination

1. Determine the pipe diameters required for the installation from Table 13 and Table 14 and Figure 47.

2. Determine the best location for the termination kit. See Figure46 for vertical termination or Figure46 and

Figure 50 for horizontal termination. Roof termination is preferred since it is less susceptible to damage, has re- duced intake contaminants and less visible vent vapor• For side wall termination, consideration should be given to: 1) possible damage from the vapors to plants/shrubs, other equipment and building materials, 2) possible damage to the terminal from foreign objects, 3) wind effects that may cause recirculation of flue products, debris or light snowand

4) visible vent vapor•

3. Cut one 5" diameter hole through the structure for the NAHA001CV Kit or one 4" diameter hole for the

NAHA002CV Kit.

4. Dimension D may be lengthened to 60" max. or shortened by cutting the pipes to 12" rain. Dimension A will change ac- cording to D dimension• (See Figure 47)

Concentric Vent Roof Installation

Combustion

Air

Roof Boot/ Flashing (FieldSupplied)

Vent

Maintain12"min.clearanceabove highestanticipatedsnowlevel.Max.

of24"aboveroof.

A •

NAHA001CV 38//8 3 41/2

Mo°eAIBIc I

NAHA002CV 33_/8 2 31/2

= Dimension will change accordingly as dimension D is

lengthened or shortened•

_ = Dimension D may be lengthened to 60" may also be

shortened by cutting the pipes provided in the kit to 12" minimum

25-22-03

211/8 161/8

Concentric Termination Kit

NAHAOOICV & NAHAOO2CV Venting

Table for *9MPD Models

50,000, 75,000 & 80,000 Btuh Furnaces

NAHA002CV - 35' & (4) 90 ° elbows with 2" PVC pipe or NAHA001CV - 65' & (4) 90 ° elbows with 3" PVC pipe

100,000 Btuh Furnace

NAHA001CV - 35' & (4) 90 ° elbows with 3" PVC pipe or NAHA001CV - 65' & (4) 90 ° elbows with 3" PVC pipe & Long Vent Kit (See Tech. Manual)

125,000 Btuh Furnace

NAHA001CV - 35' & (4) 90 ° elbows with 3" PVC pipe

1. Do not include the field supplied 45 ° elbow in the total elbow count.

2. If more than four elbows are required, reduce the length of both the inlet and the exhaust pipes five feet for each additional elbow used.

3. Elbows are DWV long radius type for 2" and 3" vents,

NOTE: Feet of pipe is whichever pipe run is the longest, either inlet or outlet side,

(Field Supplied)

45° Elbow

_J (Field Supplied)

Vent

Combustion

Note: 25-22-02

Supportmust be fieldinstalledto secureterminationkittostructure.

44001 102005 E_

Concentric Termination Kit

NAHA001CV & NAHA002CV Venting

Table for N9MP2 Models

50,000 & 80,000 Btuh Furnaces

NAHAOO2CV - 35' & (4) 90 ° elbows with 2" PVC pipe or NAHAOOICV - 65' & (4) 90 ° elbows with 3" PVC pipe

75,000 Btuh Furnaces

NAHAOO2CV - 20' & (2) 90° elbows with 2" PVC pipe or NAHAOO2CV - 35' & (4) 90° elbows with 2" PVC pipe &

Long Vent Kit (See Tech. Manual) or NAHAOOlCV - 65' & (4) 90 ° elbows with 3" PVC pipe

100,000 Btuh Furnace

NAHAOOlCV - 35' & (4) 90 ° elbows with 3" PVC pipe or NAHAOOlCV - 65' & (4) 90 ° elbows with 3" PVC pipe & Long Vent Kit (See Tech. Manual)

125,000 Btuh Furnace

NAHAOOICV - 35' & (4) 90 ° elbows with 3" PVC pipe

1. Do not include the field supplied 45 ° elbow in the total elbow count,

2, If more than four elbows are required, reduce the length of both the inlet and the exhaust pipes five feet for each

additional elbow used.

3. Elbows are DWV long radius type for 2" and 3" vents.

NOTE: Feet of pipe is whichever pipe run is the longest, either inlet or outlet side.

If assembly needs to be extended to meet height or side wall thick- ness requirement, the two pipes supplied in the kit may be re-

placed by using the same diameter solid, single (no coupling connections) field supplied SDR-26 PVC (ASTM D2241) pipes.

Do not extend dimension D more than 60". (See Figure 47) Do not use field supplied couplings to extend the pipes.

Airflow restriction will occur and the furnace pressure switch may cause intermittent operation.

Partially assemble the concentric vent termination kit. Clean and cement the parts using the procedures for Join- ing Pipe and Fittings section of the manual. A) Cement the Y Concentric fitting to the 4" diameter kit pipe. (See

Figure 48) B) Cement the 3" rain cap to the 21/2" diameter kit part. (See Figure 48) NOTE: A field supplied stainless

steel screw may be used to secure the rain cap to the pipe instead of cementing when field disassembly is desired for cleaning (See Figure 48)

Rain Cap to Vent Pipe Assembly

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in death, personal injury and/or property damage.

When using the alternate screw assembly method,

drill a clearance hole in the rain cap and a pilot hole in the vent pipe for the screw size being used.

Failure to drill adequate holes may cause cracking of the PVC components, allowing flue gases to be

recirculated.

CARBON MONOXIDE POISONING HAZARD

Failure to follow this warning could result in death, personal injury and/or property damage.

Do not operate the furnace with the rain cap removed as recirulation of the flue gases may

occur. Water may also collect inside the larger combustion air pipe and flow to the burner enclosure.

6. Install the Y concentric fitting and the pipe assemblythrough the structure's hole. For vertical termination, install the parts through the field supplied roof boot/flashing. NOTE: Do not

allow insulation or other materials to accumulate inside the pipe assembly when installing through the structure's hole.

7. Securethe assemblyto the structure as shown in Figure 46 or Figure 50 using field supplied metal strapping or equiva-

lent material. NOTE: Ensure the termination height is above the roof sur-

face or anticipated snow level as shown in Figure 46 for vertical termination. Ensure the termination location clear-

ance dimensions are as shown in Figure 49 and Figure 50 for horizontal termination.

Concentric Vent and Combustion- Air Side Termination

Roof Overhang

Drill clearancehole inrain

cap and pilot hole in vent pipe.

_el screw

25-22-02

[_ 44001 1020 05

(Field supplied)

Maintain 12" clearance above highest antici- pated snow level or grade whichever is greater.

25-22-02

Vent

Concentric Vent Sidewall Attachment

Strap

(FieldSuppli_

8. Install the rain cap and the small diameter pipe assembly in the Y concentric fitting and the large pipe assembly. Ensure that the small diameter pipe is bottomed out and securely cemented in the Y concentric fitting.

9. Cement the furnace combustion air and vent pipes to the concentric vent termination assembly. See Figure 46 or Figure 50 for proper pipe attachment.

10. Operate the furnace through one heat cycle to ensure com- bustion air and vent pipes are properly connected to the

concentric termination connections.

Air 45° Elbow

Note:

Securing strap mustbefieldinstalledtoprevent movementofterminationkit insidewall.

(Field Supplied) 25-22-02

44001 102005 [_

44001102005

Four Position Furnace

Models

Single Pipe

N9MP1050B12B1 N9MP1075B12B1

N9MP1080F16B1 N9MP1100F14B1

N9MP1100J20B1 N9MP1125J20B1

Two Pipe

N9MP2050B12B1

N9MP2075B12B1

N9MP2080F16B1

N9MP2100F14B1 N9MP2100J20B1

N9MP2125J20B1

Dual Certified

*9MPD050F12B1 *9MPD075F12B1

*9MPD080J16B1

25-23-30

*9M PD100J14B1 *9MPD100J20B1

*9MPD125L20B1

*Denotes Brand

International Comfort Products, LLC Lewisburg, TN 37091

Fast Parts Division 866-380-3278

Save This Manual For Future Reference

44001 102004 [_

Model Specifications

Manufacturers Number (Mfr No -See Rating Plate) ALL Models

Specifications (N9MP1)

N9MP1050B12B N9MP1075B12B

General

GasType Nat./LP Nat./LP Nat./LP Nat./LP Input(Btuh) 80,000 100,000 100,000 125,000 Output(Btuh) 72,000 91,000 96,500 113,750

Transformer Size (VA) 40 40 40 40 T'stat HeatAnticipator .10 .10 .10 .10

Temp.Rise(F) 35-65 40-70 40-70 40-70

Electrical(VoltslHz/FLA) 11516019.0 11516019.0 115160110.5 115160111.2 Gas& Ignition

GasType Nat. L.P. Nat. L.R Nat. LP. Nat. L.P. GasValve HWSV9541M HW SV9541M HW SV9541M HW SV9541M

RegulationType SNAP SNAP SNAP SNAP IgnitionType/Sedes HWHSP HWHSP HWHSP HW HSP

ManifoldPress.(Inch'sWC) 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 Std.MainOrifices (No/Size) 4144 4155 4/46 4154 4142 4/54 5/42 5154

PilotOrificeSize .018 .011 .018 .011 .018 .011 .018 .011

Nat./LP Nat./LP

50,000 75,000 45,500 68,000

40 40 .10 .10

35-65 40-70

11516019.8 11516018.9

Nat. L.P. Nat. L.E

HWSV9541M HW SV9541M

SNAP SNAP

HWHSP HWHSP

3.5 10.0 3.5 10.0

2/42 2/54 3/42 3/54

.018 .011 .018 .011

FanControls FanControl(Type) HWST9160 HWST9160 HWST9160 HWST9160

FanControl On 30 30 30 30 (Timed-secs) Off 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180

HWST9160 HWST9160

30 30

60,100,140,180 60,100,140,180

Combustion

Flue Outlet Size (Inches) 2 3 3 3 Std. Outlet Temp (°5' No Elbows) <140 <140 <140 <140

2 2

<140 <140

Blower Pressure 5' No Elbows (" WC) -- -1.8 -1.8 -1.8

BlowerPressure40' +5-90 ° DWV Elbows (" WC) -- -1.7 -1.7 -1.7 Transition Bx Pressure 5' No Elbows (" WC) -2.6 -2.6 -2.6 -2.6 TransitionBx Pressure 40' +5-90 ° DWV Elbows (" WC) -2.5 -2.5 -2.5 -2.5

-2.6 -2.6

-2.3 -2.3

Limits &Controls

RolloutSwitch_F)

LimitControl Setting(F)

Standard Pressure Sw. (Part No)

Blower Switch Pressure (Close) (" WC) Blower Switch Pressure (Open) (" WC)

Transition Switch Pressure (Close) (" WC) Transition Switch Pressure (Open) (" WC)

High Altitude Pressure Sw. (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC) Transition Switch Pressure (Open) (" WC)

Long Vent Kit (Part No) Pressure Switch (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC)

Transition Switch Pressure (Open) (" WC)

High Altitude Long Vent Kit (Part No) Pressure Switch (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC)

Transition Switch Pressure (Open) (" WC)

300 300 240 210

1013802 1013802

-2.2 -2.2

-2.0 -2.0

1013803 1013803

-2.0 -2.0

-1.8 -1.8

-- NAHA001LV

-- 1013518

-- -1.0

-- -0.8

-- -2.0

-- -1.8

Blower Data

Type& Size

MotorAmps/Rpm MotorType/H.p. Cap.Mfd/Volts FilterType&Size (Permanent- notsupplied)

CoolCap. (Tons)Ca.5" W.C. L, ML, MHi&Hi

11-8 11-8

10/850 8.0/1050

PSC/1/2 Pscil/2

7.51370 7.51370

16x25x1 16x25x1

11/2,2,21/2,3 11/2,2,21/2,3

GasConversion Kits Natto LP

LPto Nat

NAHFO02LP(q009509)

NAHF002NG(1009510)

*Order from Service Parts

N9MP1080F16B N9MP1100F14B NgMP1100J20B N9MP1125J20B

300 230

1013811

300 300 300 230 220 190

1013801

1013802

1013166

-1.3

-1.1

-1.8

-1.6

1013812

-2.3

-2.1

1013803

-2.2

-2.0

1013803

-1.8

-1.6

1013157

-0.9

-0.7

-1.5

-1.3

-2.0

-1.8

NAHAO01LV

1013518

-1.0

-0.8

-2.0

-1.8

-2.0

-1.8

NAHA001LV

1013518

-1.0

-0.8

-2.0

-1.8

-1.7

-1.5

NAHA003LV

1013165

-0.7

-0.6

-1.4

-1.2

11-10

10/1050

PSC/1/2

10/370

16x25x1

21/2,3,31/2,4

NAHF003LP

¢1013815)

11-10

10/1050 PSCIl/2

101370

16x25x1

11/2,2,3,31/2,

11-10

131900

PSC/3/4

40/370

16x25x1

3112,4,4112,5

NAHF002LP(1009509)

NAHFOO2NG(*1009510)

11-10

131900

PSC/3/4

401370

16x25x1

31/2,4,41/2,5

NAHF003NG

¢1013816)

[_ 44001 102004

Manufacturers Number (Mfr No -See Rating Plate) ALL Models

Specifications (N9MP2)

N9MP2050B12B N9MP2075B12B

General

GasType Nat./LP Nat./LP Nat./LP Nat./LP Input(Btuh) 80,000 100,000 100,000 125,000 Output(Btuh) 72,000 91,000 96,500 113,750

Transformer Size (VA) 40 40 40 40 T'stat HeatAnticipator .10 .10 .10 .10 Temp.Rise(F) 35-65 40-70 40-70 40-70

Electrical(Volts/Hz/FLA) 11516019.0 11516019.0 115160110.5 115160111.2

Gas&Ignition

GasType Nat. L.P. Nat. L.E Nat. LP. Nat. L.E GasValve HWSV9541M HW SV9541M HW SV9541M HW SV9541M

RegulationType SNAP SNAP SNAP SNAP IgnitionType/Sedes HWHSP HWHSP HWHSP HW HSP

ManifoldPress.(Inch'sWC) 3.5 10.0 3.5 10.0 3.5 10.0 3.5 10.0 Std.MainOrifices (No/Size) 4/44 4/55 4/42 4/54 4/42 4/54 5/42 5/54 PilotOrificeSize .018 .011 .018 .011 .018 .011 .018 .011

Nat./LP Nat./LP

50,000 75,000 45,500 68,000

40 40 .10 .10

35-65 40-70

11516019.8 11516018.9

Nat. L.P. Nat. LE

HWSV9541M HW SVg541M

SNAP SNAP

HWHSP HWHSP

3.5 10.0 3.5 10.0

2/42 2/54 3/42 3/54

.018 .011 .018 .011

FanControls FanControl(Type) HWST9160 HWST9160 HWST9160 HWST9160

FanControl On 30 30 30 30 (Timed-secs) Off 60,100,140,180 60,100,140,180 60,100,140,180 60,100,140,180

HWST9160 HWST9160

30 30

60,100,140,180 60,100,140,180

Combustion

Flue Outlet Size (Inches) 2 3 3 3 Std. Outlet Temp (°5' No Elbows) <140 <140 <140 <140

BlowerPressure5' No Elbows (" WC) BlowerPressure40' +5-90 ° DWV Elbows (" WC)

Transition BxPressure5' No Elbows (" WC) TransitionBx Pressure40' +5-90 ° DWV Elbows (" WC)

Limits & Controls Rollout Switch (F)

Limit Control Setting (F) Standard Pressure Sw. (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC) Transition Switch Pressure (Open) (" WC)

High Altitude Pressure Sw. (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC)

Transition Switch Pressure (Open) (" WC)

Long Vent Kit (Part No) Pressure Switch (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC) Transition Switch Pressure (Open) (" WC)

High Altitude Long Vent Kit (Part No) Pressure Switch (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC) Transition Switch Pressure (Open) (" WC)

2 2

<140 <140

-- -1.8

-- -1.3

-2.6 -2.6

-2.3 -2.3

300 300 240 210

1013802 1013801

-2.2 -23

-2.0 -2.1

1013803 1013803

-2.0 -2.0

-1.8 -1.8

-- NAHA001LV

-- 1013518

-- -1.0

-- -0.8

-- -2.0

-- -1.8

-- NAHA003LV

-- 1013165

-- -0.7

-- -0.6

-- -1.4

-- -1.2

Blower Data

Type& Size

MotorAmpslRpm MotorTypelH.p.

Cap.Mfd/Volts FilterType&Size (Permanent- notsupplied) CoolCap. (Tons)@ .5" W.C. L, ML,MHi&Hi

11-8 11-8

10/850 8.0/1050

PSC/I/2 PSC/I/2

7.51370 7.51370

16x25x1 16x25x1

1112,2,2112,3 11/2,2,2112,3

GasConversion Kits Natto LP LPto Nat

NAHF002LP(*1009509)

NAHF002NG(*1009510)

_Order from Service Parts

N9MP2080F16B NPMP2100F14B N9MP2100J20B N9MP2125J20B

-2.6

-2.5

300 230

1013811

-1.8

-1.7

-2.6

-2.5

300 23O

1013801

-1.8

-1.7

-2.6

-2.5

300

220

1013802

-1.8

-1.7

-2.6

-2.5

300 190

1013166

-1.3

-1.1

-1.8

-1.6

1013812

-2.3

-2.1

1013803

-2.2

-2.0

1013803

-1.8

-1.6

1013157

-0.9

-0.7

-1.5

-1.3

-2.0

-1.8

NAHAO01LV

1013518

-1.0

-0.8

-2.0

-1.8

-2.0

-1.8

NAHA001LV

1013518

-1.0

-0.8

-2.0

-1.8

-1.7

-1.5

NAHA003LV

1013165

-0.7

-0.6

-1.4

-1.2

11-10

10/1050

PSC/I/2

101370

16x25x1

21/2,3,3112,4

NAHF003LP

C1013815)

11-10

10/1050 PSC/I/2

101370

16x25x1

1112,2,3,3112,

11-10

131900

PSC/3/4

401370

16x25xl

31/2,4,4112,5

NAHF002LP(*1009509)

NAHF002NG(*1009510)

11-10

131900

PSC/3/4

401370

16x25xl

31/2,4,4112,5

NAHF003NG

C1013816)

44001 102004

ManufacturersNumber (Mfr No -See Rating Plate) ALL Models

Specifications ('_9MPD)

*gMPD05OF12B *gMPDO75F12B

General

GasType Nat./LP Nat./LP Nat./LP Nat./LP Input(Btuh) 80,000 100,000 100,000 125,000 Output(Btuh) 73,600 92,000 92,000 115,000

Transformer Size (VA) 40 40 40 40 T'stat HeatAnticipator .10 .10 .10 .10

Temp.Rise(F) 35-65 40-70 40-70 40-70

Electrical(Volts/Hz/FLA) 115/6019.0 115/60/9.0 115/60110.5 115/60/11.2 Gas&Ignition

GasType Nat. L.P. Nat. L.E Nat. LP. Nat. L.P. GasValve HWSV9541M HW SV9541M HW SV9541M HW SV9541M

RegulationType SNAP SNAP SNAP SNAP IgnitionTypelSeries HWHSP HWHSP HW HSP HWHSP

ManifoldPress.(Inch'sWC) 3.5 I0.0 3.5 I0.0 3.5 10.0 3.5 I0.0 Std.MainOrifices (NolSize) 4144 4155 4142 4154 4142 4154 5142 5154 PilotOrificeSize .018 .011 .018 .011 .018 .011 .018 .011

Nat./LP Nat./LP

50,000 75,000 46,000 69,000

40 40 .10 .10

35-65 40-70

115/60/9.8 11516018.9

Nat. L.P. Nat. LE

HWSV9541M HW SV9541M

SNAP SNAP

HWHSP HWHSP

3.5 10.0 3.5 10.0

2142 2154 3142 3154

.018 .011 .018 .011

FanControls FanControl(Type) HWST9160 HWST9160 HWST9160 HWST9160

FanControl On 30 30 30 30 (Timed-secs) Off 60,I00,140,180 60,100,140,180 60,I00,140,180 60,I00,140,180

HWST9160 HWST9160

30 30

60,100,140,180 60,100,140,180

Combustion

Flue Outlet Size (Inches) 2 3 3 3 Std. Outlet Temp (°5' No Elbows) <140 <140 <140 <140

2 2

<140 <140

Blower Pressure 5' No Elbows (" WC) BlowerPressure40' +5-90 ° DWV Elbows (" WC)

Transition Bx Pressure 5' No Elbows (" WC) TransitionBx Pressure40' +5-90 ° DWV Elbows (" WC)

Limits & Controls Rollout Switch (F)

Limit Control Setting (F)

Standard Pressure Sw. (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC) Transition Switch Pressure (Open) (" WC)

High Altitude Pressure Sw. (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC)

Transition Switch Pressure (Open) (" WC)

Long Vent Kit (Part No) Pressure Switch (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC) Transition Switch Pressure (Open) (" WC)

-2.6 -2.6

-2.3 -2.3

300 300 260 240

1013802 1013802

-2.2 -2.2

-2.0 -2.0

1013803 1013803

-2.0 -2.0

-1.8 -1.8

-- NAHA002LV

-- 1013515

-- -1.0

-- -0.8

-- -1.7

-- -1.5

High Altitude Long Vent Kit (Part No) Pressure Switch (Part No)

Blower Switch Pressure (Close) (" WC)

Blower Switch Pressure (Open) (" WC) Transition Switch Pressure (Close) (" WC) Transition Switch Pressure (Open) (" WC)

BlowerData

Type& Size

MotorAmpslRpm MotorTypelH.p.

Cap.MfdNolts FilterType&Size (Permanent- notsupplied) CoolCap. (Tons)@ .5" W.C. L, ML,MHi&Hi

11-8 11-10

10/850 8.0/1050

PSC/I/2 PSC/II2

7.51370 7.51370

16x25x1 16x25x1

1112,2,21/2,3 11/2,2,2112,3

GasConversion Kits Natto LP

LPto Nat

NAHF002LP(*1009509)

NAHF002NG(*1009510)

_Order from Service Parts

*9MPD080J16B *gMPD100J14B *9MPD10OJ20B *9MPD125L20B

-2.6

-2.5

3OO 22O

1013812

-1.8

-1.7

-2.6

-2.5

300 220

1013802

-1.8

-1.7

-2.6

-2.5

300

220

1013802

-1.8

-1.7

-2.6

-2.5

300 190

1013166

-1.3

-1.1

-1.5

-1.3

1013813

-2.2

-2.0

1013803

-2.2

-2.0

1013803

-1.8

-1.6

1013157

-0.9

-0.7

-1.2

-1.0

-2.0

-1.8

-2.0

-1.8

-1.7

-1.5

NAHA002LV

1013515

-1.0

-0.8

-1.7

-1.5

NAHA003LV

1013165

-0.7

-0.6

-1.4

-1.2

11-10

10/1050

PSC/II2

101370

16x25x1

21/2,3,3112,4

NAHF003LP

C1013815)

11-10

10/1050 PSC/I/2

10/370

16x25x1

1112,2,3,31/2

11-10

131900

PSC/314

40/370

16x25x1

31/2,4,4112,5

NAHF002LP(*1009509)

NAHF002NG(*1009510)

11-10

13/900

PSC/314

40/370

16x25x1

31/2,4,4112,5

NAHF003NG

C1013816)

[_ 44001 102004

CIRCULATION AIR BLOWER DATA

For 050 Models 3 Ton Units

Speed Low Med L Med H Hi

Tap

0.1 826 1083 1301 1408

0.2 804 1050 1242 1347

0.3 770 1028 1195 1295

0.4 735 985 1153 1237

0.5 698 952 1093 1183

0.6 657 909 1040 1118

0.7 --- 863 935 1053

0.8 .... 812 865 976

0.9 ...... 802 887

1.0 ...... 720 787

For 075 Models 3 Ton Units

Speed Low Med L Med H Hi

Tap

0.1 706 917 1163 1368

0.2 677 875 1120 1319

0.3 636 840 1076 1263

0.4 595 812 1031 1202

0.5 546 766 987 1148

0.6 490 702 889 1077

0.7 --- 630 821 989

0.8 --- 550 750 914

0.9 --- 462 676 833

1.0 ...... 601 747

,£

For 080 Models 4 Ton 19" & 22314" Units

Speed Low Med L Med H Hi

Tap

0.1 823 1109 1527 1850

0.2 795 1087 1482 1791

= 0.3 747 1056 1426 1720 ,-__ 0.4 677 1016 1382 1648

.-9 0.5 617 970 1317 1575

_ 0.6 544 854 1245 1485 =u 0.7 --- 763 1154 1401

.,._

,_ 0.8 --- 652 1043 1284

0.9 ...... 905 1161

1.0 ...... 737 1028

For 100 Models 5 Ton 22314,, Units

Speed Low Med L Med H Hi

Tap

0.1 1682 1870 2081 2263

0.2 1654 1826 2031 2193

"_ 0.3 1597 1775 1963 2165 m _j 0.4 1547 1719 1899 2056

u 0.5 1498 1653 1825 1978

',_ o

mm 0.6 1428 1583 1737 1854

--.C

=u 0.7 1355 1503 1650 1757

,.--

uJ 0.9 --- 1266 1428 1515

0.8 1267 1392 1548 1644

1.0 ......... 1351

For 100 Models 3.5 Ton 19" & 22314" Units

Speed Low Med L Med H Hi

Tap

0.1 700 912 1209 1550

,£

0.2 660 884 1171 1492

0.3 616 843 1139 1434

0.4 575 790 1088 1378

0.5 528 735 1040 1317

0.6 472 677 979 1247

0.7 --- 608 909 1161

0.8 --- 528 827 1058

0.9 ...... 733 932

1.0 ...... 624 778

For 125 Models 5 Ton Units

Speed Low Med L Med H Hi

Tap

0.1 1720 1910 2127 2315

m 0.2 1686 1881 2087 2268

_ 0.3 1644 1833 2024 2201

,£ 0.4 1600 1777 1961 2131

_ 0.5 1533 1720 1891 2029 =u 0.6 1494 1647 1804 1948

.,.--

uJ 0.8 1306 1470 1604 1730

0.7 1413 1571 1708 1820

0.9 .... 1349 1484 1614

1.0 ........ 1328 1430

44001 102004 [_

#.,

CONNECTION DIAGRAM

FIELD CONNECTION I C1 ----- _ R SERIES DEPENDING ON MODEL.

BOX INTERLOCK | _ GAS VALVE I .....................

115V _ SK _ P Ji _ : 1 TO 2 IN SERIES

60HZ NEUT_RAL_t''''_ I I - --BE t _ r--- :DEPENDINGON

*GR I I IbOI ! IGNITER " I _LY-gTJ _ MODEL

'_ _1 I L_ I r_F 7 :: / /_/.L//NOTE 2

" HI VOLT FIELD _ C2 7

_ELD) I| SENS%--_I C_i/ L_

SWITCH [- _ | 1612t - ----- _ BL _ PRESSURE SWITCH

co_#_TC%RSI BL _ _3' 1 , ,

ONLY W I II191 ,I _° I I I I I............

WARNING: ELECTRICAL SHOCK HAZARD

DISCONNECT BEFORE SERVICING

R MAi-NUM_-TQ R Q ......................

ROLLOUT SWITCH 1 TO 3 IN

/_ INTERLOCK 07 /_

>SWITCH GR

7 _ _(_ i_) CONT (OPT) N ::_

II oM1 MLO (BL)

H It

I I I L,I|,_-C% I_ s'KI i tLP_

I L_ ? !, % E_K O I I _,l I LP MWoIDTECHsONLY)]

BK-- ' , L q

TRANSFORMER j

i,.....co_,J,__-.--,_1 Id|l II ,,F'ELD'NSTALLEB),

_ 11,)_2cCOM b_Z/I jl _,l_llll I w _ i _1

I _ DATA I UI I BKw

.... p BK , BL SWITCH

H H

(_: uO_ 115V,

L1 _ TRANSFORMER

.... N

I b c FURNACE _ L1 1 I v _ I BR

I I -----le_ _o > COoL_l I F1 I II _ G

' I | I I CAPACITOR

I I Y I CAPACITOR SL | 0 I ] SOME MODELS)

I ii I [JB R s_

@-"_ III

___ _ 0S_:__ _- i _:LOt CO_ORCOD_

THERMOSTAT _ I(_LAC_EP_MHIRED:LO/_L_OK_

NOTE: 1, MOST VOLT METERS WILL READ 13-16 VOLTS TO -- LINE VOLTAGE FACTORY / BROWN BR

CHwASSIHSIOTNHBOTHSTIID,ESDOFcAvN(OPEANLtMITcOLRTPRESSURE -- LINE VOLTAGE FIELD oGRRAE_NE 0G

2, FACTORY CONNECTED WHEN BVSS, (CHIMNEY ADAPTOR LOW VOLTAGE FACTORY |

ACCESSORY_,T)ORLPPRESSSW,TCS,SNOT,NSTALLED---- LOWVOLTAGEF,ELO/'%E _'

"_ SEE MANUALS FOR ADJUSTING SPEED TAPS FOR RECTIFIED AC VOLTAGE FACTORY | p

PROPER HEATING, COOLING & CIRCULATING SPEEDS. | URPLE P

_ INTERNAL CIRCUIT BOARD WIRING YELLOW Y

(5 24MAC O_

COM

5A FUSE

FURNACE CONTROL

I I I I

I _1-1

I ....

LADDER DIAGRAM

HOT 115V.-60HZ NEUTRAL

_) M2 LO (R)

(SOME MODELS)

:::::::_ _ EAC

_ _ HUM

i @ MAiNLIMI_ _)_

5 1 PRESSURE SWITCH

_ -- i_o_--- 1

k : THE APPLIANCE MUST BE

"_ _ IF ANY OF THE ORIGINAL z_NO_E 2

I REPLACED IT MUST BE

c N r i_ SWl FCH

WIRE AS SUPPLIED WITH

REPLACED WITH TYPE AWM-105_C WIRE OR EQUIV,

N _

EACC _:

HUMO==== :_

o== =:=6

ROLLOUT SWITCH

1 TO 3 IN SERIES

DEPENDING ON MODEL

! DEPENDING ON MODEL

BVSS !I I(FI............ ) I

mOO >OO _mr-

Ooo Z_z

-n

mE_ m r-mr-

>m>

moo m

il:ttl_. 7>

. :Z 1:_

[329530-101 REV.A I

m C

,-,

25-23-95

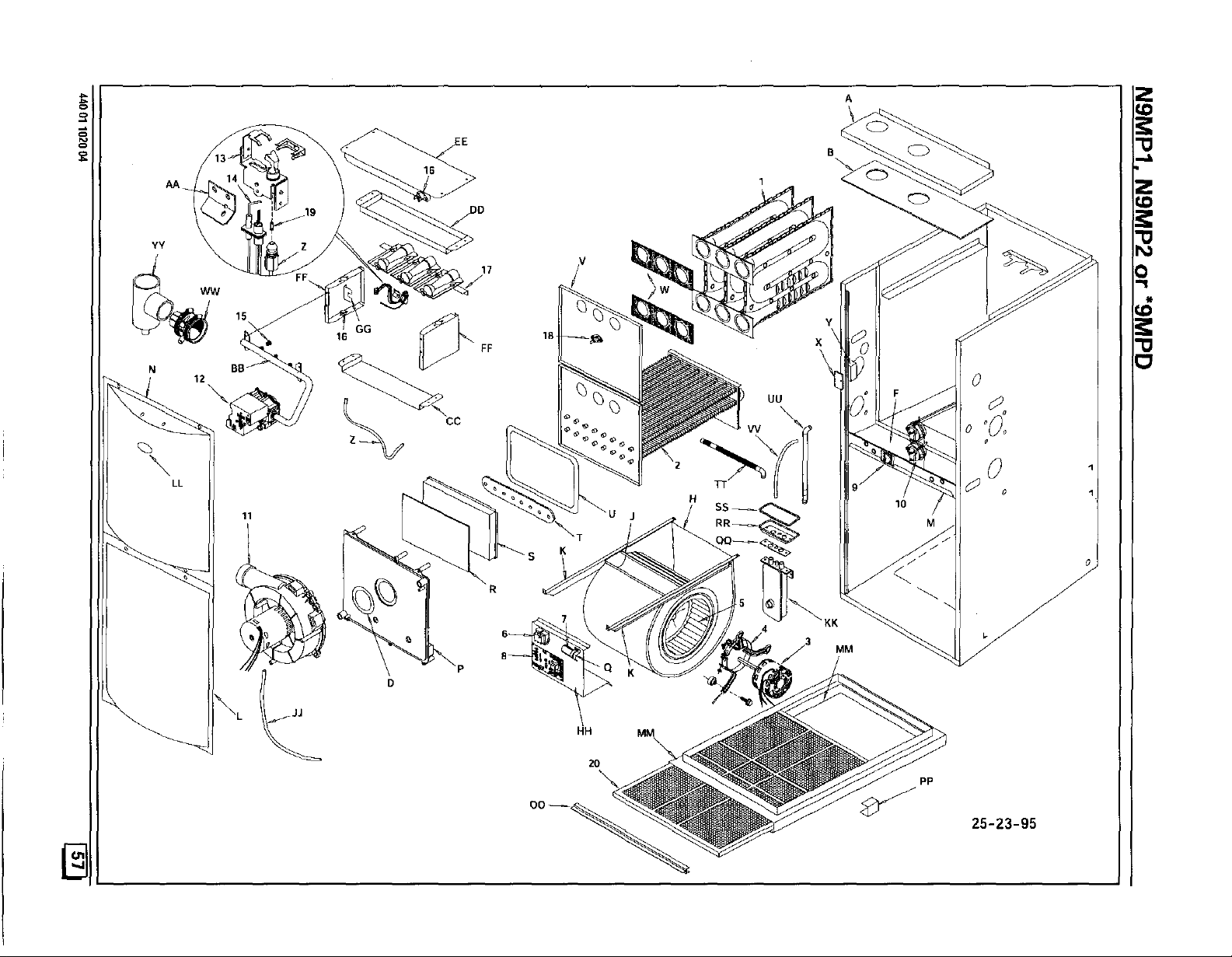

I Replacement Parts - NgMP1 & NgMP2

Models - N9MP105OB12B1, N9MP1075B12B1, N9MP108OF16B1, N9MP11OOF14B1, N9MP11OOJ2OB1 & N9MP1125J2OB1 - N9MP205OB12B1, N9MP2075B12B1, N9MP208OF16B1, N9MP21OOF14B1, N9MP21OOJ2OB1 &

N9MP2125J2OB1 (Natural Gas) Replacement part supplied will be current active part. For parts not listed, consult place of purchase.

Key Description Part

No, Functional Number 050B 078B 080F IOOF 100J 125J 050B 075B 080F 100F 100J 125J

1 HeatExchanger,Primary 1012847 1 1

2 HeatExchanger,Secondary 1013760 1 1

3 Motor,BIr 1/115 1/2CCW 1172488 1 1 1 1

1/115 1/2CCW 1172487 1 1 1 1 1/1153/4CCW 1172489 1 1 1 1

4 Mount,Motorkit_ 1014824 1 1 1 1

5 Wheel,Blower 1013011 1 1 1 1

6 Transformer 1012722 1 1 1 1 1 1 1 1 1 1 1 1

7 Capacitor, 10Mfd, 370V 1171729 1 1 1 1

7.SMfd.,370V 1171728 1 1 1 1 40Mfd.,370V 1171982 1 1 1 1

8 Control,Fan Timer 1014460 1 1 1 1 1 1 1 1 1 1 1 1 9 Switch, Interlock 1171981 1 1 1 1 1 1 1 1 1 1 1 1

10 Switch, Pressure 1013802 1 1 1 1 1

11 Blower,Exhaust(Jakel) 1014338 1 1 1 1 1 1 1 1 1 1

12 Valve,GasHSP Nat. 1013350 1 1 1 1 1 1 1 1 1 1 1 1 13 Burner,PilotHSP 1008731 1 1 1 1 1 1 1 1 1 1 1 1 14 Igniter/SensorHSP 1009524 1 1 1 1 1 1 1 1 1 1 1 1

15 Orifice,Burner#42 Nat. 1011351 2 3 4 4 5 2 3 4 4 5

#44Nat. 1011352 4 4

16 Switch, Limit(Ronout) 1013102 2 2 2 2 2 2 2 2 2 2 2 2 17 BurnerAssembly 1008723 1 1

18 Switch, Limit(Main) 34335001 1 1

19 Orifice, Pilot .018 503211 1

_See Table below for bellyband location on motor

Bellyband Location on Motor

Model N9MPI/2 A(in.) 050B12B1 2.09"

075B12B1 1.38" 080F16B1 1.81"

100F14B1 1.38" 100J20B1 1.65" 125J20B1 1.65"

1012851 1 1 1012855 1 1 1 1

1012856 1 1 1012859 1 1

1013761 1 1 1013764 1 1 1 1 1013765 1 1

1013766 1 1

1014823 1 1 1 1 1 1 1014822 1 1

1011420 1 1 1 1 1 1 1 1

1013811 1 1 1013801 1 1 1

1013166 1 1

1014341 1 1

1008724 1 1 1008725 1 1 1 1 1 1 1008726 1 1

34335002 1 1

1320361 1 1 1 1 1008445 1 1 1320367 1 1

12B 12B 16B 14B 20B 20B 12B 12B 16B 14B 20B 20B

1 1 1

N9MP1 N9MP2

1 1 1 1 1 1 1 1

_] 44001 102004

I Replacement Parts - NPMP1 & NPMP2

Models - N9MP1050B12B1, N9MP1075B12B1, N9MP1080F16B1, N9MP1100F14B1, N9MP1100J20B1 & N9MP1125J20B1 - N9MP2050B12B1, N9MP2075B12B1, N9MP2080F16B1, N9MP2100F14B1, N9MP2100J20B1 &

N9MP2125J20B1 (Natural Gas) Replacement part supplied will be current active part. For parts not listed, consult place of purchase.

Key Description Part N9MP1 N9MP2

No. Non-Functional Number 12B 12B 1GB 14B 20B 20B 12B 12B 16B 14B 20B 20B

A Panel,Top

B Gasket,TopPanel

F Partition,Blower

H Housing,Blower

J Panel,BlowerCutoff

K Hanger,Blower

L Door,Blower

M Bracket,DoorFiller

N Door,Front

O Strap, Capacitor 1170643 1 1 1 1 1 1 1 1

P TransitionAssembly 1012280 1 1 1 1

Q Gasket,Blower 1014425 1 1 1 1 1 1 1 1 1 1 1 1 R Boar&Insulating 1012417 1 1 1 1

S Box,Collector 1012128 1 1 1 1

T Gasket,Transition 1013079 1 1 1 1

U Gasket,CollectorBox 1012593 1 1 1 1

V Partition,FrontHtExchanger 1012646 1 1

1012323 1 1012324

1012325 1012326 1012957 1012958

1012959

1012602 1 1012603 1012604

1171983 1 1171984

1171985 1172004 1172005

1172006 1012972 1

1012888

721020013 1 721020008

1012328 2 1013684 1

1013685 1013686

1013687 1013688 1014239

1013679 1 1013680

1013681 1014146 1

1014147 1014256 1014257 1 1 1014258 1 1

1014259 1 1

1014315 1 1 1 1

1012281 1 1 1 1 1012282 1 1 1 1

1012418 1 1 1 1 1012419 1 1 1 1

1012244 1 1 1 1 1012245 1 1 1 1

1013080 1 1 1 1 1013083 1 1 1 1

1012594 1 1 1 1 1012595 1 1 1 1

1012647 1 1 1012649 1 1 1 1 1012651 1 1

1012652 1 1

OGOB 075B O80F IOOF lOOJ 125J OGOB 075B O8OF IOOF lOOJ 125J

2 1

1 2

44001 102004

I Replacement Parts - NPMP1 & NPMP2

Models - N9MP105OB12B1, N9MP1075B12B1, N9MP108OF16B1, N9MP11OOF14B1, N9MP11OOJ2OB1 & N9MP1125J2OB1 - N9MP205OB12B1, N9MP2075B12B1, N9MP208OF16B1, N9MP21OOF14B1, N9MP21OOJ2OB1 & N9MP2125J2OB1 (Natural Gas)

Replacement part supplied will be current active part. For parts not listed, consult place of purchase.

Key Description

No. Non-Functional

W Gasket, Attachment Plate

X Cover,JunctionBox Y Box,Junction

Z Tube, Pilot

AA Bracket,Pilot BB Manifold

CC Bottom,BurnerBox

DD Baffle,BurnerBox

EE Top,BurnerBox

FF Bracket,ManifoldSupport

GG Bracket,BurnerBoxSide

HH Bracket,ControlMounting

JJ Tube,Sensor

KK Trap,DrainAssembly

LL Sightglass

QQ Gasket,Trap

RR Bracket,Trap SS Gasket,Trap Bracket

TT Tube,DrainColl. Box5/8"ID UU Tube,DrainTee 1/2"ID VV Tube,Relief

WW Drain Vent

)( PART NOT ILLUSTRATED )( DoorScrews

)( DoorScrewsGrommets )( Clamp,Hose3/4"

)( Clamp,Hose5/8" )( Grommet,Vent

)( Bushing,StrainRelief )( Harness,Wire

)( Trap,DrainTee )( Tube,112"IDDrain

)( Tube,112" IDElbow )( Coupling,1/2"Barbed

)( Tubeing,5/8"ID Drain )( Connector,314" X 1/2"

Pa_

Number 12B 12B 16B 14B 20B 20B 12B 12B 16B 14B 20B 20B

1012542 2 2 1012543 2 2 1012544 2 2 2 2 2 2 1012545 2 2

1012350 1 1 1 1 1 1 1 1 1 1 1 1 1012349 1 1 1 1 1 1 1 1 1 1 1 1

1013077 1 1 1012832 1 1 1 1 1 1 1 1

1012834 1 1 1010901 1 1 1 1 1 1 1 1 1 1 1 1 1012276 1 1

1012277 1 1 1012278 1 1 1 1 1 1

1012279 1 1 1012334 1 1 1 1

1012335 1 1 1 1 1 1 1012336 1 1

1012338 1 1 1 1 1012339 1 1 1 1 1 1

1012340 1 1 1013702 1 1 1 1

1013703 1 1 1 1 1 1 1013704 1 1

1012377 2 2 2 2 2 2 2 2 2 2 2 2 1012532 2 2 2 2 2 2 2 2 2 2 2 2

1013677 1 1 1 1 1 1 1 1 1 1 1 1 1009238 1 1 1 1 1 1 1 1 1 1 1 1

1171917 1 1 1 1 1 1 1 1 1 1 1 1

1012756 1 1 1 1 1 1 1013701 1 1 1 1 1 1 1 1 1 1 1 1

1171986 1 1 1 1 1 1 1 1 1 1 1 1 1171987 1 1 1 1 1 1 1 1 1 1 1 1

1171988 1 1 1 1 1 1 1 1 1 1 1 1 1171989 1 1 1 1 1 1 1 1 1 1 1 1

1009238 1 1 1 1 1 1 1 1 1 1 1 1 1014003 1 1 1 1 1 1 1 1 1 1 1 1

1014488

1171990

1012976 1012975

1012697 1945287

1013716 1013718 1013719

1171916

1171991 1171992

1171993

1171994 1171995

O50B 075B 080F 10OF 100J 125J O5OB 075B OSOF 1O0F 1OOJ 125J

4 4 2

1 1

1 1 1

4 4 2

2 1

1 1

2 1

1 1

N9MP1 N9MP2

4 4 2

2 1

1 1

2 1

1 1

4 4 2

2 1

1 1

2 1

1 1

4 4 2

2 1

1 1

2 1

1 1

4 4 2

2 1

1 1

1 2

1 1 1

2 2 2

2 1

1 1

2 2 2

2 1

1 1

2 2 2

2 1

1 1

I I

2 2 2

1 1

I I

2 2 2

2 1

1 1

2 2 2

2 1

1 1

1 1 1

_] 44001 102004

I Replacement Parts - NgMP1 & NgMP2

Models - N9MP1050B12B1, N9MP1075B12B1, N9MP1080F16B1, N9MP1100F14B1, N9MP1100J20B1 8, N9MP1125J20B1 - N9MP2050B12B1, N9MP2075B12B1, N9MP2080F16B1, N9MP2100F14B1, N9MP2100J20B1 & N9MP2125J20B1 (Natural Gas)

Replacement part supplied will be current active part. For parts not listed, consult place of purchase.

Key Description Pa_

No. Non-Functional Number 12B 12B 16B 14B 20B 20B 12B 12B 16B 14B 20B 20B

)( PART NOT ILLUSTRATED )( Elbow,1/2" CPVC Street 1171996 1 1 1 1 1 1 1 1 1 1 1 )( Grommet,Casing 1171997 1 1 1 1 1 1 1 1 1 1 1

)( Tube,ReleifExt. 1009238 1 1 1 1 1 1 1 1 1 1 1 )( Connector,ReleifTube 1171998 1 1 1 1 1 1 1 1 1 1 1

)( Plate,Cover 1171999 1 1 1 1 1 1 1 1 1 1 1 )( Gasket,CoverPlate 1172000 1 1 1 1 1 1 1 1 1 1 1

)( Cap,DrainTee 1172001 1 1 1 1 1 1 1 1 1 1 1 )( Clamp,TeeCap 1172002 1 1 1 1 1 1 1 1 1 1 1

)( Coupling,AirIntake 1012284 1 1 1 1 1 )( Gasket,Air Intake 1012583 1 1 1 1 1

)( Gasket,Trap 1013701 1 1 1 1 1 )( Grommet,Vinyl (GasInlet) 1009535 1 1 1 1 1

)( Bushing,StrainRelief 1945287 1 1 1 1 1 )( InstallationManual 44001102004 1 1 1 1 1 1 1 1 1 1 1 )( User'sManual 44102201004 1 1 1 1 1 1 1 1 1 1 1

Gas Conversion Kits Nat to LP NAHF002LP q009509 1 1 1 1 1 1 1 1 1

LP to Nat NAHF002NG q009510 1 1 1 1 1 1 1 1 1 Nat to LP NAHF003LP q013815 1 1 LP to Nat NAHF003NG q013816 1 1

Order from Service Parts

OSOB 075B 080F 100F 100J 128J 080B 078B 080F 100F 100J 125J

N9MP1 N9MP2

1 1

1 1 1

1 1

44001 102004

Replacement Parts - *gMPD

Models - *9MPDO50F12B1, *9MPDO75F12B1, *9MPDO80J16B1, *9MPD100J14B1, *9MPDIOOJ2OB1 &*9MPD125L20B1 (Natural Gas) *Denotes Brand

Replacement part supplied will be current active part. For parts not listed, consult place of purchase.

Key Description Part *9MPD

No. Functional Number 080J16B 100J14B 100J20B 128L20B

1 HeatExchanger,Primary

2 HeatExchanger,Secondary

3 Motor,Blower 1/1151/2CCW

4 Mount,Motorkit*

5 Wheel,Blower

6 Transformer 7 Capacitor,7.SMfd.,370V

8 Control,FanTimer 9 Switch,Interlock

10 Switch,Pressure

11 Blower,Exhaust(Jakel)

12 Valve,GasHSP Nat. 13 Burner,PilotHSP 14 Igniter/SensorHSP

15 Orifice,Burner#42Nat.

16 Switch,Limit(Relleut) 17 BurnerAssembly

18 Switch, Limit (Main)

19 Orifice,Pilot.018

*See Table below for bellyband location on motor

Bellyband Location

on Motor

Model N9MPD A(in.) 050F12B1 2.09" 075F12B1 1.38"

080J16B1 1.81" 100J14B1 1.38" 100J20B1 1.65"

125L2OB1 1.65"

1/1151/2CCW 1/1153/4CCW

10Mfd.370V 40Mfd.,370V

#44Nat

1012850 1012854

1012858 1012862

1013762 1013763

1013765 1013767

1172488 1172487 1172489

1014824 1014822 1014823

1013011 1011420

1012722

1171928 1171929 1171982

1014460

1171981

1013802 1013812

1013166 1014388

1014341 1013350

1008731 1009524

1011351

1011352 1013102 1008723

1008724 1008725

1008726 1320366

34335002

1008445 1320367

503211

080F12B

1 1 1

2 1

075F12B

I I

I I I

1 1

1 1 1

4 2

1 1

I I

I I I

1 1 1

1 1

1 1 1 1

1 1 1

1 1

1 1 1

1 1

44001 102004

I Replacement Parts - *gMPD

Models- _9MPDO50F12B1, _9MPDO75F12B1, _9MPDO80J16B1, _9MPD100J14B1, _9MPDIOOJ2OB1 & _9MPD125L20B1 (Natural Gas) _Denotes Brand

Replacement part supplied will be current active part. For parts not listed, consult place of purchase.

Key Description

No. Non- Functional

A Panel,Top

B Gasket,TopPanel

F Partition,Blower

Housing,Blower

Panel,BlowerCutoff

Hanger,Blower

Door,Blower(Tempstaronly)

Bracket,DoorFiller

Door,Front(Tstaronly) (]star only)

(Tstaronly) (Cmaker/Keepriteonly) (Cmaker/Keepriteonly) (Cmaker/Keepdteonly)

(Heil/Arcoonly) (Heil/Arcoonly) (Heil/Arcoonly)

Clamp,Capacitor

TransitionAssembly

Gasket,Blower

Board,Insulating

Box,Collector

Gasket,Transition

Gasket, Collector Box

Partition, Frt Ht Exchanger

W Gasket, Attachment Plate

(Tempstaronly) (Tempstaronly) (Comfortmaker/Keepriteonly)

(Comfortmaker/Keepriteonly) (Comfortmaker/Keepriteonly) (Heil/Arcoaireonly) (Heil/Arcoaireonly) (Heil/Arcoaireonly)

Part *gMPD

Number 125L20B

1012866 1012867

1012868 1012603

1012604 1012605

1172008 1172005

1172006 1172007

1012972 1012888

721020013 721020008

1012328 1014155

1014170 1014192

1014152 1014167 1014189 1014262

1014263 1014264

1013680 1013681

1014494 1014154

1014169 1014191 1014151 1014166

1014188 1014265 1014266

1014267 1170643

1014315 1012281

1012282 1012283

1014428 1012418

1012419 1012420

1012244 1012245

1012246 1013263

1013080 1013083 1013084

1012594 1012595 1012596

1012650 1012648 1012651 1012653

1012542 1012543

1012544 1012545

050F12B

2 1

1 1

078F12B

1 2

1 1

080J16B

1 2

100J14B

100J2OB

1 2

1 1

44001 102004

I Replacement Parts - *gMPD

Models - *9MPDO50F12B1, *9MPDO75F12B1, *9MPDO80J16B1, *9MPD100J14B1, *9MPDIOOJ2OB1 &*9MPD125L20B1 (Natural Gas) *Denotes Brand

Replacement part supplied will be current active part. For parts not listed, consult place of purchase.

Key Description

No. Non- Functional

X Cover,JunctionBox Y Box,Junction

Z Tube, Pilot

AA Bracket,Pilot

BB Manifold

CC Bottom, Burner Box

DD Baffle,BurnerBox

EE Top,BurnerBox

Bracket,ManifoldSupport

Bracket,BurnerBoxSide

Bracket,ControlMounting

Tube,Sensor

Trap,Drain Assembly

Sightglass Comfortmaker&Hell

Gasket,Trap

Bracket,Trap

Gasket,Trap Bracket

Tube,DrainColl.Box5/8"ID

Tube,DrainTee 1/2"ID

Tube,Relief

DrainVent

Tee,Drain PART NOTILLUSTRATED

)(

DoorScrews

)(

DoorScrewsGrommets

)( )(

Coupling,Air Intake

)(

Gasket,Air Intake

)(

Clamp,Hose3/4"

)(

Clamp,HoseSl8"

)(

Coupling,Discharge

)(

ClampHose

)(

Grommet,Vent

)(

Bushing,StrainRelief

)(

Grommet,Vinyl(gasInlet)

)(

Harness,Wire

TempstarOnly

Part

Number

1012350 1012349 1012832

1013077 1012834

1010901 1012276

1012277 1012278

1012279 1012334

1012335 1012336

1012338 1012339

1012340 1013702

1013703 1013704

1013677 1012532

1013677 1009238

10171917

1013235 1013236

1013701 1171986 1171987

1171988 1171989 1009238 1014003

1171915

1014488 1171990 1012284

1012583 1012976 1012975

1002522 1013830 1012697 1945287

1009535 1013716

1013718 1013719

050F12B

1 1

1 1 1

2 2

1 1 1 1

4 4 1

1 2 2

2 4 1 1

1 1

075F12B

1 1 1

2 2

1 1 1 1

4 4 1

1 2 2

2 4 1 1

1 1

080J16B

*gMPD

100J14B

1 1 1

2 2

1 1 1 1

4 4 1

1 2 2

2 4 1 1

1 1

1 1 1

2 2

1 1 1 1

4 4

1 2 2

2 4

100J20B

1 1 1

2 2

1 1 1 1

4 4 1

1 2 2

2 4 1 1

125L20B

1 1

1 2

2 1

1 1 1

1 1 1 1

4 4 1

1 2 2

2 4 1 1

_] 44001 102004

I Replacement Parts - *gMPD

Models - +9MPDO50F12B1, +9MPDO75F12B1, +9MPDO80J16B1, +9MPD100J14B1, +9MPDIOOJ2OB1 & +9MPD125L20B1 (Natural Gas) *Denotes Brand

Replacement part supplied will be current active part. For parts not listed, consult place of purchase.

Key Description

No. Non- Functional

)( Trap,DrainTee )( Tube,1/2"ID Drain

)( Tube,1/2"ID Elbow )( Coupling,1/2"Barbed

)( Tubeing,518"ID Drain )( Connector,314"X 1/2" )( Elbow,1/2"CPVCStreet )( Grommet,Casing

)( Tube,ReleifExt. )( Connector,ReleifTube

)( Plate,Cover )( Gasket,CoverPlate )( Cap,DrainTee )( Clamp,TeeCap )( InstallationManual

)( User'sManual

Gas Conversion Kits Nat to LP NAHF002LP *1009509 1 1 1 1 1 LP to Nat NAHF002NG *1009510 1 1 1 1 1 Nat to LP NAHF003LP *1013815 1

LP to Nat NAHF003NG *1013816 1 +Order from Service Parts

Part

Number

1171916

1171991 1171992

1171993

1171994 1171995 1171996

1171997 1009238 1171998

1171999 1172000 1172001 1172002

44001102004

44102201004

050F12B

1 1 2

1 1 1 1

1 1 1

1 1 1 1 1

075F12B

1 1

1 1 1 1

1 1 1

1 1 1 1 1

080J16B

*gMPD

100J14B

1 1 2

1 1 1 1

1 1 1

1 1 1 1 1

1 1 2

1 1 1 1

1 1 1

1 1 1 1 1

IOOJ20B

1 1 2

1 1 1 1

1 1 1

1 1 1 1 1

125L20B

1 1 2

1 1 1 1

1 1 1

1 1 1 1 1

44001 102004 [_

ICP N9MP1050B12A1, N9MP1075B12A1, N9MP1080F16A2, N9MP1100F14A1, N9MP1100J20A1 Installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
