ICP JUKI-745E User Manual

JUKI- 745E Pentium®

with LCD/CRT & Ethernet

ISA Bus SBC Ver 3.x

User Manual

Version 2.1

November 5, 2003

©Copyright 2003 by ICP Electronics Inc. All Rights Reserved.

Copyright Notice

The information in this document is subject to change without
prior notice in order to improve reliability, design and function
and does not represent a commitment on the part of the manu­facturer.

In no event will the manufacturer be liable for direct, indirect,
special, incidental, or consequential damages arising out of the
use or inability to use the product or documentation, even if ad­vised of the possibility of such damages.

This document contains proprietary information protected by
copyright. All rights are reserved. No part of this manual may
be reproduced by any mechanical, electronic, or other means in
any form without prior written permission of the manufacturer.

Trademarks

JUKI-745E is a registered trademarks of ICP Electronics Inc.
IBM PC is a registered trademark of International Business
Machines Corporation. Intel is a registered trademark of Intel
Corporation. AMI is registered trademarks of American
Megatrends, Inc. Other product names mentioned herein are
used for identification purposes only and may be trademarks
and/or registered trademarks of their respective companies.

2

Table of Contents

CHAPTER 1. INTRODUCTION............................................ 2

1.1 S

1.2 P

PECIFICATIONS ...........................................................3

ACKAGE CONTENTS ......................................................5

CHAPTER 2. INSTALLATION ............................................. 6

2.1 JUKI-745E L

2.2 S

2.3 D

2.4 LCD V

2.5 C

2.6 B

2.7 BIOS F

ETTING THE CPU OF JUKI-745E .....................................8

ISKONCHIP™ FLASH DISK ..........................................10

OLTAGE SETTING ................................................10

LEAR CMOS SETUP ................................................... 11

ATTERY BACKUP FOR CMOS SETUP ................................. 11

LASH CHIP WRITE VOLTAGE SETTING ....................... 11

AYOUT ..................................................... 6

CHAPTER 3. CONNECTION.............................................. 12

3.1 F

3.2 PCI E-IDE D

3.3 P

3.4 S

3.5 K

3.6 E

3.7 E

3.8 LCD/CRT C

3.9 L

3.10 USB P

3.11 IO A

LOPPY DISK DRIVE CONNECTOR...................................... 12

ISK DRIVE CONNECTOR ................................ 13

ARALLEL PORT ..........................................................14

ERIAL PORTS ........................................................... 15

EYBOARD / MOUSE CONNECTOR ..................................... 16

XTERNAL SWITCHES AND INDICATORS............................... 17

XTERNAL BATTERY CONNECTOR ...................................... 18

ONNECTOR................................................. 18

AN RJ45 CONNECTOR ................................................. 19

ORT ............................................................... 20

DDRESS MAP ....................................................... 20

CHAPTER 4. AMI BIOS SETUP ....................................... 23

4.1 G

4.2 S

4.3 A

4.4 A

ETTING START.......................................................... 23

TANDARD CMOS SETUP ..............................................24

DVANCED CMOS SETUP ..............................................24

DVANCED CHIPSET SETUP............................................. 24

1

Chapter 1. Introduction

Thank you for choosing JUKI-745E Pentium® with HiQPro™
LCD/CRT and Ethernet Single Board Computer. The JUKI-745E
board is an half-size ISA bus form factor board, which comes
equipped with high performance Pentium® CPU and advanced
high performance multi-mode I/O, designed for the system
manufacturers, integrators, or VARs that want to provide all the
performance, reliability, and quality at a reasonable price.

This factor board has a built-in DiskOnChip™ (DOC) Flash Disk for
embedded application. As DOC Flash Disk is 100% software
compatible to hard disk, user can use any DOS command without
having to go through the trouble to install extra software utility.
DOC currently is available from 2MB to 144MB.

The on board RTL8100 network chipset provides 10Mbps or
100Mbps Ethernet with auto-sensing function.

In addition, JUKI-745E has built-in C&T 69000 LCD/CRT Chipset.
LCD interface can support up to 1280x1024 with 256 colors in
resolution. It also support various type of flat panels such as Mono,
Color STN, TFT, EL and so on. The board also supports either 3.3V
or 5V version.

2

1.1 Specifications

The JUKI-745E Pentium® with C&T 69000 Chipset LCD/CRT &
Ethernet Single Board Computer provides the following
specification:

®

CPU : Pentium

•

300MHz, Cyrix 6x86MX and IDE C6 processor

Chipset : ALI M1531/M1543

•

Bus : ISA Bus

•

LCD/CRT Interface : C&T 69000 Chipset

•

CRT Resolution : 1280x1024,256 colors
1024x768, 64K colors
800x600, 16M colors

36-bit LCD Interface Resolution :
1280x1024,256 colors

1024x768, 64K colors
800x600, 16M colors

** Please contact www.chips.com to get more information.

Ethernet : RTL 8100B Chipset

•

IEEE 802.3u 100BASE-TX standard
Auto-sensing interface to 10Mbps or 100Mbps

Full duplex capability

** More information : www.realtek.com.tw

MMX up to 233Mhz, AMD K6 processor up to

networks

Real-time clock/calendar : in ALI 4+ chipset, backup by

•

industrial Li-battery,3V/850mAH.

RAM memory : Support up to 128MB EDO RAM

•

Second Cache memory : 512KB Pipelined Burst SRAM on

•

board

3

Ultra DMA/33 IDE Interface : Support up to four PCI

•

Enhance IDE hard drives. The Ultra DMA/33 IDE can handle
data transfer up to 33MB/s. Best of all is that this new
technology is compatible with existing ATA-2 IDE specifications
so there is no need to change any of customer’s current
accessory.

Floppy disk drive interface : two 2.88 MB, 1.44MB, 1.2MB,

•

720KB, or 360KB floppy disk drives.

Two high speed Series ports : NS16C550 compatible UARTs

•

Bi-directional Parallel Port

•

Flash Disk - DiskOnChip™ : The Flash Disk is 100%

•

compatible with hard disk. The built-in TrueFFS Transparent
Flash Block Management and Space Reclamation will allow
customers to use the Flash Disk with DOS command, therefore
there’s no need to install any extra software utility.

Keyboard connector

•

USB Port: support USB Port for future expansion.

•

Mouse : PS/2 Mouse Port on-board.

•

Power Consumption : +5V @ 5A

•

( MMX-233,32MB EDO RAM)
+12V @ 170mA , -12V@20mA

Operating Temperature : 0° ~ 55° C ( CPU needs Cooler)

•

4

1.2 Package Contents

In addition to this User Manual, the JUKI-745E package includes
the following items:

 JUKI-745E Pentium® with C&T 69000 Chipset LCD/CRT &

Ethernet

 Single Board Computer

 RS-232/Printer Cable

 FDD/HDD Cable

 6-pin Mini-Din to 5-pin Din Keyboard and Mouse Adapter

Cable

If any of these items is missing or damaged, please contact the
dealer from whom you purchased the product. Save the shipping
materials and carton in case you want to ship or store the product
in the future.

5

Chapter 2. Installation

This chapter describes how to install the JUKI-745E. First, the
layout of JUKI-745E is shown, then comes the unpacking
precautions that you should be careful is described. After that
comes jumpers and switches setting for JUKI-745E's configuration,
such as CPU type selection, system clock setting, and watch dog
timer, are all included.

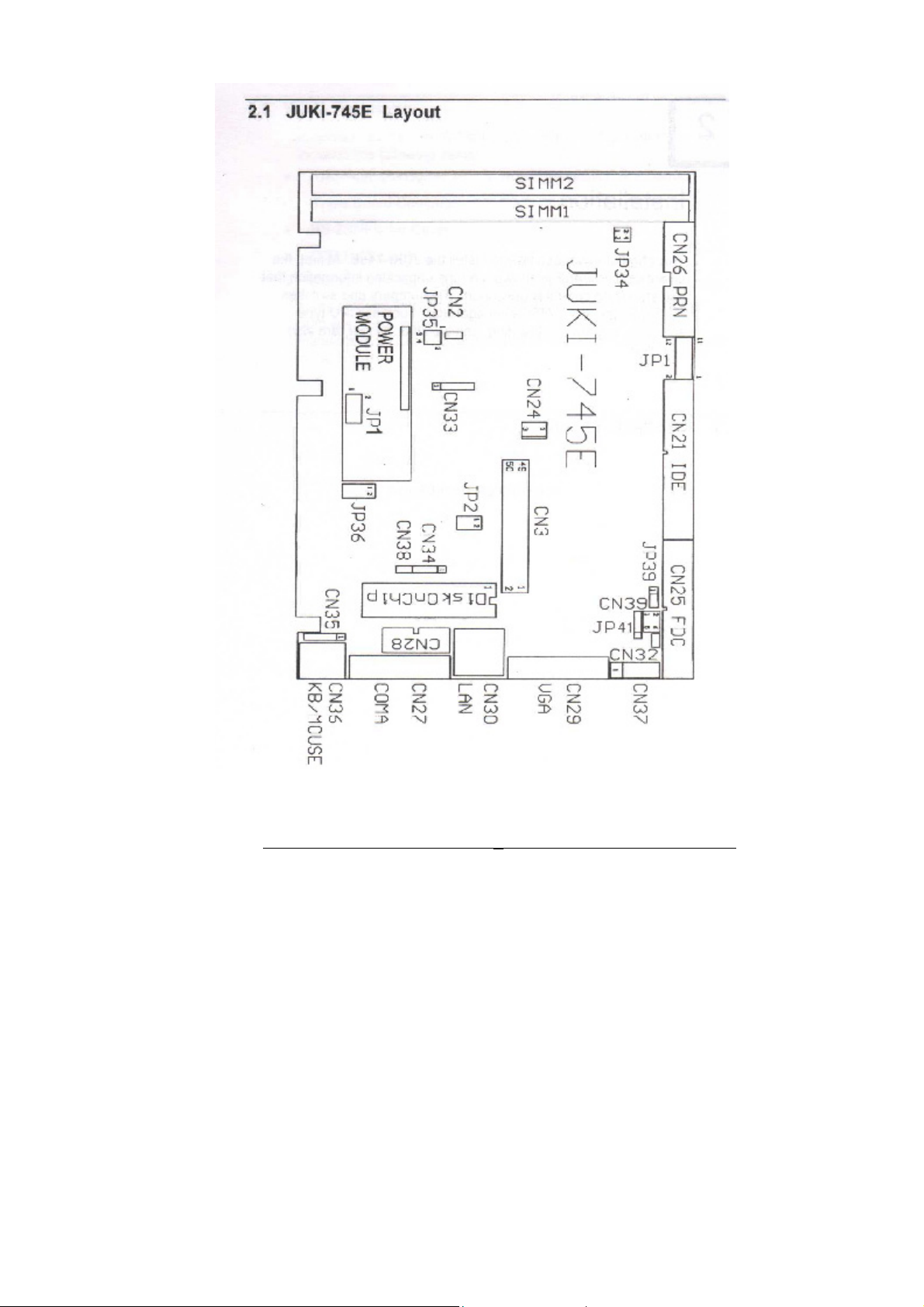

2.1 JUKI-745E Layout

< Please turn to the next page.>

6

7

2.2 Setting the CPU of JUKI-745E

JP1:BUS Clock & CPU CORE/BUS Freq ratio setting

CPU Clock Setting :

•

S2

11-12

OFF OFF OFF 66.8 33.4
OFF OFF ON 60 30
OFF ON OFF 75 37.5
OFF ON ON 55 27.5

ON OFF OFF 68.5 34.25
ON OFF ON 83.3 33.3
ON ON OFF 75 30
ON ON ON 83.3 41.65

FREQ RATIO :

•

BF2

7-8

OFF OFF OFF 1.5 x
OFF OFF ON 2.0x
OFF ON ON 2.5x
OFF ON OFF 3.0 x
OFF OFF OFF 3.5 x

ON OFF ON 4.0x
ON ON ON 4.5x
ON ON OFF 5.0x
ON OFF OFF 5.5x

CPU Frequency = CPU Clock x Multiplier for example
Pentium® 200MHz = 66MHz CPU Clock x 3

CPU Core Voltage Selection :

•

Please check the CPU Core Voltage before you install the CPU.
Currently, the new Intel MMX CPU utilizes dual voltages for core
and I/O, in other words, the I/O is 3.3V but the core is 2.8V.
This kind of CPU design will enhance the low power consumption
capability. Common type Pentium CPUs utilizes one voltage for
both I/O and Core namely, 3.3V,3.4V,or 3.5V.

S1

9-10

BF1

5-6

S0

1-2

BF0

3-4

CPU/SDRQAM CLK

(MHZ)

RATIO

PCI BUS CLK

(MHZ)

8

Power module JP1 CPU Core Voltage Select

•

1-2 3-4 5-6 7-8 9-10 Voltage

ON ON ON ON OFF 3.5V
OFF ON ON ON OFF 3.4V
OFF OFF ON ON OFF 3.2V

ON OFF OFF ON OFF 2.9V
OFF OFF OFF ON OFF 2.8V
OFF ON OFF OFF OFF 2.2V
OFF OFF OFF OFF OFF 2.0V

JP34 & JP35 : CPU Single / Dual Power type setting

•

JP34 JP35

SINGLE

DUAL

1-2 ON
3-4 ON

1-2 OFF
3-4 OFF

1-2 OFF
3-4 OFF
1-2 ON
3-4 ON

Cyrix 6x86MX PR Rating Table

•

( Vcore : 2.9V,dual voltage )

PR Rating Bus MHz CPU Core

MHz

6x86MX-PR133 50 100 2x
6x86MX-PR133 55 110 2x

6x86MX-PR150 60 120 2x
6x86MX-PR150 50 125 2.5x

6x86MX-PR166 66 133 2x
6x86MX-PR166 55 138 2.5x
6x86MX-PR166 50 150 3x
6x86MX-PR166 60 150 2.5x

6x86MX-PR200 55 165 3x
6x86MX-PR200 66 166 2.5x
6x86MX-PR200 60 180 3x

6x86MX-PR233 66 200 3x
6x86MX-PR266 66 233 3.5x

Clock
Multiplier

9

AMD K6 MMX Rating Table, dual voltage

•

Product Name Core Freq Vcore Bus MHz Multiplier
K6-233 model 6 233MHz 3.2V 66 3.5x

K6-200 model 6 200MHz 2.9V 66 3x
K6-166 model 6 166MHz 2.9V 66 2.5x
K6-300 model 7 300MHz 2.2V 66 4.5x
K6-266 model 7 266MHz 2.2V 66 4x
K6-233 model 7 233MHz 2.2V 66 3.5x

2.3 DiskOnChip™ Flash Disk

The DiskOnChip™ Flash Disk Chip(DOC) is produced by M-Systems.
Since the DOC is 100% software compatible to hard disk and DOS,
customer don’t need to install any extra software utility. Its “plug
and play” function is not only easy to use but also reliable. It will
share 8KB memory of window.

JP36 : DiskOnChip Memory Address Setting

•

Address JP36
CE000 1-2

D6000 3-4

DE000 5-6

RESERVE 7-8

2.4 LCD Voltage Setting

The JUKI-745E supports 3.3V or 5V LCD panel through jumper
setting. This setting will control the CN3’s Pin 29 & 30 as 3.3V or
5V output.

JP39 : LCD Voltage Setting

•

Function JP39
+3.3V 1-2

+5V 2-3

10

2.5 Clear CMOS Setup

If you want to clear CMOS Setup (for example you have forgotten
the password then you should clear setup, then reset the
password), you should close the CN34 pin 2-3 about 3 seconds,
then open it again. To set back to normal operation mode, close
pin 2-3.

CN34 : Clear CMOS Setup (Reserve Function)

•

CN34 DESCRIPTION

2-3 Normal Operation
3-4 Clear CMOS Setup

2.6 Battery Backup for CMOS Setup

JUKI-745E provides a 4-pin header CN34 used for battery backup
function. When set to close, pin 2-3 will use the on board battery.
When you want to use external battery, you should take off the
jumper and use the connector as an external battery connector.

CN34: Battery Backup Function

•

1 External battery +
2 Internal battery +

3 To CMOS power (Note:2-3 ON, use Internal battery)
4 GROUND (Note: 3-4 ON, Clear CMOS)

2.7 BIOS Flash Chip Write Voltage Setting

There are two types of BIOS Flash Chip, one is 12V write voltage
and the other is 5V.

JP2: Flash ROM setting

•

Flash ROM

Voltage

1-3 +12V 2-4 1MB
3-5 +5V 4-6 2MB

Flash ROM

Size

11

Chapter 3. Connection

This chapter describes how to connect peripherals, switches and
indicators to the JUKI-745E board.

3.1 Floppy Disk Drive Connector

JUKI-745E board is equipped with a 34-pin daisy-chain driver
connector cable.

• CN25 : FDC CONNECTOR

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 2 REDUCE WRITE
3 GROUND 4 N/C
5 GROUND 6 N/C
7 GROUND 8 INDEX#

9 GROUND 10 MOTOR ENABLE A#
11 GROUND 12 DRIVE SELECT B#
13 GROUND 14 DRIVE SELECT A#
15 GROUND 16 MOTOR ENABLE B#
17 GROUND 18 DIRECTION#
19 GROUND 20 STEP#
21 GROUND 22 WRITE DATA#
23 GROUND 24 WRITE GATE#
25 GROUND 26 TRACK 0#
27 GROUND 28 WRITE PROTECT#
29 GROUND 30 READ DATA#
31 GROUND 32 SIDE 1 SELECT#
33 GROUND 34 DISK CHANGE#

12

3.2 PCI E-IDE Disk Drive Connector

You can attach up to four IDE( Integrated Device Electronics) hard
disk drives to the JUKI-745E IDE controller. The IDE support Ultra
DMA/33 interface.

CN21: IDE Interface Connector

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 IDE DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 IDE CHRDY 28 GROUND
29 IDE DACK 30 GROUND
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND

13

3.3 Parallel Port

This port is usually connected to a printer. JUKI-745E includes an
on-board parallel port, accessed through a 26-pin flat-cable
connector CN26.

CN26 : Parallel Port Connector

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 STROBE# 14 AUTO FORM FEED #
2 DATA 0 15 ERROR #
3 DATA 1 16 INITIALIZE
4 DATA 2 17 PRINTER SELECT LN #
5 DATA 3 18 GROUND
6 DATA 4 19 GROUND
7 DATA 5 20 GROUND
8 DATA 6 21 GROUND

9 DATA 7 22 GROUND
10 ACKNOWLEDGE 23 GROUND
11 BUSY 24 GROUND
12 PAPER EMPTY 25 GROUND
13 PRINTER SELECT 26 NC

14

3.4 Serial Ports

The JUKI-745E offers two high speed NS16C550 compatible
UARTs with Read/Receive 16 byte FIFO serial ports.

CN27 : Serial Port DB-9 Connector( COM1 )

•

PIN NO. DESCRIPTION

1 DATA CARRIER DETECT (DCD)
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

CN28 : Serial Port 10-pin Header( COM2)

•

PIN NO. DESCRIPTION

1
2 RECEIVE DATA (RXD)
3 TRANSMIT DATA (TXD)
4 DATA TERMINAL READY (DTR)
5 GROUND (GND)
6 DATA SET READY (DSR)
7 REQUEST TO SEND (RTS)
8 CLEAR TO SEND (CTS)
9 RING INDICATOR (RI)

10 NC

DATA CARRIER DETECT (DCD)

15

3.5 Keyboard / Mouse Connector

The JUKI-745E provides two keyboard/Mouse connectors.

CN37 : 5-pin Header Keyboard Connector

•

PIN NO. DESCRIPTION

1 KEYBOARD CLOCK
2 KEYBOARD DATA
3 N/C
4 GROUND
5 +5V

CN35 : 5-pin Header Mouse Connector

•

PIN NO. DESCRIPTION

1 MOUSE DATA
2 N/C
3 GROUND
4 +5V
5 MOUSE CLOCK

CN36 : 6-pin Mini-DIN Keyboard/Mouse Connector

•

PIN NO. DESCRIPTION

1 KEYBOARD DATA
2 MOUSE DATA
3 GROUND
4 +5V
5 KEYBOARD CLOCK
6 MOUSE CLOCK

16

3.6 External Switches and Indicators

There are many external switches and indicators for monitoring
and controlling your CPU board.

• CN2: Speaker Connector

PIN NO. DESCRIPTION

1 +5V
2 Speaker Signal

• CN38 : Reset Connector

PIN NO. DESCRIPTION

1 External Reset
2 GROUND

• CN32 : IDE LED Connector

PIN NO. DESCRIPTION

1 +5V
2 HDD LED

• CN24 : FAN Connector

PIN NO. DESCRIPTION

1 N/C
2 +12V
3 GROUND

17

3.7 External Battery Connector

The JUKI-745E has built-in a 3V/850mAH industrial Li-battery for
CMOS and RTC backup. During normal operation, it will not need
external battery to backup the data. If you want to connect an
external battery to the board, you could take off the CN34’s pin 2­3 jumper, then connect the external battery to pin 1-4.

CN34 : External Battery Connector

•

1 External Battery +
2 Internal battery +
3 To CMOS power (Note: 2-3 ON, use Internal battery)
4 GROUND (Note: 3-4 ON, Clear CMOS)

3.8 LCD/CRT Connector

The JUKI-745E has built-in 15-pin VGA connector that can be
connected directly to your CRT monitor. It also has a built-in 50­pin connector for LCD Interface.

CN29 : 15-pin Female Connector

•

1 RED
2 GREEN

3 BLUE
4,9,11 NC
5-8,10 GROUND

12 DDDA
13 H-SYNC
14 V-SYNC
15 DDCK

CN3 : 50-pin LCD Interface Connector

•

1 VPCLK 2 P33

3 P34 4 P31

5 P35 6 P32

7 P30 8 P28

18

9 P29 10 P27
11 P25 12 P26
13 P24 14 P21
15 P23 16 P22
17 P16 18 P20
19 P17 20 P18
21 P19 22 P14
23 P13 24 P12
25 P15 26 P11
27 P7 28 P10
29 PLCD 30 PLCD
31 P9 32 P8
33 P4 34 P6
35 P3 36 P5
37 P2 38 P1
39 M 40 P0
41 SHFCLK 42 ENABKL`
43 FPVDD 44 FLM
45 FPVEE 46 LP
47 GND 48 GND
49 +12V 50 +12V

3.9 Lan RJ45 Connector

The JUKI-745E built-in a RJ45 Lan connector.

CN30 : Lan RJ45 Connector

•

1 TX+ 5. NC

2 TX- 6. RX-

3. RX+ 7. NC

4. NC 8. NC

CN39 LED Connector(2-pin header) for Lan

•

2. LED2: 10M

4. LED1: 100M

6. LED0: TX/RX

(Note: 1,3,5: VCC)

19

3.10 USB Port

The JUKI-745E has one built-in USB port for the future new I/O
bus expansion.

JP41:USB Port

•

PIN NO. DESCRIPTION

1 VCC
2 USBP0­3 USBP0+
4 GROUND

3.11 IO Address Map

IO Address Map

I/O Address

Range

000-01F DMA Controller # 1
020-021 Interrupt Controller # 1, Master
040-05F 8254 timer
060-06F 8042 (Keyboard Controller)
070-07F Real time Clock, NMI (non-maskable interrupt) Mask
080-09F DMA Page Register
0A0-0BF Interrupt Controller # 2
0C0-0DF DMA Controller # 2
0F0 Clear Math Coprocessor Busy
0F1 Reset Math Coprocessor
0F8-OFF Math Coprocessor
1F0-1 F8 Fixed Disk
200-207 Game I/O
278-27F Parallel Printer Port 2 (LPT3)
2E8-2EF Serial Port 4
2F8-2FF Serial Port 2
300-31F Prototype Card
360-36F Reserved
378-37F Parallel Printer Port (LPT2)

DESCRIPTION

20

380-38F SDLC, Bisynchronous 2
3A0-3AF Bisynchronous 1
3B0-3BF Monochrome Display and Printer Adapter (LPT1)
3C0-3CF Reserved
3D0-3DF Color/Graphics Monitor Adapter
3E8-3EF Serial Port 3

3F0-3F7

3F8-3FF Serial Port 1
443 Watch dog timer enable
843 Watch dog timer disable

Diskette Controller,ALI1543 SIO CONFIG INDEX
PORT(3F0)

1 st MB Memory Address Map

Memory address Description

00000-9FFFF System memory
A0000-BFFFF VGA buffer
C0000-CBFFF VGA BIOS
*D6000-DA000 DOC 2000
E0000-FFFFF System BIOS

1000000- Extend BIOS

*Default setting

IRQ Mapping Chart

IRQ0 System Timer IRQ8 RTC clock
IRQ1 Keyboard IRQ9 Unused
IRQ2 Cascade to IRQ Controller IRQ10 Unused
IRQ3 COM2/COM4 IRQ11 Unused
IRQ4 COM1/COM3 IRQ12 PS2 moues
IRQ5 Unused IRQ13 FPU
IRQ6 FDC IRQ14 Primary IDE
IRQ7 Printer IRQ15 Secondary IDE

21

DMA Channel Assignments

Channel Function

0 Available
1 Available
2 Flopp disk (8-bit transfer)
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available

22

Chapter 4. AMI BIOS Setup

The JUKI-745E uses the AMI BIOS for system configuration. The
AMI BIOS setup program is designed to provide maximum
flexibility in configuring the system by offering various options
which may be selected to meet end-user’s needs. This chapter is
written to assist you in the proper usage of these features.

4.1 Getting Start

When power on the system, the BIOS will enter the Power-On­Self-Test routines. These routines will be executed for system test,
initialization and system configuration verification. After POST
routines are completed, the following message appears:

" Hit DEL if you want to run SETUP"

To access AMI BIOS Setup program, press <Del> key, then you
could see the screen to select from the following options:

When you choose Load BIOS Defaults, the system will load
minimized settings for Troubleshooting. The performance should
be very poor when you use this setting.

When you choose Load Setup Defaults, the system will load
optimized defaults for regular use. Choosing this setting, will
modify all applicable settings.

23

4.2 Standard CMOS Setup

The Standard CMOS Setup is used for basic hardware system
configuration. The main function is for Date/Time setting and
Floppy/Hard Disk Drive setting. For IDE hard disk drive setup,
please check the following possible setup procedure:

1. Use Auto setting for detection during boot up.

2. Use IDE HDD AUTO DETECTION in the main menu to
automatically enter drive specifications.

3. Manually enter the specifications from the “User” option.

4.3 Advanced CMOS Setup

This Advanced CMOS Setup is designed for customers tuning best
performance out of JUKI-745E board. As for normal operation,
customers don’t have to change any default setting. The default
setting is pre-set for most reliable operation. You can also enable
or disable system keyboard, primary display, PS/2 mouse in this
option. The system boot sequence is also modified through this
setup page to first, second, third and fourth boot device setting.

4.4 Advanced Chipset Setup

This setup function are mostly related to ChipSet(ALI 4+). These
options are used to change the ChipSet’s registers. Please
carefully change any default setting, otherwise the system could
become unstable.

24
