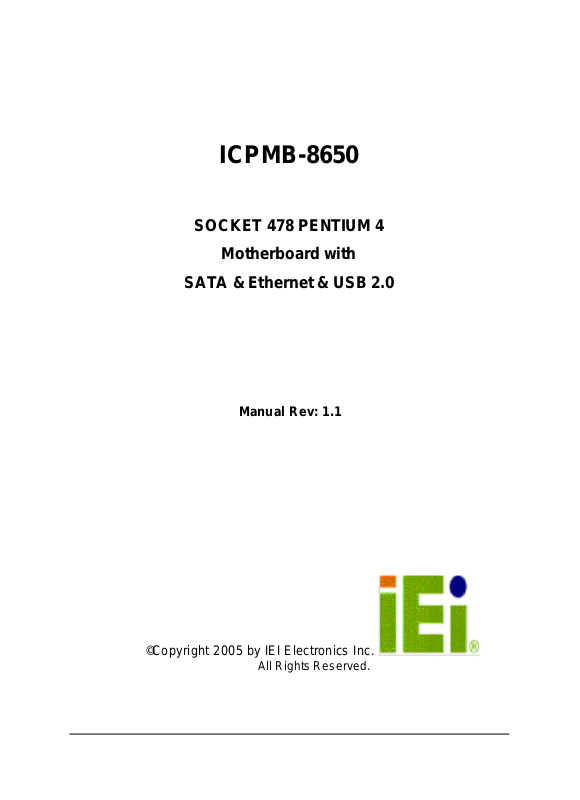

ICP ICPMB-8650 User Manual

ICPMB-8650

SOCKET 478 PENTIUM 4

Motherboard with

SATA & Ethernet & USB 2.0

Manual Re v: 1.1

©Copyright 2005 by IEI Electronics Inc.

All Rights Reserved.

Copyright Notice

The information in this document is subject to change with out prior notice in
order to improve reliability, design and function and does not represent a
commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental,
or consequential damages arising out of the use or inability to use the product
or documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic, or other means in any form without prior written permission of the
manufacturer.

Trademarks

ICP-MB-8650 is registered trademarks of ICP Electronics Inc.; IBM PC is a
registered trademark of International Business Machines Corporation. INTEL is
a registered trademark of INTEL Corporation. Award is registered trademarks
of A merican Megatrends Inc., Other product names mentioned herein are used
for identification purposes only and may be trademarks and/or registered
trademarks of their respective companies.

Support

Any questions regarding the content of this manual or related issues can be e­mailed to us directly at: [e-mail]

Table of Contents

Introduction....................................................................................... 1

1.1 Specifications ................................................................... 2

1.2 What You Have ................................................................. 4

Installation........................................................................................ 5

2.1 ICPMB-8650’s Layout ........................................................ 6

2.2 ICPMB-8650’s Dimensions (Unit : mm)................................ 7

2.3 Unpacking Precautions ...................................................... 8

2.4 Clear CMOS Setup ............................................................9

2.5 COM3 RS232 or RS422/485 Selection ................................ 9

2.6 Compact Flash Master/Slave Function Setting..................... 9

Connection......................................................................................10

3.1 PCI E-IDE Disk Drive Connector........................................11

3.2 Floppy Connector............................................................12

3.3 Parallel Port Connector....................................................13

3.4 Serial Port ......................................................................14

3.5 Compact Flash Storage Card Socket ................................15

3.6 IrDA Infrared Interface Port ................................................16

3.7 USB Port Connector........................................................16

3.8 Keyboard/Mouse Connector .............................................17

3.9 Fan Connector ................................................................18

3.10 Serial ATA Connector ......................................................18

3.11 VGA Connector ...............................................................19

3.12 LAN Connector...............................................................19

3.13 Audio Connector..............................................................20

3.14 ATX +12V Power connector ..............................................21

3.15 iButton connector............................................................22

3.16 Digital I/O connector........................................................22

3.17 External Switches and Indicators ......................................23

3.18 RS422/485 connector ......................................................24

3.19 ATX Power connector.......................................................24

Award BIOS Setup..........................................................................25

4.1 Introduction.....................................................................25

4.2 Starting Setup.................................................................25

4.3 Using Setup ....................................................................26

4.4 Main Menu......................................................................27

4.5 Standard CMOS Setup ....................................................29

4.6 Advanced BIOS Features .................................................31

4.7 Advanced Chipset Features..............................................35

4.8 Integrated Peripherals......................................................37

4.9 Power Management Setup ...............................................42

4.10 PnP/PCI Configuration Setup ............................................45

4.11 PC Health Status ............................................................46

4.12 Frequency/Voltage Control...............................................47

4.13 Load Fail-Safe Defaults....................................................48

4.14 Load Optimized Defaults..................................................48

4.15 Set Password .................................................................49

4.16 Exit Selecting .................................................................50

Appendix A. Watchdog Timer.........................................................51

Appendix B. Address Mapping ........................................................53

Appendix C. How to Upgrade a New BIOS.....................................55

Appendix D. Install memory modules.............................................58

1

Introduction

Welcome to the ICPMB-8650 SOCKET 478 PENTIUM 4 Single
Board Computer. The ICPMB-8650 board is an AGP/PCI form
factor board, which comes equipped with high performance
Processor and advanced high performance multi-mode I/O,
designed for the system manufacturers, integrators, or VARs
that want to provide all the performance, reliability, and quality at
a reasonable price.

It’s AGP interface supports 0.8V/1.5V signaling with 8X/4X data
transfers ,but it’s not support any 3.3V AGP-card.
The integrated graphics controller provides 3D, 2D, and display
capabilities.

ICPMB-8650 is supports one or two 64-bit wide DDR data
channels. Available bandwidth up to 2.7GB/s for single-channel
mode and 5.4GB/s in dual-channel mode.

For the application that needs high speed serial transmission,
the ICPMB-8650 provides USB2.0 for your choice. The high
speed USB2.0 host controller implements an ECHI interface
that provides 480Mb/s bandwidth.

ICPMB-8650 is equipped with a high speed SATA disk interface.
Besides its better performance than traditional IDE interface, it
can also reduce the cabling of hard disk and supports longer
cable.

1

1.1 Specifications

CPU(PGA 478)

Bus int erface
Bus speed
DMA channels
Interrupt levels
Chipset

RAM memory

Ultra DMA 100
IDE interface

Floppy disk drive
interface

Intel Pentium 4 Processor, supports
400/533/800 MHz PSB (set by BIOS)

AGP/PCI/ISA bus
PCI: 33M hz,ISA: 8Mhz
7
15
INTEL 865G / ICH5
Four 184-pin DIMM sockets support

DDR333/400 SDRAM .Support one or four 64-bit
wide DDR data channels. The max. Memory is
up to 4GB.

Up to four PCI Enhanced IDE hard drives. The
Ultra DMA 100 IDE can handle data transfer up
to 100MB/s. Compatible with existing ATA IDE
specifications its best advantage, so there is no
need to do any changes for users’ current
accessories.

Supports up to two floppy disk drives,

5.25”(360KB and 1.2MB) and/or 3.5” (720KB,

1.44MB, and 2.88MB)
Six RS232 ports with 16C550 UART (or

Serial ports

Bi-directional parallel
port

Hardware monitor

IrDA port

USB 2.0/1.1 port

compatible) with 16-byte FIFO buffer. Support up
to 115.2Kbps. Ports can be individually
configured to COM1, 2,3,4,5,6 or disabled.

Configurable to LPT1, LPT2, LPT3 or disabled.
Supports EPP/ECP/SPP

Built-in to monitor power supply volt age, fan
speed status and temperature

Supports Serial Infrared(SIR) and Amplitude
Shift Keyed IR(ASKIR) interface

Supports 8 USB 2.0/1.1 ports for future

2

expansion

Operating temperature

Watchdog timer

Serial ATA

Ethernet

Keyboard and PS/2
mouse connector

Audio

Compact flash

Power consumption

Software Program mable, reset generated when
CPU does not periodically trigger the timer.

Supports two independent serial ATA
channels. Data transfer rate is up to 150MB/s

PCI interface. INTEL 82540EM or Realtek
RTL8110S Gigabit Ethernet controller.
Supports full 10,100 and1000-bast-T Ethernet

A connector is located on the mounting bracket
for easy connection to a keyboard or PS/2
mouse.

AC’97 Audio CODEC
It can be used with a passive adapter (True IDE

Mode ) in a Type I/II CF Socket.
PENTIUM4: 3.0GHz, 2GB DDR400 DDR-SDRAM
+5V @ 4.7A , +12V @ 6.1A , +3.3V @ 0.7A ,

-12V @ 0.2A , +5VSB @ 0.7A
Recommended : 350-watt power supply or

higher
0° ~ 60° C
( *CPU needs Cooler & silicone heatsink

paste* )

WARNING : 1. Use ATX -12V Power Connector (CN5)
to provide power for the CPU.

3

1.2 What You Have

In addition to this User's Manual , the ICPMB-8650 package
includes the following items:

ICPMB-8650 Single Board Computer X1.

•

RS-232 Cable with bracket X3.

•

FDD cable X1.

•

PATA IDE cable X2.

•

SATA IDE cable X2.

•

SATA Power cable X1.

•

Driver CD X1.

•

If any of these items are missing or damaged, contact the dealer
from whom you purchased this product. Save the shipping
materials and carton in case you want to ship or store the
product in the future.

4

2

Installation

This chapter describes how to install the ICPMB-8650. First a
layout diagram of the ICPMB-8650 is shown, followed by
unpacking information that should be carefully followed. The
jumpers and switch settings for the ICPMB-8650 configuration,
such as CPU type selection, system clock setting, and
watchdog timer, are also listed.

5

2.1 ICPMB-8650’s Layout

6

2.2 ICPMB-8650’s Dimensions (Unit : mm)

7

2.3 Unpacking Precautions

Note: All shaded rows in tables of this manual are the default

Some components on ICPMB-8650 are very sensitive to
static electric charges and can be damaged by a sudden
rush of power. To protect it from unintended damage, be
sure to follow these precautions:

ü Ground yourself to remove any static charge before touching

your ICPMB-8650. You can do it by using a grounded wrist
strap at all times or by frequently touching any conducting

ü Handle your ICPMB-8650 by its edges. Don’t touch IC chips,

ü Do not plug any connector or jumper while the power is on.

materials that is connected to the ground.

leads or circuitry if not necessary.

settings for the ICPMB-8650.

8

2.4 Clear CMOS Setup

To clear the CMOS Setup (e.g., you have forgotten the password,
you must clear the CMOS to reset the password), you have to
close the JP 1 (pin 2-3) for about 3 seconds, then open it. After
that, pin 1-2 has to be short for normal operation.

JP 1 : Clear CMOS Setup

•

JP1 Description

1-2

(default)*

Short 2-3

Keep CMOS Setup

(Normal Operation)

Clear CMOS Setup

2.5 COM3 RS232/RS422/485 Selection

• JP2: COM3 RS232/RS422/485 Selection

JP2 Description

1-3 Short
(default)*
3-5 Short
2-4 Short
3-5 Short
4-6 Short

Note: When RS422/485 is in use, the COM3’s RS232 port will

be disabled.

RS232

RS422

RS485

2.6 Compact Flash Master/Slave Function Setting

• JP 3 : Compact Flash Master/Slave Function Setting

JP3 Description

Short* Master

Open Slave

9

3

Connection

This chapter describes how to connect peripherals, switches and
indicators to the ICPMB-8650 board.

Label Function

IDE1 & IDE2 Ultra ATA100 Primary & Secondary IDE connectors

FDD1 Floppy connector

PRN1 Parallel port connector

COM1,2,3,4,5,6

CF1 Compact Flas h Storage Card Type II connector

IR1 IRDA infrared interface port
USB1 USB port connector
USB2 USB dual port connector
USB3 USB dual port connector

KB/MS1 Keyboard & Mouse connector

FAN1 & FAN2

SATA1 & SATA2

VGA1 VGA connector

CN1 Audio connector
CN2 USB dual port & LAN RJ45 connectors
CN3 Audio AUX in connector
CN4 Audio CD in connector
CN5 ATX +12V Power connector
CN6 5.1 Channel Audio connector
CN7 Front Panel Audio connector
CN8 S/PDIF connector

CN9 iButton connector
CN10 Digital I/O connector
CN11 External switches and indicators
CN12 RS422/485 connector

PCI1,2,3,4,5 PCI slots

ISA1,2 ISA slots

ATX 1 ATX Power connector

Serial port connectors

FAN connectors

Serial ATA connectors

10

3.1 PCI E-IDE Disk Drive Connector

You can attach up to four IDE( Integrat ed Device Electronics)
devices.

IDE1 : Primary IDE Connector

•

IDE2 : Secondary IDE Connector

•

PIN

1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10

9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
21 DRQ 22 GROUND
23 IOW# 24 GROUND
25 IOR# 26 GROUND
27 CHRDY 28 REV. PULL LOW
29 DACK 30 GROUND-DEFAULT
31 INTERRUPT 32 N/C
33 SA1 34 N/C
35 SA0 36 SA2
37 HDC CS0# 38 HDC CS1#
39 HDD ACTIVE# 40 GROUND

DESCRIPTION PIN

DESCRIPTION

11

3.2 Floppy Connector

The ICPMB-8650 board is equipped with a 34-pin daisy-chain
drive connector cable.

• FDD1 : Floppy Connector

PIN

1 GROUND 2 RWC0-

3 GROUND 4 NC

5 GROUND 6 RWC1-

7 GROUND 8 INDEX-

9 GROUND 10 MO-A
11 GROUND 12 DS-B
13 GROUND 14 DS-A
15 GROUND 16 MO-B
17 GROUND 18 DIR­19 GROUND 20 STEP­21 GROUND 22 WD­23 GROUND 24 WGATE­25 GROUND 26 TRK0­27 GROUND 28 WP­29 GROUND 30 RDATA­31 GROUND 32 HEAD­33 GROUND 34 DSKCHG-

DESCRIPTION PIN

DESCRIPTION

12

3.3 Parallel Port Connector

Usually, a printer is connected to the parallel port. The ICPMB­8650 includes an on-board parallel port

PRN1 : Parallel Port Connector

•

PIN

1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6

9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
17 PRINTER SELECT

19 GROUND 20 GROUND
21 GROUND 22 GROUND
23 GROUND 24 GROUND
25 GROUND

DESCRIPTION PIN

LN#

DESCRIPTION

18 GROUND

13

3.4 Serial Port

The ICPMB-8650 offers Six high speed NS16C550 compatible
UART’s with 16-byte Read/Receive FIFO serial ports.

• COM1: D-SUB Serial Port Connector

PIN DESCRIPTION PIN DESCRIPTION

1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GROUND

COM2,3,4,5,6: Serial Port Connector

•

PIN DESCRIPTION PIN DESCRIPTION

1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GROUND 10 GROUND

14

3.5 Compact Flash Storage Card Socket

The ICPMB-8650 configures Compact Flash Storage Card in IDE
Mode. This type II Socket is compatible with IBM Micro Drive.

CF1 : Compact Flash Storage Card Socket pin assignment

•

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GROUND 26 PULL DOWN
2 D3 27 D11
3 D4 28 D12
4 D5 29 D13
5 D6 30 D14
6 D7 31 D15
7 CS1# 32 CS3#
8 N/C 33 N/C

9 GROUND 34 IOR#
10 N/C 35 IOW#
11 N/C 36 VCC
12 N/C 37 IRQ15
13 VCC 38 VCC
14 N/C 39 MASTER/SLAVE
15 N/C 40 N/C
16 N/C 41 RESET#
17 N/C 42 IORDY
18 A2 43 N/C
19 A1 44 VCC
20 A0 45 ACTIVE#
21 D0 46 PDIAG#
22 D1 47 D8
23 D2 48 D9
24 N/C 49 D10
25 PULL DOWN 50 GROUND

15

1

3.6 IrDA Infrared Interface Port

The ICPMB-8650 comes with an integrated IrDA port which
supports either a Serial Infrared(SIR) or an Amplitude Shift Keyed
IR(ASKIR) interface.

• IR1: IrDA connector

PIN DESCRIPTION

1 VCC
2 NC
3 IR-RX
4 Ground
5 IR-TX
6 CIRRX

3.7 USB Port Connector

The ICPMB-8650 is equipped with Eight USB(Version. 2.0) ports
for the future new I/O bus expansion.

• USB1 : 2 ports USB Connector

PIN DESCRIPTION PIN DESCRIPTION

VCC 5
2
3
4

• USB2 : 2 ports USB Connector

PIN DESCRIPTION PIN DESCRIPTION

1
3
5
7

DATA0- 6

DATA0+ 7

GROUND 8

VCC 2

DATA2- 4

DATA2+ 6

GROUND 8

VCC

DATA1-

DATA1+

GROUND

GROUND

DATA3+

DATA3-

VCC

16

1

1

• USB3 : 2 ports USB Connector

PIN DESCRIPTION PIN DESCRIPTION

VCC 2
3
5
7

• CN2 : 2 ports USB Connector

PIN DESCRIPTION PIN DESCRIPTION

2
3
4

DATA4- 4

DATA4+ 6

GROUND 8

VCC 5

DATA6- 6

DATA6+ 7

GROUND 8

3.8 Keyboard/Mouse Connector

The ICPMB-8650 has a keyboard/mouse connector

KB/MS1 : Keyboard/Mouse Connector

•

PIN DESCRIPTION PIN DESCRIPTION

1 KB DATA 7 MS DATA
2 NC 8 NC
3 GROUND 9 GROUND
4 KB VCC 10
5 KB CLOCK 11 MS CLOCK
6 NC 12 NC

GROUND

DATA5+

DATA5-

VCC

VCC

DATA7-

DATA7+

GROUND

MS VCC

17

3.9 Fan Connector

The ICPMB-8650 also has a CPU with cooling fan connector and
chassis fan connector, which can supply 12V/500mA to the
cooling fan. There is a “rotation” pin in the fan connector, which
transfers the fan’s rotation signal to the system BIOS in order to
recognize the fan speed. Please note that only specific fans offer
a rotation signal.

• FAN1,FAN2 : CPU Fan Connector

PIN

1 Ground
2 +12V
3 Rotation Signal

DESCRIPTION

3.10 Serial ATA Connector

The ICPMB-8650 provide 2 Serial ATA ports to connect with
Serial ATA devices.

• SATA1, SATA2 : Serial ATA Connector

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 S_TXP 3 S_RXN
2 S_TXN 4 S_RXP

18

3.11 VGA Connector

• VGA1: 15-pin Female Connector

PIN DESCRIPTION PIN DESCRIPTION

1 RED 2 GREEN
3 BLUE 4 NC
5 GROUND 6 GROUND
7 GROUND 8 GROUND

9 VCC / NC 10 GROUND
11 NC 12 DDC DAT
13 HSYNC 14 VSYNC
15 DDCCLK

3.12 LAN Connector

The ICPMB-8650 is equipped with Ethernet Controllers
10/100Mbps, which are connected to the LAN via an RJ45 LAN
connector. The pin assignments are as follows:

• CN2 : RJ45 Connector (10/100/1000)

PIN DESCRIPTION PIN DESCRIPTION

L1 TX 0+ L7 TX3+
L2 TX 0- L8 TX3­L3 TX1+ L9 Active +
L4 TX2+ L10
L5 TX2- L11
L6 TX1- L12

Active -

LINK +

LINK -

19

3.13 Audio Connector

The onboard AC’97 CODEC supports several audio functions.
The audio connectors are described below.

CN1 : Audio connector

•

( Line in, Line out, MIC in)

• CN3 : Audio AUX In connector

PIN

1. AUX (LEFT)

2. GROUND

3. GROUND

4. AUX (RIGHT)

• CN4 : Audio CD In connector

PIN

1. CD SIGNAL (LEFT)

2. GROUND

3. GROUND

4. CD SIGNAL (RIGHT)

• CN6 : 5.1 Channel Audio connector

PIN DESCRIPTION PIN DESCRIPTION

1 SUR OUT(L) 2 CEN OUT
3 GROUND 4 GROUND
5 SUR OUT(R) 6 LFE OUT
7 GROUND

DESCRIPTION

DESCRIPTION

20

• CN7 : Front Panel Audio connector

PIN DESCRIPTION PIN DESCRIPTION

1 MIC IN 2 GROUND
3 MIC BIAS 4 5V
5 LINE OUT(R)

7 NC
9 LINE OUT(L) 10 LINE OUT (L)

• CN8 : S/PDIF connector

PIN

1. 5V

3. S/PDIF OUT

4. GROUND

5. S/PDIF IN

6 LINE OUT (R)

DESCRIPTION

3.14 ATX +12V Power connector

• CN5: ATX +12V Power connector

PIN

1. GROUND

2. GROUND

3. +12V

4. +12V

DESCRIPTION

Return

Return

21

3.15 iButton connector

• CN9: I button connector

PIN DESCRIPTION PIN DESCRIPTION

1

iButton

input/output

3.16 Digital I/O connector

• CN10: Digital I/O connector

PIN DESCRIPTION PIN DESCRIPTION

1
3
5
7

9
11
13
15
17

DGPI0 2
DGPI1 4
DGPI2 6
DGPI3 8
DGPI4 10
DGPI5 12
DGPI6 14
DGPI7 16

GROUND 18

2

GROUND

DGPO0
DGPO1
DGPO2
DGPO3
DGPO4
DGPO5
DGPO6
DGPO7

VCC

22

3.17 External Switches and Indicators

There are several external switches and indicators for monitoring
and controlling your CPU board. All functions are in the
CN11connector.

CN11 : Pin Assignment and Functions

•

FUNCTION PIN

BUZZER

BUTTON

2 BUZZER ­4 NC
6 NC

8 VCC
10 RESET RESET
12 GROUND

9 IDE_LED+ HDD LED
11 IDE_LED-

1 LED+ POWER LED

3 LED-(GROUND)

5 VCC POWER

7 POWER BUTTON

DESCRIPTION

23

1

3.18 RS422/485 connector

• CN12: RS422/485 connector

PIN

1. TX+

2. TX -

3. RX+

4. RX -

DESCRIPTION

3.19 ATX Power connector

• ATX1: ATX Power connector

PIN DESCRIPTION PIN DESCRIPTION

VCC3 11
2 VCC3 12 -12V
3
4
5
6 5V 16 GROUND
7
8 POWER GOOD 18
9

10

GROUND 13

5V 14

GROUND 15

GROUND 17

5VSB 19

+12V 20

VCC3

GROUND

PS-ON

GROUND

GROUND

NC

5V
5V

24

4

Award BIOS Setup

4.1 Introduction

This chapter discusses the Setup program written in the BIOS. It will
give you a step-by-step guidance to configure your system. The user­defined configuration is then stored in battery -backed CMOS RAM, which
retains the customized information while the power is off.

4.2 Starting Setup

The BIOS is immediately active when you turn on the computer. While
the BIOS is in control, the Setup program can be activated in one of two
ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears at
the bottom of the screen during POST (Power On Self-Test):

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter
Setup, restart the system to try again by turning it OFF then ON or
pressing the "RESET" button on the system case. You may also restart
by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do
not press the keys at the correct time and the system does not boot, an
error message will be displayed and you will again be asked to...

PRESS F1 TO CONTINUE, DEL TO ENTER SETUP

25

4.3 Using Setup

In general, you can use the arrow keys to highlight items, press <Enter>
to select, use the PageUp and PageDown keys to change entries, press
<F1> for help and press <Esc> to quit. The following table provides more
details about how to navigate in the Setup program using the keyboard.

Key Function
Up Arrow Move to the previous item
Down Arrow
Left Arrow Move to the item on the left (menu bar)
Right Arrow
Esc Main Menu: Quit without saving changes

Move Enter Move to the item you desired
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes

- key Decrease the numeric value or make changes
Esc key Main Menu -- Quit and save no changes into CMOS

F1 key General help on Setup navigation keys
F5 key Load previous values from CMOS
F6 key Load the fail-safe defaults from BIOS default table
F7 key Load the optimized defaults
F10 key Save all the CMOS changes and exit

Move to the next item

Move to the item on the right (menu bar)

Submenus: Exit Current page to the next higher level
menu

Status Page Setup Menu and Option Page Setup
Menu -- Exit current page and return to Main Menu

26

4.4 Main Menu

Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu
will appear on the screen. The Main Menu allows you to select from
several setup functions and two exit choices. Use the arrow keys to go
through the items and press <Enter> to accept and enter the sub-menu.

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

4.4.1 Setup Items

The main menu includes the following main setup categories. Rec all that
some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration. See Section 4.5 for the
details.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.
See Section 4.6 for the details.

27

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize
your system's performance. See section 4.7 for the details.

Integrated Peripherals

Use this menu to configure your settings for integrated peripherals. See
section 4.8 for the details.

Power Management Setup

Use this menu to configure your settings for power management. See
section 4.9 for the details.

PnP / PCI Configuration

This entry appears if your system supports PnP / PCI. See section 4.10
for the details.

PC Health Status

Use this menu to monitor your hardware. See section 4.11 for details.

Frequency/Voltage Control

Use this menu to configure your settings for frequency/voltage control.
See section 4.12 for the details.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable
performance for your system to operate. See section 4.13 for the details.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory set tings
for optimal performance system operations. While Award has designed
the custom BIOS to maximize performance, the factory has the right to

28

change these defaults to meet their needs. See section 4.14 for the
details.

Set Password

Use this menu to set Passwords. See section 4.15 for the details.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup. See section 4.16
for the details.

Exit Without Save

Abandon all CMOS value changes and exit setup. See section 4.15 for
the details.

4.5 Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 categories.
Each category includes no, one or more than one setup items. Use the
arrow keys to highlight the item and then use the <PgUp> or <PgDn>
keys to select the value you want in each item.

Item Options Description

Date MM DD YYYY Set the system date.

29

Time HH : MM : SS Set the system time
IDE
Primary Master

IDE
Primary Slave

IDE
Secondary Master

IDE
Secondary Slave

Drive A
Drive B

Video EGA/VGA

Halt On All Errors

Base Memory N/A Displays the amount of

Extended Memory N/A Displays the amount of

Total Memory N/A Displays the total memory

IDE HDD Auto­detection

Options are in its sub
menu
(described in Table 3)
Options are in its sub
menu
(described in Table 3)
Options are in its sub
menu
(described in Table 3)
Options are in its sub
menu
(described in Table 3)
None
360K, 5.25 in

1.2M, 5.25 in
720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

CGA 40
CGA 80
MONO

No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key

Press Enter Press Enter to auto-detect

Press <Enter> to enter the
sub menu of detailed
options
Press <Enter> to enter the
sub menu of detailed
options
Press <Enter> to enter the
sub menu of detailed
options
Press <Enter> to enter the
sub menu of detailed
options
Select the type of floppy
disk drive installed in your
system

Select the default video
device

Select the situation in which
you want the BIOS to stop
the POST process and
notify you

conventional memory
detected during boot up

extended memory detected
during boot up

available in the system

the HDD on this channel. If
detection is successful, it
fills the remaining fields on

30

IDE Primary Master None

Auto
Manual

Capacity Auto Display your disk

drive size

Access Mode CHS

LBA
Large
Auto

4.6 Advanced BIOS Features

this menu.
Selecting ‘manual’ lets you
set the remaining fields on
this screen. Selects the
type of fixed disk. "User
Type" will let you select the
number of cylinders, heads,
etc. Note:
PRECOMP=65535 means

NONE !
Disk drive capacity
(Approximated). Note that
this size is usually slightly
greater than the size of a
formatted disk given by a
disk checking program.
Choose the access mode
for this hard disk

This section allows you to configure your system for basic operation.
You have the opportunity to select the system’s default speed, boot-up
sequence, keyboard operation, shadowing and security.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempt to
write data into this area, BIOS will show a warning message on screen
and alarm beep.

31

Enabled Activates automatically when the system boots up

causing a warning message to appear when anything
attempts to access the boot sector or hard disk partition
table.

Disabled No warning message will appear when anything attempts

to access the boot sector or hard disk partition table.

Hard Disk Boot Priority

This setting is to select hard disk boot priority

CPU L1 & L2 Cache

These two categories speed up memory access. However, it depends on
CPU/chipset design.

Enabled Enable cache
Disabled Disable cache

Hyper-Threading Technology

This setting is to enable or disable hyper threading CPU support

Quick Power On Self Test

This category speeds up Power On Self Test (POST) after you power up
the computer. If it is set to Enable, BIOS will shorten or skip some
check items during POST.

32

Enabled Enable quick POST
Disabled Normal POST

First/Second/Third/Other Boot Device

The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.

The Choice: Floppy, LS120, HDD0-3, SCSI, CDROM, ZIP 100 , LAN,
Disabled.

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive name
assignments.

The choice: Enabled/Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot up. Disabling speeds boot up.

The choice: Enabled/Disabled.

Boot Up NumLock Status

Select power on state for NumLock.
The choice: On/Off.

Gate A20 Option

Select if chipset or keyboard controller should control GateA20.

Normal A pin in the keyboard controller controls GateA20
Fast Lets chipset control GateA20

Typematic Rate Setting

Key strokes repeat at a rate determined by the keyboard controller.
When enabled, the typematic rate and typematic delay can be selected.

33

The choice: Enabled/Disabled.

Typematic Rate (Chars/Sec)

Sets the number of times a second to repeat a key stroke when you hold
the key down.

The choice: 6, 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat
the keystroke.

The choice: 250, 500, 750, 1000.

Security Option

Select whether the password is required every time the system boots or
only when you enter setup.

System The system will not boot and access to Setup will be

denied if the correct password is not entered at the prompt.

Setup The system will boot, but access to Setup will be denied if

the correct password is not entered at the prompt.

Note: To disable security, select PASSWORD SETTING at Main Menu
and then you will be asked to enter password. Do not type anything and
just press <Enter>, it will disable security. Once the security is disabled,
the system will boot and you can enter Setup freely.

OS Select For DRAM > 64M B

Select the operating system that is running with greater than 64MB of
RAM on the system.

The choice: Non-OS2, OS2.

Small Logo(EPA) Show

Disabled/Enabled Small Logo(EPA) Show

34

4.7 Advanced Chipset Features

This section allows you to configure the system based on the specific
features of the installed chipset. This chipset manages bus speeds and
access to system memory resources, such as DRAM and the external
cache. It also coordinates communications between the conventional
ISA bus and the PCI bus. It must be stated that these items should
never need to be altered. The default settings have been chosen
because they provide the best operating conditions for your system.

DRAM Timing Selectable

The first chipset settings deal with CPU access to dynamic random
access memory (DRAM). The default timings have been carefully
chosen and should only be altered if data is being lost. Such a scenario
might well occur if your system had mixed speed DRAM chips installed
so that greater delays may be required to preserve the integrity of the
data held in the slower memory chips.

CAS Latency Time

When synchronous DRAM is installed, the number of clock cycles of
CAS latency depends on the DRAM timing.

The Choice: 1.5 , 2, 2.5 , 3

35

DRAM RAS# to CAS# Delay

This field lets you insert a timing delay between the CAS and RAS strobe
signals, used when DRAM is written to, read from, or refreshed. Fast
gives faster performance; and Slow gives more stable performance. This
field applies only when synchronous DRAM is installed in the system.

The Choice: 2, 3.

DRAM RAS# Precharge

If an insufficient number of cycles is allowed for the RAS to accumulate
its charge before DRAM refresh, the refresh may be incomplete and the
DRAM may fail to retain data. Fast gives faster performance; and Slow
gives more stable performance. This field applies only when
synchronous DRAM is installed in the system.

The Choice: 2, 3.

DRAM Frequency For

This field displays the capability of the memory modules that you are
using either H/W TRAP.

The choice: Auto, DDR266, DDR333, DDR400.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h­FFFFFh, resulting in better system performance. However, if any
program writes to this memory area, a system error may result.

The choice: Enabled, Disabled.

Video BIOS Cacheable

Select Enabled allows caching of the video BIOS , resulting in better
system performance. However, if any program writes to this memory
area, a system error may result.

The Choice: Enabled, Disabled.

36

Memory Hole At 15M -16M

You can reserve this area of system memory for ISA adapter ROM.
When this area is reserved, it cannot be cached. The user information of
peripherals that need to use this area of system memory usually
discusses their memory requirements.

The Choice: Enabled, Disabled.

AGP Aperture Size (MB)

Select the on-chip video window size for VGA drive use.

The Choice: 4MB, 8MB, 16MB, 32MB, 64MB, 128MB,
256MB

On-chip VGA

Enabled/Disabled On-chip VGA

4.8 Integrated Peripherals

37

38

On-Chip Primary/Secondary PCI IDE

The integrated peripheral controller contains an IDE interface with support
for two IDE channels. Select Enabled to activate each channel
separately.

The choice: Enabled, Disabled.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE interface
supports. Modes 0 through 4 provide successively increased performance.
In Auto mode, the system automatically determines the best mode for
each device.

The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

IDE Primary/Secondary Master/Slave UDMA

Ultra DMA-33/66 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If your hard
drive and your system software both support Ultra DMA-33/66, select
Auto to enable BIOS support.

39

The Choice: Auto, Disabled.

On-Chip Serial ATA

[Disable] : Disable SATA controller.
[Combined] : SATA and PATS are combined. Max. of 2 IDE drivers in

each channel.

[Enhanced] : Enhanced both SATA and PATA. Max. of 6 IDE drivers are

support.

[SATA only] : SATA is operating in legacy mode.

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals.

The Choice: Enabled, Disabled.

USB Keyboard Support

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.

The Choice: Enabled, Disabled.

AC97 Audio

This item allows you to decide to enable/disable the ALC202A chipset
The choice: Auto, Disabled.

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed
on the system board and you wish to use it. If you install and-in FDC or
the system has no floppy drive, select Disabled in this field.

40

The choice: Enabled, Disabled

Onboard Serial Port 1/Port 2

Select an address and corresponding interrupt for the first and second
serial ports.

The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled,
Auto

UART Mode Select

Select a serial port 2 operation mode.
The choice: Normal, IrDA, ASKIR, SCR

Onboard Parallel Port

Select an address and corresponding interrupt for the parallel ports.
The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled,

Parallel Port Mode

Select a parallel operation mode.
The choice: SPP, EPP, ECP,ECP+EPP

Watchdog Timer Unit Select

Select the WatchDog Timer unit.

The choice: Second, Minute

41

4.9 Power Management Setup

The Power Management Setup allows you to configure you system to
most effectively save energy while operating in a manner consistent with
your own style of computer use.

ACPI Function

This feature is switch of ACPI function. Configuration options:
Enable/Disable.

ACPI Suspend Type

This feature is switch of POS (S1) or STR (S3) function. Configuration
options: [S1<POS>] [S3<STR>] [S1&S3] .

42

Power Management

This category allows you to select the type (or degree) of power saving
and is directly related to the following modes:

Min. Power Saving Minimum power management. Doze Mode = 1 hr.

Standby Mode = 1 hr., Suspend Mode = 1 hr., and
HDD Power Down = 15 min.

Max. Power Saving Maximum power management -- ONLY AVAILABLE

FOR SL CPU’s . Doze Mode = 1 min., Standby Mode
= 1 min., Suspend Mode = 1 min., and HDD Power
Down = 1 min.

User Defined Allows you to set each mode individually. When not

disabled, each of the ranges are from 1 min. to 1 hr.
except for HDD Power Down which ranges from 1 min.
to 15 min. and disable.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization
ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video

buffer.

DPMS Initial display power management signaling.

Video Off In Suspend

This determines the manner in which the monitor is blanked.
The choice: Yes, No.

Suspend Type

Select the Suspend Type.
The choice: PWRON Suspend, Stop Grant.

43

Suspend Mode

When enabled and after the set time of system inactivity, all devices
except the CPU will be shut off.

The choice: 1Min, 2Min, 4Min, 8Min, 12Min, 20Min, 30Min, 40Min, 1Hour,
Disabled

HDD Power Down

When enabled and after the set time of system inactivity, the hard disk
drive will be powered down while all other devices remain active.

The choice: 1Min, 2Min, 3Min, 4Min, 5Min, 6Min, 7Min, 8Min, 9Min,
10Min, Disabled.

Soft-off By PWR-BTTN

Instant-off allows the system to switch off immediately the power button
is pressed. Otherwise, it will only so after you press the power switch for
more 4 seconds.

Wakeup By PCI Card

When this option is set enabled, system will wakeup then wakeup event
from PCI Card.

Resume By Alarm

When this option is set enabled, system will according to you
set time then wakeup from soft off mode.

44

4.10 PnP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal
Computer Interconnect, is a system which allows I/O devices to operate

at speeds nearing the speed the CPU itself uses when communicating
with its own special components. This section covers some very
technical items and it is strongly recommended that only experienced
users should make any changes to the default settings.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit Setup if you
have installed a new add-on and the system reconfiguration has caused
such a serious conflict that the operating system can not boot.

The choice: Enabled, Disabled .

Resource controlled by

The Award Plug and Play BIOS has the capacity to automatically
configure all of the boot and Plug and Play compatible devices. However,

45

this capability means absolutely nothing unless you are using a Plug and
Play operating system such as Windows 95. If you set this field to
“manual” choose specific resources by going into each of the sub menu
that follows this field (a sub menu is preceded by a “Ø”).

The choice: Auto(ESCD), Manual.

PCI/VGA Palette Snoop

Leave this field at Disabled.
Choices are Enabled, Disabled.

4.11 PC Health Status

Note: normal CPU Fan RPM is over than 5000 RPM. If your CPU Fan
RPM is less than that figure, something is wrong and the CPU will be in
overheat condition. Make sure that the connection at Fan1/Fan2 is
correct.

46

4.12 Frequency/Voltage Control

Auto Detect DIMM/PCI Clk

This item allows you to enable/disable auto detect DIMM/PCI Clock.
The choice: Enabled, Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulate.
The choice: Enabled, Disabled.

47

4.13 Load Fail-Safe Defaults

When you press <Enter> on this item you get a confirmation dialog box
with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing ‘Y’ loads the BIOS default values for the most stable, minimal­performance system operations.

4.14 Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box
with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing ‘Y’ loads the default values that are factory settings for optimal
performance system operations.

48

4.15 Set Password

can enter and change the options of the setup menus.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>.

The password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press <Enter>. You may also press <Esc> to abort
the selection and not enter a password.

To disable a password, just press <Enter> when you are prompted to
enter the password. A message will confirm the password will be
disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.

PASSWORD DISABLED:
When a password has been enabled, you will be prompted to enter it

every time you try to enter Setup. This prevents an unauthorized person
from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS
to request a password every time your system is rebooted. This would
prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features
Setup Menu and its Security option (see Section 3). If the Security
option is set to password will be required both at boot and at entry to
Setup. If set to “Setup”, prompting only occurs when trying to enter
Setup.

49

4.16 Exit Selecting

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y
Pressing “Y” stores the selections made in the menus in CMOS – a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your system
according to the Setup selections stored in CMOS. After saving the
values the system is restarted again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y
This allows you to exit Setup without storing in CMOS any change. The
previous selections remain in effect. This exits the Setup utility and
restarts your computer.

50

Appendix A. Watchdog Timer

The Watchdog Timer is provided to ensure that standalone systems can
always recover from catastrophic conditions that cause the CPU to
crash. This condition may have occurred by external EMI or a software
bug. When the CPU stops working correctly, hardware on the board will
either perform a hardware reset (cold boot) or a Non-Maskable Interrupt
(NMI) to bring the system back to a known state.

A BIOS function call (INT 15H) is used to control the Watchdog Timer:

INT 15H:

AH – 6FH

Sub-function:

AL – 2 : Set the Watchdog Timer’s period
BL : Time-out value(Its unit--second or minute, is
dependent on the item “Watchdog Timer unit

select” in CMOS setup).

You have to call sub-function 2 to set the time-out period of Watchdog
Timer first. If the time-out value is not zero, the Watchdog Timer will start
counting down. While the timer value reaches zero, the system will reset.
To ensure that this reset condition does not occur, the Watchdog Timer
must be periodically refreshed by calling sub-function 2. However the
Watchdog timer will be disabled if you set the time-out value to be zero.

A tolerance of at least 10% must be maintained to avoid unknown
routines within the operating system (DOS), such as disk I/O that
can be very time-consuming.

Note: when exiting a program it is necessary to disable the Watchdog

Timer, otherwise the system will reset.

51

Example program:

; INITIAL TIMER PERIOD COUNTER

;

W_LOOP:

MOV AX, 6F02H ;setting the time-out value

MOV BL, 30 ;time-out value is 48 seconds

INT 15H

;

; ADD YOUR APPLICATION PROGRAM HERE

;

CMP EXIT_AP, 1 ;is your application over?

JNE W_LOOP ;No, restart your application

MOV AX, 6F02H ;disable Watchdog Timer

MOV BL, 0 ;

INT 15H

;

; EXIT

;

52

Appendix B. Address Mapping

IO Address Map

I/O address Range Description

000-01F DMA Controller

020-021 Interrupt Controller
040-05F System time
060-06F Keyboard Controller
070-07F System CMOS/Real time Clock
080-09F DMA Controller

0A0-0A1 Interrupt Controller

0C0-0DF DMA Controller

0F0-0FF Numeric data processor

1F0-1F7 Primary IDE Channal

2E8-2EF Serial Port 4 (COM4)

2F8-2FF Serial Port 2 (COM2)

378-37F Parallel Printer Port 1 (LPT1)

3B0-3BB Intel(R) 82865 Graphics Controller
3C0-3DF Intel(R) 82865 Graphics Controller
3E8-3EF Serial Port 3 (COM3)

3F6-3F6 Primary IDE Channal
3F7-3F7 Standard floopy disk controller

3F8-3FF Serial Port 1 (COM1)

4E8-4EF Serial Port 5 (COM5)

4F8-4FF Serial Port 6 (COM6)

53

1st MB Memory Address Map

Memory address Description

00000-9FFFF System memory
A0000-BFFFF VGA buffer
F0000-FFFFF System BIOS
1000000- Extend BIOS

*Default setting

IRQ Mapping Table

IRQ0 System Timer IRQ8 RTC clock
IRQ1 Keyboard IRQ9 AUDIO/SMBus Cntrlr
IRQ2 Available IRQ10 COM4/COM6
IRQ3 COM2 IRQ11 COM3/COM5
IRQ4 COM1 IRQ12 PS/2 mouse
IRQ5 VGA/SMBus Cntrlr IRQ13 FPU
IRQ6 FDC IRQ14 Primary IDE
IRQ7 Available IRQ15 Secondary IDE

DMA Channel Assignments

Channel Function

0 Available
1 Available
2 Floppy disk ( 8-bit transfer )
3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available

54

Appendix C. How to Upgrade a New
BIOS

<Note> Before flashing BIOS , please enable the item
“FLASH BIOS” in BIOS setting.

You can install an upgrade BIOS for the SAGP-865EVG that you can
download from the manufacturer’s web site
( http://www.ieiworld.com ). New BIOS may provide support for new
peripherals ,improvements in performance or fixes to addressed
known bugs.

BIOS Update Procedure:

1. Make a boot disk. Go to the DOS command prompt in MS­DOS or Windows 9x and, with an available floppy disk in "A", type
"format A: /s" That will format the floppy and transfer the needed
system files to it.

NOTES:
A. This procedure will erase any prior data on that floppy, so
please Proceed accordingly.
B. Typically four files will be transferred, only COMMAND.COM
being visible when running a simple directory listing.
C. Please leave the diskette UN-write protected for the balance of
this procedure.

2. Download the BIOS upgrade file and awdflash.exe utility from a
ICP web site to a temp directory on your hard drive, or directly to
the floppy you made in step 1..

3. Copy ( BIOS file and awdflash.exe )two files to the boot floppy.

4. Reboot the system to the DOS command prompt using the
boot diskette you just made.

55

5. At the DOS command prompt type , "awdflash filename.xxx",
where filename.xxx is the file name of the BIOS file . Hit enter.

6. Your first option, in sequence, will be to save the old BIOS. We
recommend that you do that in case, for whatever reason, you
decide you don't wish to use the new version once it is installed.
NOTES:
A. If you decide to save the old BIOS, PLEASE make sure you do
NOT save it to the same file name as the new BIOS - if you use
the same BIOS name the old file will be written over the new file
with NO warning prompt. A simple file name to save the old BIOS
to is OLDBIOS.BIN.
B. If you do NOT decide to save the old BIOS, PLEASE at least
write down the version number of the old BIOS and store that
information with your important computer documents. Enter N
(for "no") and skip to step 9.

7. To save the old BIOS, hit Y (for "yes")

8. Enter a name for the OLD BIOS file and hit enter.
NOTE:PLEASE be sure you do NOT save the old BIOS file to the
same file name as the new BI OS - if you use the same BIOS
name, the old file will write over the new BIOS file WITHOUT a
warning prompt. A simple file name for saving the old BIOS to is
OLDBIOS.BIN.

9. Your second option, in sequence, will be whether you want to
flash your BIOS. Enter Y (for "yes").
NOTE: This is the critical step. Once you kit the enter key, do
NOT touch the keyboard, the reset button, or power switch while
the flashing is in progress. There will be bar progressing across
the screen while the flashing is progressing.

10. When the flashing process is complete, you will be asked to
reset or power off the system. Remove the floppy diskette from
the floppy drive and either hit the reset button or the power button.

11. Reboot the system and note that the BIOS version on the

56

initial boot-up screen has changed to the new BIOS version. Your
BIOS upgrade is now complete.

Recovering Your Old BIOS:

1. Assuming you have the floppy made during the upgrade
procedure noted above, boot the system with that diskette in the
floppy drive. If you do not have floppy made during the upgrade
procedure noted above, you will need to repeat steps 1 though 3
(above) for the version of the BIOS you wish to recover to.

2. Complete steps 4, 5, 6B, 9, 10, and 11 (above) substituting the
name of the BIOS you wish to recover for the upgrade BIOS at
step 5.

Install screen :

57

Appendix D. Install memory modules

ICPMB-8650 has four dual in line memory module (DIMM) sockets . The
BIOS will automatically detects memory type and size. To ins tall the
memory module, just push it vertically into the DIMM socket. The DIMM
module can only fit in one direction due to the notch. Memory size can
vary between sockets.

ICPMB-8650 supports the Dual Channel Technology. After operating the
Dual Channel Technology, the bandwidth of Memory Bus will add
double up to 6.4GB/s.
ICPMB-8650 includes 4 DIMM sockets, and each Channel has two DIMM
socket.

If you want to operate the Dual Channel Technology, please note the
following explanations due to the limitation of Intel® chipset
specifications.

1. Only one DDR memory module is installed: The Dual Channel
Technology can't operate when only one DDR memory module is
installed.

2. Two DDR memory modules are installed (the same memory size and
type): The Dual Channel Tec hnology will operate when two memory
modules are inserted individually into Channel A and B

58
