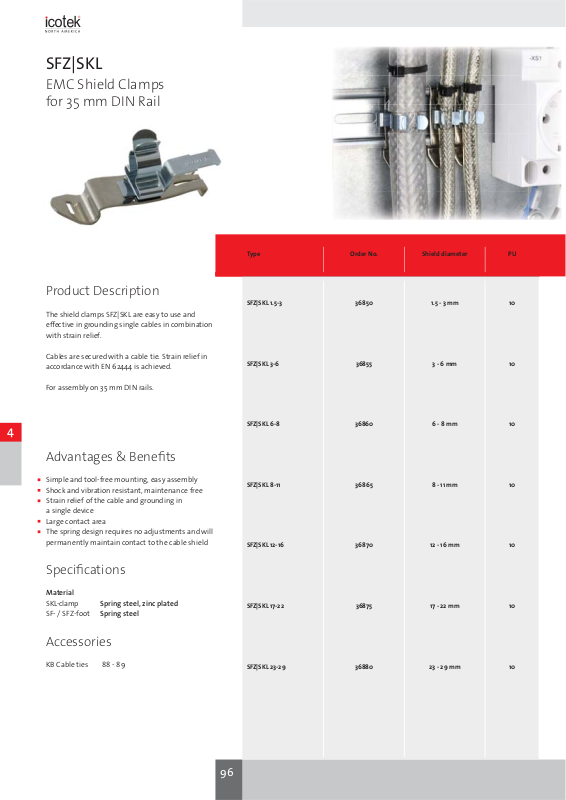

Icotek SFZ, SKL Catalog Page

SFZ|SKL

EMC Shield Clamps
for 35 mm DIN Rail

Product Description

The shield clamps SFZ|SKL are easy to use and
e ective in grounding single cables in combination
with strain relief.

Type Order No. Shield diameter PU

SFZ|SKL 1.5-3 36850 1.5 - 3 mm 10

Cables are secured with a cable tie. Strain relief in
accordance with EN 62444 is achieved.

For assembly on 35 mm DIN rails.

SFZ|SKL 3-6 36855 3 - 6 mm 10

SFZ|SKL 6-8 36860 6 - 8 mm 10

4

Advantages & Bene ts

Simple and tool-free mounting, easy assembly
Shock and vibration resistant, maintenance free
Strain relief of the cable and grounding in
a single device
Large contact area
The spring design requires no adjustments and will
permanently maintain contact to the cable shield

SFZ|SKL 8-11 36865 8 - 11 mm 10

SFZ|SKL 12-16 36870 12 - 16 mm 10

Speci cations

Material

SKL-clamp
SF- / SFZ-foot

Spring steel, zinc plated
Spring steel

SFZ|SKL 17-22 36875 17 - 22 mm 10

Accessories

KB Cable ties 88 - 89

SFZ|SKL 23-29 36880 23 - 29 mm 10
