up to
ISO 4892-2A
Page 166

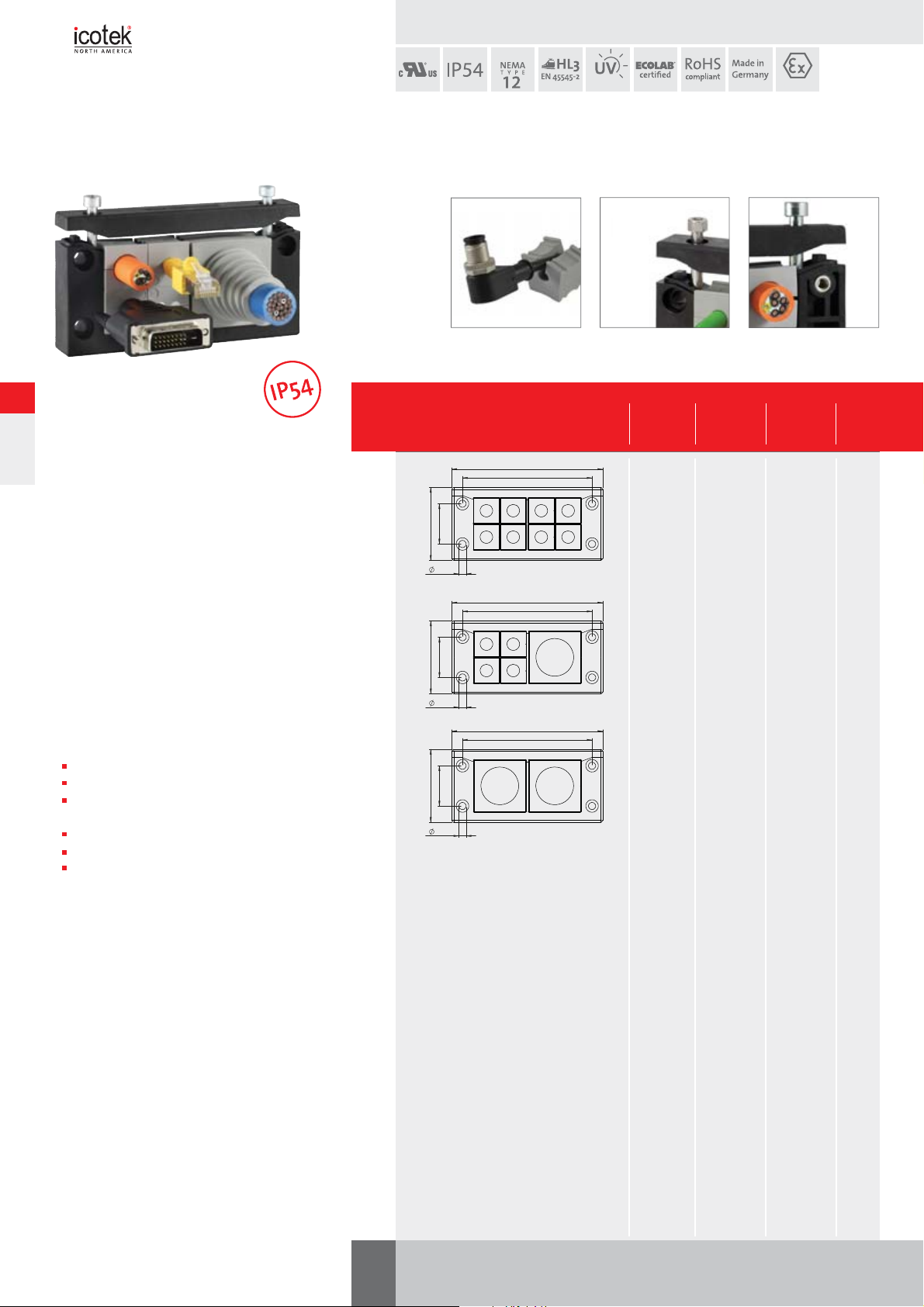

KEL-U 16
Cable Entry Frames
V2A
anti-corrosive
Slit grommets
Also available with stainless
steel screws (V2A).
1
Description Type Order No. Grommets PU
120
Product Description
Split cable entry system for routing cables with connectors, providing an IP54 / up to NEMA type 12 rating.
Routing, sealing and providing strain relief for cable
diameters from 2 to 35 mm. The new cable entry
system is easy to install. Cable grommets are placed into
compartments in the frame and are securely xed to
the frame during assembly. The KEL-U 16 frame matches
exactly the cut-out dimensions for 16-pin standard industrial connectors. Either a cut-out of 36 mm or 46 mm
in height can be chosen depending on the cables being
routed. A at rubber gasket is included in the shipment.
Advantages & Bene ts
58
5,8
58
5,8
32
32
103
120
103
120
103
KEL-U 16|8 54168 8|- 10
KEL-U 16|8
with V2A screws
KEL-U 16|5 54165 4|1 10
KEL-U 16|5
with V2A screws
Also available with threaded
bushings.
small | large
54168.200 8|- 10
54165.200 4|1 10
Fast and easy assembly
Warranty on pre-terminated cables remains
Retro ts, repairs and maintenance can be done much
more easily and quickly
High cable density, wide variety of grommets
Strain relief according to EN 62444
High stability, vibration resistant
Speci cations
Material
Flame class
IP rating
NEMA type rating
Temperature
Properties
Cut-out dimensions
Frame depth
Polyamide (PA)
UL94-V0
IP54, with gasket and correct
selection of cable grommets
(certi ed acc. to EN 60529)
NEMA type 12 (acc. to UL 50E)
- 40°C to + 140°C (static)
- 40°F to + 284°F (static)
Halogen-free, silicone-free
36/46 × 86 mm / Page 192 - 193
17 mm
Accessories
Cable grommets
KEL-SNAP Mounting frames
KEL-EMC Grounding mounts
KDR Base plates
FP Flange plates
44 - 48
36 - 37
122 - 124
142 - 151
152 - 157
10
58
5,8
KEL-U 16|2 54162 -|2 10
32
KEL-U 16|2
with V2A screws
54162.200 -|2 10
