ICOP 20/20 VISION™
JUMP START NOTICE
Prior to jump-starting a dead battery, the AM/FM radio fuse and the
Accessory fuse that provides power to the DVR must be pulled from
the vehicle fuse box. Failure to remove this fuse may cause
damage to the ICOP 20/20 VISION and void your warranty.
IMPORTANT
You must shut down the ICOP 20/20 VISION software before
removing the USB cable from the MDT. Failure to shut down the
software application could result in instability of the Windows
operating system.
Note: The software can be quickly shut down by pressing Alt-X
when the VISION application is the active window.
Revision: 005 6 August, 2011
SUPERVISOR SETUP MANUAL
BEFORE YOU BEGIN
The information in this document intends to give supervisors a cursory knowledge
of the ICOP 20/20 VISION, and the user privileges that can be set. For more
information regarding the functionality available with the DVR, please see the ICOP
20/20 VISION User Manual (Part Number 700-00271).
The ICOP 20/20 VISION allows you to connect to a Mobile Data Terminal (MDT)
where you can view and use system functionality.
You can navigate the ICOP 20/20 VISION by clicking the keys found on the on
screen VISION control, or by pressing the appropriate keys on the MDT keyboard.
The ICOP 20/20 VISION also supports the use of a touch screen when connected
to an MDT that contains touch screen monitor functionality. To use ICOP 20/20
VISION functionality on a touch screen, press the keys on the on screen VISION
control.
Selecting Display Language
ICOP 20/20 VISION screens can be displayed in three different languages; English,
Spanish, and Arabic.
You can select the display language by pressing and holding CTRL, then 1, 2, and
then 3 keys on the MDT keyboard while the unit is powering on.
Revision: 005 7 August, 2011
ICOP 20/20 VISION™
SYSTEM REQUIREMENTS
32 bit Microsoft Vista or Microsoft XP operating system
Minimum resolution of (800x600)
Minimum 1.8 GHz processor
Minimum 1 GB of RAM for XP or 2 GB of RAM for Vista
USB 2.0 High-Speed Port
Note: If using a USB hub, the hub must be externally powered and the ports
on the hub must be USB 2.0 high-speed ports.
Revision: 005 8 August, 2011
SUPERVISOR SETUP MANUAL
POWER ON SETTING SWITCH
The ICOP 20/20 VISION can be powered on two different ways: using the ignition,
or by turning it on manually. To select how the unit is powered on, you must place
the power on setting switch in one of two positions.
Note: The Power On Setting Switch can be set only by the installer during initial installation;
therefore it cannot be changed by users.
Sticker on back of DVR Fig. 1
Fig. 1-1
Fig. 1-2
Revision: 005 9 August, 2011
ICOP 20/20 VISION™
Ignition Power
While viewing the ICOP 20/20 VISION from the front, place the Power On Setting
Switch in the left position (position 1) as shown in Fig. 1-1. The ICOP 20/20 VISION
powers on automatically when the vehicle ignition is turned on, but can still be
powered on manually when the ignition is not turned on.
The ICOP 20/20 VISION has a power-saver mode that turns off the unit when no
function is used for the amount of time set in the Poweroff Timeout section of the
System screen. This setup overrides the power-saver functionality while the ignition
is turned on. When the ignition is turned off, power-saver mode activates after the
last function has been performed by the unit.
Note: When a recording is activated, the ICOP 20/20 VISION continues to record even when
the ignition is turned off. The recording must stopped for power-saver mode to be
activated.
Note: When the ignition is turned off, the key is removed, and the radio is left on, power-
saver mode activates and the radio is shuts off after the amount of time set in the
Poweroff Timeout section of the System setup elapses after non-usage.
Manual Power
While looking at the ICOP 20/20 VISION from the front, place the switch in the right
position (setting 2) as shown in Fig. 1-2. When the Power On Setting Switch is set
to manual power, the unit must be manually powered on and off regardless of
whether or not the ignition is turned on.
Note: When a recording is activated, the ICOP 20/20 VISION continues to record even when
the ignition is turned off. The recording must stopped for power-saver mode to be
activated.
Whether the switch is in position 1 or 2, the ICOP 20/20 VISION must be turned off manually.
Power-saver functionality takes affect after the last function has been performed by the unit.
Important
Revision: 005 10 August, 2011
SUPERVISOR SETUP MANUAL
FACEPLATE OVERVIEW
Front View of the ICOP 20/20 VISION (Fig. 2)
Power: Powers the ICOP 20/20 VISION on and off manually.
To power off the ICOP 20/20 VISION, press and hold
Power for three seconds or until you hear a beep, then
immediately release the key.
Note: Holding Power for too long, or after the beep sounds
resets the ICOP 20/20 VISION.
Eject: Opens the faceplate and allows you to remove the drive
module (DM) from the ICOP 20/20 VISION.
Note: The Eject LED flashes while the unit is recording.
Pressing Eject while the unit is recording stops the
recording.
Revision: 005 11 August, 2011
ICOP 20/20 VISION™
POWERING ON THE ICOP 20/20 VISION
To power on the ICOP 20/20 VISION, complete the following steps:
Step 1 Double-click the ICOP 20/20 VISION icon ( ) found on the
desktop or single-click the icon in system tray. The ICOP 20/20
VISION interface appears.
Step 2 Click Power ( ). The ICOP 20/20 VISION powers on and
initializes.
Revision: 005 12 August, 2011
SUPERVISOR SETUP MANUAL
ICOP 20/20 VISION INITIALIZATION
After the ICOP 20/20 VISION is powered on it goes through an initialization
process. During this process the unit locates the last recorded event and searches
for a starting point. When a starting point it is found the monitor shows the
following information:
Initialization Screen Contents
13H: Total Accumulated HDDM time of recordings
11:29:47: Record time left on the HDDM
M0140, D0130, F2049: Software version currently in use
Revision: 005 13 August, 2011
ICOP 20/20 VISION™
LOGGING IN AS A SUPERVISOR
To access the Supervisor Menu, complete the following steps:
Note: You can access the Input User Password screen when the DVR initializes after being
powered on; or by opening the Main Menu screen and selecting User Password.
Step 1 On the Input User Password screen, press and hold down the Tilde
(~) and F1 keys on the MDT keyboard until a beep is heard and the
Input Supervisor Password screen appears.
Revision: 005 14 August, 2011
SUPERVISOR SETUP MANUAL

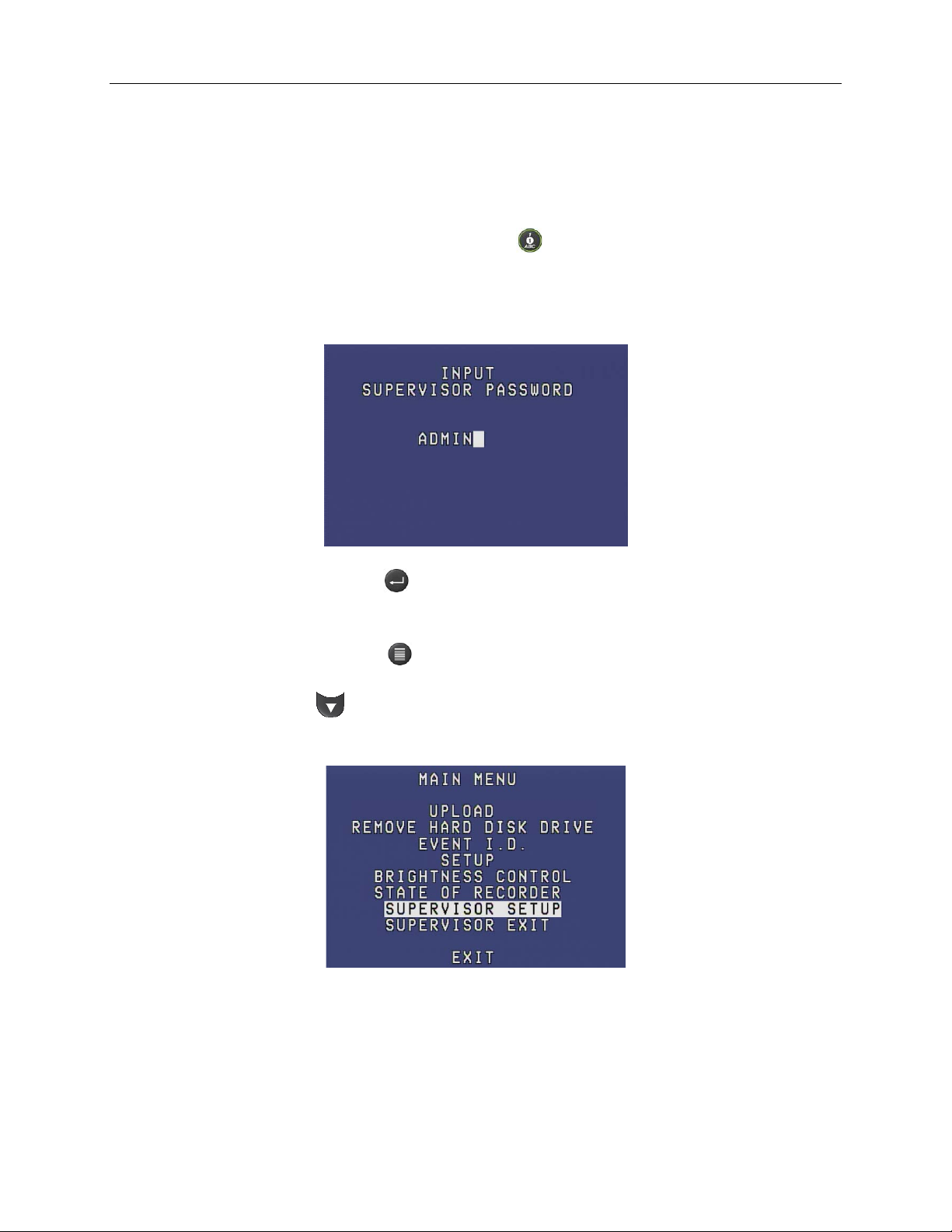

Step 2 The default Supervisor password is ADMIN. Enter the password
using the MDT keyboard or by clicking the alphanumeric keys found
near the lower part of the control.
Multiple clicks of the alphanumeric keys change the key value. For
example, Record Camera 1 ( ) has values of 1, A, B, and C. The
first click displays 1, the second click displays A, the third click
displays B, and the fourth click displays C. A click starts the list over
once more and displays 1.
Step 3 Click Enter ( ). The Camera 1 view shows after a correct
password is entered.
Step 4 Click Menu ( ). The Main Menu appears.
Step 5 Use to scroll to Supervisor Setup and click Enter. The
Supervisor Setup screen appears.
Revision: 005 15 August, 2011
ICOP 20/20 VISION™
SELECTING USER REGISTRATION OPTIONS
User Registration is used to create and maintain up to three individual user
passwords and one multiple-user password.
Note: The multiple-user password is an ideal option for agencies that do not assign take
home cars to their officers as it allows multiple users to use the same user
identification and user password. The multiple-user password allows any user who
enters the correct password to operate the ICOP 20/20 VISION™ under the same user
permissions that are assigned to User 1, User, 2, and User 3.
To configure User Registration setup options, complete the following steps:
Step 1 Use to scroll to User Registration.
Step 2 Click Enter ( ). The User Registration screen appears.
Step 3 In the User Registration screen, scroll to User 1 and click Enter to
activate the cursor. The cursor blinks to signify that it is active.
Step 4 Using the alphanumeric keys or MDT keyboard; enter up to nine
alphanumerical characters for the User ID and Password.
Step 5 Click Enter after you have finished entering the User ID and
Password. If necessary, repeat steps 3, 4, and 5 for each user.
Revision: 005 16 August, 2011
SUPERVISOR SETUP MANUAL
Setting Auto Login
The IACP “Digital Video Systems Minimum Performance Specifications Document”
requires that the recording media be secured using a security mechanism that
prevents unauthorized removal of the storage media from the recorder. In most
cases, this is implemented in the ICOP 20/20 VISION by requiring a valid,
Supervisor-configured password to be entered to gain access to the Remove Hard
Disk Drive command. However, it is recognized that the physical security of the
vehicle may be relied upon, and that the availability of the DVR to record an event
outweighs the need to require a password to be entered to activate the DVR.
ICOP recommends that you configure the ICOP 20/20 VISION to require that users
enter passwords to obtain access; however, ICOP recognizes that departmental
policies and procedures may be implemented to allow Auto Login functionality to
be utilized.
Auto Login allows users to initialize the ICOP 20/20 VISION and automatically have
it in an operational status without having to enter a password.
To set Auto Login, complete the following steps:
Step 1 In the Supervisor Setup screen; use to scroll to User
Registration.
Step 2 Click Enter ( ). The User Registration screen appears.
Revision: 005 17 August, 2011
ICOP 20/20 VISION™
Step 3 In the User Registration screen, set the User ID to the desired value.
For example, set the User ID for the user who has exclusive use of
the vehicle, or an identifier that shows the video is recorded by the
ICOP 20/20 VISION in Auto Login mode. For example, Autolog or
the vehicle ID.
Step 4 Click Enter.
Step 5 Set any of the User ID Passwords to AUTO, and click Enter.
Note: If the Multi-User Password is set to Auto, the ICOP 20/20 VISION
automatically initializes to the Set Officer ID Screen where users can
enter their Officer ID.
Step 6 Use to scroll to Save, and click Enter. The settings you
configured are saved.
Step 7 Power off the ICOP 20/20 VISION and ensure that after the unit
reboots and initializes. The user is automatically logged in without
having to enter a password.
Revision: 005 18 August, 2011
SUPERVISOR SETUP MANUAL
USING REMOTE SETUP
The ICOP Model 20/20®-W DVR Setting Tool can be used to quickly configure an
entire fleet of vehicles.
Note: You must be connected to an MDT that contains the DVR Setting Tool software to use
remote setup.
To connect to the DVR Setting Tool, select Remote Setup in the Supervisor Setup
screen.
For more information on utilizing a laptop to configure and manage the Setup
Menus of the ICOP 20/20 VISION, please see the ICOP Model 20/20-W DVR
Setting Tool User Manual (Part Number 700-00230).
Revision: 005 19 August, 2011
ICOP 20/20 VISION™
CONFIGURING USER ACCESS SETTINGS
Within the User Setup screens you can select the amount of access users may
have for certain settings found on the ICOP 20/20 VISION.
To define user settings, complete the following steps:
Step 1 Use to scroll to User Setup.
Step 2 Click Enter ( ). The User Setup screen appears.
Step 3 Use to scroll to the setting you want to define.
Step 4 Click Enter.
Step 5 Use to toggle between Yes (Y) and No (N).
Selecting Y gives users the ability to change the setting that is
selected.
Selecting N means that users have the ability to see the setting, but
do not have the ability to change the setting.
Note: Only Supervisors can make changes to settings that have been defined
as N.
Revision: 005 20 August, 2011
SUPERVISOR SETUP MANUAL
SETTING THE VEHICLE ID
The Vehicle ID displays during recording and play back, and shows which vehicle
recorded the video.
To set the Vehicle ID, complete the following steps:
Step 1 Use to scroll to Vehicle ID Setup.
Step 2 Click Enter ( ). The Vehicle ID Setup screen appears.
Step 3 Using the MDT keyboard or the alphanumeric keypad, enter the
Vehicle ID.
The Vehicle ID can be up to 10 alphanumeric characters long.
Revision: 005 21 August, 2011
ICOP 20/20 VISION™
CHANGING THE DEFAULT SUPERVISOR PASSWORD
The default Supervisor password (ADMIN) can be changed to any alphanumeric
password of your choosing (up to 10 characters long.)
To change the Supervisor password, complete the following steps:
Step 1 Use to scroll to Admin Setup.
Step 2 Click Enter ( ). The Admin Setup screen appears.
Step 3 Using the MDT keyboard or the alphanumeric keypad, type the new
password.
The password can be up to 10 alphanumeric characters long.
Revision: 005 22 August, 2011
SUPERVISOR SETUP MANUAL
DISPLAYING VIDEO TEXT
You can determine what text displays in the video while it is recording and during
play back. There are six different layouts that position video text in specific areas of
the monitor.
To determine what text displays in the video, complete the following steps:
Step 1 Use to scroll to Video Text Display.
Step 2 Click Enter ( ). The Video Text Display screen appears.
Step 3 Use to scroll to the setting you want to define.
Step 4 Click Enter.
Step 5 Use to toggle between Yes (Y) and No (N).
Selecting Y allows the selected setting to display in the video.
Selecting N disables the selected setting from displaying in the video.
Note: Only Supervisors can make changes to settings that have been defined
as N.
Revision: 005 23 August, 2011
ICOP 20/20 VISION™
MONITOR DISPLAY LAYOUT
The monitor display shows event Information metadata. There are six different ways that
metadata can display.
Selecting Metadata Layout
You can determine how Metadata displays in the video by selecting one of the six
different layout displays found under Display Layout in the Video Text Display
screen.
To select a Metadata layout, complete the following steps:
Step 1 Use to toggle between the different Metadata layout options.
Revision: 005 24 August, 2011
SUPERVISOR SETUP MANUAL
Step 2 Select one of the following Metadata layouts:
Layout 1 Layout 2
Layout 3 Layout 4
Layout 5 Layout 6
Step 3 Click Enter ( ).
Revision: 005 25 August, 2011
ICOP 20/20 VISION™
SETTING THE EVENT IDS
You can customize Event ID options based off of the terminology your agency
utilizes.
To setup the Event ID, complete the following steps:
Step 1 Use to scroll to Event ID Setup.
Step 2 Click Enter ( ). The Event ID Setup screen appears.
Note: A zero (0) is the default code that is given for Reason for Stop, Gender,
and Race if an Event Code, Reason for Stop, Gender, and Race is not
entered by the user directly after a video is recorded.
Revision: 005 26 August, 2011
SUPERVISOR SETUP MANUAL
Reason For Stop ID
To setup or edit the Reason for Stop ID, complete the following steps:
Step 1 Use to scroll to Reason for Stop.
Step 2 Click Enter ( ). The Reason for Stop ID screen appears.
Step 3 Scroll to the Reason for Stop ID that you want to setup or edit, and
click Enter.
Step 4 Using the MDT keyboard or the alphanumeric keypad, type the new
code over the existing code and click Enter.
Note: You can enter up to ten different Reason for Stop IDs.
Each Reason for Stop ID can contain a maximum of 22 alphanumeric
characters.
Repeat this process until you have entered the desired amount of
Reason for Stop Event IDs.
Note: ICOP recommends that you set up the entire fleet of vehicles with the
exact same Reason for Stop IDs.
Revision: 005 27 August, 2011
ICOP 20/20 VISION™
Race Type ID
To setup or edit the Race Type ID, complete the following steps:
Step 1 Use to scroll to Race.
Step 2 Click Enter ( ). The Race ID screen appears.
Step 3 Scroll to the Race ID that you want to setup or edit, and click Enter.
Step 4 Using the MDT keyboard or alphanumeric keypad, type the new code
over the existing code and click Enter.
Repeat this process until you have entered the desired amount of
Race IDs.
Revision: 005 28 August, 2011
SUPERVISOR SETUP MANUAL
CONFIGURING THE ICOP 20/20 VISION FOR WIRELESS UPLOAD
To upload videos wirelessly you must first configure the ICOP 20/20 VISION.
Note: If using the MDT as a video upload controller instead of the ICOP WC-
2000, you must have a network connection. Options include:
Built-in Wi-Fi
External bridge
Wired Ethernet
Wi-Fi adapter (air card)
Note: The Wireless Upload USB cable must be connected from the USB
Connector on the rear of the DVR to the MDT for wireless video upload
to be performed.
Configuring the Wireless 1000g Setting
To configure the ICOP 20/20 VISION wireless uploads, the Wireless 1000g setting
must be set to YES. To configure the Wireless 1000g setting, complete the
following steps:
Step 1 Log in to the ICOP 20/20 VISION as a Supervisor.
Step 2 Click Menu. The Main Menu screen appears.
Step 3 Use to scroll to Setup.
Revision: 005 29 August, 2011
ICOP 20/20 VISION™
Step 4 Click Enter. The Setup screen appears.
Step 5 Use to scroll to System.
Step 6 Click Enter. The System screen appears.
Step 7 In the System screen, scroll to Wireless 1000G and click Enter to
activate the cursor. The cursor blinks to signify that it is active.
Step 8 Use to set the Wireless 1000g setting to YES, and click Enter.
Step 9 Use to scroll to Save and click Enter to save the System settings.
Revision: 005 30 August, 2011
SUPERVISOR SETUP MANUAL
Configuring the Wireless Upload Timeout Setting
The Wireless Upload Timeout setting allows you to specify the maximum number of
hours that the ICOP 20/20 VISION spends to upload videos before automatically
shutting down. Shutting down the DVR after a certain amount of time elapses
ensures that the battery does not drain during extended upload times.
Note: When the time threshold is reached during upload, the ICOP 20/20 VISION shuts
down, even if video remains on the HDDM. To continue uploading, start the upload
process again, or directly upload the HDDM using the Docking Station.
To configure the ICOP 20/20 VISION Wireless Upload setting, complete the
following steps:
Step 1 Click Menu. The Main Menu screen appears.
Step 2 Use to scroll to Setup.
Revision: 005 31 August, 2011
ICOP 20/20 VISION™
Step 3 Click Enter. The Setup screen appears.
Step 4 Use to scroll to System.
Step 5 Click Enter. The System screen appears.
Step 6 In the System screen, scroll to Wireless Timeout and click Enter to
activate the cursor. The cursor blinks to signify that it is active.
Step 7 Use to set the Wireless Timeout setting to the desired number of
hours. You can set the Wireless Timeout setting between two and 16
hours.
Note: The default Wireless Timeout setting is two hours.
Step 8 Use to scroll to Save and click Enter to save the System settings.
Revision: 005 32 August, 2011
SUPERVISOR SETUP MANUAL
Configuring Wireless Upload
The Enable Uploading option allows you to wirelessly upload video from the ICOP
20/20 VISION.
Note: The Wireless Upload USB cable must be connected from the Wireless Upload
Controller on the rear of the DVR to the MDT for wireless video upload to be
performed.
To configure the Enable Uploading option, complete the following steps:
Step 1 Right-click within the title bar of the control.
Step 2 Select Configuration from the list. The ICOP 20/20 VISION
Configuration dialog appears.
Revision: 005 33 August, 2011
ICOP 20/20 VISION™
Step 3 Select the Enable Uploading checkbox. The Uploading section
activates.
Step4 Type the server address (IP address or hostname) in the Server
Address box.
Note: The ICOP 20/20 VISION server address must point to a DVMS server
running PC Loader, or an ICOP iVAULT server running Evidence
Loader.
Revision: 005 34 August, 2011
SUPERVISOR SETUP MANUAL
Step 5 Type the server start port in the Server Start Port box. The default
server start port is the TCP port number that PC Loader and
Evidence Loader use for TCP communications. The default server
start port is 32032.
Step 6 Type the number of ports in the Number of Ports box. The default
number of TCP ports available for uploading is 10.
Note: Unless directed otherwise, ICOP recommends having the server start
port set to 32032, and the number of ports set to a maximum of 10
ports.
Step 7 Click OK to save the server settings.
Automatically Shutting Down the Computer after Wireless Upload
The Shut Down Computer Automatically option allows you to shut down the
computer after completing a wireless upload.
To automatically shut down the computer after wireless upload, complete
the following steps:
Step 1 Select the Shut down computer automatically checkbox.
Step 2 Select the Shut down computer after upload completes
checkbox.
Note: After completing a wireless upload, both the computer and
DVR will shut down.
Revision: 005 35 August, 2011
ICOP 20/20 VISION™
Automatically Shutting Down the Computer after Wireless Timeout
The Shut Down Computer Automatically option allows you to shut down the
computer after a certain amount of time elapses after starting the wireless
upload process. Shutting down the computer after a certain amount of time
elapses ensures that the battery does not drain during extended upload
times.
Note: When the time threshold is reached during upload, the computer and DVR will
shut down even if video remains on the HDDM.
To automatically shut down the computer after a certain amount of time
elapses during wireless upload, complete the following steps:
Step 1 Select the Shut down computer automatically checkbox.
Step 2 Select the Shut down computer ‘X hour’ after upload starts
checkbox to shut down the computer after the selected
amount of time elapses.
Note: You can select a shut down time between one hour and 16
hours. The default shut down time is two hours.
Revision: 005 36 August, 2011
SUPERVISOR SETUP MANUAL
Enabling Diagnostic Logging
The Enable diagnostic logging option allows you to log each step the ICOP 20/20
VISION performs.
To enable diagnostic logging, complete the following steps:
Step 1 Select the Enable diagnostic logging checkbox at the bottom of the
ICOP 20/20 VISION Configuration dialog.
Step 2 Click view log to open the ICOP 20/20 VISION log, or click show
containing folder to select the file within Windows Explorer.
Note: Clicking view log opens the log file in the Windows associated program
for viewing .txt (text) files. The default program for viewing logs is
Notepad.
Revision: 005 37 August, 2011
ICOP 20/20 VISION™
The following window appears when you click view log:
The following window appears when you click show containing folder:
Revision: 005 38 August, 2011
SUPERVISOR SETUP MANUAL
RESTORING ICOP 20/20 VISION SYSTEM DEFAULTS
ICOP 20/20 VISION parameters can be reset to the original default settings by
pressing and holding the CTRL, 7, and 8 keys on the MDT keyboard while the unit
is powering on.
Revision: 005 39 August, 2011
ICOP 20/20 VISION™
LOGGING OUT OF SUPERVISOR SETUP
After completing ICOP 20/20 VISION Supervisor setup, ensure that you log out.
To log out of Supervisor Setup, complete the following steps:
Step 1 In the Main Menu; use to scroll to Supervisor Exit.
Step 2 Click Enter ( ).
After successfully logging off, the ICOP 20/20 VISION requires
password entry and verification for the next Supervisor log on.
Revision: 005 40 August, 2011
SUPERVISOR SETUP MANUAL
AUXILIARY CONTROL UNIT
Front View of the Auxiliary Control Unit (Fig. 3)
The optional ICOP 20/20 VISION Auxiliary Control Unit (ACU) (Part Number 600-
00154) can be used to control the unit in situations when the MDT is not correctly
functioning. The ACU allows you to start and stop video recording and insert
Marks while video is recording.
Note: The ACU must be set up using AUX 2 and AUX 3 trigger inputs. The DVR must have
the AUX 2 trigger set to ON and the AUX 3 trigger set to STP to start, stop, and Mark
video.
Starting and Stopping a Recording Using the Auxiliary Control Unit
To start a recording, ensure that the green Power (PWR) LED is illuminated and
press REC. The red REC LED illuminates to notify you that video is being recorded.
To stop a recording, press PWR. The red REC LED turns off to notify you that
video is no longer being recorded.
Inserting Marks in Video Recording
To insert a mark in a video recording, you must first start a recording. After the red
REC LED illuminates, each press of the REC button adds marks to the video being
recorded.
Revision: 005 41 August, 2011
ICOP 20/20 VISION™
CONTACT INFORMATION
ICOP
A Safety Vision Company
Technical Support
6100 W. Sam Houston Pkwy. N.
Houston, TX 77041
TechSupport@icop.com
Main: 713.896.6600 Toll Free: 800.880.8855
NOTES: _________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
_______________________________________________
Revision: 005 42 August, 2011
SUPERVISOR SETUP MANUAL
Revision Number:
Effective Date:
Description:
001
January 29, 2009
Initial Revision.
images.
003
May 14, 2009
Updated Wireless Uploading sections.
update.
Safety Vision, verbiage addressed.
REVISION HISTORY
002 April 24, 2009 Updated formatting, style, references to
the VAA, and added new faceplate
004 February 11, 2010 Updated according to 0140 firmware
005 August, 2011 Logos and addresses updated to reflect
Revision: 005 43 August, 2011
Loading...
