iconBIT HDM33HDMI

User Manual

Table of contents

1. Introduction………………………………….………………………..…………………..................……2

1.1 Preface…………………………………..…………………………………………….…………………………….…………………………2

1.2 Packing list……………………………………………………………………………….……………………………………………………3

1.3 Cautions…………………………………………………..………………………………….…………………………….…………………3

2. Media player's operation guide …………….………........................................…………….…4

2.1 Power ON/OFF ………………………..………………….…………………………………………………………………………………4

2.2 Connection…………………………………………..……………....…………….…….……………………………….……………….4

2.3 Operation…….……………..…………………………………….……………………………………………………….…………………5

2.4 Remote Control..………………………………………………..……………………………………………………….……………….6

3. Setup Menu……………………………………………………………..…………………..................……8

3.1 System Setting………………………………………….…………………………….……………………………………………………8

3.2 Movies Setting……………………………….……………………………………………………………………………………….…….9

3.3 Photo Setting……….………………………………….………………………….………………………………………………………..9

4. Browse and playback …..……….…………….………....................………………………………..10

4.1 Photo Play Mode……………………………..…………………………………………………………………………………………..10

4.2 Music Play Mode.……………..…………………………….……………………………………………………………………………11

4.3 Movie Play Mode………………..……………………………………………………….……………………………………………….12

4.4 BrowserPlay Mode ………………..………………………….…………………………….………………………………………….12

5. System Update……………………………..…………………….………………………………….………13

IconBIT HDM33HDMI User Manual English 1

1. Introduction

1.1. Preface

Thank you very much for purchasing iconBIT HDM33HDMI. We hope you will enjoy using it as a great

home entertainment partner. This player has the following functionality.

A/V Output

· HDMI V1.3 for high-definition video and digital audio

· Composite video and stereo audio for analog audio-visual connection

· S/PDIF optical/coaxial interface for high-fidelity digital audio

· Adjustable video output resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)

Multimedia Playback

· Supports major audio, video and image file formats (1080p HD video decoding)

· Movie format: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/

WMV/ASF/RM/RMVB/FLV

· Music format: MP3/OGG/WMA/WAV/AAC/FLAC

· Photo format: HD JPEG/BMP/GIF/TIF/PNG

· Photo slide show with background music

USB 2.0 Support

· USB HOST port (for USB storage devices)

SD/MMC Card Support

· SD/MMC Card Interface

Note: All the information contained in this manual was correct at the time of publication. However,

as our engineers are always updating and improving the product, your device’s software may have

a slightly different appearance or modified functionality than presented in this manual.

1.2. Packing List

Part Quantity

Player 1

A/V cable 1

Remote Control 1

Remote Control Battery 2

AC/DC adaptor 1

User Manual 1

Note:

The actual contents in the package might be different from the packing list in this manual.

IconBIT HDM33HDMI User Manual English 2

1.3. Cautions

This player’s design and manufacture has your safety in mind. In order to safely and effectively use

this player, please read the following before usage.

Usage Cautions
User should not modify this player. If commercial hard disk is being used, the environmental
temperature should be within +5°C ~ +35°C.

Power

The player’s power voltage: DC 5.5V.
When using this player, please connect the supplied AC adapter or AC adapter cable to the player’s
power jack. When placing the adapter cable, make sure it can not get damaged or be subject to
pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning it. Never
connect the adapter to the player in a humid or dusty area. Do not replace the adapter or cable’s wire
or connector.

Radio Interference

- If not properly shielded, almost all electronic devices will get radio interference. Under some
conditions, your player might get interference.

- The design of this player has followed the FCC/CE standard, and has followed the following rules:
(1) This player may not cause harmful interference;
(2) This player could accept some interference received including interference that may cause
undesired operation.

Repair

If the player has a problem, you should take it to an appointed repair center and let the specialists
do the repair, never repair the player yourself, you might damage the player or endanger yourself or
your data.

Disposing of the Player

When you dispose of the player, be sure to dispose it appropriately. Some countries may regulate
disposal of electrical device, please consult with your local authority.

Others
When using this player, please do not let the player come into contact with water or other liquid, if
water is accidentally spilled on the player, please use a dry cloth to absorb the spillage.

Electronic products are vulnerable, when using please avoid shaking or hitting the player, and do not

press the buttons too hard.

- Do not let the player come into contact with water or other liquid.

- Do not disassemble the player, repair the player or change the design of the player, any damage

done will not be included in the repair policy.

- Do not press the buttons of the player too hard.

- Avoid hitting the player with hard object, avoid shaking the player, and stay away from magnetic

fields.

- During electrostatic discharge and the strong electromagnetic field, the product will malfunction,

then unplug the power cable and the product will return to normal performance next time it is

powered on.

IconBIT HDM33HDMI User Manual English 3

2. Media player's operation guide

2.1. Power ON/OFF

Power On

After connecting the DC IN jack and press the power button on the rear panel, the player is on the
standby mode. After press the “POWER” key on the front panel or on the RC, the power indicator will
turn red to blue, the player will show the logo soon, and then enter the home screen.

Power Off

Press the power button on the front panel, the player will enter standby mode soon, and the power
indicator will turn red, and then switch the “power” key on the rear panel on to off to cut off the power
cord.

2.2. Connection

Connecting the Power Supply

(1) Connect the AC adaptor to the player's DC IN jack;
(2) Plug in the AC adaptor to the power outlet.

Note: DC: 5.5V, 3A

Connecting the USB Device

(1) Make sure that the player is powered on;
(2) Plug in the USB stick /USB HDD etc. to the USB HOST port.

Connecting the Memory Card
(1) Insert the memory card to the card slot properly;

(2) Insert the memory card according to the silkscreen which painted above the card slot.

Connecting to a TV
A/V OUT

(1) Plug in the 3 color connector to the unit's A/V OUT jack;
(2) plug in the 3 color connector to the TV's A/V IN jack.

Also, you can use the audio output from the Coaxial/Optical OUT jack while using CVBS Video out.

In this way, you can enjoy the content in the player on TV or other display devices.

HDMI OUT

(1) Plug in one connector on your HDMI cable to the player's HDMI jack;
(2) Plug in the other connector on your HDMI cable to the TV's HDMI jack.
In this way, you can have the highest quality video and audio via a single cable.
Connecting to an Digital Amplifier
(1) Follow the picture and plug in the RCA connector on your coaxial cable to the player's S/PDIF
Coaxial jack. Or if you use optical fiber, please plug in the Toslink connector on your optical fiber to
the player's S/PDIF Optical jack;
(2) Plug in the other connector on your coaxial cable or optical fiber to the digital audio device (digital

amplifier or decoder).

Note: HDMI, Optical fiber and coaxial cable are not supplied.

IconBIT HDM33HDMI User Manual English 4

2.3. Operation

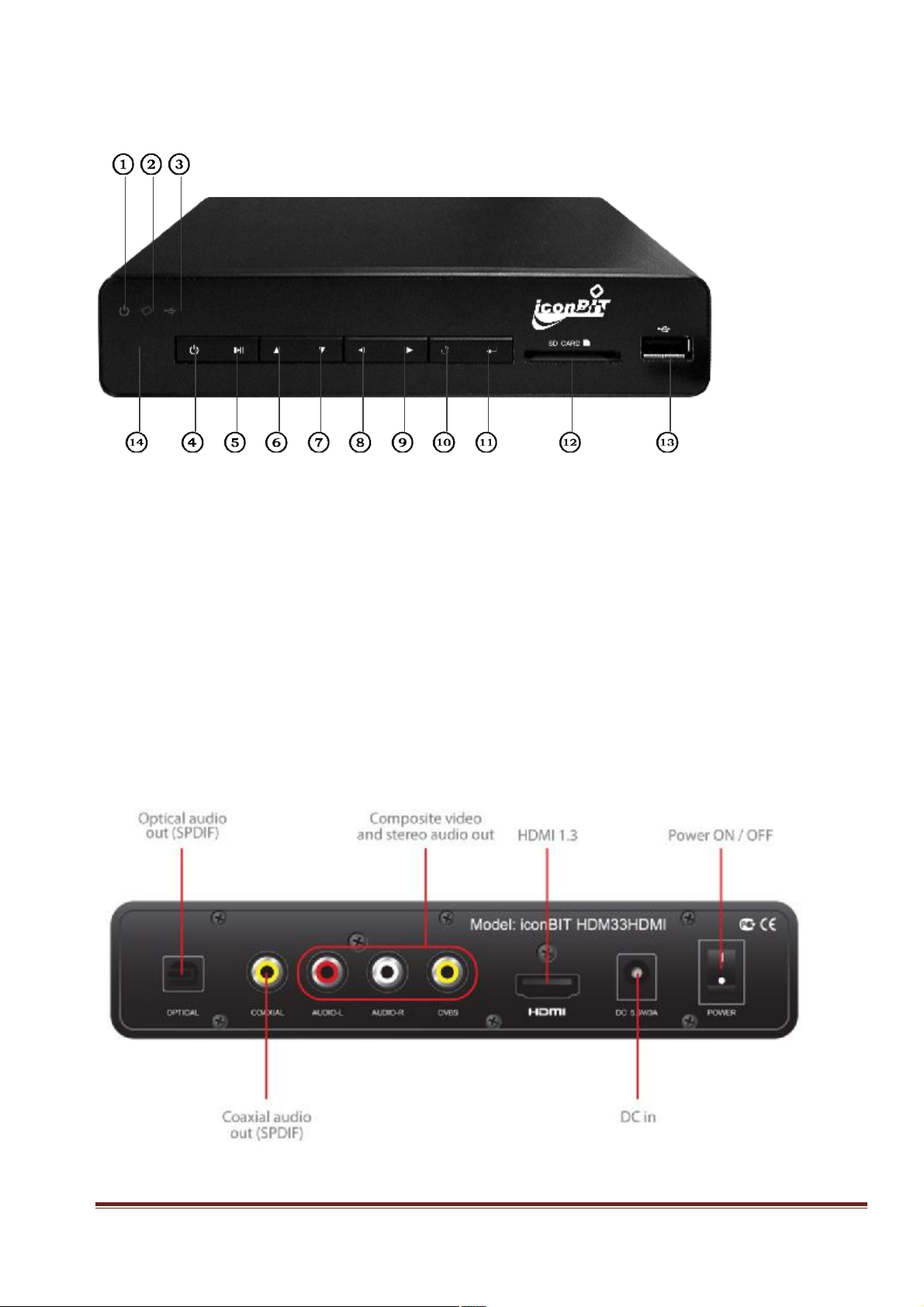

Front panel

1. Power indicator 8. LEFT

2. SD Card indicator 9. RIGHT

3. USB host indicator 10. Return

4. Standby mode switch 11. Enter

5. Play/Pause 12. SD CARD SLOT

6. UP 13. USB HOST

7. DOWN 14. IR window

Rear panel

IconBIT HDM33HDMI User Manual English 5

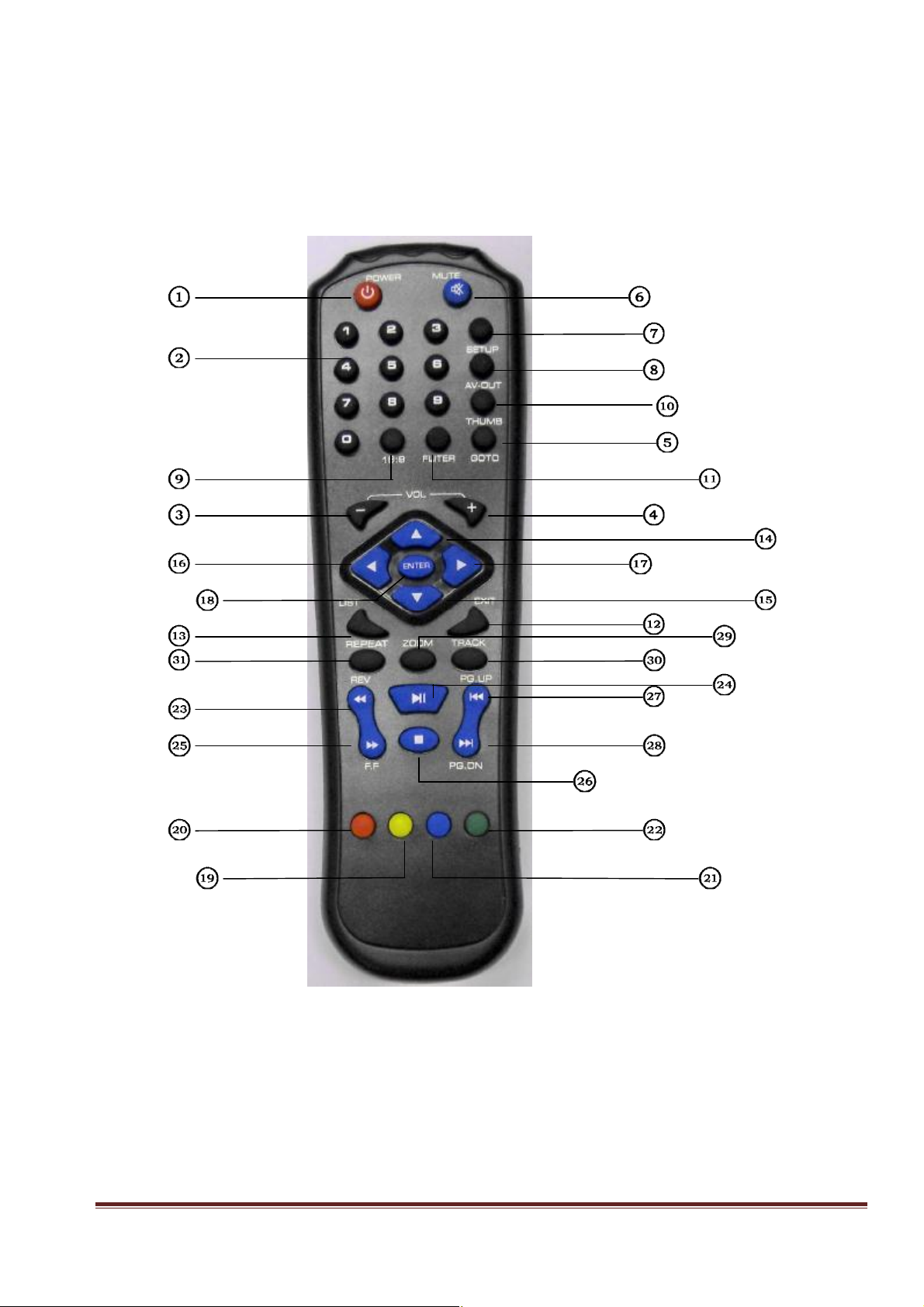

2.4. Remote Control

All procedures in this manual can be carried out using the remote control buttons.
See the following for details on each button and its function:

IconBIT HDM33HDMI User Manual English 6

Number Buttons Functions

1 POWER Press to enter standby mode or wake up

NUMERIC

2

BUTTONS Press to enter numeric input when changing settings.

3 VOL+ Press to increase the volume.

4 VOL-

Press to decrease the volume.
Press to jump to a specific point on a time when play music or

5 GOTO

movie both on preview or full screen mode.

6 MUTE Press to mute audio output, press again to resume.

7 SETUP Press to enter the setting main menu

8 AV-OUT

Press to switch between 576P, 720P, 1080I, and 1080P.

9 16:9 Switch between 16:9 and 4:3 display

10 THUMB Press to show the 9 pictures on screen.

11 FLITER

Press to select the favorite music.

12 EXIT Press to quit some dialogue box

13 LIST Press to call out the favorite playlist.

Press to move the highlight up while navigation menu. Press

14 UP

to rotate the photos when review photos.

Press to move the highlight down while navigation menu.

Press to rotate the photo in counter-clockwise direction

15 DOWN

when review photos.

16 LEFT navigation

17 RIGHT navigation

18 ENTER Press to confirm

19 YELLOW Reserved button. No function has been assigned to it yet.

20 RED Info button, press to show the related information

21 BLUE Press to set subtitle options

22 GREEN Reserved button. No function has been assigned to it yet.

Press to fast rewind the current playback. Press

23

REV 7

repeatedly to select speeds.

PLAY/PAUSE

24

4;

Press to begin play or pause the current playback

Press to fast forward the current playback. Press repeatedly to

25

26

27

28

29 ZOOM

FF 8

STOP <

PG.UP 9

PG.DN :

select speeds.

Press to finish your current playback

Press to play the previous file.

Press to play the next file.

Press to zoom in/out the image (photo or video)

30 TRACK Press to select an audio track

31 REPEAT Press to set repeat option(repeat on, repeat all, shuffle)

IconBIT HDM33HDMI User Manual English 7

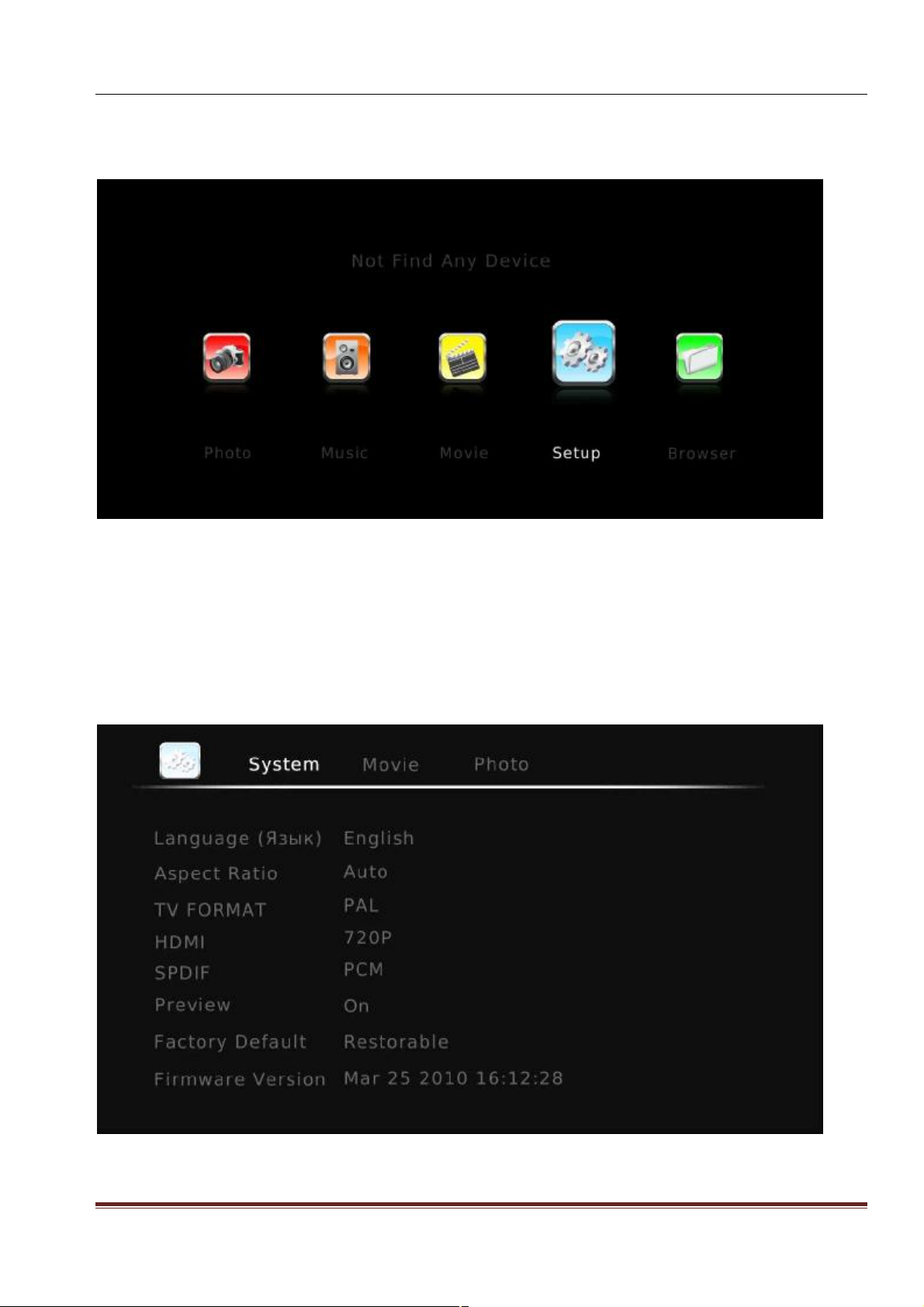

3. Setup Menu

Select “Setup” from the main menu or press “Setup” icon from remote control, access setup menu.

User can setting System/Movie/Photo here;

Select items with arrow button from remote control, press “OK” for confirm;

Press “Return” to left menu for other items selection.

Press “Setup” or “Return” to exit setting menu.

3.1. System setting

Use this menu to configure System settings:

IconBIT HDM33HDMI User Manual English 8

Language:

The system language can be set to English or other languages. Please select the languages
which you preference in the setup menu, the selected language will take effect immediately.

Aspect Ratio:

AUTO: Automatic mode.
4:3 Full: Display picture or movie on the full screen.

Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant

portions. Select when a standard 4:3 TV is connected.

Letter Box 4:3: Display a wide picture with two black borders on the top and bottom of 4:3
screen. Select when a standard 4:3 TV is connected.

16:9 PANORANICO: Compress the image to convert the whole image. Select when a 16:9

TV is connected.

TV Format: Select to adjust TV model NTSC or PAL

HDMI: Select to adjust video output resolution720P, 1080I, 1080P
SPIDF: Set PCM/ ROW DATA when select the optical as audio output, or else set OFF.
PREVIEW: Select to turn on/off movie or music preview in the browser menu.
Factory Default: Select to restore factory defaults.

Firmware version: Show the software INFO.

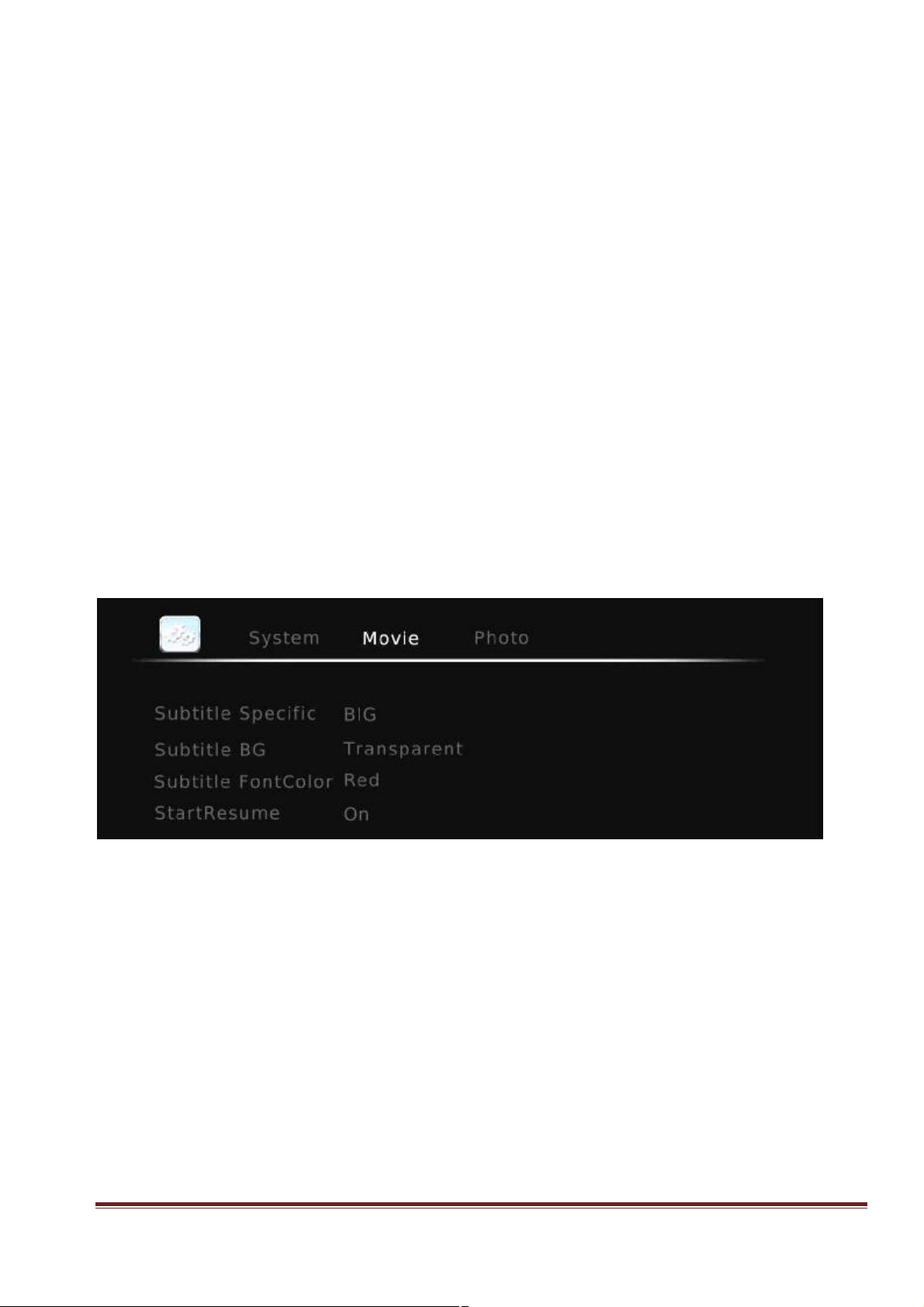

3.2. Movie setting

Changing movie setting:

Aspect Ratio: Select to adjust movie aspect ratio: DISCARD/KEEP

SUBTITLE SPECIFIC: Select the subtitle specification: NORMAL/ SMALL/ BIG

SUBTITLE BG: Select to adjust subtitle background color:

TRANSPARENT/YELLOW/GREEN/WHITE/GRAY

SUBTITLE FONT COLOR: Select to adjust subtitle font color: RED/GREEN/BLUE

START RESUME: Select to turn on/off resume playback (auto-bookmarking) feature for movies.

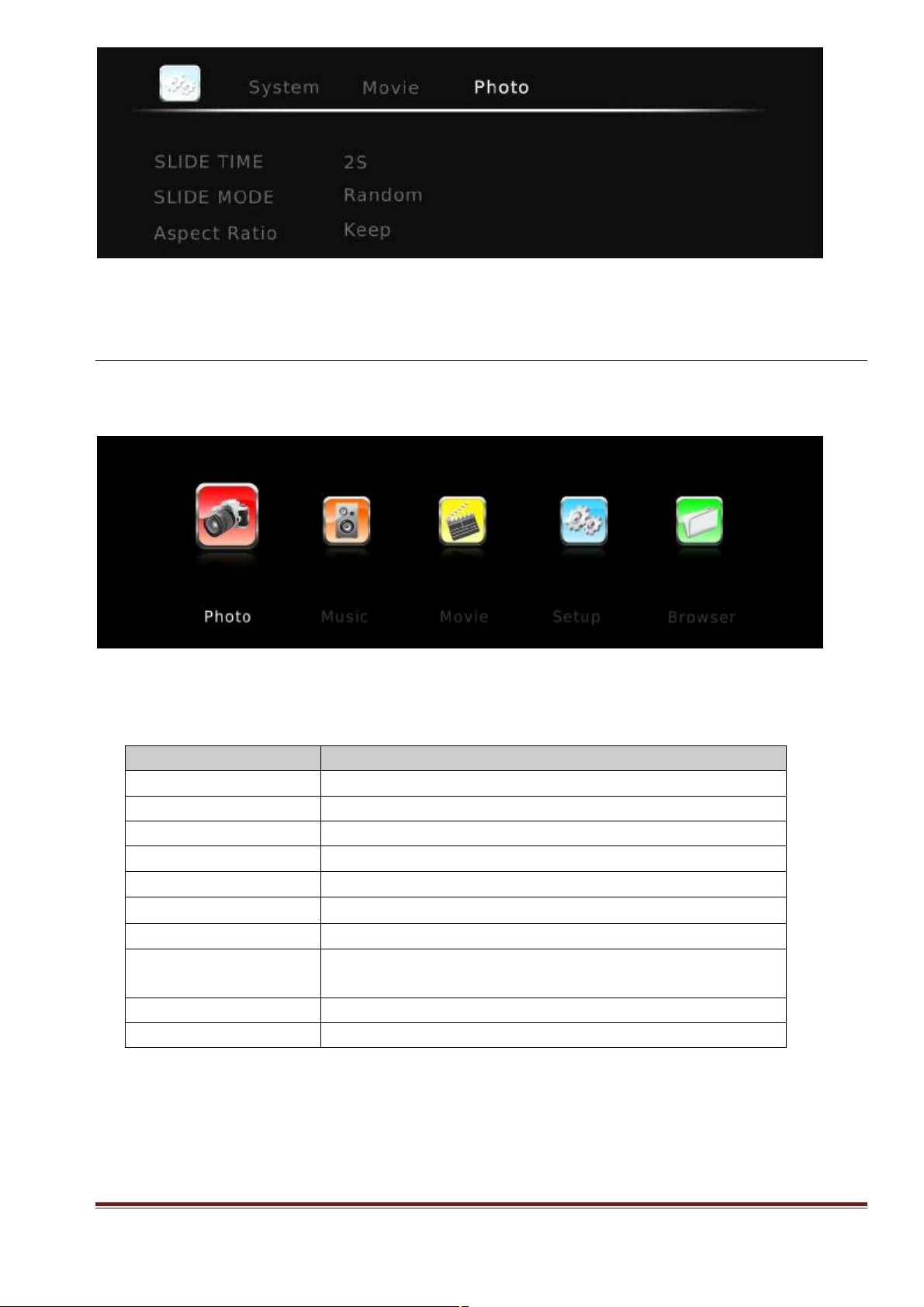

3.3. Photo Setting

Changing photo setting:

Slid show time: Select to adjust slid show time: 2S/3S/5S/7S
Slid mode : there are 46 slid show mode you can choose : RANDOM, 0, 1…..59

ASPECT RATIO: Keep/Discard

IconBIT HDM33HDMI User Manual English 9

4. Browse and playback

4.1. Photo Play mode

In this mode, all folders and supported photos in current directory will be displayed. Please set the
preview item is “On” in setup

BUTTON FUNCTION

UP/DOWN

REPEAT

ENTER

PLAY/PAUSE

STOP Stop slideshow

THUMB Press to show 9pictures mode

Rotate a photo in any angle.

Set repeat options: One, All, (and Shuffle).

Play selected picture on Full screen

Begin slideshow

ZOOM

PG.UP/PG.DOWN 1) View the previous or next photo on playback mode

LIST INFO button, show the related information

GOTO Begin play background music.

Note: the system will play the audio files as background music:

1) Play list, if you had set a playlist

2) Current directory, if there no playlist

3) Root directory, if there no audio files in current directory. Or else can’t play background music

IconBIT HDM33HDMI User Manual English 10

Zoom in / out the image.

2) View the previous or next page on browse menu.

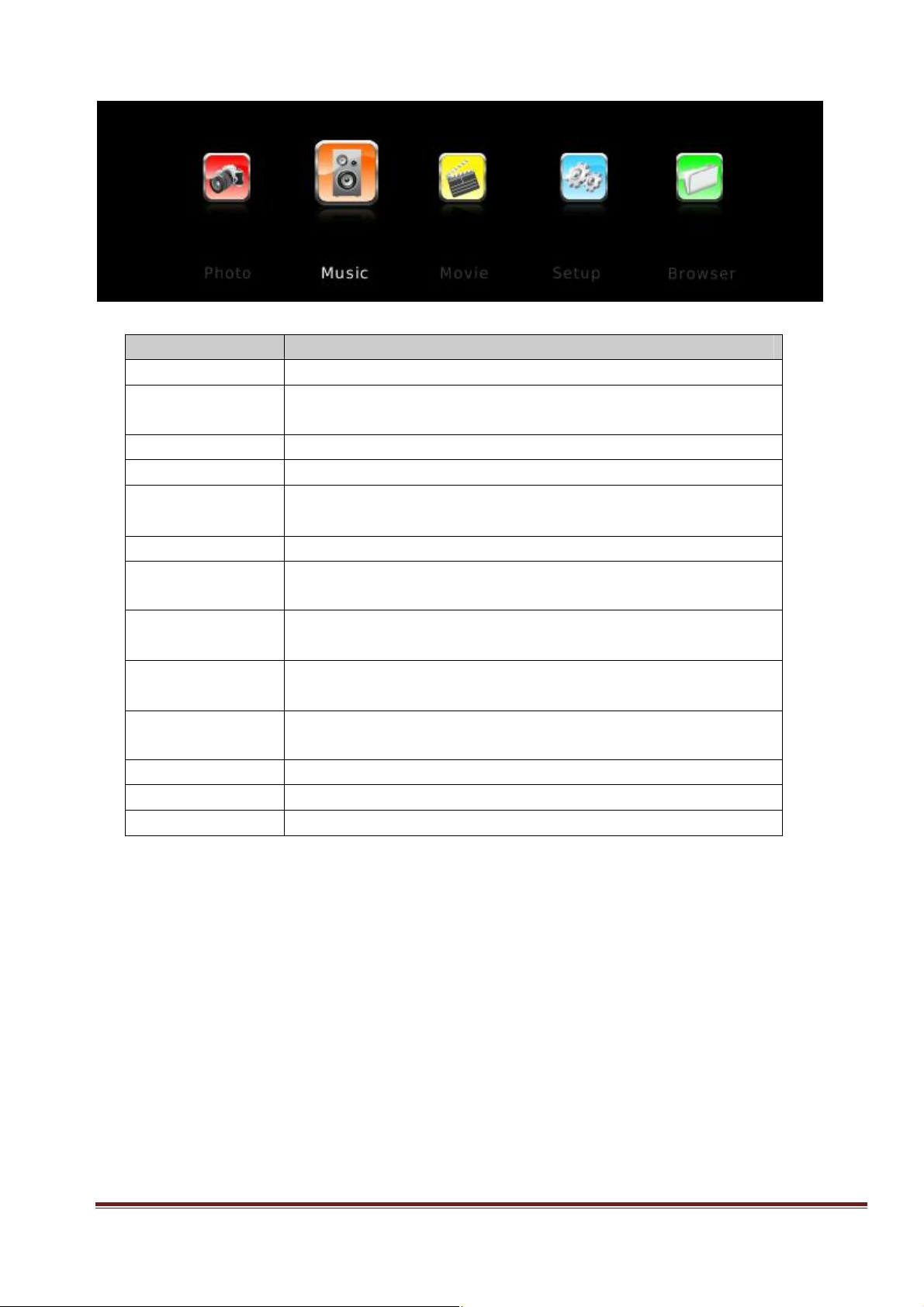

4.2. Music Pay mode

BUTTON FUNCTION

UP/DOWN

ENTER

REPEAT

PLAY/PAUSE

REV/F.F

STOP Stop playback

FLITER Select /cancel music files which you favorite or which you

LIST

EXIT

PG.UP/PG.DOWN 1) Browse menu: view the previous or next page.

RED Select all files in playlist that will be delete

GOTO

LIST

Managing the Playlist

In this mode, this player supports the playlist function, which allows you to add your favorite audio
files on local HDD/Memory Card to the playlist, and enjoy them at any time. The playlist will be saved
on the current partition.

Adding files to the play list:

Select the favorite file you wish to add, press the FLITER button, and the file will be ticked.
Press the LIST button to confirm, then a Play LIST MODE will be shown.

Delete files from the playlist:

Select the destination file, press the RIGHT button, and the file will be marked “×”, and then press
ENTER to delete them immediately, or will be delete when you exit the playlist.

Move the cursor up/down

Preview the music on the right window(Please set the preview

item is “on” in setup )

Set repeat options: One, All, (and Shuffle).

Begin playback

Fast rewind or fast forward. Press repeatedly to select the

speed.

want to delete on playlist

Begin to play the audio files that you had selected, and the

playlist will be saved on current memory device.

1) Exit PLAYBACK mode and back to previous directory

2) Exit PLAYLIST mode

2) Play list: play the previous or next file.

Start to play at the appointed time.

Show the repeat status under Play List mode.

IconBIT HDM33HDMI User Manual English 11

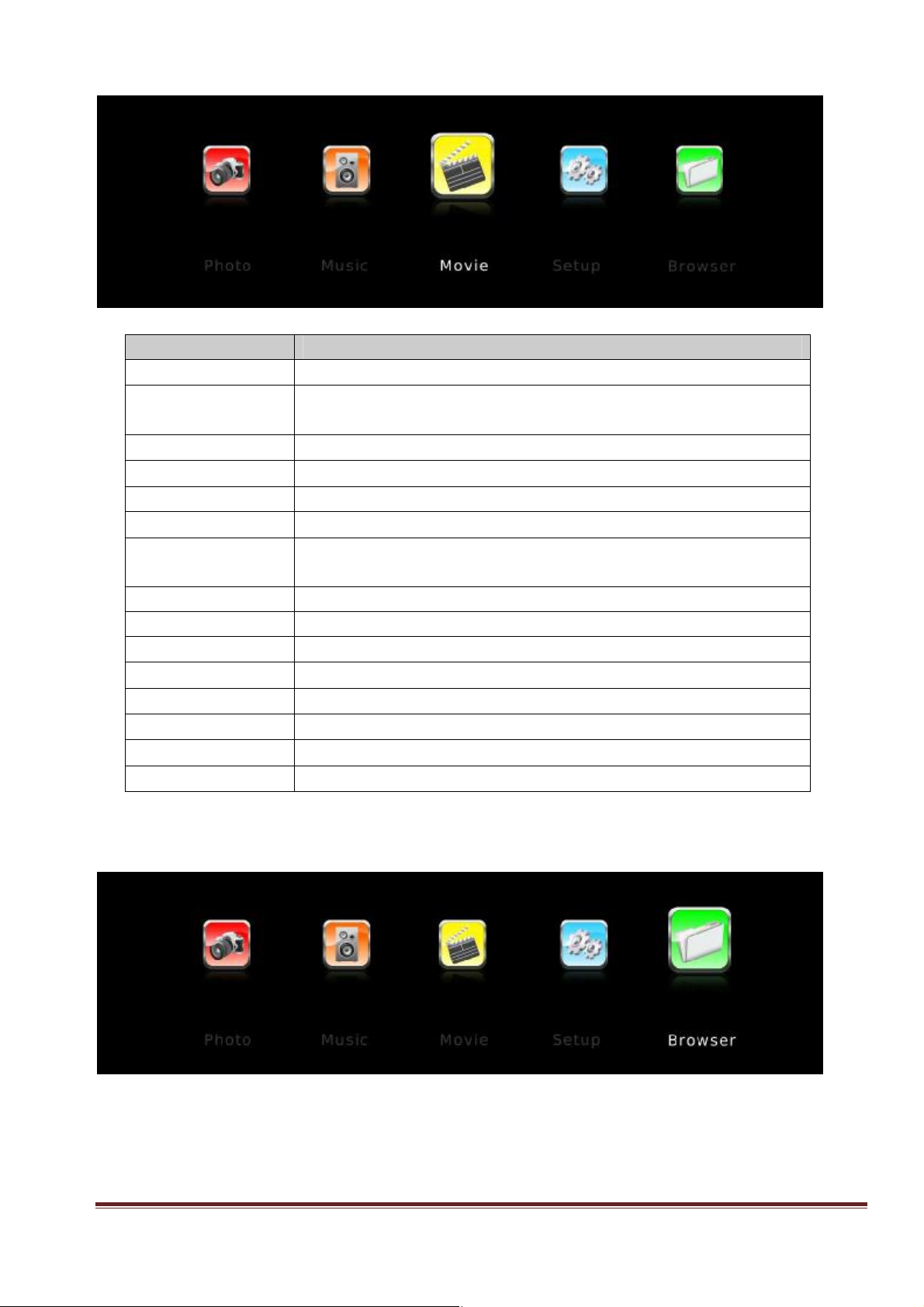

4.3. Movie Play mode

BUTTON FUNCTION

UP/DOWN

ENTER

PLAY/PAUSE

REV/F.F

STOP Stop playback

EXIT

PG.UP/PG.DOWN 1) View the previous or next page.

GREEN Subtitle button, switch between mul-subtitle.

LIST INFO button, show the related information

ZOOM

GOTO

AV-OUT

RED

16:9

Track

Move the cursor up/down

Preview the video file on the right window

(Please set the preview item is “on” in setup menu)

Begin playback

Fast rewind or fast forward. Press repeatedly to select the speed.

Exit PLAYBACK mode

2) Play previous or next movie.

Zoom in/out the video file.

Start to play at the appointed time.

Switch between 576p,726p,1080i,1080p

ENTER/EXIT Full screen mode.

Switch aspect ratio.

Switch audio.

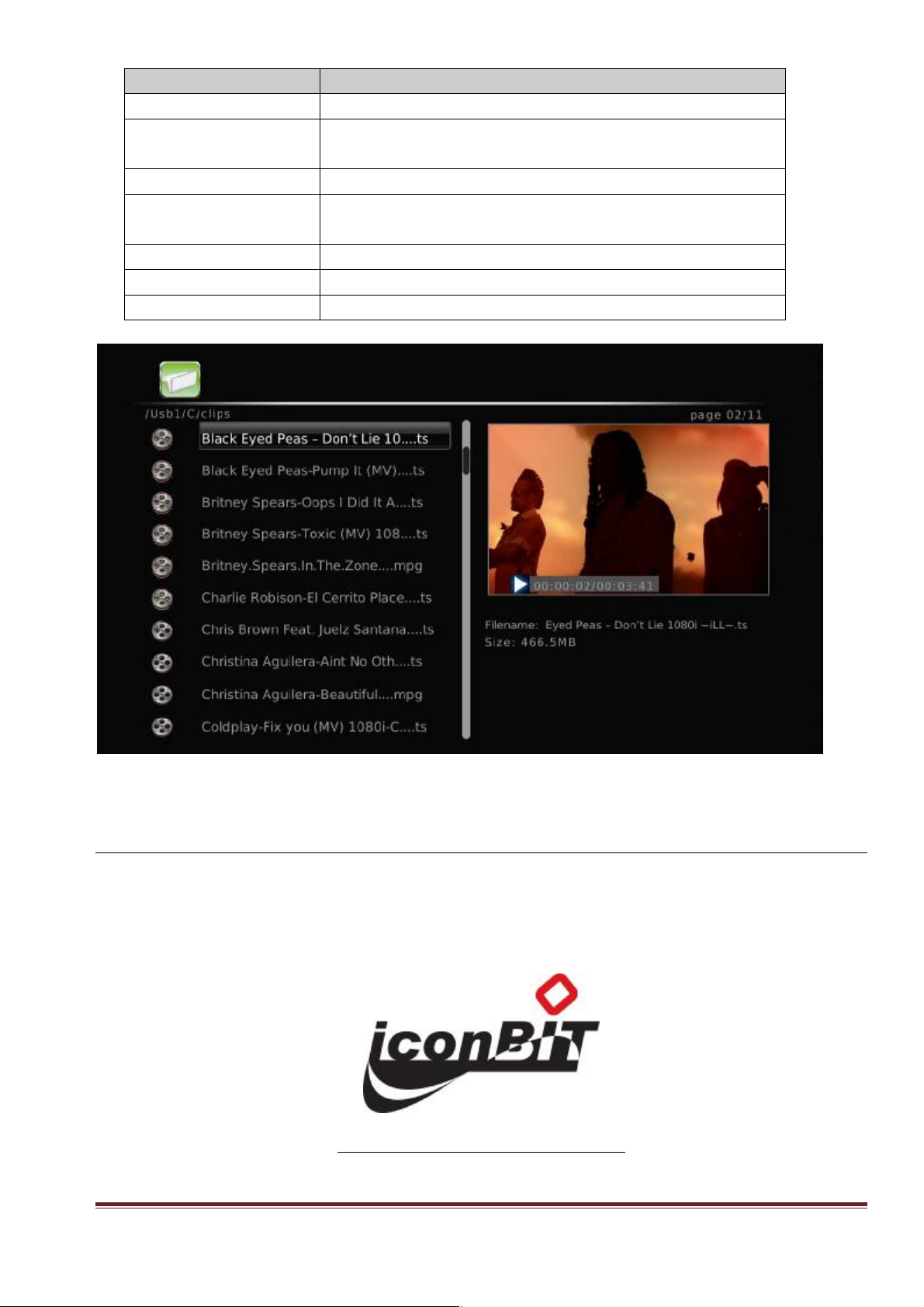

4.4. Browser Play mode

File manage

In this mode, all folders and supported contents (music, photos, and movies) will be displayed.

IconBIT HDM33HDMI User Manual English 12

BUTTON FUNCTION

UP/DOWN

ENTER

PLAY/PAUSE

REV/F.F

STOP Stop playback

EXIT

PG.UP/PG.DOWN View the previous or next page

Move the cursor up/down

Preview the video/music/photos file on the right

window(Please set the preview item is “on” in setup menu)

Begin playback

Fast rewind or fast forward. Press repeatedly to select the

speed.

1) Exit PLAYBACK mode; 2)Exit PLAYLIST mode

5. System Update

Select to update the firmware from via a USB stick:
Download new FW into USB stick root directory, then connects it to the USB HOST port of the player.

Press ENTER to confirm.

WWW.ICONBIT.COM

IconBIT HDM33HDMI User Manual English 13
