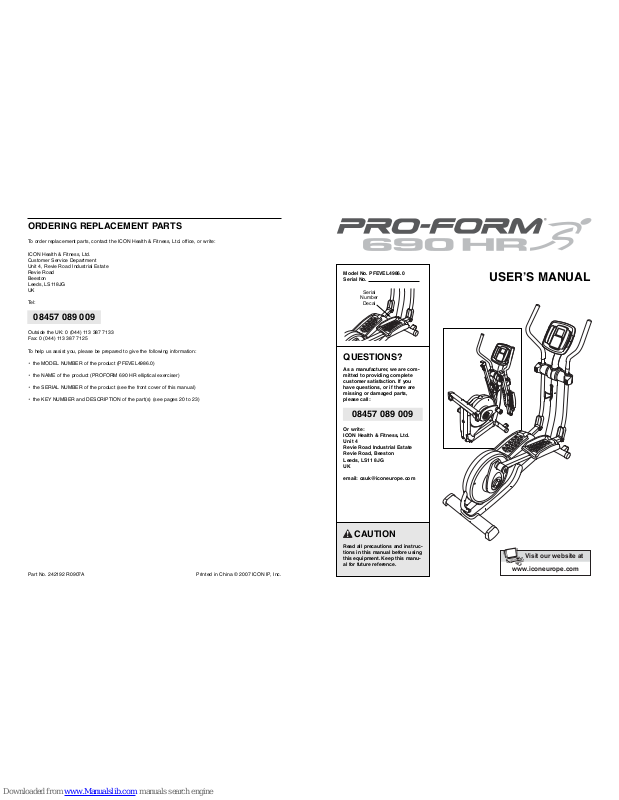

Page 1
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual for future reference.
Serial
Number
Decal
Model No. PFEVEL4986.0
Serial No.
Part No. 242192 R0907A Printed in China © 2007 ICON IP, Inc.
USER’S MANUAL
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4, Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
Tel:
Outside the UK: 0 (044) 113 387 7133
Fax: 0 (044) 113 387 7125
To help us assist you, please be prepared to give the following information:
• the MODEL NUMBER of the product (PFEVEL4986.0)
• the NAME of the product (PROFORM 690 HR elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 20 to 23)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts,
please call:
Or write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS11 8JG
UK
email: [email protected]
www.iconeurope.com
Visit our website at
08457 089 009
08457 089 009
Page 2
23
66
2
7
24
24
27
27
28
29
75
76
36
86
99
87
106
37
38
39
40
41
42
42
43
103
103
103
103
107
107
103
38
43
42
42
41
106
36
75
37
83
87
87
76
103
103
103
103
86
99
44
98
98
44
45
46
47
47
103
100
103
51
50
53
56
79
57
58
59
60
103
103
85
96
61
62
62
63
64
63
65
66
67
68
69
113
97
70
95
103
79
71
72
107
100
103
103
103
102
102
107
88
88
109
109
114
103
110
110
52
54
55
94
94
94
92
93
91
77
77

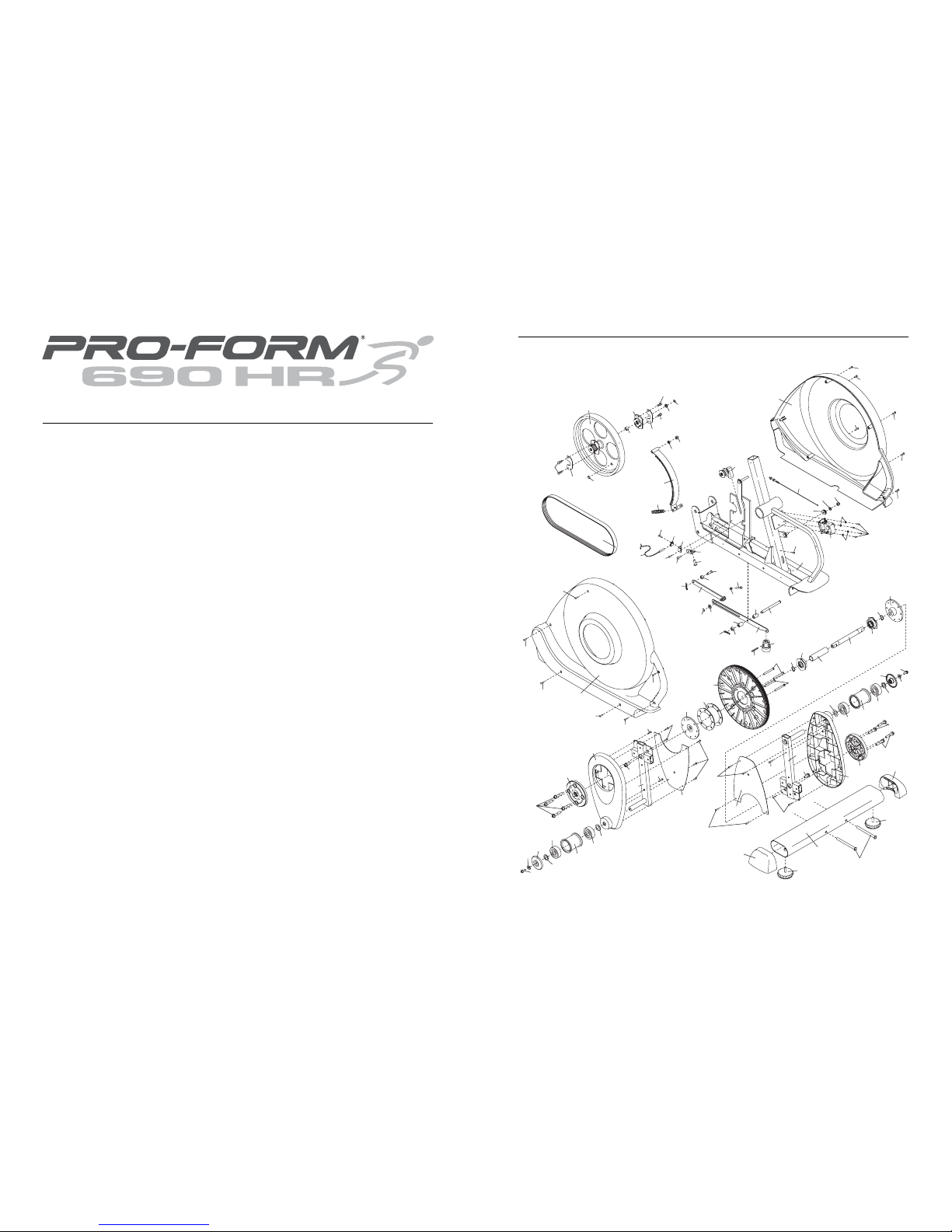

EXPLODED DRAWING B—Model No. PFEVEL4986.0 R0907A
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
PROFORM is a registered trademark of ICON IP, Inc.
Page 3
22

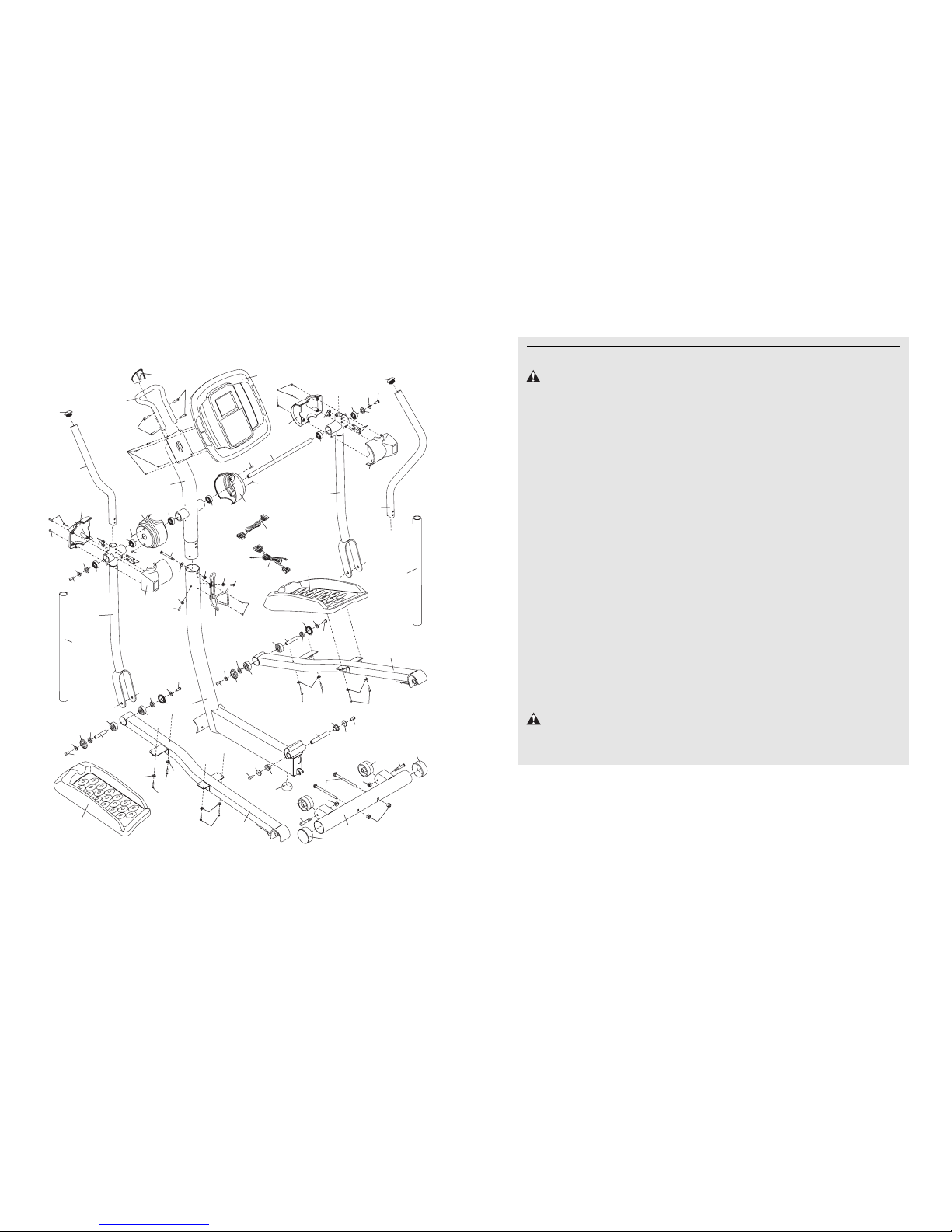

EXPLODED DRAWING A—Model No. PFEVEL4986.0 R0907A
1
4
3
5
6
8
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
23
25
25
26
30
30
30
30
30
30
31
31
32
33
33
31
33
32
33
31
34
35
35
80
78
101
101
79
105
105
88
84
79
84
101
101
74
105
79
78
88
84
104
115
115
104
88
84
104
115
115
104
104
84
88
89
82
81
81
81
89
48
49
84
73
73
108
88
88
88
88
108
90
90
90
111
111
112
112
112
112
112
101
116
117
117
118
118
118
118
3
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the elliptical exerciser only as described in this
manual.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
4. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 lbs. (113
kg).
8. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exercising.
9. Hold the handgrip pulse sensor or the handlebars when mounting, dismounting, or
using the elliptical exerciser.
10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
11. Keep your back straight when using the elliptical exerciser; do not arch your back.
12. If you feel pain or dizziness at any time
while exercising, stop immediately and cool
down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
14. The decals shown on page 4 have been
placed on the elliptical exerciser. If a decal
is missing or illegible, call the telephone
number on the front cover of this manual
and order a free replacement decal. Apply
the decal in the location shown.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
Page 4
21
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
®
690 HR elliptical exerciser. The 690 HR elliptical exerciser provides a wide array of features designed to
make your workouts at home more effective and
enjoyable—and when you’re not exercising, the
unique 690 HR elliptical exerciser can be folded out of
the way.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before contacting us. The model number is PFEVEL4986.0. The
serial number can be found on a decal attached to the
elliptical exerciser (see the front cover of this manual
for the location of the decal).

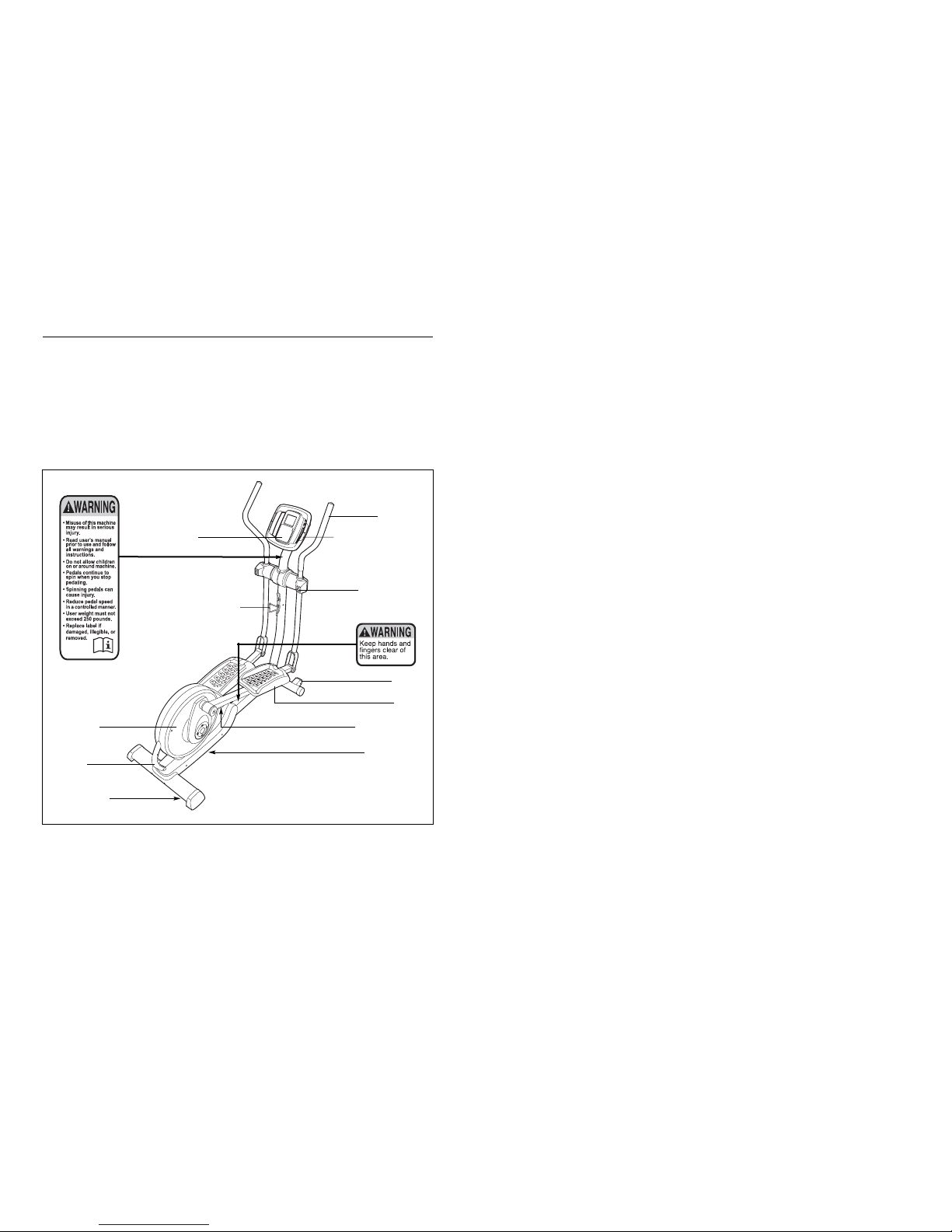

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handlebar
RIGHT SIDE
Pedal Disk
Wheel
Pedal
Console
Water Bottle Holder*
Leveling Foot
Handle
Storage Latch
Storage Magnet
Pedal Arm Latch
*No water bottle is included
101 8 M4 x 16mm Round Head Screw
102 4 Motor Washer
103 27 M4 x 16mm Screw
104 8 M4 x 14mm Screw
105 6 M4 x 32mm Round Head Screw
106 2 M8 x 31mm Shoulder Screw
107 4 M4 x 12mm Screw
108 2 M4 x 45mm Screw
109 2 Large Wave Washer
110 2 M8 Small Washer
111 2 Wave Washer
112 8 Star Washer
113 1 M10 Washer
114 1 M6 Nut
115 4 M8 x 23mm Shoulder Screw
116 1 Transport Handle
117 4 Transport Handle Screw
118 4 Bearing Spacer
# 2 Hex Key
# 1 Grease
# 1 User’s Manual
Key No. Qty. Description Key No. Qty. Description
Page 5
20 5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .

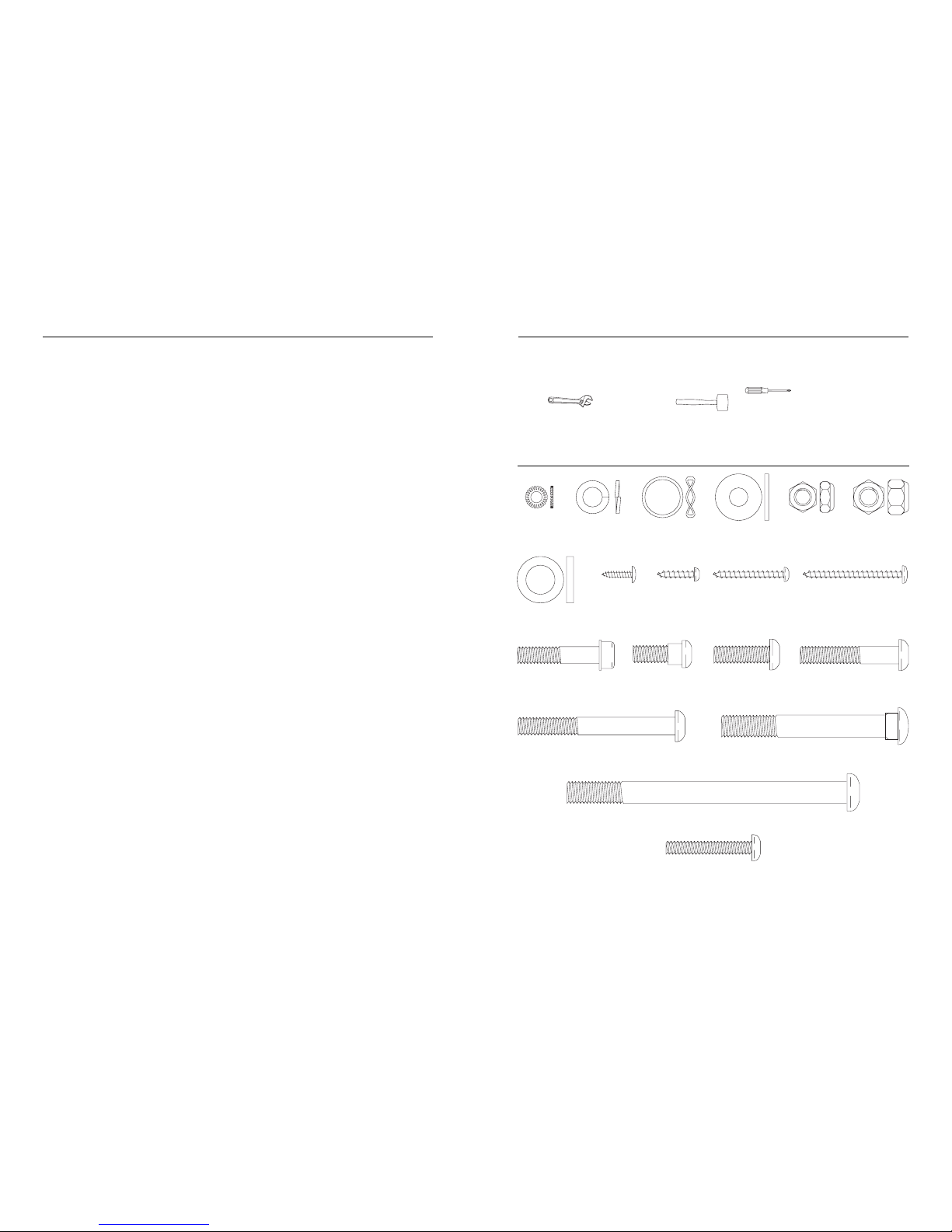

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 20 and 21. The number following the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassem-
bled. If a part is not in the parts bag, check to see if it has been preassembled.
M10 x 127mm Button Screw (83)–2
M4 x 14mm
Screw (104)–8
M10 Nylon
Locknut (81)–2
M8 Jamnut
(79)–5
M8 Washer
(88)–6
Wave Washer
(111)–2
M8 x 23mm Button
Screw (84)–4
M8 Split
Washer (90)–3
M8 x 41mm Button
Bolt (78)–4
M4 x 16mm
Round Head
Screw (101)–8
M4 x 32mm
Round Head
Screw (105)–6
M4 x 45mm
Screw (108)–2
M8 x 23mm Shoulder
Screw (115)–4
M8 x 69mm Button
Bolt (80)–1
M10 x 80mm Carriage
Bolt (82)–2
Hub Screw (87)–8
Star Washer
(112)–8
Transport Handle
Screw (117)–4
Bearing Spacer
(118)–4
1 1 Base
2 1 Frame
3 1 Upright
4 1 Upright Endcap
5 1 Console
6 1 Front Stabilizer
7 1 Rear Stabilizer
8 1 Left Handlebar
9 1 Right Handlebar
10 2 Handlebar Endcap
11 1 Left Upper Body Arm
12 1 Right Upper Body Arm
13 1 Left Pedal
14 1 Left Pedal Leg
15 1 Right Pedal
16 1 Right Pedal Leg
17 2 Upright Cover
18 1 Left Front Handlebar Cover
19 1 Left Rear Handlebar Cover
20 1 Right Front Handlebar Cover
21 1 Right Rear Handlebar Cover
22 1 Water Bottle Holder
23 2 Front Stabilizer Endcap
24 2 Rear Stabilizer Endcap
25 2 Wheel
26 1 Base Foot
27 2 Leveling Foot
28 1 Left Side Shield
29 1 Right Side Shield
30 6 Upper Body Bearing
31 4 Pedal Leg Cover
32 2 Pedal Leg Axle
33 4 Pedal Leg Bearing
34 1 Base Axle
35 2 Base Bushing
36 2 Crank Arm
37 2 Inner Crank Cover
38 2 Crank Hub
39 1 Pulley Spacer
40 1 Pulley
41 2 Crank Bushing Cover
42 4 Crank Arm Bearing
43 2 Crank Bushing Sleeve
44 2 Crank Bearing Set
45 1 Crank
46 1 Crank Spacer
47 2 Crank Snap Ring
48 1 Upper Wire Harness
49 1 Lower Wire Harness
50 1 Reed Switch/Wire
51 1 Belt
52 1 Flywheel
53 1 “C” Magnet
54 1 Pillow Block
55 1 Magnet
56 1 Spring
57 1 Idler
58 1 Idler Bracket
59 1 Clamp
60 1 Reed Switch Bracket
61 1 Base Pin
62 2 Latch Bracket Spacer
63 2 Hairpin Cotter
64 1 Latch Bracket
65 1 Pivot Bracket
66 2 Pivot Bracket Spacer
67 1 Frame Pin
68 1 Latch Button
69 1 Roll Pin
70 1 Motor
71 1 Resistance Cable Pulley
72 1 Resistance Cable Set
73 2 Foam Grip
74 1 Pivot Axle
75 2 Hub Cover
76 2 Outer Crank Cover
77 2 Flywheel Bracket
78 4 M8 x 41mm Button Bolt
79 7 M8 Jamnut
80 1 M8 x 69mm Button Bolt
81 4 M10 Nylon Locknut
82 2 M10 x 80mm Carriage Bolt
83 2 M10 x 127mm Button Screw
84 6 M8 x 23mm Button Screw
85 1 M6 x 10mm Button Screw
86 2 Crank Screw
87 8 Hub Screw
88 10 M8 Washer
89 2 M10 x 60mm Button Screw
90 3 M8 Split Washer
91 1 Flywheel Spacer
92 1 Flywheel Washer
93 1 Flywheel Snap Ring
94 4 Pillow Block Screw
95 1 Stop Screw
96 1 M8 x 35mm Screw
97 1 “E” Clip
98 4 Pulley Screw
99 2 Crank Washer
100 2 M4 x 25mm Screw
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. PFEVEL4986.0 R0907A
Page 6
19
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your “training zone.”
The lower two numbers are recommended heart rates
for fat burning; the highest number is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible
carbohydrate
calories for energy. Only after the first few minutes of exercise does
your body begin to use stored
fat
calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exercise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
6

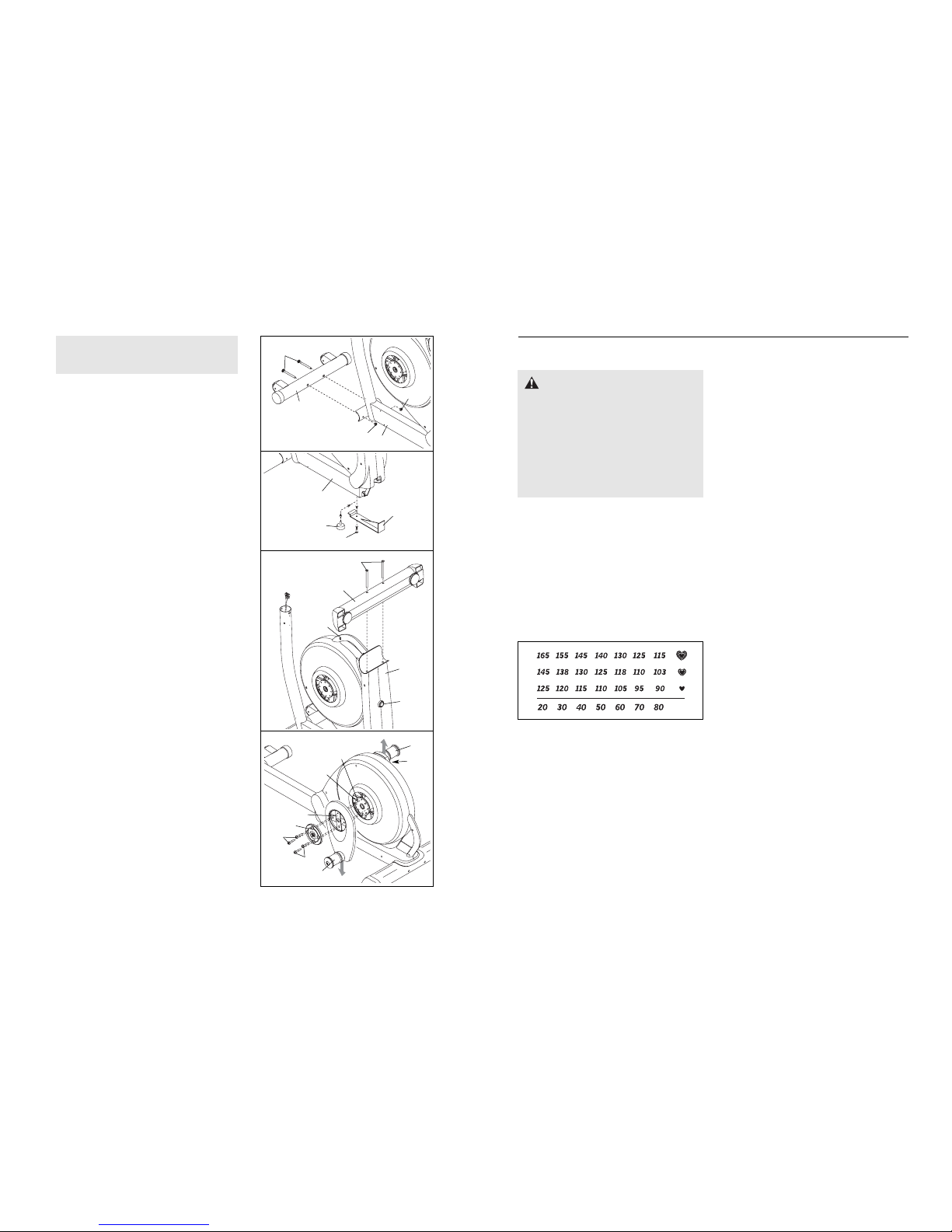

1.
While another person lifts the Base (1), attach the
Front Stabilizer (6) to the Base with two M10 x 80mm
Carriage Bolts (82) and two M10 Nylon Locknuts (81).
2. Remove the indicated screw and the shipping bracket
from the Base (1). Discard the screw and the shipping
bracket.
Next, turn the Base Foot (26) into the Base (1) as far
as possible.
3. Attach the Rear Stabilizer (7) to the Frame (2) with two
M10 x 127mm Button Screws (83).
Next, hold the handle on the Frame (2) and press the
Latch Button (68). Then, lower the Frame until the
Rear Stabilizer (7) rests on the floor.
4. Hold a Hub Cover (75) and a Crank Arm (36) against
the left Crank Hub (38). Align the holes in the Hub
Cover and the Crank Arm with the unused holes in the
left Crank Hub. Next, insert four Hub Screws (87) into
the Hub Cover and the Crank Arm. Then, finger tighten
the Hub Screws into the left Crank Hub. Tighten one
Hub Screw, and then tighten the Hub Screw across
from the first Hub Screw. Then, tighten the remaining
two Hub Screws.
Repeat this step on the right side of the elliptical exerciser; make sure that the Crank Arms (36) are ori-
ented so the Crank Bushing Sleeves (43) are in the
positions shown. Note: There are no Pulley
Screws (98) on the right side.
6
81
81
82
1
1
Shipping
Bracket
26
Screw
3
83
7
Handle
2
68
2
4
36
38
98
75
87
87
36
43
1
43
To make assembly easier, read the information
on page 5 before you begin assembling the
elliptical exerciser.
Page 7
18
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 6 on page
7 for replacement instructions.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor
during use, turn one or both of the leveling feet
beneath the rear stabilizer until the rocking motion is
eliminated.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 30 seconds.
• For optimal performance of the handgrip pulse sensor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth—never use alco-
hol, abrasives, or chemicals to clean the contacts.
HOW TO ELIMINATE FLEXING IN THE CENTER OF
THE ELLIPTICAL EXERCISER
If the elliptical exerciser flexes in the center during
use, turn the base foot (see the drawing at the left)
until the flexing is eliminated.
MAINTENANCE AND TROUBLESHOOTING
Leveling
Feet
Base
Foot
7

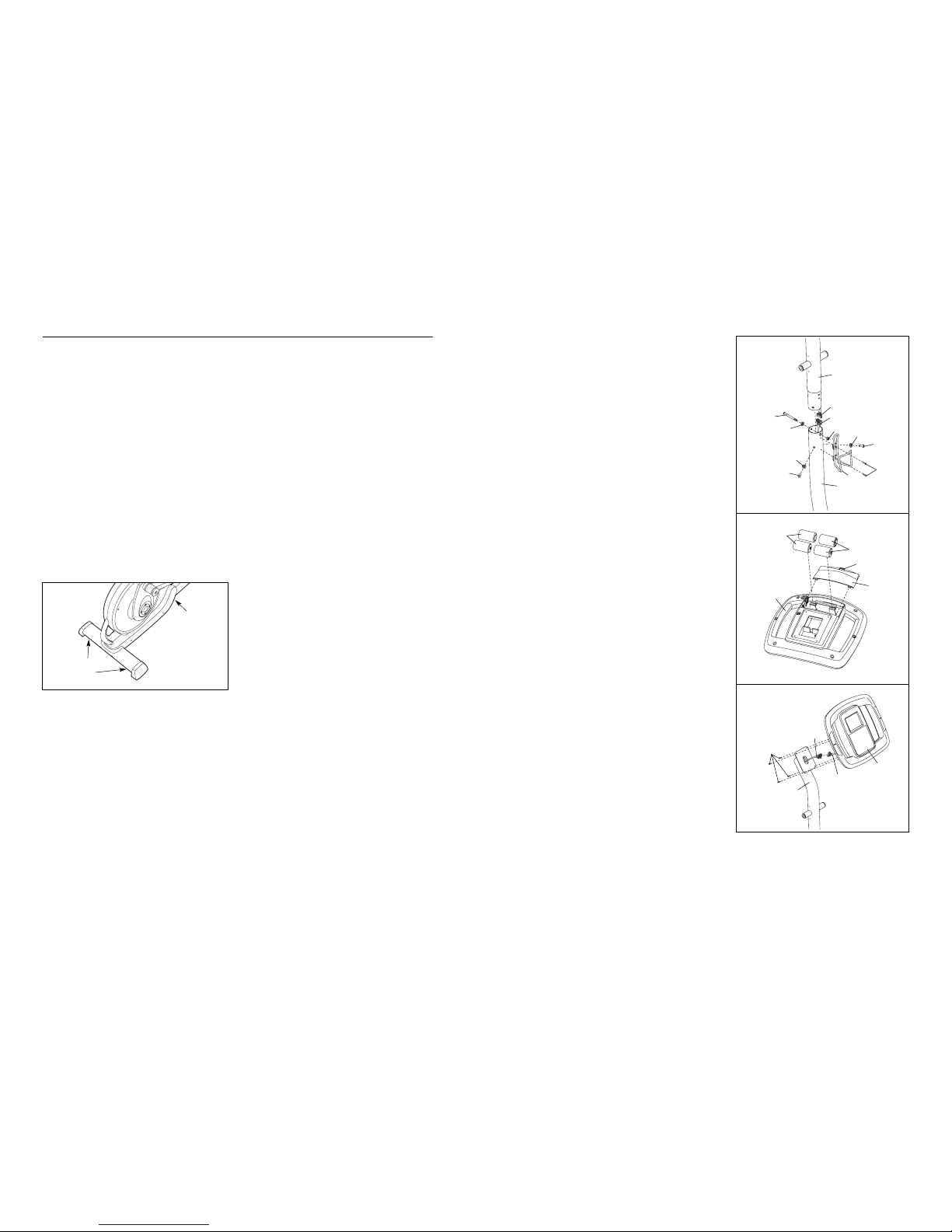

6. The Console (5) requires four 1.5V “D” batteries; alkaline batteries are recommended. Press the tab on the
battery cover and remove the battery cover. Next, insert
four batteries into the Console. Make sure that the
batteries are oriented as shown by the diagram
inside the battery compartment. Then, reattach the
battery cover to the Console.
5. While another person holds the Upright (3), connect
the Upper Wire Harness (48) to the Lower Wire
Harness (49). Gently pull the upper end of the
Upper Wire Harness to remove any slack, and
insert the Upright into the Base (1). Attach the Upright
with an M8 x 69mm Button Bolt (80), an M8 Split
Washer (90), and an M8 Jamnut (79). Do not tighten
the Button Bolt yet; make sure that the Jamnut is
in the hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Button
Screws (84) with M8 Split Washers (90) into the
Base (1). Do not tighten the Button Screws yet.
Attach the Water Bottle Holder (22) to the Base (1)
with two M4 x 14mm Screws (104).
Battery
Cover
Batteries
Batteries
Tab
6
5
3
80
48
49
22
84
84
90
90
90
104
79
1
5
7. While another person holds the Console (5) near the
Upright (3), connect the wire harness on the Console to
the Upper Wire Harness (48). Insert the excess wire
harness into the Upright. Next, attach the Console to
the Upright with four M4 x 16mm Round Head
Screws (101).
Be careful to avoid pinching the wire
harness.
48
5
3
101
Wire
Harness
7
Page 8
17
Begin pedaling to start the program.
Each heart rate program is divided into 20 or 30
one-minute segments. One target heart rate setting is programmed for each segment. Note: The
same target heart rate setting may be programmed for two or more consecutive segments.
The target heart rate setting for the first segment
will be shown in the flashing Current Segment
column of the display. The target heart rate settings for the next several segments will be shown
in the columns to the right.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and
all target heart rate
settings will move one column to the left.
The target heart rate setting for the second segment will
then be shown in the flashing Current Segment
column.
As you pedal, the console will regularly compare
your heart rate to the target heart rate setting. If
your heart rate is too far below or above the target
heart rate, the resistance of the pedals will automatically increase or decrease to bring your heart
rate closer to the target heart rate.
You will also be
prompted to
pedal at a steady
pace. When an
upward arrow
appears in the
display, increase
your pace. When a downward arrow appears in
the display, decrease your pace. When no arrows
appear in the display, maintain your current pace.
Important: Make sure to exercise at a pace
that is comfortable for you. Note: You can man-
ually override the resistance settings; however, if
you change the resistance settings, you might not
maintain the target heart rate. Also, when the
console compares your heart rate to the target
heart rate setting, the resistance of the pedals
may automatically increase or decrease to bring
your heart rate closer to the target heart rate setting.
The program will continue in this way until the last
segment ends. To stop the program at any time,
stop pedaling. A tone will sound and the time will
begin to flash in the display. To restart the program, simply resume pedaling.
Follow your progress with the display.
See step 4 on page 14.
Measure your heart rate if desired.
See step 5 on page 15.
When you are finished exercising, the console
will turn off automatically.
See step 6 on page 15.
8
7
6
5
8

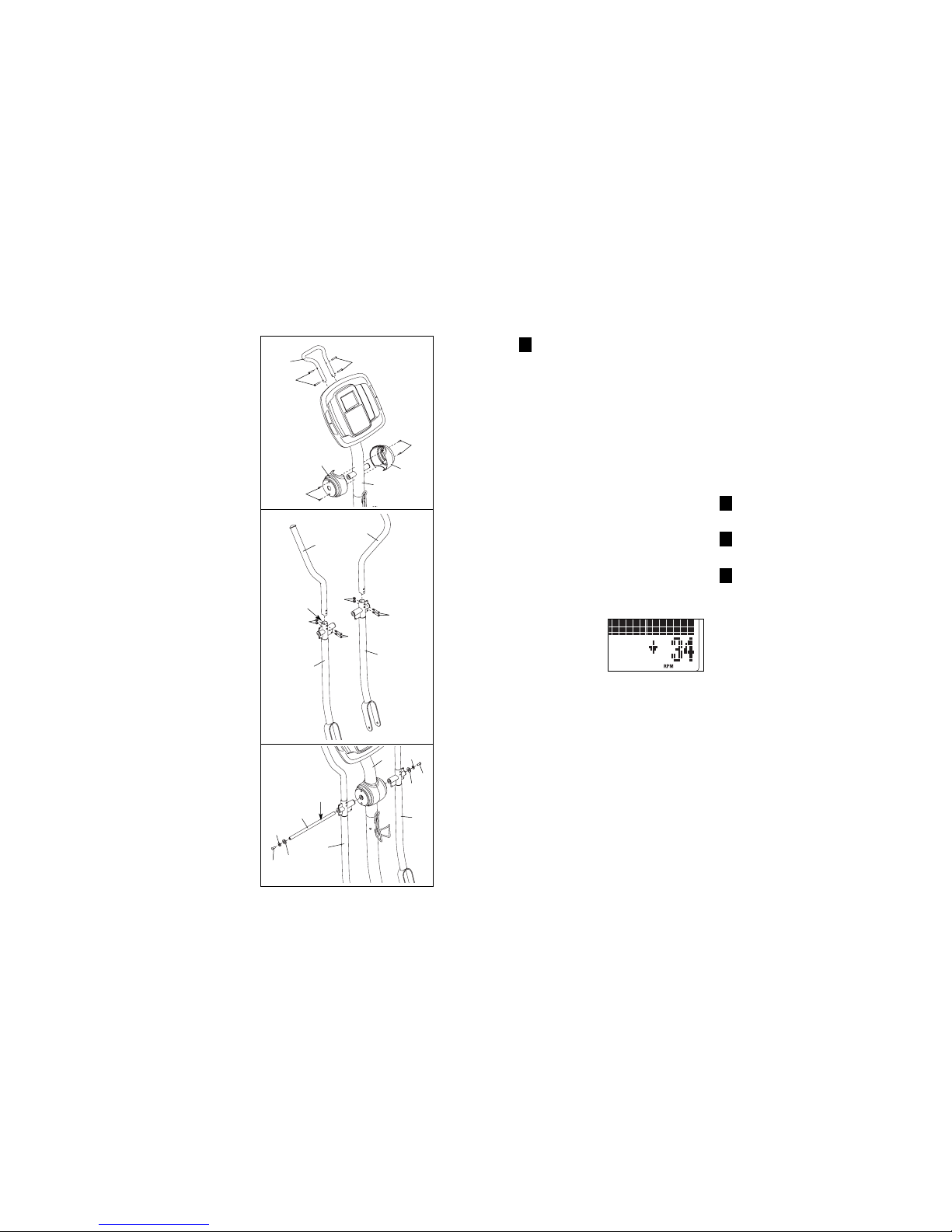

10. Insert the Pivot Axle (74) into the Upright (3) and then
center it. Apply a generous amount of the included
grease to the Pivot Axle.
Orient the Left Upper Body Arm (11) as shown, and
slide it onto the left end of the Pivot Axle (74). Slide the
Right Upper Body Arm (12) onto the right end of the
Pivot Axle.
Tighten an M8 x 23mm Button Screw (84) with an M8
Washer (88) and a Wave Washer (111) into each end of
the Pivot Axle (74). Make sure that the Wave Washers
are on the ends of the Pivot Axle.
9. Identify the Left Handlebar (8) and the Left Upper Body
Arm (11), which are marked with “Left” stickers.
Orient the Left Handlebar (8) and the Left Upper Body
Arm (11) as shown. Insert the Left Handlebar into the
Left Upper Body Arm. Attach the Left Handlebar with two
M8 x 41mm Button Bolts (78) and two M8 Jamnuts (79).
Make sure that the Jamnuts are in the hexagonal
holes in the Left Upper Body Arm.
Attach the Right Handlebar (9) to the Right Upper
Body Arm (12) in the same way.
9
11
8
9
12
88
84
111
88
74
3
84
111
12
11
78
78
79
79
Hexagonal
Holes
Grease
10
8
17
17
3
3
101
101
117
117
116
8. Attach the Transport Handle (116) to the Upright (3) with
four Transport Handle Screws (117). Make sure that the
Transport Handle is oriented as shown.
Orient one of the Upright Covers (17) as shown, and hold
it against the Upright (3). Attach the Upright Cover with
two M4 x 16mm Round Head Screws (101).
Attach the other Upright Cover (17) in the same way.
Page 9
16
As you exercise,
you will be
prompted to keep
your pedaling
pace near the
target rpm setting
for the current
segment. When
an upward arrow appears in the display, increase
your pace. When a downward arrow appears in
the display, decrease your pace. When no arrows
appear in the display, maintain your current pace.
Important: The target rpm settings are intended only to provide motivation. Your actual
pace may be slower than the target rpm settings. Make sure to exercise at a pace that is
comfortable for you.
If the resistance setting for the current segment is
too high or too low, you can manually override the
setting by pressing the decrease and increase
buttons. Important: When the current segment
of the program ends, the pedals will automatically adjust to the resistance setting for the
next segment.
The program will continue in this way until the last
segment ends. To stop the program at any time,
stop pedaling. A tone will sound and the time will
begin to flash in the display. To restart the program, simply resume pedaling.
Follow your progress with the display.
See step 4 on page 14.
Measure your heart rate if desired.
See step 5 on page 15.
When you are finished exercising, the console
will turn off automatically.
See step 6 on page 15.

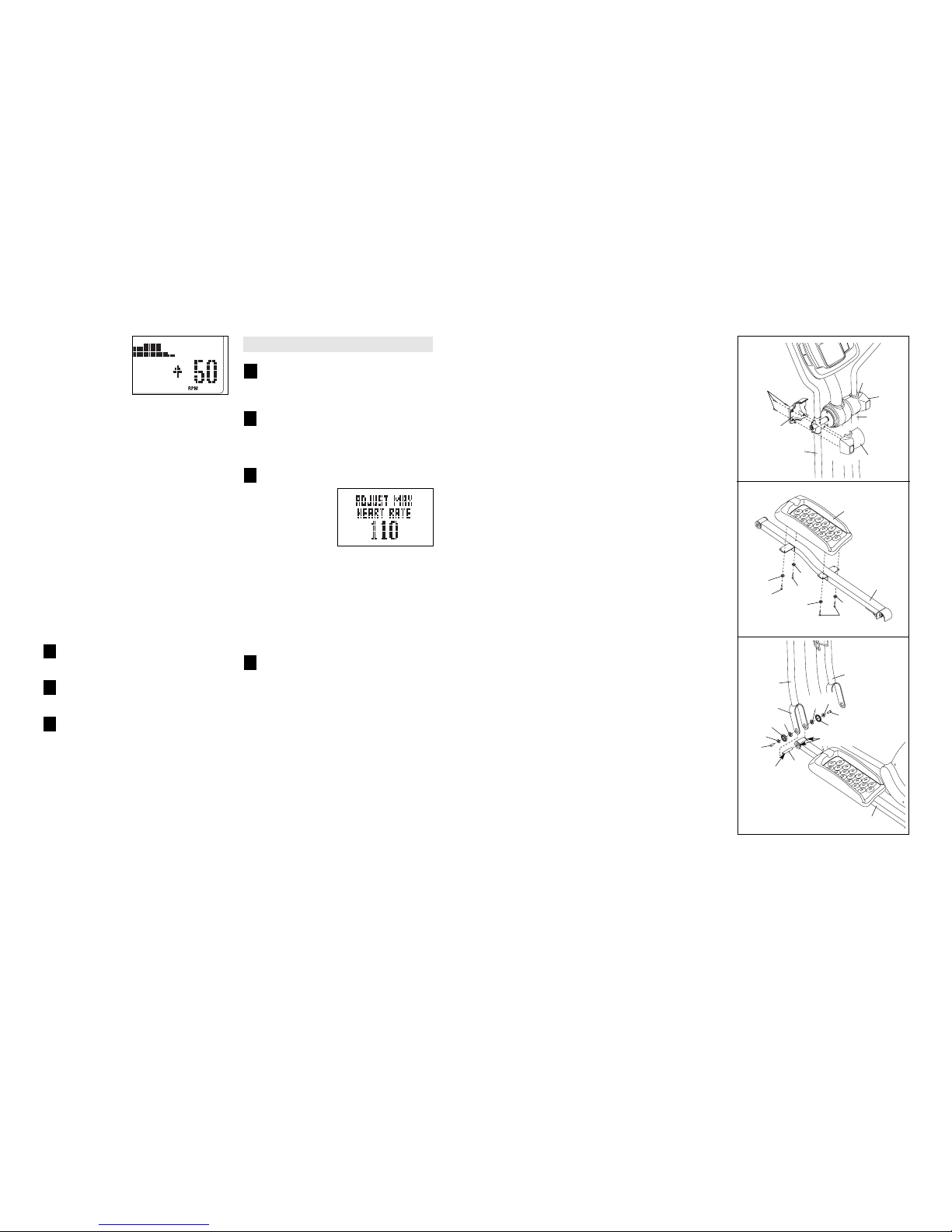

HOW TO USE A HEART RATE PROGRAM
Begin pedaling to turn on the console.
A moment after you turn on the console, the display will light.
Select a heart rate program.
To select one of the two heart rate program, press
the Heart Rate Programs button once or twice
until the desired program is selected.
Enter a target heart rate setting.
When you select a
heart rate program, the maximum target heart
rate setting will
appear in the center of the display.
Press the
Resistance increase and decrease buttons to
change the maximum heart rate setting if desired.
Note: If you change the maximum target heart
rate setting, the intensity level of the entire program will change.
The program time and a profile of the target heart
rate settings for the program will then appear in
the display.
Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sensor continuously during a heart rate program;
however, you should hold the handgrip pulse sensor frequently for the program to operate properly.
Each time you hold the handgrip pulse sensor, keep your hands on the metal contacts
for at least 30 seconds.
4
3
2
1
6
5
4
9
13. Apply a thin film of grease to a Pedal Leg Axle (32) and
to the two Pedal Leg Bushings (33) in the Left Pedal
Leg (14).
Next, slide an M8 Washer (88) and a Pedal Leg
Cover (31) onto an M8 x 23mm Shoulder Screw (115),
and finger tighten the Shoulder Screw into the Pedal
Leg Axle (32).
While another person holds the end of the Left Pedal
Leg (14) inside the bracket on the Left Upper Body Arm
(11), insert a Bearing Spacer (118) into each side of the
bracket. Next, insert the Pedal Leg Axle (32) into the
Left Upper Body Arm and the Left Pedal Leg. Then,
slide an M8 Washer (88) and a Pedal Leg Cover (31)
onto another M8 x 23mm Shoulder Screw (115), and
tighten the Shoulder Screw into the Pedal Leg Axle.
Tighten both Shoulder Screws.
Repeat this step to attach the Right Pedal Leg (not
shown) to the Right Upper Body Arm (12).
12. Identify the Left Pedal (13) and the Left Pedal
Leg (14), which are marked with “Left” stickers.
Attach the Left Pedal (13) to the Left Pedal Leg (14)
with an M4 x 45mm Screw (108), three M4 x 14mm
Screws (104), and four Star Washers (112).
Attach the Right Pedal (not shown) to the Right
Pedal Leg (not shown) in the same way.
Grease
13
115
32
88
31
118
118
12
11
14
13
14
104
104
112
112
112
112
108
12
115
88
33—Grease
11. Hold the Left Front Handlebar Cover (18) and the Left
Rear Handlebar Cover (19) around the Left Upper Body
Arm (11). Attach the Handlebar Covers with three
M4 x 32mm Round Head Screws (105).
Attach the Right Front Handlebar Cover (20) and the
Right Rear Handlebar Cover (21) around the Right
Upper Body Arm (12) in the same way.
20
21
105
12
19
11
18
11
Bracket
31
Page 10
15

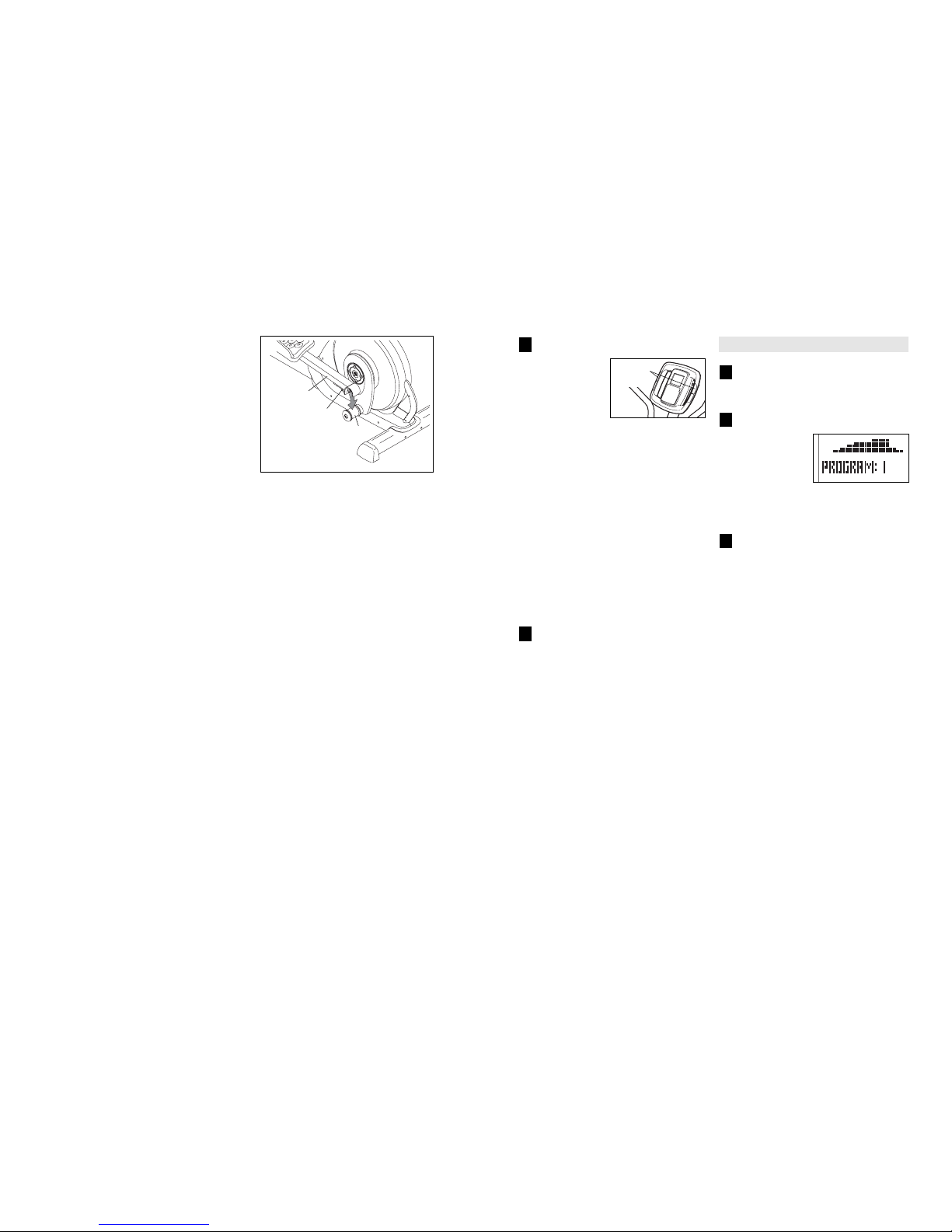

Measure your heart rate if desired.
If there are
sheets of clear
plastic on the
metal contacts
on the handgrip
pulse sensor,
remove the plastic. To measure
your heart rate, hold the handgrip pulse sensor
with your palms resting against the metal contacts. Avoid moving your hands or gripping the
contacts too tightly.
When your pulse is detected, one, two, or three
dashes will appear, and then your heart rate will
be shown. For the most accurate heart rate reading, hold the contacts for at least 15 seconds.
Note: If you continue to hold the handgrip pulse
sensor, the display will show your heart rate for
up to 30 seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts too tightly. For optimal performance, clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause. If the
pedals do not move for several minutes and the
buttons are not pressed, the console will turn off
and the display will be reset.
HOW TO USE A SMART PROGRAM
Begin pedaling to turn on the console.
A moment after you begin pedaling, the display
will light.
Select a smart program.
To select one of
the eight smart
programs, press
the Smart
Programs button
repeatedly until
Program 1, 2, 3, 4,
5, 6, 7, or 8 appears in the display. The program
time and a profile of the resistance settings for the
program will also appear in the display.
Begin pedaling to start the program.
Each program is divided into 20, 30, or 45 oneminute segments. One resistance setting and one
target rpm (pace) setting are programmed for
each segment. Note: The same resistance and/or
target rpm setting may be programmed for two or
more consecutive segments.
The resistance setting and the target rpm for the
first segment will appear in the center of the display for a few seconds. The resistance setting will
also be indicated by the height of the flashing
Current Segment column in the display. The
resistance settings for the next several segments
will appear in the columns to the right.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and
a series of tones will sound. If the resistance
and/or target rpm is about to change, the resistance setting and/or the target rpm setting will
appear in the display to alert you.
When the first segment is completed,
all resis-
tance settings will move one column to the left
.
The resistance setting for the second segment
will then appear in the flashing Current Segment
column and the pedals will automatically adjust to
the resistance setting for the second segment.
Note: If all the indicators in the Current Segment
column are lit,
the resistance settings may move
downward
so that only the highest indicators
appear in the matrix.
3
2
1
6
5
Contacts
10
14. Lift the latch on the underside of the Left Pedal
Leg (14), and set the Left Pedal Leg on the left Crank
Bushing Sleeve (43). Release the lever, and make sure
that the Left Pedal Leg is securely connected to the
Crank Bushing Sleeve.
Connect the Right Pedal Leg (not shown) in the
same way.
See step 5. Tighten the M8 x 69mm Button Bolt (80)
and the two M8 x 23mm Button Screws (84).
15. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
Latch
14
43
14
Page 11
14

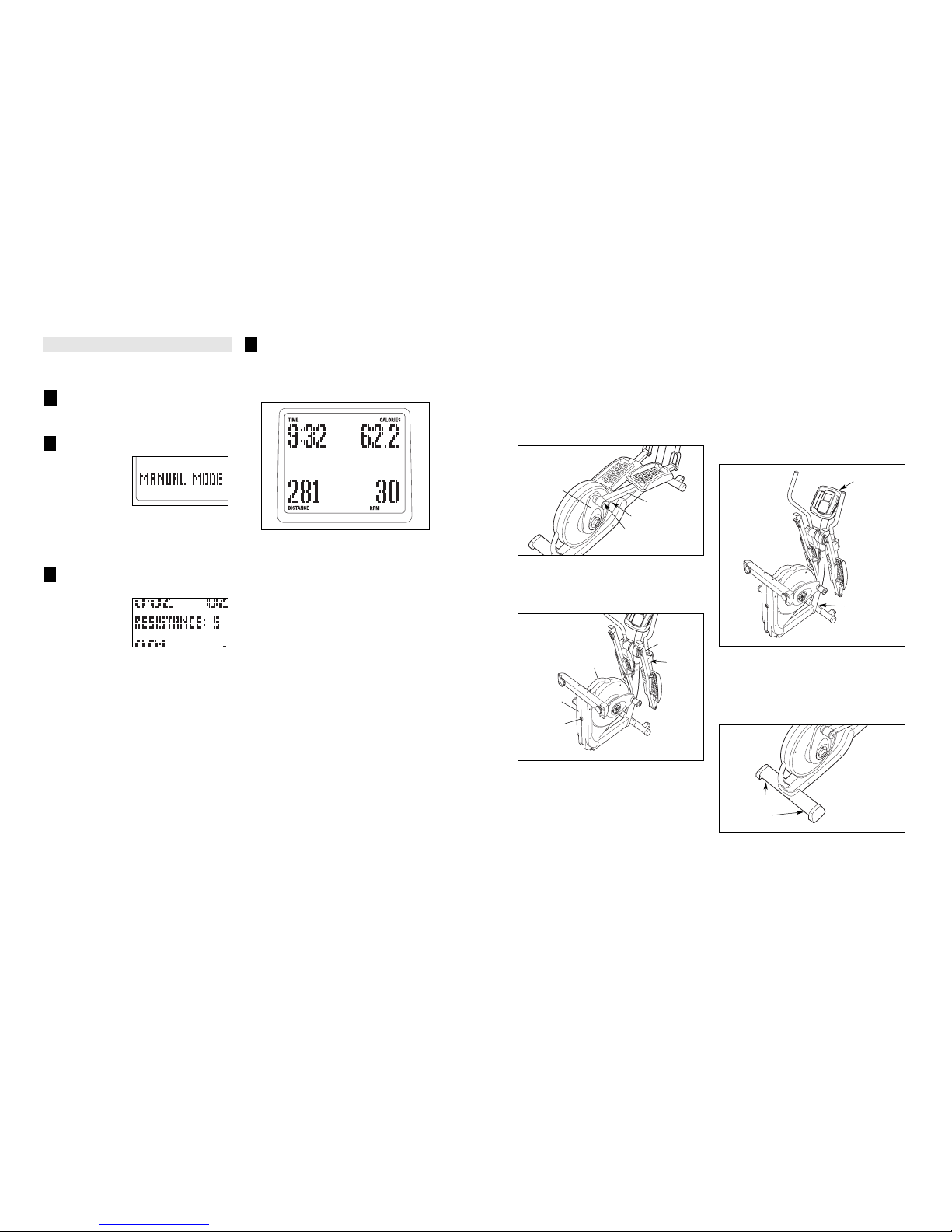

HOW TO USE THE MANUAL MODE
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic.
Begin pedaling to turn on the console.
A moment after you begin pedaling, the display
will light.
Select the manual mode.
Each time you
turn on the console, the manual
mode will be
selected. If you
have selected a
program, reselect
the manual mode by pressing the Smart Programs
button or the Heart Rate Programs button repeatedly until the words MANUAL MODE appear in the
lower left corner of the display.
Change the resistance of the pedals as
desired.
As you pedal,
change the resistance of the pedals by pressing
the increase and
decrease buttons
repeatedly. There
are ten resistance levels. Note: After you press
the buttons, it will take a moment for the pedals
to reach the selected resistance level.
Follow your progress with the display.
The upper left corner of the display will show
the elapsed time. Note: When a program is selected, the display will show the time remaining in the
program instead of the elapsed time.
The lower left corner of the display will show
the distance, in total revolutions, you have pedaled.
The upper right corner of the display will show
the approximate number of calories you have
burned. The upper right corner of the display will
also show your heart rate when you use the handgrip pulse sensor (see step 5 on page 15).
The lower right corner of the display will show
your pedaling pace in revolutions per
minute (rpm).
The center of the display will show the resistance setting of the pedals for a few seconds each
time the resistance setting changes.
You can also view selected information at a larger
size. Press the Display button repeatedly to view
time and distance information, time and calorie
information, or time and speed information. Press
the Display button again to view all information.
The console has three backlight options. The “On”
option keeps the backlight on while the console is
on. To conserve the batteries, the “Auto” option
keeps the backlight on only while you are pedaling. The “Off” option turns the backlight off. To
select a backlight option, first press and hold
down the Smart Programs button for several seconds. Next, press the increase button to select the
desired backlight option. Then, press the Smart
Programs button to save your selection.
4
3
2
1
11

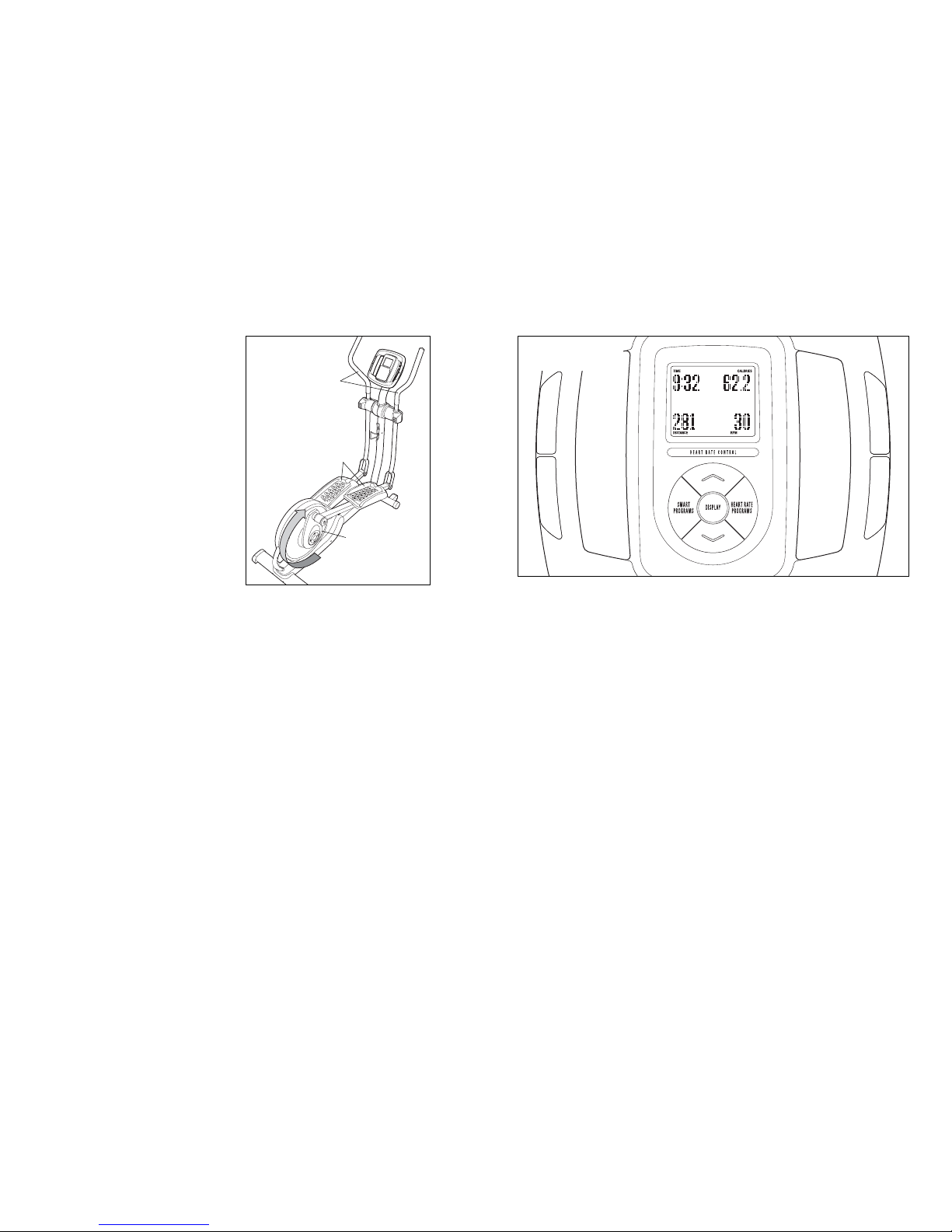

HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. First, lift the latch under
each pedal leg, and lift the pedal legs off the sleeves
on the crank arms.
Next, raise the pedal legs until they touch the magnets
on the upper body arms; the magnets will hold the
pedal legs in place. Then, hold the handle and lift the
frame until it locks in a vertical position.
To unfold the elliptical exerciser, first hold the handle,
press the latch button, and lower the frame.
Next, pull the pedal legs away from the magnets on the
upper body arms. Then, lift the latches under the
pedal legs, and set the pedal legs on the sleeves on
the crank arms. Release the latches, and make sure
that the pedal legs are securely connected to the crank
arms.
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the elliptical exerciser, hold the handle on the upright, and place
one foot against the center of the front stabilizer. Pull
the handle until the elliptical exerciser will roll on the
front wheels. Carefully move the elliptical exerciser to
the desired position, and then lower it.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor
during use, turn one or both of the leveling feet
beneath the rear stabilizer until the rocking motion is
eliminated.
Latch
Sleeve
Pedal Leg
Crank
Arm
Handle
Place
your foot
here
Magnet
Handle
Frame
Latch
Button
Pedal Leg
Leveling
Feet
Page 12
12
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow at the right; however, for variety you can turn the crank arms in the
opposite direction.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lower pedal.
Pedals
Crank Arm
Handlebars
13
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more effective.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console also features eight smart programs that
automatically change the resistance of the pedals and
prompt you to vary your pedaling pace while guiding
you through effective workouts.
In addition, the console offers two heart rate programs
that automatically control the resistance of the pedals
and prompt you to maintain a constant pedaling pace
to keep your heart rate near target heart rate settings
during your workouts.
To use the manual mode of the console, follow the
steps beginning on page 14. To use a smart program,
see page 15. To use a heart rate program, see
page 16.
CONSOLE DIAGRAM
