VHF/UHF DUAL BAND DIGITAL TRANSCEIVER
Your Perfect
Travelling
Companion!
GPS
IPX7
USB
(Type-C)
SPEAKER OUTPUT
SPEAKER OUTPUTSPEAKER OUTPUTSPEAKER OUTPUT
750mW
750mW750mW750mW
VHF
VHF
VHF
VHF
AIRBAND
AIRBAND
AIRBAND
AIRBAND
MicroSDMicroSD
Page 2
Terminal Mode
Simplex Call
Gateway Call
Local Area Call
Internet
RF Signal
RepeaterRepeater
Repeater
Repeater
Repeater
Repeater
Access Point Mode
Gateway Call
CQ
CQ
INTERNET
QSO Anytime, Anywhere, with Easy Functions and Smart Features
Global Communication with the D-STAR Network
The ID-50E is a compact VHF/UHF dual bander with both D-STAR (Digital Smart Technologies for Amateur Radio) and FM dual modes. Connecting to the Digital network, you can call a friend in another city, or
other regions around the world with the ID-50E. Smart functions such as Band Scope and Picture Sharing
function enhance your QSO experience. Enjoy worldwide communications through the D-STAR network.
Easy D-STAR Settings for Beginners
The DR function makes communications using D-STAR repeaters easier and simple. Just
selecting “FROM”(access repeater) and “TO” (destination), you can make QSO calls including Local Area call, Gateway call, and Simplex call. Combined with the GPS function, you
can make selection of a local repeater available based on your location. In addition, the DR
function supports reector linking controls.
Share Picture Function*
to Expand the Fun of QSOs
Build Your Own Internet Gateway
Even in the area with no D-STAR repeaters, build your own internet gateway (using Terminal mode and Access Point mode*) to ac-
You can share pictures with each other
in the DV mode. Enjoy sharing pictures
together with voice messages.
* Share picture
function requires
the optional picture
utility software STID50A (on Google
Play™) or ST-ID50W
(Download from
Icom website) and
user supplied USB
Type-C to Type-C
cable.
cess the D-STAR network virtually anywhere. Building an Access
Point is easy, by connecting your ID-50E to a PC or an Android™
device connected to the internet, you will be able to make another
D-STAR radio user to communicate through the D-STAR network
over the air.
* The RS-MS3W optional software (Download from Icom website) and user supplied USB Type-C/
USB Type-C cable are required for Access Point mode. The RS-MS3A optional application
software (Download on Google Play™) and user supplied USB Type-C/USB Type-C cable are
required for Terminal mode. Terminal and Access Point modes are compatible with the Icom RSRP3 Gateway Software. If your D-STAR repeater is running G1 or G2 software, ask the repeater
administrator to contact the local Icom Distributor to upgrade the software.
• You need an Internet connection with an IPv4 Global IP address. If you use a cellular system, you
need an IPv4 Global IP address assigned to your Android™ device.
Smart Functions and Operations
DR function
VHF/UHF DUAL BAND DIGITAL
TRANSCEIVER
ID-50E
Easily Find Active Channels by Sight
The Band Scope with Waterfall display helps
you to see band conditions in more detail and
nd active channels or an open frequency.
The Waterfall display shows presence or
absence of signals and even the signal level.
The Band Scope mode
is usable in the Center
mode, Fixed mode,
and Fixed scroll mode.
You can enjoy efficient
and smart operations
with it.
Waterfall display example
Enjoy D-STAR Text Message
Communication
By installing RS-MS1A App on your Android™
device, you can easily send text messages
using your device’s
keyboard to enter text.
Also the RS-MS1A can
remotely control the
transceiver operation
and set various functions from your Android™ device.
DR setting
display example
Text transmission
display example
Reliable To Use in Rainy
or Humid Environments
The ID-50E features superior IPX7* waterproong and pro-grade construction. Perfect
to take outdoors, even in harsh environments.
*1 m depth of water for 30 minutes.
Double QSO Opportunities
with Dualwatch
The Dualwatch function* enables monitoring
VHF/VHF, VHF/UHF and UHF/UHF bands at
the same time. You can quickly respond to a
call from the Main and Sub bands.
* DV/DV mode cannot be listened at the same time.
VHF/VHF VHF/UHF UHF/UHF
Various Data Saving on a MicroSD Card
A microSD card (up to 32 GB) can store QSO
Recording, TX Voice Memory, pictures, QSOs
and GPS log data. Moreover, Firmware upgrades,
Repeater lists, and other personal settings can be
saved and uploaded into the ID-50E radio.
Page 3
Internet
RF Signal
Local Area Call
Repeater
Repeater
Repeater
Repeater
Gateway Call
Simplex Call
INTERNET
CQ
RepeaterRepeater
Gateway Call
CQ
VHF Airband and
FM Broadcast Receiver
FM broadcast and
Airband can be
listened to. You can
enjoy receiving
variety of channels.
VHF Airband receiver
Find Nearby Repeaters
at a New Location
With the built-in GPS, your location and
current Grid Square information can be
checked by other stations. You can check the
distance to the other stations as well. Various GPS functions
are usable with the
GPS location data,
such as Position Auto
Reply, Near Repeater
Search, and GPS log
functions.
Repeater list
Terminal Mode
Charging with
a USB Type-C™ Connector
The ID-50E has a USB type-C port which
is widely used in the industry. It is a multi-function USB port for charging as well as
PC programming, read/write contents to the
microSD card, Terminal/Access Point mode
support, and CI-V control.
Use a third-party USB cable for charging. USB PD is not supported.
Same Optional Accessories can
be shared with the ID-52/51/31
Some accessories of the ID-52/ID-51/
ID-31 series transceivers can be used
for ID-50E. Moreover, the large capacity battery pack, BP-307 from the IC705 is compatible with ID-50E as well.
If you own these models, you can take
advantage of sharing accessories.
QSO Logs in CSV Data Format
Frequencies, modes, and GPS logs can be
saved in the CSV data format. Various kinds
of QSO information can be downloaded and
easily managed.
Access Point Mode
High Visible LCD
with Backlight Function
The ID-50E’s large full dot LCD shows
graphical information with easy-toread characters and
icons. In addition,
the LCD backlight
helps when using in
dark places.
Large full dot LCD
750 mW Loud Audio Output Power
Built-in 750 mW powerful audio output.
The internal speaker provides louder and
clearer audio.
Other Features
• Easy-to-see Single Band Mode with large
and bold characters.
• DV fast data mode uses data in place
of voice frames
• Voice Recorder function
• External DC power jack
Page 4
VHF/UHF DUAL BAND DIGITAL TRANSCEIVER

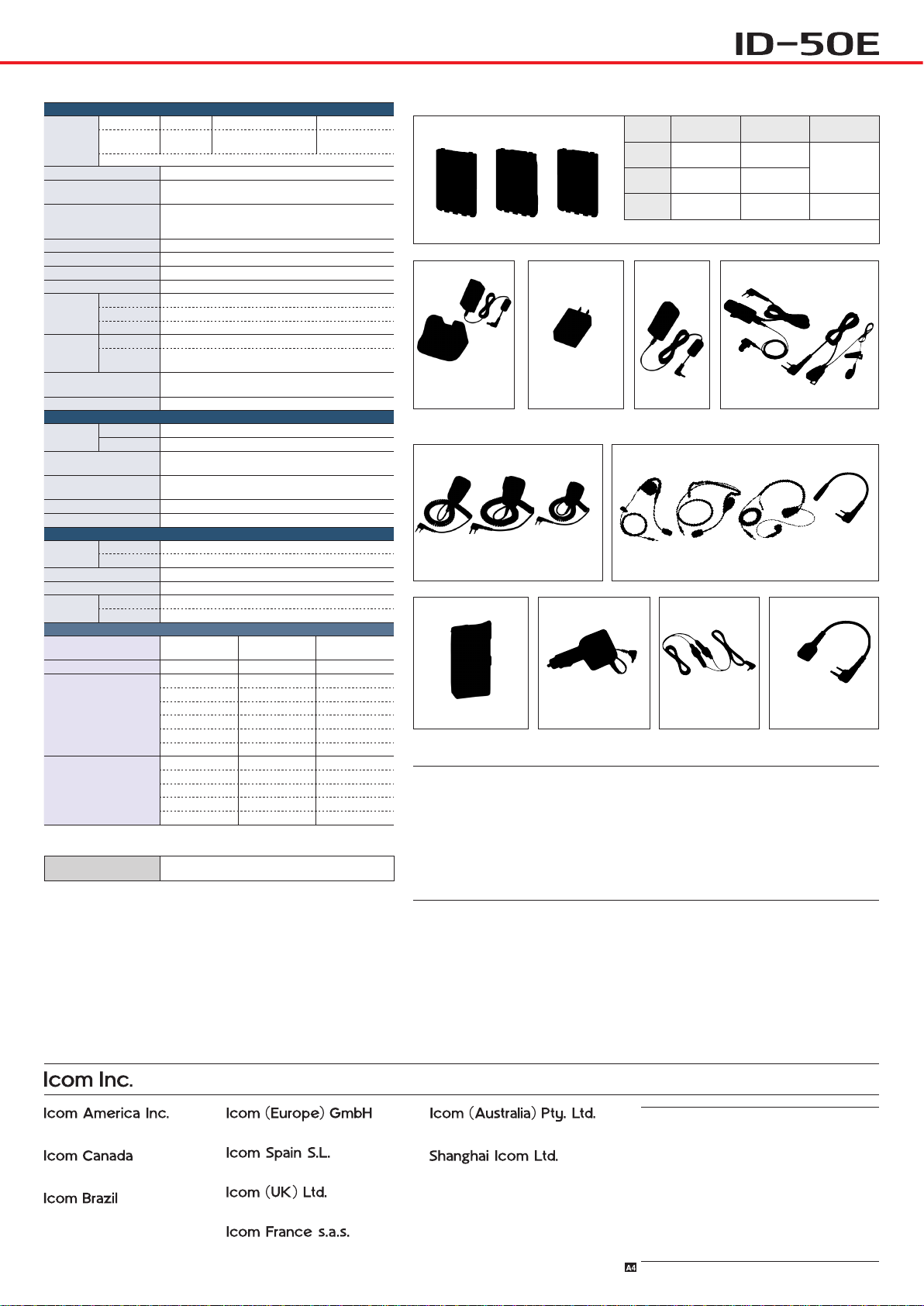

SPECIFICATIONS
GENERAL
Frequency
coverage
(Unit: MHz)
Type of emission F2D, F3E, F7W
Modes DV, FM, FM-N, WFM, AM, AM-N
Number of
memory channels
Frequency resolution 5.0/6.25/8.33/10/12.5/15/20/25/30/50/100/125/200 kHz
Operating temperature range
Frequency stability ±2.5 ppm (–20°C ~ +60°C on the basis of 25°C)
Antenna impedance 50 Ω (SMA)
Power
supply
requirement
Current drain
(at 7.4 V DC)
Dimensions (W × H × D) 58.0 × 111.0 × 27.9 mm, 2.3 × 4.4 × 1.2 in
Weight (approx.) 300 g, 10.6 oz (with BP-272 & antenna)
TRANSMITTER
Modulation
system
Output power 5 W, 2.5 W, 1.0 W, 0.5 W, 0.1 W
Spurious emissions Less than –60 dBc (High, Mid),
Max. frequency deviation Less than ±5.0/2.5 kHz (FM/FM-N)
Ext. Mic impedance 2.2 kΩ
RECEIVER
Sensitivity DV Less than 0.2 μV (at 1% BER)
Selectivity More than 50 dB (DV, FM-N), more than 55 dB (FM)
Spurious rejection More than 60 dB
Audio output
power
Receiver sensitivity (except amateur bands.)
BC band (WFM) 76.000~108.000 Less than 1 μV –
A band 108.000~136.991 – Less than 1 μV
B band 137.000~142.000
All stated specications are subject to change without notice or obligation.
Supplied accessories
Supplied accessories may differ depending on the transceiver version.
Version Transmit Receiver Broadcast band
ID-50E
#12 EUR
(A) means A band, (B) means B band. Guaranteed Range:* 144~146, 430~440 MHz
Battery pack 7.4 V DC (with BP-271/BP-272)
Alkaline cells 5.5 V DC (with BP-273)
External DC 10.0 ~ 16.0 V DC
Tx high Less than 2.5 A
Rx AF max. Less than 400 mA (FM, FM-N) (8 Ω),
DV GMSK reactance modulation
FM, FM-N FM reactance modulation
FM, FM-N Less than 0.18 μV (at 12 dB SINAD)
Internal SP More than 750 mW (8 Ω load)
External SP More than 200 mW (8 Ω load)
144~146,
430~440
(WFM, AM and AM-N are Rx only)
500 memory channels, 4 call channels, 25 scan edges,
100 skip channels, 500 broadcast stations, 2500
repeater lists, 300 call signs, and 300 GPS memories
–20°C ~ + 60°C; –4°F ~ + 140°F
Less than 450 mA (DV) (8 Ω)
(Projections are not included)
(High, Mid, Low2, Low1, S-low)
Less than –13 dBm (Low2, Low1, S-low)
Frequency range
(Unit: MHz)
137.000~142.000
142.005~148.000
148.005~174.000
375.000~399.995 Less than 0.5 μV –
400.000~479.000
142.005~148.000
148.005~174.000
375.000~399.995 Less than 0.5 μV –
400.000~479.000
• Battery pack, BP-272 • Antenna, FA-S270C
• Belt clip, MB-127 • Hand strap
(A) 108~174, 375~479*
(B) 137~174, 375~479*
FM/FM-N/WFM
(12 dB SINAD)
Less than 0.18 μV
Less than 0.18 μV
Less than
0.32 μV
Less than 0.32 μV
Less than 0.18 μV
Less than 0.18 μV
Less than
0.32 μV
Less than 0.32 μV
76.00~108.00
AM/AM-N
(10 dB S/N)
Less than 1 μV
–
–
–
–
–
–
–
OPTIONAL ACCESSORIES
Some options may not be available in some countries. Please ask your dealers for details.
BATTERY PACKS AND CASE
BP-272 BP-307 BP-273
RAPID CHARGER AC ADAPTER WALL
BC-202IP2 + BC-123S
Charges BP-272/BP-307.
BC-123S is supplied
with the BC-202IP2.
*1 BC-123SA for USA plug, SE for Europe plug. *2 BC-258A for USA plug, E for Europe plug, V for Australia plug.
*3 BC-167SA for USA plug, SD for Europe plug, SV for Australia plug.
*1
*2
BC-258
Use with a USB cable
(Type-A - USB Type-C™.)
SPEAKER-MICROPHONES HEADSETS and PLUG ADAPTER CABLE
HM-243LS
For remote
control
CARRYING CASE
LC-202
Use with BP-272 or BP-273.
HM-183LS
Waterproof
HM-186LS
CIGARETTE LIGHTER
CABLES
CP-12L
Built-in noise lter
APPLICATION SOFTWARE
•RS-MS1A: Remote control application for Android™
•RS-MS3A: Terminal/Access point mode application for Android™
•RS-MS3W: Terminal/Access point mode software for Windows™ PC
•CS-50: Programming software for Windows™ PC
•ST-ID50A: Picture utility software for Android™
•ST-ID50W: Picture utility software for Windows™ PC
Applications for Android™ can be freely downloaded on Google Play™.
Software for Windows
™ PC can be freely downloaded from the Icom website.
OTHER OPTIONS
•AD-92SMA: SMA-BNC antenna adapter
•FA-S270C: VHF/UHF antenna. Same as supplied
•MB-127: Belt clip. Same as supplied
•SP-40: Earphone (OPC-2144 required)
Battery
packs
Type
Capacity
Operating
time*
* Approximate. Tx: Rx: standby = 1:1:8. Power save function ON. GPS OFF.
CHARGER
BC-167S
BP-272 BP-307 BP-273
Rechargeable
Li-ion, 7.4 V
1880 mAh (min.)
2000 mAh (typ.)
8 hours
(FM mode)
Rechargeable
Li-ion, 7.2 V
3050 mAh (min.)
3150 mAh (typ.)
12.5 hours
(FM mode)
EARPHONE-MICROPHONES
*3
HM-153LS HM-166LS
For VOX Operation
HS-94
Earhook type
HS-95
Neck arm type
DC POWER CABLE
OPC-254L
•CP-23L: Cigarette lighter cable for BC-202IP2
•OPC-515L: DC power cable for BC-202IP2
•BC-202IP3L: Rapid charger. Connectable up to 6 units
•BC-228: AC adapter for BC-202IP3L multiple connections
HS-97
Throat type
PLUG ADAPTER
CABLE
OPC-2144
Required when using
any of HM-75A, HM-153,
HM-166 or SP-40.
LR6 (AA)
batteries
×3
-
OPC-2006LS
Required when
using any of
these headsets.
Icom an d the Ico m logo ar e regis tered trademarks of Ic om Inco rpora ted (Japan) in Japan, the Un ited Sta tes, the U nited Kingdom, Germ any, France, Spain, R ussia , Austr alia, N ew Zeal and and /
or other countr ies. D -STAR (Digital Smart Tech nolog y for Amateur Rad io) is a digital radio proto col deve loped by JARL (Jap an Amateur Radi o Leagu e). Windo ws is a trad emar k of the Mic rosof t
group of c ompan ies. Android and Goo gle Play are trade marks o f Googl e LLC. USB Type-C is a tra demark of USB Impleme nters Fo rum, Inc. All other trademark s are the proper ties of t heir
respective holders.
1-1-32, Kamiminami, Hirano-Ku, Osaka 547-0003, Japan Phone: +81 (06) 6793 5302 Fax: +81 (06) 6793 0013
www.icomamerica.com
www.icomcanada.com
E-mail: [email protected]
www.icomeurope.com
www.icomspain.com
www.icomuk.co.uk
www.icom.net.au
www.bjicom.com
www.icomjapan.com
Your local distributor/dealer:
www.icom-france.com
23CHZ501A1 © 2023 Icom Inc.
Loading...
