Icom IC-F3210D, IC-F3230D, IC-F4210D, IC-F4230D, IC-F5220D Operating Manual

OPERATING GUIDE

OPERATING GUIDE FOR
IC-F3210D/F4210D/F3230D/
F4230D/F5220D/F6220D SERIES
IDAS™ NXDN™ OPERATION

IMPORTANT TABLE OF CONTENTS

Thank you for purchasing this Icom transceiver.
The IDAS™ NXDN™ functions are built into your IC-F3210D/
F4210D/F3230D/F4230D/F5220D/F6220D series transceiv­er.

IMPORTANT .......................................................................... i

TABLE OF CONTENTS ......................................................... i

1 PREPARATION............................................................1–7

Programmable key functions ■ ........................................ 1

READ ALL INSTRUCTIONS carefully and completely

before using the transceiver.

SAVE THIS OPERATING GUIDE — This operating

guide contains important oper ating instructions for:

• IC-F3210D, IC-F3230DT, IC-F3230DS, IC-F5220D VHF
DIGITAL TRANSCEIVERS

• IC-F4210D, IC-F4230DT, IC-F4230DS, IC-F6220D UHF
DIGITAL TRANSCEIVERS

2 IDAS OPERATION ....................................................8–29

IDAS operation ■ .............................................................8

Receiving a call ■ ............................................................9

Transmitting a call ■ ......................................................16

Position data transmission ■ .........................................27

Status message transmission ■ .................................... 27

Encryption function ■ ....................................................27

Auto CH Reserve ■ function ..........................................28

Talk Back function ■ ...................................................... 28

INFORMATION: The 10-key pad of the optional DTMF mi­crophone (HM-148T) has only the DTMF code transmitting

Roaming function ■
Site Lock function ■
Site Select function ■

(Multi-site Trunking mode only) ........29

(Multi-site Trunking mode only) ........ 29

(Multi-site Trunking mode only) .....29

capability, so an ID and message cannot be input with this
microphone.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor­porated (Japan) in Japan, the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
IDAS and IDAS logo are trademarks of Icom Incorporated (Japan).
NXDN is a trademark of Icom Incorporated and JVC KENWOOD Corporation.
All other products or brands are registered trademarks or trademarks of their
respective holders.

i

PREPARATION

1

Programmable key functions ■

The programmable key functions can be assigned to the fol­lowing keys:

IC-F3210D/F4210D series transceivers:

[Upper] and [Lower]

IC-F3230D/F4230D series transceivers:

[P0], [P1], [P2], [P3], [Side1], [Side2], [Side3] and [Emer]

IC-F5220D/F6220D series transceivers:

[UP], [DOWN], [P0], [P1], [P2] and [P3]

Consult your Icom dealer or system operator for details con­cerning your transceiver’s programming.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

1

PREPARATION

1

Programmable key functions (Continued) ■

Programmable key functions availability D

Programmable key

functions

CH Up/Down N/A
Zone N/A
Scan Start/Stop
Scan Add/Del (Tag) N/A
Prio A, Prio B
Prio A (Rewrite),

Prio B (Rewrite)
MR-CH 1, MR-CH 2,

MR-CH 3, MR-CH 4
Moni
Light N/A
Lock
Lone Worker
High/Low
RAN CH Select N/A N/A N/A N/A
Talk Around
Wide/Narrow
Emergency
Surveillance
Siren

IC-F3210D/

F4210D series

✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ✔ ✔ ✔ ✔
✔ ✔ ✔ ✔ ✔ ✔
✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ✔ ✔ ✔ ✔
✔ ✔ ✔
✔ ✔ ✔ ✔ ✔ ✔
✔ ✔ ✔ ✔ ✔ ✔
✔ ✔ ✔ ✔ ✔ ✔

Analog Digital

IC-F3230D/

F4230D series

✔ ✔
✔ ✔

✔ ✔

✔ ✔

IC-F5220D/

F6220D series

IC-F3210D/

F4210D series

N/A
N/A

N/A

N/A

N/A N/A N/A IM

IC-F3230D/

F4230D series

✔ ✔
✔ ✔

✔ ✔

✔ ✔

✔ ✔

IC-F5220D/

F6220D series

Reference

IM
IM
IM
IM
IM

IM

IM

IM
IM
IM

p. 4

IM

p. 4

IM

p. 4

IM
IM

IM: Instruction Manual, N/A: Not Applicable

2

PREPARATION

1

1

Programmable key

functions

Encryption N/A N/A N/A
Hook Scan N/A N/A
User Set Mode N/A
Ext. CH Sel Mode N/A N/A
Digital Button N/A N/A N/A N/A
Status Up, Status Down
Power OFF Emergency
Announce
Individual N/A N/A N/A N/A
Talkgroup N/A N/A N/A N/A
Reset
Roam Request N/A N/A N/A
Site Lock N/A N/A N/A
Site Select N/A N/A N/A N/A
CallAlert N/A N/A N/A
Status N/A N/A N/A
Message N/A N/A N/A N/A
GPS Display N/A N/A
Shift N/A

IM: Instruction Manual, N/A: Not Applicable

IC-F3210D/

F4210D series

N/A N/A N/A N/A
N/A N/A N/A N/A N/A

✔ ✔ ✔ ✔ ✔ ✔

✔ ✔ ✔ ✔ ✔ ✔

Analog Digital

IC-F3230D/

F4230D series

✔ ✔

✔ ✔

IC-F5220D/

F6220D series

✔

✔

✔

IC-F3210D/

F4210D series

N/A N/A
N/A
N/A N/A

N/A N/A
N/A

IC-F3230D/

F4230D series

✔ ✔ ✔

✔ ✔

✔ ✔
✔ ✔

✔ ✔
✔ ✔

✔ ✔ ✔
✔ ✔ ✔

✔ ✔
✔ ✔ ✔
✔ ✔ ✔

✔ ✔

✔ ✔

IC-F5220D/

F6220D series

2

Reference

p. 4

✔

✔

✔

✔

IM
IM

IM
p. 5
p. 5
p. 5

IM
p. 6
p. 6
p. 6
p. 6
p. 6
p. 7
p. 7
p. 7
p. 7

IM

IM

3
4
5
6
7
8
9
10
11
12
13
14
15
16

3

PREPARATION

1

Programmable key functions ■

Programmable key functions D

LONE WORKER

When the Lone Worker function is turned ON, and no opera­tion occurs during the preprogrammed time period, the Emer­gency function is automatically turned ON.

<For the IC-F3210D/F4210D series transceivers>

Hold down for 1 second to turn ON the Lone Worker func- ➥
tion.
Push to turn OFF the Lone Worker function. ➥

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

Push to turn the Lone Worker function ON or OFF.

RAN CH SELECT

<For the IC-F3210D/F4210D series>

N/A

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

While in the digital mode, push to enter the RAN channel
selection mode. Then push [CH Up] or [CH Down] to select
a desired RAN code. After selecting, push this key again to
save the code.

transceivers

transceivers

EMERGENCY

Hold down for 1 second to turn ON the Emergency func- ➥
tion.

While in the analog mode, after the Start or Repeat timer

period ends, the microphone audio may be automatically
transmitted, depending on the presetting.

While in the digital mode, after the Start or Repeat timer

period ends, a digital command Emergency call is auto­matically transmitted once, or repeatedly, depending on
the presetting. After transmitting an Emergency call, the

>

microphone audio may be automatically transmitted, de­pending on the presetting.

• If you want to cancel the emergency call, hold down the key

again, before transmitting it.

ENCRYPTION

<For

the

>

IC-F3210D/F4210D/F3230D/F4230D series

While in the digital mode, hold down for 1 second to turn ➥

transceivers

>

ON the Encryption function.
Push to turn OFF the Encryption function. ➥

<For the IC-F5220D/F6220D series transceivers>

While in the digital mode, push to turn the encryption function
ON or OFF.

4

PREPARATION

1

1

DIGITAL BUTTON

<For the IC-F3210D/F4210D series transceivers>

N/A

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

Push to enter the application selection mode*. ➥
Hold down for 1 second to toggle the call type between ➥
Individual and Talkgroup, and automatically enter the ap­plication selection mode.

• Push [CH Up] or [CH Down] to select the desired application

from “VOICE,” “CALLALRT,” “STATUS” and “MSG.”

While in the application selection mode, push to enter the ➥
Individual or Talkgroup ID selection mode*.

• Push [CH Up] or [CH Down] to select the desired ID name (or ID

code).

• If “STATUS” or “MSG” is selected as the application, push this

key to enter the message selection mode. After selecting a mes­sage, push again to enter the destination ID selection mode. (pp.
20, 22)

Hold down for 1 second to return to the standby mode. ➥

* When the Digital/Individual/Talkgroup Key item is set to “ID Select”

in the optional cloning software, the ID selection mode will be se­lected first. And while in the ID selection mode, push to select the
application selection mode.

transceivers

STATUS UP, STATUS DOWN

<For the IC-F3210D/F4210D series transceivers>

N/A

2
3
4

>

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

When a received SDM (Short Data Message) is displayed, ➥
push to cancel the automatic scroll and manually scroll the
message.
When an SDM that contains more than 8 characters is dis- ➥
played, push to manually scroll the message.
In the standby mode, push to display the transmit status ➥
and select a status number.

POWER OFF EMERGENCY

<For the IC-F3210D/F4210D/F3230D/F4230D series transceivers>

N/A

<For the IC-F5220D/F6220D series transceivers>

While holding down this key, turn OFF the transceiver to acti­vate the Power OFF Emergency function. This function makes
the transceiver transmit Emergency calls, even though it ap­pears to be OFF. (p. 25)
When the function is activated, any key operation, hanger ac­tion, Lone Worker function, LED and speaker are disabled.
However, the transceiver can transmit Emergency calls ac­cording to the Emergency settings.
To cancel the function and restore the transceiver, turn ON
the transceiver’s power.

transceivers

>

5
6
7
8
9
10
11
12
13
14
15
16

5

PREPARATION

1

Programmable key functions ■
Programmable key functions (Continued) D

INDIVIDUAL

<For the IC-F3210D/F4210D series transceivers>

N/A

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

transceivers

Push to set the call type to “Individual,” and automatically ➥
enter the application selection mode*.
If in the application selection mode, push to enter the Indi- ➥
vidual ID selection mode*.
If “STATUS” or “MSG” is selected as the application, push ➥
to enter the message selection mode. After selecting a
message, push again to enter the Individual ID selection
mode.
Hold down for 1 second to return to the standby mode. ➥

TALKGROUP

<For the IC-F3210D/F4210D series transceivers>

N/A

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

transceivers

Push to set the call type to “Talkgroup,” and automatically ➥

>

>

RESET

Push to reset the destination unit ID and call type to the ➥
default, if they have been changed by the manual opera­tion.
Push to cancel the Talk Back function, if it is activated. ➥
While in the selection mode (e.g. application, message ➥
and status message), push to return to the stand-by mode.
In this case, the transceiver resets the destination unit ID,
call type and Talk Back function.

ROAM REQUEST

(This key is used for only Multi-site Trunk operation.)
Push to start a roaming scan, regardless of the error rate.

SITE LOCK

(This key is used for only Multi-site Trunk operation.)
Push to turn the Site Lock function ON or OFF.
When the Site Lock function is ON, the transceiver is locked
to the current registered site, and the roaming and the back­ground scan are disabled.

enter the application selection mode*.
If in the application selection mode, push to enter the Talk- ➥
group ID selection mode*.
If “STATUS” or “MSG” is selected as the application, push ➥
to enter the message selection mode. After selecting a
message, push again to enter the Talkgroup ID selection
mode.
Hold down for 1 second to return to the standby mode. ➥

* When the Digital/Individual/Talkgroup Key item is set to “ID Select”

in the optional cloning software, the ID selection mode will be se­lected first. And while in the ID selection mode, push to select the
application selection mode.

6

PREPARATION

1

1

SITE SELECT

<For the IC-F3210D/F4210D series transceivers>

N/A

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

(This key is used for only Multi-site Trunk operation.)
This key allows you to manually select a desired site without
using a roaming scan.

q Push [Site Select] to display the Site Select screen.
w Push [CH Up] or [CH Down] to select a desired site from

the preprogrammed roaming list*.

* Up to 48 valid roaming areas are listed on the roaming list. Ask

your dealer for details.

e Push [Site Select] again to set the selected site, and return

to the standby mode.

r The transceiver tries to register to the selected site.

CALLALERT

<For the IC-F3210D/F4210D series transceivers>

Hold down for 1 second to transmit a CallAlert to a specified
station/Talkgroup.

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

Push to enter the target ID selection mode for CallAlert. ➥
Hold down for 1 second to transmit a CallAlert. ➥

transceivers

transceivers

STATUS

<For the IC-F3210D/F4210D series transceivers>

Hold down for 1 second to transmit the currently selected sta­tus message to the specified station/Talkgroup.

>

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

While in the standby mode, push to directly enter the sta- ➥
tus message selection mode, and then select a desired
message using [CH Up] or [CH Down].
After selecting a message, push again to enter the Indi- ➥
vidual or Talkgroup ID selection mode (depending on the
last selected call type).
Hold down for 1 second to transmit the currently selected ➥
status message.

transceivers

>

2
3
4
5
6
7
8
9
10
11

MESSAGE

<For the IC-F3210D/F4210D series transceivers>

N/A

<For

the

IC-F3230D/F4230D/F5220D/F6220D series

While in the standby mode, push to directly enter the mes- ➥
sage selection mode, and then select a desired message

>

using [CH Up] or [CH Down].
After selecting a message, push again to enter the Indi- ➥
vidual or Talkgroup ID selection mode (depending on the
last selected call type).
Hold down for 1 second to transmit the currently selected ➥
message.

transceivers

>

12
13
14
15
16

7

2

IDAS OPERATION

IDAS operation ■

The transceiver provides Icom Digital Advanced System
(IDAS) that meets the 6.25 kHz emission mask requirements
for narrow banding, and increases efficiency of channel al­location and use of spectrum using the NXDN common air
interface.

IDAS Conventional operation D

The IDAS Conventional system enables efficient conventional
operation in the digital mode.

Push [Zone], then push [CH Up] or [CH Down] to select the ➥
conventional zone.

Multi-site conventional operation D

The Multi-site Conventional system can support up to 16
sites (each site has one repeater) through an IP network, and
enables efficient conventional operation in the digital mode.

Push [Zone], then push [CH Up] or [CH Down] to select the ➥
Multi-site conventional zone.

Single-site Trunking operation D

The Single-site Trunking system enables further effective
channel management by sharing a minimum number of chan­nels with a large number of users.

Push [Zone], then push [CH Up] or [CH Down] to select a ➥
Single-site Trunk zone.

Multi-site Trunking operation D

The Multi-site Trunking system can support up to 48 trunked
sites through an IP network. This enables the users to com­municate with stations through the interlinked trunked site.
Each site can have up to 30 repeaters.

Push [Zone], then push [CH Up] or [CH Down] to select the ➥
Multi-site Trunk zone.

NOTE: During the Single-site or Multi-site Trunking opera­tion, you can receive and transmit digital calls in the same
way as in the conventional mode.

8

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

For the IC-F3230D/F4230D series transceivers

For the IC-F5220D/F6220D series transceivers

2

Receiving a call ■

Receiving a Voice Call D

When a Voice call is received: q

• Mute is released.

• Either the calling station or Talkgroup ID name (or code) is

displayed while receiving the signal, depending on the preset-

1

ting.*

• When an All Call is received, “All Call” is displayed.*

Hold down [PTT], then speak into the microphone. w
Release [PTT] to receive a response. e

1

Receiving a Call Alert D

When a Call Alert is received: q

• Beeps sound.

• The calling station or Talkgroup ID name (or code) and “CAL-

LALRT” are alternately displayed.*

1

• “ ” may appear or blink, depending on the presetting.*

• The LED may blink orange once or twice, depending on the pre-

setting.*

2

1

1

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

*1 Except for the IC-F3210D/IC-F4210D series transceivers.
*2 Only for the IC-F3210D/IC-F4210D series transceivers.

Continued on the next page ☞

9

IDAS OPERATION

For the IC-F3230D/F4230D series transceivers

For the IC-F5220D/F6220D series transceivers

2

Receiving a call ■
Receiving a Call Alert (Continued) D
Hold down [PTT], then speak into the microphone. w
Release [PTT] to receive a response. e

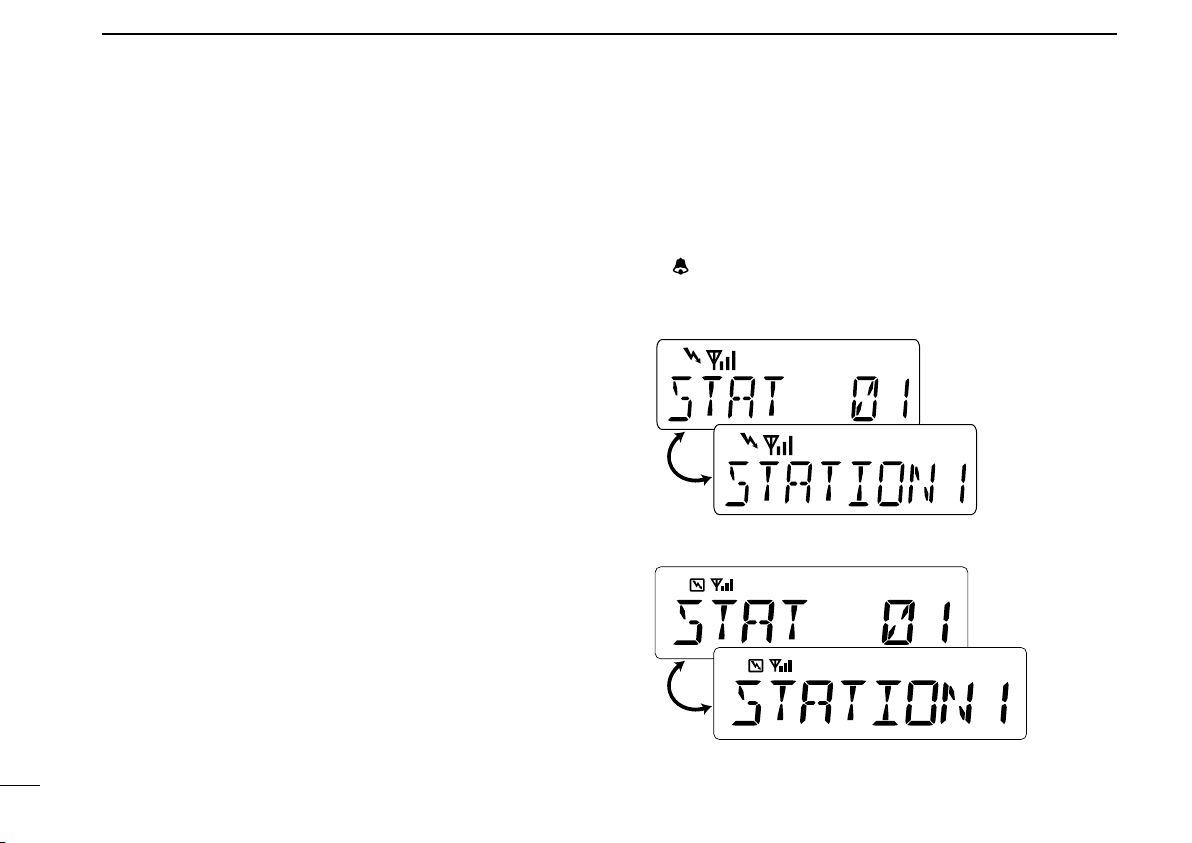

Receiving a Status Message D

When a Status Message is received: q

• Beeps sound.

• The calling station or Talkgroup ID name (or code) and the status

message are alternately displayed.*

• “ ” may appear or blink, depending on the presetting.*

• The LED may blink orange once or twice, depending on the pre-

setting.*

2

1

1

*1 Except for the IC-F3210D/IC-F4210D series transceivers.
*2 Only for the IC-F3210D/IC-F4210D series transceivers.

10

Push [PTT], change the channel, turn power OFF, and so w
on to stop the display indication.

IDAS OPERATION

For the IC-F3230D/F4230D series transceivers

For the IC-F5220D/F6220D series transceivers

2

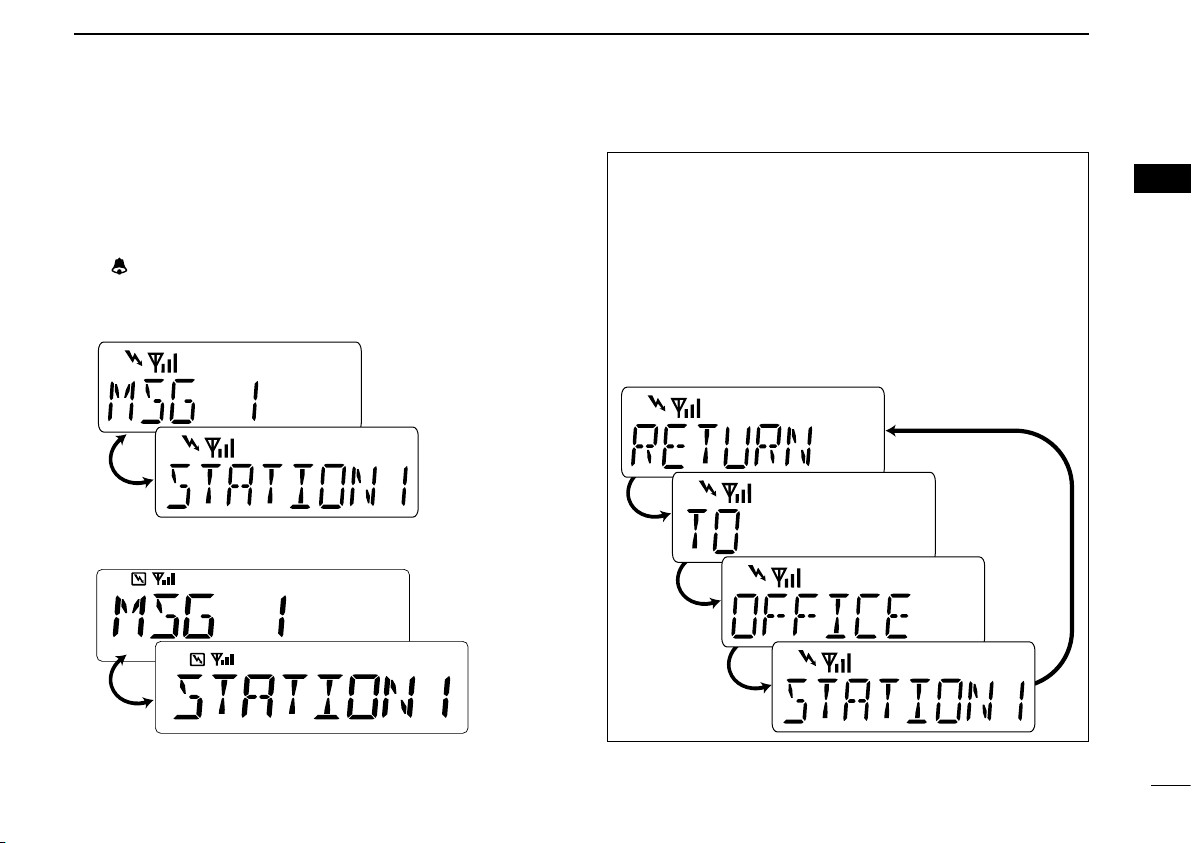

Receiving a Message D

When a Message is received: q

• Beeps sound.

• The calling station ID or Talkgroup name (or code) and the mes-

sage blink.*

• “ ” may appear or blink, depending on the presetting.*

• The LED may blink orange once or twice, depending on the pre-

setting.*

1

2

1

NOTE for the IC-F3230D/IC-F4230D series and IC-F5220D/
IC-F6220D series transceivers:

When the received message includes more than 8 charac­ters, the message automatically scrolls, when the automatic

1

scroll function is activated.

• Push [Status Up] or [Status Down] to cancel the automatic scroll.

• When the message does not scroll, push [Status Up] to select the

previous word, or [Status Down] to select the next word.

Example: A message “RETURN TO OFFICE” from a station 1 is

displayed on the IC-F3230D/F4230D series transceiver.

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

Push [PTT], change the channel, turn power OFF, and so w
on to stop the display indication.

*1 Except for the IC-F3210D/IC-F4210D series transceivers.
*2 Only for the IC-F3210D/IC-F4210D series transceivers.

11

IDAS OPERATION

2

Receiving a call (Continued) ■

Receiving a Stun, Kill or Revive D

If an individual call with a Stun or Kill command is received
(RAN code matching may not be necessary depending on
the presetting), the transceiver will display “SORRY”
you cannot receive

*1 Except for the IC-F3210D/IC-F4210D series transceivers.
*2 Depending on the received Stun command setting.

When a Stun command is received: ➥

• The transceiver cannot be operated until the individual

call with a Revive command is received or the password
is input. RAN code matching may not be necessary, de­pending on the presetting.

When a Kill command is received: ➥

• The transceiver cannot be operated until data cloning is

performed. Ask your dealer for details.

NOTE: Depending on the presetting, the transceiver can
ignore the Stun, Revive and Kill commands that are from a
non-specified station.

2

*

or transmit.

1

*

and

Receiving a Remote Monitor, Radio Check D
or Status Polling Call

If an individual call with Remote monitor, Radio check or Sta­tus polling command is received, the transceiver will automat­ically transmit. RAN code matching may not be necessary,
depending on the presetting.

When a Remote monitor command is received: ➥

• The microphone audio is automatically transmitted for the

set time period.

When a Radio check command is received: ➥

• The transceiver automatically transmits an acknowledge­ment call.

➥ When a Status polling command is received:

• The transceiver automatically transmits a status call.

12

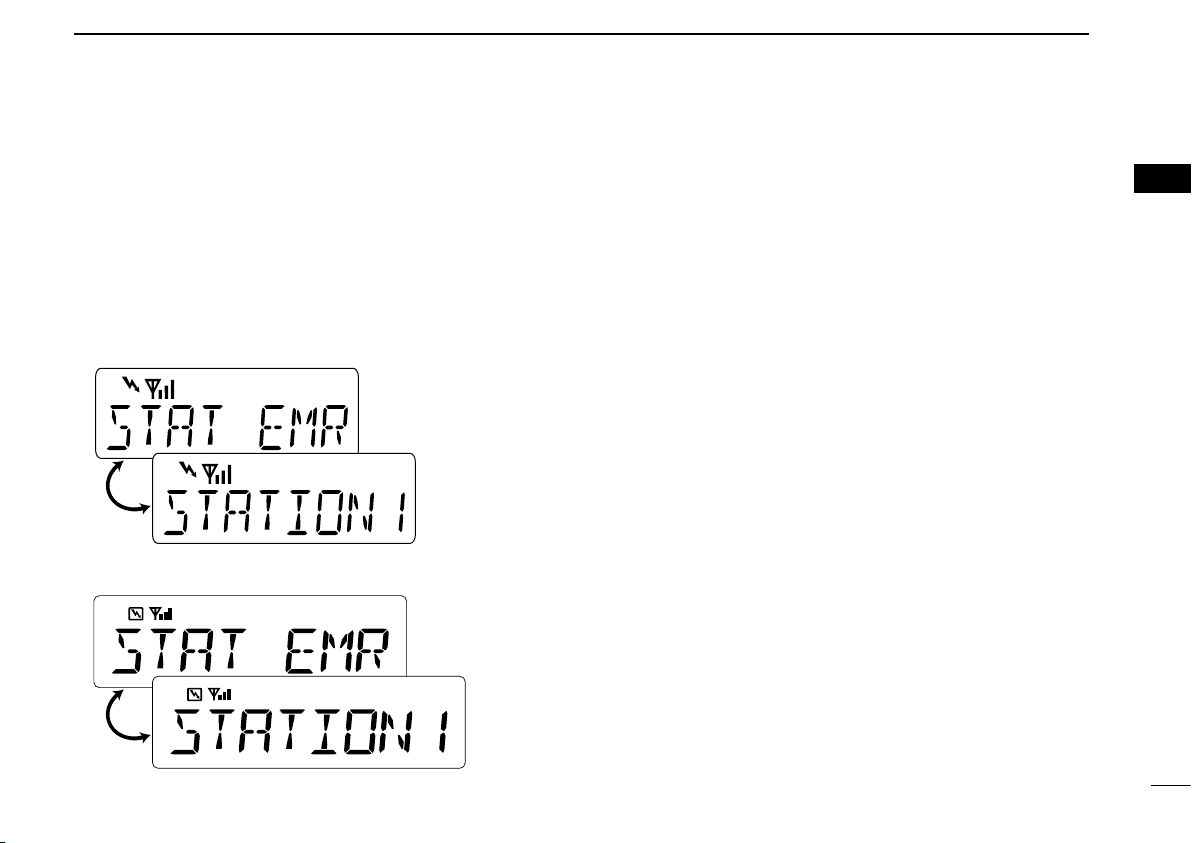

Receiving an Emergency call D

For the IC-F3230D/F4230D series transceivers

For the IC-F5220D/F6220D series transceivers

When an emergency call is received: q

• Beeps sound.

• The emergency text and the calling station ID name (or code)

blink.

• The state of the backlight depends on the Backlight setting in the

User set mode. When “OFF Auto” is selected, the backlight turns
ON for the preprogrammed time period. (Auto Backlight Timer)*

* Except for the IC-F3210D/IC-F4210D series transceivers.

IDAS OPERATION

When the Send Ack function is turned ON, the transceiver w
automatically transmits an acknowledgement to the calling
station, if the received call type is Talkgroup or All Call.

• If the received call type is Individual, and it requests an acknowl­edgment be sent back, the transceiver automatically sends the
acknowledgement.

Turn power OFF or change the channel to stop the beep e
and display indication.

2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

13

IDAS OPERATION

For the IC-F3230D/F4230D series transceivers

For the IC-F5220D/F6220D series transceivers

2

Receiving a call (Continued) ■

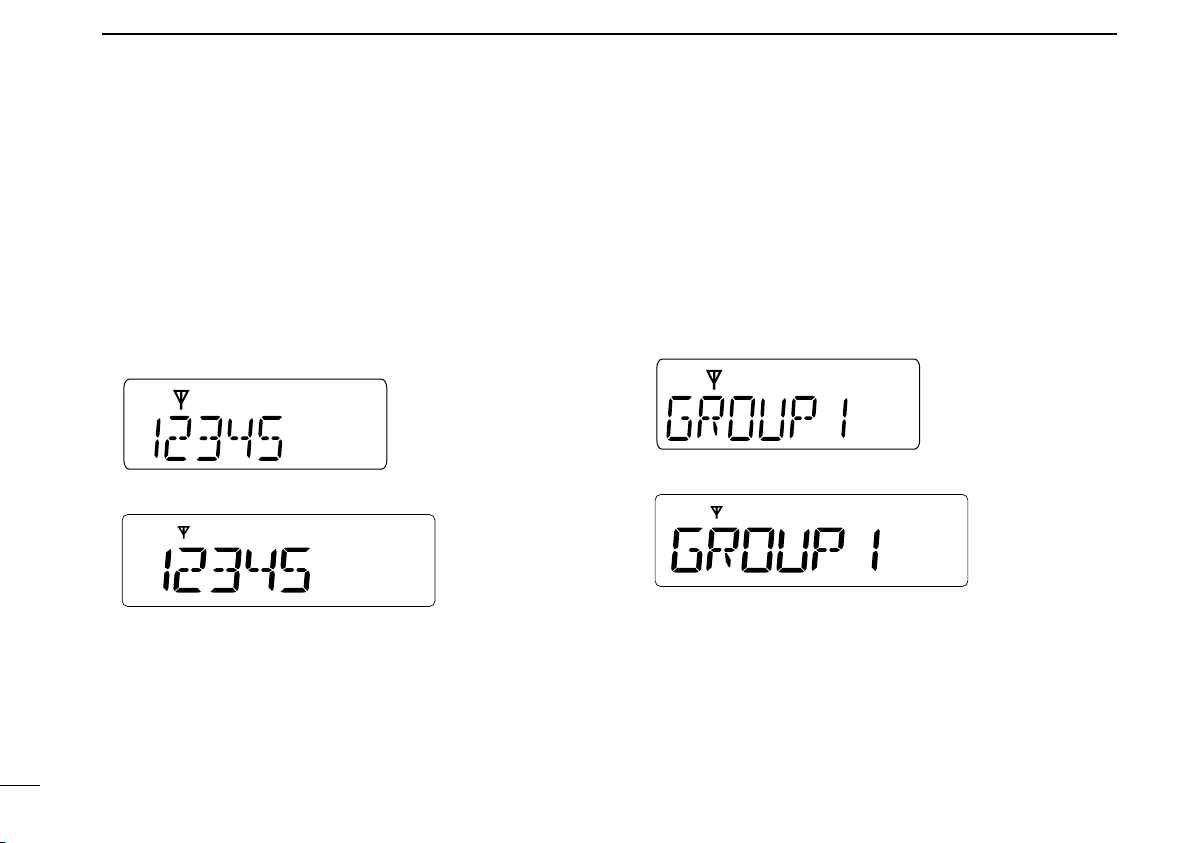

Displaying the received call log D

The transceiver stores a log of all calls in memory, if acti­vated.
Up to 10 call logs can be stored, and the oldest call record
is erased when an 11th call is received. However, once the
transceiver is turned OFF, the all records are erased.
The received voice call (for individual), call alert, status call
and message logs are stored.

< For only the IC-F3230D/IC-F4230D series and

IC-F5220D/IC-F6220D series transceivers>

Push [Digital Button] to enter the application selection q
mode.

• “VOICE” appears.

• To change the call type, hold down [Digital Button] for 1 second

while in the standby mode. After changing, the transceiver auto­matically enters the application selection mode.

Select “CALL LOG” using [CH Up] or [CH Down]. w

Push [Digital Button] again to display the call log informa- e
tion.

When a log information is displayed

14

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

1

When no log information is available

Push [CH Up] or [CH Down] to select the desired log. r
Hold down [PTT] to send the voice call. t

• A voice call can be made with the logged station.

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

15

IDAS OPERATION

For the IC-F3230D/F4230D series transceivers

For the IC-F5220D/F6220D series transceivers

2

Transmitting a call ■

IDAS operation allows you to make a call to a specific station
(Individual call) or to a particular group (Talkgroup call). Other
digital mode transceivers on the channel will not receive a
call that does not match their individual or talkgroup ID and/or
RAN (Radio Access Number) code.

NOTE: When the handshake (repeater access) fails within
the specified time period after pushing [PTT], the trans­ceiver starts roaming.

Convenient! (10-key version only)
Depending on the presetting, the Individual or Talkgroup ID
may be quickly selected using a numeric key ([1] to [9] or [0]).
See page 26 for details.

Transmitting a Voice Call D

< For only the IC-F3230D/IC-F4230D series and

IC-F5220D/IC-F6220D series transceivers>

Push [Digital Button] to enter the application selection q

16

mode.

• “VOICE” appears.

• Before entering the application selection mode, the selected call

type is displayed for a moment. To change the call type, while in
the standby mode, hold down [Digital Button] for 1 second. After
changing, the transceiver automatically enters the application

selection mode.

* This illustration is described with a Talkgroup call type.

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

1

Push [Digital Button] again to enter the destination ID se- w
lection mode.

• The preprogrammed ID name is displayed.

•

When the ID name is not programmed, the ID code is displayed.

• The primary ID can be preset to display first.

• When you want to send a voice message to all transceivers with-

in the communication range, use the ‘All Call’ function–— select
the Talkgroup ID code “65535” for the conventional operation, or
“2047” for the trunking operation.

Push [CH Up] or [CH Down] to select the desired ID name e
(or ID code).

Hold down [PTT], then speak into the microphone to send r
a voice message to the selected station or talkgroup.
Release [PTT] to receive. t

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

17

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

Transmitting a call (Continued) ■

Transmitting a Call Alert D

Call Alert allows you to notify another user who may be away
from the transceiver that you want to talk.

< For the IC-F3210D/IC-F4210D series transceivers>

Hold down q [CallAlert] to transmit the Call Alert to the
specified station or Talkgroup.

• The LED indicator blinks orange while accessing a channel to

make a call.

• The LED indicator alternately blinks orange and green once after

receiving an acknowledgement from the targeted station.

• The LED indicator alternately blinks orange and red once if the

targeted station does not send back an acknowledgement.

After a specified time period has passed, the transceiver w
will return to receive.

< For the IC-F3230D/IC-F4230D series and

IC-F5220D/IC-F6220D series transceivers>

Push q [Digital Button] to enter the application selection
mode.

• “VOICE” appears.

•

To change the call type, hold down [Digital Button] for 1 second
while in the standby mode. After changing, the transceiver auto­matically enters the application selection mode.

Push w [CH Up] or [CH Down] to select “CALALERT.”

18

Push e [Digital Button] again to enter the destination ID
selection mode.

• The preprogrammed ID name is displayed.

•

When the ID name is not programmed, the ID code is displayed.

• The primary ID can be preset to display first.

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

Push r [CH Up] or [CH Down] to select the desired ID name
(or ID code).

Hold down t [PTT] to transmit the Call Alert to the selected
station or talkgroup.

• “CA CALL” is displayed.

Release y [PTT].

• “CA OK” is displayed after receiving an acknowledgement from
the targeted station.

• “CA FAIL” is displayed if the targeted station does not send back
an acknowledgement.

After a specified time period has passed, the transceiver u
will return to receive.

Transmitting a Status Message D

The transceiver has the ability to send a preprogrammed sta­tus message.
There are 100 status messages that can be sent.

< For the IC-F3210D/IC-F4210D series transceivers>

Hold down q [Status] to transmit the status message to the
specified station or talkgroup.

• The LED indicator blinks orange while accessing a channel to

make a call.

• The LED indicator alternately blinks orange and green once after

receiving an acknowledgement from the targeted station.

• The LED indicator alternately blinks orange and red once if there

is no acknowledgment from the targeted station.

After a specified time period has passed, the transceiver w
will return to receive.

Continued on the next page ☞

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

19

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

Transmitting a call ■
Transmitting a Status Message (Continued) D

< For the IC-F3230D/IC-F4230D series and

IC-F5220D/IC-F6220D series transceivers>

Push [Digital Button] to enter the application selection q
mode.

• “VOICE” appears.

• To change the call type, hold down [Digital Button] for 1 second

while in the standby mode. After changing, the transceiver auto­matically enters the application selection mode.

Push [CH Up] or [CH Down] to select “STATUS.” w

Push [Digital Button] again to enter the status message e
selection mode.

• The preprogrammed status messages are displayed.

Push [CH Up] or [CH Down] to select the desired mes- r
sage.

Convenient! (10-key version only)
Depending on the presetting, you may use the quick status
message selection/transmission in the status message se­lection mode.

➥ Push the numeric key ([1] to [9] or [0]) to select the appropri-

ate status message, programmed in the status list 1 through

10.

➥ Hold down the

to transmit the
the status list 1 through 10

numeric

key ([1] to [9] or [0]) for 1 second

appropriate status message, programmed in

.

20

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

1

Push [Digital Button] again to enter the destination ID se- t
lection mode.

• The preprogrammed ID name is displayed.

•

When the ID name is not programmed, the ID code is displayed.

• The primary ID can be preset to display first.

Push [CH Up] or [CH Down] to select the desired ID name y
(or ID code).

Push [PTT] to transmit the status message to the selected u
station or talkgroup.

• “STAT TX” is displayed.

Release [PTT]. i

• “STAT OK” is displayed after receiving an acknowledgement

from the targeted station.

• “STA FAIL” is displayed if there is no acknowledgment from the

targeted station.

o After a specified time period has passed, the transceiver

will return to receive.

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

21

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

Transmitting a call (Continued) ■

Transmitting a Message D

< For only the IC-F3230D/IC-F4230D series and

IC-F5220D/IC-F6220D series transceivers>

The transceiver has the ability to send a preprogrammed
message.
There are 10 messages that can be sent on a channel.

Push [Digital Button] to enter the application selection q
mode.

• “VOICE” appears.

• To change the call type, hold down [Digital Button] for 1 second

while in the standby mode. After changing, the transceiver auto­matically enters the application selection mode.

Push [CH Up] or [CH Down] to select “MSG.” w

Push [CH Up] or [CH Down] to select the desired mes- r
sage.

• You can rewrite the contents of the message. See the next page

for details.

Convenient! (10-key version only) ✓

Depending on the presetting, you may use the quick mes­sage selection/transmission in the message selection mode.

Push [Digital Button] again to enter the message selection e
mode.

• The preprogrammed message is displayed.

22

➥ Push the

priate message, programmed in the SDM list 1 through 10

➥ Hold down the

transmit the
list 1 through 10

numeric

key ([1] to [9] or [0]) to

numeric

key ([1] to [9] or [0]) for 1 second to

select the appro-

appropriate message, programmed in the SDM

.

.

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

1

Push [Digital Button] again to enter the destination ID se- t
lection mode.

• The preprogrammed ID name is displayed.

•

When the ID name is not programmed, the ID code is displayed.

• The primary ID can be preset to display first.

Push [CH Up] or [CH Down] to select the desired ID name y
(or ID code).

Push [PTT] to transmit the message to the selected station u
or talkgroup.

• “MSG TX” is displayed.

Release [PTT]. i

• “MSG OK” is displayed after receiving an acknowledgement

from the targeted station.

• “MSG FAIL” is displayed if no acknowledgment is received from

the targeted station.

After a specified time period has passed, the transceiver o
will return to receive.

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

23

IDAS OPERATION

2

Transmitting a call (Continued) ■

Direct message input D
(10-key version only)

Push [Digital Button] to enter the application selection q
mode.

• “VOICE” appears.

•

To change the call type, hold down [Digital Button] for 1 second
while in the standby mode. After changing, the transceiver auto­matically enters the application selection mode.

Push [CH Up] or [CH Down] to select “MSG.” w
Push [Digital Button] again to enter the message selection e
mode.

• The preprogrammed message is displayed.

Push [ r M] or [#] to enter the message editing mode.

• The rst character blinks when [#] is pushed, the last character

blinks when [M] is pushed.

Push the appropriate t
desired character.

• See the table to the right for the selectable characters.

• Pushing [CH Up] also enters space, pushing [CH Down] deletes

the selected character.

Push [#] to move the cursor to the right, push [ y M] to move
the cursor to the left.
Repeat steps u t and y to set the desired text message.
Hold down [Digital Button] for 1 second to overwrite the set i
message into the message memory.

• Push [Digital Button] momentarily to cancel the editing and re­turn to the original message display.

numeric

key, [0] to [9], to enter the

• Available characters

Key Characters

[0] 0 | ! ? ’ ” , ; : _ ( ) < > [ ]
[1]

1 (space) # ✳ / + – = \ & % $ @ ^
[2] 2 A B C a b c
[3] 3 D E F d e f
[4] 4 G H I g h i
[5] 5 J K L j k l
[6] 6 M N O m n o
[7] 7 P Q R S p q r s
[8] 8 T U V t u v
[9] 9 W X Y Z w x y z

24

IDAS OPERATION

2

Transmitting an Emergency Call D

When [Emergency] is held down for a specified time period,
a digital command emergency signal is transmitted once or
repeatedly* on the emergency channel. When no emergency
channel is specified, the signal is transmitted on the operat­ing channel.

* When the Repeat Cancel function is ON, the transceiver cancels

repeating after receiving an acknowledgement. When the Repeat
Cancel function is OFF, the transceiver repeats calling according to
the number of repeat cycles, even after receiving an acknowledge­ment.

Individual or Talkgroup call types of emergency calls can be
preset. If the call type is not preset, the default or selected
call type is used.

If you want to cancel the emergency call, hold down the key
again before transmitting the call.
The emergency call can be transmitted without a beep sound­ing, and the LCD lighting, depending on the presetting. (Silent
operation)
The transceiver can also be programmed to keep the micro­phone open during an emergency call, which allows monitor­ing of the situation.
Ask your dealer for details.

IMPORTANT: It is recommended an emergency channel be
separately set to provide reliable emergency call operation.

NOTE:

If the Digital Request Ack function is activated, the trans­ceiver transmits an emergency call with a request to send
back an acknowledgment.

For your reference—Power OFF Emergency function ✓

< For the IC-F5220D/IC-F6220D series transceivers>

When the [Power OFF Emergency] key is assigned, the
transceiver can transmit an Emergency call, even though it
appears to be OFF.

While holding down [Power OFF Emergency], push [
turn OFF the power to activate the Power OFF Emergency
function.
The transceiver enters the emergency mode, and starts
counting down to transmit the Emergency call, even though it
appears to be OFF.

When the function is activated, any key operation, hanger ac­tion, Lone Worker function, LED and speaker are disabled.
However, the transceiver transmits Emergency calls accord­ing to the emergency settings.

] to

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

To cancel the function and restore the transceiver, turn ON
the transceiver’s power.

25

IDAS OPERATION

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

For the IC-F3230D/F4230D series transceiver

s

For the IC-F5220D/F6220D series transceiver

s

2

Transmitting a call (Continued) ■

Direct ID input D
(10-key version only)

Depending on the presetting, you can directly input the de­sired Individual or Talkgroup ID.

Direct ID list number input D
(10-key version only)

Depending on the presetting, you may select the Individual or
Talkgroup ID by directly inputting the ID list number.

While in the Individual or Talkgroup ID selection mode, q
push the appropriate numeric key, [0] to [9], to input a de­sired ID of up to 5 digits.

• Push [M] to delete an input digit.

After inputting, push [PTT] to transmit a call to the station w
or Talkgroup selected in step q.

26

While in the standby mode, push the numeric key ([1] to q
[9] or [0]) to directly
code)

, programmed in the ID list 1 through 10

Push [Digital Button] to enter the application selection w
mode, and then push [CH Up] or [CH Down] to select the
desired application.
Push [PTT] to transmit a call to the station or Talkgroup e
selected in step q.

select the appropriate

ID name (or ID

.

IDAS OPERATION

2

Position data transmission ■

When a GPS receiver is connected to the transceiver, the lon­gitude and latitude position data can be automatically trans­mitted when:

• A GPS request status message is received

• After sending a voice message

- Set the ‘Send with Login’ and ‘Send with Logoff’ items to
‘Enable.’

• After sending a status message

- Set the ‘Send with Status Call’ item to ‘Enable.’

• After sending a message

- Set the ‘Send with SDM Call’ item to ‘Enable.’

• After sending a Call Alert

- Set the ‘Send with Call Alert’ item to ‘Enable.’

• After sending an Emergency call

- Set the ‘Send with Emergency’ item to ‘Enable.’

Ask your dealer or system operator for a GPS receiver con­nection details.

Status message transmission ■

The status message can be automatically transmitted.
The status message is transmitted when:

• The transceiver is turned ON or OFF

- Set the status message to be transmitted in ‘Power ON Status’ or
‘Power OFF Status’ item, respectively.

- Set the target station ID in ‘Power Status ID,’ ‘Power Status ID for
Single-site Trunk’ or ‘Power Status ID for Multi-site Trunk.’

• After sending a voice message

- Set the ‘Send with Voice Call’ item to ‘Enable.’

- Set the status message to be transmitted in ‘Send Status Num­ber’ item.

Encryption function ■

The encryption function enables voice scrambling, which pro­vides private digital communication between stations.

Push [Encryption] to turn the Encryption function ON or ➥
OFF.

• “ ” (For the IC-F3230D/F4230D series transceivers) or “ ”
(For the IC-F5220D/F6220D series transceivers) appears when
the Encryption function is ON.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

27

IDAS OPERATION

2

Auto CH Reserve function ■

If enabled, this feature is effective when a subscriber attempts
to push [PTT] while the site is in an “All Trunks Busy” status,
and/or is still “Receiving a Downlink” at the time the [PTT] is
pushed.

In the event of an “All Trunks Busy” condition, and/or a “Re­ceiving a Downlink” condition, a quick [PTT] push results
in the transceiver going into a waiting for an open repeater
mode. When an open repeater signal is received by the trans­ceiver, the transceiver handshakes and holds the channel for
the preprogrammed time period. After receiving a handshake
beep, the transceiver will hold the channel for this period be­fore it releases it. The operator must then key up their trans­ceiver to communicate. Failure of the operator to push [PTT]
before this timer expires results in a loss of the channel grant
and another push of the [PTT] will be required.

When the preprogrammed CH Reserve Timeout timer elaps­es, the transceiver returns to its default state.

Talk Back function ■

The Talk Back function allows you to select the same call type
(Individual or Talkgroup) for the received call.
When the Talk Back timer is set to 0 seconds, this function is
not activated. Ask your dealer for details.
If this function is cancelled by pushing [Digital Button] or any
key on a 10-key keypad, or after the Talk Back timer period
has passed, the transceiver automatically returns to the de­fault call type.
If the received call is a digital signal, the Talk Back function is
activated only for Voice Call, Call Alert, Status Message and
Message.*

* Depending on the presetting, the Talk Back function is activated

only for Voice Call.

28

IDAS OPERATION

2

Roaming function ■

(Multi-site Trunking mode only)

The Multi-site Trunking mode allows the transceiver to move
to another site, according to the preprogrammed roaming
list*, in order to find a site that has a higher quality signal, or
provides better services.
The Roaming function is automatically activated when the
transceiver goes out of the range and does not receive the
downlink signal from the repeater in the currently registered
site.
* Up to 48 valid roaming areas are listed on the roaming list.

Ask your dealer for details.

Depending on the preprogrammed settings, the transceiver tries
to register to the repeater that has the strongest RSSI level in
the last registered site or adjacent site. This roaming type takes
time than other roaming types. Ask your dealer for details.

Site Lock function ■

(Multi-site Trunking mode only)

The [Site Lock] key allows you to lock the transceiver to the
currently registered site, and the roaming and the background
scans are inhibited.

Push [Site Lock] to turn the Site Lock function ON or OFF. ➥

Site Select function ■

(Multi-site Trunking mode only)

< For only the IC-F3230D/IC-F4230D series and

IC-F5220D/IC-F6220D series transceivers>

The [Site Select] key allows you to manually select the de­sired site without a roaming scan operation.

q Push [Site Select] to show the Site Select screen.
w Push [CH Up] or [CH Down] to select the desired site from

the preprogrammed roaming list*.

* Up to 48 valid roaming areas are listed on the roaming list. Ask

your dealer for details.

e Push [Site Select] again to set the selected site, and return

to the standby mode.

r The transceiver tries to register to the selected site.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

29

A-7084-1EX-w
© 2013 Icom Inc.

1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
