OPERATING GUIDE
OPERATING GUIDE FOR
IC-F3160/F4160 SERIES
BIIS 1200/MDC 1200 SYSTEM/
LTR®/IDAS OPERATION
Page 2
IMPORTANT TABLE OF CONTENTS
Thank you for purchasing this Icom transceiver.
The BIIS 1200/MDC 1200 system/LTR®/IDAS (Icom Digital
Advanced System) functions are available to your IC-F3160/
F4160 series transceiver.
READ ALL INSTRUCTIONS carefully and completely
before using the transceiver.
SAVE THIS OPERATING GUIDE — This operating
guide contains important operating instructions for;
•
IC- F 3 1 61T, IC-F 3 1 61S, IC - F 3 161DT, I C - F 3161DS ,
I C - F3 1 6 2T, IC - F3 1 6 2 S , I C - F 3 1 6 3 T, IC - F 3 1 6 3 S
VHF TRANSCEIVERS
•
IC- F 4 1 61T, IC-F 4 1 61S, IC - F 4 161DT, I C - F 4161DS ,
I C - F4 1 6 2T, IC - F4 1 6 2 S , I C - F 4 1 6 3 T, IC - F 4 1 6 3 S
UHF TRANSCEIVERS
NOTE: In this operating guide, the LCD illustration is de-
scribed using the 2 lines indication mode.
Icom, Ic om I nc . and th e Ic om logo are register ed tra de ma rk s of Ic om
Inc or por ate d (Japan ) in Japan , the U nited State s, th e Uni ted Kingdom,
Germany, France, Spain, Russia and/or other countries.
LTR is a registered trademark of the E.F.Johnson Company.
All other products or brands are registered trademarks or trademarks of their
respective holders.
i
IMPORTANT .......................................................................... i
TABLE OF CONTENTS ......................................................... i
1
PREPARATION............................................................1–2
■ Programmable function keys ........................................1
2
BIIS 1200 OPERATION .............................................3–13
■ Setting example ............................................................3
■ Receiving a call ............................................................ 3
■ Transmitting a call .........................................................5
■ Receiving a message ................................................... 7
■ Transmitting a status..................................................... 9
■ Transmitting an SDM ..................................................10
■ Position data transmission..........................................11
■ Printer connection ......................................................12
■ BIIS ANI .....................................................................12
■ Transmitting an Emergency call .................................. 12
■ Man Down Emergency Call ........................................13
■ BIIS indication ............................................................13
■ Stun function ..............................................................13
■ Priority A channel selection ........................................ 13
Page 3
MDC 1200 SYSTEM OPERATION ..........................14–21
3
■ MDC 1200 system operation ......................................14
■ Receiving a call .......................................................... 14
■ Transmitting a call .......................................................17
■ Man Down Emergency Call ........................................21
■ Status message transmission ....................................21
4
LTR® OPERATION...................................................22–23
■ Receiving a call .......................................................... 22
■ Transmitting a call .......................................................23
5
IDAS OPERATION .................................................. 24–41
■ IDAS operation ........................................................... 24
■ IDAS-Trunk operation ................................................. 24
■ Receiving a call .......................................................... 24
■ Transmitting a call .......................................................28
■ Man Down Emergency Call ........................................40
■ Position data transmission..........................................40
■ Status message transmission ....................................41
■ Printer connection ......................................................41
■ Encryption function .....................................................41
ii
Page 4
1
PREPARATION
■ Programmable function keys
The following functions can be assigned to [EMR], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details con
cerning your transceivers programming.
If the programmable function names are bracketed in the fol
lowing explanations, the specific key is used to activate the
function depends on the programming.
D For BIIS 1200 operation only
BIIS BUTTON KEY “BIIS”
➥ Push to toggle the call ID list, transmit message and
stand-by operation.
➥ Push to toggle between queue channel and received mes-
sage record indication after queue channel is selected.
➥ Push and hold for 1 sec. to select queue channel indica-
tion.
STATUS UP/DOWN KEYS “STUP”/“STDN”
➥ During stand-by operation, push to display the transmit
status indication and select a status number.
➥ When a received SDM (Short Data Message) is displayed,
push to cancel the automatic scroll and scroll the mes
sage manually.
➥ When an SDM that contains more than 12 characters is
displayed, push to scroll the message manually.
D For MDC 1200 system operation only
MDC CALL KEY “CALL”
➥ Push to enter the MDC menu selection mode. Then select
-
-
-
the desired MDC menu from “
“STUN,” “REVIVE,” “RADIOCHK,” “STATUS,” “MSG” and
“CALL LOG” using [CH Up] or [CH Down].
After selection, push this key again to enter the transceiv-
er alias selection mode.
• No operation is performed for about 15 sec., the transceiver
returns to the normal operation condition.
➥ While in the transceiver alias selection mode, push to
return to the MDC menu selection mode.
MDC SELCALL KEY “SC”
Push to ent er the transceiver alias selecti on mode for
SelCall.
• After the desired alias selection, push [PTT] to transmit a SelCall.
• No ope ration is pe rformed for about 15 sec., t he transceiver
returns to the normal operation condition.
MDC CALLALERT KEY “CA”
Push to ent er the transceiver alias selecti on mode for
CallAlert.
• After the desired alias selection, push [PTT] to transmit a Call
Alert.
• No ope ration is pe rformed for about 15 sec., t he transceiver
returns to the normal operation condition.
SELCALL,” “CALALERT,”
1
Page 5
PREPARATION
1
1
D For LTR® operation only
PHONE KEY “PHN”
Push to connect or disconnect the telephone network con
nection.
D For IDAS operation only
DIGITAL BUTTON KEY “DIGI”
➥ Push to enter the application selection mode.
➥ Push and hold for 1 sec. to toggle the call type between
Individual and Talkgroup, then enter the application selec
tion mode automatically.
• Select the desired application from “VOICE,” “CALALERT,”
“ST U N,” “KIL L ,” “ REVI V E,” “REM M O N,” “RAD I OCHK ,”
“S TATUS ,” “MS G ,” “STAT POL ” a n d “ CALL LOG” usin g
[CH Up] or [CH Down].
➥ During the application selection mode, push to enter the
Individual or Talkgroup ID selection mode.
• If “STATUS” or “MSG” is selected as the application, the mes-
sage selection mode appears. After the desired message is
selected using [CH Up] or [CH Down], push again to enter the
Individual or Talkgroup ID selection mode. (pgs. 34, 35)
➥ During the application selection mode, push and hold for
1 sec. to return to the normal operation condition.
STATUS UP/DOWN KEYS “STUP”/“STDN”
➥ When a received SDM is displayed, push to cancel the
-
-
automatic scroll and scroll the message manually.
➥ When an SDM that contains more than 12 characters is
displayed, push to scroll the message manually.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
Page 6
2
1234
1111
TXCECALL BIIS
TXC
Calling station ID
Own ID
Appears Appears or
blinks
BIIS 1200 OPERATION
■ Setting example
The following key functions are recommended to be assigned to each programmable key for the BIIS 1200 opera
tion. The key function can be assigned by your dealer. Ask
your dealer for details.
NOTE: During BIIS 1200 operation, MDC 1200 system,
LTR®, and IDAS operations are not available.
[Call] : Push to transmit a BIIS call when the se-
lected channel is an MSK channel.
• “CALL” is displayed on the key indicator.
[BIIS Button] : Pu sh to sel ect the call li st ID/tran smit
message, or push to display the receive
message record for selection.
• “ BII S” i s displaye d on the key indicator.
When this key is pushed, “BIIS ” is inverted
[TX Code Enter] :
• “TXCE” is displayed on the key indicator.
[Moni(Audi)] : Push this key after the communication to
[CH Up]/[Down] : During stand-by operation, push to select
After pushing
3
as “ ”.
Push to enter the ID code edit mode directly.
send a ‘Clear down’ signal during MSK
channel operation.
the operating channel.
CH Enter], push to select call list or TX
code channel, respectively.
[BIIS Button] or [TX Code
■ Receiving a call
D Individual call
-
q When an individual call is received;
• Beeps sound.
” appears and the mute is released.
• “
• The programmed text message (e.g.“
ing station ID (or text) is displayed when the indication mode is
2 lines.
• The programmed text message (e.g.“CALLING”) and the call-
ing station ID (or text) is displayed alternately when the indication mode is 1 line, depending on the setting.
” appears or blinks depending on the setting.
• “
w Push and hold [PTT], then speak into the microphone at
a normal voice level.
• TX indicator lights red.
e Release [PTT] to return to receive.
• BUSY indicator lights green while receiving a signal.
r To finish the conversation, push [Moni(Audi)] to send the
‘Clear down’ signal.
• Either station can send a ‘Clear down’ signal.
• “CLR DOWN” is displayed for 2 sec. (approx.).
” disappears and the transceiver returns to stand-by opera-
• “
tion.
CALLING”) and the call-
Page 7
BIIS 1200 OPERATION
4001
1111
TXCECALL BIIS
TXC
Group ID
Calling station ID
Appears Appears or
blinks
<
QUEUE
>
–QUEUE!–
TXCECALL
TXC
BIIS
<
QUEUE
>
NO QUEUE
TXCECALL
TXC
BIIS
2
1
D Group call
q When a group call is received;
• Beeps sound.
” appears and the mute is released.
• “
•
The programmed text message (e.g.“GROUP”) and the calling station ID (or text) is displayed when the indication mode is 2 lines.
• The programmed text message (e.g.“GROUP”) and the calling
station ID (or text) is displayed alternately when the indication
mode is 1 line, depending on the setting.
” appears or blinks depending on the setting.
• “
w Push and hold [PTT], then speak into the microphone at
a normal voice level.
• TX indicator lights red.
NOTE: Only one station is permitted to speak.
e Release [PTT] to return to receive.
• BUSY indicator lights green while receiving a signal.
r To finish the conversation, push [Moni(Audi)] to send the
‘Clear down’ signal.
• Either station can send a ‘Clear down’ signal.
• “CLR DOWN” is displayed for 2 sec. (approx.)
“ ” disappears and the transceiver returns to stand-by operation.
•
D Displaying the received call record
— Queue indication
The transceiver memorizes the calling station ID in the memory. Up to 3 calls can be memorized, and the oldest call re
cord is erased when a 4th call is received. However, once
the transceiver is powered OFF, the all records are cleared.
q Push and hold [BIIS Button] for 1 sec.
• Displays following indication.
When a record is available
When no record is available
w Push [CH Up] or [CH Down] to select the desired call.
e Push and hold [BIIS Button] for 1 sec. again to return to
stand-by operation.
• When no operation is performed for 30 sec., the transceiver returns to stand-by operation automatically.
2
3
4
-
5
6
7
8
9
10
11
12
13
14
15
16
4
Page 8
BIIS 1200 OPERATION
TXCECALL
TXC
BIIS
STATION1
0001
Appears
<
QUEUE
>
–QUEUE!–
TXCECALL
TXC
BIIS
2
■ Transmitting a call
A total of 3 ways for code selection are available—selecting
the call code from memory, entering the call code from the
keypad and calling back from the queue channel record.
D Calling back from the queue channel
q During stand-by operation, push and hold [BIIS Button]
for 1 sec. to enter the queue memory channel selection
mode.
D Using call memory
q During stand-by operation, push [BIIS Button] to enter
the call code memory channel selection mode.
• “ ” appears.
w Push [CH Up] or [CH Down] to select the desired record.
e Push [Call] or [PTT]* to call.
* PTT call can be made only when PTT call capability is permit-
ted.
NOTE: When no answer back is received, the trans-
w Push [CH Up] or [CH Down] to select the desired call
code.
e Push [Call] or [PTT]* to call.
* PTT call can be made only when PTT call capability is permit-
ted.
NOTE: When no answer back is received, the trans-
ceiver repeats the call 3 times (default) automatically,
and “WAIT” is displayed during each call. However, an
error beep sounds and “FAIL ED” is displayed when
no answer back is received after the calls.
r Push [PTT] to transmit; release to receive.
t Push [Moni(Audi)] to send the ‘Clear down’ signal.
5
ceiver repeats the call 3 times (default) automatically,
and “WAIT” is displayed during each call. However, an
error beep sounds and “FAIL ED” is displayed when
no answer back is received after the calls.
r Push [PTT] to transmit; release to receive.
t Push [Moni(Audi)] to send the ‘Clear down’ signal.
Page 9
BIIS 1200 OPERATION
TXCECALL
TXC
BIIS
0500
2
1
D Direct code entry
q During stand-by operation, push [TX Code Enter] to
enter the TX code edit mode.
• Code digit for editing blinks.
w
Push [TX Code Enter] to select the desired digit to be edited.
• Digit for editing differs according to the setting.
e Set the desired digit using [CH Up]/[CH Down] or 10-key-
pad*.
* 10-key versions only
r Push [TX Code Enter] to set the digit, then the digit to
the right will blink automatically.
• When the 10-keypad is used for setting, the digit to the right will
blink automatically without pushing
t Repeat e and r to input all allowable digits.
[TX Code Enter].
y Push [Call] or [PTT]* to call.
* PTT call can be made only when PTT call capability is permit-
ted.
NOTE: When no answer back is received, the trans-
ceiver repeats the call 3 times (default) automatically,
and “WAIT” is displayed during each call. However, an
error beep sounds and “FAIL ED” is displayed when
no answer back is received after the calls.
u Push [PTT] to transmit; release to receive.
i Push [Moni(Audi)] to send the ‘Clear down’ signal.
For your information
When the “UpDate” setting for the call code is enabled, the
set code is overwritten into the call code memory.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
6
Page 10
BIIS 1200 OPERATION
TXCECALL
TXC
BIIS
RX Status 01
BASE
TXCECALL
TXC
BIIS
Thank you!
BASE
TXCECALL
TXC
BIIS
How about you?
BASE
Scrolls
2
■ Receiving a message
D Receiving a status message
q When a status message is received;
• Beeps sound.
• The calling station ID (or text) and the status message is displayed alternately when the indication mode is 1 line, depending on the setting.
w Push [Moni(Audi)] to return to stand-by operation.
NOTE: Only the calling station ID (or text) is displayed
(no message is displayed alternately) when the scroll
timer is set to ‘OFF.’ In this case, push
[Status Down] to display the status message manually.
[Status Up]/
D Receiving an SDM (Short Data Message)
q When an SDM is received;
• Beeps sound.
• The calling station ID (or text) and the SDM is displayed alternately when the indication mode is 1 line, depending on the setting.
w When the received SDM includes more than 12 charac-
ters, the message scrolls automatically, when the auto
matic scroll function is activated.
•
Push [Status Up]/[Status Down] to scroll the message manually.
e Push [Moni(Audi)] to return to stand-by operation.
-
7
Page 11
BIIS 1200 OPERATION
TXCECALL
TXC
BIIS
MESSAGE
– MSG! –
TXCECALL
TXC
BIIS
MESSAGE
–NO MSG–
2
1
D Received message selection
The transceiver memorizes the received message in the
memory. Up to 6 messages for status and SDM, or 95 character SDM’s can be memorized. The oldest message is
erased when the 7th message is received. However, once
the transceiver is powered OFF, all messages are cleared.
q Push and hold [BIIS Button] for 1 sec.
• Displays queue memory.
w Push [BIIS Button] momentarily.
• Displays message memory.
When a message is available
When no message is available
e Push [CH Up] or [CH Down] to select the desired mes-
sage.
• When selecting the SDM that includes more than 12 characters, the message scrolls automatically when the automatic
scroll function is activated.
• Push [Status Up]/[Status Down] to scroll the message manually.
r Push and hold [BIIS Button] for 1 sec. again to return to
stand-by operation.
• When no operation is performed for 30 sec., the transceiver returns to stand-by operation automatically.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
8
Page 12
BIIS 1200 OPERATION
TXCECALL
TXC
BIIS
STATUS
01
TX Status 01
Status message is displayed.
2
■ Transmitting a status
D General
The status message can be selected with the programmed
text, and the message text is also displayed on the function
display of the called station.
Up to 24 status types (1 to 24) are available, and the status
messages 22 and 24 have designated meanings.
Status 22: Emergency*
Status 24: GPS request
* The status 22 can also be used as a normal status message
by disabling the designated meaning. However, the status 24 is
fixed.
The status call can be sent with both individual and group
calls.
9
D Transmitting a status
q During stand-by operation, push [BIIS Button], then push
[CH Up] or [CH Down] to select the desired station/group
code.
w
Push
[BIIS Button]
to select the desired status message.
Or, you can select the desired status message using
[Status Up]/[Status Down] key directly.
e Push [Call] or [PTT]* to transmit the status message to
the selected station/group.
* PTT call can be made only when PTT call capability is permit-
ted.
• 2 beeps will sound and the transceiver returns to stand-by op-
eration automatically when the transmission is successful.
again, then push [CH Up] or [CH Down]
Page 13
BIIS 1200 OPERATION
SDM is displayed.
TXCECALL
TXC
BIIS
MESSAGE 1
How are you?
TXCECALL
TXC
BIIS
MESSAGE 1
How are you?
Blinks
When [#] is pushed.
2
■ Transmitting an SDM
D General
The short data message, SDM, can be sent to an individual
station or group stations. Also, 8 SDM memory channels are
available and the messages can be edited via PC program
ming.
D Transmitting an SDM
q During stand-by operation, push [BIIS Button], then push
[CH Up] or [CH Down] to select the desired station/group
code.
w
Push
[BIIS Button] again
to select the desired SDM.
Or, you can select the desired SDM using
[Status Down] key directly.
e Push [Call] or [PTT]* to transmit the SDM to the selected
station/group.
* PTT call can be made only when PTT call capability is permit-
ted.
• 2 beeps will sound and the transceiver returns to stand-by operation automatically when the transmission is successful.
, then push [CH Up] or [CH Down]
[Status Up]/
D Programming an SDM memory
(10-key version only)
q During stand-by operation, push [BIIS Button] twice,
-
then push [CH Up] or [CH Down] to select the desired
SDM to be edited.
w Push [M] or [#] to enter the message editing condition.
• The first character blinks when [#] is pushed, the last character
blinks when
e Push the appropriate digit key, [0] to [9], to enter the de-
sired character.
• See the table at the next page for the available characters.
• Pushing [CH Up] also enters space, pushing [CH Down] deletes the selected character.
r Push [#] to move the cursor to the right, push [M] to move
the cursor to the left.
t Repeat steps e and r to set the desired text message.
y Push and hold [BIIS Button] for 1 sec. to overwrite the
set content into the memory.
• Push [BIIS Button] momentarily to cancel the editing and return to the original message indication.
[M] is pushed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
10
Page 14
BIIS 1200 OPERATION
Key Characters
[0]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
(space)
0 ][!| ’ ” ,? : _ ( ) < >;
2 BA a b cC
3 ED d e fF
4 HG g h iI
5 KJ j k lL
6 NM m n oO
7 QP S p q r sR
9 XW Z w x y zY
8 UT t u vV
1 ^@# � / – = \ & % $+
2
• Available characters
11
■ Position data transmission
When the optional cable (OPC-966) and a GPS receiver is
connected to the transceiver, the position (longitude and lati
tude) data can be transmitted automatically.
Ask your dealer or system operator for connection details.
The position data is transmitted when;
• Status 24 message is received
*When the status 24 message, GPS request, is received.
• Fully automatic
When automatic position transmission is enabled, send
the position data according to ‘Time Marker’ and ‘Interval
Timer’ settings.
• PTT is released
When ‘Send with Logoff’ is enabled.
- Set the ‘Log-In/Off’ item as ‘L-OFF.’
• After sending a status message
When ‘Send with Status’ is enabled.
• After sending an SDM
When ‘Send with SDM’ is enabled.
• After sending status 22 (Emergency)
When ‘Send with Emergency’ is enabled.
-
Page 15
BIIS 1200 OPERATION
2
■ Printer connection
When the optional cable is connected to the transceiver, a
printer can be connected to print out the received SDM con
tent and the ID of the station who sent the message.
Ask your dealer or system operator for connection details.
■ BIIS ANI
The own ID can be transmitted each time the PTT is pushed
(log-in) or released (log-off) during individual or group call
communications.
By receiving the ANI, the communication log can be re
corded when using a PC dispatch application.
In addition, when using the ANI with log-in, the PTT side
tone function can be used to inform you that the ID is sent
and voice communication can be performed.
■ Transmitting an Emergency call
When [Emergency] (described in the instruction manual) is
pushed and held for the specified time period, the emergency
signal (Status 22) is transmitted once or repeatedly on the
emergency channel. A repeat emergency signal is automati
cally transmitted until it receives the acknowledgement signal.
When no emergency channel is specified, the signal is trans
mitted on the previously selected channel.
If you want to cancel the emergency call, push and hold the
key again before transmitting the call.
The emergency call can be transmitted without a beep emis
-
sion, and the LCD indication depending on the pre-setting.
The transceiver can also be programmed to keep the micro
phone open during an emergency call, allowing monitoring of
the situation.
IMPORTANT: It is recommended to set an emergency
channel individually to provide the certain emergency call
operation.
1
2
3
-
4
5
-
6
7
8
-
-
9
10
11
12
13
14
15
16
12
Page 16
BIIS 1200 OPERATION
2
■ Man Down Emergency Call
This function requires the optional UT-124R man down unit
and can be performed in conventional mode.
The man down emergency call function transmits the emer
gency signal (Status 22) automatically when the transceiver
has been left in a horizontal position for the specified time
period.
After the emergency call, the transceiver performs transmis
sion and reception alternately with receiving a signal and
emitting audio.
When the emergency reset signal is received, the function is
cancelled.
■ BIIS indication
The following indications are available for the BIIS operation
on a BIIS channel.
CONNECT : Individual/group call is successful.
OK : Message (status or SDM) transmission is suc
cessful.
FAILED : No answer back is received.
WAIT : Appears during retry of the call (2nd call).
CLR DOWN : End the communication.
BUSY : Operating channel is in the busy condition.
■ Stun function
When the specified ID, set as a killer ID, is received, the stun
function is activated.
When the killer ID is received, the transceiver switches to
the password required condition. Entering of the password
via the keypad is necessary to operate the transceiver again
in this case.
-
■ Priority A channel selection
When one of the following operations is performed, the
transceiver selects the Priority A channel automatically.
Priority A is selected when;
• Clear down signal is received/transmitted
- Set the ‘Move to PrioA CH’ item as ‘Clear down.’
• Turning the power ON
The Priority A channel is selected each time the trans
-
ceiver power is turned ON.
• Status call
The Priority A channel is selected when transmitting a
status call.
- Enable the ‘Send Status on PrioA CH’ item in the MSK
configuration.
-
13
Page 17
SELCALL
CALL SC
CA
ID 1234
CALL SC
CA
Appears
Blinks
Appears
Blinks
MDC 1200 SYSTEM OPERATION
3
■ MDC 1200 system operation
The MDC 1200 signaling system enhances your transceiver’s
capabilities. It allows PTT ID, Selective Calling (SelCall), Call
Alert, Radio Check, Stun, Revive, Status, Messaging and
Emergency signaling.
An additional feature of MDC 1200 system found in Icom
transceivers is called aliasing. Each transceiver on the sys
tem has a unique ID number. Aliasing allows the substitution
of an alphanumeric name for this ID number. For transmit,
you can use this alias to select a transceiver to call. For re
ceive, the alias of the calling station is displayed instead of
the ID.
Please note that your dealer has set one of the programmable keys ([EMR], [Side1], [Side2], [Side3], [P0], [P1], [P2]
and [P3] ) for MDC 1200 system operation.
NOTE: During MDC 1200 system operation, BIIS 1200
and IDAS operations are not available.
■ Receiving a call
D Receiving a SelCall
q When a SelCall is received;
• Beeps sound.
” appears.
• “
• “ ” blinks.
• The calling station ID (or alias) and “
-
-
alternately.
w Push and hold [PTT] and speak into the microphone.
e Release [PTT] to receive a response.
SELCALL” are displayed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
14
Page 18
MDC 1200 SYSTEM OPERATION
CALLALRT
CALL SC
CA
ID 1234
CALL SC
CA
Blinks
Blinks
EMG EMG
CALL SC
CA
ID 1234
CALL SC
CA
Appears
Appears
3
D Receiving a Call Alert
q When a Call Alert is received;
• Beeps sound.
” blinks.
• “
• The calling station ID (or alias) and “
alternately.
w Push and hold [PTT] and speak into the microphone.
e Release [PTT] to receive a response.
CALLALRT” are displayed
D Receiving an Emergency Call
q When an emergency call is received;
• Beeps sound.
• The calling station ID (or alias) and “EMG EMG” are displayed
alternately until turning power OFF, the channel changing, etc.
w When the automatic acknowledgement function is turned
ON, the transceiver automatically transmits an acknowl
edgement call to the station.
• The calling station stops calling.
e Turn power OFF, change the channel, etc. to stop the
beep and display indication.
-
15
Page 19
MDC 1200 SYSTEM OPERATION
ID 1234
CALL SC
CA
MSG 1
CALL SC
CA
ID 1234
CALL SC
CA
STATUS1
CALL SC
CA
ID 1234
SC - 0:27
CALL SC
CA
Elapsed time from
receiving the call
: SelCall
: Call Alert
: Emergency call
Call type
SC
CA
EMG
Calling station ID
3
D Receiving a Message
q When a Message is received;
• Beeps sound.
• The calling station ID (or alias) and the message are displayed
alternately.
w Turn power OFF, push [PTT], change the channel, etc. to
stop the display indication.
D Receiving a Status Message
➥ When a Status Message is received;
• Beeps sound.
• The calling station ID (or alias) and the status message are displayed once.
D Receiving a Stun or Revive
If a Stun command is received that matches your station
ID, the transceiver will display “SORRY” and you can not re
ceive or transmit. When a Revive command is received that
matches your station ID, normal operation is restored.
D Call log function
After receiving the SelCall, Call Alert and Emergency call,
the call logs are displayed (depends on the setting.) Up to 5
logs can be memorized, and the oldest log is erased when a
6th call is received.
q Push [MDC Call] to enter the MDC menu selection mode.
w Select “CALL LOG” using [CH Up] or [CH Down].
e Push [MDC Call] again to indicate the call logs.
• When no call is received, error beep is emitted.
r Push [CH Up] or [CH Down] to select the desired call log
memory.
NOTE: 1000 hours has passed from receiving the call,
the elapsed time is reset to 0:00.
1
-
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
Page 20
MDC 1200 SYSTEM OPERATION
SELCALL
CALL SC
CA
CALALERT
CALL SC
CA
3
■ Transmitting a call
17
D Transmitting a SelCall
SelCall allows you to make a call to a specific station or to
a particular group. Other MDC 1200 system transceivers on
the channel will not receive a SelCall that does not match
their station or group ID’s.
q Push [MDC Call] to enter the MDC menu selection mode.
• Or push [MDC SelCall] to enter the transceiver alias selection
mode. In this case, skip step w.
w Push [MDC Call] again to enter the transceiver alias se-
lection mode.
e Select the desired alias using [CH Up] or [CH Down].
r Push and hold [PTT] to transmit the SelCall to the se-
lected station, then speak into the microphone.
• “ ” appears.
t Release [PTT] to receive.
D Transmitting a Call Alert
Call Alert allows you to notify another user who may be away
from the transceiver that you want to talk.
q Push [MDC Call] to enter the MDC menu selection mode.
• Or push [MDC CallAlert] to enter the transceiver alias selec-
tion mode. In this case, skip steps w and e.
w Select “CALALERT” using [CH Up] or [CH Down].
e Push [MDC Call] again to enter the transceiver alias se-
lection mode.
r Select the desired alias using [CH Up] or [CH Down].
t Push [PTT] to transmit the Call Alert to the selected sta-
tion.
• “CA CALL” is displayed.
y Release [PTT].
• “CA OK” is displayed after receiving an acknowledgement from
the targeted station.
• “CA FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
Page 21
MDC 1200 SYSTEM OPERATION
STUN
CALL SC
CA
REVIVE
CALL SC
CA
3
1
D Transmitting a Stun Call
Stun call allows you to send MDC 1200 system signal that
will stun the targeted station.
q Push [MDC Call] to enter the MDC menu selection mode.
w Select “STUN” using [CH Up] or [CH Down].
e Push [MDC Call] again to enter the transceiver alias se-
lection mode.
r Select the desired alias using [CH Up] or [CH Down].
t Push [PTT] to transmit the stun call to the selected sta-
tion.
• “STN TX” is displayed.
y Release [PTT].
• “STN ACK” is displayed after receiving an acknowledgement
from the targeted station.
• “STN FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
D Transmitting a Revive Call
Revive call allows you to send MDC 1200 system signals
that will revive the targeted (stunned) station.
q Push [MDC Call] to enter the MDC menu selection mode.
w Select “REVIVE” using [CH Up] or [CH Down].
e Push [MDC Call] again to enter the transceiver alias se-
lection mode.
r Select the desired alias using [CH Up] or [CH Down].
t Push [PTT] to transmit the revive call to the selected sta-
tion.
• “REV TX” is displayed.
y Release [PTT].
• “REV ACK” is displayed after receiving an acknowledgement
from the targeted station.
• “REV FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
Page 22
MDC 1200 SYSTEM OPERATION
RADIOCHK
CALL SC
CA
STATUS
CALL SC
CA
STATUS
STATUS1
CALL SC
CA
Pre-programmed
status message
is displayed.
3
D Transmitting a Radio Check Call
Radio check call allows you to determine whether the targeted station is turned on, within the communication range
and on channel without requiring any action from the tar
geted station user.
q Push [MDC Call] to enter the MDC menu selection mode.
w Select “RADIOCHK” using [CH Up] or [CH Down].
e Push [MDC Call] again to enter the transceiver alias se-
lection mode.
r Select the desired alias using [CH Up] or [CH Down].
t Push [PTT] to transmit the radio check call to the selected
station.
• “RDO CHK” is displayed.
y Release [PTT].
• “CHK ACK” is displayed after receiving an acknowledgement
from the targeted station.
• “CHK FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
D Transmitting a Status Message
Status Messaging allows you to send a pre-programmed
status message. There are 16 status codes that can be sent.
In addition, the transceiver can send an MDC 1200 sys
tem signal that causes the targeted station to automatically
transmit its current status.
q Push [MDC Call] to enter the MDC menu selection mode.
w Select “STATUS” using [CH Up] or [CH Down].
e Push [MDC Call] again to enter the status message se-
lection mode.
r Select the desired status message using [CH Up] or
[CH Down].
t Push [PTT] to transmit the selected status message.
• “STAT TX” is displayed.
-
19
Page 23
MDC 1200 SYSTEM OPERATION
MSG
CALL SC
CA
MSG
MSG 1
CALL SC
CA
Pre-programmed message
is displayed.
3
y Release [PTT].
• “STAT OK” is displayed after receiving an acknowledgement
from the base station.
• “STA FAIL” is displayed if there is no acknowledgment from the
base station.
u After a specified time period has passed, the transceiver
will return to receive.
D Transmitting a Message
The transceiver can send a pre-programmed message.
There are 16 messages that can be sent on a channel.
q Push [MDC Call] to enter the MDC menu selection mode.
w Select “MSG” using [CH Up] or [CH Down].
e Push [MDC Call] again to enter the pre-programmed
message selection mode.
r
Select the desired message using [CH Up] or [CH Down].
t Push [PTT] to transmit the selected message.
• “MSG TX” is displayed.
y Release [PTT].
• “MSG OK” is displayed after receiving an acknowledgement
from the base station.
• “MSG FAIL” is displayed if there is no acknowledgment from
the base station.
u After a specified time period has passed, the transceiver
will return to receive.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
20
Page 24
MDC 1200 SYSTEM OPERATION
3
21
D PTTID Calls
The transceiver can send an MDC 1200 system signal that
includes PTTID when
mission) and released (end of transmission). If a PTTID call
is received, the transceiver will display the calling station ID
(or alias) and emit a beep*.
*Depends on the setting.
[PTT] is pushed (beginning of trans-
D Transmitting an Emergency Call
When [Emergency] (described in the instruction manual)
is pushed and held for the specified time period, the emer
gency signal (MDC 1200 system command) is transmitted
once or repeatedly on the emergency channel. A repeat
emergency signal is automatically transmitted until it receives
the acknowledgement signal. When no emergency channel is
specified, the signal is transmitted on the previously selected
channel.
If you want to cancel the emergency call, push and hold the
key again before transmitting the call.
The emergency call can be transmitted without a beep emis
sion, and the LCD indication depending on the pre-setting.
The transceiver can also be programmed to keep the micro
phone open during an emergency call, allowing monitoring of
the situation.
IMPORTANT: It is recommended to set an emergency
channel individually to provide the certain emergency call
operation.
■ Man Down Emergency Call
This function requires the optional UT-124R man down unit
and can be performed in conventional mode.
The man down emergency call function transmits the emer
gency signal (MDC 1200 system command) automatically
when the transceiver has been left in a horizontal position for
the specified time period.
After the emergency call, the transceiver performs transmis
sion and reception alternately with receiving a signal and
-
emitting audio.
When the emergency reset signal is received, the function is
cancelled.
■ Status message transmission
The status message can be transmitted automatically when;
• The transceiver is turned ON.
- Set the status message to be transmitted in the ‘Power ON
-
-
Status’ item.
• After sending an Emergency call with Man Down.
- Set the desired status message to be transmitted in the ‘Man
Down Status Send’ item.
-
-
Page 25
LTR® OPERATION
002 ch-03
fH 173.7M
SET
DTMA DTMR
PHN
Blinks
002 ch-03
fH 173.7M
SET
DTMA DTMR
PHN
Appears
4
■ Receiving a call
Push [Zone], then push [CH Up] or [CH Down]* to select
the LTR® zone.
* The method to select the desired zone may differ according to your
system set up.
NOTE: During LTR® operation, BIIS 1200 and IDAS op-
erations are not available.
D Group call
q When a call is received;
• LED indicator lights green.
w Push and hold [PTT], then speak into the microphone at
a normal voice level.
e Release [PTT] to return to receive.
D Selective call (DTMF call)
q Push [Call] to mute the channel.
w When receiving a call, the calling station name appears
and a beep is emitted. Then the mute is released.
• “ ” appears.
D Phone call
q Push [CH Up] or [CH Down] to select the phone channel.
• “ ” appears.
w When a phone call is received (transceiver rings), push
[Phone] (or push [PTT]).
• “ ” blinks.
e Push and hold [PTT], then speak into the microphone at
a normal voice level. Release
r After conversation is finished, push [Phone] to discon-
nect the phone call.
• “ ” stops blinking.
[PTT] to return to receive.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
22
Page 26
002 ch-03
fH 173.7M
SET
DTMA DTMR
PHN
Blinks
LTR® OPERATION
4
■ Transmitting a call
D Group call
While pushing and holding [PTT], speak into the microphone
at a normal voice level after a beep is emitted.
• If an error beep is emitted, release [PTT]. After a while, repeat the
procedure.
• The beep can be turned OFF in User set mode.
D Selective call (DTMF call)
q Push [DTMF Autodial]— a DTMF encode channel ap-
pears.
w Push [CH Up] or [CH Down] to select the desired DTMF
encode channel.
e Push [PTT] to transmit the selected DTMF code in the
selected DTMF channel.
• Push [DTMF Autodial] to cancel the DTMF transmission.
D Phone call
q Select the phone channel.
• “ ” appears.
w Push [Phone] (or push [PTT]).
• “ ” blinks.
e Push [DTMF Autodial] to make a phone call.
r After conversation is finished, push [Phone] to discon-
nect the phone call.
• “ ” stops blinking.
23
Page 27
IDAS OPERATION
STATION 1
DIGI STUP STDN
The calling station ID
name is displayed.
CALLALRT
STATION 1
DIGI STUP STDN
Blink
The calling station ID
name is displayed.
5
■ IDAS operation
The IC-F3161D and IC-F4161D provides Icom Digital Advanced System (IDAS) that meets the 6.25 kHz emission
mask requirements for narrow banding, and increases effi
ciency of channel allocation and use of spectrum.
The optional UT-119H/UT-126H provides 6.25 kHz digital
mode operation for the transceiver that does not support dig
ital communication.
NOTE: During IDAS operation, BIIS 1200, MDC 1200
system and LTR® operations are not available.
■ IDAS-Trunk operation
The IDAS-Trunk system enables further effective channel
management by sharing a minimum of channels with a large
number of users.
Push [Zone], then push [CH Up] or [CH Down]* to select
the IDAS-Trunk zone.
* The method to select the desired zone may differ according to your
system set up.
NOTE: During IDAS-Trunk operation, you can receive and
transmit digital calls in the same way with the following
IDAS operation.
■ Receiving a call
D Receiving a Voice Call
q When a Voice call is received;
-
• Mute is released.
• The calling station ID name (or code) is displayed while receiving the signal. (Depending on the pre-setting.)
• When All Call is received, “All Call” is displayed.
-
w Push and hold [PTT], then speak into the microphone.
e Release [PTT] to receive a response.
D Receiving a Call Alert
q When a Call Alert is received;
• Beeps sound.
” blinks.
• “
• The calling station ID name (or code) and “
w Push and hold [PTT], then speak into the microphone.
e Release [PTT] to receive a response.
CALLALRT” blink.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
24
Page 28
RX Status 01
STATION 1
DIGI STUP STDN
Blink
The received status
message is displayed.
The calling station ID
name is displayed.
MSG 1
STATION 1
DIGI STUP STDN
Blink
The received message
is displayed.
The calling station ID
name is displayed.
FICERETURN TO OF
STATION 1
DIGI STUP STDN
Scrolls
IDAS OPERATION
5

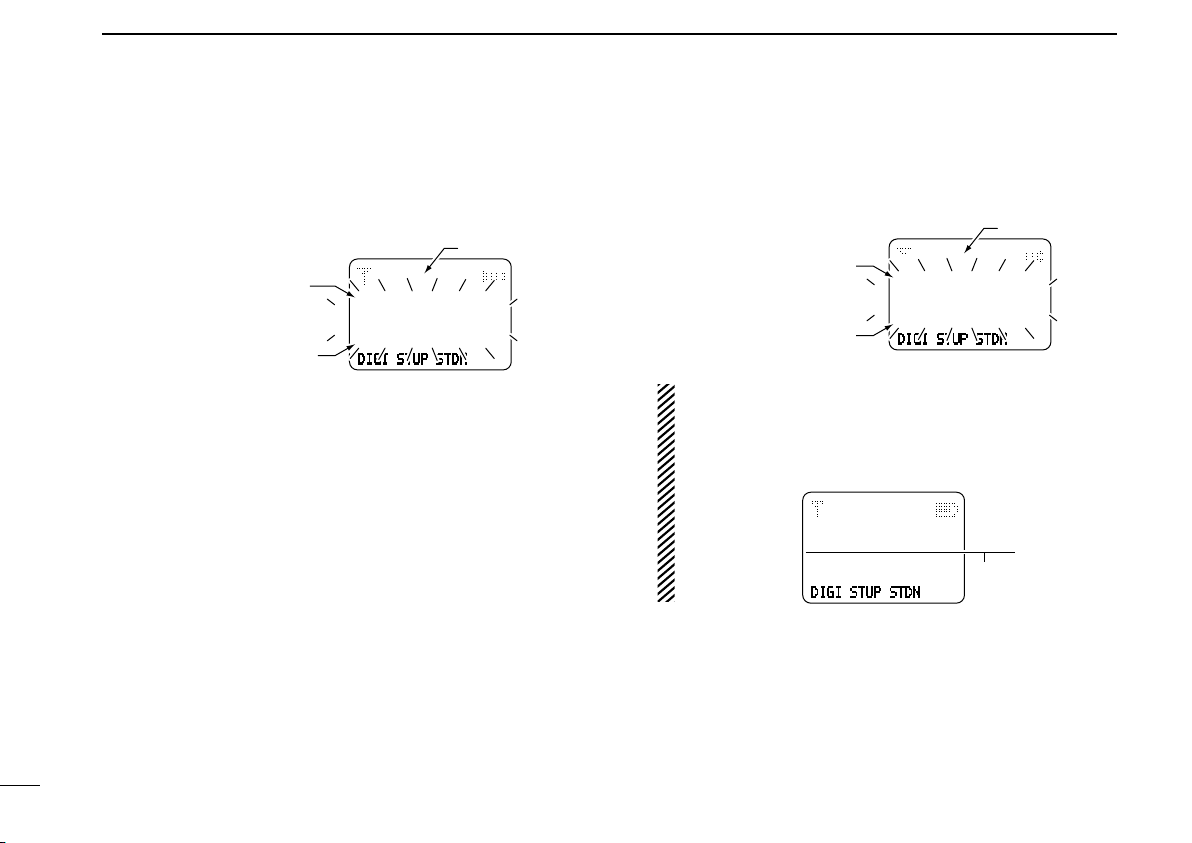

D Receiving a Status Message
q When a Status Message is received;
• Beeps sound.
• The calling station ID name (or code) and the status message
blink.
w Push [PTT], change the channel, turn power OFF, etc. to
stop the display indication.
D Receiving a Message
q When a Message is received;
• Beeps sound.
• The calling station ID name (or code) and the message blink.
NOTE: When the received message includes more
than 12 characters, the message scrolls automatically,
when the automatic scroll function is activated.
• Push [Status Up]/[Status Down] to scroll the message
manually.
w Push [PTT], change the channel, turn power OFF, etc. to
stop the display indication.
25
Page 29
IDAS OPERATION
5
D Receiving a Stun, Kill or Revive
If an individual call with Stun or Kill command is received
(RAN code matching is not necessary depending on the presetting), the transceiver will display “SORRY” and you can
not receive
* Depending on the received Stun command setting.
➥ When a Stun command is received;
• The transceiver cannot be operated until the individual call with
➥ When a Kill command is received;
• The transceiver cannot be operated until the data cloning is per-
* or transmit.
Revive command is received (RAN code matching is not necessary depending on the pre-setting) or input a password.
formed. Ask your dealer for details.
D Receiving a Remote Monitor, Radio Check
or Status Polling Call
If an individual call with Remote monitor, Radio check or
Status polling command is received (RAN code matching is
not necessary depending on the pre-setting), the transceiver
will transmit automatically.
➥ When a Remote monitor command is received;
• The microphone audio is automatically transmitted for the set
time period.
➥ When a Radio check command is received;
• The transceiver automatically transmit the acknowledgement
call.
➥ When a Status polling command is received;
• The transceiver automatically transmit the status call.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
26
Page 30
IDAS OPERATION
VOICE
STATION 1
DIGI STUP STDN
NO LOG
DIGI STUP STDN
5
D Displaying the received call log
The transceiver stores a log of all calls in memory, if activated.
Up to 10 call logs can be stored, and the oldest call record
is erased when an 11th call is received. However, once the
transceiver is turned OFF, the all records are erased.
The received voice call (for individual), call alert, status call
and message logs are stored.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Select “CALL LOG” using [CH Up] or [CH Down].
e Push [Digital Button] again to display the call log infor-
mation.
When a log information is displayed
When no log information is available
r Push [CH Up] or [CH Down] to select the desired log.
t Push and hold [PTT] to send the voice call.
• The voice call can be performed with the logged station.
27
Page 31
IDAS OPERATION
INDIVIDUAL
DIGI STUP STDN
VOICE
DIGI STUP STDN
* This illustration is described with
Individual call type.
VOICE
STATION 1
DIGI STUP STDN
Individual or Talkgroup ID
name is displayed.
5
■ Transmitting a call
IDAS operation allows you to make a call to a specific station (Individual call) or to a particular group (Talkgroup call).
Other digital mode transceivers on the channel will not re
ceive a call that does not match their individual or talkgroup
ID and/or RAN (Radio Access Number) code.
D Transmitting a Voice Call
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [Digital Button] again to enter the Individual or
Talkgroup ID selection mode.
• The pre-programmed ID name is displayed.
-
• When ID name is not programmed, ID code is displayed.
• When you want to send a voice message to all transceivers
within the communication range, use the ‘All Call’ function–—
select the ID code “65535”.
e Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
r Push and hold [PTT], then speak into the microphone
to send a voice message to the selected station or talk
group.
t Release [PTT] to receive.
Convenient! (10-key version only)
Depending on the pre-setting, you can use the quick ID se
lection for the Voice Call.
➥ During stand-by operation, push the desired digit key ([1]
to [9] or [0]) to
• The appropriate ID is displayed.
enter the ID selection mode
.
1
2
3
4
5
6
7
8
9
10
11
12
13
-
14
15
16
-
28
Page 32
IDAS OPERATION
CALALERT
STATION 1
DIGI STUP STDN
Individual or Talkgroup ID
name is displayed.
5
D Transmitting a Call Alert
Call Alert allows you to notify another user who may be away
from the transceiver that you want to talk.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “CALALERT.”
e Push [Digital Button] again to enter the Individual or
Talkgroup ID selection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
r Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
t Push and hold [PTT] to transmit the Call Alert to the se-
lected station or talkgroup.
• “CA CALL” is displayed.
y Release [PTT].
• “CA OK” is displayed after receiving an acknowledgement from
the targeted station.
• “CA FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
29
Page 33
IDAS OPERATION
STUN
STATION 1
DIGI STUP STDN
Individual ID name
is displayed.
5
D Transmitting a Stun Call
A Stun call allows you to send a signal that will stun the targeted station.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “STUN.”
e Push [Digital Button] again to enter the Individual ID se-
lection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
r Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
t Push [PTT] to transmit the Stun call to the selected dis-
patcer.
• “STN TX” is displayed.
y Release [PTT].
• “STN ACK” is displayed after receiving an acknowledgement
from the targeted station.
• “STN FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
30
Page 34
IDAS OPERATION
KILL
STATION 1
DIGI STUP STDN
Individual ID name
is displayed.
5
D Transmitting a Kill Call
A Kill call allows you to send a signal that will disable the targeted station.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
• To change the call type, push and hold [Digital Button] for 1
sec. during stand-by operation. After changing, the transceiver
enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “KILL.”
e Push [Digital Button] again to enter the Individual ID se-
lection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
r Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
t Push [PTT] to transmit the Kill call to the selected station.
• “KIL TX” is displayed.
y Release [PTT].
• “KIL ACK” is displayed after receiving an acknowledgement
from the targeted station.
• “KIL FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
31
Page 35
IDAS OPERATION
REVIVE
STATION 1
DIGI STUP STDN
Individual ID name
is displayed.
5
D Transmitting a Revive Call
A Revive call allows you to send a signal that will revive the
(stunned) station.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
• To change the call type, push and hold [Digital Button] for 1
sec. during stand-by operation. After changing, the transceiver
enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “REVIVE.”
e Push [Digital Button] again to enter the Individual ID se-
lection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
r Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
t Push [PTT] to transmit the Revive call to the selected sta-
tion.
• “REV TX” is displayed.
y Release [PTT].
• “REV ACK” is displayed after receiving an acknowledgement
from the targeted station.
• “REV FAIL” is displayed if the (stunned) station does not receive the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
Page 36
IDAS OPERATION
REM MON
STATION 1
DIGI STUP STDN
Individual ID name
is displayed.
5
D Transmitting a Remote Monitor Call
A remote monitor call allows you to send a signal that require the targeted station to transmit the microphone audio.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “REM MON.”
e Push [Digital Button] again to enter the Individual ID se-
lection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
r Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
t Push and hold [PTT] to transmit the Remote monitor call
to the selected station.
• “REM TX” is displayed.
y Release [PTT].
• “REM ACK” is displayed after receiving an acknowledgement
from the targeted station.
• “REM FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
33
Page 37
IDAS OPERATION
RADIOCHK
STATION 1
DIGI STUP STDN
Individual ID name
is displayed.
5
D Transmitting a Radio Check Call
A radio check call allows you to determine whether the targeted station is turned on, within the communication range
and on channel without requiring any action from the tar
geted station user.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “RADIOCHK.”
e Push [Digital Button] again to enter the Individual ID se-
lection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
r Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
t Push and hold [PTT] to transmit the Radio check call to
the selected station.
• “RDO CHK” is displayed.
-
y Release [PTT].
• “CHK ACK” is displayed after receiving an acknowledgement
from the targeted station.
• “CHK FAIL” is displayed if the targeted station does not receive
the signal or send back an acknowledgement.
u After a specified time period has passed, the transceiver
will return to receive.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
34
Page 38
IDAS OPERATION
STATUS
TX Status 01
DIGI STUP STDN
Pre-programmed
status message
is displayed.
STATUS
STATION 1
DIGI STUP STDN
Individual or Talkgroup ID
name is displayed.
5
D Transmitting a Status Message
The transceiver has the ability to send a pre-programmed
status message.
There are 100 status messages that can be sent.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “STATUS.”
e Push [Digital Button] again to enter the status message
selection mode.
• The pre-programmed status message is displayed.
r Push [CH Up] or [CH Down] to select the desired mes-
sage.
t Push [Digital Button] again to enter the Individual or
Talkgroup ID selection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
35
y Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
u Push [PTT] to transmit the status message to the se-
lected station or talkgroup.
• “STAT TX” is displayed.
i Release [PTT].
• “STAT OK” is displayed after receiving an acknowledgement
from the base station.
• “STA FAIL” is displayed if there is no acknowledgment from the
base station.
o After a specified time period has passed, the transceiver
will return to receive.
Convenient! (10-key version only)
Depending on the pre-setting, you can use the quick status
message selection/transmission.
➥ Push the desired digit key ([1] to [9] or [0]) to
status message selection mode
• The appropriate status message is displayed.
➥ Push and hold the desired digit key ([1] to [9] or [0]) for
1 sec. to transmit the appropriate status message 1 to 10.
.
enter the
Page 39
IDAS OPERATION
MSG
MSG 1
DIGI STUP STDN
Pre-programmed
message is displayed.
MSG
STATION 1
DIGI STUP STDN
Individual or Talkgroup ID
name is displayed.
5
D Transmitting a Message
The transceiver has the ability to send a pre-programmed
message.
There are 10 messages that can be sent on a channel.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “MSG.”
e Push [Digital Button] again to enter the message selec-
tion mode.
• The pre-programmed message is displayed.
r Push [CH Up] or [CH Down] to select the desired mes-
sage.
• You can rewrite the contents of the message. See the next page
for details.
t Push [Digital Button] again to enter the Individual or
Talkgroup ID selection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
y Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
u Push [PTT] to transmit the message to the selected sta-
tion or talkgroup.
• “MSG TX” is displayed.
i Release [PTT].
• “MSG OK” is displayed after receiving an acknowledgement
from the base station.
• “MSG FAIL” is displayed if there is no acknowledgment from
the base station.
o After a specified time period has passed, the transceiver
will return to receive.
Convenient! (10-key version only)
Depending on the pre-setting, you can use the quick mes
sage selection/transmission.
➥ Push the desired digit key ([1] to [9] or [0]) to
message selection mode
• The appropriate message is displayed.
➥ Push and hold the desired digit key ([1] to [9] or [0]) for
1 sec. to transmit the appropriate message 1 to 10.
.
enter the
1
2
3
4
5
6
7
8
9
10
11
12
13
14
-
15
16
36
Page 40
IDAS OPERATION
Key Characters
[0]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
(space)
0 ][!| ’ ” ,? : _ ( ) < >;
2 BA a b cC
3 ED d e fF
4 HG g h iI
5 KJ j k lL
6 NM m n oO
7 QP S p q r sR
9 XW Z w x y zY
8 UT t u vV
1 ^@# � / – = \ & % $+
5
D Direct message input
(10-key version only)
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “MSG.”
e Push [Digital Button] again to enter the message selec-
tion mode.
• The pre-programmed message is displayed.
r Push [M] or [#] to enter the message editing condition.
• The first character blinks when [#] is pushed, the last character
blinks when [M] is pushed.
t Push the appropriate digit key, [0] to [9], to enter the de-
37
sired character.
• See the table at right for the available characters.
• Pushing [CH Up] also enters space, pushing [CH Down] deletes the selected character.
y Push [#] to move the cursor to the right, push [M] to move
the cursor to the left.
u Repeat steps y and u to set the desired text message.
i Push and hold [Digital Button] for 1 sec. to overwrite the
set message into the message memory.
• Push [Digital Button] momentarily to cancel the editing and
return to the original message indication.
• Available characters
Page 41
IDAS OPERATION
STAT POL
STATION 1
DIGI STUP STDN
Individual ID name
is displayed.
5
D Transmitting a Status Polling Call
The transceiver can send a signal that causes the targeted
station to automatically transmit its current status.
q Push [Digital Button] to enter the application selection
mode.
• “VOICE” appears.
•
To change the call type, push and hold [Digital Button] for 1 sec.
during stand-by operation. After changing, the transceiver enters the application selection mode automatically.
w Push [CH Up] or [CH Down] to select “STAT POL.”
e Push [Digital Button] again to enter the Individual ID se-
lection mode.
• The pre-programmed ID name is displayed.
• When ID name is not programmed, ID code is displayed.
r Push [CH Up] or [CH Down] to select the desired ID
name (or ID code).
• Depending on the pre-setting, you can input the ID directly.
(10-key version only) See p. 39 for details.
t Push [PTT] to transmit the status polling to the selected
station.
• “STAT POL” is displayed.
y Release [PTT].
• The status message is displayed when the targeted station
send the status.
• “POL FAIL” is displayed if there is no acknowledgment from the
station.
u After a specified time period has passed, the transceiver
will return to receive.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
38
Page 42
VOICE
12345
DIGI STUP STDN
The entered Individual
or Talkgroup ID
IDAS OPERATION
5
D Direct ID input (10-key version only)
Depending on the pre-setting, you can input the desired ID
directly.
q After entering the Individual or Talkgroup ID selection
mode with pushing
digit key,
• Push [M] to delete an input digit.
w After inputting, push [PTT] to transmit to the station or
talkgroup.
[0] to [9], to input the desired ID (up to 5 digits).
[Digital Button], push the appropriate
D Transmitting an Emergency Call
When [Emergency] (described in the instruction manual) is
pushed and held for the specified time period, the emergency
signal (digital command) is transmitted once or repeatedly on
the emergency channel. A repeat emergency signal is auto
matically transmitted until it receives the acknowledgement
signal. When no emergency channel is specified, the signal is
transmitted on the previously selected channel.
If you want to cancel the emergency call, push and hold the
key again before transmitting the call.
The emergency call can be transmitted without a beep emis
sion, and the LCD indication depending on the pre-setting.
The transceiver can also be programmed to keep the micro
phone open during an emergency call, allowing monitoring of
the situation.
IMPORTANT: It is recommended to set an emergency
channel individually to provide the certain emergency call
operation.
-
-
-
39
Page 43
IDAS OPERATION
5
■ Man Down Emergency Call
This function requires the optional UT-124R man down unit
and can be performed in conventional mode.
The man down emergency call function transmits the emer
gency signal (digital command) automatically when the trans
ceiver has been left in a horizontal position for the specified
time period.
After the emergency call, the transceiver performs transmis
sion and reception alternately with receiving a signal and
emitting audio.
When the emergency reset signal is received, the function is
cancelled.
■ Position data transmission
When the GPS receiver is connected to the transceiver, the
position (longitude and latitude) data can be transmitted au
-
tomatically when;
-
-
• The GPS request status message is received
• After sending a voice message
- Set the ‘Send with Voice Call’ item as ‘Enable.’
• After sending a status message
- Set the ‘Send with Status Call’ item as ‘Enable.’
• After sending a message
- Set the ‘Send with SDM Call’ item as ‘Enable.’
• After sending a Call Alert
- Set the ‘Send with Call Alert’ item as ‘Enable.’
• After sending an Emergency call
- Set the ‘Send with Emergency’ item as ‘Enable.’
• After sending an Emergency call with Man Down
- Set the ‘Send at Man Down’ item as ‘Enable.’
Ask your dealer or system operator for connection details.
1
2
-
3
4
5
6
7
8
9
10
11
12
13
14
15
16
40
Page 44
IDAS OPERATION
5
■ Status message transmission
The status message can be transmitted automatically.
The status message is transmitted when;
• The transceiver is turned ON or OFF
- Set the status message to be transmitted in ‘Power ON Status’
or ‘Power OFF Status’ item, respectively.
- Set the target station ID in ‘Power Status ID’.
• After sending a voice message
- Set the ‘Send with Voice Call’ item as ‘Enable.’
- Set the status message to be transmitted in ‘Send Status
Number’ item.
■ Printer connection
When the optional OPC-966 interface cable is connected
to the transceiver, a printer can be connected to print out the
received SDM content and the ID of the station who sent the
message.
Ask your dealer or system operator for connection details.
■ Encryption function
The encryption function enables voice scrambling, which
provides private digital communication between stations.
q Push [Scrambler/Encryption] to tur n the encryption
function ON.
• “ ” appears.
w Push [Scrambler/Encryption] again to turn the encryp-
tion function OFF.
• “ ” disappears.
41
Page 45
MEMO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
42
Page 46
A-6638-2EX-e
© 2008–2009 Icom Inc.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Loading...
