INSTRUCTION MANUAL
VHF TRANSCEIVER
iF30GT/GS
UHF TRANSCEIVER
iF40GT/GS
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must except any interference received, including interference that may cause undesired operation.
WARNING
CAUTION
SAFETY TRAINING INFORMATION
Your Icom radio generates RF electromagnetic energy during transmit mode. This radio is designed
for and classified as “Occupational Use Only”,
meaning it must be used only during the course of
employment by individuals aware of the hazards,
and the ways to minimize such hazards. This radio
is NOT intended for use by the “General Population” in an uncontrolled environment.
This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only.” In addition, your Icom radio
complies with the following Standards and Guidelines with regard to
RF energy and electromagnetic energy levels and evaluation of
such levels for exposure to humans:
• FCC OET Bulletin 65 Edition 97-01 Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields.
• American National Standards Institute (C95.1–1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio
Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
• American National Standards Institute (C95.3–1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous
Electromagnetic Fields— RF and Microwave.
To ensure that your exposure to RF electromagnetic energy is within the FCC allowable limits for
occupational use, always adhere to the following
guidelines:
• DO NOT operate the radio without a proper antenna attached, as
this may damage the radio and may also cause you to exceed FCC
RF exposure limits. A proper antenna is the antenna supplied with
i
this radio by the manufacturer or an antenna specifically authorized
by the manufacturer for use with this radio.
“
• DO NOT transmit for more than 50% of total radio use time (
duty cycle”). Transmitting more than 50% of the time can cause
FCC RF exposure compliance requirements to be exceeded. The
radio is transmitting when the “TX indicator” lights red. You can
cause the radio to transmit by pressing the “PTT” switch.
• ALWAYS use Icom authorized accessories (antennas, batteries,
belt clips, speaker/mics, etc). Use of unauthorized accessories can
cause the FCC RF exposure compliance requirements to be exceeded.
• ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the
body when transmitting and only use the Icom belt-clips which
listed in page 25 when attaching the radio to your belt, etc., to ensure FCC RF exposure compliance requirements are not exceeded. To provide the recipients of your transmission the best
sound quality, hold the antenna at least 5 cm (2 inches) from
mouth, and slightly off to one side.
50%
The information listed above provides the user with the information
needed to make him or her aware of RF exposure, and what to do
to assure that this radio operates within the FCC RF exposure limits of this radio.
Electromagnetic Interference/Compatibility
During transmissions, your Icom radio generates RF energy that
can possibly cause interference with other devices or systems. To
avoid such interference, turn off the radio in areas where signs are
posted to do so. DO NOT operate the transmitter in areas that are
sensitive to electromagnetic radiation such as hospitals, aircraft,
and blasting sites.
ii
FOREWORD
Thank you for purchasing the IC-F30GT/GS, IC-F40GT/GS FM
transceiver.
READ ALL INSTRUCTIONS carefully and completely before using
the transceiver.
SAVE THIS INSTRUCTION MANUAL–This instruction manual
contains important operating instructions for the transceiver.
INSTALLATION NOTES
• When transmitting with a portable radio, hold the radio in a vertical
position with its microphone 2.5 to 5 centimeters (1 to 2 in.) away
from your mouth. Keep the antenna at least 2.5 centimeters (1 in.)
from your head and body.
• If you wear a portable two-way radio on your body, ensure that the
antenna is at least 2.5 centimeters (1 in.) from your body when
transmitting.
IMPORTANT
R CAUTION! NEVER hold the transceiver so that the antenna is
very close to, or touching exposed parts of the body, especially the
face or eyes, while transmitting. The transceiver will perform best if
the microphone is 2 to 4 in. (5 to 10 cm) away from the lips and the
transceiver is vertical.
R CAUTION! NEVER operate the transceiver with a headset or
other audio accessories at high volume levels.
R CAUTION! NEVER short the terminals of the battery pack.
DO NOT push the PTT when not actually desiring to transmit.
iii
AVOID using or placing the transceiver in direct sunlight or in areas
with temperatures below +14°F (–10°C) or above +122°F (+50°C).
The basic operations, transmission and reception of the transceiver,
are guaranteed within the specified operating temperature range
(depending on version). However, the LCD display may not be operate correctly, or show an indication in the case of long hours of
operation, or after being placed in extremely cold areas.
DO NOT modify the transceiver for any reason.
KEEP the transceiver from the heavy rain, and Never immerse it in
the water. The transceiver construction is water resistant, not waterproof.
The use of non-Icom battery packs/chargers may impair transceiver
performance and invalidate the warranty.
Versions of the IC-F30GT/GS and IC-F40GT/GS
which display the “FM APPROVED” symbol as
at left on the serial number seal, conform to intrinsically safe ratings of the FMRC (Factory Mutual Research Corporation).
Intrinsically safe : Class I, II, III, Division 1,
Groups C, D, E, F, G
Nonincendive : Class I, Division 2, Groups A, B, C, D
Connected battery pack : BP-210FM
FCC caution: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations.
iv
TABLE OF CONTENTS
SAFETY TRAINING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . .i–ii
FOREWORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
INSTALLATION NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
IMPORTANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii–iv
TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v
1 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2 PANEL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2–4
‘ Switches, controls, keys and connectors . . . . . . . . . . . . . . . . .2–3
‘ Function display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 BATTERY PACKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5–10
‘ Battery pack replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
‘ Battery cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
‘ Battery charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7–8
‘ Charging NOTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
‘ Battery case (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4 PROGRAMMABLE FUNCTIONS . . . . . . . . . . . . . . . . . . . . . .11–15
‘ General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
5 CONVENTIONAL OPERATION . . . . . . . . . . . . . . . . . . . . . . . .16–18
‘ Receiving and transmitting . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
‘ Call procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
‘ Tx code channel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
‘ Manual 5-tone codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
‘ Transmitting notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6 SmarTrunk IITMOPERATION . . . . . . . . . . . . . . . . . . . . . . . . . .19–21
‘ Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7 OTHER FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
‘ DTMF pager/Code squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
‘ Cloning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
8 OPTIONAL UNIT INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . .23
‘ Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
9 OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24–25
v
ACCESSORIES
q
w
To release the belt clip
To attach the belt clip
‘‘
Accessory attachment
D Supplied accessories
The transceiver comes supplied with the following accessories.
q Flexible antenna
differ from that shown, or
may not be supplied with
some versions)
w Belt clip
D Antenna
The antenna screws onto the transceiver
as illustrated at right.
✔ For IC-F30GT-L/GS-L
The most suitable flexible antenna
must be purchased separately, according to the frequency coverage and
programmed frequency parameters of
each version. See page 25 for details.
D Belt clip
Attach the belt clip to the transceiver as illustrated below.
(may
1
1
2
q
w
e
r
t
y
u
i
o
!0
!1
Microphone
Speaker
!2
‘‘
PANEL DESCRIPTION
Switches, controls, keys and connectors
DD
Programmable key reference
F0 (Red)
F1 (Black)
F2 (Black)
F3 (Black)
2
P
P1
P2
P3
0
PANEL DESCRIPTION
q ANTENNA CONNECTOR
Connects the supplied antenna.
w DEALER-PROGRAMMABLE KEY [F0 (Red)]
e DEALER-PROGRAMMABLE KEY [F1 (Black)]
r PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
t DEALER-PROGRAMMABLE KEYS [F2 (Black)], [F3 (Black)]
• Push to select the operating channel. Depends on setting.
• Can be programmed as [ ✱ ]/[ # ]. (SmarTrunk mode only)
y DEALER-PROGRAMMABLE KEYS [P
0]/[P1]/[P2]/[P3]
Can each be programmed for one of several functions by your
Icom Dealer.
u 10-KEY PAD (IC-F30GT/IC-F40GT only)
Used to enter DTMF codes, the operating channel, etc.
i FUNCTION DISPLAY
Displays a variety of information such as, operating channel
number/names, 5-tone code, remaining battery power, DTMF
numbers, transmit output power setting, Audible indication, etc.
NOTE: The above functions depend on pre-setting.
o MULTI CONNECTOR
Connect optional speaker-microphone, etc.
!0 TRANSMIT/BUSY INDICATOR
Lights red while transmitting; lights green while receiving a signal, or when the squelch is open.
!1 VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
!2 ROTARY SELECTOR [SEL]
Selects operating channel or bank. Depends on setting.
2
3
2
q
w
e
r
t
y
u
i
o
PANEL DESCRIPTION
‘‘
Function display
q SIGNAL STRENGTH METER
Indicates relative signal strength level.
w BANK NUMBER INDICATOR
Indicates operating bank (channel group) number.
e LOW POWER INDICATOR
Appears when low output power is selected.
r MULTI-FUNCTION INDICATOR
Indicates operating channel number, channel names, 5-tone
code, etc., according to operating condition.
t SCRAMBLER INDICATOR
Appears while the voice scrambler function is activated.
y KEY LOCK INDICATOR
Appears during key lock function ON.
u BELL INDICATION
Appears or blinks when a 2/5Tone call is received.
i AUDIBLE INDICATOR
Appears when the monitor function is turned ON. (CTCSS and
DTCS mutes are released.)
o BATTERY INDICATOR
Indicates remaining battery power.
4
BATTERY PACKS
‘‘

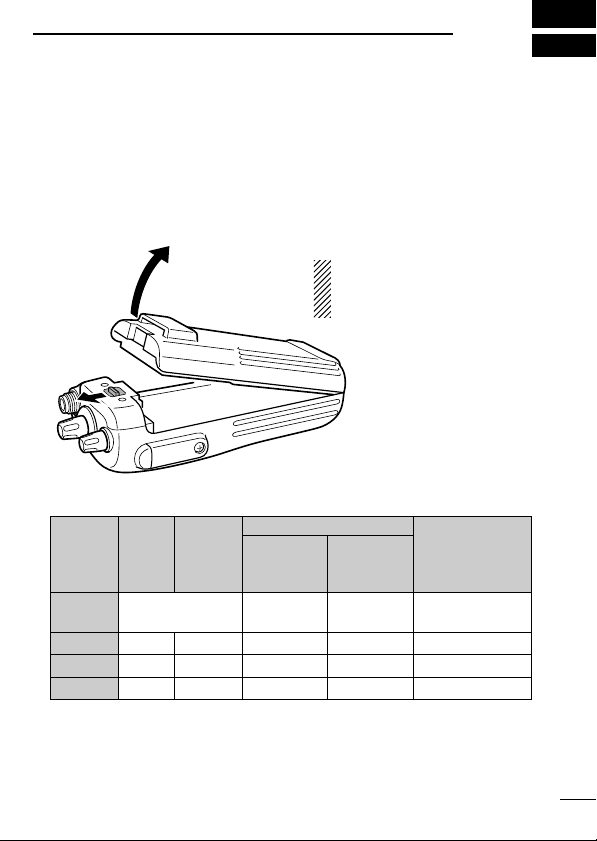

Battery pack replacement
3
Before replacing the battery pack, the volume control MUST be rotated fully counterclockwise, until a click is heard, to turn the power
OFF.
• Slide the battery release forward, then pull the battery pack up-
ward with the transceiver facing away from you.
The BP-210FM only can
be used for the intrinsically
safe versions.
DD
BATTERY PACKS
Charging period
Battery
BP-208
BP-209 7.2 V 1100 mAh 15 hrs. 1.5 hrs. 7 hrs.
BP-210/FM
BP-211 7.4 V 1800 mAh N/A 2.0 hrs. 12 hrs
*1Battery life is calculated under the following conditions;
Tx : Rx : standby =5 : 5 : 90
2
Operating period depends on alkaline cells used.
*
Voltage Capacity
pack BC-137 BC-121N
Battery case for AA
(R6)×6 alkaline
7.2 V 1650 mAh 15 hrs. 2.0 hrs. 11 hrs
BC-119N or
with AD-101
N/A N/A —*
Battery life*
1
2
5
BATTERY PACKS
3
‘‘
Battery cautions
• CAUTION! NEVER short terminals (or charging terminals) of the
battery pack. Also, current may flow into nearby metal objects
such as a necklace, so be careful when placing battery packs (or
the transceiver) in handbags, etc.
Simply carrying with or placing near metal objects such as a necklace, etc. causes shorting. This will damage not only the battery
pack, but also the transceiver.
• NEVER incinerate used battery packs. Internal battery gas may
cause an explosion.
• NEVER immerse the battery pack in water. If the battery pack be-
comes wet, be sure to wipe it dry BEFORE attaching it to the
transceiver.
• Clean the battery terminals to avoid rust or miss contact.
• Keep battery contacts clean. It’s a good idea to clean battery ter-
minals once a week.
If your battery pack seems to have no capacity even after being
charged, completely discharge it by leaving the power ON
overnight. Then, fully charge the battery pack again. If the battery
pack still does not retain a charge (or only very little charge), a new
battery pack must be purchased. (p. 9)
DD
Recycling information (U.S.A. only)
The product that you have purchased contains a
rechargeable battery. The battery is recyclable. At
the end of its life, under various state and local
laws, it may be illegal to dispose of this battery into
the municipal waste stream. Call 1-800-822-8837
for battery recycling options in your area, or contact
your dealer.
6
BATTERY PACKS
BC-119N
+ AD-101
Check orientation
for correct charging.
(Insert together with
charging adapter.)
Turn power
OFF.
When using the BC-119
in a vehicle: If the charge
indicator flashes orange,
the vehicle battery voltage is low and charging
may not be performed.
Check the vehicle battery voltage in this case.
If the charge indicator
flashes red, there may
be a problem with the
battery pack (or charger). Re-insert the battery
pack or contact your
dealer.
‘‘
Battery charging
D Rapid charging with the BC-119N
The optional BC-119N provides rapid charging of optional Ni-Cd,
Ni-MH and Li-Ion battery packs.
The following are additionally required:
• One AD-101
• An AC adapter
(purchase separately).
(may be supplied with the BC-119N depending on
version).
AD-99— Use Spacer A only!
The adapter (Spacer A) only is required for
charging a battery pack with the IC-F30G series transceiver.
3
7
BATTERY PACKS
BC-124
(purchased
separately)
Charge indicator
(each indicator functions independently)
Turn power OFF.
Check orientation for correct
charging. (Insert together
with AD-99.)
Turn power OFF.
BC-137 #11
or BC-146
3
D Rapid charging with the BC-121N+AD-101
The optional BC-121N allows up to 6 battery packs to be charged
simultaneously. The following are additionally required.
• Six AD-101.
• An AC adapter
D Regular charging with
the BC-137
The optional BC-137
BC-146 provides regular
charging of optional battery
pack with/without transceiver.
The following is additionally
required:
• An optional AC adapter.
(AD-99 is supplied with BC-
137 #11/BC-146)
(BC-124; must be purchased separately).
#11/BC-146
#11
or
8
BATTERY PACKS
‘‘
Charging NOTE
Prior to using the transceiver for the first time, the battery pack must
be fully charged for optimum life and operation.
• Recommended temperature range for charging:
+10°C to +40°C (50°F to 140°F).
• Use the supplied charger or optional charger, BC-119N/BC-121N
for rapid charging BP-209/210/210FM/211, BC-144 for rapid
charging BP-209/210/210FM, BC-137 #11/BC-146 for regular
charging BP-209/210/210FM only. NEVER use other manufacturers’ chargers.
The optional BP-209, BP-210/FM or BP-211battery packs include
rechargeable Ni-Cd (Ni-MH: BP-210/FM, Li-Ion: BP-211) batteries
and can be charged approx. 300 times. Charge the battery pack
before first operating the transceiver or when the battery pack becomes exhausted.
If you want to charge the battery pack more than 300 times, the following points should be observed:
• Avoid over charging. The charging period should be less than
48 hours.
• Use the Ni-Cd or Ni-MH battery until it becomes almost completely
exhausted under normal conditions. We recommend battery
charging after transmitting becomes impossible.
☞ Recommendation for Li-Ion battery packs:
Li-Ion batteries are different from Ni-Cd batteries in that it is not
necessary to completely charge and discharge them to prolong
the battery life. Therefore, charging the battery in intervals, and
not for extended periods is recommended.
3
DD
Battery pack life
When the operating period becomes extremely short, even after
charging the battery pack fully, a new battery pack is needed.
9
BATTERY PACKS
3
‘‘
Battery case (Option)
When using an optional BP-208
transceiver, install 6 AA (R6) size alkaline batteries as illustrated
below.
DD
CAUTION
• Use ALKALINE batteries only.
• Make sure all battery cells are the same brand, type and ca-
pacity.
• Never mix old and new batteries.
Either of the above may cause a fire hazard or damage the
transceiver if ignored.
• Never incinerate used battery cells since internal battery gas
may cause them to rupture.
• Never expose a detached battery case to water.
If the battery case gets wet, be sure to wipe it dry before use.
BATTERY CASE
attached to the
10
PROGRAMMABLE FUNCTIONS
‘‘
General
In the following explanations, programmable function names are
bracketed, the specific switch used to activate the function depends
on programming.
DD
KEYPAD LOCK FUNCTION
This function locks access to all programmable switches (except
the switch assigned for the lock function).
Push and hold the [Lock] switch for 1 sec. to toggle the lock function
ON and OFF.
• “”appears while the lock function is ON.
• This function may be inhibited on some channels.
DD
PRIORITY CHANNEL
This function is used to select a pre-programmed channel at the
push of a switch.
Push the [Priority A/A (Rewrite)/B] switch to select the priority channel.
• “Prio A” or “Prio B”appears briefly, then the priority channel is automatically selected.
DD
SCAN FUNCTION
The scan function allows you to search a pre-programmed group
of channels for signals.
Push the [Scan A/B] switch to start/stop scan.
• Scan pauses on a channel when receiving a signal.
• Depending on programming, a message may appear while scanning.
• “Lockout SCAN” (pre-programmed list SCAN) or “Priority SCAN” can
be pre-programmed.
• When the “Power-save function” is activated, the transceiver checks
all pre-programmed channels then returns to the “Power-save function” again.
4
11
PROGRAMMABLE FUNCTIONS
4
DD
HIGH/LOW POWER OUTPUT
This function selects high or low power for a channel.
Push the [High/Low] switch to change transmit output power between high, low1 and low2 power.
• “” appears when low1 or low2 output power is selected.
DD
SCRAMBLER FUNCTION
(optional UT-109 (#02)* or UT-110 (#02)* is required.)
This function provides higher communication security.
UT-109: Non-rolling type. 32 code numbers are available.
UT-110: Rolling type. 1020 (4 groups × 255) code numbers are
available.
Push the [Scrambler] switch to toggle the function ON and OFF.
NOTE: NEVER use #01 Low AF level versions, as they are not
compatible
12
PROGRAMMABLE FUNCTIONS
All signals are received.
Only signals containing the
proper tone are received.
DD
MONITOR AUDIBLE FUNCTION
The monitor function allows you to open the transceiver’s squelch
manually to check whether a channel is busy or not. The transceiver has 2 conditions for receive standby:
Audible condition:
This condition mutes audio ONLY when
no carrier is present. You can receive (or
monitor) any signals on a channel.
• Push and hold the [Moni] (LMR) or
[Moni (Audi)] (PMR) switch to select the
audible condition.
Any audio mute functions are cancelled
while pushing the [Moni] (LMR) or
[Moni (Audi)] (PMR) switch.
Inaudible condition:
This condition mutes ALL signals except
those directed to you. Therefore you
should check a channel’s condition (busy
or not) with the monitor function before
transmitting.
• Push the [Moni] (LMR) or [Moni (Audi)]
(PMR) switch momentarily to select the inaudible condition.
DD
TALK AROUND
The talk around function changes duplex channels to simplex channels.
• Duplex allows you to contact your base station, repeaters, etc.
• Simplex allows you to contact other portable transceivers directly
(portable-to-portable contact).
Push the [Talk Around] switch to toggle the function ON and OFF.
4
13
PROGRAMMABLE FUNCTIONS
4
DD
DTMF TRANSMISSION
This function allows you to send a pre-programmed DTMF code to
control a repeater, open another transceiver’s squelch, etc.
Manual transmission:
Push the desired digit keys in sequence while pushing [PTT].
• Pushing [PTT] may not be necessary depending on programming.
Automatic pre-programmed transmission:
q Push the [DTMF Autodial] switch to select DTMF autodial mode,
then push [CH Up] or [CH Down] to select the desired channel.
w Push the [DTMF Autodial] switch to send a DTMF code.
DD
DTMF RE-DIAL FUNCTION
This function allows you to transmit the last-used DTMF code at the
push of a key.
Push the [Re-dial] switch momentarily to activate the function.
• The previously transmitted DTMF code is automatically transmitted.
• If no code has been transmitted since turning the power ON, this func-
tion does not activate.
DD
EMERGENCY FUNCTION
The emergency function allows you to send an emergency signal
quickly and easily to your Base Station, etc. in case of emergency.
Push and hold the [Emergency Single/Repeat] switch for 1 sec. to
activate the emergency function.
• The transceiver selects a pre-programmed channel, then sends an
emergency signal to your Base Station.
• The pre-programmed channel remains selected until a control signal is
received from the Base Station, or power is turned OFF.
• The emergency call is repeatedly transmitted at pre-programmed intervals.
14
PROGRAMMABLE FUNCTIONS
DD
DISPLAY LIGHTING
The function display has 3 backlight conditions.
ON : Backlight turns ON continuously.
OFF : No backlight is available.
AUTO : When any key, except [PTT], is pushed, the backlight
turns ON for 5 sec. automatically.
DD
SmarTrunk II
This transceiver provides SmarTrunk II
(Optional UT-105
The optional UT-105 allows communication over conventional
channels or SmarTrunk II
SmarTrunk II
To toggle SmarTrunk II
TM
functions
SmarTrunk IITMLogic Board
TM
TM
before trunking operation.
channels. Select a channel bank for
TM
channels and conventional channels, push
TM
functions.
is required.)
the [Bank] switch one or more times.
• Scanning starts when a channel bank for SmarTrunk IITMis selected.
• Contact your dealer for channel bank details.
(See p. 19 for more detailed operation.)
4
15
5
‘‘
Receiving:
q Push [CH Up]/[CH Down], or rotate [SEL] to select a channel.
w Listen for a transmission and adjust [VOL] to a comfortable lis-
The transceiver is now set to receive desired calls on the selected
channel.
Transmitting:
Wait for the channel to become clear to avoid interference.
e While pushing and holding [PTT], speak into the microphone at a
r Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your transmitted sig-
CONVENTIONAL OPERATION
Receiving and transmitting
NOTE: Transmitting without an antenna may damage the trans-
ceiver. See p. 1 for antenna attachment.
Turn power ON as described on p. 3.
tening level.
• When no transmission is heard, push and hold monitor while adjusting [VOL] (your transceiver may not be programmed with the
monitor function).
normal voice level.
• When a tone signalling system is used, the call procedure described at right may be necessary.
nal, pause a few seconds. After pushing [PTT], hold
the microphone 2 to 4 in. (5 to 10 cm) from your
mouth and speak at a normal voice level.
16
CONVENTIONAL OPERATION
Selective calling
Non-selective calling
‘‘
Call procedure
When your system employs tone signalling (excluding CTCSS and
DTCS), the call procedure may be necessary prior to voice trans-
mission. The tone signalling employed may be a selective calling
system which allows you to call specific station(s) only and prevent
unwanted stations from contacting you.
q Select the desired Tx code channel or 5-tone code according to
your System Operator’s instructions.
• This may not be necessary depending on programming.
• Refer to the next page for selection.
w Push the call switch (assigned to one of the dealer programma-
ble switches: [P
e After transmitting a 5-tone code, the remainder of your commu-
nication can be carried out in the normal fashion.
0], [P1 ], [P2], [P3 ], [F2] and [F3]).
5
17
CONVENTIONAL OPERATION
5
‘‘
Tx code channel selection
Your radio may be programmed for Tx code channel selection. In
this case, you can choose a Tx code channel to be transmitted
when using the call function (p. 17).
Push [Tx Code CH Up/Down] (assigned to one of the dealer-programmable switches) to select the desired Tx code channel.
• The selected code channel (containing a pre-programmed 5-tone
code) is transmitted when using the call function.
‘‘
Manual 5-tone codes
Depending on programming, you may be able to send 5-tone codes
manually.
Push [Tx Code] to activate the function, then enter the desired
transmit code (up to 7 digits) using the keypad.
• Activate the call function to transmit the 5-tone code.
• Blinking indicates keypad entry is acceptable.
‘‘
Transmitting notes
DD
TIME-OUT TIMER
After continuous transmission for a pre-programmed period, the
time-out timer is activated, causing the transceiver to stop transmitting.
DD
PENALTY TIMER
Once the time-out timer is activated, transmission is further inhibited for a period determined by the penalty timer.
18
SmarTrunk IITMOPERATION
‘‘
Basic operation
These features are enabled by your Dealer or System operator and
may not be available in your system. Contact your Dealer for details.
Push the [Bank] switch one or more times to select a channel bank
for conventional channels or SmarTrunk II™ channels.
• Scanning starts when a channel bank for SmarTrunk IITMis selected.
DD
PTT dispatch operation*
q Push [PTT] once (without dialling) to initiate a dispatch call.
w Begin talking after you hear three beeps (one short, high-
pitched, two very-short, low-pitched).
e Receiving a dispatch call is indicated by the same three-beep
sequence.
• It is not necessary to push [M] to answer a dispatch call.
DD
System busy indication
If all channels are busy, three low beeps sound after you initiate
a call. Try the call again later.
DD
Receiving a subscriber-to-subscriber call*
When you hear ringing, push [M] to answer.
• For a group call, you hear a short ring followed by two short beeps.
You do not have to answer a group call to hear it over the air.
DD
Receiving a landline-to-subscriber call*
When you hear ringing, push [M] to answer.
• For a group call, you hear a short ring followed by two short beeps.
You do not have to answer a group call to hear it over the air.
DD
Terminating a call*
After completing a call, push [#] to disconnect (hang up).
1
1
1
1
6
IMPORTANT: If one person in the conversation terminates a call,
all participants will be cut off.
19
SmarTrunk IITMOPERATION
6
DD
Last number redial*
1
Push [M], [M] to automatically redial the last number called.
• A high-pitched beep indicates that the number is accepted.
DD
Turbo SpeeDial
To automatically dial a commonly used number with one push:
• Push one of the turbo SpeeDial keys.
DD
Programming memory speed dial
q Push and hold [M] until you hear a high-pitched beep.
w Enter the memory location (0–9, A, B, C, D), the telephone or
subscriber number, then [1], [M] (or [3], [M] if for another system subscriber).
• A high-pitched beep indicates successful programming.
• Memories [A]–[D] are used for the Turbo SpeeDial.
NOTE: This function is available for the IC-F30GT/IC-F40GT
only.
DD
Memory speed-dialling*
2
To automatically dial a commonly used number from memory:
• Push [M] followed by the memory location (0–9).
DD
Clear channel alerting*
1
If all channels are busy, the transceiver automatically begins
searching for an open channel and beeps every ten seconds.
When two short beeps (low-pitched, then high-pitched) are
heard, a channel is available. Push [M], [M] immediately to redial
the last number.
DD
Emergency call*
2
Push [0], [M] to initiate an emergency call.
• Contact your Dealer for details.
20
SmarTrunk IITMOPERATION
DD
Placing a telephone call*
2
Enter the phone number followed by [1], [M].
• A high-pitched beep indicates that the number is accepted.
• When the called party answers, push the [PTT] switch to talk, and
release it to listen.
DD
Calling another local system subscriber*
2
Enter the subscriber number followed by [3], [M].
• A high-pitched beep indicates that the number is accepted.
• You hear ringing, then two short beeps when the subscriber an-
swers.
• If the other subscriber is on another call or out of range, you hear a
fast busy signal and the call terminates automatically.
*1: This function is available for the IC-F30GS/IC-F40GS when the
[F2]/[F3] keys are assigned the [M]/[ # ] key functions.
*2: This function is available for the IC-F30GT/IC-F40GT only.
Use the Turbo SpeeDial function instead.
For additional operating instructions, contact your Dealer or
System Operator.
6
21
7
‘‘
DD
DTMF pager
This function uses DTMF tones for calling and can be used as a
“common pager” to inform you that one of your group has called
even if the operator is temporarily away from the transceiver.
• When the connection code is received, a beep sounds, then “ ”
• The called station’s code number is memorized automatically, and
DD
Code squelch
This conveniently eliminates unwanted audio and is useful in group
activities or security related activities where unwanted output can
be a problem. The function is similar to a CTCSS tone squelch.
In order to use the above functions, cloning is necessary via a
PC using the optional CS-F30G
software, the transceiver’s model, individual RX Code CH, TX
Code CH, Special Tone Link2 (must be ‘E’) in 5Tone screen,
5Tone Signaling Form in Memory-CH screen, Log, RX C-No,
Key&Display, Common Auto Reset Timer B, and other settings
related to operation can be set. Refer to the HELP file that comes
with the CS-F30G
‘‘
Cloning allows you to quickly and easily transfer the programmed
contents or data from PC to a transceiver using the optional CSF30G
DD
PC-to-transceiver cloning
Please refer to the HELP file that comes with the CS-F30G
SOFTWARE
OTHER FUNCTIONS
DTMF PAGER/CODE SQUELCH
flashes and shows the called station’s code number.
is easy to re-call with “ID-MR select function”.
CLONING SOFTWARE
Cloning
CLONING SOFTWARE
.
CLONING SOFTWARE
.
for available settings.
. Using this
CLONING
CAUTION: Imprudent cloning operation causes a cloning error. In such
a case, memory contents may be lost. Cloning must then be repeated.
22
OPTIONAL UNIT INSTALLATION
a
b
d
d
c
e
Slot 1
Slot 2
8
You can install two of the following optional units in the transceiver.
UT-105
UNIT
‘‘
SmarTrunk II
, UT-111
Installation
TM
Logic Board
TRUNKING BOARD
, UT-109/UT-110
, UT-113
MAN DOWN UNIT
VOICE SCRAMBLER
.
q Unscrew nut a, and remove the knobs.
w Unscrew screw b, 2 screws c then remove multi-connector
cover and rear panel.
e Unscrew 2 screws d, then remove multi-connector.
r Unscrew 2 screws e then separate the chassis from the front
panel in the direction of the arrow.
Be careful!: A flat cable is connected between the MAIN unit on the
chassis and front panel.
t
Install the desired optional unit. Insert tightly to avoid bad contact.
NOTE: When installing
UT-105 or UT-111, the
unit MUST BE plugged
into SLOT 1. Otherwise
the unit will not work cor-
(Other optional units
rectly.
can be plugged into either
slot.)
y
Program the necessary information with the cloning software before
operation. Please ask your dealer or system operator for details.
23
9
DD
BATTERY PACKS/CASE
• BP-208
OPTIONS
BATTERY CASE
Allows a set of Alkaline batteries to operate the handheld when
charging rechargeable batteries or in emergencies, etc. 6 AA (R6)
alkaline cells are required.
Ni-Cd
• BP-209
BATTERY PACK
7.2 V/1100 mAh Ni-Cd battery pack, allows more than 7 hours operation.
Ni-MH
• BP-210/FM
BATTERY PACK
7.2 V/1650 mAh Ni-MH battery pack, allows approx. 11 hours operation. BP-210FM for the intrinsicaly safe type.
BATTERY PACK
• BP-211
Li-Ion
7.4 V/1800 mAh Li-Ion battery pack, allows approx. 12 hours operation.
DD
CHARGER
• BC-119N
DESKTOP CHARGER
+ AD-101
CHARGER ADAPTOR
For rapid charging of battery packs. An AC adapter may supplied
with the charger. Charging time: 1.5 to 2 hrs.
• BC-121N
MULTI
CHARGER
+ AD-101
CHARGER ADAPTOR
(6 pcs.)
For rapid charging of up to 6 battery packs (six AD-101’s are required) simultaneously. An AC adapter, BC-124 must be purchased separately. Charging time: 1.5 to 2 hrs.
• BC-144
DESKTOP CHARGER
For rapid charging of battery packs
+ BC-145
AC ADAPTOR
(except BP-211)
. An AC adapter
may be supplied with the charger. Charging time: 1.5 to 2 hrs. (approx.)
• BC-137 (#11)
BATTERY CHARGER
+ BC-122
AC ADAPTOR
For regular charging of battery packs (except BP-211). An AC
adapter is additionally required. Charging time: 15 hrs. (approx.)
• BC-146
BATTERY CHARGER
+ BC-147
AC ADAPTOR
For regular charging of battery packs (except BP-211). An AC
adapter is additionally required. Charging time: up to 17.5 hrs.
DD
INTERNAL UNITS
• UT-105
SmarTrunk IITMLogic Board
Provides SmarTrunk IITMcapabilities.
24
OPTIONS
• UT-109 (#02)/UT-110 (#02)
SCRAMBLER UNITS
Non-rolling type (UT-109)/Rolling type (UT-110) voice scrambler
unit provides higher communication security.
• UT-111
TRUNKING BOARD
Provides LTR®trunking capabilities.
• UT-113
MAN DOWN UNIT
Provides a measure of safety when working in a hazardous environment, etc.
DD
OTHER OPTIONS
• AD-52
EARPHONE JACK ADAPTER
Allows you to connect an earphone, 2-conductor 3.5 (d) mm (1⁄8″).
• AD-98FSC
ANTENNA CONNECTOR CONVERTER
Allows you to connect an external antenna with BNC connector.
• EM-80/EM-89/HM-131SC
SPEAKER-MICROPHONES
Combination speaker-microphone that provides convenient operation while hanging the transceiver from your belt.
• FA-SC10L/FA-SC11L/FA-SC12L/FA-SC13L
FLEXIBLE ANTENNAS
FA-SC10L: 50–58 MHz FA-SC11L: 58–66 MHz
FA-SC12L: 66–76 MHz FA-SC13L: 76–88 MHz
• FA-SC56VS/FA-SC57VS/FA-SC73US
STUBBY ANTENNAS
Shorter VHF or UHF antennas.
FA-SC56VS: 150–162 MHz FA-SC57VS: 160–174 MHz
FA-SC73US: 450–490 MHz
• HS-94
HEADSET
+ VS-1SC
VOX/PTT CASE
Ear-piece type headset and VOX/PTT switch box for hands-free
operation, etc. PC programming may be required for the IC-F30G
series transceivers to enable the VOX operation.
• MB-68/MB-74/MB-87
BELT CLIPS
MB-68: Same as that supplied with the transceiver.
MB-74: Exclusive alligator-type belt clip.
MB-87: Swivel belt clip.
9
SmarTrunk II is a trademark of the SmarTrunk System Corporation. LTR is a registered trademark of EFJohnson Radio Systems.
25
A-5668H-1EX-r
Printed in Japan
© 2000 Icom Inc.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003 Japan
Loading...
