Icom IC-F3061T-S, IC-F3063T-S, IC-F4063T-S, IC-F4061T-S User Manual
INSTRUCTION MANUAL
This device complies with Part 15 of the FCC Rules. Operation
is subject to the condition that this device does not cause
harmful interference.
iF3063T/S
iF3061T/S
VHF TRANSCEIVER
iF4063T/S
iF4061T/S
UHF TRANSCEIVER
i
WORD DEFINITION
RWARNING
Personal injury, fire hazard or electric shock
may occur.
CAUTION
Equipment damage may occur.
NOTE
If disregarded, inconvenience only. No risk
of personal injury, fire or electric shock.
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This
instruction manual contains important operating instructions
for the IC-F3061T/S/F3063T/S VHF TRANSCEIVERS and
IC-F4061T/S/F4063T/S UHF TRANSCEIVERS.
IMPORTANT
Icom, Icom Inc. and the logo are registered trademarks of Icom
Incorporated (Japan) in the United States, the United Kingdom, Germany,
France, Spain, Russia and/or other countries.
EXPLICIT DEFINITIONS
ii
IMPORTANT ........................................................................ i
EXPLICIT DEFINITIONS ..................................................... i
TABLE OF CONTENTS ...................................................... ii
PRECAUTIONS ................................................................. iii
1 ACCESSORIES ......................................................... 1–3
■ Supplied accessories ................................................. 1
■ Accessory attachments .............................................. 1
2PANEL DESCRIPTION ............................................. 4–9
■ Front panel ................................................................. 4
■ Function display ......................................................... 6
■ Programmable function keys ..................................... 7
3 BASIC OPERATION .............................................. 10–11
■ Turning power ON .................................................... 10
■ Channel selection ..................................................... 11
■ Call procedure........................................................... 11
4LTR OPERATION .................................................. 12–13
■ Receiving a call ........................................................ 12
■ Transmitting a call .................................................... 13
5 CONVENTIONAL OPERATION ............................ 14–17
■ Receiving and transmitting........................................ 14
■ User Set mode.......................................................... 16
■ Emergency transmission .......................................... 16
■ Scrambler function.................................................... 16
■ Stun function ............................................................ 17
■ Priority A channel selection ...................................... 17

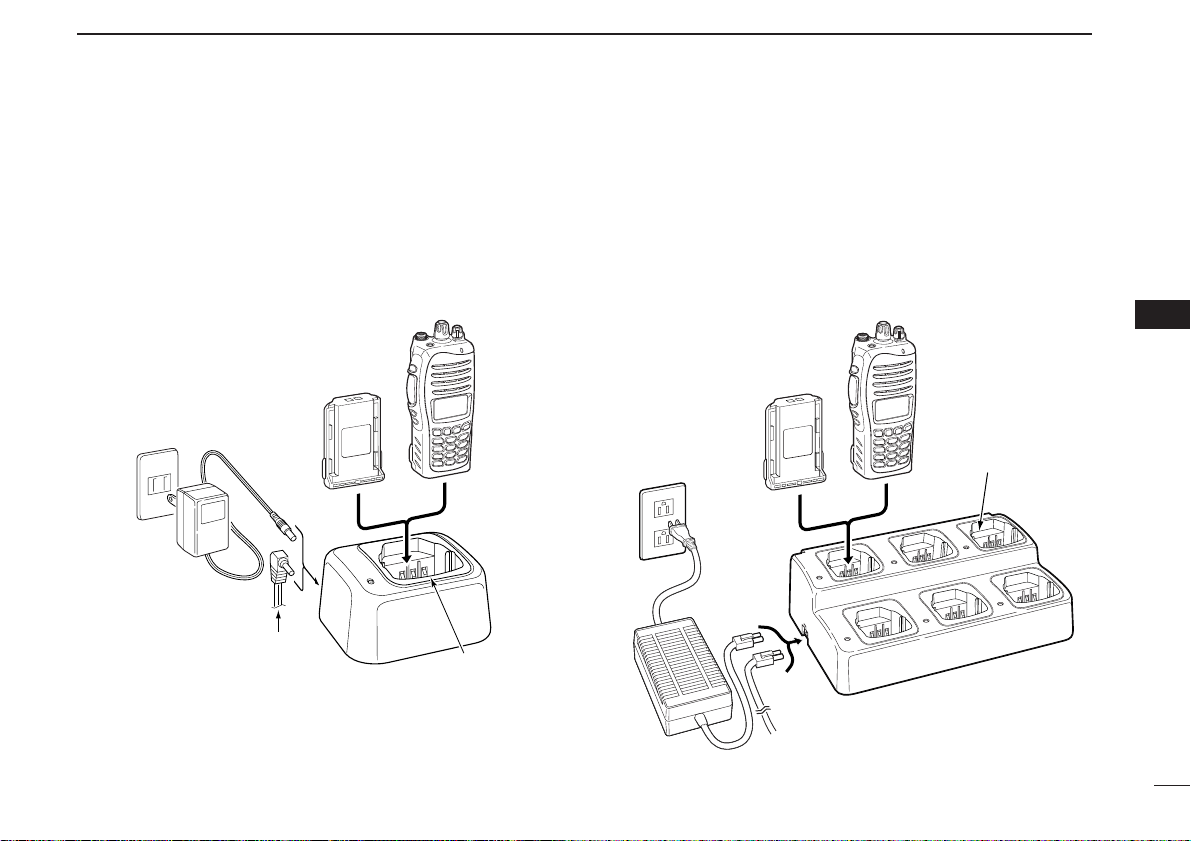

6BATTERY CHARGING .......................................... 18–22
■ Caution ..................................................................... 18
■ Optional battery chargers ......................................... 20
7BATTERY CACE ......................................................... 23
8 SWIVEL BELT CLIP .............................................. 24–25
■ MB-93 contents ........................................................ 24
■ Attaching .................................................................. 24
■ Detaching ................................................................. 25
9 OPTIONS ............................................................... 26–28
10 SAFETY TRAINING INFORMATION .................... 29–30
TABLE OF CONTENTS
1
2
3
4
5
6
7
8
9
10
iii
PRECAUTIONS
R CAUTION! NEVERhold the transceiver so that the
antenna is very close to, or touching exposed parts of the
body, especially the face or eyes, while transmitting. The
transceiver will perform best if the microphone is 2 to 4 in. (5
to 10 cm) away from the lips and the transceiver is vertical.
R CAUTION! NEVER operate the transceiver with a
headset or other audio accessories at high volume levels.
R CAUTION! NEVER short the terminals of the bat-
tery pack.
DO NOT push [PTT] when not actually desiring to trans-
mit.
AVOID using or placing the transceiver in direct sunlight or
in areas with temperatures below +22°F (–30°C) or above
+140°F (+60°C).
The basic operations, transmission and reception of the transceiver are guaranteed within the specified operating temperature range. However, the LCD display may not be operated
correctly, or show an indication in the case of long hours of
operation, or after being placed in extremely cold areas.
DO NOT modify the transceiver for any reason.
KEEP the transceiver from the heavy rain, and Never
immerse it in the water. The transceiver construction is water
resistant, not waterproof.
The use of non-Icom battery packs/chargers may impair
transceiver performance and invalidate the warranty.
For U.S.A. only
CAUTION: Changes or modifications to this transceiver, not
expressly approved by Icom Inc., could void your authority to
operate this transceiver under FCC regulations.
1
1
ACCESSORIES
■ Supplied accessories
The following accessories are supplied: Qty.
q Flexible antenna…………………………………………… 1
w Battery pack ……………………………………………… 1
e Belt clip …………………………………………………… 1
r Connector cover (with screw) ……………………… 1 set
Some accessories are not supplied with depending on versions.
■ Accessory attachments
D Flexible antenna
Connect the supplied flexible antenna to the antenna connector.
CAUTION!
• NEVER HOLD by the antenna
when carrying the transceiver.
• Transmitting without an antenna
may damage the transceiver.
1
qwe
r
2
1
ACCESSORIES
ï Battery pack
To attach the battery pack:
Slide the battery pack in the direction of the arrow (q), then
lock it with the battery release button.
• Slide the battery pack until the battery release button makes a ‘click’
sound.
To release the battery pack:
Slide the battery release button in the direction of the arrow
(w) as shown below. The battery pack is then released.
NEVER release or attach the battery pack when the transceiver is wet or soiled. This may result water or dust getting into the transceiver/battery pack and may result in the
transceiver being damaged.
D Belt clip
To attach the belt clip:
q Release the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
To detach the belt clip:
q Release the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
q
w
q
w
Battery release button
3
1
ACCESSORIES
1
ï Connector cover
Attach the connector cover when the optional speaker-microphone or head-set is not used.
To attach the connector cover:
q Insert the connector cover into the multi-connector.
w Tighten the screw.
CAUTION!
Attach the connector cover when the optional speakermicrophone or head-set is not used.
Otherwise the terminals of the multi-connector may be
shorted by metal object, etc., and this could damage the
transceiver.
To detach the connector cover:
q Unscrew the screw using a phillips screwdriver.
w Detach the connector cover for the speaker-microphone or
head-set connector.
q
w
q
w
Multiconnector
Connector
cover
4
2
PANEL DESCRIPTION
■ Front panel
q ROTARY SELECTOR
Rotate to select the pre-programmed memory channels or
the operating zone.
(Depending on the pre-setting)
w ANTENNA CONNECTOR
Connects the supplied antenna.
e DEALER-PROGRAMMABLE KEY [Emer]
Desired functions can be programmed by your dealer.
((☞ p. 7))
r DEALER-PROGRAMMABLE KEY [Side1]
Desired functions can be programmed by your dealer.
((☞ p. 7))
t PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
y DEALER-PROGRAMMABLE KEYS [Side2]/[Side3]
Desired functions can be programmed independently by
your dealer. ((☞ p. 7))
u 10-KEYPAD (Depending on version)
The keypad allows you to enter digits to:
• Select memory channels
• Select tone channels
• Select DTMF codes (during transmit)
• Set TX codes
• Start up with the password
i DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer. ((☞ p. 7))
o FUNCTION DISPLAY
Displays a variety of information such as an operating
channel number/name, 2-tone code, DTMF numbers,
selected function, etc.
w
e
t
r
y
q
!1
!0
o
!2
u
i
Microphone
Speaker
5
2
PANEL DESCRIPTION
2
!0 MULTI-CONNECTOR
Connect an optional speaker-microphone.
!1 BUSY/TRANSMIT INDICATOR
➥ Lights green while receiving a signal, or when the
squelch is open.
➥ Lights red while transmitting.
!2 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
Connector cover
NOTE: Attach the connector
cover when the optional speaker-microphone is not used.
See ((☞ p. 3)) for details.
6
2
PANEL DESCRIPTION
■ Function display
q SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
➥ Appears when the channel is in the ‘audible’(un-mute)
condition.
➥ Appears when the specified 2-tone is received.
r COMPANDER INDICATOR
Appears when the compander function is activated.
t SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
y BELL INDICATOR
Appears/blinks when the specific 2-tone/DTMF select call
is received, according to the pre-programming.
u CALL CODE MEMORY INDICATOR
Appears when the call code memory is selected.
i BATTERY INDICATOR
Appears or blinks when the battery power decreases to a
specified level.
o ALPHANUMERIC DISPLAY
➥ Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
➥ The indication mode can be selected from 1 line or 2
lines. Ask your dealer for details.
• In this instruction manual, the LCD illustration is described
using the 2 lines indication mode.
!0 KEY INDICATOR
Indicate the programmed function of the front panel keys
([P0], [P1], [P2] and [P3]).
SET
CALA TXCU
TXC
q t iuyrew
o
!0
7
2
PANEL DESCRIPTION
2
■ Programmable function keys
The following functions can be assigned to [Emer], [Side1],
[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable
function keys.
Consult your Icom dealer or system operator for details concerning your transceivers programming.
If the programmable function names are bracketed in the following explanations, the specific key is used to activate the
function depends on the programming.
CH UP AND DOWN KEYS “
UUPP
” “
DDOOWWNN
”
➥ Push to select an operating channel.
➥ Push to select a transmit code channel after pushing [TX
Code CH Select].
➥ Push to select a DTMF channel after pushing [DTMF
Autodial].
➥ Push to select a scan group after pushing and holding
[Scan A Start/Stop]/[Scan B Start/Stop].
ZONE KEY “
ZZOONNEE
”
Push this key, then push [CH Up] or [CH Down] to select the
desired zone.
What is “zone”?— The desired channels are assigned
into a zone according to the intended use for grouping. For
example, ‘Staff A’ and ‘Staff B’ are assigned into a
“Business” zone, and ‘John’ and ‘Cindy’ are assigned into a
“Private” zone.
SCAN A KEY “
SSCCNNAA
”
➥ This key’s operation depends on the Power ON Scan set-
ting.
When the power ON scan function is turned OFF;
Push to start and cancel scanning operation. In case of
transmission during scan, cancels scanning.
When the power ON scan function is turned ON;
Push to pause scanning., then resumes scanning after
passing a specified time period. In case of transmission
during scan, scanning will be cancelled.
➥ Push and hold this key for 1 sec. to indicate the scan
group, then push [CH Up] or [CH Down] to select the
desired group.
SCAN B KEY “
SSCCNNBB
”
➥ Push to start and cancel scanning operation. In case of
transmission during scan, pauses scanning. Scanning
resumes after passing a specified time period.
➥ Push and hold this key for 1 sec. to indicate the scan
group, then push [CH Up] or [CH Down] to select the
desired group.
Loading...
