Icom IC-F21, IC-F21S User Manual

SERVICE MANUAL

UHF FM TRANSCEIVERS

INTRODUCTION

DANGER

ORDERING PARTS

REPAIR NOTES

This service manual describes the latest service information for the

IC-F21/IC-F21S

at the time of publication.

NEVER connect the transceiver to an AC outlet or to a DC power supply that uses more than 16 V. Such a connection could cause a fire hazard and/or electric shock.

DO NOT expose the transceiver to rain, snow or any liquids. DO NOT reverse the polarities of the power supply when con-

necting the transceiver. DO NOT apply an RF signal of more than 20 dBm (100mW)

to the antenna connector. This could damage the transceiver’s front end.

Be sure to include the following four points when ordering replacement parts:

1. 10-digit order numbers

2. Component part number and name

3. Equipment model name and unit name

4. Quantity required <SAMPLE ORDER>

1130007020 S.IC TC7S66FU IC-F21 MAIN UNIT 1 piece 8810004860 Screw PH M 2 x 6 ZK IC-F21 Chassis 10 pieces

Addresses are provided on the inside back cover for your convenience.

1. Make sure a problem is internal before disassembling the transceiver.

2. DO NOT open the transceiver until the transceiver is disconnected from its power source.

3. DO NOT force any of the variable components. Turn them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insulated turning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the transceiver is defective.

6. DO NOT transmit power into a signal generator or a sweep generator.

7. ALWAYS connect a 40 dB to 50 dB attenuator between the transceiver and a deviation meter or spectrum analyzer when using such test equipment.

8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.

To upgrade quality, all electrical or mechanical parts and internal circuits are subject to change without notice or obligation.

IC-F21

IC-F21S

SECTION 1 SPECIFICATIONS

‘‘

GENERAL

• Frequency coverage : 440.000–470.000 MHz

• Type of emission : 16K0F3E (at 25 kHz), 8K50F3E (at 12.5 kHz)

• Number of channels : 2 ch (IC-F21S), 16 ch (IC-F21)

• Power supply requirement : 7.2 V DC (negative ground)

• Current drain (approx.) : Transmit at High (4.0 W) 1.6 A at Low2 (2.0 W) 1.2 A at Low1 (1.0 W) 0.8 A

Receive rated audio 250 mA

stand-by 70 mA

• Frequency stability : ±0.00025 %

• Usable temperature range : –30˚C to +60˚C; –22˚F to +140˚F

• Dimensions (projections not included) : 54(W) × 132(H) × 37(D) mm; 2

1

⁄8(W) × 5 1⁄32(H) × 1 15⁄32(D) in.

• Weight (with ant., BP-209) : 310 g; 10.9 oz.

‘‘

TRANSMITTER

• RF output power (at 7.2 V DC) : 4 W / 2 W / 1 W (High / Low2 / Low1)

(with supplied battery pack)

• Modulation system : Variable reactance frequency modulation

• Maximum frequency deviation : ±5.0 kHz (at 25 kHz), ±2.5 kHz (at 12.5 kHz)

• Spurious emissions : 73 dBc (typical)

• Adjacent channel power : 70 dB typical (at 25 kHz), 60 dB typical (at 12.5 kHz)

• Transmitter audio harmonics distortion : Less than 3% typical at 1 kHz, 40% deviation

• Limitting charact of modulator : 70–100% of max. deviation

• FM Hum and Noise : 46 dB typical (at 25 kHz), 40 dB typical (at 12.5 kHz)

• Ext. microphone connector : 3-conductor 2.5 (d) mm (

1

⁄10”)/2.2 kΩ

‘‘

RECEIVER

• Receive system : Double conversion superheterodyne system

• Intermediate frequencies : 1st 46.35 MHz

2nd 450 kHz

• Sensitivity : 0.25 µV at 12 dB SINAD (typical)

• Squelch sensitivity : 0.3 µV at threshold (typical)

• Adjacent channel selectivity : 70 dB typical (at 25 kHz), 65 dB typical (at 12.5 kHz)

• Spurious response rejection : 70 dB (typical)

• Intermodulation rejection ratio : 70 dB (typical)

• Hum and noise (EIA only) : 46 dB typical (at 25 kHz), 40 dB typical (at 12.5 kHz)

• Audio output power (at 7.2 V DC) : 500 mW typical at 5% distortion with an 8 Ω load

600 mW typical at 5% distortion with an 6 Ω load

• Ext. speaker connector : 2-conductor 3.5(d) mm (

1

⁄8”)/8 Ω

Specifications are measured in accordance with EIA/TIA-603.

All stated specifications are subject to change without notice or obligation.

2 - 1

SECTION 2 INSIDE VIEWS

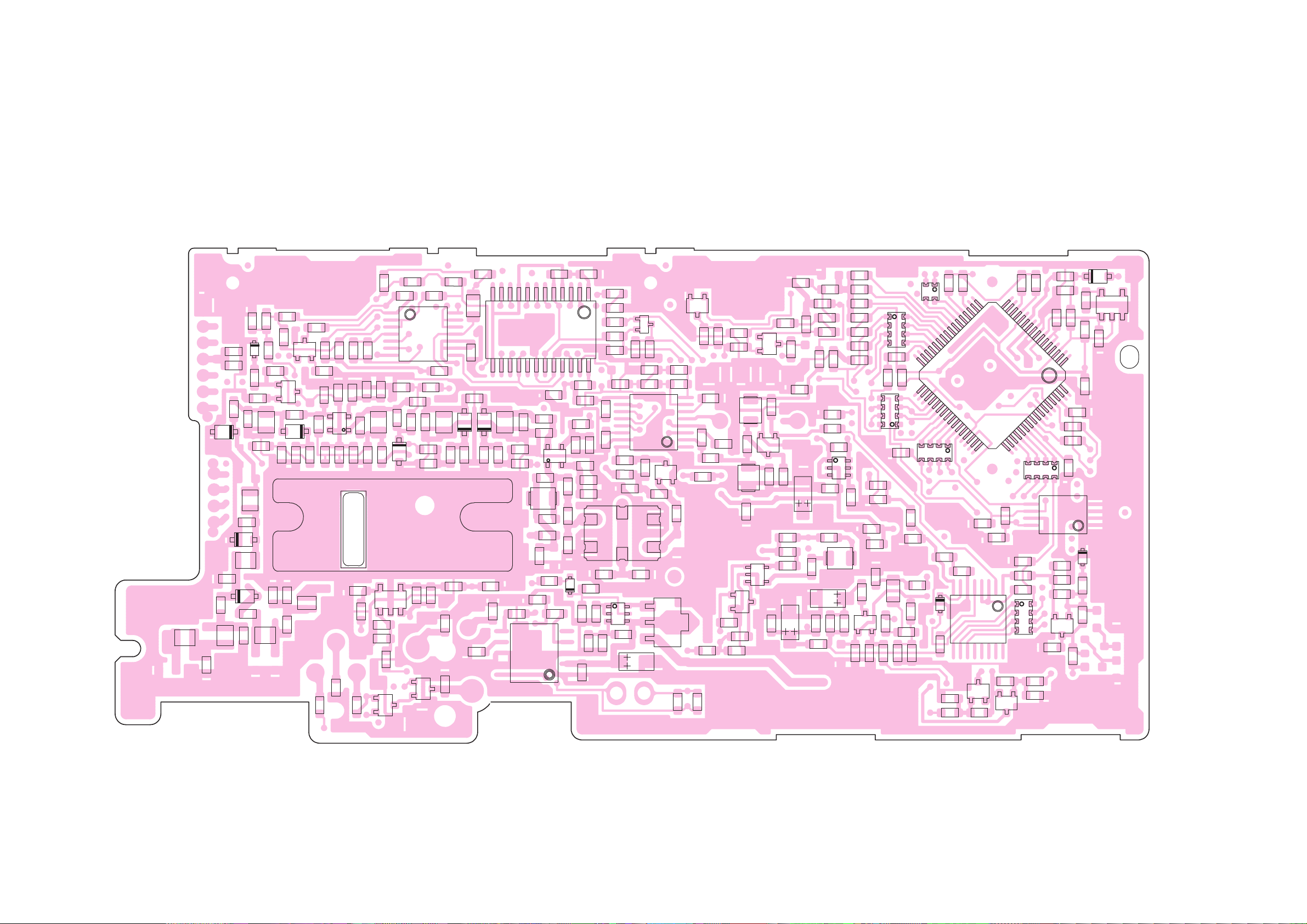

• MAIN UNIT

Power amplifier

(Q1: 2SK2974)

Antenna switching circuit D1: 1SV307 D9, D10: MA77

TOP VIEW BOTT OM VIEW

RF amplifier (Q15: 3SK293)

VCO circuit

FM IF IC (IC3: TA31136FN)

Low-pass filter circuit

(IC12,16: NJM12904V)

Expander IC

(IC15: BU4094BCFV)

TX/RX switch

(D3, D4: MA77)

Analog switch (IC6: BU4066BCFV)

APC (IC2: TA75S01F)

AF amplifier (IC4: TA7368F)

1st mixer (Q19: 3SK272)

CPU (IC7: HD6433664A24FP)

EEPROM (IC11: HN58X2416TI)

D/A converter (IC9: M62363FP)

PLL reference oscillator

(X1: CR-671A 15.3 MHz)

Crystal filter (FI1: FL-313)

PLL IC (IC1: MB15A02PFV1)

YGR amplifier Q3: 2SC3585 Q4: 2SC5107

Pre-drive

(Q2 : 2SK2973)

()

3 - 1

SECTION 3 DISASSEMBLY INSTRUCTIONS

• REMOVING THE CHASSIS

¡ Unscrew 1 nut, A, and remove 2 knobs, B, C. ™ Unscrew 2 screws, D. £ Unscrew 2 screws, H, to separate the Jack panel and the

Front panel.

¢ Take off the chassis in the direction of the arrow. ∞ Unplug J6 to separate the front panel and the chassis.

• REMOVING THE MAIN UNIT

¡ Remove the sealing rubber. ™ Unsolder 2 points, E, and unscrew 2 nuts, F. £ Unscrew 8 screws, G, (silver, 2mm) to separate the chassis and the MAIN unit. ¢ Take off the MAIN unit in the direction of the arrow.

Front panel

J6 (Speaker connector)

Jack panel

Chassis

C

B

(Black, 2mm) x 2

D

A

(Black, 2mm) x 2

H

Guide holes

MAIN unit

Sealing rubber

Chassis

E

F

Side plate

([F21S] only)

G

4 - 1

SECTION 4 CIRCUIT DESCRIPTION

4-1 RECEIVER CIRCUITS

4-1-1 ANTENNA SWITCHING CIRCUIT

The antenna switching circuit functions as a low-pass filter while receiving. However, its impedance becomes very high while D9 and D10 are turned ON. Thus transmit signals are blocked from entering the receiver circuits. The antenna switching circuit employs a λ⁄4 type diode switching system.

Received signals are passed through the low-pass filter (L1, L2, C3, C5, C6). The filtered signals are applied to the λ⁄4 type antenna switching circuit (D9, D10). The passed signals are then applied to the RF amplifier circuit.

4-1-2 RF CIRCUIT

The RF circuit amplifies signals within the range of frequency coverage and filters out-of-band signals.

The signals from the antenna switching circuit are amplified at the RF amplifier (Q15) after passing through the tunable bandpass filter (D12, L21, C104, C105). The amplified signals are applied to the 1st mixer circuit (Q19) after out-ofband signals are suppressed at the 3 stages tunable bandpass filter (D13, L22, C111, C113, D14, L23, C116, C117, D15, L24, C120, C122).

Varactor diodes are employed at the bandpass filters that track the filters and are controlled by the CPU (IC7) via the D/A convertor (IC9) using T1–T4 signals. These diodes tune the centre frequency of an RF passband for wide bandwidth receiving and good image response rejection.

4-1-3 1ST MIXER AND 1ST IF CIRCUITS

The 1st mixer circuit converts the received signal into a fixed frequency of the 1st IF signal with a PLL output frequency. By changing the PLL frequency, only the desired frequency will pass through a crystal filter at the next stage of the 1st mixer.

The signals from the RF circuit are mixed at the 1st mixer (Q16) with a 1st LO signal (393.65–423.65 MHz) coming from the VCO circuit to produce a 46.35 MHz 1st IF signal.

The 1st IF signal is applied to a crystal filter (FI1) to suppress out-of-band signals. The filtered 1st IF signal is applied to the IF amplifier (Q17), then applied to the 2nd mixer circuit (IC3, pin 16).

4-1-4 2ND IF AND DEMODULATOR CIRCUITS

The 2nd mixer circuit converts the 1st IF signal into a 2nd IF signal. Adouble conversion superheterodyne system (which converts receive signals twice) improves the image rejection ratio and obtains stable receiver gain.

The 1st IF signal from the IF amplifier is applied to the 2nd mixer section of the FM IF IC (IC3, pin 16), and is mixed with the 2nd LO signal to be converted into a 450 kHz 2nd IF signal.

The FM IF IC contains the 2nd mixer, limiter amplifier, quadrature detector and active filter circuits. A 2nd LO signal (45.9 MHz) is produced at the PLL circuit by tripling it’s reference frequency.

The 2nd IF signal from the 2nd mixer (IC3, pin 3) passes through a ceramic filter (FI2) to remove unwanted heterodyned frequencies. It is then amplified at the limiter amplifier (IC3, pin 5) and applied to the quadrature detector (IC3, pins 10, 11) to demodulate the 2nd IF signal into AF signals.

4-1-5 AF CIRCUIT

AF signals from the FM IF IC (IC3, pin 9) are applied to the analog switch (IC6, pin 1) after being passed through the high-pass filter (IC5B, pins 5, 7) via the “DET” signal. The signals pass through the low-pass filter (IC5D, pins 13, 14), and then applied to the analog switch (IC6, pins 9, 10) again. The output signals from the analog swtich (IC6, pin 11) are applied to the AF power amplifier (IC4, pin 4) after being passed through the [VOL] control (SW-A/SW-B unit; R143) via the “VOLIN” and “VOLOUT” signals.

2ND IF AND DEMODULATOR CIRCUITS

Mixer

16

Limiter amp.

2nd IF filter 450 kHz

PLL IC

IC1

X1

15.3 MHz

IC3 TA31136F

12

1st IF from the IF amplifier (Q17)

"RSSI" signal to the CPU pin 59

11109

87 5 3

AF signal "DET"

R5V

X2

R98

C155

C154

R100R99

R93

"SQLIN" signal to the D/A convertor (IC9, pin 23)

R92

C138 C139

C140

2

21

Active filter

FI2

Noise

detector

FM

detector

13

"NOIS" signal to the CPU pin 53

RSSI

Noise comp.

×3

R94

Q18

4 - 2

The applied AF signals are amplified at the AF power amplifier circuit (IC4, pin 4) to obtain the specified audio level. The amplified AF signals output from pin 10 as “AFOUT”signal are applied to the internal speaker (SP1) as the “SP” signal via the [SP] jack when no plug is connected to the jack.

4-1-6 SQUELCH CIRCUIT

Asquelch circuit cuts out AF signals when no RF signals are received. By detecting noise components in the AF signals, the squelch switches the AF mute switch.

A portion of the AF signals from the FM IF IC (IC3, pin 9) as “DET” signal are applied to the D/A convertor IC (IC9, pin

24). The signals from the D/A convertor (IC9, pin 23) as “SQLIN” signals are applied to the active filter section (IC3, pin 8) where noise components are amplified and detected with an internal noise detector.

The active filter section amplifies noise components. The filtered signals are rectified at the noise detector section and converted into “NOIS” (pulse type) signals at the noise comparator section. The “NOIS” signal output from IC3, pin 13, and is applied to the CPU (IC7, pin 53).

The CPU detects the receiving signal strength from the number of the pulses, and outputs “EXST”, “SO”, “SCK” signals. The signals are applied to the expander IC (IC15, pins 1, 2, 3), and then outputs “RMUT” signal from pin 4. This signal controls the analog switch (IC6, pin 13) to cut the AF signal line.

4-2 TRANSMITTER CIRCUITS

4-2-1 MICROPHONE AMPLIFIER CIRCUIT

The microphone amplifier circuit amplifies audio signals with +6 dB/octave pre-emphasis characteristics from the microphone to a level needed for the modulation circuit.

The AF signals from the microphone are applied to the microphone amplifier circuit (IC5c, pin 10) after being pass through the high-pass filter (C186, C187). The amplified AF signals are passed through the low-pass filter circuit (IC5d, pins 13, 14) via the mute switch (IC6, pin 4). The filtered AF signals are applied to the modulator circuit after being passed through the mute switch (IC6, pins 8, 9, 10).

4-2-2 MODULATION CIRCUIT

The modulation circuit modulates the VCO oscillating signal (RF signal) using the microphone audio signal.

The audio signals change the reactance of a diode (D6) to modulate an oscillated signal at the TX-VCO circuit (Q11). The oscillated signal is amplified at the buffer-amplifiers (Q5, Q7), then applied to the T/R switching circuit (D3, D4).

4-2-3 DRIVE/POWER AMPLIFIER CIRCUITS

The signal from the VCO circuit passes through the T/R switching circuit (D3) and is amplified at the YGR (Q4, Q3), pre-drive (Q2) and power amplifier (Q1) to obtain 4 W of RF power (at 7.2 V DC). The amplified signal passes through the antenna switching circuit (D1) via the power detector (D2), and low-pass filter and is then applied to the antenna connector.

The bias current of the pre-drive (Q2) and the power amplifier (Q1) is controlled by the APC circuit.

4-2-5 APC CIRCUIT

The APC circuit (IC2) protects the drive and the power amplifiers from excessive current drive, and selects HIGH or LOW output power.

The signal output from the power detector circuit (D2) is applied to the differential amplifier (IC2, pin 3), and the “T4” signal from the expander (IC9, pin 11), controlled by the CPU (IC7), is applied to the other input for reference.

When the driving current is increased, input voltage of the differential amplifier (pin 3) will be increased. In such cases, the differential amplifier output voltage (pin 4) is decreased to reduce the driving current.

APC CIRCUIT

Q1 Power amp.

Q2 Pre-driver amp.

IC2

+

—

VCC

RF signal from PLL

to antenna

T4

T5V

Q14

S5V

APC control circuit

Power detector circuit (D2)

D2

LPF

D1

ANT

SW

AF

amp.

LPF

HPF

"DET" signal from IC3, pin 9

"NWC" signal from IC15, pin 14

Q21

Analog

switch

IC6

IC5B

IC5D

AF VOL.

R1

SW-A/SW-B

unit

IC4

SP

111 9, 102, 3

AF CIRCUIT

4 - 3

4-3 PLL CIRCUIT

4-3-1 GENERAL

A PLL circuit provides stable oscillation of the transmit frequency and receive 1st LO frequency. The PLL output compares the phase of the divided VCO frequency to the reference frequency. The PLL output frequency is controlled by a crystal oscillator and the divided ratio (N-data) of a programmable divider.

The PLL circuit, using a one chip PLL IC (IC1), directly generates the transmit frequency and divided ratio based on serial data from the CPU and compares the phases of VCO signals with the reference oscillator frequency. The PLL IC detects the out-of-step phase and output from pin 5.The reference frequency (15.3 MHz) is oscillated by X1.

4-3-2 TX LOOP

The generated signal at the TX-VCO (Q11, D7) enters the PLL IC (IC1, pin 8) and is divided at the programmable divider section and is then applied to the phase detector section.

The phase detector compares the input signal with a reference frequency, and then outputs the out-of-phase signal (pulse-type signal) from pin 5.

The pulse-type signal is converted into DC voltage (lock voltage) at the loop filter (R40–R42, C75–C77), and then applied to varactor diodes (D6) of the TX-VCO to stabilize the oscillated frequency.

4-3-3 RX LOOP

The generated signal at the RX-VCO (Q10, D5) enters the PLL IC (IC1, pin 8) and is divided at the programmable divider section and is then applied to the phase detector section.

The phase detector compares the input signal with a reference frequency, and then outputs the out-of-phase signal (pulse-type signal) from pin 5.

The pulse-type signal is converted into DC voltage (lock voltage) at the loop filter (R40–R42, C74–C77), and then applied to varactor diodes (D5) of the RX-VCO to stabilize the oscillated frequency. The lock voltage is also used for the receiver circuit for the bandpass filter center frequency. The lock voltage from the loop filter is amplified at the buffer amplifier (Q13) and then applied to the CPU (IC7, pin 60). The signal is analyzed at the CPU, and then applied to the D/A convertor (IC9). The D/A convertor outputs “T1”, “T2”, “T3”, “T4” signals to RF bandpass filters D12–D15 to suppress harmonic components.

4-3-4 VCO CIRCUIT

The VCO outputs from Q11 (TX) and Q10 (RX) are buffer amplified at Q7 and Q6, and are then sent to the T/R switch (D3, D4). The receive LO signal is applied to the 1st mixer circuit (Q19) through an attenuator, and the tramsmit signal is applied to the YGR amplifier (Q4). A portion of the VCO output is reapplied to the PLL IC (IC1, pin 8) via the buffer amplifier (Q6) and low-pass filter (L18, R53, C89–C91).

Shift register

Prescaler

Phase detector

Loop

filter

Programmable counter

Programmable divider

X1

15.2 MHz

45.9 MHz signal to the FM IF IC

Q11, D7

TX VCO

RX VCO

Buffer

Q5

Q6

Q7

11

9

10

P.STB

IC1 (PLL IC)

CK DATA

to transmitter circuit to 1st mixer circuit

D3

D4

2

1

5

8

Q10, D5

Crystal oscillator

×3

Q18

LPF

PLL CIRCUIT

4 - 4

4-4 POWER SUPPLY CIRCUITS

VOLTAGE LINE

LINE

HV

VCC

CPU5V

T5V

R5V

S5V

+5V

VCO5V

DESCRIPTION

The voltage from the attached battery pack. The same voltage as the HV line (battery volt-

age) which is controlled by the power swtich ([VOL] control).

Common 5 V converted from the VCC line by the +5 regulator circuit (IC10). The output voltage is applied to the CPU (IC7), reset circuit (IC8) and etc.

5 V for transmitter circuits regulated by the T5 regulator circuit (Q27).

5 V for receiver circuits regulated by the R5 regulator circuit (Q26).

Common 5 V converted from the VCC line by the S5 regulator circuit (Q24, Q19).

The same voltage as the CPU5V line for the analog swtich (IC6), buffer amplifier (Q13), etc.

The same voltage as the +5V line for the TXVCO (Q11), RX-VCO (Q10) and buffer amplifiers (Q5–Q7).

4-5 PORT ALLOCATIONS

4-5-1 CPU (IC7)

number

7

13 14 19 20

23 24 25

28

29 30

36

37

38

39

40

41

42

43

44 45

46 51

52

53

54

55 57

58 59

60

Port

name

RES

SENC0 SENC1 SENC2 SENC3

CENC0 CENC1 CENC2

SCK

SO

BEEP

PLST

DAST

EXST

PTT

TXC

RLED

TLED

AFON

ESDA

CLI

CLO

F1 F2

NOIS

UNLK

TEMP CDEC

SDEC

RSSI

LVIN

Description

Input port for RESET signal.

Outputs single tone encode signal.

Outputs CTCSS/DTCS data signal.

Outputs serial clock signal to the PLL IC (IC1), EEPROM (IC11), etc.

Outputs data signal to the PLL IC (IC1) and D/A convertor (IC9).

Outputs beep audio signal. I/O port for strobe signal from/to PLL

IC (IC9).

• Outputs strobe signal to the D/A convertor (IC9).

• Input port for the initial version signal.

Outputs strobe signal for the expander IC (IC15).

Input port for [PTT] swtich signal.

High:While [PTT] switch is pushed.

Outputs TX mute control signal.

High:While transmitting

Outputs BUSY LED control signal.

High:While receiving.

Outputs TX LED control signal.

high: While transmitting.

Outputs control signal for the regulator circuit of AF power amplifier.

High:While squelch is open, etc.

I/O port for data signal from/to the EEPROM (IC11).

Input port for cloning signal. Outputs the cloning signal. Input ports for the customization key

signals. Input port for the noise pulse signal for

the squelch function. Input port for PLL unlock signal.

High:PLL is locked.

Input port for the transceiver’s internal tempereture detection.

Input port for CTCSS/DTCS signals. Input port for single tone decode sig-

nal. Input port for the RSSI voltage. Input port for the PLL lock voltage.

4 - 5

number

61 62

Port

name

BDET BATV

Description

Input port for the battery’s type detection.

Input port for battely voltage detection.

4-5-3 D/A CONVERTOR IC (IC9)

number

2, 3,

10, 11

14 15

22

Port

name

T1–T4

REF BAL

DEV

Description

Output tunable bandpass filters control signals.

Outputs differential voltage for the reference oscillator (Q31, D19, X1).

Outputs DTCS balance control signal. Outputs modulating signal for the

modulator circuit (D6).

CPU (IC7)–continued

4-5-2 OUTPUT EXPANDER IC (IC15)

number

4 5

6

7

11

12

13

14

Port

name

CSFT

RMUT MMUT

DUSE

T5C

R5C

S5C

NWC

Description

Outputs clock shift control signal for CPU.

Outputs RX mute control signal. Outputs TX mute control signal. Outputs low-pass filter cut-off frequen-

cy control signal when DTCS is activated.

Outputs T5 regulator control signal.

Low: While transmitting.

Outputs R5 regulator control signal.

Low: While receiving.

Outputs S5 regulator control signal.

Low: While power is ON.

Outputs Narrow/Wide of channel spacing control signal.

Low: While Narrow is selected.

5-1 PREPARATION

When you adjust the contents on page 5-5 or 5-6, SOFTWARE ADJUSTMENT, the optional CS-F21 ADJ ADJUSTMENTSOFTWARE (Rev. 1.0 or later), OPC-478 CLONING CABLE and a JIG CABLE (see illustration at page 5-2) are required.

■ REQUIRED TEST EQUIPMENT

5 - 1

SECTION 5 ADJUSTMENT PROCEDURES

EQUIPMENT

DC power supply

RF power meter (terminated type)

Frequency counter

FM deviation meter

Digital multimeter

GRADE AND RANGE

Output voltage : 7.2 V DC Current capacity : 5 Aor more

Measuring range : 1–10 W Frequency range : 300–600 MHz Impedance : 50 Ω SWR : Less than 1.2 : 1

Frequency range : 0.1–600 MHz Frequency accuracy : ±1 ppm or better Sensitivity : 100 mV or better

Frequency range : DC–600 MHz Measuring range : 0 to ±5 kHz

Input impedance : 10 MΩ/V DC or better

EQUIPMENT

Audio generator

Attenuator

Standard signal generator (SSG)

DC voltmeter

Oscilloscope

AC millivoltmeter

GRADE AND RANGE

Frequency range : 300–3000 Hz Output level : 1–500 mV

Power attenuation : 40 or 50 dB Capacity : 10 W or more

Frequency range : 120–600 MHz Output level : 0.1 µV–32 mV

(–127 to –17 dBm) Input impedance : 50 kΩ/V DC or better Frequency range : DC–20 MHz

Measuring range : 0.01–20 V Measuring range : 10 mV–10 V

■ SYSTEM REQUIREMENTS

• IBM PC compatible computer with an RS -232C serial port (38400 bps or faster)

• Microsoft Windows 95 or Windows 98

• Intel i486DX processor or faster (Pentium 100 MHz or

faster recommended)

• At least 16 MB RAM and 10 MB of hard disk space

• 640×480 pixel display (800×600 pixel display recommend-

ed)

■ ADJUSTMENT SOFTWARE INSTALLATION

q Boot up Windows.

- Quit all applications when Windows is running.

w Insert the cloning software CD-ROM into the appropriate

CD-ROM drive.

e Select ‘Run’ from the [Start] menu. r Type the setup program name using the full path name,

then push the [Enter] key. (For example; D:\ setup)

t Follow the prompts. y Program group ‘CS-F21’ appears in the ‘Programs’ folder

of the [Start] menu.

■ STARTING SOFTWARE ADJUSTMENT

q Connect IC-F21/F21S and PC with the optional OPC-478

and the JIG cable.

w Boot up Windows, and turn the transceiver power ON. e Click the program group ‘CS-F21 ADJ’ in the ‘Programs’

folder of the [Start] menu, then CS-21G ADJ’s window is appeared.

r Click ‘Connect’ on the CS-F21’s window, then appears

IC-F21/21S’s up-to-date condition.

t Set or modify adjustment data as desired.

IBM is a registered trademark of International Bussiness Machines Corporation in the U.S.A. and other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the U.S.A. and other countries. Screen shots produced with permission from Microsoft Corporation. All other products or brands are registered trademarks or trademarks of their respective holders.

5 - 2

JIG cable

+

( CLONE)

( GND)

+

( SP) ( SPE)

3-conductor 3.5(d) mm plug

OPC-478

JIG cable

to IC-F4GT/GS [SP] jack

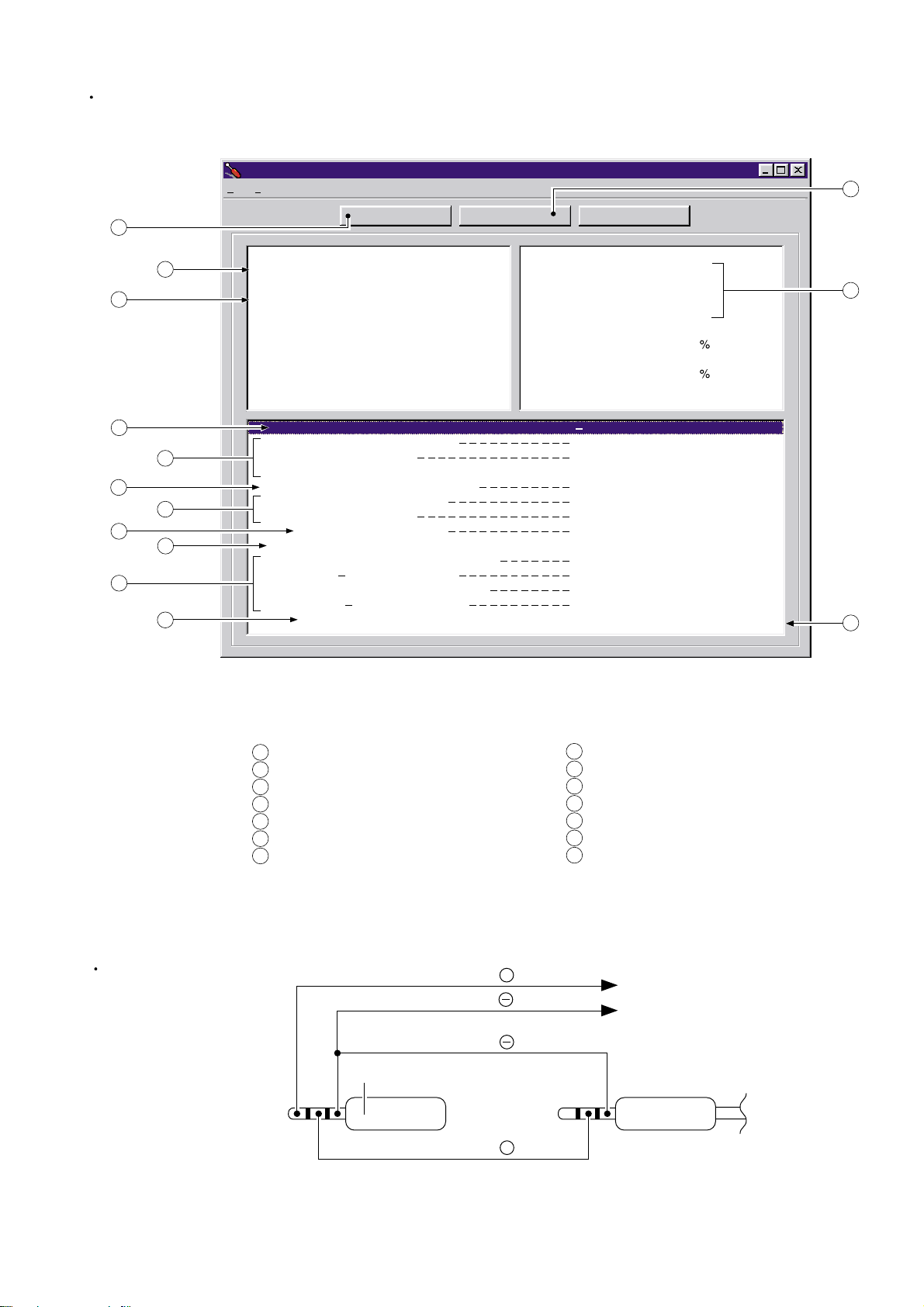

CS-F21 ADJ Rev.1.0

File

COM 1: OPEN

Option

Connect

Reload (F5) Disp para

[A / D] VIN : 197 : C5h : 7.73 V TEMPS : 190 : BEh : 32.23 ’C LVIN : 98 : 62h : 1.92 V SD : 0 : 00h : 0.00 V REMOT : 14 : 0Eh : 0.27 V BDET : 255 : FFh : 5.00 V

Power (Hi) : 98 [ # # # # # # # # ] Power (L2) : 54 [ # # # # ] Power (L1) : 255 [ # # # # # # # # # # # # # # # # # # # ] DTCS BAL : 132 [ # # # # # # # # # # ]

MOD W : 92 [ # # # # # # # ]

MOD N : 50 [ # # # # ]

SQL : 85 [ # # # # # # # ]

BPF ALL : [Enter] to sweep

BPF T1 : 23 [ # # # # # # # # # # # # ] [Enter] to sweep BPF T2 : 22 [ # # # # # # # # ] [Enter] to sweep BPF T3 : 9 [ # # # # # # # # # # # ] [Enter] to sweep BPF T4 : 7 [ # # # # # # # # # ] [Enter] to sweep

TXF : [Enter] to start

[D / A] BPF T1 : 90 : 5Ah : 1.76 V BPF T2 : 45 : 2Dh : 0.88 V BPF T3 : 76 : 4Ch : 1.49 V T4/POW : 60 : 3Ch : 1.18 V REF : 112 : 70h : 2.20 V DTCS BL.: 141 : 8Dh : 55.29 Dev : 45 : 2Dh : 0.88 V SQL Lev : 150 : 96h : 58.96

CH No. : 01 (RX Freq = 216.050, TX Freq = < ) RF Power: High

: Transceiver’s connection state : Reload adjustment data : Receive sensitivity measurement : Connected DC voltage : PLL lock voltage : Operating channel select : RF output power

NOTE:

Screen display exampe

1

5

11

1 2 3 4 5 6 7

8

9 10 11 12 13 14

: DTCS wave balance : FM deviation : Squelch level : Receive sensitivity (automatically) : Receive sensitivity (manually) : Reference frequency : Adjustment items

The above values for settings are example only. Each transceiver has its own specific values for each setting.

4

2

8

3

6

7

9

12

10

13

14

5 - 3

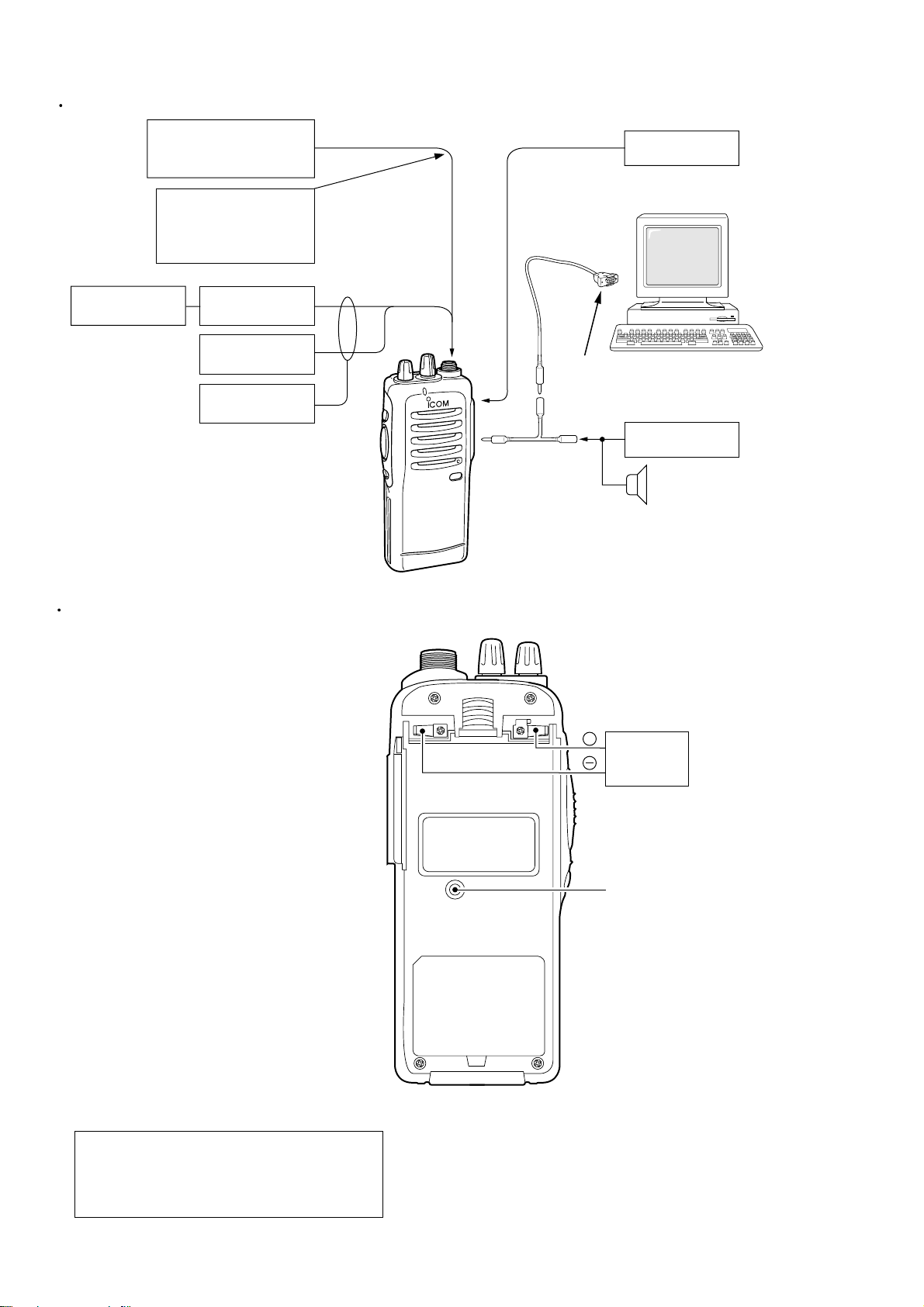

to an RS-232C port

Personal computer

to [MIC]

to [SP]

JIG cable

DB9 female plug

(incl. level converter circuit)

Connection

to the antenna connector

RF power meter

0.1—10 W/50 ‰ Frequency

counter

Attenuator

40 dB or 50 dB

FM

deviation meter

Standard signal generator

0.1 V to 32 mV

(—127 dBm to —17 dBm)

SINAD meter

Speaker (8 ‰)

Audio generator

OPC-478

CAUTION:

DO NOT transmit while

an SSG is connected to the antenna connector.

DC POWER

SUPPLY

GND

+

Battery type detectorBattery type detector

DC power cable connections

NOTE: When you adjust the output power (high

power), the battery type detector must be connected to GND (see illustration at above). Ohterwise the transceiver does not transmit high power, the output power will be low.

5 - 4

C54

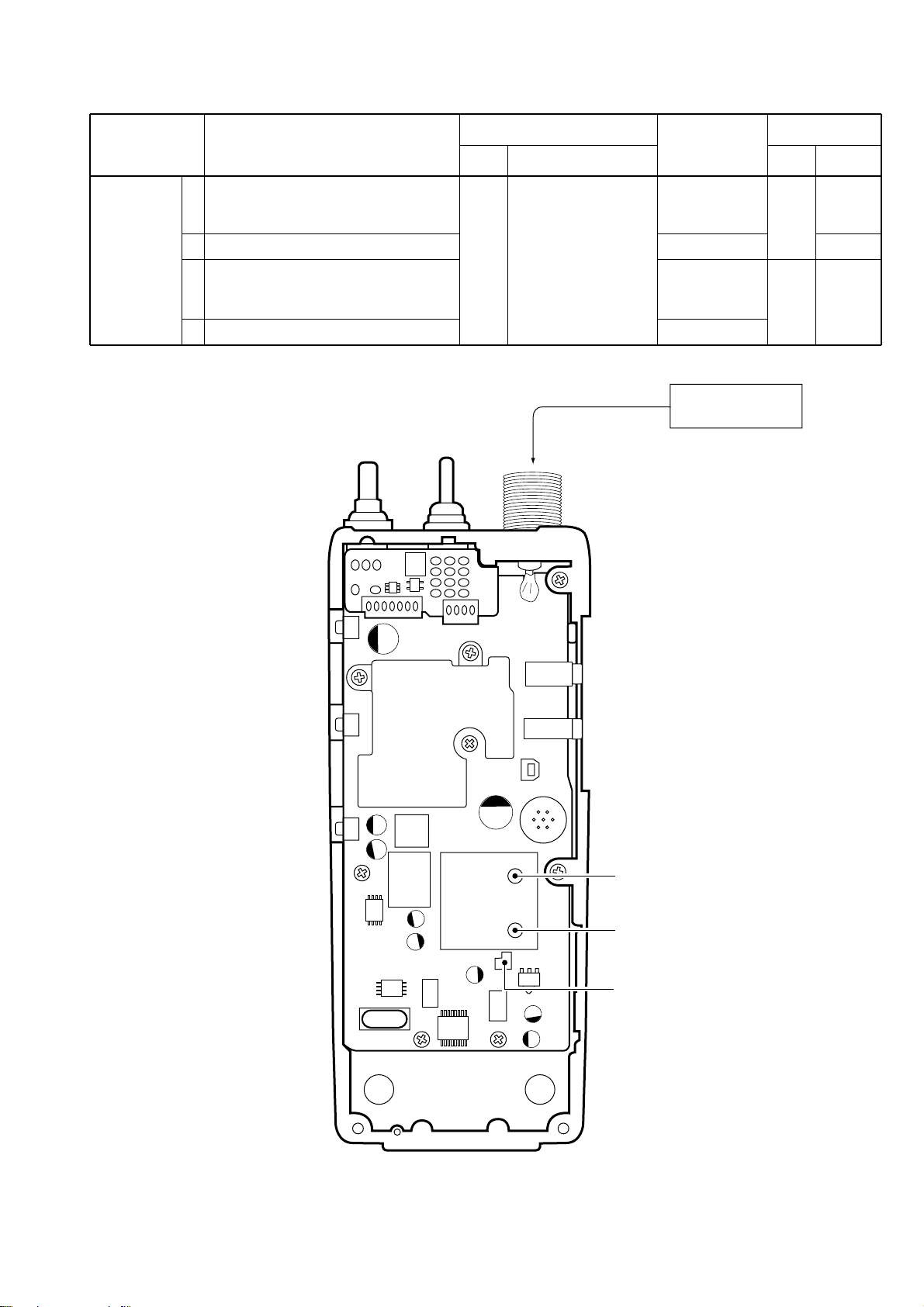

PLL lock voltage adjustment (RX)

TOP VIEW

RF power meter

C68

PLL lock voltage adjustment (TX)

LV

PLL lock voltage check point

5-2 PLL ADJUSTMENT

PLL LOCK VOLTAGE

1

2 3

4

• Operating frequency:

440.000 MHz

• Receiving

• Transmitting

• Operating frequency:

470.000 MHz

• Receiving

• Transmitting

MAIN Connect a digital multi

meter to check point LV.

1.3 V

2.8–4.3 V

MAIN C54

C68

Verify

ADJUSTMENT ADJUSTMENT CONDITIONS

UNIT LOCATION

VALUE

UNIT ADJUST

MEASUREMENT ADJUSTMENT

5 - 5

1

2

3

1

2

1

• Operating frequency:

470.000 MHz

• High/Low switch : Low

• Connect the RF power meter or 50 Ω

dummy load to the antenna connector.

• Transmitting

• Operating frequency:

440.000 MHz

• High/Low switch : High

• Transmitting

• High/Low switch : Low2

• Transmitting

• High/Low switch : Low1

• Transmitting

• Operating frequency:

455.000 MHz

• High/Low switch : Low1

• Channel spacing : Wide

• Connect the audio generator to the

[MIC] jack and set as:

1.0 kHz/150 mVrms

• Set the FM deviation meter as:

HPF : OFF LPF : 20 kHz De-emphasis : OFF Detector : (P–P)/2

• Transmitting

• Channel spacing : Narrow

• Transmitting

• Operating frequency:

455.000 MHz

• High/Low switch : Low1

• No audio applied to the [MIC] jack.

• DTCS code : 007

• Transmitting

REFERENCE FREQUENCY [TXF]

OUTPUT POWER [POWER(Hi)]

[POWER(L2)]

[POWER(L1)]

FM DEVIATION (Wide) [MOD W]

(Narrow) [MOD N]

DTCS WAVE FORM [DTCS BAL]

Top

panel

Top

panel

Top

panel

Top

panel

Loosely couple a frequnecy counter to the antenna connector.

Connect an RF power meter to the antenna connector.

Connect an FM deviation meter to the antenna connector through the attenuator.

Connect an FM deviation meter with an oscilloscope to the antenna connector through an attenuator.

470.0000 MHz

4.0 W

2.0 W

1.0 W

±4.10 kHz

±2.10 kHz

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

UNIT

LOCATION

5-3 SOFTWARE ADJUSTMENT

Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard.

Set to flat wave form

5 - 6

Minimum distortion

level

12 dB SINAD

At the point where

the audio signals

just appears.

1 • Operating frequency:

440.000 MHz

• Channel spacing :Narrow

• Connect a standard signal generator to

the antenna connector and set as:

Frequency : 440.000 MHz Level : 10 µV* (–87 dBm) Modulation : OFF Deviation : ±1.75 kHz

• Receiving

• Operating frequency:

455.000 MHz

• Channel spacing : Narrow

• Connect a standard signal generator to

the antenna connector and set as:

Frequency : 455.000 MHz Level :

0.2 µV* (–121 dBm) Modulation : 1 kHz Deviation :

±1.75 kHz

• Receiving

RX SENSITIVITY [BPF T1]–[BPF T4]

SQUELCH LEVEL [SQL]

Top

panel

Top

panel

Connect a SINAD meter with an 8 Ω load to the [SP] jack.

Connect a SINAD meter with an 8Ω load to the [SP] jack.

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

UNIT

LOCATION

*The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit.

SOFTWARE ADJUSTMENT – continued

Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard.

CONVENIENT: The BPF T1–BPF T4 can be adjusted automatically.

q-1: Set the cursol to “BPF ALL” on the adjustment program and then push [ENTER]

key.

q-2: The connected PC tunes BPF T1–BPF T4 to peak levels.

or

w-1: Set the cursol to one of BPF T1, T2, T3, or T4 as desired. w-2: Push [ENTER] key to start tuning. w-3: Repeat w-1 and w-2 to perform additional BPF tuning.

1

2

6 - 1

S.=Surface mount

Q1 1590003020 S.TRANSISTOR XP4216-(TX) R1 7210003060 VARIABLE TP76N00N-15F-10KA-2251

R2 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R3 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)

F1 5210000710 S.FUSE KAB 2402 322 NA29

DS1 5040002070 S.LED LNJ107W5PRW

S1 2250000430 ENCODER TP70QF4161-16F-2458

EP1 0910053673 PCB B 5603C

Q1 1590003020 S.TRANSISTOR XP4216-(TX)

R1 7210003060 VARIABLE TP76N00N-15F-10KA-2251 R2 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R3 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)

F1 5210000710 S.FUSE KAB 2402 322 NA29 DS1 5040002070 S.LED LNJ107W5PRW W1 7120000470 JUMPER ERDS2T0

W2 7120000470 JUMPER ERDS2T0

EP1 0910053683 PCB B 5604C

IC1 1140005990 S.IC MB15A02PFV1-G-BND-ER IC2 1110002750 S.IC TA75S01F (TE85R) IC3 1110003490 S.IC TA31136FN (D,EL) IC4 1110001810 S.IC TA7368F (TP1) IC5 1110005320 S.IC NJM13403V-TE1 IC6 1130008090 S.IC BU4066BCFV-E1 IC7 1140009850 S.IC HD6433664A24FP (FX-2458A-1) IC8 1130009110 S.IC S-80942ANMP-DD6-T2 IC9 1190000350 S.IC M62363FP-650C IC10 1110005350 S.IC NJM2870F05-TE1 IC11 1130010390 S.IC HN58X2416TI IC12 1110005330 S.IC NJM12904V-TE1 IC13 1130007020 S.IC TC7S66FU (TE85R) IC15 1130007570 S.IC BU4094BCFV-E2 IC16 1110005330 S.IC NJM12904V-TE1

Q1 1560001050 S.FET 2SK2974 Q2 1560001020 S.FET 2SK2973 (MTS101P) Q3 1530002620 S.TRANSISTOR 2SC3585 R44-T2B Q4 1530003310 S.TRANSISTOR 2SC5107-O (TE85R) Q5 1530003310 S.TRANSISTOR 2SC5107-O (TE85R) Q6 1530003310 S.TRANSISTOR 2SC5107-O (TE85R) Q7 1530003310 S.TRANSISTOR 2SC5107-O (TE85R) Q8 1590000430 S.TRANSISTOR DTC144EUA T106 Q9 1590001400 S.TRANSISTOR XP1214 (TX) Q10 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R) Q11 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R) Q12 1590001190 S.TRANSISTOR XP6501-(TX) .AB Q13 1560000540 S.FET 2SK880-Y (TE85R) Q14 1590000720 S.TRANSISTOR DTA144EUAT106 Q15 1580000730 S.FET 3SK293 (TE85L) Q16 1580000660 S.FET 3SK272-(TX) Q17 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) Q18 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R) Q19 1520000460 S.TRANSISTOR 2SB1132 T100 R Q20 1590001190 S.TRANSISTOR XP6501-(TX) .AB Q21 1590000430 S.TRANSISTOR DTC144EUA T106 Q22 1590002530 S.TRANSISTOR UN911H (TX) Q23 1590000720 S.TRANSISTOR DTA144EUAT106 Q24 1520000460 S.TRANSISTOR 2SB1132 T100 R Q25 1590001190 S.TRANSISTOR XP6501-(TX) .AB Q26 1510000920 S.TRANSISTOR 2SA1577 T107 Q Q27 1510000920 S.TRANSISTOR 2SA1577 T107 Q Q28 1590000430 S.TRANSISTOR DTC144EUA T106 Q29 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R) Q30 1590001770 S.TRANSISTOR XP1213 (TX) Q31 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) Q32 1590000660 S.TRANSISTOR DTC144TU T107 Q33 1560000840 S.FET 2SK1829 (TE85R)

D1 1750000580 S.DIODE 1SV307 (TPH3) D2 1790001670 S.DIODE RB706F-40T106 D3 1790000620 S.DIODE MA77 (TX) D4 1790000620 S.DIODE MA77 (TX) D5 1720000780 S.VARICAP HVU350TRF D6 1720000570 S.VARICAP MA368 (TX) D7 1720000780 S.VARICAP HVU350TRF D9 1790000620 S.DIODE MA77 (TX) D10 1790000620 S.DIODE MA77 (TX) D12 1720000780 S.VARICAP HVU350TRF D13 1720000780 S.VARICAP HVU350TRF D14 1720000780 S.VARICAP HVU350TRF D15 1720000780 S.VARICAP HVU350TRF D16 1790000620 S.DIODE MA77 (TX) D17 1790001670 S.DIODE RB706F-40T106 D18 1790001250 S.DIODE MA2S111-(TX) D19 1750000830 S.VARICAP HVC362TRF D20 1790001250 S.DIODE MA2S111-(TX) D21 1790001250 S.DIODE MA2S111-(TX) D22 1790001250 S.DIODE MA2S111-(TX)

FI1 2010002450 S.XTAL FL-313 (46.35 MHz) FI2 2020001840 CERAMIC ALFYM450F=K

X1 6050011120 S.XTAL CR-671A (15.300 MHz) X2 6070000210

S.DISCRIMINATOR

CDBCA450CX24

X3 6050011180 S.XTAL CR-702 (14.7456 MHz)

L1 6200008240 S.COIL 0.30-0.9-5TL 14N L2 6200008240 S.COIL 0.30-0.9-5TL 14N L3 6200002850 S.COIL NL 252018T-R82J L4 6200008240 S.COIL 0.30-0.9-5TL 14N L5 6200009470 S.COIL 0.40-0.9-2TL L6 6200003590 S.COIL EXCCL3225U1 L8 6200005670 S.COIL ELJRE 12NG-F L9 6200005680 S.COIL ELJRE 15NG-F L10 6200005710 S.COIL ELJRE 27NG-F L11 6200005710 S.COIL ELJRE 27NG-F

REF ORDER

DESCRIPTION

NO. NO.

[SW-A UNIT] ([F21] only)

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

SECTION 6 PARTS LIST

REF ORDER

DESCRIPTION

NO. NO.

[SW-B UNIT] ([F21S] only)

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

6 - 2

S.=Surface mount

L13 6200009360 S.COIL 0.45-1.4-3TL 11N L14 6200002860 S.COIL NL 252018T-4R7J L15 6200002800 S.COIL ELJFC R68M-F L16 6200009360 S.COIL 0.45-1.4-3TL 11N L17 6200002860 S.COIL NL 252018T-4R7J L18 6200005680 S.COIL ELJRE 15NG-F L19 6200008240 S.COIL 0.30-0.9-5TL 14N L20 6200008240 S.COIL 0.30-0.9-5TL 14N L21 6200007670 S.COIL LQN21A10NJ04 L22 6200007670 S.COIL LQN21A10NJ04 L23 6200007670 S.COIL LQN21A10NJ04 L24 6200007670 S.COIL LQN21A10NJ04 L25 6200005720 S.COIL ELJRE 33NG-F L26 6200001980 S.COIL NL 252018T-1R0J L27 6200002850 S.COIL NL 252018T-R82J L28 6200002840 S.COIL NL 252018T-R22J L29 6200009210 S.COIL NL 252018T-390J L30 6200009760 S.COIL 0.30-0.9-9TR

R1 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R2 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R3 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R4 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R5 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R6 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R7 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R8 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R9 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R10 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R11 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R12 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R13 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R14 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R15 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R16 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R17 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R18 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R19 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R20 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R21 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω) R22 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R23 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R24 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R25 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R26 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R27 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R28 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) R29 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R30 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R31 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R32 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R33 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R34 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R35 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R36 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R37 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R38 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R39 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R40 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R41 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) R42 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R43 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R44 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R45 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R46 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R47 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R48 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R49 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R50 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R51 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R52 7410000950 S.ARRAY EXB-V8V 102JV R53 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R54 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R55 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R56 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R57 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R58 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R59 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R60 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R61 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R62 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)

R63 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R64 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R65 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R66 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R68 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R69 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R70 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R71 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R72 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R73 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R74 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R75 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R76 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R77 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R78 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R79 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R80 7030003210 S.RESISTOR ERJ3GEYJ 120 V (12 Ω) R81 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R82 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R83 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R84 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R85 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) R86 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω) R87 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) R88 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω) R89 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R90 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R91 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R92 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R93 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R94 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R95 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R96 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R97 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ) R98 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R99 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R100 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R102 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R103 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω) R104 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R105 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) R106 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R107 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R109 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R110 7030004910 S.RESISTOR ERJ3GEYF 332 V (3.3 kΩ) R111 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R112 7030004730 S.RESISTOR ERJ3GEYF 222 V (2.2 kΩ) R113 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R114 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R115 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R116 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R117 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R118 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R119 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R120 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R121 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ) R122 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R123 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R124 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R125 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R126 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) R127 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R128 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R129 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R130 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R131 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ) R132 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R133 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R134 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R136 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R137 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R138 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R139 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R140 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R141 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R142 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R143 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R146 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R147 7410000950 S.ARRAY EXB-V8V 102JV R148 7410000950 S.ARRAY EXB-V8V 102JV R149 7410000950 S.ARRAY EXB-V8V 102JV R151 7510001280 S.THERMISTOR NTCCM20124AG473J-T

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

6 - 3

S.=Surface mount

R152 7030003940 S.RESISTOR ERJ3GEYF 104 V (100 kΩ) R153 7030003940 S.RESISTOR ERJ3GEYF 104 V (100 kΩ) R154 7030003940 S.RESISTOR ERJ3GEYF 104 V (100 kΩ) R155 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R156 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R157 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R158 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R159 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R160 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R161 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R163 7410000950 S.ARRAY EXB-V8V 102JV R164 7410000950 S.ARRAY EXB-V8V 102JV R165 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R166 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R167 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R168 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R169 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R170 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R171 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R172 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R173 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R174 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R175 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R176 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R177 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R178 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R179 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R180 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R181 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R182 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R184 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R185 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R186 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R187 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R188 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R189 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R190 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R191 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R192 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R193 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R194 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R195 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R196 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R197 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R198 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R199 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R200 7410000770 S.ARRAY EXB-V4V 102JV (1 kΩ) R201 7410000950 S.ARRAY EXB-V8V 102JV R202 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R203 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R204 7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ) R205 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R206 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R207 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R208 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R209 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R210 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R211 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R212 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R213 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R214 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R215 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R216 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R217 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R218 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R219 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R220 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R221 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R222 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R223 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R224 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R225 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R226 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R227 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R228 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R229 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R232 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R233 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R234 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R238 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R239 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R240 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)

R241 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R242 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R243 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R244 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω) R245 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)

C3 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C5 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C6 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C7 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C8 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C9 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C12 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C13 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C14 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C15 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C17 4030008750 S.CERAMIC C1608 CH 1H 360J-T-A C18 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C20 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C21 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C23 4030009990 S.CERAMIC C1608 CH 1H 200J-T-A C24 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A C25 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C26 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C27 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C28 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C29 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C30 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C31 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C33 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C34 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C35 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C36 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C37 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C38 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C39 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C40 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C41 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C42 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C43 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C44 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C45 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C46 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C47 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C48 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C49 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C50 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C51 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C52 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C53 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C54 4540000040 S.TRIMMER ECR-KN006 A61X C55 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C56 4550006450 S.TANTALUM ECST1EY105R C57 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C58 4510004630

S.ELECTROLYTIC

ECEV1CA100SR C59 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C60 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C61 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C62 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C63 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C64 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C65 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C66 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C67 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A C68 4540000030 S.TRIMMER ECR-KN003 A61X C69 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C70 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C71 4030012600 S.CERAMIC C2012 JB 1A 105M-T-A C72 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C73 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C74 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C75 4550006360 S.TANTALUM ECST1VY104R C76 4550006450 S.TANTALUM ECST1EY105R C77 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C78 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C80 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C81 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C82 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C83 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C84 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C85 4510005860

S.ELECTROLYTIC

ECEV1HA2R2SR

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

6 - 4

S.=Surface mount

C86 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C87 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C88 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C89 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C90 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A C91 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A C92 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C93 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C94 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C96 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C97 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C98 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C99 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C100 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C102 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A C103 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C104 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C105 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C106 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C107 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C108 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C109 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C110 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C111 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C112 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C113 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C114 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C115 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A C116 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A C117 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C118 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C119 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C120 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A C121 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C122 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C123 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C124 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C125 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C126 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C127 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C128 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C129 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C130 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C132 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C133 4030009920 S.CERAMIC C1608 CH 1H 050B-T-A C134 4030009990 S.CERAMIC C1608 CH 1H 200J-T-A C136 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C137 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C138 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C139 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C140 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A C142 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C143 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C144 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C145 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C146 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C147 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C148 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A C149 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C150 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A C151 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C152 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C153 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C154 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C155 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C156 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C157 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C158 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C159 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C160 4510004640

S.ELECTROLYTIC

ECEV1CA470SP C161 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C162 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C163 4510006940

S.ELECTROLYTIC

EEVFC0J101P C164 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C165 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C166 4550006700 S.TANTALUM ECST1AY106R C167 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C168 4030009660 S.CERAMIC C1608 JF 1C 224Z-T-A C169 4550006650 S.TANTALUM ECST1CY685R C170 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C171 4030009660 S.CERAMIC C1608 JF 1C 224Z-T-A C172 4510006090

S.ELECTROLYTIC

ECEV0GA470SR

C173 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C174 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C175 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A C176 4030008650 S.CERAMIC C1608 JB 1H 332K-T-A C177 4550006170 S.TANTALUM ECST1AY225R C178 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C179 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C180 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C181 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C182 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C183 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C184 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C185 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C186 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A C187 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A C188 4510004630

S.ELECTROLYTIC

ECEV1CA100SR C189 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C190 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C191 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C192 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C193 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C194 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C195 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C196 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C197 4510005430

S.ELECTROLYTIC

ECEV0JA220SR C198 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C199 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C200 4030008890 S.CERAMIC C1608 JB 1C 273K-T-A C201 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C202 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C203 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C204 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C205 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C206 4550006200 S.TANTALUM ECST0JY106R C207 4510004630

S.ELECTROLYTIC

ECEV1CA100SR C208 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C209 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C210 4510005430

S.ELECTROLYTIC

ECEV0JA220SR C211 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C212 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C213 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C214 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C215 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C216 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C218 4030009630 S.CERAMIC C1608 JB 1H 822K-T-A C219 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C220 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A C222 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C223 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C224 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A C225 4510004650

S.ELECTROLYTIC

ECEV1EA4R7SR C226 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C227 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C228 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C229 4030009880 S.CERAMIC C1608 JB 1H 682K-T-A C230 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C231 4030008910 S.CERAMIC C1608 JB 1C 393K-T-A C232 4030010020 S.CERAMIC C1608 JB 1H 122K-T-A C233 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C234 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A C235 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A C236 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A C237 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C238 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C239 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C240 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C242 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C243 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A C244 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C245 4030009630 S.CERAMIC C1608 JB 1H 822K-T-A C246 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C247 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C248 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C249 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C251 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C252 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C253 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C255 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C257 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C258 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C259 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C260 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

S.=Surface mount

C261 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A

J1 6910013720 CONNECTOR IMSA-9230B-04Z120-T [F21] only J2 6910013730 CONNECTOR IMSA-9230B-07Z120-T J3 6510021900 S.CONNECTOR BM02B-ASRS-TF J4 6450001680 CONNECTOR HSJ1122-010010 J5 6450001690 CONNECTOR HSJ1456-01-220

MC1 7700002160 MICROPHON KUC3523-040245

S1 2230001060 S.SWITCH EVQ-PUL02K S2 2230001060 S.SWITCH EVQ-PUL02K S3 2230001060 S.SWITCH EVQ-PUL02K

W2 7030003860 S.JUMPER ERJ3GE JPW V W4 7030003860 S.JUMPER ERJ3GE JPW V W8 7030003860 S.JUMPER ERJ3GE JPW V W12 7030003860 S.JUMPER ERJ3GE JPW V [F21S] only W13 7030003860 S.JUMPER ERJ3GE JPW V [F21S] only W14 7030003860 S.JUMPER ERJ3GE JPW V

EP1 0910053693 PCB B 5601C EP2 6910013370 S.BEAD BLM11B221SB EP3 6910013370 S.BEAD BLM11B221SB EP4 6910013370 S.BEAD BLM11B221SB EP5 6910013370 S.BEAD BLM11B221SB EP6 6910013370 S.BEAD BLM11B221SB EP7 6910013370 S.BEAD BLM11B221SB [F21S] only

6 - 5

REF ORDER

DESCRIPTION

NO. NO.

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

7 - 1

REF. NO . ODER NO. DESCRIPTION QTY.

SP1 2510001100 Speaker 036D0601 1

MP1 8210017710 2458 front panel 1 MP4 8930054680 2458 release button 1 MP6 8930054690 2458 lens 1 MP7 8210017730 2458 jack panel 1 MP8 8930054881 2458 plus terminal-1 1 MP9 8010018501 2458 chassis-1 1 MP10 8930054710 2458 A-main seal [F21] 1

8930054720 2458 B-main seal [F21S] 1 MP11 8930042350 1922 mic sheet 1 MP12 8930050840 2251 minus terminal 1 MP13 8830001550 Nut (J) 1 MP14 8830001570 Nut (K) [F21S] 1

8830001550 Nut (J) [F21] 1 MP15 8650005320 2337 contact 1 MP18 8610010910 Knob N-281 1 MP19 8610010920 Knob N-282 [F21] only 1 MP20 8810004860 Screw PH M 2 x 6 ZK 2 MP21 8810000100 Screw PH M 2 x 4 ZK 2 MP22 8810009560 Screw B0 M 2 x 6 ZK 2 MP26 8930053680 Spring (AG) 1 MP27 8210017090 2337 terminal holder 1 MP28 8930052840 2337 T-rubber 1 MP29 8810009510 B0 M02 x 4 NI-ZU (BT) 10 MP30 8930043760 1923 Mic seal 1 MP32 8950004671 ANT connector 101A 1 MP33 8830001250 ANT connector 101 nut 1 MP34 8930055110 2458 side plate 1 MP35 8810009510 Screw B0 M 2 x 4 NI-ZU (BT) [F21S] only 1 MP39 8810009180 Screw B0 M 2 x 5 NI-ZU (BT) 1

[CHASSIS PARTS]

REF. NO . ODER NO. DESCRIPTION QTY.

MP1 8510013000 2336 VCO case 1 MP2 8510011180 1923 VCO cover 1 MP6 8510013800 2458 main shield 1 MP7 8930055690 Sponge (GT) 1

[MAIN UNIT]

Screw abbreviations B0, BT: Self-tapping

PH: Pan head NI: Nickel ZK: Black NI-ZU: Nickel-zinc

REF. NO . ODER NO. DESCRIPTION QTY.

EP1

Optional product

Antenna FA-SC57U 1

EP2

Optional product

Battery BP-209 1

MP1

Optional product

1922 Belt clip 1

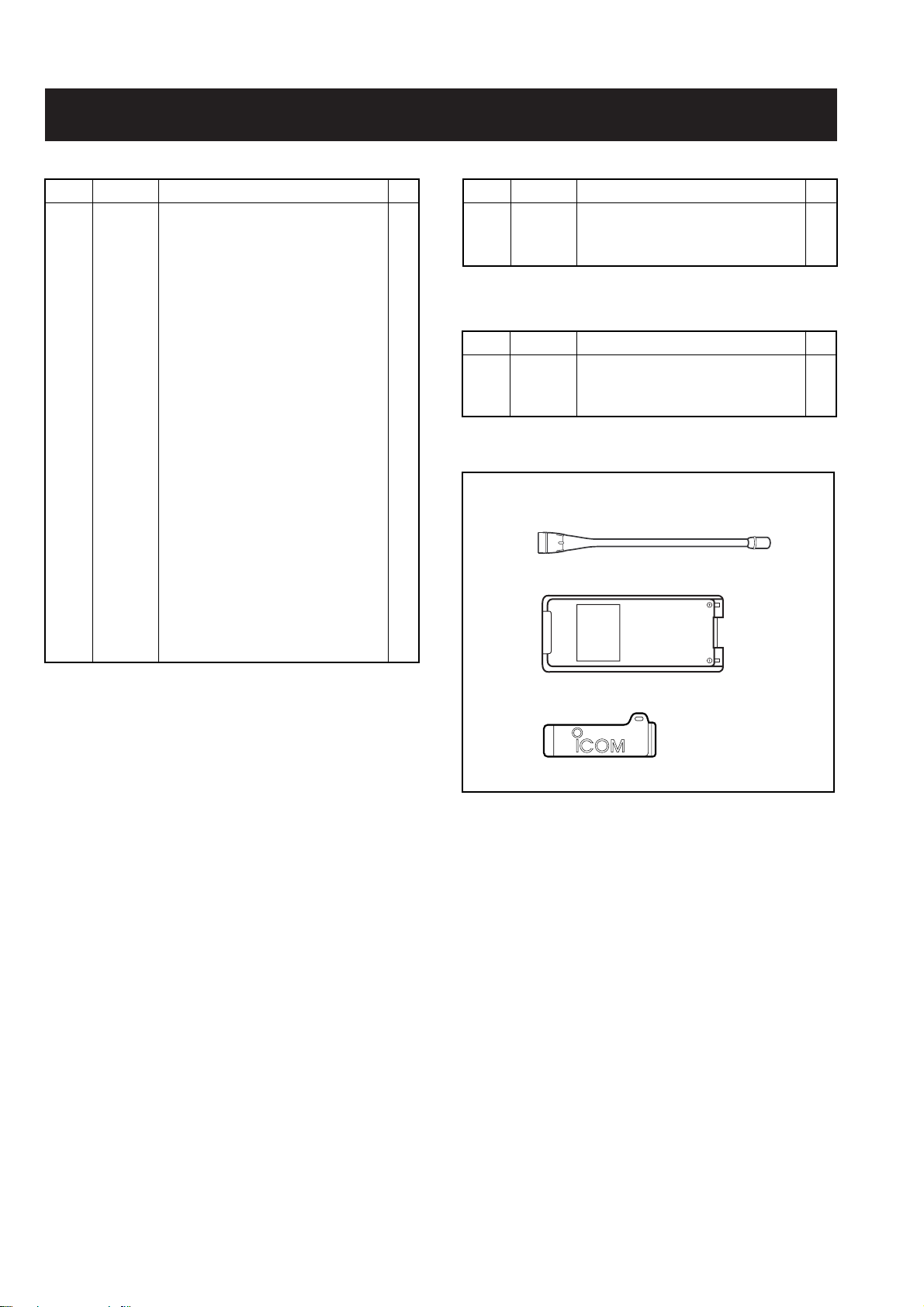

[ACCESSORIES]

EP1

EP2

MP1

7 - 2

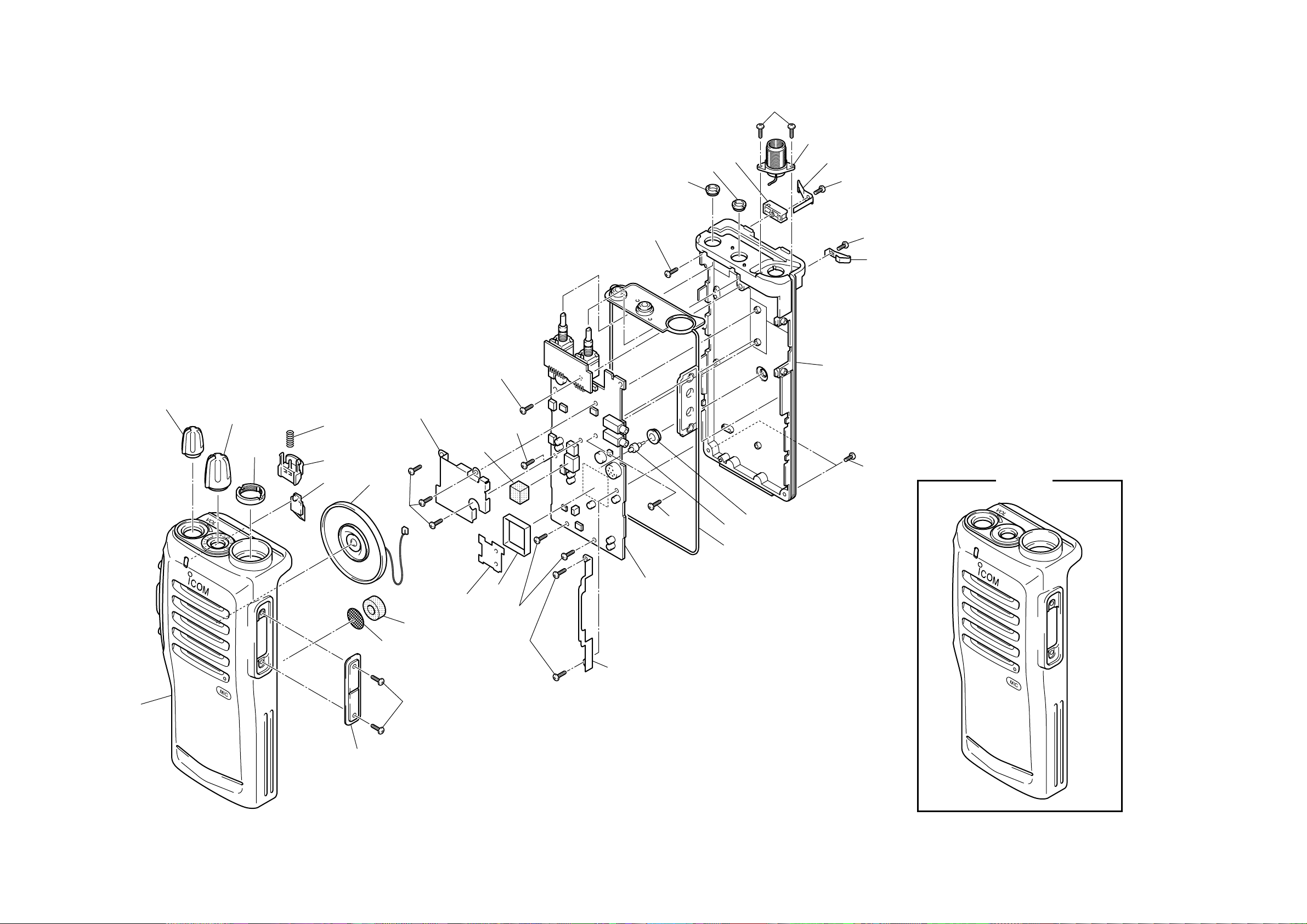

UNIT abbreviation (C): CHASSIS PARTS, (M): MAIN UNIT

MAIN unit

MP29 (C)

MP28 (C)

MP15 (C)

MP10 (C)

MP21 (C)

MP32 (C)

MP8 (C)

MP29 (C)

MP12 (C)

MP9 (C)

MP22 (C)

IC-F21S

MP34 (C)

MP27 (C)

MP14 (C)

MP13 (C)

MP39 (C)

MP29 (C)

MP35 (C)([F21S] only)

MP7(M)

MP29 (C)

MP7 (C)

MP20 (C)

MP11 (C)

MP30 (C)

MP29 (C)

MP2 (M)

MP1 (M)

MP1 (C)

MP6 (M)

MP6 (C)

MP4 (C)

MP26 (C)

MP33 (C)

MP19 (C)

MP18 (C)

SP1 (C)

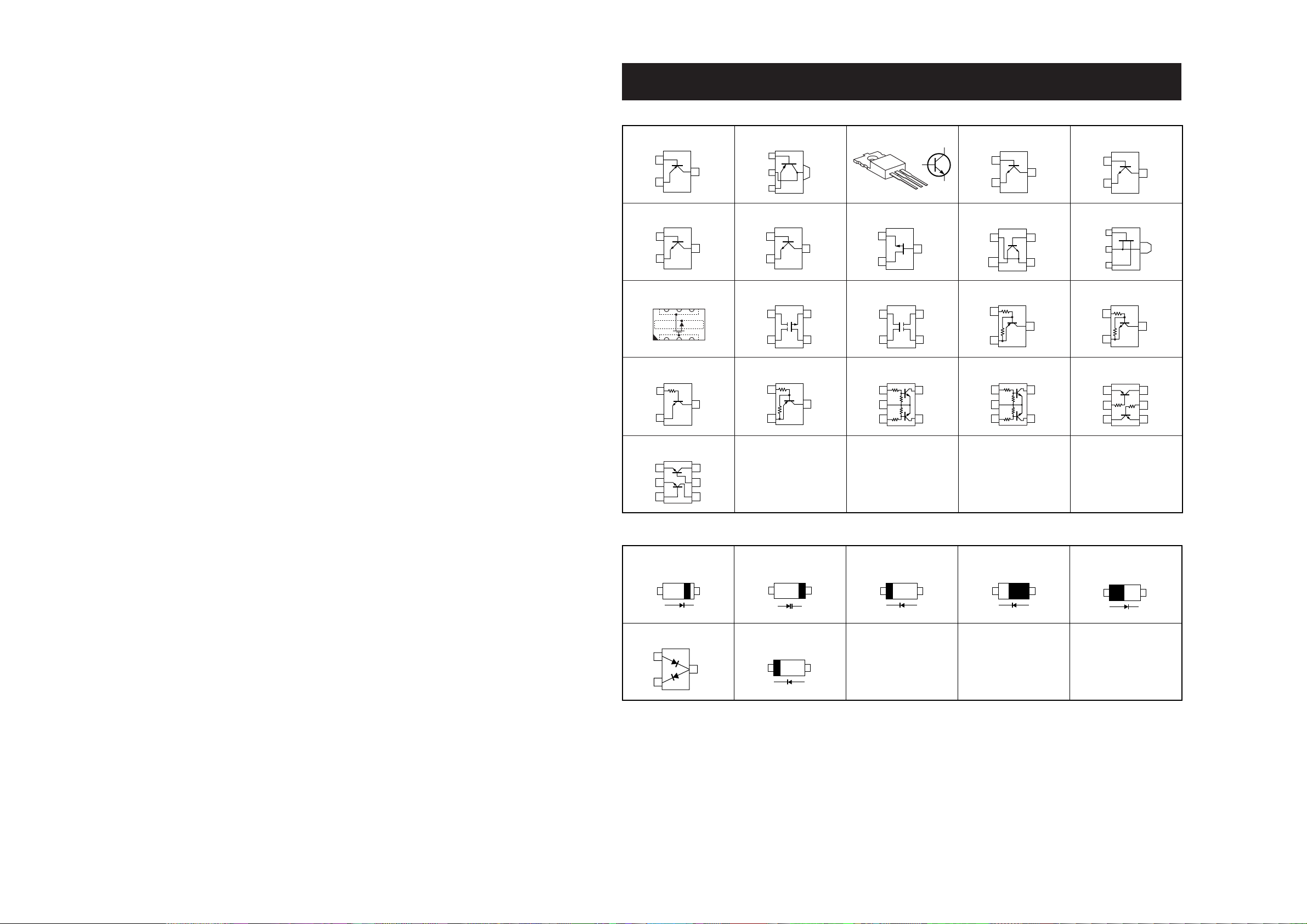

SECTION 8 SEMI-CONDUCTOR INFORMATION

8 - 1

2SC5085 Y

(Symbol: MCY)

2SK1829

(Symbol: K1)

2SC5107 O

(Symbol: MFO)

2SK880 Y

(Symbol: XY)

2SK2974

(Symbol: K2974)

2SC4116 GR

(Symbol: LG)

2SA1577 Q

(Symbol: HQ)

2SB1132 R

(Symbol: BARB)

3SK272

(Symbol: K)

2SC4215 O

(Symbol: QO)

2SK2973

(Symbol: K1)

DTC144 TU

(Symbol: 06)

DTC144 EU

(Symbol: 26)

UN911 H

(Symbol: 6P)

XP1213

(Symbol: 9L)

XP1214

(Symbol: 9H)

3SK293

(Symbol: UF)

DTA144 EU

(Symbol: 16)

•

TRANSISTOR AND FET’S

B

E

C

B

E

C

B

E

C

G S D

S

D

G

(top view)

S

D

S

G2

G1

B

E

C

B

E

C

B

E

C

XP4216

(Symbol: 8U)

B

E

C

B

E

C

B C E

2SC3585 R44

(Symbol: R44)

E1

B1

B2

C1

C2

B

E

C

B

E

C

E

C

B

E

B

E

C

S

D

G

G1

G2

S

D

E1

B1

B2

C1

C2

XP6501 AB

(Symbol: 5N)

E1 E2 B2

C1 B1 C2

•

DIODES

MA77

(Symbol: 4B)

HVU350 B

(Symbol: 4)

MA2S111

(Symbol: A)

MA368

(Symbol: 6L)

1SV307

(Symbol: TX)

RB706F-40

(Symbol: 3J)

A

C

A

C

HVC362

(Symbol: V2)

A

C

SECTION 9 BOARD LAYOUTS

9 - 1

9-1 MAIN UNIT

• TOP VIEW

C196

C194

R159

R222 R223 R224

R122

R151

C223

R143

EP7

R145

R146

R187

R195

R188

R193

R190

C226

C242

C243

R215

R224

R225

R226C245

C246

R155

C191

C258

C225

C224

R191

R189

R194

R245

C58

R163

C43

L11

X3

R50

R22 R31

R23 R24

R51

R164

C84

C85

C252

D6

R32

C67

C63

C65

C253

C206

D19

C86 C87

C88 C192

C68

C69

R34

R244

X1

C70

R153

R169

C210

C207

R170

C209

C208

C201

C197

C259

C205

Q25

Q24

Q23

IC10

Q11

Q6

R25

C44

C64 C66

C40

C41

C53

C52

R21

D7

D5

L17

L14

W4

C54

Q10

Q7

Q5

C46

R26

C51

R19

R20

C38

C50

EP2

C55

R214

L10

C48

R28

R29

R192

C229

C230

Q30

IC13

IC16

R156

C193

L29

R196 C228

R197

C231

R198

R102

C164

R238

C213

C166

C27

R8

R10

J3

R7

R9

C26

R18

R221

C140

C124

R77

R78

D3

C37

C145

C143

R94

R112

R114

R13

R14

C35

R92

C125

R80

R81

R79

R16

R15

C260

R242

R115

R17

C36

L9

C33

C29

C28

Q4

Q3

IC5

R123

R121

R120

C174

R116

C175

R138 C185

R136

R113

R12

R166

R167

C204

C94

S2

C172

C188

R111

R110

C177

X2

R168

C214

C184

R137

R129

C31

R128

C93

R206

R208

R207

C236

R209

C234

S3

S1

C160

R104

C235 R203 C232

R204 R205

R139

R117

R11

C34

C233

W14

C30

C21

W2

C255

C20

C18

L30

L6

C159 C158 C157 C156

C9 C8

R2

C17

Q1

Q2

L3

C23

R54

R4

C24

R5

R56 R55

Q14

C237

R6

C25

C15

L8

R3

D2

J4

J5

J3

B5601C

R1

X2

MC1

D4

IC12

C163

FI2

X3

LV

X1

IC15

L13

L16

J2

J1

J2 to the SW-A/B units

1

7

GND TLED RLED VCC VOLIN VOLOUT CBI0

J1 to the SW-A unit

1

4

CBI3 CBI2 CBI1 CBI0

J3 to the speaker

1

2

GND

SP

9 - 2

• BOTTOM VIEW

R133

R130

R227

R229

R63

D12

C100

C99

D9

L19

D1

C106

D10

MP5

C98

R60

R61

R59 C96

C7

L4

C165

R103

C118

R73

L1

C257

C114

C115

R71

R125

C119

R75

C121

R127 R118

IC2

Q21

IC9

Q16

R84

R86

R83

C129

C138

C123

R76

L26

C127

C128

C137

R89

C136

C126

C202

R93

R119

C178

C176

R165

R100

C203

C186 R140 C187 R141 C189

R99

C154

C155

R98

C147

R90

C134R87

C261

R243

R109

C167

R105

C169

R211

C251

R27

C47

R40

R30

EP3

C49

C39

C148

C146

C76

C62

L15

R220

C153

C152

C142

R185

R184

C219

C42

C91

C60

R239 R147

C90

C61

R181 R182

W13

R234

R233

R176

C227

C218

R180

R179 R178

R177

R199

R200

C195 R158

D16

R154 R210 R212

R149

R202

C216

R53

R35

C89

C92 C80

C83 R46 C81

R37

C82

R174

R173

C212

R171

C211 R172

Q27

Q26

Q31

IC1

IC8

Q13

Q17

Q18

Q28

IC6

IC4

Q20

Q19

Q8

IC3

Q22

Q29

Q12

Q9

IC11

C161 C162

R134

C182

C181

C183

D18

R228

C102

C105

L21

R131

R132

R126

C180

R124

C173

R65

R64

R68

C107

C110

C109

L22

C111

C113

R70

C116

L23

D14

D15

L24

C122

C103

C104

R62

R66

C249

C108

C112

R69

D13

C179

R72

C117

C120

R74

C190

R142

C139

C144

L25

R82

R91

R85

C132

C133

C130

R88

R58

C239

C97

C238

D22

C171

R107

C170

R106

C168

C240

R57

D17

R213

EP5

EP4

C215

C14

C13

C12

C5

L2

C6

C3

L5

W8

Q32

R175

R95

Q15

C222

R186

R97

L28

C150

L27

C149

C220

EP6

R96

W12

C151

R148

R201

C248

R241

C56

C45

C59

L18

R33

R45

R36

R39

R240

C74

C75

C73

C77

R41

D20

C71

C57

R43

R44

R42

C78

C72

R38

R52

R47

R48

R49

R161

D21

R152

C198

R216

R217

R218

R219

C247

R157

R160

C199

C200

IC7

R232

Q33

L20

FT1

9 - 3

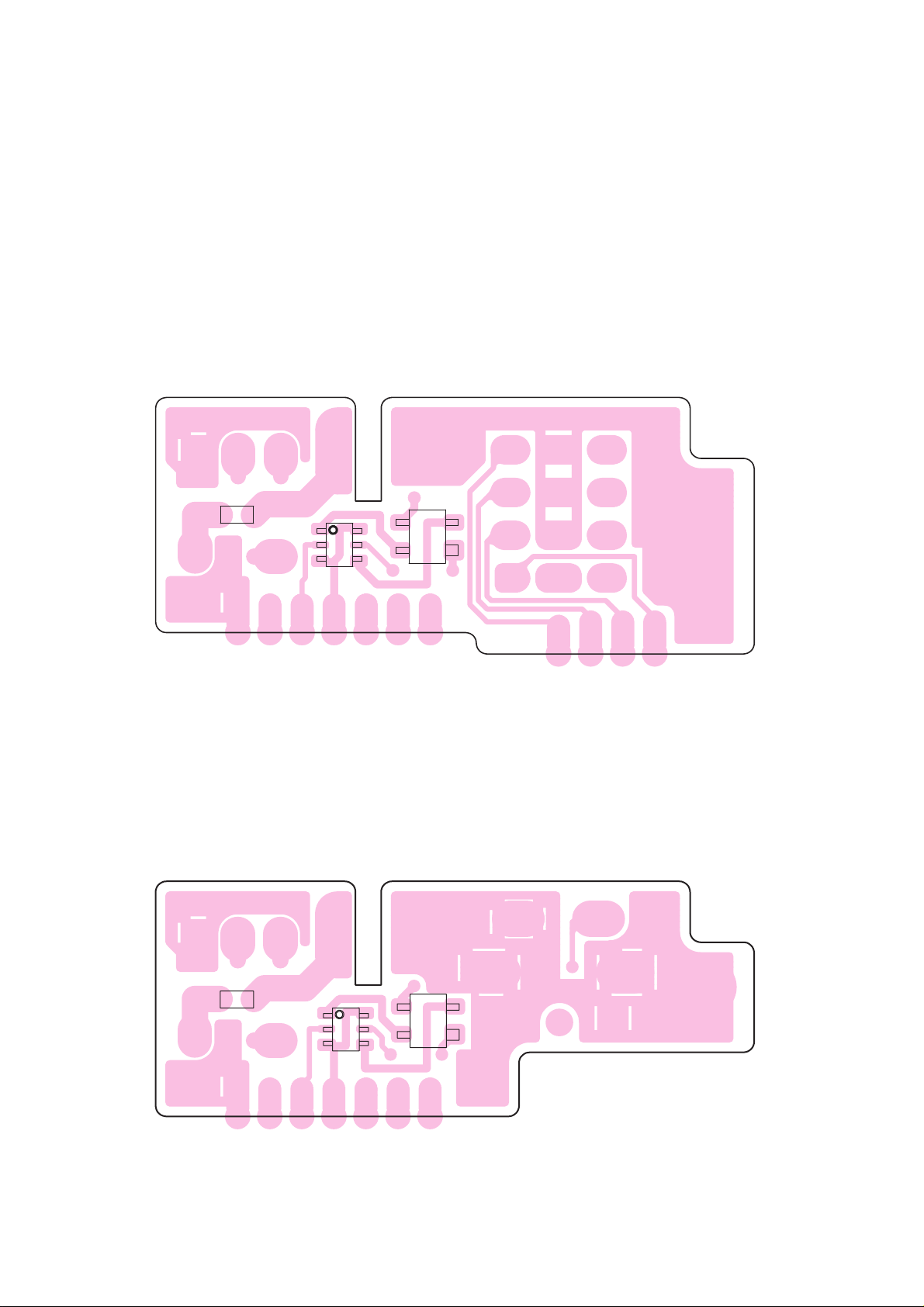

9-2 SW-A AND SW-B UNITS

• TOP VIEW SW-A UNIT

F1

Q1

DS1

B5603C

SW-B UNIT

F1

Q1

DS1

9 - 4

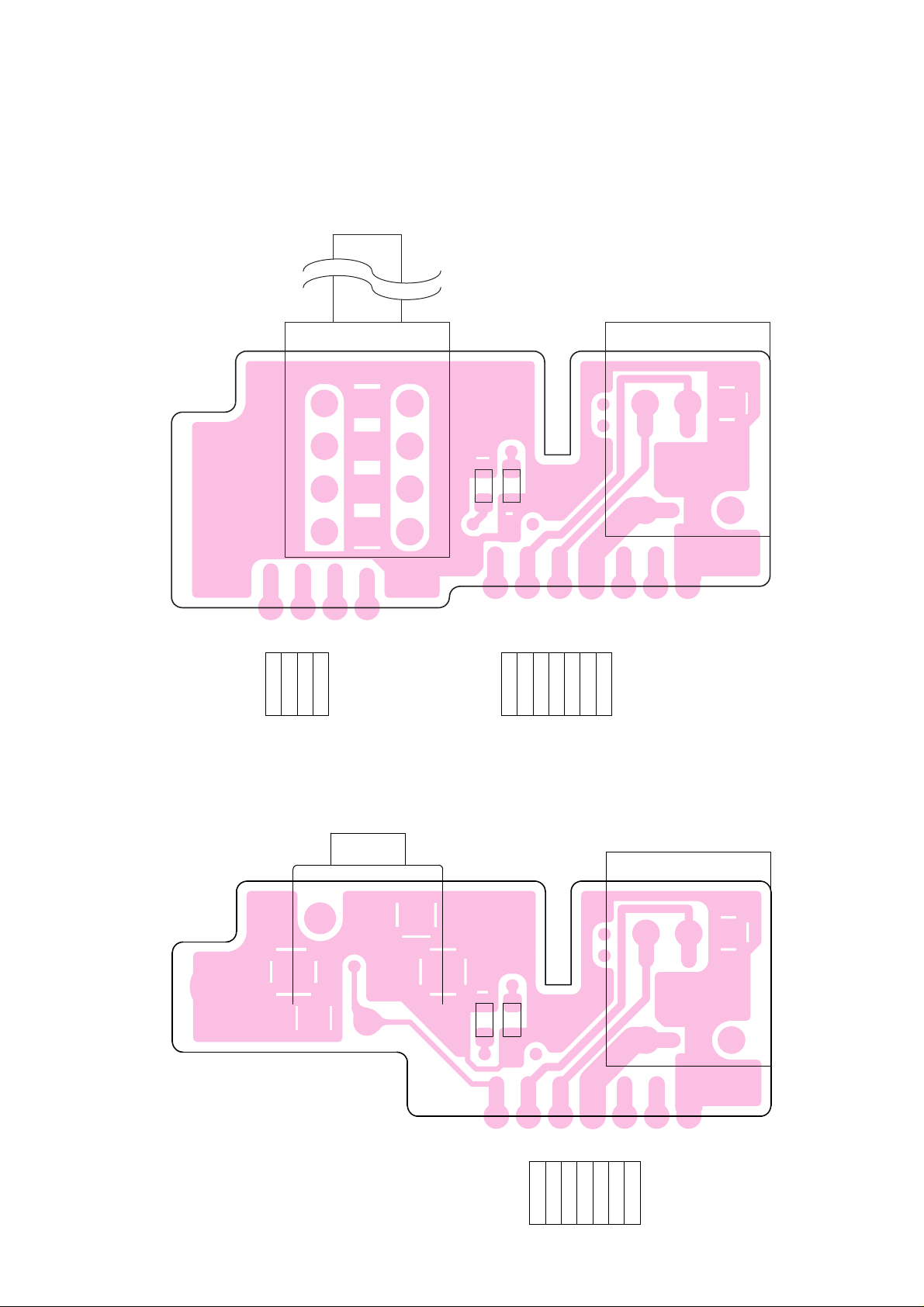

• BOTTOM VIEW SW-A UNIT

SW-B UNIT

R2

R3

R1S1

J2 to the MAIN unit J2

17

CBI0

VOLOUT

VOLIN

VCC

RLED

TLED

GND

J1 to the MAIN unit J1

14

CBI0

CBI1

CBI2

CBI3

S1

W1

R2

R3

W2 R1

B5604C

J2 to the MAIN unit J2

17

CBI0

VOLOUT

VOLIN

VCC

RLED

TLED

GND

10 - 1

SECTION 10

BC-146 OPTIONAL DESKTOP CHARGER INFORMATION

REF. NO . ODER NO. DESCRIPTION QTY.

MP1 8010018620 2447 case (A) 1 MP2 8110007450 2447 cover 1 MP3 8930039620 Leg cushion (A) 4 MP4 8930055020 2480 spacer 1 MP5 8930055030 2480 BC-spacer 1 MP6 8810008660 Screw B0 M 3 x 8 NI-ZU (BT) 1

[CHASSIS UNIT]

10-1 PARTS LIST

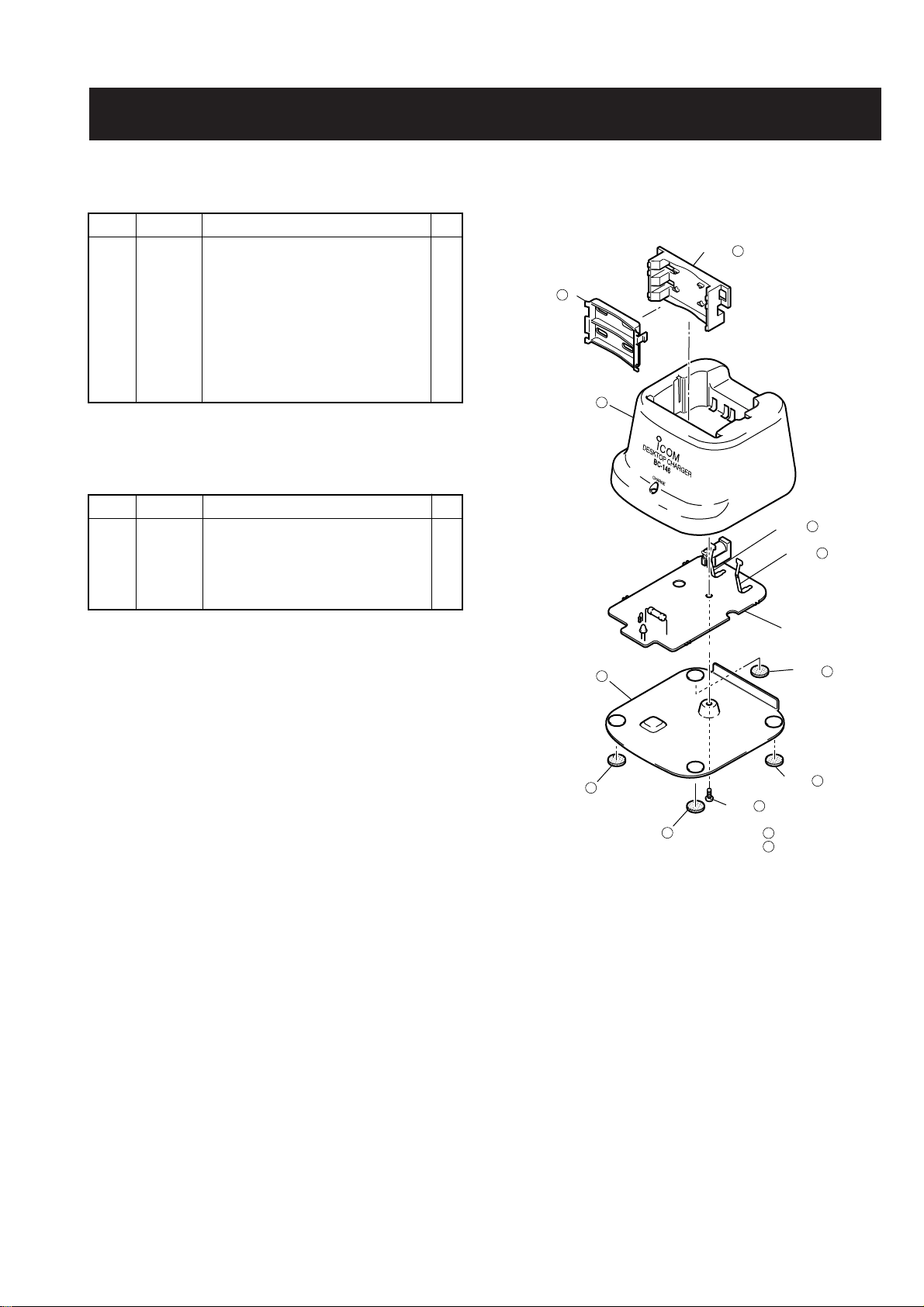

10-2 DISASSEMBLY INFORMATION

MP1

MP2

MP6

MP3

MP4

MP5

MP3

CHARGE unit

MP3

NOTE:

B

A

:CHASSIS UNIT :CHARGE UNIT

A

MP1

B

MP2

B

A

REF. NO . ODER NO. DESCRIPTION QTY .

[CHARGE UNIT]

R1 7010007550 RESISTOR ERG3SJ680H 1 R2 7010007100 RESISTOR PSD1/4V 1 kΩ 1

J1 6510021470 CONNECTOR HEC0470-01-230 1

DS1 5040001390 LED TLG124A 1

EP1 0910053820 PCB B 5650 1

MP1 8930051340 2338 TERMINAL 1 MP2 8930051340 2338 TERMINAL 1

Screw abbreviations B0, BT:Self-tapping

NI-ZU :Nickel-Zinc

10 - 2

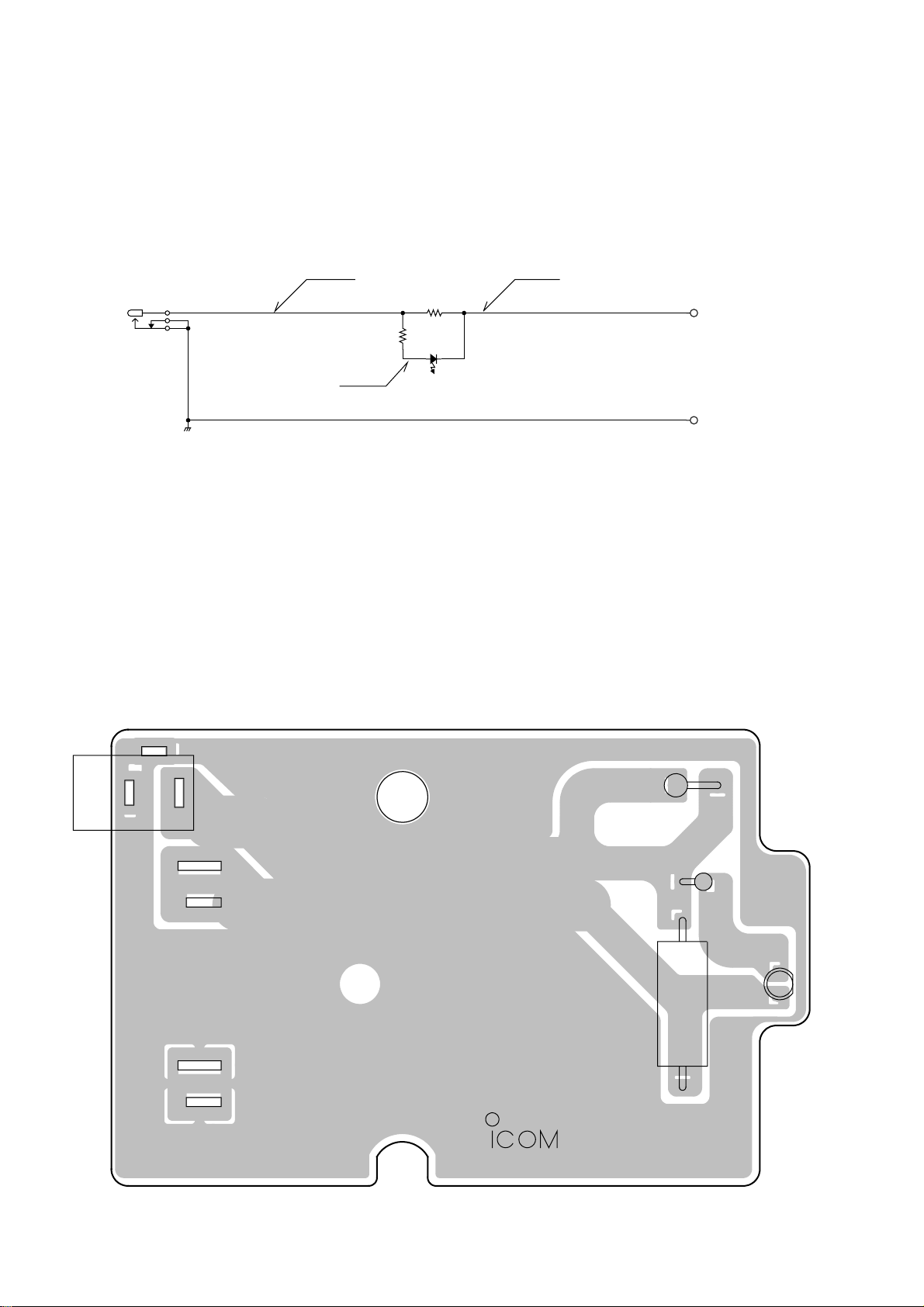

10-3 VOLTAGE DIAGRAM

10-4 BOARD LAYOUT

MP1

R1 68

J1

HEC0470-01-230

R2 1k

DS1

TLG124A

MP2

C : 13.8V N : 13.8V

C : 7.2V N : 13.8V

C : 9.2V N : 13.8V

J1

MP1

MP2

B5650

R1

R2

HD1

DS1

11 - 1

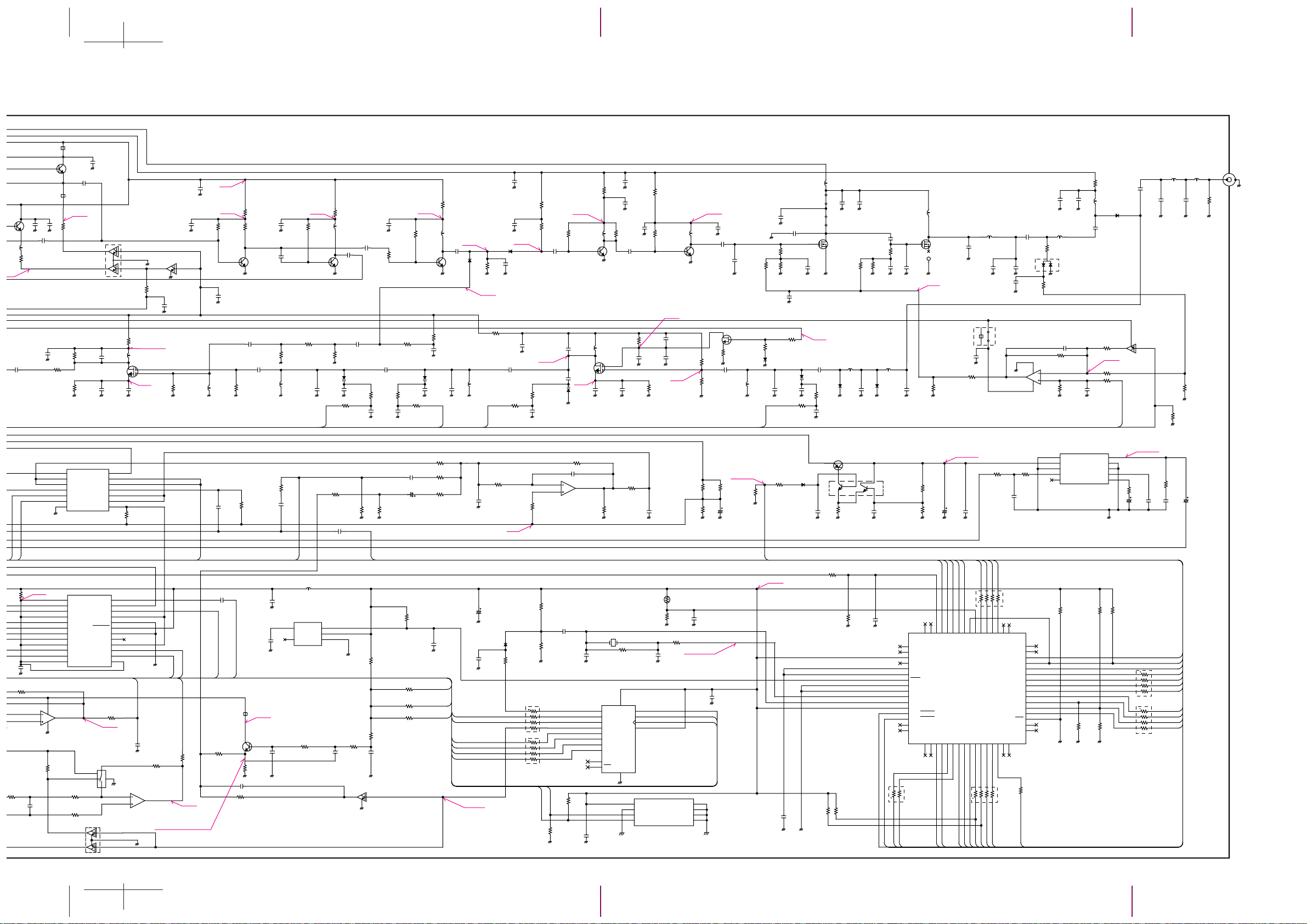

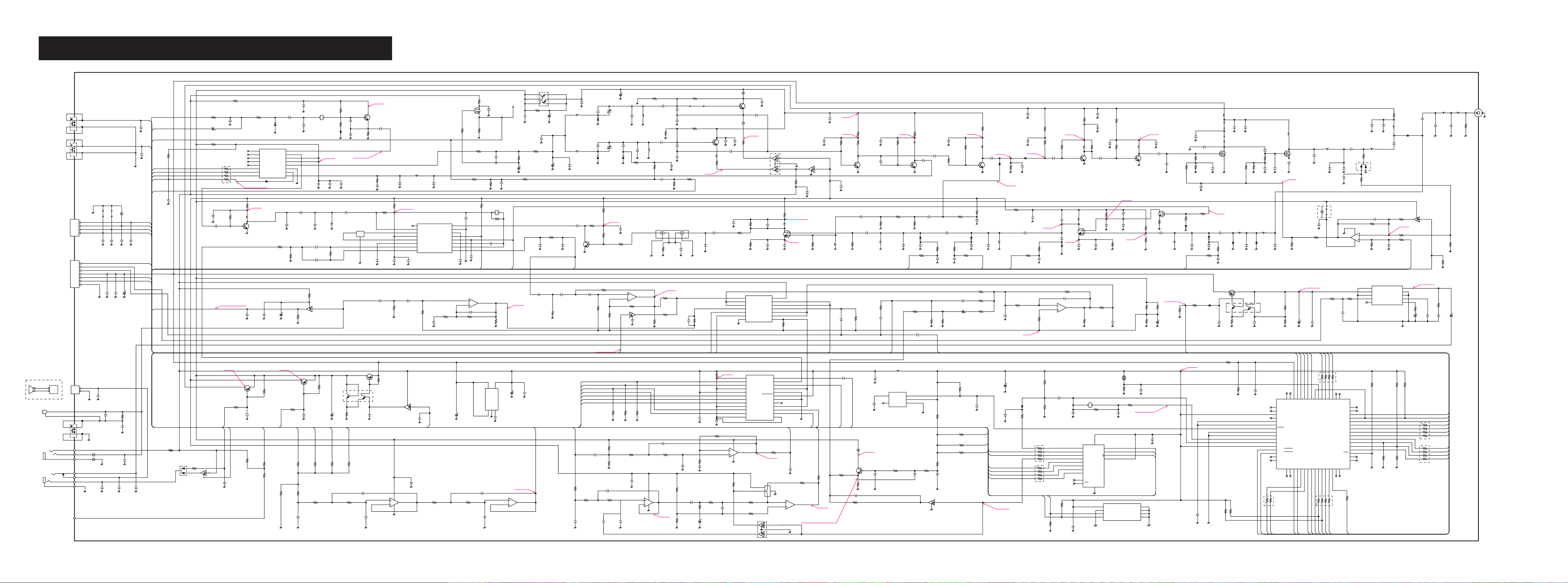

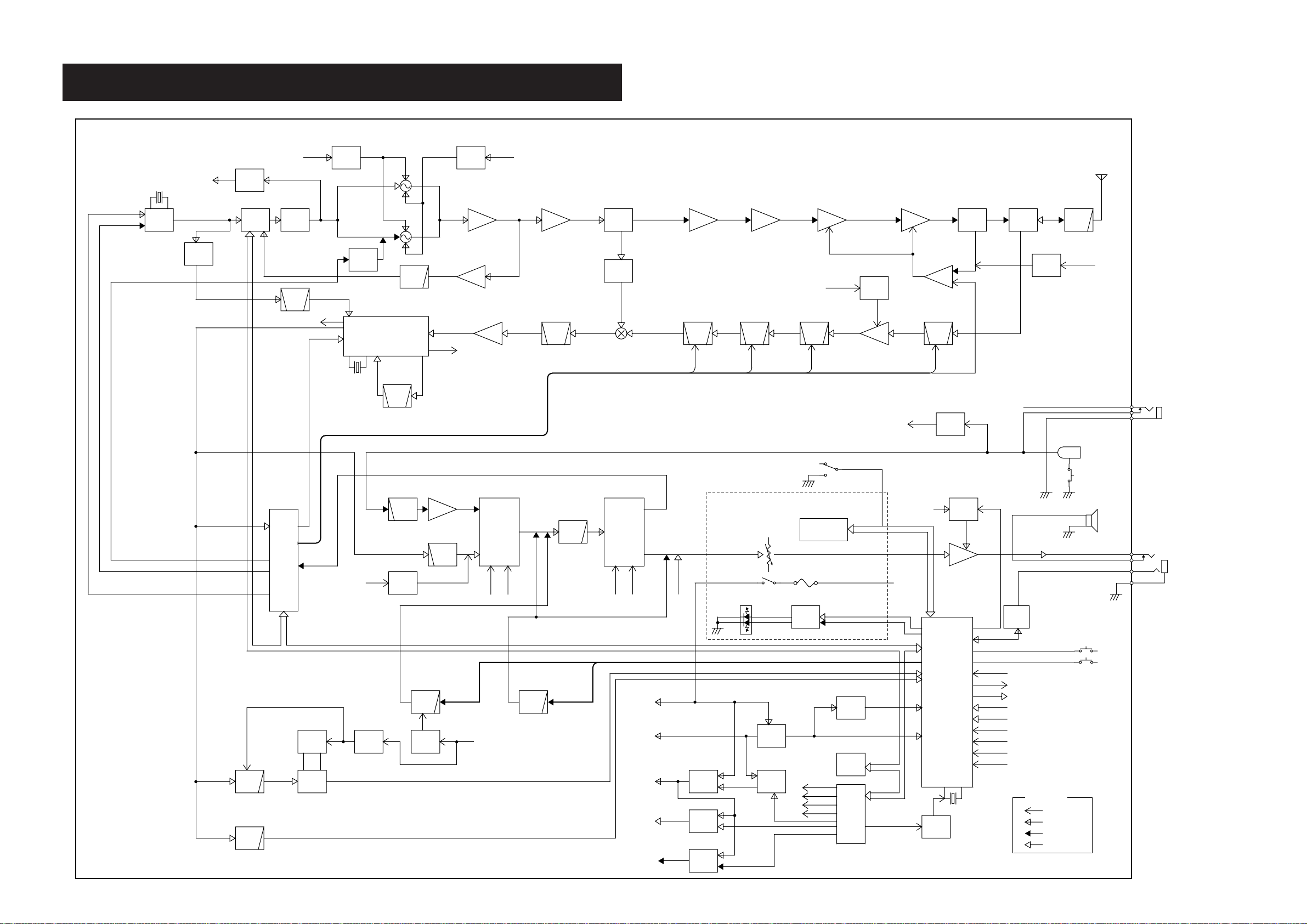

SECTION 11 BLOCK DIAGRAM

ANT 440–470MHz

Q1

2SK2974

D1 1SV307 D9,D10 MA77

D2 RB706F-40

Q2 2SK2973

Q3 2SC3585

Q4 2SC5107

VCO SW

D3,D4 MA77

Q7 2SC5107

Q5 2SC5107

Q8 DTC144EU Q9 XP1214

R5V

S5V

RX VCO

Q12 XP6501

Q10 2SC5085 D5 HVU350

Q11 2SC5085 D7 HVU350

LVIN

BUFF

Q13 2SK880

IC1 MB15A02PFV1

X1 CR-671A

REF BAL

DEV

15.3MHz

Q18 2SC4116

REF

Q31 2SC4215 D19 HVC362

393.65–470MHz

DET

PLST SO SCK UNLK

2nd MIXER IF AMP SQL AMP DETECTOR

MOD

TX VCO

2ndLO

45.9 MHz

D6 MA368

IC3 TA31136FN

IF IC

NOIS

Q6 2SC5107

Q17 2SC4215

FI1 FL-313

46.35MHz

Q19 3SK272

1stLO

393.65–423.65 MHz

D15 HVU350

D14 HVU350

D13 HVU350

AGC CONT

RSSI

Q33 3SK1829

PWR DET

T4

IC2 TA75S01F

D12 HVU350

MUTE SW

LPF

ANT

SW

PWR AMP

YGR AMP

PRE DRIVE

APC AMP

Q14 DTA144EU

TXC

EXT.MIC

T1

MC1 KUC3523

+5V

PTT SW

Q22 UN911H

J4

HSJ1122 010010

T2

Q15 3SK293

PTT

T4

T3

1st MIXER

FI2

RSSI

450kHz

X2 CDBCA450CX24

ALFYM450F=K

SQLIN

MICDET

DEV

DET

D/A

T1 T2 T3 T4

Q21 DTC144EU

IC5C NJM13403V

IC5B NJM13403V

IC9 M62363FP

IC6 BU4066BCFV

IC5D NJM13403V

IC6 BU4066BCFV

ANALOG SW

R1 AF VR

VOLIN

2ch VERSION S1 AS-244-A13

VCC

CH SELECT /EMERGENCY

S1 SW-A TP70QF4161 SW-B (EMER) SKHHLP014A

VOLOUT

CBI0

AF AMP REG

AFON

SP+ SP–

Q19 2SB1132 Q20 XP6501

AFOUT

S3

J5

HSJ1456-01-220A

INT.SP

PTT

INT.MIC

F1 F2

EXT.SP

IC4 TA7368F

CLI,CLO

CLONE

CLONE BUFF

Q32 DTC144TU

F1 F2 PTT TXC

D17 RB706F-40

BATT

FUSE

F1

LED SW

Q1 XP4216

HV

CBI0 CBI1 CBI2

CBI3 RLED TLED

TX LED

BUSY LED

DS1 LNJ107W5PRW

IC16 NJM12904V

SW

W/NNWC

DAST SCK SO

Q29 2SC4116

CTCSS/DTCS

REF

BAL

IC12A NJM12904V

RESTORATION

FIL SW

CDEC

IC12B NJM12904V

Q30 XP1213

Q28 DTC144EU

ANALOG

SW

IC13 TC7S66FU

DUSE

CENC0 CENC1 CENC2

SENC0 SENC1 SENC2 SENC3

+5 REG

S5 REG

VCC

+5V

S5V

IC10 NJM2870

Q24 2SB1132

S5 CONT

Q23

DTA144EU Q25 XP6501

EEPROM

RESET

CPU5V

RES

IC8 S-8094ANMP

RMUT MMUT DUSE

SO SCK EXST

IC15

SCK ESDA

CPU IC7 HD6433664

IC11 HN58X2416TI

X3 CR-702

BEEP NOIS RSSI LVIN BDET TEMP BATV

D16 MA77

SHIFT SW

EXPANDER

NWC

CSFT

S5C R5C

T5C

BU4094BCFV

R5 REG

T5 REG

R5V

T5V

Q26 2SA1577

Q27 2SA1577

SDEC

IC5A NJM13403V

Explanatory notes

COMMON LINE TX LINE RX LINE

CONTROL LINE

BPFBPFBPFBPF

RF

AMP

TX / RX

SW

BUFFBUFF

BUFF

ATT

XTRL

BPF

AMP

RIPPLE

FIL

LOOP

FIL

PLL

IC

BPF

LPF

x 3

CERAMIC

BPF

MIC

AF AMP

LPF

AMP

HPF

LPF

BEEP

TONE

RMUT

MMUT

CTCSS

R5C

LPF

DET

LPF

MAIN UNIT

SW-A/SW-B UNIT

SPEAKER

E

1

0

SP1

MC1

MIC

PTT

EXT.MIC

EXT.SP

From SW-A UNIT

From/to SW-A and SW-B UNITS

CHASSIS UNIT

W1

1 2

OPC-963

J4

J5

SECTION 12 VOLTAGE DIAGRAM

12-1 MAIN UNIT

VCC T5V

S5V +5V

+5V +5V

R47 47

R50 56

C84

C85

0.001

2.2

R244 22

IC1 MB15A02PFV-1

R52 1k

+5V R5V S5V

C153

0.01

C152

Q18

10 P

S5V

R5V

Q32 DTC144TU

2SC4116 GR

SQLIN

VCC S5V +5V

+5V +5V

PTT ON 4.8V PTT OFF 0V

SQLIN

MIC MIC VOLIN VOLOUT

AFOUT

SQLIN

S5V

VCC

+5V S5V R5V

T5V

4.9 V 0 V

Q27 2SA1577 Q

R174

4.7 k

T5C

CLI

CLO

C258 47 P

J1 [F21]only

BDET

S1

S2

EP7

W12W13

1 2 3 4

C156

C157

C159

C158

0.001

EP4

AFOUT SP CLONE

0.001

C161

C162 470 P

SP

C213

0.001

C215

0.001

EP5

C240 47 P

OPT MIC

0.001

C237

0.001

C239

0.001

C214 47 P

C160 47

MIC R175

33 k

C238

0.001

J2

1 2 3 4 5 6 7

J3

1 2

S1

C93 47 P

C94 47 P

CBI0 CBI1 CBI2 CBI3

CBI0

RLED

TLED

VOLOUT

VOLIN

AFOUT

MIC

VCC

REF

F1

BAL

LVIN

F2

R232 150 k

PLST SO SCK UNLK

DEV

C92

0.1

VCC

+5V

R5V

T5V

PTT

VOLIN

VOLOUT

VCC

+5V

R5V

T5V

R5V

+5V

R213 470

R245 100

D17 RB706F-40

R97 680 k

C190

0.1

C212

0.01

R211 100 k

R96

1.2 k

R51 47 k

16

R

15

P

14

FOUT

13

NC

12

FC

11

LE

10

DATA

9

LOCK 4.5 V UNLOCK 0.5 V

0 V

3.5 V

L28

0.22 H

C189 470 P

BDET

OSCOUT

D20 MA2S111

R100 22 k

R173 10 k

R210 120 k

R214 1 k

R215 22 k

D19 HVC362

OSCIN

VP

VCC

DO

GND

LD

FINCLOCK

R99

1.2 k

C188 10

0 V

4.9 V

Q26 2SA1577 Q

R172

4.7 k

R5C

C252 100 P

1 2 3 4 5 6 7 8

R216 22 k

C151 56 P

C150 4 P

R142 100 k

SENC3

R222 68 k

C82

0.1

C253 9 P

C86

0.001

C149 7 P

C154 220 P

C155 220 P

R141 470

Q22 UN911H

C211

0.01

R217 47 k

R223 68 k

C242

0.0027

X1

SENC2

D21 MA2S111

C88

0.1

L27

0.82 H

R98 47 k

R171 10 k

C210 22

R218 100 k

4.8 V

R49 47 k

SENC1

R48 82 k

C81 100 P

C83 100 P

15.3 MHz

0.75 V P-P

C87 47 P

C148 3 P

FI2 ALFYM450F=k

Q24 2SB1132 R

6

132

R170

2.2 k

SENC0

R219 220 k

R224 68 k

OI

5

C209

0.1

C243

0.0056

Q31 2SC4215 O

R46

1.2 k

C89

0.001

+5V R5V S5V

C147

0.1

C187

0.022

4

C244 180 P

4.9 V

C80 47 P

R53 47

R95 150

R140 15 k

R169 10k

Q25 XP6501 AB

3 2

C90 6 P

R94 47

4.7 V

C146

0.001

C186

0.0056

8

1

4

IC16A NJM12904V

L18 15 nH

0 V

IC3 TA31136FN

1

OSCOUT

2

OSCIN

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN AFOUT

C145 1

R139 100 k

Q23 DTA144 EU

C208

0.01

C223 47 P

C91 6 P

S5C

R225 68 k

R138 470

MIXIN

N-REC

N-DET IFOUT

QUAD

C185

0.1

GND

RSSI

DEV +5V R5V S5V

Q13 2SK880 Y

R45 10 k

16 15 14 13 12 11 10 9

C144

0.001

C207 10

+5V

R43 47 k

R42 1 k

R39 100 k

R221 100 k

C143

0.001

C142

0.001 VOC

S5V +5V

IC5C NJM13403V

10 9

C184 180 P

R137 180 k

C245

0.0082

R226 68 k

C246 68 P

VCC T5V

S5V

Q12 XP6501 AB

61

2

R44 1 k

R38 22 k

X2 CDBCA450CX24

C140 120 P

NOIS

8

R136 10 k

SQLIN VCC

+5V

IC10 NJM2870

VIN

CTRL

S5V S5V R5V

C78

0.001

C77

0.047

GND

VOUT

VB

C259

0.01

C72

0.001

R92

1.8 k

5 6

C76 1

C206 10

LV

RSSI

2.1 V

5/2 tonecode transmitting 3 V P-P

IC16B NJM12904V

5

3

4

R220

C58

2.2 k

10

C59 47 P

C73 47 P

R40

R41

6.8 k

3.9 k

R37 100 k

C205

0.1

7

C139

0.001

C183

0.1

TONE

C75

0.1

VOLIN VOLOUT

AFOUT

R93 330

R134

4.7 k

C182

0.047

R5V

C138

0.001

R198 22 k

L14

4.7 H

L17

4.7 H

C74

0.001

C231

0.039

C137 100P

DET

R197 22 k

C57 47 P

C181

0.047

C55 7 P

D5 HVU350B

C69 7 P

D7 HVU350 B

R91 470

Q17 2SC4215 O

R133 12 k

R131

5.6 k

WIDE 4.8 V NAR 0 V

T1 T2 T3 T4 DAST SCK SO

C236

0.022

C230

0.01

R132 10 k

C68 3 P

R168 470 k

C54 6 P

C67

0.3 P

D6 MA368

R89 1 k

0 V

2.9 V

R90 120 k

R88 180

IC5B NJM13403V

Q21 DTC144EU

NWC

R167 470 k

R208 100 k

R209 100 k

C228

0.1

R196 22 k

C229

0.0068

C56 1

C53 4 P

C136

0.001

5 6

R166 470 k

R207 39 k

L13 11 nH

C66

1.5 P

R34 120 k

7

R129 10 k

C257

0.1

C227

0.01

3 2

IC12A NJM12904V

R29

3.3 k

L16 11 nH

8

4

C52 4 P

R32

3.3 k

R240 82 k

R128 47 k

1

C65 5 P

C71 1

R87

2.7 k

C235 820 P

R130 12 k

R206 82 k

0 V

0.7 V

FI1 FL-313

2.1 V

R127 10 k

C234 820P

C70

0.001

R36 18k

C180

0.0022

C134 20 P

R194 68 k

C50 7 P

C51 8 P

C63 5 P

C64 10 P

R195 120 k

R28

2.7 k

W4

R31

3.3 k

Q11 2SC5085 Y

R35 100k

T1 T2 T3 T4 DAST SCK SO

C204

0.01

C226

0.1 R193

220 k

R126 1

L15

0.68 H

R205 180 k

C233

0.1

C225

4.7

0 V

1.7 V

R165 470

C203

0.01

R192 18 k

C132

0.001

C133 5 P

MMUT

R204 390 k

C224

0.033

R5C

R33 220

C61 47 P

C62

0.5 P

C130

0.01

R189 100 k

4.8 V

EP2

Q10 2SC5085 Y

EP3

C60

0.001 R30

330

Q9 XP1214

R84 1k

R85 1

R86 270

IC6 BU4066BCFV

1

I/O

2

O/I

3

O/I

4

I/O

5

CONT.B

6

CONT.C

7

VEE

IC9 M62363FP-650C

1

T1

2 3

T2

4 5 6

DAST

7

SCK

8

SO

9

10

T3 T4

11 12

4

2

1

3

IC5A

11

NJM13403V

IC13 TC7S66FU

R190 47k

R191 47k

C49

0.5 P

1.8 V 0 V

VIN1 VOUT1 VOUT2 VIN2 VDD LD CLK DI VIN3 VOUT3 VOUT4 VIN4

Q30 XP1213

4

R5V S5V

RSSI

C129 12 P

Q16 3SK272

C128

0.001

VCC S5V +5V

VDD CONT.A CONT.D

VOLIN VOLOUT

AFOUT

VOUT8 VOUT7

RESET

VDAREF

VOUT6 VOUT5

5 4

C48

0.001

5

4

I/O O/I O/I I/O

VIN8

VIN7 GND

VIN6

VIN5

1

DO

2.5 V

2

3 2 1 5

R203 56 k

3

VCC T5V VCO5V

14 13 12 11 10 9 8

24 23 22 21 20 19 18 17 16 15 14 13

1 2

3

C127 47 P

C232

0.0012

R27 10 k

R83 100

L26

1.0 H

0 V

1.0 V

R242

3.3 k

DET SQLIN DEV

+5V

BAL REF

SDEC

6 5

IC12B NJM12904V

0 V

4.5 V

R188 470 k

7

CTCSS code

3.1 V P-P

Q8 DTC144

C251

0.001

R82 47 k

REF

R187 470

PUSE

C46 470

BAL

CDEC

12 - 1

5

5 Y

V 7 V

8 H

C133 5 P

MMUT

C132

0.001

R5C

R33 220

C61 47 P

C62

0.5 P

C130

0.01

EP2

Q10 2SC5085 Y

C49

0.5 P

EP3

C60

1.8 V 0 V

0.001 R30

330

Q9 XP1214

R84 1k

R85 1

R86 270

IC6 BU4066BCFV

1

I/O

2

O/I

3

O/I

4

I/O

5

CONT.B

6

CONT.C

7

VEE

R5V S5V

RSSI

C129 12 P

Q16 3SK272

C128

0.001

VCC S5V +5V

VDD

CONT.A

CONT.D

VOLIN VOLOUT

AFOUT

C48

0.001

5

4

I/O O/I O/I I/O

VCC T5V VCO5V

14 13 12 11 10 9 8

1 2

3

C127 47 P

L26

1.0 H

R242

3.3 k

R27 10 k

R83 100

0 V

1.0 V

Q8 DTC144EU

C251

0.001

0 V

4.5 V

R82 47 k

C46 470 P

L25 33 nH

C45 47 P

C47 47 P

RMUT

4.1 V

3.7 V

C179 1

R26 68 k

R24 100

R25 330

Q7 2SC5107 O

C126 5 P

C123 22 P

R76

4.7 k

R125 1 M

C44 3 P

R124 27 k

C178

0.01

C43 470 P

R81 470

L24 10 nH

R23 68 k

TONE

3.3 V

Q6 2SC5107 O

R80 12

C122 5 P

C120 8 P

T4

R123 120 k

R22 220

L11 27 nH

R79 470

R75 10 k

C248 0.1

C42 12 P

R122 10 k

D15

C125 10 P

R74 220 k

C121 47 P

BEEP

C41 12 P

C40 470 P

R21 33

1LO

C119

0.5 P

C118 47 P

R121

0.8 k

R78 10 k

R72 220 k

R73 10 k

C176

0.0033

C177

2.2

D14 HVU350B

VCO5V

R19 100

3.5 V

R20 47 k

Q5 2SC5107 O

R77 1 k

C117 8 P

T3

R118 220 k

R119 150 k

R120 39 k

C260

0.001

R16 10 k

C37

0.001

D3 MA77

C115

0.3 P

2.1 V

R71 10 P

C38 5 P

2.1 V 0 V

C112

0.001

R70 220 k

R117 100 k

R17 100

0 V

4.6 V

D13 HVU350 B

C114 47 P

IC5D NJM13403V

C36 10 P

C111 5 P

C113 8 P

VCC S5V

C174 180 P

13 12

L10 27 nH

1.3 V

1.2 V

C39 5 P

D4 MA77

R18

4.7 k

0 V

2.0 V

R5V S5V

RSSI RSSI

R69

L23 10 nH

C175 0.0056

47

T2

R116 33 k

C124

0.001

C116 6 P

R115 120 k

3.7 V 0 V

R15 56 k

0 V

2.0 V

14

R13 220

L9 15 nH

Q4 2SC5107 O

C110 47 P

R114 10 k

R14 1 k

C33 10 P

R66 10 k

L22 10 nH

Q15 3SK293

C109

0.001

R113 470

C34 47 P

C35 47 P

C173

0.1

C31 470 P

C108 47 P

R68 330

R11 10

R12 12 k

VCC VCC T5V

Q3 2SC3585 R44

0 V

4.6 V

C249

0.1

C107

R64

0.001 100 k

0 V

3.1 V

R111 18 k

L8 12 nH

S5V

R112

2.2 k

4.7 V 0 V

S5V

R229

1.8 k

C106

3 P R65 220 k

VOLOUT AFOUT

C29 12 P

C172 47

C30

0.001

R110

3.3 k

C28 5 P

Q33 2SK1829

L21 10 nH

AF ON

4.8 V

R10

4.7 k

R238 100 k

C105 3 P

AFON

C21

0.01

R228 470 k

D18 MA2S111

T1

R109 68 k

R9 33 k

L6 EXCCL3225U

C255

0.001

R8 100

C26

0.001

C27 470 P

R227 180 k

C104 7 P

R63 10 k

VCC

D22 MA2S111

W14

W2

0 V

0.6 V

C102

1.5 P

D12 HVU350B

C171

0.22

C20

0.001

Q2 2SK2973

R62 220 k

D10 MA77

C103 47 P

Q19 2SB1132 R

12

R107 1 k

R7

4.7 k

L20 14 nH

C18 47 P

C100 8 P

R5 10

R6 3 3k

L19 14 nH

D9 MA77

456

3

Q20 XP6501 AB

C170

0.1

C25

0.001

C24 39 P

C23 20 P

C99 9 P

VCO5V

R105

2.7 k

R106

3.3 k

R61 1 k

L30

0.30-0.9-9TR

Q1 2SK2974

MP5

2.4 V 0 V

C169

6.8

C17 36 P

C98

0.01

R60 100

AF ON

7.5 V

C168

0.22

VOLOUT

L5

0.4-0.9-2TL

EP8

C14 10 P

R104 10 k

W8

C167

0.047

C13 12 P

C15

0.001

C12

0.001

2

4

5

IC2 TA75S01F

R243 1 k

C164

0.047

L2 14 nH

R102 10

AFOUT

L1 14 nH

C3

R1

7 P

82 k

R54 10 k

R239 100 k

C163 100

ANT

T5V

R2

C6

100

C9

C8

0.001

47P

L4 14 nH

R3 15 k

D2 RB706F-40

R4 1 k

C97

0.1

R58 150 k

3 1

R59

C96

120 k

0.1

IC4 TA7368F

1 2 3 4 5

NC VCC NC VIN RIPPLE

POUT

PWGND

PREGND

PHASE

L3

0.82 H

C7

0.001

R55

2.2 k

1.6 V

4.4 V

R57 68 k

NF

D1 1SV307

R56 10 k

10 9 8 7 6

0.001

S5V

T4

C166 10

C5 4 P

Q14 DTA144EV

TXC

AF ON

3.4 V

R103 33

C165 47 P

R153 100 k

TEMP

OSC1 OSC2

CPU5V

C247

0.1

4.9 V

CPU5V

R234 100 k

R154 100 k

R233 100 k

CPU5V X1

VCL RES TEST VSS OSC2 OSC1 VCC

165

70

203

.01

R204 390 k

5 k

3

192

8 k

C224

0.033

5

R189 100 k

T1 T2

DAST SCK SO

T3 T4

2 3

1

VIN1

2

VOUT1

3

VOUT2

4

VIN2

5

VDD

6

LD

7

CLK

8

DI

9

VIN3

10

VOUT3

11

VOUT4

12

VIN4

4

1

IC5A

11

NJM13403V

IC13 TC7S66FU

R190 47k

R191 47k

VIN8 VOUT8 VOUT7

VIN7

GND RESET

VDAREF

DO

VIN6 VOUT6 VOUT5

VIN5

1 5 4

2

Q30 XP1213

4

R203 56 k

2.5 V

3 2 1 5

24

DET

23

SQLIN DEV

22 21 20 19

+5V

18 17 16

BAL

15

REF

14 13

REF

BAL

SDEC

C232

0.0012

3

6

7

5

IC12B NJM12904V

CDEC

R187 470

R188 470 k

0 V

1.8 V

CTCSS code transmitting

3.1 V P-P

PUSE

R185 27 k

DEV

EP6

DET

S5V

C202

0.001

C200

0.027

4.9 V

Q29 2SC4116 GR

R184 47 k

C222 0.047

R186 150 k

IC9 M62363FP-650C

4.8 V

L29 39 H

C201 47 P

IC8 S-80942ANMP-D6

C220 820 P

1

5

OUT

CD

2

VDD

3

4

NC

VSS

R182 47 k

C219

0.1

R181 47 k

Q28 DTC144EV

R176 22 k

R180 47 k

C218

0.0082

R160 10 k

R177 22 k

R178 56 k

R179 180 k

C199

0.001

CENC2

CENC1 CENC0

RMUT MMUT

NWC S5C R5C T5C

DUSE

C196 470 P

DTCS

4.5 V

C197 22

CSFT

D16 MA77

R159 12 k

R157 12 k

R163 1 k

R164 1 k

R202 100 k

ESDA

SCK

C195 68 P

R158 12 k

C194 15 P

R161 10 k

R151 NTCCM20124AG473JCT

X3

R156 1 M

16

4

Q1

STR

5

Q2

6

CLK

Q3

7

Q4

14

Q5

13

Q6

12

Q7

11

Q8

9

QS

10

QS

8

C216

0.01

1 2

D

3 15

OE

IC15 BU4094BCFV

8

VCC

7

WP

6

SCL

5

SDA

IC11 HN58X2416TI

R152 100 k

C193 22 P

R155 10

C191

0.1

14.7456 MHz

1.1 V P-P

EXST SO SCK

1

A0

2

A1

3

A2

4

VSS

RES

C198

0.1

C192

0.1

SENC1

SENC0

CBI0

CBI1

10 11 12 13 14 15 16

BATV

1

NC

2

NC

3

AVCC

4

X2

5

X1

6

VCL

7

RES

8

TEST

9

VSS OSC2 OSC1 VCC P50/WKP0 P51/WKP1 NC NC

R200 1 k

64

17

BDET

LVIN

RSSI

SDEC

CDES

UNLK

63

6261605958575655535251

NC

PB0/AN0

PB1/AN1

IC7 HD6433664A24FP

NCNCP52/WKP2

P53/WKP3

1819202122232425272829

SENC3

SENC2

PB2/AN2

PB3/AN3

PB7/AN7

PB6/AN6

PB5/AN5

P54/WKP4

P55/WKP5/ADTRG

P10/TMOW

P11

P12

263230

CBI2

CENC2

CENC1

CENC0

54

PB4/AN4

P56/SDA

CBI3

NOSEF2F1

P17/RQ3

P16/RQ2

P15/RQ1

P57/SCL

P74/TMRIV

P75/TMCIV

SO

SCK

R149 1 k

50

49

NC

P14/RQ0

P22/TXD

P21/RXD

P20/SCK3

P87 P86

P85 P84/FTIOD P83/FTIOC P82/FTIOB P81/FTIOA

P80/FTCI

NMI

P76/TMOVNCNC

31

R201 1 k

NC NC

BEEP

REMO

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

R199 47 k

R241 1 k

R146 100 k

R143 100 k

R145 100 k

R212 15k

CLO CLI ESDA AFON TLED RLED TXC

PTT EXST DAST PLST

SPEAKER

SP1

MC1

MIC

PTT

EXT.MIC

EXT.SP

From SW-A UNIT

From/to SW-A and SW-B UNITS

CHASSIS UNIT

W1

1 2

OPC-963

J4

J5

SECTION 12 VOLTAGE DIAGRAM

12-1 MAIN UNIT

VCC T5V

S5V +5V

+5V +5V

R47 47

R50 56

C84

C85

0.001

2.2

R244 22

IC1 MB15A02PFV-1

R52 1k

+5V R5V S5V

C153

0.01

C152

Q18

10 P

S5V

R5V

Q32 DTC144TU

2SC4116 GR

SQLIN

VCC S5V +5V

+5V +5V

PTT ON 4.8V PTT OFF 0V

SQLIN

MIC MIC VOLIN VOLOUT

AFOUT

SQLIN

S5V

VCC

+5V S5V R5V

T5V

4.9 V 0 V

Q27 2SA1577 Q

R174

4.7 k

T5C

CLI

CLO

C258 47 P

J1 [F21]only

BDET

S1

S2

EP7

W12W13

1 2 3 4

C156

C157

C159

C158

0.001

EP4

AFOUT SP CLONE

0.001

C161

C162 470 P

SP

C213

0.001

C215

0.001

EP5

C240 47 P

OPT MIC

0.001

C237

0.001

C239

0.001

C214 47 P

C160 47

MIC R175

33 k

C238

0.001

J2

1 2 3 4 5 6 7

J3

1 2

S1

C93 47 P

C94 47 P

CBI0 CBI1 CBI2 CBI3

CBI0

VCC RLED TLED

VOLOUT

VOLIN

AFOUT

MIC

REF

F1

BAL

LVIN

F2

R232 150 k

PLST SO SCK UNLK

DEV

C92

0.1

VCC

+5V

R5V

T5V

PTT

VOLIN

VOLOUT

VCC

+5V

R5V

T5V

+5V

R5V

R213 470

R245 100

D17 RB706F-40

R97 680 k

C190

0.1

C212

0.01

R211 100 k

R96

1.2 k

R51 47 k

16 15 14 13 12 11 10

9

LOCK 4.5 V UNLOCK 0.5 V

0 V

3.5 V

L28

0.22 H

C189 470 P

R P FOUT NC FC LE DATA

BDET

D20 MA2S111

R100 22 k

R173 10 k

R210 120 k

R214 1 k

D19 HVC362

OSCIN

OSCOUT

C188 10

R215 22 k

C252 100 P

1 2 3

VP

4

VCC

5

DO

6

GND

7

LD

8

FINCLOCK

C151 56 P

R99

1.2 k

0 V

4.9 V

Q26 2SA1577 Q

R172

4.7 k

R5C

R216 22 k

C150 4 P

R142 100 k

SENC3

R222 68 k

C82

0.1

C253 9 P

C86

0.001

C149 7 P

C154 220 P

C155 220 P

R141 470

Q22 UN911H

C211

0.01

R217 47 k

R223 68 k

C242

0.0027

X1

SENC2

D21 MA2S111

C88

0.1

L27

0.82 H

R98 47 k

R171 10 k

C210 22

R218 100 k

4.8 V

R49 47 k

SENC1

R48 82 k

C81 100 P

C83 100 P

15.3 MHz

0.75 V P-P

C87 47 P

C148 3 P

FI2 ALFYM450F=k

Q24 2SB1132 R

6

132

R170

2.2 k

SENC0

R219 220 k

R224 68 k

OI

5

C209

0.1

C243

0.0056

Q31 2SC4215 O

R46

1.2 k

C89

0.001

+5V R5V S5V

C147

0.1

C187

0.022

4

C244 180 P

4.9 V

C80 47 P

R53 47

R95 150

R140 15 k

R169 10k

Q25 XP6501 AB

3 2

C90 6 P

R94

0 V

47

4.7 V

C146

0.001

C186

0.0056

8

1

4

IC16A NJM12904V

L18

C91

15 nH

6 P

IC3 TA31136FN

1

OSCOUT

2

OSCIN

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN AFOUT

C145 1

R139 100 k

Q23 DTA144 EU

C208

0.01

S5C

C223 47 P

R225 68 k

R138 470

MIXIN

N-REC

N-DET IFOUT

QUAD

C185

0.1

DEV +5V R5V S5V

GND

RSSI

Q13 2SK880 Y

R45 10 k

16 15 14 13 12 11 10 9

C144

0.001

C207 10

+5V

R43 47 k

R42 1 k

R39 100 k

R221 100 k

C143

0.001

C142

0.001 VOC

S5V +5V

IC5C NJM13403V

10 9

C184 180 P

R137 180 k

C245

0.0082

R226 68 k

C246 68 P

VCC T5V

S5V

Q12 XP6501 AB

61

2

7

C59 47 P

R41

3.9 k

R37 100 k

C205

0.1

C139

0.001

C73 47 P

R40

6.8 k

5 4

R220

2.2 k

C183

0.1

TONE

C75

0.1

VOLIN VOLOUT

AFOUT

R93 330

R197 22 k

C57 47 P

C181

0.047

C55 7 P

D5 HVU350B

C69 7 P

D7 HVU350 B

R91 470

Q17 2SC4215 O

R133 12 k

R131

5.6 k

WIDE 4.8 V NAR 0 V

T1 T2 T3 T4 DAST SCK SO

C236

0.022

C230

0.01

R132 10 k

3

C58 10

R134

4.7 k

C182

0.047

R5V

C138

0.001

R198 22 k

L14

4.7 H

L17

4.7 H

C74

0.001

C231

0.039

C137 100P

DET

R44 1 k

R38 22 k

X2 CDBCA450CX24

C140 120 P

NOIS

8

R136 10 k

SQLIN VCC

+5V

IC10 NJM2870

VIN

CTRL

S5V S5V R5V

C78

0.001

C77

0.047

GND

VOUT

VB

C259

0.01

C72

0.001

R92

1.8 k

5 6

C76 1

C206 10

LV

RSSI

2.1 V

5/2 tonecode transmitting 3 V P-P

IC16B NJM12904V

C54 6 P

C67

0.3 P

C68 3 P

D6 MA368

R89 1 k

0 V

2.9 V

R90 120 k

IC5B NJM13403V

Q21 DTC144EU

NWC

R167

R168

470 k

R208 100 k

R209 100 k

C228

0.1

R196 22 k

C229

0.0068

R88 180

C56 1

C53 4 P

C136

0.001

5 6

R166 470 k

R207 39 k

L13 11 nH

C66

1.5 P

R34 120 k

7

R129 10 k

C257

0.1

C227

0.01

3 2

IC12A NJM12904V

R29

3.3 k

L16 11 nH

8

4

C52 4 P

R32

3.3 k

R240 82 k

R128 47 k

1

C65 5 P

C71 1

R87

2.7 k

C235 820 P

R130 12 k

R206 82 k

0 V

0.7 V

FI1 FL-313

2.1 V

R127 10 k

C234 820P

C70

0.001

R36 18k

C180

0.0022

C134 20 P

R194 68 k

C50 7 P

C51 8 P

C63 5 P

C64 10 P

R195 120 k

R28

2.7 k

W4

R31

3.3 k

Q11 2SC5085 Y

R35 100k

T1 T2 T3 T4 DAST SCK SO

C204

0.01

C226

0.1 R193

220 k

R126 1

L15

0.68 H

R205 180 k

C233

0.1

C225

4.7

0 V

1.7 V

R165 470

C203

0.01

R192 18 k

C132

0.001

C133 5 P

MMUT

R204 390 k

C224

0.033

R5C

R33 220

C61 47 P

C62

0.5 P

C130

0.01

R189 100 k

4.8 V

EP2

Q10 2SC5085 Y

EP3

C60

0.001 R30

330

Q9 XP1214

R84 1k

R85 1

R86 270

IC6 BU4066BCFV

1

I/O

2

O/I

3

O/I

4

I/O

5

CONT.B

6

CONT.C

7

VEE

IC9 M62363FP-650C

1

T1

2 3

T2

4 5 6

DAST

7

SCK

8

SO

9

10

T3 T4

11 12

4

2

1

3

IC5A

11

NJM13403V

IC13 TC7S66FU

R190 47k

R191 47k

C49

0.5 P

1.8 V 0 V

VIN1 VOUT1 VOUT2 VIN2 VDD LD CLK DI VIN3 VOUT3 VOUT4 VIN4

Q30 XP1213

4

R5V S5V

RSSI

C129 12 P

Q16 3SK272

C128

0.001

VCC S5V +5V

VDD

CONT.A

CONT.D

VOLIN VOLOUT

AFOUT

VOUT8 VOUT7

RESET

VDAREF

VOUT6 VOUT5

5 4

C48

0.001

5

4

I/O O/I O/I I/O

VIN8

VIN7 GND

VIN6

VIN5

1

DO

2

R203 56 k

2.5 V

3 2 1 5

14 13 12 11 10 9 8

3

VCC T5V VCO5V

24 23 22 21 20 19 18 17 16 15 14 13

C232

0.0012

1 2

3

C127 47 P

6 5

R27 10 k

R83 100

L26

1.0 H

R242

3.3 k

DET SQLIN DEV

+5V

BAL REF

SDEC

Q8 DTC144EU

C251

0.001

0 V

4.5 V

0 V

1.0 V

R82 47 k

R187 470

R188 470 k

7

IC12B NJM12904V

CTCSS code transmitting

3.1 V P-P

PUSE

REF

C46 470 P

BAL

CDEC

0 V

1.8 V

L25 33 nH

C45 47 P

RMUT

C47 47 P

DEV

R185 27 k

4.1 V

3.7 V

C179 1

R26 68 k

EP6

DET

S5V

C202

0.001

C126 5 P

R76

4.7 k

R125 1 M

C222 0.047

R24 100

R25 330

C43 470 P

C44 3 P

Q7 2SC5107 O

C123 22 P

R124 27 k

C178

0.01

IC8 S-80942ANMP-D6

C200

0.027

4.9 V

Q29 2SC4116 GR

C220 820 P

R184 47 k

R186 150 k

C201 47 P

R81 470

L24 10 nH

R23 68 k

Q6 2SC5107 O

R80 12

C122 5 P

TONE

L29 39 H

5

CD

4

NC

R182 47 k

3.3 V

OUT VDD VSS

1 2 3

T4

C219

0.1

C120 8 P

R123 120 k

C248 0.1

R22 220

L11 27 nH

C41 12 P

C42 12 P

C125

R79

10 P

470

D15

R74 220 k

R75

C121

10 k

47 P

R122 10 k

BEEP

R181 47 k

Q28 DTC144EV

C40 470 P

R21 33

R176 22 k

R180 47 k

C218

0.0082

1LO

C119

0.5 P

C118 47 P

R121

0.8 k

R160 10 k

R78 10 k

R72 220 k

R73 10 k

C176

0.0033

C177

2.2

R177 22 k

R178 56 k

R179 180 k

D14 HVU350B

VCO5V

R19 100

3.5 V

R20 47 k

Q5 2SC5107 O

R77 1 k

C117 8 P

T3

R118 220 k

R119 150 k

R120 39 k

C199

0.001

CENC2

CENC1 CENC0

C260

0.001

R16 10 k

C37

0.001

D3 MA77

C115

0.3 P

CSFT

2.1 V

C38 5 P

R71 10 P

D16 MA77

R159 12 k

2.1 V 0 V

C112

0.001

R70 220 k

R117 100 k

R157 12 k

R163 1 k

R164 1 k

R17 100

R202 100 k

C36 10 P

C111 5 P

0 V

4.6 V

C113 8 P

D13 HVU350 B

C114 47 P

VCC S5V

C174 180 P

13 12

IC5D NJM13403V

C195 68 P

R158 12 k

SCK

ESDA

L10 27 nH

1.3 V

1.2 V

C39 5 P

D4 MA77

R18

4.7 k

0 V

2.0 V

R5V S5V

RSSI RSSI

R69

L23 10 nH

C175 0.0056

C197 22

C196 470 P

DUSE

DTCS

4.5 V

47

T2

R116 33 k

C124

0.001

C116 6 P

RMUT MMUT

NWC S5C R5C T5C

R115 120 k

3.7 V 0 V

R15 56 k

0 V

2.0 V

14

C194 15 P

R161 10 k

R13 220

L9 15 nH

Q4 2SC5107 O

C110 47 P

R114 10 k

4 5 6

7 14 13 12 11

9 10

C216

0.01

C34 47 P

C35 47 P

R14 1 k

C31 470 P

C33 10 P

R66 10 k

L22 10 nH

Q15 3SK293

C109

0.001

R113 470

C173

0.1

R151 NTCCM20124AG473JCT

X3

R156 1 M

16

1

STR

Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8

QS QS

CLK

OE

8

2

D

3 15

IC15 BU4094BCFV

8

VCC

7

WP

6

SCL

5

SDA

R11 10

R12 12 k

C108 47 P

R68 330

R152 100 k

C193 22 P

IC11 HN58X2416TI

VCC VCC T5V

Q3 2SC3585 R44

0 V

4.6 V

C249

0.1

C107

0.001

0 V

3.1 V

14.7456 MHz

R155

1.1 V P-P

10

A0 A1 A2

VSS

R64 100 k

R111 18 k

C191

0.1

L8 12 nH

S5V

EXST SO SCK

1 2 3 4

R112

2.2 k

4.7 V 0 V

S5V

R229

1.8 k

C106

3 P R65 220 k

VOLOUT AFOUT

RES

C29 12 P

C172 47

C198

0.1

C30

0.001

R110

3.3 k

C28 5 P

Q33 2SK1829

L21 10 nH

AF ON

4.8 V

R238 100 k

TEMP

OSC1

OSC2

CPU5V

R10

4.7 k

C105 3 P

C21

0.01

R228 470 k

D18 MA2S111

T1

AFON

4.9 V

C247

0.1

R109 68 k

L6 EXCCL3225U

R8 100

R9 33 k

R227 180 k

C104 7 P

C255

0.001

C26

0.001

C27 470 P

R63 10 k

VCC

D22 MA2S111

W14

W2

0 V

0.6 V

C102

1.5 P

D12 HVU350B

C171

0.22

CPU5V

R234 100 k

C20

0.001

Q2 2SK2973

R62 220 k

D10 MA77

C103 47 P

Q19 2SB1132 R

12

R107 1 k

R153 100 k

R154 100 k

R233 100 k

R7

4.7 k

L20 14 nH

C18 47 P

C100 8 P

R6 3 3k

D9 MA77

456

3

C170

0.1

CPU5V X1

VCL RES TEST VSS OSC2 OSC1 VCC

C192

0.1

C24 39 P

R5 10

C25

0.001

L19 14 nH

Q20 XP6501 AB

CBI1

CBI0

SENC1

SENC0

VCO5V

2.4 V

C23

0 V

20 P

R61 1 k

C99 9 P

R105

2.7 k

R106

3.3 k

BATV

63

64

NC

1

NC

2

NC

3

AVCC

4

X2

5

X1

6

VCL

7

RES

8

TEST

9

VSS

10

OSC2

11

OSC1

12

VCC

13

P50/WKP0

14

P51/WKP1

15

NC

16

NC

NCNCP52/WKP2

17

1819202122232425272829

R200 1 k

L30

0.30-0.9-9TR

Q1 2SK2974

MP5

C169

6.8

BDET

6261605958575655535251

NC

PB0/AN0

PB1/AN1

IC7 HD6433664A24FP

P53/WKP3

SENC3

SENC2

C17 36 P

EP8

C98

0.01

R60 100

AF ON

7.5 V

C168

0.22

VOLOUT

LVIN

RSSI

SDEC

CDES

PB2/AN2

PB3/AN3

PB7/AN7

PB6/AN6

PB5/AN5

P54/WKP4

P55/WKP5/ADTRG

P10/TMOW

P11

P12

CENC2

CENC1

CENC0

L5

0.4-0.9-2TL

C14 10 P

UNLK

NOSEF2F1

54

PB4/AN4

P17/RQ3

P56/SDA

P57/SCL

263230

SCK

CBI3

CBI2

C13 12 P

C15

0.001

W8

R104 10 k

C167

0.047

50

P16/RQ2

P15/RQ1

P14/RQ0

P22/TXD P21/RXD

P20/SCK3

P84/FTIOD P83/FTIOC P82/FTIOB P81/FTIOA

P80/FTCI

P74/TMRIV

P75/TMCIV

P76/TMOVNCNC

31

R201 1 k

SO

C12

0.001

IC2 TA75S01F

R243 1 k

R149 1 k

49

NC

NC NC

P87 P86 P85

NMI

NC NC

BEEP

4

REMO

R199 47 k

C164

0.047

L2 14 nH

R102 10

AFOUT

CLO CLI ESDA AFON TLED RLED TXC

PTT EXST DAST PLST

L1 14 nH

C3

R1

7 P

82 k

R54 10 k

R239 100 k

C163 100

ANT

T5V

R2

C6

100

R145 100 k

L3

0.82 H

C7

0.001

R55

2.2 k

R57 68 k

NF

1.6 V

4.4 V

R56 10 k

D1 1SV307

10 9 8 7 6

R212 15k

0.001

S5V

T4

C166 10

C5 4 P

Q14 DTA144EV

TXC

AF ON

3.4 V

R103 33

C165 47 P

C9

C8

0.001

47P

L4 14 nH

R3 15 k

D2 RB706F-40

R4 1 k

C97

0.1

R58 150 k

3

2

1

5

R59

C96

120 k

0.1

IC4 TA7368F

1 2 3 4 5

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

NC VCC NC VIN RIPPLE

R241 1 k

R146 100 k

PWGND

PREGND

PHASE

R143 100 k

POUT

12 - 1

12 - 2

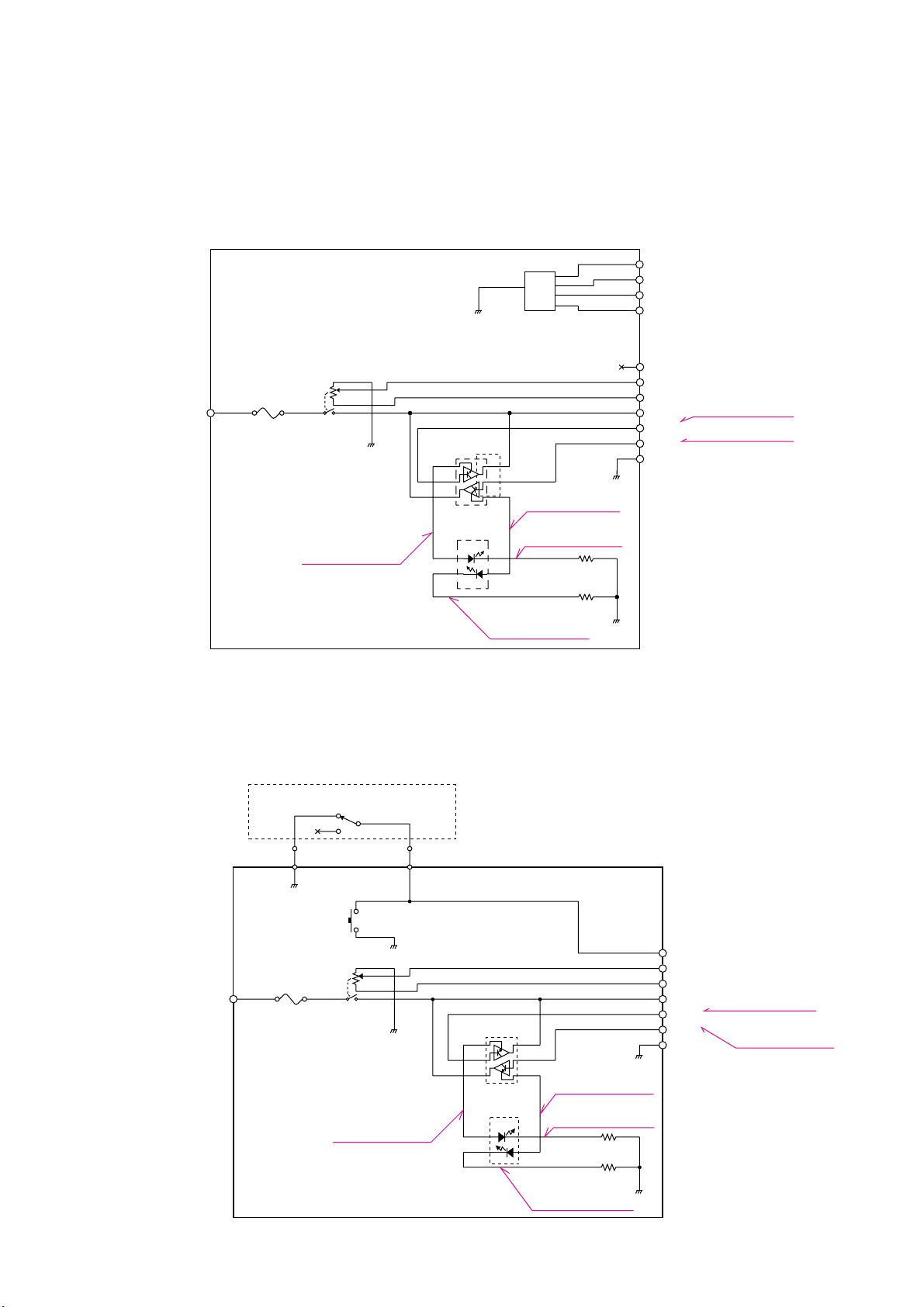

12-2 SW-A AND SW-B UNITS

• SW-A UNIT

TP76N00N-15F-10KA-2251 R1

Q1 XP4216

R3 560

R2 330

DS1 LNJ107W5PRW

C

1

2

3

4

8

5

S1

CP10 CP11

CP12

CBI0 CBI1

CP13

CBI2 CBI3

CP8

HV

F1

6 5 4

3

2

1

CP3 CP4

CP5 CP6

CP2

CP9

CBI0

VOLIN

VOLOUT

VCC RLED TLED GND

CP1

G

R

RX (SQL OPEN) 4.1 V

RX (SQL OPEN) 0 V

RX (SQL OPEN) 2.1 V

RX (SQL OPEN) 4.8 V TX 4.8 V

RX (SQL OPEN) 0 V TX 2.4 V

TX 0 V

TX 4.1 V

TX 0 V

RX (SQL OPEN) 0 V

• SW-B UNIT

CHASSIS UNIT

2CH VERSION

S1

W1

W2

EMERGENCY VERSION

S1

CP8

HV

TP76N00N-15F-10KA-2251 R1

F1

CP3 CP4

CP5 CP6

CP9 CP1 CP2

6 5 4 3

2

1

Q1 XP4216

CBI0 VOLOUT VOLIN VCC RLED TLED GND

R3 560

R2 330

DS1 LNJ107W5PRW

G

R

RX (SQL OPEN) 4.1 V

RX (SQL OPEN) 0 V

RX (SQL OPEN) 2.1 V

RX (SQL OPEN) 4.8 V

TX 4.8 V

RX (SQL OPEN) 2.1 V

TX 0 V

TX 4.1 V

RX (SQL OPEN) 0 V

TX 0 V

SERVICE MANUAL

1-1-32, Kamiminami, Hirano-ku, Osaka, 547-0003, Japan

S-13717IZ-C1

Icom IC-F21, IC-F21S User Manual

INTRODUCTION

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 DISASSEMBLY INSTRUCTIONS

SECTION 4 CIRCUIT DESCRIPTION

SECTION 5 ADJUSTMENT PROCEDURES

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

SECTION 8 SEMI-CONDUCTOR INFORMATION

SECTION 9 BOARD LAYOUTS

SECTION 11 BLOCK DIAGRAM

SECTION 12 VOLTAGE DIAGRAM
