ICOM IC-2200H, IC-2200T Service manual

Dec. 2010

SERVICE MANUAL
ADDENDUM

CONTENTS

PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

BOARD LAYOUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

[VERSION LIST]

Model Version

[EUR]

[TPE]

IC-2200H

IC-2200-T

IC-2200H

IC-2200-T

IC-2200H

[USA]

[KOR]

[SEA]

[THA]

[EXP]

[EUR-1]

[AUS]

[SEA-1]

[EXP-1]

[CHN]

[CHN-01]

[CHN-02]

[TPE-1]

[KOR-1]

[SEA-2]

[THA-1]

[THA-02]

[EXP-2]

[AUS-1]

[SEA-3]

[EXP-3]

[OTH-01]

TX output

power

65 W

25 W

65 W

50 W

65 W

10 W

65 W

10 W

65 W

Bandwidth

Wide/Narrow

Wide only

Wide/Narrow

Wide only

Wide/Narrow

Wide only

Dec. 2010

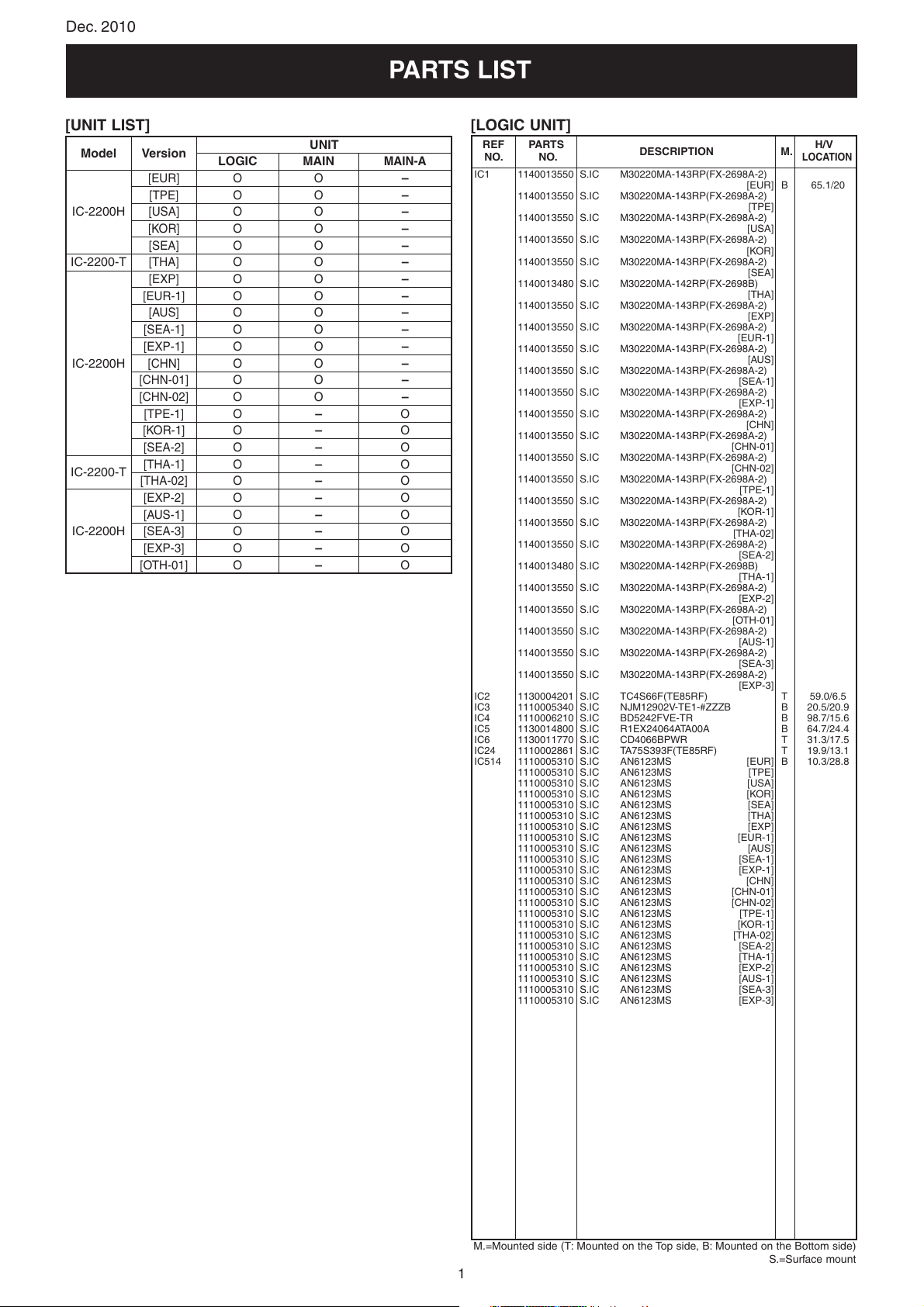

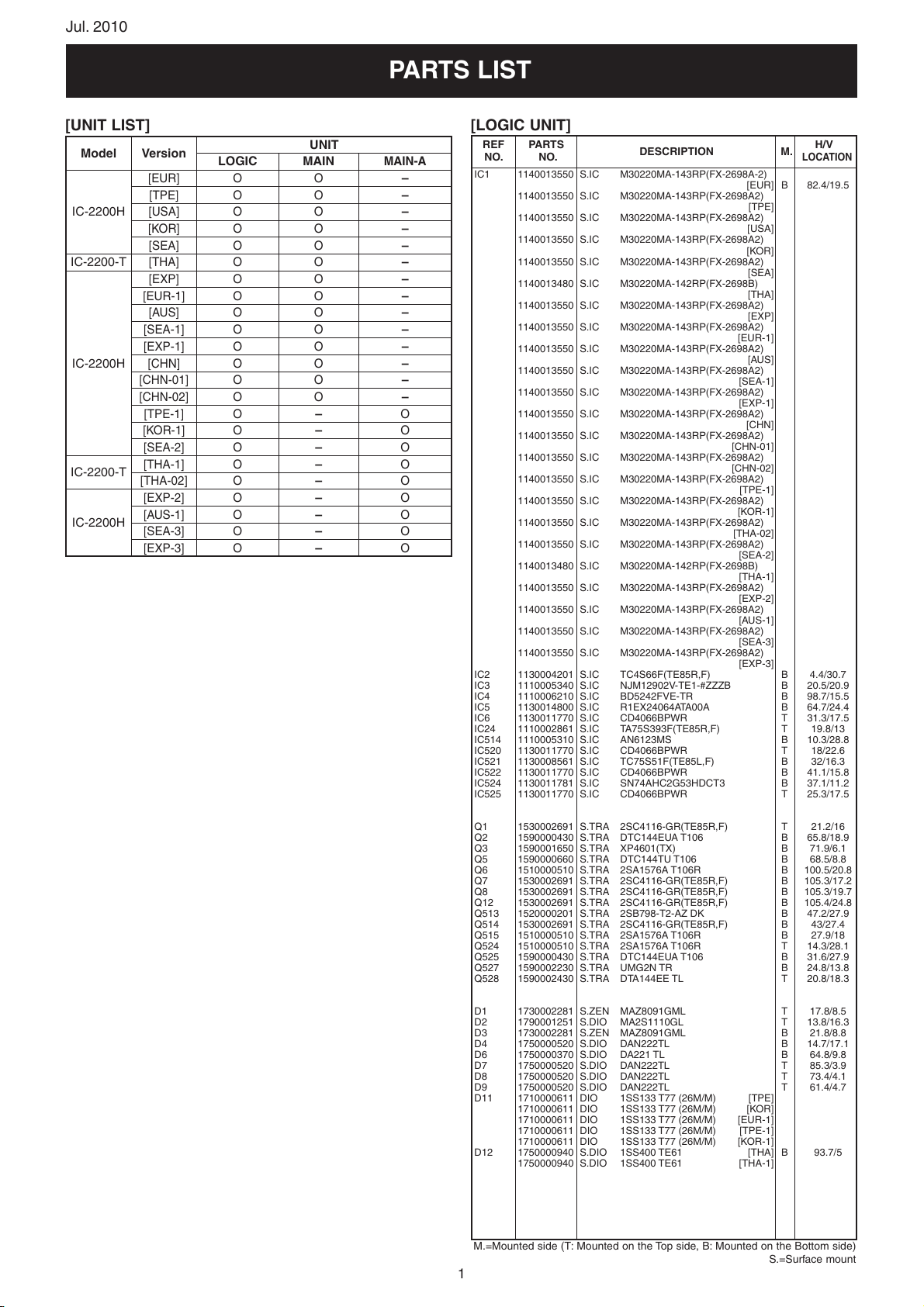

SECTION 6SECTION 6. PARTS LIST

[UNIT LIST]

Model Version

IC-2200H

IC-2200-T

[EUR-1] O O

[SEA-1] O O
[EXP-1] O O

IC-2200H

[CHN-01] O O
[CHN-02] O O

[TPE-1] O
[KOR-1] O
[SEA-2] O

IC-2200-T

IC-2200H

[THA-1] O

[THA-02] O

[EXP-2] O
[AUS-1] O
[SEA-3] O
[EXP-3] O

[OTH-01] O

UNIT

LOGIC MAIN

[EUR] O O
[TPE] O O
[USA] O O
[KOR] O O
[SEA] O O
[THA] O O
[EXP] O O

[AUS] O O

[CHN] O O

[LOGIC UNIT]

REF PARTS

MAIN-A

–
–
–
–
–
–
–
–
–
–
–
–
–

–
–
–
–
–
–
–
–
–
–
–

O
O
O
O
O
O
O
O
O
O

NO. NO.

IC1 1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[EUR] B 65.1/20
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[TPE]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[USA]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[KOR]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[SEA]
1140013480 S.IC M30220MA-142RP(FX-2698B)
[THA]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[EXP]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[EUR-1]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[AUS]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[SEA-1]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[EXP-1]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[CHN]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[CHN-01]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[CHN-02]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[TPE-1]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[KOR-1]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[THA-02]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[SEA-2]
1140013480 S.IC M30220MA-142RP(FX-2698B)
[THA-1]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[EXP-2]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[OTH-01]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[AUS-1]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[SEA-3]
1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[EXP-3]
IC2 1130004201 S.IC TC4S66F(TE85RF) T 59.0/6.5
IC3 1110005340 S.IC NJM12902V-TE1-#ZZZB B 20.5/20.9
IC4 1110006210 S.IC BD5242FVE-TR B 98.7/15.6
IC5 1130014800 S.IC R1EX24064ATA00A B 64.7/24.4
IC6 1130011770 S.IC CD4066BPWR T 31.3/17.5
IC24 1110002861 S.IC TA75S393F(TE85RF) T 19.9/13.1
IC514 1110005310 S.IC AN6123MS [EUR] B 10.3/28.8
1110005310 S.IC AN6123MS [TPE]
1110005310 S.IC AN6123MS [USA]
1110005310 S.IC AN6123MS [KOR]
1110005310 S.IC AN6123MS [SEA]
1110005310 S.IC AN6123MS [THA]
1110005310 S.IC AN6123MS [EXP]
1110005310 S.IC AN6123MS [EUR-1]
1110005310 S.IC AN6123MS [AUS]
1110005310 S.IC AN6123MS [SEA-1]
1110005310 S.IC AN6123MS [EXP-1]
1110005310 S.IC AN6123MS [CHN]
1110005310 S.IC AN6123MS [CHN-01]
1110005310 S.IC AN6123MS [CHN-02]
1110005310 S.IC AN6123MS [TPE-1]
1110005310 S.IC AN6123MS [KOR-1]
1110005310 S.IC AN6123MS [THA-02]
1110005310 S.IC AN6123MS [SEA-2]
1110005310 S.IC AN6123MS [THA-1]
1110005310 S.IC AN6123MS [EXP-2]
1110005310 S.IC AN6123MS [AUS-1]
1110005310 S.IC AN6123MS [SEA-3]
1110005310 S.IC AN6123MS [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

1

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

IC520 1130011770 S.IC CD4066BPWR [EUR] T 18.0/22.6
1130011770 S.IC CD4066BPWR [TPE]
1130011770 S.IC CD4066BPWR [USA]
1130011770 S.IC CD4066BPWR [KOR]
1130011770 S.IC CD4066BPWR [SEA]
1130011770 S.IC CD4066BPWR [THA]
1130011770 S.IC CD4066BPWR [EXP]
1130011770 S.IC CD4066BPWR [EUR-1]
1130011770 S.IC CD4066BPWR [AUS]
1130011770 S.IC CD4066BPWR [SEA-1]
1130011770 S.IC CD4066BPWR [EXP-1]
1130011770 S.IC CD4066BPWR [CHN]
1130011770 S.IC CD4066BPWR [CHN-01]
1130011770 S.IC CD4066BPWR [CHN-02]
1130011770 S.IC CD4066BPWR [TPE-1]
1130011770 S.IC CD4066BPWR [KOR-1]
1130011770 S.IC CD4066BPWR [THA-02]
1130011770 S.IC CD4066BPWR [SEA-2]
1130011770 S.IC CD4066BPWR [THA-1]
1130011770 S.IC CD4066BPWR [EXP-2]
1130011770 S.IC CD4066BPWR [AUS-1]
1130011770 S.IC CD4066BPWR [SEA-3]
1130011770 S.IC CD4066BPWR [EXP-3]
IC521 1130008561 S.IC TC75S51F(TE85LF) [EUR] B 32.0/16.3
1130008561 S.IC TC75S51F(TE85LF) [TPE]
1130008561 S.IC TC75S51F(TE85LF) [USA]
1130008561 S.IC TC75S51F(TE85LF) [KOR]
1130008561 S.IC TC75S51F(TE85LF) [SEA]
1130008561 S.IC TC75S51F(TE85LF) [THA]
1130008561 S.IC TC75S51F(TE85LF) [EXP]
1130008561 S.IC TC75S51F(TE85LF) [EUR-1]
1130008561 S.IC TC75S51F(TE85LF) [AUS]
1130008561 S.IC TC75S51F(TE85LF) [SEA-1]
1130008561 S.IC TC75S51F(TE85LF) [EXP-1]
1130008561 S.IC TC75S51F(TE85LF) [CHN]
1130008561 S.IC TC75S51F(TE85LF) [CHN-01]
1130008561 S.IC TC75S51F(TE85LF) [CHN-02]
1130008561 S.IC TC75S51F(TE85LF) [TPE-1]
1130008561 S.IC TC75S51F(TE85LF) [KOR-1]
1130008561 S.IC TC75S51F(TE85LF) [THA-02]
1130008561 S.IC TC75S51F(TE85LF) [SEA-2]
1130008561 S.IC TC75S51F(TE85LF) [THA-1]
1130008561 S.IC TC75S51F(TE85LF) [EXP-2]
1130008561 S.IC TC75S51F(TE85LF) [AUS-1]
1130008561 S.IC TC75S51F(TE85LF) [SEA-3]
1130008561 S.IC TC75S51F(TE85LF) [EXP-3]
IC522 1130011770 S.IC CD4066BPWR [EUR] B 41.1/15.8
1130011770 S.IC CD4066BPWR [TPE]
1130011770 S.IC CD4066BPWR [USA]
1130011770 S.IC CD4066BPWR [KOR]
1130011770 S.IC CD4066BPWR [SEA]
1130011770 S.IC CD4066BPWR [THA]
1130011770 S.IC CD4066BPWR [EXP]
1130011770 S.IC CD4066BPWR [EUR-1]
1130011770 S.IC CD4066BPWR [AUS]
1130011770 S.IC CD4066BPWR [SEA-1]
1130011770 S.IC CD4066BPWR [EXP-1]
1130011770 S.IC CD4066BPWR [CHN]
1130011770 S.IC CD4066BPWR [CHN-01]
1130011770 S.IC CD4066BPWR [CHN-02]
1130011770 S.IC CD4066BPWR [TPE-1]
1130011770 S.IC CD4066BPWR [KOR-1]
1130011770 S.IC CD4066BPWR [THA-02]
1130011770 S.IC CD4066BPWR [SEA-2]
1130011770 S.IC CD4066BPWR [THA-1]
1130011770 S.IC CD4066BPWR [EXP-2]
1130011770 S.IC CD4066BPWR [AUS-1]
1130011770 S.IC CD4066BPWR [SEA-3]
1130011770 S.IC CD4066BPWR [EXP-3]
IC524 1130011781 S.IC SN74AHC2G53HDCT3 [EUR] B 37.1/11.2
1130011781 S.IC SN74AHC2G53HDCT3 [TPE]
1130011781 S.IC SN74AHC2G53HDCT3 [USA]
1130011781 S.IC SN74AHC2G53HDCT3 [KOR]
1130011781 S.IC SN74AHC2G53HDCT3 [SEA]
1130011781 S.IC SN74AHC2G53HDCT3 [THA]
1130011781 S.IC SN74AHC2G53HDCT3 [EXP]
1130011781 S.IC SN74AHC2G53HDCT3 [EUR-1]
1130011781 S.IC SN74AHC2G53HDCT3 [AUS]
1130011781 S.IC SN74AHC2G53HDCT3 [SEA-1]
1130011781 S.IC SN74AHC2G53HDCT3 [EXP-1]
1130011781 S.IC SN74AHC2G53HDCT3 [CHN]
1130011781 S.IC SN74AHC2G53HDCT3 [CHN-01]
1130011781 S.IC SN74AHC2G53HDCT3 [CHN-02]
1130011781 S.IC SN74AHC2G53HDCT3 [TPE-1]
1130011781 S.IC SN74AHC2G53HDCT3 [KOR-1]
1130011781 S.IC SN74AHC2G53HDCT3 [THA-02]
1130011781 S.IC SN74AHC2G53HDCT3 [SEA-2]
1130011781 S.IC SN74AHC2G53HDCT3 [THA-1]
1130011781 S.IC SN74AHC2G53HDCT3 [EXP-2]
1130011781 S.IC SN74AHC2G53HDCT3 [AUS-1]
1130011781 S.IC SN74AHC2G53HDCT3 [SEA-3]
1130011781 S.IC SN74AHC2G53HDCT3 [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

IC525 1130011770 S.IC CD4066BPWR [EUR] T 25.3/17.5
1130011770 S.IC CD4066BPWR [TPE]
1130011770 S.IC CD4066BPWR [USA]
1130011770 S.IC CD4066BPWR [KOR]
1130011770 S.IC CD4066BPWR [SEA]
1130011770 S.IC CD4066BPWR [THA]
1130011770 S.IC CD4066BPWR [EXP]
1130011770 S.IC CD4066BPWR [EUR-1]
1130011770 S.IC CD4066BPWR [AUS]
1130011770 S.IC CD4066BPWR [SEA-1]
1130011770 S.IC CD4066BPWR [EXP-1]
1130011770 S.IC CD4066BPWR [CHN]
1130011770 S.IC CD4066BPWR [CHN-01]
1130011770 S.IC CD4066BPWR [CHN-02]
1130011770 S.IC CD4066BPWR [TPE-1]
1130011770 S.IC CD4066BPWR [KOR-1]
1130011770 S.IC CD4066BPWR [THA-02]
1130011770 S.IC CD4066BPWR [SEA-2]
1130011770 S.IC CD4066BPWR [THA-1]
1130011770 S.IC CD4066BPWR [EXP-2]
1130011770 S.IC CD4066BPWR [AUS-1]
1130011770 S.IC CD4066BPWR [SEA-3]
1130011770 S.IC CD4066BPWR [EXP-3]

Q1 1530002691 S.TRA 2SC4116-GR(TE85RF) T 21.3/16.0
Q2 1590000430 S.TRA DTC144EUA T106 B 65.8/18.9
Q3 1590001650 S.TRA XP4601(TX) B 71.9/6.1
Q5 1590000660 S.TRA DTC144TU T106 B 68.5/8.8
Q6 1510000510 S.TRA 2SA1576A T106R B 100.5/20.8
Q7 1530002691 S.TRA 2SC4116-GR(TE85RF) B 105.3/17.2
Q8 1530002691 S.TRA 2SC4116-GR(TE85RF) B 105.3/19.7
Q12 1530002691 S.TRA 2SC4116-GR(TE85RF) B 105.4/24.8
Q513 1520000201 S.TRA 2SB798-T2-AZ DK [EUR] B 47.2/27.9
1520000201 S.TRA 2SB798-T2-AZ DK [TPE]
1520000201 S.TRA 2SB798-T2-AZ DK [USA]
1520000201 S.TRA 2SB798-T2-AZ DK [KOR]
1520000201 S.TRA 2SB798-T2-AZ DK [SEA]
1520000201 S.TRA 2SB798-T2-AZ DK [THA]
1520000201 S.TRA 2SB798-T2-AZ DK [EXP]
1520000201 S.TRA 2SB798-T2-AZ DK [EUR-1]
1520000201 S.TRA 2SB798-T2-AZ DK [AUS]
1520000201 S.TRA 2SB798-T2-AZ DK [SEA-1]
1520000201 S.TRA 2SB798-T2-AZ DK [EXP-1]
1520000201 S.TRA 2SB798-T2-AZ DK [CHN]
1520000201 S.TRA 2SB798-T2-AZ DK [CHN-01]
1520000201 S.TRA 2SB798-T2-AZ DK [CHN-02]
1520000201 S.TRA 2SB798-T2-AZ DK [TPE-1]
1520000201 S.TRA 2SB798-T2-AZ DK [KOR-1]
1520000201 S.TRA 2SB798-T2-AZ DK [THA-02]
1520000201 S.TRA 2SB798-T2-AZ DK [SEA-2]
1520000201 S.TRA 2SB798-T2-AZ DK [THA-1]
1520000201 S.TRA 2SB798-T2-AZ DK [EXP-2]
1520000201 S.TRA 2SB798-T2-AZ DK [AUS-1]
1520000201 S.TRA 2SB798-T2-AZ DK [SEA-3]
1520000201 S.TRA 2SB798-T2-AZ DK [EXP-3]
Q514 1530002691 S.TRA 2SC4116-GR(TE85RF) [EUR] B 43.0/27.4
1530002691 S.TRA 2SC4116-GR(TE85RF) [TPE]
1530002691 S.TRA 2SC4116-GR(TE85RF) [USA]
1530002691 S.TRA 2SC4116-GR(TE85RF) [KOR]
1530002691 S.TRA 2SC4116-GR(TE85RF) [SEA]
1530002691 S.TRA 2SC4116-GR(TE85RF) [THA]
1530002691 S.TRA 2SC4116-GR(TE85RF) [EXP]
1530002691 S.TRA 2SC4116-GR(TE85RF) [EUR-1]
1530002691 S.TRA 2SC4116-GR(TE85RF) [AUS]
1530002691 S.TRA 2SC4116-GR(TE85RF) [SEA-1]
1530002691 S.TRA 2SC4116-GR(TE85RF) [EXP-1]
1530002691 S.TRA 2SC4116-GR(TE85RF) [CHN]
1530002691 S.TRA 2SC4116-GR(TE85RF) [CHN-01]
1530002691 S.TRA 2SC4116-GR(TE85RF) [CHN-02]
1530002691 S.TRA 2SC4116-GR(TE85RF) [TPE-1]
1530002691 S.TRA 2SC4116-GR(TE85RF) [KOR-1]
1530002691 S.TRA 2SC4116-GR(TE85RF) [THA-02]
1530002691 S.TRA 2SC4116-GR(TE85RF) [SEA-2]
1530002691 S.TRA 2SC4116-GR(TE85RF) [THA-1]
1530002691 S.TRA 2SC4116-GR(TE85RF) [EXP-2]
1530002691 S.TRA 2SC4116-GR(TE85RF) [AUS-1]
1530002691 S.TRA 2SC4116-GR(TE85RF) [SEA-3]
1530002691 S.TRA 2SC4116-GR(TE85RF) [EXP-3]
Q515 1510000510 S.TRA 2SA1576A T106R [EUR] B 27.9/18.0
1510000510 S.TRA 2SA1576A T106R [TPE]
1510000510 S.TRA 2SA1576A T106R [USA]
1510000510 S.TRA 2SA1576A T106R [KOR]
1510000510 S.TRA 2SA1576A T106R [SEA]
1510000510 S.TRA 2SA1576A T106R [THA]
1510000510 S.TRA 2SA1576A T106R [EXP]
1510000510 S.TRA 2SA1576A T106R [EUR-1]
1510000510 S.TRA 2SA1576A T106R [AUS]
1510000510 S.TRA 2SA1576A T106R [SEA-1]
1510000510 S.TRA 2SA1576A T106R [EXP-1]
1510000510 S.TRA 2SA1576A T106R [CHN]
1510000510 S.TRA 2SA1576A T106R [CHN-01]
1510000510 S.TRA 2SA1576A T106R [CHN-02]
1510000510 S.TRA 2SA1576A T106R [TPE-1]
1510000510 S.TRA 2SA1576A T106R [KOR-1]
1510000510 S.TRA 2SA1576A T106R [THA-02]
1510000510 S.TRA 2SA1576A T106R [SEA-2]
1510000510 S.TRA 2SA1576A T106R [THA-1]
1510000510 S.TRA 2SA1576A T106R [EXP-2]
1510000510 S.TRA 2SA1576A T106R [AUS-1]
1510000510 S.TRA 2SA1576A T106R [SEA-3]
1510000510 S.TRA 2SA1576A T106R [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

2

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

Q524 1510000510 S.TRA 2SA1576A T106R [EUR] T 14.3/28.1
1510000510 S.TRA 2SA1576A T106R [TPE]
1510000510 S.TRA 2SA1576A T106R [USA]
1510000510 S.TRA 2SA1576A T106R [KOR]
1510000510 S.TRA 2SA1576A T106R [SEA]
1510000510 S.TRA 2SA1576A T106R [THA]
1510000510 S.TRA 2SA1576A T106R [EXP]
1510000510 S.TRA 2SA1576A T106R [EUR-1]
1510000510 S.TRA 2SA1576A T106R [AUS]
1510000510 S.TRA 2SA1576A T106R [SEA-1]
1510000510 S.TRA 2SA1576A T106R [EXP-1]
1510000510 S.TRA 2SA1576A T106R [CHN]
1510000510 S.TRA 2SA1576A T106R [CHN-01]
1510000510 S.TRA 2SA1576A T106R [CHN-02]
1510000510 S.TRA 2SA1576A T106R [TPE-1]
1510000510 S.TRA 2SA1576A T106R [KOR-1]
1510000510 S.TRA 2SA1576A T106R [THA-02]
1510000510 S.TRA 2SA1576A T106R [SEA-2]
1510000510 S.TRA 2SA1576A T106R [THA-1]
1510000510 S.TRA 2SA1576A T106R [EXP-2]
1510000510 S.TRA 2SA1576A T106R [AUS-1]
1510000510 S.TRA 2SA1576A T106R [SEA-3]
1510000510 S.TRA 2SA1576A T106R [EXP-3]
Q525 1590000430 S.TRA DTC144EUA T106 B 31.6/27.9
Q527 1590002230 S.TRA UMG2N TR B 24.8/13.8
Q528 1590002430 S.TRA DTA144EE TL [EUR] T 20.8/18.3
1590002430 S.TRA DTA144EE TL [TPE]
1590002430 S.TRA DTA144EE TL [USA]
1590002430 S.TRA DTA144EE TL [KOR]
1590002430 S.TRA DTA144EE TL [SEA]
1590002430 S.TRA DTA144EE TL [THA]
1590002430 S.TRA DTA144EE TL [EXP]
1590002430 S.TRA DTA144EE TL [EUR-1]
1590002430 S.TRA DTA144EE TL [AUS]
1590002430 S.TRA DTA144EE TL [SEA-1]
1590002430 S.TRA DTA144EE TL [EXP-1]
1590002430 S.TRA DTA144EE TL [CHN]
1590002430 S.TRA DTA144EE TL [CHN-01]
1590002430 S.TRA DTA144EE TL [CHN-02]
1590002430 S.TRA DTA144EE TL [TPE-1]
1590002430 S.TRA DTA144EE TL [KOR-1]
1590002430 S.TRA DTA144EE TL [THA-02]
1590002430 S.TRA DTA144EE TL [SEA-2]
1590002430 S.TRA DTA144EE TL [THA-1]
1590002430 S.TRA DTA144EE TL [EXP-2]
1590002430 S.TRA DTA144EE TL [AUS-1]
1590002430 S.TRA DTA144EE TL [SEA-3]
1590002430 S.TRA DTA144EE TL [EXP-3]

D1 1730002281 S.ZEN MAZ8091GML T 17.8/8.5
D2 1790001251 S.DIO MA2S1110GL T 13.8/16.3
D3 1730002281 S.ZEN MAZ8091GML B 21.8/8.8
D4 1750000520 S.DIO DAN222TL [EUR] B 14.7/17.1
1750000520 S.DIO DAN222TL [TPE]
1750000520 S.DIO DAN222TL [USA]
1750000520 S.DIO DAN222TL [KOR]
1750000520 S.DIO DAN222TL [SEA]
1750000520 S.DIO DAN222TL [THA]
1750000520 S.DIO DAN222TL [EXP]
1750000520 S.DIO DAN222TL [EUR-1]
1750000520 S.DIO DAN222TL [AUS]
1750000520 S.DIO DAN222TL [SEA-1]
1750000520 S.DIO DAN222TL [EXP-1]
1750000520 S.DIO DAN222TL [CHN]
1750000520 S.DIO DAN222TL [CHN-01]
1750000520 S.DIO DAN222TL [CHN-02]
1750000520 S.DIO DAN222TL [TPE-1]
1750000520 S.DIO DAN222TL [KOR-1]
1750000520 S.DIO DAN222TL [THA-02]
1750000520 S.DIO DAN222TL [SEA-2]
1750000520 S.DIO DAN222TL [THA-1]
1750000520 S.DIO DAN222TL [EXP-2]
1750001850 S.DIO LDAN222T1G <SLVJ> [OTH-01]
1750000520 S.DIO DAN222TL [AUS-1]
1750000520 S.DIO DAN222TL [SEA-3]
1750000520 S.DIO DAN222TL [EXP-3]
D6 1750000370 S.DIO DA221 TL B 64.8/9.8
D7 1750000520 S.DIO DAN222TL [EUR] T 85.3/3.9
1750000520 S.DIO DAN222TL [TPE]
1750000520 S.DIO DAN222TL [USA]
1750000520 S.DIO DAN222TL [KOR]
1750000520 S.DIO DAN222TL [SEA]
1750000520 S.DIO DAN222TL [THA]
1750000520 S.DIO DAN222TL [EXP]
1750000520 S.DIO DAN222TL [EUR-1]
1750000520 S.DIO DAN222TL [AUS]
1750000520 S.DIO DAN222TL [SEA-1]
1750000520 S.DIO DAN222TL [EXP-1]
1750000520 S.DIO DAN222TL [CHN]
1750000520 S.DIO DAN222TL [CHN-01]
1750000520 S.DIO DAN222TL [CHN-02]
1750000520 S.DIO DAN222TL [TPE-1]
1750000520 S.DIO DAN222TL [KOR-1]
1750000520 S.DIO DAN222TL [THA-02]
1750000520 S.DIO DAN222TL [SEA-2]
1750000520 S.DIO DAN222TL [THA-1]
1750000520 S.DIO DAN222TL [EXP-2]
1750001850 S.DIO LDAN222T1G <SLVJ> [OTH-01]
1750000520 S.DIO DAN222TL [AUS-1]
1750000520 S.DIO DAN222TL [SEA-3]
1750000520 S.DIO DAN222TL [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

D8 1750000520 S.DIO DAN222TL [EUR] T 73.4/4.1
1750000520 S.DIO DAN222TL [TPE]
1750000520 S.DIO DAN222TL [USA]
1750000520 S.DIO DAN222TL [KOR]
1750000520 S.DIO DAN222TL [SEA]
1750000520 S.DIO DAN222TL [THA]
1750000520 S.DIO DAN222TL [EXP]
1750000520 S.DIO DAN222TL [EUR-1]
1750000520 S.DIO DAN222TL [AUS]
1750000520 S.DIO DAN222TL [SEA-1]
1750000520 S.DIO DAN222TL [EXP-1]
1750000520 S.DIO DAN222TL [CHN]
1750000520 S.DIO DAN222TL [CHN-01]
1750000520 S.DIO DAN222TL [CHN-02]
1750000520 S.DIO DAN222TL [TPE-1]
1750000520 S.DIO DAN222TL [KOR-1]
1750000520 S.DIO DAN222TL [THA-02]
1750000520 S.DIO DAN222TL [SEA-2]
1750000520 S.DIO DAN222TL [THA-1]
1750000520 S.DIO DAN222TL [EXP-2]
1750001850 S.DIO LDAN222T1G <SLVJ> [OTH-01]
1750000520 S.DIO DAN222TL [AUS-1]
1750000520 S.DIO DAN222TL [SEA-3]
1750000520 S.DIO DAN222TL [EXP-3]
D9 1750000520 S.DIO DAN222TL [EUR] T 61.4/4.7
1750000520 S.DIO DAN222TL [TPE]
1750000520 S.DIO DAN222TL [USA]
1750000520 S.DIO DAN222TL [KOR]
1750000520 S.DIO DAN222TL [SEA]
1750000520 S.DIO DAN222TL [THA]
1750000520 S.DIO DAN222TL [EXP]
1750000520 S.DIO DAN222TL [EUR-1]
1750000520 S.DIO DAN222TL [AUS]
1750000520 S.DIO DAN222TL [SEA-1]
1750000520 S.DIO DAN222TL [EXP-1]
1750000520 S.DIO DAN222TL [CHN]
1750000520 S.DIO DAN222TL [CHN-01]
1750000520 S.DIO DAN222TL [CHN-02]
1750000520 S.DIO DAN222TL [TPE-1]
1750000520 S.DIO DAN222TL [KOR-1]
1750000520 S.DIO DAN222TL [THA-02]
1750000520 S.DIO DAN222TL [SEA-2]
1750000520 S.DIO DAN222TL [THA-1]
1750000520 S.DIO DAN222TL [EXP-2]
1750001850 S.DIO LDAN222T1G <SLVJ> [OTH-01]
1750000520 S.DIO DAN222TL [AUS-1]
1750000520 S.DIO DAN222TL [SEA-3]
1750000520 S.DIO DAN222TL [EXP-3]
D11 1710000611 DIO 1SS133 T77 (26M/M) [TPE]
1710000611 DIO 1SS133 T77 (26M/M) [KOR]
1710000611 DIO 1SS133 T77 (26M/M) [EUR-1]
1710000611 DIO 1SS133 T77 (26M/M) [TPE-1]
1710000611 DIO 1SS133 T77 (26M/M) [KOR-1]
D12 1750000940 S.DIO 1SS400 TE61 [THA] B 93.7/5.0
1750000940 S.DIO 1SS400 TE61 [THA-1]
D13 1750000940 S.DIO 1SS400 TE61 [EUR] B 91.1/5.0
1750000940 S.DIO 1SS400 TE61 [TPE]
1750000940 S.DIO 1SS400 TE61 [USA]
1750000940 S.DIO 1SS400 TE61 [KOR]
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [EUR-1]
1750000940 S.DIO 1SS400 TE61 [AUS]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [KOR-1]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [AUS-1]
D14 1750000940 S.DIO 1SS400 TE61 [THA] B 98.3/4.7
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [THA-1]
D15 1750000940 S.DIO 1SS400 TE61 [SEA] B 88.0/5.1
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D16 1750000940 S.DIO 1SS400 TE61 [EUR] B 97.0/4.9
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [EUR-1]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750001810 S.DIO L1SS400T1G <SLVJ> [OTH-01]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
1750000940 S.DIO 1SS400 TE61 [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

3

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

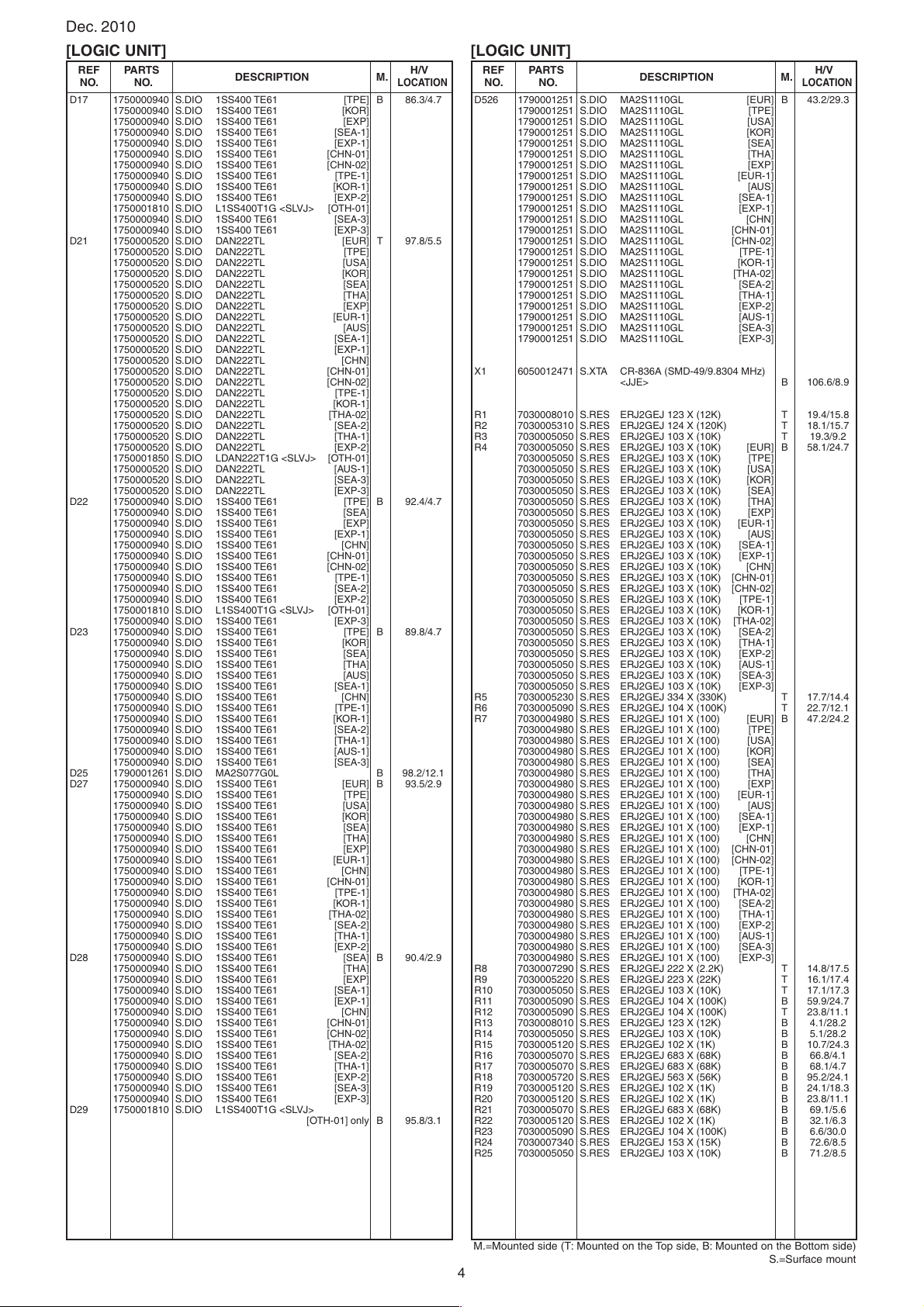

D17 1750000940 S.DIO 1SS400 TE61 [TPE] B 86.3/4.7
1750000940 S.DIO 1SS400 TE61 [KOR]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [KOR-1]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750001810 S.DIO L1SS400T1G <SLVJ> [OTH-01]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D21 1750000520 S.DIO DAN222TL [EUR] T 97.8/5.5
1750000520 S.DIO DAN222TL [TPE]
1750000520 S.DIO DAN222TL [USA]
1750000520 S.DIO DAN222TL [KOR]
1750000520 S.DIO DAN222TL [SEA]
1750000520 S.DIO DAN222TL [THA]
1750000520 S.DIO DAN222TL [EXP]
1750000520 S.DIO DAN222TL [EUR-1]
1750000520 S.DIO DAN222TL [AUS]
1750000520 S.DIO DAN222TL [SEA-1]
1750000520 S.DIO DAN222TL [EXP-1]
1750000520 S.DIO DAN222TL [CHN]
1750000520 S.DIO DAN222TL [CHN-01]
1750000520 S.DIO DAN222TL [CHN-02]
1750000520 S.DIO DAN222TL [TPE-1]
1750000520 S.DIO DAN222TL [KOR-1]
1750000520 S.DIO DAN222TL [THA-02]
1750000520 S.DIO DAN222TL [SEA-2]
1750000520 S.DIO DAN222TL [THA-1]
1750000520 S.DIO DAN222TL [EXP-2]
1750001850 S.DIO LDAN222T1G <SLVJ> [OTH-01]
1750000520 S.DIO DAN222TL [AUS-1]
1750000520 S.DIO DAN222TL [SEA-3]
1750000520 S.DIO DAN222TL [EXP-3]
D22 1750000940 S.DIO 1SS400 TE61 [TPE] B 92.4/4.7
1750000940 S.DIO 1SS400 TE61 [SEA]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750001810 S.DIO L1SS400T1G <SLVJ> [OTH-01]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D23 1750000940 S.DIO 1SS400 TE61 [TPE] B 89.8/4.7
1750000940 S.DIO 1SS400 TE61 [KOR]
1750000940 S.DIO 1SS400 TE61 [SEA]
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [AUS]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [KOR-1]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [AUS-1]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
D25 1790001261 S.DIO MA2S077G0L B 98.2/12.1
D27 1750000940 S.DIO 1SS400 TE61 [EUR] B 93.5/2.9
1750000940 S.DIO 1SS400 TE61 [TPE]
1750000940 S.DIO 1SS400 TE61 [USA]
1750000940 S.DIO 1SS400 TE61 [KOR]
1750000940 S.DIO 1SS400 TE61 [SEA]
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [EUR-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [KOR-1]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
D28 1750000940 S.DIO 1SS400 TE61 [SEA] B 90.4/2.9
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D29 1750001810 S.DIO L1SS400T1G <SLVJ>
[OTH-01] only B 95.8/3.1

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

D526 1790001251 S.DIO MA2S1110GL [EUR] B 43.2/29.3
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [AUS]
1790001251 S.DIO MA2S1110GL [SEA-1]
1790001251 S.DIO MA2S1110GL [EXP-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
1790001251 S.DIO MA2S1110GL [CHN-02]
1790001251 S.DIO MA2S1110GL [TPE-1]
1790001251 S.DIO MA2S1110GL [KOR-1]
1790001251 S.DIO MA2S1110GL [THA-02]
1790001251 S.DIO MA2S1110GL [SEA-2]
1790001251 S.DIO MA2S1110GL [THA-1]
1790001251 S.DIO MA2S1110GL [EXP-2]
1790001251 S.DIO MA2S1110GL [AUS-1]
1790001251 S.DIO MA2S1110GL [SEA-3]
1790001251 S.DIO MA2S1110GL [EXP-3]

X1 6050012471 S.XTA CR-836A(SMD-49/9.8304 MHz)
<JJE> B 106.6/8.9

R1 7030008010 S.RES ERJ2GEJ 123 X (12K) T 19.4/15.8
R2 7030005310 S.RES ERJ2GEJ 124 X (120K) T 18.1/15.7
R3 7030005050 S.RES ERJ2GEJ 103 X (10K) T 19.3/9.2
R4 7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR] B 58.1/24.7
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE]
7030005050 S.RES ERJ2GEJ 103 X (10K) [USA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-01]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-3]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-3]
R5 7030005230 S.RES ERJ2GEJ 334 X (330K) T 17.7/14.4
R6 7030005090 S.RES ERJ2GEJ 104 X (100K) T 22.7/12.1
R7 7030004980 S.RES ERJ2GEJ 101 X (100) [EUR] B 47.2/24.2
7030004980 S.RES ERJ2GEJ 101 X (100) [TPE]
7030004980 S.RES ERJ2GEJ 101 X (100) [USA]
7030004980 S.RES ERJ2GEJ 101 X (100) [KOR]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP]
7030004980 S.RES ERJ2GEJ 101 X (100) [EUR-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [AUS]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN-01]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN-02]
7030004980 S.RES ERJ2GEJ 101 X (100) [TPE-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [KOR-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA-02]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-2]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-2]
7030004980 S.RES ERJ2GEJ 101 X (100) [AUS-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-3]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-3]
R8 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 14.8/17.5
R9 7030005220 S.RES ERJ2GEJ 223 X (22K) T 16.1/17.4
R10 7030005050 S.RES ERJ2GEJ 103 X (10K) T 17.1/17.3
R11 7030005090 S.RES ERJ2GEJ 104 X (100K) B 59.9/24.7
R12 7030005090 S.RES ERJ2GEJ 104 X (100K) T 23.8/11.1
R13 7030008010 S.RES ERJ2GEJ 123 X (12K) B 4.1/28.2
R14 7030005050 S.RES ERJ2GEJ 103 X (10K) B 5.1/28.2
R15 7030005120 S.RES ERJ2GEJ 102 X (1K) B 10.7/24.3
R16 7030005070 S.RES ERJ2GEJ 683 X (68K) B 66.8/4.1
R17 7030005070 S.RES ERJ2GEJ 683 X (68K) B 68.1/4.7
R18 7030005720 S.RES ERJ2GEJ 563 X (56K) B 95.2/24.1
R19 7030005120 S.RES ERJ2GEJ 102 X (1K) B 24.1/18.3
R20 7030005120 S.RES ERJ2GEJ 102 X (1K) B 23.8/11.1
R21 7030005070 S.RES ERJ2GEJ 683 X (68K) B 69.1/5.6
R22 7030005120 S.RES ERJ2GEJ 102 X (1K) B 32.1/6.3
R23 7030005090 S.RES ERJ2GEJ 104 X (100K) B 6.6/30.0
R24 7030007340 S.RES ERJ2GEJ 153 X (15K) B 72.6/8.5
R25 7030005050 S.RES ERJ2GEJ 103 X (10K) B 71.2/8.5

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

4

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

R26 7030005220 S.RES ERJ2GEJ 223 X (22K) [EUR] B 36.7/15.4
7030005220 S.RES ERJ2GEJ 223 X (22K) [TPE]
7030005220 S.RES ERJ2GEJ 223 X (22K) [USA]
7030005220 S.RES ERJ2GEJ 223 X (22K) [KOR]
7030005220 S.RES ERJ2GEJ 223 X (22K) [SEA]
7030005220 S.RES ERJ2GEJ 223 X (22K) [THA]
7030005220 S.RES ERJ2GEJ 223 X (22K) [EXP]
7030005220 S.RES ERJ2GEJ 223 X (22K) [EUR-1]
7030005220 S.RES ERJ2GEJ 223 X (22K) [AUS]
7030005220 S.RES ERJ2GEJ 223 X (22K) [SEA-1]
7030005220 S.RES ERJ2GEJ 223 X (22K) [EXP-1]
7030005220 S.RES ERJ2GEJ 223 X (22K) [CHN]
7030005220 S.RES ERJ2GEJ 223 X (22K) [CHN-01]
7030005220 S.RES ERJ2GEJ 223 X (22K) [CHN-02]
7030005220 S.RES ERJ2GEJ 223 X (22K) [TPE-1]
7030005220 S.RES ERJ2GEJ 223 X (22K) [KOR-1]
7030005220 S.RES ERJ2GEJ 223 X (22K) [THA-02]
7030005220 S.RES ERJ2GEJ 223 X (22K) [SEA-2]
7030005220 S.RES ERJ2GEJ 223 X (22K) [THA-1]
7030005220 S.RES ERJ2GEJ 223 X (22K) [EXP-2]
7030005220 S.RES ERJ2GEJ 223 X (22K) [AUS-1]
7030005220 S.RES ERJ2GEJ 223 X (22K) [SEA-3]
7030005220 S.RES ERJ2GEJ 223 X (22K) [EXP-3]
R27 7030007350 S.RES ERJ2GEJ 393 X (39K) B 66.4/20.8
R28 7030005090 S.RES ERJ2GEJ 104 X (100K) B 67.1/6.7
R29 7030005050 S.RES ERJ2GEJ 103 X (10K) B 73.9/6.5
R30 7030007340 S.RES ERJ2GEJ 153 X (15K) B 13.2/22.0
R31 7030005720 S.RES ERJ2GEJ 563 X (56K) B 97.2/23.5
R32 7030007570 S.RES ERJ2GEJ 122 X (1.2K) B 72.7/3.7
R34 7030005070 S.RES ERJ2GEJ 683 X (68K) B 71.4/4.2
R35 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.5/16.1
R36 7030008010 S.RES ERJ2GEJ 123 X (12K) B 68.2/20.8
R37 7030005090 S.RES ERJ2GEJ 104 X (100K) B 74.2/5.0
R38 7030008400 S.RES ERJ2GEJ 182 X (1.8K) B 20.1/13.3
R39 7030005100 S.RES ERJ2GEJ 154 X (150K) B 18.2/16.6
R40 7030005240 S.RES ERJ2GEJ 473 X (47K) T 83.4/20.0
R41 7030008010 S.RES ERJ2GEJ 123 X (12K) B 97.1/8.8
R42 7030005160 S.RES ERJ2GEJ 105 X (1M) B 63.3/21.1
R43 7030005160 S.RES ERJ2GEJ 105 X (1M) B 61.0/22.1
R44 7030005160 S.RES ERJ2GEJ 105 X (1M) B 59.8/22.4
R45 7030008410 S.RES ERJ2GEJ 392 X (3.9K) B 24.6/20.6
R46 7410000770 S.ARR EXB-V4V 102JV (1K) T 71.0/11.1
R47 7030005090 S.RES ERJ2GEJ 104 X (100K) T 74.3/22.5
R48 7030005160 S.RES ERJ2GEJ 105 X (1M) B 99.4/10.9
R49 7030005600 S.RES ERJ2GEJ 273 X (27K) B 25.1/15.6
R50 7030005160 S.RES ERJ2GEJ 105 X (1M) B 20.5/16.1
R51 7030005530 S.RES ERJ2GEJ 100 X (10) B 92.7/11.8
R52 7030005120 S.RES ERJ2GEJ 102 X (1K) T 73.1/21.5
R53 7030007310 S.RES ERJ2GEJ 155 X (1.5M) B 22.2/16.6
R55 7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA] B 72.5/25.8
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN-01]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN-02]
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA-02]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-2]
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-2]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-3]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-3]
R56 7030004050 S.RES ERJ3GEYJ 1R0 V (1) B 18.7/13.5
R57 7030007340 S.RES ERJ2GEJ 153 X (15K) B 69.4/25.0
R58 7030005090 S.RES ERJ2GEJ 104 X (100K) B 69.8/23.6
R59 7030007340 S.RES ERJ2GEJ 153 X (15K) B 68.0/10.6
R60 7030005720 S.RES ERJ2GEJ 563 X (56K) B 96.2/23.5
R61 7210001870 VAR EVU-F2AF20 A14 (10KA)
R62 7210001860 VAR EVU-F2AF20 B14 (10KB)
R64 7030005160 S.RES ERJ2GEJ 105 X (1M) B 17.5/13.1
R67 7030008290 S.RES ERJ2GEJ 183 X (18K) B 35.2/16.5
R69 7030005100 S.RES ERJ2GEJ 154 X (150K) B 27.0/27.4
R70 7030007350 S.RES ERJ2GEJ 393 X (39K) B 35.2/18.4
R71 7030005050 S.RES ERJ2GEJ 103 X (10K) B 28.8/27.4
R72 7030005110 S.RES ERJ2GEJ 224 X (220K) B 24.4/27.2
R73 7030008300 S.RES ERJ2GEJ 184 X (180K) B 25.7/29.3
R74 7030005100 S.RES ERJ2GEJ 154 X (150K) B 29.8/28.3
R75 7030005070 S.RES ERJ2GEJ 683 X (68K) B 27.0/29.2
R76 7030008290 S.RES ERJ2GEJ 183 X (18K) B 21.7/25.7
R77 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 101.2/18.4
R78 7030005090 S.RES ERJ2GEJ 104 X (100K) B 20.7/25.7
R79 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 107.7/19.4
R80 7030005120 S.RES ERJ2GEJ 102 X (1K) B 109.3/26.0
R81 7030005310 S.RES ERJ2GEJ 124 X (120K) B 23.1/26.2
R82 7030005120 S.RES ERJ2GEJ 102 X (1K) B 109.7/27.3
R83 7030005590 S.RES ERJ2GEJ 680 X (68) B 102.9/17.2
R84 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 27.5/20.4
R85 7030005210 S.RES ERJ2GEJ 822 X (8.2K) B 107.7/20.4
R86 7030009160 S.RES ERJ2GEJ 181 X (180) B 102.9/21.2
R87 7410000950 S.ARR EXB-V8V 102JV T 84.7/10.7
R89 7030009280 S.RES ERJ2GEJ 391 X B 103.1/24.7
R91 7030005310 S.RES ERJ2GEJ 124 X (120K) B 13.0/20.4
R92 7030008290 S.RES ERJ2GEJ 183 X (18K) B 12.2/22.0
R93 7030005120 S.RES ERJ2GEJ 102 X (1K) B 77.3/9.2
R94 7030005570 S.RES ERJ2GEJ 820 X (82) B 102.9/18.2
R96 7030007350 S.RES ERJ2GEJ 393 X (39K) B 13.0/19.4
R97 7030007270 S.RES ERJ2GEJ 151 X (150) B 102.9/19.2
R100 7030007280 S.RES ERJ2GEJ 331 X (330) B 103.1/23.7
R101 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 23.8/10.1
R103 7030005100 S.RES ERJ2GEJ 154 X (150K) B 16.2/21.1

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

R104 7030008290 S.RES ERJ2GEJ 183 X (18K) [EUR] B 18.6/25.7
7030008290 S.RES ERJ2GEJ 183 X (18K) [TPE]
7030005080 S.RES ERJ2GEJ 823 X (82K) [USA]
7030008290 S.RES ERJ2GEJ 183 X (18K) [KOR]
7030008290 S.RES ERJ2GEJ 183 X (18K) [SEA]
7030008290 S.RES ERJ2GEJ 183 X (18K) [THA]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EUR-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [AUS]
7030008290 S.RES ERJ2GEJ 183 X (18K) [SEA-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [CHN]
7030008290 S.RES ERJ2GEJ 183 X (18K) [CHN-01]
7030008290 S.RES ERJ2GEJ 183 X (18K) [CHN-02]
7030008290 S.RES ERJ2GEJ 183 X (18K) [TPE-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [KOR-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [THA-02]
7030008290 S.RES ERJ2GEJ 183 X (18K) [SEA-2]
7030008290 S.RES ERJ2GEJ 183 X (18K) [THA-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP-2]
7030008290 S.RES ERJ2GEJ 183 X (18K) [OTH-01]
7030008290 S.RES ERJ2GEJ 183 X (18K) [AUS-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [SEA-3]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP-3]
R105 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.7/25.7
R106 7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR] B 58.1/22.7
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE]
7030005050 S.RES ERJ2GEJ 103 X (10K) [USA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-01]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-3]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-3]
R107 7030005090 S.RES ERJ2GEJ 104 X (100K) B 59.9/23.7
R108 7030005050 S.RES ERJ2GEJ 103 X (10K) B 98.6/14.0
R109 7030005600 S.RES ERJ2GEJ 273 X (27K) [USA] only B 16.8/25.3
R112 7030008010 S.RES ERJ2GEJ 123 X (12K) B 97.0/10.6
R114 7030008010 S.RES ERJ2GEJ 123 X (12K) B 95.5/12.9
R128 7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR] B 58.1/23.7
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE]
7030005050 S.RES ERJ2GEJ 103 X (10K) [USA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-01]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-3]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-3]
R129 7030005090 S.RES ERJ2GEJ 104 X (100K) B 58.6/25.7
R133 7030005240 S.RES ERJ2GEJ 473 X (47K) B 90.4/11.8
R134 7030005050 S.RES ERJ2GEJ 103 X (10K) B 98.2/23.9
R135 7030005050 S.RES ERJ2GEJ 103 X (10K) B 91.4/11.8
R136 7030005090 S.RES ERJ2GEJ 104 X (100K) B 88.1/8.7
R137 7030005240 S.RES ERJ2GEJ 473 X (47K) B 88.8/9.6
R515 7030004980 S.RES ERJ2GEJ 101 X (100) [EUR] B 12.5/29.9
7030004980 S.RES ERJ2GEJ 101 X (100) [TPE]
7030004980 S.RES ERJ2GEJ 101 X (100) [USA]
7030004980 S.RES ERJ2GEJ 101 X (100) [KOR]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP]
7030004980 S.RES ERJ2GEJ 101 X (100) [EUR-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [AUS]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN-01]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN-02]
7030004980 S.RES ERJ2GEJ 101 X (100) [TPE-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [KOR-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA-02]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-2]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-2]
7030004980 S.RES ERJ2GEJ 101 X (100) [AUS-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-3]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-3]

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

5

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

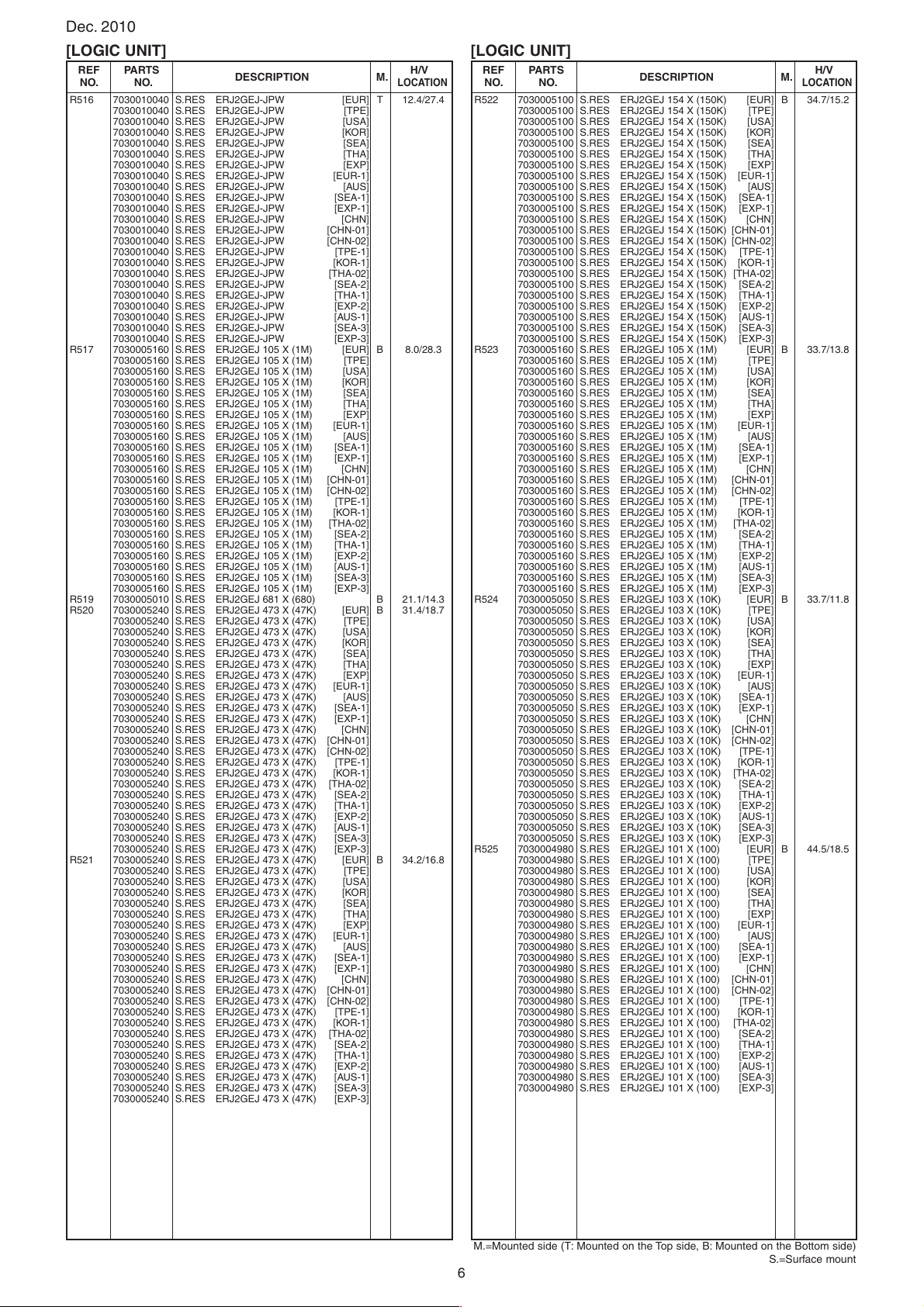

R516 7030010040 S.RES ERJ2GEJ-JPW [EUR] T 12.4/27.4
7030010040 S.RES ERJ2GEJ-JPW [TPE]
7030010040 S.RES ERJ2GEJ-JPW [USA]
7030010040 S.RES ERJ2GEJ-JPW [KOR]
7030010040 S.RES ERJ2GEJ-JPW [SEA]
7030010040 S.RES ERJ2GEJ-JPW [THA]
7030010040 S.RES ERJ2GEJ-JPW [EXP]
7030010040 S.RES ERJ2GEJ-JPW [EUR-1]
7030010040 S.RES ERJ2GEJ-JPW [AUS]
7030010040 S.RES ERJ2GEJ-JPW [SEA-1]
7030010040 S.RES ERJ2GEJ-JPW [EXP-1]
7030010040 S.RES ERJ2GEJ-JPW [CHN]
7030010040 S.RES ERJ2GEJ-JPW [CHN-01]
7030010040 S.RES ERJ2GEJ-JPW [CHN-02]
7030010040 S.RES ERJ2GEJ-JPW [TPE-1]
7030010040 S.RES ERJ2GEJ-JPW [KOR-1]
7030010040 S.RES ERJ2GEJ-JPW [THA-02]
7030010040 S.RES ERJ2GEJ-JPW [SEA-2]
7030010040 S.RES ERJ2GEJ-JPW [THA-1]
7030010040 S.RES ERJ2GEJ-JPW [EXP-2]
7030010040 S.RES ERJ2GEJ-JPW [AUS-1]
7030010040 S.RES ERJ2GEJ-JPW [SEA-3]
7030010040 S.RES ERJ2GEJ-JPW [EXP-3]
R517 7030005160 S.RES ERJ2GEJ 105 X (1M) [EUR] B 8.0/28.3
7030005160 S.RES ERJ2GEJ 105 X (1M) [TPE]
7030005160 S.RES ERJ2GEJ 105 X (1M) [USA]
7030005160 S.RES ERJ2GEJ 105 X (1M) [KOR]
7030005160 S.RES ERJ2GEJ 105 X (1M) [SEA]
7030005160 S.RES ERJ2GEJ 105 X (1M) [THA]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EXP]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EUR-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [AUS]
7030005160 S.RES ERJ2GEJ 105 X (1M) [SEA-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EXP-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [CHN]
7030005160 S.RES ERJ2GEJ 105 X (1M) [CHN-01]
7030005160 S.RES ERJ2GEJ 105 X (1M) [CHN-02]
7030005160 S.RES ERJ2GEJ 105 X (1M) [TPE-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [KOR-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [THA-02]
7030005160 S.RES ERJ2GEJ 105 X (1M) [SEA-2]
7030005160 S.RES ERJ2GEJ 105 X (1M) [THA-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EXP-2]
7030005160 S.RES ERJ2GEJ 105 X (1M) [AUS-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [SEA-3]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EXP-3]
R519 7030005010 S.RES ERJ2GEJ 681 X (680) B 21.1/14.3
R520 7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR] B 31.4/18.7
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE]
7030005240 S.RES ERJ2GEJ 473 X (47K) [USA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-01]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-3]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-3]
R521 7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR] B 34.2/16.8
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE]
7030005240 S.RES ERJ2GEJ 473 X (47K) [USA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-01]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-3]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

R522 7030005100 S.RES ERJ2GEJ 154 X (150K) [EUR] B 34.7/15.2
7030005100 S.RES ERJ2GEJ 154 X (150K) [TPE]
7030005100 S.RES ERJ2GEJ 154 X (150K) [USA]
7030005100 S.RES ERJ2GEJ 154 X (150K) [KOR]
7030005100 S.RES ERJ2GEJ 154 X (150K) [SEA]
7030005100 S.RES ERJ2GEJ 154 X (150K) [THA]
7030005100 S.RES ERJ2GEJ 154 X (150K) [EXP]
7030005100 S.RES ERJ2GEJ 154 X (150K) [EUR-1]
7030005100 S.RES ERJ2GEJ 154 X (150K) [AUS]
7030005100 S.RES ERJ2GEJ 154 X (150K) [SEA-1]
7030005100 S.RES ERJ2GEJ 154 X (150K) [EXP-1]
7030005100 S.RES ERJ2GEJ 154 X (150K) [CHN]
7030005100 S.RES ERJ2GEJ 154 X (150K) [CHN-01]
7030005100 S.RES ERJ2GEJ 154 X (150K) [CHN-02]
7030005100 S.RES ERJ2GEJ 154 X (150K) [TPE-1]
7030005100 S.RES ERJ2GEJ 154 X (150K) [KOR-1]
7030005100 S.RES ERJ2GEJ 154 X (150K) [THA-02]
7030005100 S.RES ERJ2GEJ 154 X (150K) [SEA-2]
7030005100 S.RES ERJ2GEJ 154 X (150K) [THA-1]
7030005100 S.RES ERJ2GEJ 154 X (150K) [EXP-2]
7030005100 S.RES ERJ2GEJ 154 X (150K) [AUS-1]
7030005100 S.RES ERJ2GEJ 154 X (150K) [SEA-3]
7030005100 S.RES ERJ2GEJ 154 X (150K) [EXP-3]
R523 7030005160 S.RES ERJ2GEJ 105 X (1M) [EUR] B 33.7/13.8
7030005160 S.RES ERJ2GEJ 105 X (1M) [TPE]
7030005160 S.RES ERJ2GEJ 105 X (1M) [USA]
7030005160 S.RES ERJ2GEJ 105 X (1M) [KOR]
7030005160 S.RES ERJ2GEJ 105 X (1M) [SEA]
7030005160 S.RES ERJ2GEJ 105 X (1M) [THA]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EXP]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EUR-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [AUS]
7030005160 S.RES ERJ2GEJ 105 X (1M) [SEA-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EXP-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [CHN]
7030005160 S.RES ERJ2GEJ 105 X (1M) [CHN-01]
7030005160 S.RES ERJ2GEJ 105 X (1M) [CHN-02]
7030005160 S.RES ERJ2GEJ 105 X (1M) [TPE-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [KOR-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [THA-02]
7030005160 S.RES ERJ2GEJ 105 X (1M) [SEA-2]
7030005160 S.RES ERJ2GEJ 105 X (1M) [THA-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EXP-2]
7030005160 S.RES ERJ2GEJ 105 X (1M) [AUS-1]
7030005160 S.RES ERJ2GEJ 105 X (1M) [SEA-3]
7030005160 S.RES ERJ2GEJ 105 X (1M) [EXP-3]
R524 7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR] B 33.7/11.8
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE]
7030005050 S.RES ERJ2GEJ 103 X (10K) [USA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-01]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-3]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-3]
R525 7030004980 S.RES ERJ2GEJ 101 X (100) [EUR] B 44.5/18.5
7030004980 S.RES ERJ2GEJ 101 X (100) [TPE]
7030004980 S.RES ERJ2GEJ 101 X (100) [USA]
7030004980 S.RES ERJ2GEJ 101 X (100) [KOR]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP]
7030004980 S.RES ERJ2GEJ 101 X (100) [EUR-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [AUS]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN-01]
7030004980 S.RES ERJ2GEJ 101 X (100) [CHN-02]
7030004980 S.RES ERJ2GEJ 101 X (100) [TPE-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [KOR-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA-02]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-2]
7030004980 S.RES ERJ2GEJ 101 X (100) [THA-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-2]
7030004980 S.RES ERJ2GEJ 101 X (100) [AUS-1]
7030004980 S.RES ERJ2GEJ 101 X (100) [SEA-3]
7030004980 S.RES ERJ2GEJ 101 X (100) [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

6

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

R526 7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR] B 41.5/29.8
7030005120 S.RES ERJ2GEJ 102 X (1K) [TPE]
7030005120 S.RES ERJ2GEJ 102 X (1K) [USA]
7030005120 S.RES ERJ2GEJ 102 X (1K) [KOR]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA]
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [AUS]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN-01]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN-02]
7030005120 S.RES ERJ2GEJ 102 X (1K) [TPE-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [KOR-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA-02]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-2]
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-2]
7030005120 S.RES ERJ2GEJ 102 X (1K) [AUS-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-3]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-3]
R527 7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR] B 44.8/24.8
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE]
7030005050 S.RES ERJ2GEJ 103 X (10K) [USA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-01]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-3]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-3]
R530 7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR] B 28.2/16.1
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE]
7030005240 S.RES ERJ2GEJ 473 X (47K) [USA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-01]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-3]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-3]
R531 7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR] T 14.3/26.2
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE]
7030005240 S.RES ERJ2GEJ 473 X (47K) [USA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-01]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-3]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

R532 7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR] T 14.3/25.2
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE]
7030005240 S.RES ERJ2GEJ 473 X (47K) [USA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-01]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-3]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-3]
R533 7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR] B 58.0/16.4
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE]
7030005240 S.RES ERJ2GEJ 473 X (47K) [USA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-01]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-3]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-3]
R534 7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR] B 26.1/17.7
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE]
7030005240 S.RES ERJ2GEJ 473 X (47K) [USA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EUR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-01]
7030005240 S.RES ERJ2GEJ 473 X (47K) [CHN-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [TPE-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [KOR-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-02]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [THA-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-2]
7030005240 S.RES ERJ2GEJ 473 X (47K) [AUS-1]
7030005240 S.RES ERJ2GEJ 473 X (47K) [SEA-3]
7030005240 S.RES ERJ2GEJ 473 X (47K) [EXP-3]
R535 7030005040 S.RES ERJ2GEJ 472 X (4.7K)
[OTH-01] only B 69.2/16.6
R536 7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR] T 14.1/24.1
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE]
7030005050 S.RES ERJ2GEJ 103 X (10K) [USA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-01]
7030005050 S.RES ERJ2GEJ 103 X (10K) [CHN-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [TPE-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [KOR-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-02]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [THA-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-2]
7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-1]
7030005050 S.RES ERJ2GEJ 103 X (10K) [SEA-3]
7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

7

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

R537 7030008370 S.RES ERJ2GEJ 561 X (560) [EUR] T 14.1/22.9
7030008370 S.RES ERJ2GEJ 561 X (560) [TPE]
7030008370 S.RES ERJ2GEJ 561 X (560) [USA]
7030008370 S.RES ERJ2GEJ 561 X (560) [KOR]
7030008370 S.RES ERJ2GEJ 561 X (560) [SEA]
7030008370 S.RES ERJ2GEJ 561 X (560) [THA]
7030008370 S.RES ERJ2GEJ 561 X (560) [EXP]
7030008370 S.RES ERJ2GEJ 561 X (560) [EUR-1]
7030008370 S.RES ERJ2GEJ 561 X (560) [AUS]
7030008370 S.RES ERJ2GEJ 561 X (560) [SEA-1]
7030008370 S.RES ERJ2GEJ 561 X (560) [EXP-1]
7030008370 S.RES ERJ2GEJ 561 X (560) [CHN]
7030008370 S.RES ERJ2GEJ 561 X (560) [CHN-01]
7030008370 S.RES ERJ2GEJ 561 X (560) [CHN-02]
7030008370 S.RES ERJ2GEJ 561 X (560) [TPE-1]
7030008370 S.RES ERJ2GEJ 561 X (560) [KOR-1]
7030008370 S.RES ERJ2GEJ 561 X (560) [THA-02]
7030008370 S.RES ERJ2GEJ 561 X (560) [SEA-2]
7030008370 S.RES ERJ2GEJ 561 X (560) [THA-1]
7030008370 S.RES ERJ2GEJ 561 X (560) [EXP-2]
7030008370 S.RES ERJ2GEJ 561 X (560) [AUS-1]
7030008370 S.RES ERJ2GEJ 561 X (560) [SEA-3]
7030008370 S.RES ERJ2GEJ 561 X (560) [EXP-3]
R538 7030005240 S.RES ERJ2GEJ 473 X (47K) T 108.8/21.7
R539 7030005240 S.RES ERJ2GEJ 473 X (47K) T 108.8/24.9
R541 7030005240 S.RES ERJ2GEJ 473 X (47K) B 59.4/16.5
R542 7030005240 S.RES ERJ2GEJ 473 X (47K) B 60.8/18.0
R543 7030005240 S.RES ERJ2GEJ 473 X (47K) B 52.1/27.3
R544 7030010040 S.RES ERJ2GEJ-JPW [OTH-01] only B 14.8/20.4
R545 7410000770 S.ARR EXB-V4V 102JV (1K) T 68.5/11.7
R546 7030005090 S.RES ERJ2GEJ 104 X (100K) [EUR] T 18.7/17.5
7030005090 S.RES ERJ2GEJ 104 X (100K) [TPE]
7030005090 S.RES ERJ2GEJ 104 X (100K) [USA]
7030005090 S.RES ERJ2GEJ 104 X (100K) [KOR]
7030005090 S.RES ERJ2GEJ 104 X (100K) [SEA]
7030005090 S.RES ERJ2GEJ 104 X (100K) [THA]
7030005090 S.RES ERJ2GEJ 104 X (100K) [EXP]
7030005090 S.RES ERJ2GEJ 104 X (100K) [EUR-1]
7030005090 S.RES ERJ2GEJ 104 X (100K) [AUS]
7030005090 S.RES ERJ2GEJ 104 X (100K) [SEA-1]
7030005090 S.RES ERJ2GEJ 104 X (100K) [EXP-1]
7030005090 S.RES ERJ2GEJ 104 X (100K) [CHN]
7030005090 S.RES ERJ2GEJ 104 X (100K) [CHN-01]
7030005090 S.RES ERJ2GEJ 104 X (100K) [CHN-02]
7030005090 S.RES ERJ2GEJ 104 X (100K) [TPE-1]
7030005090 S.RES ERJ2GEJ 104 X (100K) [KOR-1]
7030005090 S.RES ERJ2GEJ 104 X (100K) [THA-02]
7030005090 S.RES ERJ2GEJ 104 X (100K) [SEA-2]
7030005090 S.RES ERJ2GEJ 104 X (100K) [THA-1]
7030005090 S.RES ERJ2GEJ 104 X (100K) [EXP-2]
7030005090 S.RES ERJ2GEJ 104 X (100K) [AUS-1]
7030005090 S.RES ERJ2GEJ 104 X (100K) [SEA-3]
7030005090 S.RES ERJ2GEJ 104 X (100K) [EXP-3]
R547 7030010040 S.RES ERJ2GEJ-JPW [OTH-01] only B 36.2/13.4
R548 7030000240 S.RES MCR10EZHJ 68 (680) [EUR] T 63.3/20.2
7030000240 S.RES MCR10EZHJ 68 (680) [TPE]
7030000240 S.RES MCR10EZHJ 68 (680) [USA]
7030000240 S.RES MCR10EZHJ 68 (680) [KOR]
7030000240 S.RES MCR10EZHJ 68 (680) [SEA]
7030000240 S.RES MCR10EZHJ 68 (680) [THA]
7030000240 S.RES MCR10EZHJ 68 (680) [EXP]
7030000240 S.RES MCR10EZHJ 68 (680) [EUR-1]
7030000240 S.RES MCR10EZHJ 68 (680) [AUS]
7030000240 S.RES MCR10EZHJ 68 (680) [SEA-1]
7030000240 S.RES MCR10EZHJ 68 (680) [EXP-1]
7030000240 S.RES MCR10EZHJ 68 (680) [CHN]
7030000240 S.RES MCR10EZHJ 68 (680) [CHN-01]
7030000240 S.RES MCR10EZHJ 68 (680) [CHN-02]
7030000240 S.RES MCR10EZHJ 68 (680) [TPE-1]
7030000240 S.RES MCR10EZHJ 68 (680) [KOR-1]
7030000240 S.RES MCR10EZHJ 68 (680) [THA-02]
7030000240 S.RES MCR10EZHJ 68 (680) [SEA-2]
7030000240 S.RES MCR10EZHJ 68 (680) [THA-1]
7030000240 S.RES MCR10EZHJ 68 (680) [EXP-2]
7030000240 S.RES MCR10EZHJ 68 (680) [AUS-1]
7030000240 S.RES MCR10EZHJ 68 (680) [SEA-3]
7030000240 S.RES MCR10EZHJ 68 (680) [EXP-3]
R549 7030000240 S.RES MCR10EZHJ 68 (680) [EUR] B 46.9/17.7
7030000240 S.RES MCR10EZHJ 68 (680) [TPE]
7030000240 S.RES MCR10EZHJ 68 (680) [USA]
7030000240 S.RES MCR10EZHJ 68 (680) [KOR]
7030000240 S.RES MCR10EZHJ 68 (680) [SEA]
7030000240 S.RES MCR10EZHJ 68 (680) [THA]
7030000240 S.RES MCR10EZHJ 68 (680) [EXP]
7030000240 S.RES MCR10EZHJ 68 (680) [EUR-1]
7030000240 S.RES MCR10EZHJ 68 (680) [AUS]
7030000240 S.RES MCR10EZHJ 68 (680) [SEA-1]
7030000240 S.RES MCR10EZHJ 68 (680) [EXP-1]
7030000240 S.RES MCR10EZHJ 68 (680) [CHN]
7030000240 S.RES MCR10EZHJ 68 (680) [CHN-01]
7030000240 S.RES MCR10EZHJ 68 (680) [CHN-02]
7030000240 S.RES MCR10EZHJ 68 (680) [TPE-1]
7030000240 S.RES MCR10EZHJ 68 (680) [KOR-1]
7030000240 S.RES MCR10EZHJ 68 (680) [THA-02]
7030000240 S.RES MCR10EZHJ 68 (680) [SEA-2]
7030000240 S.RES MCR10EZHJ 68 (680) [THA-1]
7030000240 S.RES MCR10EZHJ 68 (680) [EXP-2]
7030000240 S.RES MCR10EZHJ 68 (680) [AUS-1]
7030000240 S.RES MCR10EZHJ 68 (680) [SEA-3]
7030000240 S.RES MCR10EZHJ 68 (680) [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

R550 7030010040 S.RES ERJ2GEJ-JPW [EUR] B 48.6/17.4
7030010040 S.RES ERJ2GEJ-JPW [TPE]
7030010040 S.RES ERJ2GEJ-JPW [USA]
7030010040 S.RES ERJ2GEJ-JPW [KOR]
7030010040 S.RES ERJ2GEJ-JPW [SEA]
7030010040 S.RES ERJ2GEJ-JPW [THA]
7030010040 S.RES ERJ2GEJ-JPW [EXP]
7030010040 S.RES ERJ2GEJ-JPW [EUR-1]
7030010040 S.RES ERJ2GEJ-JPW [AUS]
7030010040 S.RES ERJ2GEJ-JPW [SEA-1]
7030010040 S.RES ERJ2GEJ-JPW [EXP-1]
7030010040 S.RES ERJ2GEJ-JPW [CHN]
7030010040 S.RES ERJ2GEJ-JPW [CHN-01]
7030010040 S.RES ERJ2GEJ-JPW [CHN-02]
7030010040 S.RES ERJ2GEJ-JPW [TPE-1]
7030010040 S.RES ERJ2GEJ-JPW [KOR-1]
7030010040 S.RES ERJ2GEJ-JPW [THA-02]
7030010040 S.RES ERJ2GEJ-JPW [SEA-2]
7030010040 S.RES ERJ2GEJ-JPW [THA-1]
7030010040 S.RES ERJ2GEJ-JPW [EXP-2]
7030010040 S.RES ERJ2GEJ-JPW [AUS-1]
7030010040 S.RES ERJ2GEJ-JPW [SEA-3]
7030010040 S.RES ERJ2GEJ-JPW [EXP-3]
R551 7030005050 S.RES ERJ2GEJ 103 X (10K) B 103.1/26.7
R552 7030010040 S.RES ERJ2GEJ-JPW [OTH-01] only B 42.5/19.1
R553 7030010040 S.RES ERJ2GEJ-JPW [OTH-01] only T 25.6/21.8

C1 4030017460 S.CER C1005 JB 1H 102K-T B 48.3/10.8
C4 4030017460 S.CER C1005 JB 1H 102K-T T 46.3/10.9
C5 4030017420 S.CER C1005 CH 1H 470J-T T 59.2/7.0
C7 4030017460 S.CER C1005 JB 1H 102K-T B 57.1/11.4
C8 4030016790 S.CER C1005 JB 1E 103K-T T 21.7/13.1
C9 4030017460 S.CER C1005 JB 1H 102K-T B 46.2/11.0
C10 4030017460 S.CER C1005 JB 1H 102K-T B 38.8/29.0
C11 4030017460 S.CER C1005 JB 1H 102K-T B 20.1/7.8
C13 4030017460 S.CER C1005 JB 1H 102K-T B 70.2/2.9
C14 4030017460 S.CER C1005 JB 1H 102K-T B 44.2/11.4
C15 4030017460 S.CER C1005 JB 1H 102K-T B 54.5/10.8
C16 4030017460 S.CER C1005 JB 1H 102K-T B 23.2/8.7
C19 4030016790 S.CER C1005 JB 1E 103K-T [EUR] B 47.4/15.7
4030016790 S.CER C1005 JB 1E 103K-T [TPE]
4030016790 S.CER C1005 JB 1E 103K-T [USA]
4030016790 S.CER C1005 JB 1E 103K-T [KOR]
4030016790 S.CER C1005 JB 1E 103K-T [SEA]
4030016790 S.CER C1005 JB 1E 103K-T [THA]
4030016790 S.CER C1005 JB 1E 103K-T [EXP]
4030016790 S.CER C1005 JB 1E 103K-T [EUR-1]
4030016790 S.CER C1005 JB 1E 103K-T [AUS]
4030016790 S.CER C1005 JB 1E 103K-T [SEA-1]
4030016790 S.CER C1005 JB 1E 103K-T [EXP-1]
4030016790 S.CER C1005 JB 1E 103K-T [CHN]
4030016790 S.CER C1005 JB 1E 103K-T [CHN-01]
4030016790 S.CER C1005 JB 1E 103K-T [CHN-02]
4030016790 S.CER C1005 JB 1E 103K-T [TPE-1]
4030016790 S.CER C1005 JB 1E 103K-T [KOR-1]
4030016790 S.CER C1005 JB 1E 103K-T [THA-02]
4030016790 S.CER C1005 JB 1E 103K-T [SEA-2]
4030016790 S.CER C1005 JB 1E 103K-T [THA-1]
4030016790 S.CER C1005 JB 1E 103K-T [EXP-2]
4030016790 S.CER C1005 JB 1E 103K-T [AUS-1]
4030016790 S.CER C1005 JB 1E 103K-T [SEA-3]
4030016790 S.CER C1005 JB 1E 103K-T [EXP-3]
C20 4030017460 S.CER C1005 JB 1H 102K-T B 13.0/18.0
C23 4030017460 S.CER C1005 JB 1H 102K-T T 12.8/17.9
C28 4030017460 S.CER C1005 JB 1H 102K-T B 9.9/16.6
C30 4030017420 S.CER C1005 CH 1H 470J-T B 49.3/10.8
C31 4030017420 S.CER C1005 CH 1H 470J-T T 21.0/10.7
C32 4510008540 S.ELE EEE1CA100SR B 7.2/24.7
C33 4030013960 S.CER C1005 JB 1C 473K-T B 6.1/28.2
C34 4030017790 S.CER C1005 JB 1H 682K-T B 69.6/4.2
C35 4030017040 S.CER C1005 JB 1A 333K-T B 66.0/6.7
C36 4030016930 S.CER C1005 JB 1A 104K-T B 7.6/30.1
C37 4030016790 S.CER C1005 JB 1E 103K-T B 65.9/8.1
C38 4030018080 S.CER C1005 JB 1H 182K-T B 70.1/5.6
C39 4030017460 S.CER C1005 JB 1H 102K-T B 95.0/17.2
C40 4030017460 S.CER C1005 JB 1H 102K-T B 32.0/3.8
C41 4030016930 S.CER C1005 JB 1A 104K-T B 24.1/19.3
C42 4030016950 S.CER C1005 JB 1A 473K-T B 14.8/21.5
C43 4030016950 S.CER C1005 JB 1A 473K-T B 63.9/19.6
C44 4030018240 S.CER C1005 JB 1H 562K-T B 14.5/22.5
C45 4030016790 S.CER C1005 JB 1E 103K-T B 67.7/18.9
C46 4030016970 S.CER C1005 JB 1E 223K-T B 73.7/3.7
C47 4030016930 S.CER C1005 JB 1A 104K-T B 22.4/14.0
C48 4030017760 S.CER C1005 JB 1H 222K-T B 74.7/3.7
C49 4030016930 S.CER C1005 JB 1A 104K-T B 100.6/14.3
C51 4030017030 S.CER C1005 JB 1A 273K-T B 97.0/16.4
C52 4030017420 S.CER C1005 CH 1H 470J-T T 82.9/21.3
C53 4030017500 S.CER C1005 CH 1H 560J-T B 98.1/9.9
C54 4030016790 S.CER C1005 JB 1E 103K-T B 24.5/16.9
C55 4030017600 S.CER C1005 CH 1H 080C-T B 92.4/10.5
C56 4030017760 S.CER C1005 JB 1H 222K-T B 23.5/16.3
C57 4030018110 S.CER C1005 JB 1H 272K-T B 22.2/15.6
C59 4030017640 S.CER C1005 CH 1H 150J-T B 96.0/11.6
C62 4030017460 S.CER C1005 JB 1H 102K-T B 70.4/25.7
C64 4030016790 S.CER C1005 JB 1E 103K-T B 74.4/8.4
C65 4030016790 S.CER C1005 JB 1E 103K-T B 97.7/22.2
C66 4030016790 S.CER C1005 JB 1E 103K-T T 34.7/16.0
C67 4510008540 S.ELE EEE1CA100SR B 101.4/5.0
C68 4030016930 S.CER C1005 JB 1A 104K-T B 91.3/10.0
C69 4030016930 S.CER C1005 JB 1A 104K-T B 32.4/30.2
C70 4030016790 S.CER C1005 JB 1E 103K-T T 71.6/26.8
C71 4030016790 S.CER C1005 JB 1E 103K-T B 25.7/28.2
C72 4030017040 S.CER C1005 JB 1A 333K-T B 28.3/28.7
C73 4510008530 S.ELE EEE1HA2R2SR B 33.4/21.6

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

8

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

C74 4030018240 S.CER C1005 JB 1H 562K-T B 30.3/29.7
C75 4030017450 S.CER C1005 JB 1H 271K-T B 23.1/25.2
C76 4030017040 S.CER C1005 JB 1A 333K-T B 25.8/20.5
C77 4510008530 S.ELE EEE1HA2R2SR B 9.1/19.9
C78 4030016790 S.CER C1005 JB 1E 103K-T B 23.9/22.9
C79 4030017440 S.CER C1005 CH 1H 221J-T B 17.2/21.1
C80 4030016790 S.CER C1005 JB 1E 103K-T B 97.0/12.4
C81 4030016790 S.CER C1005 JB 1E 103K-T B 94.0/11.6
C82 4030017730 S.CER C1005 JB 1H 471K-T B 95.0/11.6
C583 4030016930 S.CER C1005 JB 1A 104K-T [EUR] T 14.8/21.0
4030016930 S.CER C1005 JB 1A 104K-T [TPE]
4030016930 S.CER C1005 JB 1A 104K-T [USA]
4030016930 S.CER C1005 JB 1A 104K-T [KOR]
4030016930 S.CER C1005 JB 1A 104K-T [SEA]
4030016930 S.CER C1005 JB 1A 104K-T [THA]
4030016930 S.CER C1005 JB 1A 104K-T [EXP]
4030016930 S.CER C1005 JB 1A 104K-T [EUR-1]
4030016930 S.CER C1005 JB 1A 104K-T [AUS]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-1]
4030016930 S.CER C1005 JB 1A 104K-T [CHN]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-01]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-02]
4030016930 S.CER C1005 JB 1A 104K-T [TPE-1]
4030016930 S.CER C1005 JB 1A 104K-T [KOR-1]
4030016930 S.CER C1005 JB 1A 104K-T [THA-02]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-2]
4030016930 S.CER C1005 JB 1A 104K-T [THA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-2]
4030016930 S.CER C1005 JB 1A 104K-T [AUS-1]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-3]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-3]
C584 4030016930 S.CER C1005 JB 1A 104K-T [EUR] T 16.5/27.7
4030016930 S.CER C1005 JB 1A 104K-T [TPE]
4030016930 S.CER C1005 JB 1A 104K-T [USA]
4030016930 S.CER C1005 JB 1A 104K-T [KOR]
4030016930 S.CER C1005 JB 1A 104K-T [SEA]
4030016930 S.CER C1005 JB 1A 104K-T [THA]
4030016930 S.CER C1005 JB 1A 104K-T [EXP]
4030016930 S.CER C1005 JB 1A 104K-T [EUR-1]
4030016930 S.CER C1005 JB 1A 104K-T [AUS]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-1]
4030016930 S.CER C1005 JB 1A 104K-T [CHN]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-01]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-02]
4030016930 S.CER C1005 JB 1A 104K-T [TPE-1]
4030016930 S.CER C1005 JB 1A 104K-T [KOR-1]
4030016930 S.CER C1005 JB 1A 104K-T [THA-02]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-2]
4030016930 S.CER C1005 JB 1A 104K-T [THA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-2]
4030016930 S.CER C1005 JB 1A 104K-T [AUS-1]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-3]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-3]
C585 4030016930 S.CER C1005 JB 1A 104K-T [EUR] B 10.4/26.1
4030016930 S.CER C1005 JB 1A 104K-T [TPE]
4030016930 S.CER C1005 JB 1A 104K-T [USA]
4030016930 S.CER C1005 JB 1A 104K-T [KOR]
4030016930 S.CER C1005 JB 1A 104K-T [SEA]
4030016930 S.CER C1005 JB 1A 104K-T [THA]
4030016930 S.CER C1005 JB 1A 104K-T [EXP]
4030016930 S.CER C1005 JB 1A 104K-T [EUR-1]
4030016930 S.CER C1005 JB 1A 104K-T [AUS]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-1]
4030016930 S.CER C1005 JB 1A 104K-T [CHN]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-01]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-02]
4030016930 S.CER C1005 JB 1A 104K-T [TPE-1]
4030016930 S.CER C1005 JB 1A 104K-T [KOR-1]
4030016930 S.CER C1005 JB 1A 104K-T [THA-02]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-2]
4030016930 S.CER C1005 JB 1A 104K-T [THA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-2]
4030016930 S.CER C1005 JB 1A 104K-T [AUS-1]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-3]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-3]
C586 4510008490 S.ELE EEE1CS100SR [EUR] B 14.1/25.4
4510008490 S.ELE EEE1CS100SR [TPE]
4510008490 S.ELE EEE1CS100SR [USA]
4510008490 S.ELE EEE1CS100SR [KOR]
4510008490 S.ELE EEE1CS100SR [SEA]
4510008490 S.ELE EEE1CS100SR [THA]
4510008490 S.ELE EEE1CS100SR [EXP]
4510008490 S.ELE EEE1CS100SR [EUR-1]
4510008490 S.ELE EEE1CS100SR [AUS]
4510008490 S.ELE EEE1CS100SR [SEA-1]
4510008490 S.ELE EEE1CS100SR [EXP-1]
4510008490 S.ELE EEE1CS100SR [CHN]
4510008490 S.ELE EEE1CS100SR [CHN-01]
4510008490 S.ELE EEE1CS100SR [CHN-02]
4510008490 S.ELE EEE1CS100SR [TPE-1]
4510008490 S.ELE EEE1CS100SR [KOR-1]
4510008490 S.ELE EEE1CS100SR [THA-02]
4510008490 S.ELE EEE1CS100SR [SEA-2]
4510008490 S.ELE EEE1CS100SR [THA-1]
4510008490 S.ELE EEE1CS100SR [EXP-2]
4510008490 S.ELE EEE1CS100SR [AUS-1]
4510008490 S.ELE EEE1CS100SR [SEA-3]
4510008490 S.ELE EEE1CS100SR [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

C587 4550006250 S.TAN TEESVA 1A 106M8R [EUR] B 10.2/31.8
4550006250 S.TAN TEESVA 1A 106M8R [TPE]
4550006250 S.TAN TEESVA 1A 106M8R [USA]
4550006250 S.TAN TEESVA 1A 106M8R [KOR]
4550006250 S.TAN TEESVA 1A 106M8R [SEA]
4550006250 S.TAN TEESVA 1A 106M8R [THA]
4550006250 S.TAN TEESVA 1A 106M8R [EXP]
4550006250 S.TAN TEESVA 1A 106M8R [EUR-1]
4550006250 S.TAN TEESVA 1A 106M8R [AUS]
4550006250 S.TAN TEESVA 1A 106M8R [SEA-1]
4550006250 S.TAN TEESVA 1A 106M8R [EXP-1]
4550006250 S.TAN TEESVA 1A 106M8R [CHN]
4550006250 S.TAN TEESVA 1A 106M8R [CHN-01]
4550006250 S.TAN TEESVA 1A 106M8R [CHN-02]
4550006250 S.TAN TEESVA 1A 106M8R [TPE-1]
4550006250 S.TAN TEESVA 1A 106M8R [KOR-1]
4550006250 S.TAN TEESVA 1A 106M8R [THA-02]
4550006250 S.TAN TEESVA 1A 106M8R [SEA-2]
4550006250 S.TAN TEESVA 1A 106M8R [THA-1]
4550006250 S.TAN TEESVA 1A 106M8R [EXP-2]
4550006250 S.TAN TEESVA 1A 106M8R [AUS-1]
4550006250 S.TAN TEESVA 1A 106M8R [SEA-3]
4550006250 S.TAN TEESVA 1A 106M8R [EXP-3]
C588 4030017490 S.CER C1608 JB 1A 105K-T B 22.0/12.8
C591 4030017460 S.CER C1005 JB 1H 102K-T T 21.3/21.2
C592 4030017460 S.CER C1005 JB 1H 102K-T B 29.3/15.0
C593 4030016930 S.CER C1005 JB 1A 104K-T [EUR] B 43.3/30.5
4030016930 S.CER C1005 JB 1A 104K-T [TPE]
4030016930 S.CER C1005 JB 1A 104K-T [USA]
4030016930 S.CER C1005 JB 1A 104K-T [KOR]
4030016930 S.CER C1005 JB 1A 104K-T [SEA]
4030016930 S.CER C1005 JB 1A 104K-T [THA]
4030016930 S.CER C1005 JB 1A 104K-T [EXP]
4030016930 S.CER C1005 JB 1A 104K-T [EUR-1]
4030016930 S.CER C1005 JB 1A 104K-T [AUS]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-1]
4030016930 S.CER C1005 JB 1A 104K-T [CHN]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-01]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-02]
4030016930 S.CER C1005 JB 1A 104K-T [TPE-1]
4030016930 S.CER C1005 JB 1A 104K-T [KOR-1]
4030016930 S.CER C1005 JB 1A 104K-T [THA-02]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-2]
4030016930 S.CER C1005 JB 1A 104K-T [THA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-2]
4030016930 S.CER C1005 JB 1A 104K-T [AUS-1]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-3]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-3]
C594 4030017460 S.CER C1005 JB 1H 102K-T [EUR] B 14.7/28.4
4030017460 S.CER C1005 JB 1H 102K-T [TPE]
4030017460 S.CER C1005 JB 1H 102K-T [USA]
4030017460 S.CER C1005 JB 1H 102K-T [KOR]
4030017460 S.CER C1005 JB 1H 102K-T [SEA]
4030017460 S.CER C1005 JB 1H 102K-T [THA]
4030017460 S.CER C1005 JB 1H 102K-T [EXP]
4030017460 S.CER C1005 JB 1H 102K-T [EUR-1]
4030017460 S.CER C1005 JB 1H 102K-T [AUS]
4030017460 S.CER C1005 JB 1H 102K-T [SEA-1]
4030017460 S.CER C1005 JB 1H 102K-T [EXP-1]
4030017460 S.CER C1005 JB 1H 102K-T [CHN]
4030017460 S.CER C1005 JB 1H 102K-T [CHN-01]
4030017460 S.CER C1005 JB 1H 102K-T [CHN-02]
4030017460 S.CER C1005 JB 1H 102K-T [TPE-1]
4030017460 S.CER C1005 JB 1H 102K-T [KOR-1]
4030017460 S.CER C1005 JB 1H 102K-T [THA-02]
4030017460 S.CER C1005 JB 1H 102K-T [SEA-2]
4030017460 S.CER C1005 JB 1H 102K-T [THA-1]
4030017460 S.CER C1005 JB 1H 102K-T [EXP-2]
4030017460 S.CER C1005 JB 1H 102K-T [AUS-1]
4030017460 S.CER C1005 JB 1H 102K-T [SEA-3]
4030017460 S.CER C1005 JB 1H 102K-T [EXP-3]
C595 4030017460 S.CER C1005 JB 1H 102K-T T 22.6/21.6
C596 4030017460 S.CER C1005 JB 1H 102K-T [EUR] B 29.7/17.2
4030017460 S.CER C1005 JB 1H 102K-T [TPE]
4030017460 S.CER C1005 JB 1H 102K-T [USA]
4030017460 S.CER C1005 JB 1H 102K-T [KOR]
4030017460 S.CER C1005 JB 1H 102K-T [SEA]
4030017460 S.CER C1005 JB 1H 102K-T [THA]
4030017460 S.CER C1005 JB 1H 102K-T [EXP]
4030017460 S.CER C1005 JB 1H 102K-T [EUR-1]
4030017460 S.CER C1005 JB 1H 102K-T [AUS]
4030017460 S.CER C1005 JB 1H 102K-T [SEA-1]
4030017460 S.CER C1005 JB 1H 102K-T [EXP-1]
4030017460 S.CER C1005 JB 1H 102K-T [CHN]
4030017460 S.CER C1005 JB 1H 102K-T [CHN-01]
4030017460 S.CER C1005 JB 1H 102K-T [CHN-02]
4030017460 S.CER C1005 JB 1H 102K-T [TPE-1]
4030017460 S.CER C1005 JB 1H 102K-T [KOR-1]
4030017460 S.CER C1005 JB 1H 102K-T [THA-02]
4030017460 S.CER C1005 JB 1H 102K-T [SEA-2]
4030017460 S.CER C1005 JB 1H 102K-T [THA-1]
4030017460 S.CER C1005 JB 1H 102K-T [EXP-2]
4030017460 S.CER C1005 JB 1H 102K-T [AUS-1]
4030017460 S.CER C1005 JB 1H 102K-T [SEA-3]
4030017460 S.CER C1005 JB 1H 102K-T [EXP-3]
C597 4030017460 S.CER C1005 JB 1H 102K-T B 37.6/9.0

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

9

Dec. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

C599 4030016930 S.CER C1005 JB 1A 104K-T [EUR] B 12.5/28.0
4030016930 S.CER C1005 JB 1A 104K-T [TPE]
4030016930 S.CER C1005 JB 1A 104K-T [USA]
4030016930 S.CER C1005 JB 1A 104K-T [KOR]
4030016930 S.CER C1005 JB 1A 104K-T [SEA]
4030016930 S.CER C1005 JB 1A 104K-T [THA]
4030016930 S.CER C1005 JB 1A 104K-T [EXP]
4030016930 S.CER C1005 JB 1A 104K-T [EUR-1]
4030016930 S.CER C1005 JB 1A 104K-T [AUS]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-1]
4030016930 S.CER C1005 JB 1A 104K-T [CHN]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-01]
4030016930 S.CER C1005 JB 1A 104K-T [CHN-02]
4030016930 S.CER C1005 JB 1A 104K-T [TPE-1]
4030016930 S.CER C1005 JB 1A 104K-T [KOR-1]
4030016930 S.CER C1005 JB 1A 104K-T [THA-02]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-2]
4030016930 S.CER C1005 JB 1A 104K-T [THA-1]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-2]
4030016930 S.CER C1005 JB 1A 104K-T [AUS-1]
4030016930 S.CER C1005 JB 1A 104K-T [SEA-3]
4030016930 S.CER C1005 JB 1A 104K-T [EXP-3]
C600 4030017460 S.CER C1005 JB 1H 102K-T T 36.4/16.9
C601 4550007510 S.TAN F931C106MBABMA [EUR] T 51.4/20.1
4550007510 S.TAN F931C106MBABMA [TPE]
4550007510 S.TAN F931C106MBABMA [USA]
4550007510 S.TAN F931C106MBABMA [KOR]
4550007510 S.TAN F931C106MBABMA [SEA]
4550007510 S.TAN F931C106MBABMA [THA]
4550007510 S.TAN F931C106MBABMA [EXP]
4550007510 S.TAN F931C106MBABMA [EUR-1]
4550007510 S.TAN F931C106MBABMA [AUS]
4550007510 S.TAN F931C106MBABMA [SEA-1]
4550007510 S.TAN F931C106MBABMA [EXP-1]
4550007510 S.TAN F931C106MBABMA [CHN]
4550007510 S.TAN F931C106MBABMA [CHN-01]
4550007510 S.TAN F931C106MBABMA [CHN-02]
4550007510 S.TAN F931C106MBABMA [TPE-1]
4550007510 S.TAN F931C106MBABMA [KOR-1]
4550007510 S.TAN F931C106MBABMA [THA-02]
4550007510 S.TAN F931C106MBABMA [SEA-2]
4550007510 S.TAN F931C106MBABMA [THA-1]
4550007510 S.TAN F931C106MBABMA [EXP-2]
4550007510 S.TAN F931C106MBABMA [AUS-1]
4550007510 S.TAN F931C106MBABMA [SEA-3]
4550007510 S.TAN F931C106MBABMA [EXP-3]
C602 4550006250 S.TAN TEESVA 1A 106M8R [EUR] B 49.3/14.2
4550006250 S.TAN TEESVA 1A 106M8R [TPE]
4550006250 S.TAN TEESVA 1A 106M8R [USA]
4550006250 S.TAN TEESVA 1A 106M8R [KOR]
4550006250 S.TAN TEESVA 1A 106M8R [SEA]
4550006250 S.TAN TEESVA 1A 106M8R [THA]
4550006250 S.TAN TEESVA 1A 106M8R [EXP]
4550006250 S.TAN TEESVA 1A 106M8R [EUR-1]
4550006250 S.TAN TEESVA 1A 106M8R [AUS]
4550006250 S.TAN TEESVA 1A 106M8R [SEA-1]
4550006250 S.TAN TEESVA 1A 106M8R [EXP-1]
4550006250 S.TAN TEESVA 1A 106M8R [CHN]
4550006250 S.TAN TEESVA 1A 106M8R [CHN-01]
4550006250 S.TAN TEESVA 1A 106M8R [CHN-02]
4550006250 S.TAN TEESVA 1A 106M8R [TPE-1]
4550006250 S.TAN TEESVA 1A 106M8R [KOR-1]
4550006250 S.TAN TEESVA 1A 106M8R [THA-02]
4550006250 S.TAN TEESVA 1A 106M8R [SEA-2]
4550006250 S.TAN TEESVA 1A 106M8R [THA-1]
4550006250 S.TAN TEESVA 1A 106M8R [EXP-2]
4550006250 S.TAN TEESVA 1A 106M8R [AUS-1]
4550006250 S.TAN TEESVA 1A 106M8R [SEA-3]
4550006250 S.TAN TEESVA 1A 106M8R [EXP-3]

J1 6450002210 CON 3017-8821 <KIN>
J3 6510024231 S.CON 08-6210-036-340-800 B 50.1/6.7
J4 6510021970 S.CON AXN330C130P [EUR] B 53.6/18.8
6510021970 S.CON AXN330C130P [TPE]
6510021970 S.CON AXN330C130P [USA]
6510021970 S.CON AXN330C130P [KOR]
6510021970 S.CON AXN330C130P [SEA]
6510021970 S.CON AXN330C130P [THA]
6510021970 S.CON AXN330C130P [EXP]
6510021970 S.CON AXN330C130P [EUR-1]
6510021970 S.CON AXN330C130P [AUS]
6510021970 S.CON AXN330C130P [SEA-1]
6510021970 S.CON AXN330C130P [EXP-1]
6510021970 S.CON AXN330C130P [CHN]
6510021970 S.CON AXN330C130P [CHN-01]
6510021970 S.CON AXN330C130P [CHN-02]
6510021970 S.CON AXN330C130P [TPE-1]
6510021970 S.CON AXN330C130P [KOR-1]
6510021970 S.CON AXN330C130P [THA-02]
6510021970 S.CON AXN330C130P [SEA-2]
6510021970 S.CON AXN330C130P [THA-1]
6510021970 S.CON AXN330C130P [EXP-2]
6510021970 S.CON AXN330C130P [AUS-1]
6510021970 S.CON AXN330C130P [SEA-3]
6510021970 S.CON AXN330C130P [EXP-3]

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

DS7 5040001760 S.LED SEC 2422C T 100.3/21.1
DS8 5040001760 S.LED SEC 2422C T 46.5/18.1
DS9 5040001760 S.LED SEC 2422C T 57.2/18.1
DS10 5040001760 S.LED SEC 2422C T 68.0/18.1
DS11 5040001760 S.LED SEC 2422C T 78.8/18.1
DS12 5040001760 S.LED SEC 2422C T 89.6/18.1
DS13 5040001760 S.LED SEC 2422C T 100.3/18.1

S1 2260001890 S.SWI SKQDPA T 8.9/30.7
S2 2260001890 S.SWI SKQDPA T 103.4/4.1
S3 2260001890 S.SWI SKQDPA T 91.4/4.1
S4 2260001890 S.SWI SKQDPA T 79.4/4.1
S5 2260001890 S.SWI SKQDPA T 67.4/4.1
S6 2260001890 S.SWI SKQDPA T 55.4/4.1
S7 2260001890 S.SWI SKQDPA T 43.4/4.1
S8 2260001890 S.SWI SKQDPA T 8.9/21.4
S9 2250000460 ENC EVQ-VENF0224B
S10 2260001890 S.SWI SKQDPA T 114.6/4.1

EP1 6910012350 S.BEA MMZ1608Y 102BT T 18.4/10.7
EP2 6910012350 S.BEA MMZ1608Y 102BT B 17.9/11.6
EP3 6910012350 S.BEA MMZ1608Y 102BT B 11.5/15.8
EP4 6910012350 S.BEA MMZ1608Y 102BT B 17.9/10.3
EP5 6910012350 S.BEA MMZ1608Y 102BT T 11.2/16.4
EP6 6910012350 S.BEA MMZ1608Y 102BT B 12.9/15.8

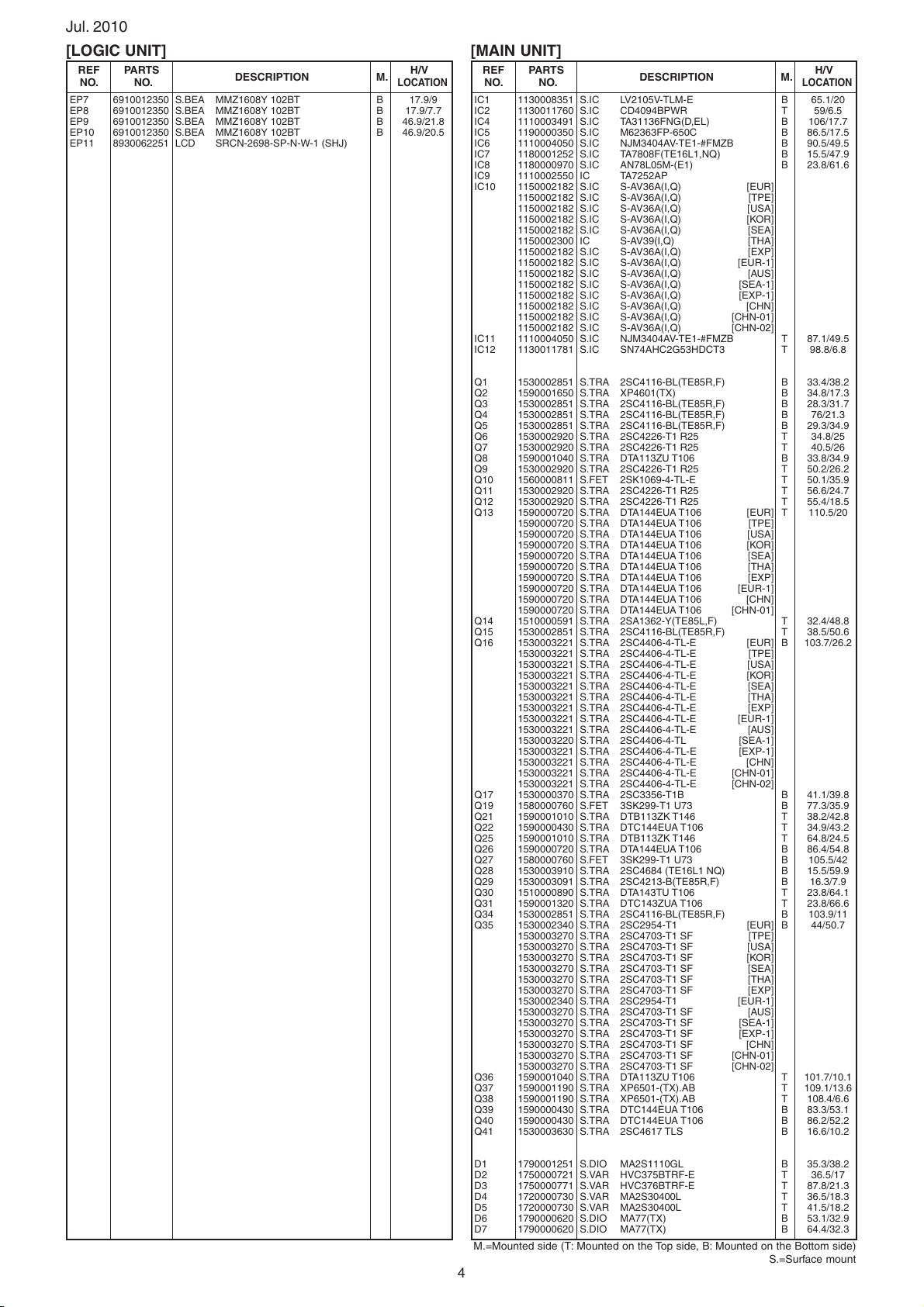

EP7 6910012350 S.BEA MMZ1608Y 102BT B 17.9/9.0
EP8 6910012350 S.BEA MMZ1608Y 102BT B 17.9/7.7
EP9 6910012350 S.BEA MMZ1608Y 102BT [EUR] B 46.9/21.8
6910012350 S.BEA MMZ1608Y 102BT [TPE]
6910012350 S.BEA MMZ1608Y 102BT [USA]
6910012350 S.BEA MMZ1608Y 102BT [KOR]
6910012350 S.BEA MMZ1608Y 102BT [SEA]
6910012350 S.BEA MMZ1608Y 102BT [THA]
6910012350 S.BEA MMZ1608Y 102BT [EXP]
6910012350 S.BEA MMZ1608Y 102BT [EUR-1]
6910012350 S.BEA MMZ1608Y 102BT [AUS]
6910012350 S.BEA MMZ1608Y 102BT [SEA-1]
6910012350 S.BEA MMZ1608Y 102BT [EXP-1]
6910012350 S.BEA MMZ1608Y 102BT [CHN]
6910012350 S.BEA MMZ1608Y 102BT [CHN-01]
6910012350 S.BEA MMZ1608Y 102BT [CHN-02]
6910012350 S.BEA MMZ1608Y 102BT [TPE-1]
6910012350 S.BEA MMZ1608Y 102BT [KOR-1]
6910012350 S.BEA MMZ1608Y 102BT [THA-02]
6910012350 S.BEA MMZ1608Y 102BT [SEA-2]
6910012350 S.BEA MMZ1608Y 102BT [THA-1]
6910012350 S.BEA MMZ1608Y 102BT [EXP-2]
6910012350 S.BEA MMZ1608Y 102BT [AUS-1]
6910012350 S.BEA MMZ1608Y 102BT [SEA-3]
6910012350 S.BEA MMZ1608Y 102BT [EXP-3]
EP10 6910012350 S.BEA MMZ1608Y 102BT [EUR] B 47.0/20.5
6910012350 S.BEA MMZ1608Y 102BT [TPE]
6910012350 S.BEA MMZ1608Y 102BT [USA]
6910012350 S.BEA MMZ1608Y 102BT [KOR]
6910012350 S.BEA MMZ1608Y 102BT [SEA]
6910012350 S.BEA MMZ1608Y 102BT [THA]
6910012350 S.BEA MMZ1608Y 102BT [EXP]
6910012350 S.BEA MMZ1608Y 102BT [EUR-1]
6910012350 S.BEA MMZ1608Y 102BT [AUS]
6910012350 S.BEA MMZ1608Y 102BT [SEA-1]
6910012350 S.BEA MMZ1608Y 102BT [EXP-1]
6910012350 S.BEA MMZ1608Y 102BT [CHN]
6910012350 S.BEA MMZ1608Y 102BT [CHN-01]
6910012350 S.BEA MMZ1608Y 102BT [CHN-02]
6910012350 S.BEA MMZ1608Y 102BT [TPE-1]
6910012350 S.BEA MMZ1608Y 102BT [KOR-1]
6910012350 S.BEA MMZ1608Y 102BT [THA-02]
6910012350 S.BEA MMZ1608Y 102BT [SEA-2]
6910012350 S.BEA MMZ1608Y 102BT [THA-1]
6910012350 S.BEA MMZ1608Y 102BT [EXP-2]
6910012350 S.BEA MMZ1608Y 102BT [AUS-1]
6910012350 S.BEA MMZ1608Y 102BT [SEA-3]
6910012350 S.BEA MMZ1608Y 102BT [EXP-3]
EP11 8930062251 LCD SRCN-2698-SP-N-W-1 (SHJ)

DESCRIPTION

M.

H/V

LOCATION

DS1 5030002660 LCD IS08264E00V2 <SKD>
DS2 5040001760 S.LED SEC 2422C T 46.5/21.1
DS3 5040001760 S.LED SEC 2422C T 57.2/21.1
DS4 5040001760 S.LED SEC 2422C T 68.0/21.1
DS5 5040001760 S.LED SEC 2422C T 78.8/21.1
DS6 5040001760 S.LED SEC 2422C T 89.6/21.1

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

10

Dec. 2010

[MAIN UNIT]

REF PARTS
NO. NO.

IC1 1130008351 S.IC LV2105V-TLM-E B 65.1/20.0
IC2 1130011760 S.IC CD4094BPWR T 59.0/6.5
IC4 1110003491 S.IC TA31136FNG(DEL) B 106.0/17.7
IC5 1190000350 S.IC M62363FP-650C B 86.5/17.5
IC6 1110004050 S.IC NJM3404AV-TE1-#FMZB B 90.5/49.5
IC7 1180001252 S.IC TA7808F(TE16L1NQ) B 15.5/47.9
IC8 1180000970 S.IC AN78L05M-(E1) B 23.8/61.7
IC9 1110002550 IC TA7252AP
IC10 1150002182 S.IC S-AV36A(IQ) [EUR]
1150002182 S.IC S-AV36A(IQ) [TPE]
1150002182 S.IC S-AV36A(IQ) [USA]
1150002182 S.IC S-AV36A(IQ) [KOR]
1150002182 S.IC S-AV36A(IQ) [SEA]
1150002300 IC S-AV39(IQ) [THA]
1150002182 S.IC S-AV36A(IQ) [EXP]
1150002182 S.IC S-AV36A(IQ) [EUR-1]
1150002182 S.IC S-AV36A(IQ) [AUS]
1150002182 S.IC S-AV36A(IQ) [SEA-1]
1150002182 S.IC S-AV36A(IQ) [EXP-1]
1150002182 S.IC S-AV36A(IQ) [CHN]
1150002182 S.IC S-AV36A(IQ) [CHN-01]
1150002182 S.IC S-AV36A(IQ) [CHN-02]
IC11 1110004050 S.IC NJM3404AV-TE1-#FMZB T 87.1/49.5
IC12 1130011781 S.IC SN74AHC2G53HDCT3 T 98.8/6.8

Q1 1530002851 S.TRA 2SC4116-BL(TE85RF) B 33.4/38.2
Q2 1590001650 S.TRA XP4601(TX) B 34.8/17.3
Q3 1530002851 S.TRA 2SC4116-BL(TE85RF) B 28.3/31.7
Q4 1530002851 S.TRA 2SC4116-BL(TE85RF) B 76.0/21.3
Q5 1530002851 S.TRA 2SC4116-BL(TE85RF) B 29.3/34.9
Q6 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 34.8/25.0
Q7 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 40.5/26.0
Q8 1590001040 S.TRA DTA113ZU T106 B 33.8/34.9
Q9 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 50.2/26.2
Q10 1560000811 S.FET 2SK1069-4-TL-E T 50.1/35.9
Q11 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 56.6/24.7
Q12 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 55.4/18.5
Q13 1590000720 S.TRA DTA144EUA T106 [EUR] T 110.5/20.0
1590000720 S.TRA DTA144EUA T106 [TPE]
1590000720 S.TRA DTA144EUA T106 [USA]
1590000720 S.TRA DTA144EUA T106 [KOR]
1590000720 S.TRA DTA144EUA T106 [SEA]
1590000720 S.TRA DTA144EUA T106 [THA]
1590000720 S.TRA DTA144EUA T106 [EXP]
1590000720 S.TRA DTA144EUA T106 [EUR-1]
1590000720 S.TRA DTA144EUA T106 [CHN]
1590000720 S.TRA DTA144EUA T106 [CHN-01]
Q14 1510000591 S.TRA 2SA1362-Y(TE85LF) T 32.4/48.8
Q15 1530002851 S.TRA 2SC4116-BL(TE85RF) T 38.5/50.6
Q16 1530003221 S.TRA 2SC4406-4-TL-E [EUR] B 103.7/26.2
1530003221 S.TRA 2SC4406-4-TL-E [TPE]
1530003221 S.TRA 2SC4406-4-TL-E [USA]
1530003221 S.TRA 2SC4406-4-TL-E [KOR]
1530003221 S.TRA 2SC4406-4-TL-E [SEA]
1530003221 S.TRA 2SC4406-4-TL-E [THA]
1530003221 S.TRA 2SC4406-4-TL-E [EXP]
1530003221 S.TRA 2SC4406-4-TL-E [EUR-1]
1530003221 S.TRA 2SC4406-4-TL-E [AUS]
1530003220 S.TRA 2SC4406-4-TL [SEA-1]
1530003221 S.TRA 2SC4406-4-TL-E [EXP-1]
1530003221 S.TRA 2SC4406-4-TL-E [CHN]
1530003221 S.TRA 2SC4406-4-TL-E [CHN-01]
1530003221 S.TRA 2SC4406-4-TL-E [CHN-02]
Q17 1530000370 S.TRA 2SC3356-T1B B 41.1/39.8
Q19 1580000760 S.FET 3SK299-T1 U73 B 77.3/35.9
Q21 1590001010 S.TRA DTB113ZK T146 T 38.2/42.8
Q22 1590000430 S.TRA DTC144EUA T106 T 34.9/43.2
Q25 1590001010 S.TRA DTB113ZK T146 T 64.8/24.5
Q26 1590000720 S.TRA DTA144EUA T106 B 86.5/54.8
Q27 1580000760 S.FET 3SK299-T1 U73 B 105.5/42.0
Q28 1530003910 S.TRA 2SC4684 (TE16L1 NQ) B 15.5/59.9
Q29 1530003091 S.TRA 2SC4213-B(TE85RF) B 16.3/7.9
Q30 1510000890 S.TRA DTA143TU T106 T 23.8/64.1
Q31 1590001320 S.TRA DTC143ZUA T106 T 23.8/66.6
Q34 1530002851 S.TRA 2SC4116-BL(TE85RF) B 103.9/11.0
Q35 1530002340 S.TRA 2SC2954-T1 [EUR] B 44.0/50.7
1530003270 S.TRA 2SC4703-T1 SF [TPE]
1530003270 S.TRA 2SC4703-T1 SF [USA]
1530003270 S.TRA 2SC4703-T1 SF [KOR]
1530003270 S.TRA 2SC4703-T1 SF [SEA]
1530003270 S.TRA 2SC4703-T1 SF [THA]
1530003270 S.TRA 2SC4703-T1 SF [EXP]
1530002340 S.TRA 2SC2954-T1 [EUR-1]
1530003270 S.TRA 2SC4703-T1 SF [AUS]
1530003270 S.TRA 2SC4703-T1 SF [SEA-1]
1530003270 S.TRA 2SC4703-T1 SF [EXP-1]
1530003270 S.TRA 2SC4703-T1 SF [CHN]
1530003270 S.TRA 2SC4703-T1 SF [CHN-01]
1530003270 S.TRA 2SC4703-T1 SF [CHN-02]
Q36 1590001040 S.TRA DTA113ZU T106 T 101.7/10.1
Q37 1590001190 S.TRA XP6501-(TX).AB T 109.1/13.6
Q38 1590001190 S.TRA XP6501-(TX).AB T 108.4/6.6
Q39 1590000430 S.TRA DTC144EUA T106 B 83.4/53.1
Q40 1590000430 S.TRA DTC144EUA T106 B 86.3/52.2
Q41 1530003630 S.TRA 2SC4617 TLS B 16.6/10.2

D1 1790001251 S.DIO MA2S1110GL B 35.3/38.2
D2 1750000721 S.VAR HVC375BTRF-E T 36.5/17.0
D3 1750000771 S.VAR HVC376BTRF-E T 87.8/21.3
D4 1720000730 S.VAR MA2S30400L T 36.5/18.3
D5 1720000730 S.VAR MA2S30400L T 41.5/18.2
D6 1790000620 S.DIO MA77(TX) B 53.1/32.9
D7 1790000620 S.DIO MA77(TX) B 64.4/32.3

DESCRIPTION

M.

H/V

LOCATION

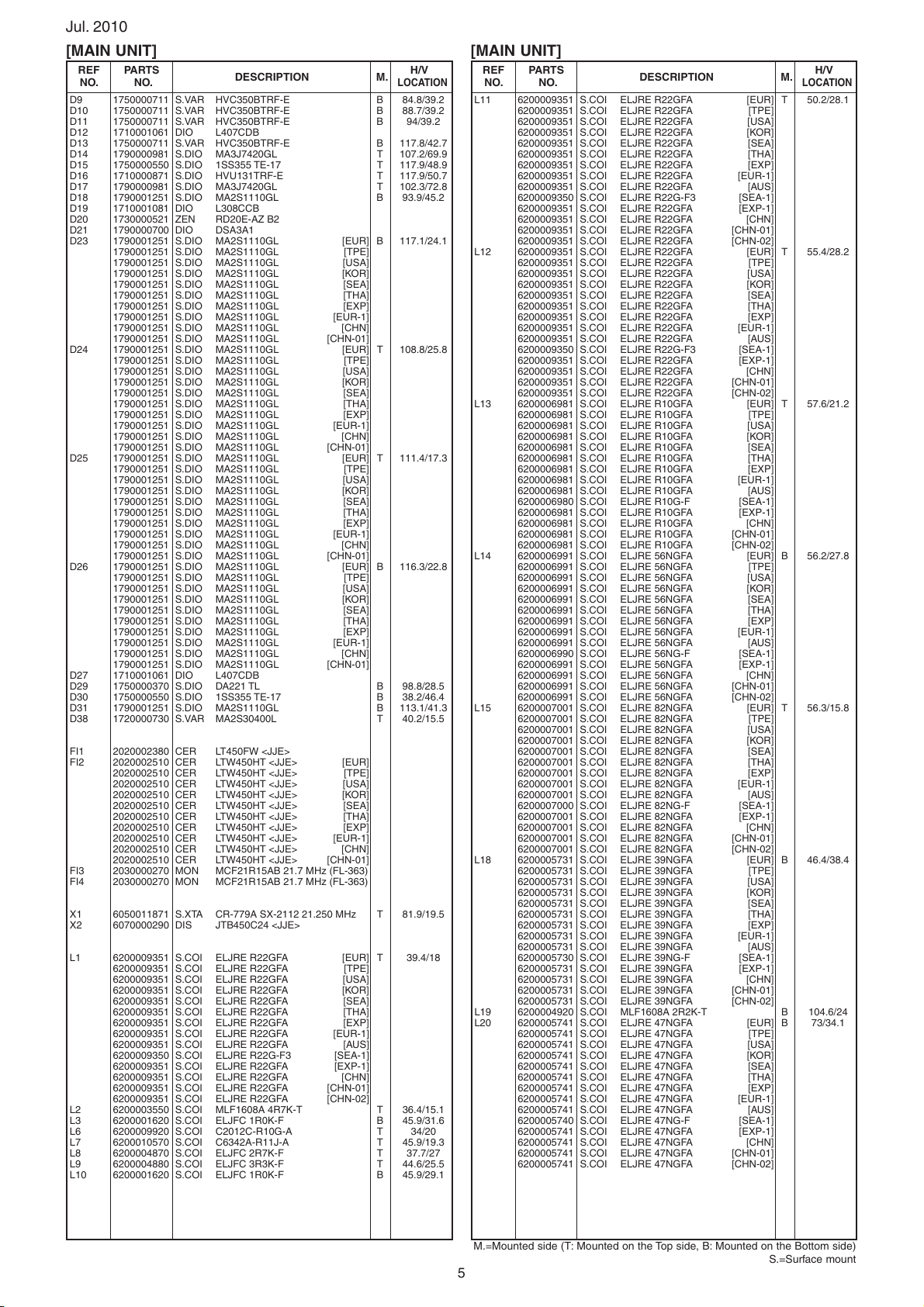

[MAIN UNIT]

REF PARTS
NO. NO.

D9 1750000711 S.VAR HVC350BTRF-E B 84.8/39.2
D10 1750000711 S.VAR HVC350BTRF-E B 88.7/39.2
D11 1750000711 S.VAR HVC350BTRF-E B 94.0/39.2
D12 1710001061 DIO L407CDB
D13 1750000711 S.VAR HVC350BTRF-E B 117.8/42.7
D14 1790000981 S.DIO MA3J7420GL T 107.2/69.9
D15 1750000550 S.DIO 1SS355 TE-17 T 117.9/48.9
D16 1710000871 S.DIO HVU131TRF-E T 117.9/50.7
D17 1790000981 S.DIO MA3J7420GL T 102.3/72.8
D18 1790001251 S.DIO MA2S1110GL B 93.9/45.2
D19 1710001081 DIO L308CCB
D20 1730000521 ZEN RD20E-AZ B2
D21 1790000700 DIO DSA3A1
D23 1790001251 S.DIO MA2S1110GL [EUR] B 117.1/24.1
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
D24 1790001251 S.DIO MA2S1110GL [EUR] T 108.8/25.8
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
D25 1790001251 S.DIO MA2S1110GL [EUR] T 111.4/17.3
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
D26 1790001251 S.DIO MA2S1110GL [EUR] B 116.3/22.8
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
D27 1710001061 DIO L407CDB
D29 1750000370 S.DIO DA221 TL B 98.8/28.5
D30 1750000550 S.DIO 1SS355 TE-17 B 38.2/46.4
D31 1790001251 S.DIO MA2S1110GL B 113.1/41.3
D38 1720000730 S.VAR MA2S30400L T 40.2/15.5

FI1 2020002380 CER LT450FW <JJE>
FI2 2020002510 CER LTW450HT <JJE> [EUR]
2020002510 CER LTW450HT <JJE> [TPE]
2020002510 CER LTW450HT <JJE> [USA]
2020002510 CER LTW450HT <JJE> [KOR]
2020002510 CER LTW450HT <JJE> [SEA]
2020002510 CER LTW450HT <JJE> [THA]
2020002510 CER LTW450HT <JJE> [EXP]
2020002510 CER LTW450HT <JJE> [EUR-1]
2020002510 CER LTW450HT <JJE> [CHN]
2020002510 CER LTW450HT <JJE> [CHN-01]
FI3 2030000270 MON MCF21R15AB 21.7 MHz (FL-363)
FI4 2030000270 MON MCF21R15AB 21.7 MHz (FL-363)

X1 6050011871 S.XTA CR-779A SX-2112 21.250 MHz T 81.9/19.5
X2 6070000290 DIS JTB450C24 <JJE>

L1 6200009351 S.COI ELJRE R22GFA [EUR] T 39.4/18.0
6200009351 S.COI ELJRE R22GFA [TPE]
6200009351 S.COI ELJRE R22GFA [USA]
6200009351 S.COI ELJRE R22GFA [KOR]
6200009351 S.COI ELJRE R22GFA [SEA]
6200009351 S.COI ELJRE R22GFA [THA]
6200009351 S.COI ELJRE R22GFA [EXP]
6200009351 S.COI ELJRE R22GFA [EUR-1]
6200009351 S.COI ELJRE R22GFA [AUS]
6200009350 S.COI ELJRE R22G-F3 [SEA-1]
6200009351 S.COI ELJRE R22GFA [EXP-1]
6200009351 S.COI ELJRE R22GFA [CHN]
6200009351 S.COI ELJRE R22GFA [CHN-01]
6200009351 S.COI ELJRE R22GFA [CHN-02]
L2 6200003550 S.COI MLF1608A 4R7K-T T 36.4/15.1
L3 6200001620 S.COI ELJFC 1R0K-F B 45.9/31.6
L6 6200009920 S.COI C2012C-R10G-A T 34.0/20.1
L7 6200010570 S.COI C6342A-R11J-A T 45.9/19.3
L8 6200004870 S.COI ELJFC 2R7K-F T 37.7/27.0
L9 6200004880 S.COI ELJFC 3R3K-F T 44.6/25.5
L10 6200001620 S.COI ELJFC 1R0K-F B 45.9/29.1

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

11

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[MAIN UNIT]

REF PARTS
NO. NO.

L11 6200009351 S.COI ELJRE R22GFA [EUR] T 50.2/28.1
6200009351 S.COI ELJRE R22GFA [TPE]
6200009351 S.COI ELJRE R22GFA [USA]
6200009351 S.COI ELJRE R22GFA [KOR]
6200009351 S.COI ELJRE R22GFA [SEA]
6200009351 S.COI ELJRE R22GFA [THA]
6200009351 S.COI ELJRE R22GFA [EXP]
6200009351 S.COI ELJRE R22GFA [EUR-1]
6200009351 S.COI ELJRE R22GFA [AUS]
6200009350 S.COI ELJRE R22G-F3 [SEA-1]
6200009351 S.COI ELJRE R22GFA [EXP-1]
6200009351 S.COI ELJRE R22GFA [CHN]
6200009351 S.COI ELJRE R22GFA [CHN-01]
6200009351 S.COI ELJRE R22GFA [CHN-02]
L12 6200009351 S.COI ELJRE R22GFA [EUR] T 55.4/28.2
6200009351 S.COI ELJRE R22GFA [TPE]
6200009351 S.COI ELJRE R22GFA [USA]
6200009351 S.COI ELJRE R22GFA [KOR]
6200009351 S.COI ELJRE R22GFA [SEA]
6200009351 S.COI ELJRE R22GFA [THA]
6200009351 S.COI ELJRE R22GFA [EXP]
6200009351 S.COI ELJRE R22GFA [EUR-1]
6200009351 S.COI ELJRE R22GFA [AUS]
6200009350 S.COI ELJRE R22G-F3 [SEA-1]
6200009351 S.COI ELJRE R22GFA [EXP-1]
6200009351 S.COI ELJRE R22GFA [CHN]
6200009351 S.COI ELJRE R22GFA [CHN-01]
6200009351 S.COI ELJRE R22GFA [CHN-02]
L13 6200006981 S.COI ELJRE R10GFA [EUR] T 57.6/21.2
6200006981 S.COI ELJRE R10GFA [TPE]
6200006981 S.COI ELJRE R10GFA [USA]
6200006981 S.COI ELJRE R10GFA [KOR]
6200006981 S.COI ELJRE R10GFA [SEA]
6200006981 S.COI ELJRE R10GFA [THA]
6200006981 S.COI ELJRE R10GFA [EXP]
6200006981 S.COI ELJRE R10GFA [EUR-1]
6200006981 S.COI ELJRE R10GFA [AUS]
6200006980 S.COI ELJRE R10G-F [SEA-1]
6200006981 S.COI ELJRE R10GFA [EXP-1]
6200006981 S.COI ELJRE R10GFA [CHN]
6200006981 S.COI ELJRE R10GFA [CHN-01]
6200006981 S.COI ELJRE R10GFA [CHN-02]
L14 6200006991 S.COI ELJRE 56NGFA [EUR] B 56.2/27.8
6200006991 S.COI ELJRE 56NGFA [TPE]
6200006991 S.COI ELJRE 56NGFA [USA]
6200006991 S.COI ELJRE 56NGFA [KOR]
6200006991 S.COI ELJRE 56NGFA [SEA]
6200006991 S.COI ELJRE 56NGFA [THA]
6200006991 S.COI ELJRE 56NGFA [EXP]
6200006991 S.COI ELJRE 56NGFA [EUR-1]
6200006991 S.COI ELJRE 56NGFA [AUS]
6200006990 S.COI ELJRE 56NG-F [SEA-1]
6200006991 S.COI ELJRE 56NGFA [EXP-1]
6200006991 S.COI ELJRE 56NGFA [CHN]
6200006991 S.COI ELJRE 56NGFA [CHN-01]
6200006991 S.COI ELJRE 56NGFA [CHN-02]
L15 6200007001 S.COI ELJRE 82NGFA [EUR] T 56.3/15.8
6200007001 S.COI ELJRE 82NGFA [TPE]
6200007001 S.COI ELJRE 82NGFA [USA]
6200007001 S.COI ELJRE 82NGFA [KOR]
6200007001 S.COI ELJRE 82NGFA [SEA]
6200007001 S.COI ELJRE 82NGFA [THA]
6200007001 S.COI ELJRE 82NGFA [EXP]
6200007001 S.COI ELJRE 82NGFA [EUR-1]
6200007001 S.COI ELJRE 82NGFA [AUS]
6200007000 S.COI ELJRE 82NG-F [SEA-1]
6200007001 S.COI ELJRE 82NGFA [EXP-1]
6200007001 S.COI ELJRE 82NGFA [CHN]
6200007001 S.COI ELJRE 82NGFA [CHN-01]
6200007001 S.COI ELJRE 82NGFA [CHN-02]
L18 6200005731 S.COI ELJRE 39NGFA [EUR] B 46.4/38.4
6200005731 S.COI ELJRE 39NGFA [TPE]
6200005731 S.COI ELJRE 39NGFA [USA]
6200005731 S.COI ELJRE 39NGFA [KOR]
6200005731 S.COI ELJRE 39NGFA [SEA]
6200005731 S.COI ELJRE 39NGFA [THA]
6200005731 S.COI ELJRE 39NGFA [EXP]
6200005731 S.COI ELJRE 39NGFA [EUR-1]
6200005731 S.COI ELJRE 39NGFA [AUS]
6200005730 S.COI ELJRE 39NG-F [SEA-1]
6200005731 S.COI ELJRE 39NGFA [EXP-1]
6200005731 S.COI ELJRE 39NGFA [CHN]
6200005731 S.COI ELJRE 39NGFA [CHN-01]
6200005731 S.COI ELJRE 39NGFA [CHN-02]
L19 6200004920 S.COI MLF1608A 2R2K-T B 104.6/24.0
L20 6200005741 S.COI ELJRE 47NGFA [EUR] B 73.0/34.1
6200005741 S.COI ELJRE 47NGFA [TPE]
6200005741 S.COI ELJRE 47NGFA [USA]
6200005741 S.COI ELJRE 47NGFA [KOR]
6200005741 S.COI ELJRE 47NGFA [SEA]
6200005741 S.COI ELJRE 47NGFA [THA]
6200005741 S.COI ELJRE 47NGFA [EXP]
6200005741 S.COI ELJRE 47NGFA [EUR-1]
6200005741 S.COI ELJRE 47NGFA [AUS]
6200005740 S.COI ELJRE 47NG-F [SEA-1]
6200005741 S.COI ELJRE 47NGFA [EXP-1]
6200005741 S.COI ELJRE 47NGFA [CHN]
6200005741 S.COI ELJRE 47NGFA [CHN-01]
6200005741 S.COI ELJRE 47NGFA [CHN-02]

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF PARTS
NO. NO.

L21 6200006671 S.COI ELJRE 68NGFA [EUR] B 41.3/42.2
6200006671 S.COI ELJRE 68NGFA [TPE]
6200006671 S.COI ELJRE 68NGFA [USA]
6200006671 S.COI ELJRE 68NGFA [KOR]
6200006671 S.COI ELJRE 68NGFA [SEA]
6200006671 S.COI ELJRE 68NGFA [THA]
6200006671 S.COI ELJRE 68NGFA [EXP]
6200006671 S.COI ELJRE 68NGFA [EUR-1]
6200006671 S.COI ELJRE 68NGFA [AUS]
6200006670 S.COI ELJRE 68NG-F [SEA-1]
6200006671 S.COI ELJRE 68NGFA [EXP-1]
6200006671 S.COI ELJRE 68NGFA [CHN]
6200006671 S.COI ELJRE 68NGFA [CHN-01]
6200006671 S.COI ELJRE 68NGFA [CHN-02]
L22 6200006671 S.COI ELJRE 68NGFA [EUR] B 75.1/33.4
6200006671 S.COI ELJRE 68NGFA [TPE]
6200006671 S.COI ELJRE 68NGFA [USA]
6200006671 S.COI ELJRE 68NGFA [KOR]
6200006671 S.COI ELJRE 68NGFA [SEA]
6200006671 S.COI ELJRE 68NGFA [THA]
6200006671 S.COI ELJRE 68NGFA [EXP]
6200006671 S.COI ELJRE 68NGFA [EUR-1]
6200006671 S.COI ELJRE 68NGFA [AUS]
6200006670 S.COI ELJRE 68NG-F [SEA-1]
6200006671 S.COI ELJRE 68NGFA [EXP-1]
6200006671 S.COI ELJRE 68NGFA [CHN]
6200006671 S.COI ELJRE 68NGFA [CHN-01]
6200006671 S.COI ELJRE 68NGFA [CHN-02]
L25 6200003281 S.COI NLV25T-2R2J B 77.6/30.6
L26 6200003281 S.COI NLV25T-2R2J B 81.0/40.3
L31 6200009890 S.COI C2012C-82NG-A T 84.6/41.7
L32 6200009890 S.COI C2012C-82NG-A T 90.1/41.7
L37 6200010050 S.COI AS080547-47N T 112.5/62.9
L38 6200009930 S.COI C2012C-68NG-A T 100.2/43.0
L39 6200010050 S.COI AS080547-47N T 112.6/73.0
L40 6200010420 S.COI FHW1210HC 1R0JGT <JJE> T 84.0/61.9
L42 6200007370 S.COI ELJFC R82K-F B 105.0/66.9
L43 6200013020 S.COI 0.25-1.9-7TL 61N <COMO> T 114.7/45.3
L45 6200012760 S.COI 0.35-1.6-7TL 37.5N <COMO> T 114.1/52.0
L46 6200010060 S.COI AS080647-56N T 106.2/51.4
L47 6200010060 S.COI AS080647-56N T 108.6/79.8
L48 6200010060 S.COI AS080647-56N T 109.5/86.6
L52 6200002651 S.COI NLV25T-R18J B 113.8/44.6
L56 6200006671 S.COI ELJRE 68NGFA [EUR] B 39.8/50.7
6200006671 S.COI ELJRE 68NGFA [TPE]
6200006671 S.COI ELJRE 68NGFA [USA]
6200006671 S.COI ELJRE 68NGFA [KOR]
6200006671 S.COI ELJRE 68NGFA [SEA]
6200006671 S.COI ELJRE 68NGFA [THA]
6200006671 S.COI ELJRE 68NGFA [EXP]
6200006671 S.COI ELJRE 68NGFA [EUR-1]
6200006671 S.COI ELJRE 68NGFA [AUS]
6200006670 S.COI ELJRE 68NG-F [SEA-1]
6200006671 S.COI ELJRE 68NGFA [EXP-1]
6200006671 S.COI ELJRE 68NGFA [CHN]
6200006671 S.COI ELJRE 68NGFA [CHN-01]
6200006671 S.COI ELJRE 68NGFA [CHN-02]
L57 6190001690 S.COI ZBFS5105-PT-01 T 77.6/68.8
L58 6190001690 S.COI ZBFS5105-PT-01 T 77.6/65.5
L59 6190001690 S.COI ZBFS5105-PT-01 T 77.6/62.2
L60 6190001690 S.COI ZBFS5105-PT-01 T 77.6/58.9
L61 6200003640 S.COI MLF1608E 100K-T T 79.8/56.6
L62 6200003640 S.COI MLF1608E 100K-T T 74.0/56.4

R1 7030003660 S.RES ERJ3GEYJ 683 V (68K) T 32.9/14.9
R2 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 91.2/16.6
R3 7030003760 S.RES ERJ3GEYJ 474 V (470K) T 92.5/16.6
R4 7030003310 S.RES ERJ3GEYJ 820 V (82) T 33.7/17.0
R5 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 36.6/38.2
R6 7030003400 S.RES ERJ3GEYJ 471 V (470) B 39.2/13.7
R7 7510001661 S.THR NTCG16 4LH 473JT T 69.3/17.5
R8 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 70.1/20.7
R9 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 74.3/16.8
R10 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 88.8/17.9
R11 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 75.6/16.8
R12 7030003320 S.RES ERJ3GEYJ 101 V (100) B 49.4/10.8
R13 7030003490 S.RES ERJ3GEYJ 272 V (2.7K) B 32.6/17.2
R14 7030003800 S.RES ERJ3GEYJ 105 V (1M) B 37.1/17.1
R15 7030003730 S.RES ERJ3GEYJ 274 V (270K) B 56.9/22.2
R16 7030003600 S.RES ERJ3GEYJ 223 V (22K) B 28.4/28.5
R17 7030003720 S.RES ERJ3GEYJ 224 V (220K) B 78.0/20.3
R18 7030003390 S.RES ERJ3GEYJ 391 V (390) B 54.9/18.9
R19 7030003550 S.RES ERJ3GEYJ 822 V (8.2K) T 35.0/21.8
R20 7030003530 S.RES ERJ3GEYJ 562 V (5.6K) T 42.7/23.1
R21 7030003320 S.RES ERJ3GEYJ 101 V (100) B 59.8/17.6
R22 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 31.4/34.9
R23 7030003600 S.RES ERJ3GEYJ 223 V (22K) T 35.0/23.1
R24 7030003480 S.RES ERJ3GEYJ 222 V (2.2K) B 72.8/22.7
R25 7030003560 S.RES ERJ3GEYJ 103 V (10K) T 40.4/24.1
R26 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 79.3/20.3
R27 7030003470 S.RES ERJ3GEYJ 182 V (1.8K) T 32.9/27.0
R28 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 36.6/29.5
R29 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 54.9/21.9
R30 7030003490 S.RES ERJ3GEYJ 272 V (2.7K) T 38.3/23.8
R31 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 47.3/23.9
R32 7030003200 S.RES ERJ3GEYJ 100 V (10) T 44.4/29.3
R33 7030003200 S.RES ERJ3GEYJ 100 V (10) T 44.4/28.0
R34 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 46.6/27.3
R35 7030003380 S.RES ERJ3GEYJ 331 V (330) T 50.2/29.4
R36 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 47.9/35.7
R37 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 48.9/40.4
R39 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 54.7/26.1
R40 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 56.2/21.2
R41 7030003400 S.RES ERJ3GEYJ 471 V (470) T 53.1/29.5

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

12

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

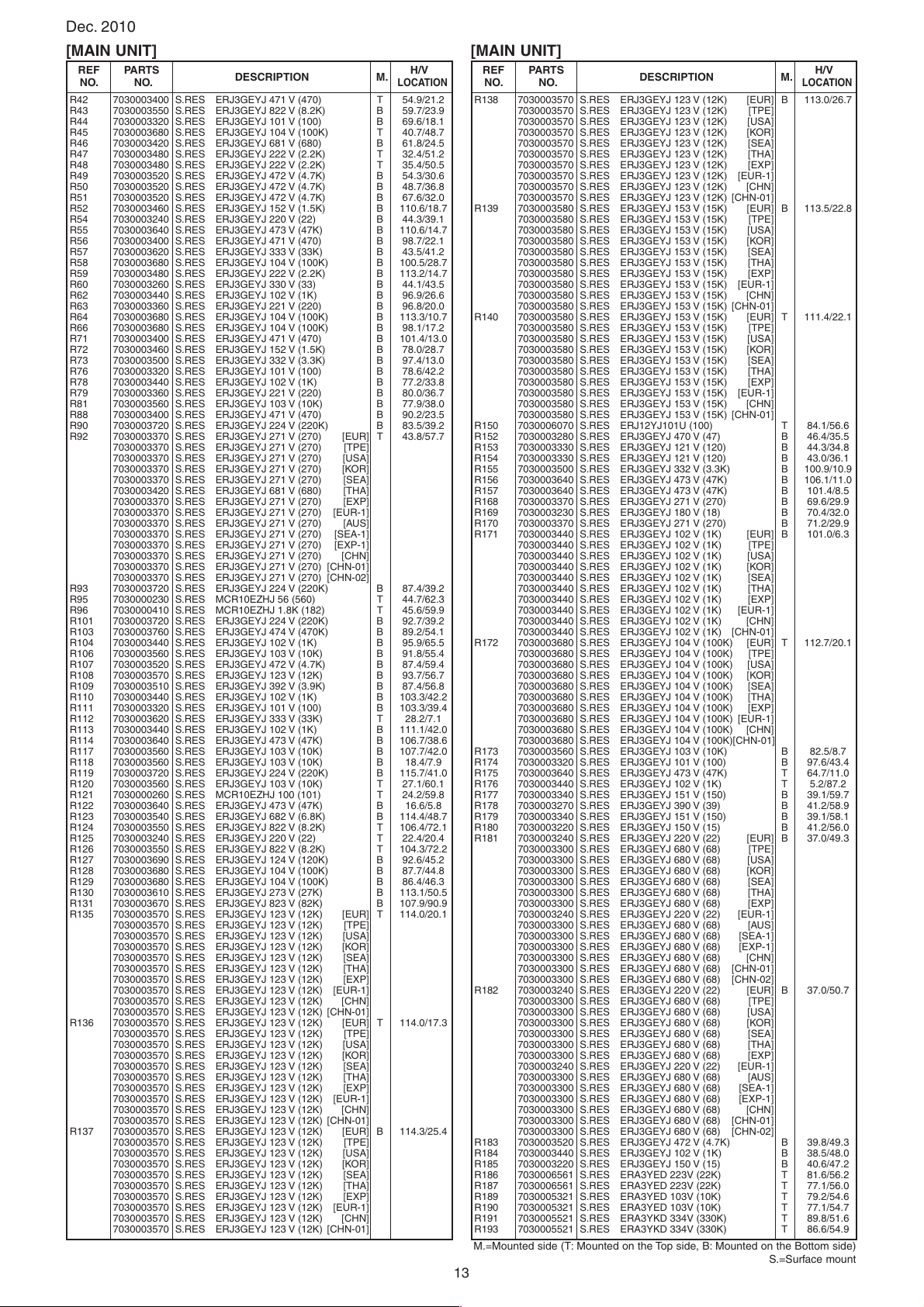

[MAIN UNIT]

REF PARTS
NO. NO.

R42 7030003400 S.RES ERJ3GEYJ 471 V (470) T 54.9/21.2
R43 7030003550 S.RES ERJ3GEYJ 822 V (8.2K) B 59.7/23.9
R44 7030003320 S.RES ERJ3GEYJ 101 V (100) B 69.6/18.1
R45 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 40.7/48.7
R46 7030003420 S.RES ERJ3GEYJ 681 V (680) B 61.8/24.5

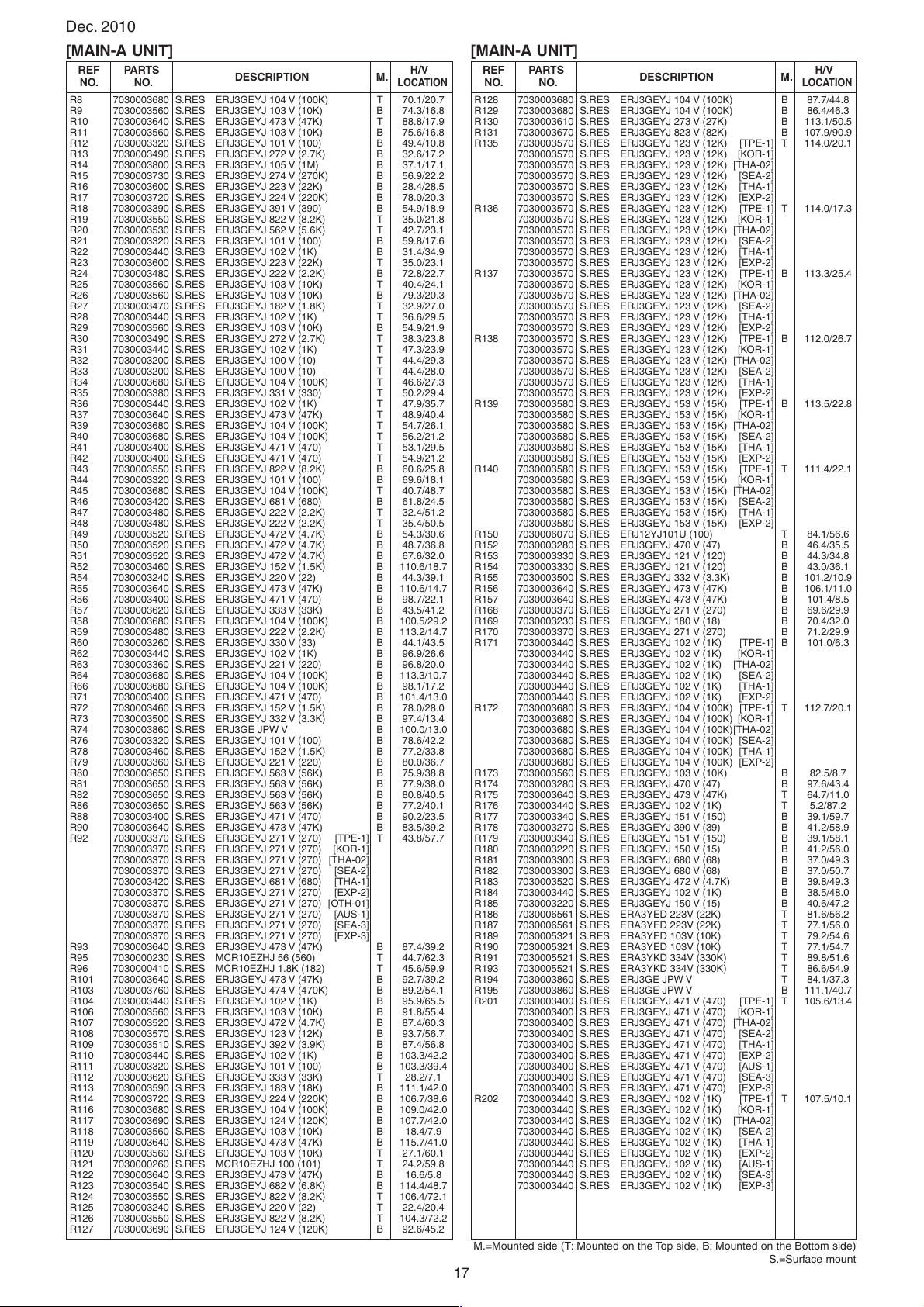

R47 7030003480 S.RES ERJ3GEYJ 222 V (2.2K) T 32.4/51.2
R48 7030003480 S.RES ERJ3GEYJ 222 V (2.2K) T 35.4/50.5
R49 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 54.3/30.6
R50 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 48.7/36.8
R51 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 67.6/32.0
R52 7030003460 S.RES ERJ3GEYJ 152 V (1.5K) B 110.6/18.7
R54 7030003240 S.RES ERJ3GEYJ 220 V (22) B 44.3/39.1
R55 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 110.6/14.7
R56 7030003400 S.RES ERJ3GEYJ 471 V (470) B 98.7/22.1
R57 7030003620 S.RES ERJ3GEYJ 333 V (33K) B 43.5/41.2
R58 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 100.5/28.7
R59 7030003480 S.RES ERJ3GEYJ 222 V (2.2K) B 113.2/14.7
R60 7030003260 S.RES ERJ3GEYJ 330 V (33) B 44.1/43.5
R62 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 96.9/26.6
R63 7030003360 S.RES ERJ3GEYJ 221 V (220) B 96.8/20.0
R64 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 113.3/10.7
R66 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 98.1/17.2
R71 7030003400 S.RES ERJ3GEYJ 471 V (470) B 101.4/13.0
R72 7030003460 S.RES ERJ3GEYJ 152 V (1.5K) B 78.0/28.7
R73 7030003500 S.RES ERJ3GEYJ 332 V (3.3K) B 97.4/13.0
R76 7030003320 S.RES ERJ3GEYJ 101 V (100) B 78.6/42.2
R78 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 77.2/33.8
R79 7030003360 S.RES ERJ3GEYJ 221 V (220) B 80.0/36.7
R81 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 77.9/38.0
R88 7030003400 S.RES ERJ3GEYJ 471 V (470) B 90.2/23.5
R90 7030003720 S.RES ERJ3GEYJ 224 V (220K) B 83.5/39.2
R92 7030003370 S.RES ERJ3GEYJ 271 V (270) [EUR] T 43.8/57.7
7030003370 S.RES ERJ3GEYJ 271 V (270) [TPE]
7030003370 S.RES ERJ3GEYJ 271 V (270) [USA]
7030003370 S.RES ERJ3GEYJ 271 V (270) [KOR]
7030003370 S.RES ERJ3GEYJ 271 V (270) [SEA]
7030003420 S.RES ERJ3GEYJ 681 V (680) [THA]
7030003370 S.RES ERJ3GEYJ 271 V (270) [EXP]
7030003370 S.RES ERJ3GEYJ 271 V (270) [EUR-1]
7030003370 S.RES ERJ3GEYJ 271 V (270) [AUS]
7030003370 S.RES ERJ3GEYJ 271 V (270) [SEA-1]
7030003370 S.RES ERJ3GEYJ 271 V (270) [EXP-1]
7030003370 S.RES ERJ3GEYJ 271 V (270) [CHN]
7030003370 S.RES ERJ3GEYJ 271 V (270) [CHN-01]
7030003370 S.RES ERJ3GEYJ 271 V (270) [CHN-02]
R93 7030003720 S.RES ERJ3GEYJ 224 V (220K) B 87.4/39.2
R95 7030000230 S.RES MCR10EZHJ 56 (560) T 44.7/62.3
R96 7030000410 S.RES MCR10EZHJ 1.8K (182) T 45.6/59.9
R101 7030003720 S.RES ERJ3GEYJ 224 V (220K) B 92.7/39.2
R103 7030003760 S.RES ERJ3GEYJ 474 V (470K) B 89.2/54.1
R104 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 95.9/65.5
R106 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 91.8/55.4
R107 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 87.4/59.4
R108 7030003570 S.RES ERJ3GEYJ 123 V (12K) B 93.7/56.7
R109 7030003510 S.RES ERJ3GEYJ 392 V (3.9K) B 87.4/56.8
R110 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 103.3/42.2
R111 7030003320 S.RES ERJ3GEYJ 101 V (100) B 103.3/39.4
R112 7030003620 S.RES ERJ3GEYJ 333 V (33K) T 28.2/7.1
R113 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 111.1/42.0
R114 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 106.7/38.6
R117 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 107.7/42.0
R118 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 18.4/7.9
R119 7030003720 S.RES ERJ3GEYJ 224 V (220K) B 115.7/41.0
R120 7030003560 S.RES ERJ3GEYJ 103 V (10K) T 27.1/60.1
R121 7030000260 S.RES MCR10EZHJ 100 (101) T 24.2/59.8
R122 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 16.6/5.8
R123 7030003540 S.RES ERJ3GEYJ 682 V (6.8K) B 114.4/48.7
R124 7030003550 S.RES ERJ3GEYJ 822 V (8.2K) T 106.4/72.1
R125 7030003240 S.RES ERJ3GEYJ 220 V (22) T 22.4/20.4
R126 7030003550 S.RES ERJ3GEYJ 822 V (8.2K) T 104.3/72.2
R127 7030003690 S.RES ERJ3GEYJ 124 V (120K) B 92.6/45.2
R128 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 87.7/44.8
R129 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 86.4/46.3
R130 7030003610 S.RES ERJ3GEYJ 273 V (27K) B 113.1/50.5
R131 7030003670 S.RES ERJ3GEYJ 823 V (82K) B 107.9/90.9
R135 7030003570 S.RES ERJ3GEYJ 123 V (12K) [EUR] T 114.0/20.1
7030003570 S.RES ERJ3GEYJ 123 V (12K) [TPE]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [USA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [KOR]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [SEA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EXP]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EUR-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [CHN]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [CHN-01]
R136 7030003570 S.RES ERJ3GEYJ 123 V (12K) [EUR] T 114.0/17.3
7030003570 S.RES ERJ3GEYJ 123 V (12K) [TPE]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [USA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [KOR]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [SEA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EXP]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EUR-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [CHN]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [CHN-01]
R137 7030003570 S.RES ERJ3GEYJ 123 V (12K) [EUR] B 114.3/25.4
7030003570 S.RES ERJ3GEYJ 123 V (12K) [TPE]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [USA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [KOR]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [SEA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EXP]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EUR-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [CHN]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [CHN-01]

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF PARTS
NO. NO.

R138 7030003570 S.RES ERJ3GEYJ 123 V (12K) [EUR] B 113.0/26.7
7030003570 S.RES ERJ3GEYJ 123 V (12K) [TPE]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [USA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [KOR]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [SEA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EXP]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EUR-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [CHN]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [CHN-01]
R139 7030003580 S.RES ERJ3GEYJ 153 V (15K) [EUR] B 113.5/22.8
7030003580 S.RES ERJ3GEYJ 153 V (15K) [TPE]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [USA]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [KOR]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [SEA]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [THA]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [EXP]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [EUR-1]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [CHN]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [CHN-01]
R140 7030003580 S.RES ERJ3GEYJ 153 V (15K) [EUR] T 111.4/22.1
7030003580 S.RES ERJ3GEYJ 153 V (15K) [TPE]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [USA]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [KOR]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [SEA]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [THA]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [EXP]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [EUR-1]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [CHN]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [CHN-01]
R150 7030006070 S.RES ERJ12YJ101U (100) T 84.1/56.6
R152 7030003280 S.RES ERJ3GEYJ 470 V (47) B 46.4/35.5
R153 7030003330 S.RES ERJ3GEYJ 121 V (120) B 44.3/34.8
R154 7030003330 S.RES ERJ3GEYJ 121 V (120) B 43.0/36.1
R155 7030003500 S.RES ERJ3GEYJ 332 V (3.3K) B 100.9/10.9
R156 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 106.1/11.0
R157 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 101.4/8.5
R168 7030003370 S.RES ERJ3GEYJ 271 V (270) B 69.6/29.9
R169 7030003230 S.RES ERJ3GEYJ 180 V (18) B 70.4/32.0
R170 7030003370 S.RES ERJ3GEYJ 271 V (270) B 71.2/29.9
R171 7030003440 S.RES ERJ3GEYJ 102 V (1K) [EUR] B 101.0/6.3
7030003440 S.RES ERJ3GEYJ 102 V (1K) [TPE]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [USA]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [KOR]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [SEA]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [THA]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [EXP]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [EUR-1]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [CHN]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [CHN-01]
R172 7030003680 S.RES ERJ3GEYJ 104 V (100K) [EUR] T 112.7/20.1
7030003680 S.RES ERJ3GEYJ 104 V (100K) [TPE]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [USA]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [KOR]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [SEA]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [THA]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [EXP]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [EUR-1]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [CHN]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [CHN-01]
R173 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 82.5/8.7
R174 7030003320 S.RES ERJ3GEYJ 101 V (100) B 97.6/43.4
R175 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 64.7/11.0
R176 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 5.2/87.2
R177 7030003340 S.RES ERJ3GEYJ 151 V (150) B 39.1/59.7
R178 7030003270 S.RES ERJ3GEYJ 390 V (39) B 41.2/58.9
R179 7030003340 S.RES ERJ3GEYJ 151 V (150) B 39.1/58.1
R180 7030003220 S.RES ERJ3GEYJ 150 V (15) B 41.2/56.0
R181 7030003240 S.RES ERJ3GEYJ 220 V (22) [EUR] B 37.0/49.3
7030003300 S.RES ERJ3GEYJ 680 V (68) [TPE]
7030003300 S.RES ERJ3GEYJ 680 V (68) [USA]
7030003300 S.RES ERJ3GEYJ 680 V (68) [KOR]
7030003300 S.RES ERJ3GEYJ 680 V (68) [SEA]
7030003300 S.RES ERJ3GEYJ 680 V (68) [THA]
7030003300 S.RES ERJ3GEYJ 680 V (68) [EXP]
7030003240 S.RES ERJ3GEYJ 220 V (22) [EUR-1]
7030003300 S.RES ERJ3GEYJ 680 V (68) [AUS]
7030003300 S.RES ERJ3GEYJ 680 V (68) [SEA-1]
7030003300 S.RES ERJ3GEYJ 680 V (68) [EXP-1]
7030003300 S.RES ERJ3GEYJ 680 V (68) [CHN]
7030003300 S.RES ERJ3GEYJ 680 V (68) [CHN-01]
7030003300 S.RES ERJ3GEYJ 680 V (68) [CHN-02]
R182 7030003240 S.RES ERJ3GEYJ 220 V (22) [EUR] B 37.0/50.7
7030003300 S.RES ERJ3GEYJ 680 V (68) [TPE]
7030003300 S.RES ERJ3GEYJ 680 V (68) [USA]
7030003300 S.RES ERJ3GEYJ 680 V (68) [KOR]
7030003300 S.RES ERJ3GEYJ 680 V (68) [SEA]
7030003300 S.RES ERJ3GEYJ 680 V (68) [THA]
7030003300 S.RES ERJ3GEYJ 680 V (68) [EXP]
7030003240 S.RES ERJ3GEYJ 220 V (22) [EUR-1]
7030003300 S.RES ERJ3GEYJ 680 V (68) [AUS]
7030003300 S.RES ERJ3GEYJ 680 V (68) [SEA-1]
7030003300 S.RES ERJ3GEYJ 680 V (68) [EXP-1]
7030003300 S.RES ERJ3GEYJ 680 V (68) [CHN]
7030003300 S.RES ERJ3GEYJ 680 V (68) [CHN-01]
7030003300 S.RES ERJ3GEYJ 680 V (68) [CHN-02]
R183 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 39.8/49.3
R184 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 38.5/48.0
R185 7030003220 S.RES ERJ3GEYJ 150 V (15) B 40.6/47.2
R186 7030006561 S.RES ERA3YED 223V (22K) T 81.6/56.2
R187 7030006561 S.RES ERA3YED 223V (22K) T 77.1/56.0
R189 7030005321 S.RES ERA3YED 103V (10K) T 79.2/54.6
R190 7030005321 S.RES ERA3YED 103V (10K) T 77.1/54.7
R191 7030005521 S.RES ERA3YKD 334V (330K) T 89.8/51.6
R193 7030005521 S.RES ERA3YKD 334V (330K) T 86.6/54.9

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

13

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[MAIN UNIT]

REF PARTS
NO. NO.

R194 7030003860 S.RES ERJ3GE JPW V T 84.1/37.3
R195 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 111.1/40.7
R201 7030003400 S.RES ERJ3GEYJ 471 V (470) T 105.6/13.4
R202 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 107.5/10.1
R203 7030003710 S.RES ERJ3GEYJ 184 V (180K) T 107.5/11.4
R204 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 108.4/8.8
R205 7030003740 S.RES ERJ3GEYJ 334 V (330K) T 111.4/13.6
R207 7030003710 S.RES ERJ3GEYJ 184 V (180K) T 110.5/4.9
R208 7030003780 S.RES ERJ3GEYJ 684 V (680K) T 108.4/4.3
R209 7030003320 S.RES ERJ3GEYJ 101 V (100) T 104.7/10.1
R212 7030003600 S.RES ERJ3GEYJ 223 V (22K) T 106.3/5.2
R213 7030003200 S.RES ERJ3GEYJ 100 V (10) T 105.6/7.3
R214 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 101.8/27.4
R220 7030003740 S.RES ERJ3GEYJ 334 V (330K) T 83.7/51.0
R223 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 58.1/10.0
R224 7030003860 S.RES ERJ3GE JPW V [AUS] B 117.1/25.4
7030003860 S.RES ERJ3GE JPW V [SEA-1]
7030003860 S.RES ERJ3GE JPW V [EXP-1]
7030003860 S.RES ERJ3GE JPW V [CHN-02]
R225 7030003860 S.RES ERJ3GE JPW V [AUS] T 110.1/25.8
7030003860 S.RES ERJ3GE JPW V [SEA-1]
7030003860 S.RES ERJ3GE JPW V [EXP-1]
7030003860 S.RES ERJ3GE JPW V [CHN-02]
R226 7030003860 S.RES ERJ3GE JPW V B 100.7/22.8
R228 7520000120 POS PTFM04BC222Q2N34B0
R229 7030003860 S.RES ERJ3GE JPW V B 51.9/22.8
R230 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 84.2/50.4
R231 7030003860 S.RES ERJ3GE JPW V T 44.3/53.7
R232 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 84.3/45.5
R233 7030003860 S.RES ERJ3GE JPW V B 80.9/44.5
R234 7030011140 S.RES ERJ8GEYJ 0R00V T 81.0/40.8
R236 7030003860 S.RES ERJ3GE JPW V B 56.9/17.5
R237 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 53.4/6.2
R238 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 53.5/8.1

C1 4550007540 S.TAN F931C155MAABMA B 39.9/17.6
C2 4030006860 S.CER C1608 JB 1H 102K-T B 36.1/40.2
C4 4030011600 S.CER C1608 JB 1E 104K-T T 70.1/19.4
C5 4030006900 S.CER C1608 JB 1H 103K-T T 38.9/14.9
C7 4030006860 S.CER C1608 JB 1H 102K-T T 33.7/18.3
C8 4030006860 S.CER C1608 JB 1H 102K-T T 89.5/20.0
C9 4030007060 S.CER C1608 CH 1H 270J-T T 41.5/15.6
C10 4510008520 S.ELE EEE1CA470SP T 37.6/37.5
C11 4550006250 S.TAN TEESVA 1A 106M8R B 49.7/13.1
C12 4550007280 S.TAN F931A336MBABMA B 43.4/13.0
C13 4030007030 S.CER C1608 CH 1H 150J-T T 87.3/19.2
C14 4030006860 S.CER C1608 JB 1H 102K-T B 31.2/38.0
C15 4030006860 S.CER C1608 JB 1H 102K-T B 44.3/33.5
C16 4030007020 S.CER C1608 CH 1H 120J-T T 86.5/21.3
C17 4030006860 S.CER C1608 JB 1H 102K-T B 28.4/29.8
C20 4030007090 S.CER C1608 CH 1H 470J-T T 37.0/21.0
C21 4030007050 S.CER C1608 CH 1H 220J-T T 40.8/20.2
C22 4030007060 S.CER C1608 CH 1H 270J-T B 76.0/19.1
C23 4030007070 S.CER C1608 CH 1H 330J-T B 74.1/22.7
C24 4550006250 S.TAN TEESVA 1A 106M8R B 53.2/18.2
C25 4030009920 S.CER C1608 CH 1H 050B-T T 37.0/23.8
C26 4030007010 S.CER C1608 CH 1H 100D-T T 42.7/25.9
C28 4030006860 S.CER C1608 JB 1H 102K-T T 35.0/28.2
C29 4030006980 S.CER C1608 CH 1H 070D-T T 35.0/26.9
C30 4030006950 S.CER C1608 CH 1H 040C-T B 73.3/20.7
C31 4030006860 S.CER C1608 JB 1H 102K-T T 40.4/21.5
C32 4030007020 S.CER C1608 CH 1H 120J-T T 47.3/25.2
C34 4030009500 S.CER C1608 CH 1H 0R5B-T T 41.6/29.3
C36 4030006860 S.CER C1608 JB 1H 102K-T T 32.9/23.0
C37 4030009500 S.CER C1608 CH 1H 0R5B-T T 41.6/28.0
C38 4030006860 S.CER C1608 JB 1H 102K-T T 40.4/22.8
C39 4030011600 S.CER C1608 JB 1E 104K-T B 57.5/20.1
C40 4030006860 S.CER C1608 JB 1H 102K-T T 72.9/12.8
C41 4030006860 S.CER C1608 JB 1H 102K-T T 68.2/10.1
C42 4030006860 S.CER C1608 JB 1H 102K-T T 66.6/11.4
C44 4030006860 S.CER C1608 JB 1H 102K-T T 52.4/26.4
C45 4030006860 S.CER C1608 JB 1H 102K-T B 56.2/20.1
C47 4030011600 S.CER C1608 JB 1E 104K-T B 59.4/19.4
C48 4030006860 S.CER C1608 JB 1H 102K-T T 48.0/27.3
C49 4030007010 S.CER C1608 CH 1H 100D-T T 53.9/24.0
C50 4030006940 S.CER C1608 CH 1H 030C-T T 52.4/19.1
C51 4030006860 S.CER C1608 JB 1H 102K-T T 48.9/37.8
C52 4030006860 S.CER C1608 JB 1H 102K-T T 48.9/39.1
C53 4030006860 S.CER C1608 JB 1H 102K-T B 59.7/22.5
C54 4030007000 S.CER C1608 CH 1H 090D-T T 56.8/26.9
C55 4030007050 S.CER C1608 CH 1H 220J-T T 57.6/18.4
C56 4030006860 S.CER C1608 JB 1H 102K-T T 56.0/29.5
C57 4030006860 S.CER C1608 JB 1H 102K-T T 52.4/20.4
C58 4030006860 S.CER C1608 JB 1H 102K-T T 52.4/21.7
C59 4030006860 S.CER C1608 JB 1H 102K-T T 41.7/46.5
C60 4030006860 S.CER C1608 JB 1H 102K-T B 67.9/16.0
C61 4030007050 S.CER C1608 CH 1H 220J-T B 54.1/27.1
C62 4030007020 S.CER C1608 CH 1H 120J-T T 54.2/15.1
C63 4030006860 S.CER C1608 JB 1H 102K-T T 30.0/52.0
C64 4030011600 S.CER C1608 JB 1E 104K-T T 41.3/51.5
C65 4030007050 S.CER C1608 CH 1H 220J-T B 54.1/28.5
C66 4030007050 S.CER C1608 CH 1H 220J-T B 63.1/24.5
C67 4030006860 S.CER C1608 JB 1H 102K-T B 55.6/30.6
C68 4030007000 S.CER C1608 CH 1H 090D-T T 54.2/16.6
C69 4510008540 S.ELE EEE1CA100SR T 36.5/46.9
C70 4030006860 S.CER C1608 JB 1H 102K-T B 68.3/29.9
C71 4030007090 S.CER C1608 CH 1H 470J-T B 67.3/24.5
C72 4030006860 S.CER C1608 JB 1H 102K-T B 50.7/33.8
C73 4030007050 S.CER C1608 CH 1H 220J-T B 71.5/24.5
C74 4030006860 S.CER C1608 JB 1H 102K-T B 45.1/37.0
C75 4030006860 S.CER C1608 JB 1H 102K-T B 109.8/21.2
C76 4030006980 S.CER C1608 CH 1H 070D-T B 43.0/37.4
C77 4030006900 S.CER C1608 JB 1H 103K-T B 103.3/21.9
C78 4030011600 S.CER C1608 JB 1E 104K-T B 111.4/16.7

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF PARTS
NO. NO.

C79 4030007080 S.CER C1608 CH 1H 390J-T B 72.5/32.0
C80 4030007050 S.CER C1608 CH 1H 220J-T B 102.0/22.8
C81 4030006900 S.CER C1608 JB 1H 103K-T B 112.0/18.7
C82 4510008540 S.ELE EEE1CA100SR T 103.9/19.2
C83 4030012600 S.CER C2012 JB 1A 105M-T B 113.6/19.1
C84 4030007170 S.CER C1608 CH 1H 221J-T B 112.5/12.7
C85 4030007170 S.CER C1608 CH 1H 221J-T B 111.9/14.7
C86 4030006860 S.CER C1608 JB 1H 102K-T B 106.9/21.2
C87 4030007100 S.CER C1608 CH 1H 560J-T B 73.8/32.0
C88 4030007100 S.CER C1608 CH 1H 560J-T B 74.6/35.5
C89 4030006900 S.CER C1608 JB 1H 103K-T B 98.7/23.4
C90 4030007070 S.CER C1608 CH 1H 330J-T B 41.3/44.8
C91 4030006860 S.CER C1608 JB 1H 102K-T B 41.3/43.5
C93 4030006910 S.CER C1608 CH 1H 0R5C-T B 97.1/28.7
C94 4030006860 S.CER C1608 JB 1H 102K-T B 100.7/20.0
C95 4030006860 S.CER C1608 JB 1H 102K-T B 98.1/20.0
C97 4030006960 S.CER C1608 CH 1H 050C-T B 88.7/28.7
C98 4030008900 S.CER C1608 JB 1H 333K-T B 99.4/17.2
C100 4030007120 S.CER C1608 CH 1H 820J-T B 98.7/12.3
C101 4030006860 S.CER C1608 JB 1H 102K-T B 103.5/14.2
C105 4030006860 S.CER C1608 JB 1H 102K-T B 103.5/12.9
C108 4030006860 S.CER C1608 JB 1H 102K-T B 78.5/40.1
C111 4030009990 S.CER C1608 CH 1H 200J-T B 77.2/32.5
C113 4030006860 S.CER C1608 JB 1H 102K-T B 80.0/35.4
C117 4030006900 S.CER C1608 JB 1H 103K-T B 86.9/24.3
C118 4510008520 S.ELE EEE1CA470SP T 62.5/64.8
C120 4030006900 S.CER C1608 JB 1H 103K-T B 81.8/23.3
C122 4030006860 S.CER C1608 JB 1H 102K-T T 68.4/65.6
C123 4030006860 S.CER C1608 JB 1H 102K-T T 46.9/57.0
C124 4030006960 S.CER C1608 CH 1H 050C-T B 81.4/42.2
C125 4510008540 S.ELE EEE1CA100SR T 44.5/50.2
C127 4030006920 S.CER C1608 CH 1H 010C-T B 83.5/42.0
C128 4030006860 S.CER C1608 JB 1H 102K-T B 84.3/37.1
C131 4030007120 S.CER C1608 CH 1H 820J-T B 84.8/42.0
C133 4030006920 S.CER C1608 CH 1H 010C-T B 87.4/42.0
C134 4030006860 S.CER C1608 JB 1H 102K-T B 91.6/12.5
C136 4030009560 S.CER C1608 CH 1H R75B-T B 86.1/42.0
C137 4030006860 S.CER C1608 JB 1H 102K-T T 46.4/58.3
C138 4030006860 S.CER C1608 JB 1H 102K-T B 88.2/37.1
C139 4030007120 S.CER C1608 CH 1H 820J-T B 88.7/42.0
C140 4030006900 S.CER C1608 JB 1H 103K-T B 88.2/24.3
C141 4030006930 S.CER C1608 CH 1H 020C-T B 90.1/42.0
C145 4030006920 S.CER C1608 CH 1H 010C-T B 91.4/42.0
C146 4030006860 S.CER C1608 JB 1H 102K-T B 93.5/37.1
C148 4030007150 S.CER C1608 CH 1H 151J-T B 94.0/42.0
C149 4030011600 S.CER C1608 JB 1E 104K-T B 91.8/54.1
C152 4030009510 S.CER C1608 CH 1H 010B-T B 92.7/42.0
C153 4030011600 S.CER C1608 JB 1E 104K-T B 89.2/55.4
C154 4030006860 S.CER C1608 JB 1H 102K-T B 19.5/51.1
C157 4510008810 S.ELE EEE1CA331UP T 24.9/48.0
C158 4030006860 S.CER C1608 JB 1H 102K-T B 95.3/42.0
C160 4030006860 S.CER C1608 JB 1H 102K-T B 96.6/41.0
C161 4030006860 S.CER C1608 JB 1H 102K-T T 87.7/42.5
C162 4030009550 S.CER C1608 CH 1H 2R5B-T B 102.0/42.2
C163 4030006860 S.CER C1608 JB 1H 102K-T B 93.7/58.0
C164 4030006860 S.CER C1608 JB 1H 102K-T B 104.6/39.4
C166 4510008500 S.ELE EEE1CA101WP T 16.9/47.9
C168 4030006860 S.CER C1608 JB 1H 102K-T B 10.8/52.2
C169 4030006860 S.CER C1608 JB 1H 102K-T B 83.6/55.1
C170 4030006860 S.CER C1608 JB 1H 102K-T B 106.7/39.9
C172 4030006860 S.CER C1608 JB 1H 102K-T B 10.8/53.5
C173 4030006860 S.CER C1608 JB 1H 102K-T B 21.4/58.5
C174 4030006860 S.CER C1608 JB 1H 102K-T T 86.6/57.8
C175 4510008810 S.ELE EEE1CA331UP T 18.9/56.9
C176 4030011040 S.CER GRM31M4C2H2R0CY21L
(GRM42-6 CK) T 87.4/64.5
C177 4510008540 S.ELE EEE1CA100SR T 37.0/54.9
C178 4030006950 S.CER C1608 CH 1H 040C-T B 111.1/43.3
C179 4030006860 S.CER C1608 JB 1H 102K-T T 25.8/60.1
C180 4030006860 S.CER C1608 JB 1H 102K-T B 117.8/40.3
C181 4510008550 S.ELE EEE1HA010SR T 26.9/10.7
C182 4030007150 S.CER C1608 CH 1H 151J-T B 115.7/43.8
C184 4030006960 S.CER C1608 CH 1H 050C-T B 115.7/47.6
C185 4030006860 S.CER C1608 JB 1H 102K-T B 18.5/5.0
C187 4030006860 S.CER C1608 JB 1H 102K-T B 112.3/47.1
C188 4510008550 S.ELE EEE1HA010SR T 16.3/12.5
C189 4030006860 S.CER C1608 JB 1H 102K-T B 20.4/62.3
C190 4030011020 S.CER GRM31M4C2H1R0CY21L
(GRM42-6 CK) T 111.6/68.7
C191 4030007020 S.CER C1608 CH 1H 120J-T T 107.2/67.7
C192 4030006860 S.CER C1608 JB 1H 102K-T T 19.9/15.0
C193 4030006860 S.CER C1608 JB 1H 102K-T B 112.3/48.4
C194 4510008500 S.ELE EEE1CA101WP T 20.0/40.0
C195 4510008520 S.ELE EEE1CA470SP T 24.9/31.5
C196 4030011020 S.CER GRM31M4C2H1R0CY21L
(GRM42-6 CK) T 105.9/74.7
C197 4030007020 S.CER C1608 CH 1H 120J-T T 101.9/75.1
C198 4030006860 S.CER C1608 JB 1H 102K-T T 103.5/70.2
C200 4030006860 S.CER C1608 JB 1H 102K-T T 23.7/62.2
C201 4030007050 S.CER C1608 CH 1H 220J-T T 111.4/52.5
C204 4510008870 S.ELE EEE1AA471UP T 12.5/82.6
C205 4030006860 S.CER C1608 JB 1H 102K-T B 16.8/70.5

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

14

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[MAIN UNIT]

REF PARTS
NO. NO.

C206 4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [EUR] T 101.2/55.6
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [TPE]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [USA]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [KOR]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [SEA]
4030011110 S.CER GRM31M2C2H9R0DV01L
(GRM42-6 CH) [THA]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [EXP]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [EUR-1]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [AUS]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [SEA-1]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [EXP-1]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [CHN]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [CHN-01]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [CHN-02]
C207 4510006021 ELE 16 ME 2200 HC
C208 4030011210 S.CER GRM31M2C2H330JV01L
(GRM42-6 CH) T 102.8/82.7
C209 4030011600 S.CER C1608 JB 1E 104K-T B 111.0/49.8
C210 4030011160 S.CER GRM31M2C2H150JV01L
(GRM42-6 CH) T 106.7/90.9
C211 4030006860 S.CER C1608 JB 1H 102K-T B 111.0/51.2
C212 4030006860 S.CER C1608 JB 1H 102K-T B 18.5/32.7
C215 4030011600 S.CER C1608 JB 1E 104K-T T 66.5/60.6
C216 4030011600 S.CER C1608 JB 1E 104K-T T 109.4/18.1
C217 4030011230 S.CER GRM31M2C2H390JV01L
(GRM42-6 CH) T 102.8/77.3
C218 4030011190 S.CER GRM31M2C2H270JV01L
(GRM42-6 CH) T 106.8/60.3
C221 4030010780 S.CER C1608 CH 1H 1R5C-T T 117.6/47.3
C222 4030006900 S.CER C1608 JB 1H 103K-T B 102.0/39.4
C224 4030011600 S.CER C1608 JB 1E 104K-T B 114.3/24.1
C225 4030017200 S.CER GRM31BR32J102KY01L T 106.8/57.7
C227 4030011210 S.CER GRM31M2C2H330JV01L
(GRM42-6 CH) T 106.8/65.5
C228 4030006900 S.CER C1608 JB 1H 103K-T T 75.1/17.6
C230 4510008540 S.ELE EEE1CA100SR [EUR] T 105.1/24.7
4510008540 S.ELE EEE1CA100SR [TPE]
4510008540 S.ELE EEE1CA100SR [USA]
4510008540 S.ELE EEE1CA100SR [KOR]
4510008540 S.ELE EEE1CA100SR [SEA]
4510008540 S.ELE EEE1CA100SR [THA]
4510008540 S.ELE EEE1CA100SR [EXP]
4510008540 S.ELE EEE1CA100SR [EUR-1]
4510008540 S.ELE EEE1CA100SR [CHN]
4510008540 S.ELE EEE1CA100SR [CHN-01]
C232 4030011600 S.CER C1608 JB 1E 104K-T B 100.1/13.0
C233 4030011600 S.CER C1608 JB 1E 104K-T B 107.4/11.0
C240 4030006860 S.CER C1608 JB 1H 102K-T B 66.2/30.6
C241 4030011600 S.CER C1608 JB 1E 104K-T B 78.0/23.1
C242 4030006860 S.CER C1608 JB 1H 102K-T B 48.5/34.8
C243 4030017810 S.CER C1608 CH 1H 102J-T B 78.0/27.4
C244 4030011600 S.CER C1608 JB 1E 104K-T B 99.7/26.6
C245 4030008680 S.CER C2012 JF 1C 105Z-T B 98.2/41.0
C246 4030006860 S.CER C1608 JB 1H 102K-T T 67.1/65.6
C247 4030006860 S.CER C1608 JB 1H 102K-T T 46.3/62.5
C250 4030007100 S.CER C1608 CH 1H 560J-T B 42.0/53.9
C251 4030006860 S.CER C1608 JB 1H 102K-T B 37.8/52.8
C252 4030006860 S.CER C1608 JB 1H 102K-T B 39.1/52.8
C253 4030007020 S.CER C1608 CH 1H 120J-T B 38.5/44.8
C254 4550006080 S.TAN TEESVB2 1C 106M8R B 35.5/54.3
C255 4030006860 S.CER C1608 JB 1H 102K-T T 84.4/48.9
C256 4030006860 S.CER C1608 JB 1H 102K-T T 90.5/53.7
C257 4030006860 S.CER C1608 JB 1H 102K-T T 83.7/52.3
C258 4030006860 S.CER C1608 JB 1H 102K-T T 90.5/55.1
C259 4030006860 S.CER C1608 JB 1H 102K-T T 84.9/35.2
C265 4030006860 S.CER C1608 JB 1H 102K-T T 102.2/5.2
C266 4030006860 S.CER C1608 JB 1H 102K-T T 110.0/16.2
C267 4030006860 S.CER C1608 JB 1H 102K-T T 111.8/4.9
C268 4030006900 S.CER C1608 JB 1H 103K-T T 105.0/5.2
C269 4030006900 S.CER C1608 JB 1H 103K-T T 106.9/13.4
C271 4550007610 S.TAN F931E474MAABMA T 102.6/14.0
C272 4030011600 S.CER C1608 JB 1E 104K-T T 104.3/13.4
C273 4550006480 S.TAN TEESVA 1C 475M8R T 111.8/9.0
C278 4510008580 S.ELE EEE0JA470SR T 25.1/16.8
C279 4510008550 S.ELE EEE1HA010SR T 23.3/24.2
C280 4340000250 S.MYL ECHU 1C 104JX5 B 23.7/26.4
C281 4510009160 S.ELE EEE1HA010NR T 88.1/14.3
C282 4030006860 S.CER C1608 JB 1H 102K-T B 98.5/65.5
C283 4030006860 S.CER C1608 JB 1H 102K-T B 97.2/65.5
C284 4030008880 S.CER C1608 JB 1H 223K-T B 14.4/10.0
C285 4030008920 S.CER C1608 JB 1H 473K-T [EUR] T 112.7/16.4
4030008920 S.CER C1608 JB 1H 473K-T [TPE]
4030008920 S.CER C1608 JB 1H 473K-T [USA]
4030008920 S.CER C1608 JB 1H 473K-T [KOR]
4030008920 S.CER C1608 JB 1H 473K-T [SEA]
4030008920 S.CER C1608 JB 1H 473K-T [THA]
4030008920 S.CER C1608 JB 1H 473K-T [EXP]
4030008920 S.CER C1608 JB 1H 473K-T [EUR-1]
4030008920 S.CER C1608 JB 1H 473K-T [CHN]
4030008920 S.CER C1608 JB 1H 473K-T [CHN-01]
C286 4030006860 S.CER C1608 JB 1H 102K-T B 104.4/44.7

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF PARTS
NO. NO.

C287 4030017810 S.CER C1608 CH 1H 102J-T B 25.9/7.4
C288 4030011810 S.CER C1608 JB 1A 224K-T B 86.9/58.1
C289 4030006860 S.CER C1608 JB 1H 102K-T T 66.5/17.0
C290 4030006860 S.CER C1608 JB 1H 102K-T T 77.9/24.3
C291 4030006860 S.CER C1608 JB 1H 102K-T T 64.1/17.3
C292 4030006860 S.CER C1608 JB 1H 102K-T T 70.9/11.8
C293 4030006860 S.CER C1608 JB 1H 102K-T B 87.8/48.6
C294 4030006860 S.CER C1608 JB 1H 102K-T B 87.4/62.0
C295 4030006850 S.CER C1608 JB 1H 471K-T T 35.6/64.0
C296 4030006860 S.CER C1608 JB 1H 102K-T T 82.5/46.8
C297 4030006860 S.CER C1608 JB 1H 102K-T B 87.0/60.7
C299 4030012600 S.CER C2012 JB 1A 105M-T T 51.2/7.6
C300 4030006860 S.CER C1608 JB 1H 102K-T T 80.6/53.5
C301 4030006860 S.CER C1608 JB 1H 102K-T T 75.3/55.7
C302 4030006860 S.CER C1608 JB 1H 102K-T T 71.0/57.5

J4 6510025940 CON PJ-3047S <XIN>
J6 6510014961 S.CON B2B-ZR-SM4-TF(LF)(SN) T 28.7/39.1
J7 6510027740 CON HSJ2462-010010
J11 6510024241 S.CON 04-6274-036-000-800 T 78.3/7.2

W1 8900011882 CAB OPC-1210A-1(P0.5N36L70)
<TJM>
W5 7030012290 JUM RDS2T0R0
W6 8900015130 CAB OPC-1131A <TJM>

EP1 6910012350 S.BEA MMZ1608Y 102BT B 65.2/25.2
EP2 6910012350 S.BEA MMZ1608Y 102BT B 69.4/25.2
EP3 6910012350 S.BEA MMZ1608Y 102BT T 23.4/90.4
EP4 6910012350 S.BEA MMZ1608Y 102BT T 22.2/87.7
EP5 6910012350 S.BEA MMZ1608Y 102BT B 76.3/1.7
EP6 6910012350 S.BEA MMZ1608Y 102BT B 77.6/1.7
EP7 6910012350 S.BEA MMZ1608Y 102BT T 64.7/19.2
EP8 6910012350 S.BEA MMZ1608Y 102BT B 73.0/16.8

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

15

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[MAIN-A UNIT]

REF PARTS
NO. NO.

IC1 1130008351 S.IC LV2105V-TLM-E B 82.4/19.5
IC2 1130011760 S.IC CD4094BPWR B 4.4/30.7
IC4 1110007720 S.IC AA32416A <SLVJ> B 106.0/17.7
IC5 1190000350 S.IC M62363FP-650C B 86.5/17.5
IC6 1110004050 S.IC NJM3404AV-TE1-#FMZB B 90.5/49.5
IC7 1180001252 S.IC TA7808F(TE16L1NQ) B 15.5/47.9
IC8 1180000970 S.IC AN78L05M-(E1) B 23.8/61.7
IC9 1110002550 IC TA7252AP
IC10 1150002182 S.IC S-AV36A(IQ) [TPE-1]
1150002182 S.IC S-AV36A(IQ) [KOR-1]
1150002182 S.IC S-AV36A(IQ) [THA-02]
1150002182 S.IC S-AV36A(IQ) [SEA-2]
1150002300 IC S-AV39(IQ) [THA-1]
1150002182 S.IC S-AV36A(IQ) [EXP-2]
1150002182 S.IC S-AV36A(IQ) [OTH-01]
1150002182 S.IC S-AV36A(IQ) [AUS-1]
1150002182 S.IC S-AV36A(IQ) [SEA-3]
1150002182 S.IC S-AV36A(IQ) [EXP-3]
IC11 1110004050 S.IC NJM3404AV-TE1-#FMZB T 87.1/49.5
IC12 1130011781 S.IC SN74AHC2G53HDCT3 T 98.8/6.8

Q1 1530002851 S.TRA 2SC4116-BL(TE85RF) B 33.4/38.2
Q2 1590001650 S.TRA XP4601(TX) B 34.8/17.3
Q3 1530002851 S.TRA 2SC4116-BL(TE85RF) B 28.3/31.7
Q4 1530002851 S.TRA 2SC4116-BL(TE85RF) B 76.0/21.3
Q5 1530002851 S.TRA 2SC4116-BL(TE85RF) B 29.3/34.9
Q6 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 34.8/25.0
Q7 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 40.5/26.0
Q8 1590001040 S.TRA DTA113ZU T106 B 33.8/34.9
Q9 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 50.2/26.2
Q10 1560000811 S.FET 2SK1069-4-TL-E T 50.1/35.9
Q11 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 56.6/24.7
Q12 1530002921 S.TRA 2SC4226-T1 Y25 (R25) T 55.4/18.5
Q13 1590000720 S.TRA DTA144EUA T106 [TPE-1] T 110.5/20.0
1590000720 S.TRA DTA144EUA T106 [KOR-1]
1590000720 S.TRA DTA144EUA T106 [THA-02]
1590000720 S.TRA DTA144EUA T106 [SEA-2]
1590000720 S.TRA DTA144EUA T106 [THA-1]
1590000720 S.TRA DTA144EUA T106 [EXP-2]
Q14 1510000591 S.TRA 2SA1362-Y(TE85LF) T 32.4/48.8
Q15 1530002851 S.TRA 2SC4116-BL(TE85RF) T 38.5/50.6
Q16 1530003221 S.TRA 2SC4406-4-TL-E B 103.7/26.2
Q17 1530000370 S.TRA 2SC3356-T1B B 41.1/39.8
Q19 1580000731 S.FET 3SK293(TE85LF) B 77.3/35.9
Q21 1590001010 S.TRA DTB113ZK T146 T 38.2/42.8
Q22 1590000430 S.TRA DTC144EUA T106 T 34.9/43.2
Q25 1590001010 S.TRA DTB113ZK T146 T 64.8/24.5
Q26 1590000720 S.TRA DTA144EUA T106 B 86.5/54.8
Q27 1580000731 S.FET 3SK293(TE85LF) B 105.5/42.0
Q28 1530003910 S.TRA 2SC4684 (TE16L1 NQ) B 15.5/59.9
Q29 1530003091 S.TRA 2SC4213-B(TE85RF) B 16.3/7.9
Q30 1510000890 S.TRA DTA143TU T106 T 23.8/64.1
Q31 1590001320 S.TRA DTC143ZUA T106 T 23.8/66.6
Q34 1530002851 S.TRA 2SC4116-BL(TE85RF) B 103.9/11.0
Q35 1530003270 S.TRA 2SC4703-T1 SF B 44.0/50.7
Q36 1590001040 S.TRA DTA113ZU T106 [TPE-1] T 101.7/10.1
1590001040 S.TRA DTA113ZU T106 [KOR-1]
1590001040 S.TRA DTA113ZU T106 [THA-02]
1590001040 S.TRA DTA113ZU T106 [SEA-2]
1590001040 S.TRA DTA113ZU T106 [THA-1]
1590001040 S.TRA DTA113ZU T106 [EXP-2]
1590001040 S.TRA DTA113ZU T106 [AUS-1]
1590001040 S.TRA DTA113ZU T106 [SEA-3]
1590001040 S.TRA DTA113ZU T106 [EXP-3]
Q37 1590001190 S.TRA XP6501-(TX).AB [TPE-1] T 109.1/13.6
1590001190 S.TRA XP6501-(TX).AB [KOR-1]
1590001190 S.TRA XP6501-(TX).AB [THA-02]
1590001190 S.TRA XP6501-(TX).AB [SEA-2]
1590001190 S.TRA XP6501-(TX).AB [THA-1]
1590001190 S.TRA XP6501-(TX).AB [EXP-2]
1590001190 S.TRA XP6501-(TX).AB [AUS-1]
1590001190 S.TRA XP6501-(TX).AB [SEA-3]
1590001190 S.TRA XP6501-(TX).AB [EXP-3]
Q38 1590001190 S.TRA XP6501-(TX).AB [TPE-1] T 108.4/6.6
1590001190 S.TRA XP6501-(TX).AB [KOR-1]
1590001190 S.TRA XP6501-(TX).AB [THA-02]
1590001190 S.TRA XP6501-(TX).AB [SEA-2]
1590001190 S.TRA XP6501-(TX).AB [THA-1]
1590001190 S.TRA XP6501-(TX).AB [EXP-2]
1590001190 S.TRA XP6501-(TX).AB [AUS-1]
1590001190 S.TRA XP6501-(TX).AB [SEA-3]
1590001190 S.TRA XP6501-(TX).AB [EXP-3]
Q39 1590000430 S.TRA DTC144EUA T106 B 83.4/53.1
Q40 1590000430 S.TRA DTC144EUA T106 B 86.3/52.2
Q41 1530003630 S.TRA 2SC4617 TLS [TPE-1] B 16.6/10.2
1530003630 S.TRA 2SC4617 TLS [KOR-1]
1530003630 S.TRA 2SC4617 TLS [THA-02]
1530003630 S.TRA 2SC4617 TLS [SEA-2]
1530003630 S.TRA 2SC4617 TLS [THA-1]
1530003630 S.TRA 2SC4617 TLS [EXP-2]
1530003630 S.TRA 2SC4617 TLS [AUS-1]
1530003630 S.TRA 2SC4617 TLS [SEA-3]
1530003630 S.TRA 2SC4617 TLS [EXP-3]

D1 1790001251 S.DIO MA2S1110GL B 35.3/38.2
D2 1750000721 S.VAR HVC375BTRF-E T 36.5/17.0
D3 1750000771 S.VAR HVC376BTRF-E T 87.8/21.3
D4 1720000730 S.VAR MA2S30400L T 36.5/18.3
D5 1720000730 S.VAR MA2S30400L T 41.5/18.2
D6 1790000620 S.DIO MA77(TX) B 53.1/32.9
D7 1790000620 S.DIO MA77(TX) B 64.4/32.3
D9 1750000711 S.VAR HVC350BTRF-E B 84.8/39.2
D10 1750000711 S.VAR HVC350BTRF-E B 88.7/39.2

DESCRIPTION

M.

H/V

LOCATION

[MAIN-A UNIT]

REF PARTS
NO. NO.

D11 1750000711 S.VAR HVC350BTRF-E B 94.0/39.2
D12 1710001061 DIO L407CDB
D13 1750000711 S.VAR HVC350BTRF-E B 117.8/42.7
D14 1790000981 S.DIO MA3J7420GL T 107.2/69.9
D15 1750000550 S.DIO 1SS355 TE-17 T 117.9/48.9
D16 1710000871 S.DIO HVU131TRF-E T 117.9/50.7
D17 1790000981 S.DIO MA3J7420GL T 102.3/72.8
D18 1790001251 S.DIO MA2S1110GL B 93.9/45.2
D19 1710001081 DIO L308CCB
D20 1730000521 ZEN RD20E-AZ B2
D21 1790000700 DIO DSA3A1
D23 1790001251 S.DIO MA2S1110GL [TPE-1] B 117.1/24.1
1790001251 S.DIO MA2S1110GL [KOR-1]
1790001251 S.DIO MA2S1110GL [THA-02]
1790001251 S.DIO MA2S1110GL [SEA-2]
1790001251 S.DIO MA2S1110GL [THA-1]
1790001251 S.DIO MA2S1110GL [EXP-2]
D24 1790001251 S.DIO MA2S1110GL [TPE-1] T 108.8/25.8
1790001251 S.DIO MA2S1110GL [KOR-1]
1790001251 S.DIO MA2S1110GL [THA-02]
1790001251 S.DIO MA2S1110GL [SEA-2]
1790001251 S.DIO MA2S1110GL [THA-1]
1790001251 S.DIO MA2S1110GL [EXP-2]
D25 1790001251 S.DIO MA2S1110GL [TPE-1] T 111.4/17.3
1790001251 S.DIO MA2S1110GL [KOR-1]
1790001251 S.DIO MA2S1110GL [THA-02]
1790001251 S.DIO MA2S1110GL [SEA-2]
1790001251 S.DIO MA2S1110GL [THA-1]
1790001251 S.DIO MA2S1110GL [EXP-2]
D26 1790001251 S.DIO MA2S1110GL [TPE-1] B 116.3/22.8
1790001251 S.DIO MA2S1110GL [KOR-1]
1790001251 S.DIO MA2S1110GL [THA-02]
1790001251 S.DIO MA2S1110GL [SEA-2]
1790001251 S.DIO MA2S1110GL [THA-1]
1790001251 S.DIO MA2S1110GL [EXP-2]
D27 1710001061 DIO L407CDB
D29 1750000370 S.DIO DA221 TL B 98.8/28.5
D30 1750000550 S.DIO 1SS355 TE-17 B 38.2/46.4
D38 1720000730 S.VAR MA2S30400L T 40.2/15.5
D39 1750001820 S.DIO LRB706F-40T1G <SLVJ> B 105.0/24.0

FI1 2020002380 CER LT450FW <JJE>
FI2 2020002510 CER LTW450HT <JJE> [TPE-1]
2020002510 CER LTW450HT <JJE> [KOR-1]
2020002510 CER LTW450HT <JJE> [THA-02]
2020002510 CER LTW450HT <JJE> [SEA-2]
2020002510 CER LTW450HT <JJE> [THA-1]
2020002510 CER LTW450HT <JJE> [EXP-2]
FI3 2030000270 MON MCF21R15AB 21.7 MHz (FL-363)
FI4 2030000270 MON MCF21R15AB 21.7 MHz (FL-363)

X1 6050011871 S.XTA CR-779A SX-2112 21.250 MHz T 81.9/19.5
X2 6070000290 DIS JTB450C24 <JJE>

L1 6200009351 S.COI ELJRE R22GFA T 39.4/18.0
L2 6200003550 S.COI MLF1608A 4R7K-T T 36.4/15.1
L3 6200001620 S.COI ELJFC 1R0K-F B 45.9/31.6
L6 6200009920 S.COI C2012C-R10G-A T 34.0/20.1
L7 6200010570 S.COI C6342A-R11J-A T 45.9/19.3
L8 6200004870 S.COI ELJFC 2R7K-F T 37.7/27.0
L9 6200004880 S.COI ELJFC 3R3K-F T 44.6/25.5
L10 6200001620 S.COI ELJFC 1R0K-F B 45.9/29.1
L11 6200009351 S.COI ELJRE R22GFA T 50.2/28.1
L12 6200009351 S.COI ELJRE R22GFA T 55.4/28.2
L13 6200006981 S.COI ELJRE R10GFA T 57.6/21.2
L14 6200006991 S.COI ELJRE 56NGFA B 56.2/27.8
L15 6200007001 S.COI ELJRE 82NGFA T 56.3/15.8
L18 6200005731 S.COI ELJRE 39NGFA B 46.4/38.4
L19 6200004920 S.COI MLF1608A 2R2K-T B 103.9/22.1
L20 6200005741 S.COI ELJRE 47NGFA B 73.0/34.1
L21 6200006671 S.COI ELJRE 68NGFA B 41.3/42.2
L22 6200006981 S.COI ELJRE R10GFA B 75.1/33.4
L25 6200003281 S.COI NLV25T-2R2J B 77.2/30.3
L31 6200009890 S.COI C2012C-82NG-A T 84.6/41.7
L32 6200009890 S.COI C2012C-82NG-A T 90.1/41.7
L37 6200010050 S.COI AS080547-47N T 112.5/62.9
L38 6200009930 S.COI C2012C-68NG-A T 100.2/43.0
L39 6200010050 S.COI AS080547-47N T 112.6/73.0
L40 6200010420 S.COI FHW1210HC 1R0JGT <JJE> T 84.0/61.9
L42 6200007370 S.COI ELJFC R82K-F B 105.0/66.9
L43 6200013020 S.COI 0.25-1.9-7TL 61N <COMO> T 114.7/45.3
L45 6200012760 S.COI 0.35-1.6-7TL 37.5N <COMO> T 114.1/52.0
L46 6200010060 S.COI AS080647-56N T 106.2/51.4
L47 6200010060 S.COI AS080647-56N T 108.6/79.8
L48 6200010060 S.COI AS080647-56N T 109.5/86.6
L52 6200002631 S.COI NLV25T-R10J B 113.8/44.6
L56 6200006671 S.COI ELJRE 68NGFA B 39.8/50.7
L57 6190001690 S.COI ZBFS5105-PT-01 T 77.6/68.8
L58 6190001690 S.COI ZBFS5105-PT-01 T 77.6/65.5
L59 6190001690 S.COI ZBFS5105-PT-01 T 77.6/62.2
L60 6190001690 S.COI ZBFS5105-PT-01 T 77.6/58.9
L61 6200003640 S.COI MLF1608E 100K-T T 79.8/56.6
L62 6200003640 S.COI MLF1608E 100K-T T 74.0/56.4

R1 7030003660 S.RES ERJ3GEYJ 683 V (68K) T 32.9/14.9
R2 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 91.2/16.6
R3 7030003760 S.RES ERJ3GEYJ 474 V (470K) T 92.5/16.6
R4 7030003310 S.RES ERJ3GEYJ 820 V (82) T 33.7/17.0
R5 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 36.6/38.2
R6 7030003400 S.RES ERJ3GEYJ 471 V (470) B 39.2/13.7
R7 7510001661 S.THR NTCG16 4LH 473JT T 69.3/17.5

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

16

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[MAIN-A UNIT]

REF PARTS
NO. NO.

R8 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 70.1/20.7
R9 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 74.3/16.8
R10 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 88.8/17.9
R11 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 75.6/16.8
R12 7030003320 S.RES ERJ3GEYJ 101 V (100) B 49.4/10.8
R13 7030003490 S.RES ERJ3GEYJ 272 V (2.7K) B 32.6/17.2
R14 7030003800 S.RES ERJ3GEYJ 105 V (1M) B 37.1/17.1
R15 7030003730 S.RES ERJ3GEYJ 274 V (270K) B 56.9/22.2
R16 7030003600 S.RES ERJ3GEYJ 223 V (22K) B 28.4/28.5
R17 7030003720 S.RES ERJ3GEYJ 224 V (220K) B 78.0/20.3
R18 7030003390 S.RES ERJ3GEYJ 391 V (390) B 54.9/18.9
R19 7030003550 S.RES ERJ3GEYJ 822 V (8.2K) T 35.0/21.8
R20 7030003530 S.RES ERJ3GEYJ 562 V (5.6K) T 42.7/23.1
R21 7030003320 S.RES ERJ3GEYJ 101 V (100) B 59.8/17.6
R22 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 31.4/34.9
R23 7030003600 S.RES ERJ3GEYJ 223 V (22K) T 35.0/23.1
R24 7030003480 S.RES ERJ3GEYJ 222 V (2.2K) B 72.8/22.7
R25 7030003560 S.RES ERJ3GEYJ 103 V (10K) T 40.4/24.1
R26 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 79.3/20.3
R27 7030003470 S.RES ERJ3GEYJ 182 V (1.8K) T 32.9/27.0
R28 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 36.6/29.5
R29 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 54.9/21.9
R30 7030003490 S.RES ERJ3GEYJ 272 V (2.7K) T 38.3/23.8
R31 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 47.3/23.9
R32 7030003200 S.RES ERJ3GEYJ 100 V (10) T 44.4/29.3
R33 7030003200 S.RES ERJ3GEYJ 100 V (10) T 44.4/28.0
R34 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 46.6/27.3
R35 7030003380 S.RES ERJ3GEYJ 331 V (330) T 50.2/29.4
R36 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 47.9/35.7
R37 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 48.9/40.4
R39 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 54.7/26.1
R40 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 56.2/21.2
R41 7030003400 S.RES ERJ3GEYJ 471 V (470) T 53.1/29.5
R42 7030003400 S.RES ERJ3GEYJ 471 V (470) T 54.9/21.2
R43 7030003550 S.RES ERJ3GEYJ 822 V (8.2K) B 60.6/25.8
R44 7030003320 S.RES ERJ3GEYJ 101 V (100) B 69.6/18.1
R45 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 40.7/48.7
R46 7030003420 S.RES ERJ3GEYJ 681 V (680) B 61.8/24.5
R47 7030003480 S.RES ERJ3GEYJ 222 V (2.2K) T 32.4/51.2
R48 7030003480 S.RES ERJ3GEYJ 222 V (2.2K) T 35.4/50.5
R49 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 54.3/30.6
R50 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 48.7/36.8
R51 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 67.6/32.0
R52 7030003460 S.RES ERJ3GEYJ 152 V (1.5K) B 110.6/18.7
R54 7030003240 S.RES ERJ3GEYJ 220 V (22) B 44.3/39.1
R55 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 110.6/14.7
R56 7030003400 S.RES ERJ3GEYJ 471 V (470) B 98.7/22.1
R57 7030003620 S.RES ERJ3GEYJ 333 V (33K) B 43.5/41.2
R58 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 100.5/29.2
R59 7030003480 S.RES ERJ3GEYJ 222 V (2.2K) B 113.2/14.7
R60 7030003260 S.RES ERJ3GEYJ 330 V (33) B 44.1/43.5
R62 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 96.9/26.6
R63 7030003360 S.RES ERJ3GEYJ 221 V (220) B 96.8/20.0
R64 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 113.3/10.7
R66 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 98.1/17.2
R71 7030003400 S.RES ERJ3GEYJ 471 V (470) B 101.4/13.0
R72 7030003460 S.RES ERJ3GEYJ 152 V (1.5K) B 78.0/28.0
R73 7030003500 S.RES ERJ3GEYJ 332 V (3.3K) B 97.4/13.4
R74 7030003860 S.RES ERJ3GE JPW V B 100.0/13.0
R76 7030003320 S.RES ERJ3GEYJ 101 V (100) B 78.6/42.2
R78 7030003460 S.RES ERJ3GEYJ 152 V (1.5K) B 77.2/33.8
R79 7030003360 S.RES ERJ3GEYJ 221 V (220) B 80.0/36.7
R80 7030003650 S.RES ERJ3GEYJ 563 V (56K) B 75.9/38.8
R81 7030003650 S.RES ERJ3GEYJ 563 V (56K) B 77.9/38.0
R82 7030003650 S.RES ERJ3GEYJ 563 V (56K) B 80.8/40.5
R86 7030003650 S.RES ERJ3GEYJ 563 V (56K) B 77.2/40.1
R88 7030003400 S.RES ERJ3GEYJ 471 V (470) B 90.2/23.5
R90 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 83.5/39.2
R92 7030003370 S.RES ERJ3GEYJ 271 V (270) [TPE-1] T 43.8/57.7
7030003370 S.RES ERJ3GEYJ 271 V (270) [KOR-1]
7030003370 S.RES ERJ3GEYJ 271 V (270) [THA-02]
7030003370 S.RES ERJ3GEYJ 271 V (270) [SEA-2]
7030003420 S.RES ERJ3GEYJ 681 V (680) [THA-1]
7030003370 S.RES ERJ3GEYJ 271 V (270) [EXP-2]
7030003370 S.RES ERJ3GEYJ 271 V (270) [OTH-01]
7030003370 S.RES ERJ3GEYJ 271 V (270) [AUS-1]
7030003370 S.RES ERJ3GEYJ 271 V (270) [SEA-3]
7030003370 S.RES ERJ3GEYJ 271 V (270) [EXP-3]
R93 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 87.4/39.2
R95 7030000230 S.RES MCR10EZHJ 56 (560) T 44.7/62.3
R96 7030000410 S.RES MCR10EZHJ 1.8K (182) T 45.6/59.9
R101 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 92.7/39.2
R103 7030003760 S.RES ERJ3GEYJ 474 V (470K) B 89.2/54.1
R104 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 95.9/65.5
R106 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 91.8/55.4
R107 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 87.4/60.3
R108 7030003570 S.RES ERJ3GEYJ 123 V (12K) B 93.7/56.7
R109 7030003510 S.RES ERJ3GEYJ 392 V (3.9K) B 87.4/56.8
R110 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 103.3/42.2
R111 7030003320 S.RES ERJ3GEYJ 101 V (100) B 103.3/39.4
R112 7030003620 S.RES ERJ3GEYJ 333 V (33K) T 28.2/7.1
R113 7030003590 S.RES ERJ3GEYJ 183 V (18K) B 111.1/42.0
R114 7030003720 S.RES ERJ3GEYJ 224 V (220K) B 106.7/38.6
R116 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 109.0/42.0
R117 7030003690 S.RES ERJ3GEYJ 124 V (120K) B 107.7/42.0
R118 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 18.4/7.9
R119 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 115.7/41.0
R120 7030003560 S.RES ERJ3GEYJ 103 V (10K) T 27.1/60.1
R121 7030000260 S.RES MCR10EZHJ 100 (101) T 24.2/59.8
R122 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 16.6/5.8
R123 7030003540 S.RES ERJ3GEYJ 682 V (6.8K) B 114.4/48.7
R124 7030003550 S.RES ERJ3GEYJ 822 V (8.2K) T 106.4/72.1
R125 7030003240 S.RES ERJ3GEYJ 220 V (22) T 22.4/20.4
R126 7030003550 S.RES ERJ3GEYJ 822 V (8.2K) T 104.3/72.2
R127 7030003690 S.RES ERJ3GEYJ 124 V (120K) B 92.6/45.2

DESCRIPTION

M.

H/V

LOCATION

[MAIN-A UNIT]

REF PARTS
NO. NO.

R128 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 87.7/44.8
R129 7030003680 S.RES ERJ3GEYJ 104 V (100K) B 86.4/46.3
R130 7030003610 S.RES ERJ3GEYJ 273 V (27K) B 113.1/50.5
R131 7030003670 S.RES ERJ3GEYJ 823 V (82K) B 107.9/90.9
R135 7030003570 S.RES ERJ3GEYJ 123 V (12K) [TPE-1] T 114.0/20.1
7030003570 S.RES ERJ3GEYJ 123 V (12K) [KOR-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA-02]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [SEA-2]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EXP-2]
R136 7030003570 S.RES ERJ3GEYJ 123 V (12K) [TPE-1] T 114.0/17.3
7030003570 S.RES ERJ3GEYJ 123 V (12K) [KOR-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA-02]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [SEA-2]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EXP-2]
R137 7030003570 S.RES ERJ3GEYJ 123 V (12K) [TPE-1] B 113.3/25.4
7030003570 S.RES ERJ3GEYJ 123 V (12K) [KOR-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA-02]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [SEA-2]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EXP-2]
R138 7030003570 S.RES ERJ3GEYJ 123 V (12K) [TPE-1] B 112.0/26.7
7030003570 S.RES ERJ3GEYJ 123 V (12K) [KOR-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA-02]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [SEA-2]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [THA-1]
7030003570 S.RES ERJ3GEYJ 123 V (12K) [EXP-2]
R139 7030003580 S.RES ERJ3GEYJ 153 V (15K) [TPE-1] B 113.5/22.8
7030003580 S.RES ERJ3GEYJ 153 V (15K) [KOR-1]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [THA-02]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [SEA-2]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [THA-1]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [EXP-2]
R140 7030003580 S.RES ERJ3GEYJ 153 V (15K) [TPE-1] T 111.4/22.1
7030003580 S.RES ERJ3GEYJ 153 V (15K) [KOR-1]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [THA-02]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [SEA-2]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [THA-1]
7030003580 S.RES ERJ3GEYJ 153 V (15K) [EXP-2]
R150 7030006070 S.RES ERJ12YJ101U (100) T 84.1/56.6
R152 7030003280 S.RES ERJ3GEYJ 470 V (47) B 46.4/35.5
R153 7030003330 S.RES ERJ3GEYJ 121 V (120) B 44.3/34.8
R154 7030003330 S.RES ERJ3GEYJ 121 V (120) B 43.0/36.1
R155 7030003500 S.RES ERJ3GEYJ 332 V (3.3K) B 101.2/10.9
R156 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 106.1/11.0
R157 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 101.4/8.5
R168 7030003370 S.RES ERJ3GEYJ 271 V (270) B 69.6/29.9
R169 7030003230 S.RES ERJ3GEYJ 180 V (18) B 70.4/32.0
R170 7030003370 S.RES ERJ3GEYJ 271 V (270) B 71.2/29.9
R171 7030003440 S.RES ERJ3GEYJ 102 V (1K) [TPE-1] B 101.0/6.3
7030003440 S.RES ERJ3GEYJ 102 V (1K) [KOR-1]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [THA-02]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [SEA-2]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [THA-1]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [EXP-2]
R172 7030003680 S.RES ERJ3GEYJ 104 V (100K) [TPE-1] T 112.7/20.1
7030003680 S.RES ERJ3GEYJ 104 V (100K) [KOR-1]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [THA-02]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [SEA-2]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [THA-1]
7030003680 S.RES ERJ3GEYJ 104 V (100K) [EXP-2]
R173 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 82.5/8.7
R174 7030003280 S.RES ERJ3GEYJ 470 V (47) B 97.6/43.4
R175 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 64.7/11.0
R176 7030003440 S.RES ERJ3GEYJ 102 V (1K) T 5.2/87.2
R177 7030003340 S.RES ERJ3GEYJ 151 V (150) B 39.1/59.7
R178 7030003270 S.RES ERJ3GEYJ 390 V (39) B 41.2/58.9
R179 7030003340 S.RES ERJ3GEYJ 151 V (150) B 39.1/58.1
R180 7030003220 S.RES ERJ3GEYJ 150 V (15) B 41.2/56.0
R181 7030003300 S.RES ERJ3GEYJ 680 V (68) B 37.0/49.3
R182 7030003300 S.RES ERJ3GEYJ 680 V (68) B 37.0/50.7
R183 7030003520 S.RES ERJ3GEYJ 472 V (4.7K) B 39.8/49.3
R184 7030003440 S.RES ERJ3GEYJ 102 V (1K) B 38.5/48.0
R185 7030003220 S.RES ERJ3GEYJ 150 V (15) B 40.6/47.2
R186 7030006561 S.RES ERA3YED 223V (22K) T 81.6/56.2
R187 7030006561 S.RES ERA3YED 223V (22K) T 77.1/56.0
R189 7030005321 S.RES ERA3YED 103V (10K) T 79.2/54.6
R190 7030005321 S.RES ERA3YED 103V (10K) T 77.1/54.7
R191 7030005521 S.RES ERA3YKD 334V (330K) T 89.8/51.6
R193 7030005521 S.RES ERA3YKD 334V (330K) T 86.6/54.9
R194 7030003860 S.RES ERJ3GE JPW V T 84.1/37.3
R195 7030003860 S.RES ERJ3GE JPW V B 111.1/40.7
R201 7030003400 S.RES ERJ3GEYJ 471 V (470) [TPE-1] T 105.6/13.4
7030003400 S.RES ERJ3GEYJ 471 V (470) [KOR-1]
7030003400 S.RES ERJ3GEYJ 471 V (470) [THA-02]
7030003400 S.RES ERJ3GEYJ 471 V (470) [SEA-2]
7030003400 S.RES ERJ3GEYJ 471 V (470) [THA-1]
7030003400 S.RES ERJ3GEYJ 471 V (470) [EXP-2]
7030003400 S.RES ERJ3GEYJ 471 V (470) [AUS-1]
7030003400 S.RES ERJ3GEYJ 471 V (470) [SEA-3]
7030003400 S.RES ERJ3GEYJ 471 V (470) [EXP-3]
R202 7030003440 S.RES ERJ3GEYJ 102 V (1K) [TPE-1] T 107.5/10.1
7030003440 S.RES ERJ3GEYJ 102 V (1K) [KOR-1]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [THA-02]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [SEA-2]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [THA-1]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [EXP-2]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [AUS-1]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [SEA-3]
7030003440 S.RES ERJ3GEYJ 102 V (1K) [EXP-3]

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

17

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[MAIN-A UNIT]

REF PARTS
NO. NO.

R203 7030003710 S.RES ERJ3GEYJ 184 V (180K) [TPE-1] T 107.5/11.4
7030003710 S.RES ERJ3GEYJ 184 V (180K) [KOR-1]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [THA-02]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [SEA-2]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [THA-1]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [EXP-2]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [AUS-1]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [SEA-3]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [EXP-3]
R204 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 108.4/8.8
R205 7030003740 S.RES ERJ3GEYJ 334 V (330K) [TPE-1] T 111.4/13.6
7030003740 S.RES ERJ3GEYJ 334 V (330K) [KOR-1]
7030003740 S.RES ERJ3GEYJ 334 V (330K) [THA-02]
7030003740 S.RES ERJ3GEYJ 334 V (330K) [SEA-2]
7030003740 S.RES ERJ3GEYJ 334 V (330K) [THA-1]
7030003740 S.RES ERJ3GEYJ 334 V (330K) [EXP-2]
7030003740 S.RES ERJ3GEYJ 334 V (330K) [AUS-1]
7030003740 S.RES ERJ3GEYJ 334 V (330K) [SEA-3]
7030003740 S.RES ERJ3GEYJ 334 V (330K) [EXP-3]
R207 7030003710 S.RES ERJ3GEYJ 184 V (180K) [TPE-1] T 110.5/4.9
7030003710 S.RES ERJ3GEYJ 184 V (180K) [KOR-1]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [THA-02]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [SEA-2]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [THA-1]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [EXP-2]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [AUS-1]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [SEA-3]
7030003710 S.RES ERJ3GEYJ 184 V (180K) [EXP-3]
R208 7030003780 S.RES ERJ3GEYJ 684 V (680K) [TPE-1] T 108.4/4.3
7030003780 S.RES ERJ3GEYJ 684 V (680K) [KOR-1]
7030003780 S.RES ERJ3GEYJ 684 V (680K) [THA-02]
7030003780 S.RES ERJ3GEYJ 684 V (680K) [SEA-2]
7030003780 S.RES ERJ3GEYJ 684 V (680K) [THA-1]
7030003780 S.RES ERJ3GEYJ 684 V (680K) [EXP-2]
7030003780 S.RES ERJ3GEYJ 684 V (680K) [AUS-1]
7030003780 S.RES ERJ3GEYJ 684 V (680K) [SEA-3]
7030003780 S.RES ERJ3GEYJ 684 V (680K) [EXP-3]
R209 7030003320 S.RES ERJ3GEYJ 101 V (100) [TPE-1] T 104.7/10.1
7030003320 S.RES ERJ3GEYJ 101 V (100) [KOR-1]
7030003320 S.RES ERJ3GEYJ 101 V (100) [THA-02]
7030003320 S.RES ERJ3GEYJ 101 V (100) [SEA-2]
7030003320 S.RES ERJ3GEYJ 101 V (100) [THA-1]
7030003320 S.RES ERJ3GEYJ 101 V (100) [EXP-2]
7030003320 S.RES ERJ3GEYJ 101 V (100) [AUS-1]
7030003320 S.RES ERJ3GEYJ 101 V (100) [SEA-3]
7030003320 S.RES ERJ3GEYJ 101 V (100) [EXP-3]
R212 7030003600 S.RES ERJ3GEYJ 223 V (22K) [TPE-1] T 106.3/5.2
7030003600 S.RES ERJ3GEYJ 223 V (22K) [KOR-1]
7030003600 S.RES ERJ3GEYJ 223 V (22K) [THA-02]
7030003600 S.RES ERJ3GEYJ 223 V (22K) [SEA-2]
7030003600 S.RES ERJ3GEYJ 223 V (22K) [THA-1]
7030003600 S.RES ERJ3GEYJ 223 V (22K) [EXP-2]
7030003600 S.RES ERJ3GEYJ 223 V (22K) [AUS-1]
7030003600 S.RES ERJ3GEYJ 223 V (22K) [SEA-3]
7030003600 S.RES ERJ3GEYJ 223 V (22K) [EXP-3]
R213 7030003200 S.RES ERJ3GEYJ 100 V (10) [TPE-1] T 105.6/7.3
7030003200 S.RES ERJ3GEYJ 100 V (10) [KOR-1]
7030003200 S.RES ERJ3GEYJ 100 V (10) [THA-02]
7030003200 S.RES ERJ3GEYJ 100 V (10) [SEA-2]
7030003200 S.RES ERJ3GEYJ 100 V (10) [THA-1]
7030003200 S.RES ERJ3GEYJ 100 V (10) [EXP-2]
7030003200 S.RES ERJ3GEYJ 100 V (10) [AUS-1]
7030003200 S.RES ERJ3GEYJ 100 V (10) [SEA-3]
7030003200 S.RES ERJ3GEYJ 100 V (10) [EXP-3]
R214 7030003560 S.RES ERJ3GEYJ 103 V (10K) B 101.8/27.4
R220 7030003740 S.RES ERJ3GEYJ 334 V (330K) T 83.7/51.0
R223 7030003640 S.RES ERJ3GEYJ 473 V (47K) T 58.1/10.0
R224 7030003860 S.RES ERJ3GE JPW V [OTH-01] B 117.1/25.4
7030003860 S.RES ERJ3GE JPW V [AUS-1]
7030003860 S.RES ERJ3GE JPW V [SEA-3]
7030003860 S.RES ERJ3GE JPW V [EXP-3]
R225 7030003860 S.RES ERJ3GE JPW V [OTH-01] T 110.1/25.8
7030003860 S.RES ERJ3GE JPW V [AUS-1]
7030003860 S.RES ERJ3GE JPW V [SEA-3]
7030003860 S.RES ERJ3GE JPW V [EXP-3]
R226 7030003860 S.RES ERJ3GE JPW V B 100.7/22.8
R228 7520000120 POS PTFM04BC222Q2N34B0
R229 7030003860 S.RES ERJ3GE JPW V B 51.9/22.8
R230 7030003640 S.RES ERJ3GEYJ 473 V (47K) B 84.2/50.4
R231 7030003860 S.RES ERJ3GE JPW V T 44.3/53.7
R232 7030003680 S.RES ERJ3GEYJ 104 V (100K) T 84.3/45.5
R233 7030003860 S.RES ERJ3GE JPW V B 80.9/44.5
R234 7030011140 S.RES ERJ8GEYJ 0R00V T 81.0/40.8
R236 7030003860 S.RES ERJ3GE JPW V B 56.9/17.5
R237 7030003640 S.RES ERJ3GEYJ 473 V (47K) [TPE-1] T 53.4/6.2
7030003640 S.RES ERJ3GEYJ 473 V (47K) [KOR-1]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [THA-02]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [SEA-2]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [THA-1]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [EXP-2]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [AUS-1]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [SEA-3]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [EXP-3]
R238 7030003640 S.RES ERJ3GEYJ 473 V (47K) [TPE-1] T 53.5/8.1
7030003640 S.RES ERJ3GEYJ 473 V (47K) [KOR-1]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [THA-02]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [SEA-2]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [THA-1]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [EXP-2]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [AUS-1]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [SEA-3]
7030003640 S.RES ERJ3GEYJ 473 V (47K) [EXP-3]

C1 4550007540 S.TAN F931C155MAABMA B 39.9/17.6

DESCRIPTION

M.

H/V

LOCATION

[MAIN-A UNIT]

REF PARTS
NO. NO.

C2 4030006860 S.CER C1608 JB 1H 102K-T B 36.1/40.2
C4 4030011600 S.CER C1608 JB 1E 104K-T T 70.1/19.4
C5 4030006900 S.CER C1608 JB 1H 103K-T T 38.9/14.9
C7 4030006860 S.CER C1608 JB 1H 102K-T T 33.7/18.3
C8 4030006860 S.CER C1608 JB 1H 102K-T T 89.5/20.0
C9 4030007060 S.CER C1608 CH 1H 270J-T T 41.5/15.6
C10 4510008520 S.ELE EEE1CA470SP T 37.6/37.5
C11 4550006250 S.TAN TEESVA 1A 106M8R B 49.7/13.1
C12 4550007280 S.TAN F931A336MBABMA B 43.4/13.0
C13 4030007030 S.CER C1608 CH 1H 150J-T T 87.3/19.2
C14 4030006860 S.CER C1608 JB 1H 102K-T B 31.2/38.0
C15 4030006860 S.CER C1608 JB 1H 102K-T B 44.3/33.5
C16 4030007020 S.CER C1608 CH 1H 120J-T T 86.5/21.3
C17 4030006860 S.CER C1608 JB 1H 102K-T B 28.4/29.8
C20 4030007090 S.CER C1608 CH 1H 470J-T T 37.0/21.0
C21 4030007050 S.CER C1608 CH 1H 220J-T T 40.8/20.2
C22 4030007060 S.CER C1608 CH 1H 270J-T B 76.0/19.1
C23 4030007070 S.CER C1608 CH 1H 330J-T B 74.1/22.7
C24 4550006250 S.TAN TEESVA 1A 106M8R B 53.2/18.2
C25 4030009920 S.CER C1608 CH 1H 050B-T T 37.0/23.8
C26 4030007010 S.CER C1608 CH 1H 100D-T T 42.7/25.9
C28 4030006860 S.CER C1608 JB 1H 102K-T T 35.0/28.2
C29 4030006980 S.CER C1608 CH 1H 070D-T T 35.0/26.9
C30 4030006950 S.CER C1608 CH 1H 040C-T B 73.3/20.7
C31 4030006860 S.CER C1608 JB 1H 102K-T T 40.4/21.5
C32 4030007020 S.CER C1608 CH 1H 120J-T T 47.3/25.2
C34 4030009500 S.CER C1608 CH 1H 0R5B-T T 41.6/29.3
C36 4030006860 S.CER C1608 JB 1H 102K-T T 32.9/23.0
C37 4030009500 S.CER C1608 CH 1H 0R5B-T T 41.6/28.0
C38 4030006860 S.CER C1608 JB 1H 102K-T T 40.4/22.8
C39 4030011600 S.CER C1608 JB 1E 104K-T B 57.5/20.1
C40 4030006860 S.CER C1608 JB 1H 102K-T T 72.9/12.8
C41 4030006860 S.CER C1608 JB 1H 102K-T T 68.2/10.1
C42 4030006860 S.CER C1608 JB 1H 102K-T T 66.6/11.4
C44 4030006860 S.CER C1608 JB 1H 102K-T T 52.4/26.4
C45 4030006860 S.CER C1608 JB 1H 102K-T B 56.2/20.1
C47 4030011600 S.CER C1608 JB 1E 104K-T B 59.4/19.4
C48 4030006860 S.CER C1608 JB 1H 102K-T T 48.0/27.3
C49 4030007010 S.CER C1608 CH 1H 100D-T T 53.9/24.0
C50 4030006940 S.CER C1608 CH 1H 030C-T T 52.4/19.1
C51 4030006860 S.CER C1608 JB 1H 102K-T T 48.9/37.8
C52 4030006860 S.CER C1608 JB 1H 102K-T T 48.9/39.1
C53 4030006860 S.CER C1608 JB 1H 102K-T B 60.6/23.2
C54 4030007000 S.CER C1608 CH 1H 090D-T T 56.8/26.9
C55 4030007050 S.CER C1608 CH 1H 220J-T T 57.6/18.4
C56 4030006860 S.CER C1608 JB 1H 102K-T T 56.0/29.5
C57 4030006860 S.CER C1608 JB 1H 102K-T T 52.4/20.4
C58 4030006860 S.CER C1608 JB 1H 102K-T T 52.4/21.7
C59 4030006860 S.CER C1608 JB 1H 102K-T T 41.7/46.5
C60 4030006860 S.CER C1608 JB 1H 102K-T B 67.9/16.0
C61 4030007050 S.CER C1608 CH 1H 220J-T B 54.1/27.1
C62 4030007020 S.CER C1608 CH 1H 120J-T T 54.2/15.1
C63 4030006860 S.CER C1608 JB 1H 102K-T T 30.0/52.0
C64 4030011600 S.CER C1608 JB 1E 104K-T T 41.3/51.5
C65 4030007050 S.CER C1608 CH 1H 220J-T B 54.1/28.5
C66 4030007050 S.CER C1608 CH 1H 220J-T B 63.1/24.5
C67 4030006860 S.CER C1608 JB 1H 102K-T B 55.6/30.6
C68 4030007000 S.CER C1608 CH 1H 090D-T T 54.2/16.6
C69 4510008540 S.ELE EEE1CA100SR T 36.5/46.9
C70 4030006860 S.CER C1608 JB 1H 102K-T B 68.3/29.9
C71 4030007090 S.CER C1608 CH 1H 470J-T B 67.3/24.5
C72 4030006860 S.CER C1608 JB 1H 102K-T B 50.7/33.8
C73 4030007050 S.CER C1608 CH 1H 220J-T B 71.5/24.5
C74 4030006860 S.CER C1608 JB 1H 102K-T B 45.1/37.0
C75 4030006860 S.CER C1608 JB 1H 102K-T B 109.8/21.2
C76 4030006980 S.CER C1608 CH 1H 070D-T B 43.0/37.4
C77 4030006900 S.CER C1608 JB 1H 103K-T B 102.6/20.9
C78 4030011600 S.CER C1608 JB 1E 104K-T B 111.4/16.7
C79 4030007080 S.CER C1608 CH 1H 390J-T B 72.5/32.0
C80 4030007050 S.CER C1608 CH 1H 220J-T B 102.0/22.8
C81 4030006900 S.CER C1608 JB 1H 103K-T B 112.0/18.7
C82 4510008540 S.ELE EEE1CA100SR T 103.9/19.2
C83 4030012600 S.CER C2012 JB 1A 105M-T B 113.6/19.1
C84 4030007170 S.CER C1608 CH 1H 221J-T B 112.5/12.7
C85 4030007170 S.CER C1608 CH 1H 221J-T B 111.9/14.7
C86 4030006860 S.CER C1608 JB 1H 102K-T B 106.9/21.2
C87 4030007100 S.CER C1608 CH 1H 560J-T B 73.8/32.0
C88 4030007060 S.CER C1608 CH 1H 270J-T B 74.4/35.3
C89 4030006900 S.CER C1608 JB 1H 103K-T B 98.7/23.4
C90 4030007070 S.CER C1608 CH 1H 330J-T B 41.3/44.8
C91 4030006860 S.CER C1608 JB 1H 102K-T B 41.3/43.5
C92 4030006860 S.CER C1608 JB 1H 102K-T B 74.9/36.5
C93 4030006910 S.CER C1608 CH 1H 0R5C-T B 97.1/29.2
C94 4030006860 S.CER C1608 JB 1H 102K-T B 100.7/19.6
C95 4030006860 S.CER C1608 JB 1H 102K-T B 98.1/20.0
C97 4030006960 S.CER C1608 CH 1H 050C-T B 88.7/28.7
C98 4030008900 S.CER C1608 JB 1H 333K-T B 99.4/17.2
C100 4030007120 S.CER C1608 CH 1H 820J-T B 98.7/13.0
C101 4030006860 S.CER C1608 JB 1H 102K-T B 103.5/14.2
C105 4030006860 S.CER C1608 JB 1H 102K-T B 103.5/12.9
C108 4030006860 S.CER C1608 JB 1H 102K-T B 78.5/40.1
C111 4030009990 S.CER C1608 CH 1H 200J-T B 77.2/32.5
C113 4030006860 S.CER C1608 JB 1H 102K-T B 80.0/35.4
C117 4030006900 S.CER C1608 JB 1H 103K-T B 86.9/24.3
C118 4510008520 S.ELE EEE1CA470SP T 62.5/64.8
C120 4030006900 S.CER C1608 JB 1H 103K-T B 81.8/23.3
C122 4030006860 S.CER C1608 JB 1H 102K-T T 68.4/65.6
C123 4030006860 S.CER C1608 JB 1H 102K-T T 46.9/57.0
C124 4030006960 S.CER C1608 CH 1H 050C-T B 81.4/42.2
C125 4510008540 S.ELE EEE1CA100SR T 44.5/50.2
C127 4030006920 S.CER C1608 CH 1H 010C-T B 83.5/42.0
C128 4030006860 S.CER C1608 JB 1H 102K-T B 84.3/37.1
C131 4030007120 S.CER C1608 CH 1H 820J-T B 84.8/42.0
C133 4030006920 S.CER C1608 CH 1H 010C-T B 87.4/42.0
C134 4030006860 S.CER C1608 JB 1H 102K-T B 91.6/12.5

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

18

M.

LOCATION

S.=Surface mount

H/V

Dec. 2010

[MAIN-A UNIT]

REF PARTS
NO. NO.

C136 4030006920 S.CER C1608 CH 1H 010C-T B 86.1/42.0
C137 4030006860 S.CER C1608 JB 1H 102K-T T 46.4/58.3
C138 4030006860 S.CER C1608 JB 1H 102K-T B 88.2/37.1
C139 4030007120 S.CER C1608 CH 1H 820J-T B 88.7/42.0
C140 4030006900 S.CER C1608 JB 1H 103K-T B 88.2/24.3
C141 4030006930 S.CER C1608 CH 1H 020C-T B 90.1/42.0
C145 4030006920 S.CER C1608 CH 1H 010C-T B 91.4/42.0
C146 4030006860 S.CER C1608 JB 1H 102K-T B 93.5/37.1
C148 4030007150 S.CER C1608 CH 1H 151J-T B 94.0/42.0
C149 4030011600 S.CER C1608 JB 1E 104K-T B 91.8/54.1
C152 4030009510 S.CER C1608 CH 1H 010B-T B 92.7/42.0
C153 4030011600 S.CER C1608 JB 1E 104K-T B 89.2/55.4
C154 4030006860 S.CER C1608 JB 1H 102K-T B 19.5/51.1
C157 4510008810 S.ELE EEE1CA331UP T 24.9/48.0
C158 4030006860 S.CER C1608 JB 1H 102K-T B 95.3/42.0
C160 4030006860 S.CER C1608 JB 1H 102K-T B 96.6/41.0
C161 4030006860 S.CER C1608 JB 1H 102K-T T 87.7/42.5
C162 4030009550 S.CER C1608 CH 1H 2R5B-T B 102.0/42.2
C163 4030006860 S.CER C1608 JB 1H 102K-T B 93.7/58.0
C164 4030006860 S.CER C1608 JB 1H 102K-T B 104.6/39.4
C166 4510008500 S.ELE EEE1CA101WP T 16.9/47.9
C168 4030006860 S.CER C1608 JB 1H 102K-T B 10.8/52.2
C169 4030006860 S.CER C1608 JB 1H 102K-T B 83.6/55.1
C170 4030006860 S.CER C1608 JB 1H 102K-T B 106.7/39.9
C172 4030006860 S.CER C1608 JB 1H 102K-T B 10.8/53.5
C173 4030006860 S.CER C1608 JB 1H 102K-T B 21.4/57.5
C174 4030006860 S.CER C1608 JB 1H 102K-T T 86.6/57.8
C175 4510008810 S.ELE EEE1CA331UP T 18.9/56.9
C176 4030011040 S.CER GRM31M4C2H2R0CY21L
(GRM42-6 CK) T 87.4/64.5
C177 4510008540 S.ELE EEE1CA100SR T 37.0/54.9
C178 4030007010 S.CER C1608 CH 1H 100D-T B 111.1/43.3
C179 4030006860 S.CER C1608 JB 1H 102K-T T 25.8/60.1
C180 4030006860 S.CER C1608 JB 1H 102K-T B 117.8/40.3
C181 4510008550 S.ELE EEE1HA010SR T 26.9/10.7
C182 4030007150 S.CER C1608 CH 1H 151J-T B 115.7/43.8
C184 4030006960 S.CER C1608 CH 1H 050C-T B 115.7/47.6
C185 4030006860 S.CER C1608 JB 1H 102K-T B 18.5/5.0
C187 4030006860 S.CER C1608 JB 1H 102K-T B 112.3/47.1
C188 4510008550 S.ELE EEE1HA010SR T 16.3/12.5
C189 4030006860 S.CER C1608 JB 1H 102K-T B 20.4/62.3
C190 4030011020 S.CER GRM31M4C2H1R0CY21L
(GRM42-6 CK) T 111.6/68.7
C191 4030007020 S.CER C1608 CH 1H 120J-T T 107.2/67.7
C192 4030006860 S.CER C1608 JB 1H 102K-T [TPE-1] T 19.9/15.0
4030006860 S.CER C1608 JB 1H 102K-T [KOR-1]
4030006860 S.CER C1608 JB 1H 102K-T [THA-02]
4030006860 S.CER C1608 JB 1H 102K-T [SEA-2]
4030006860 S.CER C1608 JB 1H 102K-T [THA-1]
4030006860 S.CER C1608 JB 1H 102K-T [EXP-2]
4030008880 S.CER C1608 JB 1H 223K-T [OTH-01]
4030006860 S.CER C1608 JB 1H 102K-T [AUS-1]
4030006860 S.CER C1608 JB 1H 102K-T [SEA-3]
4030006860 S.CER C1608 JB 1H 102K-T [EXP-3]
C193 4030006860 S.CER C1608 JB 1H 102K-T B 112.3/48.4
C194 4510008500 S.ELE EEE1CA101WP T 20.0/40.0
C195 4510008520 S.ELE EEE1CA470SP T 24.9/31.5
C196 4030011020 S.CER GRM31M4C2H1R0CY21L
(GRM42-6 CK) T 105.9/74.7
C197 4030007020 S.CER C1608 CH 1H 120J-T T 101.9/75.1
C198 4030006860 S.CER C1608 JB 1H 102K-T T 103.5/70.2
C200 4030006860 S.CER C1608 JB 1H 102K-T T 23.7/62.2
C201 4030007050 S.CER C1608 CH 1H 220J-T T 111.4/52.5
C204 4510008870 S.ELE EEE1AA471UP T 12.5/82.6
C205 4030006860 S.CER C1608 JB 1H 102K-T B 17.4/69.8
C206 4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [TPE-1] T 101.2/55.6
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [KOR-1]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [THA-02]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [SEA-2]
4030011110 S.CER GRM31M2C2H9R0DV01L
(GRM42-6 CH) [THA-1]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [EXP-2]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [OTH-01]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [AUS-1]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [SEA-3]
4030011050 S.CER GRM31M3C2H3R0CY21L
(GRM42-6 CJ) [EXP-3]
C207 4510006021 ELE 16 ME 2200 HC
C208 4030011210 S.CER GRM31M2C2H330JV01L
(GRM42-6 CH) T 102.8/82.7
C209 4030011600 S.CER C1608 JB 1E 104K-T B 111.0/49.8
C210 4030011160 S.CER GRM31M2C2H150JV01L
(GRM42-6 CH) T 106.7/90.9
C211 4030006860 S.CER C1608 JB 1H 102K-T B 111.0/51.2
C212 4030006860 S.CER C1608 JB 1H 102K-T B 18.5/32.7
C215 4030011600 S.CER C1608 JB 1E 104K-T T 66.5/60.6
C216 4030011600 S.CER C1608 JB 1E 104K-T T 109.4/18.1
C217 4030011230 S.CER GRM31M2C2H390JV01L
(GRM42-6 CH) T 102.8/77.3
C218 4030011190 S.CER GRM31M2C2H270JV01L
(GRM42-6 CH) T 106.8/60.3
C221 4030010780 S.CER C1608 CH 1H 1R5C-T T 117.6/47.3
C222 4030006900 S.CER C1608 JB 1H 103K-T B 102.0/39.4
C224 4030011600 S.CER C1608 JB 1E 104K-T B 114.3/24.1
C225 4030017200 S.CER GRM31BR32J102KY01L T 106.8/57.7

DESCRIPTION

M.

H/V

LOCATION

[MAIN-A UNIT]

REF PARTS
NO. NO.

C227 4030011210 S.CER GRM31M2C2H330JV01L
(GRM42-6 CH) T 106.8/65.5
C228 4030006900 S.CER C1608 JB 1H 103K-T T 75.1/17.6
C230 4510008540 S.ELE EEE1CA100SR [TPE-1] T 105.1/24.7
4510008540 S.ELE EEE1CA100SR [KOR-1]
4510008540 S.ELE EEE1CA100SR [THA-02]
4510008540 S.ELE EEE1CA100SR [SEA-2]
4510008540 S.ELE EEE1CA100SR [THA-1]
4510008540 S.ELE EEE1CA100SR [EXP-2]
C232 4030011600 S.CER C1608 JB 1E 104K-T B 98.6/10.9
C233 4030011600 S.CER C1608 JB 1E 104K-T B 107.4/11.0
C240 4030006860 S.CER C1608 JB 1H 102K-T B 66.2/30.6
C241 4030011600 S.CER C1608 JB 1E 104K-T B 78.0/23.1
C242 4030006860 S.CER C1608 JB 1H 102K-T B 48.5/34.8
C243 4030017810 S.CER C1608 CH 1H 102J-T B 78.0/26.8
C244 4030011600 S.CER C1608 JB 1E 104K-T B 99.7/26.6
C245 4030008680 S.CER C2012 JF 1C 105Z-T B 98.2/41.0
C246 4030006860 S.CER C1608 JB 1H 102K-T T 67.1/65.6
C247 4030006860 S.CER C1608 JB 1H 102K-T T 46.3/62.5
C250 4030007100 S.CER C1608 CH 1H 560J-T B 42.0/53.9
C251 4030006860 S.CER C1608 JB 1H 102K-T B 37.8/52.8
C252 4030006860 S.CER C1608 JB 1H 102K-T B 39.1/52.8
C253 4030007020 S.CER C1608 CH 1H 120J-T B 38.5/44.8
C254 4550006080 S.TAN TEESVB2 1C 106M8R B 35.5/54.3
C255 4030006860 S.CER C1608 JB 1H 102K-T T 84.4/48.9
C256 4030006860 S.CER C1608 JB 1H 102K-T T 90.5/53.7
C257 4030006860 S.CER C1608 JB 1H 102K-T T 83.7/52.3
C258 4030006860 S.CER C1608 JB 1H 102K-T T 90.5/55.1
C259 4030006860 S.CER C1608 JB 1H 102K-T T 84.9/35.2
C265 4030006860 S.CER C1608 JB 1H 102K-T [TPE-1] T 102.2/5.2
4030006860 S.CER C1608 JB 1H 102K-T [KOR-1]
4030006860 S.CER C1608 JB 1H 102K-T [THA-02]
4030006860 S.CER C1608 JB 1H 102K-T [SEA-2]
4030006860 S.CER C1608 JB 1H 102K-T [THA-1]
4030006860 S.CER C1608 JB 1H 102K-T [EXP-2]
4030006860 S.CER C1608 JB 1H 102K-T [AUS-1]
4030006860 S.CER C1608 JB 1H 102K-T [SEA-3]
4030006860 S.CER C1608 JB 1H 102K-T [EXP-3]
C266 4030006860 S.CER C1608 JB 1H 102K-T [TPE-1] T 110.0/16.2
4030006860 S.CER C1608 JB 1H 102K-T [KOR-1]
4030006860 S.CER C1608 JB 1H 102K-T [THA-02]
4030006860 S.CER C1608 JB 1H 102K-T [SEA-2]
4030006860 S.CER C1608 JB 1H 102K-T [THA-1]
4030006860 S.CER C1608 JB 1H 102K-T [EXP-2]
4030006860 S.CER C1608 JB 1H 102K-T [AUS-1]
4030006860 S.CER C1608 JB 1H 102K-T [SEA-3]
4030006860 S.CER C1608 JB 1H 102K-T [EXP-3]
C267 4030006860 S.CER C1608 JB 1H 102K-T [TPE-1] T 111.8/4.9
4030006860 S.CER C1608 JB 1H 102K-T [KOR-1]
4030006860 S.CER C1608 JB 1H 102K-T [THA-02]
4030006860 S.CER C1608 JB 1H 102K-T [SEA-2]
4030006860 S.CER C1608 JB 1H 102K-T [THA-1]
4030006860 S.CER C1608 JB 1H 102K-T [EXP-2]
4030006860 S.CER C1608 JB 1H 102K-T [AUS-1]
4030006860 S.CER C1608 JB 1H 102K-T [SEA-3]
4030006860 S.CER C1608 JB 1H 102K-T [EXP-3]
C268 4030006900 S.CER C1608 JB 1H 103K-T [TPE-1] T 105.0/5.2
4030006900 S.CER C1608 JB 1H 103K-T [KOR-1]
4030006900 S.CER C1608 JB 1H 103K-T [THA-02]
4030006900 S.CER C1608 JB 1H 103K-T [SEA-2]
4030006900 S.CER C1608 JB 1H 103K-T [THA-1]
4030006900 S.CER C1608 JB 1H 103K-T [EXP-2]
4030006900 S.CER C1608 JB 1H 103K-T [AUS-1]
4030006900 S.CER C1608 JB 1H 103K-T [SEA-3]
4030006900 S.CER C1608 JB 1H 103K-T [EXP-3]
C269 4030006900 S.CER C1608 JB 1H 103K-T [TPE-1] T 106.9/13.4
4030006900 S.CER C1608 JB 1H 103K-T [KOR-1]
4030006900 S.CER C1608 JB 1H 103K-T [THA-02]
4030006900 S.CER C1608 JB 1H 103K-T [SEA-2]
4030006900 S.CER C1608 JB 1H 103K-T [THA-1]
4030006900 S.CER C1608 JB 1H 103K-T [EXP-2]
4030006900 S.CER C1608 JB 1H 103K-T [AUS-1]
4030006900 S.CER C1608 JB 1H 103K-T [SEA-3]
4030006900 S.CER C1608 JB 1H 103K-T [EXP-3]
C271 4550007610 S.TAN F931E474MAABMA [TPE-1] T 102.6/14.0
4550007610 S.TAN F931E474MAABMA [KOR-1]
4550007610 S.TAN F931E474MAABMA [THA-02]
4550007610 S.TAN F931E474MAABMA [SEA-2]
4550007610 S.TAN F931E474MAABMA [THA-1]
4550007610 S.TAN F931E474MAABMA [EXP-2]
4550007610 S.TAN F931E474MAABMA [AUS-1]
4550007610 S.TAN F931E474MAABMA [SEA-3]
4550007610 S.TAN F931E474MAABMA [EXP-3]
C272 4030011600 S.CER C1608 JB 1E 104K-T [TPE-1] T 104.3/13.4
4030011600 S.CER C1608 JB 1E 104K-T [KOR-1]
4030011600 S.CER C1608 JB 1E 104K-T [THA-02]
4030011600 S.CER C1608 JB 1E 104K-T [SEA-2]
4030011600 S.CER C1608 JB 1E 104K-T [THA-1]
4030011600 S.CER C1608 JB 1E 104K-T [EXP-2]
4030011600 S.CER C1608 JB 1E 104K-T [AUS-1]
4030011600 S.CER C1608 JB 1E 104K-T [SEA-3]
4030011600 S.CER C1608 JB 1E 104K-T [EXP-3]
C273 4550006480 S.TAN TEESVA 1C 475M8R T 111.8/9.0
C278 4510008580 S.ELE EEE0JA470SR T 25.1/16.8
C279 4510008550 S.ELE EEE1HA010SR T 23.3/24.2
C280 4340000250 S.MYL ECHU 1C 104JX5 B 23.7/26.4
C281 4510009160 S.ELE EEE1HA010NR T 88.1/14.3
C282 4030006860 S.CER C1608 JB 1H 102K-T B 98.5/65.5
C283 4030006860 S.CER C1608 JB 1H 102K-T B 97.2/65.5

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

19

Dec. 2010

[MAIN-A UNIT]

REF PARTS
NO. NO.

C284 4030008880 S.CER C1608 JB 1H 223K-T [TPE-1] B 14.4/10.0
4030008880 S.CER C1608 JB 1H 223K-T [KOR-1]
4030008880 S.CER C1608 JB 1H 223K-T [THA-02]
4030008880 S.CER C1608 JB 1H 223K-T [SEA-2]
4030008880 S.CER C1608 JB 1H 223K-T [THA-1]
4030008880 S.CER C1608 JB 1H 223K-T [EXP-2]
4030008880 S.CER C1608 JB 1H 223K-T [AUS-1]
4030008880 S.CER C1608 JB 1H 223K-T [SEA-3]
4030008880 S.CER C1608 JB 1H 223K-T [EXP-3]
C285 4030008920 S.CER C1608 JB 1H 473K-T [TPE-1] T 112.7/16.4
4030008920 S.CER C1608 JB 1H 473K-T [KOR-1]
4030008920 S.CER C1608 JB 1H 473K-T [THA-02]
4030008920 S.CER C1608 JB 1H 473K-T [SEA-2]
4030008920 S.CER C1608 JB 1H 473K-T [THA-1]
4030008920 S.CER C1608 JB 1H 473K-T [EXP-2]
C286 4030006860 S.CER C1608 JB 1H 102K-T B 104.4/44.7
C287 4030017810 S.CER C1608 CH 1H 102J-T [TPE-1] B 25.9/7.4
4030017810 S.CER C1608 CH 1H 102J-T [KOR-1]
4030017810 S.CER C1608 CH 1H 102J-T [THA-02]
4030017810 S.CER C1608 CH 1H 102J-T [SEA-2]
4030017810 S.CER C1608 CH 1H 102J-T [THA-1]
4030017810 S.CER C1608 CH 1H 102J-T [EXP-2]
4030017810 S.CER C1608 CH 1H 102J-T [AUS-1]
4030017810 S.CER C1608 CH 1H 102J-T [SEA-3]
4030017810 S.CER C1608 CH 1H 102J-T [EXP-3]
C288 4030011810 S.CER C1608 JB 1A 224K-T B 86.7/58.6
C289 4030006860 S.CER C1608 JB 1H 102K-T T 66.5/17.0
C290 4030006860 S.CER C1608 JB 1H 102K-T T 77.9/24.3
C291 4030006860 S.CER C1608 JB 1H 102K-T T 64.1/17.3
C292 4030006860 S.CER C1608 JB 1H 102K-T T 70.9/11.8
C293 4030006860 S.CER C1608 JB 1H 102K-T B 87.8/48.6
C294 4030006860 S.CER C1608 JB 1H 102K-T B 87.4/63.8
C295 4030006850 S.CER C1608 JB 1H 471K-T T 35.6/64.0
C296 4030006860 S.CER C1608 JB 1H 102K-T T 82.5/46.8
C297 4030006860 S.CER C1608 JB 1H 102K-T B 86.7/62.1
C299 4030012600 S.CER C2012 JB 1A 105M-T [TPE-1] T 51.2/7.6
4030012600 S.CER C2012 JB 1A 105M-T [KOR-1]
4030012600 S.CER C2012 JB 1A 105M-T [THA-02]
4030012600 S.CER C2012 JB 1A 105M-T [SEA-2]
4030012600 S.CER C2012 JB 1A 105M-T [THA-1]
4030012600 S.CER C2012 JB 1A 105M-T [EXP-2]
4030012600 S.CER C2012 JB 1A 105M-T [AUS-1]
4030012600 S.CER C2012 JB 1A 105M-T [SEA-3]
4030012600 S.CER C2012 JB 1A 105M-T [EXP-3]
C300 4030006860 S.CER C1608 JB 1H 102K-T T 80.6/53.5
C301 4030006860 S.CER C1608 JB 1H 102K-T T 75.3/55.7
C302 4030006860 S.CER C1608 JB 1H 102K-T T 71.0/57.5
C303 4030006860 S.CER C1608 JB 1H 102K-T T 88.2/54.9

DESCRIPTION

M.

H/V

LOCATION

[MAIN-A UNIT]

REF PARTS
NO. NO.

EP5 6910012350 S.BEA MMZ1608Y 102BT [TPE-1] B 76.3/1.7
6910012350 S.BEA MMZ1608Y 102BT [KOR-1]
6910012350 S.BEA MMZ1608Y 102BT [THA-02]
6910012350 S.BEA MMZ1608Y 102BT [SEA-2]
6910012350 S.BEA MMZ1608Y 102BT [THA-1]
6910012350 S.BEA MMZ1608Y 102BT [EXP-2]
6910012350 S.BEA MMZ1608Y 102BT [AUS-1]
6910012350 S.BEA MMZ1608Y 102BT [SEA-3]
6910012350 S.BEA MMZ1608Y 102BT [EXP-3]
EP6 6910012350 S.BEA MMZ1608Y 102BT [TPE-1] B 77.6/1.7
6910012350 S.BEA MMZ1608Y 102BT [KOR-1]
6910012350 S.BEA MMZ1608Y 102BT [THA-02]
6910012350 S.BEA MMZ1608Y 102BT [SEA-2]
6910012350 S.BEA MMZ1608Y 102BT [THA-1]
6910012350 S.BEA MMZ1608Y 102BT [EXP-2]
6910012350 S.BEA MMZ1608Y 102BT [AUS-1]
6910012350 S.BEA MMZ1608Y 102BT [SEA-3]
6910012350 S.BEA MMZ1608Y 102BT [EXP-3]
EP7 6910012350 S.BEA MMZ1608Y 102BT T 64.7/19.2
EP8 6910012350 S.BEA MMZ1608Y 102BT B 73.0/16.8

DESCRIPTION

M.

H/V

LOCATION

J4 6510025940 CON PJ-3047S <XIN>
J6 6510014961 S.CON B2B-ZR-SM4-TF(LF)(SN) T 28.7/39.1
J7 6510027740 CON HSJ2462-010010 [TPE-1]
6510027740 CON HSJ2462-010010 [KOR-1]
6510027740 CON HSJ2462-010010 [THA-02]
6510027740 CON HSJ2462-010010 [SEA-2]
6510027740 CON HSJ2462-010010 [THA-1]
6510027740 CON HSJ2462-010010 [EXP-2]
6510027740 CON HSJ2462-010010 [AUS-1]
6510027740 CON HSJ2462-010010 [SEA-3]
6510027740 CON HSJ2462-010010 [EXP-3]
J11 6510024241 S.CON 04-6274-036-000-800 T 78.3/7.2

#W5 7030012290 JUM RDS2T0R0 [KOR-1]
7030012290 JUM RDS2T0R0 [THA-02]
7030012290 JUM RDS2T0R0 [EXP-2]
7030012290 JUM RDS2T0R0 [OTH-01]
7030012290 JUM RDS2T0R0 [EXP-3]

W1 8900011882 CAB
W5 7030012290 JUM RDS2T0R0
W6 8900015130 CAB OPC-1131A <TJM>

EP1 6910012350 S.BEA MMZ1608Y 102BT B 65.2/25.2
EP2 6910012350 S.BEA MMZ1608Y 102BT B 69.4/25.2
EP3 6910012350 S.BEA MMZ1608Y 102BT [TPE-1] T 23.4/90.4
6910012350 S.BEA MMZ1608Y 102BT [KOR-1]
6910012350 S.BEA MMZ1608Y 102BT [THA-02]
6910012350 S.BEA MMZ1608Y 102BT [SEA-2]
6910012350 S.BEA MMZ1608Y 102BT [THA-1]
6910012350 S.BEA MMZ1608Y 102BT [EXP-2]
6910012350 S.BEA MMZ1608Y 102BT [AUS-1]
6910012350 S.BEA MMZ1608Y 102BT [SEA-3]
6910012350 S.BEA MMZ1608Y 102BT [EXP-3]
EP4 6910012350 S.BEA MMZ1608Y 102BT [TPE-1] T 22.2/87.7
6910012350 S.BEA MMZ1608Y 102BT [KOR-1]
6910012350 S.BEA MMZ1608Y 102BT [THA-02]
6910012350 S.BEA MMZ1608Y 102BT [SEA-2]
6910012350 S.BEA MMZ1608Y 102BT [THA-1]
6910012350 S.BEA MMZ1608Y 102BT [EXP-2]
6910012350 S.BEA MMZ1608Y 102BT [AUS-1]
6910012350 S.BEA MMZ1608Y 102BT [SEA-3]
6910012350 S.BEA MMZ1608Y 102BT [EXP-3]

OPC-1210A-1(P0.5N36L70)<TJM>

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

20

Dec. 2010

SECTION 9. BOARD LAYOUTS

The combination of top side and bottom side of this

• MAIN-A UNIT
(TOP VIEW)

GND

CLONE

C204

D20

IC9

B7348B

J7

J4

AFOUT

R176

D21

C207

[TPE-1], [KOR-1], [SEA-2], [THA-1], [THA-02],
[EXP-2], [OTH-01], [AUS-1], [SEA-3], [EXP-3]

[DATA][SP]

GND

232RX

232TX

EP3

EP4

4

IC10

C63

R47

Q14

R27

C36

R1

C295

C247

R95

R96

C137

R92

C123

C177

R48

C69

Q22

C10

R28

C28

L8

C29

Q6

C25

R23

R19

C20

L6

C7

D4

D2

R4

L2

Q21

R30

Q15

R231

C64

C125

R45

C59

R37

C52

C51

Q10

R36

R32

C34

R33

C37

Q7

C26

R25

R20

C38

C31

C21

D5

L1

D38

C9

C5

R35

L11

C48

R34

L9

Q9

C32

R31

L7

MP1

1

C299

C166

C188

C175

C194

C192

R125

C200

C279

Q30 Q31

R121

C157

C195

C278

C179

R120

J6

C181

R112

C58

C57

C50

R41

C44

R237

C49

C68

C62

R238

L12

R39

R42

C56

Q12

L47

L48

C190

L39

C201

7

L37

W5

L43

L45

3

D16

D15

C221

C210

5

C208

C217

C197

C196

D17

R124

R126

C198

L57

L62

C301

R187

R190

L58

L59

L60

L61

R189

2

R234

C300

R186

C296

C257

R220

R194

R232

L40

R150

C255

L31

C259

C174

R193

IC11

C176

C161

C303

R228

C258

C256

R191

L32

D27

D12

C206

D19

L38

C122

6

C118

C246

C215

C302

D14

C191

C227

C218

C225

L46

FI1

Q11

C54

R40

L15

L13

C55

R223

IC2

Q25

EP7

C291

LVIN

R175

C42

C289

C41

C290

R8

C4

R7

C292

C228

C40

X1

J11

C16

C13

D3

C281

R10

FI3FI4

C8

R2

R3

C271

SD

X2

Q36

IC12

C265

C82

C230

C272

R209

R213

C268

R201

R203

R202

R212

C269

D24

R204

Q38

R208

C216

Q37

R225

R140

Q13

C266

R207

D25

R205

C273

C267

R172

C285

R135R136

FI2

V0 V5 V10 V15 V20 V25 V30 V35 V40 V45 V50 V55 V60 V65 V70 V75 V80 V85 V90 V95

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120

35

J6

SP+1
SP−2

J11

232RX

CLONE

GND

232TX

PWRON

36

+8V

C5V

LVIN

GND

EXSTB

+8V

+8V

GND

VOLOUT

to the LOGIC unit J3

SO

PLLCK

PLLSTB

OE

BSHIFT

UNLK

DEGI_W

REF_V

TEMP

SCK

MODIN

OPV1

GND

GND

1

+5V

IDET

NOIS

CTCSS

SD

+5V

+5V

DETO

2

21

Dec. 2010

The combination of top side and bottom side of this

DATA SP

• MAIN-A UNIT
(BOTTOM VIEW)

R131

L42

R130

C211

C209

R123

C193

D23

D13

C180

D26

R224

C182C184

R119

C224

L52

R137

R139

C83

R64

R59

C187

R138

C84

C81

C85

C178

R113

R195

C78

C75

R52

R55

R116

R117

C233

C170

R114

C86

IC4

R156

Q27

D39

C286

C164

L19

Q16

C101

C105

Q34

R110 R111

C77

[TPE-1], [KOR-1], [SEA-2], [THA-1], [THA-02],
[EXP-2], [OTH-01], [AUS-1], [SEA-3], [EXP-3]

C282

C283

R104

C294

C297

R107

R106

C149

C145

C134

IC6

R88

C153

R103

C141

D10

C139

C138

C97

C140

R109

C293

R128

C133

R93

C288

Q26

C117

IC5

Q40

R129

C136

C169

Q39

R230

R233

C127

C131

C124

R76

C108

R86

R82

R90

D9

C128

C120

R173

R79

C113

R26

R81

R72

C243

C241

R17

Q19

R78

C111

L25

C22

R80

C92

C88

L22

L20

C79

C87

C23

Q4

C30

R11

R9

EP8

R24

C73

R169

R170

R168

EP2

R44

C70

C60

R51

C240

C71

C162

C222

R214

C80

R155

R71

R157

R171

R58

C244

R226

C94

R74

C98

D29

C89

R56

C232

R174

C245

C95

R66

C100

R73

C93

R62

C160

R63

C158

D18

D11

C163

R108

C148

C146

R127

C152

R101

EP1

IC1

J7

J4

C205

C189

IC8

R178

R177

R179

R180

C250

Q35

C90

C91

R60

L21

R57

Q17

L18

R54

C74

R50

C242

C72

C39

R15

R236

L14

C45

C67

R29

R18

R49

C65

C61

D6

R229

C24

C11

R12

D7

R43

C66

R46

C53

C47

R21

R152

L3

L10

R153

C15

C76

R154

C12

L56

R183

R185

C254

C251

C252

R182

R181

R184

D30

C253

C2

D1

R5

C1

R14

R6

C14

Q1

R22

Q8

Q5

Q3

C17

R16

R13

Q2

C173

C280

C287

C154

C212

R118

C185

Q41

R122

Q29

Q28

IC7

C284

C172

C168

EP6

EP5

V0V5V10V15V20V25V30V35V40V45V50V55V60V65V70V75V80V85V90V95

H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120

H55

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50

22

Jul. 2010

SERVICE MANUAL
ADDENDUM

CONTENTS

REPLACEMENT PAGE . . . . . . . . . . . . . . . . . . . . . . . 5-3

PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

BOARD LAYOUTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

VOLTAGE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 17

[VERSION LIST]

Model Version

[EUR]
[TPE]

IC-2200H

IC-2200-T

IC-2200H

IC-2200-T

IC-2200H

[USA]
[KOR]
[SEA]
[THA]
[EXP]

[EUR-1]

[AUS]
[SEA-1]
[EXP-1]

[CHN]

[CHN-01]
[CHN-02]

[TPE-1]
[KOR-1]
[SEA-2]
[THA-1]

[THA-02]

[EXP-2]
[AUS-1]
[SEA-3]
[EXP-3]

TX output

power

65 W
25 W
65 W
50 W
65 W
10 W

65 W

10 W

65 W

Bandwidth

Wide/Narrow

Wide only

Wide/Narrow

Wide only

Wide/Narrow

Wide only

Jul. 2010

(Replacement page)

5-3 FREQUENCY AND TRANSMIT ADJUSTMENTS

1) Select an adjustment item using [BANK]/[V/MHz].

2) Set or modify the adjustment value as specifi ed using [DIAL], and then push [S.MW] to store the value.

ADJUST-

MENT

REFERENCE
FREQUENCY

REFERENCE
VO LTAGE

TX OUTPUT
POWER
( High power)*

( Middle

power)*

( Middle-low

power)

(Low power) 4 • Frequency : 146.0 MHz

PROTECT
VO LTAGE

ANALOG
DEVIATION

DIGITAL
DEVIATION

DTCS
WAVEFORM

TRANSCEIVER’S

CONDITION

1 • Frequency : 146.0 MHz

• Transmitting

1 • Frequency : 146.0 MHz

• Receiving

1 • Frequency : 146.0 MHz

• Transmitting

2 • Frequency : 146.0 MHz

• Transmitting

3 • Frequency : 146.0 MHz

• Transmitting

• Transmitting

1 • Frequency : 146.0 MHz

• [High]/[Low] switch
: High

• Transmitting

1 • Frequency : 146.0 MHz

• Mode : Wide

• Transmitting

1 • Frequency : 146.0 MHz

• No audio signal is applied
to the [MIC] jack.

• Transmitting

1 • Frequency : 146.0 MHz

• Transmitting

OPERATION

• Loosely couple a frequency counter to
the antenna connector.

– [rE] Push [S.MW]

• Connect an RF power meter to the
antenna connector.

• Connect an RF power meter to the
antenna connector.

1) Connect an audio generator to the

[MIC] jack and set it as;
Frequency : 1 kHz
Level : 80 mV rms [USA]
20 mV rms
Other than [USA]

2) Connect a modulation analyzer to

the antenna connector through an

attenuator, and set it as;
HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P-P)/2

• Connect a modulation analyzer to

the antenna connector through an
attenuator.

• Connect a modulation analyzer with an

oscilloscope to the antenna connector
through an attenuator.

ADJUSTMENT

ITEM

[Fr]

[PO]

[PO+MID]

[PO+MID+LOW]

[PO+LOW] 5 W

[PU] Push [S.MW]

[dE] ±4.6 kHz

[dE+DIGITAL] ±1.25 kHz

[dt]

VALUE

146.000000 MHz
±500 Hz

52 W

[KOR/KOR-1]

12W

[THA-02]

67 W

Except

[THA-02],

[KOR/KOR-1]

22 W

[TPE/TPE-1]

5W

[THA-02]

25 W

Except [THA-02],

[TPE/TPE-1]

12 W

[THA/THA-1]

5W

[THA-02]

10 W

Except

[THA-02],

[THA/THA-1]

Set to square

waveform

DIGITAL
REFERENCE
DEVIATION

*; Not necessary for [THA] and [THA-01].

1 • Frequency : 146.0 MHz

• No audio signal is applied
to the [MIC] jack.

• Transmitting

• Connect a modulation analyzer to
the antenna connector through an
attenuator, and set it as;

HPF : OFF
LPF : 20 kHz
De-emphasis : OFF
Detector : (P-P)/2

5 - 3

[dt+DIGITAL] ±0.85 kHz

Jul. 2010

SECTION 6SECTION 6. PARTS LIST

[UNIT LIST]

Model Version

IC-2200H

IC-2200-T

[EUR-1] O O

[SEA-1] O O
[EXP-1] O O

IC-2200H

[CHN-01] O O
[CHN-02] O O

[TPE-1] O
[KOR-1] O
[SEA-2] O

IC-2200-T

IC-2200H

[THA-1] O

[THA-02] O

[EXP-2] O
[AUS-1] O
[SEA-3] O
[EXP-3] O

UNIT

LOGIC MAIN

[EUR] O O
[TPE] O O
[USA] O O
[KOR] O O
[SEA] O O
[THA] O O
[EXP] O O

[AUS] O O

[CHN] O O

[LOGIC UNIT]

REF PARTS

MAIN-A

–
–
–
–
–
–
–
–
–
–
–
–
–

–
–
–
–
–
–
–
–
–
–

O
O
O
O
O
O
O
O
O

NO. NO.

IC1 1140013550 S.IC M30220MA-143RP(FX-2698A-2)
[EUR] B 82.4/19.5
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[TPE]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[USA]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[KOR]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[SEA]
1140013480 S.IC M30220MA-142RP(FX-2698B)
[THA]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[EXP]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[EUR-1]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[AUS]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[SEA-1]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[EXP-1]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[CHN]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[CHN-01]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[CHN-02]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[TPE-1]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[KOR-1]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[THA-02]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[SEA-2]
1140013480 S.IC M30220MA-142RP(FX-2698B)
[THA-1]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[EXP-2]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[AUS-1]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[SEA-3]
1140013550 S.IC M30220MA-143RP(FX-2698A2)
[EXP-3]
IC2 1130004201 S.IC TC4S66F(TE85R,F) B 4.4/30.7
IC3 1110005340 S.IC NJM12902V-TE1-#ZZZB B 20.5/20.9
IC4 1110006210 S.IC BD5242FVE-TR B 98.7/15.5
IC5 1130014800 S.IC R1EX24064ATA00A B 64.7/24.4
IC6 1130011770 S.IC CD4066BPWR T 31.3/17.5
IC24 1110002861 S.IC TA75S393F(TE85R,F) T 19.8/13
IC514 1110005310 S.IC AN6123MS B 10.3/28.8
IC520 1130011770 S.IC CD4066BPWR T 18/22.6
IC521 1130008561 S.IC TC75S51F(TE85L,F) B 32/16.3
IC522 1130011770 S.IC CD4066BPWR B 41.1/15.8
IC524 1130011781 S.IC SN74AHC2G53HDCT3 B 37.1/11.2
IC525 1130011770 S.IC CD4066BPWR T 25.3/17.5

Q1 1530002691 S.TRA 2SC4116-GR(TE85R,F) T 21.2/16
Q2 1590000430 S.TRA DTC144EUA T106 B 65.8/18.9
Q3 1590001650 S.TRA XP4601(TX) B 71.9/6.1
Q5 1590000660 S.TRA DTC144TU T106 B 68.5/8.8
Q6 1510000510 S.TRA 2SA1576A T106R B 100.5/20.8
Q7 1530002691 S.TRA 2SC4116-GR(TE85R,F) B 105.3/17.2
Q8 1530002691 S.TRA 2SC4116-GR(TE85R,F) B 105.3/19.7
Q12 1530002691 S.TRA 2SC4116-GR(TE85R,F) B 105.4/24.8
Q513 1520000201 S.TRA 2SB798-T2-AZ DK B 47.2/27.9
Q514 1530002691 S.TRA 2SC4116-GR(TE85R,F) B 43/27.4
Q515 1510000510 S.TRA 2SA1576A T106R B 27.9/18
Q524 1510000510 S.TRA 2SA1576A T106R T 14.3/28.1
Q525 1590000430 S.TRA DTC144EUA T106 B 31.6/27.9
Q527 1590002230 S.TRA UMG2N TR B 24.8/13.8
Q528 1590002430 S.TRA DTA144EE TL T 20.8/18.3

D1 1730002281 S.ZEN MAZ8091GML T 17.8/8.5
D2 1790001251 S.DIO MA2S1110GL T 13.8/16.3
D3 1730002281 S.ZEN MAZ8091GML B 21.8/8.8
D4 1750000520 S.DIO DAN222TL B 14.7/17.1
D6 1750000370 S.DIO DA221 TL B 64.8/9.8
D7 1750000520 S.DIO DAN222TL T 85.3/3.9
D8 1750000520 S.DIO DAN222TL T 73.4/4.1
D9 1750000520 S.DIO DAN222TL T 61.4/4.7
D11 1710000611 DIO 1SS133 T77 (26M/M) [TPE]
1710000611 DIO 1SS133 T77 (26M/M) [KOR]
1710000611 DIO 1SS133 T77 (26M/M) [EUR-1]
1710000611 DIO 1SS133 T77 (26M/M) [TPE-1]
1710000611 DIO 1SS133 T77 (26M/M) [KOR-1]
D12 1750000940 S.DIO 1SS400 TE61 [THA] B 93.7/5
1750000940 S.DIO 1SS400 TE61 [THA-1]

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

1

Jul. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

D13 1750000940 S.DIO 1SS400 TE61 [EUR] B 91.1/5
1750000940 S.DIO 1SS400 TE61 [TPE]
1750000940 S.DIO 1SS400 TE61 [USA]
1750000940 S.DIO 1SS400 TE61 [KOR]
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [EUR-1]
1750000940 S.DIO 1SS400 TE61 [AUS]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [KOR-1]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [AUS-1]
D14 1750000940 S.DIO 1SS400 TE61 [THA] B 98.3/4.7
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [THA-1]
D15 1750000940 S.DIO 1SS400 TE61 [SEA] B 88/5.1
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D16 1750000940 S.DIO 1SS400 TE61 [EUR] B 97/4.9
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [EUR-1]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D17 1750000940 S.DIO 1SS400 TE61 [TPE] B 86.3/4.7
1750000940 S.DIO 1SS400 TE61 [KOR]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [KOR-1]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D21 1750000520 S.DIO DAN222TL T 97.8/5.5
D22 1750000940 S.DIO 1SS400 TE61 [TPE] B 92.4/4.7
1750000940 S.DIO 1SS400 TE61 [SEA]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D23 1750000940 S.DIO 1SS400 TE61 [TPE] B 89.8/4.7
1750000940 S.DIO 1SS400 TE61 [KOR]
1750000940 S.DIO 1SS400 TE61 [SEA]
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [AUS]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [KOR-1]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [AUS-1]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
D25 1790001261 S.DIO MA2S077G0L B 98.2/12
D27 1750000940 S.DIO 1SS400 TE61 [EUR] B 93.5/2.9
1750000940 S.DIO 1SS400 TE61 [TPE]
1750000940 S.DIO 1SS400 TE61 [USA]
1750000940 S.DIO 1SS400 TE61 [KOR]
1750000940 S.DIO 1SS400 TE61 [SEA]
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [EUR-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [TPE-1]
1750000940 S.DIO 1SS400 TE61 [KOR-1]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-2]

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

D28 1750000940 S.DIO 1SS400 TE61 [SEA] B 90.4/2.9
1750000940 S.DIO 1SS400 TE61 [THA]
1750000940 S.DIO 1SS400 TE61 [EXP]
1750000940 S.DIO 1SS400 TE61 [SEA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-1]
1750000940 S.DIO 1SS400 TE61 [CHN]
1750000940 S.DIO 1SS400 TE61 [CHN-01]
1750000940 S.DIO 1SS400 TE61 [CHN-02]
1750000940 S.DIO 1SS400 TE61 [THA-02]
1750000940 S.DIO 1SS400 TE61 [SEA-2]
1750000940 S.DIO 1SS400 TE61 [THA-1]
1750000940 S.DIO 1SS400 TE61 [EXP-2]
1750000940 S.DIO 1SS400 TE61 [SEA-3]
1750000940 S.DIO 1SS400 TE61 [EXP-3]
D526 1790001251 S.DIO MA2S1110GL B 43.2/29.3

X1 6050012471 S.XTA CR-836A(SMD-49/9.8304 MHz)
<JJE> B 106.6/8.9

R1 7030008010 S.RES ERJ2GEJ 123 X (12K) T 19.3/15.8
R2 7030005310 S.RES ERJ2GEJ 124 X (120K) T 18/15.6
R3 7030005050 S.RES ERJ2GEJ 103 X (10K) T 19.3/9.2
R4 7030005050 S.RES ERJ2GEJ 103 X (10K) B 58.1/24.7
R5 7030005230 S.RES ERJ2GEJ 334 X (330K) T 17.7/14.3
R6 7030005090 S.RES ERJ2GEJ 104 X (100K) T 22.7/12
R7 7030004980 S.RES ERJ2GEJ 101 X (100) B 47.1/24.2
R8 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 14.8/17.4
R9 7030005220 S.RES ERJ2GEJ 223 X (22K) T 16.1/17.4
R10 7030005050 S.RES ERJ2GEJ 103 X (10K) T 17.1/17.2
R11 7030005090 S.RES ERJ2GEJ 104 X (100K) B 59.9/24.7
R12 7030005090 S.RES ERJ2GEJ 104 X (100K) T 23.7/11
R13 7030008010 S.RES ERJ2GEJ 123 X (12K) B 4.1/28.2
R14 7030005050 S.RES ERJ2GEJ 103 X (10K) B 5.1/28.2
R15 7030005120 S.RES ERJ2GEJ 102 X (1K) B 10.7/24.3
R16 7030005070 S.RES ERJ2GEJ 683 X (68K) B 66.8/4.1
R17 7030005070 S.RES ERJ2GEJ 683 X (68K) B 68.1/4.7
R18 7030005720 S.RES ERJ2GEJ 563 X (56K) B 95.2/24.1
R19 7030005120 S.RES ERJ2GEJ 102 X (1K) B 24.1/18.3
R20 7030005120 S.RES ERJ2GEJ 102 X (1K) B 23.8/11.1
R21 7030005070 S.RES ERJ2GEJ 683 X (68K) B 69.1/5.6
R22 7030005120 S.RES ERJ2GEJ 102 X (1K) B 32.1/6.3
R23 7030005090 S.RES ERJ2GEJ 104 X (100K) B 6.6/30
R24 7030007340 S.RES ERJ2GEJ 153 X (15K) B 72.6/8.5
R25 7030005050 S.RES ERJ2GEJ 103 X (10K) B 71.2/8.5
R26 7030005220 S.RES ERJ2GEJ 223 X (22K) B 36.7/15.4
R27 7030007350 S.RES ERJ2GEJ 393 X (39K) B 66.4/20.8
R28 7030005090 S.RES ERJ2GEJ 104 X (100K) B 67.1/6.7
R29 7030005050 S.RES ERJ2GEJ 103 X (10K) B 73.8/6.5
R30 7030007340 S.RES ERJ2GEJ 153 X (15K) B 13.2/22
R31 7030005720 S.RES ERJ2GEJ 563 X (56K) B 97.2/23.5
R32 7030007570 S.RES ERJ2GEJ 122 X (1.2K) B 72.7/3.7
R34 7030005070 S.RES ERJ2GEJ 683 X (68K) B 71.4/4.2
R35 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.5/16.1
R36 7030008010 S.RES ERJ2GEJ 123 X (12K) B 68.2/20.8
R37 7030005090 S.RES ERJ2GEJ 104 X (100K) B 74.2/5
R38 7030008400 S.RES ERJ2GEJ 182 X (1.8K) B 20.1/13.3
R39 7030005100 S.RES ERJ2GEJ 154 X (150K) B 18.2/16.6
R40 7030005240 S.RES ERJ2GEJ 473 X (47K) T 83.4/20
R41 7030008010 S.RES ERJ2GEJ 123 X (12K) B 97.1/8.8
R42 7030005160 S.RES ERJ2GEJ 105 X (1M) B 63.3/21.1
R43 7030005160 S.RES ERJ2GEJ 105 X (1M) B 61/22.1
R44 7030005160 S.RES ERJ2GEJ 105 X (1M) B 59.8/22.4
R45 7030008410 S.RES ERJ2GEJ 392 X (3.9K) B 24.6/20.6
R46 7410000770 S.ARR EXB-V4V 102JV (1K) T 71/11.1
R47 7030005090 S.RES ERJ2GEJ 104 X (100K) T 74.3/22.5
R48 7030005160 S.RES ERJ2GEJ 105 X (1M) B 99.4/10.9
R49 7030005600 S.RES ERJ2GEJ 273 X (27K) B 25.1/15.6
R50 7030005160 S.RES ERJ2GEJ 105 X (1M) B 20.5/16.1
R51 7030005530 S.RES ERJ2GEJ 100 X (10) B 92.7/11.8
R52 7030005120 S.RES ERJ2GEJ 102 X (1K) T 73/21.5
R53 7030007310 S.RES ERJ2GEJ 155 X (1.5M) B 22.2/16.6
R55 7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA] B 72.5/25.8
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN-01]
7030005120 S.RES ERJ2GEJ 102 X (1K) [CHN-02]
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA-02]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-2]
7030005120 S.RES ERJ2GEJ 102 X (1K) [THA-1]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-2]
7030005120 S.RES ERJ2GEJ 102 X (1K) [SEA-3]
7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-3]
R56 7030004050 S.RES ERJ3GEYJ 1R0 V (1) B 18.6/13.5
R57 7030007340 S.RES ERJ2GEJ 153 X (15K) B 69.4/25
R58 7030005090 S.RES ERJ2GEJ 104 X (100K) B 69.8/23.6
R59 7030007340 S.RES ERJ2GEJ 153 X (15K) B 68/10.6
R60 7030005720 S.RES ERJ2GEJ 563 X (56K) B 96.2/23.5
R61 7210001870 VAR EVU-F2AF20 A14 (10KA)
R62 7210001860 VAR EVU-F2AF20 B14 (10KB)
R64 7030005160 S.RES ERJ2GEJ 105 X (1M) B 17.5/13
R67 7030008290 S.RES ERJ2GEJ 183 X (18K) B 35.2/16.5
R69 7030005100 S.RES ERJ2GEJ 154 X (150K) B 27/27.4
R70 7030007350 S.RES ERJ2GEJ 393 X (39K) B 35.2/18.4
R71 7030005050 S.RES ERJ2GEJ 103 X (10K) B 28.8/27.4
R72 7030005110 S.RES ERJ2GEJ 224 X (220K) B 24.4/27.2
R73 7030008300 S.RES ERJ2GEJ 184 X (180K) B 25.7/29.3
R74 7030005100 S.RES ERJ2GEJ 154 X (150K) B 29.8/28.3
R75 7030005070 S.RES ERJ2GEJ 683 X (68K) B 27/29.2
R76 7030008290 S.RES ERJ2GEJ 183 X (18K) B 21.7/25.7
R77 7030009290 S.RES ERJ2GEJ 562 X (5.6K) B 101.2/18.4

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

2

M.

LOCATION

S.=Surface mount

H/V

Jul. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

R78 7030005090 S.RES ERJ2GEJ 104 X (100K) B 20.7/25.7
R79 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 107.7/19.4
R80 7030005120 S.RES ERJ2GEJ 102 X (1K) B 109.3/26
R81 7030005310 S.RES ERJ2GEJ 124 X (120K) B 23.1/26.2
R82 7030005120 S.RES ERJ2GEJ 102 X (1K) B 109.7/27.3
R83 7030005590 S.RES ERJ2GEJ 680 X (68) B 102.9/17.1
R84 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 27.5/20.4
R85 7030005210 S.RES ERJ2GEJ 822 X (8.2K) B 107.7/20.4
R86 7030009160 S.RES ERJ2GEJ 181 X (180) B 102.9/21.2
R87 7410000950 S.ARR EXB-V8V 102JV T 84.7/10.7
R89 7030009280 S.RES ERJ2GEJ 391 X B 103/24.7
R91 7030005310 S.RES ERJ2GEJ 124 X (120K) B 13/20.4
R92 7030008290 S.RES ERJ2GEJ 183 X (18K) B 12.2/22
R93 7030005120 S.RES ERJ2GEJ 102 X (1K) B 77.3/9.2
R94 7030005570 S.RES ERJ2GEJ 820 X (82) B 102.9/18.2
R96 7030007350 S.RES ERJ2GEJ 393 X (39K) B 13/19.4
R97 7030007270 S.RES ERJ2GEJ 151 X (150) B 102.9/19.2
R100 7030007280 S.RES ERJ2GEJ 331 X (330) B 103/23.7
R101 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 23.8/10.1
R103 7030005100 S.RES ERJ2GEJ 154 X (150K) B 16.2/21.1
R104 7030008290 S.RES ERJ2GEJ 183 X (18K) [EUR] B 18.6/25.7
7030008290 S.RES ERJ2GEJ 183 X (18K) [TPE]
7030005080 S.RES ERJ2GEJ 823 X (82K) [USA]
7030008290 S.RES ERJ2GEJ 183 X (18K) [KOR]
7030008290 S.RES ERJ2GEJ 183 X (18K) [SEA]
7030008290 S.RES ERJ2GEJ 183 X (18K) [THA]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EUR-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [AUS]
7030008290 S.RES ERJ2GEJ 183 X (18K) [SEA-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [CHN]
7030008290 S.RES ERJ2GEJ 183 X (18K) [CHN-01]
7030008290 S.RES ERJ2GEJ 183 X (18K) [CHN-02]
7030008290 S.RES ERJ2GEJ 183 X (18K) [TPE-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [KOR-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [THA-02]
7030008290 S.RES ERJ2GEJ 183 X (18K) [SEA-2]
7030008290 S.RES ERJ2GEJ 183 X (18K) [THA-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP-2]
7030008290 S.RES ERJ2GEJ 183 X (18K) [AUS-1]
7030008290 S.RES ERJ2GEJ 183 X (18K) [SEA-3]
7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP-3]
R105 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.7/25.7
R106 7030005050 S.RES ERJ2GEJ 103 X (10K) B 58.1/22.7
R107 7030005090 S.RES ERJ2GEJ 104 X (100K) B 59.9/23.7
R108 7030005050 S.RES ERJ2GEJ 103 X (10K) B 98.6/14
R109 7030005600 S.RES ERJ2GEJ 273 X (27K) [USA] only B 16.8/25.3
R112 7030008010 S.RES ERJ2GEJ 123 X (12K) B 97/10.6
R114 7030008010 S.RES ERJ2GEJ 123 X (12K) B 95.5/12.9
R128 7030005050 S.RES ERJ2GEJ 103 X (10K) B 58.1/23.7
R129 7030005090 S.RES ERJ2GEJ 104 X (100K) B 58.6/25.7
R133 7030005240 S.RES ERJ2GEJ 473 X (47K) B 90.4/11.8
R134 7030005050 S.RES ERJ2GEJ 103 X (10K) B 98.2/23.9
R135 7030005050 S.RES ERJ2GEJ 103 X (10K) B 91.4/11.8
R136 7030005090 S.RES ERJ2GEJ 104 X (100K) B 88.1/8.7
R137 7030005240 S.RES ERJ2GEJ 473 X (47K) B 88.8/9.6
R515 7030004980 S.RES ERJ2GEJ 101 X (100) B 12.5/29.9
R516 7030010040 S.RES ERJ2GEJ-JPW T 12.4/27.4
R517 7030005160 S.RES ERJ2GEJ 105 X (1M) B 8/28.3
R519 7030005010 S.RES ERJ2GEJ 681 X (680) B 21.1/14.3
R520 7030005240 S.RES ERJ2GEJ 473 X (47K) B 31.4/18.7
R521 7030005240 S.RES ERJ2GEJ 473 X (47K) B 34.2/16.8
R522 7030005100 S.RES ERJ2GEJ 154 X (150K) B 34.7/15.2
R523 7030005160 S.RES ERJ2GEJ 105 X (1M) B 33.7/13.8
R524 7030005050 S.RES ERJ2GEJ 103 X (10K) B 33.7/11.8
R525 7030004980 S.RES ERJ2GEJ 101 X (100) B 44.4/18.5
R526 7030005120 S.RES ERJ2GEJ 102 X (1K) B 41.5/29.8
R527 7030005050 S.RES ERJ2GEJ 103 X (10K) B 44.8/24.8
R530 7030005240 S.RES ERJ2GEJ 473 X (47K) B 28.2/16.1
R531 7030005240 S.RES ERJ2GEJ 473 X (47K) T 14.3/26.2
R532 7030005240 S.RES ERJ2GEJ 473 X (47K) T 14.3/25.2
R533 7030005240 S.RES ERJ2GEJ 473 X (47K) B 58/16.4
R534 7030005240 S.RES ERJ2GEJ 473 X (47K) B 26.1/17.7
R536 7030005050 S.RES ERJ2GEJ 103 X (10K) T 14.1/24.1
R537 7030008370 S.RES ERJ2GEJ 561 X (560) T 14.1/22.9
R538 7030005240 S.RES ERJ2GEJ 473 X (47K) T 108.8/21.7
R539 7030005240 S.RES ERJ2GEJ 473 X (47K) T 108.8/24.9
R541 7030005240 S.RES ERJ2GEJ 473 X (47K) B 59.4/16.5
R542 7030005240 S.RES ERJ2GEJ 473 X (47K) B 60.8/18
R543 7030005240 S.RES ERJ2GEJ 473 X (47K) B 52.1/27.3
R545 7410000770 S.ARR EXB-V4V 102JV (1K) T 68.5/11.7
R546 7030005090 S.RES ERJ2GEJ 104 X (100K) T 18.6/17.4
R548 7030000240 S.RES MCR10EZHJ 68 (680) T 63.2/20.1
R549 7030000240 S.RES MCR10EZHJ 68 (680) B 46.9/17.7
R550 7030010040 S.RES ERJ2GEJ-JPW B 48.6/17.3
R551 7030005050 S.RES ERJ2GEJ 103 X (10K) B 103/26.7

C1 4030017460 S.CER C1005 JB 1H 102K-T B 48.3/10.7
C4 4030017460 S.CER C1005 JB 1H 102K-T T 46.2/10.9
C5 4030017420 S.CER C1005 CH 1H 470J-T T 59.2/7
C7 4030017460 S.CER C1005 JB 1H 102K-T B 57.1/11.4
C8 4030016790 S.CER C1005 JB 1E 103K-T T 21.7/13
C9 4030017460 S.CER C1005 JB 1H 102K-T B 46.2/11
C10 4030017460 S.CER C1005 JB 1H 102K-T B 38.8/29
C11 4030017460 S.CER C1005 JB 1H 102K-T B 20.1/7.8
C13 4030017460 S.CER C1005 JB 1H 102K-T B 70.2/2.9
C14 4030017460 S.CER C1005 JB 1H 102K-T B 44.2/11.3
C15 4030017460 S.CER C1005 JB 1H 102K-T B 54.5/10.7
C16 4030017460 S.CER C1005 JB 1H 102K-T B 23.2/8.7
C19 4030016790 S.CER C1005 JB 1E 103K-T B 47.4/15.6
C20 4030017460 S.CER C1005 JB 1H 102K-T B 13/18
C23 4030017460 S.CER C1005 JB 1H 102K-T T 12.8/17.9
C28 4030017460 S.CER C1005 JB 1H 102K-T B 9.9/16.6

DESCRIPTION

M.

H/V

LOCATION

[LOGIC UNIT]

REF PARTS
NO. NO.

C30 4030017420 S.CER C1005 CH 1H 470J-T B 49.3/10.7
C31 4030017420 S.CER C1005 CH 1H 470J-T T 21/10.7
C32 4510008540 S.ELE EEE1CA100SR B 7.2/24.7
C33 4030013960 S.CER C1005 JB 1C 473K-T B 6.1/28.2
C34 4030017790 S.CER C1005 JB 1H 682K-T B 69.6/4.2
C35 4030017040 S.CER C1005 JB 1A 333K-T B 66/6.7
C36 4030016930 S.CER C1005 JB 1A 104K-T B 7.6/30.1
C37 4030016790 S.CER C1005 JB 1E 103K-T B 65.9/8.1
C38 4030018080 S.CER C1005 JB 1H 182K-T B 70.1/5.6
C39 4030017460 S.CER C1005 JB 1H 102K-T B 95/17.2
C40 4030017460 S.CER C1005 JB 1H 102K-T B 32/3.8
C41 4030016930 S.CER C1005 JB 1A 104K-T B 24.1/19.3
C42 4030016950 S.CER C1005 JB 1A 473K-T B 14.8/21.5
C43 4030016950 S.CER C1005 JB 1A 473K-T B 63.9/19.6
C44 4030018240 S.CER C1005 JB 1H 562K-T B 14.5/22.5
C45 4030016790 S.CER C1005 JB 1E 103K-T B 67.7/18.9
C46 4030016970 S.CER C1005 JB 1E 223K-T B 73.7/3.7
C47 4030016930 S.CER C1005 JB 1A 104K-T B 22.4/14
C48 4030017760 S.CER C1005 JB 1H 222K-T B 74.7/3.7
C49 4030016930 S.CER C1005 JB 1A 104K-T B 100.5/14.3
C51 4030017030 S.CER C1005 JB 1A 273K-T B 97/16.4
C52 4030017420 S.CER C1005 CH 1H 470J-T T 82.9/21.3
C53 4030017500 S.CER C1005 CH 1H 560J-T B 98.1/9.9
C54 4030016790 S.CER C1005 JB 1E 103K-T B 24.5/16.9
C55 4030017600 S.CER C1005 CH 1H 080C-T B 92.4/10.5
C56 4030017760 S.CER C1005 JB 1H 222K-T B 23.5/16.3
C57 4030018110 S.CER C1005 JB 1H 272K-T B 22.2/15.6
C59 4030017640 S.CER C1005 CH 1H 150J-T B 96/11.6
C62 4030017460 S.CER C1005 JB 1H 102K-T B 70.4/25.7
C64 4030016790 S.CER C1005 JB 1E 103K-T B 74.4/8.4
C65 4030016790 S.CER C1005 JB 1E 103K-T B 97.7/22.2
C66 4030016790 S.CER C1005 JB 1E 103K-T T 34.7/16
C67 4510008540 S.ELE EEE1CA100SR B 101.4/5
C68 4030016930 S.CER C1005 JB 1A 104K-T B 91.3/10
C69 4030016930 S.CER C1005 JB 1A 104K-T B 32.4/30.2
C70 4030016790 S.CER C1005 JB 1E 103K-T T 71.6/26.8
C71 4030016790 S.CER C1005 JB 1E 103K-T B 25.7/28.2
C72 4030017040 S.CER C1005 JB 1A 333K-T B 28.3/28.7
C73 4510008530 S.ELE EEE1HA2R2SR B 33.4/21.6
C74 4030018240 S.CER C1005 JB 1H 562K-T B 30.3/29.7
C75 4030017450 S.CER C1005 JB 1H 271K-T B 23.1/25.2
C76 4030017040 S.CER C1005 JB 1A 333K-T B 25.8/20.5
C77 4510008530 S.ELE EEE1HA2R2SR B 9.1/19.9
C78 4030016790 S.CER C1005 JB 1E 103K-T B 23.9/22.9
C79 4030017440 S.CER C1005 CH 1H 221J-T B 17.2/21.1
C80 4030016790 S.CER C1005 JB 1E 103K-T B 97/12.4
C81 4030016790 S.CER C1005 JB 1E 103K-T B 94/11.6
C82 4030017730 S.CER C1005 JB 1H 471K-T B 95/11.6
C583 4030016930 S.CER C1005 JB 1A 104K-T T 14.7/21
C584 4030016930 S.CER C1005 JB 1A 104K-T T 16.5/27.7
C585 4030016930 S.CER C1005 JB 1A 104K-T B 10.4/26.1
C586 4510008490 S.ELE EEE1CS100SR B 14.1/25.4
C587 4550006250 S.TAN TEESVA 1A 106M8R B 10.2/31.8
C588 4030017490 S.CER C1608 JB 1A 105K-T B 22/12.8
C591 4030017460 S.CER C1005 JB 1H 102K-T T 21.3/21.2
C592 4030017460 S.CER C1005 JB 1H 102K-T B 29.3/15
C593 4030016930 S.CER C1005 JB 1A 104K-T B 43.3/30.5
C594 4030017460 S.CER C1005 JB 1H 102K-T B 14.7/28.4
C595 4030017460 S.CER C1005 JB 1H 102K-T T 22.5/21.5
C596 4030017460 S.CER C1005 JB 1H 102K-T B 29.7/17.2
C597 4030017460 S.CER C1005 JB 1H 102K-T B 37.6/9
C599 4030016930 S.CER C1005 JB 1A 104K-T B 12.5/28
C600 4030017460 S.CER C1005 JB 1H 102K-T T 36.4/16.9
C601 4550007510 S.TAN F931C106MBABMA T 51.4/20.1
C602 4550006250 S.TAN TEESVA 1A 106M8R B 49.2/14.2

J1 6450002210 CON 3017-8821 <KIN>
J3 6510024231 S.CON 08-6210-036-340-800+ B 50.1/6.7
J4 6510021970 S.CON AXN330C130P B 53.6/18.8

DS1 5030002660 LCD IS08264E00V2 <SKD>
DS2 5040001760 S.LED SEC 2422C T 46.5/21.1
DS3 5040001760 S.LED SEC 2422C T 57.2/21.1
DS4 5040001760 S.LED SEC 2422C T 68/21.1
DS5 5040001760 S.LED SEC 2422C T 78.8/21.1
DS6 5040001760 S.LED SEC 2422C T 89.6/21.1
DS7 5040001760 S.LED SEC 2422C T 100.3/21.1
DS8 5040001760 S.LED SEC 2422C T 46.5/18.1
DS9 5040001760 S.LED SEC 2422C T 57.2/18.1
DS10 5040001760 S.LED SEC 2422C T 68/18.1
DS11 5040001760 S.LED SEC 2422C T 78.8/18.1
DS12 5040001760 S.LED SEC 2422C T 89.6/18.1
DS13 5040001760 S.LED SEC 2422C T 100.3/18.1

S1 2260001890 S.SWI SKQDPA T 8.9/30.7
S2 2260001890 S.SWI SKQDPA T 103.4/4.1
S3 2260001890 S.SWI SKQDPA T 91.4/4.1
S4 2260001890 S.SWI SKQDPA T 79.4/4.1
S5 2260001890 S.SWI SKQDPA T 67.4/4.1
S6 2260001890 S.SWI SKQDPA T 55.4/4.1
S7 2260001890 S.SWI SKQDPA T 43.4/4.1
S8 2260001890 S.SWI SKQDPA T 8.9/21.4
S9 2250000460 ENC EVQ-VENF0224B
S10 2260001890 S.SWI SKQDPA T 114.6/4.1

EP1 6910012350 S.BEA MMZ1608Y 102BT T 18.4/10.7
EP2 6910012350 S.BEA MMZ1608Y 102BT B 17.9/11.6
EP3 6910012350 S.BEA MMZ1608Y 102BT B 11.5/15.8
EP4 6910012350 S.BEA MMZ1608Y 102BT B 17.9/10.3
EP5 6910012350 S.BEA MMZ1608Y 102BT T 11.2/16.4
EP6 6910012350 S.BEA MMZ1608Y 102BT B 12.9/15.8

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

3

M.

LOCATION

S.=Surface mount

H/V

Jul. 2010

[LOGIC UNIT]

REF PARTS
NO. NO.

EP7 6910012350 S.BEA MMZ1608Y 102BT B 17.9/9
EP8 6910012350 S.BEA MMZ1608Y 102BT B 17.9/7.7
EP9 6910012350 S.BEA MMZ1608Y 102BT B 46.9/21.8
EP10 6910012350 S.BEA MMZ1608Y 102BT B 46.9/20.5
EP11 8930062251 LCD SRCN-2698-SP-N-W-1 (SHJ)

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF PARTS
NO. NO.

IC1 1130008351 S.IC LV2105V-TLM-E B 65.1/20
IC2 1130011760 S.IC CD4094BPWR T 59/6.5
IC4 1110003491 S.IC TA31136FNG(D,EL) B 106/17.7
IC5 1190000350 S.IC M62363FP-650C B 86.5/17.5
IC6 1110004050 S.IC NJM3404AV-TE1-#FMZB B 90.5/49.5
IC7 1180001252 S.IC TA7808F(TE16L1,NQ) B 15.5/47.9
IC8 1180000970 S.IC AN78L05M-(E1) B 23.8/61.6
IC9 1110002550 IC TA7252AP
IC10 1150002182 S.IC S-AV36A(I,Q) [EUR]
1150002182 S.IC S-AV36A(I,Q) [TPE]
1150002182 S.IC S-AV36A(I,Q) [USA]
1150002182 S.IC S-AV36A(I,Q) [KOR]
1150002182 S.IC S-AV36A(I,Q) [SEA]
1150002300 IC S-AV39(I,Q) [THA]
1150002182 S.IC S-AV36A(I,Q) [EXP]
1150002182 S.IC S-AV36A(I,Q) [EUR-1]
1150002182 S.IC S-AV36A(I,Q) [AUS]
1150002182 S.IC S-AV36A(I,Q) [SEA-1]
1150002182 S.IC S-AV36A(I,Q) [EXP-1]
1150002182 S.IC S-AV36A(I,Q) [CHN]
1150002182 S.IC S-AV36A(I,Q) [CHN-01]
1150002182 S.IC S-AV36A(I,Q) [CHN-02]
IC11 1110004050 S.IC NJM3404AV-TE1-#FMZB T 87.1/49.5
IC12 1130011781 S.IC SN74AHC2G53HDCT3 T 98.8/6.8

Q1 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 33.4/38.2
Q2 1590001650 S.TRA XP4601(TX) B 34.8/17.3
Q3 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 28.3/31.7
Q4 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 76/21.3
Q5 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 29.3/34.9
Q6 1530002920 S.TRA 2SC4226-T1 R25 T 34.8/25
Q7 1530002920 S.TRA 2SC4226-T1 R25 T 40.5/26
Q8 1590001040 S.TRA DTA113ZU T106 B 33.8/34.9
Q9 1530002920 S.TRA 2SC4226-T1 R25 T 50.2/26.2
Q10 1560000811 S.FET 2SK1069-4-TL-E T 50.1/35.9
Q11 1530002920 S.TRA 2SC4226-T1 R25 T 56.6/24.7
Q12 1530002920 S.TRA 2SC4226-T1 R25 T 55.4/18.5
Q13 1590000720 S.TRA DTA144EUA T106 [EUR] T 110.5/20
1590000720 S.TRA DTA144EUA T106 [TPE]
1590000720 S.TRA DTA144EUA T106 [USA]
1590000720 S.TRA DTA144EUA T106 [KOR]
1590000720 S.TRA DTA144EUA T106 [SEA]
1590000720 S.TRA DTA144EUA T106 [THA]
1590000720 S.TRA DTA144EUA T106 [EXP]
1590000720 S.TRA DTA144EUA T106 [EUR-1]
1590000720 S.TRA DTA144EUA T106 [CHN]
1590000720 S.TRA DTA144EUA T106 [CHN-01]
Q14 1510000591 S.TRA 2SA1362-Y(TE85L,F) T 32.4/48.8
Q15 1530002851 S.TRA 2SC4116-BL(TE85R,F) T 38.5/50.6
Q16 1530003221 S.TRA 2SC4406-4-TL-E [EUR] B 103.7/26.2
1530003221 S.TRA 2SC4406-4-TL-E [TPE]
1530003221 S.TRA 2SC4406-4-TL-E [USA]
1530003221 S.TRA 2SC4406-4-TL-E [KOR]
1530003221 S.TRA 2SC4406-4-TL-E [SEA]
1530003221 S.TRA 2SC4406-4-TL-E [THA]
1530003221 S.TRA 2SC4406-4-TL-E [EXP]
1530003221 S.TRA 2SC4406-4-TL-E [EUR-1]
1530003221 S.TRA 2SC4406-4-TL-E [AUS]
1530003220 S.TRA 2SC4406-4-TL [SEA-1]
1530003221 S.TRA 2SC4406-4-TL-E [EXP-1]
1530003221 S.TRA 2SC4406-4-TL-E [CHN]
1530003221 S.TRA 2SC4406-4-TL-E [CHN-01]
1530003221 S.TRA 2SC4406-4-TL-E [CHN-02]
Q17 1530000370 S.TRA 2SC3356-T1B B 41.1/39.8
Q19 1580000760 S.FET 3SK299-T1 U73 B 77.3/35.9
Q21 1590001010 S.TRA DTB113ZK T146 T 38.2/42.8
Q22 1590000430 S.TRA DTC144EUA T106 T 34.9/43.2
Q25 1590001010 S.TRA DTB113ZK T146 T 64.8/24.5
Q26 1590000720 S.TRA DTA144EUA T106 B 86.4/54.8
Q27 1580000760 S.FET 3SK299-T1 U73 B 105.5/42
Q28 1530003910 S.TRA 2SC4684 (TE16L1 NQ) B 15.5/59.9
Q29 1530003091 S.TRA 2SC4213-B(TE85R,F) B 16.3/7.9
Q30 1510000890 S.TRA DTA143TU T106 T 23.8/64.1
Q31 1590001320 S.TRA DTC143ZUA T106 T 23.8/66.6
Q34 1530002851 S.TRA 2SC4116-BL(TE85R,F) B 103.9/11
Q35 1530002340 S.TRA 2SC2954-T1 [EUR] B 44/50.7
1530003270 S.TRA 2SC4703-T1 SF [TPE]
1530003270 S.TRA 2SC4703-T1 SF [USA]
1530003270 S.TRA 2SC4703-T1 SF [KOR]
1530003270 S.TRA 2SC4703-T1 SF [SEA]
1530003270 S.TRA 2SC4703-T1 SF [THA]
1530003270 S.TRA 2SC4703-T1 SF [EXP]
1530002340 S.TRA 2SC2954-T1 [EUR-1]
1530003270 S.TRA 2SC4703-T1 SF [AUS]
1530003270 S.TRA 2SC4703-T1 SF [SEA-1]
1530003270 S.TRA 2SC4703-T1 SF [EXP-1]
1530003270 S.TRA 2SC4703-T1 SF [CHN]
1530003270 S.TRA 2SC4703-T1 SF [CHN-01]
1530003270 S.TRA 2SC4703-T1 SF [CHN-02]
Q36 1590001040 S.TRA DTA113ZU T106 T 101.7/10.1
Q37 1590001190 S.TRA XP6501-(TX).AB T 109.1/13.6
Q38 1590001190 S.TRA XP6501-(TX).AB T 108.4/6.6
Q39 1590000430 S.TRA DTC144EUA T106 B 83.3/53.1
Q40 1590000430 S.TRA DTC144EUA T106 B 86.2/52.2
Q41 1530003630 S.TRA 2SC4617 TLS B 16.6/10.2

D1 1790001251 S.DIO MA2S1110GL B 35.3/38.2
D2 1750000721 S.VAR HVC375BTRF-E T 36.5/17
D3 1750000771 S.VAR HVC376BTRF-E T 87.8/21.3
D4 1720000730 S.VAR MA2S30400L T 36.5/18.3
D5 1720000730 S.VAR MA2S30400L T 41.5/18.2
D6 1790000620 S.DIO MA77(TX) B 53.1/32.9
D7 1790000620 S.DIO MA77(TX) B 64.4/32.3

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

4

M.

LOCATION

S.=Surface mount

H/V

Jul. 2010

[MAIN UNIT]

REF PARTS
NO. NO.

D9 1750000711 S.VAR HVC350BTRF-E B 84.8/39.2
D10 1750000711 S.VAR HVC350BTRF-E B 88.7/39.2
D11 1750000711 S.VAR HVC350BTRF-E B 94/39.2
D12 1710001061 DIO L407CDB
D13 1750000711 S.VAR HVC350BTRF-E B 117.8/42.7
D14 1790000981 S.DIO MA3J7420GL T 107.2/69.9
D15 1750000550 S.DIO 1SS355 TE-17 T 117.9/48.9
D16 1710000871 S.DIO HVU131TRF-E T 117.9/50.7
D17 1790000981 S.DIO MA3J7420GL T 102.3/72.8
D18 1790001251 S.DIO MA2S1110GL B 93.9/45.2
D19 1710001081 DIO L308CCB
D20 1730000521 ZEN RD20E-AZ B2
D21 1790000700 DIO DSA3A1
D23 1790001251 S.DIO MA2S1110GL [EUR] B 117.1/24.1
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
D24 1790001251 S.DIO MA2S1110GL [EUR] T 108.8/25.8
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
D25 1790001251 S.DIO MA2S1110GL [EUR] T 111.4/17.3
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
D26 1790001251 S.DIO MA2S1110GL [EUR] B 116.3/22.8
1790001251 S.DIO MA2S1110GL [TPE]
1790001251 S.DIO MA2S1110GL [USA]
1790001251 S.DIO MA2S1110GL [KOR]
1790001251 S.DIO MA2S1110GL [SEA]
1790001251 S.DIO MA2S1110GL [THA]
1790001251 S.DIO MA2S1110GL [EXP]
1790001251 S.DIO MA2S1110GL [EUR-1]
1790001251 S.DIO MA2S1110GL [CHN]
1790001251 S.DIO MA2S1110GL [CHN-01]
D27 1710001061 DIO L407CDB
D29 1750000370 S.DIO DA221 TL B 98.8/28.5
D30 1750000550 S.DIO 1SS355 TE-17 B 38.2/46.4
D31 1790001251 S.DIO MA2S1110GL B 113.1/41.3
D38 1720000730 S.VAR MA2S30400L T 40.2/15.5

FI1 2020002380 CER LT450FW <JJE>
FI2 2020002510 CER LTW450HT <JJE> [EUR]
2020002510 CER LTW450HT <JJE> [TPE]
2020002510 CER LTW450HT <JJE> [USA]
2020002510 CER LTW450HT <JJE> [KOR]
2020002510 CER LTW450HT <JJE> [SEA]
2020002510 CER LTW450HT <JJE> [THA]
2020002510 CER LTW450HT <JJE> [EXP]
2020002510 CER LTW450HT <JJE> [EUR-1]
2020002510 CER LTW450HT <JJE> [CHN]
2020002510 CER LTW450HT <JJE> [CHN-01]
FI3 2030000270 MON MCF21R15AB 21.7 MHz (FL-363)
FI4 2030000270 MON MCF21R15AB 21.7 MHz (FL-363)

X1 6050011871 S.XTA CR-779A SX-2112 21.250 MHz T 81.9/19.5
X2 6070000290 DIS JTB450C24 <JJE>

L1 6200009351 S.COI ELJRE R22GFA [EUR] T 39.4/18
6200009351 S.COI ELJRE R22GFA [TPE]
6200009351 S.COI ELJRE R22GFA [USA]
6200009351 S.COI ELJRE R22GFA [KOR]
6200009351 S.COI ELJRE R22GFA [SEA]
6200009351 S.COI ELJRE R22GFA [THA]
6200009351 S.COI ELJRE R22GFA [EXP]
6200009351 S.COI ELJRE R22GFA [EUR-1]
6200009351 S.COI ELJRE R22GFA [AUS]
6200009350 S.COI ELJRE R22G-F3 [SEA-1]
6200009351 S.COI ELJRE R22GFA [EXP-1]
6200009351 S.COI ELJRE R22GFA [CHN]
6200009351 S.COI ELJRE R22GFA [CHN-01]
6200009351 S.COI ELJRE R22GFA [CHN-02]
L2 6200003550 S.COI MLF1608A 4R7K-T T 36.4/15.1
L3 6200001620 S.COI ELJFC 1R0K-F B 45.9/31.6
L6 6200009920 S.COI C2012C-R10G-A T 34/20
L7 6200010570 S.COI C6342A-R11J-A T 45.9/19.3
L8 6200004870 S.COI ELJFC 2R7K-F T 37.7/27
L9 6200004880 S.COI ELJFC 3R3K-F T 44.6/25.5
L10 6200001620 S.COI ELJFC 1R0K-F B 45.9/29.1

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF PARTS
NO. NO.

L11 6200009351 S.COI ELJRE R22GFA [EUR] T 50.2/28.1
6200009351 S.COI ELJRE R22GFA [TPE]
6200009351 S.COI ELJRE R22GFA [USA]
6200009351 S.COI ELJRE R22GFA [KOR]
6200009351 S.COI ELJRE R22GFA [SEA]
6200009351 S.COI ELJRE R22GFA [THA]
6200009351 S.COI ELJRE R22GFA [EXP]
6200009351 S.COI ELJRE R22GFA [EUR-1]
6200009351 S.COI ELJRE R22GFA [AUS]
6200009350 S.COI ELJRE R22G-F3 [SEA-1]
6200009351 S.COI ELJRE R22GFA [EXP-1]
6200009351 S.COI ELJRE R22GFA [CHN]
6200009351 S.COI ELJRE R22GFA [CHN-01]
6200009351 S.COI ELJRE R22GFA [CHN-02]
L12 6200009351 S.COI ELJRE R22GFA [EUR] T 55.4/28.2
6200009351 S.COI ELJRE R22GFA [TPE]
6200009351 S.COI ELJRE R22GFA [USA]
6200009351 S.COI ELJRE R22GFA [KOR]
6200009351 S.COI ELJRE R22GFA [SEA]
6200009351 S.COI ELJRE R22GFA [THA]
6200009351 S.COI ELJRE R22GFA [EXP]
6200009351 S.COI ELJRE R22GFA [EUR-1]
6200009351 S.COI ELJRE R22GFA [AUS]
6200009350 S.COI ELJRE R22G-F3 [SEA-1]
6200009351 S.COI ELJRE R22GFA [EXP-1]
6200009351 S.COI ELJRE R22GFA [CHN]
6200009351 S.COI ELJRE R22GFA [CHN-01]
6200009351 S.COI ELJRE R22GFA [CHN-02]
L13 6200006981 S.COI ELJRE R10GFA [EUR] T 57.6/21.2
6200006981 S.COI ELJRE R10GFA [TPE]
6200006981 S.COI ELJRE R10GFA [USA]
6200006981 S.COI ELJRE R10GFA [KOR]
6200006981 S.COI ELJRE R10GFA [SEA]
6200006981 S.COI ELJRE R10GFA [THA]
6200006981 S.COI ELJRE R10GFA [EXP]
6200006981 S.COI ELJRE R10GFA [EUR-1]
6200006981 S.COI ELJRE R10GFA [AUS]
6200006980 S.COI ELJRE R10G-F [SEA-1]
6200006981 S.COI ELJRE R10GFA [EXP-1]
6200006981 S.COI ELJRE R10GFA [CHN]
6200006981 S.COI ELJRE R10GFA [CHN-01]
6200006981 S.COI ELJRE R10GFA [CHN-02]
L14 6200006991 S.COI ELJRE 56NGFA [EUR] B 56.2/27.8
6200006991 S.COI ELJRE 56NGFA [TPE]
6200006991 S.COI ELJRE 56NGFA [USA]
6200006991 S.COI ELJRE 56NGFA [KOR]
6200006991 S.COI ELJRE 56NGFA [SEA]
6200006991 S.COI ELJRE 56NGFA [THA]
6200006991 S.COI ELJRE 56NGFA [EXP]
6200006991 S.COI ELJRE 56NGFA [EUR-1]
6200006991 S.COI ELJRE 56NGFA [AUS]
6200006990 S.COI ELJRE 56NG-F [SEA-1]
6200006991 S.COI ELJRE 56NGFA [EXP-1]
6200006991 S.COI ELJRE 56NGFA [CHN]
6200006991 S.COI ELJRE 56NGFA [CHN-01]
6200006991 S.COI ELJRE 56NGFA [CHN-02]
L15 6200007001 S.COI ELJRE 82NGFA [EUR] T 56.3/15.8
6200007001 S.COI ELJRE 82NGFA [TPE]
6200007001 S.COI ELJRE 82NGFA [USA]
6200007001 S.COI ELJRE 82NGFA [KOR]
6200007001 S.COI ELJRE 82NGFA [SEA]
6200007001 S.COI ELJRE 82NGFA [THA]
6200007001 S.COI ELJRE 82NGFA [EXP]
6200007001 S.COI ELJRE 82NGFA [EUR-1]
6200007001 S.COI ELJRE 82NGFA [AUS]
6200007000 S.COI ELJRE 82NG-F [SEA-1]
6200007001 S.COI ELJRE 82NGFA [EXP-1]
6200007001 S.COI ELJRE 82NGFA [CHN]
6200007001 S.COI ELJRE 82NGFA [CHN-01]
6200007001 S.COI ELJRE 82NGFA [CHN-02]
L18 6200005731 S.COI ELJRE 39NGFA [EUR] B 46.4/38.4
6200005731 S.COI ELJRE 39NGFA [TPE]
6200005731 S.COI ELJRE 39NGFA [USA]
6200005731 S.COI ELJRE 39NGFA [KOR]
6200005731 S.COI ELJRE 39NGFA [SEA]
6200005731 S.COI ELJRE 39NGFA [THA]
6200005731 S.COI ELJRE 39NGFA [EXP]
6200005731 S.COI ELJRE 39NGFA [EUR-1]
6200005731 S.COI ELJRE 39NGFA [AUS]
6200005730 S.COI ELJRE 39NG-F [SEA-1]
6200005731 S.COI ELJRE 39NGFA [EXP-1]
6200005731 S.COI ELJRE 39NGFA [CHN]
6200005731 S.COI ELJRE 39NGFA [CHN-01]
6200005731 S.COI ELJRE 39NGFA [CHN-02]
L19 6200004920 S.COI MLF1608A 2R2K-T B 104.6/24
L20 6200005741 S.COI ELJRE 47NGFA [EUR] B 73/34.1
6200005741 S.COI ELJRE 47NGFA [TPE]
6200005741 S.COI ELJRE 47NGFA [USA]
6200005741 S.COI ELJRE 47NGFA [KOR]
6200005741 S.COI ELJRE 47NGFA [SEA]
6200005741 S.COI ELJRE 47NGFA [THA]
6200005741 S.COI ELJRE 47NGFA [EXP]
6200005741 S.COI ELJRE 47NGFA [EUR-1]
6200005741 S.COI ELJRE 47NGFA [AUS]
6200005740 S.COI ELJRE 47NG-F [SEA-1]
6200005741 S.COI ELJRE 47NGFA [EXP-1]
6200005741 S.COI ELJRE 47NGFA [CHN]
6200005741 S.COI ELJRE 47NGFA [CHN-01]
6200005741 S.COI ELJRE 47NGFA [CHN-02]

DESCRIPTION

M.

H/V

LOCATION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

5
