SERVICE PARTS MANUAL
11100 East 45th Ave
The ICE Series Undercounter Cubers
MODEL-ICEU300**2, ICEU305**2
Ice-O-Matic
Denver, Colorado 80239
Part Number 9081332-02 Print Date 1/09
*
ICEU300**2 Service Parts Table of Contents
This parts list contains the service parts available for the ICEU300**2 Undercounter icemakers.
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Bin and Exterior Components Page 2 - 3
Refrigeration System Page 4 - 5
Harvest Assist Assembly Page 6
Control Box Page 7
Evaporator Page 8
Water Pump Page 9
Note: ** Denotes condenser and cube size
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
ICEU300**2 Service Parts Bin and Exterior Components
Page 2
ICEU300**2 Service Parts Bin and Exterior Components
Item ICEU300 ICEU305 Description
1 3021895-01 3021895-01 Trim Strip RH
2 3051895-02 3051895-02 Trim Strip LH
3 3012149-01 3012149-01 Panel Rear Access
4 9151015-04 N/A Bushing, Strain Relief
5 9101242-01 N/A Power Cord 115 Volt Only
6 9051530-01 9051530-01 Front Grill Large
7 9051531-01 9051531-01 Front Grill Small
8 2101400-01S 2101400-01S Bin Assembly (Includes Item 10)
9 9031112-01 9031112-01 Hex Head Machine Screw
10 9091122-02 9091122-02 Drain Elbow
11 9021010-04 9021010-04 Clamp
12 2101434-01S 2101434-01S Bin Door Assembly
9051525-04 9051525-04 Bin Door
9031122-03 9031122-03 Thumb Screw
3013235-01 3013235-01 Door Stop
13 2101429-01S 2101429-01S Bin Top Assembly Stainless Steel
9051573-02 9051573-02 Plastic Corner Cap Left Side
9051573-01 9051573-01 Plastic Corner Cap Right Side
9031098-02 9031098-02 Truss Head Sheet Metal Screw-Plastic Corner
14 9031023-10 9031023-10 Top Panel Screw
15 9031046-03 9031046-03 Screw
16 9031162-01 9031162-01 Bin Fastener Thumb Nut Three Prong
17 3013161-01 3013221-01 Control Box Cover
18 9021001-03 9021001-03 Leg Set (4 each)
19 9051127-02 9051127-02 Ice Scoop
20 2021646-01 2021646-01 Rear Panel
21 3021883-01 3021883-01 Left Side Panel
22 3021883-01 3021883-01 Right Side Panel
23 9091140-01 9091140-01 Plastic Drain Fitting
24 N/A 3013242-01 Water Pump Cover
25 N/A 3013241-01 Cover Base Panel
Page 3

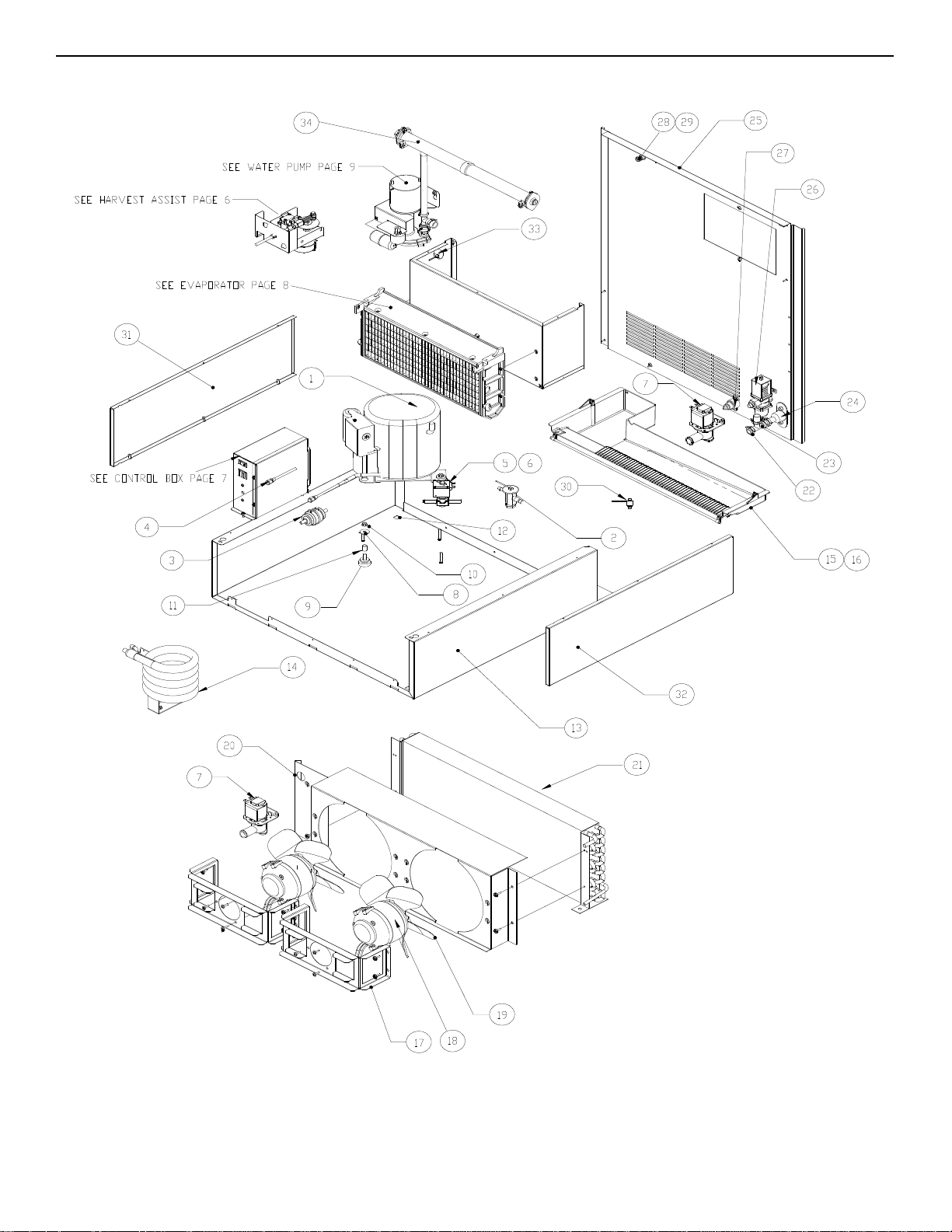

ICEU300**2 Service Parts Refrigeration
Page 4
ICEU300**2 Service Parts Refrigeration
Item ICEU300 ICEU305 Description
1 9181121-01 9181122-01 Compressor
2 9151134-04 9151134-04 Expansion Valve
3 9151004-02 9151004-02 Drier-Air Cooled
9151004-05 9151004-05 Drier-Water Cooled
4 9091086-02 9091086-02 Service Valve Core
9091086-03 9091086-03 Service Valve Cap
5 9151123-06 9151123-06 Hot Gas Valve Body
6 9151123-03 9151123-04 Hot Gas Valve Coil
7 9041086-04 9041086-05 Purge Valve
8 9031004-02 9031004-02 Flat Washer
9 9181002-07 9181002-07 Grommet
10 9031118-02 9031118-02 Lock Nut
11 9181002-08 9181002-08 Sleeve Compressor Mounting
12 9031012-02 9031012-02 Lock Nut (Leg)
13 2021644-01 2021644-01 Base Assembly
14 9141121-01 9141121-01 Water Condenser
15 2101399-01 2101399-01 Water Trough Assembly
16 9031046-24 9031046-24 Water Trough Screws
9031004-19 9031004-19 Rubber Washer
3013270-01 3013270-01 Water Trough Support Bracket
17 3013243-01 3013243-01 Fan Bracket
18 9161112-01 9161112-02 Fan Motor
19 9131446-01 9131446-01 Fan Blade
20 3013217-01 3013217-01 Fan Shroud
21 9141128-01 9141128-01 Air Condenser
22 9021010-04 9021010-04 Hose Clamp
23 9091024-01 9091024-01 Barbed Tee
24 9091140-01 9091140-01 Drain Fitting
25 2021646-01 2021646-01 Rear Panel
26 9041059-01 9041059-01 Water Regulator
27 9091063-02 9091063-02 Drop Adapter Fitting
28 9091135-01 9091135-01 Water Inlet Fitting
29 9031118-05 9031118-05 Flanged Lock Nut
30 9041087-03 9041087-03 High Temperature Safety Control
31 3021883-01 3021883-01 Side Panel S/S
32 3021883-01 3021883-01 Side Panel S/S
33 9101218-14 9101218-14 Water Pump Connector
34 2041338-01 2041338-01 Water Distribution Tube
Compressor Components
ICEU300 ICEU305 Description
9181121-01 9181122-01 Compressor
9181005-37 9181005-39 Overload
9181003-39 9181003-40 Start Capacitor
9181004-27 9181010-26 Compressor Relay
N/A 9181009-08 Run Capacitor
Page 5
ICEU300**2 Service Parts Harvest Assist Assembly
Item ICEU300 ICEU305 Description
2061962-05 2061962-07 Harvest Assist Assembly
1 3013170-01 3013170-01 Bracket, Probe Motor
2 9161030-01 9161031-01 Gear Motor
3 9131190-03 9131190-03 Clutch Assembly, 60 Degree
4 9051001-13 9051001-13 Snap Bushing
5 9051001-03 9051001-03 Snap Bushing
6 9031019-08 9031019-08 #6-32 x 1/2 Screw
7 9051057-01 9051057-01 Connecting Rod
8 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 Flat Washer
10 9031119-01 9031119-01 Shoulder Screw
11 9051519-01 9051519-01 Spacer, Cam Switch
12 9101160-01 9101160-01 Cam Switch
13 3051145-02 3051145-02 Insulator
14 9031008-44 9031008-44 Pan Head Screw
15 9031120-01 9031120-01 Speed Nut Plate
Page 6
ICEU300**2 Service Parts Control Box
Item ICEU300 ICEU305 Description
1 9041097-01 9041097-01 Thermostat-Bin Control
2 9101195-01 9101195-01 Ice/Off/Wash Switch
3 9101139-03 9101139-03 Switch-Purge
4 9041095-01 9041095-01 High Pressure Control
5 9041094-01 9041094-01 Low Pressure Control (Timer Initiate)
6 N/A 9181009-08 Run Capacitor
7 9181003-39 9181003-40 Start Capacitor
8 9181004-27 9181010-26 Relay
9 9101148-01 9101148-01 Timing Module
10 9041087-03 9041087-03 High Temperature Safety Control
11 9101084-01 9041084-02 Relay
12 9101083-01 9101083-01 Socket-Relay
13 9041083-02 9041083-02 Hold Down Spring - Relay
Page 7
ICEU300**2 Service Parts Evaporator
Item ICEU300 ICEU305 Description
1 2051231-82 2051231-82 Evaporator Assembly-Half Cube (Shown)
1 2051231-81 2051231-81 Evaporator Assembly-Full Cube
2 2041338-01 2041338-01 Water Distribution Tube
3 9031122-01 9031122-01 Thumbscrew
4 9031004-19 9031004-19 Rubber Washer
5 9051135-05 9051135-05 Spillway
6 9051136-07 9051136-07 Left Side Evaporator Mounting Panel
7 9051136-08 9051136-08 Right Side Evaporator Mounting Panel
8 9051135-04 9051135-04 Water Return
Page 8
ICEU300**2 Service Parts Water Pump
Item ICEU300 ICEU305 Description
1 9161076-01 9161076-02 Water Pump
2 3013219-01 3013219-01 Pump Bracket
3 9031141-01 9031141-01 Plastic Nut
4 9131111-01 9131111-01 Float
5 6021032-01 6021032-01 Tube-Polyethylene - 11 Inches Required
6 9091080-01 9091080-01 Barrel Fitting
7 9091081-01 9091081-01 Sleeve
8 9131026-02 9131026-02 Cap Plug
9 3051223-02 3051223-02 Hose PVC 5/8 - 2.00 Inch Required
10 9021010-04 9021010-04 Plastic Clamp
11 9091024-01 9091024-01 Barbed Tee
12 9021010-03 9021010-03 Plastic Clamp
13 9051280-05 9051280-05 Drain Tube
Page 9
