Ice-O-Matic ICEU225, ICEU226, ICEU150, ICEU220 User Manual

SERVICE PARTS MANUAL

e

The ICE Series Undercounter Cubers

MODEL-ICEU150, ICEU220, ICEU225, ICEU226

ICE-O-Matic
11100 East 45th Av
Denver, Colorado 80239
Part Number 9081333-01 8/06

*

X

ICE Undercounter Service Parts

This parts list contains the service parts available for the ICE Undercounter icemakers.

Check the model number on the data plate and refer to the correct listing for the specific component.

Check carefully that the correct part is identified and ordered.

Table of Contents Page 1

Bin and Exterior Components Page 2 - 3

Refrigeration System Page 4 - 5

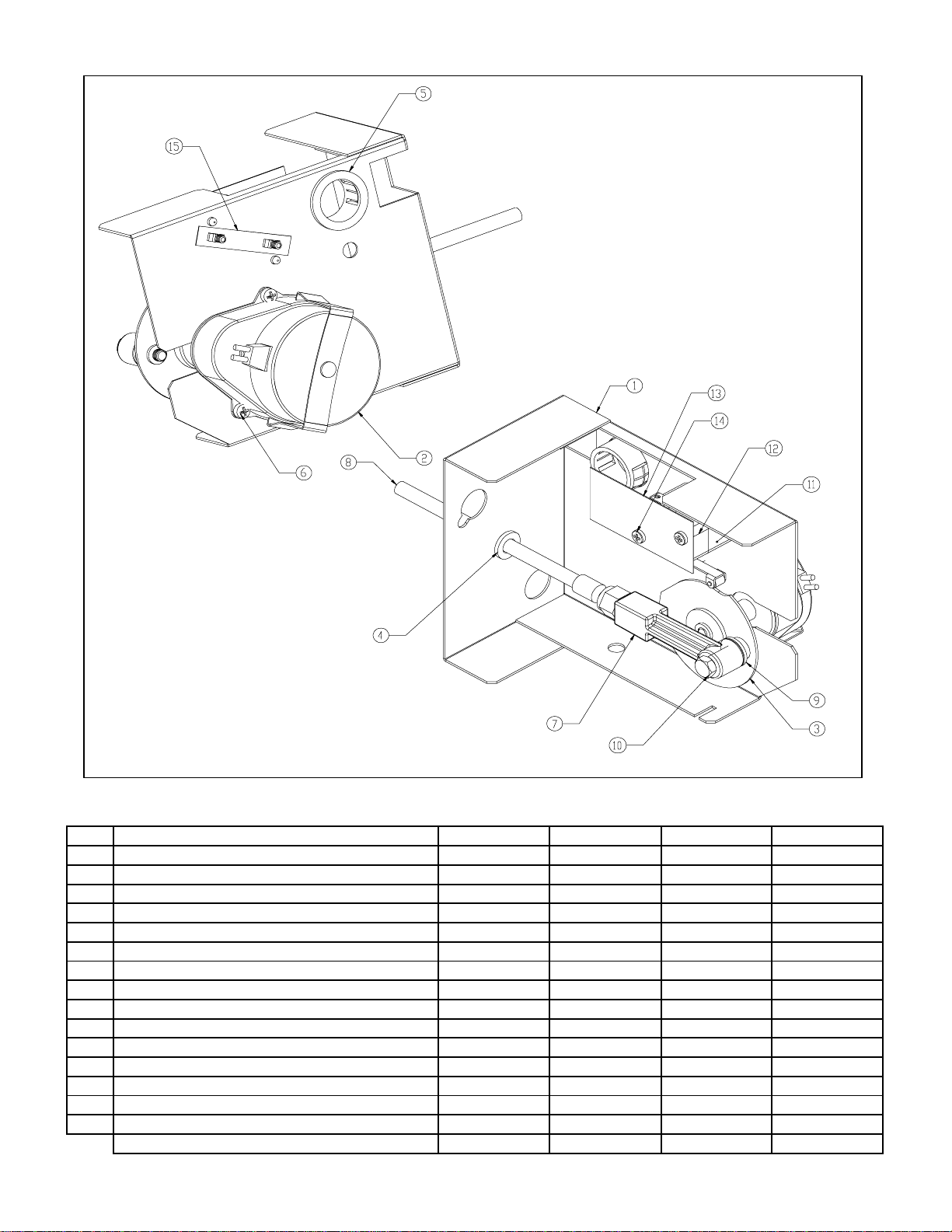

Harvest Assist Assembly Page 6

Control Box Page 7

Evaporator Page 8

Water Pump Page 9

Wiring Diagram Page 10

ICE-O-Matic
11100 East 45th Ave.
Denver Co. 80239
866-PUREICE

The ICE Series Service Manual is available seperately, Part Number 9081270-01

R 8/06 Page 1
