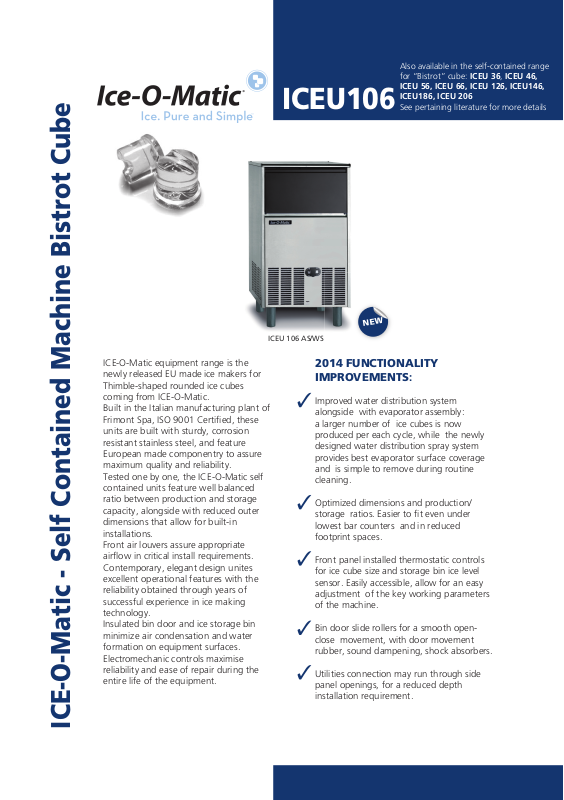

Ice-O-Matic ICEU106-WS User Manual
Also available in the self-contained range
for “Bistrot” cube: ICEU 36, ICEU 46,
ICEU 56, ICEU 66, ICEU 126, ICEU146,
ICEU186, ICEU 206
ICEU106
NEW
ICEU 106 AS/WS
See pertaining literature for more details
ICE-O-Matic equipment range is the
newly released EU made ice makers for
Thimble-shaped rounded ice cubes
coming from ICE-O-Matic.
Built in the Italian manufacturing plant of
Frimont Spa, ISO 9001 Certified, these
units are built with sturdy, corrosion
resistant stainless steel, and feature
European made componentry to assure
maximum quality and reliability.
Tested one by one, the ICE-O-Matic self
contained units feature well balanced
ratio between production and storage
capacity, alongside with reduced outer
dimensions that allow for built-in
installations.
Front air louvers assure appropriate
airflow in critical install requirements.
Contemporary, elegant design unites
excellent operational features with the
reliability obtained through years of
successful experience in ice making
technology.
Insulated bin door and ice storage bin
minimize air condensation and water
formation on equipment surfaces.
Electromechanic controls maximise
reliability and ease of repair during the
entire life of the equipment.
2014 FUNCTIONALITY
14 FUNCTIONALI
IMPROVEMENTS:
Improved water distribution system
alongside with evaporator assembly:
a larger number of ice cubes is now
produced per each cycle, while the newly
designed water distribution spray system
provides best evaporator surface coverage
and is simple to remove during routine
cleaning.
Optimized dimensions and production/
storage ratios. Easier to fit even under
lowest bar counters and in reduced
footprint spaces.
Front panel installed thermostatic controls
for ice cube size and storage bin ice level
sensor. Easily accessible, allow for an easy
adjustment of the key working parameters
of the machine.
Bin door slide rollers for a smooth openclose movement, with door movement
rubber, sound dampening, shock absorbers.
Utilities connection may run through side
panel openings, for a reduced depth
installation requirement.
ICE-O-Matic - Self Contained Machine Bistrot Cube
Also available in the self-contained range
for “Bistrot” cube: ICEU 36, ICEU 46,
ICEU 56, ICEU 66, ICEU 126, ICEU146,
ICEU186, ICEU 206
ICEU106
See pertaining literature for more details
ICEU 106 AS / WS
467 mm
790 mm
912 mm with legs
Air out
OPERATING LIMITS
Air Temp. Range 10°C - 43°C
Water Temp. Range 5°C - 38°C
Water Pressure Min. 0.8 bar
Max. 5 bar
Electrical Voltage 230V/50Hz/1ph
(on selected models)
570 mm
570 mm (22 7/16”)
Air in
467 mm (18 3/8”)
ADJUSTABLE
FEET
790 mm (31 1/8”)
912 mm (35 15/16”)
122 mm
(4 13/16”)
All specifications and performance data
are subject to normal manufacturing variances.
All units have stainless steel finish.
40.5 mm (1 5/8”)
94 mm (3 11/16”)
3/4” GAS WATER INLET WATER COOLDED ONLY
Ø20 mm (3/16”) WATER OUTLET
3/4” GAS WATER INLET
153 mm (6”)
55 mm (2 3/16”)
117 mm (4 5/8”)
190 mm (7 1/2”)
CORD SET
ORDERING AND SPECIFICATION INFORMATION
ICE Production
per 24 hrs. at
Model
No.
ICEU106 AS
ICEU106 WS
*measured at 32°C air / 21°C water
ICE-O-Matic - Self Contained Machine Bistrot Cube
ICE-O-Matic - Self Contained Machine Bistrot Cube
Cond.
unit
Air
Water
10°C Air/10°C Water
kg
46
50
ICE Production
per 24 hrs. at
21°C Air/15°C Water
kg
44
45
Bin storage
kg
22
22
Voltage
Characteristics
230/50/1
230/50/1
Refrigerant
R404A
R404A
Water
Consumption
l/h*
5,8
60,6
Electric
Consumption
kWh/24h*
9,9
8,5
Net Weight
kg
38
38
Max. Shipping
Weight
kg
44
44
