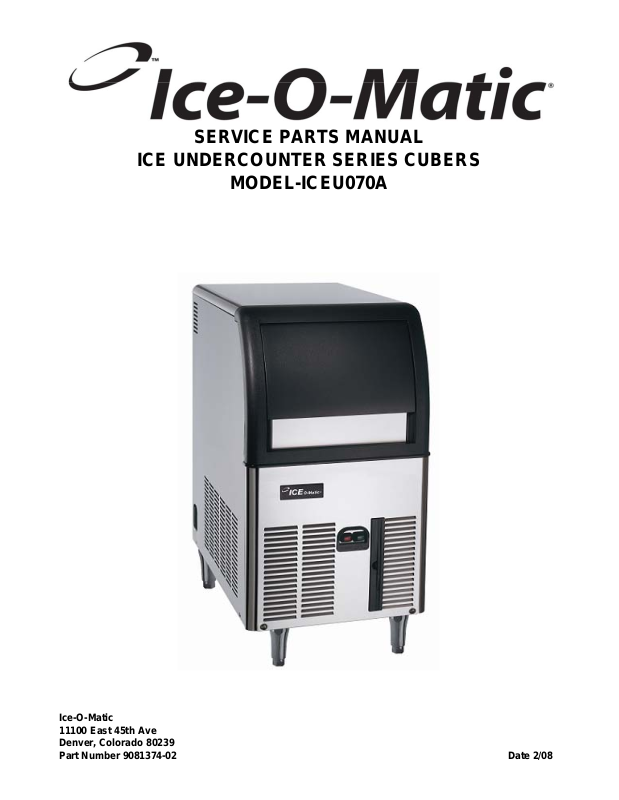

SERVICE PARTS MANUAL
ICE UNDERCOUNTER SERIES CUBERS
MODEL-ICEU070A
Ice-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081374-02 Date 2/08
ICEU070A Service Parts
This is the list of service parts for the ICEU070A undercounter ice machine.
When ordering a part, be sure to confirm that the part is for the correct model.

Table of Contents

Cabinet ·············································· Page 2

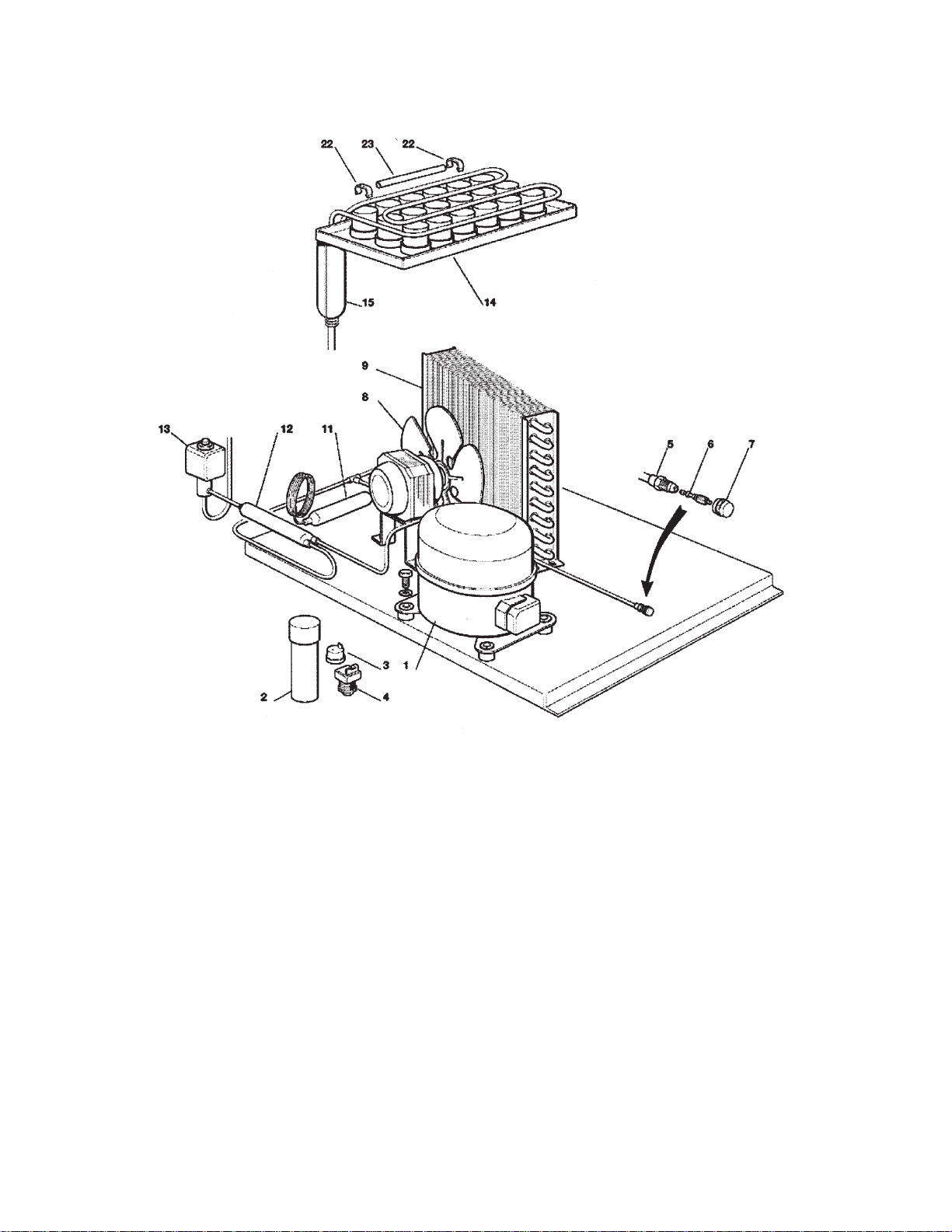

Refrigeration System ······································· Page 3

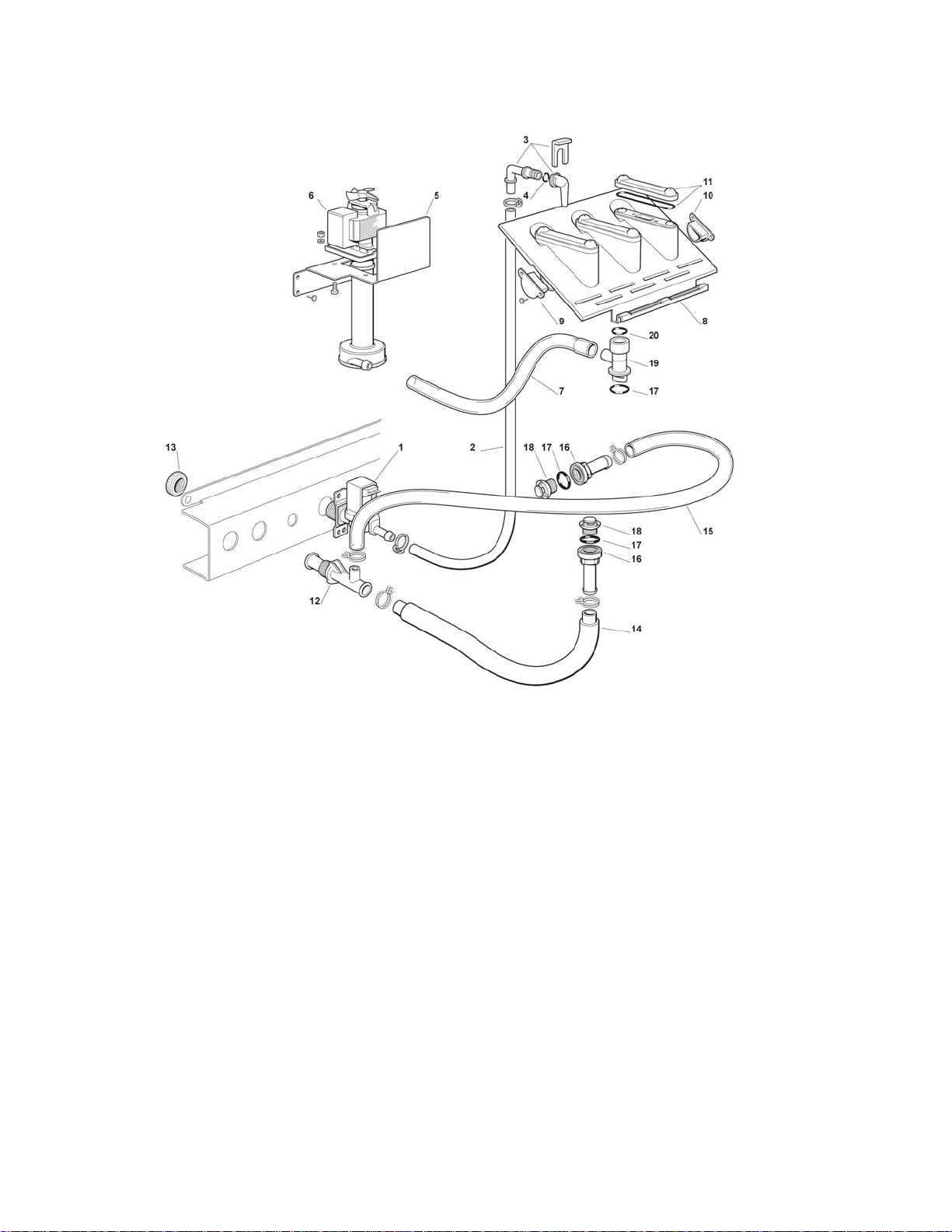

Water System ··········································· Page 4

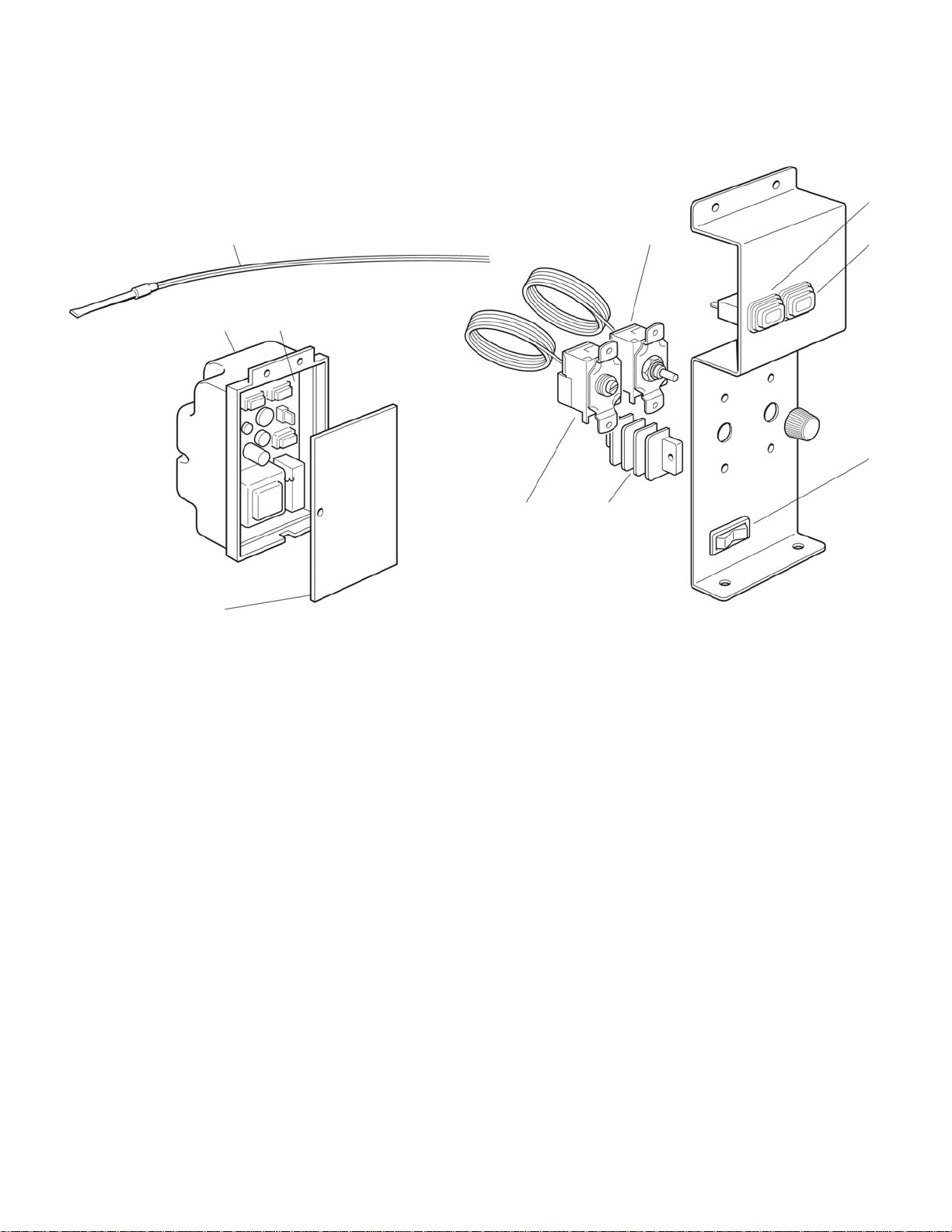

Control System ·········································· Page 5
Wiring Diagram ·········································· Page 6
Page 1
ICEU070A Service Parts
Cabinet
Item Part
Number Number Description
1 1011411-01 Unit Base
2 1011411-02 Insulated Storage Bin
3 1011411-03 Curtain Bracket Right
4 1011411-04 Curtain Bracket Left
5 1011411-05 Curtain Bracket Upper
6 1011411-06 Thumb Screw
7 1011411-07 Curtain assy
8 1011411-08 Plastic Plug
9 1011411-09 Spring
10 1011337-17 Bulb Holder
11 1011411-10 Shock Absorber
12 1011337-03 Evaporator Cover
13 1011411-11 Panel, Left Side
14 1011411-12 Panel, Right Side
15 1011411-13 Panel, Rear
16 1011411-14 Bracket
17 1011411-15 Insulated Top Panel
19 1011411-16 Thumb Screw
20 1011411-17 Front Liner
21 1011411-18 Front Plate
22 1011411-19 Corner Protection Left
23 1011411-20 Corner Protection Right
24 1011411-21 Bracket, Front
25 1011411-22 Panel, Front
26 1011411-23 Logo, Ice-O-matic
27 1011411-24 Front Switch Plastic
Protection
28 1011411-25 Air Filter Seat
29 1011411-26 Slide, Air Filter
30 1011411-27 Air Filter
31 1011411-28 Bin Door
32 1011337-07 Bushing
33 1011411-29 Legs Kit
Page 2
