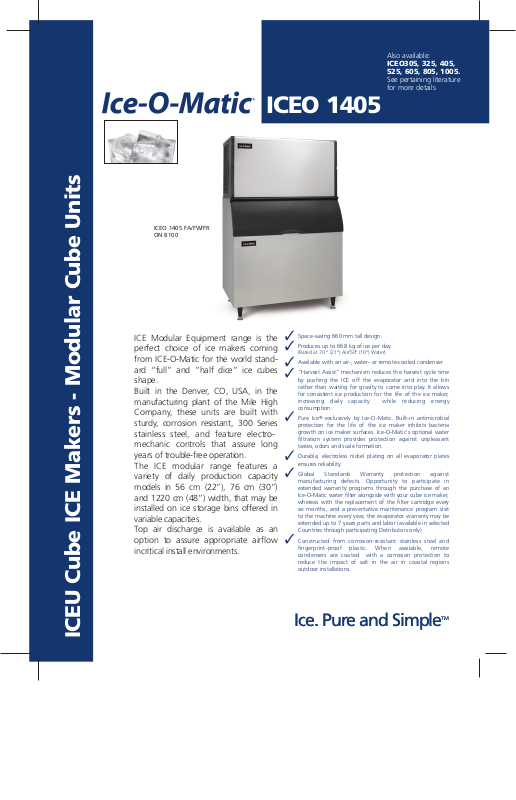

Ice-O-Matic ICEO 1405FA User Manual

ICEO 1405 FA/FW/FR
ON B100

Also available:

ICEO305, 325, 405,
525, 605, 805, 1005.

See pertaining literature
for more details

ICEO 1405

ICE Modular Equipment range is the
perfect choice of ice makers coming
from ICE-O-Matic for the world stand­ard “full” and “half dice” ice cubes
shape.
Built in the Denver, CO, USA, in the
manufacturing plant of the Mile High
Company, these units are built with
sturdy, corrosion resistant, 300 Series
stainless steel, and feature electro­mechanic controls that assure long
years of trouble-free operation.
The ICE modular range features a
variety of daily production capacity
models in 56 cm (22”), 76 cm (30”)
and 1220 cm (48”) width, that may be
installed on ice storage bins offered in
variable capacities.
Top air discharge is available as an
option to assure appropriate airflow
incritical install environments.

Space-saving 660 mm tall design.

Produces up to 668 kg of ice per day.

(Rated at 70 ° (21°) Air/50° (10°) Water)

Available with an air-, water- or remote-cooled condenser

“Harvest Assist” mechanism reduces the harvest cycle time
by pushing the ICE off the evaporator and into the bin
rather than waiting for gravity to come into play. It allows
for consistent ice production for the life of the ice maker,
increasing daily capacity while reducing energy
consumption.

Pure Ice® exclusively by Ice-O-Matic. Built-in antimicrobial
protection for the life of the ice maker inhibits bacteria
growth on ice maker surfaces. Ice-O-Matic's optional water
filtration system provides protection against unpleasant
tastes, odors and scale formation.

Durable, electroless nickel plating on all evaporator plates
ensures reliability.

Global Standards Warranty protection against
manufacturing defects. Opportunity to participate in
extended warranty programs through the purchase of an
Ice-O-Matic water filter alongside with your cube ice maker,
whereas with the replacement of the filter cartridge every
six months, and a preventative maintenance program visit
to the machine every year, the evaporator warranty may be
extended up to 7 years parts and labor (available in selected
Countries through participating Distributors only)

Constructed from corrosion-resistant stainless steel and
fingerprint-proof plastic. When available, remote
condensers are coated with a corrosion protection to
reduce the impact of salt in the air in coastal regions
outdoor installations.

TM

Ice. Pure and Simple

Ice. Pure and Simple

TM

ICEU Cube ICE Makers - Modular Cube Units

ICEO 1405

616 mm

Air in-Rear

1226 mm

ICEO 1005 FA/FW/FR

on B100

662 mm

Standard
Side Discharge

ICEO 1405 AIR COOLED

ICEO 1405 WATER and REMOTE COOLED

86 mm

765 mm

565 mm

74 mm

ICE MAKER POTABLE WATER IN - 3/4" MALE

ICE MAKER WATER OUT - 20 mm MALE

HOLE FOR ELECTRICAL CONNECTIONS, 7⁄8"

OPERATING LIMITS

Air Temp. Range 10°C - 40°C

Air Temp. Range

Water Temp. Range 5°C - 35°C

Water Pressure Min. 1 bar

Electrical Voltage Water 230V/50Hz/1N

Electrical Voltage 230V/50Hz/1N

Min. 1 bar
Max. 5 bar

Max. 5 bar

HOLE FOR REMOTE ELECTRICAL CONNECTIONS, 7/8”

CONDENSER WATER OUT, 1/2” FTP (Water Only)

DISCHARGE LINE, 1⁄2" MALE QUICK CONNECT COUPLING
FOR PRECHARGED LINE SET (remote only)

LIQUID LINE, 3⁄8" MALE QUICK CONNECT COUPLING
FOR PRECHARGED LINE SET (remote only)

All specifications and performance data
are subject to normal manufacturing variances.

All units have stainless steel finish.
Refrigerant: R-134a

ORDERING AND SPECIFICATION INFORMATION

ICE Production

Model Cond.

No. Unit

per 24 hrs. at

21°C Air/10°C Water

Kgs.

ICEO 1405 FA Air 574 230/50/1

ICEO 1405 WS Water 603 230/50/1

ICEO 1405 WS Remote 519 230/50/1

Available matching

storage bins

B100 - B120

B 150 - B170

B100 - B120

B 150 - B170

B100 - B120

B 150 - B170

Voltage

Characteristics

170 mm

92 mm

Refrigerant

R 404A

R 404A

R 404A

19 mm

232 mm

389 mm

465 mm

493 mm

544 mm

Consumption

Bin Strap

Water

Lt/60’

-

-

-

Electric

Consumption

kwh/24h

-

-

-

Bin Strap

Net Weight

Kgs.

-

-

-

89 mm

231 mm

565 mm

81 mm

74 mm

48 mm

CONDENSER WATER OUT, 1⁄2" FPT (water only)

ICE MAKER WATER OUT - 20 mm MALE

ICE MAKER POTABLE WATER IN - 3/4" MALE

Max. Shipping

Weight

Kgs.

141

127

136

765 mm

GEPRUFTE
SICHERMEIT

We reserve the right to make changes in design and construction at any time
without advance notice.
ADV-ICEO 1405 - 11/2010

ICEU Cube ICE Makers - Modular Cube Units
