Ice O Matic ICE2106V3 Parts List

SERVICE PARTS MANUAL

ICE SERIES CUBERS

MODEL-ICE1806V3, ICE1807V3

MODEL-ICE2106V3, ICE2107V3

14-1027

Date 9/20/16

11100 E. 45th Avenue • Denver , CO 80239 •WWW.iceomatic.com

SERVICE PARTS MANUAL

22 INCH WIDE ICE SERIES CUBERS

MODEL-ICE0320, ICE0520

Includes 50Hz. Units

ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239

Part Number 9081297-01 PD04/02 Rev1/05

ICE1800 and 2100 Series Version 3 Service Parts

This parts list contains the service parts available for the following icemakers.

ICE1806 Water and Remote Version 3
ICE1807 Water and Remote Version 3
ICE2106 Water and Remote Version 3
ICE2106 Water and Remote Version 3

Check the model number on the data plate and refer to the correct listing for the specific component.

Check carefully that the correct part is identified and ordered.

Table of Contents Page 1

Exterior Panels Page 2

Water Cooled Page 4

Remote Page 6

Control Box Page 8

Harvest Assist Page 10

Water Pump/Float Page 12

VRC Condenser Page 14

Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367

Page 1

ICE1800 and 2100 Series Version 3 Exterior Panels

Page 2

ICE1800 and 2100 Series Version 3 Exterior Panels

A

AN/AN/AN/A

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1 2031465-05S 2031465-05S 2031465-05S 2031465-05S Front Panel
2 9031098-02 9031098-02 9031098-02 9031098-02 Front Panel Screws
3 3021929-01 3021929-01 3021929-01 3021929-01 Right Hand Side Panel-Water Cooled and Remote Only
4 9051469-01 9051469-01 9051469-01 9051469-01
5 9031098-02 9031098-02 9031098-02 9031098-02 Top Panel Screws
6 3021934-01 3021934-01 3021934-01 3021934-01 Left Hand Side Panel-Water Cooled and Remote Only
7 9031046-03 9031046-03 9031046-03 9031046-03 Side Panel Screw
8 3021926-01 3021926-01 3021926-01 3021926-01 Rear Panel

9 9031046-01 9031046-01 9031046-01 9031046-01 Rear Cover Panel Screws
10 3013308-01 3013308-01 3013308-01 3013308-01 Junction Box Cover
11 9031046-01 9031046-01 9031046-01 9031046-01 Junction Box Cover Screws
12 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
13 3013294-01 3013294-01 3013294-01 3013294-01 Control Box Top Cover
14 3013293-01 3013293-01 3013293-01 3013293-01 Control Box Side Cover
15 N/

Model Number

Top Panel NL

Machine Compartment Cover

Page 3

ICE1800 and 2100 Series Version 3 Water Cooled

Page 4

ICE1800 and 2100 Series Version 3 Water Cooled

w

A

A

A

A

A

A

A

A

A

A

A

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1 9181108-11 9181108-12 9181129-11 9181129-12 Compressor NLA See Belo

2 9151163-02 9151163-02 9151163-02 9151163-02

3 9151152-101 9151152-101 9151152-101 9151152-101 Expansion Valve (Includes Valve, Insulation and Strap)

4 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body

5 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil

6 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control

7 9141123-01 9141123-01 9141123-01 9141123-01 Water Condenser

8 9051154-12 9051154-12 9051154-12 9051154-12 Evaporator Splash Curtain

9 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051250-81
11 2051250-82
12 2051251-81
12 2051251-82
13 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Left Side Mounting Panel
14 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 9051135-04 Water return
16 9051135-05 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 9091086-02 Valve Core
18 9091086-03 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02 9101124-02
21 9041056-01 9041056-01 9041056-01 9041056-01 Water Regulating Valve
22 3013316-01 3013316-01 3013316-01 3013316-01 Rear Brace
23 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
24 9091063-02 9091063-02 9091063-02 9091063-02 Condenser Drain Fitting

Model Number

2051250-81A2051250-81A2051250-81
2051250-82A2051250-82A2051250-82
2051251-81A2051251-81A2051251-81
2051251-82A2051251-82A2051251-82

Filter Drier (9151004-03 is NLA)

Evaporator Right Side Full Cube (Replaces 2051239-81)
Evaporator Right Side Half Cube (Replaces 2051239-82)
Evapoartor Left Side Full Cube (Replaces 2051240-81)
Evapoartor Left Side Half Cube (Replaces 2051240-82)

Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)

9181108-12 = NL

9181108-11 = NL

Evaporators include elbows.

, Replace by 9181143-11

9181129-12 = NL

9181129-11 = NLA, Replaced by 9181144-11

, Replaced by 9181143-13

See Page 9 for Specific Compresssor Components

, Replaced by 9181144-12

Page 5

ICE1800 and 2100 Series Version 3 Remote

Page 6

ICE1800 and 2100 Series Version 3 Remote

w

A

A

A

A

A

A

A

A

A

A

A

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1 9181108-11 9181108-12 9181129-11 9181129-12 Compressor NLA See Belo

2 9151163-02 9151163-02 9151163-02 9151163-02

3 9151152-101 9151152-101 9151152-101 9151152-101 Expansion Valve (Includes Valve, Insulation and Strap)

4 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body

5 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil

6 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control

7 9151109-01 9151109-01 9151109-01 9151109-01 Receiver

8 9051154-12 9051154-12 9051154-12 9051154-12 Evaporator Splash Curtain

9 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051250-81
11 2051250-82
12 2051251-81
12 2051251-82
13 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Left Side Mounting Panel
14 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 9051135-04 Water Return
16 9051135-05 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 9091086-02 Valve Core
18 9091086-03 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02 9101124-02
21 9091143-02 9091143-02 9091143-02 9091143-02 Remote Shut-Off Valve (Large)

9091143-01 9091143-01 9091143-01 9091143-01 Remote Shut-Off Valve (Small)

22 3013316-01 3013316-01 3013316-01 3013316-01 Rear Brace
23 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
24 9041092-02 9041092-02 9041092-02 9041092-02 Pump Down Control
25 9151123-02 9151123-02 9151123-02 9151123-02 Liquid Line Solenoid
26 2101421-01 2101421-01 2101421-01 2101421-01 Accumulator Assembly

9091001-12 9091001-12 9091001-12 9091001-12 1/2 Inch Coupling (Not Shown)

9091001-11 9091001-11 9091001-11 9091001-11 3/8 Inch Coupling (Not Shown)

9151139-01 9151139-01 9151139-01 9151139-01 Check Valve (Not Shown)

Model Number

2051250-81A2051250-81A2051250-81
2051250-82A2051250-82A2051250-82
2051251-81A2051251-81A2051251-81
2051251-82A2051251-82A2051251-82

Filter Drier (9151004-03 is NLA)

Evaporator Right Side Full Cube (Replaces 2051239-81)
Evaporator Right Side Half Cube (Replaces 2051239-82)
Evapoartor Left Side Full Cube (Replaces 2051240-81)
Evapoartor Left Side Half Cube (Replaces 2051240-82)

Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)

9181108-12 = NL

9181108-11 = NL

Evaporators include elbows.

, Replace by 9181143-11

9181129-12 = NL

9181129-11 = NLA, Replaced by 9181144-11

, Replaced by 9181143-13

See Page 9 for Specific Compresssor Components

Page 7

, Replaced by 9181144-12

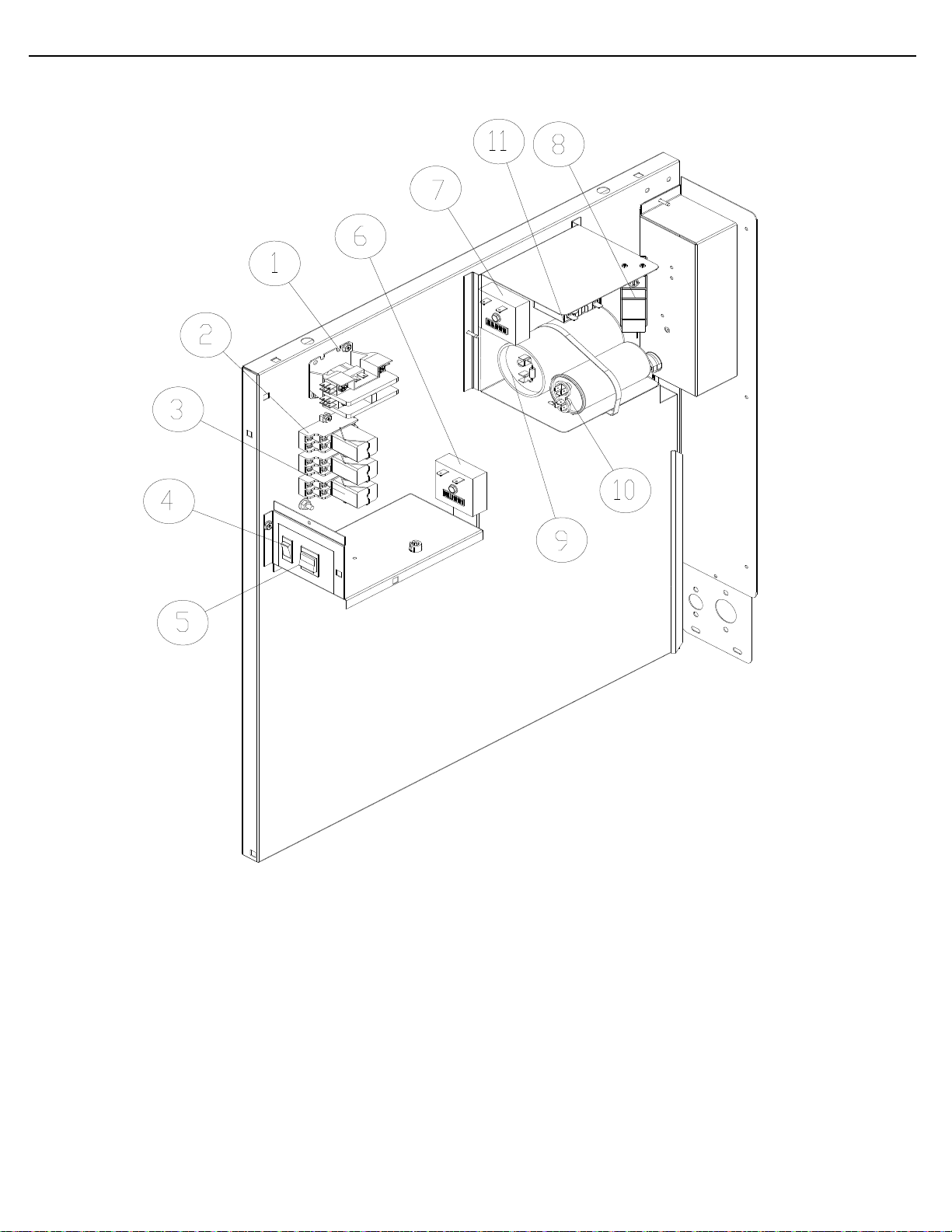

ICE1800 and 2100 Series Version 3 Control Box

Page 8

ICE1400 Series Version 3 Service Parts Control Box

w

A

w

A

A

A

A

A

A

A

A

A

y

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1 9101002-06 9101079-02 9101002-06 9101079-02 Contactor
2 9101083-01 9101083-01 9101083-01 9101083-01 Relay Base
3 9101084-02 9101084-02 9101084-02 9101084-02 Relay
4 1051208-01 1051208-01 1051208-01 1051208-01
5 9101349-01 9101349-01 9101349-01 9101349-01
6 9101148-01 9101148-01 9101148-01 9101148-01 Timer
7 9101148-01 9101148-01 9101148-01 9101148-01 Timer (6 Minute-Remote only)
8 9041104-101A 9041104-101A 9041104-101A 9041104-101A Low Pressure Control (Timer Initiate)

9 See Below N/A See Below N/A Start Capacitor
10 See Below N/A See Below N/A Run Capacitor
11 See Belo

Reference the Compressor Model Number to INSURE THE CORRECT START COMPONENTS ARE SUPPLIED

The Compressor Kits

ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3

9181108-11 9181108-12 9181129-11 9181129-12 Compressor Kit=No Longer Available

9181003-21 N/A 9181003-21 N/A Start Capacitor (Still Available)
9181009-20 N/A 9181009-13 N/A Run Capacitor (Still Available)
9181010-10 N/

9181108-11 CS20K6E-PFV-235

9181108-12 CS20K6E-TF5-236

Model Number

Purge Switch (9101139-03 is NLA)
ICE-OFF-WASH Switch (9101195-01 is NLA)

N/

below Are NO LONGER AVAILABLE Replaced by the Compressors in Green BELOW

See Belo

9181010-11 N/

9181129-11 CS24K6E-PFV-236

N/

9181129-12 CS24K6E-TF5-236

Compressor Relay

Relay (Still Available)

ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3

9181143-11 9181143-13 9181144-11 9181144-12 Compressor Kit
9181003-21 N/
9181009-20 N/
9181010-10 N/

9181143-11 CS20K6E-PFV-255

9181143-13 CS20K6E-TF5-256

9181003-21 N/
9181009-13 N/
9181010-11 N/

9181144-11 CS24K6E-PFV-256

9181144-12 CS24K6E-TF5-256

Start Capacitor
Run Capacitor
Rela

Page 9

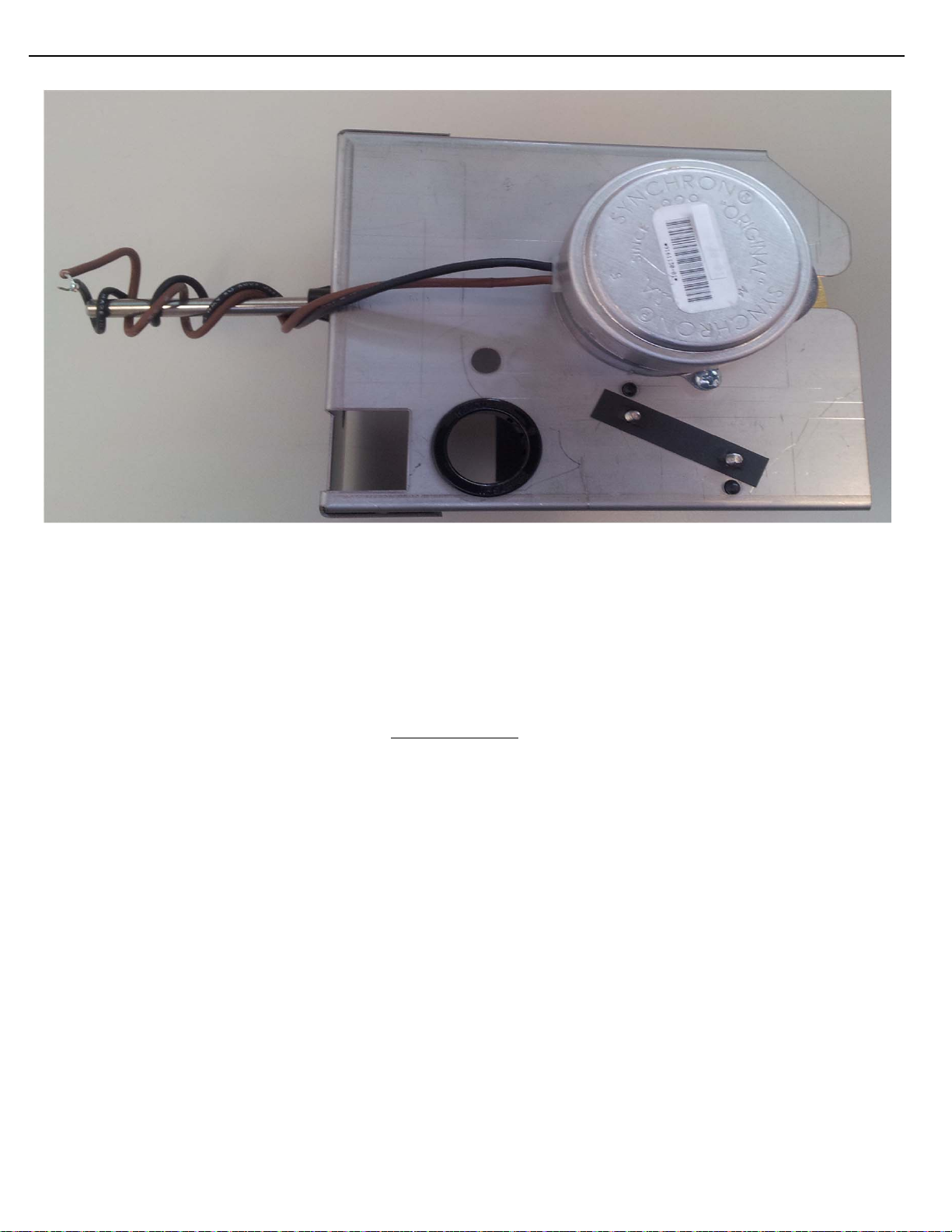

ICE1800 and 2100 Series Version 3 Harvest Assist

X

X

X

1051210-XX

•The 1051210-XX assembly will fit all ICE Models from October 1999 and EC Models.

•Units installed with a double cam switch, either Field installed or Factory installed will require the complete
assembly and a potential wiring change as per the New Wiring Diagram included with the assembly.

•Individual component parts are not available for the 1051210-X

•Individual component parts are No Longer Available for previous version of the Harvest Assist Assembly

•Parts for the 2061962-X

•Proper assembly and alignment of the parts is critical to proper operation, this includes cam and probe alignment.

•If a 1051210-X

Reference Page 11 for Specific Model Number and Part Number

assembly.

Harvest Assist Assembly are not compatible with 1051210-XXHarvest Assist Assembly.

assembly fails, it must be returned to Ice-O-Matic.

Page 10

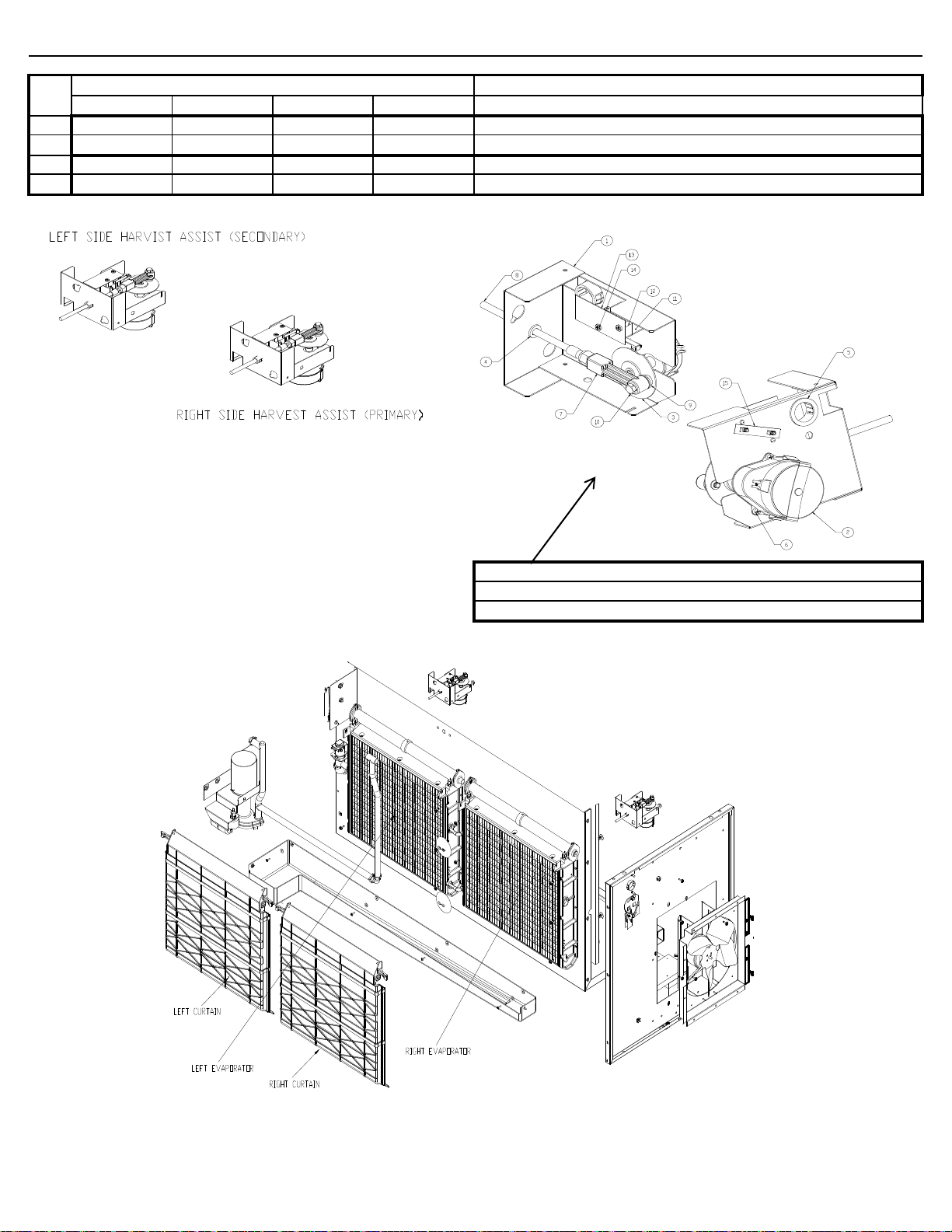

ICE1800 AND ICE2100 Series Version 3 Harvest Assist

e

e

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1051210-02 1051210-02 1051210-02 1051210-02 Complete Assembly-Right Side

2061962-02S 2061962-02S 2061962-02S 2061962-02S No Longer Available

1051210-03 1051210-03 1051210-03 1051210-03 Complete Assembly-Secondary-Left Sid

2061962-03S 2061962-03S 2061962-03S 2061962-03S No Longer Available-Secondary-Left Side

Model Number

LeftSide

2061962-02S No Longer Available
2061962-03S No Longer Available
2061962-10S No Longer Availabl

RightSide

Page 11

ICE1800 and 2100 Series Version 3 Water Pump/Float

Page 12

ICE1800 and 2100 Series Version 3 Water Pump/Float

Item

No. ICE1806V3 ICE1807V3 ICE2106V3 ICE2107V3 Description

1 3013310-01 3013310-01 3013310-01 3013310-01 Water Pump Bracket

2 9161079-06 9161079-06 9161079-06 9161079-06 Water Pump

3 9131111-102 9131111-102 9131111-102 9131111-102 Float (Includes Fittings)

4 9131026-02 9131026-02 9131026-02 9131026-02 Float Deflector

5 9041105-03 9041105-03 9041105-03 9041105-03

6 2041338-02 2041338-02 2041338-02 2041338-02 Water Distribution Tube Left

7 2041338-01 2041338-01 2041338-01 2041338-01 Water Distribution Tube Right

8 9031122-01 9031122-01 9031122-01 9031122-01 Thumb Screw

9 9031004-19 9031004-19 9031004-19 9031004-19 Washer
10 9091052-01 9091052-01 9091052-01 9091052-01 Elbow
11 9051543-01 9051543-01 9051543-01 9051543-01 Water Pump Tube (Water Pump/Purge Valve)
12 9051546-02 9051546-02 9051546-02 9051546-02 Water Pump Tube (Water Distribution Tube)
13 9051544-01 9051544-01 9051544-01 9051544-01 Water Trough
14 3032898-34 3032898-34 3032898-34 3032898-34 Water Inlet Tubing (34.00 inches long)
15 9091081-01 9091081-01 9091081-01 9091081-01 Sleeve

9091080-01 9091080-01 9091080-01 9091080-01 Barrel Fitting

16 9031046-24 9031046-24 9031046-24 9031046-24 Water Trough Screw
17 9091074-01 9091074-01 9091074-01 9091074-01 Drop Adapter
18 9091083-01 9091083-01 9091083-01 9091083-01 Water Inlet Fitting
19 9091140-01 9091140-01 9091140-01 9091140-01 Drain Fitting
20 9021010-04 9021010-04 9021010-04 9021010-04 Clamp

Model Number

Purge Valve (9041086-03 is NLA)

Page 13

ICE1800 and 2100 Series Version 3 VRC Condenser

Page 14

ICE1800 and 2100 Series Version 3 VRC Condenser

R

R

R

R

V

V

V

V

V

r

ICE0800

ICE0500

Item

1 9131452-01 9131452-01 9131452-01 9131452-01 9131460-01 Fan Guard
2 3013222-01 3013222-01 3013222-01 3013222-01 3013303-01 Top Panel
3 9031019-04 9031019-04 9031019-04 9031019-04 9031019-04 ¼-20 x 1/2 Screw
4 9131451-01 9131451-01 9131451-01 9131451-01 9131461-01 Fan Blade
5 9161117-02 9161117-01 9161117-01 9161117-01 9161118-01 Fan Motor
6 9031001-02 9031001-02 9031001-02 9031001-02 9031001-02 ¼-20 x ¾ Cap Screw
7 9031003-01 9031003-01 9031003-01 9031003-01 9031003-01 Flat Washer
8 9031118-02 9031118-02 9031118-02 9031118-02 9031118-02 Flanged Lock Nut

9 9031019-04 9031019-04 9031019-04 9031019-04 9031019-04 ¼-20 x 1/2 Screw
10 3013224-01 3013224-01 3013224-01 3013224-01 3013224-01 Rear Panel
11 3013226-01 3013226-01 3013226-01 3013226-01 3013305-01 Brace
12 3013227-01 3013227-01 3013227-01 3013227-01 3013227-01 Leg
13 3013228-01 3013228-01 3013228-01 3013228-01 3013306-01 Leg Brace
14 N/A N/A N/A N/A N/A T-Nut-Shipping Only
15 3013226-01 3013226-01 3013226-01 3013226-01 3013305-01 Brace
16 3013232-01 3013232-01 N/A N/A N/A Cover Panel
17 3013225-01 3013225-01 3013225-01 3013225-01 3013304-01 Center Panel
18 3013223-01 3013223-01 3013223-01 3013223-01 3013223-01 Front Panel
19 3013234-01 3013234-01 3013234-01 3013234-01 3013307-01 Motor Brace
20 3013233-01 3013233-01 3013233-01 3013233-01 3013233-01 Motor Brace Support
21 3013229-01 3013229-01 3013229-01 3013229-01 3013229-01 Junction Box Cover
22 9151142-02 9151142-02 9151142-02 9151142-02 9151142-02 Mixing Valve
23 9141130-01 9141130-01 9141130-01 9141131-01 9141133-01 Condenser
24 9151143-01 9151143-01 9151143-01 9151143-01 9151143-01 Filter
25 9091001-12 9091001-12 9091001-12 9091001-12 9091001-12 1/2 Coupling
26 9091001-11 9091001-11 9091001-11 9091001-11 9091001-11 3/8 Coupling
27 9151143-02 9151143-02 9151143-02 9151143-02 9151143-02 Filte

RC1001

ICE0600

RC1061

ICE1000

RC2061

ICE1400R3 ICE1800R3
ICE1506R3 ICE2100R3

RC2661

RC5061 Description

Page 15
