Ice O Matic ICE2006W Parts Manual

A

SERVICE PARTS MANUAL

MODELS-ICE1806W4,W5,W6-R4,R5,R6
MODELS ICE1807W4,W5,W6-R4,R5,R6

MODELS-ICE2106 W4,W5-R4,R5,R6

MODELS ICE2006W

MODELS ICE2107W4,W5 R4,R5

Includes 3 Phase Units

14-1027-

Date 9/29/16

11100 E. 45th Avenue • Denver , CO 80239 •WWW.iceomatic.com

SERVICE PARTS MANUAL

22 INCH WIDE ICE SERIES CUBERS

MODEL-ICE0320, ICE0520

Includes 50Hz. Units

ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239

Part Number 9081297-01 PD04/02 Rev1/05

ICE1800 and 2100 Series Service Parts

This parts list contains the service parts available for the following icemakers.

MODELS-ICE1806W4,W5,W6 and ICE1807W4,W5,W6 R4,R5,R6

MODELS-ICE2106 W4,W5 -R4,R5,R6and ICE2107W4,W5 R4,R5

Model-ICE2006W

Check the model number on the data plate and refer to the correct listing for the specific component.

Check carefully that the correct part is identified and ordered.

Table of Contents Page 1

Exterior Panels Page 2

Water Cooled Page 4

Remote Page 6

Control Box-Compressor Components Page 8

Harvest Assist Page 10

Water Pump/Float Page 12

VRC Condenser Page 14

Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239

Page 1

ICE1800 and 2100 Series Exterior Panels

1L

Note:PlasticSidepanelsare
NoLongerAvailable,they
havebeenreplacedwith
MetalPanels

1R

1S

Page 2

ICE1800 and 2100 Series Exterior Panels

Item

No. ICE1806 ICE1807 ICE2106 ICE2006 ICE2107 Description

1 2031511-03 2031511-03 2031511-03 2031511-03 2031511-03

1L 9051562-04 9051562-04 9051562-04 9051562-04 9051562-04 End Cap - Left Hand

1R 9051562-03 9051562-03 9051562-03 9051562-03 9051562-03 End Cap - Right Hand

1S 9031098-02P 9031098-02P 9031098-02P 9031098-02P 9031098-02P End Cap Screw (Pack of 25 ea.) (Qty 3 Per Side)

2 9031098-02P 9031098-02P 9031098-02P 9031098-02P 9031098-02P Front Panel Screws (Pack of 25 ea.)
3 3021969-02 3021969-02 3021969-02 3021969-02 3021969-02 Right Side Panel-Water and Remote Only (Metal)
4 2101430-01 2101430-01 2101430-01 2101430-01 2101430-01 Top Panel
5 3021969-02 3021969-02 3021969-02 3021969-02 3021969-02 Left Side Panel-Water and Remote Only (Metal)
6 3021926-01 3021926-01 3021926-01 3021926-01 3021926-01 Rear Panel
7 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Rear Cover Panel Screws
8 3013308-01 3013308-01 3013308-01 3013308-01 3013308-01 Junction Box Cover

9 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Junction Box Cover Screws
10 3013315-01 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
11 3013294-01 3013294-01 3013294-01 3013294-01 3013294-01 Control Box Top Cover
12 3013293-01 3013293-01 3013293-01 3013293-01 3013293-01 Control Box Side Cover

Model Number

Front Panel

Page 3

ICE1800 and 2100 Series Water Cooled

Page 4

ICE1800 and 2100 Series Water Cooled

A

A

A

A

A

A

A

A

A

A

A

A

A

A

f

2

3

Item

No. ICE1806 ICE1807 ICE2106 ICE2006 ICE2107 Description

1 9181143-11 9181143-13 9181144-11 9181150-11 9181144-12
2 9151163-02 9151163-02 9151163-02 9151163-02 9151163-02
3 9151152-101 9151152-101 9151152-101 9151152-101 9151152-101
4 9151123-02 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body
5 9151123-04 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
6 9041098-01 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
7 9141123-01 9141123-01 9141123-01 9141123-01 9141123-01 Water Condenser
8 9051154-12 9051154-12 9051154-12 9051154-12 9051154-12 Evaporator Splash Curtain

9 3013315-01 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051250-81
11 2051250-82
12 2051251-81
12 2051251-82

13 9051170-04 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Left Side Mounting Panel
14 9051170-03 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 9051135-04 9051135-04 Water return
16 9051135-05 9051135-05 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 9091086-02 9091086-02 Valve Core

17A 9091086-01 9091086-01 9091086-01 9091086-01 9091086-01 Valve Body

18 9091086-03 9091086-03 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02 9101124-02 9101124-02
21 9041056-01 9041056-01 9041056-01 9101124-02 9041056-01 Water Regulating Valve
22 3013316-01 3013316-01 3013316-01 3013316-01 3013316-01 Rear Brace
23 9041091-01 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
24 9091063-02 9091063-02 9091063-02 9091063-02 9091063-02 Condenser Drain Fitting

2051250-81A2051250-81
2051250-82A2051250-82
2051251-81A2051251-81
2051251-82A2051251-82

Model Number

2051250-83

2051251-81

2051250-84

2051251-82

2051257-81
8051258-81

2051250-81
2051250-82
2051251-81
2051251-82

Compressor * See Notes Below
Filter Drier (Replaces 9151004-03)
Expansion Valve ( Valve, Insl. and Clamp)

Evaporator Right Side Full Cube

Evaporator Right Side Half Cube
Evapoartor Left Side Full Cube
Evapoartor Left Side Half Cube

Evaporator Right Side Full Cube
Evapoartor Left Side Full Cube

Evaporator Right Side Half Cube
Evapoartor Left Side Half Cube

Evaporator Right Side Half Cube N

Evapoartor Left Side Hal

Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)

Cube N

* Note: ICE2106 Water Cooled Compressor 9181129-11 is NLA, Reference Service Bulletin 12-1
* Note: ICE1806 Water Cooled Compressor 9181108-11 is NLA, Reference Service Bulletin 12-1

* Note: ICE1807 Water Cooled Compressor 9181108-12 is NLA, Replaced by 9181143-13 (March 2013)
* Note: ICE2107 Water Cooled Compressor 9181129-12 is NLA, Replaced by 9181144-12 (March 2013)

See Page 9 for Specific Compressor Components

Evaporators with an "A" suffix include elbows.

Page 5

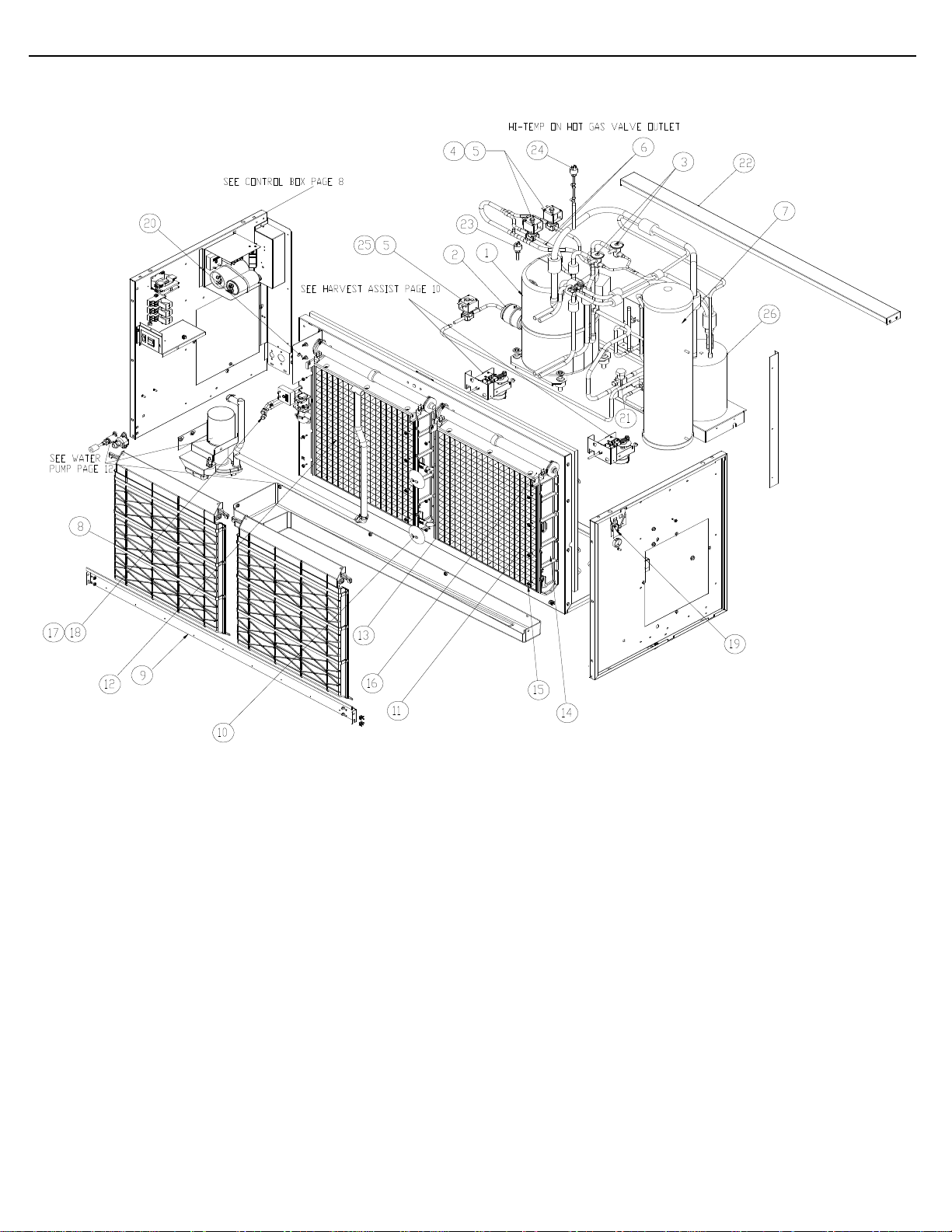

ICE1800 and 2100 Series Remote

Page 6

ICE1800 and 2100 Series Remote

f

3

Item

No. ICE1806 ICE1807 ICE2106 ICE2107 Description

1 9181143-11 9181143-13 9181144-11 9181144-12
2 9151163-02 9151163-02 9151163-02 9151163-02
3 9151152-101 9151152-101 9151152-101 9151152-101
4 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body
5 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
6 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
7 9151109-01 9151109-01 9151109-01 9151109-01 Receiver
8 9051154-12 9051154-12 9051154-12 9051154-12 Evaporator Splash Curtain

9 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051250-81 2051250-81 2051250-81 2051250-81
11 2051250-82 2051250-82 2051250-82 2051250-82
12 2081251-81 2051251-81 2051251-81 2051251-81
12 2051251-82 2051251-82 2051251-82 2051251-82
13 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Left Side Mounting Panel
14 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 9051135-04 Water Return
16 9051135-05 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 9091086-02 Valve Core

17A 9091086-01 9091086-01 9091086-01 9091086-01 Valve Body

18 9091086-03 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02 9101124-02
21 9091143-02 9091143-02 9091143-02 9091143-02 Remote Shut-Off Valve (Large)

9091143-01 9091143-01 9091143-01 9091143-01 Remote Shut-Off Valve (Small)

22 3013316-01 3013316-01 3013316-01 3013316-01 Rear Brace
23 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
24 9041092-02 9041092-02 9041092-02 9041092-02 Pump Down Control
25 9151123-02 9151123-02 9151123-02 9151123-02 Liquid Line Solenoid
26 2101421-01 2101421-01 2101421-01 2101421-01 Accumulator Assembly

9091001-12 9091001-12 9091001-12 9091001-12 1/2 Inch Coupling (Not Shown)

9091001-11 9091001-11 9091001-11 9091001-11 3/8 Inch Coupling (Not Shown)

9151139-01 9151139-01 9151139-01 9151139-01 Check Valve (Not Shown)

Model Number

Compressor * See Notes Below
Filter Drier (Replaces 9151004-03)
Expansion Valve (Includes Valve, Insulation and Clamp)

Evaporator Right Side Full Cube (Replaces 2051239-81)
Evaporator Right Side Half Cube (Replaces 2051239-82)
Evapoartor Left Side Full Cube (Replaces 2051240-81)
Evapoartor Left Side Hal

Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)

Cube (Replaces 2051240-82)

* Note: ICE2106 Remote Cooled Compressor 9181129-11 is NLA, Reference Service Bulletin 12-12
* Note: ICE1806 Remote Cooled Compressor 9181108-11 is NLA, Reference Service Bulletin 12-1

* Note: ICE1807 Remote Cooled Compressor 9181108-12 is NLA, Replaced by 9181143-13 (March 2013)
* Note: ICE2107 Remote Cooled Compressor 9181129-12 is NLA, Replaced by 9181144-12 (March 2013)

See Page 9 for Specific Compressor Components

Page 7

ICE1800 and 2100 Series Control Box

Page 8

ICE1800 and 2100 Series Control Box

w

A

w

w

A

A

A

A

A

y

A

Item

Model Number

No. ICE1806 ICE1807 ICE2106 ICE2006 ICE2107 Description

1 9101002-06 9101079-02 9101002-06 9101002-06 9101079-02

Contactor

2 9101083-01 9101083-01 9101083-01 9101083-01 9101083-01 Relay Base
3 9101084-02 9101084-02 9101084-02 9101084-02 9101084-02 Relay
4 9101348-01 9101348-01 9101348-01 9101348-01 9101348-01

1051208-01 1051208-01 1051208-01 1051208-01

5 9101349-01 9101349-01 9101349-01 9101349-01 9101349-01

Purge Switch (9101139-03 is NLA From SN1407)
Purge Switch (9101139-03 is NLA Prior to SN1407)
ICE-OFF-WASH Switch (9101195-01 is NLA)

6 9101148-01 9101148-01 9101148-01 9101148-01 9101148-01 Timer
7 9101148-01 9101148-01 9101148-01 NA 9101148-01 Timer (6 Minute-Remote only)
8 9041104-101A 9041104-101A 9041104-101A 9041104-101A 9041104-101A Low Pressure Control (Replaces 9041094)

9 See Below N/A See Below See Below N/A Start Capacitor
10 See Below N/A See Below See Below N/A Run Capacitor
11 See Belo

N/

See Belo

See Belo

N/

Compressor Relay

Reference the Compressor Model Number to INSURE THE CORRECT START COMPONENTS ARE SUPPLIED

The Compressor Kits

are NO LONGER AVAILABLE, Replaced by the Compressor Kits in Green Below

ICE1806 ICE1807 ICE2106 ICE2107

9181108-11 9181108-12 9181129-11 9181129-12

Compressor Kit

=No Longer Available

9181003-21 N/A 9181003-21 N/A Start Capacitor (Still Available)
9181009-20 N/A 9181009-13 N/A Run Capacitor (Still Available)
9181010-10 N/

9181010-11 N/

Relay (Still Available)

9181108-11 CS20K6E-PFV-235

9181108-12 CS20K6E-TF5-236

9181129-11 CS24K6E-PFV-236

9181129-12 CS24K6E-TF5-236

Reference the compressor model number to insure the correct compressor starting components are ordered

ICE1806 ICE1807 ICE2106 ICE2006 ICE2107 Description

9181143-11 9181143-13 9181144-11 9181150-11 9181144-12 Compressor Kit

9181003-21 N/A 9181003-21 9181003-24 N/A Start Capacitor
9181009-20 N/A 9181009-13 9181009-27 N/A Run Capacitor
9181010-10 N/

9181010-11 9181010-03 N/

Rela

9181150-11 R92J433ABCC

9181143-11 CS20K6E-PFV-255

9181143-13 CS20K6E-TF5-256

9181144-11 CS24K6E-PFV-256

9181144-12 CS24K6E-TF5-256

Page 9

ICE1800 and 2100 Series Harvest Assist

X

X

X

1051210-XX

•The 1051210-XX assembly will fit all ICE Models from October 1999 and EC Models.

•Units installed with a double cam switch, either Field installed or Factory installed will require the complete
assembly and a potential wiring change as per the New Wiring Diagram included with the assembly.

•Individual component parts are not available for the 1051210-X

•Individual component parts are No Longer Available for previous version of the Harvest Assist Assembly

•Parts for the 2061962-X

•Proper assembly and alignment of the parts is critical to proper operation, this includes cam and probe alignment.

•If a 1051210-X

Reference Page 12 for Specific Model Number and Part Number

assembly.

Harvest Assist Assembly are not compatible with 1051210-XXHarvest Assist Assembly.

assembly fails, it must be returned to Ice-O-Matic.

Page 10

ICE1800 and 2100 Series Harvest Assist

m

W

e

y

e

-

e

Ite

No. ICE1806 ICE1807 ICE2106 ICE2006

1051210-02 1051210-02 1051210-02 2062294-02 1051210-02 Complete Assembly-Right Side

2061962-02S 2061962-02S 2061962-02S 2061962-02S No Longer Availabl

1051210-02 1051210-02 1051210-02 1051210-02 Complete Assembly-Right Side Remote Onl

2061962-10S 2061962-10S 2061962-10S 2061962-10S

1051210-03 1051210-03 1051210-03 20062294-03 1051210-03 Complete Assembly-Secondary-Left Sid

2061962-03S 2061962-03S 2061962-03S 2061962-03S

2061962-02S No Longer Available
2061962-03S No Longer Available
2061962-10S No Longer Availabl

Model Number

ICE2107 Description

r Available-Secondary-Right Side Remote Only

No Longer Available-Secondary

Left Side

LeftSide

RightSide

Page 11

ICE1800 and 2100 Series Water Pump/Float

Page 12

ICE1800 and 2100 Series Water Pump/Float

W

Item

No. ICE1806 ICE1807 ICE2106 ICE2006

1 3013310-01 3013310-01 3013310-01 3013310-01 3013310-01 Water Pump Bracket
2 9161079-06 9161079-06 9161079-06 9161079-06 9161079-06 Water Pump
3 9131111-102 9131111-102 9131111-102 9131111-102 9131111-102 Float (Includes Fittings)
4 9131026-02 9131026-02 9131026-02 9131026-02 9131026-02 Float Deflector
5 9041105-03 9041105-03 9041105-03 9041105-03 9041105-03 Purge Valve
6 2041338-02 2041338-02 2041338-02 2041338-02 2041338-02 Water Distribution Tube Left
7 2041338-01 2041338-01 2041338-01 2041338-01 2041338-01 Water Distribution Tube Right
8 9031122-01 9031122-01 9031122-01 9031122-01 9031122-01 Thumb Screw

9 9031004-19 9031004-19 9031004-19 9031004-19 9031004-19 Washer
10 9091052-01 9091052-01 9091052-01 9091052-01 9091052-01 Elbow
11 9051543-01 9051543-01 9051543-01 9051543-01 9051543-01 Water Pump Tube (Water Pump/Purge Valve)
12 9051546-02 9051546-02 9051546-02 9051546-02 9051546-02 Water Pump Tube (Water Distribution Tube)
13 9051544-01 9051544-01 9051544-01 9051544-01 9051544-01 Water Trough
14 3032898-34 3032898-34 3032898-34 3032898-34 3032898-34 Water Inlet Tubing (34.00 inches long)
15 9091081-01 9091081-01 9091081-01 9091081-01 9091081-01 Sleeve

9091080-01 9091080-01 9091080-01 9091080-01 9091080-01 Barrel Fitting

16 9031046-24 9031046-24 9031046-24 9031046-24 9031046-24 Water Trough Screw
17 9091074-01 9091074-01 9091074-01 9091074-01 9091074-01 Drop Adapter
18 9091083-01 9091083-01 9091083-01 9091083-01 9091083-01 Water Inlet Fitting
19 9091140-01 9091140-01 9091140-01 9091140-01 9091140-01 Drain Fitting
20 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp

Model Number

ICE2107 Description

Page 13

ICE1800 and 2100 Series VRC Condenser

Page 14

ICE1800 and 2100 Series VRC Condenser

ICE0800R ICE1400R4 ICE1800R4

ICE0500R ICE0600R ICE1000R ICE1506R3 ICE2100R4

Item VRC1001 VRC1061 VRC2061 VRC2661 VRC5061 Description

9131452-01 9131452-01

1
2 3013222-01 3013222-01 3013222-01 3013222-01 3013303-01 Top Panel
3 9031019-04 9031019-04 9031019-04 9031019-04 9031019-04 ¼-20 x 1/2 Screw
4 9131451-01 9131451-01 9131451-01 9131451-01 9131461-01 Fan Blade
5 9161117-02 9161117-01 9161117-01 9161117-01 9161118-01 Fan Motor
6 9031001-02 9031001-02 9031001-02 9031001-02 9031001-02 ¼-20 x ¾ Cap Screw
7 9031003-01 9031003-01 9031003-01 9031003-01 9031003-01 Flat Washer
8 9031118-02 9031118-02 9031118-02 9031118-02 9031118-02 Flanged Lock Nut

9 9031019-04 9031019-04 9031019-04 9031019-04 9031019-04 ¼-20 x 1/2 Screw
10 3013224-01 3013224-01 3013224-01 3013224-01 3013224-01 Rear Panel
11 3013226-01 3013226-01 3013226-01 3013226-01 3013305-01 Brace
12 3013227-01 3013227-01 3013227-01 3013227-01 3013227-01 Leg
13 3013228-01 3013228-01 3013228-01 3013228-01 3013306-01 Leg Brace
14 N/A N/A N/A N/A N/A T-Nut-Shipping Only
15 3013226-01 3013226-01 3013226-01 3013226-01 3013305-01 Brace
16 3013232-01 3013232-01 N/A N/A N/A Cover Panel
17 3013225-01 3013225-01 3013225-01 3013225-01 3013304-01 Center Panel
18 3013223-01 3013223-01 3013223-01 3013223-01 3013223-01 Front Panel
19 3013234-01 3013234-01 3013234-01 3013234-01 3013307-01 Motor Brace
20 3013233-01 3013233-01 3013233-01 3013233-01 3013233-01 Motor Brace Support
21 3013229-01 3013229-01 3013229-01 3013229-01 3013229-01 Junction Box Cover
22 9151027-07 9151027-06 9151027-07 9151027-07 9151027-07 Mixing Valve
23 9141135-01 9141135-01 9141135-01 9141136-01 9141137-01 Condenser
24 9151143-01 9151143-01 9151143-01 9151143-01 9151143-01 Filter
25 9091001-12 9091001-12 9091001-12 9091001-12 9091001-12 1/2 Coupling
26 9091001-11 9091001-11 9091001-11 9091001-11 9091001-11 3/8 Coupling
27 9151143-02 9151143-02 9151143-02 9151143-02 9151143-02 Filte

9131452-01 9131452-01 9131460-01 Fan Guard

r

Page 15
