SERVICE PARTS MANUAL
D
80239
MODELS-ICE1806, ICE1807, ICE2106 and ICE2107 Version 4
Includes 3 Phase Units
Ice-O-Matic
11100 East 45th Ave
enver, Colorado
Part Number 9081376-02 Date 1/09
SERVICE PARTS MANUAL
22 INCH WIDE ICE SERIES CUBERS
MODEL-ICE0320, ICE0520
Includes 50Hz. Units
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081297-01 PD04/02 Rev1/05
ICE1800 and 2100 Series Version 4 Service Parts
This parts list contains the service parts available for the following icemakers.
ICE1806 Water and Remote Version 4
ICE1807 Water and Remote Version 4
ICE2106 Water and Remote Version 4
ICE2107 Water and Remote Version 4
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Exterior Panels Page 2
Water Cooled Page 4
Remote Page 6
Control Box Page 8
Harvest Assist Page 10
Water Pump/Float Page 12
VRC Condenser Page 14
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
ICE1800 and 2100 Series Version 4 Exterior Panels
Page 2
ICE1800 and 2100 Series Version 4 Exterior Panels
r
Item
No. ICE1806 ICE1807 ICE2106 ICE2107 Description
1 2031511-03S 2031511-03S 2031511-03S 2031511-03S Front Panel
9051562-03 9051562-03 9051562-03 9051562-03 Front Panel End Cap, Right Hand
9051562-04 9051562-04 9051562-04 9051562-04 Front Panel End Cap, Left Hand
2 9031098-04 9031098-04 9031098-04 9031098-04 Front Panel Screws
3 9051565-04 9051565-04 9051565-04 9051565-04 Right Hand Side Panel-Water Cooled and Remote Only
4 2101430-01S 2101430-01S 2101430-01S 2101430-01S Top Panel
5 9051565-04 9051565-04 9051565-04 9051565-04 Left Hand Side Panel-Water Cooled and Remote Only
6 3021926-01 3021926-01 3021926-01 3021926-01 Rear Panel
7 9031046-01 9031046-01 9031046-01 9031046-01 Rear Cover Panel Screws
8 3013308-01 3013308-01 3013308-01 3013308-01 Junction Box Cover
9 9031046-01 9031046-01 9031046-01 9031046-01 Junction Box Cover Screws
10 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
11 3013294-01 3013294-01 3013294-01 3013294-01 Control Box Top Cover
12 3013293-01 3013293-01 3013293-01 3013293-01 Control Box Side Cove
Model Number
Page 3
ICE1800 and 2100 Series Version 4 Water Cooled
Page 4
ICE1800 and 2100 Series Version 4 Water Cooled
f
Item
No. ICE1806 ICE1807 ICE2106 ICE2107 Description
1 9181108-11 9181108-12 9181129-11 9181129-12 Compressor
2 9151004-03 9151004-03 9151004-03 9151004-03 Filter Drier
3 9151152-01 9151152-01 9151152-01 9151152-01 Expansion Valve
4 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body
5 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
6 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
7 9141123-01 9141123-01 9141123-01 9141123-01 Water Condenser
8 9051154-12 9051154-14 9051154-14 9051154-14 Evaporator Splash Curtain
9 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051239-81 2051239-81 2051239-81 2051239-81
11 2051239-82 2051239-82 2051239-82 2051239-82
12 2051240-81 2051240-81 2051240-81 2051240-81
12 2051240-82 2051240-82 2051240-82 2051240-82
13 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Left Side Mounting Panel
14 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 9051135-04 Water return
16 9051135-05 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 9091086-02 Valve Core
18 9091086-03 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02 9101124-02
21 9041056-01 9041056-01 9041056-01 9041056-01 Water Regulating Valve
22 3013316-01 3013316-01 3013316-01 3013316-01 Rear Brace
23 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
24 9091063-02 9091063-02 9091063-02 9091063-02 Condenser Drain Fitting
Model Number
Evaporator Right Side Full Cube
Evaporator Right Side Half Cube
Evapoartor Left Side Full Cube
Evapoartor Left Side Hal
Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)
Cube
Page 5
ICE1800 and 2100 Series Version 4 Remote
Page 6
ICE1800 and 2100 Series Version 4 Remote
f
Item
No. ICE1806 ICE1807 ICE2106 ICE2107 Description
1 9181008-11 9181108-12 9181129-11 9181129-12 Compressor
2 9151004-03 9151004-03 9151004-03 9151004-03 Filter Drier
3 9151152-01 9151152-01 9151152-01 9151152-01 Expansion Valve
4 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body
5 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
6 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
7 9151109-01 9151109-01 9151109-01 9151109-01 Receiver
8 9051154-12 9051154-12 9051154-12 9051154-12 Evaporator Splash Curtain
9 3013315-01 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051239-81 2051239-81 2051239-81 2051239-81
11 2051239-82 2051239-82 2051239-82 2051239-82
12 2051240-81 2051240-81 2051240-81 2051240-81
12 2051240-82 2051240-82 2051240-82 2051240-82
13 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Left Side Mounting Panel
14 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 9051135-04 Water Return
16 9051135-05 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 9091086-02 Valve Core
18 9091086-03 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02 9101124-02
21 9091143-02 9091143-02 9091143-02 9091143-02 Remote Shut-Off Valve (Large)
9091143-01 9091143-01 9091143-01 9091143-01 Remote Shut-Off Valve (Small)
22 3013316-01 3013316-01 3013316-01 3013316-01 Rear Brace
23 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
24 9041092-02 9041092-02 9041092-02 9041092-02 Pump Down Control
25 9151123-02 9151123-02 9151123-02 9151123-02 Liquid Line Solenoid
26 2101421-01 2101421-01 2101421-01 2101421-01 Accumulator Assembly
9091001-12 9091001-12 9091001-12 9091001-12 1/2 Inch Coupling (Not Shown)
9091001-11 9091001-11 9091001-11 9091001-11 3/8 Inch Coupling (Not Shown)
9151139-01 9151139-01 9151139-01 9151139-01 Check Valve (Not Shown)
Model Number
Evaporator Right Side Full Cube
Evaporator Right Side Half Cube
Evapoartor Left Side Full Cube
Evapoartor Left Side Hal
Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)
Cube
Page 7
ICE1800 and 2100 Series Version 4 Control Box
Page 8
ICE1800 and 2100 Series Version 4 Control Box
A
A
A
A
y
Item
No. ICE1806 ICE1807 ICE2106 ICE2107 Description
1 9101002-06 9101079-02 9101002-06 9101079-02 Contactor
2 9101083-01 9101083-01 9101083-01 9101083-01 Relay Base
3 9101084-02 9101084-02 9101084-02 9101084-02 Relay
4 9101139-03 9101139-03 9101139-03 9101139-03 Purge Switch
5 9101195-01 9101195-01 9101195-01 9101195-01 ICE-OFF-WASH Switch
6 9101148-01 9101148-01 9101148-01 9101148-01 Timer
7 9101148-01 9101148-01 9101148-01 9101148-01 Timer (6 Minute-Remote only)
8 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control (Timer Initiate)
9 9181003-21 N/A 9181003-21 N/A Start Capacitor
10 9181009-20 N/A 9181009-13 N/A Run Capacitor
11 9181010-10 N/
ICE1806 ICE1807 ICE2106 ICE2107
9181108-11 9181108-12 9181129-11 9181129-12 Compressor Kit
9181003-21 N/A 9181003-21 N/A Start Capacitor
9181009-20 N/A 9181009-13 N/A Run Capacitor
9181010-10 N/
Model Number
9181010-11 N/
9181010-11 N/
Compressor Relay
Rela
Page 9
ICE1800 and 2100 Series Version 4 Harvest Assist
Page 10
ICE1800 and 2100 Series Version 4 Harvest Assist
Item
No. ICE1806 ICE1807 ICE2106 ICE2107 Description
1 3013170-01 3013170-01 3013170-01 3013170-01 Bracket, Probe Motor
2 9161031-01 9161031-01 9161031-01 9161031-01 Gear Motor
3 9131190-01 9131190-01 9131190-01 9131190-01
9131190-04 9131190-04 9131190-04 9131190-04
4 9051001-13 9051001-13 9051001-13 9051001-13 Snap Bushing
5 9051001-03 9051001-03 9051001-03 9051001-03 Snap Bushing
6 9031019-08 9031019-08 9031019-08 9031019-08 #6-32 x 1/2 Fillister Head Screw
7 9051057-01 9051057-01 9051057-01 9051057-01 Connecting Rod
8 9021102-01 9021102-01 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 9031003-03 9031003-03 Plain Flat Washer
10 9031119-01 9031119-01 9031119-01 9031119-01 Shoulder Screw
11 9051519-01 9051519-01 9051519-01 9051519-01 Spacer, Cam Switch
12 9101160-01 9101160-01 9101160-01 9101160-01 Cam Switch
13 3051145-02 3051145-02 3051145-02 3051145-02 Insulator, Switch
14 9031008-44 9031008-44 9031008-44 9031008-44 Pan Head Machine Screw
15 9031120-01 9031120-01 9031120-01 9031120-01 Speed Nut Plate
14 2061962-02S 2061962-02S 2061962-02S 2061962-02S
15 2061962-03S 2061962-03S 2061962-03S 2061962-03S
Model Number
Clutch Assembly 160 Degree Cam, Right Side
Clutch Assembly .312R Cam, Left Side
Complete Assembly-Primary-Right Side
Complete Assembly-Secondary-Left Side
Page 11
ICE1800 and 2100 Series Version 4 Water Pump/Float
Page 12
ICE1800 and 2100 Series Version 4 Water Pump/Float
Item
No. ICE1806 ICE1807 ICE2106 ICE2107 Description
1 3013310-01 3013310-01 3013310-01 3013310-01 Water Pump Bracket
2 9161079-06 9161079-06 9161079-06 9161079-06 Water Pump
3 9131111-02 9131111-02 9131111-02 9131111-02 Float
4 9131026-02 9131026-02 9131026-02 9131026-02 Float Deflector
5 9041086-03 9041086-03 9041086-03 9041086-03 Purge Valve
6 2041338-02 2041338-02 2041338-02 2041338-02 Water Distribution Tube Left
7 2041338-01 2041338-01 2041338-01 2041338-01 Water Distribution Tube Right
8 9031122-01 9031122-01 9031122-01 9031122-01 Thumb Screw
9 9031004-19 9031004-19 9031004-19 9031004-19 Washer
10 9091052-01 9091052-01 9091052-01 9091052-01 Elbow
11 9051543-01 9051543-01 9051543-01 9051543-01 Water Pump Tube (Water Pump/Purge Valve)
12 9051546-02 9051546-02 9051546-02 9051546-02 Water Pump Tube (Water Distribution Tube)
13 9051544-01 9051544-01 9051544-01 9051544-01 Water Trough
14 3032898-34 3032898-34 3032898-34 3032898-34 Water Inlet Tubing (34.00 inches long)
15 9091081-01 9091081-01 9091081-01 9091081-01 Sleeve
9091080-01 9091080-01 9091080-01 9091080-01 Barrel Fitting
16 9031046-24 9031046-24 9031046-24 9031046-24 Water Trough Screw
17 9091074-01 9091074-01 9091074-01 9091074-01 Drop Adapter
18 9091083-01 9091083-01 9091083-01 9091083-01 Water Inlet Fitting
19 9091140-01 9091140-01 9091140-01 9091140-01 Drain Fitting
20 9021010-04 9021010-04 9021010-04 9021010-04 Clamp
Model Number
Page 13

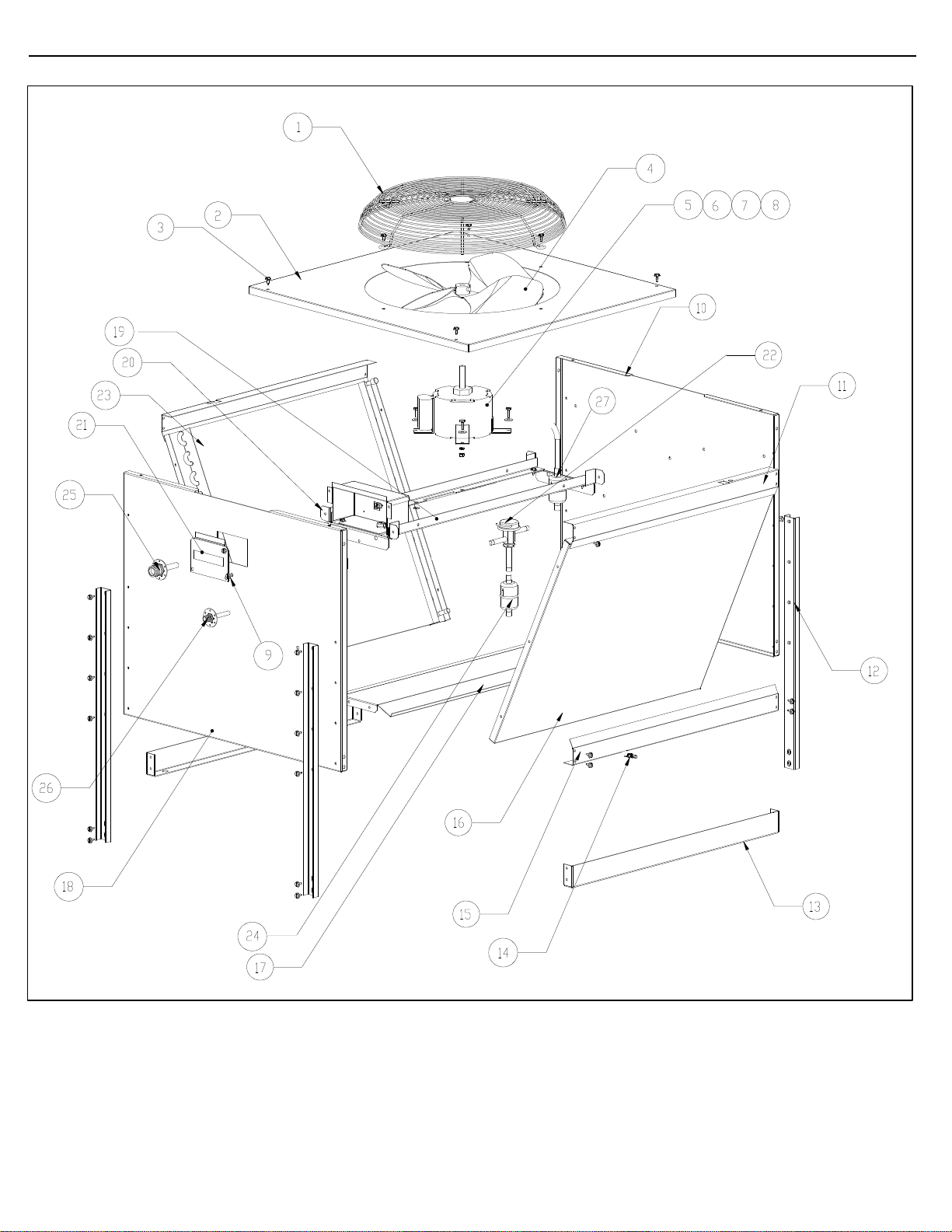

ICE1800 and 2100 Series Version 4 VRC Condenser
Page 14
ICE1800 and 2100 Series Version 4 VRC Condenser
R
R
R
R
V
V
V
V
V
r
ICE0800
ICE0500
Item
1 9131452-01 9131452-01 9131452-01 9131452-01 9131460-01 Fan Guard
2 3013222-01 3013222-01 3013222-01 3013222-01 3013303-01 Top Panel
3 9031019-04 9031019-04 9031019-04 9031019-04 9031019-04 ¼-20 x 1/2 Screw
4 9131451-01 9131451-01 9131451-01 9131451-01 9131461-01 Fan Blade
5 9161117-02 9161117-01 9161117-01 9161117-01 9161118-01 Fan Motor
6 9031001-02 9031001-02 9031001-02 9031001-02 9031001-02 ¼-20 x ¾ Cap Screw
7 9031003-01 9031003-01 9031003-01 9031003-01 9031003-01 Flat Washer
8 9031118-02 9031118-02 9031118-02 9031118-02 9031118-02 Flanged Lock Nut
9 9031019-04 9031019-04 9031019-04 9031019-04 9031019-04 ¼-20 x 1/2 Screw
10 3013224-01 3013224-01 3013224-01 3013224-01 3013224-01 Rear Panel
11 3013226-01 3013226-01 3013226-01 3013226-01 3013305-01 Brace
12 3013227-01 3013227-01 3013227-01 3013227-01 3013227-01 Leg
13 3013228-01 3013228-01 3013228-01 3013228-01 3013306-01 Leg Brace
14 N/A N/A N/A N/A N/A T-Nut-Shipping Only
15 3013226-01 3013226-01 3013226-01 3013226-01 3013305-01 Brace
16 3013232-01 3013232-01 N/A N/A N/A Cover Panel
17 3013225-01 3013225-01 3013225-01 3013225-01 3013304-01 Center Panel
18 3013223-01 3013223-01 3013223-01 3013223-01 3013223-01 Front Panel
19 3013234-01 3013234-01 3013234-01 3013234-01 3013307-01 Motor Brace
20 3013233-01 3013233-01 3013233-01 3013233-01 3013233-01 Motor Brace Support
21 3013229-01 3013229-01 3013229-01 3013229-01 3013229-01 Junction Box Cover
22 9151142-02 9151142-02 9151142-02 9151142-02 9151142-02 Mixing Valve
23 9141130-01 9141130-01 9141130-01 9141131-01 9141133-01 Condenser
24 9151143-01 9151143-01 9151143-01 9151143-01 9151143-01 Filter
25 9091001-12 9091001-12 9091001-12 9091001-12 9091001-12 1/2 Coupling
26 9091001-11 9091001-11 9091001-11 9091001-11 9091001-11 3/8 Coupling
27 9151143-02 9151143-02 9151143-02 9151143-02 9151143-02 Filte
RC1001
ICE0600
RC1061
ICE1000
RC2061
ICE1400R4 ICE1800R4
ICE1506R3 ICE2100R4
RC2661
RC5061 Description
Page 15
Loading...
