Ice-O-Matic ICE1506HR User Manual

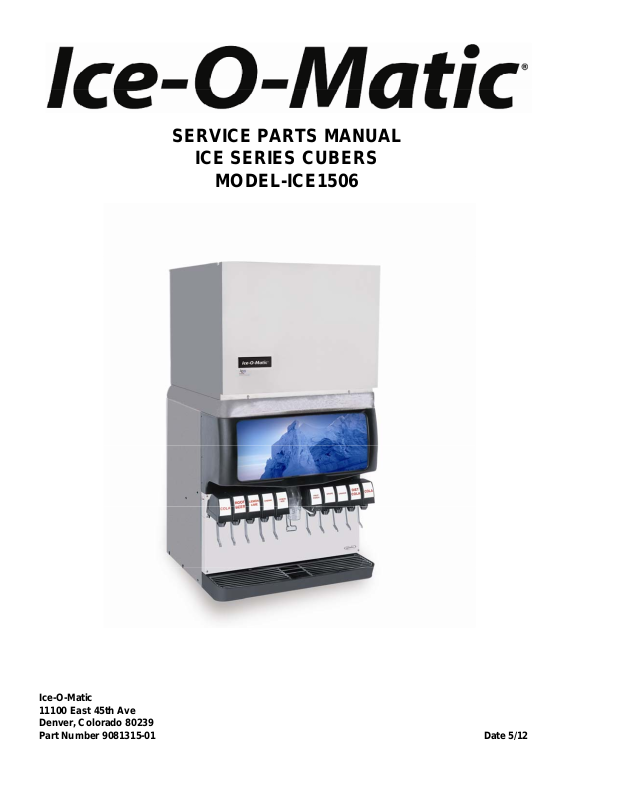

SERVICE PARTS MANUAL

ICE SERIES CUBERS

MODEL-ICE1506

Ice-O-Matic 11100 East 45th Av Denver, Colorado 80239 Part Number 9081315-01 Date 5/12

ICE1506 Service Parts

This parts list contains the service parts available for the ICE1506 icemakers.

ICE1506R ICE1506R2 ICE1506R3 From Serial Number 0801 ICE1506R4 From Serial Number 12021280011418

Check the model number on the data plate and refer to the correct listing for the specific component.

Check carefully that the correct part is identified and ordered.

Table of Contents Page 1

Cabinet Exterior Panels Page 2

Cabinet Breakdown Page 3

Refrigeration System Page 4

Evaporator and Components (Right Side) Page 5

Evaporator and Components (Left Side) Page 6

Control Box and Bin Switch Assembly Page 7

Water Pump/Float Assembly Page 8

Harvest Probe Assembly Page 9

Remote Condenser VRC2661 Page 10

Remote Condenser LRC2661 Page 12

Ice-O-Matic 11100 East 45th Ave. Denver Co. 80239 800-423-3367

Page 1

ICE1506 Series Service Parts Exterior Panels

Item Part Item Part

No. Description Numbe

1 Front Panel 2031493-01S 5 Back Panel 3021871-01

Front Panel V3 (SN0801) 2031510-01S Back Panel V3 (SN0801) 3021920-01

2 Top Cover 3021872-01 6 Front Panel Screw 9031098-03

Top Coverl V3 (SN0801) 3021931-01 7 Rear Panel Screw 9031046-01

3 L.H Side Panel 2101363-02S 4 R.H Side Panel 2101363-01S

Page 2

No. Description Numbe

ICE1506 Series Service Parts Cabinet Breakdown

Item Page

No. Numbe

4 Page No. 4 Cabinet Base 5 Page No. 5 6 Page No. 6 Evaporator Assembly 7 Page No. 7 Control Box and Bin Switch Assembly 8 Page No. 8 Pump Assembly 9 Page No. 9 Harvest Assist

Description

Evaporator Assembly

Page 3
