SERVICE PARTS MANUAL
MODEL-ICE1405 Version 4 & 5
MODEL-ICE1406 Version 4 & 5
MODEL-ICE1407 Version 4 & 5
Includes 50Hz.and 3 phase Units
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081375-02 Date 6/12
SERVICE PARTS MANUAL
22 INCH WIDE ICE SERIES CUBERS
MODEL-ICE0320, ICE0520
Includes 50Hz. Units
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081297-01 PD04/02 Rev1/05
ICE Series Service Parts
This parts list contains the service parts available for the ICE1400 Series listed below
ICE1406 A4-5, W4-5 and R4-5
ICE1405 A4-5, W4-5 and R4-5
ICE1407 A4-5, W4-5 and R4-5
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Exterior Panels Page 2
Air Cooled Page 4
Water Cooled Page 6
Remote Page 8
Control Box and Compressor Components Page 10
Harvest Assist Page 12
Water Pump/Float Page 14
VRC Condenser Page 16
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
ICE Series Service Parts Exterior Panels
Page 2
ICE Series Service Parts Exterior Panels
A
A
A
A
Item
No. ICE1406 ICE1405 ICE1407 Description
1 2031511-03S 2031511-03S 2031511-03S Front Panel
2 9031098-04 9031098-04 9031098-04 Front Panel Screws
3 2101428-02S 2101428-02S 2101428-02S
4 9051565-04 9051565-04 9051565-04 Right Hand Side Panel-Water Cooled and Remote Only
5 2101430-01S 2101430-01S 2101430-01S Top Panel
6 2101428-04S 2101428-04S 2101428-04S
7 9051565-04 9051565-04 9051565-04 Left Hand Side Panel-Water Cooled and Remote Only
8 3021926-01 3021926-01 3021926-01 Rear Panel
9 9031046-01 9031046-01 9031046-01 Rear Cover Panel Screws
10 3013308-01 3013308-01 3013308-01 Junction Box Cover
11 9031046-01 9031046-01 9031046-01 Junction Box Cover Screws
12 3013315-01 3013315-01 3013315-01 Ice Deflector
13 3013294-01 3013294-01 3013294-01 Control Box Top Cover
14 3013293-01 3013293-01 3013293-01 Control Box Side Cover
15 N/
Model Number
9051562-03 9051562-03 9051562-03 Front Panel End Cap, Right Hand
9051562-04 9051562-04 9051562-04 Front Panel End Cap, Left Hand
ir Cooled Only
ir Cooled Only
3012931-02 N/
Right Hand Side Panel-
Left Hand Side Panel-
Machine Compartment Cover
Page 3
ICE Series Service Parts Air Cooled
Page 4
ICE Series Service Parts Air Cooled
A
A
f
8
6
Item
No. ICE1406
1 9181142-11 9181143-12 9181111-12
2 9151004-03 9151004-03 9151004-03 Filter Drier
3 9151150-01 9151150-01 9151150-01 Expansion Valve
4 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body
5 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
6 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
7 9141132-01 9141132-01 9141132-01 Air Condenser
8 9051154-14 9051154-14 9051154-14 Evaporator Splash Curtain
9 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051237-81 2051237-81 2051237-81
11 2051237-82 2051237-82 2051237-82
12 2051238-81 2051238-81 2051238-81
12 2051238-82 2051238-82 2051238-82
13 9051540-03 9051540-03 9051540-03 Evaporator Left Side Mounting Panel
14 9051540-04 9051540-04 9051540-04 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 Water Return
16 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 Valve Core
18 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02
21 9161078-03 9161078-02 9161078-03 Fan Motor
22 9131383-01 9131383-01 9131383-01 Fan Blade
23 9041096-01 9041096-01 9041096-01 Fan Control
Model Number
ICE1405
ICE1407ADescription
Compressor * See Notes Below
Evaporator Right Side Full Cube
Evaporator Right Side Half Cube
Evapoartor Left Side Full Cube
Evapoartor Left Side Hal
Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)
Cube
* Note ICE1406 Air Cooled Compressor 9181111-11 is NLA, Reference Service Bulletin 12-0
* Note ICE1405 Air Cooled Compressor 9181094-12 is NLA, Reference Service Bulletin 12-1
Page 5

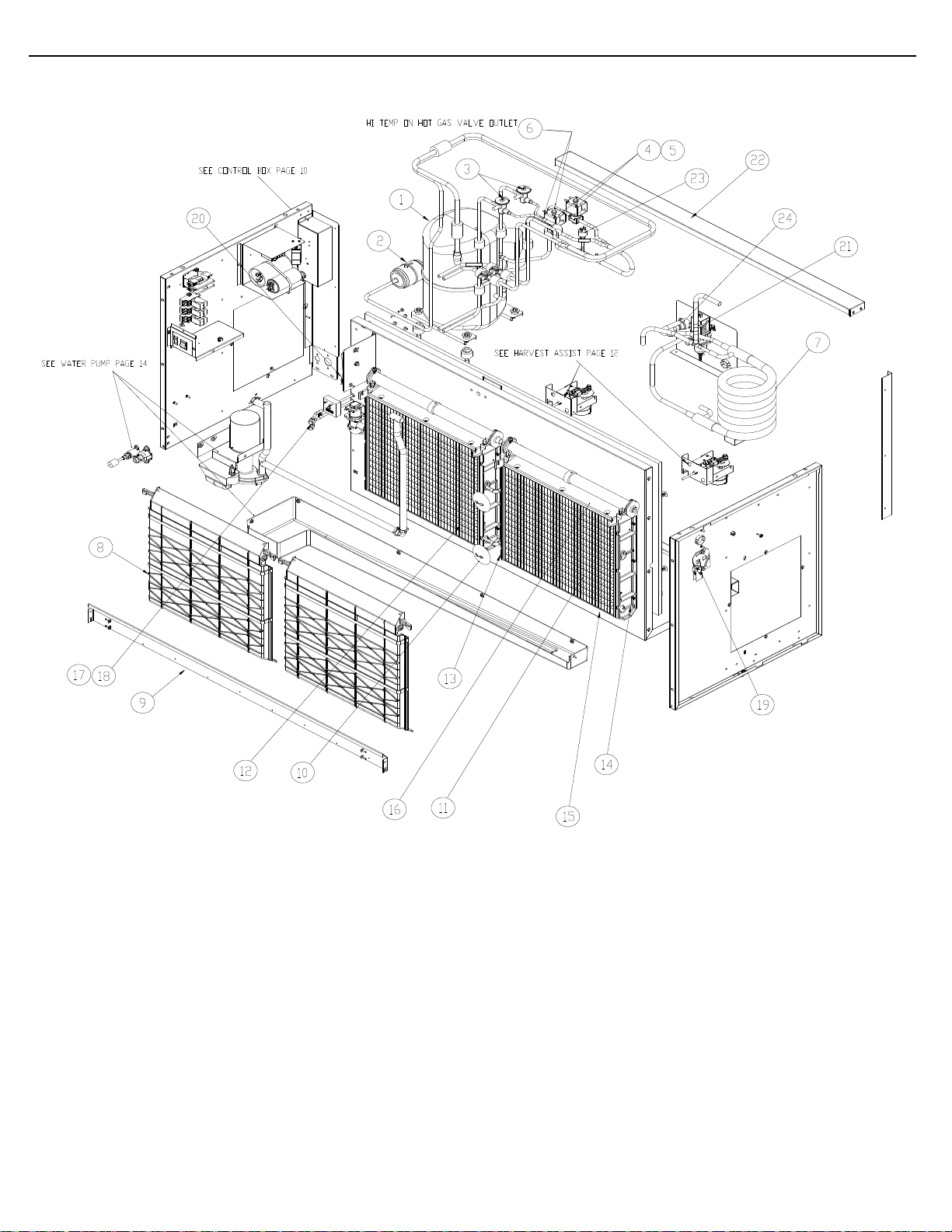

ICE Series Service Parts Water Cooled
Page 6
ICE Series Service Parts Water Cooled
W
W
f
8
6
Item
No. ICE1406
1 9181142-11 9181143-12 9181111-12
2 9151004-03 9151004-03 9151004-03 Filter Drier
3 9151150-01 9151150-01 9151150-01 Expansion Valve
4 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body
5 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
6 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
7 9141061-02 9141061-02 9141061-02 Water Condenser
8 9051154-14 9051154-14 9051154-14 Evaporator Splash Curtain
9 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051237-81 2051237-81 2051237-81
11 2051237-82 2051237-82 2051237-82
12 2051238-81 2051238-81 2051238-81
12 2051238-82 2051238-82 2051238-82
13 9051540-03 9051540-03 9051540-03 Evaporator Left Side Mounting Panel
14 9051540-04 9051540-04 9051540-04 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 Water return
16 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 Valve Core
18 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02
21 9041059-01 9041059-01 9041059-01 Water Regulating Valve
22 3013316-01 3013316-01 3013316-01 Rear Brace
23 9041091-01 9041091-01 9041091-01 High Pressure Control
24 9091063-02 9091063-02 9091063-02 Condenser Drain Fitting
Model Number
ICE1405
ICE1407WDescription
Compressor * See Notes Below
Evaporator Right Side Full Cube
Evaporator Right Side Half Cube
Evapoartor Left Side Full Cube
Evapoartor Left Side Hal
Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)
Cube
* Note ICE1406 Water Cooled Compressor 9181111-11 is NLA, Reference Service Bulletin 12-0
* Note ICE1405 Water Cooled Compressor 9181094-12 is NLA, Reference Service Bulletin 12-1
Page 7
ICE Series Service Parts Remote
Page 8
ICE Series Service Parts Remote
R
R
f
8
6
Item
No. ICE1406
1 9181142-11 9181143-12 9181111-12
2 9151004-03 9151004-03 9151004-03 Filter Drier
3 9151150-01 9151150-01 9151150-01 Expansion Valve
4 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body
5 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
6 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
7 9151060-01 9151060-01 9151060-01 Receiver
8 9051154-14 9051154-14 9051154-14 Evaporator Splash Curtain
9 3013315-01 3013315-01 3013315-01 Ice Deflector
10 9051237-02 9051237-02 9051237-02 Washer Tube
11 2051237-81 2051237-81 2051237-81
11 2051237-82 2051237-82 2051237-82
12 2051238-81 2051238-81 2051238-81
12 2051238-82 2051238-82 2051238-82
13 9051540-03 9051540-03 9051540-03 Evaporator Left Side Mounting Panel
14 9051540-04 9051540-04 9051540-04 Evaporator Right Side Mounting Panel
15 9051135-04 9051135-04 9051135-04 Water Return
16 9051135-05 9051135-05 9051135-05 Spillway
17 9091086-02 9091086-02 9091086-02 Valve Core
18 9091086-03 9091086-03 9091086-03 Valve Cap
19 9101124-02 9101124-02 9101124-02
20 9101124-02 9101124-02 9101124-02
21 9091143-02 9091143-02 9091143-02 Remote Shut-Off Valve (Large)
22 3013316-01 3013316-01 3013316-01 Rear Brace
23 9041091-01 9041091-01 9041091-01 High Pressure Control
24 9041092-02 9041092-02 9041092-02 Pump Down Control
25 9151123-02 9151123-02 9151123-02 Liquid Line Solenoid
Model Number
ICE1405
9091143-01 9091143-01 9091143-01 Remote Shut-Off Valve (Small)
9091001-12 9091001-12 9091001-12 1/2 Inch Coupling (Not Shown)
9091001-11 9091001-11 9091001-11 3/8 Inch Coupling (Not Shown)
9151139-01 9151139-01 9151139-01 Check Valve (Not Shown)
ICE1407RDescription
Compressor * See Notes Below
Evaporator Right Side Full Cube
Evaporator Right Side Half Cube
Evapoartor Left Side Full Cube
Evapoartor Left Side Hal
Bin Switch Right Side (Cut Arm)
Bin Switch Left Side (Cut Arm)
Cube
* Note ICE1406 Remote Cooled Compressor 9181111-11 is NLA, Reference Service Bulletin 12-0
* Note ICE1405 Remote Cooled Compressor 9181094-12 is NLA, Reference Service Bulletin 12-1
Page 9
ICE Series Service Parts Control Box
Page 10
ICE Series Service Parts Control Box
w
w
A
A
y
A
y
Item
No. ICE1406 ICE1405 ICE1407 Description
1 9101002-06 9101002-06 9101079-02 Contactor
2 9101083-01 9101083-01 9101083-01 Relay Base
3 9101084-02 9101084-02 9101084-02 Relay
4 9101139-03 9101139-03 9101139-03 Purge Switch
5 9101195-01 9101195-01 9101195-01 ICE-OFF-WASH Switch
6 9101148-01 9101148-01 9101148-01 Timer
7 9101148-01 9101148-01 9101148-01 Timer (6 Minute-Remote only)
8 9041094-01 9041094-01 9041094-01 Low Pressure Control (Timer Initiate)
9 See Below See Below N/A Start Capacitor
10 See Below See Below N/A Run Capacitor
11 See Belo
Reference the compressor model number to insure the correct starting components are ordered.
Model Number
See Belo
ICE1406 ICE1405 ICE1407
9181111-11 9181094-12 9181111-12 Compressor Kit
9181003-19 9181003-34 N/A Start Capacitor
9181009-12 9181009-20 N/A Run Capacitor
9181010-10 9181010-04 N/
9181111-11 CS18K6E-PFV-235
9181094-12 CS20K6E-PFZ-235
N/
9181111-12
Compressor Relay
Rela
The following compressors are no longer available and have been replaced with the compressor kits below.
9181111-11 9181142-11 CS18K6E-PFV-255
9181094-12 9181143-12 CS20K6E-PFZ-255
9181111-12 Pending
Reference the compressor model number to insure the correct starting components are ordered.
ICE1406 ICE1405 ICE1407 Description
9181142-11 9181143-12 Pending Compressor Kit
9181003-19 9181003-34 N/A Start Capacitor
9181009-12 9181009-20 N/A Run Capacitor
9181010-10 9181010-04 N/
Rela
Page 11
ICE Series Service Parts Harvest Assist
Page 12
ICE Series Service Parts Harvest Assist
Item
No. ICE1406 ICE1405 ICE1407 Description
1 3013170-01 3013170-01 3013170-01 Bracket, Probe Motor
2 9161031-01 9161031-01 9161031-01 Gear Motor
3 9131190-01 9131190-01 9131190-01
4 9051001-13 9051001-13 9051001-13 Snap Bushing
5 9051001-03 9051001-03 9051001-03 Snap Bushing
6 9031019-08 9031019-08 9031019-08 #6-32 x 1/2 Fillister Head Screw
7 9051057-01 9051057-01 9051057-01 Connecting Rod
8 9021102-01 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 9031003-03 Plain Flat Washer
10 9031119-01 9031119-01 9031119-01 Shoulder Screw
11 9051519-01 9051519-01 9051519-01 Spacer, Cam Switch
12 9101160-01 9101160-01 9101160-01 Cam Switch
13 3051145-02 3051145-02 3051145-02 Insulator, Switch
14 9031008-44 9031008-44 9031008-44 Pan Head Machine Screw
15 9031120-01 9031120-01 9031120-01 Speed Nut Plate
14 2061962-02S 2061962-02S 2061962-02S
15 2061962-03S 2061962-03S 2061962-03S
Model Number
9131474-01 9131474-01 9131474-01
9131190-04 9131190-04 9131190-04
2061962-10S 2061962-10S 2061962-10S
Clutch Assembly 160 Degree Cam, Right Side
Clutch Assembly 160 Cam, Right Side Remote Only
Clutch Assembly .312R Cam, Left Side
Complete Assembly-Primary-Right Side
Complete Assembly-Secondary-Right Side Remote Only
Complete Assembly-Secondary-Left Side
Page 13
ICE Series Service Parts Water Pump/Float
Page 14
ICE Series Service Parts Water Pump/Float
Item
No. ICE1406 ICE1405 ICE1407 Description
1 3013310-01 3013310-01 3013310-01 Water Pump Bracket
2 9161079-06 9161079-06 9161079-06 Water Pump
3 9131111-02 9131111-02 9131111-02 Float
4 9131026-02 9131026-02 9131026-02 Float Deflector
5 9041086-03 9041086-03 9041086-03 Purge Valve
6 2041338-02 2041338-02 2041338-02 Water Distribution Tube Left
7 2041338-01 2041338-01 2041338-01 Water Distribution Tube Right
8 9031122-01 9031122-01 9031122-01 Thumb Screw
9 9031004-19 9031004-19 9031004-19 Washer
10 9091052-01 9091052-01 9091052-01 Elbow
11 9051543-01 9051543-01 9051543-01 Water Pump Tube (Water Pump/Purge Valve)
12 9051546-01 9051546-01 9051546-01 Water Pump Tube (Water Distribution Tube)
13 9051544-01 9051544-01 9051544-01 Water Trough
14 3032898-26 3032898-26 3032898-26 Water Inlet Tubing (34.00 inches long)
15 9091081-01 9091081-01 9091081-01 Sleeve
16 9031046-24 9031046-24 9031046-24 Water Trough Screw
17 9091074-01 9091074-01 9091074-01 Drap Adapter
18 9091083-01 9091083-01 9091083-01 Water Inlet Fitting
19 9091140-01 9091140-01 9091140-01 Drain Fitting
20 9021010-04 9021010-04 9021010-04 Clamp
Model Number
9091080-01 9091080-01 9091080-01 Barrel Fitting
Page 15
ICE Series Service Parts VRC Condenser
Page 16
ICE Series Service Parts VRC Condenser
ICE0800R ICE1400R4 ICE1800R4
ICE0500R ICE0600R ICE1000R ICE1506R3 ICE2100R4
Item VRC1001 VRC1061 VRC2061 VRC2661 VRC5061 Description
9131452-01 9131452-01
1
2 3013222-01 3013222-01 3013222-01 3013222-01 3013303-01 Top Panel
3 9031019-04 9031019-04 9031019-04 9031019-04 9031019-04 ¼-20 x 1/2 Screw
4 9131451-01 9131451-01 9131451-01 9131451-01 9131461-01 Fan Blade
5 9161117-02 9161117-01 9161117-01 9161117-01 9161118-01 Fan Motor
6 9031001-02 9031001-02 9031001-02 9031001-02 9031001-02 ¼-20 x ¾ Cap Screw
7 9031003-01 9031003-01 9031003-01 9031003-01 9031003-01 Flat Washer
8 9031118-02 9031118-02 9031118-02 9031118-02 9031118-02 Flanged Lock Nut
9 9031019-04 9031019-04 9031019-04 9031019-04 9031019-04 ¼-20 x 1/2 Screw
10 3013224-01 3013224-01 3013224-01 3013224-01 3013224-01 Rear Panel
11 3013226-01 3013226-01 3013226-01 3013226-01 3013305-01 Brace
12 3013227-01 3013227-01 3013227-01 3013227-01 3013227-01 Leg
13 3013228-01 3013228-01 3013228-01 3013228-01 3013306-01 Leg Brace
14 N/A N/A N/A N/A N/A T-Nut-Shipping Only
15 3013226-01 3013226-01 3013226-01 3013226-01 3013305-01 Brace
16 3013232-01 3013232-01 N/A N/A N/A Cover Panel
17 3013225-01 3013225-01 3013225-01 3013225-01 3013304-01 Center Panel
18 3013223-01 3013223-01 3013223-01 3013223-01 3013223-01 Front Panel
19 3013234-01 3013234-01 3013234-01 3013234-01 3013307-01 Motor Brace
20 3013233-01 3013233-01 3013233-01 3013233-01 3013233-01 Motor Brace Support
21 3013229-01 3013229-01 3013229-01 3013229-01 3013229-01 Junction Box Cover
22 9151027-07 9151027-06 9151027-07 9151027-07 9151027-07 Mixing Valve
23 9141135-01 9141135-01 9141135-01 9141136-01 9141137-01 Condenser
24 9151143-01 9151143-01 9151143-01 9151143-01 9151143-01 Filter
25 9091001-12 9091001-12 9091001-12 9091001-12 9091001-12 1/2 Coupling
26 9091001-11 9091001-11 9091001-11 9091001-11 9091001-11 3/8 Coupling
27 9151143-02 9151143-02 9151143-02 9151143-02 9151143-02 Filte
9131452-01 9131452-01 9131460-01 Fan Guard
r
Page 17
Loading...
