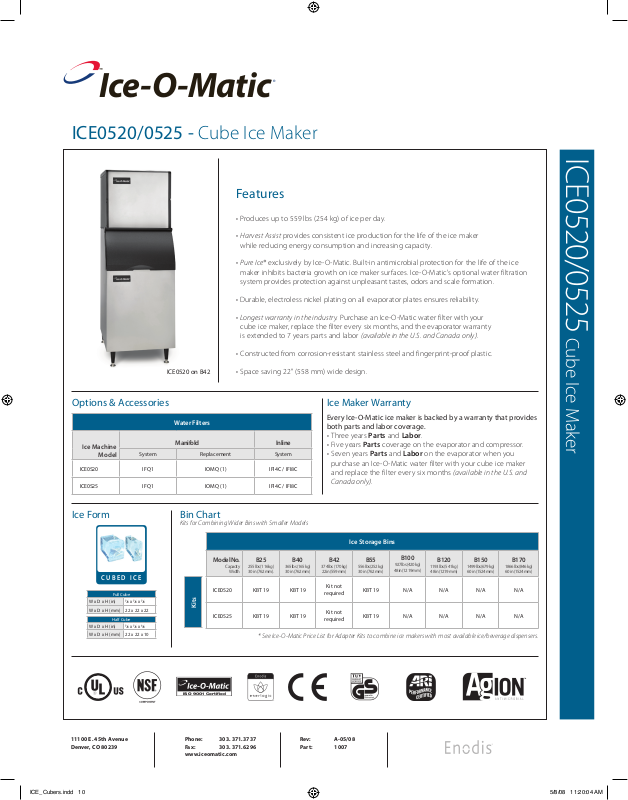

Ice-O-Matic ICE0525, ICE0520 User Manual

11100 E. 45th Avenue Denver, CO 80239

Phone: 303. 371.3737 Fax: 303. 371.6296 www.iceomatic.com

Rev: A-05/08

Ice-O-Matic

™

Part: 1007

ICE0520/0525 Cube Ice Maker

ICE0520 on B42

Features

Produces up to 559 lbs (254 kg) of ice per day.•

Harvest Assist• provides consistent ice production for the life of the ice maker while reducing energy consumption and increasing capacity.

Pure Ice®• exclusively by Ice-O-Matic. Built-in antimicrobial protection for the life of the ice maker inhibits bacteria growth on ice maker surfaces. Ice-O-Matic's optional water filtration system provides protection against unpleasant tastes, odors and scale formation.

Durable, electroless nickel plating on all evaporator plates ensures reliability.•

Longest warranty in the industry.• Purchase an Ice-O-Matic water filter with your cube ice maker, replace the filter every six months, and the evaporator warranty is extended to 7 years parts and labor (available in the U.S. and Canada only).

Constructed from corrosion-resistant stainless steel and fingerprint-proof plastic.•

Space saving 22" (558 mm) wide design.•

Options & Accessories

Water Filters

Ice Machine

Model

Manifold Inline

System Replacement System

ICE0520 IFQ1 IOMQ (1) IFI4C / IFI8C

ICE0525 IFQ1 IOMQ (1) IFI4C / IFI8C

Ice Maker Warranty

Every Ice-O-Matic ice maker is backed by a warranty that provides both parts and labor coverage.

Three years • Parts and Labor. Five years • Parts coverage on the evaporator and compressor. Seven years • Parts and Labor on the evaporator when you purchase an Ice-O-Matic water filter with your cube ice maker and replace the filter every six months (available in the U.S. and Canada only).

Ice Form

CUBED ICE

Full Cube

W x D x H (in) ⁄ x ⁄ x ⁄

W x D x H (mm) 22 x 22 x 22

Half Cube

W x D x H (in) ⁄ x ⁄ x ⁄

W x D x H (mm) 22 x 22 x 10

Bin Chart

Kits for Combining Wider Bins with Smaller Models

Ice Storage Bins

Model No.

Capacity

Width

B25

255 lbs (116 kg) 30 in (762 mm).

B40

365 lbs (165 kg) 30 in (762 mm)

B42

374 lbs (170 kg)

22in (559 mm)

B55

556 lbs (252 kg) 30 in (762 mm)

B100

927 lbs (420 kg)

48 in (1219 mm)

B120

1193 lbs (541 kg) 48 in (1219 mm)

B150

1499 lbs (679 kg) 60 in (1524 mm)

B170

1866 lbs (846 kg) 60 in (1524 mm)

Kits

ICE0520 KBT 19 KBT 19

Kit not

required

KBT 19 N/A N/A N/A N/A

ICE0525 KBT 19 KBT 19

Kit not

required

KBT 19 N/A N/A N/A N/A

* See Ice-O-Matic Price List for Adapter Kits to combine ice makers with most available ice/beverage dispensers.

ISO 9001 Certified

ICE0520/0525 - Cube Ice Maker

ICE_Cubers.indd 10 5/8/08 11:20:04 AM

11100 E. 45th Avenue Denver, CO 80239

Phone: 303. 371.3737 Fax: 303. 371.6296 www.iceomatic.com

Rev: A-05/08

Ice-O-Matic

™

Part: 1007

ICE0520/0525 Cube Ice Maker

Air Cooled

Please note: air-cooled units require 6. (152 mm) clearance for air intake and exhaust.

Ice maker potable water in, 3/8" FPT.A. Ice maker water out, ¾" FPT. B. Hole for electrical connections, 7/8". C.

Air In– Rear

Standard Side Discharge

22"

(558 mm)

23" (584 mm)

24"

(610 mm)

.38" (10 mm)

8.3"

(212 mm)

5.3" (136 mm)

10.4" (264 mm)

1" (25.4 mm)

16" (406 mm)

Between Bin Hangers

Air Cooled

Water Cooled

Ice maker potable water in, 3/8" FPT.A. Ice maker water out, ¾" FPT.B. Hole for electrical connections, 7/8". C. Condenser water in, 3/8" FPT.D. Condenser water out, ½" FPT.E.

2.7" (68.5 mm) 3" (75 mm)

4.4" (111.8 mm)

16" (406 mm)

Between Bin Hangers

5.8" (147.3 mm)

5.7" (144.8 mm)

4.2" (106.7 mm)

A.A.

D.D.

Water Cooled

Operating Requirements

Minimum Maximum

60 Hz 50Hz

Ambient Temp. Range Air 50˚F (10˚C) 100˚F (38˚C) 110˚F (43˚C)

Water Temp. 40˚F (4.4˚C) 100˚F (38˚C) 110˚F (43˚C)

Water Pressure 20 PSIG (1.4 BAR) 60 PSIG (4.1 BAR)

Dimensions

All Models

W x D x H (inches) 22 x 24 x 23

W x D x H (mm) 558 x 610 x 584

Specifications

Model Number Cond. Unit

Ice Production

per 24hrs

Water Usage

gallons per 100 lbs of Ice

90°F air/70°F water

kWH Used

per 100 lbs

of ice @

90°F air/

70°F water

Voltage

Characteristics

Min.

Circuit

Ampacity

Fuse

Size

Approx.

BTUs

per hour

70°F air/

50°F water

lbs (kg)

90°F air/

70°F water

lbs (kg)

Potable Condenser

ICE0520A Air 520 (236) 370 (168) 25.4 - 5.9 115/60/1 16.0 20 7,753

ICE0520W Water 527 (240) 442 (201) 23.2 128 4.2 115/60/1 11.8 15 7, 852

ICE0525A Air 559 (254) 404 (184) 25.1 - 6.1 220-240/50/1 9.2 16 8,617

NOTES: Number of Wires: 3 (including ground)

Approx.ShippingWeightlbs(kg): ICE0520A165(75) • ICE0520W175(80) • ICE0525A165(75)

Refrigerant Type: R404A
