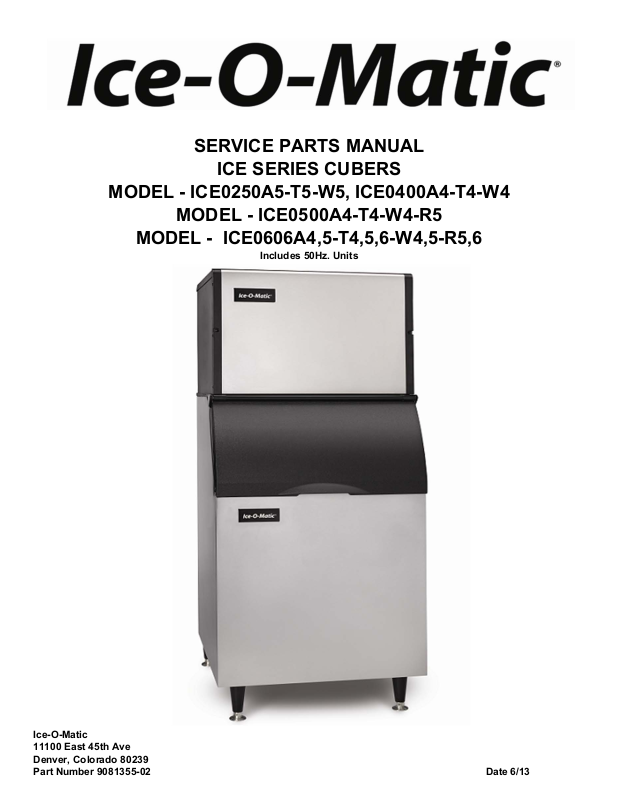

SERVICE PARTS MANUAL
ICE SERIES CUBERS
MODEL - ICE0250A5-T5-W5, ICE0400A4-T4-W4
MODEL - ICE0500A4-T4-W4-R5
MODEL - ICE0606A4,5-T4,5,6-W4,5-R5,6
Includes 50Hz. Units
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081355-02 Date 6/13
Table Of Contents
This parts list contains the service parts available for the ICE Series icemakers listed below:
ICE0250 A4, T4 and W4, Includes 50 hz. Models
ICE0400 A3, T3 and W3, Includes 50 hz. Models
ICE0500 A3, T3, W3 and R4
ICE0606 A3, T3, W3 and R4 Includes 50 hz. Models
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Evaporator/Water System Page 4 - 5
Air Cooled and Top Discharge Page 6 - 7
Water Cooled Page 8 - 9
Remote Page 10 - 11
Control Box Page 12 - 13
Specific Compressor Components Page 13
Harvest Assist Assembly Page 14 - 15
Remote Condenser Page 16 - 17
The ICE Series Service Manual is available separately, Part number 9081270-01
ICE-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
ICE Series Service Parts Table Of Contents
This parts list contains the service parts available for the ICE Series icemakers listed below:
ICE0250 A5, T5 and W5, Includes 50 hz. Models
ICE0400 A4, T4 and W4, Includes 50 hz. Models
ICE0500 A4, T4, W4 and R5
ICE0606 A4,5 - T4,5,6 - W4,5 and R5,6 Includes 50 hz. Models
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Evaporator/Water System Page 4 - 5
Air Cooled and Top Discharge Page 6 - 7
Water Cooled Page 8 - 9
Remote Page 10 - 11
Control Box Page 12 - 13
Harvest Assist Assembly Page 14 - 15
Remote Condenser Page 16 - 17
Specific Compressor Components Page 18
The ICE Series Service Manual is available separately, Part number 9081270-01
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
ICE Series Service Parts Cabinet Assembly
Page 2
ICE Series Service Parts Cabinet Assembly
Item
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 2101425-01S 2101425-01S 2101425-01S 2101425-01S 2101425-01S
2 2101425-02S 2101425-02S 2101425-02S 2101425-02S 2101425-02S
2101425-04S 2101425-04S 2101425-04S 2101425-04S 2101425-04S
3 2031511-01S 2031511-01S 2031511-01S 2031511-01S 2031511-01S Front Panel
9051562-01 9051562-01 9051562-01 9051562-01 9051562-01 Front Panel End Cap, Right Hand
9051562-02 9051562-02 9051562-02 9051562-02 9051562-02 Front Panel End Cap, Left Hand
4 9031098-04 9031098-04 9031098-04 9031098-04 9031098-04 Front Panel Screw
5 9051565-02 9051565-02 9051565-02 9051565-02 9051565-02 Left Hand Side Panel
6 9031141-01 9031141-01 9031141-01 9031141-01 9031141-01 Plastic Nut Insert
7 2101428-01S 2101428-01S 2101428-01S 2101428-01S 2101428-01S
8 3012681-01 3012681-01 3012681-01 3012681-01 3012681-01 Junction Box Cover
9 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Junction Box Cover Screw
10 9051565-02 9051565-02 9051565-02 9051565-02 9051565-02
11 3021742-01 3021742-01 3021742-01 3021742-01 3021742-01 Rear Panel
12 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Rear Panel Screw
13 3012905-01 3012905-01 3012905-01 3012905-01 3012905-01 Control Box Top Cover
14 3012904-01 3012904-01 3012904-01 3012904-01 3012904-01 Control Box Side Cover
15 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Control Box Screws
16 N/A N/A N/A N/A N/A Machine Compartment Cover (Not Shown)
17 3012855-01 3012855-01 3012855-01 3012855-01 3012855-01 Control Box Front Cover
18 2021677-01 2021677-01 2021677-01 2021677-01 2021677-01 Left Hand Frame Side
19 2021648-01 2021648-01 2021648-01 2021648-01 2021648-01 Divider Base Assembly
20 2021678-01 2021678-01 2021678-01 2021678-01 2021678-01 Right Hand Frame Side
21 9131181-01 9131181-01 9131181-01 9131181-01 9131181-01 Insulation
22 9131121-04 9131121-04 9131121-04 9131121-04 9131121-04 Insulation
23 9031154-01 9031154-01 9031154-01 9031154-01 9031154-01 Retainer "Christmas Tree Clip"
24 3012724-01 3012724-01 3012724-01 3012724-01 3012724-01 Brace
Model Number
Top Panel-Air Cooled
Top Panel w/plastic insert-Top Discharge
Top Panel-metal grill-Top Discharge
Right Hand Side Panel-Louvered
Right Hand Side Panel Non-Louvered
Item
No. ICE0305 ICE0405 ICE0605 Description
1 2101425-01S 2101425-01S 2101425-01S
2 2101425-02S 2101425-02S 2101425-02S
3 2031511-01S 2031511-01S 2031511-01S Front Panel
9051562-01 9051562-01 9051562-01 Front Panel End Cap, Right Hand
9051562-02 9051562-02 9051562-02 Front Panel End Cap, Left Hand
4 9031098-04 9031098-04 9031098-04 Front Panel Screw
5 9051565-02 9051565-02 9051565-02 Left Hand Side Panel
6 9031141-01 9031141-01 9031141-01 Plastic Nut Insert
7 2101428-01S 2101428-01S 2101428-01S
8 3012681-01 3012681-01 3012681-01 Junction Box Cover
9 9031046-01 9031046-01 9031046-01 Junction Box Cover Screw
10 9051565-02 9051565-02 9051565-02
11 3021742-01 3021742-01 3021742-01 Rear Panel
12 9031046-01 9031046-01 9031046-01 Rear Panel Screw
13 3012905-01 3012905-01 3012905-01 Control Box Top Cover
14 3012904-01 3012904-01 3012904-01 Control Box Side Cover
15 9031046-01
16 3012931-01 3012931-01 3012931-01 Machine Compartment Cover (Not Shown)
17 3012855-01
18 2021677-01 2021677-01 2021677-01 Left Hand Frame Side
19 2021648-01 2021648-01 2021648-01 Divider Base Assembly
20 2021678-01 2021678-01 2021678-01 Right Hand Frame Side
21 9131181-01 9131181-01 9131181-01 Insulation
22 9131121-04 9131121-04 9131121-04 Insulation
23 9031154-01 9031154-01 9031154-01 Retainer "Christmas Tree Clip"
24 3012724-01 3012724-01 3012724-01 Brace
Model Number
Top Panel-Air Cooled
Top Panel-Top Discharge
Right Hand Side Panel-Louvered
Right Hand Side Panel Non-Louvered
9031046-01 9031046-01 Control Box Screws
3012855-01 3012855-01 Control Box Front Cover
Page 3
ICE Series Service Parts Evaporator/Water System
Page 4
ICE Series Service Parts Evaporator/Water System
Item
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 2051156-81 2051148-81 2051148-81 2051148-81 2051148-81 Evaporator Full Cube
1 2051156-82 2051148-82 2051148-82 2051148-82 2051148-82 Evaporator Half Cube
2 2041338-01 2041338-01 2041338-01 2041338-01 2041338-01 Water Distribution Tube
3 9031122-05 9031122-05 9031122-05 9031122-05 9031122-05 Thumb Screw
4 9031004-19 9031004-19 9031004-19 9031004-19 9031004-19 Rubber Washer
5 3012747-01 N/A N/A N/A N/A Curtain Stopper
6 9051136-08 9051136-06 9051136-06 9051136-06 9051136-06 Evaporator Mounting Panel Right Side
7 9051135-04 9051135-04 9051135-04 9051135-04 9051135-04 Evaporator Water Return
8 9051136-07 9051136-05 9051136-05 9051136-05 9051136-05 Evaporator Mounting Panel Left Side
9 9051135-05 9051135-05 9051135-05 9051135-05 9051135-05 Evaporator Spillway
10 9051154-07 9051154-08 9051154-08 9051154-08 9051154-08 Evaporator Splash Curtain
11 9051537-01 9051537-01 9051537-01 9051537-01 9051537-01 Water Return Trough
12 9031046-24 9031046-24 9031046-24 9031046-24 9031046-24 Water Return Trough Screw
13 9131111-01 9131111-01 9131111-01 9131111-01 9131111-01 Float
14 9131026-02 9131026-02 9131026-02 9131026-02 9131026-02 Caplug (Float Deflector)
15 9161076-01 9161076-01 9161076-02 9161076-01 9161076-02 Water Pump
3012509-01 3012509-01 3012509-01 3012509-01 3012509-01 Water Pump Bracket
16 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp
17 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp
18 9051142-02 9051142-01 9051142-01 9051142-01 9051142-01 Water Pump Tube
19 3032898-26 3032898-26 3032898-26 3032898-26 3032898-26 Water Float Tubing (26 Inches required)
20 9091083-01 9091083-01 9091083-01 9091083-01 9091083-01 Water Inlet Fitting
21 9091074-01 9091074-01 9091074-01 9091074-01 9091074-01 Drop Adapter
22 9041105-01 9041105-01 9041105-02 9041105-01 9041105-02 Purge Valve
23 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp
24 9051280-11 9051280-11 9051280-11 9051280-11 9051280-11 Purge Drain Hose
25 9021010-03 9021010-03 9021010-03 9021010-03 9021010-03 Clamp
26 9091140-01 9091140-01 9091140-01 9091140-01 9091140-01 Purge Drain Fitting
Item
No. ICE0305 ICE0405 ICE0605 Description
1 2051156-81 2051148-81 2051148-81 Evaporator Full Cube
1 2051156-82 2051148-82 2051148-82 Evaporator Half Cube
2 2041338-01 2041338-01 2041338-01 Water Distribution Tube
3 9031122-05 9031122-05 9031122-05 Thumb Screw
4 9031004-19 9031004-19 9031004-19 Rubber Washer
5 3012747-01 N/A N/A Curtain Stopper
6 9051136-08 9051136-06 9051136-06 Evaporator Mounting Panel Right Side
7 9051135-04 9051135-04 9051135-04 Evaporator Water Return
8 9051136-07 9051136-05 9051136-05 Evaporator Mounting Panel Left Side
9 9051135-05 9051135-05 9051135-05 Evaporator Spillway
10 9051154-07 9051154-08 9051154-08 Evaporator Splash Curtain
11 9051537-01 9051537-01 9051537-01 Water Return Trough
12 9031046-24 9031046-24 9031046-24 Water Return Trough Screw
13 9131111-01 9131111-01 9131111-01 Float
14 9131026-02 9131026-02 9131026-02 Caplug (Float Deflector)
15 9161076-02 9161076-03 9161076-03 Water Pump (for bracket see above)
16 9021010-04 9021010-04 9021010-04 Clamp
17 9021010-04 9021010-04 9021010-04 Clamp
18 9051142-02 9051142-01
19 3032898-26
20 9091083-01 9091083-01 9091083-01 Water Inlet Fitting
21 9091074-01 9091074-01 9091074-01 Drop Adapter
22 9041105-02 9041105-02 9041105-02 Purge Valve
23 9021010-04 9021010-04 9021010-04 Clamp
24 9051280-11 9051280-11 9051280-11
25 9021010-03 9021010-03 9021010-03 Clamp
26 9091140-01 9091140-01 9091140-01 Purge Drain Fitting
Model Number
Model Number - 50 Cycle Units
9051142-01 Water Pump Tube
3032898-26 3032898-26 Water Float Tubing (26 Inches required)
Purge Drain Hose
Page 5
ICE Series Service Parts Air Cooled and Top Discharge
Page 6
ICE Series Service Parts Air Cooled and Top Air Discharge
Item
No. ICE0250A ICE0400A ICE0406A ICE0500A ICE0606A Description
1 9181121-11 9181121-11 9181126-01 9181124-11 1051189-01
2 9151123-01 9151123-01 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body
3 9151123-03 9151123-03 9151123-04 9151123-03 9151123-04 Hot Gas Valve Coil
4 9041094-01 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control
5 9151163-01 9151163-01 9151163-01 9151163-01 9151163-01 Filter Drier (Replaces 9151004-02)
6 9091086-02 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core
7 9091086-03 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap
8 9141106-01 9141106-01 9141106-01 9141120-01 9141120-01 Condenser
9 9041096-01 9041096-01 9041096-01 9041096-01 9041096-01 Fan Control
10 9041091-01 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
11 9151154-01 9151149-01 9151149-01 9151149-01 9151151-01 Expansion Valve
9131465-01 9131465-01 9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
12 3013112-01 3013112-01 3013112-01 3013112-01 3013112-01 Fan Shroud
13 9131332-02 9131332-02 9131332-02 9131383-01 9131332-02 Fan Blade
13 9131383-01
14 9161089-02 9161089-02 9161089-03 9161078-01 9161089-03 Fan Motor
14 9161078-03
15 3012527-01 3012527-01 3012527-01 3013252-01 3012527-01 Fan Motor Bracket
15 3013252-01
16 9091136-01 9091136-01 9091136-01 9091136-01 N/A Restrictor
17 9131383-01 9131332-02 9131332-02 9131383-01 9131332-02 Fan Blade (Top Air Discharge)
17 9131383-01
18 3012725-01 3012725-01 3012725-01 3012725-01 3012725-01 Fan Shroud (Top Air Discharge)
18 3013368-01
19 9161078-01 9161089-02 9161089-03 9161078-01 9161089-03 Fan Motor (Top Air Discharge)
19 9161078-03
20 3013252-01 3012527-01 3012527-01 3013252-01 3012527-01 Fan Motor Bracket (Top Air Discharge)
20 3013252-01
21 9041098-01 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
*Note ICE0606 Air Cooled Compressor 9181125-11 is NLA, Reference Service Bulletin 12-06
**Note ICE0606 Air Cooled Version A5-T5-6 , Reference Service Bulletin 12-06
***Note ICE0500 Air Cooled From Serial Number 12061280013569, Ref Service Bulletin 12-18
Item
No. ICE0305A ICE0405A ICE0605A Description
1 9181127-11 9181127-11 1051190-01
2 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body
3 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
4 9041094-01 9041094-01 9041094-01 Low Pressure Control
5 9151163-01 9151163-01 9151163-01 Filter Drier (Replaces 9151004-02)
6
7 9091086-03
8 9141106-01
9 9041096-01 9041096-01 9041096-01 Fan Control
10 9041091-01 9041091-01 9041091-01 High Pressure Control
11 9151154-01 9151149-01 9151149-01 Expansion Valve
12 3013112-01 3013112-01 3013112-01 Fan Shroud
13 9131383-01 9131383-01 9131383-01 Fan Blade
14 9161078-02 9161078-02 9161078-02 Fan Motor
15 2021612-01 2021612-01 2021612-01 Fan Motor Bracket
16 N/A 9091136-01 N/A Restrictor
21 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
*Note ICE0605 Air Cooled Compressor 9181128-11 is NLA, Reference Service Bulletin 12-07
**Note ICE0605 Air Cooled Version A5-T5 , Reference Service Bulletin 12-07
Model Number
Compressor Kit* See Notes Below
9181145-11
9181137-11
Model Number
9181147-11
9091086-02 9091086-02 9091086-02 Service Valve Core
9091086-03 9091086-03 Service Valve Cap
9141106-01 9141120-01 Condenser
9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
Compressor Kit** See Notes Below
Compressor Kit*** See Notes Below
Fan Blade From SN 12041280010052
Fan Motor From Sn 12041280010052
Fan Motor Brkt From SN 12041280010052
Fan Blade TAD From SN 12041280010052
Fan Shroud TAD From Sn 12041280010052
Fan Motor TAD From Sn 12041280010052
Fan Motor Brkt TAD From SN 12041280010052
Compressor Kit* See Notes Below
Compressor Kit** See Notes Below
Page 7
ICE Series Service Parts Water Cooled
Page 8
ICE Series Service Parts Water Cooled
W
W
W
W
W
6
W
W
W
7
Item
No. ICE0250
1 9181121-11 9181121-11 9181126-11 9181124-11 1051189-01
2 9151123-01 9151123-01 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body
3 9151023-03 9151023-03 9151123-04 9151023-03 9151123-04 Hot Gas Valve Coil
4 9041094-01 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control
5 9151163-01 9151163-01 9151163-01 9151163-01 9151163-01 Filter Drier (Replaces 9151004-02)
6 9091086-02 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core
7 9091086-03 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap
8 9141061-01 9141023-01 9141023-01 9141024-01 9141024-01 Condenser
9 9041059-01 9041059-01 9041059-01 9041059-01 9041059-01 Water Valve
10 9041091-01 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control
11 9151154-01 9151149-01 9151149-01 9151149-01 9151151-01 Expansion Valve
9131465-01 9131465-01 9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
12 9041098-01 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
*Note ICE0606 Water Cooled Compressor 9181125-11 is NLA, Reference Service Bulletin 12-0
**Note ICE0606 Water Cooled Version W5 , Reference Service Bulletin 12-06
ICE0400
Model Number
ICE0406
ICE0500
ICE0606
9181145-11
Description
Compressor Kit* See Notes Below
Compressor Kit** See Notes Below
Item
No. ICE0305
1 9181127-11 9181127-11 1051190-01
2 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body
3 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
4 9041094-01 9041094-01 9041094-01 Low Pressure Control
5 9151163-01 9151163-01 9151163-01 Filter Drier (Replaces 9151004-02)
6 9091086-02 9091086-02 9091086-02 Service Valve Core
7 9091086-03 9091086-03 9091086-03 Service Valve Cap
8 9141061-01 9141023-01 9141024-01 Condenser
9 9041059-01 9041059-01 9041059-01 Water Valve
10 9041091-01 9041091-01 9041091-01 High Pressure Control
11 9151154-01 9151149-01 9151149-01 Expansion Valve
9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
12 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
*Note ICE0605 Water Cooled Compressor 9181128-11 is NLA, Reference Service Bulletin 12-0
**Note ICE0605 Water Cooled Version W5 , Reference Service Bulletin 12-07
Model Number
ICE0405
ICE0605
9181147-11
Description
Compressor Kit* See Notes Below
Compressor Kit**See Notes Below
Page 9
ICE Series Service Parts Remote
Page 10
ICE Series Service Parts Remote
R
R
6
R
7
Item
No. ICE0250 ICE0400 ICE0406 ICE0500
1 N/A N/A N/A 9181124-11 1051189-01
2 N/A N/A N/A 9151123-01 9151123-01 Hot Gas Valve Body
3 N/A N/A N/A 9151123-03 9151123-04 Hot Gas Valve Coil
4 N/A N/A N/A 9041094-01 9041094-01 Low Pressure Control
5 N/A N/A N/A 9151004-04 9151004-04 Filter Drier
6 N/A N/A N/A 9091086-02 9091086-02 Service Valve Core
7 N/A N/A N/A 9091086-03 9091086-03 Service Valve Cap
8 N/A N/A N/A 9151074-01 9151074-01 Receiver
9 N/A N/A N/A 2091204-01 N/A Accumulator
10 N/A N/A N/A 9041091-01 9041091-01 High Pressure Control
11 N/A N/A N/A 9151149-01 9151151-01 Expansion Valve
N/A N/A N/A 9131465-01 9131465-01 Insulation Danfoss Expansion Valve
12 N/A N/A N/A 9041098-01 9041098-01 High Temperature Safety Control
13 N/A N/A N/A 9041092-02 9041092-02 Pump Down Control
14 N/A N/A N/A 9151086-01 N/A Crankcase Pressure Requlator
15 N/A N/A N/A 9151123-02 9151123-02 Liquid Line Solenoid Body
16 N/A N/A N/A 9151123-03 9151123-04 Liquid Line Solenoid Coil
17 N/A N/A N/A 9091137-01 9091137-01 Valve-Shut Off
18 N/A N/A N/A 9091001-11 9091001-11 Remote Fitting 3/8 Male
19 N/A N/A N/A 9091001-12 9091001-12 Remote Fitting 1/2 Male
20 N/A N/A N/A 9151139-01 9151139-01 Check Valve
Model Number
ICE0606
9181145-11
Description
Compressor Kit* See Notes Below
Compressor Kit** See Notes Below
*Note ICE0606 Remote Cooled Compressor 9181125-11 is NLA, Reference Service Bulletin 12-0
**Note ICE0606 Remote Cooled Version R6 , Reference Service Bulletin 12-06
Item
No. ICE0305 ICE0405 ICE0605
1 N/A N/A 1051190-01
2 N/A N/A 9151123-01 Hot Gas Valve Body
3 N/A N/A 9151123-04 Hot Gas Valve Coil
4 N/A N/A 9041094-01 Low Pressure Control
5 N/A N/A 9151004-04 Filter Drier
6 N/A N/A 9091086-02 Service Valve Core
7 N/A N/A 9091086-03 Service Valve Cap
8 N/A N/A 9151074-01 Receiver
9 N/A N/A N/A Accumulator
10 N/A N/A 9041091-01 High Pressure Control
11 N/A N/A 9151149-01 Expansion Valve
N/A N/A 9131465-01 Insulation Danfoss Expansion Valve
12 N/A N/A 9041098-01 High Temperature Safety Control
13 N/A N/A 9041092-02 Pump Down Control
14 N/A N/A N/A Crankcase Pressure Requlator
15 N/A N/A 9151123-02 Liquid Line Solenoid Body
16 N/A N/A 9151123-04 Liquid Line Solenoid Coil
17 N/A N/A 9091137-01 Valve-Shut Off
18 N/A N/A 9091001-11 Remote Fitting 3/8 Male
19 N/A N/A 9091001-12 Remote Fitting 1/2 Male
20 N/A N/A 9151139-01 Check Valve
Model Number
9181147-11
Description
Compressor Kit* See Notes Below
Compressor Kit** See Notes Below
*Note ICE0605 Remote Cooled Compressor 9181128-11 is NLA, Reference Service Bulletin 12-0
**Note ICE0605 Remote Cooled Version R6 , Reference Service Bulletin 12-07
Page 11
ICE Series Service Parts Control Box
Page 12
ICE Series Service Parts Control Box
Item
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 9101139-03 9101139-03 9101139-03 9101139-03 9101139-03 Purge Switch
2 9101195-01 9101195-01 9101195-01 9101195-01 9101195-01 ON-OFF-WASH Switch
3 9101083-01 9101083-01 9101083-01 9101083-01 9101083-01 Relay Socket
4 9101084-01 9101084-01 9101084-02 9101084-01 9101084-02 Relay
5 9101218-12 9101218-12 9101218-12 9101218-12 9101218-12 Water Pump Cord
6 9101002-07 9101002-07 9101002-06 9101002-07 9101002-06 Contactor
7 See Page 18 See Page 18 See Page 18 See Page 18 See Page 18 Compressor Start Relay
8 See Page 18 See Page 18 See Page 18 See Page 18 See Page 18 Start Capacitor
9 See Page 18 See Page 18 See Page 18 See Page 18 See Page 18 Run Capacitor
10 9101148-01 9101148-01 9101148-01 9101148-01 9101148-01 Timer
11 9041094-01 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Timer Initiate
12 2061471-03 2061471-03 2061471-03 2061471-03 2061471-03 Curtain Switch Assembly
13 9101124-02 9101124-02 9101124-02 9101124-02 9101124-02 Curtain Switch
Item
No. ICE0305 ICE0405 ICE0605 Description
1 9101139-03 9101139-03 9101139-03 Purge Switch
2 9101195-01 9101195-01 9101195-01 ON-OFF-WASH Switch
3 9101083-01 9101083-01 9101083-01 Relay Socket
4 9101084-02 9101084-02 9101084-02 Relay
5 9101218-12 9101218-12 9101218-12 Water Pump Cord
6 9101002-06 9101002-06 9101002-06 Contactor
7 See Page 18 See Page 18 See Page 18 Compressor Start Relay
8 See Page 18 See Page 18 See Page 18 Start Capacitor
9 See Page 18 See Page 18 See Page 18 Run Capacitor
10 9101148-01 9101148-01 9101148-01 Timer
11 9041094-01 9041094-01 9041094-01 Low Pressure Timer Initiate
12 2061471-03 2061471-03 2061471-03 Curtain Switch Assembly
13 9101124-02 9101124-02 9101124-02 Curtain Switch
Model Number
Model Number
Page 13
ICE Series Service Parts Harvest Assist Assembly
Page 14
ICE Series Service Parts Harvest Assist Assembly
Item
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 3013170-01 3013170-01 3013170-01 3013170-01 3013170-01 Bracket, Probe Motor
2 9161030-01 9161030-01 9161031-01 9161030-01 9161031-01 Gear Motor
3 9131190-01 9131190-01 9131190-01 9131190-01 9131190-01 Clutch Assembly 180 Degree
4 9051001-13 9051001-13 9051001-13 9051001-13 9051001-13 Snap Bushing
5 9051001-03 9051001-03 9051001-03 9051001-03 9051001-03 Snap Bushing
6 9031019-08 9031019-08 9031019-08 9031019-08 9031019-08 #6-32 x 1/2 Fillister Head Screw
7 9051057-01 9051057-01 9051057-01 9051057-01 9051057-01 Connecting Rod
8 9021102-01 9021102-01 9021102-01 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 9031003-03 9031003-03 9031003-03 Plain Flat Washer
10 9031119-01 9031119-01 9031119-01 9031119-01 9031119-01 Shoulder Screw
11 9051519-01 9051519-01 9051519-01 9051519-01 9051519-01 Spacer, Cam Switch
12 9101160-01 9101160-01 9101160-01 9101160-01 9101160-01 Cam Switch
13 9131500-01 9131500-01 9131500-01 9131500-01 9131500-01 Insulator, Switch
14 9031008-44 9031008-44 9031008-44 9031008-44 9031008-44 Pan Head Machine Screw
15 9031120-01 9031120-01 9031120-01 9031120-01 9031120-01 Speed Nut Plate
2061962-01S 2061962-01S 2061962-02S 2061962-01S 2061962-02S Complete Assembly
Model Number
Item
No. ICE0305 ICE0405 ICE0605 Description
1 3013170-01 3013170-01 3013170-01 Bracket, Probe Motor
2 9161031-01 9161031-01 9161031-01 Gear Motor
3 9131190-01 9131190-01 9131190-01 Clutch Assembly 180 Degree
4 9051001-13 9051001-13 9051001-13 Snap Bushing
5 9051001-03 9051001-03 9051001-03 Snap Bushing
6 9031019-08 9031019-08 9031019-08 #6-32 x 1/2 Fillister Head Screw
7 9051057-01 9051057-01 9051057-01 Connecting Rod
8 9021102-01 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 9031003-03 Plain Flat Washer
10 9031119-01 9031119-01 9031119-01 Shoulder Screw
11 9051519-01 9051519-01 9051519-01 Spacer, Cam Switch
12 9101160-01 9101160-01 9101160-01 Cam Switch
13 9131500-01 9131500-01 9131500-01 Insulator, Switch
14 9031008-44 9031008-44 9031008-44 Pan Head Machine Screw
15 9031120-01 9031120-01 9031120-01 Speed Nut Plate
2061962-02S 2061962-02S 2061962-02S Complete Assembly
Model Number
Page 15
ICE Series Service Parts Remote Condenser
Page 16
ICE Series Service Parts Remote Condenser
V
V
R
R
R
Item
No.
1 9131452-01 9131452-01 Fan Guard
2 3013222-01 3013222-01 Top Panel
3 9031019-04 9031019-04 ¼-20 x 1/2 Screw
4 9131451-01 9131451-01 Fan Blade
5 9161117-02 9161117-01 Fan Motor
6 9031001-02 9031001-02 ¼-20 x ¾ Cap Screw
7 9031003-01 9031003-01 Flat Washer
8 9031118-02 9031118-02 Flanged Lock Nut ¼-20
9 9031019-04 9031019-04 ¼-20 x 1/2 Screw
10 3013224-01 3013224-01 Rear Panel
11 3013226-01 3013226-01 Brace
12 3013227-01 3013227-01 Leg
13 3013228-01 3013228-01 Leg Brace
14 N/A N/A T-Nut-Shipping Only
15 3013226-01 3013226-01 Brace
16 3013232-01 3013232-01 Cover Panel
17 3013225-01 3013225-01 Center Panel
18 3013223-01 3013223-01 Front Panel
19 3013234-01 3013234-01 Motor Brace
20 3013233-01 3013233-01 Motor Brace Support
21 3013229-01 3013229-01 Junction Box Cover
22 9151027-07 9151027-06 Head Pressure Control Valve
23 9141135-01 9141135-01 Condenser
24 9151143-01 9151143-01 Filter
25 9091001-12 9091001-12 1/2 Coupling
26 9091001-11 9091001-11 3/8 Coupling
27 9151143-02 9151143-02 Filter
Model Number
RC1001
RC1061 Description
ICE0500
ICE0606
ICE0605
Page 17
ICE Series Service Parts Compressor Components
r
r
Item
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 9181121-01 9181121-01 9181126-01 9181124-01 9181125-01 Compressor
2 9181005-37 9181005-37 9181005-44 9181005-43 Internal Overload
3 9181004-27 9181004-27 9181010-29 9181010-28 9181010-10 Relay
4 9181003-39 9181003-39 9181003-45 9181003-40 9181003-19 Start Capacitor
5 N/A N/A 9181009-08 9181009-11 9181009-16 Run Capacitor
1 9181127-01 9181127-01 9181128-01 Compressor
2 9181005-44 9181005-44 Internal Overload
3 9181010-30 9181010-30 9181010-10 Relay
4 9181003-45 9181003-45 9181003-44 Start Capacitor
5 9181009-08 9181009-08 9181009-17 Run Capacitor
Reference the compressor model number to insure the correct starting components are ordered.
Model Number
Model Number
ICE0305 ICE0405 ICE0605 Description
ICE0606
9181125-01 CS08KQE-PFV-255
ICE0605
9181128-01 CS08KQE-PFZ-255
The following compressors are No Longer Available and have been replace with new kits.
9181125-01 1051189-01 Includes 9181145-11
9181128-01 1051190-01 Includes 9181147-11
Reference the compressor model number to insure the correct starting components are ordered.
ICE0500 ICE0606 Description
9181137-11 9181145-11 Compressor
9181005-45 Internal Overload
9181010-14 9181010-27 Relay
9181003-50 9181003-52 Start Capacitor
9181009-25 9181009-19 Run Capacito
ICE0605 Description
9181147-11 Compressor
Internal Overload
9181010-01 Relay
9181003-54 Start Capacitor
9181009-17 Run Capacito
Page 18
Loading...
