SERVICE PARTS MANUAL

22 INCH WIDE ICE SERIES CUBERS

MODEL-ICE0320A3/W3 and ICE0520A3/W3

Includes 50Hz. Units

ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081356-01 Date 12/06

SERVICE PARTS MANUAL

22 INCH WIDE ICE SERIES CUBERS

MODEL-ICE0320, ICE0520

Includes 50Hz. Units

ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239

Part Number 9081297-01 PD04/02 Rev1/05

ICE0320/0520 Service Parts

This parts list contains the service parts available for the ICE0320A3/W3 and ICE0520A3/W3 icemakers.

Check the model number on the data plate and refer to the correct listing for the specific component.

Check carefully that the correct part is identified and ordered.

Table of Contents Page 1

Cabinet Exterior Page 2

ICE0320/ICE0520 Air Cooled Page 3

ICE0320/ICE0520 Water Cooled Page 4

Evaporator Page 5

Control Box Page 6

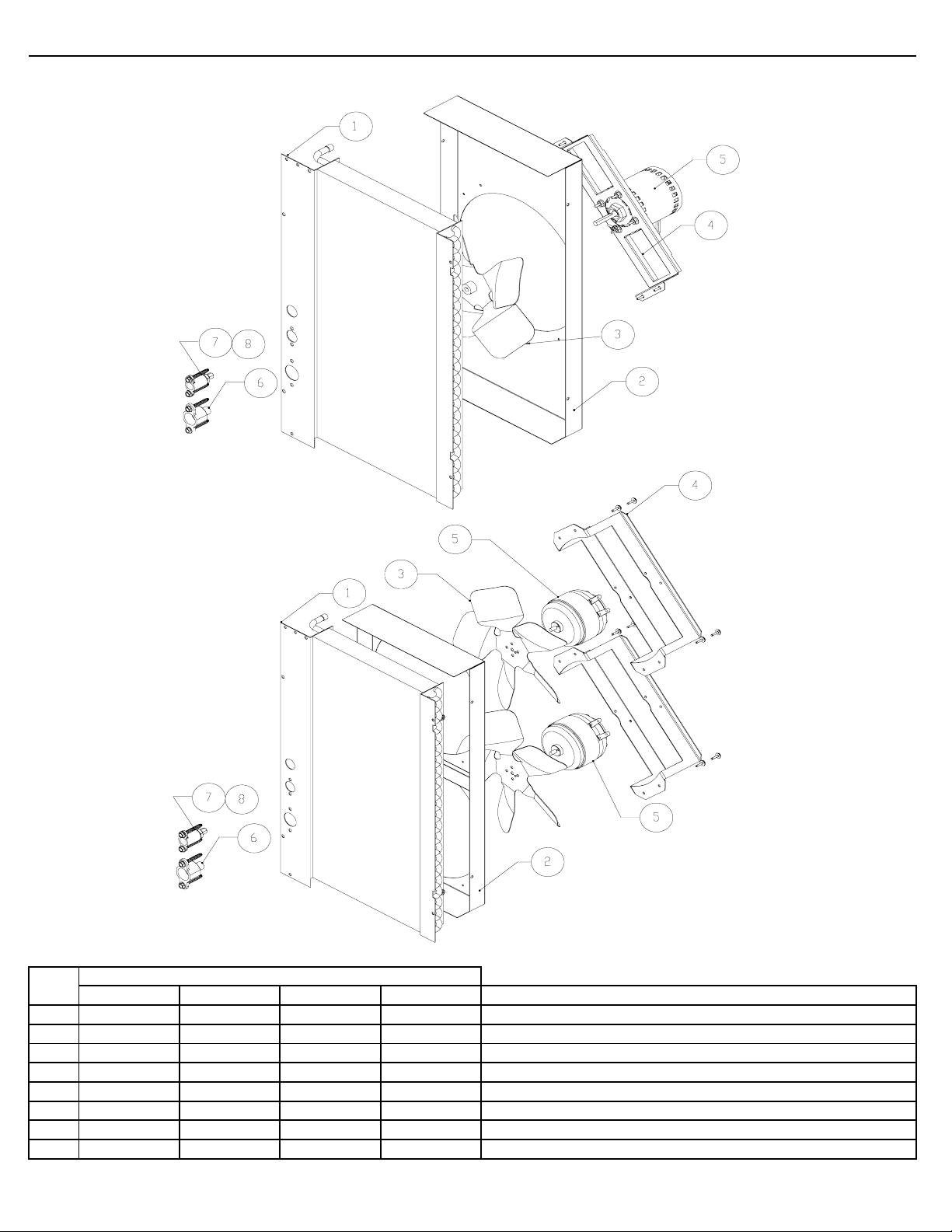

Fan Assemblies Page 7

Harvest Assist Components Page 8

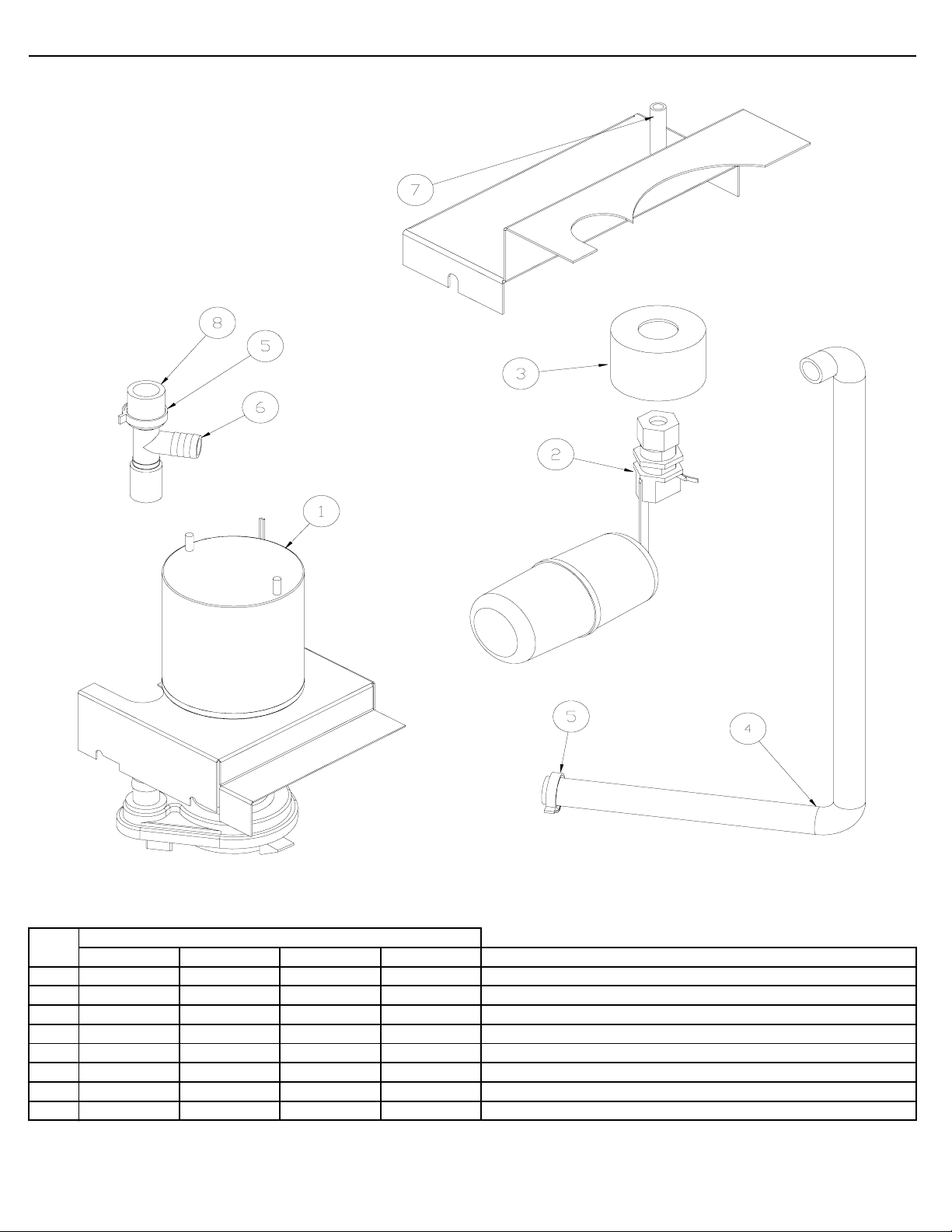

Water Pump/Float Page 9

ICE-O-Matic 11100 East 45th Ave. Denver Co. 80239 800-423-3367

Page 1

ICE0320/0520 Series Service Parts Exterior Panels

Item Stainless Steel Panels

No. ICE0320 ICE0325 ICE0520 ICE0525 Description

1 2031490-01 2031490-01 2031490-01 2031490-01 Front Panel 2 3021831-01 3021831-01 3021831-01 3021831-01

3021862-01 3021862-01 3021862-01 3021862-01 Right Hand Side Panel-Water Cooled Only 3 3021847-01 3021847-01 3021847-01 3021847-01 Top Panel 4 2101330-01 2101330-01 2101330-01 2101330-01 Left Hand Side Panel 5 9031098-03 9031098-03 9031098-03 9031098-03 Front Panel Screw 6 9031046-01 9031046-01 9031046-01 9031046-01 Side Panel Screw 7 3021838-01 3021838-01 3021838-01 3021838-01 Rear Cover Panel

Item Plastic Panels

No. ICE0320 ICE0325 ICE0520 ICE0525 Description

1 2031465-12 2031465-12 2031465-12 2031465-12 Front Panel (Plastic) 2 3021831-01 3021831-01 3021831-01 3021831-01

3021862-01 3021862-01 3021862-01 3021862-01 Right Hand Side Panel-Water Cooled Only 3 3051237-01 3051237-01 3051237-01 3051237-01 Top Panel (Plastic)

9031098-02 9031098-02 9031098-02 9031098-02 Top Panel Screw 4 2101330-01 2101330-01 2101330-01 2101330-01 Left Hand Side Panel 5 9031098-02 9031098-02 9031098-02 9031098-02 Front Panel Screw 6 9031046-01 9031046-01 9031046-01 9031046-01 Side Panel Screw 7 3021838-01 3021838-01 3021838-01 3021838-01 Rear Cover Panel

Model Number

Right Hand Side Panel-

Air Cooled Only
