SERVICE PARTS MANUAL
ICE SERIES CUBERS
MODEL - ICE0250A5-T5-W5, ICE0400A4-T4-W4
MODEL - ICE0500A4-T4-W4-R5, ICE0606A4-T4-W4-R5
Includes 50Hz. Units
ICE-O-Matic 11100 East 45th Ave Denver, Colorado 80239 Part Number 9081355-02 Date 7/08
Table Of Contents
This parts list contains the service parts available for the ICE Series icemakers listed below:
ICE0250 A4, T4 and W4, Includes 50 hz. Models ICE0400 A3, T3 and W3, Includes 50 hz. Models ICE0500 A3, T3, W3 and R4 ICE0606 A3, T3, W3 and R4 Includes 50 hz. Models
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Evaporator/Water System Page 4 - 5
Air Cooled and Top Discharge Page 6 - 7
Water Cooled Page 8 - 9
Remote Page 10 - 11
Control Box Page 12 - 13
Specific Compressor Components Page 13
Harvest Assist Assembly Page 14 - 15
Remote Condenser Page 16 - 17
The ICE Series Service Manual is available separately, Part number 9081270-01
ICE-O-Matic 11100 East 45th Ave. Denver Co. 80239 800-423-3367
ICE Series Service Parts Table Of Contents
This parts list contains the service parts available for the ICE Series icemakers listed below:
ICE0250 A5, T5 and W5, Includes 50 hz. Models ICE0400 A4, T4 and W4, Includes 50 hz. Models ICE0500 A4, T4, W4 and R5 ICE0606 A4, T4, W4 and R5 Includes 50 hz. Models
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Evaporator/Water System Page 4 - 5
Air Cooled and Top Discharge Page 6 - 7
Water Cooled Page 8 - 9
Remote Page 10 - 11
Control Box Page 12 - 13
Specific Compressor Components Page 13
Harvest Assist Assembly Page 14 - 15
Remote Condenser Page 16 - 17
The ICE Series Service Manual is available separately, Part number 9081270-01
Ice-O-Matic 11100 East 45th Ave. Denver Co. 80239 800-423-3367
Page 1
ICE Series Service Parts Cabinet Assembly
Page 2
ICE Series Service Parts Cabinet Assembly
Item Model Number
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 2101425-01 2101425-01 2101425-01 2101425-01 2101425-01 2 2101425-02 2101425-02 2101425-02 2101425-02 2101425-02 3 2031511-01 2031511-01 2031511-01 2031511-01 2031511-01 Front Panel 4 9031098-04 9031098-04 9031098-04 9031098-04 9031098-04 Front Panel Screw 5 9051565-02 9051565-02 9051565-02 9051565-02 9051565-02 Left Hand Side Panel 6 9031141-01 9031141-01 9031141-01 9031141-01 9031141-01 Plastic Nut Insert 7 2101428-01 2101428-01 2101428-01 2101428-01 2101428-01 8 3012681-01 3012681-01 3012681-01 3012681-01 3012681-01 Junction Box Cover
9 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Junction Box Cover Screw 10 9051565-02 9051565-02 9051565-02 9051565-02 9051565-02 11 3021742-01 3021742-01 3021742-01 3021742-01 3021742-01 Rear Panel 12 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Rear Panel Screw 13 3012905-01 3012905-01 3012905-01 3012905-01 3012905-01 Control Box Top Cover 14 3012904-01 3012904-01 3012904-01 3012904-01 3012904-01 Control Box Side Cover 15 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Control Box Screws 16 N/A N/A N/A N/A N/A Machine Compartment Cover (Not Shown) 17 3012855-01 3012855-01 3012855-01 3012855-01 3012855-01 Control Box Front Cover 18 2021677-01 2021677-01 2021677-01 19 2021648-01 2021648-01 2021648-01 2021648-01 2021648-01 Divider Base Assembly 20 2021678-01 2021678-01 2021678-01 2021678-01 2021678-01 Right Hand Frame Side 21 9131181-01 9131181-01 9131181-01 9131181-01 9131181-01 Insulation 22 9131121-04 9131121-04 9131121-04 9131121-04 9131121-04 Insulation 23 9031154-01 9031154-01 9031154-01 9031154-01 9031154-01 Retainer "Christmas Tree Clip" 24 3012724-01 3012724-01 3012724-01 3012724-01 3012724-01 Brace
2021677-01 2021677-01 Left Hand Frame Side
Top Panel-Air Cooled Top Panel-Top Discharge
Right Hand Side Panel-Louvered
Right Hand Side Panel Non-Louvered
Item
No. ICE0305 ICE0405 ICE0605 Description
1 2101425-01 2101425-01 2101425-01 2 2101425-02 2101425-02 2101425-02 3 2031511-01 2031511-01 2031511-01 Front Panel 4 9031098-04 9031098-04 9031098-04 Front Panel Screw 5 9051565-02 9051565-02 9051565-02 Left Hand Side Panel 6 9031141-01 9031141-01 9031141-01 Plastic Nut Insert 7 2101428-01 2101428-01 2101428-01 8 3012681-01 3012681-01 3012681-01 Junction Box Cover
9 9031046-01 9031046-01 9031046-01 Junction Box Cover Screw 10 9051565-02 9051565-02 9051565-02 11 3021742-01 3021742-01 3021742-01 Rear Panel 12 9031046-01 9031046-01 9031046-01 Rear Panel Screw 13 3012905-01 3012905-01 3012905-01 Control Box Top Cover 14 3012904-01 3012904-01 3012904-01 Control Box Side Cover 15 9031046-01 9031046-01 9031046-01 Control Box Screws 16 3012931-01 3012931-01 3012931-01 Machine Compartment Cover (Not Shown) 17 18 2021677-01 2021677-01 2021677-01 Left Hand Frame Side 19 2021648-01 2021648-01 2021648-01 Divider Base Assembly 20 2021678-01 2021678-01 2021678-01 Right Hand Frame Side 21 9131181-01 9131181-01 9131181-01 Insulation 22 9131121-04 9131121-04 9131121-04 Insulation 23 9031154-01 9031154-01 9031154-01 Retainer "Christmas Tree Clip" 24 3012724-01 3012724-01 3012724-01 Brace
3012855-01
Model Number
Top Panel-Air Cooled Top Panel-Top Discharge
Right Hand Side Panel-Louvered
Right Hand Side Panel Non-Louvered
3012855-01 3012855-01 Control Box Front Cover
Page 3
ICE Series Service Parts Evaporator/Water System
Page 4
ICE Series Service Parts Evaporator/Water System
Item Model Number
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 2051156-81 2051148-81 2051148-81 2051148-81 2051148-81 Evaporator Full Cube 1 2051156-82 2051148-82 2051148-82 2051148-82 2051148-82 Evaporator Half Cube 2 2041338-01 2041338-01 2041338-01 2041338-01 2041338-01 Water Distribution Tube 3 9031122-05 9031122-05 9031122-05 9031122-05 9031122-05 Thumb Screw 4 9031004-19 9031004-19 9031004-19 9031004-19 9031004-19 Rubber Washer 5 3012747-01 N/A N/A N/A N/A Curtain Stopper 6 9051136-08 9051136-06 9051136-06 9051136-06 9051136-06 Evaporator Mounting Panel Right Side 7 9051135-04 9051135-04 9051135-04 9051135-04 9051135-04 Evaporator Water Return 8 9051136-07 9051136-05 9051136-05 9051136-05 9051136-05 Evaporator Mounting Panel Left Side
9 9051135-05 9051135-05 9051135-05 9051135-05 9051135-05 Evaporator Spillway 10 9051154-07 9051154-08 9051154-08 9051154-08 9051154-08 Evaporator Splash Curtain 11 9051537-01 9051537-01 9051537-01 9051537-01 9051537-01 Water Return Trough 12 9031046-24 9031046-24 9031046-24 9031046-24 9031046-24 Water Return Trough Screw 13 9131111-01 9131111-01 9131111-01 9131111-01 9131111-01 Float 14 9131026-02 9131026-02 9131026-02 9131026-02 9131026-02 Caplug (Float Deflector) 15 9161076-01 9161076-01 9161076-02 9161076-01 9161076-02 Water Pump 16 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp 17 9021010-04 9021010-04 9021010-04 18 9051142-02 9051142-01 9051142-01 9051142-01 9051142-01 Water Pump Tube 19 3032898-26 3032898-26 3032898-26 3032898-26 3032898-26 Water Float Tubing (26 Inches required) 20 9091083-01 9091083-01 9091083-01 9091083-01 9091083-01 Water Inlet Fitting 21 9091074-01 9091074-01 9091074-01 9091074-01 9091074-01 Drop Adapter 22 9041086-01 9041086-01 9041086-02 9041086-01 9041086-02 Purge Valve 23 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp 24 9051280-11 9051280-11 9051280-11 9051280-11 9051280-11 Purge Drain Hose 25 9021010-03 9021010-03 9021010-03 9021010-03 9021010-03 Clamp 26 9091140-01 9091140-01 9091140-01 9091140-01 9091140-01 Purge Drain Fitting
Item
No. ICE0305 ICE0405 ICE0605 Description
1 2051156-81 2051148-81 2051148-81 Evaporator Full Cube 1 2051156-82 2051148-82 2051148-82 Evaporator Half Cube 2 2041338-01 2041338-01 2041338-01 Water Distribution Tube 3 9031122-05 9031122-05 9031122-05 Thumb Screw 4 9031004-19 9031004-19 9031004-19 Rubber Washer 5 3012747-01 N/A N/A Curtain Stopper 6 9051136-08 9051136-06 9051136-06 Evaporator Mounting Panel Right Side 7 9051135-04 9051135-04 9051135-04 Evaporator Water Return 8 9051136-07 9051136-05 9051136-05 Evaporator Mounting Panel Left Side
9 9051135-05 9051135-05 9051135-05 Evaporator Spillway 10 9051154-07 9051154-08 9051154-08 Evaporator Splash Curtain 11 9051537-01 9051537-01 9051537-01 Water Return Trough 12 13 9131111-01 9131111-01 9131111-01 Float 14 9131026-02 9131026-02 9131026-02 Caplug (Float Deflector) 15 9161076-02 9161076-02 9161076-02 Water Pump 16 9021010-04 9021010-04 9021010-04 Clamp 17 9021010-04 9021010-04 9021010-04 Clamp 18 9051142-02 9051142-01 9051142-01 Water Pump Tube 19 3032898-26 3032898-26 3032898-26 Water Float Tubing (26 Inches required) 20 9091083-01 9091083-01 9091083-01 Water Inlet Fitting 21 22 9041086-02 9041086-02 9041086-02 Purge Valve 23 9021010-04 9021010-04 9021010-04 Clamp 24 9051280-11 9051280-11 9051280-11 Purge Drain Hose 25 9021010-03 9021010-03 9021010-03 Clamp 26 9091140-01 9091140-01 9091140-01 Purge Drain Fitting
Model Number - 50 Cycle Units
9031046-24 9031046-24 9031046-24 Water Return Trough Screw
9091074-01 9091074-01 9091074-01 Drop Adapter
9021010-04 9021010-04 Clamp
Page 5

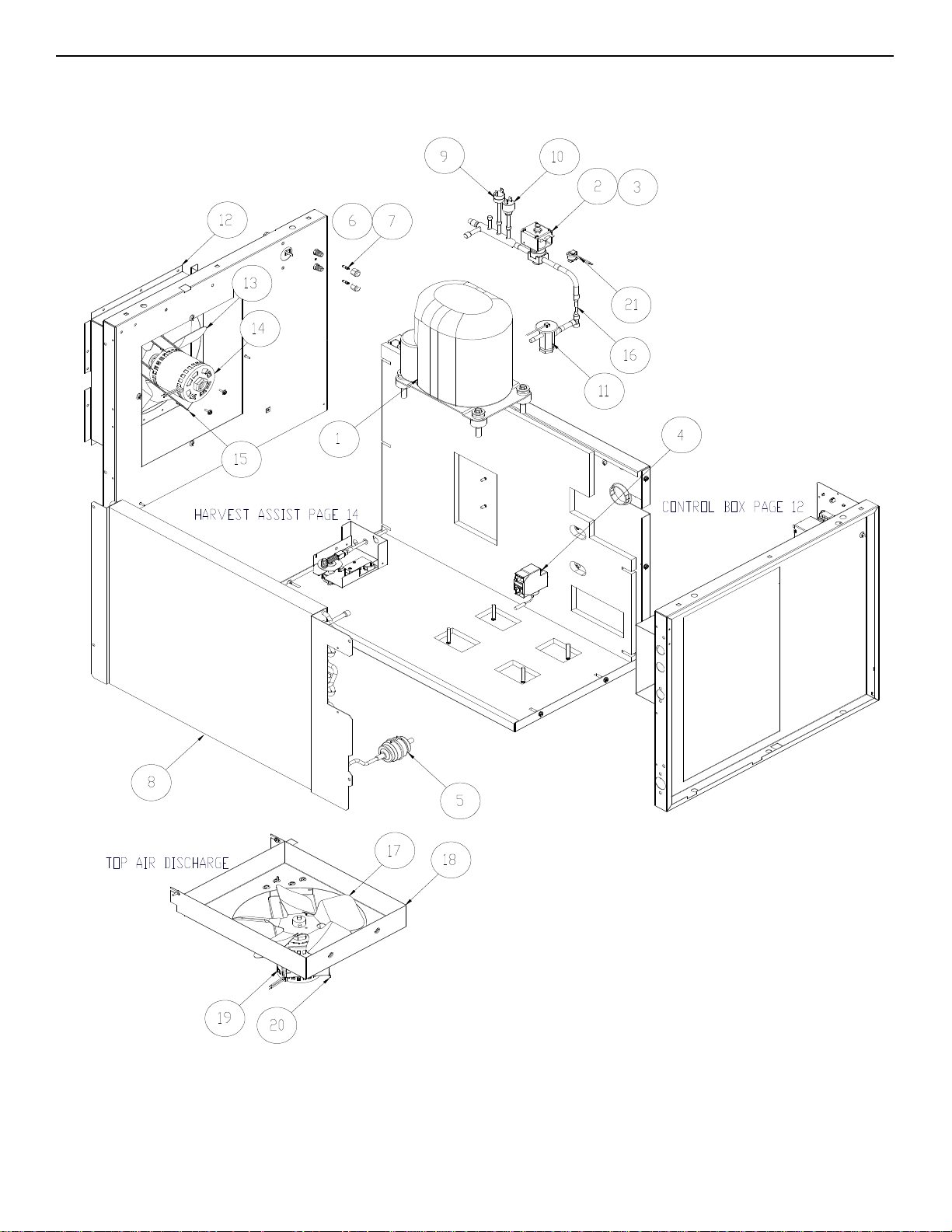

ICE Series Service Parts Air Cooled and Top Discharge
Page 6
ICE Series Service Parts Air Cooled and Top Air Discharge
A
A
A
A
A
A
A
A
Item
No.
10 9041091-01 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control 11 9151154-01 9151149-01 9151149-01 9151149-01 9151151-01 Expansion Valve
12 3013112-01 3013112-01 3013112-01 3013112-01 3013112-01 Fan Shroud 13 9131332-02 9131332-02 9131332-02 9131383-01 9131332-02 Fan Blade 14 9161089-02 9161089-02 9161089-03 9161078-01 9161089-03 Fan Motor 15 3012527-01 3012527-01 3012527-01 3012527-01 3012527-01 Fan Motor Bracket 16 9091136-01 9091136-01 9091136-01 9091136-01 N/A Restrictor 17 9131332-02 9131332-02 9131332-02 9131383-01 9131332-02 Fan Blade (Top Air Discharge) 18 3012725-01 3012725-01 3012725-01 3012725-01 3012725-01 Fan Shroud (Top Air Discharge) 19 9161089-02 9161089-02 9161089-03 9161078-01 9161089-03 Fan Motor (Top Air Discharge) 20 3012527-01 3012527-01 3012527-01 3012527-01 3012527-01 Fan Motor Bracket (Top Air Discharge) 21 9041098-01 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
ICE0250
1 9181121-11 9181121-11 9181126-01 9181124-11 9181125-11 Compressor Kit 2 9151123-01 9151123-01 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body 3 9151123-03 9151123-03 9151123-04 9151123-03 9151123-04 Hot Gas Valve Coil 4 9041094-01 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control 5 9151004-02 9151004-02 9151004-02 9151004-02 9151004-02 Filter Drier 6 9091086-02 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core 7 9091086-03 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap 8 9141106-01 9141106-01 9141106-01 9141120-01 9141120-01 Condenser 9 9041096-01 9041096-01 9041096-01 9041096-01 9041096-01 Fan Control
9131465-01 9131465-01 9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
ICE0400
Model Number
ICE0406
ICE0500
ICE0606
Description
Top Air Discharge Conversion Kit
Item Model Number
No.
1 9181127-11 9181127-11 9181128-11 Compressor Kit
2 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body
3 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil
4 9041094-01 9041094-01 9041094-01 Low Pressure Control
5 9151004-02 9151004-02 9151004-02 Filter Drier
6 9091086-02 9091086-02 9091086-02 Service Valve Core
7 9091086-03 9091086-03 9091086-03 Service Valve Cap
8 9141106-01 9141106-01 9141120-01 Condenser
9 9041096-01 9041096-01 9041096-01 Fan Control 10 9041091-01 9041091-01 9041091-01 High Pressure Control 11 9151154-01 9151149-01 9151149-01 Expansion Valve
12 3013112-01 3013112-01 3013112-01 Fan Shroud 13 9131383-01 9131383-01 9131383-01 Fan Blade 14 9161078-02 9161078-02 9161078-02 Fan Motor 15 2021612-01 2021612-01 3013109-01 Fan Motor Bracket 16 N/A 9091136-01 N/A Restrictor 17 N/A N/A N/A Fan Blade (Top Air Discharge) 18 N/A N/A N/A Fan Shroud (Top Air Discharge) 19 N/A N/A N/A Fan Motor (Top Air Discharge) 20 N/A N/A N/A Fan Motor Bracket (Top Air Discharge) 21 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
ICE0305
9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
ICE0405
ICE0605
Description
Top Air Discharge Conversion Kit
Page 7
ICE Series Service Parts Water Cooled
Page 8
ICE Series Service Parts Water Cooled
W
W
W
W
W
W
W
W
Item Model Number
No.
ICE0250
1 9181121-11 9181121-11 9181126-11 9181124-11 9181125-11 Compressor 2 9151123-01 9151123-01 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body 3 9151023-03 9151023-03 9151123-04 9151023-03 9151123-04 Hot Gas Valve Coil 4 9041094-01 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control 5 9151004-02 9151004-02 9151004-02 9151004-02 9151004-02 Filter Drier 6 9091086-02 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core 7 9091086-03 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap 8 9141061-01 9141023-01 9141023-01 9141024-01 9141024-01 Condenser
9 9041059-01 9041059-01 9041059-01 9041059-01 9041059-01 Water Valve 10 9041091-01 9041091-01 9041091-01 9041091-01 9041091-01 High Pressure Control 11 9151154-01 9151149-01 9151149-01 9151149-01 9151151-01 Expansion Valve
9131465-01 9131465-01 9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
12 9041098-01 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
ICE0400
ICE0406
ICE0500
ICE0606
Description
Item Model Number
No.
1 9181127-11 9181127-11 9181128-11 Compressor 2 9151123-01 9151123-01 9151123-01 Hot Gas Valve Body 3 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil 4 9041094-01 9041094-01 9041094-01 Low Pressure Control 5 9151004-02 9151004-02 9151004-02 Filter Drier 6 9091086-02 9091086-02 9091086-02 Service Valve Core 7 9091086-03 9091086-03 9091086-03 Service Valve Cap 8 9141061-01 9141023-01 9141024-01 Condenser
9 9041059-01 9041059-01 9041059-01 Water Valve 10 9041091-01 9041091-01 9041091-01 High Pressure Control 11 9151154-01 9151149-01 9151149-01 Expansion Valve
12 9041098-01 9041098-01 9041098-01 High Temperature Safety Control
ICE0305
9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve
ICE0405
ICE0605
Description
Page 9
ICE Series Service Parts Remote
Page 10
ICE Series Service Parts Remote
R
R
R
Item
No. ICE0250 ICE0400 ICE0406
1 N/A N/A N/A 9151124-11 9181125-11 Compressor 2 N/A N/A N/A 9151123-01 9151123-01 Hot Gas Valve Body 3 N/A N/A N/A 9151123-03 9151123-04 Hot Gas Valve Coil 4 N/A N/A N/A 9041094-01 9041094-01 Low Pressure Control 5 N/A N/A N/A 9151004-04 9151004-04 Filter Drier 6 N/A N/A N/A 9091086-02 9091086-02 Service Valve Core 7 N/A N/A N/A 9091086-03 9091086-03 Service Valve Cap 8 N/A N/A N/A 9151074-01 9151074-01 Receiver
9 N/A N/A N/A 2091204-01 N/A Accumulator 10 N/A N/A N/A 9041091-01 9041091-01 High Pressure Control 11 N/A N/A N/A 9151149-01 9151151-01 Expansion Valve
N/A N/A N/A 9131465-01 9131465-01 Insulation Danfoss Expansion Valve
12 N/A N/A N/A 9041098-01 9041098-01 High Temperature Safety Control 13 N/A N/A N/A 9041092-02 9041092-02 Pump Down Control 14 N/A N/A N/A 9151086-01 N/A Crankcase Pressure Requlator 15 N/A N/A N/A 9151123-02 9151123-02 Liquid Line Solenoid Body 16 N/A N/A N/A 9151123-03 9151123-04 Liquid Line Solenoid Coil 17 N/A N/A N/A 9091137-01 9091137-01 Valve-Shut Off 18 N/A N/A N/A 9091001-11 9091001-11 Remote Fitting 3/8 Male 19 N/A N/A N/A 9091001-12 9091001-12 Remote Fitting 1/2 Male 20 N/A N/A N/A 9151139-01 9151139-01 Check Valve
Model Number
ICE0500
ICE0606
Description
Item Model Number
No. ICE0305 ICE0405
1 N/A N/A 9181128-11 Compressor 2 N/A N/A 9151123-01 Hot Gas Valve Body 3 N/A N/A 9151123-04 Hot Gas Valve Coil 4 N/A N/A 9041094-01 Low Pressure Control 5 N/A N/A 9151004-04 Filter Drier 6 N/A N/A 9091086-02 Service Valve Core 7 N/A N/A 9091086-03 Service Valve Cap 8 N/A N/A 9151074-01 Receiver
9 N/A N/A N/A Accumulator 10 N/A N/A 9041091-01 High Pressure Control 11 N/A N/A 9151149-01 Expansion Valve
N/A N/A 9131465-01 Insulation Danfoss Expansion Valve
12 N/A N/A 9041098-01 High Temperature Safety Control 13 N/A N/A 9041092-02 Pump Down Control 14 N/A N/A N/A Crankcase Pressure Requlator 15 N/A N/A 9151123-02 Liquid Line Solenoid Body 16 N/A N/A 9151123-04 Liquid Line Solenoid Coil 17 N/A N/A 9091137-01 Valve-Shut Off 18 N/A N/A 9091001-11 Remote Fitting 3/8 Male 19 N/A N/A 9091001-12 Remote Fitting 1/2 Male 20 N/A N/A 9151139-01 Check Valve
ICE0605
Description
Page 11
ICE Series Service Parts Control Box
Page 12
ICE Series Service Parts Control Box
Item
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 9101139-03 9101139-03 9101139-03 9101139-03 9101139-03 Purge Switch 2 9101195-01 9101195-01 9101195-01 9101195-01 9101195-01 ON-OFF-WASH Switch 3 9101083-01 9101083-01 9101083-01 9101083-01 9101083-01 Relay Socket 4 9101084-01 9101084-01 9101084-02 9101084-01 9101084-02 Relay 5 9101218-12 9101218-12 9101218-12 9101218-12 9101218-12 Water Pump Cord 6 9101002-07 9101002-03 9101002-04 9101002-03 9101002-04 Contactor 7 9181004-27 9181010-14 9181004-07 9181010-12 9181010-10 Compressor Start Relay 8 9181003-39 9181003-39 9181003-45 9181003-40 9181003-19 Start Capacitor
9 N/A N/A 9181009-08 9181009-11 9181009-16 Run Capacitor 10 9101148-01 9101148-01 9101148-01 9101148-01 9101148-01 Timer 11 9041094-01 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Timer Initiate 12 2061471-03 2061471-03 2061471-03 2061471-03 2061471-03 Curtain Switch Assembly 13 9101124-02 9101124-02 9101124-02 9101124-02 9101124-02 Curtain Switch
Item
No. ICE0305 ICE0405 ICE0605 Description
1 9101139-03 9101139-03 9101139-03 Purge Switch 2 9101195-01 9101195-01 9101195-01 ON-OFF-WASH Switch 3 9101083-01 9101083-01 9101083-01 Relay Socket 4 9101084-02 9101084-02 9101084-02 Relay 5 9101218-12 9101218-12 9101218-12 Water Pump Cord 6 9101002-04 9101002-04 9101002-04 Contactor 7 9181004-04 9181004-04 9181010-10 Compressor Start Relay 8 9181003-45 9181003-45 9181003-44 Start Capacitor
9 N/A N/A 9181009-17 Run Capacitor 10 9101148-01 9101148-01 9101148-01 Timer 11 9041094-01 9041094-01 9041094-01 Low Pressure Timer Initiate 12 2061471-03 2061471-03 2061471-03 Curtain Switch Assembly 13 9101124-02 9101124-02 9101124-02 Curtain Switch
Model Number
Model Number
Compressor Components
Model Number
ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
9181121-01 9181121-01 9181126-01 9181124-01 9181125-01 Compressor 9181005-37 9181005-37 9181005-44 9181005-43 Internal Overload 9181004-27 9181004-27 9181010-29 9181010-28 9181010-10 Relay 9181003-39 9181003-39 9181003-45 9181003-40 9181003-19 Start Capacitor
N/A N/A 9181009-08 9181009-11 9181009-16 Run Capacitor
Model Number
ICE0305 ICE0405 ICE0605 Description
9181127-01 9181127-01 9181128-01 Compressor 9181005-44 9181005-44 Internal Overload 9181010-30 9181010-30 9181010-10 Relay 9181003-45 9181003-45 9181003-44 Start Capacitor 9181009-08 9181009-08 9181009-17 Run Capacitor
Page 13
ICE Series Service Parts Harvest Assist Assembly
Page 14
ICE Series Service Parts Harvest Assist Assembly
Item
No. ICE0250 ICE0400 ICE0406 ICE0500 ICE0606 Description
1 3013170-01 3013170-01 3013170-01 3013170-01 3013170-01 Bracket, Probe Motor 2 9161030-01 9161030-01 9161031-01 9161030-01 9161031-01 Gear Motor 3 9131190-01 9131190-01 9131190-01 9131190-01 9131190-01 Clutch Assembly 180 Degree 4 9051001-13 9051001-13 9051001-13 9051001-13 9051001-13 Snap Bushing 5 9051001-03 9051001-03 9051001-03 9051001-03 9051001-03 Snap Bushing 6 9031019-08 9031019-08 9031019-08 9031019-08 9031019-08 #6-32 x 1/2 Fillister Head Screw 7 9051057-01 9051057-01 9051057-01 9051057-01 9051057-01 Connecting Rod 8 9021102-01 9021102-01 9021102-01 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 9031003-03 9031003-03 9031003-03 Plain Flat Washer 10 9031119-01 9031119-01 9031119-01 9031119-01 9031119-01 Shoulder Screw 11 9051519-01 9051519-01 9051519-01 9051519-01 9051519-01 Spacer, Cam Switch 12 9101160-01 9101160-01 9101160-01 9101160-01 9101160-01 Cam Switch 13 3051145-02 3051145-02 3051145-02 3051145-02 3051145-02 Insulator, Switch 14 9031008-44 9031008-44 9031008-44 9031008-44 9031008-44 Pan Head Machine Screw 15 9031120-01 9031120-01 9031120-01 9031120-01 9031120-01 Speed Nut Plate
2061962-01S 2061962-01S 2061962-02S 2061962-01S 2061962-02S Complete Assembly
Model Number
Item
No. ICE0305 ICE0405 ICE0605 Description
1 3013170-01 3013170-01 3013170-01 Bracket, Probe Motor 2 9161031-01 9161031-01 9161031-01 Gear Motor 3 9131190-01 9131190-01 9131190-01 Clutch Assembly 180 Degree 4 9051001-13 9051001-13 9051001-13 Snap Bushing 5 9051001-03 9051001-03 9051001-03 Snap Bushing 6 9031019-08 9031019-08 9031019-08 #6-32 x 1/2 Fillister Head Screw 7 9051057-01 9051057-01 9051057-01 Connecting Rod 8 9021102-01 9021102-01 9021102-01 Probe, Single Length
9 9031003-03 9031003-03 9031003-03 Plain Flat Washer 10 9031119-01 9031119-01 9031119-01 Shoulder Screw 11 9051519-01 9051519-01 9051519-01 Spacer, Cam Switch 12 9101160-01 9101160-01 9101160-01 Cam Switch 13 3051145-02 3051145-02 3051145-02 Insulator, Switch 14 9031008-44 9031008-44 9031008-44 Pan Head Machine Screw 15 9031120-01 9031120-01 9031120-01 Speed Nut Plate
2061962-02S 2061962-02S 2061962-02S Complete Assembly
Model Number
Page 15
ICE Series Service Parts Remote Condenser
Page 16
ICE Series Service Parts Remote Condenser
V
V
R
R
R
Item Model Number
No.
1 9131452-01 9131452-01 Fan Guard 2 3013222-01 3013222-01 Top Panel 3 9031019-04 9031019-04 ¼-20 x 1/2 Screw 4 9131451-01 9131451-01 Fan Blade 5 9161117-02 9161117-01 Fan Motor 6 9031001-02 9031001-02 ¼-20 x ¾ Cap Screw 7 9031003-01 9031003-01 Flat Washer 8 9031118-02 9031118-02 Flanged Lock Nut ¼-20
9 9031019-04 9031019-04 ¼-20 x 1/2 Screw 10 3013224-01 3013224-01 Rear Panel 11 3013226-01 3013226-01 Brace 12 3013227-01 3013227-01 Leg 13 3013228-01 3013228-01 Leg Brace 14 N/A N/A T-Nut-Shipping Only 15 3013226-01 3013226-01 Brace 16 3013232-01 3013232-01 Cover Panel 17 3013225-01 3013225-01 Center Panel 18 3013223-01 3013223-01 Front Panel 19 3013234-01 3013234-01 Motor Brace 20 3013233-01 3013233-01 Motor Brace Support 21 3013229-01 3013229-01 Junction Box Cover 22 9151142-02 9151142-02 Head Pressure Control Valve 23 9141130-01 9141130-01 Condenser 24 9151143-01 9151143-01 Filter 25 9091001-12 9091001-12 1/2 Coupling 26 9091001-11 9091001-11 3/8 Coupling 27 9151143-02 9151143-02 Filter
RC1001
RC1061 Description
ICE0500
ICE0606 ICE0605
Page 17
