Installation Manual
GEMU090 Series
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081430-01 / 17-3371-01 Date 9/11
Ice-O-Matic
Parts and Labor
Domestic & International Limited Warranty
Mile High Equipment LLC (the “Company”) warrants Ice-O-Matic brand ice machines, ice dispensers, remote condensers, water filters, and ice storage
bins to the end customer against defects in material and factory workmanship for the following:
Cube ice machines, compressed ice machines and remote
condensers. - Thirty-six (36) months parts and labor
Flake ice machines, GEMD Maker Dispensers, and GEMU
Undercounter compressed ice machines - Twenty-four (24)
months parts and labor
CD model dispensers - Thirty-six (36) months parts and
labor
An additional twenty-four (24) month warranty on parts (excluding labor) will be extended to all cube ice machine evaporator plates and all cube ice and
compressed ice machines, except GEMU machines, compressors from the date of original installation. An additional thirty-six (36) month warranty on
parts (excluding labor) will be extended to all flake ice machine and GEMD maker dispenser compressors from the date of original installation The
company will replace EXW (Incoterms 2000) the Company plant or, EXW (Incoterms 2000) the Company-authorized distributor, without cost to the
Customer, that part of any such machine that becomes defective. In the event that the Warranty Registration Card indicating the installation date has
not been returned to Ice-O-Matic, the warranty period will begin on the date of shipment from the Company. Irrespective of the actual installation date,
the product will be warranted for a maximum of seventy-two (72) months from date of shipment from the Company.
ICE-model cube ice machines which are registered in the Water Filter Extended Warranty Program will receive a total of eighty-four (84) months parts
and labor coverage on the evaporator plate from the date of original installation. Water filters must be installed at the time of installation and registered
with the Company at that time. Water filter cartridges must be changed every six (6) months and that change reported to the Company to maintain the
extended evaporator warranty.
No replacement will be made for any part or assembly which (I) has been subject to an alteration or accident; (II) was used in any way which, in the
Company’s opinion, adversely affects the machine’s performance; (III) is from a machine on which the serial number has been altered or removed; or,
(IV) uses any replacement part not authorized by the Company. This warranty does not apply to destruction or damage caused by unauthorized service,
using other than Ice-O-Matic authorized replacements, risks of transportation, damage resulting from adverse environmental or water conditions,
accidents, misuse, abuse, improper drainage, interruption in the electrical or water supply, charges related to the replacement of non-defective parts or
components, damage by fire, flood, or acts of God.
This warranty is valid only when installation, service, and preventive maintenance are performed by a Company-authorized distributor, a Compa nyauthorized service agency, or a Company Regional Manager. The Company reserves the right to refuse claims made for ice machines or bins used in
more than one location This Limited Warranty does not cover ice bills, normal maintenance, after-install adjustments, and cleaning.
Limitation of Warranty
This warranty is valid only for products produced and shipped from the Company after March 1, 2010. A product produced or installed before that date
shall be covered by the Limited Warranty in effect at the date of its shipment. The liability of the Company for breach of this warranty shall, in any case,
be limited to the cost of a new part to replace any part, which proves to be defective. The Company makes no representations or warranties of any
character as to accessories or auxiliary equipment not manufactured by the Company. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER. MILE HIGH EQUIPMENT SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON
THIS PRODUCT IS LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.
Filing a Claim
All claims for reimbursement must be received at the factory within 60 da ys from date of service
time period will be void. The model, the serial number and, if necessary, proof of installation, must be included in the claim. Claims for labor to
replace defective parts must be included with the part claim to receive consideration. Payment on claims for labor will be limited to the published labor
time allowance hours in effect at the time of repair. The Company may elect to require the return of components to validate a claim. Any defective part
returned must be shipped to the Company or the Company-authorized distributor, transportation charges pre-paid, and properly sealed and tagged. Th e
Company does not assume any responsibility for any expenses incurred in the field incidental to the repair of equipment covered by this warranty. The
decision of the Company with respect to repair or replacement of a part shall be final. No pe rson is authorized to give any oth er warranties or to assume
any other liability on the Company’s behalf unless done in writing by an officer of the Company.
GOVERNING LAW
This Limited Warranty shall be governed by the laws of the state of Delaware, U.S.A., excluding their conflicts of law principles. The United Nations
Convention on Contracts for the International Sale of Goods is hereby excluded in its entirety from application to this Limited Warranty.
Mile High Equipment LLC, 11100 East 45
Ice storage bins -Twenty-four (24) month parts and labor
IOD model dispensers - Twenty-four (24) months parts, Twelve (12) months
labor
Water filter systems - Twelve (12) months parts and labor (not including filter
cartridges)
to be eligible for credit. All claims outside this
th
Avenue, Denver, Colorado 80239 (303) 371-3737
August 2011
GEMU090
Installation and Use
Introduction
This manual includes information for the
installation, operation and maintenance of the
GEMU090 residential ice machine.
The GEMU090 was developed to offer fans of
Ice-O-Matic’s Pearl Ice form the ability to have that
ice in their homes. Previously pearl Ice was only
available in commercial establishments, where it
developed a strong following because of the
chewable nature of the ice. This machine makes
authentic pearl ice, using the same process as the
larger commercial machines.
Table of Contents
Product Description: ...........................................Page 2
Cabinet Dimensions ...........................................Page 3
Location Recommendations: .......................................Page 4
Familiarization ..............................................Page 5

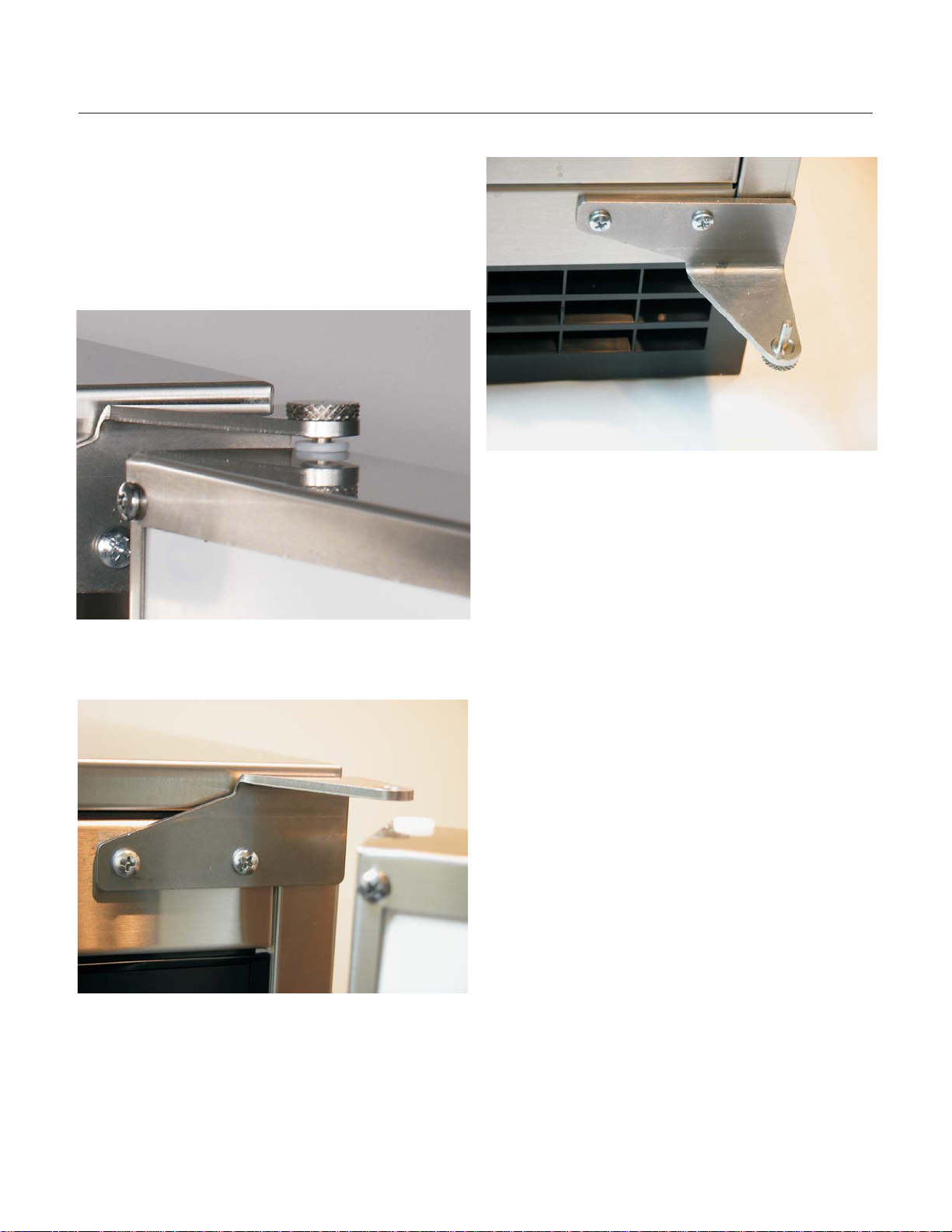

Door Swing ................................................Page 6

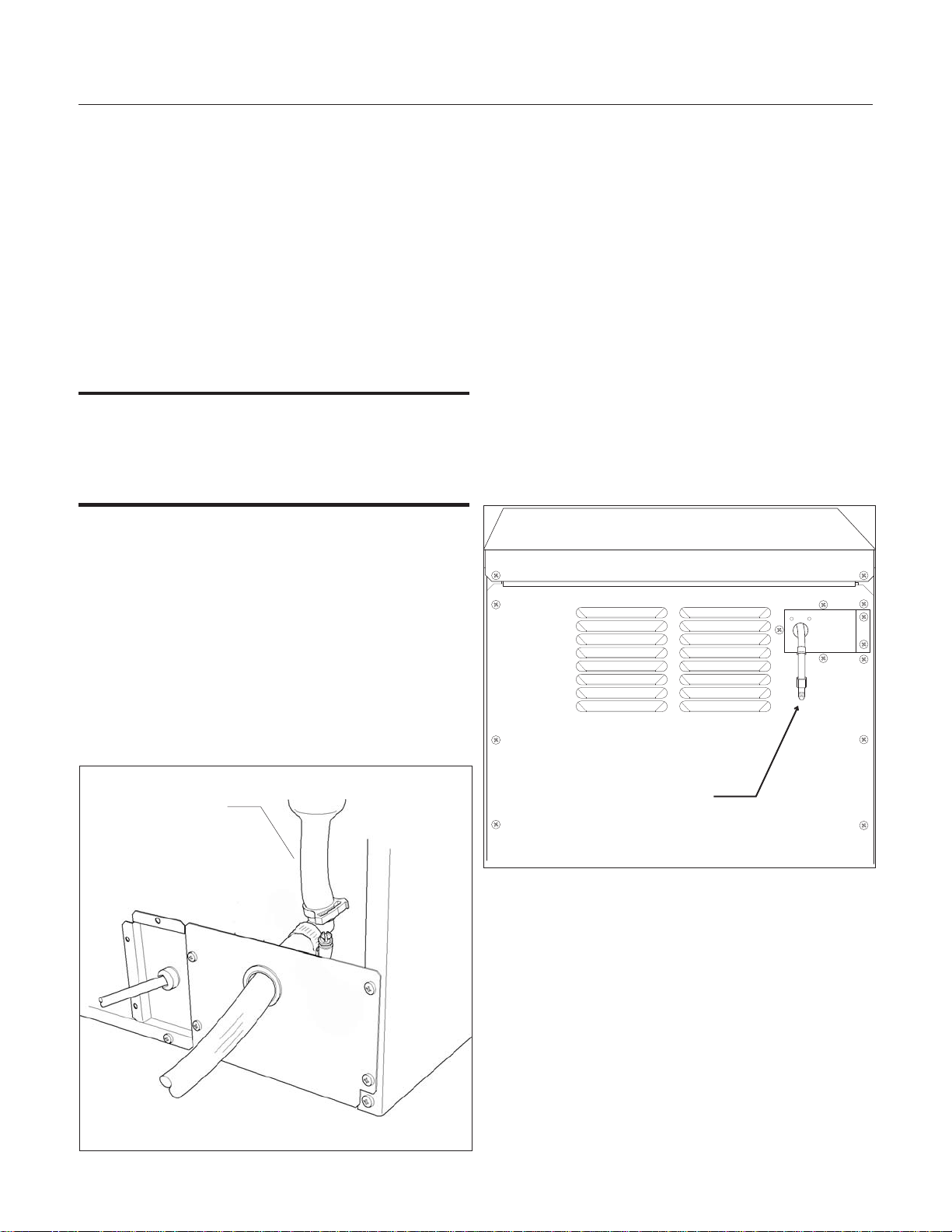

Plumbing - Pump Model .........................................Page 7
Plumbing: Gravity Drain Model ......................................Page 8
Electrical and Start Up ..........................................Page 9
Use....................................................Page 10
Maintenance ...............................................Page 11
How to remove scale from the ice making system. ...........................Page 12
Outdoor Use Notice:
Keep from freezing. Severe damage will occur to the unit if left in or operated in temperatures beyond
the limits listed in this manual. That damage is NOT covered by warranty.
Keep dry
Provide Shade
ultraviolet radiation from the sun can potentially damage the unit's plastic components.
. Do not locate in low lying areas where puddles will accumulate.
: Heat gain from the sun will reduce the unit's ability to make and store ice, and
Water Supply
should be rated for potable water and include UV protection. Copper tubing is recommended.
Back Flow Prevention
Drainage
: Avoid a long run of hose or tubing exposed to the sun. Plastic water supply tubing
: The unit includes back flow prevention, no additional check valve is required.
: Do Not drain into swimming pool or onto grounds.
Page 1
GEMU090
Installation and Use
Product Description:
This ice machine is designed to be used indoors, in
a controlled environment or outdoors within certain
limits.
The GEMU090 is made up of two major systems:
the ice making system and the ice storage system.
The ice making system is a continuous flow type
ice machine, it makes ice when the ice level
becomes low and stops when it is full.
The ice storage system is an insulated chest with a
drain at the bottom for melting ice. It is not
refrigerated, insuring that the bin contains fresh ice.
Installation Information
Dimensions:
The cabinet is fourteen and seven eighths inches
wide by thirty three and three eighths to thirty four
and three eighths inches high.
Utility and Operational Requirements
• The GEMU090 must be connected to a
potable water supply.
•
The water supply must have a conductivity of
at least 10 microSiemens/cm.
•
Minimum water pressure: 20 psi
•
Maximum water pressure: 80 psi
•
Minimum water temperature: 40 degrees F.
•
Maximum water temperature: 90 degrees F.
Water Quality
The water to the machine must be potable, or fit for
human consumption. Beyond that, water supplies
vary in the degree of mineral content. As this ice
machine makes ice, all the water that flows into the
machine is changed into ice. That includes any
minerals that might be in the water. However,
during ice making some minerals will stick to the
ice making components. The higher the mineral
content, the more mineral build up will occur. Water
filters are a partial help, as they will remove the
suspended solids, but water treatment is needed
for the dissolved solids, which are part of the water
and cannot be filtered out.
RO Water
This machine can be supplied with Reverse
Osmosis water, but the water conductivity must be
no less than 10 microSiemens/cm. A reverse
osmosis system should include post treatment or
blending to satisfy the R.O. water’s potential
aggressiveness.
Deionized water is not recommended and could
damage the machine.
Because water softeners exchange one mineral for
another, softened water may not improve water
conditions when used with ice machines
Electrical power
It is designed to operate in wide range of air
temperatures:
•
Minimum air temperature: 50 degrees F.
•
Maximum air temperature: 100 degrees F.
Although the machine will function within the listed
ranges, it works best at water temperatures
between 50 and 60 and air temperatures between
60 and 80.
Note: Ice making capacity goes down as the
environmental temperatures go up, and will be
severely reduced at temperatures over 90
Operating a unit outside of the limits can cause
problems that are not covered by the warranty and,
if extreme, cause damage to the unit.
o
F.
Page 2
The unit must be on its own 115 volt, 60 Hz, 15
amp circuit. It is equipped with a power cord and
can be plugged into a nearby outlet. Extension
cords are not allowed by most codes. Follow all
applicable codes.
Warranty Information
Warranty information is supplied on the inside front
cover of this manual. Refer to it for coverage. In
general, the warranty covers defects in materials or
workmanship and does not cover corrections of
installation errors or maintenance.
GEMU090
14 7/8"
AIR OUT
AIR IN
3 7/8"
20 3/4"
FLOOR DRAIN
ACCESS HOLE
1"
LEG ADJUSTMENT
(4) PLACES
1 5/8"
HANDLE
33 3/8" MIN.
34 3/8" MAX.
3 1/4"
3 7/8"
22 3/8"
3/4"
29 1/2"
LEFT SIDE SVC.
ACCESS PANEL
2 3/4"
5 1/8"
7 1/2"
2 1/2"
11 5/8"
1/4" O.D. COPPER
WATER INLET COMPRESSION
FITTING PROVIDED
115V
POWER
CORD
DRAIN ACCESS - FLEXIBLE TUBING
3/8" I.D. PUMP MODEL (INCLUDED)
5/8" I.D. GRAVITY MODEL (NOT INCLUDED)
Installation and Use
Cabinet Dimensions
Ice-O-Matic Ice Systems are designed and manufactured with the highest regard for safety and
performance. They meet or exceed the standards of agencies like ETL.
Ice-O-Matic assumes no liability or responsibility of any kind for products manufactured by Ice-O-Matic
that have been altered in any way, including the use of any parts and/or other components not
specifically approved by Ice-O-Matic.
Ice-O-Matic reserves the right to make design changes and/or improvements at any time. Specifications
and designs are subject to change without notice.
Page 3
GEMU090
Installation and Use
Location Recommendations:
The machine can be built into a cabinet. It is an air
cooled refrigeration system and so air flows in and
out of it through the grill at the bottom front. The
grill must not be blocked by any covering door or
other obstruction.
Drain Conversion: A gravity drain model can be
converted to a drain pump model by installing a
drain pump kit. The drain pump kit consists of a
drain pump, wiring harness and associated tubing.
The part number is KPU090.
Installation Notes
Built In Situations: If a finished floor is to be
installed in the area after the ice machine has been
built in, shims the expected thickness of the floor
should be installed under the unit to keep the
machine level with the planned floor level.
Note: The water connection is at the back and adds
a few inches to the cabinet depth. Minimum
clearance is 0 in. at the top, 2 in. at the rear and
1/8 in. at each side.
Installations on a slab: Use a pump model and
pump the water to the point of drainage. Pump
models will pump 1 story (10 feet) high.
Warm Air Out
The machine is a gravity drain model and must
have a building drain connection below the level of
the drain tube at the back of the cabinet. An
optional field installed drain pump kit is available
which can force drain water up a maximum of 10
feet, allowing it to be located where a gravity drain
isn’t available.
Kickplate Extension: In some situations the leg
levelers will be extended enough to become visible.
A kit to extend the kickplate over the legs is KKPF.
Cabinet Stability: In some free standing
installations it may be prudent to add a bracket that
secures the back of the cabinet to a wall. That kit
number is KATB.
Air Intake
Installations over a crawl space or basement:
Either gravity drain or pump model units may be
used, if there is not enough room behind the
machine for a drain/waste receptacle, the drain will
have to be below the floor.
Note: When installed in a corner, the door swing
may be limited due to handle contact with the wall
or cabinet face.
All models require a water supply. Water supplies
vary in the degree of mineral content. High mineral
content water will require more frequent
maintenance. Water filtration may improve the
taste of the ice as well as cut down on some of the
mineral build up.
Page 4
GEMU090
Ice
Making
Check
Water
Time to
Clean
Clean
Reset
Ice
Making
Check
Water
Time to
Clean
Clean
Reset
Installation and Use
Familiarization
The control panel is visible when the door is
opened. It has three indicator lights and two
switches.
The model and serial number plate is located on
the bottom of the control panel box. The Bin Light
and Ice Level Sensor are also visible from that
angle, as is the Ice Chute.
Control Panel
Serial Plate
The Scoop Holder is located on the right side of the
ice storage bin. The normal ice level is about level
with the scoop holder.
Ice Level
Control
Sensor
Serial Number Plate
Scoop Holder
Page 5
GEMU090
Installation and Use
l
Door Swing
The door can be attached to open with hinges on
the left or right. Retain all screws for re-use.
To change:
1. Remove top hinge pin from hinge.
6. Remove original bottom hinge.
7. Remove two plugs or screws from upper
cabinet bracket.
8. Attach bottom hinge to upper cabinet bracket
using the original screws.
2. Tilt top of door away from cabinet and lift door
off bottom hinge.
3. Remove two screws and top hinge.
9. Place the door on bottom hinge, tip up to slide
under top hinge.
10. Insert hinge pin into top hinge and door.
11. Tighten hinge pin.
12. Replace screws or plugs into holes left by
hinges.
13. Check action and swing of door.
13. Return kickplate and front service panel to their
original positions and attach to the cabinet using
the original screws.
4. Remove plugs or screws from lower cabinet
bracket
5. Attach top hinge to lower cabinet bracket using
original screws.
Page 6
GEMU090
Installation and Use
Plumbing - Pump Model
Drains
There are two types of ice machine models, one
that drains by gravity and one that has an internal
drain pump.
Drain Pump Model drain installation
1. Locate the coil of 3/8” ID plastic drain tubing
secured to the back of the unit.
2. Route the plastic drain tube from the back of the
unit to the drain connection point.
The drain connection point can be as high as 10
feet above the ice machine. The drain pump
includes a check valve to prevent re-pumping
water in the drain hose.
IMPORTANT NOTE: Often an air gap is required
by local codes between the ice maker drain tube
and the drain receptacle.
Water Supply
The recommended water supply tubing is ¼ inch
OD copper. Stainless steel flex or reinforced PCV
tube may also be used. Install an easily accessible
shut-off valve between the supply and the unit. This
shut-off valve should not be installed behind the
unit.
The water connection is at the back of the cabinet.
Connect using a compression fitting, one is
supplied tied to the water inlet tube. When built in:
Coil enough tubing behind the machine so it can be
pushed into the cavity without kinking the tubing.
Pump Drain
Discharge
Tubing
Connect
Water Supply
Here
Page 7
GEMU090
Installation and Use
Plumbing: Gravity Drain Model
Caution: Restrictions in the drain system to the
machine will cause water to back up into the ice
storage bin and melt the ice. Gravity drain tubing
must be vented, have no kinks and slope to the
building drain. Air gaps are typically required by
local code.
1. Place the ice machine in front of the installation
opening. Adjust leveling legs to the approximate
height.
2. Remove the upper back panel if needed for
access to the drain fitting.
Note: If you are connecting a gravity drain model
and the drain opening has been located in the floor
under the base pan according to the pre install
specifications, follow steps 3 through 5 to drain the
unit through the base. If not, proceed to step 6b.
3. Remove the clamp and barbed elbow and take
off the plastic cover in the base pan below the drain
hose.
clamp. Leave the other end of the tube lying on the
floor of the base pan until the unit is positioned
over the floor drain.
6. Route the drain tube. Either a) Insert the drain
tube through the base pan into the floor drain or b)
Route the drain tube through the hole in the lower
back panel and connect to barbed elbow and
secure with a clamp.
7. Reinstall the upper back panel.
Water Supply
The recommended water supply tubing is ¼ inch
OD copper. Stainless steel flex or reinforced PCV
tube may also be used. Install an easily accessible
shut-off valve between the supply and the unit. This
shut-off valve should not be installed behind the
4. Connect a straight 5/8” barbed connector to the
drain hose, securing with the clamp removed in
step 3.
5. Cut an 8” piece of 5/8” ID X 7/8” OD tygon (clear
plastic) tubing. Slide one end of the tube onto the
outlet of the barbed connector and secure with a
Drain Tubing
Inside Cabinet
Connect
Water Supply
Here
unit.
The water connection is at the back of the cabinet.
Connect using a compression fitting, one is
supplied tied to the water inlet tube.
When built in: Coil enough tubing behind the
machine so it can be pushed into the cavity without
kinking the tubing.
Page 8
GEMU090
Installation and Use
Electrical and Start Up
The ice machine is supplied with a power cord. Do
not remove the grounding pin from the cord’s plug.
Do not use extension cords. Follow all codes.
Connect the machine to its own 115 volt, 15 amp
circuit.
1. If the electrical outlet for the ice maker is behind
the unit, plug in the unit.
2. Position the unit in the installation opening.
3. Turn on the water supply. Make sure that the ice
maker is plugged in and the power is on.
4. Slide unit into installation opening, paying careful
attention to water supply and drain connections. Do
not kink!
5. Pour a couple of quarts of water into the ice
storage bin; on drain pump equipped machines the
drain pump should start and water should pump
out. Check for leaks.
6. Replace the service access panel.
7. Level the unit as needed.
Installation check list:
1. Has the unit been connected to the proper water
supply?
2. Has the water supply been checked for leaks?
3. Has the unit been connected to a drain?
4. Has the drain been tested for flow and leaks?
5. Has the unit been connected to the proper
electrical supply?
6. Has the unit been leveled?
7. Have all packing materials been removed from
the machine?
8. Has the door covering been installed?
Initial Start Up
1. Turn on the water supply and check for leaks.
2. Switch on the electrical power.
3. Push and release the On/Off switch to start the
machine. The Ice Making light next to the On/Off
switch will glow Green.
Warm air will flow out of the left front grill.
It will take about 10 minutes for the ice machine to
begin dropping pearl ice into the storage bin. It is
normal for that ice to melt and ice will continue to
melt, but at a slower rate. It will take about6-7
hours to fill up the ice storage bin. The bin holds
about 20 lb of ice when full.
Ice level control
The ice level control for the GEMU090 is an
ultrasonic sensor, located above the ice storage
area. It is automatic and there is no adjustment to
make. When ice melts or is used, and the ice level
drops below a preset distance the control turns the
ice making system back on. It makes ice until the
preset level is reached. Placing your hand in the
unit to remove ice does not affect the ice level.
Page 9
GEMU090
Installation and Use
Use
No special instructions are needed for use. Just
take as much ice as you need, the machine will
replace it. A scoop is provided, and it can be stored
in the machine using the loop of tubing on the right
side as a holder.
The machine can be shut off anytime by just
pushing and releasing the On/Off button.
What shouldn’t be done?
Never keep anything in the ice storage bin that is
not ice. Objects like wine or beer bottles are not
only unsanitary, but the labels can slip off and plug
up the drain.
Never allow the machine to operate without regular
cleaning. The machine will last longer if it is kept
clean. Regular cleaning should happen at least
once per year, and preferably twice. Some water
conditions will dictate even more frequent cleaning
of the ice making section, and some carpets or
pets will dictate more frequent cleaning of the
condenser.
Noise:
The ice machine is designed for quiet operation,
but will make some noise during the ice making
cycle.
Ice Making
During ice making, pearl ice will drop into the bin at
an irregular rate; sometimes there will be little ice
falling while at other times a group of pearls will fall.
Some water drops may also come out with the ice.
Both conditions are normal.
Note: The Time to Clean light will switch ON after 6
months of use. It will remain ON until the ice
making system is cleaned using the process on
page 14.
Glows Green when
unit is switched On
On/Off Control Button
Glows Red when there is no water
supplied to the machine
The machine will NOT make ice
when this light is on. It will restart
and the light will go out when the
water supply is restored.
Glows Yellow when
it's time to clean the
machine
Clean Button
Control Panel
Page 10
GEMU090
Installation and Use
Maintenance
Ice-O-Matic strongly recommends regular
maintenance of this ice machine. During normal
operation mineral scale that is in the water supply
will gradually build up on the ice making surfaces.
That build up can cause excessive loading of the
ice making system, which can cause premature
failure. Regular removal of the mineral scale will
lengthen the product’s life.
Suggested maintenance schedule: every 6 months.
Type of maintenance: Scale removal, water seal
check, water reservoir check, bin drain check, air
cooled condenser cleaning and storage bin
sanitation.

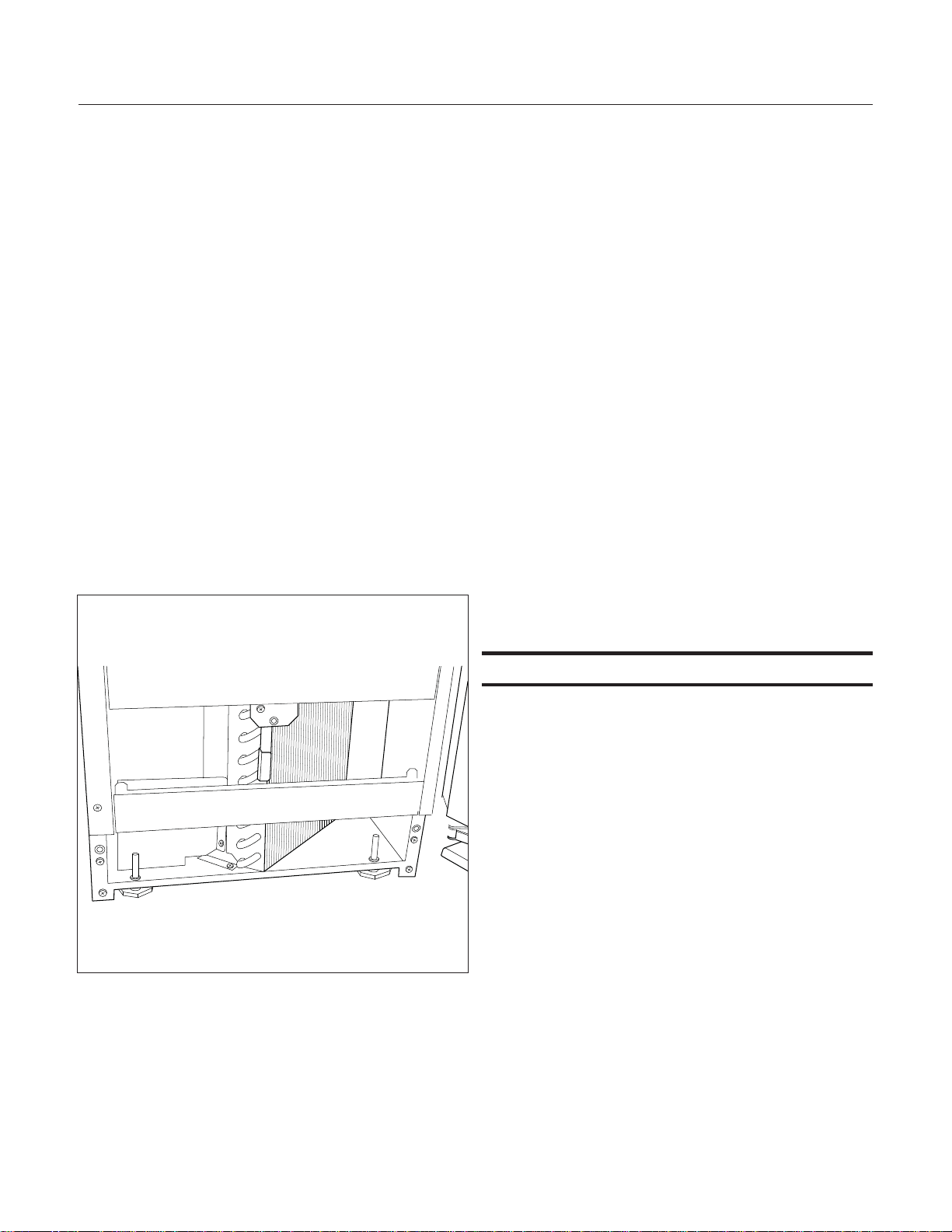

Condenser cleaning
The condenser is like the radiator on a car, it has
fins and tubes that can become clogged with dirt
and lint. To clean:
1. Remove the kickplate and front service panel.
4. Return the kickplate and front service panel to
their original positions. Fasten them to the cabinet
using the original screws.
Winterizing
1. Clean the ice making system per the instructions
in the Maintenance section.
2. Open the door and push and release the On/Off
switch to turn the machine off.
3. Turn off the water supply.
4. Remove the back wall of the ice storage bin.
5. Remove drain plug and drain the water reservoir,
return plug to its original position.
6. Drain pump models should have about 1/2
gallon of RV antifreeze (propylene glycol) poured
into the ice storage bin drain.
2. Locate the condenser surface.
3. Vacuum the surface, removing all dust and lint.
Caution: Do not dent the fins.
Note: Automotive antifreeze must NOT be used.
7. Switch off and unplug the machine.
Page 11
GEMU090
Ice
Making
Check
Water
Time to
Clean
Clean
Reset
Ice
Making
Check
Water
Time to
Clean
Clean
Reset
Installation and Use
How to remove scale from the ice making system.
Cleaning this machine involves adding a solution of
scale remover and water to the ice machine and
continuing to add it as it makes ice. The scale
remover must be diluted to the correct ratio. A
squirt bottle will make adding the scale remover
much easier when the unit is built in. If not built in,
remove the top panel for reservoir access.
Recommended tools: Rubber gloves, squirt bottle
& scale remover. Pre-Mixed 16 oz squirt bottle of
scale remover is part number PMC090.
1. Scoop out and discard all of the ice.
Float Valve
On/Off Lever
Reservoir Cover
Release Tab
2. Press and release the On/Off button.

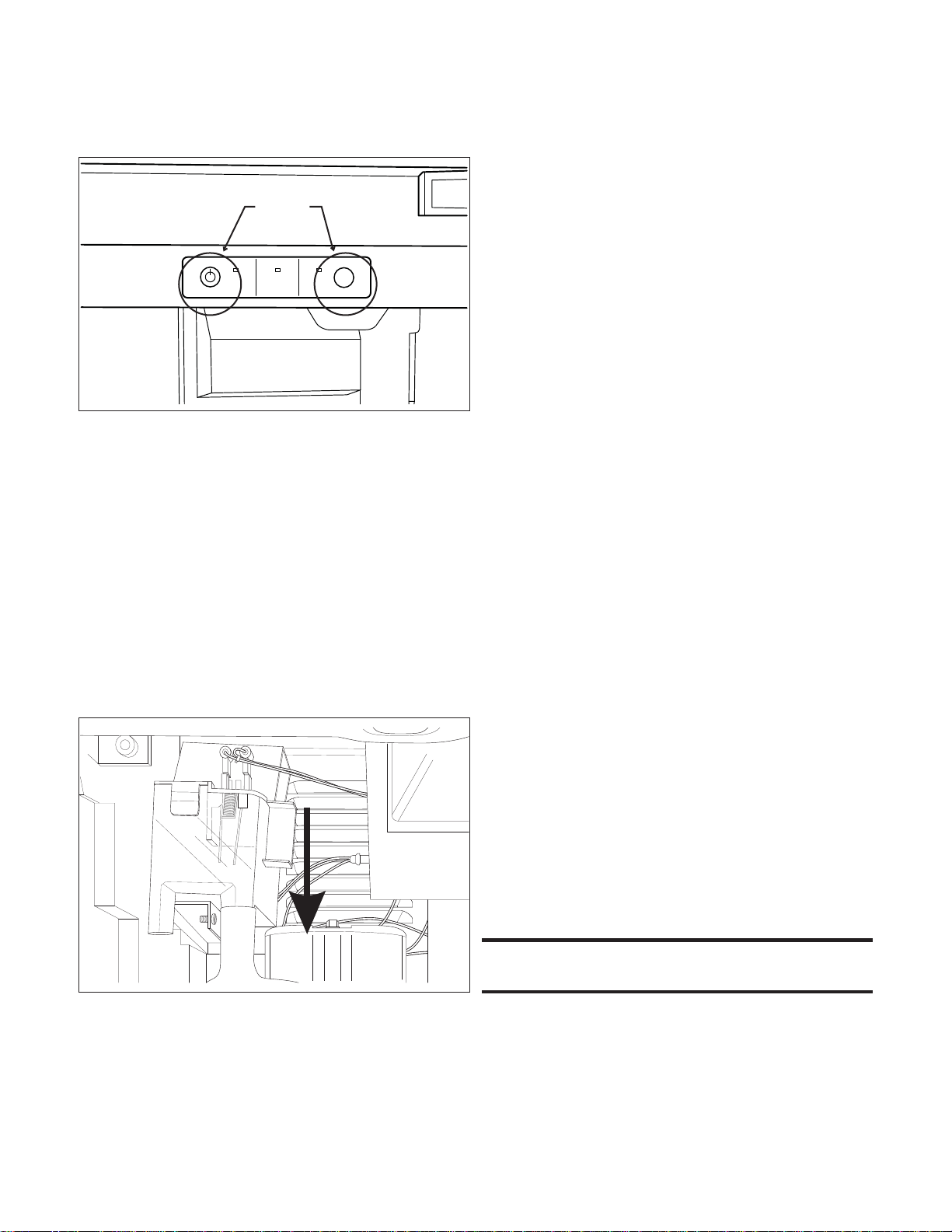

3. Open door and locate screws at upper back wall
of bin. Remove the two screws.
5. Push tab on front edge of reservoir cover and
remove the cover. Note: Adjacent wires are low
voltage and are not hazardous.
Push In Tab to Release Cover
Screws
4. Remove the back wall of the bin by lowering it
down past the scoop holder, feel free to rotate the
scoop holder loop down to make more room.
Lift Reservoir Cover to Remove
Page 12
GEMU090
Ice
Making
Check
Water
Time to
Clean
Clean
Reset
Ice
Making
Check
Water
Time to
Clean
Clean
Reset
Ice
Making
Check
Water
Time to
Clean
Clean
Reset
Installation and Use
6. Locate blue float valve on/off lever. Move lever
up about half way to shut water off.
7. Locate drain plug and pull the drain plug out to
drain the reservoir and evaporator. When draining
is complete, return the plug to its original position.
8. Obtain pre-mixed Ice-O-Matic Clear 1 Scale
remover solution (with squirt bottle) or mix a
solution of Clear 1 with water: 2.5 ounces of Clear
1 with 1 quart (32 oz) of warm water.
Ice machine scale
remover contains acids.
Acids can cause burns.
If concentrated cleaner
comes in contact with
skin, flush with water. If
swallowed, do NOT
induce vomiting. Give
large amounts of water
or milk. Call Physician
immediately. Keep out
of the reach of children.
Note: Take care not to spill any scale remover on
any nearby surface. Immediately wipe any spill with
baking soda and water.
Drain Plug
Drain Plug
9. Fill the 16 oz squirt bottle with the diluted scale
remover.
10. Fill the reservoir with the scale remover solution
using squirt bottle or other container. That will be
about 8 ounces or half a squirt bottle.
Fill Reservoir Using Squirt Bottle
Page 13
GEMU090
Ice
Making
Check
Water
Time to
Clean
Clean
Reset
Installation and Use
11. Press and HOLD both the Clean-Reset and
On/Off buttons for 5 seconds. The Time to Clean
light will blink on and off.
Press
Both
13a: Optional - move float lever up to Off, add
locally approved sanitizer* to water system, then
repeat step 13. Move the float lever down to On.
14. Return the reservoir cover to its original
position.
15. Return the upper back wall of the bin to its
original position and secure it with the original
screws. Push in at bottom to snap it into place.
12. The auger motor alone will be operating for 10
minutes, after that the compressor will start and in
about 5-8 minutes the machine will start to make
ice. The Time to Clean light will now glow steady
until the clean cycle is complete.
Caution: Keep fingers away from moving parts.
12a. After ice making starts, continuously add scale
remover solution to the reservoir to keep it about
half full.
12b. When all 16 oz of the solution is used, move
the float valve lever down to the On position.
16. Pour a gallon of lukewarm (95
o
F. – 115oF.)
water into the bin to flush out the drain and melt all
ice that was made during the cleaning process. Be
sure all ice is melted.
17. Clean the bin liner of mineral scale by using
any left over scale remover solution to scrub the
scale off of the liner. If none is left over, mix a
solution of 2.5 ounces of Clear 1 Scale Remover
and 1 quart of water.
18. Rinse the liner with hot water.
19. Sanitize the ice chute, ice sweep, breaker and
bin interior using a locally approved saniziter.*
20. Push and release the On/Off button to restart
ice making.
The ice scoop should be washed regularly, wash it
just like any other food container.
* A potential sanitizer may be made by mixing 1
ounce of liquid household bleach to 2 gallons of
lukewarm (95
o
F. – 115oF) water.
After 40 minutes the ice machine and all the control
panel lights will shut off.
13. Pull the drain plug again to drain the system,
then replace it.
Page 14
Other Maintenance
While cleaning the system with scale remover,
check for water leaks at the bottom of the
evaporator. If any are found, call for service.
Note: It is normal for some lime scale to form on
the gear reducer cover. Wipe up any loose scale.
Check the top bearing.
The top bearing is non-metallic and requires no
lubrication. However, it should be checked for wear
occasionally. The top panel must be removed to
access the bearing.
Loading...
