SERVICE PARTS MANUAL
GEM0650A/W/R,GEM0956A/W/R and GEM1256A/W/R
GEM0655 Air
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081350-03 Date 10/08
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081350-03 Date 1/07
GEM Series Service Parts Table Of Contents
This parts list contains the service parts available for the GEM Series icemakers listed below:
GEM0655-Air Cooled
GEM0650-Air Cooled, Water Cooled and Remote
GEM0956-Air Cooled, Water Cooled and Remote
GEM1256-Air Cooled, Water Cooled and Remote
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Air Cooled Page 4
Water Cooled Page 5
Remote Page 6

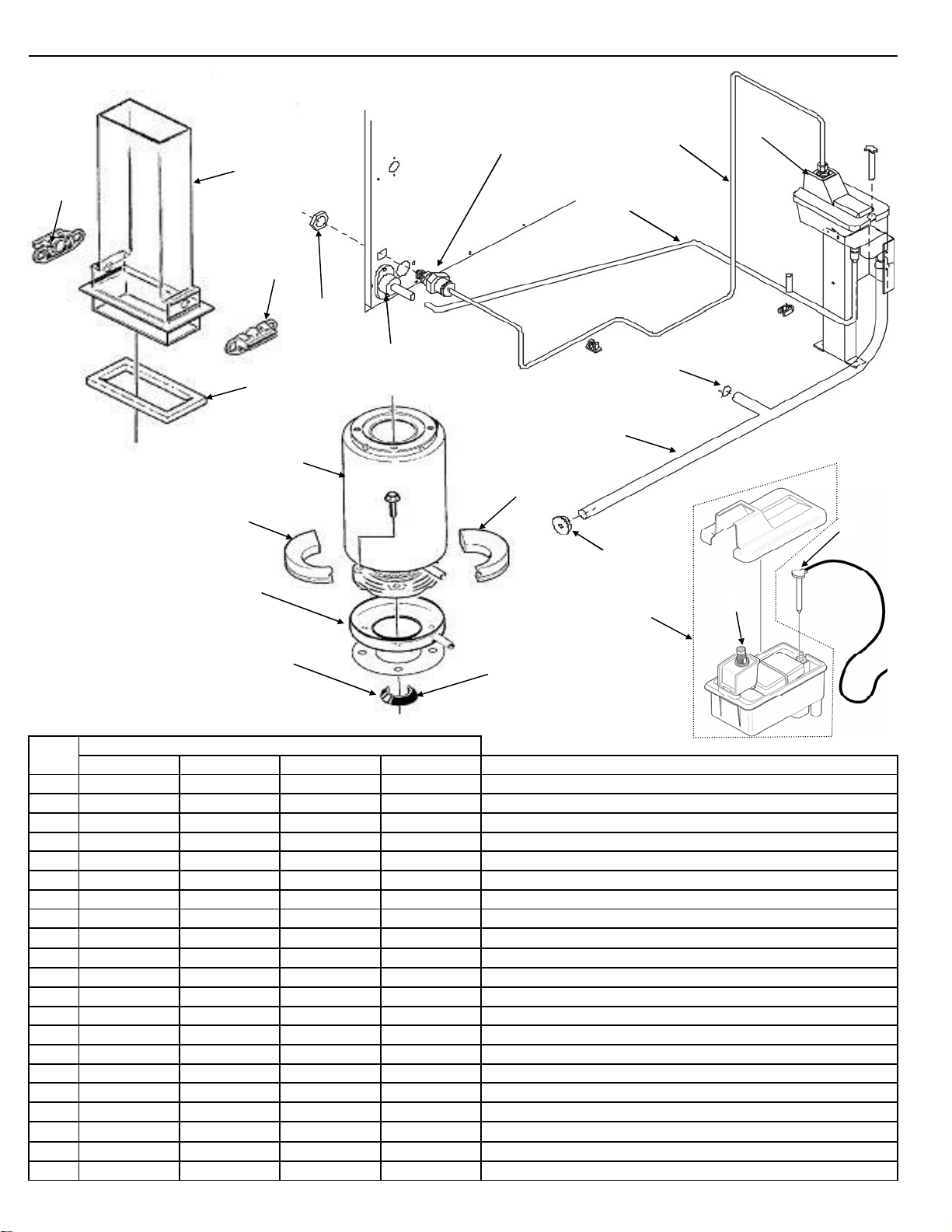

Down Chute/Water System Page 7
Gearmotor Page 8
Evaporator Page 9

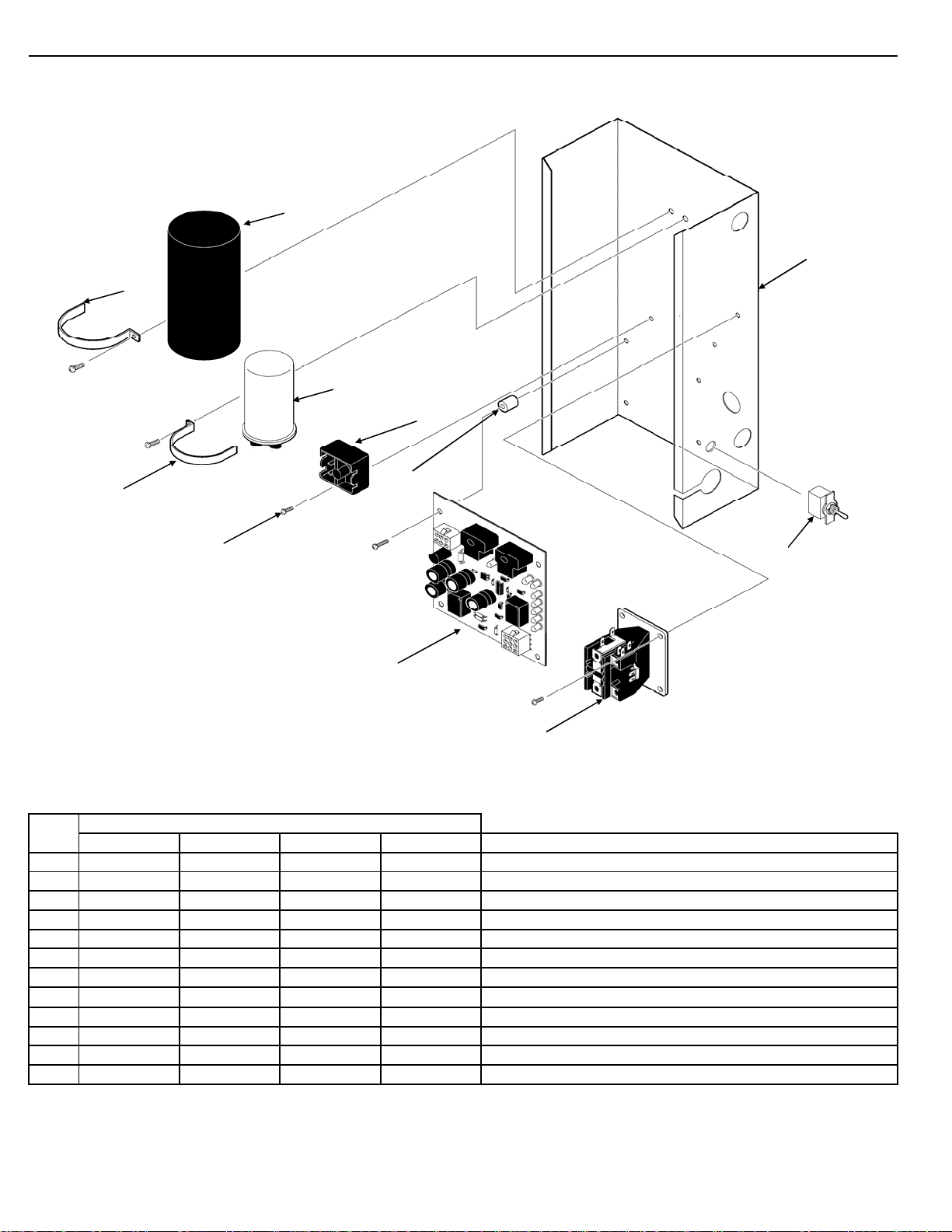

Control Box Page 10

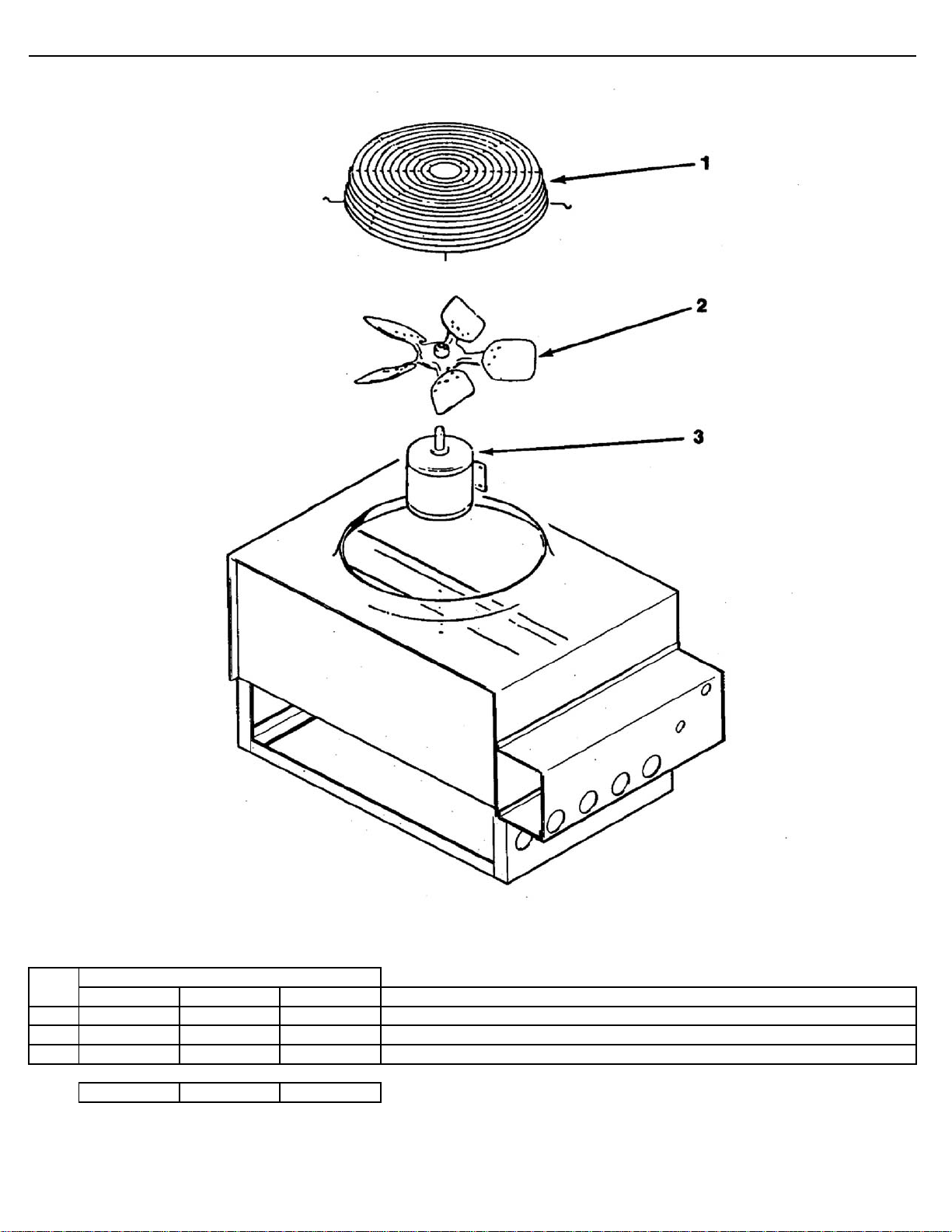

Remote Condenser Page 11
The GEM Series Service Manuals are available separately:
GEM Air Cooled and Water Cooled 9081350-01
GEM Remote 9081350-02
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1

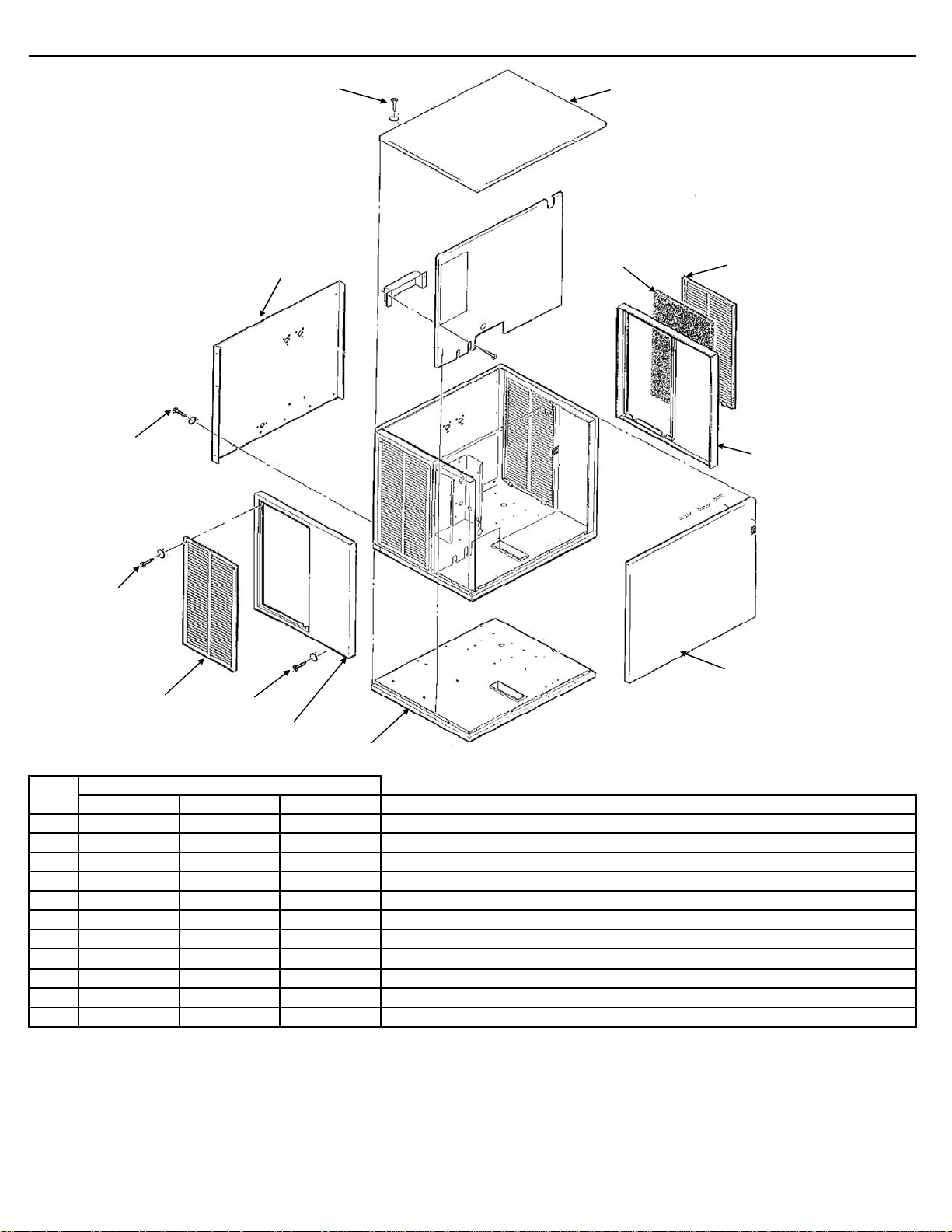

GEM Series Service Parts Cabinet
ANLANLA
0
1
2
13
5
1
7, 8
9
4
15
3
12
16
3
Item
No. GEM0655 GEM0650 GEM0956 Description
1 1011339-70 1011339-70 1011339-70 Top Panel Screw
2 1011380-192 1011380-192 1011380-192 Top Panel
3 1011380-196 1011380-196 1011380-196 Non-Louvered Side Panel
4 1011380-193 1011380-193 1011380-193 Right Side Frame Panel
5 1011351-34 1011351-34 1011351-34 Screw
6 1011380-191 1011380-191 1011380-191 Front Louvered Panel
7 1011380-09 1011380-09 1011380-09 Air Filter
8NL
9 1011380-200 1011380-200 1011380-200 Front Brace
10 1011380-197 1011380-197 1011380-197 Control Box Support
11 1011380-167 1011380-167 1011380-167 Left Side Frame Panel
12 1011380-42 1011380-42 1011380-42 Screw
13 1011380-213 1011380-213 1011380-213 Rear Panel (Water Cooled Only)
14 1011380-211 1011380-211 1011380-211 Base
15 1011380-01 1011380-01 1011380-01 Catch (On Frame Panel)
16 1011380-88 1011380-88 1011380-88 Strike (On Front Panel)
Model Number
11
14
Filter Clip
6
Page 2
