SERVICE PARTS MANUAL
GEM0650A/W/R,GEM0956A/W/R and GEM1256A/W/R
GEM0655 Air
Ice-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081350-03 Date 10/08
ICE-O-Matic
11100 East 45th Ave
Denver, Colorado 80239
Part Number 9081350-03 Date 1/07
GEM Series Service Parts Table Of Contents
This parts list contains the service parts available for the GEM Series icemakers listed below:
GEM0655-Air Cooled
GEM0650-Air Cooled, Water Cooled and Remote
GEM0956-Air Cooled, Water Cooled and Remote
GEM1256-Air Cooled, Water Cooled and Remote
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2 - 3
Air Cooled Page 4
Water Cooled Page 5
Remote Page 6
Down Chute/Water System Page 7
Gearmotor Page 8
Evaporator Page 9
Control Box Page 10
Remote Condenser Page 11
The GEM Series Service Manuals are available separately:
GEM Air Cooled and Water Cooled 9081350-01
GEM Remote 9081350-02
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
GEM Series Service Parts Cabinet
ANLANLA
0
1
2
13
5
1
7, 8
9
4
15
3
12
16
3
Item
No. GEM0655 GEM0650 GEM0956 Description
1 1011339-70 1011339-70 1011339-70 Top Panel Screw
2 1011380-192 1011380-192 1011380-192 Top Panel
3 1011380-196 1011380-196 1011380-196 Non-Louvered Side Panel
4 1011380-193 1011380-193 1011380-193 Right Side Frame Panel
5 1011351-34 1011351-34 1011351-34 Screw
6 1011380-191 1011380-191 1011380-191 Front Louvered Panel
7 1011380-09 1011380-09 1011380-09 Air Filter
8NL
9 1011380-200 1011380-200 1011380-200 Front Brace
10 1011380-197 1011380-197 1011380-197 Control Box Support
11 1011380-167 1011380-167 1011380-167 Left Side Frame Panel
12 1011380-42 1011380-42 1011380-42 Screw
13 1011380-213 1011380-213 1011380-213 Rear Panel (Water Cooled Only)
14 1011380-211 1011380-211 1011380-211 Base
15 1011380-01 1011380-01 1011380-01 Catch (On Frame Panel)
16 1011380-88 1011380-88 1011380-88 Strike (On Front Panel)
Model Number
11
14
Filter Clip
6
Page 2
GEM Series Service Parts Cabinet
AN/A
5
1
9
1
2
7
3
4
3
Item
No. GEM0650 GEM0956 GEM1256 Description
1 N/A N/A 1011339-70 Screw
2 N/A N/A 1011380-151 Top Panel
3 N/A N/A 1011380-194 Louvered Side Panel
4 N/A N/A 1011380-153 Right Side Frame Panel
5 N/A N/A 1011351-34 Screw
6 N/A N/A 1011380-152 Front Panel
7 N/A N/A 1011380-183 Air Filter
8N/
9 N/A N/A 1011380-155 Rear Panel-Remote
N/A N/A 1011380-156 Rear Panel-Air or Water Cooled
10 N/A N/A 1011380-214 Base
Model Number
1
8
10
1011380-154 Left Side Frame Panel
6
Page 3
GEM Series Service Parts Air Cooled
0
5
6
17
Evaporator See Page 9
18
7, 8
11
14, 15, 16
1
12, 13
9
1
Note: Pictures for reference only.
4
2
3
Item
No. GEM0655 GEM0650 GEM0956 GEM1256 Description
1 1011380-136 1011380-136 1011380-121 1011380-120 Fan Blade
2 1011380-135 1011380-134 1011380-58 1011380-122 Fan Motor
3 1011380-228 1011380-228 1011380-04 1011380-20 Fan Bracket
4 1011380-210 1011380-210 1011380-190 1011380-207 Fan Shroud
5 1011380-206 1011380-206 1011380-206 N/A Fan Shroud Cover
6 1011380-133 1011380-133 1011380-126 1011380-132 Air Condenser
7 1011380-129 1011380-128 1011380-137 1011380-131 Compressor
8 1011380-130 1011380-125 Internal Internal Compressor Overload
9 1011380-117 1011380-117 1011380-117 1011380-117 Compressor Grommet
10 1011380-115 1011380-115 1011380-115 1011380-115 Compressor Grommet Sleeve
11 1011380-18 1011380-18 1011380-18 1011380-18 Drier
12 1011380-177 1011380-177 1011380-177 1011380-177 Expansion Valve Insulation Kit
13 1011380-51 1011380-51 1011380-51 1011380-50 Expansion Valve
14 1011380-94 1011380-94 1011380-94 1011380-94 Service Valve Body
15 1011380-95 1011380-95 1011380-95 1011380-95 Service Valve Core
16 1011380-96 1011380-96 1011380-96 1011380-96 Service Valve Cap
17 1011380-52 1011380-52 1011380-52 1011380-52 Hi Pressure Cut Out
18 1011380-53 1011380-53 1011380-53 1011380-53 Low Pressure Cut Out
Model Number
Page 4
GEM Series Service Parts Water Cooled
11
10
2, 3
1
9
Evaporator See Page 9
15
14
4
5
Item
No. GEM0650 GEM0956 GEM1256 Description
1 1011380-144 1011380-145 1011380-146 Water Cooled Condenser
2 1011380-51 1011380-51 1011380-51 Expansion Valve
3 1011380-177 1011380-177 1011380-177 Expansion Valve Insulation Kit
4 1011380-115 1011380-115 1011380-115 Compressor Grommet Sleeve
5 1011380-117 1011380-117 1011380-117 Grommet
6 1011380-94 1011380-94 1011380-94 Service Valve Body
7 1011380-95 1011380-95 1011380-95 Service Valve Core
8 1011380-96 1011380-96 1011380-96 Service Valve Cap
9 1011380-52 1011380-52 1011380-52 High Pressure Cut Out
10 1011380-49 1011380-49 1011380-49 Water Regulating Valve
11 1011380-149 1011380-201 1011380-201 Drain Assembly
12 1011380-128 1011380-137 1011380-131 Compressor
13 1011380-125 Internal Internal Compressor Overload
14 1011380-18 1011380-18 1011380-18 Drier
15 1011380-53 1011380-53 1011380-53 Low Pressure Cut Out
Model Number
12, 13
6, 7, 8
Page 5
GEM Series Service Parts Remote
0
1
21
11
5
2
2
3
14
16
15
4
12, 13
6, 7
17, 18, 19
8
9
Item
No. GEM0650 GEM0956 GEM1256 Description
1 1011380-61 1011380-63 1011380-62 Liquid Line Solenoid
2 1011380-92 1011380-92 1011380-92 Receiver
3 N/A 1011380-31 N/A Accumulator
4 1011380-52 1011380-52 1011380-52 High Pressure Cut Out
5 1011380-18 1011380-18 1011380-18 Drier
6 1011380-128 1011380-137 1011380-131 Compressor
7 1011380-125 Internal Internal Compressor Overload
8 1011380-60 1011380-59 1011380-59 Crankcase Heater-External
9 1011380-117 1011380-117 1011380-117 Grommet
10 1011380-115 1011380-115 1011380-115 Compressor Grommet Sleeve
11 1011380-47 1011380-47 1011380-47 Low Ambient Control
12 1011380-51 1011380-51 1011380-50 Expansion Valve
13 1011380-177 1011380-177 1011380-177 Expansion Valve Insulation Kit
14 1011380-53 1011380-53 1011380-53 Pump Down Control
15 1011380-57 1011380-58 N/A Fan Motor
16 1011380-124 1011380-124 N/A Fan Blade
17 1011380-94 1011380-94 1011380-94 Service Valve Body
18 1011380-95 1011380-95 1011380-95 Service Valve Core
19 1011380-96 1011380-96 1011380-96 Service Valve Cap
20 1011380-98 1011380-98 1011380-98 Quick Connect Fitting 3/8 Inch
21 1011380-97 1011380-97 1011380-97 Quick Connect Fitting 1/2 Inch
Model Number
Evaporator See Page 9
Page 6
GEM Series Service Parts Down Chute/Water System
9
0
14,15
4
5
5
13
11
6
21
20
17
12
1
7
8
1
1
3
2
19
Item
No. GEM0655 GEM0650 GEM0956 GEM1256 Description
1 1011380-15 1011380-15 1011380-15 1011380-15
2 1011380-16 1011380-16 1011380-16 1011380-16 Float Valve Only
3 1011380-78 1011380-78 1011380-78 1011380-78 Water Level Sensor
4 1011380-06 1011380-06 1011380-07 1011380-07 Ice Chute Lower
5 1011380-223 1011380-223 1011380-223 1011380-223 Bin Controls Assembly (Set of 2)
6 1011380-176 1011380-176 1011380-176 1011380-176 Chute Gasket
7 1011380-220 1011380-220 1011380-220 1011380-220 Evaporator Water Inlet Tube
8 1011380-84 1011380-84 1011380-84 1011380-84 Rubber Cap
9 1011380-03 1011380-03 1011380-03 1011380-03 Hose Clamp
10 1011380-25 1011380-25 1011380-25 1011380-26 Overflow Tube
11 1011380-23 1011380-23 1011380-23 1011380-23 Drain Fitting
12 1011351-71 1011351-71 1011351-71 1011351-71 Inlet Tubing (4 feet required)
13 1011351-31 1011351-31 1011351-31 1011351-31 Pal Nut
14 1011351-74 1011351-74 1011351-74 1011351-74 Water Inlet Fitting
15 1011351-75 1011351-75 1011351-75 1011351-75 Male Connector
16 1011380-185 1011380-185 1011380-185 1011380-185 Evaporator
17 1011380-27 1011380-27 1011380-27 1011380-27 Drip Pan
18 1011380-83 1011380-83 1011380-83 1011380-83 Drip Pan Gasket
19 1011380-85 1011380-85 1011380-85 1011380-85 Water Shed
20 1011380-178 1011380-178 1011380-178 1011380-178 Insulation Collar
21 1011380-179 1011380-179 1011380-179 1011380-179 Insulation Collar
Model Number
18
Float Assembly (Does Not Include Sensor)
Page 7
GEM Series Service Parts Gear Motor
3
1
10
11
5
2
4
12
14
6
7
8
15
9
Item
No. GEM0655 GEM0650 GEM0956 GEM1256 Description
1 1011380-85 1011380-85 1011380-85 1011380-85 Water Shed
2 1011380-164 1011380-164 1011380-164 1011380-164 Gearcase Output Shaft Seal
3 N/A N/A N/A N/A End Bell
4 1011380-162 1011380-162 1011380-162 1011380-162 Bolt
5 1011380-159 1011380-159 1011380-159 1011380-159 Gearcase Cover (Cover, Shaft, Key, Gear and Bearing)
6 1011380-161 1011380-161 1011380-161 1011380-161 1st Gear and Bearings
7 1011380-160 1011380-160 1011380-160 1011380-160 2nd Gear and Bearings
8 1011380-158 1011380-158 1011380-158 1011380-158 Gasket
9 1011380-157 1011380-157 1011380-157 1011380-157 Gearcase
10 1011380-77 1011380-72 1011380-72 1011380-72 Start Switch-GE
11 1011380-69 1011380-67 1011380-68 1011380-68 Drive Motor
12 1011380-73 1011380-73 1011380-73 1011380-73 Rotor Bearing-GE
13 1011380-163 1011380-163 1011380-163 1011380-163 Oil
14 1011380-188 1011380-186 1011380-187 1011380-187 Complete Assembly
15 1011380-189 1011380-189 1011380-189 1011380-189 Gear Case Kit, No Motor
Model Number
ACME
OIL
13
Page 8

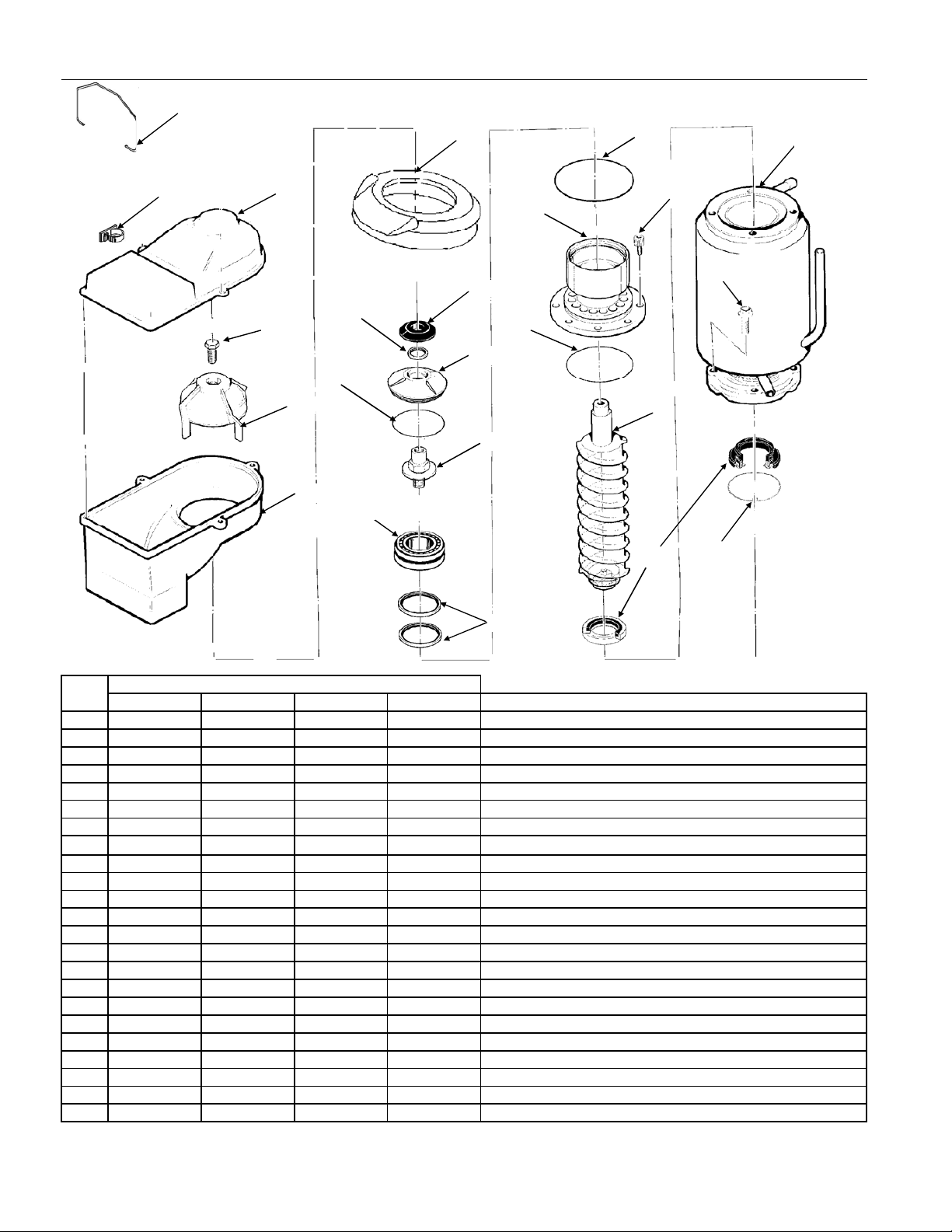

GEM Series Service Parts Evaporator
6
0
9
23
13
7
12
1
1
22
11
21
17
3
15
1
19
20
8
14
2
18
4
5
Item
No. GEM0655 GEM0650 GEM0956 GEM1256 Description
1 1011380-175 1011380-175 1011380-175 1011380-175 Breaker ( Includes Item 15, 17, 19, 20 and 21)
2 1011380-44 1011380-44 1011380-44 1011380-44 Socket Head Screw
3 1011380-80 1011380-80 1011380-80 1011380-80 O-Ring
4 1011380-225 1011380-225 1011380-226 1011380-226 Auger
5 1011380-02 1011380-02 1011380-02 1011380-02 Water Seal
6 1011380-168 1011380-168 1011380-168 1011380-168 Ring, Water Seal
7 1011380-185 1011380-185 1011380-172 1011380-172
8 1011380-38 1011380-38 1011380-38 1011380-38 Hex Cap Screw
9 1011380-203 1011380-203 1011380-203 1011380-203 Bail Clamp
10 1011380-08 1011380-08 1011380-08 1011380-08 Ice Chute Cover
11 1011380-28 1011380-28 1011380-28 1011380-28 Ice Chute Body with Insulation
12 1011380-17 1011380-17 1011380-17 1011380-17 Drain Hose Clip
13 1011380-81 1011380-81 1011380-81 1011380-81 O-Ring
14 1011380-12 1011380-12 1011380-12 1011380-12 Ice Sweep
15 1011380-13 1011380-13 1011380-13 1011380-13 Breaker Cover
16 1011380-46 1011380-46 1011380-46 1011380-46 Auger Stud
17 1011380-11 1011380-11 1011380-11 1011380-11 Lip Seal
18 1011380-37 1011380-37 1011380-37 1011380-37 Cap Scrrew
19 1011380-202 1011380-202 1011380-202 1011380-202 Bearing
20 1011380-10 1011380-10 1011380-10 1011380-10 Lip Seal
21 1011380-82 1011380-82 1011380-82 1011380-82 O-Ring
22 1011380-86 1011380-86 1011380-86 1011380-86 Water Shed
23 1011380-87 1011380-87 1011380-87 1011380-87 Insulation Collar
Model Number
Evaporator (Excludes Interior Components)
Page 9

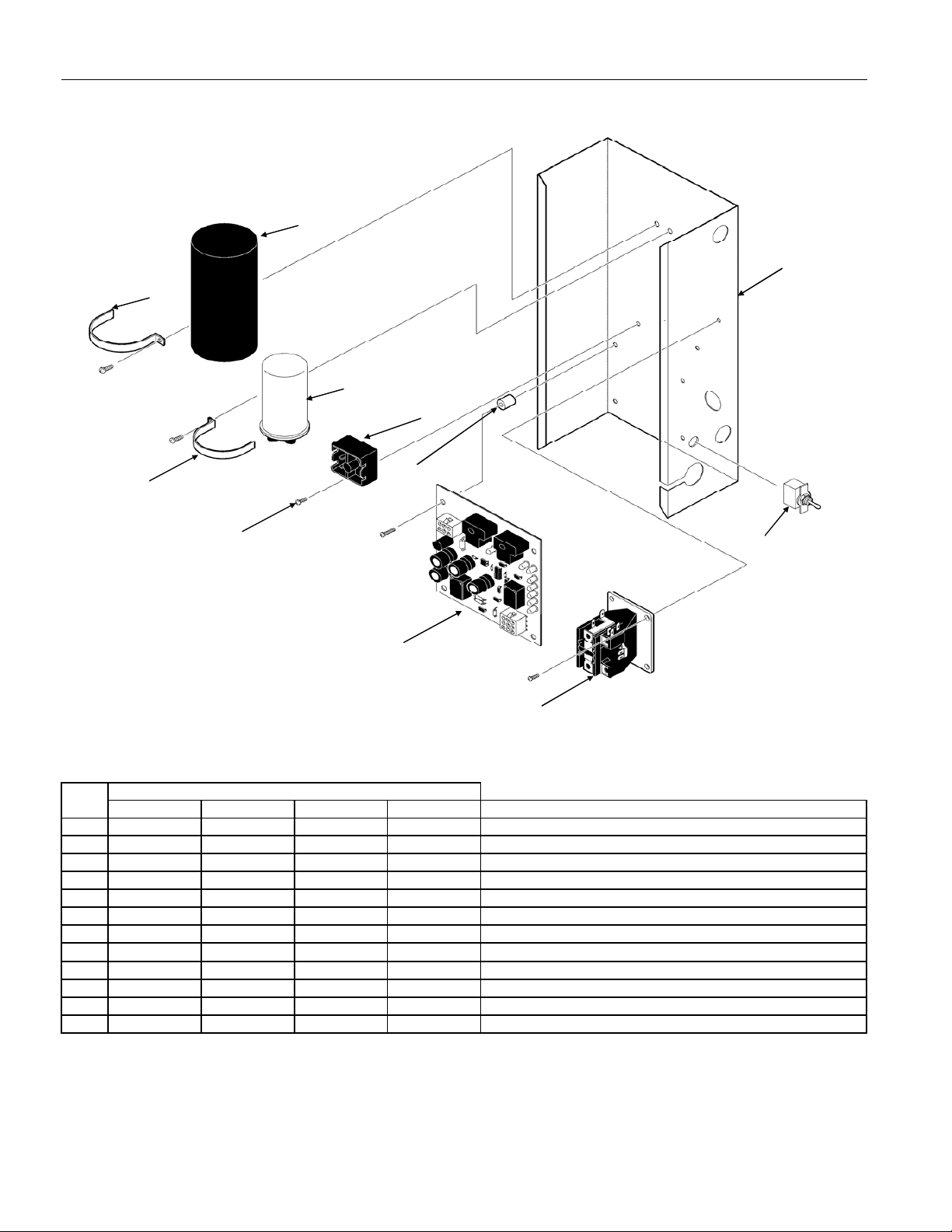

GEM Series Service Parts Control Box
1
11
3
2
4
6
5
Item
No. GEM0655 GEM0650 GEM0956 GEM1256 Description
1 1011380-104 1011380-102 1011380-106 1011380-103 Start Capacitor
2 1011380-107 1011380-108 1011380-108 1011380-110 Run Capacitor
3 1011351-83 1011351-83 1011351-83 1011380-195 Start Capacitor Bracket
4 1011380-114 1011380-112 1011380-111 1011380-111 Compressor Relay
5 1011339-73 1011339-73 1011339-73 1011339-73 Screw
6 1011380-217 1011380-217 1011380-217 1011380-171 Run Capacitor Bracket
7 1011380-74 1011380-75 1011380-74 1011380-74 Compressor Contactor
8 1011380-55 1011380-55 1011380-55 1011339-78 Selector Switch
9 1011380-79 1011380-79 1011380-79 1011380-79 Circuit Board
10 1011380-66 1011380-66 1011380-66 1011380-66 Control Board Standoff
11 N/A N/A N/A N/A Control Box
12 1011380-224 1011380-224 1011380-224 1011380-174 Control Box Cover-Not Shown
Model Number
10
7
8
Page 10

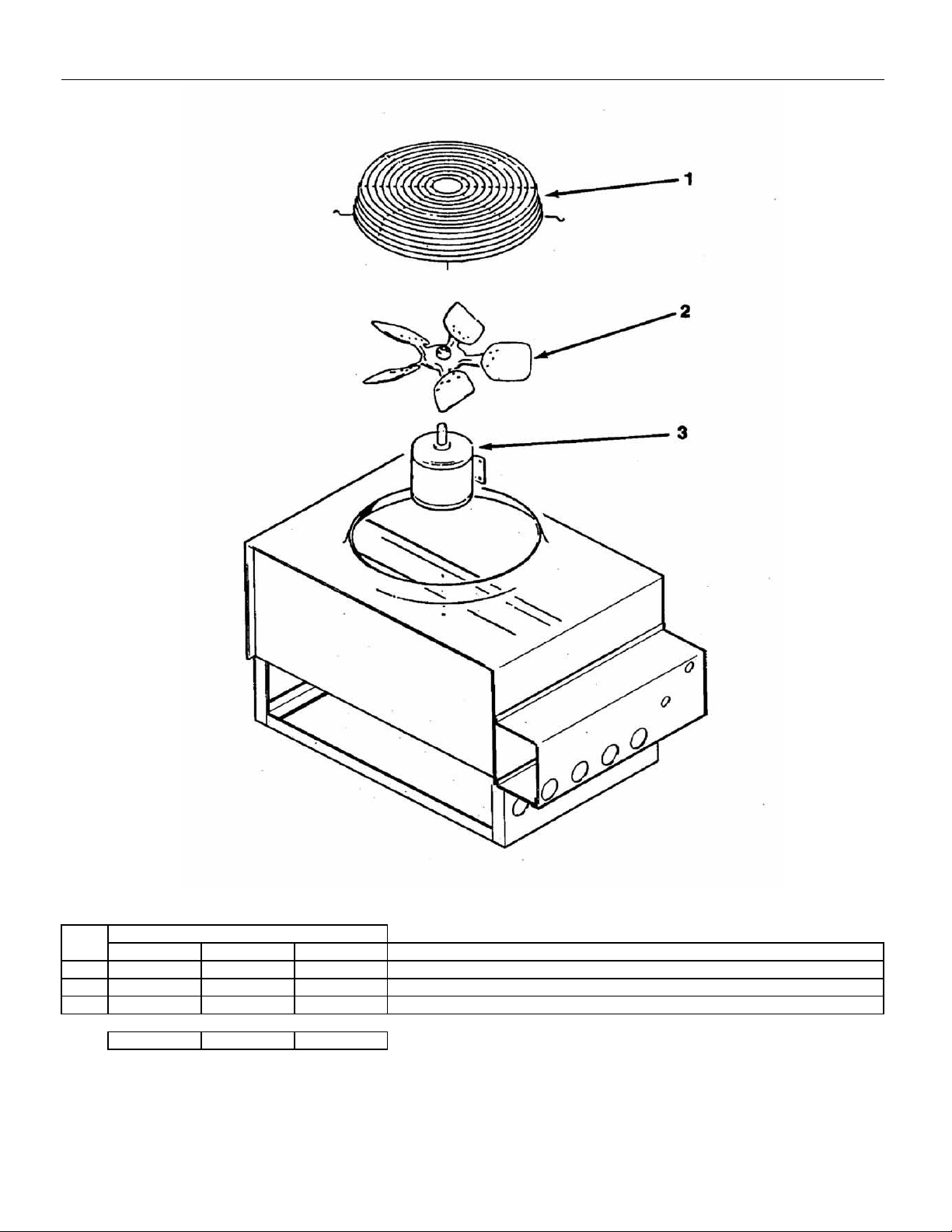

GEM Series Service Parts Remote Condenser
Item
No. GRC1001 GRC1061 GRC2061 Description
1 1011380-21 1011380-21 1011380-21 Fan Shroud
2 1011380-143 1011380-143 1011380-143 Fan Blade
3 1011380-141 1011380-142 1011380-142 Fan Motor
GEM0650R GEM0956R GEM1256R
Model Number
Page 11
Loading...
