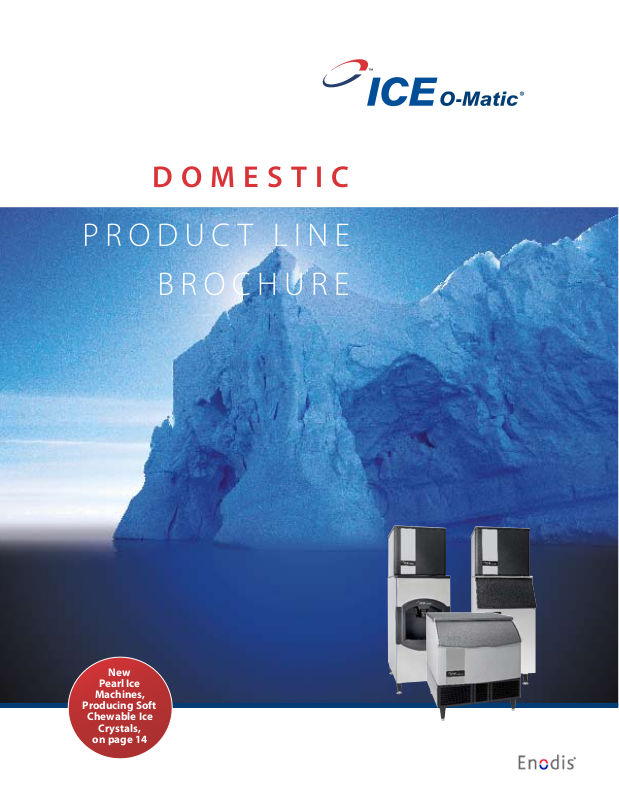

D O M E S T I C
New
Pearl Ice
Machines,
Producing Soft
Chewable Ice
Crystals,
on page 14
PAGE 2
I C E O M A T I C … I T ’ S T H E E A S I E S T
C H O I C E Y O U C A N M A K E .
E XC E L L EN C E
Our equipment features ideal
solutions for hard water, food
safety concerns and tight spaces
E X P E RI E N C E
ICE-O-Matic is backed by the
technological resources of our
parent company Enodis Corporation,
one of the world’s largest food
equipment manufacturers
R E L I AB I L I T Y
Since our beginnings in 1952, we
have sold more than 1,000,000 ICE
Makers and Storage Bins
worldwide and have achieved
world class quality levels
I N N O VA T I O N
We currently hold 14 patents
and have at our disposal a
state-of-the-art 27,000 square
foot technology center for
developing unique solutions to
customer problems
V E R S AT I L I T Y
For whatever ICE making needs
you may have, ICE-O-Matic offers
a full line of equipment with ICE
making capacities from 60 pounds
to more than a ton of ICE per day
Our highly trained network of
Factory Authorized Service
Technicians are on duty to
respond immediately
F O R Q U A L I T Y Y O U C A N C O U N T O N , C H O O S E I C E O M A T I C .
I C E . P U R E A N D S I M P L E ™
S E R V I C E
to your needs
PAGE 3
W H Y B U Y I C E O M A T I C ?
®
P U R E I C E
Built-in antimicrobial protection for the life of the ICE Maker inhibits bacteria and slime
fungus growth on ICE Maker surfaces. ICE-O-Matic’s optional water filtration system provides
protection against unpleasant tastes, odors and scale formation.
C U B E R E VA P O R AT O R
ICE-O-Matic uses electroless nickel plating on all its cuber evaporator plates. This hard
coating resists the damaging effects of water and ice over an extended period of time.
E x c l u s i v e l y B y I C E - O - M a t i c
H A R V E S T A S S I S T
Consistent and fast ICE production 24 / 7 for the life of the ICE Maker, while reducing
operating costs. ICE is assisted off of the evaporator freezing surface rather than relying
solely ongravity to overpower scale build-up.
E N E R GY E F F I C I E N T
Our Cube and Flake ICE Makers are energy efficient machines that offer maximum ICE
production with minimal kilowatts per hour and water usage. This results in a reduction
of operating costs over the life of the ICE Maker.
PAGE 4
T O P A I R D I S C H A R G E
Maximum ICE production in a minimum amount of space with an ultra-low profile. No side
clearance required. A FREE optional feature, it’s ideal for
tight-fitting spaces.
F I LT E R F R E E A I R
No air filter to change.
S E A SA LT C O R RO S I O N P R O T E C T I O N
All cube ice making remote condensers are treated with a salt air corrosion protectant
– FREE.
7 Y E A R WA R R A N T Y
Purchase an ICE-O-Matic water filter with your new ICE-O-Matic Cube ICE Maker, replace
the water filter cartridge every 6 months, and the evaporator warranty is extended to 7
years - parts and labor. (Available in the USA and Canada only)
PAGE 5
W H Y B U Y I C E O M A T I C ?
S TA I N L E S S ST E E L
Rust-resistant ICE-O-Matic ICE Makers are constructed from stainless steel on the inside,
and a combination of stainless steel and industrial-grade fingerprint-proof molding on the
outside.
I N S U LAT I O N
All ICE-O-Matic Storage Bins and Dispensers are insulated with industrial polyetheleyne
foam for maximum ICE preservation.
3 I N 1 WAT ER F I LT E R
Activated carbon, sediment removal and scale protection make ICE-O-Matic’s
3-In-1 water filters the ideal protection against unpleasant tastes, odors and scale
formation in your ICE Maker.
F L A K ER E V A P OR ATO R
Our Flakers are constructed with a durable brass evaporator and rugged stainless steel
transport system that produces slow-melting, uniform quality flaked ICE, steadily and
efficiently.
PAGE 6
S E R V I C E S U P P O R T
Beginning with installation and continuing for as long as you own your ICE Maker, ICE-O-
Matic’s team of nationwide Factory Authorized Service Technicians (F.A.S.T. Agents) are
there to support you.
C U S T O M ER S E R V I C E
ICE-O-Matic’s dedicated and knowledgeable customer support team is available to
respond with effective and supportive answers to your questions.
I S O CE R TI F I C AT I O N
ICE-O-Matic is certified under ISO 9001:2000 standards, assuring the customer quality,
consistency and continuous improvement in every ICE Maker we manufacture.
M AN U F A C T U R I N G FA C I L I T Y
ICE-O-Matic ICE Makers and Storage Bins are designed and manufactured in our 160,000
square foot facility.
PAGE 7
C U B E I C E M A K E R S
W I T H B U I L T I N S T O R A G E
ICE-O-Matic Self-Contained Cube ICE Makers provide multiple size / capacity options with
applications ranging from the Small Office / Home Office to a Commercial Restaurant Kitchen.
Insulated Self-Contained storage bins provide maximum ICE preservation. Height adjustable
legs and large bin door opening provide easy ICE access in tight-fitting situations or
under-counter environments.
Innovation, reliability and customer support has helped us win the trust of customers large and
small. Purchase ICE-O-Matic with confidence and take the worry out of your ICE Making needs.
PAGE 8
SHOTGLASS STYLE
HEIGHT: 1⅛ Inches
DIAME TER: 1¼ Inches
NOTE: ICEU 060 Only
FULL CUBE
HEIGHT: ⅞ Inches
WIDTH: ⅞ Inches
DEPTH: ⅞ Inches
HALF CUBE
HEIGHT: ⅞ Inches
WIDTH: ⅞ Inches
DEPTH: ⅜ Inches
ICEU 060
ICE PR ODUCTION: Up to 69 lbs. ICE per day
STORAGE: 25 lbs. of ICE
DIMENS IONS IN.: 18” W x 21” D x 34” H
CONDENS ER: Air
ICEU 150
ICE PR ODUCTION: Up to 175 lbs ICE per Day
STORAGE: 100 lbs. of ICE
DIMENS IONS IN.: 24” W x 24” D x 39” H
CONDENS ER: Air, Water
Application Bin Storage
Rated at 70° Air / 50° Water
ICEU 220
ICE PR ODUCTION: Up to 260 lbs. ICE per Day
STORAGE: 100 lbs. of ICE
DIMENS IONS IN.: 24” W x 24” D x 39” H
CONDENS ER: Air, Water
ICEU 300
ICE PR ODUCTION: Up to 356 lbs. ICE per Day
STORAGE: 130 lbs. of ICE
DIMENS IONS IN.: 30” W x 29” D x 39” H
CONDENS ER: Air, Water
PAGE 9
C U B E I C E M A K E R S
M O D U L A R C U B E R S
With ICE-O-Matic’s Modular Cube ICE Makers you don’t have
to spend time thinking about ICE - it will be there when you
need it. Our Modular Cube ICE Makers feature PURE ICE®,
the smart choice in promoting Food Safety by inhibiting
bacteria growth in ICE Makers.
Attractive and reliable, all units are constructed from
rugged, rust-resistant stainless steel on the inside and a
combination of stainless steel and durable fingerprint-proof
finish on the outside.
And with ideal ICE making solutions for Hard Water, Food
Safety Concerns and Tight Spaces, ICE-O-Matic is the smart
choice for Bars, Restaurants, Hotels, Convenience Stores,
Institutions and Healthcare applications.
You can purchase ICE-O-Matic with confidence.
FULL CUBE
HEIGHT: ⅞ Inches
WIDTH: ⅞ Inches
DEPTH: ⅞ Inches
HALF CUBE
HEIGHT: ⅞ Inches
WIDTH: ⅞ Inches
DEPTH: ⅜ Inches
PAGE 10
Shown with B25 bin
Shown with B42 bin
ICE 0250
ICE PR ODUCTION: Up to 352 lbs. ICE per Day
DIMENS IONS IN.: 30” W x 24” D x 20” H
CONDENS ER: Air, Water
NOTE: Available in Top Air Discharge
Shown with B55 bin
ICE 0400
ICE PR ODUCTION: Up to 528 lbs. ICE per Day
DIMENS IONS IN.: 30” W x 24” D x 20” H
CONDENS ER: Air, Water
NOTE: Available in Top Air Discharge
ICE 0320
ICE PR ODUCTION: Up to 355 lbs. ICE per Day
DIMENS IONS IN.: 22” W x 24” D x 23” H
CONDENS ER: Air, Water
Shown with B55 bin
ICE 0500
ICE PR ODUCTION: Up to 625 lbs. ICE per Day
DIMENS IONS IN.: 30” W x 24” D x 20” H
CONDENS ER: Air, Water, Remote
NOTE: Available in Top Air Discharge
NOTE: Maximum ICE production with 115 Volts
Shown with B42 bin
ICE 0520
ICE PR ODUCTION: Up to 528 lbs. ICE per Day
DIMENS IONS IN.: 22” W x 24” D x 23”H
CONDENS ER: Air, Water
Shown with B55 bin
ICE 0606
ICE PR ODUCTION: Up to 727 lbs. ICE per Day
DIMENS IONS IN.: 30” W x 24” D x 20”H
CONDENS ER: Air, Water, Remote
NOTE: Available in Top Air Discharge
Rated at 70° Air / 50° Water
PAGE 11
Shown with B55 bin
Shown with B55 bin
ICE 0806
ICE PR ODUCTION: Up to 1094 lbs. ICE per Day
DIMENS IONS IN.: 30” W x 24” D x 26” H
CONDENS ER: Air, Water, Remote
ICE 1006
ICE PR ODUCTION: Up to 1201 lbs. ICE per Day
DIMENS IONS IN.: 30” W x 24” D x 26”H
CONDENS ER: Air, Water, Remote
Shown with B100 bin
ICE 1406
ICE PR ODUCTION: Up to 1466 lbs. ICE per Day
DIMENS IONS IN.: 48” W x 24” D x 26”H
CONDENS ER: Air, Water, Remote
PAGE 12
Shown with 30” beverage dispenser
ICE 1506
ICE PR ODUCTION: Up to 1431 lbs. ICE per Day
DIMENS IONS IN.: 30” W x 28 ½” D x 22”H
CONDENS ER: Remote
NOTE: Beverage Dispenser not sold
by ICE-O-Matic
Rated at 70° Air / 50° Water
Shown with B100 bin
Shown with B100 bin
ICE 1806
ICE PR ODUCTION: Up to 1891 lbs. ICE per Day
DIMENS IONS IN.: 48” W x 24” D x 26” H
CONDENS ER: Water, Remote
ICE 2106
ICE PR ODUCTION: Up to 2202 lbs. ICE per Day
DIMENS IONS IN.: 48” W x 24” D x 26” H
CONDENS ER: Water, Remote
REMOTE CONDENSER
NOTE: For use with ICE Makers
utilizing a remote condenser
Rated at 70° Air / 50° Water
PAGE 13
P E A R L I C E M A k E R S
M O D U L A R N U G G E T I C E
M A K E R S
Making ice shouldn’t be complicated, so we’ll make it easy for you
to see why installing a new Pearl Ice machine is a no-brainer for
your business. Pearl Ice enhances beverage programs and lowers
your operating costs. With benefits like these and ICE-O-Matic’s
reputation for reliability, it couldn’t be any simpler.
Constructed from sturdy, corrosion resistant stainless steel, the Pearl
Ice Makers are available in 21 and 30 inch wide models. Highly
versatile, the Pearl Ice models can be mounted on a dispenser or
used in combination with a traditional ice storage bin.
Pearl Ice makers produce soft chewable ice crystals that are
widely preferred by customers, perfect for quick serve restaurants,
convenient stores, and medical applications.
PAGE 14
PEARL ICE
Shown with B55 bin
Shown with B55 bin
GEM 0650
ICE PR ODUCTION: Up to 745 lbs. ICE per Day
DIMENS IONS IN.: 21” W x 24” D x 27” H
CONDENS ER: Air, Water, Remote
GEM 0956
ICE PR ODUCTION: Up to 1100 lbs. ICE per Day
DIMENS IONS IN.: 21” W x 24” D x 27” H
CONDENS ER: Air, Water, Remote
Shown with B55 bin
GEM 1256
ICE PR ODUCTION: Up to 1345 lbs. ICE per Day
DIMENS IONS IN.: 30” W x 24” D x 27” H
CONDENS ER: Air, Water, Remote
PAGE 15
F L A K E I C E M A K E R S
W I T H B U I L T I N S T O R A G E
ICE-O-Matic Self-Contained Flake ICE Makers offer a variety
of size / capacity options with built-in insulated storage bins
for maximum ICE preservation.
Constructed for tight space restrictions and low-height
requirements, ICE-O-Matic Flake ICE Makers produce slow-
melting, quality ICE, perfect for medical, restaurant and
supermarket applications.
PAGE 16
EF 250
ICE PR ODUCTION: Up to 400 lbs. ICE per day
STORAGE: 143 and 213 lbs. of ICE
DIMENS IONS IN.: 32” W x 28” D x 41” H or
38” W x 28” D x 41” H
CONDENS ER: Air
Rated at 70° Air / 50° Water
EF 450
ICE PR ODUCTION: Up to 472 lbs. ICE per day
STORAGE: 143, 213, and 315 lbs. of ICE
DIMENS IONS IN: 32” W x 28” D x 41” H
38” W x 28” D x 41” H
48” W x 28” D x 41” H
CONDENS ER: Air
EF 800
ICE PR ODUCTION: Up to 772 lbs. ICE per day
STORAGE: 250 lbs. of ICE
DIMENS IONS IN: 38” W x 28” D x 41” H
48” W x 28” D x 41” H
CONDENS ER: Air
Rated at 70° Air / 50° Water
PAGE 17
F L A K E I C E M A K E R S
M O D U L A R F L A K E R S
ICE-O-Matic Modular Flake ICE Makers are designed to fit on
top of a variety of storage bins to provide the desired amount
of Flaked ICE for your application needs.
With many of our Modular Flakers measuring only 16 inches
wide, it is possible to place two Modular Flakers on a 48 inch
wide bin to increase production capacity.
ICE-O-Matic Flake ICE Makers produce slow-melting, quality
ICE, perfect for medical and restaurant applications.
In addition, the high moisture content of our flaked ICE
makes it perfect for displaying and maintaining the freshness
of meat, poultry and fish in supermarket applications.
PAGE 18
Shown with B55 bin
EMF 450
ICE PR ODUCTION: Up to 552 lbs. ICE per day
DIMENS IONS IN.: 16” W x 23 ½” D x 32” H
CONDENS ER: Air, Water
Shown with B55 bin
EMF 800
ICE PR ODUCTION: Up to 852 lbs. ICE per day
DIMENS IONS IN.: 16” W x 23 ½” D x 32” H
CONDENS ER: Air, Water
Rated at 70° Air / 50° Water
Shown with B100 bin
Shown with B100 bin
EMF 1106
ICE PR ODUCTION: Up to 1152 lbs. ICE per day
DIMENS IONS IN.: 16” W x 23 ½” D x 32” H
CONDENS ER: Air, Water, Remote
EMF 2306
ICE PR ODUCTION: Up to 2624 lbs. ICE per day
DIMENS IONS IN.: 48” W x 23 ½” D x 26” H
CONDENS ER: Air, Water, Remote
Rated at 70° Air / 50° Water
PAGE 19
I C E D I S P E N S E R S
H O T E L D I S P E N S E R S
ICE-O-Matic Hotel Dispensers are built with the customer in mind,
and feature durable stainless-steel cabinets with built-in storage.
Our 30-inch Hotel Dispenser is available with three options:
push-to-dispense, water-filler or coin / token.
Designed for rugged, high usage environments, our 22 and
30-inch wide Dispensers have fingerprint-proof dispensing areas
and oversized sinks to accommodate almost any size ICE bucket.
In addition, both models dispense a ¼ lb. of ICE per second, allow
access for easy cleaning and provide maximum ICE storage in a
minimum amount of space.
Shown with ICE 0320 Cube ICE Maker
CD 40022
Push-To-Dispense
STORAGE: 120 lbs. of ICE
DIMENS IONS IN.: 22” W x 33 ½” D x 53 ¼” H
PAGE 20
Shown with ICE 0500 Cube ICE Maker
CD 40030
Push-To-Dispense
STORAGE: 180 lbs. of ICE
DIMENS IONS IN.: 30” W x 33 ½” D x 53 ¼” H
Shown with ICE 0500 Cube ICE Maker
Shown with ICE 0500 Cube ICE Maker
CD 40130
Water Filler Option
STORAGE: 180 lbs. of ICE
DIMENS IONS IN.: 30” W x 33 ½” D x 53 ¼” H
NOTE: Factory installed water filler kit
NOTE 1: ICE M akers sold separately
NOTE 2: Hotel dispensers only dispense full and half cubes
and do not make ICE
CD 40230
Coin / Token Option
STORAGE: 180 lbs. of ICE
DIMENS IONS IN.: 30” W x 33 ½” D x 53 ¼” H
NOTE: Factory installed coin / token mechanism
PAGE 21
I C E D I S P E N S E R S
I C E O N L Y
O R W A T E R & I C E
ICE-O-Matic’s ICE Only and Water and ICE Dispensers are durable
and easy to operate. Auto Rotate rotates the ICE for 4 seconds
every hour to provide more reliable ICE dispensing and less ICE
congealing. Direct Dispense ensures that ICE hits the glass every
time and Quick Stop prevents overflow and waste.
The Electronic Dispenser has a sleek, high-tech design with
durable fingerprint-proof front and top panels. Touch-free infra-red
actuation provides convenient one-hand operation.
Additionally, a bigger sink allows more clearance for larger
containers. Quiet to operate, the Dispensers are ideal for hospitals,
cafeterias, restaurants and offices.
Shown with ICE0320
IOD 150
STORAGE: 150 lbs. of ICE
DIMENS IONS IN.:
22 ¼” W x 30 ⁄” D x 35 ⅝” H
PAGE 22
Shown with ICE0400
Shown with ICE0400
IOD 200
STORAGE: 200 lbs. of ICE
DIMENS IONS IN.:
30 ¼” W x 30 ⁄” D x 35 ⅝” H
IOD 250
STORAGE: 250 lbs. of ICE
DIMENS IONS IN.:
30 ¼” W x 30 ⁄” D x 39 ⅝” H
NOTE 1: ICE Makers and
Adapters sold separately
NOTE 2: IODs only
dispense full and half
cubes and do not
make ICE
PAGE 23
S T O R A G E B I N S
ICE-O-Matic’s ICE Storage Bins offer multiple sizes
and storage capacities to fit the most demanding
application needs. Polyethylene bin liners and
industrial foam insulation prevent the ICE from
melting too quickly, which means more ICE for
your customers.
All bins feature height-adjustable legs. The large door
opening and low bin profile provide easy ICE access.
PAGE 24
B 25
STORAGE: 255 lbs. of ICE
DIMENS IONS IN.: 30” W x 31” D x 28” H
B 40
STORAGE: 365 lbs. of ICE
DIMENS IONS IN.: 30” W x 31” D x 37 ½” H
B 42
STORAGE: 374 lbs. of ICE
DIMENS IONS IN.: 22” W x 31” D x 50” H
B 55
STORAGE: 556 lbs. of ICE
DIMENS IONS IN.: 30” W x 31” D x 50” H
B 100
STORAGE: 927 lbs. of ICE
DIMENS IONS IN.: 48” W x 31” D x 50” H
Application Bin Storage
PAGE 25
B 120
STORAGE: 1193 lbs. of ICE
DIMENS IONS IN.: 48” W x 34” D x 54” H
B 150
STORAGE: 1499 lbs. of ICE
DIMENS IONS IN.: 60” W x 34” D x 54”H
B 170
STORAGE: 1866 lbs. of ICE
DIMENS IONS IN.: 60” W x 34” D x 66” H
CRT 125
STORAGE: 94 lbs. of ICE
DIMENS IONS IN.: 24” W x 24” D x 34” H
Application Bin Storage
PAGE 26
F I L T R A T I O N S Y S T E M S
3 I N 1 W A T E R F I L T E R S
ICE-O-Matic’s water filtration system provides protection against
unpleasant tastes, odors, sediment and scale formation. Systems are
available to match the production capacity of any ICE-O-Matic ICE
Maker and easily mount to the wall. These systems take up a minimal
amount of space and are equipped with quick-connect fittings for fast,
easy replacement.
Purchase an ICE-O-Matic water filter with your new ICE-O-Matic
Cube ICE Maker, replace the water filter cartridge every 6 months,
and the evaporator warranty is extended to 7 years - parts and labor.
(USA and Canada only)
IFQ1 SYSTEM
Single Cartridge with a Quick Disconnect
ICE MAK ING CAPACITY: Up to 1000 LB
DIMENS IONS IN.: 15” H x 6” W x 4” D
SINGLE INLINE FILTER
ICE MAK ING CAPACITY: Up to ICE 0500
DIMENS IONS IN.: 2.5 “ W x 11” H
FITT ING OPTIONS :
1/4” Compression
3/8” Compression
IFQ2 SYSTEM
Dual Cartridge with a Q uick Disconnect
ICE MAK ING CAPACITY: Over 1000 LB
DIMENS IONS IN.: 16” H x 10” W x 6” D
IOMQ
System Quick Disconnect
Replacement Cartridge
DIMENS IONS IN.: 12.75” H x 4” W x 4” D
SINGLE REPLACEMEN T FILTER FOR:
IFQ1 and IFQ2
IOMWFRC
System Quick Disconnect
Replacement Cartridge
DIMENS IONS IN.: 2.5” W x 11” H
SINGLE REPLACEMEN T FILTER FOR:
IF1, IF2, IF3 AND IF4 Previous Manifold
Systems)
PAGE 27
Sizing your iCE-o-MatiC iCE MakEr
• Does the existing ICE Maker meet peak usage
during the hottest part of the year?
• What are the various locations or stations in the
establishment that will need ICE? Will they be serviced
from one or multiple ICE Makers?
• Planned for future growth? If not, consider building
in 20% additional capacity on new installations.
FOOD SERVICE APPROXIMATE ICE USAGE PER DAY
RESTAURANT 1.5 lbs. per person
COCKTAIL 3 lbs. per person / seat
SALAD BAR 40
QUICK SERVICE 5 oz. per 7-10 oz. drink
8 oz. per 12-16 oz. drink
12
lbs. per cubic foot
oz. per 18-24 oz. drink
LODGING APPROXIMATE ICE USAGE PER DAY
GUEST ICE 5 lbs. per room
RESTAURANT 1.5 lbs. per person
COCKTAIL 3 lbs. per person / seat
CATERING
1 lb. per person
HEALTHCARE APPROXIMATE ICE USAGE PER DAY
PATIENT ICE 10 lbs. per bed
CAFETERIA
1 lb. per person
CONVENIENCE STORE APPROXIMATE ICE USAGE PER DAY
BEVERAGE 6 oz. per 12 oz. drink
10 oz. per 20 oz. drink
16 oz. per 32 oz. drink
COLD PLATE 50% more ICE usage per day
PACKAGED ICE Weight per bag x number of bags sold per day
PAGE 28
iCE-o-MatiC inStallation
VoltagE rEquirEMEntS
ConSidErationS
ALLOW ENOUGH SPACE FOR:
• The ICE Maker, bin and water filter
• Air flow
NOTE: IF THE ICE MAKER IS TIGHT ON SPACE,
CONSIDER A TOP AIR DISCHARGE UNIT
UTILITIES:
• What are the voltage characteristics of the
electrical outlet that will be used for this
ICE Maker?
• Is there a floor drain within 6 feet?
• Water source with water shut-off?
• Are the utilities in close proximity to the
ICE Maker location?
CUBERS
115/60/1
ICEU 060 ICEU 150 ICE 0520
ICEU 220 ICEU 300
ICE 0250 ICE 0320
ICE 0400 ICE 0500
208-230/60/1
ICE 0406 ICE 0606
ICE 0806 ICE 1006*
ICE 1406* ICE 1506
ICE 2106* ICE 1806*
FLAKERS
115/60/1
EF 250 EF 450 EF 800
EMF 450 EMF 800
208-230/60/1
EMF 1106 EMF 2306
PEARL ICE MACHINES
115/60/1
GEM650
208-230/60/1
GEM956 GEM1256
* AVAILABLE IN THREE PHASE
REMOTE INSTALLATION:
• Is there an outdoor condenser location above
the ICE Maker?
• Easy roof access and penetration?
• Maximum pre-charged tubing
line run considerations?
NOTE: ICEOMATIC OFFERS A FREE SEA SALT
CORROSION PROTECTANT ON ALL REMOTE
CONDENSERS
ASK ABOUT:
• The 7 year warranty on the evaporator
if an ICE-O-Matic water filter is purchased
with an ICE-O-Matic Cube ICE Maker
and the cartridge is replaced every 6 months
(US and Canada only)
• Warranty program
• Preventive maintenance programs
FiltEr SElECtion guidE
FILTER MODEL USE WITH THESE
ICE MAKERS
IF Q1(Single Filter System)
IFQ2
(Dual Filter System)
CUBE ICE MAKERS
ICEU 060, 150, 220,
ICE 300 0250, 0300,
ICE 320, 0406, 500,
ICE 0520, 0606, 0806
FLAKE ICE MAKERS
EMF 450, EF 250,
EMF 800, EF 800
EF 450
PEARL ICE MAKERS
GEM0650, 0655, 0956
CUBE ICE MAKERS
ICE 0806,1006, 1406
ICE 1506, 1806, 2106
FLAKE ICE MAKERS
EMF 1106, 2306
PEARL ICE MAKERS
GEM1256
PAGE 29
CapaCity ChartS
CUBERS
MAX. ICE PROD. LBS.
PER 24 HOURS
MODEL 70ºF AIR 90ºF AIR CONDENSING VOLTAGE
FAMILY 50ºF WATER 70ºF WATER UNIT
ICEU 060 69 54 AIR 115
ICEU 150 175 139 AIR/WATER 115
ICEU 220 260 220 AIR/WATER 115
ICEU 300 356 296 AIR/WATER 115
ICE 0250 352 284 AIR/WATER 115
ICE 0320 355 312 AIR/WATER 115
ICE 0400 528 449 AIR/WATER 115
ICE 0500 625 499 AIR/WATER/REMOTE 115
ICE 0520 528 441 AIR/WATER 115
ICE 0606 727 590 AIR/WATER/REMOTE 208230
ICE 0806 1094 840 AIR/WATER/REMOTE 208230
ICE 1006 1201 941 AIR/WATER/REMOTE 208230*
ICE 1406 1466 1187 AIR/WATER/REMOTE 208230*
ICE 1506 1431 1202 REMOTE 208230
ICE 1806 1891 1468 WATER/REMOTE 208230*
ICE 2106 2202 1855 WATER/REMOTE 208230*
*AVAILABLE IN THREEPHASE
FLAKERS AND PEARL ICE
MAX. ICE PROD. LBS.
PER 24 HOURS
MODEL 70ºF AIR APPLICATION CONDENSING VOLTAGE
FAMILY 50ºF WATER BIN STORAGE* UNIT
EMF 450 552 N/A AIR/WATER 115
EMF 800 852 N/A AIR/WATER 115
EMF 1106 1152 N/A AIR/WATER/REMOTE 208230
EMF 2306 2624 N/A AIR/WATER/REMOTE 208230
EF 250 400 143 AIR 115
213
EF 450 472 143 AIR 115
213
315
EF 800 772 213 AIR 115
315
GEM0650, 0655 745 N/A AIR/WATER/REMOTE 208230
GEM0956 1100 N/A AIR/WATER/REMOTE 208230
GEM1256 1345 N/A AIR/WATER/REMOTE 208230
BINS DISPENSERS
MODEL APPLICATION ARI MODEL APPLICATION ARI
NUMBER BIN STORAGE* BIN STORAGE ** NUMBER BIN STORAGE * BIN STORAGE **
CRT 125 94 74 CD 40022 120
ICEU 060 28 25 CD 40030 180
ICEU 150 100 74 CD 40130 180
ICEU 220 100 74 CD 40230 180
ICEU 300 130 112 IOD 150 150
B 25 255 190 IOD 200 200
B 40 365 270 IOD 250 250
B 42 374 275 EFD 270 12
B 55 556 400
B 100 927 670
B 120 1193 896
B 150 1499 1135
B 170 1866 1417
*Application bin storage rated in pounds at volume x 90% of internal volume x 34 lbs. per cubic foot
**ARI bin storage rated in pounds per ARI Standard 820
NOTE: EFD 270 produces 273 lbs. of ICE per day
PAGE 30
ICE-O-Matic’s Warranties
1: 36 month parts and labor warranty on Cube ICE Makers and Pearl ICE Makers. 24 month parts and labor warranty on Flake ICE
Makers, Dispensers and ICE Storage Bins.
60 month parts only warranty on Cuber Evaporators and Compressors. See ICE-O-Matic Warranty Statement for complete details.
2: See page 5 for Extended Water Filter Warranty Program
3: IOD Series Dispensers: 2 year parts warranty and 1 year labor only
4: CD Series Hotel Dispensers: 3 years parts and labor warranty
PURE ICE contains AgION™ silver-based protectant which inhibits bacteria and slime fungus growth build-up
on ice machine surfaces. Additionally, ICE-O-Matic's optional water filtration system provides protection against
unpleasant tastes, odors and scale formation. AgION antimicrobial is registered with the EPA and is a trademark
of AgION Technologies.
PAGE 31
1110 0 E. 45 TH AVENU E • DEN VE R, CO 8 02 39 • Te le : 303 .3 71 .3 73 7
I C E . P U R E A N D S I M P L E ™
1.86 6. PU RE .I CE www. ice om at ic .c om
Installation and Warranty
ICE-O-Matic’s team of nationwide Factory Authorized Service Technicians (F.A.S.T. Agents) are there to support you for
installation and service.
ICE-O-Matic’s Warranties
• 36 month parts and labor warranty on Cube ICE Makers and Pearl ICE Makers. 24 month parts and labor warranty on Flake
ICE Makers, Dispensers and ICE Storage Bins. 60 month parts only warranty on Cuber Evaporators and Compressors.
See ICE-O-Matic Warranty Statement for complete details.
• IOD Series Dispensers: 2 year parts warranty and 1 year labor only
• CD Series Hotel Dispensers: 3 years parts and labor warranty
• Extended Warranty. Purchase an ICE-O-Matc water filter with your new ICE-O-Matic Cube ICE Maker, replace the water filter
cartridge every 6 months, and the evaporator warranty is extended to 7 years - parts and labor.
(Available in the USA and Canada only)
About ICE-O-Matic
Located in Denver, Colorado, ICE-O-Matic® manufactures a wide range of commercial ice making products including cube ice
makers, flaked ice makers, storage bins, dispensers and water filters. Since 1952, we have been developing new technologies
and programs, such as the introduction of AgION™ Antimicrobial Compound in our ICE Series cube icemakers and our extended
warranty water filter program, which have resulted in the creation of products that are more efficient for business and safer for
the environment.
About the global capabilities of our parent company, Enodis:
SO LUTIONS
ICE -O-Ma tic provid es m any of t he o perational solu tions from Eno dis, a g lobal comp any dedicated to bringi ng va lue to
foo dservice ope rators b y equip ping them with highly indivi dualiz ed real- world a nswers that en hance me nus, se rvice,
prof its, a nd eff icienc y.
FI NANCI NG
Eno dis offer s l ow-rate, fas t-app roval fin ancing on eq uipmen t fr om E nodis bra nds and on oth er e quipment when
purc hased with Enod is bra nds. Preser ve cap ital, simpli fy bu dgetin g, and get the equip ment you n eed t oday, f rom E nodis
Auth orized Deal ers wi th Eno dis Fi nancin g.
SE RVICE
Eno dis bra nds are backe d natio nwide by Eno dis STAR Serv ice. Th is net work of cer tified servi ce age nts pro vides fast
resp onse wi th factory-t rained e xpert s to assu re your equipm ent wil l be fixe d right t he first time. En odis STAR s ervic e
age nts guarante e thei r work and u se genuine OEM p arts for be st equ ipment perf ormanc e and longer life.
To learn how ICE -O-Matic and other l eading Enodis brands can equip you, or to apply for financing, visit www.enodis.
com or consult your ICE-O-Matic dealer, distributor or call 727-375-7010.
© ICE-O-Matic. We reserve the right to make changes in design, specifications
and content at anytime without obligation. Part No: 6201 Rev. Code: F-7/07-TW
Loading...
