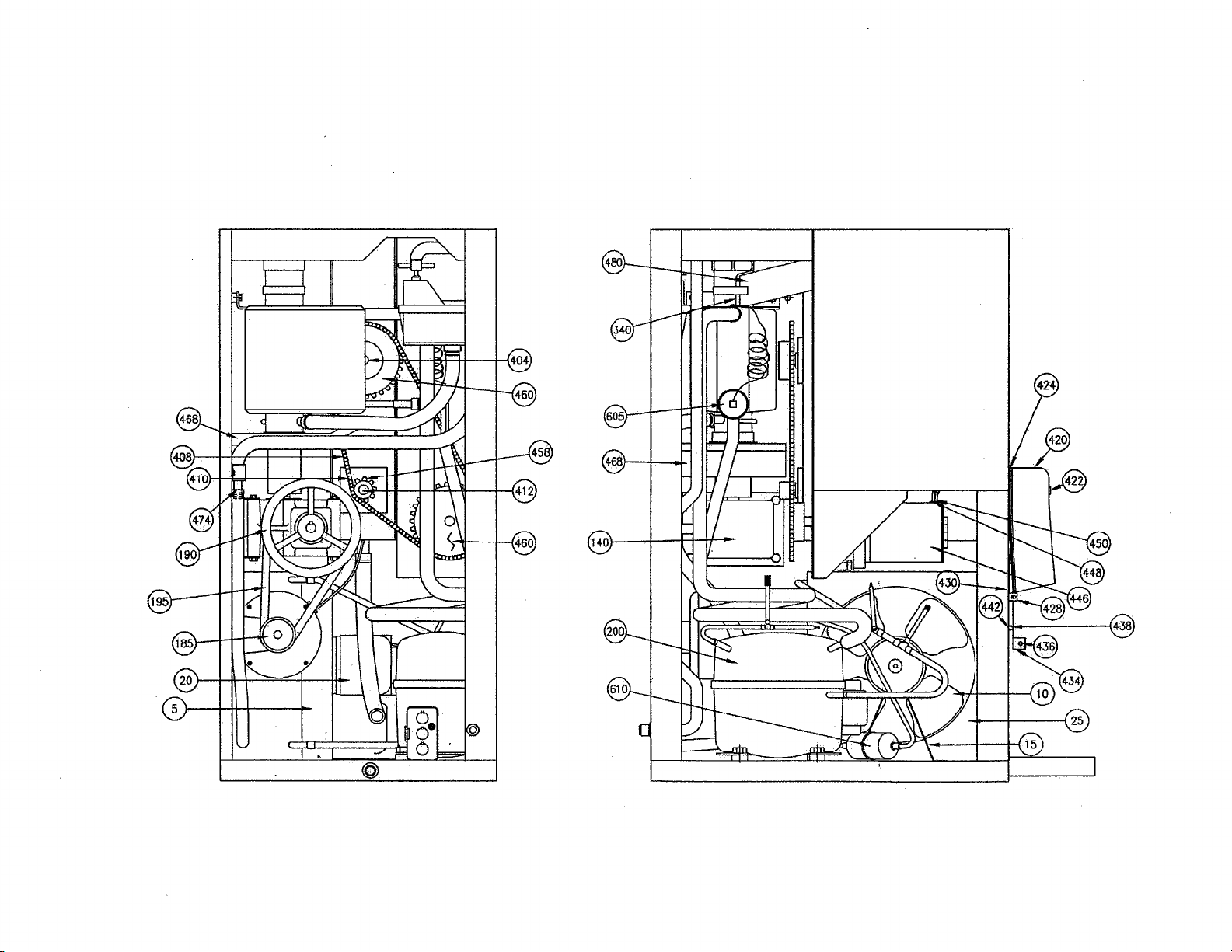

27.0 FLAKER DISPENSER FD550 AND EFD550 AIR AND WATER COOLED
Item FD EFD
Code Part Description Part Number GRP 550 550
Shaded Item Code indicates updated information
AIR COOLED
5 Air Condenser 9141002-01 AC X
5 Air Condenser 9141017-01 AC X
10 Fan Blade 9131017-01 AC X X
15 Fan Motor Bracket 9131015-01 AC X X
20 Fan Motor 9161045-04 AC X X
25 Fan Shroud Assy 3011410-01 AC X X
AUGER MOTOR KIT
100 Auger Motor 1/2" Shaft (Replaced By Kit) 1051068-10 AMK X
KIT INCLUDES AUGER MOTOR WITH 5/8 KEYED SHAFT-PULLEY AND KEY
AUGER MOTOR
105 Auger Motor 5/8" Keyed Shaft 9161093-01 AM X X
110 Auger Motor Key 9021028-01 AM X X
110 Auger Motor 1/2" Shaft use kit AM X
COMPRESSOR AND COMPONENTS (*Kit Includes Drier and Start Components)
200 *Compressor Kit - COPELAND 9181001-11 C X
200 *Compressor Kit - 9181084-11 X
205 Overload 9181005-01 C X
215 Start Capacitor 9181003-01 C X
215 Start Capacitor 9181003-24 C X
220 Start Relay 9181004-01 C X
220 Start Relay 9181004-18 C X
COUPLER
115 Coupler Assy (3/4 x 5/8) 2081012-02 CLP X X
120 Coupler - Lower Half 9111004-92 CLP X X
125 Coupler - Upper Half 9111012-91 CLP X X
130 Coupler - Spyder Gear 9111004-91 CLP X X

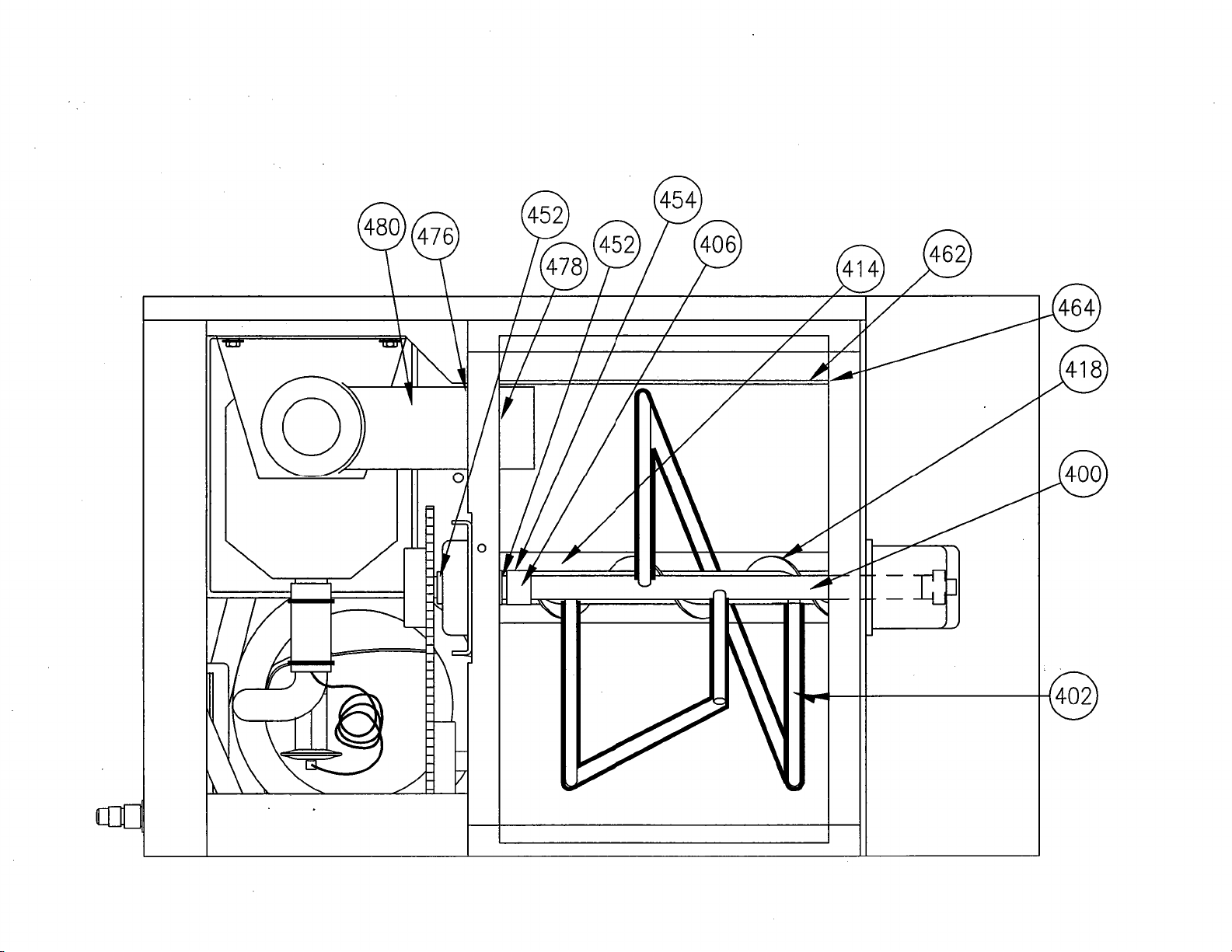

DISPENSE SYSTEM
400 Agitator Shaft Assy 2071003-01 D X X
402 Agitator Shaft Assy Wiper (1.6 FT-PVC Tubing) 6021015-03 D X X
404 Agitator Drive Shaft Assy 2071011-01 D X X
406 Agitator Quick Release Pin 9031016-01 D X X
408 Chain Roller (3.17 ft. required) 6101001-01 D X X
410 Chain Connecting Link 9111009-01 D X X
412 Dispense Auger Drive Shaft Assy 2071010-01 D X X
414 Dispense Auger Drive Shaft - Lock Pin 9031017-02 D X X
416 Dispense Auger Drive Shaft- Nylon Washer 9031004-25 D X X
418 Dispense Auger (Plastic Chute) 9131109-02 D X X
420 Dispense Chute Assy (Plastic) 2101210-01 D X X
422 Dispense Chute Auger Bearing (Plastic Chute) 9051344-01 D X X
424 Dispense Chute Gasket 9051027-01 D X X
Dispense Chute Assy (Stainless Steel) (NLA) REF SB 256 D X X
428 Dispense Lever Assy (Plate And Lever ) 2021126-01 D X X
430 Dispense Plate Gasket 9051244-01 D X X
432 Dispense Plate 3021121-01 D X X
434 Dispense Lever 3011365-01 D X X
436 Dispense Bumper (Rubber Button) 9051092-01 D X X
438 Switch - Dispense Replacement Kit Before 6/91 1051044-01 D X X
438 Switch - Dispense After 6/91 9101184-01 D X X
442 Switch - Boot 9101103-03 D X X
444 Cover Plate 3011282-01 D X X
Switch Dispense Assy Replacement Kit (Before 6/91) 1051044-01 D X X
SEC27.0 R2/02 Page1
27.0 FLAKER DISPENSER FD550 AND EFD550 AIR AND WATER COOLED
Item FD EFD
Code Part Description Part Number GRP 550 550
Shaded Item Code indicates updated information
DISPENSE SYSTEM (Continued)
446 Dispense Motor (Bison) 9161091-01 D X X
448 Capacitor - 7.5 MFD (For Bison Motor) 9101036-07 D X X
450 Protective Boot - Capacitor 9101169-01 D X X
452 Nylatron Bushing (Drive Shaft Bearings) 9121019-01 D X X
454 O-Ring (Agitator And Dispense Auger Drive Shaft) 9131009-09 D X X
456 Portion Control Kit 1051014-01 D X X
458 Sprocket (Dispense Auger) 9111007-02 D X X
460 Sprocket-(Motor And Agitator) 9111007-04 D X X
ELECTRICAL
230 Low Temp Safety Control 9041002-01 E X X
235 Bin Control Thermostat 9041004-01 E X X
240 Switch - On/Off (Toggle) 9101001-02 E X X
245 Contactor 115V (Double Pole) 9101018-01 E X X
245 Contactor 115V (Single Pole) 9101002-03 E X X
246 Switch Safety Interlock 9101056-02 E X X
EVAPORATOR 2.5 INCH
Bearings, Water Seal, Nut and O-Ring Kit 1051111-02 EV X X
300 Auger 9131012-01 EV X X
305 Bearing Housing Assembly-Lower 2051028-01 EV X X
310 Bearing Housing Assembly-Upper 2051160-01 EV X X
315 Bearing - Lower 9121001-06 EV X X
320 Upper Bearing Replacement Kit (Tapered Roller) 1051039-02 EV X X
320 Upper Bearing (Tapered Roller) 9121039-02 EV X X
320 Spacer for Upper Bearing 9031117-02 EV X X
325 Barrel Assembly W/TXV 1051131-01 EV X
326 Evaporator Assembly W/TXV 1051130-01 EV X
325 Barrel Assembly w/o TXV 2051171-91 EV X
326 Evaporator Assembly w/o TXV 2051172-91 EV X
335 Caps - Upper 3011011-01 EV X X
340 Gasket - Evaporator To Ice Chute 9051011-01 EV X X
350 Housing - Lower Bearing 9131220-01 EV X X
355 Housing - Upper Bearing 9131219-01 EV X X
360 Locating Pin 9131010-01 EV X X
365 O-Ring-Lower 9131009-08 EV X X
370 O-Ring-Upper 9131009-03 EV X X
375 Retaining Nut - Upper or Lower 9131207-01 EV X X
380 Set Screw - Lower Evaporator Nut 9031033-03 EV X X
390 Water Seal & Face Assembly 9121026-91 EV X X
GEAR REDUCER ED 18
140 Gear Reducer ED18 (12 OZ. GEAR OIL) 9171010-01 GR X X
Internal Parts for BALDOR Gearbox are not available.
MORSE Model # MJ6349 Internal Parts (Prior to 1995)
145 Bearing - Input or Output 9171010-90 GR X X
150 Seal - Input or Output 9171010-91 GR X X
155 Output Shaft 9171010-92 GR X X
160 Worm 9171010-93 GR X X
165 Worm Gear 9171010-94 GR X X
170 Gear Spacer 9171010-95 GR X X
175 Bore Plug 9171010-96 GR X X
180 Snap Ring 9171010-97 GR X X
SEC27.0 R2/02 Page2
27.0 FLAKER DISPENSER FD550 AND EFD550 AIR AND WATER COOLED
Item FD EFD
Code Part Description Part Number GRP 550 550
Shaded Item Code indicates updated information
MORSE Model # MJ9004 Internal Parts (After 1995)
145 Bearing - Input or Output 9171010-90 GR X X
150 Seal - Input or Output 9171010-80 GR X X
155 Output Shaft 9171010-81 GR X X
160 Worm 9171010-82 GR X X
165 Worm Gear 9171010-83 GR X X
175 Bore Plug 9171010-96 GR X X
180 Snap Ring 9171010-97 GR X X
MISCELLANEOUS
462 Bin Control Rod 3051065-01 M X X
464 Bin Control Rod Rubber Grommet 9051002-06 M X X
468 Drip Boot 9051007-01 M X X
470 Evaporator Sweat Cap 2991006-01 M X X
472 Legs - Set of Four 4" 9131051-02 M X X
474 Y-Drain (Drip Boot To Cabinet Rear) 9091093-01 M X X
476 Gasket - Ice Chute To Bin Exterior 9051011-01 M X X
478 Gasket - Ice Chute To Bin Interior 9051239-01 M X X
480 Ice Chute Assy w/ Strap, Stainless 2021111-01 M X X
PANELS
Bin Top Cover 3021567-01 P X X
Front Door Assy 2031112-01 P X X
Front Door Gasket (4 ft required) 6081004-05 P X X
Front Door Inner Panel 3021360-01 P X X
Front Door Insulation 3051051-01 P X X
Front Door Panel, Grey NLA P X X
Hinge - Female Half 9021074-02 P X X
Hinge - Male Half 9021074-01 P X X
Ice Grate (In Service Well) 3011401-01 P X X
Paint Beige Touch-up (Spray Can) NLA P X X
Paint Grey Touch-up (Spray Can) 5011077-20 P X X
Rear Panel Lower, Grey NLA P X X
Rear Panel Lower, Stainless 3021197-02 P X X
Rear Panel Upper, Grey NLA P X X
Rear Panel Upper, Stainless 3021195-02 P X X
Secondary Bin Top Assembly (From 8/91) NLA P X X
Service Door Assy, Grey Hinged NLA P X X
Service Door Assy, Stainless Hinged 2031386-02 P X X
Service Panel Assembly 2031115-01 P X X
Service Well Assy 2031114-01 P X X
Side Panel Lower LH, Grey NLA P X X
Side Panel Lower LH, Stainless 3021328-02 P X X
Side Panel Lower RH, Grey NLA P X X
Side Panel Lower RH, Stainless 3021327-02 P X X
Side Panel Upper LH, Grey NLA P X X
Side Panel Upper LH, Stainless 2031385-02 P X X
Side Panel Upper RH, Grey NLA P X X
Side Panel Upper RH, Stainless 3021329-02 P X X
Top Panel, Grey NLA P X X
PULLEY
185 Pulley - Auger Motor 5/8" Bore 9111002-28 PLY X X
190 Pulley - Gear Reducer 9111002-08 PLY X X
SEC27.0 R2/02 Page3
27.0 FLAKER DISPENSER FD550 AND EFD550 AIR AND WATER COOLED
Item FD EFD
Code Part Description Part Number GRP 550 550
Shaded Item Code indicates updated information
REFRIGERATION
605 Expansion Valve (AXV) 9151056-03 REF X
605 Expansion Valve (TXV) 9151006-10 REF X
610 Drier (Air Cooled Only) 9151004-02 REF X X
610 Drier Receiver (Water Cooled Only 9151033-01 REF X X
615 High Pressure Control 9041001-01 REF X X
625 Service Valve Core 9091086-02 REF X X
620 Service Valve Cap 9091086-03 REF X X
SECONDARY BIN CONTROL
Secondary Bin Control - Panel 3021567-01 SBS X X
Secondary Bin Control - Switch 3051163-01 SBS X X
Secondary Bin Control - Diaphragm 9051206-01 SBS X X
Secondary Bin Control - Assembly (From 8/91) NLA SBS X X
Secondary Bin Tab Cap (Terminal Cover) 9101115-01 SBS X X
V-BELT
195 V-Belt 9111001-12 V X X
WATER COOLED
800 Water Regulator Valve 9041010-01 WC X X
805 Water Condenser 9141022-01 WC X
805 Water Condenser 9141061-01 WC X
WATER FLOAT
810 Water Float Inlet Line Assy 2041363-01 WF X X
815 Water Float Assy 9131032-01 WF X X
820 Water Valve And Float Only 9131111-01 WF X X
WATER FILLER
Water Filler Cover Plate 3021181-01 WFL X X
Gasket - Cover Plate 9051245-01 WFL X X
Water Filler 9131040-01 WFL X X
WATER PURGE
Purge Valve 9041083-01 WPV X
Relay 9101084-01 WPV X
Relay Socket 9101083-01 WPV X
REFRIGERANT CHARGE
MODEL REF TYPE OZ. SP DP
FD550A R12 20 17
FD500W R12 22 17 125
EFD550A R134a 14 16
EFD550W R134a 13 16 125
SP=SUCTION PRESSURE
DP=DISCHARGE PRESSURE SETTING/WATER COOLED UNITS
HP=HIGH PRESSURE SAFETY CONTROL SETTING
SEC27.0 R2/02 Page4
