Icecrypt STC3220CCIHD User Manual

CONTENTS

1. SAFETY PRECAUTIONS ...............................................................................................................................3

2. FEATURES........................................................................................................................................................4

3. REMOTE CONTROL ......................................................................................................................................5

4. FRONT PANEL ................................................................................................................................................7

5. REAR PANEL ...................................................................................................................................................7

6. CONNECTING YOUR SYSTEM ...................................................................................................................8

6.1 TV WITH MOTORIZED SYSTEM (DISEQC 1.2) ..................................................................................................8

6.2 CONNECTING THE NETWORK ............................................................................................................................9

7. BASIC OPERATIONS ................................................................................................................................... 10

7.1 TURN ON STB ................................................................................................................................................. 10

7.2 POWER ............................................................................................................................................................ 10

7.3 CHANNEL UP/CHANNEL DOWN ................................................................................................ ...................... 10

7.4 VOLUME UP/VOLUME DOWN- ........................................................................................................................ 10

7.5 NUMBER ......................................................................................................................................................... 10

7.6 MUTE ............................................................................................................................................................. 10

7.7 PAUSE ............................................................................................................................................................. 10

7.8 RECALL .......................................................................................................................................................... 10

7.9 FAVORITE ....................................................................................................................................................... 10

7.10 AUDIO ......................................................................................................................................................... 11

7.11 INFORMATION ............................................................................................................................................. 11

7.12 EPG ............................................................................................................................................................ 11

7.13 TV/RADIO ................................................................................................................................................. 12

7.14 CHANNEL LIST ............................................................................................................................................ 12

7.15 SLEEP .......................................................................................................................................................... 13

7.16 PAGE UP/PAGE DOWN ................................................................................................................................ 13

7.17 TEXT ......................................................................................................................................................... 14

7.18 SUBTITLE .................................................................................................................................................... 14

7.19 FIND ............................................................................................................................................................ 14

7.20 ZOOM .......................................................................................................................................................... 14

7.21 MENU.......................................................................................................................................................... 14

7.22 VIDEO FORMAT ........................................................................................................................................... 14

7.23 EXIT ............................................................................................................................................................ 14

8. SERVICE ......................................................................................................................................................... 14

8.1 ORGANIZING SERVICE .................................................................................................................................... 15

8.2 ORGANIZING FAVOURITES .............................................................................................................................. 17

9. INSTALLATION ............................................................................................................................................ 17

9.1 SATELLITE INSTALLATION .............................................................................................................................. 17

9.2 AUTO INSTALLATION ...................................................................................................................................... 19

9.3 SATELLITE GUIDE ........................................................................................................................................... 19

9.4 TERRESTRIAL INSTALLATION ......................................................................................................................... 20

9.5 CABLE INSTALLATION .................................................................................................................................... 20

10. SYSTEM .......................................................................................................................................................... 21

10.1 LANGUAGE ................................................................................................................................................. 21

10.2 A/V CONTROL ............................................................................................................................................ 21

10.3 ETHERNET SETTING .................................................................................................................................... 22

10.4 TIME SETTING ............................................................................................................................................. 23

10.5 TIMER ......................................................................................................................................................... 24

10.6 PARENTAL CONTROL .................................................................................................................................. 25

10.7 MISCELLANEOUS SETTINGS ........................................................................................................................ 25

10.8 SOFTWARE UPGRADE .................................................................................................................................. 26

10.8.1 Upgrade By USB .................................................................................................................................... 26

10.8.2 Http Upgrade .......................................................................................................................................... 26

10.8.3 Ftp Upgrade ........................................................................................................................................... 26

10.8.4 Upgrade by RS232: ................................................................................................................................ 26

10.8.5 Backup to USB ................................................................................................................................ ........ 27

10.9 DEFAULT SETTING ...................................................................................................................................... 28

10.9.1 Default Value:......................................................................................................................................... 28

10.9.2 Delete All Channel: ................................................................................................................................ 28

10.9.3 Save default value ................................................................................................................................... 28

10.10 INFORMATION ............................................................................................................................................. 29

11. CONDITIONAL ACCESS ............................................................................................................................. 29

11.1 CA SETTING ................................................................................................................................................ 29

11.2 COMMON INTERFACE ........................................................................................................................... 29

12. MEDIA ............................................................................................................................................................. 30

12.1 RECORD ...................................................................................................................................................... 30

12.2 MOVIE ........................................................................................................................................................ 30

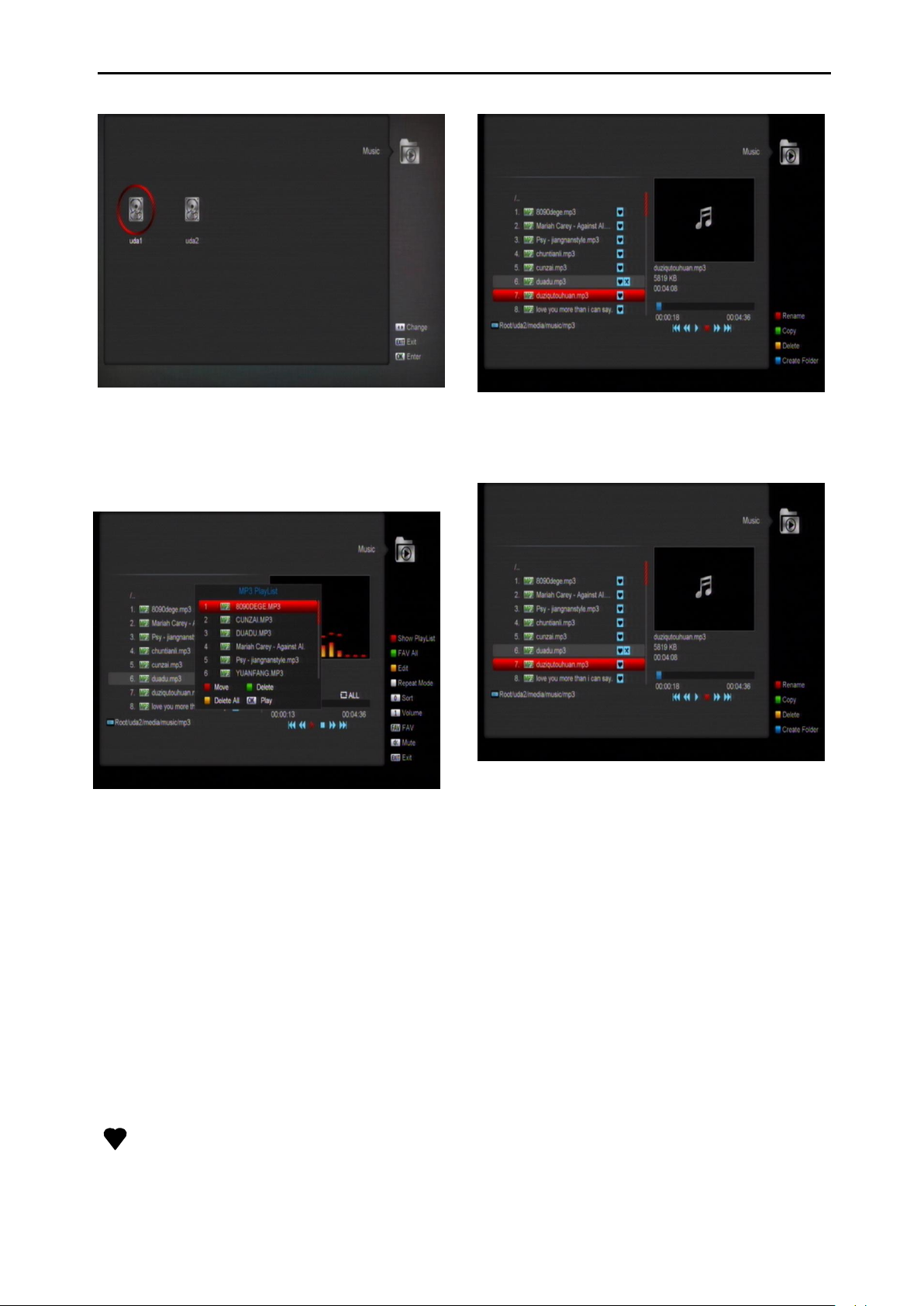

12.3 MUSIC ......................................................................................................................................................... 30

12.4 IMAGE ................................................................................................ ................................ ......................... 32

12.5 PVR SETTING ............................................................................................................................................. 34

12.6 DISK MANAGE ............................................................................................................................................ 34

12.7 REMOVE USB DEVICE SAFELY! .................................................................................................................. 35

13. APPLICATION ............................................................................................................................................... 35

13.1 YOUTUBE .................................................................................................................................................... 35

13.2 RSS READER .............................................................................................................................................. 36

13.3 WEATHER FORECAST .................................................................................................................................. 37

13.4 GOOGLE MAPS ............................................................................................................................................ 37

13.5 FTP ............................................................................................................................................................. 37

13.6 WEB TV ................................................................................................................................ ...................... 37

13.7 DLNA ................................ ................................................................................................ ......................... 38

13.8 BIG2SMALL ................................................................................................................................................. 38

14. GAME .............................................................................................................................................................. 38

14.1 TETRIS ........................................................................................................................................................ 38

14.2 SNAKE......................................................................................................................................................... 38

14.3 OTHELLO .................................................................................................................................................... 39

15. EPG ................................................................................................................................................................... 39

16. NEW FEATURES ................................................................................................................................ ........... 39

16.1 EQUALIZER ................................................................................................................................................. 39

16.2 TIME SHIFT ................................................................................................................................................. 39

16.3 RECORD ...................................................................................................................................................... 39

17. TROUBLE SHOOTING ................................................................................................................................. 41

18. SPECIFICATIONS ......................................................................................................................................... 42

CAUTION:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to "dangerous voltage" and to prevent from a risk of electric shock.

Warning:

To reduce the risk of electric shock, don't open the cabinet. Refer servicing to qualified personnel only.

The exclamation point within an equilateral triangle is intended to alert the user to important operating and maintenance (servicing).

WARNING: Do not use this STB where contact with or immersion in water is a possibility. Do

not use near flower vase, washbowls, kitchen sinks, laundry tubs, swimming pools, etc.

WARNING: Do not put the candle or lamp stand on the cabinet; otherwise, there is the danger

of fire.

WARNING: The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the unit. If you are not sure of the type of power supply (for example, 100 or 240 V) to your home, consult your local dealer or local power company.

WARNING: This product install diodes. Do not open the cabinet or touch any parts in the inner

mechanism. Consult your local dealer for technical service if the opening is required.

Note: To ensure proper use of this product, please read this User manual carefully and

retain for further reference.

Note: This product install diodes. Do not open the cabinet to avoid the unit direct exposure to

radiation.

Unit Cleaning: After the unit power is turned off, you can clean the cabinet, panel and remote

control with a soft cloth lightly moistened with a mild detergent solution.

Attachments: Never add any attachments and/or equipment without the manufacturer

consent; as such additions may result in the risk of fire, electric shock, or other personal injury.

Locating: Slots and openings in the cabinet are provided for ventilation to protect it from

overheating. Do not block these openings or allow them to be blocked by placing the STB on a bed, sofa, or other similar surface, nor should it be placed over a radiator or heat register.

Power-Cord Protection: Place the power-supply cord out of the way, where it will not be

walked on. Please take special attentions to cords at plugs, convenience receptacles, and the point where they exit from the unit.

Object and Liquid Entry: Never put objects of any kind into this STB through openings, as

they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill any liquid on the STB.

1. Safety precautions

Note: Moisture may be formed on the lens In the following conditions:  when the unit is suddenly moved from a cold environment or an air-condition room to a

Warm place.

 immediately after a heater has been turned on.  In a steamy or very humid room.

If the moisture forms inside the unit, it may not operate properly. To correct this problem, turn

on the power and wait about two hours for the moisture to evaporate.

Parts Replacement: When the unit parts need to be replaced, user should make sure the

service technician use the replacement parts specified by the manufacturer or having the same characteristics as the original part. Unauthorized replacement may put the unit In the risk of fire, electric shock or other hazards.

Safety Check: After all the maintenances and repairs are done, user is required to request the

service technician to conduct the overall safety check to ensure the machine is In the proper condition.

2. FEATURES

 MPEG-Fully DVB-S2, DVB-T/C and DVB-T2 (H.264) HD compliant

 6000 channels (TV and Radio) programmable  Multilingual menu text support  Channel switching time less than 1 second  Channel list editing  Favorite channel list editing  True-color On-Screen Display (OSD)  Full Picture In Graphic (PIG) function  Electronic Program Guide (EPG) for on screen channel information  Subtitle supported  Teletext supported by VBI insertion and software emulation  Parental lock facility by channel and program event  Program and Channel information transfer from receiver to receiver  Exciting games embedded  Dolby Digital Bit-Stream output via HDMI  DiSEqC 1.0, 1.1, 1.2 ,USALS and Unicable  HDMI Full HD (1080p) Video/Audio Output  2x USB 2.0 Host  RTC (Real-Time-Clock)  Time Shift  Video Recording  Recording one channel and Time Shifting another channel (optional)  3G Network Function Supported

3. Remote Control

You can power on/off the receiver, operate on screen menu, and use a variety of hot key functions.

POWER

To switch your receiver On or into Standby Mode.

MUTE

Used to enable or disable the audio.

NUMERIC KEYS

Used to select channels or enter parameters.

(TV / RADIO)

Receiver switches between TV and Radio mode.

(ZOOM)

Press key select zoom times, from X1 to X16.

(PREVIOUS)

Return to the previous menu or status.

(AUDIO)

Audio channels setup, to select audio mode; Left, Right, Stereo, Mono.

TV/STB

Receiver switches between TV and receive mode.

(INFORMATION)

To display channel status or various programme information of current service.

EPG (Electronic Programme Guide)

Display the Programmers guide on screen when available.

Displays the Main Menu on the screen, or return to the previous menu or status.

EXIT

Cancel the user selection and return to the viewing mode from a menu.

To select menu option, or to update an entry.

<,> KEY

To adjust volume level, or to move cursor left or right in the menu.

^, v KEY

To change channels, or to move cursor up or down in the menu.

P+/P-

To move the cursor to the next or previous page in the menu or channel list.

Red Key

Has different functions per menu.

Teletext (GREEN KEY)

Shows teletext information of the current channel supports.

Subtitle (YELLOW KEY)

Subtitle Display.

UHF

In case your TV is connected through RF Modulator (UHF), select output channel number between CH21 and CH69 with up and down key.

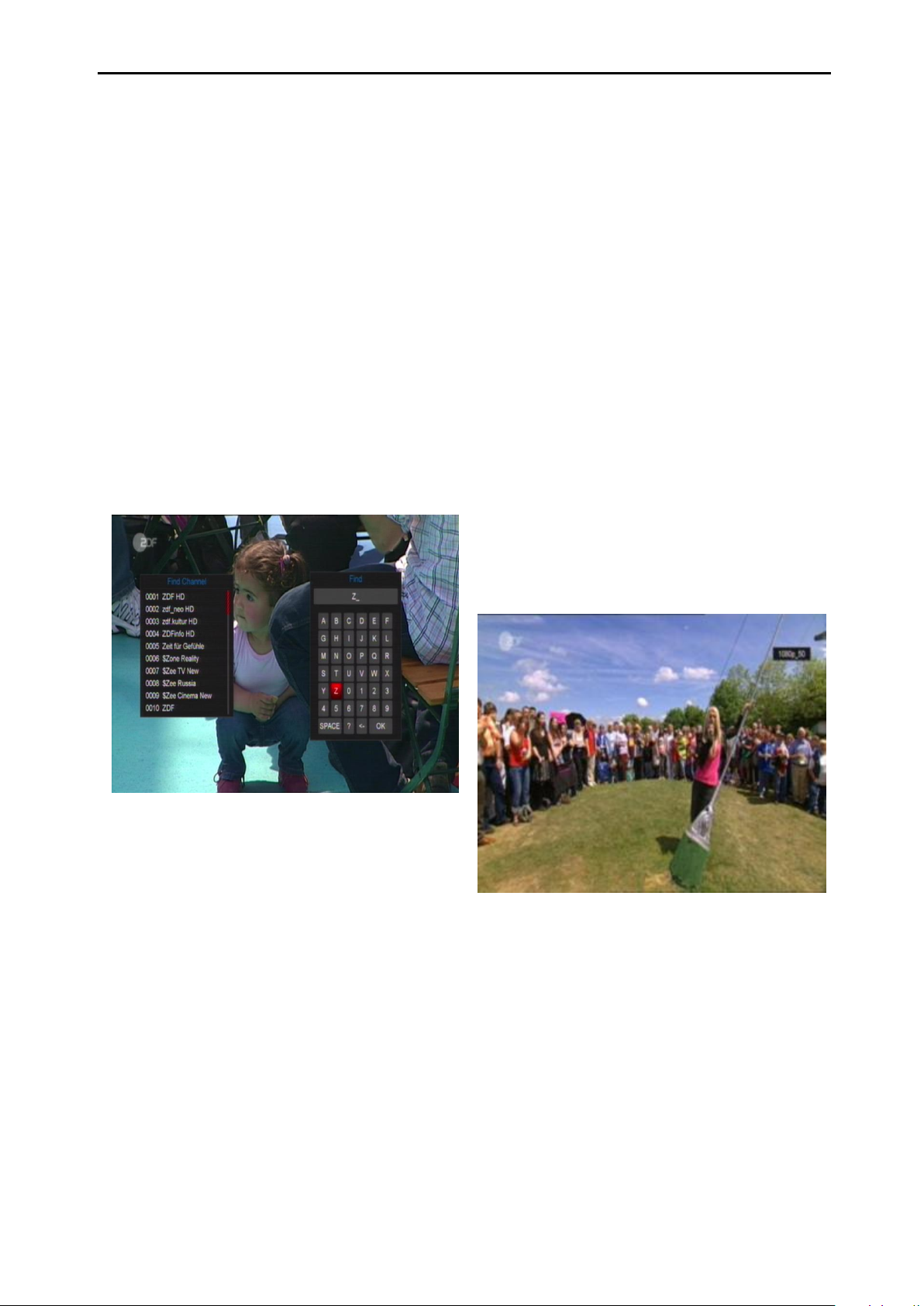

(FIND)

Use to prompt find channels sort by character.

TIMER

Press timer key you can setup up the Standby time.

P/N

Press P/N button to switch the display mode among "Auto-> by native TV<->480i->480p ->576i-> 576P-> 720p-50-> 720p-60-> 720P-60-> 1080i-50->1080i-60 ->1080p-50->1080p-60".

SAT

Display satellite list.

FAV (FAVOURITE)

To set receiver to the favourite server mode, Display the favourite channel.

Archive

Press this button to enter the File Manager menu directly.

TMS (Time Shift)

Press this button to display Time Shift info bar.

Play

To play the MP3, JPEG or recording file.

Stop

To stop the Time Shift, recording, or MP3/JPEG player.

PAUSE

Used to select the freeze function. Press once to freeze the screen picture.

Record

To start recording.

Fast Backward

To start Fast Backward function.

Fast Forward

To start Fast Forward function.

Slow Backward

To start Slow Backward function.

Slow Forward

To start Slow Forward function

4. Front Panel

POWER KEY: To switch the receiver power on/stand by.

EXIT KEY: Cancel the user selection and return to the viewing mode from a menu.

MENU KEY：To enter the Main Menu. OK KEY: To see TV/Radio channel list, or to confirm in the menu. V-/V+ KEY: To adjust volume level, or to move cursor left or right in the menu. P-/P+ KEY: To change channels, or to move cursor up or down in the menu. Remote Sensor: Detects infrared signal from remote control unit. POWER Indicator: Lit whilst the receiver is powered on and at standby mode. Signal Indicator: When received signal is strong, the signal indicator is lit. Card Slot: One CA Interface for Conax. Common Interface: One socket for Conditional Access Modules CAM. USB A: USB 2.0 Host, connect to USB hard disk, or flash disk,and 3G dongles. Display: (LED type) Indicates operating status of receiver.

5. Rear Panel

Please refer to the diagram above for all possible connections of your receiver Do not connect the unit to the mains socket until all other connections have been made and checked.

ANT IN: This port is to connect the coaxial cable from Terrestrial/Cable Antenna.

LNB IN 13/18V 400mA MAX: This port is to connect the coaxial cable from LNB of your Dish. S/PDIF: Digital Audio interface, connect to AV amplifier S/PDIF input terminal. USB B: USB 2.0 Host, connect to USB hard disk, or flash disk,and 3G dongles. VIDEO: This RCA connector is used to connect any external video. AUDIO R/L: These RCA connectors are used to connect any external audio amp or system. 0/12V 50mA: This is used to connect 12V to an external 0V/12V switch. HDMI: Audio and Video output socket for TV set with HDMI Input Jack only. RS 232 SERIAL PORT: This is used to connect your receiver to a computer through a serial cable. Ethernet: Network port, you can get a new software updates from this port. POWER ON/OFF SWITCH: To switch ON/OFF the receiver power supply.

6. Connecting Your System

There are two ways to connect the receiver to your existing TV system. We recommend using one of the following cases for the best result:

1. If you have a high definition television set, you should use a HDMI cable for best result, Plug one end of the cable into the HDMI socket on the receiver, and the other end into the matching socket on your television. In this case, you do not have to make audio connections because the HDMI connector can output stereo audio or Dolby Digital audio.

2. Connect one end of RCA cable to the RCA jack on the back of the receiver and the other end to a RCA jack on your TV.

Finally connect the coaxial cable from the LNB of your Dish to the LNB IN jack on the receiver.

With External Audio / Hi-Fi System

To connect any external Audio Hi-Fi system, the receiver has been provided with RCA connector at the back of the receiver marked with AV OUT. Connect an RCA cable from the AV OUT jack on the back of the receiver to the LINE, AUX, SPARE OR EXTRA input jacks on your Hi-Fi System.

6.1 TV with Motorized System (DiSEqC 1.2)

Connect one end of your coaxial cable to the LNB IN connector on the receiver and the other end to the REC or Receiver connector on the DiSEqC 1.2 motor. Connect the coaxial cable from the LNB to the LNB connector on the DiSEqC 1.2 motor.

All our receivers are designed to be DiSEqC 1.0 and DiSEqC 1.2 compatible. This allows multiple antennas to be connected to the receiver at the same time. If you have two or more fixed antennas or LNBs, then we recommend you use a DiSEqC 1.0 switch.

Connect the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of the DiSEqC switch. Do the same for any other LNBs that you have. Connect one end of a coaxial cable to the RF output connector of the DiSEqC switch, connect the other end to the LNB IN socket on the receiver. To the digital receiver, you can connect either a single satellite antenna directly or LNB of multi-feed equipment.

6.2 Connecting the Network

1. Connecting to the LAN:

Connect one end of the Ethernet cable to the product and the other end to the LAN router.

2.Connecting to the Wi-Fi (Wireless LAN):

You can connect the network via the Wi-Fi access point or DSL/cable modem.

a. Plug in the wireless USB dongle to the USB port.(Separate purchase required) b. Set the options for the Wi-Fi.

1. Network Name (SSID): Select the network name of your Wi-Fi access point from the list.

2. Security Type (WEP): This product supports WEP 40/128bit ASCII and WEP 40/128bit HEX. The security

type of the Wi-Fi and the product shall be set the same.

3. Password: When using the security type, you must set the password. Enter the same password in the Wi-Fi

setting menu.

3. Connecting to the 3G:

Connect the network via the 3G dongle. Plug in the USB that has 3G dongle.

Note:

1) Make sure the distance between the Wi-Fi access point and the product is not too far away. This may lower the quality of service.

2) It is recommended to purchase a wireless USB dongle distributed by RT5370. Other products may not function or respond.

3) It is recommended to purchase a 3G USB dongle distributed by huawei E1750 , E1550 , E1752 , E173 Other products may not function or respond.

4) We recommend the network connection over a direct LAN.

7. Basic Operations

7.1 Turn on STB

First, connect to an external 12V adapter to turn on the unit.

When the STB is first used, there will play the first channel from the default Channel List. If the STB is not first used, STB will play the same channel as last time before turning off.

? Frequently Asked Question

Q: The power of my STB has been turned on and not

in Standby mode, but the TV screen showed nothing:

A: Make sure the TV set has been set to the correct

video input (not the TV channels). For example, if you have connected the unit with the Video1 input of the TV set, the TV set has to be switched to Video1.

Q: The power of my STB has been turn on and not in

Standby mode, but the TV screen showed nothing except one box with “No Signal” image.

A: That means the channel, which you select, is no

signal. It could be several causes:

1 The channel which you select is not in your

allocate satellite. The simply solution is to change channel.

2 The signal of current TV channel is too weak. You

can try to change channel to other strong signal channels. If the problems still exist, please consult your local dealer or other professionals for technical service.

3 You use the Dual LNB, and you need Modify LNB

Type

7.2 Power

7.4 Volume Up/Volume Down-

In full screen, press [VOL+/VOL-] to adjust volume.

7.5 Number

In full screen, use number key and press [OK] on the Remote Control Unit to change channel.

7.6 Mute

1 Press [MUTE] key to mute the sound and the

screen will show up mute OSD.

2 Press [MUTE] key again to restore sound.

7.7 Pause

1 In playing mode, press [Pause] key, the picture will

be paused, but the sound of the channel will still continues.

2 Press [Pause] key again, the screen’s picture will

skip over to the current playing picture, and the sound of the channel will corresponding playing.

7.8 Recall

Press [RETURN] key will directly switch to the previous channel that you played before current channel.

7.9 Favorite

1 In full screen, press [FAV] key, it will display a

window of “Favorite list” on the left of the screen, which you can watch like below.

1 Press [Power] Key can enter the Standby state 2 In Standby state, press [Power] Key again can call

back the unit and go on play the previous channel

3 User can also disconnect the device’s main power

to end the Standby state.

7.3 Channel Up/Channel Down

In full screen, press [CH+/CH-] to change channel.

2 In the window of " Favorite list ", you can move

highlight by press [Channel Up/Channel Down] key to select favorite Channels.

3 In the window of ” Favorite list ", you can press

[Left/Right] key to select favorite groups Pressing [P-/P+] keys can implement the “Page up/Page down” function

4 Press [Exit] key to exit the current window.

? Frequently Asked Question

7.11 Information

In full screen, press [INFO] key (press [INFO] key and [RED] key) can open information screen, in the window shows the parameters of current channel.

7.12 EPG

Q: Why the screen displays “No Favorite Channel”,

after pressing [FAV] key?

A: It is because that you haven’t set any channels as

“favorite channel”. Please refer to Favorite

7.10 Audio

1 In full screen, press [AUDIO] key can open the

“Audio” window on the screen.

2 You can modify the audio track by press [Channel

Up / Channel Down] key and modify the audio mode by press[left/right] key.

3 Mode: Left/Right/Stereo/Mono

1 The STB has an Electronic Program Guide (EPG)

to help you navigate channels through all the possible viewing options. The EPG supplies information such as channel listings and starting and ending times for all available channels. Press [EPG] key to display EPG screen.

2 Press [Red] key can select the channels by

different group, such as by Favorite/Satellite/Provider/CAS etc.

3 Press [Green] key to select different display mode

among Now EPG, Next EPG, More and Schedule, like the following picture:

5 In EPG menu, when you select one event by high

light item, you can set this event to record timer list directly by press [REC] button.

6 In EPG menu, press [Exit] to close EPG screen.

7.13 TV/RADIO

In TV mode, pressing [TV/RADIO] key can switch to Radio mode. In Radio mode, press [TV/RADIO] key to switch to TV mode.

7.14 Channel List

1 In full screen, press [OK] key can enter “Channel

List”.

4 Press [Yellow] key in EPG menu can set one

2 Press [Red] key to change the different group.

Which you can watch like below.

record timer or go to Timer List menu.

move highlight and press [OK] key to confirm you selection.

3 Press [Green] key to display details information for

EPG Now.

6 The five kinds of sorting way are:

 Default: Sorting by scanning result.  FTA/$: Sort channel through free and

scramble sequence. Free channel will in the front of channel list and scramble channel will at the rear of channel list

 Lock: Accumulated all locked channels and

list in the last of TV Channel List.

 Name (A-Z): Sorting in Alphabetical Order,

ignore “$” symbol.

 Name (Z-A): Sorting in Alphabetical Order,

ignore “$” Symbol.

[OK] key to play the highlighted channel.

Down.

4 Press [Yellow] key you can change the current

channel’s property, such as FAV/ Lock/ Skip/ Delete/ Rename.

7 Press [Up/Down] key to move highlight and press

8 Press [Page Up/Down] key to page up and page

9 Press [Exit] key to exit the channel list.

7.15 Sleep

1 This function can set sleep timer. When you set a

sleep timer and the time arrive, the system will enter to standby automatically.

2 Pressing [SLEEP] key, it will switch the mode

between Sleep Timer Off /10/30/60/90/120 minutes.

7.16 Page Up/Page Down

5 Press [Blue] key can open the “Sort” window like

below. There are five kinds of sorting ways. You can press [Channel Up/Channel Down] key to

In Channel list, press [Page+/Page-] key can page up and page down the channel list.

7.17 TEXT

1 Press [TTX] key in full screen, you can open

teletext page on the channel which has teletext information.

2 If the channel has no teletext information, it will

show “No Teletext Data” on the screen.

7.18 Subtitle

1 Press [SUBTITLE] key in full screen you can select

the subtitle language or off on the channel which has subtitle.

2 If you set the Auto subtitle option as ON in

Miscellaneous settings menu, the subtitle will be showed automatically.

7.19 Find

2 Press [ZOOM] key again, the image will enlarge

rotate as x1, x2, x4, x6, x8, x12, x16.

3 In “x2 ~ x16” image, using [Up/ Down/ Up/ Down]

keys to move the image center area you want to see.

4 In zoom mode, press [Exit] to close “Zoom”

window.

7.21 Menu

Press [MENU] key can open the menu, exit the current menu to last menu or close the window.

7.22 Video Format

Press [V. Format] key under Full Screen playback for 1st, it will show the current system outputting video resolution, continuously press this key, system will switch its outputting video resolution by sequence

“ 480i-> 480P-> 576i-> 576p-> "720P_50","720P_60,"1080i_50"," 1080i_60" ," 1080P_50" and" 1080P_60"

1 Press[Find] key in full screen can open the “Find”

window like above. You can press[Up/Down/left/right ]key to move highlight and press[OK]key to input the selected symbol or letter into the dialogue.

2 After input each character, the program list on the

left will search the channel according your input, and list the matched channel.

3 Move highlight to “OK” and press [OK] key can

close “Find” window and you can select channel from the channels list directly.

7.20 Zoom

1 The [ZOOM] key allows you to magnify a certain

area on the images

7.23 Exit

1 Press [EXIT] key can exit the current menu to last

menu or close the window.

8. Service

When you press [Menu] key to enter menu, there will display the picture like below:

5 Press color key can implement the corresponding

function in “Organizing Services”.

Groups

1 Press[Left/Right] key you can select the submenu

of Organizing services and Organizing favourites.

2 Press [OK] key to enter the “Organizing Service”. If

Menu Lock is “On”, it will display an dialogue for user to key in password. The default Password is “0000”.

3 Press [Menu] key to go back to main menu.

8.1 Organizing Service

When you enter to “Organizing Service” menu, there will display the screen like below.

1 Press [Red] key can open the “Groups” window

like above

2 You can press [Up/Down] key to move highlight

and press [OK] key to select group.

3 Press [Menu] key to close “Groups” List.

Options

1 You can move highlight by press [Channel

Up/Channel Down] key and [OK] key to select the programs which you want to edit.

2 You can press [Page Up/Page Down] key to

implement the Page Up/Page Down function.

3 You can use [Red] key to switch different Group. 4 You can press [Green] key to select the programs

by different select mode.

1 Press [Green] key can open the “Options” window

like above.

2 You can press [Up/Down] key to move highlight

and press [OK] key to confirm the select mode.

3 Press [Menu] key to close “Options” List.

Move

1 Select the channels which you want to edit in

channel list by press [OK] key or other select mode.

2 Then press [Right] key to move the high light to

right toolbar.

3 Select Move icon by press [Channel Up/Channel

Down] key and [OK] key.

4 Move the channels to the position which you want

and press [OK] key to confirm. Like the following picture:

Lock

1 Select the channels which you want to edit in

channel list by press [OK] key or other select mode.

2 Then press [Right] key to move the high light to

right toolbar.

3 Select Lock icon by press [Channel Up/Channel

Down] key and [OK] key.

4 Lock the channel by press [OK] key.

Like the following picture:

2 Then press [Right] key to move the high light to

right toolbar.

3 Select Delete icon by press [OK key to delete

channel one by one.

4 When you high light in channel list ,you can press

[OK] key to select more channels ,and repeat b and c step to deleted.

Skip and rename

Follow the same way you can set the channel’s Skip or give the new name for high light channel.

Find

1 Press[Find] key can open the “Find” window like

above. You can press[Up/Down/left/right]key to

Delete

move highlight and press [OK] key to input the selected symbol or letter into the dialogue.

2 After input each character, the program list on the

1 Select the channels which you want to edit in

channel list by press [OK] key or other select

left will search the channel according your input, and list the matched channel.

mode.

3 Move highlight to “OK” and press [OK] key can

close “Find” window and you can select channel from the channels list directly.

8.2 Organizing Favourites

This menu is helpful in adding and deleting services to and from the favorite group.

1 FAV List

To choose the FAV List by press “FAV” button.

2 Add

To add services into favorites, Mark the desired services by press “ OK ” button in Service List, press to choose Add mode and press “ OK ” button.

3 Remove

To remove services from favorites, Mark the desired services by press “ OK ” button in Favorite List, press

to choose Remove mode and press “ OK ” button.

4 Move

You can reorder and move the service to the preferred position in Favorite List.

5 Rename

Select the desired FAV List by press “FAV” button, using

, buttons to choose Rename mode and press

“ OK ” button to display keyboard, and rename it.

6 Group, Options and Find functions

Please refer to the “Organizing Services” part in this manual.

9. Installation

1 Press [Left/Right] key to select menu pages

among Satellite Installation ,Auto

installation,Satellite Guide,Terrestrial Install,Cable Installation.

2 Press [OK] key to enter the “Installation”. If Menu

Lock is “On”, it will display an dialogue for user to key in password. The default Password is “0000”.

3 Press [Up/ Down] key to select menu items. Press

[menu] key to go back to main menu.

9.1 Satellite Installation

Satellite

1 Satellite: Press[OK]key to enter the Satellite list.

2 Press [Up/ Down] key to select satellite. Press

[Page] key to page up or page down.

LNB Type

In this item, press[Left/Right]key can switch among “Standard”, “User” and “Universal” , ”Unicable” mode.

DiSEqC

DiSEqC: You can press [OK] and [Up/ Down] key to switch options. There are several options for your

selection:

a) Disable: without DiSEqC. b) 1/2, 2/2: two ports DiSEqC c) 1/4, 2/4, 3/4, 4/4: 4 ports DiSEqC d) 1/8, 2/8… 8/8: 8 ports DiSEqC e) 1/16, 2/16….16/16: 16 ports DiSEqC

the item is switched to “Off”, the receiver will receive all signal from 0K port.

! Notice

When you choose LNB type “Universal”, you can not modify 22K.

Polarity

In “Polarity” item, [Left/Right]key to switch “Auto / H / V” functions.

LNB Power

In “LNB POWER” item, you can press [Left/Right] key to switch: ” On/Off” functions.

TP Edit

When you enter to “TP Edit” menu, there will display the screen like below:

Positioner

Positioner： In “Positioner” item, you can press [Left/Right]key to switch “Off / DiSEqC 1.2 / USALS”

functions.

22K

You can use [Volume Up/ Volume Down] key to switch “ON / Off”. When this item is switched to “ON”, receiver will receive TV and radio input signal from 22K port. If

1 In “Satellite” item, press[Left/Right]key to switch

satellite that you want to scan or press[OK]key to enter satellite list for selection.

2 In “TP Index” item, you not only can use

[Left/Right]key to select transponder but also can use[Add] and [Delete]functions.

 When you press[Green] key, it will display “New

TP” in “TP Index” item; You should set the parameters of “TP Frequency” and “Symbol Rate” for this new transponder. The parameters of “TP Frequency” and “Symbol Rate” can set by number keys. The available range are “3000~13450 MHz”

and “1000~45000Ks/s”.

 When you press[Yellow] key, there will show up a

warning message for reminding whether you will delete the current transponder or not. If you select

“Yes”, the current transponder will be deleted, and the total account of transponder will reduce 1 correspondingly.

 When you press [Blue] key, there will show up a

warning message for reminding whether you will delete all transponders or not. If you select “OK”, all transponders will be deleted.

3 For the existed transponder, you also can use

number keys to modify the parameters of “TP Frequency” and “Symbol Rate”.

4 When you complete your modification, Press [Red]

key, it will show up a dialog to ask you scan mode, program type, scan type and NIT Search on/off. After you set up, press [OK] key to start scanning.

5 In the “TP Scan” item, press [Exit] key to exit the

scanning and save the current parameters.

Single Scan

1 Press [Red] key, it will show up a dialog to ask you

scan mode (means you want to scan all channels or only scan free channels), program type (means you want to scan all channels or only scan TV/Radio channels), scan type (means preset scan, that is searching the existed TP. Automatic Scan means blind scan. It is no need existed TP info) and NIT Search on/off. After you set up, press [OK] key to start scanning.

2 Press [White] key into the blind scanning

immediately.

TP Scan

Press [Green] key to scan current TP’s programs.

Auto DiSEqC

Press [Blue] key to run Auto DiSEqC function, it can find the satellite connect to which port automatically.

Blind Scan

Press [White] key can directly into blind scan mode to scan the current satellite.

9.2 Auto installation

“Auto Installation” is a very new and convenient function.

It will automatically detect all dishes connecting to this machine and scan the available services belonging to the satellite matched according to satellites and

transponders data in current database. You don’t have

to input any parameter of your antenna settings. Just press “ OK ” button to enter this “Auto Installation” menu then it starts scanning and shows you the result at the end of scanning.

9.3 Satellite Guide

When you enter to “Satellite Guide” menu, you will see the screen like below:

“Satellite Guide” is use for user to enter local longitude; local latitude and satellite longitude. By the evaluation from the receiver evaluate the antenna azimuth and antenna elevation; user can follow this guidance to adjust antenna.

1 You can use number keys to input parameters in

“Local Longitude”, “Local Latitude” and “Satellite Longitude”.

2 You can use [Left/Right] key to select east or west

in “Local Longitude” and “Satellite Longitude”, select north and south in “Local Latitude”.

3 Moving highlight to “Start” item and press [OK]

key. The lower column on the screen will calculate the corresponding value automatically.

4 Orientation means the angle between south and

satellite.

5 Press [Exit] key to draw back to “Main” Menu.

9.4 Terrestrial Installation

Press [OK] key to enter the selected item.

1 There are two modes. You can scan channel

bychannel or by frequency”.

2 When scan band is UHF and region is “France”,the

range of Ch No. is from 21 to 69. When scan

3 band is VHF and region is “France”, the range of

Ch No. is from 1 to 9. (it’s according to region)

4 Press [Red] key to enter blind scan menu, or press

[Green] key to enter TP scan menu.

5 Press [Exit] key to exit the scanning.

9.5 Cable Installation

Press [OK] key to enter the selected item.

1 You can select the Bandwidth according different

country.

2 You can set the Tuner Power ON/OFF. 3 Press [Red] key can directly into blind scan mode

to scan the current programs.

4 Press [Green] key to enter the following menu.

1 You can select the Scan Mode, Manual Scan or

Blind Scan.

2 You can input the Frequency by use the numeric

button of the RCU.

3 You can input the Second Frequency by use the

numeric button of the RCU, if you set the Scan Mode to Blind Scan.

4 You can input the Symbol Rate by use the numeric

button of the RCU.

5 You can select the QAM value among

16QAM,32QAM,64QAM,128QAM and 256QAM.

6 You can turn ON or OFF the NIT Search, if you set

the Scan Mode to Manual Scan.

7 When you complete your modification, press OK

button on Search item to enter Scan menu and then.

8 press OK button, it will begin to scan.

Scan Mode.

10. System

When you enter to “System” menu, you will see a screen like below:

In “System” menu:

1 Press[Left/Right]key to select menu items among

Language, A/V Control,Ethernet Setting,Time setting, Timer, Parental Control,Miscellaneous Settingls,Software Upgrad, Default Setting, Information.

2 Press[OK]key to enter the selected item.

10.1 Language

When you enter to “Language” menu, you will see the screen like below:

playing channel has the same audio as the “First Audio” you set, system will play this audio language as default. If the channel hasn’t the suited audio language, then the system will compare automatically with second audio language. The selections of audio languages include: English, French, German, Russian, Arabic, Portuguese, Turkish, Spanish, Polish and Italian.

3 Second Audio: If the channel has no correspond

audio with “First Audio” but have corresponded audio with “Second Audio”, system will play the second audio language as default. If no audio language corresponds with the “Second Audio”, then the default language of current channel will be played automatically. The selections of audio languages include: English, French, German, Russian, Arabic, Portuguese, Turkish, Spanish, Polish and Italian.

4 Audio Priority: Press [Left/Right] key to select

Dolby or Language.

5 EPG: Press [Left/Right] key can select EPG

language.

6 Subtitle Language: Press [Left/Right] key can

select subtitle language.

7 Teletext: You can set teletext language. If the

streams have this language you can see the teletext in language you set.

8 Press [MENU] key to draw back from “Language”

menu.

10.2 A/V Control

When you enter to “A/V Control”menu, you will see the screen like below:

1 Language: press [Left/Right] key to select menu

languages, the selections of languages include: French, English, Spanish,Russian, German, Greek, Italian, Portuguese,Arabic, Polish. etc.

2 First Audio: Some channels have more than one

audio language for choosing; by this function you can set the first audio for this channel. If the

Display Mode is for switching the system outputting video resolution. Move highlight on it and press left or right key, it will switch video resolution circularly by the sequence "AUTO", "By Native TV","480p", "576P", "720P_50","720P_60,"1080i_50"," 1080i_60" ," 1080P_50" and" 1080P_60"This effect is equal to press V.Format Key under Full Screen and their last setting saving will be efficient for each others. By Source means system will set the video output resolution according to the program it’s playing, different resolution programs switching perhaps will makes TV screen flickering. By Native TV means system will be according to the HDMI TV’s max supported resolution to set its resolution, if system is not connected to a HMDI TV, it will set resolution to be default

 Aspect Mode is for switching the screen aspect

ratio mode. Now we provide below options: 4:3 PS / 4:3 LB / 16:9/Auto. You can press [Left/Right] key to select each mode circularly. 16:9 will provide user pillar box mode it means user use 16:9 TV to display but need to see a 4:3 full display picture. System will force press wide screen picture to be narrow and there’re black band on

left and right site. Auto means system won’t do any aspect ration translation, 16:9 picture source

will be good display on a 16:9 TV but will be too narrow on a 4:3 TV, and 4:3 picture source will be too wide in a 16:9 TV but will be good display in a 4:3 TV.

 Digital Audio Out is for setting the both SPDIF and

HDMI’s digitl audio output mode, it has options LPCM Out, Auto, You can press [Left/Right] Key to select each mode circularity. LPCM Out means system will decode no matter AC3 or PCM audio track data to be LPCM, digital audio decoder or HDMI TV will get LPCM digital audio data. Auto means system will detect which the connected HDMI TV can decode and then output that data. If HDMI TV can decode AC3, system just output RAW data, if HDMI TV can decode LPCM only, system will just decode AC3 or LPCM to be LPCM and then output.

 Service Switch Mode: Press [left/right] button to

select unblank or blank.

 Brightness/Contrast/ Saturation : You can adjust

the parameter about the Video image by using the [OK]button or press[Volume Up/Volume Down] key, the default value is Level 10..

 Press [MENU] key to draw back from “A/V Control”

menu.

10.3 Ethernet Setting

1 Select your Network Type as Wired or Wireless、

USB 3G Dongle, if you select Wireless, can configuring Wi-Fi (wireless) as the following step:

a) Select Wireless on Default Network Type

item.

b) Press [red] button the wireless LAN network

list will appear, Select you Wi-Fi network and press [ok] button, at last input password.

c) Press [OK] button on Connect item to start

connecting.

2 this menu you may assign a dynamic IP address to

the digital receiver. To do so, select the DHCP On.

3 If you have a static IP address, unselect the DHCP

Enable, then the IP Address, Subnet Mask, Gateway and DNS options become enabled. You have to set these options according to your IP

address. 4 WiFi Manager Insert WiFi equipment first, then search available Enter net signal, input the password to connect with network. 5 3G Network

a) When you inset the 3G dongle, the screen will

display a message like “3G Device plug in

“after 14 seconds and will auto connect 3G

Network. you will see picture like the below

b) In this menu,you can press [OK] key select

3G Dial setting, Press [OK] key to select connect to network or disconnect the network

10.4 Time Setting

When you enter to “Local Time Setting” menu, you will see the screen like below:

 GMT Usage: This item is use for open the usage of

GMT. You can press [Left/Right]keys to switch “On/Off”.

 The “GMT Offset” item is valid only when the setting

of “GMT Usage” is “Yes”. You can press[Left/Right]keys to switch “GMT Offset” value, and the range is “-12:00 ~ +12:00”, increase each half hour progressively.

 You can press [Left/Right] to control Summer time

on or off.

 “Date” and “Time” items are valid only when the

setting of “GMT Usage” is “No”. You can press [Left/Right] keys to moving highlight and use number keys to input directly.

 Press [MENU]key to draw back from “Local Time

Setting” Menu.

10.5 Timer

Press [OK] key to open timer menu.  Current time information will display on the first

column; if the current time is incorrect, please modify the time information in “Time” item.

 Timer Number: You can press [Left/Right]keys to set

Timer number, and there are 8 timers in total.

 Timer Mode: There are several modes for Timer to

setting, include Off, Once, Daily, Weekly and Monthly .

 Timer Service: There are two options for “Timer

Service”, include “TV Channel” and “Radio Channel” (timer setting for channel change and

Wakeup/Sleep) and "Record Radio" and "Record TV" (Timer setting for Record the TV or Radio program to USB Hard Disk) and Message (reminding message).

 When you select “Channel” (timer setting for channel

change and Wakeup/Sleep) option in “Timer Service”, the screen will display like below:

i. Channel: press [OK] key to enter channel list

and select channel that you want to setting.

ii. Date: use number keys to input your wakeup

date.

iii. On Time: use number keys to input your wakeup

time. Once the time’s up, no matter what the system is in standby mode or in playing mode, the system will automatically switch to the channel you want and start to play.

iv. Duration: After you set a time for “Duration” item,

once the time’s up, the system will automatically switch to standby mode. If you want not work this function, set the duration is 00:00.

 When you select “Message” (reminding

message) option in “Timer Service”, the screen will display like below:

v. Wakeup Message: press [Left/Right] key to select

reminding message as Birthday, Anniversary and General.

vi. Date, you can use number key to input your

wakeup date.

vii. On Time: use number keys to input your wakeup

time. Once the time’s up, no matter what the system is in standby mode or in playing mode, the system will automatically pop a reminding message.

viii. The message will always display on the screen,

you can press [Exit] key to close it.

ix. Standby After Finish: You can press [Left/Right]

to control the system is in standby mode or in playing mode after the record stopped.

x. Extend Record Time : Press [left/right] button or

input the number using numeric keys to set the

Extend Record Time. It is used to add time at beginning and end of the record time.

xi. Press [MENU] key to exit the current menu.

10.6 Parental Control

1 You can set a password for anyone who wishes to

operate in the “Installation” menu. And you can

also set the password for the lock channels. (How

to set the lock channel please refer to LOCK) Here

will show you how to setting and how to revising

the password. 2 In “Parental Lock” function, press [OK] key, there

will pop an dialogue for you to input the password.

When you input the correct password, you will see

a screen like below:

Wait…”. After finish saving and draw back to “System Setup” menu, the revising is complete.

6 Press [MENU] key to draw back from the “Parental

Lock” menu.

10.7 Miscellaneous Settings

When you enter to “Miscellaneous Settings” menu, you will see a screen like below:

3 Menu Lock determining that when user wish to

enter “Installation” menu, whether have to input

Password or not. If the setting of “Menu Lock” is

“On” which means user have to key in password,

set “Off” means unlock. 4 Channel Lock determining that when user wish to

play the lock channels, whether have to input the

password or not. If the setting is “On”, play the

channels with lock mark will show up a dialogue on

the screen and ask for the password. If the setting

of “Channel Lock ”is “Off”, the Lock function will

invalid. 5 New Password is used for revising password; you

can input the new password in this item by using

number keys directly. After you filled in 4 digital

numbers, the highlight will auto skip to Confirm

Password and ask you to input the new password

again. If the password is correct, the screen will

show up a message of “Saving Data, Please

1 Subtitle Auto: You can press [Left/Right] key to

select “On” or “Off”. If the current channel has subtitle information, it will be showed up automatically while this function is “ON”, if this function is “OFF”, you need turn on the subtitle manually by press [SUBTITLE] key.

2 Auto Power Down: You can press[Left/Right] key

to select the time or “Off”, if you select time, duration this time if no any operation on receiver, it will go to standby mode.

3 Standby mods: if set to “Real”, Press power key

receiver will be in real standby status, the consumption will less than 0.5 Watt. if it’s set to “Fake” ,Press power key, receiver will be in fake standby status. 删除此内容

4 OSD Timeout: When you switch channels in full

screen, there will show up some information about current channel on the lower of the screen. And regarding to the duration of these information show up on the screen, you can press [OK] and [up/ down] key to set the time. The range of the duration is “1 second ~ 10seconds”.

5 OSD Position: control display position of the info

bar in full screen mode. You can choose “bottom” or “top”.

10.8 Software Upgrade

10.8.1 Upgrade By USB

In this menu you can upgrade the software from USB conveniently, Press “Left/Right” button select USB A or USB B; press ' OK ' button to enter.

In this menu you can select the Upgrade Mode among Software(No channel list), Channel list, All SW+bootloader and All SW+Channel list, and you can select the appropriate upgrade file on "Upgrade File" item. After you select the "Upgrade Mode" and "Upgrade File", press ' OK ' button on "Start" item, the receiver can upgrade automaticlly

Note:

You must put the upgrade file on the /ROOT DIRECTORY of the USB storage.

10.8.2 Http Upgrade

When connected to the Internet, receiver can manually or automatically make software update from file from server.

Note:

This function depends on connection with external server. In case of no software on server, this function will not work.

10.8.3 Ftp Upgrade

When connected to the Internet, receiver can make software update from file from FTP server.

Note:

This function depends on connection with external server. In case of no software on server, this function will not work.

10.8.4 Upgrade by RS232:

2 In "Backup to USB", you can press [OK] to start

backup software .

a) Upgrade By Satellite:

1 We offer the functions for user to connecting

receiver (Master) to the other receiver (Slave) via

serial interface.

Connect master receiver to slave receiver via

serial interface. Enter “Software Upgrade” menu in

master receiver and press[left/right]keys to switch

upgrade mode： All SW+bootloader /All

SW+Channel list/Software(no channel

list)/Channel list. 2 Moving highlight to “Start” on master reeciver and

press[OK]key to start upgrade. 3 Turn on slave receiver and it needn’t operate any

setting. 4 Press [Exit]key to draw back.

This function can upgrade the software through signal lines from the satellite 1 Select the satellite and TP or input the TP value and

download PID, these parameters you can get from your provider.

2 Then move the highlight to the start button and press

[OK] button to start upgrade.

b) Upgrade By Terrestrial:

10.8.5 Backup to USB

This function can upgrade the software through signal lines from the Terrestrial

In this menu ,you can dump the software to the USB equipment 1 In "Backup file",you can press [OK] key to edit the file

name.; Press “Left/Right” button select USB A or USB B;

1 Select or input the Frequency, Bandwidth and

download PID, these parameters you can get from your provider.

2 Then move the highlight to the start button and

press [OK] button to start upgrade.

c) Upgrade by Cable

This function can upgrade the software through signal lines from the cable.

1 Input the frequency, symbol rate value and

download PID, and select scan mode.

2 Then move the highlight to the start button and 3 press [OK] key to begin to upgrade.

When you press [OK] key In the “Default Setting” item: 1 There will pop a dialogue for you to enter the

password, and the default password is “0000”.

2 After you input the correct password, there will

show a warning message to inquiry you “The operation will load default and erase all the channels that user added, continue?”.

3 If you select “OK” option, the all revised

parameters of the receiver will reset to default value. Please carefully to using this function.

4 In step 1 and step 2, press[Exit]key can draw

back from this item and without saving.

10.9.2 Delete All Channel:

10.9 Default Setting

10.9.1 Default Value:

When you press [OK] key in the “Delete All Channel” item, it will pop a dialogue ask you whether confirm to delete all channel. If you select “OK”, all the channel will be deleted.

10.9.3 Save default value

When you press [OK] key in the “Save default value” item,there will show a message to inquiry you"Do you want to set current database as default data?".If you select “OK” option,it will to set current data as default data

10.10 Information

1 When you enter to “Information” menu, you will see a

screen like above. The screen displays :MODEL ID,S/W VERSION,H/W VERSION,LOADER VERSION,LATEST UPDATE,STB SN,

2 Press [MENU] key to draw back to “System” menu.

11. Conditional Access

11.1 CA Setting

about cord inserted into cord reader module. It allows inserted according to help messages visible on the bottom of the screen.

Note:

All information showed in this menu and submenu are coming from inserted card. In case if anything is wrong, it could be card problem. After inserting the card correctly at any time, a message-box will show on the screen with message about detecting the card, in "card info" menu all available information will be displayed. You can press [left/right] key to set the message display time.

11.2 COMMON INTERFACE

We provide two CI slots (option, some model only has one slot) for user to use. Using different CAM & cards provided by different CAS operator, user can view many type or scrambled channels.

We provide one CA slots for user to use. Receiver has build in smart card module with CONAX system. By using cards in this system provided by operators, it is possible to watch many scrambled channels coded in

We provide this menu to display the detail information of the CAM & cards inserted in the slots. User can check all

this system. This menu shows detailed information

this information according to the help message at the bottom of each menu.

Note:

All information showed in this menu and submenu is abstract from CAM & card. In case something is wrong, it may be the problem of CAM or card.

When you insert the CAM correctly at any time, a message will show in the screen to tell you that which CAM has been detected by the receiver and is available now.

CI Message

It is used to turn on or turn off the CI info display function by using , buttons or “ OK ” button to select.

ON: To display the CI info. OFF: Don’t display the CI info.

12. Media

12.2 Movie

In this menu you can press [left/right] button to select the

USB disk that you want to visit. Then Press [ok] button to enter the Video list

if you enter to the "Media" Menu, you will see the picture like the below:

Note:

If no USB Hard Disk insert to the receiver this menu is not available.

12.1 Record

In this menu you can playback the record files, and you can press [Red] key to rename the file, or press [Green] key to lock the file, or press [Yellow] key to delete the file. You can press [1] key to adjust the volume while you preview the record file on top of the right corner .and you

can press to enable or disable the audio.

You can see the video files in this menu, it can support .mpeg and .ts format file.and press [play] key, you can preview the video at the top right corner.if you want to watch the video in full screen you can press [OK] button. You can press [1] key to adjust the volume while you preview the video file,press [0]key to sort the file list. and

press to enable or disable the audio  Yellow key To edit the files or folders. Include rename, copy, delete and create folder function. You can press [Exit] key to previous menu.

12.3 Music

In this menu you can press [left/righ] button to select the USB disk that you want to visit. Then Press [ok] button to enter the music list

In this menu you can select the MP3 file to play by press

[OK] key or [PLAY] key. Also you can setting the play list.. [Red] key: Show play list as the picture bellow:

 Red Key: Move the selected file by press Red key and [UP][DOWN] key.  Green Key: Delete the selected file by press Green key.  Yellow Key: Delete all the file by Yellow Key, but there is one remind “Delete All” before practical operation, if select Yes, all file will be deleted, and close the Play list window.  Press OK button to play file.

[Green] key:

All the MP3 files in current directory are added into MP3 play list by press [Green] key, and will display

[Yellow] key:

To edit the files or folders in the USB storage.press this button you can see the picture like the below.

 Red Key To rename the file or folder.

 Green Key To copy the file or folder to other folder.

 Yellow Key To delete the file or folder from the disk.

 Blue Key To create a new folder in the disk.

Press [EXIT] key to draw back to ‘EDIT’ MENU [White] key: To setting the Repeat mode of the MP3 player.

“ ”behind the MP3 files.

12.4 Image

In this menu you can press [left/right] button to select the USB disk that you want to visit. Then Press [ok] button to enter the Image list

After begin to play MP3, it will show the MP3 play window. Press “PAUSE” button to pause.. Press “PLAY” button to play. Press “STOP” button to stop and time return to 00:00. Press “PREV” button to jump to the beginning of file list if play is over 3 seconds; or jump to previous file if play less than 3 seconds. Press “NEXT” button to go to the next file. Press “FORWARD” button to forward 4S. Press “BACKWARD” button to back 4S. Jump to beginning or end if less than 4S to the beginning or end of music file. Switch to the next file or stop playing by the repeat mode when play is over on the current file.

[0] key: To sort the file list by different order. [FAV key: To add mp3 or jpeg to play list.

Press 'OK' button on the selected files to play the files.

You can preview the picture at the top right corner if the scroll bar is on the picture files (JPG, BMP), and show the logo when at MP3 file. Move scroll bar when press up/down key, page up or down by page key. Go into sub-directory when press ok key in the file directory, play the selected file when scroll bar is on the file, automatic return USB menu after play is over.

White key:

In this menu to setting JPEG player.

All the Image files in current directory are added into Image play list by Green key, and will display

“ ”behind the Image files, like below.

[0] Key: To sort the file list by press [0] button.

[Red] Key:

Show file play list. There will display “The type of playlist do not exist” if there are no any file.

Image view operation Please see the below image operation menu if Image function is selected.

[Yellow] key: To edit the files or folders in the USB storage . like in

MP3 menu. Include rename, copy, delete and create folder function. You can press [Exit] key to previous menu.

[Blue] key

To preview the images. press this key you can see the picture like below.

 Red Key: Move the selected file by press Red key and [UP][DOWN] key..  Green Key: Delete the selected file by press Green key.  Yellow Key: Press Yellow Key, will delete all image files in play list, but system will remind you “ Delete All ” before practical operation, if you select Yes, all file will be deleted and Play list window will be closed.  Press OK button to play file

[Green] key:

12.5 PVR Setting

1 Time Shift: ON: Enable the Time Shift function. OFF: Disable the Time Shift function. 2 Timeshift to Record ON: Means when you press the " " Button to record

the program, it will merging the Timeshift files and the record files. OFF: Means when you record the program, it just start when you press " " button, not include the Timeshift files.

3 Record as Scrambled 4 Record Type

You can select the record type by press [left/right] key.

5 Jump Step

You can select the jump time by press [left/right] key.

6 Record Path

You can select the record path by press[left/right] key.

7 Timeshift Path

You can select the timeshift path by press[left/right] key.

HDD Format

Press "Green" button to enter the HDD Format menu like the below picture.If you want to format the HDD then select the File System between the "FAT" and the "NTFS", Press "OK" Button to confirm.

HDD Information

12.6 Disk Manage

In this menu you can select USB disk for HDD Format,HDD information and USB Speed test.

Press “Yellow” button to enter the HDD Information menu like the below picture，you can see details information about the HDD

USB Speed Test

Press “Blue” button to enter the USB Speed Test menu like the below picture，you can see the Standard speed

and your USB harddisk speed, according this information you can know what operation your disk can

13.1 Youtube

This menu is some internet applications. "youtube" can play stream media from "www.youtube.com". When you enter this menu, you will see a screen like below:

support..In this menu,and you can press ”Red” button refurbish the USB disk speed.

12.7 Remove USB Device safely!

Use this menu you can remove the USB Device safely .

13. Application

If you enter to the " Application " Menu, you will see the picture like the below:

1 Press [up/down] key to move highlight. 2 Press [ok] key on one item, it will play pertinent

video. The video will show on top left corner. Press [ok] again, it only shows video in the centre of your screen. Now press [zoom] key, the video will play in full screen.

3 Press [vol+/vol-] to control volume. 4 Press [pause] key to pause video, or press [stop]

key to stop play.

5 Press [red] key to display the featured video. 6 Press [green] key to sort by site and duration.

The site has Germany, worldwide, Poland and so on. Duration has all time, this week, this month and so on.

7 Press [yellow] key to switch group. These are

game, news, tech, move and so on.

8 Press [blue] key to display the top video. These

are top favorites, top rated, most views, most recent and so on.

9 Press FIND [ ] key in full screen to open the

"Find” window. You can press [,,,] keys to move highlight and press[ENTER]key to input the letters .

 Yellow key To delete current channel.  Blue key To edit current channel information.you can edit channel

name and channel Url.

13.2 RSS Reader

In this menu you can see the news  Red key To update the news to the newest.  Green key To add new channels,you can input a new website.use

this menu.you can add 10 channels at most.

Press ok button to see the detail infomation.like the below.

13.3 Weather Forecast

 Yellow key To delete current city.  Blue key To switch other temperature mode.

13.4 Google Maps

Inside the menu can browse Google Maps

In this menu you can see the weather forecast, press [Green] key to add city.

 Red key To update the weather forecast to the newest.  Green key To add new city.use this menu.you can add 5 cities at

most.

13.5 FTP

When connected to the Internet, receiver can download some files, such as software, MP3 or Image files from FTP server.

Note:

This function depends on connection with external server. In case of no any files on server, this function will not work.

13.6 Web TV

When you enter to “Web TV” menu, you will see a

screen like below:

Big2Small app on android device and play the channels from Big2Small server.

14. Game

1 In this menu you can select your favorite channel

to view, press [OK] key play in full screen, you can press [up / down] key to change channels, and press [left / right] key or [volume + / -] key to adjust volume level.

2 Press [green] key to add channel URL; 3 Press [blue] key to edit channel URL; 4 Press [yellow] key to delete channel URL. 5 If you get the “WebTV List.txt” file, you can add

more channels and press [white] key to update the channels from USB.

13.7 DLNA

You can use this function to share the media file from android device, firstly download and install the APP named “BubbleUPnp” from app store on android device, and then connect to the same network both on receiver and android device, enter to DLNA menu on receiver as

“ready to receive data ” state , at last run the “BubbleUPnp” app on android device, and select the

receiver as the Renderer by android device media files sharing.

13.8 Big2small

With this function you can watch the TV channels on android device from receiver(Big2Small server). firstly download and install the android client APP:Big2Small Version:1.2.3 in Google play app store https://play.google.com/store freely, also install the MX player on mobile device, then connect to the same network both on receiver and android device. Set the Big2small server as ON in receiver menu, run the

When you enter “Game” menu, you will see three Games include Tetris, Snake and Othello.

Basic operation statement:

14.1 Tetris

a) Moving highlight to “Setup” and press

[left/right] key to select the game level (speed).

b) Moving highlight to “Start” and press [OK] key to

start the game.

c) Moving highlight to [Cancel]keys and press

[OK]key to draw back from the game.

d) Start on the game:

 [left/right] Move shape left or right  “Channel Up” Rotate clockwise  “Channel Down” Faster drop  [OK] Pause/Play the game  [Exit] Quit game and draw back to “Game”

menu.

14.2 Snake

a) Moving highlight to “Setup” and press

[left/right] key to select the game level (speed).

b) Moving highlight to “Start” and press [OK] key

to start the game.

c) Moving highlight to[Cancel]keys and

press [OK]key to draw back from the game.

d) Start on the game:

 [left/right] use these arrow keys to guide the

snake.

 [OK] Pause/Play game  [Exit] Quit game and draw back to “Game”

menu.

14.3 Othello

a) Moving highlight to “Setup” and press

[left/right]keys to select the game level (degree of difficulty).

b) Moving highlight to “Start” and press [OK]

key to start the game.

c) Moving highlight to [Cancel] keys and

press [OK] key to draw back from the game.

d) Start on the game:

 [[left/right/ UP/ Down] use these arrow keys

to guide chessman.

 [OK] set chessman.  [Exit] Quit game and draw back to “Game”

menu.

16.2 Time Shift

If you connect the USB HDD, and enable the Time Shift function in the menu "Main Menu/ Media/ PVR Setting/Time Shift", It will start the Time Shift function automatically after you switch the program, and when you press the "Tms" button the Time Shift info bar will displayed as the following picture:

15. EPG

Press ‘OK’ button to this menu you can see the picture like the below，you can select EPG more and

Schedule.This Function is same as EPG.

16. New Features

16.1 Equalizer

When you listen the Radio program, it will display the music spectrum graphic on TV Screen.

1 You can press " " button to pause the video. 2 You can press " " or " " button to Fast

Backward or Fast Forward.

3 You can press " " or " " button to Slow

Backward or Slow Forward.

4 Press “left" or "right" button to jump to different

position, then press "OK" button to confirm.

5 Press " " button to exit the playback.

16.3 Record

If you connect the USB HDD. You can press " " button to start record function, as following picture:

1 Press " " button to display the record info bar

when you recording.

2 Press " " button again to setting the record time.

3 You can press " " button to pause the video. 4 You can press " " or " " button to Fast

Backward or Fast Forward. 5 You can press " " or " " button to Slow

Backward or Slow Forward.

6 Press “left" or "right" button to jump to different

position, then press "OK" button to confirm. 7 Press " " button to stop the recording.

Symptom

Possible cause

Settings you made in the menu have not change

The receiver lost power before being able to enter into standby mode Some of the Settings saved by user can be deleted partly or fully

No signal

The level of signal is weak LNB is out of order The cable from the LNB is incorrectly Connected (short circuit or open circuit) The position of dish is aligned incorrectly

Receiver is on but no picture or sound except the following messages (NO TV program)

Channel is not available Channel is scramble

Receiver not responding to remote control unit

RCU batteries are dead or inserted incorrectly The RCU is pointing toward wrong direction

Poor picture Quality

The level of Signal strength is low

No sound

The cable is connected incorrectly The Volume level is low Muting function is active

No display on the LED Display Panel

The power cord is not plugged in correctly.

No picture on the screen

Receiver is in Standby mode RCA Jack or cable is not connected firmly to the video output port of television Incorrect channel or video output is selected on television Brightness level of your TV set is incorrectly defined

17. Trouble Shooting

If you suspect there is a fault with your receiver, please check the following trouble shooting guide before calling authorized service agent.

Warning! Under no circumstances attempt to repair the receiver yourself. Tampering with the receiver may result in fatal electric shock and will invalidate your warranty.

SYSTEM RESOURCES

Main Processor

594MHz based CPU

Flash Memory

16 MB

DDR SDRAM

256 MB

Tuner/Front-end(Optional)

Tuner Type

DVB-S / DVB-S2

Input Connector

F-type, Connector, Female

Signal Level

-65 to -25 dBm

LNB Power & Polarization

Vertical: +13V

Horizontal: +18V

Current: Max. 400mA

Overload Protection

22KHz Tone

Frequency: 22±1KHz

DiSEqC Control

Amplitude: 0.6±0.2V

Version 1.0, 1.1 1.2, USALS, unicable Available

Demodulation

QPSK, 8PSK

Input Symbol Rate

1-45 Mbps, Convolution Code Rate

Forward Error Correction (FEC)

DVB-S 1/2, 2/3, 3/4 5/6, 7/8

DVB-S2 1/2, 3/5 , 2/3, 3/4 ,4/5 , 5/6, 8/9 , 9/10

Tuner Type

DVB-T2/T/C

Input Connector

IEC-type, Connector, Female

Frequency Range

47MHz~862MHz

Input Level

-82.0dBm and -20.0dBm

Active ANT Power

DC 5V at max 75 mA, Overload protection

Bandwidth

VHF/UHF: 6MHz, 7MHz, 8MHz

Demodulation

COFDM

Transmission mode(FFT)

1k, 2k, 4k, 8k normal and extended, 16k normal and extended, 32k normal and extended.

Constellations

QPSK, 16-QAM, 64-QAM, 256-QAM Both rotated and non-rotated

Guard intervals

1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Code rate

DVB-T: Viterbi + Reed Solomon 1/2, 2/3, 3/4, 5/6, 7/8. DVB-T2: LPDC + BCH 1/2, 3/5, 2/3, 3/4, 5/6.

Scattered Pilot Pattern

PP1, PP2, PP3, PP4, PP5, PP6, PP7, PP8

DVB-T2 Input Profiles

Input Mode A-Signal PLP, input Mode B-Multiple PLPs(Common PLP, Type 1 and 2 up to the maximum allowed figure 255)

18. Specifications

POWER SUPPLY

Input Voltage

Free Voltage (100~240V AC, 50/60Hz)

Power Consumption

20W MAX

MPEG TS A/V Decoding

Transport Stream

MPEG-2, H.264

Input Rate

Max.120Mbit/s

Aspect Radio

4:3, 16:9, Letter Box

Video Decoding

MPEG-2, MP@ML, MPEG-4 part 10/H264

Video Resolution

720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080P

Audio Decoding

MEPG-1 layer I/II, MPEG-2 layerII, Dolby digital

Audio Mode

Left / Right / Stereo/ Mono

Sampling Rate

32, 44.1 and 48KHz

A/V & DATA INPUT/OUTPUT

AV OUT

Video CVBS output

Audio L/R output

S/PDIF

Coaxial, Digital Audio or Dolby Digital Bit Stream Output

38Khz

RS-232

Transfer rate 115.2Kbps

9 pin D-sub Type

LAN

100M

USB

Two USB 2.0 slot Compatible for Host

HDMI

VER1.3

Type A

PHYSICAL SPECIFICATION

Size[W*H*D]

220×169×46mm

Net Weight

1.2KG

Operation Temperature

0℃~+45℃

Storage Temperature

-10℃~+70℃

Storage Humidity

5%~95% RH (Non-Condensing)

Specifications are subject to change without further notice. The manufacturer does not assume any responsibility regarding any errors or mistakes in printing.

Please note that new software may change the features of the receiver. The manufacturer holds the rights of changes without any further notice. The image shown here is indicative only.,The actual product may differ.

Icecrypt STC3220CCIHD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
