Icecrypt S1600CHD User Manual

CONTENTS

1. SAFETY .............................................................................................................................................................3

2. INTRODUCTION .............................................................................................................................................3

3. FEATURES........................................................................................................................................................4

4. REMOTE CONTROL ..................................................................... ERROR! BOOKMARK NOT DEFINED.

5. FRONT PANEL ................................................................................................................................................7

6. REAR PANEL ...................................................................................................................................................7

7. CONNECTING YOUR SYSTEM ...................................................................................................................7

8. BASIC OPERATIONS .....................................................................................................................................9

8.1 TURN ON STB ...................................................................................................................................................9

8.2 POWER ..............................................................................................................................................................9

8.3 CHANNEL UP/CHANNEL DOWN ........................................................................................................................9

8.4 VOLUME UP/VOLUME DOWN- ..........................................................................................................................9

8.5 NUMBER ...........................................................................................................................................................9

8.6 MUTE ...............................................................................................................................................................9

8.7 PAUSE ...............................................................................................................................................................9

8.8 RECALL ............................................................................................................................................................9

8.9 FAVOURITE ............................................................................................... ERROR! BOOKMARK NOT DEFINED.

8.10 AUDIO ......................................................................................................................................................... 10

8.11 INFORMATION ............................................................................................................................................. 10

8.12 EPG ............................................................................................................................................................ 10

8.13 TV/RADIO ................................................................ ................................................................ ................. 11

8.14 CHANNEL LIST ............................................................................................................................................ 11

8.15 SLEEP .......................................................................................................................................................... 12

8.16 PAGE UP/PAGE DOWN ................................................................................................................................ 12

8.17 TEXT ......................................................................................................................................................... 12

8.18 SUBTITLE .................................................................................................................................................... 12

8.19 FIND ................................ ................................................................ ................................ ............................ 12

8.20 ZOOM .......................................................................................................................................................... 13

8.21 TV/RCV ..................................................................................................................................................... 13

8.22 MENU.......................................................................................................................................................... 13

8.23 VIDEO FORMAT ........................................................................................................................................... 13

8.24 EXIT ............................................................................................................................................................ 13

9. SERVICE ......................................................................................................................................................... 13

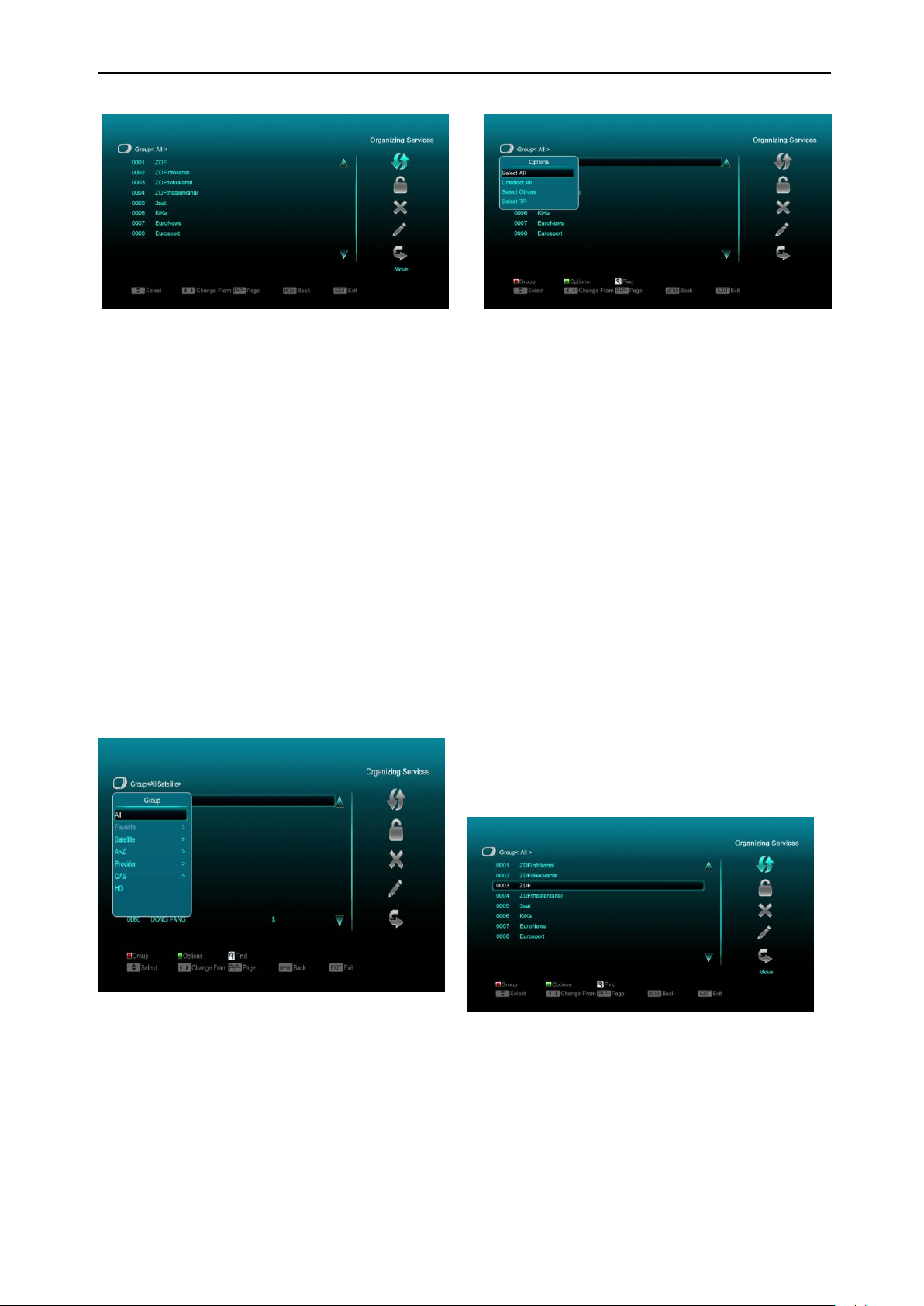

9.1 ORGANIZING SERVICE .................................................................................................................................... 13

9.2 ORGANIZING FAVOURITES .............................................................................................................................. 15

10. INSTALLATION ............................................................................................................................................ 16

10.1 SATELLITE INSTALLATION .......................................................................................................................... 16

10.2 AUTO INSTALLATION .................................................................................................................................. 18

10.3 SATELLITE GUIDE ................................ ................................................................................................ ....... 18

11. PREFERENCE ................................................................................................................................................ 19

11.1 LANGUAGE ................................................................................................................................................. 19

11.2 PARENTAL CONTROL .................................................................................................................................. 20

11.3 A/V CONTROL ............................................................................................................................................ 20

11.4 TIME SETTING ............................................................................................................................................. 21

11.5 TIMER ......................................................................................................................................................... 21

11.6 MISCELLANEOUS SETTINGS ................................................................................................ ........................ 22

11.7 OSD SETTING ............................................................................................................................................. 23

12. SYSTEM .......................................................................................................................................................... 24

12.1 INFORMATION ............................................................................................................................................. 24

12.2 DEFAULT SETTING ...................................................................................................................................... 24

12.2.1 Default Value:......................................................................................................................................... 24

12.2.2 Delete All Channel: ................................................................................................................................ 25

12.2.3 Save default value ................................................................................................................................ ... 25

12.3 SOFTWARE UPGRADE .................................................................................................................................. 25

12.4 UPGRADE BY USB ...................................................................................................................................... 26

12.5 BACKUP TO USB ......................................................................................................................................... 26

13. CONDITIONAL ACCESS ............................................................................................................................. 26

13.1 CA SETTING ................................................................................................................................................ 26

14. USB ................................................................................................................................................................... 27

14.1 FILE LIST .................................................................................................................................................... 27

14.1.1 Record Files ............................................................................................................................................... 27

14.1.2 MP3 Files ................................................................................................................................................... 27

14.1.3 Image Files................................................................................................................................................. 29

14.1.4 Video .......................................................................................................................................................... 29

14.1.5.Software ..................................................................................................................................................... 31

14.1.6 All ........................................................................................................................................................... 31

14.2 STORAGE INFORMATION ............................................................................................................................. 31

14.3 PVR SETTING ............................................................................................................................................. 32

14.4 USB SPEED TEST ................................................................................................................................ ........ 32

14.5 REMOVE USB DEVICE SAFELY! .................................................................................................................. 32

15. INTERNET ...................................................................................................................................................... 33

15.1 NETWORK LOCAL SETTING ......................................................................................................................... 33

15.2 HTTP UPGRADE ........................................................................................................................................... 34

15.3 FTP UPGRADE ............................................................................................................................................ 34

15.4 FTP ............................................................................................................................................................. 34

15.5 WEATHER FORECAST .................................................................................................................................. 34

15.6 RSS READER .............................................................................................................................................. 35

15.7 WIFI MANAGER ................................ ................................................................................................ .......... 35

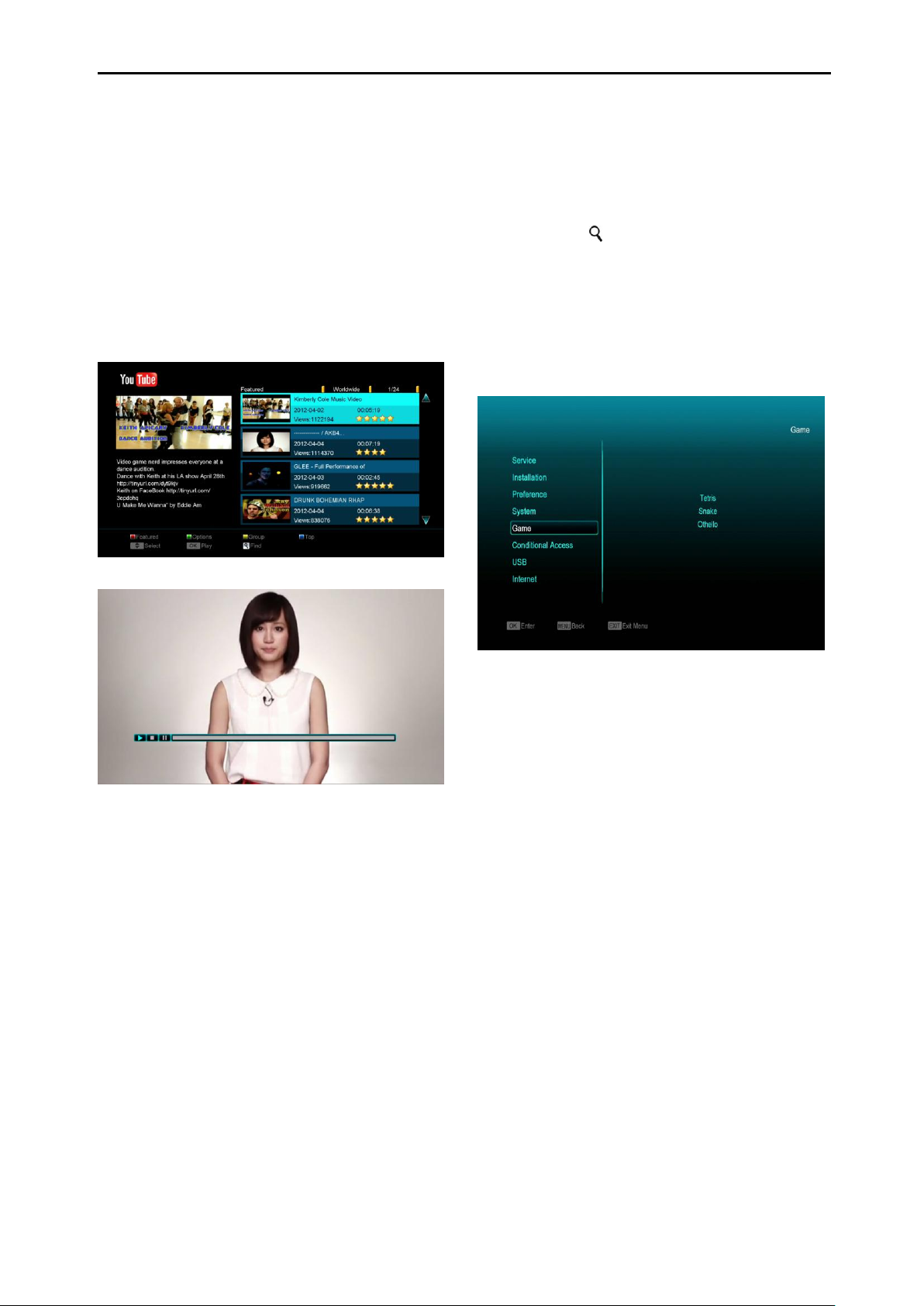

15.8 YOU TUBE ................................................................................................................................................... 35

16. GAME .............................................................................................................................................................. 36

16.1 TETRIS ........................................................................................................................................................ 36

16.2 SNAKE......................................................................................................................................................... 37

16.3 OTHELLO .................................................................................................................................................... 37

17. NEW FEATURES ........................................................................................................................................... 37

17.1 EQUALIZER ................................................................................................................................................. 37

17.2 TIME SHIFT ................................................................................................................................................. 37

17.3 RECORD ...................................................................................................................................................... 38

18. TROUBLE SHOOTING ................................................................................................................................. 39

19. SPECIFICATIONS ......................................................................................................................................... 40

MAINS SUPPLY: External DC 12V Adapter

OVERLOADING: Do not overload wall outlet, extension cord or adapter as this may result in fire or

electric shock.

LIQUIDS: Keep liquids away from the HD Receiver. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CLEANING: Disconnect the HD Receiver from the wall outlet before cleaning .Use a light damp cloth (no solvents) to dust the HD Receiver.

VENTILATION: The slots on top of the HD Receiver must be left uncovered to allow proper airflow to the unit. Do not stand the HD Receiver on soft furnishings or carpets. Do not expose the HD Receiver to direct sunlight or do not place it near a heater. Do not stack electronic equipments on top of the HD Receiver.

ATTACHMENTS: Do not use any attachments that are not recommended as these may cause hazard or damage the HD Receiver.

CONNECTION TO THE SATELLITE DISH LNB: Disconnect the HD Receiver from the mains before connecting or disconnecting the cable from the satellite dish.

FAILURE TO DO SO CAN DAMAGE THE LNB.

CONNECTION TO THE TV: Disconnect the HD Receiver from the mains before connecting or disconnecting the cable from the satellite dish. FAILURE TO DO SO CAN DAMAGE THE TV.

EARTHING: The LNB cable MUST BE EARTHED to the system earth for the satellite dish.

LOCATION: Place the HD Receiver indoor in order not to expose to lightening, rain or sunlight.

1. SAFETY

This HD Receiver has been manufactured to satisfy the international safety standards. Please read the following safety precautions carefully.

2. INTRODUCTION

Thank you for purchasing the HD Receiver. This HD Receiver is fully compliant with the international DVB standard and thus transmits digital images, sounds, information guides and teletext directly to your TV through the satellite broadcasting. Now you can comfortably see and receive digitally transmitted music, news, movie and sports satellite broadcasts in your office or at your home. You can enjoy interesting games embedded in HD Receiver. In service search section, both the automatic service search method and the manual search mode are provided. Also it supports DiSEqC 1.0, 1.2 and USALS, enabling you to move your antenna in order to focus preferred satellite. You can save up to 5000 TV and Radio services and work around with the favourite, Lock, Delete, Move and Sort functions. The menu is very modern and supports multiple languages. All functions can be carried out using the remote control and some of the functions can also be carried out using the front panel. The HD Receiver is easy to use and adaptable for future advances. Please be aware that new software may change the functions of the HD Receiver.

If you have any difficulties concerning the operation of your HD Receiver, please refer to the relevant

section of this manual, including the ‘Troubleshooting’. This Manual will provide you with useful

information on using the HD Receiver.

3. FEATURES

 MPEG-Fully DVB-S / DVB-S2 (H.264) HD compliant  6000 channels (TV and Radio) programmemable  Multilingual menu text support  Channel switching time less than 1 second  Channel list editing  Favourite channel list editing  True-colour On-Screen Display (OSD)  Full Picture In Graphic (PIG) function  Electronic Programme Guide (EPG) for on screen channel information  Subtitle supported  Teletext supported by VBI insertion and software emulation  Parental lock facility by channel and programme event  Programme and Channel information transfer from receiver to receiver  Exciting games embedded  Dolby Digital Bit-Stream output via HDMI  DiSEqC 1.0, 1.1, 1.2 and USALS  HDMI FullHD (1080p) Video/Audio Output  2x USB 2.0 Host  4 Digit LED Display for service information (optional)  RTC (Real-Time-Clock)  Time Shift  Video Recording  Recording one channel and Time Shifting another channel (optional)

4. Remote Control

POWER

To switch your receiver on from standby or standby to on.

MUTE

Used to enable or disable the audio

NUMERIC KEYS

Used to select channels or enter programmeming parameters

(TV / RADIO)

Receiver switches between TV and Radio mode.

(ZOOM)

Press key select zoom times, from X1 to X16.

(PREVIOUS)

Return to the previous menu or status.

(AUDIO)

Audio channels setup, to select audio mode; Left, Right , Stereo, Mono.

TV/STB

Receiver switches between TV and receive mode.

(INFORMATION)

To display channel status or various programme information of current service.

EPG(Electronic Programme Guide)

Display the Programmes guide on screen when available.

Displays the Main Menu on the screen, or return to the previous menu or status.

EXIT

Cancel the user selection and return to the viewing mode from a menu.

To select menu option, or to updated on entry.

<,> KEY

To adjust volume level, or to move cursor left or right in the menu.

^,v KEY

To change channels, or to move cursor up or down in the menu.

P+/P-

To move up the cursor to the next or previous page in the menu or channel list.

Red Key

Has different functions per menu.

Teletext (GREEN KEY)

Shows teletext information of the current channel supports.

Subtitle(YELLOW KEY)

Subtitle Display.

UHF

In case your TV is connected through RF Modulator (UHF), select output channel number between CH21 and CH69 with up and down key.

(FIND)

Use to prompt find channels sort by character.

TIMER

Press timer key you can setup up the Standby time.

P/N

Press P/N button to switch the display mode among "Auto-> by

native TV<->480i->480p ->576i-> 576P-> 720p-50-> 720p-60-> 720P-60-> 1080i-50->1080i-60 ->1080p-50->1080p-60".

SAT Display satellite list.

FAV(FAVOURITE)

To set receiver to the favourite server mode, display the favourite channel.

Archive

Press this button to enter the File Manager menu directly.

TMS(Time Shift)

Press this button to display Time Shift info bar .

Play

To play the MP3, JPEG or recording file.

Stop

To stop MP3/JPEG player, recording file , Time Shift, or playback.

PAUSE

Used to select the freeze function. Press once to freeze the screen picture.

Record

To start recording.

Fast Backward

To start Fast Backward function.

Fast Forward

To start Fast Forward function .

Slow Backward

To start Slow Backward function .

Slow Forward

To start Slow Forward function

5. Front panel

Remote Sensor: Detects infrared signal from remote control unit. POWER Indicator: while the receiver is power on and at standby mode. Card Slot: One CA Interface for Conax. USB : USB 2.0 Host, connect to USB hard disk, or flash disk. (on the left side of the receiver) Display: (LED type) Indicates operating status of receiver. (optional)

6. Rear Panel

Please refer to the diagram above for all possible connections of your receiver Do not connect the unit to the mains socket until all other connections have been made and checked.

LNB IN: This port is to connect the coaxial cable from LNB of your Dish. AV OUT: This RCA connector is used to connect TV using RCA cable. DC 12V:This is used to connect an external 12V adapter. HDMI: Audio and Video output socket for TV set with HDMI Input Jack only. RS 232 SERIAL PORT: This is used to connect your receiver to a computer through a serial cable. Ethernet: (optional) Network port, you can get a new software updates from this port. USB B: USB 2.0 Host, connect to USB hard disk, or flash disk. IR IN: Connect an External IR-Sensor (Infrared).

7. Connecting Your System

There are two ways to connect the receiver to your existing TV system. We recommend using one of the following cases for the best result:

1. If you have a high definition television set, you should use a HDMI cable for best result, Plug one end of the cable into the HDMI socket on the receiver, and the other end into the matching socket on your television. In this case, you do not have to make audio connections because the HDMI connector can output stereo audio or Dolby Digital audio.

2. Connect one end of RCA cable to the RCA jack on the back of the receiver and the other end to a RCA jack on your TV.

Finally connect the coaxial cable from the LNB of your Dish to the LNB IN jack on the receiver.

With External Audio / Hi-Fi System

To connect any external Audio Hi-Fi system, the receiver has been provided with RCA connector at the back of the receiver marked with AV OUT. Connect an RCA cable from the AV OUT jack on the back of the receiver to the LINE, AUX, SPARE OR EXTRA input jacks on your Hi-Fi System.

7.1 TV with Motorized System (DiSEqC 1.2)

Connect one end of your coaxial cable to the LNB IN connector on the receiver and the other end to the REC or Receiver connector on the DiSEqC 1.2 motor. Connect the coaxial cable from the LNB to the LNB connector on the DiSEqC 1.2 motor.

All our receivers are designed to be DiSEqC 1.0 and DiSEqC 1.2 compatible. This allows multiple antennas to be connected to the receiver at the same time. If you have two or more fixed antennas or LNBs, then we recommend you use a DiSEqC 1.0 switch. Connect the coaxial cable from the first LNB to the LNB 1 or LNB A input connector of the DiSEqC switch. Do the same for any other LNBs that you have. Connect one end of a coaxial cable to the RF output connector of the DiSEqC switch, connect the other end to the LNB IN socket on the receiver. To the digital receiver, you can connect either a single satellite antenna directly or LNB of multi-feed equipment.

8. Basic Operations

8.1 Turn on STB

First, press the [Device’s Main Power] to turn on the unit. When the STB is first used, there will play the first channel from the default Channel List. If the STB is not first used, STB will play the same channel as last time before turning off.

? Frequently Asked Question

Q: The power of my STB has been turned on and not

in Standby mode, but the TV screen showed nothing:

A: Make sure the TV set has been set to the correct video input (not the TV channels). For example, if you have connected the unit with the Video1 input of the TV set, the TV set has to be switched to Video1.

Q: The power of my STB has been turn on and not in

Standby mode, but the TV screen showed nothing except one box with “No Signal” image.

A: That means the channel, which you select, is no

signal. It could be several causes:

1 The channel which you select is not in your

allocate satellite. The simply solution is to change channel.

2 The signal of current TV channel is too weak. You

can try to change channel to other strong signal channels. If the problems still exist, please consult your local dealer or other professionals for technical service.

3 You use the Dual LNB, and you need Modify LNB

Type

8.2 Power

8.5 Number

In full screen, use number key and press [OK] on the Remote Control Unit to change channel.

8.6 Mute

1 Press [MUTE] key to mute the sound and the

screen will show up mute OSD.

2 Press [MUTE] key again to restore sound.

8.7 Pause

1 In playing mode, press [Pause] key, the picture will

be paused, but the sound of the channel will still continues.

2 Press [PLAY] key again, the screen’s picture will

skip over to the current playing picture, and the sound of the channel will corresponding playing.

8.8 Recall

Press [RETURN] key will directly switch to the previous channel that you played before current channel.

8.9 Favourite

1 In full screen, press [FAV] key, it will display a

window of “Favourite list” on the left of the screen, which you can watch like below.

1 Press [Power] Key can enter the Standby state 2 In Standby state, press [Power] Key again can call

back the unit and go on play the previous channel

3 User can also disconnect the device’s main power

to end the Standby state.

8.3 Channel Up/Channel Down

In full screen, press [CH+/CH-] to change channel.

2 In the window of " Favourite list ", you can move

highlight by press [Channel Up/Channel Down] key to select favourite Channels.

3 In the window of ” Favourite list ", you can press

[Left/Right] key to select favourite groups Pressing [P-/P+] keys can implement the “Page up/Page down” function

8.4 Volume Up/Volume Down-

In full screen, press [VOL+/VOL-] to adjust volume.

4 Press [Exit] key to exit the current window.

? Frequently Asked Question

Q: Why the screen displays “No Favourite Channel”,

after pressing [Favourite] key?

A: It is because that you haven’t set any channels as

“favourite channel”. Please refer to Favourite

8.10 Audio

1 In full screen, press [AUDIO] key can open the

“Audio” window on the screen.

8.12 EPG

1 The STB has an Electronic Programme Guide

(EPG) to help you navigate channels through all the possible viewing options. The EPG supplies information such as channel listings and starting and ending times for all available channels. Press [EPG] key to display EPG screen.

2 You can modify the audio track by press [Channel

Up / Channel Down] key and modify the audio mode by press [Volume Up / Volume Down] key.

3 Mode: Left/Right/Stereo/Mono

8.11 Information

2 Press [Red] key can select the channels by

different group, such as by Favourite/Satellite/Provider/CAS etc.

3 Press [Green] key to select different display mode

among Now EPG, Next EPG, More and Schedule, like the following picture:

In full screen, press [INFO] key (press [INFO] key and [RED] key) can open information screen, in the window shows the parameters of current channel.

8.13 TV/RADIO

In TV mode, pressing [TV/RADIO] key can switch to Radio mode. In Radio mode, press [TV/RADIO] key to switch to TV mode.

8.14 Channel List

1 In full screen, press [OK] key can enter “Channel

List”.

4 Press [Yellow] key in EPG menu can set one

record timer or go to Timer List menu.

2 Press [Red] key to change the different group.

which you can watch like below.

3 Press [Green] key to display details information for

EPG Now.

4 Press [Yellow] key you can change the current

channel’s property, such as FAV/ Lock/ Skip/ Delete/ Rename.

5 In EPG menu, when you select one event by high

light item, you can set this event to record timer list directly by press [REC] button.

6 In EPG menu, press [Exit] to close EPG screen.

8.15 Sleep

1 This function can set sleep timer. When you set a

sleep timer and the time arrive, the system will enter to standby automatically.

2 Pressing [SLEEP] key, it will switch the mode

between Sleep Timer Off /10/30/60/90/120 minutes.

5 Press [Blue] key can open the “Sort” window like

below. There are five kinds of sorting ways. You can press [Channel Up/Channel Down] key to move highlight and press [OK] key to confirm you selection.

8.16 Page Up/Page Down

In Channel list, press [Page+/Page-] key can page up and page down the channel list.

8.17 TEXT

1 Press [green] key in full screen, you can open

teletext page on the channel which has teletext information.

2 If the channel has no teletext information, it will

show “No Teletext Data” on the screen.

6 The five kinds of sorting way are:

 Default: Sorting by scanning result.  FTA/$: Sort channel through free and

scramble sequence. Free channel will in the front of channel list and scramble channel will at the rear of channel list

 Lock: Accumulated all locked channels and

list in the last of TV Channel List.

 Name (A-Z): Sorting in Alphabetical Order,

ignore “$” symbol.

 Name (Z-A): Sorting in Alphabetical Order,

ignore “$” Symbol.

7 Press [Up/Down] key to move highlight and press

[OK] key to play the highlighted channel.

8 Press [Page Up/Down] key to page up and page

Down.

9 Press [Exit] key to exit the channel list.

8.18 Subtitle

1 Press [Yellow] key in full screen, you can switch

subtitle on or off.

8.19 Find

1 Press[Find] key in full screen can open the “Find”

window like above. You can press[Channel

Up/Channel Down/Volume Up/Volume Down]key to move highlight and press[OK]key to input the selected symbol or letter into the dialogue.

2 After input each character, the programme

list on the left will search the channel

according your input, and list the matched channel.

3 Move highlight to “OK” and press [OK]

key can close “Find” window and you can select channel from the channels list

directly.

8.20 Zoom

1 The [ZOOM] key allows you to magnify a certain

area on the images

2 Press [ZOOM] key again, the image will enlarge

rotate as x1, x2, x4, x6, x8, x12, x16.

3 In “x2 ~ x16” image, using [Up/ Down/ Up/ Down]

keys to move the image center area you want to see.

4 In zoom mode, press [Exit] to close “Zoom”

window.

8.24 Exit

1 Press [EXIT] key can exit the current menu to last

menu or close the window.

9. Service

When you press [Menu] key to enter menu, there will display the picture like below:

8.21 TV/STB

1 Press [TV/STB] key can switch between TV mode

and STB mode

8.22 Menu

 Press [MENU] key can open the menu, exit the

current menu to last menu or close the window.

8.23 Video Format

1 Press [P/N] (white) key under Full Screen playback

for 1st, it will show the current system outputting video resolution, continuously press this key, system will switch its outputting video resolution by sequence 480i->480p ->576i-> 576P-> 720p-50->

720p-60-> 720P-60-> 1080i-50->1080i-60

->1080p-50->1080p-60”..

 Press [Up/Down] key you can select the submenu

of Organizing services and Organizing favourites.

 Press [OK] key to enter the “Organizing Service”. If

Menu Lock is “On”, it will display an dialogue for user to key in password. The default Password is “0000”.

 Press [Menu] key to go back to main menu.

9.1 Organizing Service

When you enter to “Organizing Service” menu, there will display the screen like below.

1. You can move highlight by press [Channel

Up/Channel Down] key and [OK] key to select the programmes which you want to edit.

2. You can press [Page Up/Page Down] key to implement the Page Up/Page Down function.

3. You can use [Red] key to switch different Group.

4. You can press [Green] key to select the programmes by different select mode.

5. Press colour key can implement the corresponding function in “Organizing Services”.

Groups

1. Press [Green] key can open the “Options” window like above.

2. You can press [Up/Down] key to move highlight and press [OK] key to confirm the select mode.

3. Press [Menu] key to close “Options” List.

Move

1. Select the channels which you want to edit in channel list by press [OK] key or other select mode.

2. Then press [Right] key to move the high light to right toolbar.

3. Select Move icon by press [Channel Up/Channel Down] key and [OK] key.

4. Move the channels to the position which

1 Press [Red] key can open the “Groups” window

like above

2 You can press [Up/Down] key to move

highlight and press [OK] key to select group.

3 Press [Menu] key to close “Groups” List.

Options

you want and press [OK] key to confirm. Like the following picture:

Lock

1 Select the channels which you want to edit in

channel list by press [OK] key or other select mode.

2 Then press [Right] key to move the high light

to right toolbar.

3 Select Lock icon by press [Channel

Up/Channel Down] key and [OK] key.

4 Lock the channel by press [OK] key.

Like the following picture:

Delete

a) Select the channels which you want to

edit in channel list by press [OK] key or other select mode.

b) Then press [Right] key to move the high

light to right toolbar.

c) Select Delete icon by press [Channel

1. Press[Find] key can open the “Find” window like above. You can press[Channel Up/Channel Down/Volume Up/Volume Down]key to move highlight and press [OK] key to input the selected symbol or letter into the dialogue.

2. After input each character, the programme list on the left will search the channel according your input, and list the matched channel.

3. Move highlight to “OK” and press [OK] key can close “Find” window and you can select channel from the channels list directly.

9.2 Organizing Favourites

This menu is helpful in adding and deleting services to and from the favourite group.

Up/Channel Down] key and [OK] key.

d) Delete the channel by press [OK] key.

Skip and rename

Follow the same way you can set the channel’s Skip or give the new name for high light channel.

Find

1 FAV List

To choose the FAV List by press “FAV” button.

2 Add

To add services into favourites, Mark the desired services by press “ OK ” button in Service List, press to choose Add mode and press “ OK ” button.

3 Remove

To remove services from favourites, Mark the desired services by press “ OK ” button in Favourite List, press to choose Remove mode and press “ OK ” button.

4 Move

You can reorder and move the service to the preferred position in Favourite List.

5 Rename

Select the desired FAV List by press “FAV” button, using , buttons to choose Rename mode and press “ OK ” button to display keyboard, and rename it.

6 Group, Options and Find functions

Please refer to the “Organizing Services” part in this manual.

10.Installation

2 Press [Up/ Down] key to select satellite. Press

[Page] key to page up or page down.

LNB Type

In this item, press[Volume Up/ Volume

1 Press [Left/Right] key to select menu

pages among Service, Installation, Preference, System, Conditional Access, Internet,USB and Game.

2 Press [OK] key to enter the “Installation”. If

Menu Lock is “On”, it will display an dialogue for user to key in password. The default Password is “0000”.

3 Press [Up/ Down] key to select menu

items. Press [menu] key to go back to main menu.

10.1 Satellite Installation

Satellite

1 Satellite: Press[OK]key to enter the Satellite

list.

Down]key can switch among “Standard”, “User” and “Universal” , ”Unicable” mode.

DiSEqC

DiSEqC: You can use[Volume Up/ Volume Down]key to switch options. There are several options for your selection:

a) Disable: without DiSEqC. b) 1/2, 2/2: two ports DiSEqC c) 1/4, 2/4, 3/4, 4/4: 4 ports DiSEqC d) 1/8, 2/8… 8/8: 8 ports DiSEqC e) 1/16, 2/16….16/16: 16 ports DiSEqC

In “LNB POWER” item, you can press [Volume Up/

Volume Down] key to switch: ” Off、13v/18v、

13.5V/18.5V ” functions.

TP Edit

When you enter to “TP Edit” menu, there will display the screen like below:

Positioner

Positioner： In “Positioner” item, you can press [Volume Up/ Volume Down]key to switch “Off /

DiSEqC 1.2 / USALS” functions.

22K

You can use [Volume Up/ Volume Down] key to switch “ON / Off”. When this item is switched to “ON”, receiver will receive TV and radio input signal from 22K port. If the item is switched to “Off”, the receiver will receive all signal from 0K port. ! Notice

When you choose LNB type “Universal”, you can not modify 22K.

0/12V

You can use[Left/ Right]key to switch “on /off”.

Polarity

In “Polarity” item, [Volume Up/ Volume Down]key to switch “Auto / H / V” functions.

Tonebusrt

In “Toneburst” item, you can press [Volume Up/ Volume Down]key to switch “Off/On” functions.

LNB Power

1 In “Satellite” item, press[Volume Up/ Volume

Down]key to switch satellite that you want to scan or press[OK]key to enter satellite list for selection.

2 In “TP Index” item, you not only can use

[Volume Up/ Volume Down]key to select transponder but also can use[Add] and [Delete]functions.

 When you press[Green] key, it will display

“New TP” in “TP Index” item; You should set the parameters of “TP Frequency” and “Symbol Rate” for this new transponder. The parameters of “TP Frequency” and “Symbol Rate” can set by number keys. The available range are “3000~13450 MHz” and “1000~45000Ks/s”.

 When you press[Yellow] key, there will

show up a warning message for reminding whether you will delete the current transponder or not. If you select “Yes”, the current transponder will be deleted, and the total account of transponder will reduce 1 correspondingly.

 When you press [Blue] key, there will show

up a warning message for reminding whether you will delete all transponders or not. If you select “OK”, all transponders will be deleted.

3 For the existed transponder, you also can

use number keys to modify the parameters of “TP Frequency” and “Symbol Rate”.

4 When you complete your modification,

Press [Red] key, it will show up a dialog to ask you scan mode, programme type, scan type and NIT Search on/off. After you set up, press [OK] key to start scanning.

5 In the “TP Scan” item, press [Exit] key to

exit the scanning and save the current parameters.

Single Scan

1 Press [Red] key, it will show up a dialog to

ask you scan mode (means you want to scan all channels or only scan free channels), programme type (means you want to scan all channels or only scan TV/Radio channels), scan type (means preset scan, that is searching the existed TP. Automatic Scan means blind scan. It is no need existed TP info) and NIT Search

Blind Scan

Press [White] key can directly into blind scan mode to scan the current satellite.

10.2 Auto installation

“Auto Installation” is a very new and convenient

function. It will automatically detect all dishes connecting to this machine and scan the available services belonging to the satellite matched according to satellites and transponders data in current database. You

don’t have to input any parameter of your

antenna settings. Just press “ OK ” button to

enter this “Auto Installation” menu then it starts

scanning and shows you the result at the end of scanning.

10.3 Satellite Guide

When you enter to “Satellite Guide” menu, you will see the screen like below:

on/off. After you set up, press [OK] key to start scanning.

2 Press [White] key into the blind scanning

immediately.

TP Scan

Press [Green] key to scan current TP’s programmes.

Auto DiSEqC

Press [Blue] key to run Auto DiSEqC function, it can find the satellite connect to which port automatically.

“Satellite Guide” is use for user to enter local longitude; local latitude and satellite longitude. By the evaluation from the receiver evaluate the

antenna azimuth and antenna elevation; user can follow this guidance to adjust antenna.

1 You can use number keys to input

parameters in “Local Longitude”, “Local Latitude” and “Satellite Longitude”.

2 You can use [Left/Right] key to select east

or west in “Local Longitude” and “Satellite Longitude”, select north and south in “Local Latitude”.

3 Moving highlight to “Start” item and press

[OK] key. The lower column on the screen will calculate the corresponding value automatically.

4 Orientation means the angle between

south and satellite.

Press [Exit] key to draw back to “Main” Menu.

11. Preference

When you enter to “Preference” menu, you will see the screen like below:

In “Preference” menu:

 Press[Channel Up/Channel Down]key to

select menu items among Language, Parental Lock Control Time setting, Timer, A/V Control, Miscellaneous Settingl OSD Setting.

 Press[OK]key to enter the selected item.

11.1 Language

When you enter to “Language” menu, you will see the screen like below:

1 Language: press [Volume Up/ Volume Down] key

to select menu languages, the selections of languages include: English, French, German, Russian, Arabic, Portuguese, Turkish, Spanish, Polish, Italian etc.

2 First Audio: Some channels have more than one

audio language for choosing; by this function you can set the first audio for this channel. If the playing channel has the same audio as the “First Audio” you set, system will play this audio language as default. If the channel hasn’t the suited audio language, then the system will compare automatically with second audio language. The selections of audio languages include: English, French, German, Russian, Arabic, Portuguese, Turkish, Spanish, Polish and Italian.

3 Second Audio: If the channel has no correspond

audio with “First Audio” but have corresponded audio with “Second Audio”, system will play the second audio language as default. If no audio language corresponds with the “Second Audio”, then the default language of current channel will be played automatically. The selections of audio languages include: English, French, German, Russian, Arabic, Portuguese, Turkish, Spanish, Polish and Italian.

4 Audio Priority: Press [Volume Up/ Volume Down]

key to select Dolby or Language.

5 EPG: Press [Left/Right] key can select EPG

language.

6 Subtitle Language: Press [Left/Right] key

can select subtitle language.

7 Teletext: You can set teletext language. If the

streams have this language you can see the teletext in language you set.

8 Press [Exit] key to draw back from “Language”

menu.

11.2 Parental Control

You can set a password for anyone who wishes to operate in the “Installation” menu. And you can also set the password for the lock channels. (How to set the lock channel please refer to LOCK) Here will show you how to setting and how to revising the password.

1 In “Parental Lock” function, press [OK] key,

there will pop an dialogue for you to input the password. When you input the correct password, you will see a screen like below:

“Channel Lock ”is “Off”, the Lock function will invalid.

4 New Password is used for revising

password; you can input the new password in this item by using number keys directly. After you filled in 4 digital numbers, the highlight will auto skip to Confirm Password and ask you to input the new password again. If the password is correct, the screen will show up a message of “Saving Data, Please Wait…”. After finish saving and draw back to “System Setup” menu, the

revising is complete. Press [exit] key to draw back from the “Parental Lock” menu.

11.3 A/V Control

When you enter to “TV System” menu, you will

2 Menu Lock determining that when user

wish to enter “Installation” menu, whether have to input Password or not. If the setting of “Menu Lock” is “On” which means user have to key in password, set “Off” means unlock.

3 Channel Lock determining that when user

wish to play the lock channels, whether have to input the password or not. If the setting is “On”, play the channels with lock mark will show up a dialogue on the screen and ask for the password. If the setting of

see the screen like below:

 Display Mode is for switching the system

outputting video resolution. Move highlight on it

and press left or right key, it will switch video

resolution circularly by the sequence “"Auto-> by

native TV<->480i->480p ->576i-> 576P->

720p-50-> 720p-60-> 720P-60->

1080i-50->1080i-60 ->1080p-50->1080p-60" This

effect is equal to press V.Format Key under Full

Screen and their last setting saving will be efficient

for each others. By Source means system will set

the video output resolution according to the

programme it’s playing, different resolution

programmes switching perhaps will makes TV screen flickering. By Native TV means system will be according to the HDMI TV’s max supported resolution to set its resolution, if system is not connected to a HMDI TV, it will set resolution to be default

 Aspect Mode is for switching the screen aspect

ratio mode. Now we provide below options: 4:3 PS / 4:3 LB / 16:9/Auto. You can press [Left/Right] key to select each mode circularly. 16:9 will provide user pillar box mode it means user use 16:9 TV to display but need to see a 4:3 full display picture. System will force press wide screen picture to be narrow and there’re black band on

left and right site. Auto means system won’t do any aspect ration translation, 16:9 picture source

will be good display on a 16:9 TV but will be too narrow on a 4:3 TV, and 4:3 picture source will be

too wide in a 16:9 TV but will be good

display in a 4:3 TV.

 Video Output: Press [Left/Right] to select

RGB or YUV.

 RF system and RF channel are for user to set the

TV RF modulator output signal VHF/UHF channel and TV system mode. If your TV is too old to supports CVBS//HDMI, you can use TV RF cable to connect STB’s TV RF output port to TV Antenna input port.

 Digital Audio Out is for setting the both SPDIF and

HDMI’s digital audio output mode, it has options LPCM Out, Auto, You can press [Left/Right] Key to select each mode circularity. LPCM Out means system will decode no matter AC3 or PCM audio track data to be LPCM, digital audio decoder or HDMI TV will get LPCM digital audio data. Auto means system will detect which the connected HDMI TV can decode and then output that data. If HDMI TV can decode AC3, system just output RAW data, if HDMI TV can decode LPCM only, system will just decode AC3 or LPCM to be LPCM and then output.

 Press [exit] key to draw back from “TV

System” menu.

11.4 Time Setting

When you enter to “Local Time Setting” menu, you will see the screen like below:

 GMT Usage: This item is use for open the

usage of GMT. You can press [Volume Up / Volume Down] keys to switch “On/Off”.

 The “GMT Offset” item is valid only when the

setting of “GMT Usage” is “on”. You can press [Volume Up / Volume Down] keys to switch “GMT Offset” value, and the range is “-12:00 ~ +12:00”, increase each half hour progressively.

 You can press [Left/Right] to control Summer

time on or off.

 “Date” and “Time” items are valid only when

the setting of “GMT Usage” is “yes”. You can press [Volume Up / Volume Down] keys to moving highlight and use number keys to input directly.

If the current channel provides the correct time information, you will see the current time while you enter “Time” menu. If the channel doesn’t provide time information, you have to input the date and time information manually.

 Press [exit]key to draw back from “Local

Time Setting” Menu.

11.5 Timer

Press [enter] key to open timer menu.  Current time information will display on the

first column; if the current time is incorrect,

please modify the time information in “Time” item.

 Timer Number: You can press [Volume Up /

Volume Down] keys to set Timer number, and there are 8 timers in total.

 Timer Mode: There are several modes for

Timer to setting, include Off, Once, Daily, Weekly, Monthly and Yearly.

 Timer Service: There are two options for

“Timer Service”, include “TV Channel” and “Radio Channel” (timer setting for channel

change and Wakeup/Sleep) and "Record Radio" and "Record TV" (Timer setting for Record the TV or Radio programme to USB Hard Disk) and Message (reminding message).

 When you select “Channel” (timer setting for

automatically switch to the channel you want and start to play.

iv. Duration: After you set a time for

“Duration” item, once the time’s up, the system will automatically switch to standby mode. If you want not work this function, set the duration is 00:00.

 When you select “Message” (reminding

message) option in “Timer Service”, the screen will display like below:

channel change and Wakeup/Sleep) option in “Timer Service”, the screen will display like below:

i. Channel: press [OK] key to enter

channel list and select channel that you want to setting.

ii. Date: use number keys to input your

wakeup date.

iii. On Time: use number keys to input your

wakeup time. Once the time’s up, no

v. Wakeup Message: press [Volume Up /

Volume Down] key to select reminding message as Birthday, Anniversary and General.

vi. Date, you can use number key to input your

wakeup date.

vii. On Time: use number keys to input your

wakeup time. Once the time’s up, no matter what the system is in standby mode or in playing mode, the system will automatically pop a reminding message.

viii. The message will always display on the

screen, you can press [Exit] key to close it.

ix. Press [exit] key to exit the current menu.

11.6 Miscellaneous Settings

When you enter to “Miscellaneous Settings” menu, you will see a screen like below:

matter what the system is in standby mode or in playing mode, the system will

1 Subtitle Auto: You can press [Volume Up/Volume

Down] key to select “On” or “Off”. If the current channel has subtitle information, it will be showed up automatically while this function is “ON”, if this function is “OFF”, you need turn on the subtitle manually by press [Yellow] key.

2 Auto Power Down: You can press [Volume Up/

Volume Down] key to select the time or “Off”, if you select time, duration this time if no any operation on receiver, it will go to standby mode.

3 Panel Power In Standby: if set to “ON”, the front

panel will display time or some other information in standby mode; if set to “OFF”, it will display nothing in standby mode.(Note: this function only available when the “Deep Standby” item is set to “ON”)

4 Loop Control: if set to “ON”, the receiver will

enable SCART LOOP and TUNER LOOP function, if set to “OFF”, will disable this function.

5 Standby Mode: if set to “Real”, Press power

key receiver will be in real standby status, the consumption will less than 1 Watt.(Note: the

“Panel Power In Standby” item need set to “OFF”); if it’s set to “Fake” ,Press power key,

receiver will be in fake standby status.

11.7 OSD Setting

When you enter the “OSD Setting” menu, you will see a screen like below:

1 OSD Timeout: When you switch channels in

full screen, there will show up some

information about current channel on the

lower of the screen. And regarding to the

duration of these information show up on the

screen, you can press [Volume Up/Volume

Down] key to set the time. The range of the

duration is “1 second ~ 10seconds”.

2 OSD Position: control display position of the

info bar in full screen mode. You can choose

“bottom” or “top”.

3 OSD Transparency: Besides the setting of

“OSD Menu Style”, you also can set the

transparency of OSD. You can press [Volume

Up/Volume Down] key to select the values.

There are 5 levels of transparency, 10%,

20%, 30%, and 40% and “NO” (means no

transparency function).

4 Brightness/Contrast/ Saturation : You can

adjust the parameter about the Video image

by using the [OK]button or press[Volume

Up/Volume Down] key, the default value is

Level 10.

5 Load Default OSD Setting : If you are not

satisfy with your setting, you can move

highlight to this item and press [OK] key to

reset parameters as default value.

6 Press [Exit] key to draw back from the “OSD

Setting” menu.

12. System

When you enter to “System” menu, you will see a screen like below:

In “System” menu:

1 Press [Up/Down] key to select menu pages

among Information, Default Setting, Software Upgrade, Upgrade By USB, Backup to USB

12.2 Default Setting

12.2.1 Default Value:

2 Press [OK] key to enter the selected item.

12.1 Information

1 When you enter to “Information” menu, you

will see a screen like above. The screen displays :MODEL ID,S/W VERSION,H/W VERSION,LOADER VERSION,LATEST UPDATE,STB SN,STB ID,VFD(LED) Version.

2 Press [Exit] key to draw back to “Tools” menu.

When you press [OK] key In the “Default Setting” item:

1 There will pop a dialogue for you to enter

the password, and the default password is “0000”.

2 After you input the correct password,

there will show a warning message to inquiry you “The operation will load default and erase all the channels that user added, continue?”.

3 If you select “YES” option, the all revised

parameters of the receiver will reset to default value. Please carefully to using this function.

4 In step 1 and step 2, press[Exit]key can

draw back from this item and without saving.

12.2.2 Delete All Channel:

1 We offer the functions for user to connecting

When you press [OK] key in the “Delete All

receiver (Master) to the other receiver Channel” item, it will pop a dialogue ask you whether confirm to delete all channel. If you select “OK”, all the channel will be deleted.

12.2.3 Save default value

When you press [OK] key in the “Save default value” item,there will show a message to inquiry you"Do you want to set current database as default data?".If you select “OK” option,it will to set current data as default data

(Slave) via serial interface.

Connect master receiver to slave receiver via serial interface. Enter “Software Upgrade” menu in master receiver and press[Volume Up/Volume Down]keys to switch upgrade mode： All SW+bootloader

/All SW+Channel list/Software(no channel list)/Channel list.

2 Moving highlight to “Start” on master reeciver

and press[OK]key to start upgrade.

3 Turn on slave receiver and it needn’t operate

any setting.

4 Press [Exit]key to draw back.

Upgrade By Satellite:

12.3 Software Upgrade

This function can upgrade the software through signal lines from the satellite

Upgrade by RS232:

1 Select the satellite and TP or input the TP

value and download PID, these parameters you can get from your provider.

2 Then move the highlight to the start button

and press [OK] button to start upgrade.

12.4 Upgrade By USB

In this menu you can upgrade the software from USB conveniently, Press “Left/Right” button select USB A or USB B; press ' OK ' button to enter.

12.5 Backup to USB

In this menu ,you can dump the software to the USB equipment

1.In "Backup file",you can press [OK] key to edit the file name.; Press “Left/Right” button select USB A or USB B;

2.In "Backup to USB", you can press [OK] to start backup software .

13. Conditional Access

13.1 CA Setting

In this menu you can select the Upgrade Mode among Software(No channel list), Channel list, All SW+bootloader and All SW+Channel list, and you can select the appropriate upgrade file on "Upgrade File" item. After you select the "Upgrade Mode" and "Upgrade File", press ' OK ' button on "Start" item, the receiver can upgrade automaticlly.

We provide two CA slots for user to use. Receiver has build in smart card module with CONAX system. By using cards in this system provided by operators, it is possible to watch many scrambled channels coded in this system. This menu shows detailed information about

NOTE: You must put the upgrade file on the /ROOT

cord inserted into cord reader module. It allows

DIRECTORY of the USB storage.

inserted according to help messages visible on the bottom of the screen.

Note: All information showed in this menu and submenu are coming from inserted card. In case if anything is wrong, it could be card problem. After inserting the card correctly at any time, a

the File list. you can check the files and folders of the USB storage, and you can play MP3 and JPEG files.

14.1.1 Record Files

message-box will show on the screen with message about detecting the card, in "card info" menu all available information will be displayed.

14. USB

if you enter to the "USB" Menu, you will see the picture like the below:

Note: If no USB Hard Disk insert to the receiver this menu is not available.

In this menu you can playback the record files, and you can press [Red] key to rename the file, or press [Green] key to lock the file, or press [Yellow] key to delete the file. You can press [1] key to adjust the volume while you preview the record file on top of the right corner .and you can press to enable or disable the audio.

14.1.2 MP3 Files

14.1 File List

In this menu you can select the file list from USB A、USB B or SD card. Press [ok] button to enter

All the MP3 files in current directory are added into MP3 play list by press [Green] key, and will

display “ ”behind the MP3 files.

In this menu you can select the MP3 file to play by press [OK] key or [PLAY] key. Also you can setting the play list..

[Red] key: Show play list as the picture bellow:

 Red Key: Move the selected file by press Red key and [UP][DOWN] key.  Green Key: Delete the selected file by press Green key.  Yellow Key: Delete all the file by Yellow Key, but there is one remind “Delete All” before practical operation, if select Yes, all file will be deleted, and close the Play list window.  Press OK button to play file.

[Green] key:

[Yellow] key:

To edit the files or folders in the USB storage.press this button you can see the picture like the below.

 Red Key To rename the file or folder.

 Green Key To copy the file or folder to other folder.

 Yellow Key To delete the file or folder from the disk.

 Blue Key To create a new folder in the disk.

Press [EXIT] key to draw back to ‘EDIT’ MENU [White] key: To setting the Repeat mode of the MP3 player.

After begin to play MP3, it will show the MP3 play window. Press “PAUSE” button to pause.. Press “PLAY” button to play. Press “STOP” button to stop and time return to 00:00. Press “PREV” button to jump to the beginning of

14.1.3 Image Files

Press 'OK' button on the selected files to play the files.

file list if play is over 3 seconds; or jump to previous file if play less than 3 seconds. Press “NEXT” button to go to the next file. Press “FORWARD” button to forward 4S. Press “BACKWARD” button to back 4S. Jump to beginning or end if less than 4S to the beginning or end of music file. Switch to the next file or stop playing by the repeat mode when play is over on the current file. [0] key: To sort the file list by different order.

You can preview the picture at the top right corner if the scroll bar is on the picture files (JPG, BMP), and show the logo when at MP3 file. Move scroll bar when press up/down key, page up or down by page key. Go into sub-directory when press ok key in the

file directory, play the selected file when scroll bar is on the file, automatic return USB menu after play is over.

White key:

In this menu to setting JPEG player.

[FAV] key: To add mp3 or jpeg to play list.

 Press OK button to play file

[Green] key:

All the Image files in current directory are added into Image play list by Green key, and will

display “ ”behind the Image files, like below.

[0] Key:

To sort the file list by press [0] button.

[Red] Key:

Show file play list. There will display “The type of playlist do not exist” if there are no any file.

Image view operation

Please see the below image operation menu if Image function is selected.

 Red Key: Move the selected file by press Red key and

[Yellow] key: To edit the files or folders in the USB storage .

like in MP3 menu. Include rename, copy, delete and create folder function. You can press [Left/Right] key to previous menu.

[Blue] key

To preview the images. press this key you can see the picture like below.

[UP][DOWN] key..  Green Key: Delete the selected file by press Green key.  Yellow Key: Press Yellow Key, will delete all image files in play list, but system will remind you “ Delete All ” before practical operation, if you select Yes, all file will be deleted and Play list window will be closed.

14.1.4Video

You can see the video files in this menu, it can support .mpeg and .ts format file.and press [play] key, you can preview the video at the top right corner. You can press [1] key to adjust the volume while you preview the video file,press [0]key to sort the file list. and press to enable or disable the audio  Yellow key To edit the files or folders. Include rename, copy, delete and create folder function. You can press [Left/Right] key to previous menu.

14.1.5.Software

14.1.6.All

You can preview all files in this menu.

14.2 Storage Information

Press "OK" button to enter the HDD Information

If has software in current directory, you can press [Green] key to upgrade like below.

menu like the below picture, in this menu you can see the details information about the HDD.

If you want to format the HDD, press "yellow" button to enter Format menu, then select the

File System between the "FAT" and the "NTFS", Press "OK" Button to confirm.

Note: If you format the HDD, all the files include MP3, JPEG and the record files will be deleted from the HDD.

If you want change the path for recording files and timeshift files, press “blue” button to enter

3 Record Type

You can select the record type by press

[left/right] key.

4 HDD Sleep Time

You can select the HDD sleep time by

press [left/right] key.When the HDD is not in

useing mode,it will sleep after the time

which you select.

5 Jump Time

You can select the jump time by press [left/right] key.

6 Default Record Time

You can input number key in the item to set the default record time.

14.4 USB Speed Test

the DVR Set menu, then press OK button to set the path on current select disc.

14.3 PVR Setting

1 Time Shift:

ON: Enable the Time Shift function. OFF: Disable the Time Shift function.

2 Timeshift to Record

In "USB Speed Test" Menu you can see the Standard speed and your USB harddisk speed, according this information you can know what operation your disk can support.

14.5 Remove USB Device safely!

Use this menu you can remove the USB Device safely.

ON: Means when you press the " " Button to record the programme, it will merging the Timeshift files and the record files. OFF: Means when you record the programme, it just start when you press " " button, not include the Timeshift files.

15. Internet

If you enter to the " Internet " Menu, you will see the picture like the below:

You can get a new software from the network via LAN port.

b. Press [red] button the wireless LAN network

list will appear, Select you Wi-Fi network and press [ok] button, at last input password.

15.1 Network Local Setting

1. Select your Network Type as Wired or Wireless, if you select Wireless, can configuring Wi-Fi (wireless) as the following step:

a. Select Wireless on Default Network Type

item.

c. Press [OK] button on Connect item to start connecting.

2. In this menu you may assign a dynamic IP address to the digital receiver. To do so, select the DHCP On.

3. If you have a static IP address, unselect the DHCP Enable, then the IP Address, Subnet Mask, Gateway and DNS options become enabled. You have to set these options according to your IP address.

15.2 Http Upgrade

1. When connected to the Internet, receiver can manually or automatically make software update from file from server.

Note:

This function depends on connection with external server. In case of no software on server, this function will not work.

15.4 FTP

When connected to the Internet, receiver can download some files, such as software, MP3 or Image files from FTP server.

Note:

This function depends on connection with external server. In case of no any files on server, this function will not work.

15.5 Weather Forecast

15.3 FTP Upgrade

When connected to the Internet, receiver can make software update from file from FTP server.

Note:

 Red key To update the news to the newest.  Green key To add new channels,you can input a new website.use this menu.you can add 10 channels at most.

In this menu you can see the weather forecast, press [Green] key to add city.

 Red key To update the weather forecast to the newest.  Green key To add new city.use this menu.you can add 5 cities at most.  Yellow key To delete current city.  Blue key To switch other temperature mode.

 Yellow key To delete current channel.  Blue key To edit current channel information.you can edit channel name and channel Url.

Press ok button to see the detail infomation.like the below.

15.6 RSS Reader

15.7 WiFi Manager

In this menu you can see the news

Insert WiFi equipment first, then search

available Enter net signal, input the password to connect with network.

15.8 youtube

This menu is some internet applications. "youtube" can play stream media in "www.youtube.com". When you enter to this menu, you will see a screen like below:

game, news, tech, move and so on.

8.Press [blue] key to display the top video. These are top favourites, top rated, most views, most recent and so on.

9. Press FIND [ ] key in full screen can open

the "Find” window. You can press

[,,,]keys to move highlight and press[ENTER]key to input the letters .Then press [red] key to find.

16. Game

1.Press [up/down] key to move highlight.

2.Press [ENTER] key on one item, it will be play pertinent video. The video will show on top left cormer. Press [ENTER] again, it only has video in mid of screen. Now press [zoom] key, the video will play in full screen.

3.Press [vol+/vol-] to control volume.

4.Press [pause] key to pause video, or press [stop] key to stop play.

5. Press [red] key to display the featured video.

6. Press [green] key to sort of site and duration. The site has Germany, worldwide, Poland and so on. Duration has all time, this week, this month and so on.

7.Press [yellow] key to switch group. These are

When you enter “Game” menu, you will see three Games include Tetris, Snake and Othello.

Basic operation statement:

16.1 Tetris

a) Moving highlight to “Setup” and press

[Volume Up/Volume Down] key to select the game level (speed).

b) Moving highlight to “Start” and press [OK]

key to start the game.

c) Moving highlight to [Cancel]keys and

press [OK]key to draw back from the game.

d) Start on the game:

 [Volume Up/Volume Down] Move

shape left or right

 “Channel Up” Rotate clockwise  “Channel Down” Faster drop  [OK] Pause/Play the game

 [Exit] Quit game and draw back to

“Game” menu.

16.2 Snake

a) Moving highlight to “Setup” and press

[Volume Up/Volume Down] key to select the game level (speed).

b) Moving highlight to “Start” and press [OK]

key to start the game.

c) Moving highlight to[Cancel]keys and

press [OK]key to draw back from the game.

d) Start on the game:

 [Volume Up/Volume Down/Channel

UP/Channel Down] use these arrow keys to guide the snake.

 [OK] Pause/Play game  [Exit] Quit game and draw back to

“Game” menu.

16.3 Othello

a) Moving highlight to “Setup” and press

[Volume Up/Volume Down] keys to select the game level (degree of difficulty).

b) Moving highlight to “Start” and press [OK]

17. New Features

17.1 Equalizer

When you listen the Radio programme, it will display the music spectrum graphic on TV Screen.

17.2 Time Shift

If you connect the USB HDD, and enable the Time Shift function in the menu "Main Menu/ Record/ PVR Setting/Time Shift", It will start the Time Shift function automatically after you switch the programme, and when you press the "Tms" button the Time Shift info bar will displayed as the following picture:

key to start the game.

c) Moving highlight to [Cancel] keys and

press [OK] key to draw back from the game.

d) Start on the game:

 [Volume Up/Volume Down/Channel

UP/Channel Down] use these arrow keys to guide chessman.

 [OK] set chessman.  [Exit] Quit game and draw back to

“Game” menu.

1 You can press " " button to pause the

video, and can save the picture to flash by

press " P+ " button when the video is

paused.

2 You can press " " or " " button to Fast

Backward or Fast Forward.

3 You can press " " or " " button to Slow

Backward or Slow Forward.

4 Press “left" or "right" button to jump to

different position, then press "OK" button to confirm.

5 Press " " button to exit the playback.

17.3 Record

If you connect the USB HDD. You can press " " button to start record function, as following picture:

press " P+ " button when the video is

paused.

 You can press " " or " " button to Fast

Backward or Fast Forward.

 You can press " " or " " button to Slow

Backward or Slow Forward.

 Press “left" or "right" button to jump to

different position, then press "OK" button to

confirm.

 Press " " button to stop the recording.

 Press " " button to display the record info

bar when you recording.

 Press " " button again to setting the

record time.

 You can press " " button to pause the

video, and can save the picture to flash by

Symptom

Possible cause

Settings you made in the menu have not change

The receiver lost power before being able to enter into standby mode Some of the Settings saved by user can be deleted partly or fully

No signal

The level of signal is weak LNB is out of order The cable from the LNB is incorrectly Connected (short circuit or open circuit) The position of dish is aligned incorrectly

Receiver is on but no picture or sound except the following messages (NO TV programme)

Channel is not available Channel is scramble

Receiver not responding to remote control unit

RCU batteries are dead or inserted incorrectly The RCU is pointing toward wrong direction

Poor picture Quality

The level of Signal strength is low

No sound

The cable is connected incorrectly The Volume level is low Muting function is active

No display on the LED Display Panel

The power cord is not plugged in correctly.

No picture on the screen

Receiver is in Standby mode RCA Jack or cable is not connected firmly to the video output port of television Incorrect channel or video output is selected on television Brightness level of your TV set is incorrectly defined

18. Trouble Shooting

If you suspect there is a fault with your receiver, please check the following trouble shooting guide before calling authorized service agent.

Warning! Under no circumstances attempt to repair the receiver yourself. Tampering with the receiver may result in fatal electric shock and will invalidate your warranty.

If you are still experiencing problems please contact your local dealer or Icecrypt Technical Support

on 08712 003 191 or info@icecrypt.com

SYSTEM RESOURCES

Main Processor

400 MHz based CPU

Flash Memory

64 Mbits

DDR SDRAM

1024 Mbits

Tuner

Tuner Type

DVB-S / DVB-S2

Input Connector

F-type, Connector, Female

Loop Through

F-type, Connector, Female

Signal Level

-65 to -25 dBm

LNB Power & Polarization

Vertical: +13V

Horizontal: +18V

Current: Max. 500mA

Overload Protection

22KHz Tone

Frequency: 22±1KHz

DiSEqC Control

Amplitude: 0.6±0.2V

Version 1.0, 1.1 1.2, USALS Available

Demodulation

QPSK, 8PSK

Input Symbol Rate

2-45 Mbps, Convolution Code Rate

1/2, 2/3, 3/4, 5/6, 7/8 and Auto

POWER SUPPLY

Input Voltage

DC 12V

Power Consumption

24W MAX

MPEG TS A/V Decoding

Transport Stream

MPEG-2, H.264

Input Rate

Max.120Mbit/s

Aspect Radio

4:3, 16:9, Letter Box

Video Decoding

MPEG-2, MP@ML, MPEG-4 part 10/H264

Video Resolution

720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080P

Audio Decoding

MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital

Audio Mode

Left / Right / Stereo/ Mono

Sampling Rate

32, 44.1 and 48KHz

A/V & DATA INPUT/OUTPUT

19. Specifications

AV OUT

Video RGB output

Audio L/R output

LAN

RJ-45 Ethernet connection

RS-232C

Transfer rate 115.2Kbps

Jack Type

USB

Two USB 2.0 slot Compatible

HDMI

Dolby Digital Bit-Stream Output

VER1.2

Type A

PHYSICAL SPECIFICATION

Size[W*H*D]

150mmX110mmX35mm

Net Weight

0.25 Kg

Operation Temperature

0℃~+45℃

Storage Temperature

-10℃~+70℃

Storage Humidity

5%~95% RH (Non-Condensing)

Specifications are subject to change without further notice. The manufacturer does not assume any responsibility regarding any errors or mistakes in printing.

Please note that a new software may change the features of the receiver. The manufacturer holds the rights of changes without any further notice.

Icecrypt S1600CHD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
