Drain Wire
Aluminum Mylar Shield
Separator
CAT 6 FTP

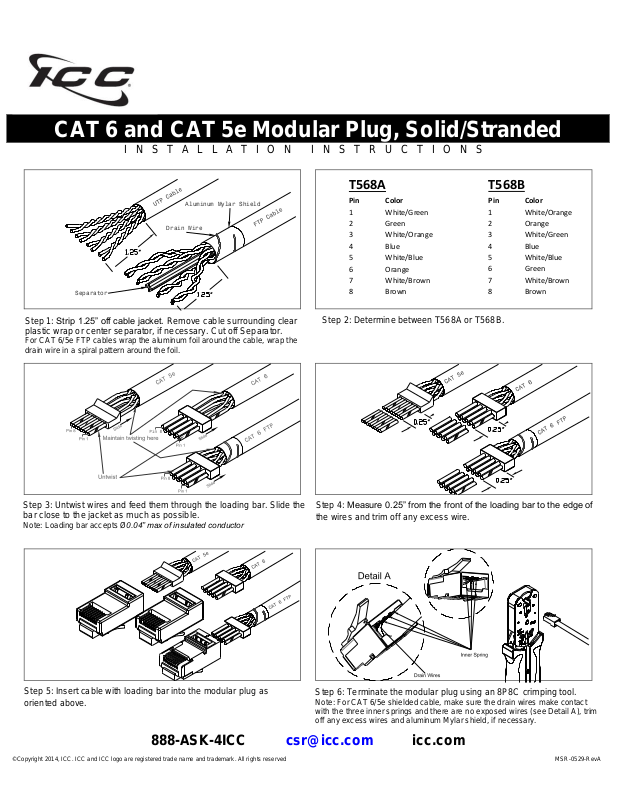

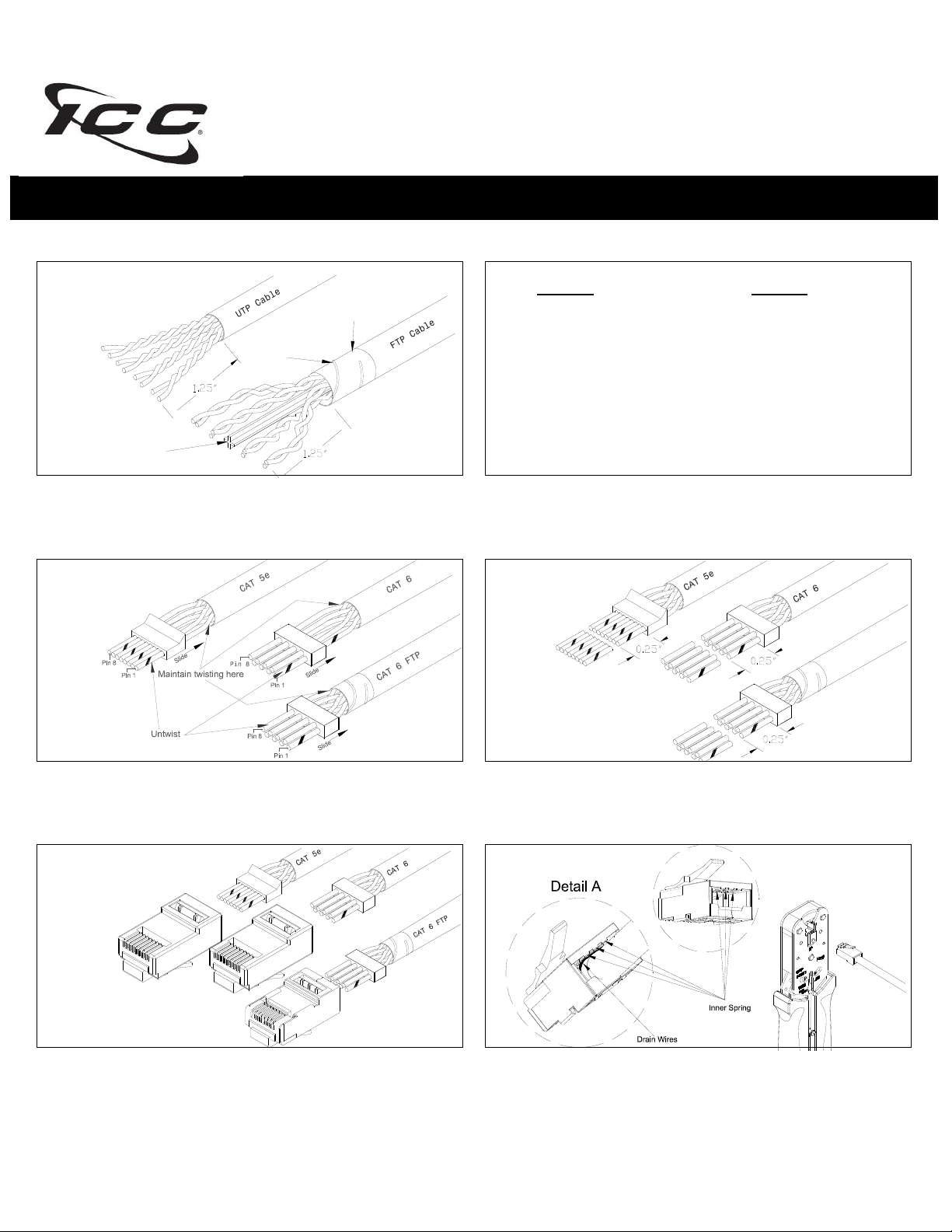

Step 1: Strip 1.25” off cable jacket. Remove cable surrounding clear
plastic wrap or center separator, if necessary. Cut off Separator.
For CAT 6/5e FTP cables wrap the aluminum foil around the cable, wrap the
drain wire in a spiral pattern around the foil.
Step 2: Determine between T568A or T568B.
Step 3: Untwist wires and feed them through the loading bar. Slide the
bar close to the jacket as much as possible.
Note: Loading bar accepts Ø0.04” max of insulated conductor
Step 4: Measure 0.25” from the front of the loading bar to the edge of
the wires and trim off any excess wire.
Step 5: Insert cable with loading bar into the modular plug as
oriented above.
Step 6: Terminate the modular plug using an 8P8C crimping tool.
Note: For CAT 6/5e shielded cable, make sure the drain wires make contact
with the three inner springs and there are no exposed wires (see Detail A), trim
off any excess wires and aluminum Mylar shield, if necessary.
T568A
Pin Color
1 White/Green
2 Green
3 White/Orange
4 Blue
5 White/Blue
6 Orange
7 White/Brown
8 Brown
T568B
Pin Color
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
CAT 6 and CAT 5e Modular Plug, Solid/Stranded
I N S T A L L A T I O N I N S T R U C T I O N S
©Copyright 2014, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved MSR-0529-RevA
888-ASK-4ICC csr@icc.com icc.com
PART NUMBER
DESCRIPTION
ICMP8P8C5E
CAT 5e 8P8C RJ-45 Modular Plug with Loading Bar, Stranded, 100 Pack
ICMP8P8C6E
CAT 6 8P8C RJ-45 Modular Plug with Loading Bar, Solid/Stranded, 100 Pack
ICMP8P8C6S
CAT 6 8P8C RJ-45 Shielded Modular Plug with Loading Bar, Solid/Stranded, 100 Pack
CAT 6A HD FTP Modular Connector
IC1078S6A0
• Shielded housing provides against
EMI
•Provide excellent performance for data
networks
Universal Modular Crimping Tool
ICACSCT864
• Crimps 4, 6, & 8-Position modular
plugs
•Built-in steel blade strips and cuts
cable
Wire Cutter Tool
ICACSWRCTR
• Knife-like blades
• Provides an accurate shear type cut
Deluxe Stripper Tool
ICACSTSUCD
•Strip UTP, STP, and coax cable
•5~06.2mm wire diameter
•RG-59-RG-6-RG-7 and RG-11
CAT 6 and CAT 5e Modular Plug, Solid/Stranded
I N S T A L L A T I O N I N S T R U C T I O N S
F E A T U R E S A N D B E N E F I T S
Designed for 8-Position 8-Conductor, solid or stranded wire, round CAT 6 cables and CAT 5e UTP cables.
Loading bar enhances performance.
Ideal for customization of patch cords for voice or high speed data applications.
Meets TIA-568-C Category 5e and Category 6 requirements.
CAT 5e accepts 26~24 AWG stranded wires and CAT 6 accepts 24-23 AWG solid or stranded wire.
Use with modular crimping tools
UL® listed.
