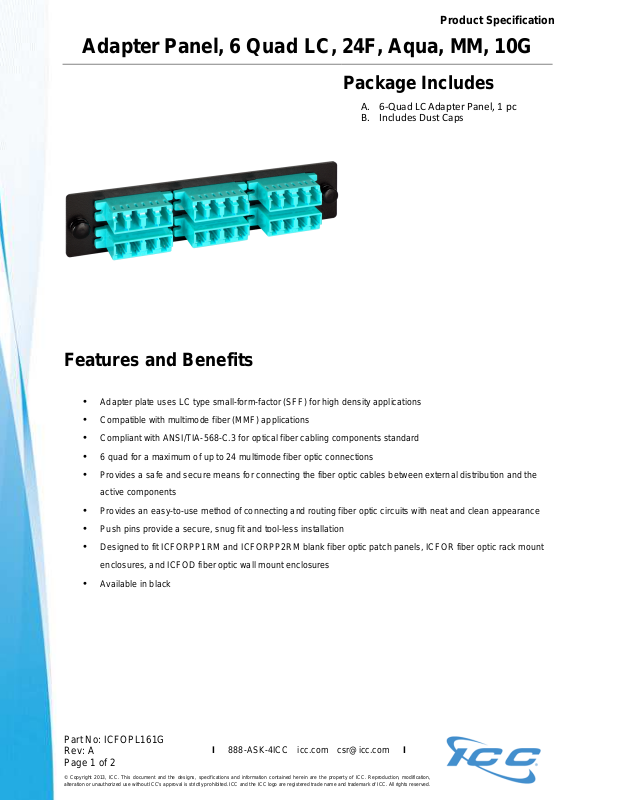

Product Specification
Adapter Panel, 6 Quad LC, 24F, Aqua, MM, 10G
Package Includes
A. 6-Quad LC Adapter Panel, 1 pc
B. Includes Dust Caps
Features and Benefits
•
Adapter plate uses LC type small-form-factor (SFF) for high density applications
•
Compatible with multimode fiber (MMF) applications
•
Compliant with ANSI/TIA-568-C.3 for optical fiber cabling components standard
•
6 quad for a maximum of up to 24 multimode fiber optic connections
•
Provides a safe and secure means for connecting the fiber optic cables between external distribution and the
active components
•
Provides an easy-to-use method of connecting and routing fiber optic circuits with neat and clean appearance
•
Push pins provide a secure, snug fit and tool-less installation
•
Designed to fit ICFORPP1RM and ICFORPP2RM blank fiber optic patch panels, ICFOR fiber optic rack mount
enclosures, and ICFOD fiber optic wall mount enclosures
•
Available in black
Part No: ICFOPL161G
Rev: A
Page 1 of 2
© Copyright 2013, ICC. This document and the designs, specifications and information contained herein are the property of ICC. Reproduction, modification,
alteration or unauthorized use without ICC’s approval is strictly prohibited. ICC and the ICC logo are registered trade name and trademark of ICC. All rights reserved.
I 888-ASK-4ICC icc.com csr@icc.com I
Product Specification
Specifications
NOTE: UNLESS OTHERWISE SPECIFIED
1. MATERIAL:
A. PATCH PANE
- PANEL: 16GA CRS
- FINISHING: TEXTURED BLACK POWDER COAT
B. LC QUAD ADAPTER:
- PLASTIC BODY
- COLOR: AQUA (10G)
- DUST CAP:
- SLEEVE: METAL (MM)
- MOUNTING PLATE : STAINLESS STEEL
For warranty information, go online to icc.com/warranty.
Part No: ICFOPL161G
Rev: A
Part No: ICFOPL161G
Rev: A
Page 2 of 2
