Part No: ICFOPL1615
Rev: B
Page 1 of 2
I 888-ASK-4ICC icc.com csr@icc.com I
© Copyright 2018, ICC. This document and the designs, specifications and information contained herein are the property of ICC. Reproduction, modification,
alteration or unauthorized use without ICC’s approval is strictly prohibited. ICC and the ICC logo are registered trade name and trademark of ICC. All rights reserved.

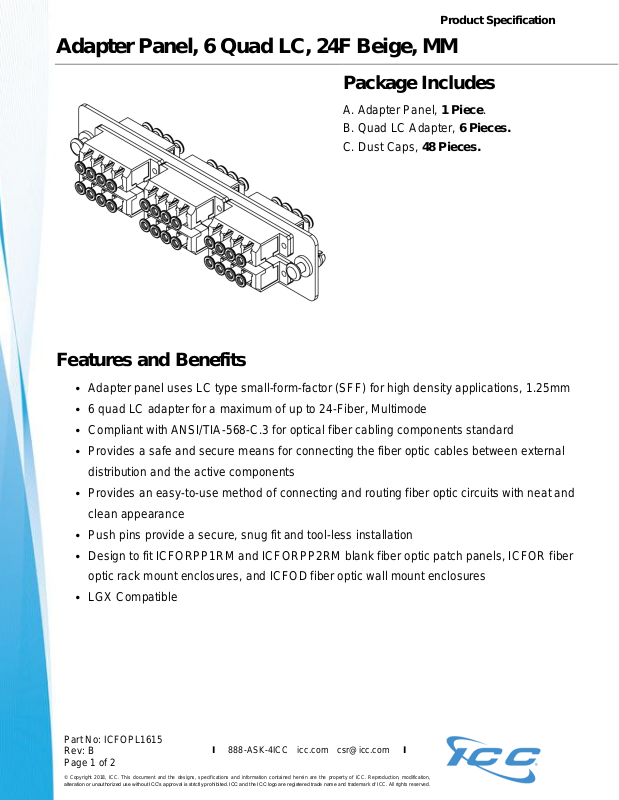

Product Specification
Adapter Panel, 6 Quad LC, 24F Beige, MM
Package Includes
A. Adapter Panel, 1 Piece.
B. Quad LC Adapter, 6 Pieces.
C. Dust Caps, 48 Pieces.
Features and Benefits
• Adapter panel uses LC type small-form-factor (SFF) for high density applications, 1.25mm
• 6 quad LC adapter for a maximum of up to 24-Fiber, Multimode
• Compliant with ANSI/TIA-568-C.3 for optical fiber cabling components standard
• Provides a safe and secure means for connecting the fiber optic cables between external
distribution and the active components
• Provides an easy-to-use method of connecting and routing fiber optic circuits with neat and
clean appearance
• Push pins provide a secure, snug fit and tool-less installation
• Design to fit ICFORPP1RM and ICFORPP2RM blank fiber optic patch panels, ICFOR fiber
optic rack mount enclosures, and ICFOD fiber optic wall mount enclosures
• LGX Compatible
Part No: ICFOPL1615
Rev: B
Page 2 of 2
I 888-ASK-4ICC icc.com csr@icc.com I
© Copyright 2018, ICC. This document and the designs, specifications and information contained herein are the property of ICC. Reproduction, modification,
alteration or unauthorized use without ICC’s approval is strictly prohibited. ICC and the ICC logo are registered trade name and trademark of ICC. All rights reserved.
Product Specification
Specifications
Patch Panel
o Material: 16 GA CRS
o Finishing: Texture Black Powder Coat
LC Quad Adapter
o Material: ABS
o Color: Beige
o Sleeve: Metal
