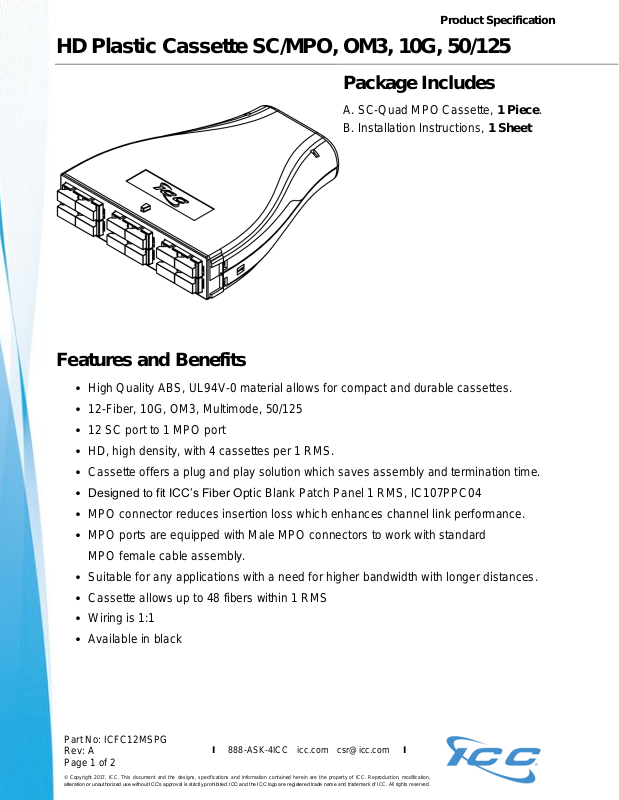

Page 1
Part No: ICFC12MSPG
Rev: A
Page 1 of 2
© Copyright 2017, ICC. This document and the designs, specifications and information contained herein are the property of ICC. Reproduction, modification,
alteration or unauthorized use without ICC’s approval is strictly prohibited. ICC and the ICC logo are registered trade name and trademark of ICC. All rights reserved.
Product Specification
HD Plastic Cassette SC/MPO, OM3, 10G, 50/125
Package Includes
A. SC-Quad MPO Cassette, 1 Piece.
B. Installation Instructions, 1 Sheet
Features and Benefits
• High Quality ABS, UL94V-0 material allows for compact and durable cassettes.
• 12-Fiber, 10G, OM3, Multimode, 50/125
• 12 SC port to 1 MPO port
• HD, high density, with 4 cassettes per 1 RMS.
• Cassette offers a plug and play solution which saves assembly and termination time.
• Designed to fit ICC’s Fiber Optic Blank Patch Panel 1 RMS, IC107PPC04
• MPO connector reduces insertion loss which enhances channel link performance.
• MPO ports are equipped with Male MPO connectors to work with standard
MPO female cable assembly.
• Suitable for any applications with a need for higher bandwidth with longer distances.
• Cassette allows up to 48 fibers within 1 RMS
• Wiring is 1:1
• Available in black
Page 2
Part No: ICFC12MSPG
Rev: A
Page 2 of 2
© Copyright 2017, ICC. This document and the designs, specifications and information contained herein are the property of ICC. Reproduction, modification,
alteration or unauthorized use without ICC’s approval is strictly prohibited. ICC and the ICC logo are registered trade name and trademark of ICC. All rights reserved.
Product Specification
Specifications
Cassette Housing:
o Material: ABS
o Color: Black
SC-Duplex Adapter:
o Material: ABS
o Color: Aqua Blue
o Sleeve: Metal
MPO Male Adapter:
o Material Polybutylene Terephthalate (PBT)
o Color: Aqua Blue
o Mating Cycles: 1000 Mating cycles
Cable Type:
o 10G, OM3, MM, 50/125µm
