Ladder Rack System

INSTALLATION INSTRUCTIONS

IMPORTANT: Before you start, please plan on how the ladder rack system is to be conﬁ gured.

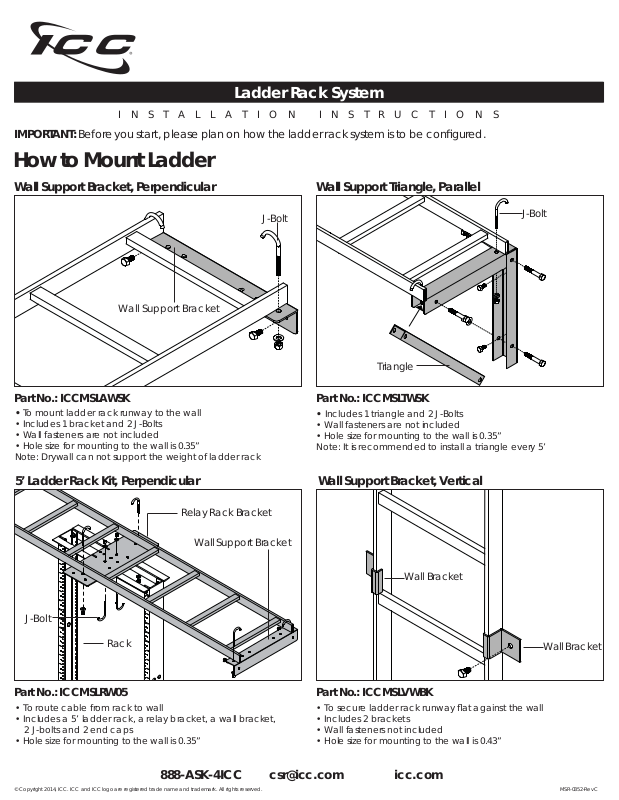

How to Mount Ladder

Wall Support Bracket, Perpendicular

Wall Support Bracket

Part No.: ICCMSLAWSK

• To mount ladder rack runway to the wall

• Includes 1 bracket and 2 J-Bolts

• Wall fasteners are not included

• Hole size for mounting to the wall is 0.35” Note: Drywall can not support the weight of ladder rack

J-Bolt

Wall Support Triangle, Parallel

J-Bolt

Triangle

Part No.: ICCMSLTWSK

Includes 1 triangle and 2 J-Bolts

•

• Wall fasteners are not included

• Hole size for mounting to the wall is 0.35” Note: It is recommended to install a triangle every 5’

5’ Ladder Rack Kit, Perpendicular

Relay Rack Bracket

Wall Support Bracket

J-Bolt

Rack

Part No.: ICCMSLRW05

• To route cable from rack to wall

• Includes a 5’ ladder rack, a relay bracket, a wall bracket, 2 J-bolts and 2 end caps

• Hole size for mounting to the wall is 0.35”

Wall Support Bracket, Vertical

Wall Bracket

Part No.: ICCMSLVWBK

• To secure ladder rack runway ﬂ at against the wall

• Includes 2 brackets

• Wall fasteners not included

• Hole size for mounting to the wall is 0.43”

888-ASK-4ICC [email protected] icc.com

Ladder Rack System

INSTALLATION INSTRUCTIONS

IMPORTANT: Before you start, please plan on how the ladder rack system is to be conﬁ gured.

How to Mount Ladder

Floor Mount Kit Ceiling Mount Kit with 6’ Rods

Butt splice

Feet

Ceiling bracket

Rod

Ladder bracket

Part No.: ICCMSLMFFK

• To join ladder rack runway at ends

• Includes 2 feet and 2 Butt splice kits

• Floor fasteners not included

• Hole size for mounting to the ﬂ oor is 0.55”

Cable Radius Drop

Radius drop

Part No.: ICCMSLCMRK

• To sustain over-hanging ladder rack runway to the ceiling

• Includes 2 threaded rods(6’), 2 ladder brackets, 2 ceiling brackets, and 8 nuts

• Ceiling fasteners not included

• Hole size for mounting to the ceiling is 0.53”

4 Post Relay Rack Brackets

4-Post Adjustable Distribution Rack Part #: ICCMSR4P84 7’H, 45 RMS

Rack

Adjustable

Bracket

Part No.: ICCMSLCRDK

• To maintain proper cable bend radius at drop points

• Includes 1 radius controlled drop, 6 bolts and 3 nuts

Part No.: ICCMSL4PBK

• To secure ladder rack runway over 4 post racks

• Includes 2 parallel mounting brackets, 2 perpendicular mounting brackets and 2 J-Bolts

888-ASK-4ICC [email protected] icc.com

Ladder Rack System

INSTALLATION INSTRUCTIONS

IMPORTANT: Before you start, please plan on how the ladder rack system is to be conﬁ gured.

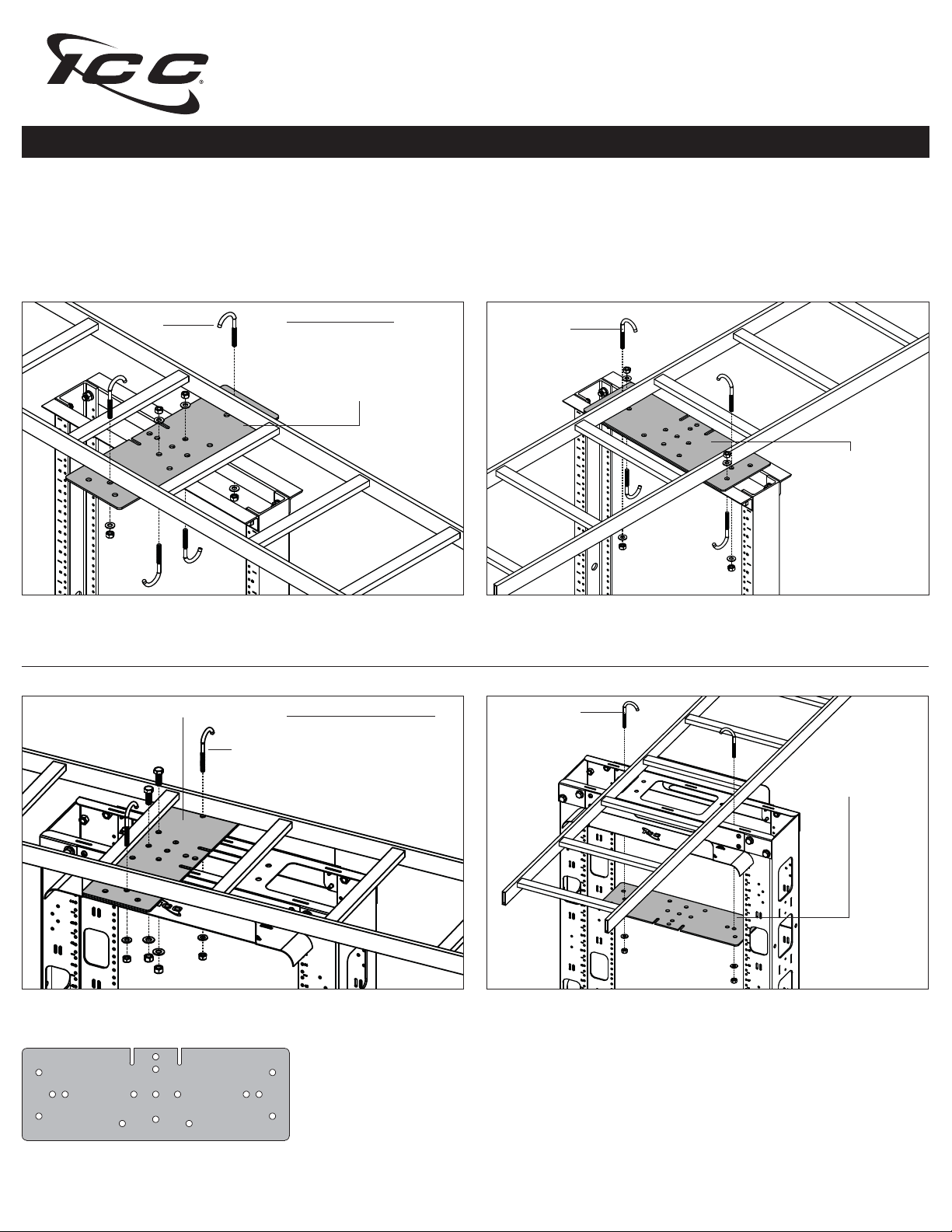

How to Mount Ladder on a Rack with a Relay Rack Bracket Kit

On Distribution Racks

J-Bolt

2-Post Distribution Racks Part #: ICCMSR1984 7’H, 45 RMS ICCMSR1972 6’H, 38 RMS ICCMSR1948 4’H, 24 RMS

Relay Rack Bracket

Option 1: Mount bracket parallel to rack as shown using 2 J-Bolts. Then mount ladder running parallel to rack as shown using 2 J-Bolts.

On Cable Managment Racks

Relay Rack Bracket

J-Bolt

2-Post Cable Management Rack Part #: ICCMSCMRH7 7’H, 44 RMS

J-Bolt

Relay Rack Bracket

Option 2: Mount bracket perpendicular to rack as shown using 2 J-Bolts. Then mount ladder running perpendicular to rack as shown using 2 J-Bolts.

J-Bolt

Relay Rack Bracket

Option 1: Mount bracket parallel to rack as shown using 2 J-Bolts. Then mount ladder facing parallel to rack as shown using 2 J-Bolts.

Option 2: Place ladder on top and bracket underneath perpendicular to rack as shown. Secure both of them using 2 J-Bolts.

Part No. ICCMSLRRBK

Includes: 1 bracket, 4 J-Bolts and 4 nuts.

Hole positions and size .375”

888-ASK-4ICC [email protected] icc.com

Ladder Rack System

INSTALLATION INSTRUCTIONS

IMPORTANT: Before you start, please plan on how the ladder rack system is to be conﬁ gured.

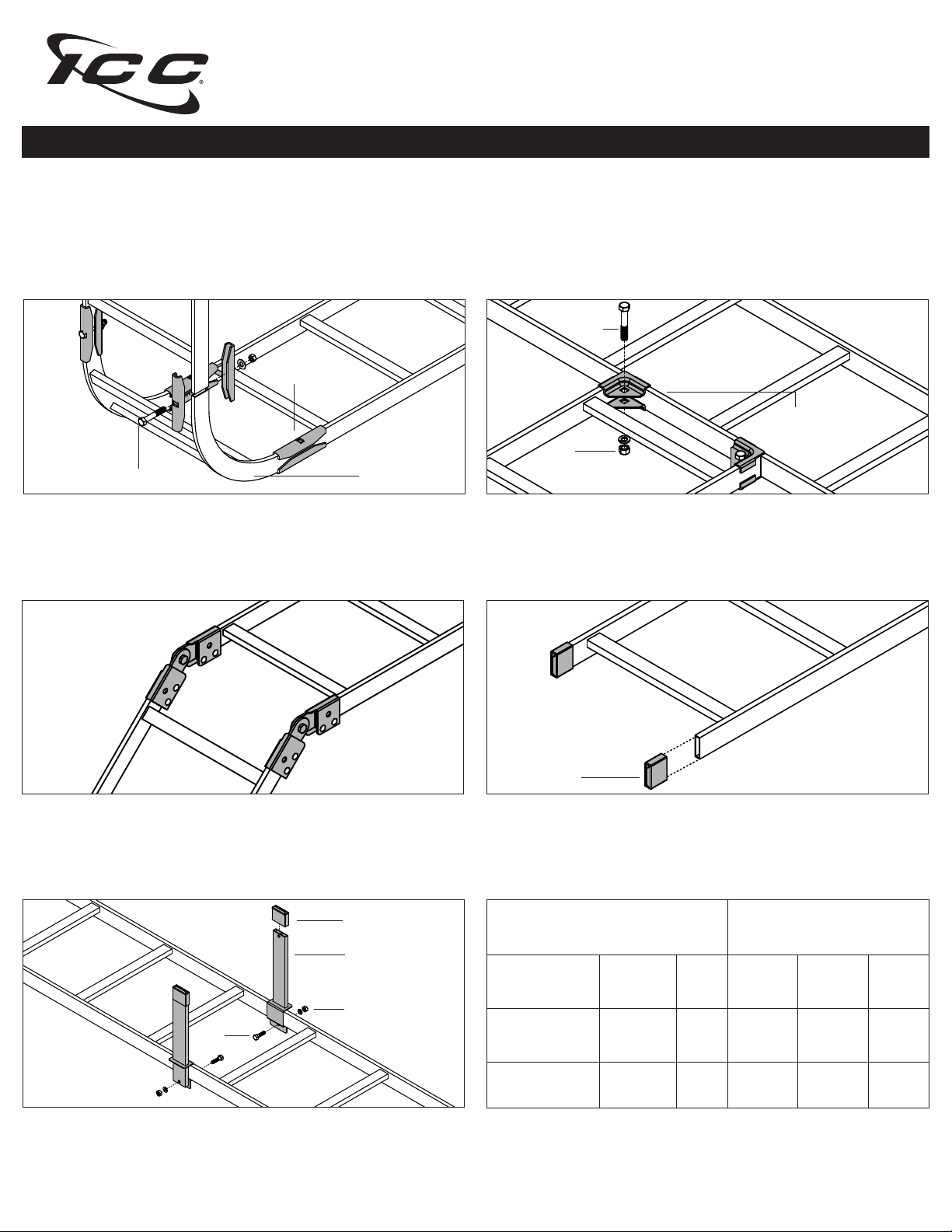

How to Connect Ladder and Protect Cable

End to End (Butt) Splice Kit Tee-Junction Splice Kit

Bolt

Butt splice

Nut

0

90

Bolt

• To join the ends of ladder rack runway together

• Includes 4 brackets, 2 nuts and 2 bolts

corner

Part No.: ICCMSLTJSKPart No.: ICCMSLEBSK

• To fasten ladder rack runway in a tee intersection

• Includes 4 brackets, 2 nuts and 2 bolts

Tee-Junction splice

Swivel Butt Splice

Part No.: ICCMSLESSK

• To allow ends to adjust in various angles

• Includes 2 swivel butt slices

Cable Retaining Post Kit

Bolt

End cap

Cable post

Nut

Protective End Caps

End cap

Part No.: ICCMSLPECK

• To cover the ends of ladder rack runway

• Includes 2 end caps

Ladder Rack Weight Chart

50% Capacity

Distance

Between Span

10' straight section Part # ICCMSLST10

Weight

Capacity

300 lb.* 12" 500 720 1100

Width

CAT 6A (50%**)

Cable Runway Fills

CAT 6

(50%**)

CAT 5e (50%**)

Part No.: ICCMSLCRPK

• To prevent cable from falling off ladder rack runway

5' straight section

Part # ICCMSLST05

*When properly secured on both ends of ladder rack runway straight sections **Cable ﬁ lls are based on .34 inch outside diameter (OD) CAT 6A, .24 inch O.D. CAT 6, and .21 inch O.D. CAT 5e ICC cable

500 lb.* 12" 500 720 1100

• Includes 2 10.5” posts, 2 brackets, 2 nuts, 2 bolts, and 2 end cap
