ICC ICCMSLAWS2, ICCMSLMFF2 User Manual

Ladder Rack System
INSTALLATION INSTRUCTIONS
IMPORTANT: Before you start, please plan on how the ladder rack system is to be congured.
Wall Support Bracket, Perpendicular
Wall Support Bracket
Part No.: ICCMSLAWS2
• To mount ladder rack runway to the wall
• Includes 2 brackets and 4 #12-24 x 5/8 screws
• Wall fasteners are not included
• Hole size for mounting to the wall is 0.35" Note: Drywall can not support the weight of ladder rack
Wall Support Triangle, Parallel
Wall Support Triangle
2 Mounting Holes
Part No.: ICCMSLTWS6
• Includes 6 Wall Support Triangles and 2 #12-24 x 5/8 screws
• Wall fasteners are not included
• Hole size for mounting to the wall is 0.35" Note: It is recommended to install a wall support triangle every 5'
5' Ladder Rack Kit, Perpendicular
Relay Rack Bracket
Wall Support Bracket
J-Bolt
Rack
Part No.: ICCMSLRW05
• To route cable from rack to wall
• Includes a 5’ ladder rack, a relay bracket, a wall bracket, 2 J-bolts and 2 end caps
• Hole size for mounting to the wall is 0.35"
888-ASK-4ICC csr@icc.com icc.com
© Copyright 2018, ICC. ICC and ICC logo are registered trade name and trademark. All rights re served.
Wall Support Bracket, Vertical
Wall Bracket
Wall Bracket
Part No.: ICCMSLVWBK
To secure ladder rack runway at against the wall
• Includes 2 brackets
• Wall fasteners not included
• Hole size for mounting to the wall is 0.43"
MSR-0352-RevH
Ladder Rack System
INSTALLATION INSTRUCTIONS
IMPORTANT: Before you start, please plan on how the ladder rack system is to be congured.

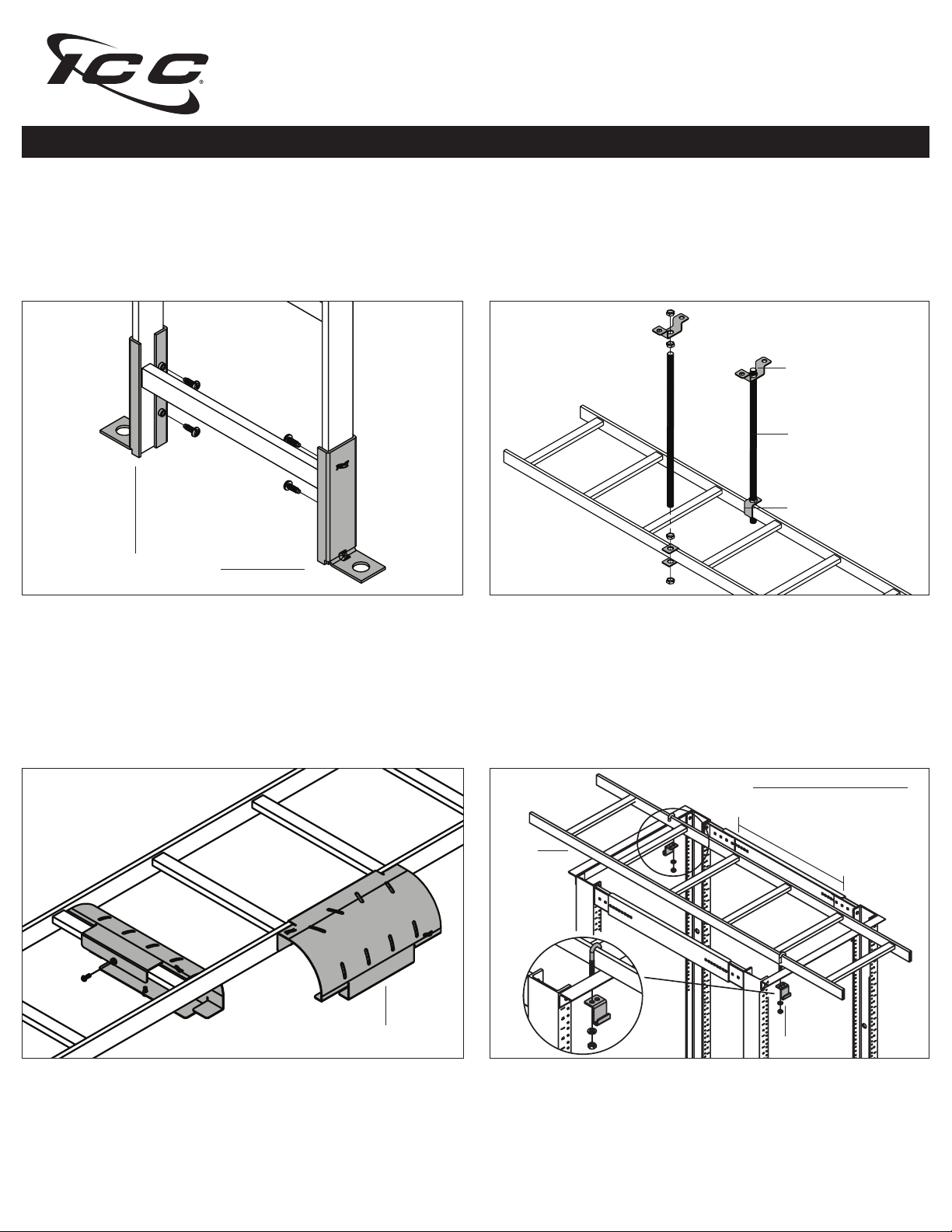

Floor Mount Kit
Floor Mount Brackets
Part No.: ICCMSLMFF2
• To join ladder rack runway at ends
• Includes 2 brackets and 4 #12-24 x 5/8 screws
• Floor fasteners not included
Hole size for mounting to the oor is 0.75"
Ceiling Mount Kit with 6' Rods
Ceiling bracket
Rod
Ladder bracket
Part No.: ICCMSLCMRK
• To sustain over-hanging ladder rack runway to the ceiling
• Includes 2 threaded rods (6'), 2 ladder brackets, 2 ceiling brackets, and 8 nuts
• Ceiling fasteners not included
• Hole size for mounting to the ceiling is 0.53"
• Max load: 132lbs/ft when supported every 5'
Cable Radius Drop
Radius drop
Part No.: ICCMSLRRDB
• To maintain proper cable bend radius at drop points
• Includes 2 radius controlled drops and 4 screws
888-ASK-4ICC csr@icc.com icc.com
© Copyright 2018, ICC. ICC and ICC logo are registered trade name and trademark. All rights re served.
4 Post Relay Rack Brackets
4-Post Adjustable Distribution Rack Part #:
ICCMSR4P84 7' H, 45 RMS
Rack
Part No.: ICCMSL4PBK
• To secure ladder rack runway over 4 post racks
• Includes 2 parallel mounting brackets, 2 perpendicular mounting brackets and 2 J-Bolts
Adjustable
Bracket
MSR-0352-RevH
