ICC ICCMSCMA73 Installation

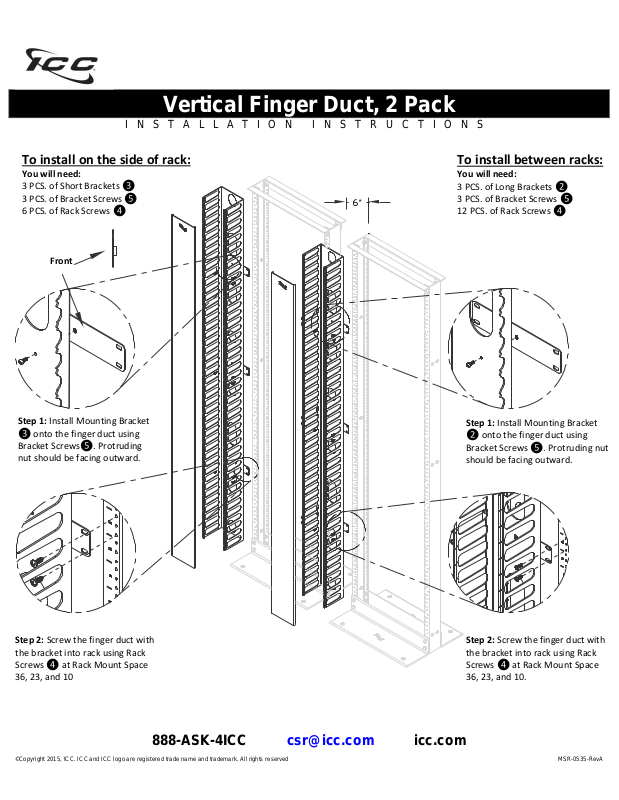

Step 2: Screw the finger duct with

the bracket into rack using Rack

Screws ❹ at Rack Mount Space

36, 23, and 10.

Step 1: Install Mounting Bracket
❸ onto the finger duct using
Bracket Screws❺. Protruding
nut should be facing outward.

Step 2: Screw the finger duct with
the bracket into rack using Rack

Screws ❹ at Rack Mount Space

36, 23, and 10

Step 1: Install Mounting Bracket

❷ onto the finger duct using
Bracket Screws ❺. Protruding nut

should be facing outward.

To install on the side of rack:

You will need:

3 PCS. of Short Brackets ❸
3 PCS. of Bracket Screws ❺
6 PCS. of Rack Screws ❹

To install between racks:

You will need:

3 PCS. of Long Brackets ❷
3 PCS. of Bracket Screws ❺
12 PCS. of Rack Screws ❹

Front

Vertical Finger Duct, 2 Pack

I N S T A L L A T I O N I N S T R U C T I O N S

©Copyright 2015, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved MSR-0535-RevA

888-ASK-4ICC [e-mail] icc.com

Two Post Distribution Rack, 7’
ICCMSR1984

• Printed RMS numbering for easy
installation

•Use with all ICC’s rack mount products

Four Post Distribution Rack, 7’
ICCMSR4P84

• Adjustable from 27” minimum to 32”

maximum depth

•Use with all of ICC’s rack mount products

Horizontal Cable Management Panel
ICCMSCMA41 Front Single Sided, 1 RMS

ICCMSCMA42 Front Single Sided, 2 RMS
ICCMSCMA61 Double Sided, 1 RMS
ICCMSCMA62 Double Sided, 2 RMS

•Slotted ducts provide neat appearance

•Fits standard 19” racks and cabinets

Vertical Cable Management Panel
ICCMSCMA82 Double Sided, Center

ICCMSCMA83 Double Sided, Side
ICCMSCMA84 Double Sided, Flat

•Provides a neat and clean appearance

❶

❷ ❸ ❹

❺

Part Number: ICCMSCMA73

Package include:

❶

6”W x 5”D x 78”L Finger Duct
with Covers

2 PCS

❷

Long Bracket

6 PCS

❸

Short Bracket

6 PCS

❹

Rack Screw

24 PCS

❺

Bracket Screw

6 PCS

ESTIMATED CABLE FILL CAPACITIES

Feature

Channel

Depth (WxD)

Usable

Area (In²)

CAT 5e

(.18” OD)

CAT 6

(.225” OD)

CAT 6A

(.34” OD)

Fiber

(.079” OD)

6” Channel

Size

5.75” X 5”

25.63 In²

220

183

84

1590

Finger Spacing

1.3” X 3.7”

4.31 In²

45

30

12

255

Large Pass-

through

2.25” X 5”

10.16 In²

103

70

30

600

Small Pass-

through

2” X 2.5”

4.14 In²

42

28

11

247

Capacities based on ICC’s cable diameter

Vertical Finger Duct, 2 Pack

I N S T A L L A T I O N I N S T R U C T I O N S

F E A T U R E S A N D B E N E F I T S

 Cover included
 Wide finger opening
 Feed-through holes allows rear cable routing
 Mount on the side or in between distribution racks
 Compatible with most TIA specification distribution racks

O P T I O N A L A C C E S S O R I E S
