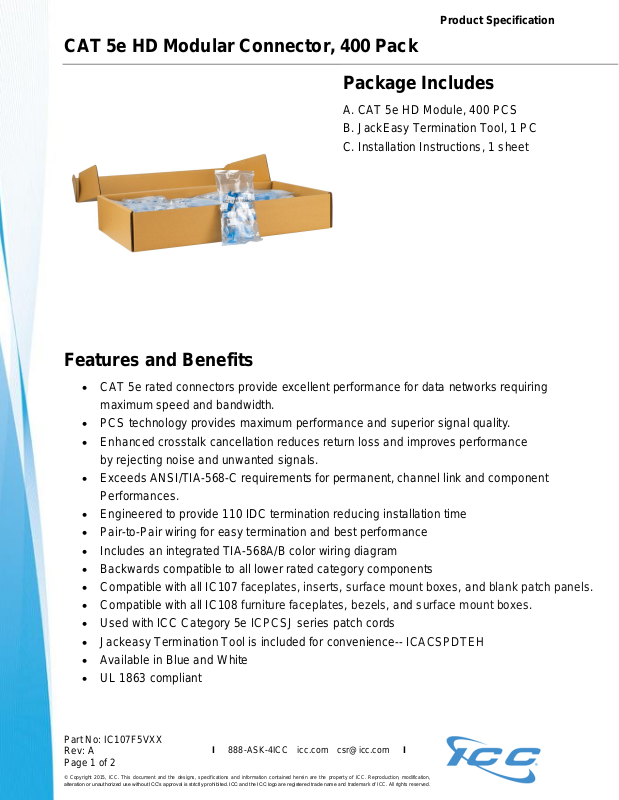

Product Specification
CAT 5e HD Modular Connector, 400 Pack
Package Includes
A. CAT 5e HD Module, 400 PCS
B. JackEasy Termination Tool, 1 PC
C. Installation Instructions, 1 sheet
Features and Benefits
CAT 5e rated connectors provide excellent performance for data networks requiring
maximum speed and bandwidth.
PCS technology provides maximum performance and superior signal quality.
Enhanced crosstalk cancellation reduces return loss and improves performance
by rejecting noise and unwanted signals.
Exceeds ANSI/TIA-568-C requirements for permanent, channel link and component
Performances.
Engineered to provide 110 IDC termination reducing installation time
Pair-to-Pair wiring for easy termination and best performance
Includes an integrated TIA-568A/B color wiring diagram
Backwards compatible to all lower rated category components
Compatible with all IC107 faceplates, inserts, surface mount boxes, and blank patch panels.
Compatible with all IC108 furniture faceplates, bezels, and surface mount boxes.
Used with ICC Category 5e ICPCSJ series patch cords
Jackeasy Termination Tool is included for convenience-- ICACSPDTEH
Available in Blue and White
UL 1863 compliant
Page 2
Part No: IC107F5VXX
Rev: A
Page 2 of 2
© Copyright 2015, ICC. This document and the designs, specifications and information contained herein are the property of ICC. Reproduction, modification,
alteration or unauthorized use without ICC’s approval is strictly prohibited. ICC and the ICC logo are registered trade name and trademark of ICC. All rights reserved.
Product Specification
0.64
0.57
1.22
CAT 5e Connecting Hardware Requirements
Frequency (MHz)
1.0
4.0
8.0
10.0
16.0
20.0
25.0
31.25
62.5
100
NEXT Loss (dB)
65.0
65.0
64.9
63.0
58.9
57.0
55.0
53.1
47.1
43.0
FEXT Loss (dB)
75.1
63.1
57.0
55.1
51.0
49.1
47.1
45.2
39.2
35.1
RETURN Loss (dB)
35.0
35.0
35.0
35.0
35.0
34.0
32.0
30.1
24.1
20.0
Insertion Loss (dB)
0.10
0.10
0.10
0.10
0.20
0.20
0.20
0.20
0.30
0.40

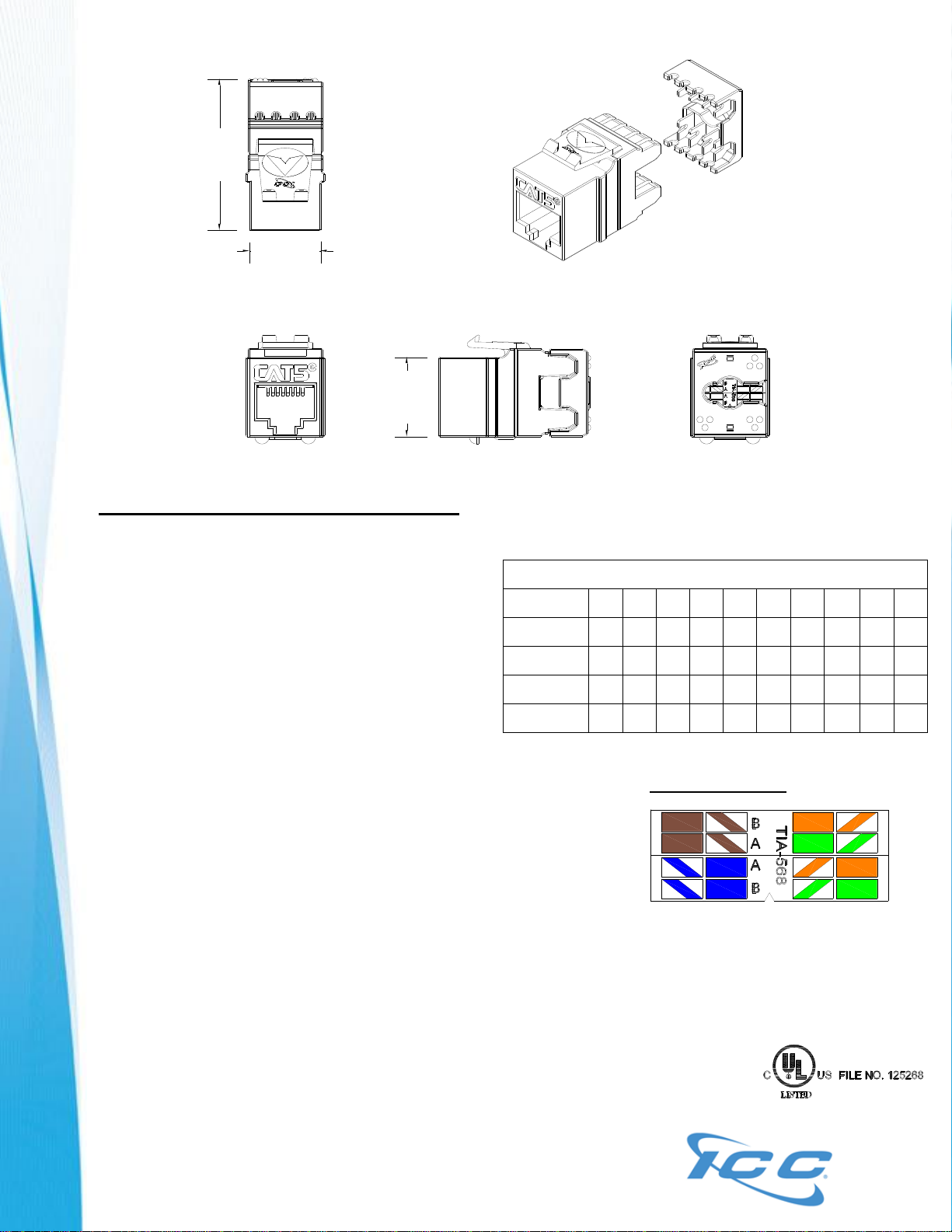

WIRING DIAGRAM
NOTE: UNLESS OTHERWISE SPECIFIED
1. CAT 5e Module:
A. Electrical:
-Current Rating: 1.5 AMPS
-Insulation Resistance: 500 MOHMS Min
-Contact Resistance: 20 MOHMS Max
-DC Resistance: 0.1 OHM Max
B. Mechanical:
-Plug Insertion Life: 750 Cycles Min
-Plug & Jack Contact Force: 100 Grams Min
Using FCC approved plug
-Plug Retention Force: 50N (11 LBS) for 60s ± 5s
-Temperature: -40° to 150°F (-40° to 68°C)
C. Physicals:
-Housing: High Impact, Flame Retardant Plastic, UL 94V-0
-Jack Wiring: Phosphor Bronze Alloy Plated with 50 µin of Gold
over 70~100 µin of Nickel
-Connector: Insulation Displacement Connector (IDC)
Accepts 22~24 AWG Solid Wire
D. Colors: XX: BL-Blue & WH-White
