Well TENS
Electrical nerve stimulator
Instructions for use
1. How will these instructions help you? .......................26
2. Background information ............................................
2.1 What is pain? ............................................................
2.2 What is TENS? .........................................................
3. The Well TENS .........................................................
4. Your safety is important to us ...................................
4.1 For what range of use is the Well TENS suitable? ...
4.2 For what range of use is the Well TENS
unsuitable? ...............................................................
4.3 For what areas of application is the Well TENS
suitable? ...................................................................27
4.4 For what areas of application is the Well TENS
unsuitable? ...............................................................28
4.5 Other points to consider ............................................
5. How to protect the Well TENS ..................................
6. Unpacking and checking the goods as supplied .......
7. Inserting the battery ..................................................
8. The controls and displays on the Well TENS ...........
9. Carrying out treatment ..............................................
9.1 What you need to take into account when
carrying out treatment ...............................................
9.2 Where should you not attach the
self-adhesive electrodes? ......................................... 34
9.3 Where can you attach the self-adhesive
electrodes? ............................................................... 34
9.4 How to carry out treatment .......................................
10. Setting up the Well TENS .........................................
10.1 Setting the operating parameters .............................
10.2 Pre-setting the duration of treatment ........................
10.3 Re-setting the timer ..................................................
11. Cleaning and caring for your Well TENS ..................
11.1 Cleaning ....................................................................
11.2 Changing the self-adhesive electrodes .....................
26
26
26
26
27
27
27
28
29
30
31
32
34
34
35
37
37
38
38
39
39
39
11.3 Changing the battery ................................................
11.4 Storing your Well TENS ............................................
12. What to do if there’s a problem .................................
13. Re-ordering accessories ...........................................
14. Service and Warranty ...............................................
14.1 Service Department ..................................................
14.2 Warranty and indemnity ............................................
15. Waste disposal and care of the environment ............
16. Technical data ...........................................................
17. What do the labels on the Well TENS mean? ..........
18. Examples of treatment using TENS ..........................
18.1 Neck, shoulder and arm pain, headaches
caused by a problem in the cervical spine ................ 44
18.2 Neck and shoulder pain ............................................
18.3 Pain in the elbow ......................................................
18.4 Pain in the region of the lumbar spine ......................
18.5 Pain in the knee ........................................................
18.6 Pain in the hip ...........................................................
18.7 Pain in the ankle ....................................................... 45
39
39
40
40
40
40
41
41
42
43
44
44
44
45
45
45
26
1. How will these instructions help you?
Warning!
This symbol warns you about possible
damage to your health.
NB!
This symbol draws your attention to
possible damage to your appliance.
Note
This symbol draws your attention to particularly
useful information about using your appliance.
The important parts of your appliance are marked with
numbers.
Using these part numbers, you can safely identify the
displays and controls whose significance and use we explain
in this manual.
2. Background information
2.1 What is pain?
Acute pain (protective pain) is a natural warning system which draws our
attention to the fact that something is wrong with our bodies. Acute pain helps
us to recognise the early onset of disease and to treat it.
Chronic pain is not a natural condition. It occurs as the result of a fault in the
affected nerve cells and no longer functions as a warning.
Chronic pain is persistent, recurrent pain that lasts for longer than 3 – 6
months. Chronic pain occurs irrespective of its original cause – the original
cause either no longer exists or can no longer be remedied.
2.2 What is TENS?
TENS, Transcutaneous (delivered via the skin) Electrical Nerve Stimulation,
is a valuable method in the treatment of pain. TENS blocks the transmission
of pain signals to the brain. The patient is no longer aware of the pain or is
less aware of it.
3. The Well TENS
The Well TENS produces electrical pulses: you can adjust the intensity, rate
(frequency) and amplitude of these pulses to suit your own particular treatment
requirements.
27
Self-adhesive electrodes are stuck onto the skin and conduct the electrical pulses
into the nervous system in the area being treated. These stimulations are not
painful. You will only feel a gentle prickling or vibration on the skin.
The Well TENS has two independently controllable output channels and
offers you a choice of three TENS operational modes.
Particular advantages of the Well TENS:
■ Easy to use at home or away
■ Freedom to move whilst using the appliance
■ Always available
■ No known side effects when used as intended.
4. Your safety is important to us
Please read these instructions carefully before using your Well TENS for the
first time. They cover all you need to know in order to operate your Well TENS
safely and avoid damage.
This instruction manual is an important part of your purchase. Keep it safe –
until you either pass on your Well TENS with these instructions to a new owner
or finally dispose of the appliance.
4.1 For what range of use is the Well TENS suitable?
► We recommend that you consult your doctor or physiotherapist
before using the Well TENS.
► Your doctor or therapist will help you decide on your course of
treatment and to monitor its progress.
► The Well TENS is only intended for external use on human
beings.
► The Well TENS may only be used as described in this
instruction manual.
4.2 For what range of use is the Well TENS unsuitable?
Danger of sparking and explosion!
The Well TENS does not have AP/APG protection. Do not place the
Well TENS near highly inflammable materials, highly inflammable
gases or explosives.
Electromagnetic radiation!
The Well TENS can interfere with electronic monitoring equipment
such as ECG monitors and ECG alarms. Do not place the Well TENS
near machines of this type.
4.3 For what areas of application is the Well TENS suitable?
► The Well TENS is only suitable for the treatment of chronic pain
which has been diagnosed as such without doubt.
28
► Treatment with the Well TENS has no effect on non-specific pain
such as non-specific headaches.
4.4 For what areas of application is the Well TENS unsuitable?
► Treatments with the Well TENS are of a purely symptomatic
nature. They cannot bring about any healing.
Do not use the Well TENS
● if the patient suffers from allergic skin reactions.
Self-adhesive electrodes may lead to irritation of the skin.
● if the patient suffers from heart problems, in particular
cardiac dysrhythmia. The stimulation current may lead to
ventricular fibrillation and in the worst case scenario to
cardiac arrest.
● if the patient has a heart pacemaker, other electronic
implants or metallic implants. The stimulation current may
interfere with the function of the implant.
● if the patient suffers from convulsive disorders. In the worst
case scenario the stimulation current may cause convulsive
seizures.
● if the patient is pregnant. In the worst case scenario the
stimulation current may cause premature contractions.
● during menstruation.
In the worst case scenario the stimulation current may
increase the amount of bleeding and cause or aggravate
cramps.
● on areas of the skin in which the patient no longer has any
sensation of pain. Self-adhesive electrodes may lead to
irritation of the skin and burns.
● if the patient suffers from systemic diseases (i.e. those
affecting the whole body).
4.5 Other points to consider
► Do not use the Well TENS or its accessories if they are
► Do not leave the Well TENS within reach of children. Children
► Do not use the Well TENS while driving or operating machinery.
► Any inadvertent change in the set-up of the Well TENS could
damaged. The stimulation current can cause pain and burning.
may swallow small parts and choke on them.
The operation of the Well TENS could distract you from your
work and lead to an accident.
frighten you by causing unpleasant skin reactions or sudden
muscular contractions. Do not use the Well TENS if a sudden
fright could cause you to injure yourself in any way.
29
► Only use the Well TENS with accessories that are recommended
by ibp. See the section on Ordering accessories.
Fire hazard!
Do not short-circuit the battery.
Explosion hazard, fire hazard!
Do not attempt to recharge a non-rechargeable battery.
The battery may leak or explode and cause a fire.
Danger of poisoning and choking!
Children can swallow batteries. Keep the batteries away from
children.
5. How to protect the Well TENS
► The electronics of the Well TENS are affected by humidity and
moisture.
Do not hold the Well TENS under running water, do not dip it
into water or other liquids and do not carry it when swimming
or in a sauna.
► The Well TENS is sensitive to heat.
Do not expose the Well TENS to direct sunlight and do not
place the Well TENS on a hot surface.
Well TENS
Reizstromgerät
zur Nervenstimulierung
Electrical nerve stimulator
Neurostimulateur électrique
Elektrostimulator voor
het stimuleren van zenuwen
Aparato de corriente
de excitación para la
estimulación de nervios
Gebrauchsanweisung
Instruction manual
Mode d’emploi
Gebruiksaanwijzing
Manual de instrucciones
0434
Modell/Model/Modèle/Model/Modelo
: WL-2103A
innovative business promotion gmbh
30
6. Unpacking and checking the goods as supplied
Storage case
1
Well TENS appliance
2
4 self-adhesive electrodes on protective film
3
1 re-sealable bag for storing the self-adhesive electrodes
4
2 electrical cables
5
9 V battery
6
Instruction manual
7
1. Open the storage case.
Keep the storage case so that you can put the Well TENS away safely in
it after each treatment.
2. Check that all the parts have been supplied.
3. Check the delivered goods for any possible damage during shipment.
If any part of the delivered goods is damaged, please contact our Service
Department (see Service and Warranty).
31

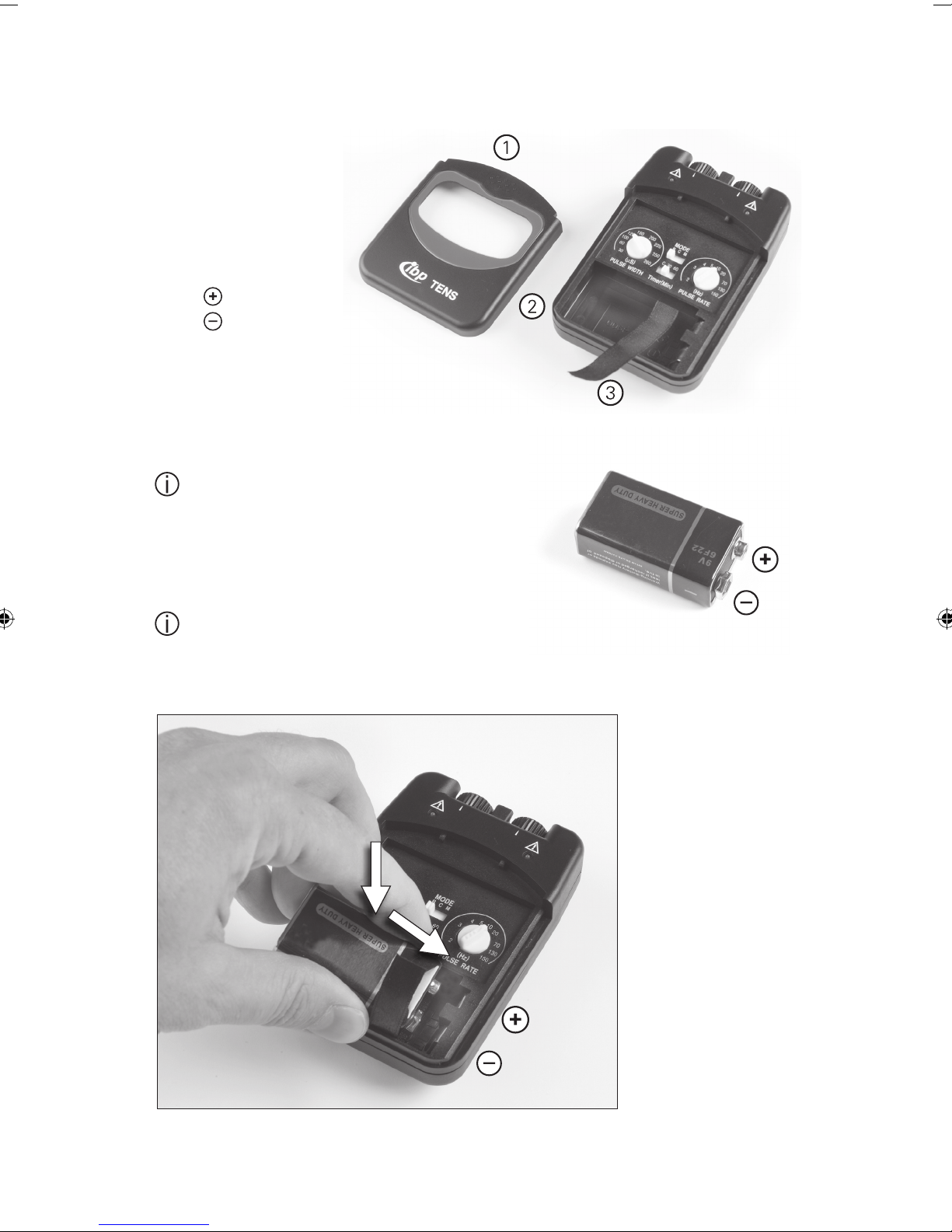

7. Inserting the battery
Faceplate
1
Battery compartment
2
Ribbon pull to aid
3
removal of battery
Positive pole
Negative pole
1. Unpack the battery.
2. Open the battery compartment:
Using your thumb, push the faceplate
down as far as it will go and remove it.
3. Insert the battery:
The ribbon pull must lie under the battery.
● Place the battery above the battery
compartment with the connections on
the right side of the battery compartment.
● Then press the battery down carefully
until it snaps into place.
The battery can only be pressed into place if the positive
pole is lined up with the pole marked (+) and the negative
pole with the pole marked (-).
4. Close the battery compartment:
32
8. The controls and displays on the Well TENS
Item Control Function
1
2
On/off knob, pulse
strength control
Display The LED display on the left lights up when you switch on
Use the left knob to switch Channel 1 of the Well TENS on
and off.
Use the right knob to switch Channel 2 of the Well TENS on
and off.
You can increase and decrease the strength of the pulses
(0 – 80mA) for Channel 1 and Channel 2 independently
of one another by rotating the appropriate knob clockwise or
anticlockwise.
Channel 1. The LED display on the right lights up when you
switch on Channel 2.
3
4
5
6
■ Operating mode B: the LED displays flash steadily.
■ Operating modes C and M: the higher the setting of the
pulse rate, the quicker the LED displays flash.
Once the pulse rate reaches approx. 10 Hz the LED displays
remain lit constantly.
By turning this dial you can set the pulse width to any level
between 30 μs and 260 μs.
The setting applies to both channels.
(µs)
PULSE WIDTH
By turning this dial you can set the pulse rate to any level
between 2 Hz and 150 Hz.
(Hz)
PULSE Rate
MODE Use this button to select the mode for your treatment.You can
TIMER (Min) Use this sliding switch to set the length of the treatment.
The setting applies to both channels.
choose between three modes: continuous mode (C), cyclical
mode (B) or modulated mode (M)
You can choose between three settings:
■ C: unlimited duration of treatment
■ 30: 30-minute treatment
■ 60: 60-minute treatment
The setting applies to both channels.
33
7
8
Faceplate Covers all the buttons and sliding switches so that you do not
inadvertently alter your settings.
Belt clip You can use the belt clip to fix your Well TENS to your clothing.
8
On the reverse,
not visible
34
9. Carrying out treatment
9.1 What you need to take into account when carrying out treatment
► Keep to the treatment plan recommended by your doctor or
therapist.
► Stop the treatment immediately if it starts to become unpleasant
and consult your doctor or therapist.
► Stop the treatment immediately if it has had no effect following a
treatment session of the length agreed with your doctor or thera
-
pist, and consult your doctor or therapist.
► Stop the treatment if after long-term usage the skin becomes
irritated at the points where the self-adhesive electrodes are applied. Only continue with the treatment once you have checked
the cause of the skin irritation with your doctor or therapist.
9.2 Where should you not attach the self-adhesive electrodes?
► Do not attach the self-adhesive electrodes to the eyelids.
The stimulation current may damage the eye.
► Do not attach the self-adhesive electrodes to the mouth, larynx
or throat area. The stimulation current can lead to muscle
cramps and thus to suffocation.
► Do not attach the self-adhesive electrodes to the area of the
carotid sinus (the area at the front of the neck over the carotid
sinus nerve). In patients with a sensitive carotid sinus reflex the
stimulation current may result in cardiac arrest.
► Do not attach the self-adhesive electrodes to the inside of the
mouth or in the immediate vicinity of the heart. The stimulation
current could flow directly via the heart and cause ventricular fibril
lation or even cardiac arrest.
► Do not attach the self-adhesive electrodes in such a way that
the current passes directly through the brain, e.g. on both temples. The stimulation current may set off convulsive seizures.
9.3 Where can you attach the self-adhesive electrodes?
The correct positioning of the self-adhesive electrodes is an impor-
tant factor for successful treatment.
► Follow the instructions of your doctor or therapist precisely.
► As a rule, the self-adhesive electrodes are positioned directly
over the painful area or in its immediate vicinity. It is also
possible to encircle the painful area with four self-adhesive
electrodes.
-
Please refer to the examples of use in section 18 of this
instruction manual.
35
9.4 How to carry out treatment
During treatment you should keep a minimum of 1 m away from microwave
and short wave appliances. Electromagnetic interaction may affect the
functioning of the Well TENS.
1. Use scissors to cut off any lush growth of hair at the points where you want
to apply the self-adhesive electrodes as recommended by your doctor or
therapist.
Do not shave the areas concerned.
2. Use a mild soap solution to clean the skin at the points where you want to
apply the self-adhesive electrodes. Rinse off the soap solution well and
dab the skin with a towel until it is thoroughly dry.
3. Connect the two-way adaptor of the self-adhesive electrodes with the
two-way adaptor at the end of the supply cable.
According to what your doctor or therapist recommends, you may also
carry out treatment using just one pair of electrodes. In this case make
the connections for this one pair of electrodes only.
Do not touch the self-adhesive electrodes unless both channels of
the Well TENS are switched off. The strong current may cause an
unpleasant sensation on the small area of the finger.
4. Remove the self-adhesive electrodes from the protective film.
Always pull the self-adhesive electrodes by the plaster and never
by the wires. The wires may break if subjected to too much
mechanical stress.
5. Stick the self-adhesive electrodes onto the contact points recommended
by your doctor or therapist.
Do not overstretch the skin when you stick on the electrodes. Lay the
self-adhesive electrode lightly onto the skin and then press the electrode
gently from the centre to the outside.
The self-adhesive electrodes must adhere firmly to the skin.
Replace with new self-adhesive electrodes when the adhesive has become weak.
6. Connect the supply cable to the output jack on the Well TENS appliance
36
Insert the plug into the output jack as far as it will go.
7. Switch on Channel 1 and Channel 2 of the Well TENS by rotating the left
and right on/off knobs clockwise until you hear a click. The LED displays
will light up.
NB: Make sure that the current settings are as specified by your
doctor or therapist.
8. Set the intensity for Channel 1 and Channel 2 by turning the left and right
on/off knobs slowly clockwise until the stimulation reaches a pleasant level
of intensity.
9. Reduce the pulse intensity or switch off the Well TENS
if you begin to find the stimulation unpleasant.
10. Ending the treatment:
When the treatment duration as set has expired, the stimulation will cease
automatically and the LED displays on the Well TENS will go blank.
Switch off Channel 1 and Channel 2 of the Well TENS by turning the left
and right on/off knobs anticlockwise until you hear a click. The LED
displays will go blank.
11. Remove the self-adhesive electrodes from the skin by pushing a fingertip
under each electrode and lifting it off in the direction of the hair growth.
37
Always pull the self-adhesive electrodes by the plaster and never by
the wires. The wires may break if subjected to too much mechanical
stress.
12. Stick the self-adhesive electrodes back onto the protective film and store
them in the re-sealable bag until the next treatment session.
13. Rub a little body lotion onto each point on the skin where the self-adhesi
ve electrodes were fixed, if needed.
14. Put the Well TENS and the accessories back into the storage case
15. Store the Well TENS in a safe place out of the reach of children and away
from direct sunlight and damp until the next treatment session.
-
10. Setting up the Well TENS
10.1 Setting the operating parameters
We recommend that you consult a doctor or therapist with regard to the
setting of your treatment parameters, including pulse rate, pulse width and
pulse strength.
For the treatment to work successfully it is necessary for the patient to
experience a noticeable tingling feeling or vibration on the skin. If the success
of the treatment begins to wane after a time because the body accustoms itself
to the current settings, the doctor or therapist must re-check and re-set the
treatment parameters. In such a case it may be sensible also to change the
operating mode, i.e. select a modulated operating mode.
1. Open the faceplate.
2. Set the mode:
Move the sliding switch to select one of the three possible operating
modes:
Mode Meaning Function
B
C Continuous operation
M
Cyclical operation
(burst)
with constant pulse
sequence
Modulated operation The pulse width drops from the default setting to 60%
Cyclical pulse sequences with 2 bursts per second with a
fixed, pre-set pulse rate of 100 Hz per second. The pulse
width and strength are adjustable.
The pulse rate, width and strength are adjustable.
of the default setting, remains at the lower level for 2
seconds, returns to the default setting and remains at
the default setting for 3.5 seconds. One cycle lasts
5.5 seconds. The pulse rate, width and strength are
adjustable.
38
All the following settings apply automatically to all three operating
modes.
3. To set the pulse width, turn the pulse width selection dial until it reaches
the desired setting.
4. To set the pulse rate, turn the pulse rate selection dial until it reaches the
desired setting.
5. Close the faceplate.
10.2 Pre-setting the duration of treatment
1. Open the faceplate.
2. Slide the sliding switch to select the duration of treatment to one of the
three possible settings:
Setting Duration of treatment
C
30 30-minute treatment
60 60-minute treatment
Unlimited duration of treatment
When the pre-set duration of treatment has elapsed the stimulation stops
automatically and the LED displays go blank.
3. Close the faceplate.
10.3 Re-setting the timer
1. Switch the Well TENS off.
2. Switch the Well TENS on again.
The timer will be re-set.
The pre-set duration of treatment will re-start from the beginning.
39
11. Cleaning and caring for your Well TENS
11.1 Cleaning
1. Switch the Well TENS off.
2. Clean the case carefully with a damp cloth and mild soap.
► Do not clean the case with caustic or scouring cleaners.
► Do not sterilise the appliance in a steam steriliser or cold
steriliser bath.
3. Clean the cables with a damp cloth and mild soap.
The self-adhesive electrodes must not be cleaned or sterilised.
11.2 Changing the self-adhesive electrodes
Change the self-adhesive electrodes if they are dirty or if they are no
longer sticky.
1. Switch off the Well TENS.
2. Unplug the used electrode from the supply cable.
3. Connect the new self-adhesive electrode to the supply cable.
11.3 Changing the battery
Change the battery if the LED displays do not light up when you switch on the
Well TENS or if the LED displays go blank during a treatment session.
Change the battery as described in the section on Inserting the battery.
Only use a battery in the Well TENS if it conforms to the
specification in the section on Technical data.
Explosion hazard!
Do not throw the old battery into the fire!
11.4 Storing your Well TENS
If you are not going to use your Well TENS for more than four weeks:
1. Switch off the Well TENS.
2. Remove the battery from the battery compartment (see the section on
Changing the battery).
3. Place the Well TENS and the accessories in the storage case.
4. Store the Well TENS in a cool, dry place.
40
12. What to do if there’s a problem
Problem Possible cause Remedy
The Well TENS is switched on
but the LED displays do not
light up and no stimulation can
be felt.
The Well TENS is switched on
and the LED displays light up
but no stimulation can be felt.
The battery has not
been inserted.
The battery is dead. Change the battery.
The Well TENS is faulty. Send the Well TENS to our Service
The pulse strength is set
too low.
Insert the battery
Department – see Service and
Warranty.
Increase the pulse strength.
The self-adhesive electrode
does not stick.
The cables are not
properly connected.
A supply cable or
electrode is faulty.
The Well TENS is faulty. Send the Well TENS to our Service
The adhesive on the
electrode has dried up.
Check all the cable connections
and insert the cables firmly.
Change the supply cable or
electrode.
Department – see Service and
Warranty.
Change the self-adhesive
electrode.
13. Re-ordering accessories
Self-adhesive electrodes are available from specialist shops or can be ordered by post from ibp
GmbH quoting the following code number:
Elektropads, 40 x 40 mm, set of 4, ibp code 20301.
(For the address see the back page of this manual)
14. Service and Warranty
14.1 Service Department
England: International Business Products Limited
6 Newfield Court West Houghton Bolton
BL5 3 SA England
Phone: +44 (0) 1942 819695 • www.ibphealthcare.com
India: sano health care products pvt. Ltd.
Corporate Office: 28 Landsdown Terrace 1st Floor
Kolkata - 700 026
Phone: +91 332465 0383 & 85
41
14.2 Warranty and indemnity
We will carry out repairs free of charge for 24
months from the date of purchase (i.e. the date
on the sales slip or receipt) if your appliance is
defective because of faults in the manufacture or
materials.
The warranty excludes damage resulting from the
fact that these instructions have not been followed or have not been followed in full.
Any further claims or compensation are likewise
excluded.
Send your rejected appliance together with the
sales slip or receipt and a description of your
complaint to our Service Department. Please
also enclose the Warranty certificate if you wish
to make a claim under the Warranty.
Batteries and self-adhesive electrodes are excluded from the Warranty.
15. Waste disposal and care of the
environment
■ Do not throw away the used battery with your
household rubbish but put it with the hazardous waste or in a battery collection box at a
specialist shop.
■ Do not throw the Well TENS in the household
rubbish but hand it in at a collection point
for the recycling of electrical and electronic
equipment.
If you have any questions on disposal, our
Service Department or your dealer will be
pleased to help you.
42
16. Technische Daten
Manufactured by:
Well-Life Healthcare Limited, 1FL, No. 16, Lane 454, Jungjeng Rd.
Yunghe City, Taipei County, Taiwan, R.O.C.
Type of appliance:
Transcutaneous electrical nerve stimulator (TENS)
Classification as per 93/42/EC:
Class IIa
Model number:
WL-2103A
Maximum permissible ambient air temperature:
10°C – 45°C
Maximum permissible relative humidity:
30% – 75%
Maximum permissible air pressure:
700 hPa – 1060 hPa
Power supply:
9V battery, alkaline, non-rechargeable
Channels:
2 channels, insulated between the channels
Pulse rate (frequency):
2 – 150 Hz (continuously adjustable)
Pulse width (duration)
30 – 260 µs (continuously adjustable)
Pulse strength (amplitude):
Adjustable from 0 mA – 80 mA maximum per channel at a
working resistance of 500 Ω DC
Supply voltage:
0 - 110 V (no-load operation)
Electrical fluctuations:
± 10 % at a resistance of 500 Ω
Type of signal:
Asymmetric two-phase square pulse
Maximum charge per pulse:
21 µC
Maximum correlation:
5 %
Weight:
115 g (including battery)
Dimensions (mm)
W: 65 x D: 23.5 x H: 95
43
17. What do the labels on the Well TENS
mean?
The rating plate can be found on the underside of the Well TENS.
Serial number
S/N
At the end of its life cycle, this product may not be disposed of
in regular domestic waste, but must be taken to a collection site for
recycling electrical and electronic devices (disposal of used
appliances).
Type BF applied part
Applied part provides protection against electric shock by
maintaining the leakage current at a level that conforms to standards
(Type B). The applied part is insulated (Type F)
Follow the instructions
The product meets the safety requirements of
EU Directive 93/42/EC
44
18. Examples of treatment using
TENS
The examples of treatment shown on the
following pages only represent a small
selection of the treatment methods that
are possible. Do not always use the
treatment methods shown and do not use
them on all patients.
18.1 Neck, shoulder and arm pain, headaches
caused by a problem in the cervical spine
Indication: pain in the neck, shoulders and arms,
headaches caused by a problem in the cervical
spine.
18.2 Neck and shoulder pain
Indication: muscular tension, degenerative changes, whiplash injury, pain in the neck and head.
NB: Do not apply the electrode plaster to
the points where there is most pain.
18.3 Pain in the elbow
Use for “tennis elbow”!
NB: Apply the electrode plasters above
and below the point where there is pain.
45
18.4 Pain in the region of the lumbar spine
Indication: muscular tension, degenerative
changes
18.5 Pain in the knee
Indication: arthritis of the knee, pain in the knee
following an operation or accident, e.g. following
a sports injury
NB: Apply the electrode plasters above
and below the point where there is pain.
18.6 Pain in the hip
Indication: arthritis of the hip
18.7 Pain in the ankle
Indication: pain following a sports injury of the
ankle
46
Loading...
