Ibp ELECTRICAL NERVE STIMULATOR User Manual

Product information
Today, electrical nerve stimulation has a secure place as a recognised therapeutic method for relieving pain. Without doubt, it represents a supplement and an al­ternative to conventional pharmacological and neuro­surgical pain therapy.
Successes in many areas of pain relief — both with chronic and acute pain — is resulting in an increasing number of doctors and therapists using this method.
This treatment method is gentle on the body and has no side-effects. The pain is soothed by the transfer of electrical pulses to the nerve fibres, which function as conductors for pain. Muscle fibres can also be relie­ved.
The electrical nerve stimulator acts via two different me­chanisms:
• The electrical pulse acts on the nerve fibres and can prevent pain signals from being sent on to the brain.
• The body's pain suppression system is stimulated to produce its own pain-soothing substances (endor­phins) and release them into the bloodstream.
This results in pain being relieved effectively, naturally and without recourse to medicines. A successful thera­py program, based on co-operation between the user and the doctor, and effective treatment with the electri­cal nerve stimulator.
Therapy with the electrical nerve stimulator has proven particularly successful against muscular pain, joint pain, neuralgia and amputation pain.
The unit can be used for the following indications (also see the Appendix "Doctor's setting recommendations"):
• Neck, chest and lumbar vertebrae syndrome
• Intercostal neuralgia
4
• Shoulder/arm syndrome
• Tennis elbow
• Knee and hip arthritis
• Phantom pain
• Tension headaches
• Stiffness of the joints after extended periods of non­movement
• Muscular injuries and sprains
Do not perform any therapy without first having obtai­ned a doctor's diagnosis. Since the sensitivity to the current is different for every patient, no precise details can be given here. The settings for the therapy must be made under the doctor's supervision!
Contra-indications: (see ”Correct use” on Page 6)
Scope of delivery
• Electrical nerve stimulator
• Block battery (9 V)
• Operating instructions
• Case
5
Correct use
The electrical acupuncture unit is used to directly stimu­late the nerves by way of electrical pulses. The unit is used for self-treatment of discomfort and pain, tension and stress-related problems. Other areas of use and possible acupuncture points will be outlined in these operating instructions.
The unit may only be used as described in the operating instructions. It must not be misused or used for purposes other than those for which it is intended.
The system is for external use only (appli­cation via the dry skin).
Do not use the unit when bathing or ta­king a shower, and protect it against moi­sture. Damp or wet skin conducts electricity better than dry skin, thereby increasing the effect of the electrical pul­ses.
Do not use the unit of the patient:
• has heart problems,
• particularly heart rhythm problems
• has a heart pacemaker or other implants
• is pregnant
• is a child
Not following these instructions can be harmful to the patient's health.
6
Do not use the unit on the eyelids or on the front of the neck (only after consul­ting a doctor) or so that electricity is con­ducted via the heart (e.g. in the direct proximity of the heart) or brain (e.g. on the temples). Not following these instruc­tions can be harmful to the patient's he­alth.
Use the unit for at most 3-5 times per day for a maximum of 3-5 minutes.
Terminate use and consult your doctor as soon as the therapy becomes unpleasant of ineffective.
7
General safety and warning instructions
Read these operating instructions care­fully before using the electrical nerve sti­mulator! The operating instructions must be followed and the unit must be used correctly!
Keep the unit is a safe place away from children.
Do not use the unit in the vicinity of microwave appliances or short-wave units. Electromagnetic interaction can im­pair the function of these units and of the electrical acupuncture unit.
Do not use the unit in the vicinity of high­frequency surgical devices. Electro-ma­gnetic interaction can produce high tem­peratures that can cause burns.
Do not use the unit in aircraft. The electri­cal pulses of the electrical acupuncture unit can interfere with the aircraft's elec­tronic systems and put at risk the safety of the passengers and crew.
If the device becomes damaged, send it to our Service Centre. See "Service and warranty" on page 36.
8
Putting into operation
Note: A 9 V block battery is provided to operate the unit. It is always possible to use a rechargeable battery. However, in this case it must be noted that the battery is charged up before use. Also note that alkali batteries have a higher ca­pacity and service life than rechargeable bat­teries.
Damaged batteries and rechargeable batteries may not be used!

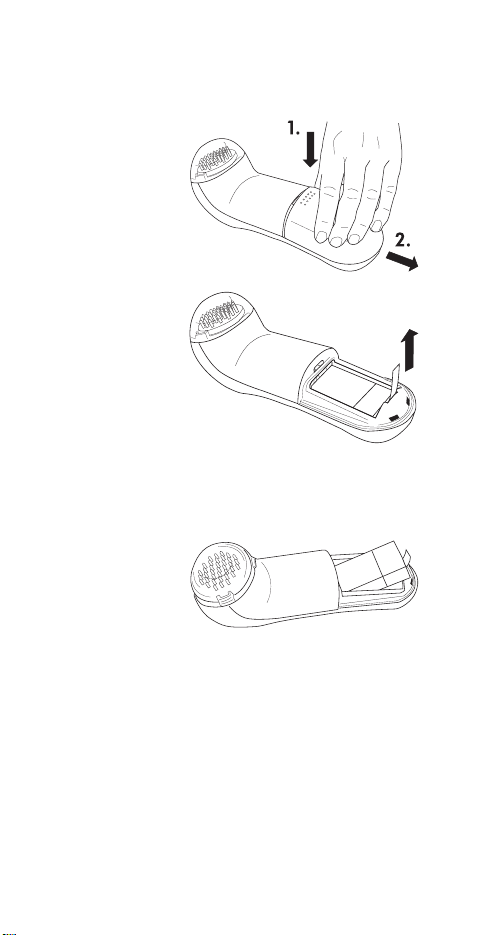

> Open the battery
compartment by pressing on the napped surface and pulling off the cover at the same time.
> Insert the battery
so that the polari­ty corresponds to the drawing in the bottom of the bat­tery compartment.
> Close the battery
compartment.
10
Use
> Remove the transparent protec-
tive cap of the stimulation pins.
> Set the intensity regulator to the
level recommended by your doctor. This switches on the unit and the indicator on the unit li­ghts up.
> Gently guide the stimulation
pins with circular movements over the parts of the skin discus­sed with your doctor (see ”Doc­tor's setting recommendatio ns” on Page 17). If the battery is discharged, the stimulation is stopped and the indicator lamp goes out.
> After the end of treatment,
switch off the unit by turning the intensity regulator to the circle and point. You must be able to clearly feel the regulator enga­ging and the indicator on the unit goes out.
> Replace the transparent protec-
tive cap in order to protect the stimulation pins.
11
Changing the battery
> Open the battery
compartment by pressing on the napped surface and pulling off the cover at the same time.
> To remove the
battery, press it down slightly at the front and pull it out of the hou­sing with the aid of the tape.
> Insert the new
battery so that the polarity cor­responds to the drawing in the bottom of the battery compart­ment.
> Close the battery
compartment.
12
Care
> Switch off the unit when it is not in use. > Regularly check the state and charging capacity of
the battery, because the function and the storage time are limited by the battery's service life.
> Remove the batteries from the unit if you are not
going to use it for a long time. Discharged batteries can leak and damage the unit.
> Protect the unit from moisture, otherwise the electro-
nics can be damaged. Do not immerse the unit in water or other liquids. Clean it only with a slightly damp cloth.
> When using a rechargeable battery, this should
always be stored fully charged in order to obtain its longest possible service life. The battery should not be completely (exhausted), because this can dama­ge it. For the charging time, refer to the instructions for the charger and the battery manufacturer's instructions.
13
Output curves
[V]
450 400
300
200
100
0
1
= 0.001 s
t
Output curve shape
Load impedance
Load impedance
t2 = 0.1 s Prf = 10 Hz
k]
25
20
15
10
5
0
100 200 300 400 500 600 700 800
k]
25
20
15
10
5
0
4.1 4.125 4.15 4.175 4.2 4.225 4.25 4.275
[t]
[V]
[mA]
15
Effective voltage
Effective voltage
[V]
9
8
7
6
5
250 300 350 400 450 500 550 600
[V]
9
8
7
6
5
2.0 2.5 3.0 4.5 4.0 4.5 5.0 5.5
[V]
[mA]
16
Doctor's setting recommendations
Discuss the course of treatment with your doctor. He/she will advise you on the duration, frequency and intensity of use.
Application period and frequency
Unless otherwise stated by the doctor, treatment is re­commended 3 to 5 times daily, each time for a period of 3-5 minutes.
Treatment of the selected areas should be conducted by performing gentle circular movements stroking across the skin.
Regulating the intensity
The stimulation intensity can be set with the intensity re­gulator. The rotary regulator is labelled with the num­bers 1-5; the higher the set number, the greater the intensity (pulse amplitude). During use, the patient should feel the characteristic tingling sensation.
Intensity sensitivity can depend on your day-to-day condition. Adjust the intensity as required.
17
Ask your doctor to note his recommendations here:
Therapie 1
Recommended treatment points:
Recommended intensity:
Recommended duration:
Recommended frequency:
18
Therapie 2
Recommended treatment points:
Recommended intensity:
Recommended duration:
Recommended frequency:
The following is an overview of the possible uses for electro-acupuncture:
19
Test electro-acupuncture
Headaches

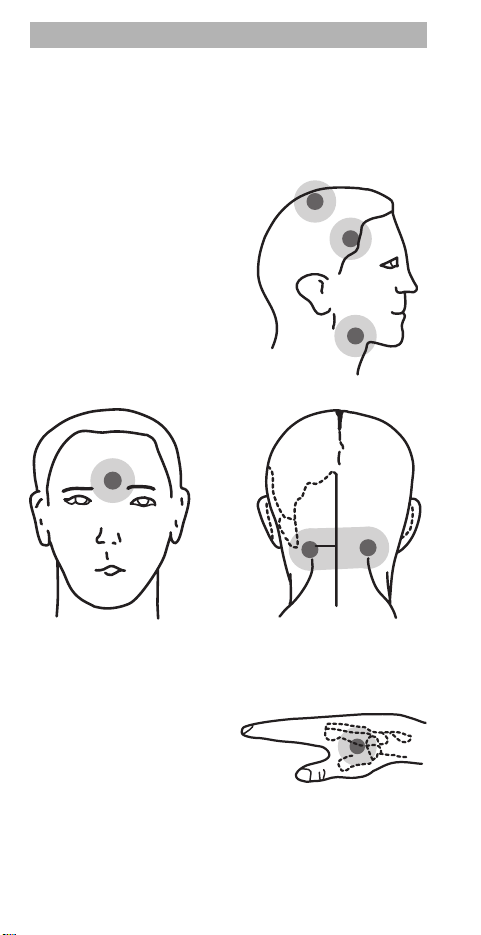

Headaches have many causes, e.g. migraine, engor­gement, problems with the sinuses or teeth, over-exer­tion, fatigue, tension, pressure etc.
Try to reduce the discomfort by exciting the points shown in the drawings, either di­rectly or by stroking over them in circular movements.
Figure 1
Figure 2: Particularly effective against deep headaches
20
Figure 3: Particularly effective against headaches caused by engorgement
Figure 4: Outside, effective against general headaches
Back problems
Most back problems affect the lower back. The most frequent causes are sudden vigorous movements, a poor body posture, over-extended muscles, lifting incorrectly, menstrual problems etc.
Try to reduce the discomfort by exciting the points shown in the drawings, either direct­ly or by stroking over them in circular movements.
Test electro-acupuncture
Figure 5
Figure 6
Figure 7
21
Test electro-acupuncture
Sleeping disorders
Sleeping disorders can be triggered by, among other things, stress, a change in sleeping environment, high altitude (holidays in the moun­tains), a sudden over-sensitivi­ty to quiet noises, heavy meals, excessively intensive physical exercise etc.
Try to reduce the discomfort by exciting the points shown in the drawings, either directly or by stroking over them in circular movements.
Figure 10: Particularly effective against nervous or stress-related sleeping disorders
Figure 8
Figure 9: Inside
22
Shoulder problems
Shoulder problems can be caused by heavy physical work, over-stretched muscles, a poor body postu­re (e.g. when working at a desk or computer), general over-exertion, a trauma or a direct impact on the shoul­der, bursitis, arthritis, rheu­matism etc.
Test electro-acupuncture
Figure 11
Figure 13: Outside
Figure 12: Particularly effective against shoulder problems
Figure 14
23
Test electro-acupuncture

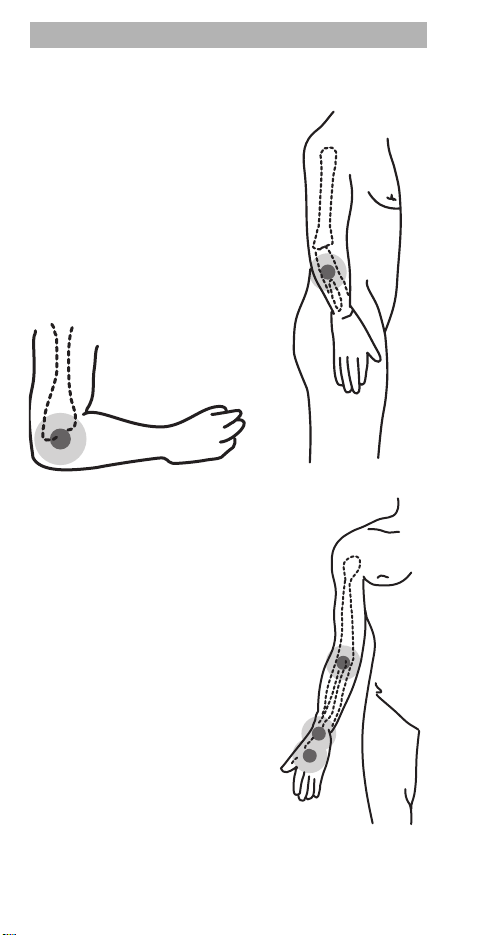

Elbow problems
Elbow problems can be caused by carrying heavy objects, over­exertion during sports (tennis el­bow), generally over-extended or over-exerted muscles, a direct impact on the elbow in the event of a fall, bursitis, arthritis, rheu­matism etc.
Figure 16 Figure Figure 16 and 17: Particularly ef-
fective against shoulder problems
24
Figure 15
Figure 17: Inside
Test electro-acupuncture
Knee problems
Knee problems can be caused by wear and tear, over-exertion (e.g. during jogging), over-ex­tended or over-exerted muscles or ligaments, general over-exer­tion, a trauma or a direct impact on the knee (e.g. in the event of a fall), bursitis, arthritis, rheuma­tism etc.

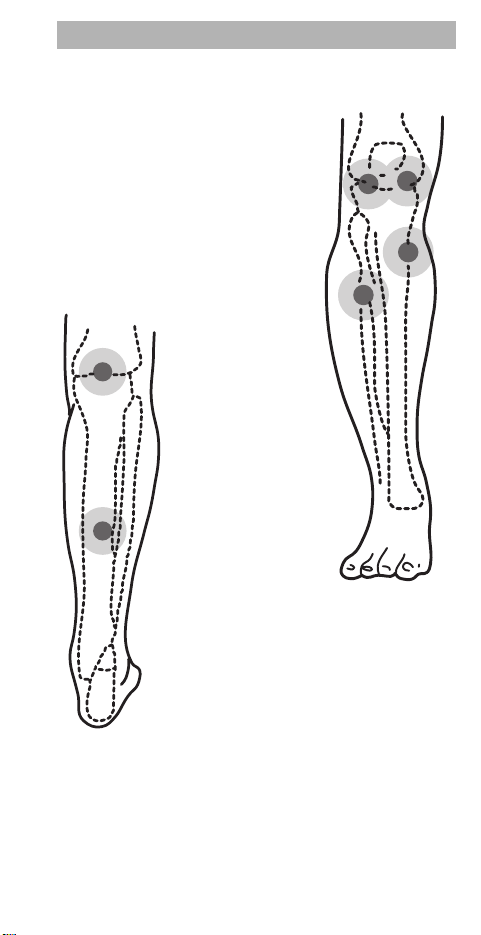

Figure 18: Particularly ef­fective against knee pro­blems (including the shaded areas)
Figure 19
25
Neck problems
Neck problems can be caused by sitting for long periods, a poor body or head posture, over-extended or over-exerted muscles, general over-exertion, or incorrect (e.g. jerky) head movements, arthritis, rheumatism etc.
Try to reduce the discomfort by exciting the points shown in the drawings, either directly or by stroking over them in circular movements.
Test electro-acupuncture
Figure 20
Figure 21
Figure 22: Outside use on both hands in turn
26
Figure 23
Acute pain
In the case of acute pain such as colic or acute sto­mach problems, it is often possible to achieve rapid pain relief with electro-acu­puncture.
Even if you succeed in relie­ving the pain, it is essential to consult your physician about such pains!
Test electro-acupuncture
Figure 24: Can contribute towards psychological stabili­sation
Figures 26: Outside Figures 26 and 27: Particularly effectivepoints
Figure 25: Inside, for sickness and nausea
Figure 27
27

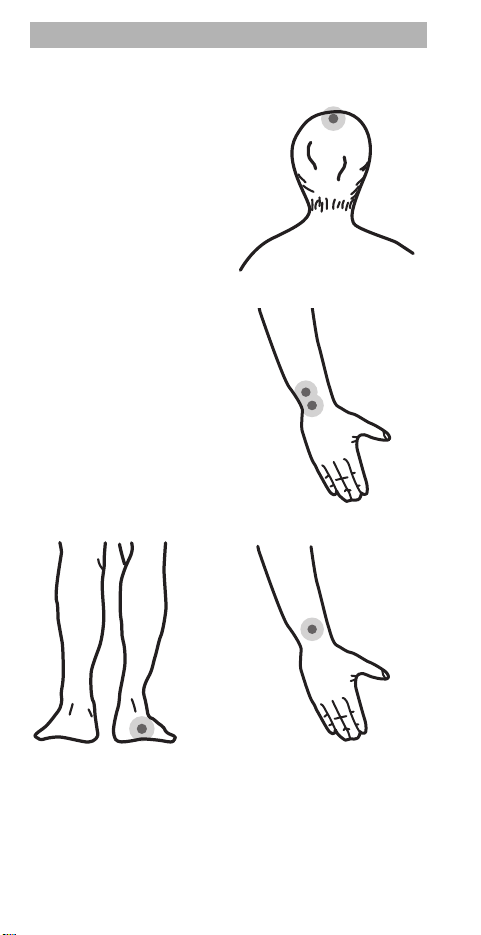

Nervousness
States of nervousness can often be successfully trea­ted by electro-acu­puncture. Significant calming often results after only a single treatment. Permanent harmonisation is often only achievable with just a few treatments.
Test electro-acupuncture
Figure 28
Figure 29: Inside
Figure 30 Figure 31: Inside
28
Gastritis
Heartburn, satiation and strong pain in the stomach can cause gastritis. Chronic gastritis can mani­fest itself in the form of loss of appetite, general fatigue and a feeling of emptiness in the stomach. Electro-acu­puncture can relieve the pain, but not its cause. Gastritis must be treated medically.
Test electro-acupuncture
Figure 32
Figure 33
Figure 34
Figure 35
29
Test electro-acupuncture
Flu
This infectious disease is most­ly transmitted during the cold months via droplet infection (coughing, sneezing). If there is no chill and high fever in the event of a respiratory infec­tion, a mild cold is normally involved.
Always consult a doctor if fever persists!
Figures 38: Outside Figures 38 and 39: Effective points for fever
Figure 36
Figure 37: Inside
30
Figure 39
Bronchial asthma
Electro-acupuncture can be very effective against asth­ma. Even in the case of chronic asthma, reduction of the spasticity is frequent­ly possible with electro-acu­puncture.
Figure 41: Helps the expulsion of tough and stubborn phlegm
Test electro-acupuncture
Figure 40: InsideInside
Figure 42
Figure 43
31
Skin conditions
Electro-acupuncture can be used to treat numerous skin conditions such as acne, herpes, psoriasis and ecze­ma. The treatment is not performed directly on the affected areas, but instead via the meridians of the lungs and of the colon. A change in eating habits is also often necessary.
Test electro-acupuncture
Figure 44: Inside
Figure 45
Figure 46: Outside
32
Figure 47

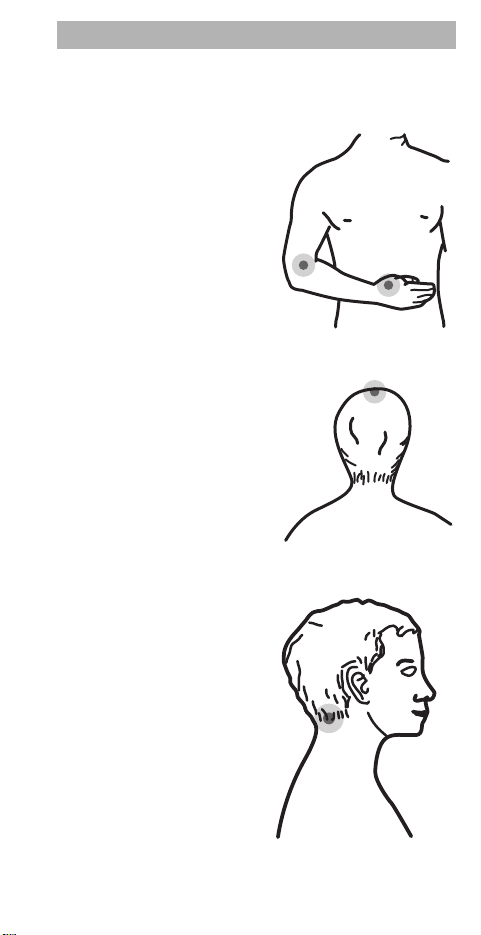

High blood pressure
High blood pressure is not painful — and this is exactly what makes it so insidious and dangerous. Alcohol and smoking or the wrong type of food, stress and an unhealthy lifestyle are parti­cular risk factors.
Blood pressure fluctuations require medical treatment!
Ask your doctor whether you should supplement his treat­ment with electro-acu­puncture.
Test electro-acupuncture
Figure 48: Outside
Figure 49
Figure 50
33
Test electro-acupuncture
Low blood pressure
Symptoms can include cold limbs, a difficulty in concentra­tion, fatigue, dizziness, headaches, flickering eyes etc. Besides vascular training such as brush massage, hot and cold baths and hot and cold showers, sport etc., you can also try to reduce the problems by excitation of the points shown in the drawing, either directly or by stroking over them in circular move­ments.
Blood pressure fluctuations always require medical treat­ment!
Ask your doctor whether you should supplement his treat­ment with electro-acu­puncture.
Figure 51
Figure 52: Inside
34
Figure 53
Test electro-acupuncture

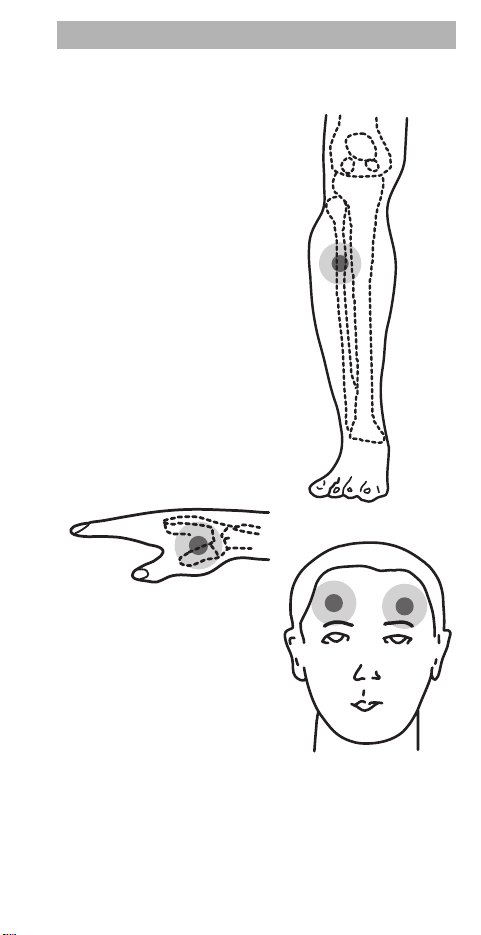

Invigoration and refreshment
Persons who, after a long day, still have to work late, schoolchildren and students working through the night and many others who for some reason suffer from a lack of energy will find the invigora­ting and refreshing effect of electro-acupuncture very useful.
Excite the points shown in the drawings, either directly or by stroking over them in circular movements. For this applicati­on, its is recommended to change between the individu­al points.
Figure 54
Figure 55: Outside Figure 55 and 56: Particularly important points
Figure 56
